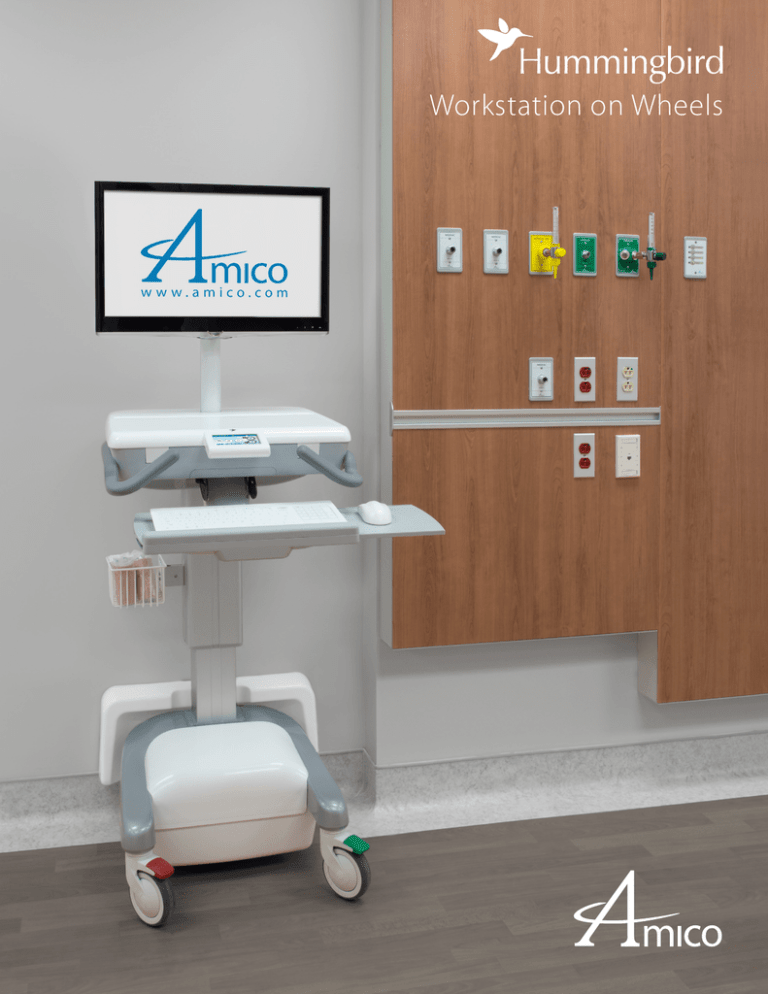

Workstation on Wheels

w w w . a m i c o . c o m

Hummingbird

Computer Workstation on Wheels

LCD, All-In-One or Tablet

Work Surface with Spill Guard

Control Interface

LED Keyboard Light

Battery Storage

Total Lock Caster

1 Amico Accessories Inc.

Directional

Lock Caster

Display Swivel and Height Adjustment

Optional Configurable

Storage Bins

Lockable

PC Compartment

Auxiliary

USB Ports

Mouse and Barcode

Scanner Holders

Accessory

Mounting Rails

Height Adjustable

LED Base Light

Power of Induction

Amico's NEW Hummingbird Workstation on Wheels introduces our industry's first, patented, state of the art induction technology that easily integrates into existing workflows, allowing clinicians more time to focus on their patients and not on the cart.

Inductive Charging Charge While You Work Ergonomic Design

No Cords

No Plugs - Just Undock and Go

No Dead Batteries No Back Strain

Docks are ADA Compliant

www.amico.com

2

Features

Independent 180° Swivel for Display and Portrait/Landscape

6.5" Independent Display

Height Adjustment and Tilt

Organized Cable Management

Standard Control Interface

Lockable PC Compartment (2.6" [6.60 mm])

Work Surface with Spill Guard

Ergonomic Handles Standard Pull Out Keyboard Tray with

Left to Right Sliding Mouse Tray

Auxiliary USB Ports

LED Lights - Keyboard

3 Amico Accessories Inc.

Accessory Mounting Rails (Baskets sold separately) Height Adjustable (Manual or Electric)

Option

Total Lock Caster (red) and

Directional Lock Caster (green)

Option

LED Lights in Base (Power Model only) Laptop Model (up to 17")

Option

Induction Dock LCD Touchscreen Advanced Control Interface

Option Option

Mouse and Barcode Scanner Holders

Integrated RFID Reader

Ergonomic Slide-Out Keyboard Tray Arm

Option

Optional Tablet Mount

Negative and Postive Tilt Pivot Side to Side 180°

Optional Customized Bins

Slide-In and Out and Height Adjustable www.amico.com

4

Advanced Control Interface

• Easy to navigate

• Comes with a graphical user interface

• Resistive touch

• Can be customized with individual cart settings or the same configuration for the entire fleet

• Allow custom user preferences, including sitting and standing preferred positions

Resistive Touch Control Interface

Keypad Features

Peter

07/10/2014 4:50 pm 10h:50m

Settings Notes

Top Middle Bottom

Home Screen

Peter

07/10/2014 4:50 pm 10h:50m

Settings Notes

Top

Middle

Bottom

Lighting Control

Peter

07/10/2014 4:50 pm

SETTINGS

Light Level

OFF

Display Brightness

Volume

USER SETUP

General Settings

MAX

10h:50m

NIGHT

MUTE

OK

Peter

07/10/2014 4:50 pm

USER SETUP

User Name

Your Height

Save

UPDATE PROFILE OK

Save

User Setup

10h:50m

Peter

07/10/2014 4:50 pm

RESET

START/STOP

10h:50m

45

Pulse Timer

OK

Peter

07/10/2014 4:50 pm 10h:50m

Settings

Top

Notes

Middle Bottom

Charging

5 Amico Accessories Inc.

Power System

Amico Power Monitor 401 V1.10

E

LOW

BATTERY

DC

AC

CHARGING

1/4 1/2

02:02

Time to Charge

3/4

F

AC

MODULE

AUTO SHUTDOWN

RECOVERY

ADVANCED EXIT

Main Screen

Advanced Functions

Auto Shutdown

Battery Low

Battery / DC

Recovery

Charging

Wall / AC

E

1/4

02:02

Time to Charge

1/2

3/4

F

Fuel Gauge Level

Temperature °C

Controller

0 10 20

Battery #1

30 40 50 60 70

0 10 20

Battery #2

30 40 50 60 70

0 10 20

Battery #3

30 40 50 60 70

0 10 20 30 40 50 60 70

Battery Type

RB-192A

Current Watts

463

8.0

Battery Power

16.0

12.0

8.0

4.0

0.0

DC Volts

14.7

16.0

0.0

24.0

DC Amps

7.5

32.0

Firmware Version

App 99.14

Output

Load

Battery

GUI Version

401 V1.10

Advanced Screen

System Diagnostics

Event Log

Maintenance Schedule

Data Logger

LED Test

Fan Test

Buzzer Test

EXIT

The Amico Power System (APS) provides advantages beyond traditional power storage systems that is suitable for the various applications of mobile medical carts, including:

• Intelligent charging system controls the battery charge and optimizes power distribution

• Charging based on battery manufacturer’s specifications

• True state of charge display

• Recovery of over-discharged batteries

• Flexible battery chemistry

• AC and DC power available in the CPU compartment

• Isolation when used with the dock

Battery Chemistry

Sealed Lead Acid (SLA)

• Power storage: up to 42 AHr - 504 WHr (over 8 hours of power for typical PC and screen, as tested)

• Life Cycles: 300-700 cycles

• Low initial battery purchase cost

• Battery lifetime of 1-2 years with typical use

• Successful recycle programs

• Fully charges in 5.5 hours

• Thermal runaway protection

Lithium Iron Phosphate (LiFePO4)

• Power storage: 38.4 AHr - 461 WHr (over 12 hours of power for typical PC and screen, as tested)

• Life Cycles: 1000-3000 cycles

• Less expensive over life of cart

• Battery lifetime of 6-10 years with typical use

• Environmentally safe

• Rapidly charges in 2.5 hours

• Expandable up to 57.6 AHr

• Doesn't overheat www.amico.com

6

Any Workflow - No Down Time

One Cart for Many Rooms – Battery Charging in Every Room

20 % 40 % 60 %

80 %

100 %

Nursing Station

One Cart for Many Rooms – Battery Charging in Hallway Alcove One Cart for One Room

100 %

Nursing Station

100 %

7 Amico Accessories Inc.

Hummingbird Models

LCD, All-in-One & Tablet Laptop

Powered with Induction Charging

• Lithium/SLA battery

• Induction charging

• LCD/Tablet compatible

• Accessories available

Powered with Plug-In-Only

• Lithium/SLA battery

• Plugs in to charge

• LCD/Tablet compatible

• Accessories available

No Power Storage with Induction Charging

• No battery

• Induction charging for computer or tablet

• LCD/Tablet compatible

• Accessories available

Non-Powered Plug-In-Only

• No power storage (no battery)

• No induction charging

• Compatible with tablet or devices with internal battery

• Accessories available

*Meet the Hummingbird Hover on page 9

Powered with Induction Charging

• Lithium/SLA battery

• Induction charging

• Laptop compatible

• Accessories available

Powered with Plug-In-Only

• Lithium/SLA battery

• Plugs in to charge

• Laptop compatible

• Accessories available

No Power Storage with Induction Charging

• No battery

• Induction charging for laptop

• Laptop compatible

• Accessories available

Non-Powered Plug-In-Only

• No power storage (no battery)

• No induction charging

• Compatible with laptop or devices with internal battery

• Accessories available www.amico.com

8

Amico Hover

Hummingbird Powered Solutions

Hummingbird CTM Cart Customizable Solutions

9 Amico Accessories Inc.

Hummingbird Non-Powered Solutions

Roll Stand Solutions

www.amico.com

10

SmartDrawer System

Med Dispensing Solution

• Consists of a SmartDrawer Cabinet attached to a mobile workstation, enabling movement to the point of care

• Multiple sizes and configurations available

• Increases safety and supports best practices

• Supports workflow with automated dispensing or cart fill

• 16 lbs weight capacity (6 drawer system)

• Aluminum shell construction

• Durable plastic bins

• Individual bin locking system

• Slam shut drawers

• Sophisticated audit tracking

Automated Dispensing Cabinet Workflow (ADU)

Px

Patient Room 6

Patient Room 5

Px

Patient Room 7

Px

Nursing Station

Automated

Dispensing

Unit

Px

Patient Room 4

Px

Patient Room 3

Px

Patient Room 2

Px

Patient Room 1

SmartDrawer Advantages

• Individually control drawers

• Centrally manage users and permissions

• Pull vs push architecture

• Compatible in thick and thin environments

• Optional transfer carts to support alternate workflows

• Intuitive Graphical User Interface

11 Amico Accessories Inc.

• Audible and visual alerts

• Integration with Microsoft AD

• HIS platform integration

• Easy service design

• Software design is upgradable

SmartDrawer System

Software Access

Easy Login

Promote accountability by easily logging into the SmartDrawer system with the scan of the user's ID badge or through Microsoft Active Directory.

• Increase safety

• Promote accountability

• Tools to enforce best practices

1. Barcode Scan 2. SmartDrawer Software 3. SmartDrawer

Side Open

Scan Patient ID Unlock Drawer

Front Open

Open Drawer

3" h

5 1/2" w

Six - 5" w Bins

12" d

3" h

11" w

Three - 5 1/2" w Bins

Two - 16 1/2 w Bins

Nine - 5 1/2" w Bins

Four - 5 1/2" w Bins w/ One - 11" w Drawer

Eight - 5 1/2" w Bins

12" d

Six - 5 1/2" w Bins w/One - 16 1/2 w Drawer

Twelve - 5 1/2" w Bins

3" h

5 1/2" w

6 1/2" d

3" h

16 1/2" w

One - 3" h Bin

One - 6" h Bin

6 1/2" d

Side Open vs. Front Open

The SmartDrawer system offers both front open and side open options. While both provide similar function, the side open has a few workflow advantages:

Side Open Advantages:

• Provides access to the drawers with the keyboard tray out

• Supports proper E-MAR workflow

• Allows for use of full length bins www.amico.com

12

Mounting Accessories

The Perch - Accessory Bar

Provides your clinicians with a convenient mounting location for those critically needed items.

The Perch allows the monitor to move up and down, turn portrait and landscape, and pivot out of the way to provide a clear view when on the move.

Available for your Configuration

• Sharps Holder

• Barcode Holder

• Barcode Dock Holder

• Thermal Printer Holder

• IV Hook

• Sanitizer Holder

• Glove Box Holder

• Telehealth Camera Mount

• Dictation Microphone Mount

• Wire Baskets

• Cup Holder

• Disinfectant Wipes Holder

• Pocket Diagnostic Storage

Vital Signs Monitor Mount

• Monitor mount for Vital Signs monitor

Part Number:

WOW-SSM-25X

Storage Baskets

White wire basket: 10" w x 10" d x 4" h

• (25.4 cm x 25.4 cm x 10.16 cm)

• Part No: 101004-V-BB

White wire basket : 10" w x 6" d x 9" h

• (25.4 cm x 15.24 cm x 22.86 cm)

• Part No: 100609-V-BB

BP cuff basket: 13" w x 9" d x 7" h

• (33.02 cm x 22.86 cm x 17.78 cm)

• Part No: CUFBASK-V

All baskets can be sterilized

Wrist Rest

• Antimicrobial, comfort wrist rest

• Virox friendly

Mouse Pad

• Wipeable, self adhering

• Non-reflective surface ideal for optical mice

13 Amico Accessories Inc.

LCD Handle

• Ergonomic handles can be added to any Amico LCD mount

• Knuckle guard protects walls and user’s hands

Lockable

Storage Bins

• Optional storage bins with various locking options

Keyboard & Mouse

• Antimicrobial

• Washable and waterproof

Surface Label

• Personalize your work surface

Configure Your Hummingbird

What devices are you looking to mount on this cart?

LCD Monitor Tablet Laptop

What type of lifting mechanism would you like?

Pneumatic (Manual) Powered (Electric)

What kind of power configuration would you like?

Powered with Induction Powered with Plug-In-Only Non-Powered

What battery system would you like (for Powered carts only)?

No Battery One LiFePO4 battery Two LiFePO4 batteries Three LiFePO4 batteries One SLA battery

What kind of control interface would you like?

Standard - Capacitive Switch Advanced - LCD Touch Screen

Do you need a reset power switch to cold boot the CPU?

Reset Button No Reset Button

What power type is required for your CPU, display and other devices ?

AC (Standard) Both AC & DC

Do you need a keyboard tray and what kind?

Standard - Sliding Ergonomic -Sliding with Adjustments

Do you need storage added to you cart?

None Storage Baskets Lockable Storage Bins SmartDrawers

List any additional accessories you need included:

Check Out More of Our Product Brochures!

Healthcare Information Technology

Mounting Solutions

Patient Monitor

Mounting Solutions www.amico.com

14

The

POWER

of

INDUCTION

Amico Accessories Inc. | 85 Fulton Way, Richmond Hill, ON L4B 2N4, Canada

Toll Free Tel: 1.877.264.2697 | Tel: 905.763.7778 | Fax: 905.763.8587

Email: [email protected] | www.amico.com

AA-BR-HUMMINGBIRD 03.14.2017

Represented By:

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
