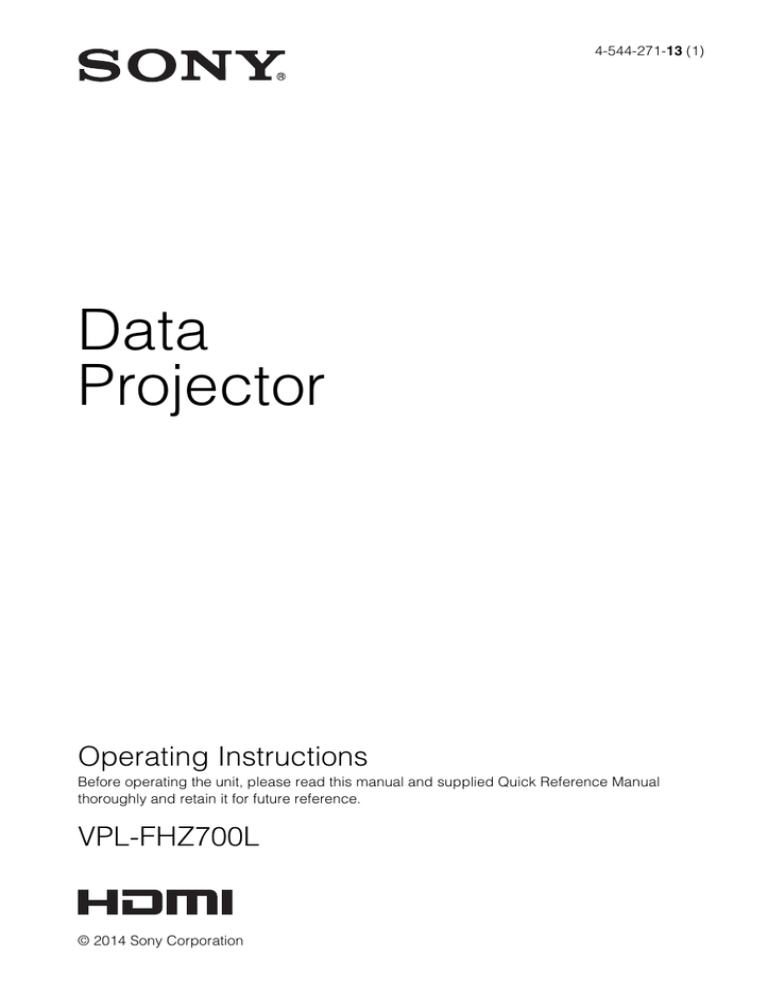

4-544-271-13 (1)

Data

Projector

Operating Instructions

Before operating the unit, please read this manual and supplied Quick Reference Manual thoroughly and retain it for future reference.

VPL-FHZ700L

© 2014 Sony Corporation

Table of Contents

Overview

Location and Function of Controls .... 3

Main Unit ..................................... 3

Terminals ...................................... 4

Remote Commander and Control

Panel .......................................... 5

Preparation

Connecting the Projector ................... 8

Connecting a Computer ................ 8

Connecting Video Equipment ...... 9

Connecting an External

Monitor ................................... 11

Connecting to HDBaseT™ equipment ................................ 11

The Information Menu .....................35

Network

Using Network Features ...................36

Displaying the Control Window of the Projector with a Web

Browser ...................................36

Confirming the Information regarding the Projector ............37

Operating the Projector from a

Computer .................................37

Using the e-mail report

Function ...................................37

Projecting/Adjusting an


Projecting an Image ......................... 14

Adjusting the Focus, Size, and

Position of the Projected image ....................................... 15

Turning Off the Power ................ 19

Others

Indicators ..........................................39

Messages List ...................................40

Troubleshooting ................................41

Cleaning the Air Filter ......................43

Installing the Optional Adaptor ........45

Specifications ...................................46

Projection Distance and Lens Shift

Range ............................................53

Dimensions .......................................57

Index .................................................61

Adjustments and Settings

Using a Menu

Using a MENU ................................ 21

The Picture Menu ............................. 22

The Screen Menu ............................. 24

The Function Menu .......................... 27

The Operation Menu ........................ 28

The Connection/Power Menu .......... 29

The Installation Menu ...................... 32

2

Table of Contents

B Overview

Location and Function of Controls

Main Unit

5 8 qa 6 7 1 2 qd 9 0

a Lens (not supplied) (page 47)

b Front panel

c Air filter cover (page 43)

d Ventilation holes (intake) e Ventilation holes (exhaust)

Caution

Do not place anything near the ventilation holes as this may cause internal heat buildup. Do not place your hand near the ventilation holes (exhaust) and the circumference as this may cause injury.

f ON/STANDBY indicator

(page 39)

g WARNING indicator (page 39)

h Control panel (page 5)

i Terminals (page 4)

j Optional adaptor slot (page 45)

Install an optional adaptor (not supplied).

k Remote control receiver

The remote control receivers are located at the front and rear of the projector.

l Rear feet (adjustable) (page 16)

m Antitheft lock

Connects to an optional antitheft cable manufactured by Kensington.

For details, visit the Kensington’s web site.

http://www.kensington.com/ n Antitheft bar

Connects to a commercially available antitheft chain or wire.

Location and Function of Controls

3

Terminals

6 7

S VIDEO IN VIDEO IN

LAN RS-232C

CONTROL S

IN OUT

PLUG INPOWER qd q; 9 qa qs

Input (page 8)

a INPUT A

Video: RGB/YP

B

P

R

input terminal

(RGB HD VD/YP

B

P

R

) b INPUT B

Video: RGB input terminal (RGB) c INPUT C

Video: DVI-D input terminal (DVI-D) d INPUT D

Video: HDMI input terminal (HDMI) e INPUT E

Video: Optional adaptor slot* f S VIDEO (S VIDEO IN)

Video: S video input terminal g VIDEO (VIDEO IN)

Video: Video input terminal

Note

* Regarding attachable optional adaptor, consult with qualified Sony personnel.

Output (page 11)

h OUTPUT

Video: Monitor output terminal

(MONITOR)

Note

This terminal outputs the image. Output as a computer signal input from the RGB input terminal (INPUT A, INPUT B) or a video

4

Location and Function of Controls

2 3 4

INPUT A

INPUT B RGB INPUT C DVI-D

INPUT D HDMI

R/P

R

G/Y B/P

B

HD VD OUTPUT

MONITOR

INPUT E

1 5 8 signal input from the YP

B

P

R

input terminal

(INPUT A).

Others

i RS-232C terminal

RS-232C compatible control terminal

j LAN terminal (page 36)

k CONTROL S input terminal (DC

power supply) (CONTROL S IN

PLUG IN POWER)

Connects to the CONTROL S output terminal on the supplied Remote

Commander with a connecting cable

(stereo mini plug (not supplied)) when using it as a wired Remote Commander.

You do not need to install batteries in the

Remote Commander, as the power is supplied from this terminal.

l CONTROL S output terminal

(CONTROL S OUT)

For coupling control of multiple projectors with the wired Remote

Commander.

m AC IN (-) socket

Connects the supplied AC power cord.

Remote Commander and Control Panel

Remote Commander

b Selecting an input signal

(page 14)

INPUT key (main unit)

Direct input select keys (Remote

Commander)

The F key is not provided in this projector.

Control Panel

3

ENTER MENU INPUT

SHIFT ZOOM FOCUS

ECO

MODE

4

2 1

6 a Turning on the power/Going to

standby

? (On) key

1 (Standby) key

c Operating a menu (page 21)

ENTER /

V/v/B/b (arrow) keys

MENU key

RETURN key

RESET key

d Adjusting the image (page 15)

FOCUS key

Use this key when attaching the power focus lens.

ZOOM key

Use this key when attaching the power zoom lens.

LENS SHIFT/SHIFT key

ASPECT key (pages 24, 26)

Changes the aspect ratio of the projected image.

KEYSTONE key (page 16)

PATTERN key (page 16)

APA (Auto Pixel Alignment) key

*

Automatically adjusts a picture to its clearest while a signal is input from a computer. You can cancel the adjustment by pressing the APA key again while adjusting.

Note

*

Use this key when inputting a computer signal via the RGB input terminal

(INPUT A, INPUT B).

e Using various functions during

projecting

D ZOOM (Digital Zoom) +/– key

*1

Enlarges a portion of the image while projecting.

1 Press the D ZOOM + key to display the digital zoom icon on the projected image.

Location and Function of Controls

5

2 Press the V/v/B/b keys to move the digital zoom icon to the point on the image you wish to enlarge.

3 Press the D ZOOM + key or the D

ZOOM – key repeatedly to change the enlargement ratio. The image can be enlarged up to 4 times.

Press the RESET key to restore the previous image.

TWIN (Twin Picture) key

You can project the images from two input signals on the screen as a main picture and subpicture at the same time.

To switch between one and two pictures, press the TWIN key on the Remote

Commander.

One picture display

TWIN key

Two pictures display

(A) Main picture (B) Subpicture

You can select the image to project to the main picture.

The subpicture is preset to display the image from INPUT B.

For details on combinations of input signals, see “Combinations of Input

Signals” on page 52.

Notes

• When displaying two pictures, the ? (On) key, 1 (standby) key, INPUT key, and

BLANK key are available.

• When “Screen Aspect” (page 33) is set

to “4:3,” the two picture function is not available.

• When displaying two pictures, the input signal icon does not appear in the

input select window (page 14).

6

Location and Function of Controls

• Picture settings set for one picture may not be reflected as two pictures.

BLANK key

Cuts off the image. Press again to restore the image.

MUTING key

This function is not provided in this projector.

VOLUME +/– key

This function is not provided in this projector.

FREEZE key

*2

Pauses a projected image. Press again to restore the image.

Notes

*1: Use this key when inputting a computer signal. But it may not be enabled, depending on the resolution of the input signal and when displaying two pictures.

*2: Use this key when inputting a computer signal.

f Setting the energy–saving mode

easily

ECO MODE key

Energy-saving mode can be set easily.

Energy-saving mode consists of “Light

Output Mode,” “Constant Brightness,”

“With No Input,” “With Static Signal” and “Standby Mode.”

1 Press the ECO MODE key to display the ECO Mode menu.

ECO Mode Menu

ECO Mode

ECO

User

Sel Back

2 Press the

V/v key or ECO MODE key to select ECO or User mode.

ECO: Sets each mode to the optimum energy-saving value.

Light Output Mode: Standard

Constant Brightness: On

With No Input: Standby

With Static Signal: Light

Dimming

Standby Mode: Low

(go to step 6)

User: Sets each item of the energysaving mode menu as you desire

(go to step 3).

3 Select “User” then press the b key.

The setting items appear.

User

Light Output Mode Standard

Constant Brightness Off

Auto Power Saving

With No Input Off

With Static Signal Light Dimming

Standby Mode Standard

Sel Set Back

4 Press the

V/v key to select the ECO

Mode item then press the b key or the

ENTER key.

5 Press the V/v key to select the setting value.

6 Press the RETURN key to restore the previous image.

For details on ECO Mode settings, see

“Light Output Mode”, “With No Input”,

“With Static Signal” and “Standby

Mode” on the Connection/Power menu

(page 29).

Others

g Infrared transmitter

h ID MODE 1/2/3/4 switch

(page 28)

Sets an ID mode of the Remote

Commander. If you assign a different ID number to each projector when multiple projectors are used, you can control only the projector with the same ID mode as that of the Remote Commander.

i CONTROL S output terminal

Connects to the CONTROL S input terminal on the projector with a connecting cable (stereo mini plug (not supplied)) when using the Remote

Commander as a wired one.

You do not need to install batteries in the

Remote Commander, as the power is supplied from the projector.

About Remote Commander operation

• Direct the Remote Commander toward the remote control receiver.

• The shorter the distance between the

Remote Commander and the projector is, the wider the angle within which the

Remote Commander can control the projector becomes.

• If there is any obstruction between the

Remote Commander and the remote control receiver on the projector, the projector may not be able to receive signals from the Remote Commander.

Location and Function of Controls

7

B Preparation

Connecting the Projector

Notes

• Turn off all equipment before making any connections.

• Use the proper cables for each connection.

• Insert the cable plugs firmly; Loose connections may reduce performance of picture signals or cause a malfunction. When pulling out a cable, be sure to grip it by the plug, not the cable itself.

• For more information, refer also to the instruction manuals of the equipment you are connecting.

Connecting a Computer

Connection with a computer is explained for each input signal.

INPUT A

For connection when there is a long distance between a computer and the projector.

RGB output terminal

Mini D-sub 15-pin – BNC cable

(not supplied)

Computer

INPUT B

For connecting a computer with an RGB output terminal.

RGB output terminal

Mini D-sub 15-pin cable (not supplied)

Computer

Note

It is recommended that you set the resolution of your computer to 1920 × 1200 pixels for the external monitor.

8

Connecting the Projector

INPUT C

For connecting a computer with a DVI-D output terminal.

DVI-D output terminal

DVI-D cable

(not supplied)

INPUT C DVI-D

Computer

INPUT D

For connecting a computer with an HDMI output terminal.

HDMI output terminal

HDMI cable

(not supplied)

Computer

Notes

• The HDMI terminal of this projector is not compatible with DSD (Direct Stream Digital) Signal or CEC (Consumer Electronics Control) Signal.

• Be sure to use the HDMI cable with an HDMI logo.

Connecting Video Equipment

Connections with a VHS videocassette recorder, DVD player, or BD player are explained for each input signal.

S VIDEO IN

For connecting video equipment with an S-video output terminal.

Video equipment

S video output terminal

S video cable (not supplied)

Connecting the Projector

9

VIDEO IN

For connecting video equipment with a video output terminal.

Video equipment

Video output terminal

Video – BNC cable

(not supplied)

INPUT A

For connection when there is a long distance between the video equipment and projector.

YP

B

P

R

output terminal

Component – BNC cable (not supplied)

Video equipment

INPUT D

For connecting video equipment with an HDMI output terminal.

HDMI output terminal

HDMI cable

(not supplied)

Video equipment

Notes

• The HDMI terminal of this projector is not compatible with DSD (Direct Stream Digital) Signal or CEC (Consumer Electronics Control) Signal.

• Be sure to use the HDMI cable with an HDMI logo.

10

Connecting the Projector

To fix the HDMI cable

Fix the cable to the cable tie holder at the bottom of the projector, using a commercially available cable tie, as in the illustration.

Use a cable tie of less than 1.9 mm × 3.8 mm in thickness.

Bottom of the projector

Cable tie

(commercially available)

Cable tie holder

Connecting an External Monitor

OUTPUT

Projected images can be output to display equipment such as a monitor.

Display equipment

RGB input terminal

Mini D-sub 15-pin cable

(not supplied)

Note

This terminal outputs the image. Output as a computer signal input from the RGB input terminal

(INPUT A, INPUT B) or a video signal input from the YP

B

P

R

input terminal (INPUT A).

Connecting to HDBaseT™ equipment

• You can connect HDBaseT equipment by attaching the Digital Interface Adaptor BKM-PJ10

(not supplied).

• When the Digital Interface Adaptor BKM-PJ10 (not supplied) is attached to the main unit, image transmission to the main unit, LAN communication, and RS-232C control are enabled with the commercially available HDBaseT transmitter. Not compatible with voice communication and power connection.

Connecting the Projector

11

• Use a straight LAN cable (commercially-available) with a shield of CAT5e or CAT6 to connect the main unit and HDBaseT equipment.

Connecting to the computer

INPUT E

HDBaseT transmitter

HDMI output terminal

HDMI cable (not supplied)

Computer

Connecting to video equipment

INPUT E

HDMI output terminal

HDBaseT transmitter

HDMI cable (not supplied)

Video equipment

Note

Connect HDBaseT transmitter and the main unit directly without a hub or router.

12

Connecting the Projector

Connecting to network equipment

LAN terminal

Computer

Wired connection

LAN cable (straight type)

(not supplied)

Tablet PC/Smartphone

Hub, Wireless router

Computer

Wireless connection

HDBaseT transmitter

Note

When using network features, be sure to check if “LAN Setting” is set to “via HDBaseT” (page 29).

Connecting the Projector

13

B Projecting/Adjusting an Image

Projecting an Image

The size of a projected image depends on the distance between the projector and screen. Install the projector so that the projected image fits the screen size. For details on projection distances

and projected image sizes, see

“Projection Distance and Lens Shift Range” (page 53)

.

5

Input select window

4

6

Computer

2

Video equipment

3

5

1

Plug the AC power cord into a wall outlet.

2

Connect all equipment to the projector

(page 8).

3

Turn on the projector.

Press the ?/1 key on the main unit or the

? key on the Remote Commander.

4

Turn on the connected equipment.

5

Select the input source.

Press the INPUT key on the projector to display the input select window. Press the INPUT key repeatedly or the V/v key to select an image to be projected.

The signal icon appears on the right side in the input select window when a signal is input.

1

Projector

Wall outlet

You can select the input source using

Direct input select keys on the Remote

Commander (page 5)

.

6

Switch your computer to output to external display by changing your computer’s setting.

How to switch the computer to output to the projector varies, depending on the type of computer.

(Example)

+

7

Adjust the focus, size, and position of

the projected image (page 15).

14

Projecting an Image

Adjusting the Focus, Size, and Position of the Projected image

Focus Size (Zoom) Position (Lens shift)

When attaching the Electric focus lens

Press the FOCUS key on the projector or the Remote

Commander then press the

B/ bkey (or V/v key) to adjust the focus.

When attaching the Manual focus lens

Turn the Focus Ring to adjust the focus.

When attaching the Electric zoom lens

Press the ZOOM key on the projector or the Remote

Commander then press the

B/ bkey (or V/v key) to adjust the size.

When attaching the Manual zoom lens

Turn the Zoom Ring to adjust the size.

Press the LENS SHIFT/SHIFT key on the projector or the

Remote Commander then press the V/v/B/b key to adjust the position.

To return the lens to the center position of the projected image

Press the RESET key on the

Remote Commander while adjusting.

Projecting an Image

15

Adjusting the tilt of the projector with the rear feet (adjustable)

When the projector is installed on an uneven surface, you can adjust using the rear feet

(adjustable). To correct any trapezoidal distortion of the projected image, use the

Keystone correction feature (pages 16, 32).

You can also broaden the adjustment range by removing the nuts from the rear feet

(adjustable).

If the projected image is trapezoidally-distorted in the vertical plane

1

Press the KEYSTONE key on the

Remote Commander once or select “V

Keystone” in the Installation menu to display the adjustment menu.

2

Adjust the value using

V/v/B/b.

The higher the setting, the narrower the top of the projected image. The lower the setting, the narrower the bottom of the projected image.

Increase setting

Notes

• Be careful not to let the projector down on your fingers.

• Do not push hard on the top of the projector with the rear feet (adjustable) extended. It may cause a malfunction.

• Keystone adjustment is an electronic correction. Consequently the image quality may deteriorate.

Displaying a pattern for adjusting an image

You can display a pattern for adjusting the projected image with the PATTERN key on the Remote Commander. Press the

PATTERN key again to restore the previous image.

Correcting for trapezoidal distortion of the projected image

(Keystone adjustment)

If the screen is tilted, or you are projecting from an oblique angle, perform keystone adjustment.

Decrease setting

Press the RESET key to restore the projected image before adjustment.

If the projected image is trapezoidally-distorted in the lateral plane

1

Press the KEYSTONE key on the

Remote Commander twice, or select

“H Keystone” in the Installation menu to display the adjustment menu.

2

Adjust the value using V/v/B/b.

The higher the setting, the narrower the right side of the projected image. The lower the setting, the narrower the left side of the projected image.

16

Projecting an Image

Increase the setting

Selecting the corner(s) of the image to be corrected

1

Move x using V/v/B/b to select the corner you want to correct.

2

Press the ENTER key.

The cursor appears.

Decrease setting

Press the RESET key to restore the projected image before adjustment.

Notes

• Keystone adjustment is an electronic correction. Consequently the image quality may deteriorate.

• Depending on the position adjusted with the lens shift feature, using the Keystone feature may change the aspect ratio of the original image, or the projected image may be distorted.

• If keystone correction is performed using the

KEYSTONE key, the Warp correction feature (if enabled) will be canceled.

Correcting image twist (Warp correction feature)

You can correct image twist with the warp correction feature.

1

Press the KEYSTONE key on the

Remote Commander three times, or select “Warping” in the Installation menu, then select “Adjust.”

The guide is displayed.

Adjust using this cursor

3

Adjust the position of the corner you want to correct, using

V/v/B/b.

Press the RESET key to restore the projected image before adjustment.

Correcting deflection 1 – left/right

sides of the image

1

Move x using V/v/B/b to select the side you want to correct.

2

Press the ENTER key.

The cursor appears.

Projecting an Image

17

Adjust using this cursor

3

You can adjust the deflection of the side, using V/v/B/b.

You can adjust the center point of deflection using V/v. For the range of deflection, use B/b. You can adjust the left/right side independently.

Adjust using this cursor

3

You can adjust the deflection of the side, using V/v/B/b.

You can adjust the center point of deflection using B/b. For the range of deflection, use V/v. You can adjust the top/bottom independently.

Press the RESET key to restore the projected image before adjustment.

Correcting deflection 2 – top/bottom

sides of the image

1

Move x using V/v/B/b to select the side you want to correct.

Press the RESET key to restore the projected image before adjustment.

Setting the blending function to project from multiple projectors

1

Install the projectors.

Input a pattern, etc., to adjust the projected positions from multiple projectors.

Set a different ID mode for each

projector (page 28).

2

Press the ENTER key.

The cursor appears.

18

Projecting an Image

2

Enable the Edge Blending function.

Display the main menu to set “Edge

Blending” to “On” in the Installation menu.

3

Set the position of blending.

Choose the position (top/bottom/left/ right) for blending.

4

Assign the blending width.

Set the blending width according to the overlapping range for the source signal.

Assign the position and width here.

5

Adjust using “Zone Black Level Adj.”

Adjust each correction zone by “Zone

Black Level Adj.” for the most uniform black level between each zone.

During this adjustment, a black image is automatically projected.

6

Set “Blend Gamma.”

Select the gamma mode in which the overlapping of images is least noticeable.

Notes

• The procedure shown above is for general guidance. Your own installation may vary according to the situation.

• In case of multiple projectors, use the color

matching function (page 34) to adjust for

differences in color and brightness.

Note that more detailed adjustment for Edge

Blending is possible using a PC application.

For more details, consult with qualified Sony personnel.

• When multiple projectors are set up in a line, the temperature inside the projectors may increase due to exhaust vent proximity, and an error indication may result.

In this case, space the projectors farther apart and/or install deflection partitioning between them.

For more details, consult with qualified Sony personnel.

Turning Off the Power

1

Press the ?/1 key on the main unit or the 1 key on the Remote Commander.

The projector starts shutdown and turns off. If you press the ?/1 key on the main unit or the ? key on the Remote

Commander within 5 seconds again, shutdown is cancelled.

2

Unplug the AC power cord from the wall outlet.

To turn off without displaying confirmation message

Press and hold the ?/1 key on the main unit

for a few seconds (page 40).

Blend Gamma correction

Projecting an Image

19

ECO gauge

This gauge indicates the current effectiveness of the projector’s ECO function. (For details on the ECO function,

see “ECO MODE key” (page 6) and “ECO”

(page 29).)

The leaf icons are displayed when the projector is shut down. The number of displayed icons varies according to how much energy is saved as a result of using the

ECO function.

ECO gauge

20

Projecting an Image

B Adjustments and Settings Using a Menu

Using a MENU

Note

The menu displays used for the explanation below may be different depending on the model you are using.

1

Press the MENU key to display the menu.

To return to the selection screen of the setting items, press the

B key or the

RETURN key. Also, to reset the setting value of an item to its factory preset value, press the RESET key during setting or adjusting.

Using a pop-up menu

Press the

V/v/B/b key to select an item.

Press the ENTER key to register the setting. The previous screen is restored.

Selecting items

2

Select the setting menu.

Use the V or v key to select the setting menu, then press b or ENTER key .

Setting menu

On

Off


Picture Mode Standard

Reset

Contrast 80

Brightness 50

Color 50

Hue 50

Color Temp. Middle

Sharpness 50

Expert Setting

Sel Set Back

3

Select the setting item.

Use the V or v key to select the setting menu, then press b or ENTER key .

To return to the selection screen of the setting menu, press the B key or the

RETURN key.

Setting items


Picture Mode

Reset

Standard

Contrast 80

Brightness 50

Color 50

Hue 50

Color Temp. Middle

Sharpness 50

Expert Setting

Using the setting menu

Press the V or v key to select the item.

Press the ENTER key to register the setting. The previous screen is restored.

Picture Mode

Dynamic

Standard

Presentation

Sel Back

Using the adjustment menu

To increase the number, press the V or b key and to decrease the number, press the v or B key. Press the ENTER key to register the setting. The previous screen is restored.

Contrast

80

Min

Adjust

Max

Back

5

Press the MENU key to clear the menu.

The menu disappears automatically if no key is pressed for a while.

Sel Set Back

4

Make the setting or adjustment for the selected item.

Menu operation differs depending on the setting item. If the next menu window is displayed, select the item according to the operations in step 3 and then press the ENTER key to register the setting.

Using a MENU

21

The Picture Menu

For adjusting the picture for each input signal.

Setting items

Picture Mode

Reset

Contrast

Brightness

Description

Dynamic: Emphasizes the contrast to produce a “dynamic” picture.

Standard: Makes the picture be natural and well balanced.

Presentation: Makes the picture bright to suit for a presentation.

The picture settings are initialized to their factory preset values.

However, “Picture Mode” and “Custom1,” “Custom2,” and “Custom3” of

“Color Temp.” do not return to the factory preset values.

The higher the setting, the greater the contrast. The lower the setting, the lower the contrast.

The higher the setting, the brighter the picture. The lower the setting, the darker the picture.

Color

Hue

*1 *3

*1 *3 *4

Color Temp.

Sharpness

*2

The higher the setting, the greater the intensity. The lower the setting, the lower the intensity.

The higher the setting, the more greenish the picture becomes. The lower the setting, the more reddish the picture becomes.

High/Middle/Low: The higher the temperature, the more bluish the picture.

The lower the temperature, the more reddish the picture.

Custom1/ Custom2/ Custom3: An adjusted color temperature setting can be stored for each item.

The factory settings are Custom1: High, Custom2: Middle, Custom3: Low.

The higher the setting, the sharper the picture. The lower the setting, the softer the picture.

Expert Setting

Film

Mode

*1 *5

Auto: Precisely reproduces the image from a film source to suit the original film source. Normally, select this option.

Off: Select this option if the images are rough around the edges when “Auto” is selected.

Black Level

Adj.

(Adjust)

*1

Gamma

Mode

High/Low/Off: Emphasizes dark portions of the projected image to suit your taste.

Graphics1: Improves the correction of halftones to give a brighter image. This can be useful when projecting colored images, such as photos, in a bright location.

Graphics2: Improves the reproduction of halftones. This reproduces colored images, such as photos, in more natural tones.

Text: Contrasts black and white. Suitable for images that contain lots of text.

DICOM GSDF Sim.

*6

: Gamma setting is in accordance with the Grayscale

Standard Display Function (GSDF) of the Digital Imaging and

Communications in Medicine (DICOM) standards.

Notes

*1: When a video signal is input, this option is available.

*2: When “Picture Mode” is set to the item other than “Presentation,” this option is available.

*3: When a B & W signal is input, this option is not available.

*4: When an analog TV signal is input, this option may not available, depending on the color system.

22

The Picture Menu

*5: When a progressive signal is input, this option is not available.

*6: Available when a computer signal is input from the DVI-D input terminal (INPUT C), HDMI input terminal (INPUT D), or optional adaptor (INPUT E). This projector is not to be used as a device for medical diagnosis.

The Picture Menu

23

The Screen Menu

For adjusting the size, position, and aspect ratio of the projected image for each input signal.

Setting items

Aspect

*1

When the computer signal is input

Description

Changes the aspect ratio of the projected image (page 26).

Full1: Displays the image to fit the maximum projected image size without changing the aspect ratio of the input signal.

Full2: Displays the image to fit the maximum projected image size.

Normal: Displays the image on the center point of the projected image without changing the resolution of the input signal or enlarging the image.

When the video signal is input

V Center

*2 *3

4:3: Displays the image to fit the maximum projected image size with an aspect ratio fixed to 4:3.

16:9: Displays the image to fit the maximum projected image size with an aspect ratio fixed to 16:9.

Full: Displays the image to fit the maximum projected image size.

Zoom: Display the center point of the projected image to zoom.

Adjust the whole projected image by moving up and down on the screen.

As the selected number increases, the screen moves up, and as the selected number decreases, the projected image moves down.

Vertical Size

*2 *3

Over Scan

*2

Reduces or enlarges the image vertically.

The projected image is enlarged as the setting increases and reduced as the setting decreases. If the subtitle of a movie, etc. cannot be seen, use this together with “V Center.”

On/Off: Hides the outline of the image when set to “On.” Select “On” if noise appears along the edge of the image.

Adjust Signal

*6

Adjusts the image of a computer signal. Use this item if the edge of the image is cut and reception is bad.

APA

*4 *5

Automatically adjusts the projected image to an optimum quality when you press the ENTER key.

Phase

*4

Pitch

*4

Adjusts the dot phase of the display pixel and the input signal. Set to the value where looks clearest.

The higher the setting, the wider the horizontal image elements (pitch). The lower the setting, the narrower the horizontal image elements (pitch).

Shift

*6

H: The higher the setting, the farther right the image is projected on the screen. The lower the setting, the image farther left.

V: The higher the setting, the farther up the image is projected on the screen.

The lower the setting, the image farther down.

Notes

*1: • Note that if the projector is used for profit or for public viewing, modifying the original picture by switching to the aspect mode may constitute an infringement of the rights of authors or producers, which are legally protected.

• Depending on the input signal, setting items for aspect ratio or some other setting items cannot be set in some cases, or changing the aspect ratio setting may have no effect.

• A part of the image may be displayed in black, depending on the setting item.

*2: Available when a video signal is input from the YP

B

P

R

input terminal (INPUT A), DVI-D input terminal, HDMI input terminal, and optional adaptor.

24

The Screen Menu

*3: Available when “Aspect” is “Zoom” and “Screen Aspect” is 16:10 or 16:9.

*4: Available when a computer signal is input from the RGB input terminal (INPUT A, INPUT B).

*5: If the projected image includes a large amount of black portion around it, the APA function will not work properly and a part of the image may not be displayed on the screen. In addition, an optimum image cannot be obtained, depending on the type of input signal. In this case, adjust the “Phase,” “Pitch,” and “Shift” items manually.

*6: Available when a computer signal is input from the RGB input terminal (INPUT A, INPUT B) or a video signal is input from the YP

B

P

R

input terminal (INPUT A). This option is available only when “Aspect” is set to “Zoom.”

The Screen Menu

25

Aspect

Input signal

(4:3)

Recommended setting value and projected image

(Full1)

*1 *2

*1: If you select “Normal,” the image is projected in the same resolution as the input signal without changing the aspect ratio of the original image.

(16:9) (Full1)

*1 *2

*2: If you select “Full2,” the image is projected to fit the projected image size, regardless of the aspect ratio of the image.

(16:10)

(4:3)

(16:9)

(Full1)

*1

*3: Depending on the input signal, the projected image may be projected as illustrated below. In this a case, select

“16:9.”

(4:3)

*3 *5

*4: Depending on the input signal, the image may be projected as illustrated below. In this a case, select “Zoom.”

(16:9)

*4 *5

*5: If you select “Full,” the image is projected to fit the projected image size, regardless of the aspect ratio of the image.

26

The Screen Menu

The Function Menu

The Function menu is used for setting various functions of the projector.

Setting items

Smart APA

CC Display

Background

*2

Start Up Image

All Reset

Description

On/Off: When set to “On,” executes APA automatically when a signal is input.

*1

CC1/CC2/CC3/CC4/Text1/Text2/Text3/Text4: Select the closed caption service (Captions or Text).

Off: Closed caption does not appear.

Blue/Black/Image: Sets the background for when there is no input signal.

When set to “Image,” the Start Up Image is displayed.

On/Off: When set to “On,” the Start Up Image is displayed on the screen upon startup of the projector.

All settings are initialized to their factory preset values.

Notes

*1: Executes APA when a computer signal is input via the RGB input terminal (INPUT A, INPUT

B).

*2: When using the Twin Picture display mode and there is no input signal, the background will be black if you set this item to “Image”.

The Function Menu

27

The Operation Menu

The Operation menu is used for setting for the operations by using the menu or the Remote

Commander.

Setting items

Language

Menu Position

Status

IR Receiver

Description

Selects the language used in the menu and on-screen displays.

Bottom Left/Center: For selecting the position of the menu displayed on the projected image.

On: All on-screen statuses are enabled.

Off: Displays only the menus, the message when turning off the power, and warning messages.

Front & Rear/Front/Rear: Selects the remote control receivers (IR Receiver) on the front and rear of the projector.

ID Mode

Security Lock

*1

All/1/2/3/4: Assigns an ID number to the projector. When set to “All,” you can control the projector with the Remote Commander independently of the assigned ID Mode. Refer also to “ID MODE 1/2/3 switch” of the Remote

Commander on page 7.

On/Off: This function enables restriction of the projector to authorized users by password. The setting procedures for security locking are as follows:

1 Select “On” then press the ENTER key to display the setting menu.

2 Input the password with the MENU,

V/v/B/b, and ENTER keys. (The default password setting is “ENTER, ENTER, ENTER, ENTER.”)

3 Input a new password with the MENU,

V/v/B/b, and ENTER keys.

4 Enter the password again to confirm.

Enter the password when you turn on the projector after disconnecting and reconnecting the AC power cord.

When it is set to “Off,” you can cancel the security lock. You are required to input the password again.

If you fail to enter the correct password after three consecutive times, the projector cannot be used. In this case, press the ?/1 key to go standby mode then turn on the power again.

Panel Key Lock On/Off: When set to “On,” locks all the control panel keys of the projector.

However, you can enable operation by performing the following even when

“Panel Key Lock” is set to “On.”

• Press and hold the ?/1 key for approximately 10 seconds during standby mode.

c The projector turns on.

• Press and hold the MENU key for approximately 10 seconds during power on.

c “Panel Key Lock” is set to “Off” and enables operation of all control panel keys on the projector.

Lens Control On/Off: When set to “On,” you can adjusts the lens (focus, zoom, and lens shift) from the Remote commander or the projector. To prevent unintentional operation, set it to “Off” after adjusting the lens.

Note

*1: You will not be able to use the projector if you forget your password. If you call qualified Sony personnel because you have forgotten the password, you will be asked to verify the projector’s serial number and your identity. (This process may differ in other countries/regions.) Once your identity has been confirmed, we will provide you with the password.

28

The Operation Menu

The Connection/Power Menu

The Connection/Power menu is used for setting for the connections and power.

Setting items

Network Setting

IPv4 Setting

IP Address Setup

Description

IP Address/ Subnet

Mask/ Default

Gateway/Primary

DNS/Secondary

DNS

IPv6 Information

Auto (DHCP): The IP address is assigned automatically from the

DHCP server such as a router.

Manual: To specify the IP Address manually.

When “Manual” is selected for “IP Address Setup,” select the item with the B or b key and input the value with V or v key. When all items are entered, select “Apply” then press the ENTER key. The entered settings will be registered.

Displays the IPv6 address information.

When setting the address of IPv6, set it from the browser.

HDBaseT Settings

LAN Setting

RS-232C Setting

Dynamic Range

*3

via HDBaseT/LAN: You can select either via the LAN

*1

of the

HDBaseT equipment connected to the Digital Interface Adaptor

BKM-PJ10 or via the network connection with the LAN terminal of the main unit.

via HDBaseT/RS-232C: You can select either via the RS-232C

*2

of the Digital Interface Adaptor BKM-PJ10 or via the connection with the RS-232C terminal of the main unit.

Sets the image input level of the INPUT C/D/E terminal.

Auto: Distinguishes the image input level automatically.

Limited: Set when the image input level is 16-235.

Full: Set when the image input level is 0-255.

Input-A Signal Sel.

Color System

Auto/Computer/Video GBR/Component: When set to “Auto,” selects the type of video signal input automatically when “Input-A” is selected with the INPUT key.

*4

Auto/NTSC

3.58

/PAL/SECAM/NTSC

4.43

/PAL-M/PAL-N: When set to “Auto,” selects the color system automatically when “S-Video” or

“Video” is selected with the INPUT key.

*4

ECO

Light Output Mode High/Standard/Auto/Custom/Extended: When set to “High,” the image becomes brighter, and power consumption becomes higher.

When set to “Standard,” power consumption becomes lower; however, the image will be darker. When set to “Auto,” brightness is adjusted automatically according to image content. Dark images are projected with brightness adjusted, leading to energy-saving. Bright images are projected brightly, without adjusting brightness. When set to

“Custom,” you can adjust brightness as prefer. If you select

“Extended,” images become dark but extended projection is enabled.

Constant

Brightness

*5

On/Off: Available when Light Output Mode is set to “High” or

“Standard.” Brightness is constant at about 75% light output when

Light Output Mode is set to “High,” and at about 60% when Light

Output Mode is set to “Standard.”

The Connection/Power Menu

29

Setting items

Auto Power Saving

With No Input Light Cutoff: The light turns off automatically and power consumption is reduced if no signal is input for about two minutes.

The light turns on again when a signal is input or any key is pressed. In

Light Cutoff, the ON/STANDBY indicator lights in orange. (page 39)

If Light Cutoff continues for about 30 minutes, the power will cut off automatically and the projector will go to standby mode.

Standby

*6

: If no signal is input to the unit for about two minutes, the power turns off automatically, and the unit enters standby mode.

Off: The “With No Input” function is disabled.

With Static Signal

Light Dimming

*7 *8

: If an image does not change for about 10 seconds, light output is gradually reduced (approximately 10% to

15%*

9

) from that set in the Light Output Mode. This setting provides a convenient way to reduce power consumption. Automatically the light slowly darkens to approximately 5% of its light output according to the selected time (with no change to input signal) “5,” “10,” “15,” “20” minutes or “Demo.” While dimming the light, the message “Light

Dimming” appears. If you select “Demo.,” the image will start to darken about 40 seconds later. When any change in signal is detected, or an operation (remote control or control panel) is performed, normal brightness is restored.

Off: The “With Static Signal” function is disabled.

Standby Mode

*10

Standard/Low: When set to “Low,” lowers power consumption in standby mode.

Quick Reboot

Direct Power On

Description

Off/10/30: After you turn off the power, the projector is in standby mode for a quick start within the specified time (10 minutes or 30 minutes). The ON/STANDBY indicator lights in orange when the

projector is in standby mode. (page 39)

On/Off: When set to “On,” you can turn the power on without going to standby mode when the AC power cord is connected to a wall outlet. You can also unplug the AC power cord without going to standby mode when you turn off the projector.

You may unplug the AC power cord without going to standby mode.

Notes

*1: When using the Digital Interface Adaptor BKM-PJ10, the connection is only via 100BASE-TX.

When using the LAN terminal of the main unit, you can connect with the 10BASE-T/100BASE-

TX.

*2: When using the Digital Interface Adaptor BKM-PJ10, the connection is at 9,600 bps. When using the RS-232C terminal of the main unit, you can connect at 38,400 bps.

*3: If the image input setting of the HDMI connection equipment is not correct, the brighter part becomes too bright and the darker part becomes too dark.

*4: The image may not be adjusted properly depending on the type of input signal. In such a case, adjust it manually to suit to the connected equipment.

*5: The projector may not be able to maintain the brightness in an environment with a lot of dust and dirt.

*6: Select “Off” to avoid entering standby mode when there is no input signal.

*7: A change in signal may not be detected depending on the input image. If “With No Input” is set, it takes priority.

*8: As the light is dimmed gradually, you may not notice any change in brightness.

*9: This varies depending on the “Light Output Mode” setting.

30

The Connection/Power Menu

*10:When “Standby Mode” is set to “Low,” the network and network control function cannot be operated while the projector is in standby mode.

The Connection/Power Menu

31

The Installation Menu

The Installation menu is used for installing the projector.

Setting items

Edge Blending

Blending

Range

Zone Black

Level Adj.

*1

*2

Blend

Gamma

Reset

Image Split

Screen Fitting

*4

V Keystone

*5 *6

H Keystone

*5 *6

Warping

*6

Image Flip

Description

On/Off: When set to “On,” the Edge Blending function is enabled. Set to

“Off” when you do not project using multiple projectors.

Sets the edge blending width.

After selecting the blending position, a marker will be displayed.

Top: Adjusts the top width of the screen.

Bottom: Adjusts the bottom width of the screen.

Left: Adjusts the left width of the screen.

Right: Adjusts the right width of the screen.

Adjust so that the overlapped part is not noticeably bright when a dark image is displayed.

Select the correction zone “Adjust Zone 1” through “Adjust Zone 9,” and set the adjustment values.

Sets the mode of the gamma curve of the overlapped area.

Mode 1: Provides a gentle gamma correction curve.

Mode 2:

Mode 3:

Mode 4:

Mode 5: Provides a sharp gamma correction curve.

Resets the adjusted values to their default values.

Off/Left-side Area/Right-side Area: Divides the input signal from the computer in half, and displays an enlarged image of the left-side or right-side area on the screen.

*3

HV Keystone/Warping: You can choose the way to correct image twist.

This is displayed when “HV Keystone” is selected in “Screen Fitting.”

The higher the setting, the narrower the top of the projected image. The lower the setting, the narrower the bottom of the projected image.

This is displayed when “HV Keystone” is selected in “Screen Fitting.”

The higher the setting, the narrower the right side of the projected image.

The lower the setting, the narrower the left side of the projected image.

This is displayed when “Warping” is selected in “Screen Fitting.”

Adjust: Corrects image twist.

Reset: Resets the adjusted values to their default values.

HV/H/V/Off: Flips the projected image horizontally and/or vertically according to the installation method.

32

The Installation Menu

Setting items Description

Installation Attitude

Link to Image Flip/Right Side Up/Upside Down/Front Down/Front Up/

Portrait 1/Portrait 2: Change the cooling setting to suit to the installation attitude. When set to “Link to Image Flip,” the cooling setting changes based on the setting of “Image Flip.”

*7

Continuing to use the wrong setting may affect component reliability.

Right Side Up

Upside Down

Horizontal installation

Front Down

(Projects downward)

Front Up

(Projects upward)

Vertical installation

Portrait 1*

8

(The buttons of the unit face up)

Portrait 2*

8

(The buttons of the unit face down)

Portrait installation

High Altitude Mode On/Off: Set to “On” when using the projector at an altitude of 1,500 m or higher. Continuing to use the wrong setting may affect component reliability.

Screen Aspect

Panel Alignment

*9

16:10/16:9/4:3: For switching the display area to suit to the screen.

This feature allows you to adjust the gaps in the color of characters or the picture.

When set to “On,” “Adjust Color” and “Pattern Color” can be assigned and adjusted.

Adjust Item: Selects how to make adjustments from below.

Shift: Shifts the whole picture and makes adjustments.

Zone: Selects the desired range and makes adjustments.

Adjust Color: Assigns the desired color to adjust the gaps in color. Select

“R” (Red) or “B” (Blue) to make adjustments based on “G” (Green).

Pattern Color: Select “R/G” (Red and Green) or “R/G/B” (White, all colors) when “Adjust Color” is “R” (Red). Select “B/G” (Blue and Green) or “R/G/B” (White, all colors) when the “Adjust Color” is “B” (Blue).

Adjust: The shift adjustment and zone adjustment of the color selected in

“Adjust Color” can be made with V/v/B/b keys.

Reset: The panel alignment settings are initialized to their factory preset values.

The Installation Menu

33

Setting items

Color Matching

*10

Description

Adjust/Reset: For correcting the brightness and color of the whole projected image manually from the signal level in six steps.

Notes

*1: You cannot adjust anything other than the targeted adjustment zones in “Zone Black Level Adj.”

*2: When selecting the correction zone of “Zone Black Level Adj.,” the targeted correction zone flashes twice.

*3: If the Screen Aspect is set to 16:10 and input signal is 16:10 or 16:9, the image will be projected at the correct aspect. This function is not available when displaying two pictures.

*4: When “Edge Blending” is set to “On,” “Screen Fitting” (HV Keystone/Warping) is not displayed.

*5: Depending on the position adjusted with the lens shift feature, the aspect ratio of the image may change from the original or projected image may be distorted with Keystone adjustment.

*6: Since the HV Keystone/Warping adjustment is an electronic correction, the image may deteriorate.

*7: Select “Link to Image Flip” only for horizontal installation. Be sure to select “Front Down” or

“Front Up” for a vertical installation, or “Portrait 1” or “Portrait 2” for a portrait installation, to match the installation direction of the projector. (Refer to the figures.)

*8: In the case of a portrait installation, pay attention not to block the ventilation holes (exhaust/ intake).

*9: Depending on the adjustment value of “Panel Alignment,” the color and resolution may be changed.

*10:The brightness and color of the projected image may not match completely, even after you adjust

“Brightness” and “Color.”

34

The Installation Menu

The Information Menu

The Information menu enables you to confirm various information on the projector, such as the total usage hours of a light.

Items

Model Name

Serial No.

fH / fV (horizontal frequency/vertical frequency)

*1

Light Timer

Description

Displays the model name.

Displays the serial number.

Displays the horizontal frequency/vertical frequency/signal type of the current input signal.

Indicates the total usage time of a light.

Note

*1: These items may not be displayed depending on the input signal.

The Information Menu

35

B Network

Using Network

Features

Connection to the network allows you to operate the following features:

• Checking the current status of the projector via a Web browser.

• Remotely controlling the projector via a

Web browser.

• Receiving the e-mail report for the projector.

• Making the network settings for the projector.

• Supports network monitoring and control protocol (Advertisement, PJ Talk, PJ Link,

SNMP, AMX DDDP [Dynamic Device

Discovery Protocol], Crestron

RoomView).

Notes

• When connecting this projector with the network, consult with the network administrator. The network must be secured.

• When using this projector connected with the network, access the Control window via a

Web browser and change the access limitation of the factory preset values

(page 37). It is recommended to change the

password regularly.

• When the setting on the Web browser is completed, close the Web browser to log out.

• The menu displays used for the explanation below may be different depending on the model you are using.

• Supported Web browsers are Internet

Explorer 8/9/10.

• The menu displays only English.

• If the browser of your computer is set to [Use a proxy server] when you have access to the projector from your computer, click the check mark to set accessing without using a proxy server.

• SNMP, AMX DDDP, and Crestron

RoomView do not support IPv6.

Displaying the Control

Window of the Projector with a Web Browser

1

Connect the LAN cable.

36

Using Network Features

LAN cable

(straight type)

(not supplied)

LAN terminal

Hub, router, etc

2

Set the network settings for the projector using “Network Setting” on the Connection/Power menu

(page 29).

3

Start a web browser on the computer, enter the following in the address field, then press the Enter key on your computer.

http://xxx.xxx.xxx.xxx

(xxx.xxx.xxx.xxx: IP address for the projector)

When connecting with IPv6 addresses

http://[xxxx:xxxx:••• xxxx]

You can confirm the IP address of the projector under “Network Setting” on

the Connection/Power menu (page 29).

The following window appears in the

Web browser:

Once you make the network settings, you can open the Control window only by performing step 3 of this procedure.

How to operate the Control window

Switching the page

Click one of the Page Switching buttons to display the desired setting page.

Confirming the Information regarding the Projector

You can confirm the current settings for the projector on the Information page.

Page Switching buttons

Setting the access limitation

You can limit a user for accessing any particular page.

Administrator: Allowed access to all pages

User: Allowed access to all pages except the Setup page

Set under [Password] of the Setup page.

When you access the Setup page for the first time, enter “root” for the user name and enter “Projector” for the password.

The name of the administrator is preset to

“root.”

Information area

Operating the Projector from a Computer

You can control the projector from the computer on the Control page.

Entry area for [Administrator]

Entry area for [User]

When you change the password, input a new password after deleting the password

(*****) that was set.

The password of the administrator and user can be set using up to 16 characters for each.

Note

If you forget your password, consult with qualified Sony personnel.

Operation area

The functions of the buttons shown in the operation area are the same as those of the keys on the supplied Remote Commander.

Using the e-mail report

Function

Set the e-mail report function on the Setup page.

Using Network Features

37

Entered values will not be applied unless you click on [Apply].

1

Click on [Owner information] to enter the owner information recorded in the email report.

1

Owner information button

2

Set the timing of the e-mail report.

Click on [Mail Report] to open the Mail

Report page.

Maintenance Reminder: Set the timing for maintenance. To reset

Maintenance Reminder, check the

RESET check box and then click on

[Apply].

Mail Report button

2

3

4

6

5

3

Enter the outgoing e-mail address in the Email Address box then check the

Report Timing check box of the e-mail report to be sent.

4

Set the mail account for sending email reports.

Mail Address: Enter the e-mail address.

Outgoing Mail Server (SMTP): Enter the address of outgoing mail server

(SMTP).

Required Authentication: Check this check box if authentication is required for sending e-mail.

Requires the use of POP

Authentication before send email

(POP before SMTP): Check this check box to arrange for POP authentication to be performed before sending e-mail.

Incoming Mail Server (POP3): Enter the address of the incoming-mail server (POP3) to be used for POP3 authentication.

Account Name: Enter the mail account.

Password: Enter the password.

SMTP Authentication: Check this check box to arrange for SMTP authentication to be performed before sending e-mail.

Account Name: Enter the mail account.

Password: Enter the password.

5

Confirm the contents of the e-mail report.

When you click on [View] is pressed, the contents of the e-mail report are displayed.

6

Send the test mail.

Check on the Send test mail check box then click on [Apply] to send your test mail to the e-mail address you set.

Notes

• The e-mail report function is not available because the network which Outbound Port25

Blocking is used cannot be connected to the

SMTP server.

• You cannot use the following characters to enter the characters in the text box: “ ' ”, “ “

”, “ \ ”, “ & ”, “ < ”, “ > ”

38

Using Network Features

B Others

Indicators

The indicators allow checking the status and notify you of abnormal operation of the projector.

If the projector exhibits abnormal status, address the problem in accordance with the table below.

ON/STANDBY indicator

Status Meaning/Remedies

Lights in red

Flashes in green

Lights in green

Lights in orange

The projector is in standby mode.

• The projector is ready to operate after having been turned on.

• The light source cools after the projector is turned off.

The projector’s power is on.

The projector is in With No Input (Light Cutoff), or Quick Reboot standby mode.

Flashes in red

Flashes twice

The projector is in abnormal status. Symptoms are indicated by number of flashes. Address the problem in accordance with the following. If the symptom is shown again, consult with qualified Sony personnel.

The internal temperature is unusually high. Check the items below.

• Check to see if nothing is blocking the ventilation holes.

• Check to see if the air filter is not clogged.

• Check if “Installation Attitude” on the Installation menu is correctly selected.

Flashes six times Unplug the AC power cord from a wall outlet. After checking that the

ON/STANDBY indicator goes out, plug the power cord to a wall outlet again then turn on the projector.

Other number of flashes

Consult with qualified Sony personnel.

WARNING indicator

Status

Flashes in red

Meaning/Remedies

Symptoms are indicated by number of flashes. Address the problem in accordance with the following.

Flashes twice The air filter units are not attached securely.

Flashes three times The light source does not light. Turn off the power and consult with qualified Sony personnel.

Flashes six times The lens is not mounted on the projector.

Flashes eight times Drop impact has been detected.

If you detect an abnormal condition, consult with qualified Sony personnel. If no abnormality is detected, unplug the AC power cord from a wall outlet. After checking that the ON/STANDBY indicator goes out, plug the power cord to a wall outlet again then turn on the projector.

Indicators

39

Messages List

When any of the messages listed below appears on the projected image, address the problem in accordance with the table below.

Message Meaning/Remedy Page

Clean the filter.

Projector temperature is high. The light will turn off in 1 minute.

Frequency is out of range!

Please check Input-A

Signal Sel.

Check the items below.

• Check to see if nothing is blocking the ventilation holes.

• Check to see if the air filter is not clogged.

• Check if “Installation Attitude” on the Installation menu is correctly selected.

Change the output setting of the connected equipment to one for signals supported by the projector.

Set “Input-A Signal Sel.” to “Auto” or select the input signal type to suit to the input signal.

3, 33,

43

51

29

Clean the filter.

Projector temperature is high.

Switching to High

Altitude Mode.

Not applicable!

The panel keys are locked!

At an altitude of 1,500 m or higher, if you are not using the projector, check the items below.

• Check that nothing is blocking the ventilation holes.

• Check that the air filter is not clogged.

• Check if “Installation Attitude” on the Installation menu is correctly selected.

Invalid key pressed.

“Panel Key Lock” is set to “On.”

Lens Control is locked!

“Lens Control” is set to “Off.”

Function is locked!

The function is locked by external control.

Projector will shutdown soon.

Press ?/1 Key to

Restart.

Light Dimming

Constant Brightness cannot be maintained.

3, 33,

43

5

28

The ?/1 key was pressed and the projector will be shut down soon. To cancel shutdown, press the ?/1 key again (the projector will remain on). To turn off the projector directly, press and hold the ?/1 key.

Reduces light output when “With Static Signal” is set. When any change in signal is detected, or an operation (remote control or control panel) is performed, normal brightness is restored.

Although “Constant Brightness” is selected, the brightness that is set cannot be maintained due to the lifetime of the light source. Consult with qualified Sony personnel.

28

5, 16,

17,

18,

32, 32

20

30

29

40

Messages List

Troubleshooting

Before asking to have the projector repaired, try to diagnose the problem, following the instructions below.

Symptom Remedy Page

The power is not turned on.

Check if the AC power cord is firmly connected.

When the “Panel Key Lock” is set to “On,” you cannot turn on the projector using the ?/1 key on the projector.

If the air filter cover or air filter unit is not attached securely, the projector cannot be turned on.

28

43

No image.

On-screen display does not appear.

The aspect ratio of the display is not right/the image is displayed smaller /a portion of image does not appear.

Check if the connecting cable is connected to external equipment properly.

Check if the computer signal is set for output to an external monitor. If you set your computer, such as a notebook computer, to output the signal to both your computer’s display and an external monitor, the picture of the external monitor may not appear properly. Set your computer to output the signal to only an external monitor.

Check if the input source is correctly selected.

Check if the picture is muted.

During “Zone Black Level Adj.” adjustment, a black image is automatically projected.

The on-screen display does not appear when “Status” in the

Operation menu is set to “Off.”

The image may not be displayed correctly with an input signal the projector cannot interpret correctly. In such a case, set

“Aspect” manually.

Check if “Screen Aspect” is correctly selected.

8

14

14

6

18

28

24, 26

33

The image is a trapezoid.

Edges of the image are cut off or dark.

The images become trapezoidal because of the projection angle. In such a case, you can correct the trapezoidal distortion, using a Keystone feature.

If you use the Lens Shift function with a setting outside the recommended range, edges of the image may be cut off or appear dark. Use a setting within the normal range for the Lens

Shift function.

The image is distorted.

Warping is set.

Disable the warp correction feature.

5, 16,

32

53

17, 32

Troubleshooting

41

Symptom Remedy Page

The image is dark/too bright.

The image is not clear.

Check if the projector is in focus.

The picture will not be clear if condensation has accumulated on the lens. In such a case, let the projector sit for about two hours with the power on.

The image is noisy.

Check if the connecting cable is connected to external equipment properly.

The Remote

Commander does not work.

The fan is noisy.

Check that the batteries are installed correctly.

Check that the batteries are not exhausted.

Check if the “ID Mode” of the projector corresponds to that of the Remote Commander.

Check the setting for “IR Receiver.”

The sound from the fan is often greater than normal to cool the light source in the following cases.

• When “Light Output Mode” is set to “High.”

• The projector is in at high altitude (“High Altitude Mode” is set to “On”)

• Temperature is very high.

• The air filter is clogged.

Cannot adjust the keystone setting.

Cannot adjust the Warp setting.

The settings for “Brightness,” “Contrast,” and “Light Output

Mode” affect brightness of the image. Check if the value is appropriate.

The image will be dark when the light source is burnt out.

Check “Light Timer,” and consult with qualified Sony personnel.

“With Static Signal” is set to “On.”

When video signal is not input, the light is dimmed to reduce power consumption.

When the temperature around the unit is high, the brightness will be reduced to protect the unit.

If the ventilation holes are blocked, the internal temperature of the projector rises and the fan noise becomes larger.

Disable the Edge Blending setting.

Select “HV Keystone” in “Screen Fitting.”

Disable the Edge Blending setting.

Select “Warping” in “Screen Fitting.”

22, 29

35

30

30

15

8

7, 28

28

29,

33, 43

3

16, 32

16, 32

17, 32

17, 32

42

Troubleshooting

Cleaning the Air

Filter

When a message appears on the projected image indicating time for a filter cleaning,

clean the air filter (pages 39, 40).

If the dust cannot be removed from the air filter even after cleaning, replace the air filter with a new one.

For details on a new air filter, consult with qualified Sony personnel.

Caution

If you continue to use the projector even after the message is displayed, dust may accumulate, clogging it. As a result, the temperature may rise inside the unit, leading to a possible malfunction or fire.

Note

Turn off the projector and disconnect the AC power cord from a wall outlet before cleaning the air filter.

1

Turn off the projector and disconnect the AC power cord from a wall outlet.

2

Slide the air filter cover slightly to the rear while holding the lock button to remove the air filter cover.

Front

Air filter cover v

Rear

Lock button

3

Pull out the air filter cartridge straight by the grab of the air filter unit while pushing out one tab at a time on both sides.

Air filter unit (right)

Tabs

(right)

Tabs (left)

Grab

Air filter unit (left)

Cleaning the Air Filter

43

4

Remove the four air filter cartridges

(two in each air filter unit) from the air filter units and clean the air filter with a vacuum cleaner.

When attaching the air filter cartridge to the cartridge holder, push the air filter cartridge in fully until the tabs of the cartridge holder click (4 points each air filter cartridge, a total of 8 points).

The two air filter units are installed in the right and left positions.

Air filter cartridge

Tabs

Tabs (left)

Tabs (right)

Tabs

Air filter cartridge

Cartridge holder

5

Return the air filter units to the projector.

The top and bottom of the air filter unit have different shapes, as illustrated below. Be careful of orientation when installing them.

Bottom (side with a grooved section)

Slide the air filter unit in fully until the tabs on the projector click to hold it in place (2 points each air filter unit, a total of 4 points).

6

Close the air filter cover.

Note

Be sure to attach the air filter unit firmly; the power cannot be turned on if it is not closed securely.

44

Cleaning the Air Filter

Installing the

Optional Adaptor

You can install the optional adaptor in

INPUT E of the terminals section of the projector.

Notes

• Turn off the projector and disconnect the AC power cord from a wall outlet before installing the optional adaptor.

• Be sure to retain the slot cover removed when installing the optional adaptor. When removing the optional adaptor, attach the cover.

• For details on how to use, also refer to the operating instructions of the optional adaptor.

1

Turn off the power of the projector and disconnect the power cord.

2

Slide the slot cover for the optional adaptor attached to the terminals to the right and remove it.

INPUT B RGB

R/P

R G/Y

B/P

B

INPUT A

INPUT C DVI-D

HD

VD

INPUT D HDMI

OUTPUT

MONITOR

4

Tighten the two screws on the optional adaptor.

Slot cover

3

Insert the optional adaptor as far as it goes.

Example: BKM-PJ10 Digital Interface

Adaptor (not supplied)

Installing the Optional Adaptor

45

Specifications

Item

Model name

Description

VPL-FHZ700L

Display system

Display device Size of effective display area

3 LCD system

0.95" (24.1 mm) × 3, Aspect ratio 16:10

Number of pixels 6,912,000 (1920 × 1200 × 3) pixels

Light source

Light output

Displayable scanning frequency

*2

Display resolution Computer signal input

Video signal input

Laser diode

7,000 lm

*1

(when “Light Output Mode” is set to “High”)

Horizontal: 14 kHz to 93 kHz, Vertical: 47 Hz to 93 Hz

Color system

Computer and video signal input/ output

INPUT A

INPUT B

Maximum display resolution: 1920 × 1200 dots

Panel display resolution: 1920 × 1200 dots

NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/

50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p,

1080/50p, 1080/24p, 1080/30p

NTSC

3.58

, PAL, SECAM, NTSC

4.43

, PAL-M, PAL-N,

PAL60

RGB/YP

B

P

R

input terminal: 5BNC female, G with sync/Y: 1 Vp-p ± 2 dB, sync negative, 75 ohms terminated, RGB/P

B

P

R

: 0.7 Vp-p ± 2 dB, 75 ohms terminated, Sync signal: TTL level high impedance, positive/negative

RGB input terminal: Mini D-sub 15-pin female, RGB:

0.7 Vp-p ± 2 dB, 75 ohms terminated, Sync signal: TTL level high impedance, positive/negative

INPUT C

INPUT D

INPUT E

S VIDEO IN

VIDEO IN

OUTPUT

DVI-D input terminal: DVI-D 24-pin (Single link), DVI

1.0 compliant, HDCP support

HDMI input terminal: Digital RGB/YP

B

P

R

For an optional adaptor

S video input terminal: Mini DIN 4-pin, Y: 1 Vp-p ± 2 dB, sync negative, 75 ohms terminated, C: (burst signal)

0.286 (NTSC)/0.3 (PAL/SECAM) Vp-p ± 2 dB, 75 ohms terminated

Video input terminal: BNC, 1 Vp-p ± 2 dB, sync negative, 75 ohms terminated

MONITOR output terminal: Mini D-sub 15-pin female, G with sync/Y: 1 Vp-p ± 2 dB, sync negative, 75 ohms terminated, RGB/P

B

P

R

: 0.7 Vp-p ± 2 dB, 75 ohms terminated, Sync signal: HD, VD 4 V (open), 1 Vp-p (75 ohms), positive/negative

46

Specifications

Item

Model name

Control signal input/output

Operating temperature/

Operating humidity

Storage temperature/

Storage humidity

Power required

Power consumption

Power consumption

(Standby Mode)

Power consumption

(Networked

Standby Mode)

AC 100 V to

120 V

AC 220 V to

240 V

AC 100 V to

120 V

AC 220 V to

240 V

AC 100 V to

120 V

AC 220 V to

240 V

Heat dissipation AC 100 V to

120 V

AC 220 V to

240 V

Outside dimensions

Mass

Supplied accessories

Optional accessories

*3 *4

Description

VPL-FHZ700L

RS-232C terminal: D-Sub 9 pin male

LAN terminal: RJ45, 10BASE-T/100BASE-TX

CONTROL S input terminal (DC power supply):

Stereo mini jack, 5 Vp-p, Plug in power DC 5 V

CONTROL S output terminal: Stereo mini jack

0 °C to 40 °C (32 °F to 104 °F)/35% to 85% (no condensation)

–10 °C to +60 °C (14 °F to +140 °F)/ 10% to 90% (no condensation)

AC 100 V to 240 V, 5.0 A to 2.1 A, 50/60 Hz

497 W

476 W

0.1 W (when “Standby Mode” is set to “Low”)

0.5 W (when “Standby Mode” is set to “Low”)

12.2 W (LAN)

13.8 W (optional HDBaseT adaptor)

13.8 W (All Terminals and Networks Connected)

(when “Standby Mode” is set to “Standard”)

8.4 W (LAN)

10.0 W (optional HDBaseT adaptor)

10.0 W (All Terminals and Networks Connected)

(when “Standby Mode” is set to “Standard”)

1,696 BTU/h

1,624 BTU/h

530 × 213 × 545 mm (20

D)

530 × 204 × 545 mm (20

D) (without protrusions)

7

/

8

" × 8

7

/

8

" × 8

3

/

8

" × 21

1

/

32

" × 21

15

/

32

") (W/H/

15

/

32

") (W/H/

Approx. 22 kg (47 lb)

See “Checking the Supplied Accessories” in the supplied

Quick Reference Manual.

Projector Suspension Support PSS-630

Projector Suspension Support Joint Pole PSS-630P

Specifications

47

Item

Model name

Description

VPL-FHZ700L

Projection Lens VPLL-FM22

*5 *6

: Manual focus,

Projected image size: 40" to 300" (1.02 m to 7.62 m),

Maximum external dimensions (W × H × D): 88 × 88 ×

169 mm (3

15

/

32

" × 3

15

/

32

" × 6

21

/

32

"), Mass: Approx.

1 kg (2.1 lb)

Projection Lens VPLL-ZM42

*5 *6

: Manual focus/ zoom, Projected image size: 40" to 300" (1.02 m to 7.62 m), Maximum external dimensions (W × H × D): 88 × 88

× 159 mm (3

15

/

32

" × 3

15

/

32

" × 6

1

/

4

"), Mass: Approx.

0.7 kg (1.4 lb)

Projection Lens VPLL-ZM102

*5 *6

: Manual focus/ zoom, Projected image size: 40" to 300" (1.02 m to 7.62 m), Maximum external dimensions (W × H × D): 88 × 88

× 198 mm (3

15

/

32

" × 3

15

/

32

" × 7

25

/

32

"), Mass: Approx.

1.5 kg (3.3 lb)

Projection Lens VPLL-Z4007

*6

: Manual focus/zoom,

Projected image size: 60" to 300" (1.52 m to 7.62 m),

Maximum external dimensions (W × H × D): 157× 150 ×

217 mm (6

3

/

16

" × 5

29

/

32

" × 8

19

/

32

"), Mass: Approx. 2.0 kg (4.4 lb)

Projection Lens VPLL-4008: Manual focus, Projected image size: 40" to 600" (1.02 m to 15.24 m), Maximum external dimensions (W × H × D): 148 × 133 × 240 mm

(5

13

/

16

" × 5

1

/

4

" × 9

7

/

16

"), Mass: Approx. 2.6 kg (5.6 lb)

Projection Lens VPLL-Z4011

*6

: Electric focus/zoom,

Projected image size: 60" to 600" (1.52 m to 15.24 m),

Maximum external dimensions (W × H × D): 157 × 150

× 265 mm (6

3

/

16

" × 5

29

/

32

" × 10

7

/

16

"), Approx. 3.7 kg

(8 lb)

Projection Lens VPLL-Z4015: Electric focus/zoom,

Projected image size: 40" to 600" (1.02 m to 15.24 m),

Maximum external dimensions (W × H × D): 148 × 133

× 231 mm (5

13

/

16

" × 5

1

/

4

" × 9

3

/

32

"), Mass: Approx.

3 kg (6.6 lb)

Projection Lens VPLL-Z4019: Electric focus/zoom,

Projected image size: 40" to 600" (1.02 m to 15.24 m),

Maximum external dimensions (W × H × D): 148 × 133

× 212 mm (5

13

/

16

" × 5

1

/

4

" × 8

11

/

32

"), Mass: Approx.

3.1 kg (6.7 lb)

Projection Lens VPLL-Z4025: Electric focus/zoom,

Projected image size: 40" to 600" (1.02 m to 15.24 m),

Maximum external dimensions (W × H × D): 148 × 133

× 243 mm (5

13

/

16

" × 5

1

/

4

" × 9

9

/

16

"), Mass: Approx.

2.8 kg (6.2 lb)

Projection Lens VPLL-Z4045: Electric focus/zoom,

Projected image size: 60" to 600" (1.52 m to 15.24 m),

Maximum external dimensions (W × H × D): 148 × 133

× 235 mm (5

13

/

16

" × 5

1

/

4

" × 9

1

/

4

"), Mass: Approx. 3 kg

(6.6 lb)

48

Specifications

Item

Model name

Description

VPL-FHZ700L

Projection Lens Adapter PK-F500LA2

Digital Interface Adaptor BKM-PJ10

*7

3G-SDI INPUT Adaptor BKM-PJ20

Notes

The values for mass and dimensions are approximate.

*1: When attaching the VPLL-Z4019.

*2: For details, refer to “Acceptable Input Signals” on page 51.

*3: Not all optional accessories are available in all countries and area. Please check with your local

Sony Authorized Dealer.

*4: Information on accessories in this manual is current as of February 2015.

*5: To attach the projection lens to the projector, the PK-F500LA2 projection lens adapter is required.

*6: Before attaching the projection lens to the projector, it is required to remove the compensating glass from the lens mounting part of the projector.

*7: When the Digital Interface Adaptor BKM-PJ10 is attached to the main unit, the image transmission to the main unit, the LAN communication, and the RS-232C control are enabled with the commercially available HDBaseT transmitter. Not compatible with voice communication and power connection.

Design and specifications of the unit, including the optional accessories, are subject to change without notice.

Specifications

49

Pin assignment

DVI-D terminal (DVI-D, female)

1 8

9

16

17

24

1

2

3

4

5

6

7

8

9

T.M.D.S.

Data2–

T.M.D.S.

Data2+

T.M.D.S.

Data2 Shield

NC

NC

DDC Clock

DDC Data

NC

T.M.D.S.

Data1–

10 T.M.D.S.

Data1+

11 T.M.D.S.

Data1 Shield

12 NC

13 NC

14 +5 V Power

15

16

Ground (return for +5 V)

Hot Plug

Detect

17 T.M.D.S

Data0–

18 T.M.D.S

Data0+

19 T.M.D.S

Data0 Shield

20 NC

21 NC

22 T.M.D.S

Clock Shield

23 T.M.D.S

Clock+

24 T.M.D.S

Clock–

RGB input terminal (Mini D-sub 15pin, female)

6

7

8

1

2

3

4

5

Video input

(red) R

Video input

(green) G

Video input

(blue) B

GND

RESERVE

GND (R)

GND (G)

GND (B)

9 Power supply input for DDC

10 GND

11 GND

12 DDC/SDA

13 Horizontal sync signal

14 Vertical sync signal

15 DDC/SCL

RS-232C terminal (D-Sub 9-pin, male)

1 5

3

4

5

1

2

NC

RXDA

TXDA

DTR

GND

6

9

6 NC

7 RTS

8 CTS

9 NC

50

Specifications

HDMI terminal (HDMI, female)

1

2

3

4

5

6

7

8

T.M.D.S.

Data2+

T.M.D.S.

Data2 Shield

T.M.D.S.

Data2–

T.M.D.S.

Data1+

T.M.D.S.

Data1 Shield

T.M.D.S.

Data1–

T.M.D.S.

Data0+

T.M.D.S.

Data0 Shield

9 T.M.D.S.

Data0–

10 T.M.D.S.

Clock+

11 T.M.D.S.

Clock Shield

12 T.M.D.S.

Clock–

13 NC

14 RESERVED

(N.C.)

15 SCL

16 SDA

17 GND

18 +5V Power

19 Hot Plug

Detect

Acceptable Input Signals

Computer signal

Resolution

640 × 350

640 × 400

fH [kHz]/ fV [Hz]

31.5/70

37.9/85

31.5/70

37.9/85

640 × 480 31.5/60

35.0/67

37.9/73

37.5/75

43.3/85

Input terminal

INPUT A/

INPUT B

INPUT C/

INPUT D/

INPUT E

z z z z

– z z z z z z

Resolution fH [kHz]/ fV [Hz]

Input terminal

INPUT A/

INPUT B

INPUT C/

INPUT D/

INPUT E

z

– 800 × 600 35.2/56

37.9/60

48.1/72

46.9/75

53.7/85

832 × 624 49.7/75

1024 × 768 48.4/60

56.5/70

60.0/75

68.7/85

1152 × 864 64.0/70

67.5/75

77.5/85

1152 × 900 61.8/66

1280 × 960 60.0/60

75.0/75

1280 × 1024 64.0/60

80.0/75

91.1/85

1400 × 1050 65.3/60

1600 × 1200 75.0/60

1280 × 768 47.8/60

1280 × 720 45.0/60

1920 × 1080 67.5/60

1366 × 768 47.7/60

1440 × 900 55.9/60

1680 × 1050 65.3/60

1280 × 800 49.7/60

1920 × 1200 74.0/60

1600 × 900 60.0/60 z z z z z z z z z z z z z z z z z z z z z z

– z z z z z

*1 z

*1 z

– z z

– z

– z z z z

*2 z

*2 z z z z z

*1 z

*1

Specifications

51

Video signal

z

Input terminal

Signal fV [Hz]

VIDEO/

S VIDEO

INPUT A

INPUT C/

INPUT D/

INPUT E

NTSC 60 – – z

– – PAL/

SECAM

480i

576i

50

480p

576p

1080i

1080i

720p

720p

1080p 60

1080p 50

60

50

60

50

60

50

60

50

1080p 24

1080p 30

– z z z z z z z z

– z z z

*4 z

*4 z z z

*2 z z

*2 z z z

*3

Notes

*1: Available for VESA Reduced Blanking signals only.

*2: INPUT C/INPUT E (when the BKM-PJ10 is installed) is determined as a computer signal; INPUT D/INPUT E (when the

BKM-PJ20 is installed) is determined as a video signal.

*3: Available for the BKM-PJ20 only.

*4: Not available for the BKM-PJ20.

• When a signal other than the signals listed in table is input, the picture may not be displayed properly.

• An input signal meant for screen resolution different from that of the panel will not be displayed in its original resolution. Text and lines may be uneven.

• Some actual value may differ slightly from the design values given in the table.

Combinations of Input Signals

Sub picture Main picture

INPUT A

(RGB/YP

B

P

R

)

INPUT B (RGB)

INPUT C (DVI-D)

INPUT D (HDMI)

INPUT E (Optional adaptor)

S VIDEO

VIDEO

INPUT B (RGB)

INPUT B (RGB)

52

Specifications

Projection Distance and Lens Shift Range

The projection distance refers to the distance between the front of the lens and the projected surface.

Projection distance L

Projected image

Front of the lens

The lens shift range represents the distance in percent (%) by which the lens can be shifted from the center of the projected image. The lens shift range is regarded as 0% when the point (A) in the illustration (point where a line drawn from the center of the lens and the projected image cross at right angles) is aligned with the center of the projected image and full width or full height of the projected image is regarded as 100%.

Projected image

50%

Center of the projected image

Lens shift range

Center of the lens HS

VS

+

Center of the lens

HS

+

50%

A

Side of the projector

VS

– Projected image

Shaded region: Lens shift range

Projected image

50%

Center of the projected image

Lens shift range

Center of the lens

50%

A

Top of the projector

VS

+

: Vertical lens shift range (up) [%]

VS

: Vertical lens shift range (down) [%]

HS

+

: Horizontal lens shift range (right) [%]

HS

: Horizontal lens shift range (left) [%]

Projection Distance and Lens Shift Range

53

Projection distance

Projection image size

Diagonal Width × Height

80" (2.03 m)

100" (2.54 m)

120" (3.05 m)

150" (3.81 m)

200" (5.08 m)

1.72 × 1.08

(68 × 42)

2.15 × 1.35

(85 × 53)

2.58 × 1.62

(102 × 64)

3.23 × 2.02

(127 × 79)

4.31 × 2.69

(170 × 106)

VPLL-FM22

1.48

(58)

1.87

(74)

2.25

(89)

2.83

(111)

3.79

(149)

Unit: m (inches)

Projection distance L

VPLL-ZM42 VPLL-ZM102

3.17 – 3.98

(125 – 157)

3.98 – 4.99

(157 – 196)

4.78 – 6.00

(188 – 236)

5.99 – 7.51

(236 – 296)

8.01 – 10.03

(315 – 395)

5.62 – 8.33

(221 – 328)

7.07 – 10.46

(278 – 412)

8.52 – 12.58

(335 – 495)

10.69 – 15.77

(421 – 621)

14.31 – 21.09

(563 – 830)

Projection image size

Diagonal

80" (2.03 m)

100" (2.54 m)

120" (3.05 m)

150" (3.81 m)

200" (5.08 m)

VPLL-Z4007

1.13 – 1.35

(45 – 53)

1.43 – 1.72

(57 – 67)

1.73 – 2.09

(68 – 82)

2.17 – 2.65

(86 – 104)

2.91 – 3.57

(115 – 140)

Projection distance L

VPLL-4008 VPLL-Z4011

1.80

(71)

2.27

(89)

2.36 – 3.56

(93 – 140)

2.96 – 4.47

(117 – 176)

2.74

(108)

3.44

(135)

4.61

(182)

3.57 – 5.38

(141 – 211)

4.48 – 6.74

(177 – 265)

6.00 – 9.01

(236 – 354)

Projection image size

Diagonal

80" (2.03 m)

100" (2.54 m)

120" (3.05 m)

150" (3.81 m)

200" (5.08 m)

VPLL-Z4019

4.36 – 5.57

(172 – 219)

5.48 – 6.99

(216 – 275)

6.60 – 8.41

(260 – 331)

8.29 – 10.55

(326 – 415)

11.09 – 14.10

(437 – 555)

Projection distance L

VPLL-Z4025

5.48 – 10.14

(216 – 399)

6.88 – 12.71

(271 – 500)

8.29 – 15.28

(326 – 602)

10.40 – 19.14

(409 – 754)

13.92 – 25.57

(548 – 1007)

VPLL-Z4045

10.09 – 17.46

(397 – 687)

12.66 – 21.88

(498 – 861)

15.23 – 26.30

(600 – 1035)

19.10 – 32.93

(752 – 1296)

25.53 – 43.99

(1005 – 1732)

VPLL-Z4015

3.36 – 4.42

(132 – 174)

4.22 – 5.55

(166 – 219)

5.09 – 6.68

(200 – 263)

6.38 – 8.38

(251 – 330)

8.55 – 11.20

(337 – 441)

Projection distance formula

D: Projected image size (Diagonal)

Lens

VPLL-FM22

Unit: m (inches)

Projection distance L (minimal length) Projection distance L (maximal length)

L = 0.0192 × D – 0.0524

(L = 0.7556 × D – 2.0633)

54

Projection Distance and Lens Shift Range

Lens

VPLL-ZM42

VPLL-ZM102

VPLL-Z4007

VPLL-4008

VPLL-Z4011

VPLL-Z4015

VPLL-Z4019

VPLL-Z4025

VPLL-Z4045

Projection distance L (minimal length) Projection distance L (maximal length)

L = 0.0403 × D – 0.0558

(L = 1.5861 × D – 2.1962)

L = 0.0724 × D – 0.1755

(L = 2.8508 × D – 6.9075)

L = 0.0148 × D – 0.0584

(L = 0.5841 × D – 2.3005)

L = 0.0234 × D – 0.0777

(L = 0.9229 × D – 3.0591)

L = 0.0504 × D – 0.0524

(L = 1.9861 × D – 2.0625)

L = 0.1063 × D – 0.1635

(L = 4.1842 × D – 6.4371)

L = 0.0186 × D – 0.1354

(L = 0.7312 × D – 5.3296)

L = 0.0303 × D – 0.0739

(L = 1.1940 × D – 2.9096)

L = 0.0433 × D – 0.1100

(L = 1.7030 × D – 4.3315)

L = 0.0561 × D – 0.1260

(L = 2.2066 × D – 4.9594)

L = 0.0704 × D – 0.1611

(L = 2.7714 × D – 6.3404)

L = 0.1287 × D – 0.2160

(L = 5.0674 × D – 8.5019)

L = 0.0454 × D – 0.0651

(L = 1.7871 × D – 2.5635)

L = 0.0565 × D – 0.1029

(L = 2.2269 × D – 4.0525)

L = 0.0711 × D – 0.1200

(L = 2.8008 × D – 4.7225)

L = 0.1286 × D – 0.1510

(L = 5.0650 × D – 5.9456)

L = 0.2211 × D – 0.2269

(L = 8.7050 × D – 8.9328)

Lens shift range

x VPLL-ZM42, VPLL-ZM102

59%

VS

+

= VS

= 59 – 1.903

×

(HS

+

or HS

) [%]

HS

+

= HS

= 31 – 0.525 × (VS

+

or VS

) [%]

31% 31%

59% x VPLL-Z4019, VPLL-Z4025, VPLL-Z4045

113%

VS

+

= VS

= 113 – 1.794

×

(HS

+

or HS

) [%]

HS

+

= HS

= 63 – 0.558 × (VS

+

or VS

) [%]

63% 63%

113%

Projection Distance and Lens Shift Range

55

x VPLL-Z4007

6%

15%

6%

15% x VPLL-4008

19%

41%

19%

41%

VS

+

= VS

= 15 – 2.500 × (HS

+

or HS

) [%]

HS

+

= HS

= 6 – 0.400 × (VS

+

or VS

) [%]

VS

+

= VS

= 41 – 2.158 × (HS

+

or HS

) [%]

HS

+

= HS

= 19 – 0.463

×

(VS

+

or VS

) [%] x VPLL-Z4011

57%

110%

57%

110%

VS

+

= VS

= 110 – 1.930 × (HS

+

or HS

) [%]

HS

+

= HS

= 57 – 0.518 × (VS

+

or VS

) [%] x VPLL-Z4015

57%

109%

57%

109%

VS

+

= VS

= 109 – 1.912

×

(HS

+

or HS

) [%]

HS

+

= HS

= 57 – 0.523

×

(VS

+

or VS

) [%]

56

Projection Distance and Lens Shift Range

Dimensions

Front

Unit: mm (inches)

530 (20

7

/

8

)

Bottom

S VIDEO IN VIDEO IN

RS-232C CONTROL S

IN OUT

PLUG IN POWER

Center of the lens

INPUT A

INPUT B RGB INPUT C DVI-D

R/PR G/Y B/PB HD VD

INPUT D HDMI

OUTPUT

MONITOR

INPUT E

265 (10

7

/

16

)

Unit: mm (inches)

545 (21

15

/

32

)

474 (18

21

/

32

)

137.2

(5

13

/

32

)

(2

62.5

15

/32)

ø24

Center of the lens

14 (

9

/

16

)

475.2 (18

23

/

32

)

Dimensions

57

When using the PSS-630 projector suspension support

Unit: mm (inches)

350 (13

7

/

8

)

380 (15)

410 (16

440 (17

1

3

/

4

)

470 (18

5

/

8

)

500 (19

3

/

/

8

)

4

)

455 (18)

485 (19

515 (20

1

3

/

8

)

545 (21

575 (22

1

3

/

8

)

/

2

)

605 (23

7

/

/

4

)

8

)

Center of the lens

Front of the cabinet

Center of the lens

150 (5

29

/

32

)

311 (12

1

/

4

)

150 (5

29

/

32

)

234 (9

7

/

32

)

58

Dimensions

Location information of the labels

Warning label

Explanatory label

Light source specifications

4.0 W laser diodes × 48

Wavelength: 440 - 450 nm

Beam divergence angle from lens of this unit

Laser emission port

Lens

VPLL-FM22

VPLL-ZM42

VPLL-ZM102

VPLL-Z4007

VPLL-4008

VPLL-Z4011

VPLL-Z4015

VPLL-Z4019

VPLL-Z4025

VPLL-Z4045

Zoom maximum:

α

68°

Zoom minimum:

α

36°

20°

82°

57°

29°

14°

73°

46°

33°

25°

20°

11°

31°

25°

20°

11°

Dimensions

59

The distance L’ between the front of the lens (center) and the front of the cabinet

Unit: mm (inches)

Type Lens

VPLL-FM22

VPLL-ZM42

VPLL-ZM102

VPLL-Z4007

VPLL-4008

VPLL-Z4011

VPLL-Z4015

VPLL-Z4019

VPLL-Z4025

VPLL-Z4045

L’

30.9 (1

7

/

32

)

40.1 (1

19

/

32

)

3.0 (

1

/

8

)

15.0 (

19

/

32

)

57.8 (2

9

/

32

)

75.5 (2

31

/

32

)

47.8 (1

7

/

8

)

26.7 (1

1

/

16

)

55.4 (2

3

/

16

)

53.0 (2

3

/

32

)

1

1

1

2

2

2

2

2

2

2

1 2

Front of the cabinet

Front of the lens

About Trademarks

• Adobe Acrobat is a trademark of Adobe

Systems Incorporated.

• Kensington is a registered trademark of

Kensington Technology Group.

• Internet Explore is registered trademarks of Microsoft Corporation in the United

States and/or other countries.

• PJLink is a registered trademark of Japan

Business Machine and Information

System Industries Association.

• AMX is a trademark of AMX Corporation.

• The terms HDMI and HDMI High-

Definition Multimedia Interface, and the

HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

• Crestron RoomView is a trademark of

Crestron Corporation.

• HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT

Alliance.

• All other trademarks and registered trademarks are trademarks or registered trademarks of their respective holders. In this manual,

and

®

marks are not specified.

60

Dimensions

Index

A

AC IN socket .............................................4

Acceptable input signal ...........................51

Adjust Signal ...........................................24

Air filter cover ...........................................3

All Reset ..................................................27

Antitheft bar ..............................................3

Antitheft lock .............................................3

APA .....................................................5, 24

Aspect ............................................5, 24, 26

Auto Power Saving ..................................30

B

Background .............................................27

Black Level Adj. ......................................22

Blend Gamma ..........................................32

Blending function ....................................18

Blending Range .......................................32

Brightness ................................................22

C

CC Display ..............................................27

Cleaning the air filter ...............................43

Color ........................................................22

Color Matching .......................................34

Color System ...........................................29

Color Temp. .............................................22

Combinations of input signals .................52

Connecting a computer ..............................8

Connecting an external monitor ..............11

Connecting to HDBaseT equipment .......11

Connecting video equipment .....................9

Connection/Power menu .........................29

Constant Brightness .................................29

Contrast ...................................................22

Control panel .............................................5

CONTROL S input terminal .....................4

CONTROL S output terminal ...............4, 7

Control window .......................................36

D

Default Gateway ......................................29

Digital Zoom .............................................5

Dimensions ..............................................57

Direct Power On ......................................30

Dynamic Range .......................................29

E

ECO ........................................................ 29

ECO MODE (Energy-saving mode) ......... 6

Edge Blending ........................................ 32

E-mail report ........................................... 37

Expert Setting ......................................... 22

F

fH ............................................................ 35

Film Mode .............................................. 22

Focus ................................................... 5, 15

FREEZE .................................................... 6

Front panel ................................................ 3

Function menu ........................................ 27

fV ............................................................ 35

G

Gamma Mode ......................................... 22

H

H Keystone .............................................. 32

HDBaseT Settings .................................. 29

High Altitude Mode ................................ 33

Hue .......................................................... 22

I

ID Mode .................................................. 28

ID MODE 1/2/3/4 switch .......................... 7

Image Flip ............................................... 32

Image Split .............................................. 32

Information menu ................................... 35

Input .......................................................... 4

Input-A Signal Sel. ................................. 29

Installation Attitude ................................ 33

Installation menu .................................... 32

Installing the optional adaptor ................ 45

IP Address ............................................... 29

IP Address Setup ..................................... 29

IR Receiver ............................................. 28

K

Keystone adjustment ............................... 16

L

LAN terminal ...................................... 4, 36

Language ................................................. 28

Lens Control ........................................... 28

Lens shift range ....................................... 55

Light Output Mode ................................. 29

Index

61

Light Timer ............................................. 35

Location and function of controls ............. 3

M

Main unit ................................................... 3

Menu Position ......................................... 28

Messages list ........................................... 40

Model Name ............................................ 35

N

Network Setting ...................................... 29

O

ON/STANDBY indicator .................... 3, 39

Operation menu ....................................... 28

Optional adaptor slot ....................... 3, 4, 45

Output ....................................................... 4

Over Scan ................................................ 24

P

Panel Alignment ...................................... 33

Panel Key Lock ....................................... 28

Pattern ................................................. 5, 16

Phase ....................................................... 24

Picture menu ........................................... 22

Picture Mode ........................................... 22

Pin assignment ........................................ 50

Pitch ........................................................ 24

Primary DNS ........................................... 29

Projecting an image ................................. 14

Projection distance .................................. 54

Projection distance and lens shift range .. 53

Projection distance formula .................... 54

Q

Quick Reboot .......................................... 30

R

Rear feet (adjustable) .......................... 3, 16

Remote commander .................................. 5

Remote control receiver ............................ 3

Reset .................................................. 22, 32

RS-232C terminal ..................................... 4

S

Screen Aspect .......................................... 33

Screen Fitting .......................................... 32

Screen menu ............................................ 24

Secondary DNS ....................................... 29

62

Index

Security Lock ...........................................28

Selecting an input signal ............................5

Serial No. .................................................35

Sharpness .................................................22

Shift ...................................................15, 24

Smart APA ...............................................27

Specifications ...........................................46

Standby ......................................................5

Standby Mode ..........................................30

Start Up Image .........................................27

Status .......................................................28

Subnet Mask ............................................29

T

Terminals ...............................................3, 4

Troubleshooting .......................................41

Turn off ....................................................19

Turn on ................................................5, 14

Twin picture ...............................................6

U

Using a menu ...........................................21

Using network features ............................36

V

V Center ...................................................24

V Keystone ..............................................32

Ventilation holes ........................................3

Vertical Size .............................................24

W

WARNING indicator ...........................3, 39

Warp correction .......................................17

Warping ...................................................32

With No Input ..........................................30

With Static Signal ....................................30

Z

Zone Black Level Adj. .............................32

Zoom ....................................................5, 15

Sony Corporation

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
