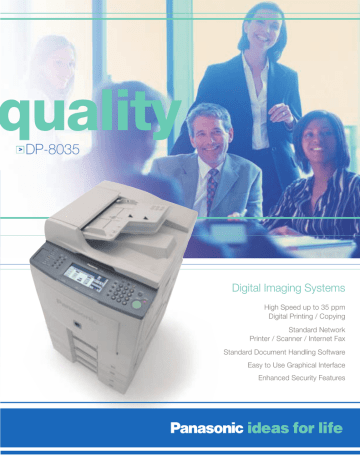

quality
>
DP-8035
Digital Imaging Systems
High Speed up to 35 ppm
Digital Printing / Copying
Standard Network
Printer / Scanner / Internet Fax
Standard Document Handling Software
Easy to Use Graphical Interface
Enhanced Security Features
You want to get the job done easier, faster, more efficiently? Panasonic
has the solution! Presenting the DP-8035 – the high-performance “seamless”
integration of scanning, printing, copying, faxing and document management.
Featuring enhanced digital data security and an innovative easy to use design, our office workhorse harnesses the power of imaging
communication in a single console. Answering the increased demands for electronic documents, the DP-8035 is equipped with network
scanning and internet fax capabilities. Furthermore, it comes with versatile document handling software for easy handling of data once
scanned into your networked PC. Network ready and up to 35 ppm high speed printing, the DP-8035 can truly be called “masterful”.
ppm High Speed
Digital Imaging Systems
High Performance
Printing and Copying
Versatile Network Scanning
•
•
Up to 35 ppm
•
Up to 85 sheet
Inverting ADF Standard for
double-sided copying
•
•
Standard Network Scanning
- Scan
& Send to PC or email
- Scan
& Archive to server
Standard Internet Fax
Standard Network Printing
Ease of Use Design
Powerful Document
Handling & Distribution
•
Quick Image Navigator for easy
and quick document handling
•
Optional Document Distribution
System for powerful document
distribution
Improved Security
•
Large LCD Graphical User Interface
•
Standard Network User Authentication
•
Easy to Lift ADF Handle
•
Standard Hard Disk Data Erasure
•
Tactile cues for the visually impaired
•
Mailbox/Secure Mailbox printing
•
Job Tracking with Network
Accounting Manager
versatile printing
>
Speed, versatility and connectivity
Robustly engineered to handle day-to-day volume demands of
today’s office environment, the DP-8035 produces high-quality
output at up to 35 ppm (Letter size). Equipped with a built-in duplex
unit, this Ledger-class platform comes out of the box with 10BaseT/100Base-TX network connectivity to give all users on your network
immediate access to the printer.
>
>
Simple, friendly and on your desktop
*1 Optional PCL printer controller
module is required
>
*2 Optional Multi-page description language
controller module is required
You know it’s ready
Right at your desktop, you have full control of the DP-8035’s
With the Device Monitor software, you can check the current
versatile printing performance. The graphical printer drivers
status of the DP-8035 without leaving your desk. When toner
provide a friendly and intuitive interface for sending print jobs.
is low or the paper tray is empty, users can respond immediately
And to prevent costly errors, there is a handy preview to
and avoid costly downtime, especially when those rush jobs are
double-check settings before committing to a complex job.
in the pipeline.
Total solution from start to finish
With the optional Finisher, the DP-8035 can automatically perform your choice of a variety of binding selections from stapling and hole punching to
saddle stitching. Enjoy freedom from outside contractors and the versatility and convenience of your own in-house on-demand printing. Everything
from manuals to quality conference materials and guidebooks can be produced from start to finish right from your desktop.
all-around copying
With Double Exposure
Accelerate Double-sided Workflow
1. In case of emergency please call 012-345-6789
2. If lost or stolen please call 101-112-1314
>
With Double Exposure + Digital Skyshot, you can make
copies of double-sided documents such as ID cards on a single
original
scanning area
original
scanning area
sheet of paper, and do it with the platen cover open and
First Pass Image 1
Second Pass Image 2
without toner-wasting black borders. You save time, paper
and toner, and get beautiful results.
2
Images combined
on a single sheet
>
When time is critical
The DP-8035 prints at a blazing speed of up to 35 Letter-size
copies per minute. Every second counts in today’s business
environment, and you don’t have time to refill empty bins, so the
DP-8035 comes with ample capacity of 2,150 sheets with options
to increase maximum capacity to as much as 6,250. With the
DP-8035, you know you have a copier that is fast enough to keep
huge paper capacity of up to
>
>
6,250 sheets
Swift Copying
The DP-8035 features a built-in duplex unit and high-speed
inverting automatic document feeder combined with innovative functions like Double Exposure, SkyShot, N-in-1 Copy, to
expand the scope of digital copying. A variety of sort options
can save you valuable time and increase your productivity.
>
Catch the mistake before it costs you
The DP-8035 has features like Proof Copy to prevent costly
errors. Just select Proof Set in the basic menu and get a
sample set to check before committing to a mass-copying
job. Helping you avoid mistakes and improving your productivity is the Panasonic way.
>
Disperse your workload
When copying large quantities of documents you can easily
disperse your workload to another registered machine on the
same network, in order to save valuable time. If you are running
two machines (DP-8060/DP-8045/DP-8035)*3 on the same
network, split your print job to two different machines in order to
cut your print time in half.
*3 Same option structure is required for both machines
up with your business and flexible enough to grow with your needs.
powerful scanning & distributing
>
Scanning – the first step toward versatile imaging communication
The DP-8035 offers high speed, high volume scanning with a built-in inverting ADF, and also enables you to distribute documents through
easy operation of the LCD touch panel. 1“Scan & Send” documents as email attachments (PDF, TIFF) to other internet Fax-capable*4
platforms or even multiple email clients. 2“Scan & Archive” directly into a PC or an FTP server on the LAN at up to a high 600 dpi resolution.
*4 Internet Fax only supports TIFF format
>
Leverage your network resources
If your company is running an LDAP (Lightweight Directory
>
recipient email addresses from the company’s database directly
Streamline your document
management and distribution
from the control panel, which eliminates the need to program the
The DP-8035 is much more than a high-performance MFP. It
address book and gives you virtually unlimited address capacity!
is also the heart of an efficient management organization and
Access Protocol) server, you can access and retrieve desired
can distribute all documents from scanned image data and
>
>
New document handling & collaboration tool
inbound faxes to general office documents. When receiving
Our Quick Image Navigator software has faster and more
inbound faxes the data will be saved directly to the server and
intuitive image handling capabilities including PDF previews.
automatically distributed to specified folders. These files can
You can view, annotate, edit and send the image files
then be easily viewed online keeping to a “paperless” work
– all with one easy-to-use application right from your desktop.
environment. With the Document Distribution System soft-
Featuring a Windows Explorer-like document structure, it helps
ware, you can also set up document routing according to your
you put your documents to work immediately.
needs so the documents can be distributed automatically.
Toward a “paperless” office – PC Fax*5
The DP-8035 streamlines faxing with convenient PC Fax
transmission direct from your PC desktop. With the Panafax
Desktop software, you also can take advantage of “paperless”
fax reception and a fax address book compatible with
other databases.
*5 Requires optional Fax Communication Board
DP-8035
“digital age” security
>
Know your users
>
Erase Completely
User Authentication not only bolsters security and ease of admin-
Technology has not only opened up possibilities for digital
istration by using the same user names and passwords registered
imaging, but also increased the possibility for the leak of confidential
in your Windows Active Directory server database, but it also
information. Hard Disk Data Erasing closes the door on one
enables the setting of usage restrictions on printing and copying
potential leak by automatically overwriting image data of each
for more efficient cost management and control.
completed copy and print job with zeroes and random data.
Also if the equipment is retired, you can use this function to
>
Keep track of work
securely erase the entire Hard Disk including its address book data.
The optional Network Accounting software collects and tabulates
log information data such as number of prints, scans, copies
and faxes. Office administrators can obtain valuable insight from
analysis of period totals for each job, output tabulations by department and user. With the optional Network Accounting Manager
you can keep track of machine use by department or individual
which makes keeping track of usage much easier.
>
Data Security Kit
The optional Data Security Kit acquires Common Criteria EAL-2 standards as
tested by a third party assessment agency by passing their stringent evaluation
tests. When the Data Security Kit is installed, all security functions will be enabled.
For example, with the Hard Disk Drive Lock function you can set your own
password, which would protect your Hard Disk from any outside access even
when the Hard Disk is detached. You can also fortify the password certification
with the Key Operator Mode to make your machine even less vulnerable.
>
Send it to the Mailbox
To prevent viewing of confidential information in the output tray,
you can send ID-registered print jobs to a shared “Mailbox” on
the Hard Disk. The job will not be printed until a user enters the
matching ID on the operation panel. For an added level of security, you can add password protection for a “Secure Mailbox”.
>
Designed for Virtually Everyone
Braille indicators for
easy identification
From the design of the hardware to software, designing
products to accommodate everyone is a top priority at
Panasonic. It does not mean only features like Braille
indicators to ease paper drawer identification for the
visually impaired but by engineering our equipment to be
more accessible to those with disabilities. We also make
our platforms easier for everyone to use, such as the
Easy lifting
ADF handle
improved user interface and “easy lift” ADF handle –
it all adds up to equipment that welcomes everyone.
Intuitive Graphical User Interface
Options
Software Options
Printer Options
Printer Controller Module
DA-PC800
Accounting Software
DA-WA10
Multi Page Description Language Controller Module
DA-MC800
Document Distribution System
DA-WR10
Document Distribution System
DA-UK10
Unlock Module
Facsimile Options
Paper Exit Options
Exit Tray
Fax Communication Board
DA-FG600
DD Server Software
Flash Memory (4MB)
UE-410047F
Other Options
Flash Memory (8MB)
UE-410048F
Data Security Kit
DA-SC01
Key Counter Harness Kit
PJEEF2750PU
Memory Options
DA-XT600
Image Memory (64MB)
DA-SM64B
Image Memory (128MB)
DA-SM28B
DA-WS20
Consumables
q
Consumables
Toner
DQ-TU38R
Developer
DQ-Z240R
Drum
DQ-H360R
Punch
Unit
DA-SP41
Paper Feed Options
Finisher
Conversion Kit
for Wheelchair
Accessibility
2-Bin Finisher
DA-FS330
Staples
1-Bin Saddle-Stitch
Finisher
FQ-SS32
(Standard with the
optional Finisher)
Letter-R/Legal Size Adaptor for LCT
DA-TK31
DA-FK352
DA-FS355A
Staples
DQ-SS35
(Standard with the
optional Finisher)
Deluxe Stand
Deluxe Stand
DA1D351
System Console 1
DA-D352R
System Console 2
DA-DS603
DA-DS604
For Wheelchair Accessibility
2-Paper Tray Configuration
3-Paper Tray Configuration
4-Paper Tray Configuration
3000-Sheet Tray (LCT)
DA-MA301
DP-8035 Specifications
Digital Copier
General
Internet Fax / Scan-to-Email*10
Type
Semi Console
First Copy Time
Approx. 5.8 sec. (Letter)
Compatibility (Internet Fax)
Copy/Print Process
Laser Indirect Electrostatic
Resolution
Up to 600 dpi
Communication Protocol
TCP/IP (SMTP, POP3, LDAP)
Developing Process
Dry Dual Component
Gray Scale
256 steps
Network Connectivity
Ethernet 10Base-T/100Base-TX
Automatic Document Feeder
85 sheets (Letter, 20 lb, 75 g/m2)
Multi Copy Speed*6
up to 35 cpm
Data Format
TIFF-FX (Profile S/F/J), PDF*11
Paper Feed
Std. 1,550 (Large-capacity tray) + 550-sheet paper tray unit Maximum Original Size
+ 50-sheet bypass
Copy Size
Max. 6,250 sheets (20 lb, 75 g/m2) with option
Copy Ratio
Ledger – Invoice (fixed)
Network User Authentication:
200%, 155%, 129%, 121%
Reduction: (fixed)
79%, 77%, 65%, 61%, 50%
Supported Protocols (SMTP, LDAP, NTLM)
Supported Modes (Copy, Scan, Email, Print, Fax)
Zoom (variable)
25~400% (in 1% increments)
Multiple Copy
1 to 999
Memory Erasure
Exposure Control
Text, Text / Photo, Photo
Fax Memory Erasure
Sort Memory
Data Security: HDD Overwrite
Power Requirements
AC 120 V, 60 Hz, 12 A
Power Consumption
Max.: Less than 1.45 kW
Power saver mode: Approx. 60 W
Sleep mode: Approx. 35 W
Warm-up Time (68F/20ºC)
Approx. 30 sec. (Main power switch ON)
Dimensions (W x D x H)*1
23.6" x 29.8" x 35.4" (600 x 757 x 900 mm)
(Excluding optional equipment)
(Including Automatic Document Feeder and ADF mounting bracket)
Weight (Excluding optional equipment)*1 Approx. 298 lb (135 kg)
Printer
Network Scanner Interface
Ethernet 10Base-T/100Base-TX
Communication Protocol
TCP/IP (LPR, FTP)
Maximum Scanning Size
Ledger
Scanning Speed*7
Approx. 35 opm (Originals per minutes - Letter portrait with ADF)
Scanning Resolution
150 dpi x 150 dpi, 300 dpi x 300 dpi, 600 dpi x 600 dpi
Compatible Operating Systems
Windows Vista™(32 bit)*5, Windows® XP/2000/98/Me, Windows Server®2003, Windows NT®4.0
Data Format
TIFF, PDF
G3 Fax (Option)
Communication Protocol
TCP/IP (LPD [Port 9100/RAW], SNMP, DHCP)
Compatibility
ITU-T Group 3, ECM
IPX/SPX*2 (NDS, Bindery, NDPS) AppleTalk (PS), IPP (PCL, PS)
Modem Speed
33.6 - 2.4 kbps with automatic fallback
Panasonic Printing System for Windows®
Coding Scheme
JBIG / MMR / MR / MH
PCL 5e Emulation*3, PCL 6 Emulation*3
Scanning Speed*7
Approx. 0.7 sec. (Letter portrait in Standard or Fine mode with ADF)
Adobe® PostScript®3™*4
Transmission Speed*8
Approx. 2.7 sec.
up to 35 ppm
Scanning Resolution
Standard: 203 dpi x 98 lpi (8 dots/mm x 3.85 lines/mm)
Printing Speed*2
Paper Size
Paper Tray: Ledger – Invoice
Fine: 203 dpi x 196 lpi (8 dots/mm x 7.7lines/mm)
Bypass: Ledger – Invoice
Printing Resolution
1,200 dpi equivalent x 600 dpi (PCL, PS), 600 dpi x 600 dpi (PCL, PS, GDI)
Printer Memory
50MB + 6GB for Spooling
Super Fine: 406 dpi x 391 lpi (16 dots/mm x 15.4 lines/mm)
600 dpi: 600 dpi x 600 dpi
Maximum Original Size
Compatible Client Operating Systems Windows Vista™(32 bit)*5, Windows® XP/2000/98/Me, Windows Server®2003, Effective Scanning Width
Windows NT®4.0 MacOS 8.6-10.4*4 (PS Only)
Recording Resolution
Compatible Network Operating Systems
39.5"
Network Scanner
Ethernet 10Base-T/100Base-TX, Bi-directional Parallel (IEEE1284)
(option)
46.0"
Standard: 32MB (Image Memory) + 12GB (HDD)
Optional: 64MB/128MB (Max.160MB)
Network Printer Interface
Printer Language (standard)
Dimensions
Enlargement: (fixed)
Bypass: 15 to 35 lb (55 to 130 g/m2)
Security
Ledger
Paper Tray: 16 to 24 lb (60 to 90 g/m2)
Paper Weight
IETF RFC 3965, ITU-T T.37
Windows®2000,Windows Server®2003,WindowsNT®4.0
Standard Memory*9
Unix (LPR), Linux (LPR), Novell 3.x/4.x/5.x/6.x, AS/400 (PCL,PS)
Ledger
10.7" (274 mm)
600 dpi x 600 dpi
3MB (Approx. 180 pages)
29.8"
23.6"
Notes
*1
*2
*3
*4
*5
Dimensions and weights are approximate.
Compatible with Novell Netware® 3/4/5/6 and Novell Directory Service® 4/5/6.
Printer Controller Module or Multi-Page Description Language Controller Module option required.
Multi-Page Description Language Controller Module option required.
For the latest information on Windows Vista™ and Panasonic's MFP products, please visit the following web site:
http: //panasonic.co.jp/pcc/products/en/mfp/download/index.html
*6 Speeds are contingent upon applications, machine configuration, and status. Individual speeds may vary.
*7 Scanning speed applies to the feeding process from the top to the end of a single page test chart.
The time for the feeding process does not include the time that it takes for the top edge of the page to
reach the scanning point and page ejection. Time for entire storing process is not applied.
*8 Transmission time applies to memory transmission of text data using only ITU-T Image No.1 between the
same models at maximum modem speed. Transmission time may vary in actual usage.
Usually public telephone lines can only support communication speeds of 28.8 Kbps or lower.
Via PBX, transmission speed may fall back to a lower speed.
*9 Based on ITU-T Image No.1 scanned in Standard mode.
*10 Depending on the receiving machines capability, the document may not be correctly printed
depending on the chosen resolution and document size.
*11 T.37 Internet Fax only supports TIFF format.
Design and specifications are subject to change without notice.
Please download the latest printer driver and application for Windows Vista™ from the following website.
http://panasonic.co.jp/pcc/products/en/mfp/download/index.html
Microsoft®, Windows®, Windows Vista™ and the Windows logo are either registered trademarks
or trademarks of Microsoft Corporation in the United States and/or other countries.
Adobe®, PostScript®, PostScript®3™, PDF and PostScript logo® are trademarks of Adobe Systems, Inc.
Novell Netware® and Novell Directory Services® are registered trademarks of Novell Inc., in the
United States and other countries.
PCL® is a registered trademark of Hewlett-Packard.
All other brand or product names are the property of their respective holders.
The Product is designed to reduce hazardous chemical substances along with the RoHS directive.
Common Criteria Validated EAL2
Data Security Kit DA-SC01 V.1.01
This certification means that the security features provided by the TOE (Target of Evaluation) used for
evaluation have been determined by ISO/IEC to conform to the security assurance requirements, and provide
adequate protection against the threats for which they are intended.
ISO 9001
Quality Management System
Our business processes which produce document,
information and network products, from manufacturing
to marketing, conform to ISO9001 Quality Management
Systems standard. Design, development, manufacture,
installation, repair and maintenance of document,
information and network products, their associated
devices and consumables. In addition, the plants
outside Japan have acquired ISO9001 certification.
As an Energy Star®
Partner, Panasonic has
determined that this
product meets the
Energy Star® Guidelines
for energy efficiency.
DP-8035-BR 06/07
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
