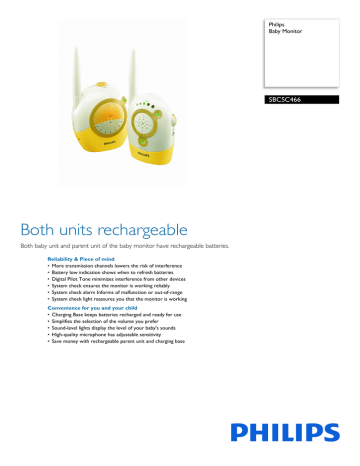

SBCSC466/00 Philips Baby Monitor

SBCSC466/00 Philips Baby Monitor
Baby Monitor
Both units rechargeable
Both baby unit and parent unit of the baby monitor have rechargeable batteries.
Reliability & Piece of mind
• More transmission channels lowers the risk of interference
• Battery low indication shows when to refresh batteries
• Digital Pilot Tone minimizes interference from other devices
• System check ensures the monitor is working reliably
• System check alarm Informs of malfunction or out-of-range
• System check light reassures you that the monitor is working
Convenience for you and your child
• Charging Base keeps batteries recharged and ready for use
• Simplifies the selection of the volume you prefer
• Sound-level lights display the level of your baby's sounds
• High-quality microphone has adjustable sensitivity
• Save money with rechargeable parent unit and charging base
Baby Monitor
Frequency band: 40.675 - 40.690 MHz
Number of pilot tones: 16
Pilot tone: Digital
Maximum range: 250 m
Number of channels: 4
• Auto out of range warning
• Battery charging indication
• Battery low indication
• Power on indication
• Volume control
• AC/DC Adaptor: 2x 9V DC 200mA
• Batteries: NiMH pack for Baby unit incl
• User Manual
• Battery voltage: 4.8 V
• Operating time on battery: 12 hr
Number of channels
A choice of channels significantly reduces the risk of
interference or sounds from other baby monitors in
the neighbourhood.
Battery-low indication
To know in time when the batteries need to be
recharged or replaced.
Digital Pilot Tone
A special tone that is transmitted along with the
audio signal to minimize the chance of interference
from other wireless appliances.
System check
When interference is detected in the
communication link between the baby unit and
parent unit or if the signal is too weak, the visual and
audible alarms will be activated.
System check alarm
The parent unit gives an audible alarm when it is
outside the communication range of the baby unit or
when the communication link is not reliable.
System check light
Green light on the parent unit lights when the
connection between the baby and the parent unit is
reliable and flashes when the parent unit is outside
the range of the baby unit or when the
communication link is not reliable.
Charging base
Thanks to the built-in battery charger in the base,
you get extra freedom (when fully charged) to take
the parent unit with you around the home and stay
in touch with your baby. It' s also a convenient place
to store the parent unit, and ensure it's always ready
for use.
Volume control
A handy rotary control sets the volume to the ideal
level to suit your preference.
Sound-level lights
Sometimes its a great help to 'see' when your baby
makes a sound. This row of lights provide you with a
clear visual indication.
Adjust Microphone sensitivity
Possibility to set the sensitivity of the microphone so
you only hear the sounds you want to hear.
Rechargeable Parent unit
Putting the parent unit on the charging base will
automatically start recharging of the batteries, so it's
always ready for portable use.
Use in & around the house
Rest assured that as you take the parent unit with
you as you move in and around your house, the
parent unit will stay in touch with the baby unit. It
keeps you reassuringly informed and able to respond
quickly when baby calls.
Range in open air
Issue date 2014-02-10
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Version: 2.0.3
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
12 NC: 9082 100 02307
EAN: 87 10895 79059 8
In the open air with no obstacles, the safe distance
between the baby unit and parent unit is greater than
indoors, so you can take the parent unit with you
into the garden or to the neighbour's house without
loosing contact.
Night light
A soft, glowing light is reassuring and provides a focal
point in the dark.
