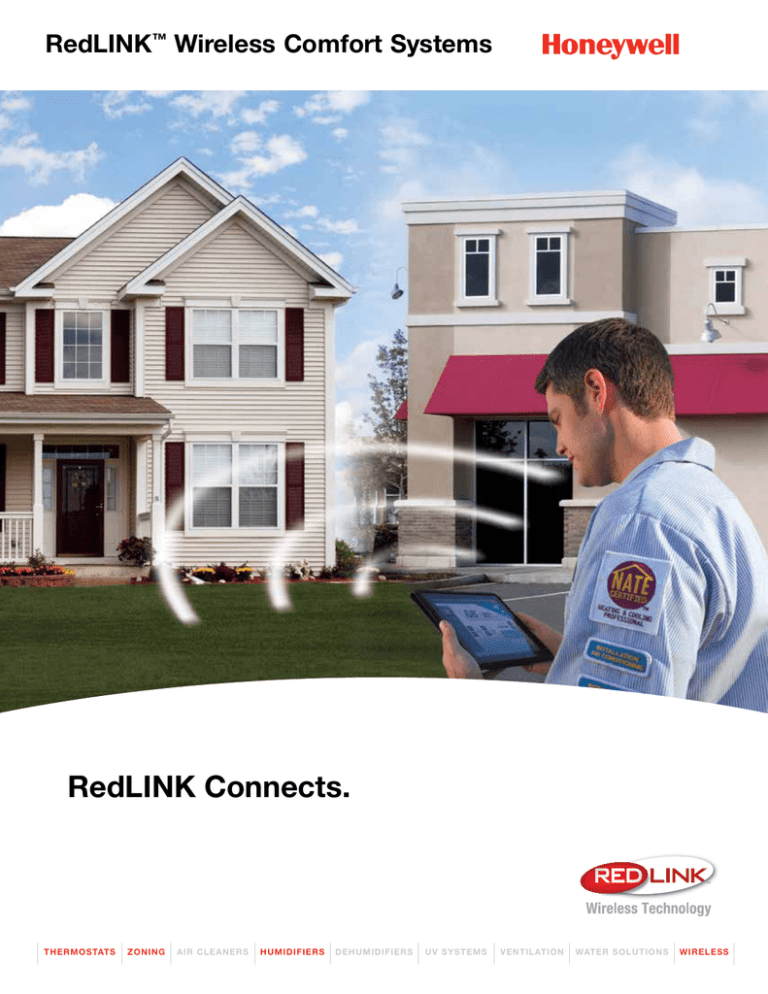

RedLINK™ Wireless Comfort Systems
RedLINK Connects.
TM
THERMOSTATS
ZONING
AIR CLEANERS
HUMIDIFIERS
DEHUMIDIFIERS
UV SYSTEMS
VENTILATION
WATER SOLUTIONS
wireless
Your Customers Are Connected.
Wireless.
Smart
Phones.
Social Media.
Today, people are
finding new and
better ways to
connect their lives.
The Power of
Connection
Honeywell’s exclusive RedLINK
Wireless Technology – and our
full-suite of wireless-enabled
comfort systems – help you
better meet your customer’s
comfort needs and connect
you to expanded business
opportunities.
Accessory add-ons offer
comfort, convenience and
connection your customers are
willing to pay for. And the ease
of wireless installation means
no added labor costs and
optimized profitability for you.
TM
Are You?
Total Connect is perfect for anyone with a smart phone, vacation home, investment property, or business.
Connect to the Internet
Connect any RedLINK™ Comfort System to the Internet to
provide your customers with remote access from their PC, smart
phone or tablet using Honeywell’s RedLINK Internet Gateway.
1
Four steps are all it takes to get connected:
1.Plug the RedLINK Internet
Gateway into a 120V wall plug
2.Connect the included Ethernet
Cable into an existing internet router
3.Press and release the botton on
Don’t Just Connect.
Total Connect.
Once registered, your customers have
the ability to customize their system
and alert settings, download free
mobile apps and more at the Total
Connect Comfort web portal.
Total Connect Comfort allows users to:
• Program scheduling*
•View and change their HVAC system settings (Heat, Cool,
Fan, Dehumidifier*, Humidifier*)
• View and set the temperature
• View and set indoor humidity*
the bottom of the RedLink
•View outdoor temperature and humidity2
Comfort System to establish
•Access multiple thermostats
communication
if the system is zoned
•Access multiple locations if
4.Provide your customer with the unique serial number
found on the bottom of their RedLINK Internet Gateway
The rest is done online when your customer registers their serial
number at www.mytotalconnectcomfort.com.
Free apps are available for Apple iPhone, iPad and iPod touch devices, as well as,
Android phone and tablet applications. Check www.mytotalconnect.com for more mobile
applications coming soon.
1
2
Outdoor air sensor required
.
* For thermostats that support these features
more than one system
is connected
•Receive temperature and
humidity alerts via e-mail
• Access over 90 system
alerts via the web.
•Get automatic upgrades as
new features are available
Redesigned Prestige® IAQ
Premier design meets exceptional sales potential:
The satisfaction your customers get with the simplicity and comfort that Prestige provides will keep them coming
back to your business for all their HVAC needs. And if that doesn’t do it, its small, sleek profile for design-conscious
residential and light commercial end users will. It’s the most attractive way to control a home‘s comfort system.
Delta T*
Diagnostics
and Alerts
Based on limits you set
at installation, customers
can be alerted when their
system is not operating as
expected with instructions
to contact you for
assistance. Alerts give
customers a sense of security while the data logs for those alerts,
as well as user interaction and system performance enable you to
service or replace the equipment prior to a loss of heating or cooling.
*All Redesigned Prestige IAQ system kits come standard with a return and a
discharge air temperature sensor to measure Delta T.
RedLINK Wireless Comfort Systems
Wireless FocusPRO®
EConnect™
TrueZONE™
Wireless FocusPRO thermostats go
anywhere and solve any problem.
Relocating a thermostat to a more ideal
sensing location, installing multi-stage
equipment, cooling retrofits when wires
are not available, or adding zoning is easy
with Wireless FocusPRO.
RedLINK goes electric. Thanks to
RedLINK communication and the simple
wiring of an Equipment Interface Module
to an electric heat baseboard, convector
or fan-forced heater, your customers
can experience the comfort they want
controlled from a wireless thermostat
located exactly where they want it.
When used with our RedLINK-enabled
TrueZONE™ panels, the Honeywell
Wireless Adapter allows you to easily
– and wirelessly – add zoning to any
home or add more zones to an existing
system. Most zoning jobs can be done
in one day and bidding risk is virtually
eliminated.
Thermostats
TM
Wireless Thermostats for Electric Heat
Wireless Zoning Systems
Comfort and
Connection Like
You’ve Never
Experienced.
One control is always the right control.
Now with selectable Residential or Commercial functionality, advanced
staging control options, and assignable input and output relays, Prestige
offers you the flexibility to use one thermostat in virtually every application.
Alerts and Interaction Logs
A searchable history of alerts and setting changes let you know if there is a
system malfunction or if the issue was caused by user error.
Customizable Service Reminders
Remind your customers when it’s time to call you for service, when their
warranty is expiring, or customize your own alerts.
Connect to More Sales with Accessories
RedLINK™ accessories give your customers the option of customizing their RedLINK Wireless Comfort system to achieve their control,
comfort and convenience needs. With installation that requires no more than a few minutes and the touch of a button, RedLINK offers you
the opportunity to increase profitability through add-on sales.
Wireless Humidity
Control
Use a RedLINK-enabled
TrueSTEAM™ Humidification
System with a Wireless
Adapter to communicate
and control humidity from
Prestige without running
new wires to the living space.
RedLINK Internet Gateway
Connect Honeywell’s RedLINK
Internet Gateway to any
RedLINK-enabled thermostat
system to access Total Connect
Comfort Services.
Wireless Outdoor
Air Sensor
Installed on the exterior of a
home or building, the Wireless
Outdoor Sensor communicates
through RedLINK to display the outdoor
temperature and humidity on all RedLINKenabled thermostats and the Portable
Comfort Control.
Portable Comfort
Control™
The Portable Comfort
Control gives customers
the freedom to make
adjustments from
anywhere in the conditioned space.
It can be used to change the set
temperature in any zone in the system,
from anywhere in the home or building.
Wireless Indoor Air
Sensor
When paired with a
Redesigned Prestige IAQ,
Prestige 2.0 or All-New
VisionPRO thermostat the Wireless
Indoor Sensor(s) gives customers the
ability to change the sensing location of
the thermostat, average temperature in
large rooms or monitor temperature and
humidity in separate spaces to provide
additional comfort or protection.
Wireless Entry/
Exit Remote
Easily setback and
recover thermostat
control from
anywhere in the home or building. Ideal
for managing your comfort and energy
consumption even with inconsistent
schedules. Interchangeable commercial
/ residential cover plates are included.
Works with the Redesigned Prestige IAQ,
Prestige 2.0 or All-New VisionPRO.
Wireless Vent and Filter
Boost Remote
One-touch 20-40-60
minute timed ventilation and
filtration boosts for the home.
Compatible with all equipment and air
cleaners controlled by a Redesigned
Prestige IAQ, Prestige 2.0 or All-New
VisionPRO. Locate the wireless boost
remotes anywhere in the home where
added ventilation is needed such as
bathrooms, kitchens, basements or
laundry rooms.
Prestige Comfort Systems and All-New VisionPRO Selection
All-New VisionPRO
Prestige 2.0 Thermostat
and Kits
Redesigned Prestige
IAQ Kits
Model Number
Stages
(Dedicated Terminals)
Kit Includes
YTHX9421R5085
Redesigned Prestige IAQ System Kit Including:
Prestige IAQ HD Thermostat, Equipment Interface
Module (EIM) and two duct sensors for alerts
diagnostics.
YTHX9421R5101
Prestige IAQ System Kit Including: Prestige IAQ
HD Thermostat, Equipment Interface Module (EIM),
Wireless Outdoor Temperature Sensor and two duct
sensors for alerts and diagnostics.
Equipment
p to 4H/2C Heat Pump & 3H/2C
U
Conventional
(Up to 4 Cool Conventional using the
universal outputs [commercial only].
Up to 2 stages of Geothermal Radiant
Heat using the universal outputs).
THX9321R5030
Prestige 2.0 HD Thermostat.
YTHX9321R5079
Prestige 2.0 System Kit Including: Prestige 2.0 HD
Thermostat and Wireless Outdoor Sensor.
YTHX9321R5061
Prestige 2.0 System Kit Including: Prestige 2.0 HD
Thermostat, Portable Comfort Control and Wireless
Outdoor Sensor.
Up to 3H/2C Heat Pump & 2H/2C
Conventional
(Up to 4 Cool Conventional using
the universal outputs [commercial
only]. Up to 3 Heat Conventional
using the universal outputs. Up to
4 Heat/2 Cool Heat Pump using the
universal outputs. Up to 2 stages of
Geothermal Radiant Heat using the
universal outputs).
TH8110R1008
RedLINK VisionPRO
1 Heat/1 Cool
TH8320R1003
RedLINK VisionPRO
Up to 3 Heat/2 Cool - Heat Pump
Up to 2 Heat/2 Cool - Conventional
TH8321R1001
RedLINK VisionPRO
Up to 3 Heat/2 Cool - Heat Pump
Up to 2 Heat/2 Cool - Conventional
• Heat Pump (Geothermal
& Air to Air)
• Forced Warm Air
• Hot Water
• Steam/Gravity
Commercial
• Only allows temporary
setpoint adjustments to
conserve energy
• Keypad Lockout
• Initiate Occupancy
• Remote setback using an
occupancy sensor
(THM5421R1021 Equipment
Interface Module required)
• Pre-occupancy purge
• Programmable fan
• Econimizer / Time of Day
• Commercial
Dehumidification Options
• 365 day Holiday Calendar
(Preloaded and up to 25
customer events)
Wireless FocusPRO Systems (Non-Zoned)
Model Number
YTH6320R1001
YTH5320R1000
Kit Includes
Programmable FocusPRO,
Equipment Interface Module and
Return Air Sensor
Schedule Options
Program
Options
Temporary
Override
Permanent
Hold
5-1-1 / 5-2 Day
Yes
Yes
Non-Programmable FocusPRO,
Equipment Interface Module and
Return Air Sensor
N/A
Application
• Stages
- Up to 3H/2C Heat Pump
or 2H/2C Conventional
• Gas, Oil or Electric
• Heat Pump
• Forced Warm Air
• Hot Water
• Steam/Gravity
Power Method
• Equipment Interface
Module — Hardwired
FocusPRO — Battery
EConnect Wireless Thermostats for Electric Heat
Model Number
YTL9160AR1000
Equipment
Specifications
• Baseboard
• Convector
• Fan Forced Heater
• Color - Thermostat: White EIM: comes with White
and Light Almond covers
• Switching - SPST
• Switching method - Relay
• Maximum Load - 1500 W @ 120 V, 3000 W @ 240 V
• Minimum Load - 50 W @ 120 V, 100 W @ 240 V
Power Supply
YTA7210-AR-SPK
TM
• Thermostat: 2 AA batteries, EIM: Hardwire
Programming Options
• 7-Day/5-2 Day
• Energy Aware
• Temporary Override
• Permanent Hold
Limited Warranty
• 3 Year
Guide
Common Features
Power Supply
24 Vac
RedLINK Accessories
• Display Outdoor Temperature
and Humidity
- Wireless Outdoor Air Sensor
(C7089R1013) Required
• Temperature Control on
Demand
- Portable Comfort Control
(REM5000R1001) Required
• Remote Indoor Temperature
and Humidity Sensing
- Wireless Indoor Air Sensor
(C7189R1004) Required
• Connect to the Internet
- RedLINK Internet Gateway
(THM6000R1002) Required
• One-touch Setback and
Recovery
- ExitEntry Remote
(REM1000R1003) Required
• 20-40-60 Minute Timed
Ventilation Boost
- Vent and Filter Boost Remote
(HVC20A1000) Required
• Extend Wireless Range
- Wireless Adapter
(THM4000R1000) Commercial
Use (Prestige IAQ Only)
Added Wiring
Terminals when
used with an EIM
Wiring Terminals
Programming
Alerts and Diagnostics
• 7-Day or Non-Prog.
• Residential/Commercial or
Residential and Commercial
• Programmable Fan
• Vacation holds
• Universal Predictive Delta
T Alerts and Diagnostics Requires EIM
• Alerts Using Dry Contact
Input(s) - Requires EIM
• Customizable Reminders
(Calendar and Temperature
Based)
• Filter, Humidifier Pad and
UV Lamp Replacement
Reminder
• User Interaction Log
• Alerts Log
• Dealer Logo On-Screen
(Prestige and Prestige IAQ
Only)
• Performance Log
(Prestige IAQ Only)
Display
• Touchscreen User Interface
• On-Screen Help
• Backlighing - Continuous or
On-Demand
• Simultaneous Display
of Room and Set
Temperatures
• Real-Time Clock
• Language Options (Prestige
and Prestige IAQ Only)
• Interview-Based
Programming and Installer
Setup
• Port for Preset Installer
Setup
Control
• Fan Circulation
• Selectable Staging
• IAQ Control &
Selectable Outputs
• Wired Sensor Inputs
• Permanent Memory
Retention
• Auto or Manual
Changeover
• Adaptive Intelligent
Recovery™
• Temperature
Setpoint Limits
• Keypad Lockout
• Advanced Dual-Fuel
Heat Pump Operation
Prestige IAQ – R, C
Equipment Interface Module
– R, C, W-O/B, W2/AUX1,
W3/AUX2, Y, Y2, G, A-L/A,
U1, U1, U2, U2, U3, U3, RH,
RC, R, C, S1, S1, S2, S2,
S3, S3, S4, S4
C, R, Rc, W-O/B, W2-Aux/E,
Y, Y2, G, A-L/A, K, U1, U1,
U2, U2
Limited Warranty
5 years
R, Rc, W-O/B, Y, G,
C, S1, S1, K
R, Rc, W-O/B, W2-Aux/E, Y,
Y2, G, C, A-L/A, K, S1, S1
R, Rc, W-O/B, W2-Aux/E, Y,
Y2, G, C, A-L/A, K, S1, S1,
U1, U1
Common Features
Equipment
Interface Module R, C, W-O/B, W2/
AUX1, W3/AUX2,
Y, Y2, G, A-L/A,
U1, U1, U2, U2,
U3, U3, RH, RC,
R, C, S1, S1, S2,
S2, S3, S3, S4, S4
Wiring Terminals
Solutions
Features and Functions
Display Information
User Interface
• Relocate Thermostat Without
Running New Wires
• Connect to the Internet-RedLINK
Internet Gateway
(THM6000R1002) required
• Upgrade to Multi-stage or Add
Cooling Without Running New
Thermostat Wires
• Displays Outdoor Temperature
and Humidity
- Wireless Outdoor Air Sensor
(C7089R1013) Required
• Temperature Control on Demand
- Portable Comfort Control
• Permanent Memory Retention
• Selectable Auto or Manual
Changeover
• Remote Locator
• Advanced Dual-Fuel Heat
Pump Operation
• Backup Control
• Private Labeling Available
• Adaptive Intelligent Recovery,
(PROGRAMMABLE
MODEL ONLY)
Temperature Setpoint Limits
• 5.09 sq. in. Display Size
(Viewable)
• On-Demand Backlighting
• Simultaneous Display of Room
and Set Temperatures
• Soft Keys
Limited Warranty
• FocusPRO and Equipment
Interface Module — 5 years
Common Features
Equipment Interface Module - C, R,
Rc, Rh, W-O/B, W2-Aux/E, Y, Y2, G,
L, RAS, RAS
Wiring Terminals
RedLINK Accessories
Display
Control
• Displays Outdoor Temperature only
- Wireless Outdoor Air Sensor (C7089R1013) Required
• Temperature Control on Demand
- Portable Comfort Control (REM5000R1001) Required
• Connect to the Internet
- RedLINK Internet Gateway (THM6000R1002) Required
• User Interface: Soft Keys English
display ONLY
• 4.53 sq. in. Display Size (Viewable)
• On Demand Backlighting
• Permanent Memory Retention
• Early Start
• Temperature Limits
• Unoccupied input (Req. CT240 or
CT241)
• 15’ Floor Temperature Sensor
Equipment Interface Module 3 Wire
Find Comfort in Your Connection
Honeywell is committed to connecting
contractors to their customers, and
connecting those customers to ideal
comfort. With our complete line of
RedLINK™ Wireless Comfort Systems
and accessories everyone’s satisfied.
Your customers get complete control
of their heating and cooling systems
while you enjoy simple installation,
increased add-on sales and an overall
improved bottom line. It’s all included
in the RedLINK connection. After all,
comfort is found in your connection.
Follow me/us on Twitter:
@honeywellcpro
YouTube:
@honeywellcpro
Learn More
Ask your Honeywell representative or
visit www.forwardthinking.com for more
details about RedLINK™ Wireless Comfort
2011
Systems.
U.S. HOMEOWNERS’ CHOICE AWARD:
OVERALL BEST BRAND
OF PROGRAMMABLE THERMOSTATS
Automation and Control Solutions
In the U.S.:
Honeywell Environmental and
Combustion Controls
TM
1985 Douglas Drive North
Golden Valley, MN 55422-3992
In Canada:
Apple, iPhone, iPad, iPod touch and iTunes are
trademarks of Apple Inc. All other trademarks
are property of their respective owners.
Honeywell Limited
35 Dynamic Drive
Toronto, Ontario M1V 4Z9
www.honeywell.com
50-1194 RL
November 2013
© 2013 Honeywell International Inc.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
