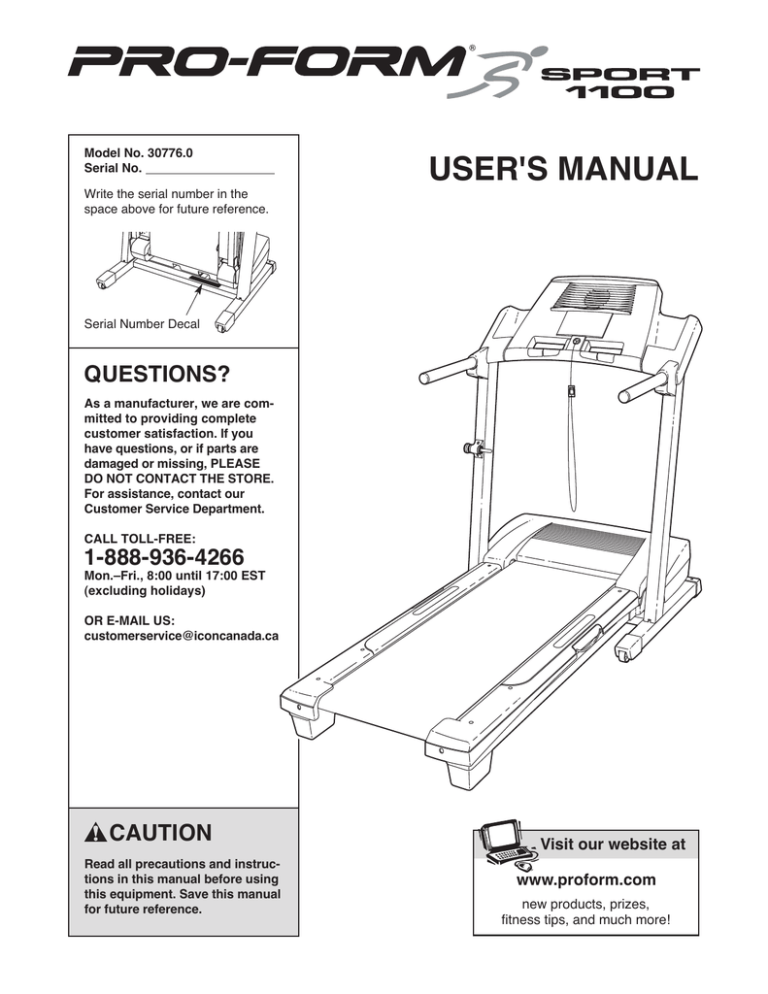

Owners Manual

Model No. 30776.0

Serial No.

Write the serial number in the space above for future reference.

Serial Number Decal

QUESTIONS?

As a manufacturer, we are committed to providing complete customer satisfaction. If you have questions, or if parts are damaged or missing, PLEASE

DO NOT CONTACT THE STORE.

For assistance, contact our

Customer Service Department.

CALL TOLL-FREE:

1-888-936-4266

Mon.–Fri., 8:00 until 17:00 EST

(excluding holidays)

OR E-MAIL US: [email protected]

USER'S MANUAL

CAUTION

Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference.

Visit our website at www.proform.com

new products, prizes, fitness tips, and much more!

V

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

WARNING DECAL PLACEMENT

This drawing shows the locations of the warning decals. If a decal is miss-

ing or illegible, call the telephone number on the front cover of this manual and request a free replacement decal. Apply the decal in the

location shown. Note: The decals may not be shown at actual size.

PROFORM is a registered trademark of ICON IP, Inc.

2

IMPORTANT PRECAUTIONS

WARNING:

To reduce the risk of serious injury, read all important precautions and instructions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

1. Before beginning this or any exercise program, consult your physician. This is especially important for persons over the age of

35 or persons with pre-existing health problems.

pressor (not included) and plug the surge suppressor into a grounded circuit capable of carrying 15 or more amps. No other appliance should be on the same circuit. Do not use an extension cord.

2. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.

3. Use the treadmill only as described.

4. Place the treadmill on a level surface, with at least 8 ft. (2.4 m) of clearance behind it and 2 ft. (0.6 m) on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.

5. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or near water.

6. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.

7. Keep children under the age of 12 and pets away from the treadmill at all times.

8. The treadmill should be used only by persons weighing 300 lbs. (136 kg) or less.

9. Never allow more than one person on the treadmill at a time.

10. Wear appropriate exercise clothes when using the treadmill. Do not wear loose clothes that could become caught in the treadmill.

Athletic support clothes are recommended for both men and women. Always wear ath-

letic shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.

11. When connecting the power cord (see page

11), plug the power cord into a surge sup-

12. Use only a single-outlet surge suppressor that meets all of the specifications described on page 11.

13. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed, accelerate, or stop unexpectedly, which may result in a fall and serious injury.

14. Keep the power cord and the surge suppressor away from heated surfaces.

15. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See TROU-

BLESHOOTING on page 21 if the treadmill is not working properly.)

16. Read, understand, and test the emergency stop procedure before using the treadmill (see

HOW TO TURN ON THE POWER on page 13).

17. Never start the treadmill while you are standing on the walking belt. Always hold the handrails while using the treadmill.

18. The treadmill is capable of high speeds.

Adjust the speed in small increments to avoid sudden jumps in speed.

19. The pulse sensor is not a medical device.

Various factors, including the user's movement, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.

3

20. Never leave the treadmill unattended while it is running. Always remove the key, unplug the power cord, and switch the reset/off circuit breaker to the off position when the treadmill is not in use. (See the drawing on page 5 for the location of the circuit breaker.)

21. Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See

ASSEMBLY on page 6, and HOW TO FOLD

AND MOVE THE TREADMILL on page 19.)

You must be able to safely lift 45 lbs. (20 kg) to raise, lower, or move the treadmill.

22. When folding or moving the treadmill, make sure that the storage latch is holding the frame securely in the storage position.

24. Inspect and properly tighten all parts of the treadmill regularly.

25.

DANGER:

Always unplug the power cord immediately after use, before cleaning the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.

26. This treadmill is intended for in-home use only. Do not use this treadmill in a commercial, rental, or institutional setting.

23. Never insert any object into any opening on the treadmill.

SAVE THESE INSTRUCTIONS

4

BEFORE YOU BEGIN

Thank you for selecting the revolutionary PROFORM

®

SPORT 1100 treadmill. The SPORT 1100 treadmill offers an impressive array of features designed to make your workouts at home more enjoyable and effective.

And when youʼre not exercising, the unique SPORT

1100 treadmill can be folded up, requiring less than half the floor space of other treadmills.

For your benefit, read this manual carefully before

using the treadmill. If you have questions after reading this manual, please see the front cover of this manual. To help us assist you, note the product model number and serial number before contacting us. The model number and the location of the serial number decal are shown on the front cover of this manual.

Before reading further, please review the drawing below and familiarize yourself with the labeled parts.

Water Bottle Holder*

Handgrip Pulse Sensor

Storage Latch

Upright

Walking Belt

Foot Rail

Fan

Console

Key/Clip

Handrail

Reset/Off

Circuit Breaker

Power Cord

Platform Cushion

Rear Roller

Adjustment Bolts

*Water bottle is not included

5

ASSEMBLY

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not

dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

Assembly requires the included hex key and your own Phillips screwdriver .

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses shows the quantity needed for assembly. Note: If a part is not in the parts bag, check to see if it has been

preassembled. To avoid damaging plastic parts, do not use power tools for assembly. Extra hardware may be included.

3/4" Screw (23)–6

1" Tek Screw (77)–4

1 1/4" Tek Screw (49)–2 Cover Screw (52)–4

Console Screw (67)–4

2 3/4" Upright Bolt (85)–2

1. Make sure that the power cord is unplugged.

With the help of a second person, carefully tip the treadmill onto its left side as shown. Partially fold the Frame (26) so that the treadmill is more stable. Do not fully fold the Frame until the

treadmill is completely assembled.

Identify the Right Upright (76), which has a

RIGHT sticker. Hold the Right Upright near the

Base (81). Insert the Upright Wire (75) into the

Right Upright until the Upright Wire is extending from the upper end of the Right Upright. Note:

Make sure that the Upright Wire is extending from the side of the post as shown in the inset drawing. Remove the tie from the Upright Wire.

Attach the Right Upright (76) to the Base (81) with a 2 3/4" Upright Bolt (85), a 1" Upright Bolt

(84), and two 3/8" Star Washers (83). Do not

tighten the Upright Bolts yet.

1" Upright Bolt (84)–2

1

75

76

26

6

81

1 1/4" Bolt (63)–4

76

Post

75

83

84

85

2. Slide a Front Endcap (80) onto the Base (81).

Partially tighten an Endcap Screw (79) into the

Front Endcap and the Base.

Slide a Wheel Housing (86) onto the Base (81).

Attach the Wheel Housing with a 1" Tek Screw

(77), a Base Pad (89), and a 1 1/4" Tek Screw

(49) as shown.

Attach an additional Base Pad (89) to the Base

(81) with a 1" Tek Screw (77).

2

81

79

80

86

89

77 49

89

77

3. With the help of a second person, carefully tip the treadmill onto its right side as shown.

Partially fold the Frame (26) so the treadmill is more stable. Do not fully fold the Frame until

the treadmill is completely assembled.

Hold the Left Upright (70) against the Base (81).

Then, thread a 2 3/4" Upright Bolt (85) and a 1"

Upright Bolt (84) with 3/8" Star Washers (83) into the Base (81) and the bottom of the Left Upright.

Do not tighten the Upright Bolts yet.

3

85

81

84

83

70

26

4. Slide a Front Endcap (80) onto the Base (81).

Partially tighten an Endcap Screw (79) into the

Front Endcap and the Base.

Slide a Wheel Housing (86) onto the Base (81).

Attach the Wheel Housing with a 1" Tek Screw

(77), a Base Pad (89), and a 1 1/4" Tek Screw

(49) as shown.

Attach an additional Base Pad (89) to the Base

(81) with a 1" Tek Screw (77).

4

7

5. With the help of a second person, carefully raise the Left Upright (70) and the Right Upright (not shown) to a vertical position.

Remove the knob from the pin. Make sure that the collar and the spring are on the pin. (Note: If there are two collars, place one on each side of the spring.) Then, insert the pin into the Latch

Housing (71), and tighten the knob onto the pin.

See steps 2 and 4. Fully tighten the two

Endcap Screws (79).

5

Knob

71

70

Spring

Collar

Pin

6. Slide a Handrail (62) onto the post on the Left

Upright (70). Finger tighten two 1 1/4" Bolts (63) into the Handrail and the post; do not fully

tighten the Bolts yet.

Attach the other Handrail (62) to the Right

Upright (76) in the same way.

6

62

63

Post

70

62

76

63

7. Make sure that the Upright Wire (75) is positioned at the side of the post on the Right

Upright (76) as shown.

Set the Pulse Bar (66) on the Left and Right

Uprights (70, 76). Attach the Pulse Bar with four

Silver Pulse Bar Screws (64) and four Pulse Bar

Star Washers (65). Start all four Silver Pulse

Bar Screws before firmly tightening them.

Firmly tighten the four 1 1/4" Bolts (63).

7

64

65

63

70

66

63

64

65

75

76

8

8. While a second person holds the console assembly near the Pulse Bar (66), connect the

Console Ground Wire (102) on the Pulse Bar to the ground wire from the console assembly.

Connect the wire from the console assembly to the Upright Wire (75). See the inset drawing.

The connectors should slide together easily

and snap into place. If they do not, turn one connector and then try again. IF THE CONNEC-

TORS ARE NOT CONNECTED PROPERLY,

THE CONSOLE MAY BE DAMAGED WHEN

THE POWER IS TURNED ON. Lay the wires inside the bottom of the Pulse Bar (66).

8

66

102

75

76

Wire

75

9. Set the console assembly on the Left and Right

Uprights (70, 76). Be careful not to pinch any

wires.

Attach the console assembly to the Pulse Bar

(66) with six 3/4" Screws (23). Start all six

Screws before firmly tightening them.

9

Console Assembly

70

23

10. Identify the Left Handrail Cover (68), which has a LEFT sticker on it. Slide the Left Handrail

Cover onto the left Handrail (62) and hold it against the console assembly. Tighten two

Cover Screws (52) into the Left Handrail Cover and the Left Upright (70); be careful not to

overtighten the Cover Screws.

Attach the Right Handrail Cover (74) to the

Right Upright (76) in the same way.

10

62

Console

Assembly

68

52

66

70

23

23

76

62

74

52

76

9

11. Lower the Uprights (70, 76) as shown.

Start the two indicated Console Screws (67) into the Left and Right Uprights (70, 76) and the console assembly. If necessary, pull back on the console assembly slightly to align the holes in the Uprights with those on the console assembly. Start the other two Console Screws be-

fore tightening all four Console Screws; do not overtighten the Console Screws.

11

Start

First

Console Assembly

67

Start First

67

70

76

12. See the inset drawing. Push the Uprights (70,

76) sideways so that the treadmill Frame (26) is centered between the Uprights.

Firmly tighten the Upright Bolts (84, 85) on each side of the treadmill.

With the help of a second person, carefully raise the Uprights (70, 76) to a vertical position

12

70

Side View

70, 76

26

View From Above

26

85

84

76

13. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of clear plastic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill. Note: Extra hardware may be included. Keep the included hex key in a secure place; the large hex key is used to adjust the walking belt (see pages 22 and 23).

10

OPERATION AND ADJUSTMENT

THE PRE-LUBRICATED WALKING BELT

Your treadmill features a walking belt coated with highperformance lubricant. IMPORTANT: Never apply sil-

icone spray or other substances to the walking belt or the walking platform. Such substances will deteriorate the walking belt and cause excessive wear.

HOW TO PLUG IN THE POWER CORD

plug. Plug the power cord into a surge suppressor,

and plug the surge suppressor into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

IMPORTANT: The treadmill is not compatible with

GFCI-equipped outlets.

This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the surge suppressor to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available.

DANGER:

Improper connection of the equipment-grounding conductor can result in an increased risk of electric shock.

Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

1

Grounded Outlet Box

Surge Suppressor

Grounding Pin

Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your homeʼs power.

Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off. To decrease the possibility of

your treadmill being damaged, always use a surge suppressor with your treadmill (see drawing 1 at the right).

Use only a single-outlet surge suppressor that is

UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a

UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules.

The surge suppressor must be electrically rated for

120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indicate whether it is functioning properly. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed, accelerate or stop unexpectedly, which may result in a fall and serious injury.

This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current, reducing the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding

2

Grounding Pin

Grounded Outlet

Grounding Plug

Grounded Outlet Box

Lug

Metal Screw

Adapter

Surge Suppressor

The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician.

The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover.

Whenever the adapter is used it must be held in place by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is grounded before using an adapter.

11

CONSOLE DIAGRAM

Key

Clip

FEATURES OF THE CONSOLE

The treadmill console offers an impressive array of features designed to help you get the most from your workouts. When you use the manual mode of the console, you can change the speed and incline of the treadmill with the touch of a button. As you exercise, the console will display continuous exercise feedback.

You can even measure your heart rate using the builtin handgrip pulse sensor.

In addition, the console features twelve preset programs. Each program automatically controls the speed and incline of the treadmill as it guides you through an effective workout. You can even create your own custom workout programs and save them in memory for future use.

To turn on the power, see page 13. To use the man-

ual mode, see page 13. To use a personal trainer

quick program, follow the steps beginning on page

15. To create your own quick program, see page

16. To use your own quick program, see page 17.

To use the information mode, see page 18.

Note: If there is a sheet of clear plastic on the face of the console, remove the plastic. To prevent damage to the walking platform, wear clean athletic shoes while using the treadmill. The first time you use the treadmill, observe the alignment of the walking belt, and center the walking belt if necessary (see page 23).

Note: The console can display speed and distance in either miles or kilometers. To find out which unit of measurement is selected or to change the unit of measurement, see THE INFORMATION MODE on page

18. For simplicity, all instructions in this section refer to miles.

12

HOW TO TURN ON THE POWER

IMPORTANT: If the treadmill has been exposed to cold temperatures, allow it to warm to room temperature before turning on the power. If you do not do this, the console displays or other electrical components may become damaged.

Plug in the power cord

(see page 11). Next, locate the reset/off circuit breaker on the treadmill frame near the power cord. Switch the circuit breaker to the reset position.

Reset

IMPORTANT: The console features a display demo mode, designed to be used if the treadmill is displayed in a store. If the displays light as soon as you plug in the power cord and switch the circuit breaker to the reset position, the demo mode is turned on. To turn off the demo mode, hold down the Stop button for a few seconds. If the displays remain lit, see THE INFORMATION MODE on page

18 to turn off the demo mode.

Next, stand on the foot rails of the treadmill. Find the clip attached to the key (see the drawing on page 12) and slide the clip onto the waistband of your clothes.

Then, insert the key into the console. After a moment, the displays will light. IMPORTANT: In an emergency

situation, the key can be pulled from the console, causing the walking belt to slow to a stop. Test the clip by carefully taking a few steps backward; if the key is not pulled from the console, adjust the position of the clip.

HOW TO USE THE MANUAL MODE

1. Insert the key into the console.

See HOW TO TURN ON THE POWER above.

2. Select the manual mode.

When you insert the key, the manual mode will be selected. If you have selected a program, reselect

Track the manual mode by pressing a Programs button repeatedly until a track appears in the center of the display.

3. Start the walking belt.

To start the walking belt, press the Start button, the Quick Speed increase button, or one of the speed buttons numbered 1 through 10.

If you press the Start button or the Quick Speed increase button, the walking belt will begin to move at

1 mph. As you exercise, change the speed of the walking belt as desired by pressing the Quick

Speed increase and decrease buttons. Each time you press a button, the speed setting will change by 0.1 mph; if you hold down a button, the speed setting will change in increments of 0.5 mph. Note:

After you press the buttons, it may take a moment for the walking belt to reach the selected speed setting.

If you press one of the speed buttons numbered 1 through 10, the walking belt will gradually increase in speed until it reaches the selected speed setting.

To stop the walking belt, press the Stop button.

The time will begin to flash in the Time/Pace display. To restart the walking belt, press the Start button, the Quick Speed increase button, or one of the speed buttons numbered 1 through 10.

Note: The first time you use the treadmill, observe the alignment of the walking belt, and align the walking belt if necessary (see page 23).

4. Change the incline of the treadmill as desired.

To change the incline of the treadmill, press the

Power Incline increase and decrease buttons.

Each time you press a button, the incline will change by 0.5%. It may take a moment for the treadmill to reach the selected incline setting.

13

5. Follow your progress with the matrix and the displays.

The matrix

When the manual mode is selected, the matrix will show a 1/4mile track. As

Track you walk or run, the indicators around the track will light in succession until the entire track is lit. The track will then disappear and the indicators will again begin to light in succession.

The Calories/Distance

display—This display will show the approximate number of calories you have burned and the distance that you have walked or run during your workout. The display will change from one measurement to the other every few seconds.

The Incline/Pulse dis-

play—This display will show the incline level of the treadmill and your heart rate when you use the handgrip pulse sensor.

The Time/Pace

display—This display will show the elapsed time and your pace

(pace is measured in minutes per mile). Note:

When a personal trainer quick program is selected, the display will show the time remaining in the program instead of the elapsed time. The display will change from one measurement to the other every few seconds.

The Speed display

This display will show the speed of the walking belt in miles or kilometers per hour.

To review specific information, press the Display button repeatedly until the displays show the information that you are most interested in viewing.

6. Measure your heart rate if desired.

Before using the handgrip pulse sensor, remove the sheets of clear plastic from the metal contacts. In addition, make sure that your hands are clean.

Contacts

To measure your heart rate, stand on the foot

rails and hold the metal contacts—avoid moving

your hands. When your pulse is detected, the

Incline/Pulse display will show one or two dashes and then your heart rate will be shown. For the

most accurate heart rate reading, continue to hold the contacts for about 15 seconds.

7. Turn on the fan if desired.

The fan features low and high speed settings.

Press the fan button repeatedly to select a fan speed or to turn off the fan. Note: If the fan is on when the walking belt is stopped, the fan will turn off automatically after a few minutes.

8. When you are finished exercising, remove the key from the console.

Step onto the foot rails, press the Stop button, and

adjust the incline of the treadmill to the lowest setting. The incline must be at the lowest setting when you fold the treadmill to the storage posi-

tion, or you may damage the treadmill. Next, remove the key from the console and put it in a secure place.

When you are finished using the treadmill, switch the reset/off circuit breaker to the “off” position and unplug the power cord. IMPORTANT: If you do

not do this, the treadmillʼs electrical components may wear prematurely.

14

HOW TO USE A PERSONAL TRAINER QUICK

PROGRAM

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page

13.

2. Select one of the personal trainer quick programs.

To select one of the twelve personal trainer quick programs, press one of the six Personal Trainer

Quick Programs buttons. If you press the button a second time the intensity of the program will increase by 1 mph. If you press the button a third time the treadmill will return to the manual mode.

A few seconds after you select a personal trainer program, the max-

Profile imum incline setting and the maximum speed setting of the program will flash in the display for a few seconds. The display will then show how long the program will last. A profile of the speed settings of the program will scroll across the matrix.

3. Press the Start button or the Quick Speed increase button to start the program.

A moment after you press the button, the treadmill will automatically adjust to the first speed and incline settings for the program. Hold the handrails and begin walking.

Each program is divided into 30 one-minute segments. One speed setting and one incline setting are programmed for each segment. Note: The same speed setting and/or incline setting may be programmed for consecutive segments.

During the workout, the profile will show your progress. The flashing segment of the profile represents the current segment of the workout. The height of the flashing segment indicates the speed setting for the current segment. At the end of each segment, a series of tones will sound and the next segment of the profile will begin to flash. The new speed and incline settings will appear in the displays for a few seconds.

If the speed or incline setting is too high or too low at any time during the workout, you can manually override the setting by pressing the speed or incline buttons; however, when the next segment of the

workout begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.

To stop the workout at any time, press the Stop button. To restart the workout, press the Start button or the Speed increase button. The walking belt will begin to move at 1 mph. When the next segment of the workout begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.

The workout will continue in this way until the last segment of the workout ends. The walking belt will then slow to a stop.

15

4. Follow your progress with the matrix and the displays.

See step 5 on page 14.

5. Measure your heart rate if desired.

See step 6 on page 14.

6. Turn on the fan if desired.

See step 7 on page 14.

7. When you are finished exercising, remove the key from the console.

See step 8 on page 14.

HOW TO CREATE YOUR OWN QUICK PROGRAM

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page

13.

2. Select a custom quick program.

To select a custom quick program, press one of the two Create Your Own Quick Programs buttons.

Note: If a custom quick program has not yet been defined, only three segments of the profile will scroll across the matrix. If more than three segments appear, see HOW TO USE

YOUR OWN QUICK PROGRAM on page 17.

3. Press the Start button or the Quick Speed increase button and program the desired speed and incline settings.

A moment after you press the button, the walking belt will begin to move. Hold the handrails and begin walking.

Each custom program is divided into one-minute segments. One speed setting and one incline setting

Current Segment can be programmed for each segment. The speed setting for the first segment will be shown in the flashing segment of the profile. To program a speed setting and an incline setting for the first segment, simply adjust the speed and incline of the treadmill as desired by pressing the Quick Speed and Power

Incline buttons. Every few times a Quick Speed button is pressed, an additional indicator will appear or disappear in the current segment column.

When the first segment of the program ends, a series of tones will sound and the current speed setting and the current incline setting will be saved in memory. The three segments of the profile will

then move one column to the left, and the speed setting for the second segment will be shown in the flashing current segment column. Program a speed setting and an incline setting for the second segment as described above.

Continue programming speed and incline settings for as many segments as desired; custom programs can have up to forty segments. When you are finished with your workout, press the Stop button twice. The speed and incline settings that you have programmed and the number of segments that you have programmed will then be saved in memory.

4. When you are finished exercising, remove the key from the console.

See step 8 on page 14.

16

HOW TO USE YOUR OWN QUICK PROGRAM

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page

13.

2. Select a custom quick programs.

To select a custom quick programs, press one of the two Create Your Own Quick Programs buttons.

A few seconds after you select a custom quick program, the maximum incline setting and the maximum speed setting of the program will flash in the display for a few seconds. The display will then show how long the program will last. A profile of the speed settings of the program will scroll across the matrix. If you press the button a second time, the program will return to the manual mode.

Note: If only three segments of the profile scroll across the matrix, see HOW TO CREATE

YOUR OWN QUICK PROGRAM on page 16.

3. Press the Start button or the Quick Speed increase button to start the program.

A moment after you press the button, the treadmill will automatically adjust to the first speed and incline settings that you programmed previously.

Hold the handrails and begin walking.

Each of the custom quick programs is divided into several one-minute segments. One speed setting and one incline setting are programmed for each segment. Note: The same speed setting and/or incline setting may be programmed for consecutive segments.

During the program, the profile will show your progress. The flashing segment of the profile rep-

Current Segment resents the current segment of the program. The height of the flashing segment indicates the speed setting for the current segment. At the end of each segment, a series of tones will sound and the next segment of the profile will begin to flash. If a different speed and incline setting is programmed for the next segment, the speed or incline setting will flash in the display to alert you.

The program will continue in this way until the last segment of the profile flashes in the current segment column and the last segment ends. The walking belt will then slow to a stop.

If desired, you can redefine the program while using it. To change the speed or incline setting

for the current segment, simply press the Power

Incline, Quick Speed, or numbered speed buttons.

When the current segment ends, the new setting will be saved in memory. To increase the length of the

program, first wait until the program is completed.

Then, press the Start button and program speed and incline settings for as many additional segments as desired. When you have added as many segments as desired, press the Stop button twice. To de-

crease the length of the program, press the Stop button twice at any time before the program is completed.

To stop the program at any time, press the Stop button. The time will begin to flash in the display.

To restart the program, press the Start button or the

Speed increase button. The walking belt will begin to move at 1 mph. When the next segment of the program begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.

4. Follow your progress with the matrix and the displays.

See step 5 on page 14.

5. Measure your heart rate if desired.

See step 6 on page 14.

6. Turn on the fan if desired.

See step 7 on page 14.

7. When you are finished exercising, remove the key from the console.

See step 8 on page 14.

17

THE INFORMATION MODE

The console features an information mode that keeps track of the total number of miles that the walking belt has moved and the total number of hours that the treadmill has been operated. The information mode also allows you to select miles or kilometers as the unit of measurement and to turn on and turn off the display demo mode.

To select the information mode, hold down the Stop button while inserting the key into the console. When the information mode is selected, the following information will be shown:

The Calories/Distance display will show the total number of miles (or kilometers) that the walking belt has moved.

The Time/Pace display will show the total number of hours that the treadmill has been used.

An “E” for English miles or an

“M” for metric kilometers will appear in the Quick Speed display. Press the Speed increase button to change the unit of measurement.

The console features a display demo mode, designed to be used if the treadmill is displayed in a store. While the demo mode is turned on, the console will function normally when you plug in the power cord, switch the circuit breaker to the reset position, and insert the key into the console. However, when you remove the key, the displays will remain lit, although the buttons will not function. If the demo mode is turned on, a “d” will appear in the Pulse/Incline display while the information mode is selected. To turn on or turn off the demo mode, press the Quick Speed decrease button.

To exit the information mode, remove the key from the console.

18

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, adjust the incline to the lowest position. If you do not do this, you may permanently damage the treadmill. Next, unplug the power cord.

CAUTION: You must be able to safely lift 45 lbs. (20 kg) to raise, lower, or move the treadmill.

1. Hold the metal frame firmly in the location shown by the

arrow at the right. CAUTION: To decrease the possibility of injury, do not lift the frame by the plastic foot rails.

Make sure to bend your legs and keep your back straight.

As you raise the frame, make sure to lift with your legs

rather than with your back. Raise the frame about halfway to the vertical position.

2. Move your right hand to the position shown and hold the treadmill firmly. Using your left hand, pull the latch knob to the left and hold it. Raise the frame until the latch pin is aligned with the hole in the center of the cushion. Slowly release the latch knob. Make sure that the latch pin is fully

inserted in the hole in the center of the cushion.

To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85° F (30° C).

Frame

Cushion

Latch

Knob

Latch Pin

Engaged

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the latch pin is

fully inserted in the hole in the center of the cushion.

1. Hold the upper ends of the handrails. Place one foot against one of the wheels.

2. Tilt the treadmill backward until it rolls freely on the front wheels. Carefully move the treadmill to the desired location.

To reduce the risk of injury, use extreme caution while moving the treadmill. Do not move the treadmill over an uneven surface.

3. Place one foot against one of the wheels, and carefully lower the treadmill until it is resting in the storage position.

Handrail

Wheel

19

HOW TO LOWER THE TREADMILL FOR USE

1. Hold the upper end of the treadmill with your right hand. Pull the latch knob to the left and hold it. Pivot the frame downward until the catch is past the latch pin.

2. Hold the metal frame firmly with both hands, and lower it to the floor. CAUTION: To decrease the possibility of injury, do

not lower the frame by gripping only the plastic foot rails.

Do not drop the frame to the floor. Make sure to bend your legs and keep your back straight.

Frame

Latch Knob

Latch Pin

Open

Frame

20

TROUBLESHOOTING

Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If you need further assistance, please see the front cover of this manual.

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor is plugged into a properly grounded outlet (see page 11). Use only a single-outlet surge suppressor that meets all of the specifications described on page 11. IMPORTANT: The treadmill is not

compatible with GFCI-equipped outlets.

b. After the power cord has been plugged in, make sure that the key is inserted into the console.

c. Check the reset/off circuit breaker located on the treadmill frame near the power cord. If the switch protrudes as shown, the circuit breaker has tripped. To reset the circuit breaker, wait for five minutes, and then press the switch back in.

c

Tripped

Reset

PROBLEM: The power turns off during use

SOLUTION: a. Check the reset/off circuit breaker (see the drawing above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for five minutes, and then plug it back in.

c. Remove the key from the console. Reinsert the key into the console.

d. If the treadmill still will not run, see the front cover of this manual.

PROBLEM: The console displays remain lit when you remove the key from the console

SOLUTION: a. The console features a display demo mode, designed to be used if the treadmill is displayed in a store. If the displays remain lit when you remove the key, the demo mode is turned on. To turn off the demo mode, hold down the Stop button for a few seconds. If the displays are still lit, see THE

INFORMATION MODE on page 18 to turn off the demo mode.

PROBLEM: The display of the console does not function properly

SOLUTION: a. Remove the key from the console and UNPLUG THE

POWER CORD. With the help of a second person, carefully tip the Uprights (70, 76) down as shown.

Remove the three Screws (11) and two 3/4" Screws

(23). Note: A Phillips screwdriver with a shaft at least 5 in. (13 cm) long is required.

a

70

11

23

23

76

21

With the help of a second person, carefully raise the

Uprights (70, 76) as shown. Carefully pivot the Hood

(28) off.

70

76

28

Locate the Reed Switch (39) and the Magnet (6) on the left side of the Pulley (7). Turn the Pulley until the

Magnet is aligned with the Reed Switch. Make sure

that the gap between the Magnet and the Reed

Switch is about 1/8 in. (3 mm). If necessary, loosen the Screw (11), move the Reed Switch slightly, and then retighten the Screw. Reattach the Hood, and run the treadmill for a few minutes to check for a correct speed reading.

1/8 in.

Top

11

View

39

6

7

PROBLEM: The incline of the treadmill does not change correctly

SOLUTION: a. With the key in the console, press one of the Incline buttons. While the incline is changing, re-

move the key. After a few seconds, re-insert the key. The treadmill will automatically rise to the maximum incline level and then return to the minimum level. This will recalibrate the incline system.

PROBLEM: The walking belt slows when walked on

SOLUTION: a. Use only a single-outlet surge suppressor that meets all the specifications described on page 11.

b. If the walking belt is overtightened, treadmill performance may decrease and the walking belt may become damaged. Remove the key and UNPLUG THE

POWER CORD. Using the hex key, turn both rear roller bolts counterclockwise, 1/4 of a turn. When the walking belt is properly tightened, you should be able to lift each edge of the walking belt 2 to 3 in. (5 to 8 cm) above the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

b

2–3 in.

Rear Roller Bolts c. If the walking belt still slows when walked on, please see the front cover of this manual.

22

PROBLEM: The walking belt is off-center or slips when walked on

SOLUTION: a. If the walking belt is off-center, first remove the key and UNPLUG THE POWER CORD. If the walking

belt has shifted to the left, use the hex key to turn the left rear roller bolt clockwise 1/2 of a turn; if the

walking belt has shifted to the right, turn the left bolt counterclockwise 1/2 of a turn. Be careful not to overtighten the walking belt. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is centered.

b. If the walking belt slips when walked on, first remove the key and UNPLUG THE POWER CORD.

Using the hex key, turn both rear roller bolts clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each edge of the walking belt 2 to 3 in. (5 to 8 cm) above the walking platform. Be careful to keep the walking belt centered.

Then, plug in the power cord, insert the key, and carefully walk on the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

a b

23

EXERCISE GUIDELINES

WARNING:

Before beginning this or any exercise program, consult your physician. This is especially important for individuals over the age of 35 or individuals with preexisting health problems.

The pulse sensor is not a medical device.

Various factors, including your movement, may affect the accuracy of heart rate readings.

The sensor is intended only as an exercise aid in determining heart rate trends in general.

The following guidelines will help you to plan your exercise program. For more detailed exercise information, obtain a reputable book or consult your physician.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity.

The proper intensity level can be found by using your heart rate as a guide. The chart below shows recommended heart rates for fat burning and aerobic exercise.

To find the proper heart rate for you, first find your age near the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age. The three numbers define your “training zone.” The lower two numbers are recommended heart rates for fat burning; the higher number is the recommended heart rate for aerobic exercise.

Fat Burning

To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time.

During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for energy. Only after the first few minutes does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the speed and incline of the treadmill until your heart rate is near the lowest number in your training zone.

For maximum fat burning, adjust the speed and incline of the treadmill until your heart rate is near the middle number in your training zone.

Aerobic Exercise

If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the speed and incline of the treadmill until your heart rate is near the highest number in your training zone.

WORKOUT GUIDELINES

Each workout should include the following three parts:

A Warm-up—Start each workout with 5 to 10 minutes of stretching and light exercise. A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise.

Training Zone Exercise—After warming up, increase the intensity of your exercise until your heart rate is in your training zone for 20 to 60 minutes. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise—never hold your breath.

A Cool-down—Finish each workout with 5 to 10 minutes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent postexercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months, you may complete up to five workouts each week if desired. The key to success is to make exercise a regular and enjoyable part of your everyday life.

24

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of knees and back.

2. Hamstring Stretch

1

Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg. Reach toward your toes as far as possible. Hold for 15 counts, then relax.

Repeat 3 times for each leg. Stretches: Hamstrings, lower back and groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons and ankles.

3

2

4

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward. Pull your feet toward your groin area as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.

5

25

PART LIST—Model No. 30776.0

R0608A

To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual.

Key No. Qty.

Description Key No. Qty.

Description

29

30

31

32

25

26

27

28

21

22

23

24

17

18

19

20

13

14

15

16

9

10

11

12

7

8

5

6

3

4

1

2

45

46

47

48

41

42

43

44

49

50

37

38

39

40

33

34

35

36

1

1

2

2

1

1

1

1

2

1

24

1

2

2

2

2

1

1

5

1

4

2

13

2

1

2

2

1

1

2

2

10

1

1

1

1

2

5

1

1

6

2

1

2

1

1

2

2

1

1

Foot Rail Decal

Foot Rail Screw

Left Foot Rail

Frame Pivot Bolt

Front Platform Bolt

Magnet

Front Roller/Pulley

Platform Nut

Belt Guide Screw

Belt Guide

Screw

Isolator

Wire Tie

English Latch Warning Decal

Walking Belt

Walking Platform

Rear Platform Bolt

Rear Roller Bracket Screw

Rear Roller Bracket

Rear Roller Bolt

Rear Roller Lock Washer

Left Rear Endcap

3/4" Screw

Hex Key

Right Rear Endcap

Frame

Right Foot Rail

Hood

Motor Bolt

Motor Nut

Lower Incline Motor Bolt

Motor Belt

Drive Motor

Motor Bracket

Motor Tension Bolt

Motor Washer

Lift Frame

Reed Switch Clip

Reed Switch

Lift Frame Spacer

Pivot Nut

Caution Decal

Hairpin Cotter

Motor Pin

Lift Frame Ground Wire

Front Roller Bolt

Upper Incline Motor Bolt

Front Roller Bushing

1 1/4" Tek Screw

Plastic Tie

79

80

81

82

75

76

77

78

71

72

73

74

67

68

69

70

63

64

65

66

59

60

61

62

55

56

57

58

51

52

53

54

95

96

97

98

91

92

93

94

99

100

87

88

89

90

83

84

85

86

1

1

2

2

4

2

1

1

1

1

1

2

2

1

4

1

4

1

4

4

2

2

9

1

1

1

1

1

1

3

3

5

1

1

1

1

1

1

1

1

1

1

4

1

2

2

2

2

5

2

Belly Pan Screw

Large Belly Pan Screw/Cover Screw

Belly Pan

Belly Pan Clip

Reset/Off Circuit Breaker

Power Cord Grommet

Power Cord

Controller Bracket

1/2" Screw

Controller

Small Star Washer

Handrail

1 1/4" Bolt

Silver Pulse Bar Screw

Pulse Bar Star Washer

Pulse Bar

Console Screw

Left Handrail Cover

Handrail Cap

Left Upright

Latch Housing

Rear Roller Flat Washer

Latch Pin Assembly

Right Handrail Cover

Upright Wire

Right Upright

1" Tek Screw

Lift Bolt

Endcap Screw

Front Endcap

Base

Roller Ground Wire

3/8" Star Washer

1" Upright Bolt

2 3/4" Upright Bolt

Wheel Housing

Wheel Pin

Wheel

Base Pad

Incline Motor

Stop Bracket

Optic Disk

Photo Switch Nut

Photo Switch

Photo Switch Bolt

Key/Clip

Photo Switch Wire

Console Base

Console

Access Door

26

Key No. Qty.

101

102

103

104

105

106

1

1

1

1

1

1

Description

Console Fan

Console Ground Wire

French Latch Warning Decal

Rear Roller

Controller Wire

Front Roller Nut

Key No. Qty.

Description

*

*

*

* –

12" Blue Wire, 2F

12" Blue Wire, M/F

22" Red Wire, M/F

20" Black Wire, M/F

*These parts are not illustrated.

Specifications are subject to change without notice.

27

EXPLODED DRAWING A—Model No. 30776.0

R0608A

28

EXPLODED DRAWING B—Model No. 30776.0

11

11

R0608A

23

28

83

30

29

32

39

40

41

53

11

33

38

34

35

30

50

11

48

43

54

36

35

37

59

59

45

105

13

44

46

59

82 106

51

54

41

54

40

55

59

57

60

59

58

61

52

56

51

29

23

51

EXPLODED DRAWING C—Model No. 30776.0

64

65

23

59

102

63

23

62

66

68

23

64

65

67

69

63

52

23

70

62

75

74

23

71

69

52

67

R0608A

73

79

41

80

76

83

87

84

86

88

85

77

97

89

49

42

31

89

77

90

47

91

92

41

87

88

41

89

94

95

86

77

30

78

77

89

49

42

84

83

85

41

78

59

75

79

81

80

EXPLODED DRAWING D—Model No. 30776.0

96

23

101

23

R0608A

99

23

98

23

23

100

23

23

23

31

ORDERING REPLACEMENT PARTS

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED

DRAWING near the end of this manual)

LIMITED WARRANTY

ICON OF CANADA, INC. (ICON) warrants this product to be free from defects in workmanship and material under normal use and service conditions. The frame is warranted for four (4) years from the date of purchase. The drive motor is warranted for one (1) year from the date of purchase. Parts and labor are warranted for one (1) year from the date of purchase.

This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped to a service center, freight charges to and from the service center will be the customerʼs responsibility. For inhome service, the customer will be responsible for a minimal trip charge. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center; products used for commercial or rental purposes; or products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other consequential damages of whatsoever nature. Some provinces do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from province to province.

ICON OF CANADA, INC., 900 de lʼIndustrie, St. Jérôme, QC J7Y 4B8

Part No. 266389 R0608A Printed in USA © 2008 ICON IP, Inc.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
