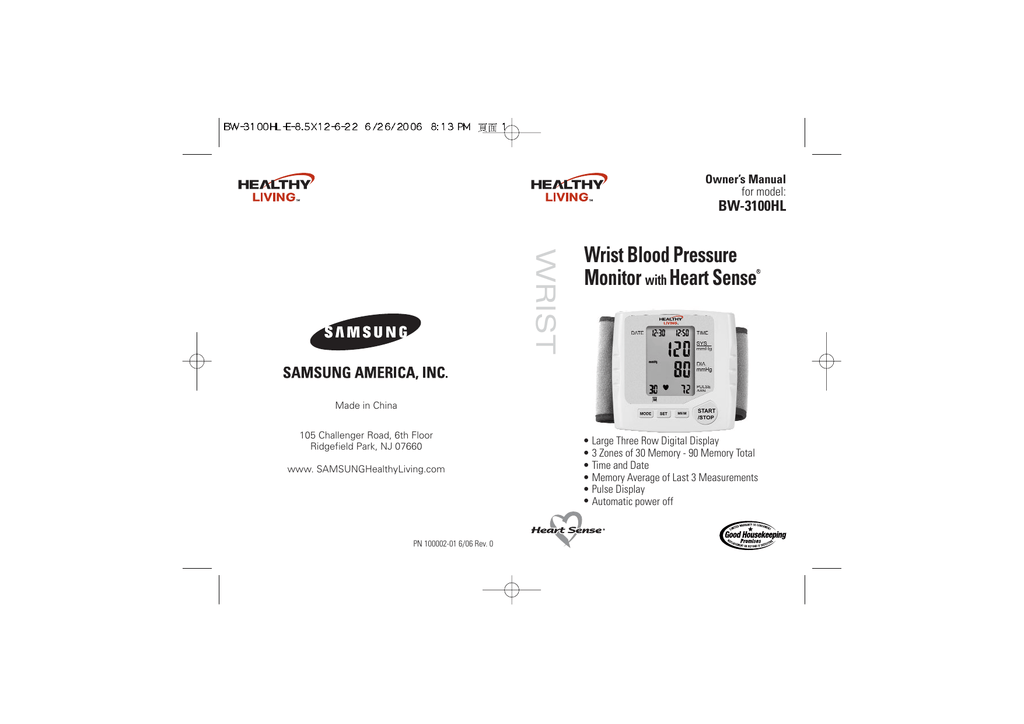

Wrist Blood Pressure Monitor with Heart Sense

Wrist Blood Pressure Monitor with Heart Sense

Owner’s Manual

for model:

BW-3100HL

Wrist Blood Pressure

Monitor

with

Heart Sense

Made in China

105 Challenger Road, 6th Floor

Ridgefield Park, NJ 07660 www. SAMSUNGHealthyLiving.com

PN 100002-0

1 6/06 Rev. 0

• Large Three Row Digital Display

• 3 Zones of 30 Memory - 90 Memory Total

• Time and Date

• Memory Average of Last 3 Measurements

• Pulse Display

• Automatic power off

Important Warnings/Medical Disclaimer

Before using your blood pressure monitor, you should read and understand all instructions and follow all warnings.

Information in this manual is provided for informational purposes only. This product and manual are not meant to be a substitute for the advice provided by your own physician or other medical professional. You should not use this product, or the information contained herein, for diagnosing or treating a health problem, disease, or prescribing any medication. If you have or suspect that you have a medical problem, promptly contact your medical provider.

Important Warnings/Medical Disclaimer

1

Table of Contents

Important Warnings/Medical Disclaimer _________________ 1

Healthy Living __________________________________ 3-4

Commonly Asked Questions About Blood Pressure _________ 5-8

Intended Use _____________________________________ 8

Measurement Method ______________________________ 9

Main Unit and Accessories __________________________ 10

Special Features _________________________________ 11

Accuracy _______________________________________ 12

Special Conditions ________________________________ 12

Digital Display Symbols ____________________________ 13

Battery Installation ________________________________ 13

Programming Time and Date _________________________ 14

Important Reminders ____________________________ 15-16

Applying the Cuff to Your Wrist _______________________ 17

Taking a Blood Pressure Measurement __________________ 18

Memory _______________________________________ 19

3 Zones of 30 Memory _____________________________ 20

Taking Care of Your Blood Pressure Monitor ______________ 21

Troubleshooting ________________________________ 22-23

Five Year Limited Warranty ________________________ 24-25

Specifications ___________________________________ 26

Blood Pressure Diary ____________________________ 27-29

2

Table of Contents

Copyright © 2006 Samsung America, Inc. All rights reserved.

Healthy Living

Purchasing this blood pressure monitor is your first step in living a healthier life, but it is only the beginning. It is also important to:

STAY ACTIVE - Start out by taking just a short walk each day. Over time you'll begin to feel more energetic. Walking is a fun, easy way to help lose weight and also aids in building stronger bones and a healthier heart!

EAT HEALTHY - Adding more fruits and vegetables to your diet is a great way to start. Also, look at incorporating more whole grains, fish and low fat dairy products and keep a check on your sodium intake. If you're using a blood pressure monitor, you should already be aware of how sodium can affect your blood pressure.

You may want to explore the potential benefits of certain botanicals such as onion and garlic. As always, consult your physician before beginning any dietary changes.

Healthy Living

3

Healthy Living

STAY POSITIVE - A healthy mind goes hand in hand with a healthy body. Daily relaxation techniques such as meditation and yoga may be just what you need to alleviate stress. Keep your mind focused on the positive things in life.

WATCH YOUR WEIGHT - Sometimes just a small amount of weight loss may have a positive effect on your blood pressure. If you have already started exercising and eating healthier, the weight loss may just happen on its own!

REMEMBER: Consult your physician before you start or change your exercise routine, diet, vitamin/supplement intake and/or blood pressure monitoring.

4

Healthy Living

Commonly Asked Questions About

Blood Pressure

Why Should I Monitor My Blood Pressure At Home?

By monitoring at home you can manage your health care between visits to the doctor. Also, you now have the means to keep a record of your blood pressure measurements, a valuable tool for both you and your healthcare provider.

Home monitoring may help alleviate White Coat

Hypertension. This term refers to what may cause a person's blood pressure to be higher when taken in a medical setting. At times the stress of just being in a doctor's office may cause blood pressure to rise. When monitoring at home you may get a truer indication of your blood pressure because you are in a relaxed, comfortable space.

What is Blood Pressure?

The term "blood pressure" refers to the force or pressure that is exerted on the body's arteries as blood flows through them. Each time the heart beats or contracts, it produces pressure in the arteries. This blood pressure is what moves blood through the body, supplying oxygen and nutrients to every organ.

Commonly Asked Questions About Blood Pressure

5

Commonly Asked Questions About

Blood Pressure

When the heart contracts it sends blood out into the body. This pressure is referred to as systolic.

The pressure that is created as the heart pulls blood back thorough is called diastolic.

Blood Pressure is recorded as systolic over diastolic.

What is considered Normal Blood Pressure?

The Seventh Report of the Joint National Committee on

Prevention, Detection, Evaluation, and Treatment of High

Blood Pressure from the National Heart, Lung and Blood

Institute has set forth the following guidelines regarding high blood pressure. Guidelines provided are for information purposes only. Please consult with your physician for proper diagnosis.

6

Commonly Asked Questions About Blood Pressure

Commonly Asked Questions About

Blood Pressure

Why Does My Blood Pressure Fluctuate?

Blood pressure changes with every beat of the heart and is in constant fluctuation throughout the day. In addition to natural changes, other factors that may affect blood pressure are:

• Temperature

(too hot or cold)

• Humidity

• Restlessness

• Lack of sleep

• Physical exercise

• Constipation

• Fear

• Anger

• Anxiety

• Food/beverage consumption

• Your physical condition

• Stress

Be sure to speak with your healthcare professional to determine what is affecting your blood pressure.

How Do I Know If I Have High Blood Pressure?

People have the misconception that they can "feel" their blood pressure rise. In reality it is nearly impossible to tell if your pressure is elevated without having it checked.

This is why hypertension has been named "the silent killer". Start monitoring your blood pressure today and discuss the results with your healthcare professional.

Commonly Asked Questions About Blood Pressure

7

Commonly Asked Questions About

Blood Pressure

Why Is It Important To Control My Blood Pressure?

Left uncontrolled hypertension can place an incredible amount of stress on your heart and arteries. They are both forced to work harder to keep blood flowing through your body. Over time this stress may result in health related problems including enlargement of the heart, loss of artery elasticity, heart disease, stroke and death. Making simple lifestyle changes now may help you stay healthy in the future.

Intended Use

Healthy Living blood pressure monitors are designed for home use. They are noninvasive; no part enters your body, and provide systolic, diastolic and pulse rate measurements.

These monitors are recommended for use by people over 18 years of age and are not suitable for clinical use.

8

Commonly Asked Questions About Blood Pressure/Intended Use

Measurement Method

Healthy Living monitors measure blood pressure and pulse rate by using an oscillometric method, meaning the fluctuations in pressure are measured. Once the cuff is wrapped around the wrist, the monitor is turned on and the cuff is automatically inflated. The inflation of the cuff creates pressure around the arteries inside the wrist.

Within the cuff is a gauge which senses the fluctuations

(oscillations) in pressure. The fluctuations measured are the arteries contracting with each heart beat as a result of the pressure the cuff has placed on the wrist. The monitor measures these contractions and converts the information to a digital value. That is the result displayed on the monitor screen. Once the measurement is complete the cuff will automatically deflate.

Measurement Method

9

Main Unit

Main Unit and Accessories

Date

Mode

Set

Accessories

Includes:

* 2 AAA Alkaline Batteries

* Storage/Travel Pouch

10

Main Unit and Accessories

Time

Systolic

Diastolic

Pulse

Start/Stop

Memory

Special Features

Heart Sense

The Heart Sense Inflation System senses your blood pressure before the measurement is complete, signaling the monitor to adjust the air pressure amount. The result is a quick, comfortable measurement each time you check your blood pressure.

Quiet Inflation

A unique, low noise, rolling motor system allows our monitors to inflate quietly.

Large 3 Row Display Screen

To make reading your result easier, the monitor comes with a large 3 row LCD display screen.

Memory Feature

Your Healthy Living Wrist Monitor features memory capability of up to 90 measurements and provides the average of the 3 most recent readings!

Time and Date

The monitor will automatically keep track of the time and date.

Special Features

11

Accuracy

Healthy Living monitors have been clinically tested against a scientific device called a sphygmomanometer, considered the gold standard in blood pressure measurement. All Healthy Living monitors have performed equivalent to measurements taken with this scientific device and are within the accuracy limits prescribed by the American National Standard for Electronic or

Automated Sphygmomanometers.

Special Conditions

All Healthy Living blood pressure monitors are safe and accurate to use with arrhythmias, such as atrial or ventricular premature beats and atrial fibrillation.

12

Accuracy/Special Conditions

Digital Display Symbols

Month/Day

Measuring Symbol

Blood

Pressure Unit

Replace Battery

Error Symbol

Memory Display

Hour/Minute

Systolic Rate

Diastolic Rate

Heart Rate Symbol

Battery Installation

Pulse Rate

Using the 2 AAA batteries included, locate the battery compartment on the side of the monitor.

Remove the battery cover and insert the batteries, making sure the polarities (+/-) are correct. Snap the battery cover back into place.

When the display screen shows "low battery symbol" it is time to replace with 2 new AAA batteries.

* To make the batteries last longer, you may want to remove them if you are not using your monitor for an extended period of time.

Digital Display Symbols/Battery Installation

13

Programming Time and Date

To set the month, simply press the "MODE" button and the month number will begin to flash. Press the "SET" button until the correct month appears and then press "MODE" to set that month. Follow the same process to set the day and time.

Important Reminders

Follow your health care provider's advice on how and when to take your blood pressure. Here are some important hints on what to do before taking a measurement:

* Sit quietly for about 10 minutes. This allows your body to return to its normal resting state.

* Take your blood pressure in a room temperature environment, extreme temperatures may affect the measurement.

* Wait 30-45 minutes after smoking or consuming caffeinated beverages.

14

Programming Time and Date Important Reminders

15

Important Reminders

While taking a measurement:

* Sit still and quietly. Talking or moving may elevate measurements.

* For consistency, it is a good idea to measure your blood pressure around the same time each day and using the same wrist. If possible, we suggest using the left.

* When taking multiple measurements right after each other, make sure you have allowed at least 10 minutes between measurements. This allows your blood vessels to return to their normal state.

* Sit with your legs uncrossed and feet flat on the floor.

Do not touch the cuff or monitor while the measurement is being taken.

* Keep your wrist at level with your heart.

* Relax.

16

Important Reminders

Applying the Cuff to Your Wrist

* The cuff needs to be wrapped around your bare wrist. Make sure to rollup your sleeve or remove any clothing or jewelry that is covering your wrist. If rolling up a sleeve, make sure this does not constrict blood circulation in your arm.

* Wrap the cuff around your wrist

(preferably the left) making sure it is secure, but not too tight. The monitor should be facing up at you.

* Place your arm on a table with your palm facing up. It is important for the wrist cuff to be at the same level as your heart. You can rest your wrist on the enclosed storage case.

Applying the Cuff to Your Wrist

17

Taking a Blood Pressure

Measurement

* Once the cuff is properly around your wrist and you are seated with your feet flat on the floor, you are ready to take your measurement.

* Press "SET" button to select a particular memory zone

(no.1 to no.3).

* See "3 Zones of 30 Memory" for detailed instructions on setting/using memory.

* Press the "START/STOP" button to begin measuring. You will feel the cuff get tighter, this is normal. The cuff will automatically inflate to the level that is right for you.

The cuff should not inflate to the point of discomfort, if this happens the cuffed is wrapped to tightly. Press the

"START/STOP" button to stop the measurement and rewrap the cuff leaving more room between your wrist and the cuff.

* As the monitor determines your blood pressure, numbers will appear and change on the display screen until your reading is complete.

18

Taking a Blood Pressure Measurement

Taking a Blood Pressure

Measurement

* When your measurement is complete the monitor will automatically deflate by releasing the air in the cuff.

* The process should take less than a minute and once the measurement is complete your blood pressure and pulse rate will be displayed. The monitor will turn itself off approximately 1 minute after completing a reading.

NOTE: Blood pressure constantly changes during the course of a day. Occasionally high or low readings do not necessarily mean you are ill or that the monitor is malfunctioning. If you experience abnormal measurements it is important to speak with your doctor to learn what your normal blood pressure is.

Memory

When you take a measurement the monitor will automatically store it as number 1. As you continue to take measurement the monitor will "push" the previous measurement back one space. The most recent measurement will always be 1, the measurement before that will be 2 and so on. To view measurements in Memory, press the "MEMORY" button for the last reading and continue to press for each previous reading.

Taking a Blood Pressure Measurement/Memory

19

3 Zones of 30 Memory

Your monitor features a 3 party memory capability or 3 "zones" each zone stores 30 measurements each for a total capacity of 90 measurements. This feature is useful for a user to track their blood pressure throughout the various periods of the day: morning, afternoon, and night.

Press the "SET" button to toggle between memory zone No.1,

2, and 3. Once you select a zone that you want to view the measurements in, press the "MEMORY" button once to view the most recent measurement along with the time and date that it was taken. Press the "MEMORY" button again in succession and you will see all of the measurements registered to that zone. You can then press the "SET" button to switch to the next zone to view measurements. The monitor will automatically power off after about one minute of inactivity.

* When taking measurements, be sure and select the correct zone number using the SET button so that the measurement is registered to the appropriate zone.

* Erasing data: Removing the batteries will erase all stored data.

20

3 Zones of 30 Memory

Taking Care of Your

Blood Pressure Monitor

To insure a long life and accurate readings for your monitor, it is important to treat it with care. Here are some basic tips to follow:

* Keep the monitor out of direct sunlight, high humidity and extreme temperature changes.

* Do not take the cuff or monitor apart. If repairs are needed please see details in the warranty section.

* Do not drop the monitor.

* Keep the monitor free of dust and other materials. Avoid getting any part of the monitor or cuff wet.

* To clean the monitor wipe it with a cloth slightly dampened with water. We recommend cleaning your monitor about once a month.

* Do not force the cuff to fold or bend, this may damage it on the inside.

* Do not inflate the cuff if it is not wrapped around your wrist.

* DO NOT wrap the cuff around any body part other than your wrist.

Taking Care of Your Blood Pressure Monitor

21

Troubleshooting

Error/Symbol What Does It Mean?

How To Fix It

Monitor may have been inflated without the cuff around the wrist OR Cuff may not be positioned correctly on the wrist.

Read page 17

(Applying the Cuff).

Movement may have disturbed the cuff while inflating and it is attempting to reinflate. Check the cuff to make sure it is positioned correctly.

Read pages 15& 16

(Important

Reminders).

You may have moved or spoken during the measurement process.

Remember that it is important not to move and speak as it may elevate measurements.

You may have been startled by a noise or vibration while measuring.

Make sure you are in a quiet and comfortable place when taking a measurement.

22

Troubleshooting

Troubleshooting

Error/Symbol What Does It Mean?

How To Fix It

The batteries have run down.

Replace with 2 new

AAA batteries. See page 13 for instructions.

Blood pressure value seems too high or too low

Cuff may not be aligned correctly

Circuitry locked.

Read page 17

(Applying the Cuff).

Remove and reinsert the batteries and then proceed to take measurement again.

Unable to take a measurement after receiving an error symbol.

The cuff may not be positioned correctly.

Read page 17

(Applying the Cuff).

Troubleshooting

23

Five Year Limited Warranty

Samsung America, Inc. will, at its option, repair or replace your monitor, including the cuff, with the same or comparable model free of charge (except you must pay for shipping charges set forth below) for a period of (5) five years from the date of original purchase in the event of a defect in materials or workmanship occurring during normal use. This product is for home use only and is not intended for commercial or clinical use. This warranty only extends to the original retail purchaser. Purchase receipt or other proof of date of original purchase is required before warranty performance. The warranty on any replacement product provided under this warranty shall be for the unexpired portion of the warranty period applicable to the original product.

This warranty extends solely to failures due to defects in materials or workmanship occurring during normal use. It does not cover normal wear of the product. This warranty is void if: the product housing has been removed, if the product's label, logo or serial number have been removed or if the product fails to function properly as a result of accident, misuse, abuse, neglect, mishandling, misapplication, defective batteries, faulty installation, setup, adjustments, improper maintenance, alteration, maladjustment of controls, modification, power surges, commercial or clinical use of the product, service by anyone other than an authorized service center or acts beyond the manufacturer's or distributor’s control.

The warranty and remedy provided herein are exclusive and in lieu of all other express and implied warranties and unless stated herein, any statements or representations made by any other person or entity are void. NEITHER THE MANUFACTURER, DISTRIBUTOR NOR THEIR

AFFILIATES SHALL BE LIABLE FOR ANY LOSS, INCONVENIENCE,

INJURY, OR DAMAGE INCLUDING DIRECT, SPECIAL, INCIDENTAL, OR

CONSEQUENTIAL DAMAGES RESULTING FROM THE USE, IMPROP-

ER USE, FAILURE TO HEED ANY WARNING, DISCLAIMER

24

Five Year Limited Warranty

Five Year Limited Warranty

OR INSTRUCTION OR INABILITY TO USE THIS PRODUCT,

WHETHER ARISING OUT OF ANY BREACH OF THIS WARRANTY

OR ANY OTHER LEGAL THEORY. ALL EXPRESS AND IMPLIED

WARRANTIES, INCLUDING THE WARRANTIES OF MER-

CHANTABILITY, ARE LIMITED TO THE APPLICABLE WARRANTY

PERIOD SET FORTH ABOVE. Manufacturer and Distributor assume no responsibility for injuries, damages or penalties incurred or suffered resulting from the use of this product in an improper manner or manner or location other than for that for which it is intended or from failure to heed any warning, disclaimer or instruction.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you. This warranty gives your specific legal rights and you may also have other rights which vary from state to state.

Should your product prove defective during this warranty period, please return the product in the original carton prepaid to:

SAMSUNG AMERICA, INC.

c/o Healthy Living Division

105 Challenger Road, 6th Floor

Ridgefield Park, NJ 07660

Attn: Customer Service

Include $11.95 for return shipping & insurance. (CHECK OR

MONEY ORDER ONLY PLEASE, NON-REFUNDABLE). Sorry, we cannot deliver to P.O. Boxes. Please allow 6-8 weeks for delivery.

Include with your monitor a letter stating: your name, street address, daytime phone number, detailed description of the problem, a copy of your dated cash register receipt or other proof of purchase. This warranty is only valid in the United States.

Five Year Limited Warranty

25

Specifications

Model

Monitor Type

BW-3100HL

Wrist cuff

Measurement Method Oscillometric

Display Liquid crystal digital display

Measurement Range Pressure:0-300 mm Hg

Pulse:40-199 beats/Minute

Accuracy Pressure:within ± 3mm Hg

Pulse:within ± 5%

Memory 3 databases of 30 memory each

= total 90 sets

Automatic Power Off Approximately 2 minutes after measurement is complete

Battery Type

Battery Life

2 AAA batteries (Alkaline)

Approximately 6 months when used once a day

Storage Temperature Temperature:-4°F to 140°F

Relative Humidity:10~95% R.H.

Operating Temperature Temperature:50°F to 104°F

Relative Humidity:30~85% R.H.

Dimensions (approx.) Monitor: L 27 5 /

8

" x W 28 1 /

4

" x H 11 3 /

8

"

Cuff: fits wrists 5"- 8" around

Weight (approx.) 5.8 oz. (including batteries)

For purposes of improvement, specifications are subject to change without notice.

26

Specifications

Blood Pressure Diary

Date Time Systolic/Diastolic

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

Pulse

Blood Pressure Diary

27

Blood Pressure Diary

Date Time Systolic/Diastolic

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

Pulse

28

Blood Pressure Diary

Blood Pressure Diary

Date Time Systolic/Diastolic

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

Pulse

Blood Pressure Diary

29

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
