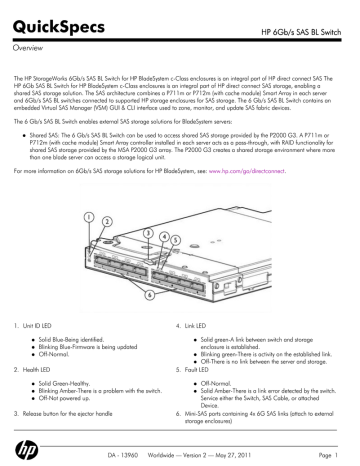

HP 6Gb/s SAS BL Switch
QuickSpecs
HP 6Gb/s SAS BL Switch
Overview
The HP StorageWorks 6Gb/s SAS BL Switch for HP BladeSystem c-Class enclosures is an integral part of HP direct connect SAS The
HP 6Gb SAS BL Switch for HP BladeSystem c-Class enclosures is an integral part of HP direct connect SAS storage, enabling a
shared SAS storage solution. The SAS architecture combines a P711m or P712m (with cache module) Smart Array in each server
and 6Gb/s SAS BL switches connected to supported HP storage enclosures for SAS storage. The 6 Gb/s SAS BL Switch contains an
embedded Virtual SAS Manager (VSM) GUI & CLI interface used to zone, monitor, and update SAS fabric devices.
The 6 Gb/s SAS BL Switch enables external SAS storage solutions for BladeSystem servers:
Shared SAS: The 6 Gb/s SAS BL Switch can be used to access shared SAS storage provided by the P2000 G3. A P711m or
P712m (with cache module) Smart Array controller installed in each server acts as a pass-through, with RAID functionality for
shared SAS storage provided by the MSA P2000 G3 array. The P2000 G3 creates a shared storage environment where more
than one blade server can access a storage logical unit.
For more information on 6Gb/s SAS storage solutions for HP BladeSystem, see: www.hp.com/go/directconnect.
1. Unit ID LED
4. Link LED
Solid Blue-Being identified.
Blinking Blue-Firmware is being updated
Off-Normal.
Solid green-A link between switch and storage
enclosure is established.
Blinking green-There is activity on the established link.
Off-There is no link between the server and storage.
5. Fault LED
2. Health LED
Solid Green-Healthy.
Blinking Amber-There is a problem with the switch.
Off-Not powered up.
3. Release button for the ejector handle
DA - 13960
Off-Normal.
Solid Amber-There is a link error detected by the switch.
Service either the Switch, SAS Cable, or attached
Device.
6. Mini-SAS ports containing 4x 6G SAS links (attach to external
storage enclosures)
Worldwide — Version 2 — May 27, 2011
Page 1
QuickSpecs
HP 6Gb/s SAS BL Switch
Overview
At A Glance
Hot Pluggable 6Gb/s SAS Switch for HP BladeSystem
Sixteen internal blade bay ports containing 2x 6Gb/s SAS links
Eight external Mini-SAS ports containing 4x 6Gb/s SAS links
Use Mini-SAS cables to connect to MSA P2000 G3 enclosures for shared SAS storage
Use the embedded Virtual SAS Manager GUI or CLI interface to zone switch ports or drive bays to server bays.
Supported by c3000 and c7000 BladeSystem enclosures (see supported options list for specific SKUs)
Supports SAS tape devices for optional backup
For detailed deployment information, see the HP direct connect external SAS storage for HP BladeSystem deployment guide.
Models
6Gb/s SAS Switch
HP StorageWorks 6Gb/s SAS BL Switch - Single Pack
HP StorageWorks 6Gb/s SAS BL Switch - Dual Pack
DA - 13960
Worldwide — Version 2 — May 27, 2011
BK763A
BK764A
Page 2
QuickSpecs
HP 6Gb/s SAS BL Switch
Solutions Components
Configuration Rules:
6Gb/s SAS Switch:
The SAS Switch is supported only in the HP c-Class Enclosures (c7000 (RoHS 6
of 6 compliant enclosures) & c3000)
Support installation of the 6 Gb/s SAS BL Switch in up to 6 interconnect bays in
the c7000 and up to 2 interconnect bays in the c3000.
(2) SAS Switches are required in the same c-Class enclosure interconnect bay
row for redundancy. Single switch configurations are supported as nonredundant.
Only drive bays attached to switch ports 1-4 can be zoned to server bays 1-8
and drive bays attached to switch ports 5-8 can be zoned to server bays 9-16.
Use the embedded Virtual SAS Manager GUI or CLI interface to zone switch ports to
server bays. Supported Internet browser versions: Microsoft Internet Explorer 6.0/7.0,
Mozilla Firefox 3.
Related Items
P2000 G3 SAS
The 6Gb/s SAS BL Switch can be used to access shared SAS storage provided by the
P2000 G3 SAS. A P711m/P712m Smart Array controller installed in each server acts
as a pass through, with RAID functionality for shared SAS storage provided by the
P2000 G3 SAS array.
Configured Units, 6 Gb SAS Systems
HP StorageWorks P2000 G3 SAS MSA Dual Controller LFF Array System
HP StorageWorks P2000 G3 SAS MSA Dual Controller SFF Array System
Smart Array
HP Smart Array P712m Controller/256MB
HP Smart Array P711m Controller/1GB
SAS cable
2M Mini-SAS (SFF8088) to Mini-SAS (SFF8088) 4x SAS Cable
NOTE: Use this cable to connect HP StorageWorks P2000 G3 SAS
Tape Drives
Tape Autoloaders
HP StorageWorks 1/8 G2 LTO-5 Ultrium 1760 SAS Tape Autoloader
HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader
HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS Autoloader
Tape Libraries
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Drive Library
HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SAS Drive Library
HP StorageWorks MSL2024 1 LTO-5 Ultrium 3000 SAS Drive Library
HP StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SAS Drive Library
HP StorageWorks MSL2048 1 LTO-5 Ultrium 3000 SAS Drive Library
HP StorageWorks MSL8096 2 LTO-4 Ultrium 1760 SAS Drive Library
HP StorageWorks MSL8096 2 LTO-5 Ultrium 3000 SAS Drive Library
NOTE: HP recommends a maximum of 2 tape drives per 6Gb/s SAS BL Switch and
64K transfer sizes. Attaching a library with 4 tape drives requires purchasing a second
tape library SAS cable (AN975A or AN976A) and attaching 2 drives to the redundant
6Gb/s SAS BL Switch. Attaching more than 2 tape drives per switch and transfer sizes
greater than 64K could result in a failed backup or restore. A future release of
firmware on the tape library drives will allow more than 2 tape drives to be attached to
a switch.
SAS cables for tape drives 2M External Mini-SAS (SFF8088) to Mini-SAS (SFF8088) 1x SAS Cable
NOTE: Use this cable to connect HP StorageWorks SAS external tape devices
DA - 13960
Worldwide — Version 2 — May 27, 2011
AW593A
AW594A
488348-B21
513778-B21
407339-B21
BL536A
AK377A
AH558A
AK378A
AH559A
BL537A
AK380A
BL538A
AK382A
BL539A
AE470A
Page 3
QuickSpecs
HP 6Gb/s SAS BL Switch
Solutions Components
4M External Mini-SAS (SFF8088) to Mini-SAS (SFF8088) 1x SAS Cable
NOTE: Use this cable to connect HP StorageWorks SAS external tape devices
2M External Mini-SAS (SFF8088) 1x to Mini-SAS (SFF8088) 4x fanout SAS Cable
NOTE: Use this cable to connect HP StorageWorks MSL SAS Tape Libraries
4M External Mini-SAS (SFF8088) 1x to Mini-SAS (SFF8088) 4x fanout SAS Cable
NOTE: Use this cable to connect HP StorageWorks MSL SAS Tape Libraries
For more information on tape products, see: www.hp.com/go/tape
c Class Blade Enclosures HP BLc7000 CTO 3 IN LCD ROHS Encl
HP BLc7000 1PH 2PS 4 Fan TL ROHS ICE
HP BLc7000 1PH 6PS10Fan Fl ROHS 16IC Kit
HP BLc7000 3PH 6PS 10 Fan INT ROHS ICE
HP BLc7000 3PH 6PS10FanENG ROHS IC Kit
Warranty
AE465A
AN975A
AN976A
507019-B21
507014-B21
507015-B21
507016-B21
507017-B21
This product is covered by a global limited warranty and supported by HP Services and a worldwide
network of HP Authorized Channel Partners. Hardware diagnostic support and repair is available for
three years from date of purchase. Support for software and initial setup is available for 90 days from
date of purchase. Additional support may be covered under the warranty or available for an additional
fee. Enhancements to warranty services are available through HP Care Pack services or customized
service agreements.
NOTE: Server Blade Interconnect Limited Warranty includes 1 year Parts, 1 year Labor, 1-year on-site
support. Additional information regarding worldwide limited warranty and technical support is available
at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
HP services provide total care and support expertise with committed response designed to meet your IT
and business needs.
DA - 13960
Worldwide — Version 2 — May 27, 2011
Page 4
QuickSpecs
HP 6Gb/s SAS BL Switch
Service and Support and Warranty Information
HP Care Pack Services
Scalable, Flexible, Dependable. Like your storage.
Your storage is evolving. Get scalable support that evolves with it. HP Care Pack Services is an easy-tobuy, easy-to-use portfolio of packaged services covering your lifecycle needs. You can rely on our highly
skilled, HP certified professionals to offer a breadth of expertise across leading storage technologies, and
work side by side with you for optimal results. Push services beyond expectations and choose support that
meets the changing needs of your business with the same reliability, scalability and flexibility you demand
of your storage.
Protect your business beyond the warranty
Standard warranty protects against product defects and some causes of downtime. HP Care Pack
Services helps you proactively guard against unplanned downtime which can reduce your productivity
and profitability. By using a standard approach to warranty uplifts, such as HP Care Pack Services,
customers can be more sure of consistency of operations for both mission-critical and standard business
computing.
Extending warranties with HP Care Pack Services
The key to normalizing the warranty of combined solutions-is making service uplift simple: HP Care Pack
Services. This portfolio of predefined packages, extending across the entire IT lifecycle, offering
consulting, education, technical support, optimization, risk assessment, and more. It's entirely flexible
allowing customers to extend the cover to the precise level of support required. Customer's standard
hardware warranty, for example, can be upgraded to next-business-day response, to same-day coverage,
or even to a committed six-hour call-to-repair service available 24 hours every day of the week.
Provide consistent, predictable levels of support across your entire department or business
Give you direct access to proven technical and problem-solving expertise
Offer a choice of response-time and repair-time commitments
Are available whenever and wherever you do business
For many products, post-warranty HP Care Pack Services are available when your original warranty has
expired. Choose the support levels that meet your business requirements, from basic to mission-critical.
http://www.hp.com/hps/storage
NOTE: Care Pack Services availability may vary by product and country.
DA - 13960
Worldwide — Version 2 — May 27, 2011
Page 5
QuickSpecs
HP 6Gb/s SAS BL Switch
Service and Support and Warranty Information
Recommended Services
HP Care Pack Services recommended for optimal satisfaction of all deployments of your product.
3-Year HP Support Plus 24x7x365 hardware and software services - plus cost-saving software
24
updates and more
HP Support Plus 24 helps you increase performance and availability with
comprehensive, consistent hardware and software services. Working with
your IT team, HP Services engineers deliver onsite hardware support and
over-the-phone software support around-the-clock 365 days per year.
Service coverage encompasses HP products and selected multivendor
hardware and software.
In addition, this convenient HP Care Pack packaged service makes software
updates available to you at substantial savings.
Choose Support Plus 24 when you need to:
HP Installation and
Startup Service for HP
BladeSystem c-Class
Infrastructure (OS + ICE)
Product Number
BK763A
-
BK764A
-
Improve uptime with responsive hardware and software services available
anytime
Cost-effectively obtain expert 24x7 multivendor hardware and software
support
Enjoy consistent service coverage across geographically dispersed sites
Update HP and selected third-party software at a predictable cost
Take advantage of subscription savings on software updates
HP Installation and Startup Service for HP BladeSystem c-Class Infrastructure
(OS + ICE)
Product Name
Service Name
Care Pack Services
Product # and
Band
3-Year HP Support
HA110A3-9LZ
Plus 24
HP StorageWorks
6Gb/s SAS BL
Switch (CTO Only)
HP Installation and
Startup Service for
HP BladeSystem cClass Infrastructure
HP StorageWorks 3-Year HP Support
6Gb/s SAS BL
Plus 24
Switch - Dual Pack
HP Installation and
Startup Service for
HP BladeSystem cClass Infrastructure
DA - 13960
Alternate Care
Pack Services
Product #
-
HA114A1-5N9
UF817E
HA110A3-4CS
-
HA114A1-5N9
UF817E
Worldwide — Version 2 — May 27, 2011
Page 6
QuickSpecs
HP 6Gb/s SAS BL Switch
Service and Support and Warranty Information
Related Services
Services that will enhance the user experience in many product deployments.
HP SAN Solution Service Get your SAN implementation right - right from the start.
Storage has become essential to the growth and agility of your business.
That's why choosing an HP SAN as your data management solution is a smart
business decision. But your SAN can deliver the results you need only if it is
implemented correctly and integrated with your business.
SAN installation, startup, and integration call for specialized expertise in
planning and design, hardware configuration, network software installation,
and operability verification. Your SAN needs to be configured for high
performance and availability. And it needs to be integrated with your
applications, management environment, and business processes.
HP Data Migration Service Minimize the risks involved in transferring data to your HP StorageWorks
SAN.
You need to move your critical enterprise data to your new HP StorageWorks
SAN platform. And you need to accomplish that without losing data. And
without interrupting your ongoing business operations.
HP Data Migration Service helps you lessen the risk of data loss, minimize
threats to data integrity, and avoid productivity-sapping performance
slowdowns during data transport. A highly experienced HP Services storage
specialist works with you to rapidly and securely migrate mission-critical
business information across your data center or around the globe regardless of the complexity of your environment.
HP Proactive BladeSystem HP Proactive BladeSystem Service helps you improve the ongoing
Service
management and utilization of your HP blade technology and tools in order
to provide the reliability and the cost-effective performance your business
expects. It covers HP blade servers, storage, network and SAN devices, as
well as the HP blade management software suite included in the HP blade
enclosure. This proactive service leverages HP's global delivery organization
with its experienced technical experts who help IT organizations manage and
maintain their IT infrastructures to be more cost-effective and change-ready.
Product Number
Product Name
-
-
-
-
-
-
DA - 13960
Service Name
Care Pack Services
Alternate Care
Product # and
Pack Services
Band
Product #
HP SAN Solution
Contact your HP
Contact your HP
Service
sales rep or
sales rep or
Channel Partner for Channel Partner for
assistance
assistance
HP Data Migration Contact your HP
Contact your HP
Service
sales rep or
sales rep or
Channel Partner for Channel Partner for
assistance
assistance
HP Proactive
HE805A1
Contact your HP
BladeSystem Service
sales rep or
Channel Partner for
assistance
Worldwide — Version 2 — May 27, 2011
Page 7
QuickSpecs
HP 6Gb/s SAS BL Switch
Service and Support and Warranty Information
eSupport
HP eSupport is a portfolio of technology-based services that assist you with managing your business
environment - from the desktop to the data center.
Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to
manage the daily operations of your IT environment.
Features include:
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service agreement. To access the support
portal, visit: http://www.hp.com/support
Remote Support Technology (RST)-HP Remote Support Pack
Taking a more proactive approach to IT support, the HP Remote Support pack plug-in module easily
integrates with HP Systems Insight Manager to provide a powerful, unified "single pane of glass" solution
for onsite and remote management.
HP Remote Support Pack enhances HP Systems Insight Manager with intelligent event diagnosis plus the
automatic submission of hardware event notifications securely to HP support, including acknowledgment
and status returns. It adds remote configuration collections to allow the delivery of assessment and
proactive services for your SAN storage and HP-UX environments.
Customer Technical
Training
Consider education as an integral part of your strategy to get the best return on investment for your HP
storage solution. HP offers a variety of training courses on storage software, networking, archiving and
disk storage systems. Our classes are available in many delivery modalities from traditional instructor-led
courses at one of our 80 training centers worldwide to on-site training customized to your needs or
online. http://www.hp.com/learn/storage
HP Services Awards
HP Services continues to be recognized for service and support excellence by customers, partners,
industry organizations and publications around the world. Recent honors and award reflect our services
team's dedications, technical expertise, professionalism and uncompromising commitment to customer
satisfaction. For a list of all our awards, please visit:
http://h20129.ww2.hp.com/services/cache/77318-0-0-225-121.html.
Additional Services
Information
For more information about HP Care Pack Services for Storage, please visit:
http://www.hp.com/hps/storage
If you have specific questions, contact your local HP representative. Contact information for a
representative in your area can be found at "Contact HP" http://www.hp.com
DA - 13960
Worldwide — Version 2 — May 27, 2011
Page 8
QuickSpecs
HP 6Gb/s SAS BL Switch
Technical Specifications
General Specifications
Communications
Processor
Data path
Dimensions (L xW)
Weight
Power and Environmental Operating
Specifications
Power requirement
Emissions Classifications
SSH, Telnet, HTTP, RS232 using OA CLI.
6Gb/s SAS x2 to Server Blade
6Gb/s SAS x4 to external storage enclosures
Single-wide 1.1" tall, 7.584" wide, and 10.548" deep
5.2 lbs
Temperature
10° to 35°C (50° to 95°F) at sea level with an
altitude derating of 1.0°C per every 305m (1.8°F
per every 1000ft) above sea level to a maximum
of 3050m (10,000ft), no direct sustained
sunlight. Maximum rate of change is 10°C/Hr
(18°F/Hr ). The upper limit may be limited by the
type and number of options installed.
Humidity
10 to 90% relative humidity (Rh), 28°C (82.4°F)
(non-condensing)
maximum wet bulb temperature, noncondensing.
40Watts (Max), 3Watts (Min)
© Copyright 2011 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Windows and Microsoft are registered trademarks of Microsoft Corp., in the U.S. The only warranties for HP products and services
are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as
constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
For hard drives, 1 GB = 1 billion bytes. Actual formatted capacity is less.
DA - 13960
Worldwide — Version 2 — May 27, 2011
Page 9
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
