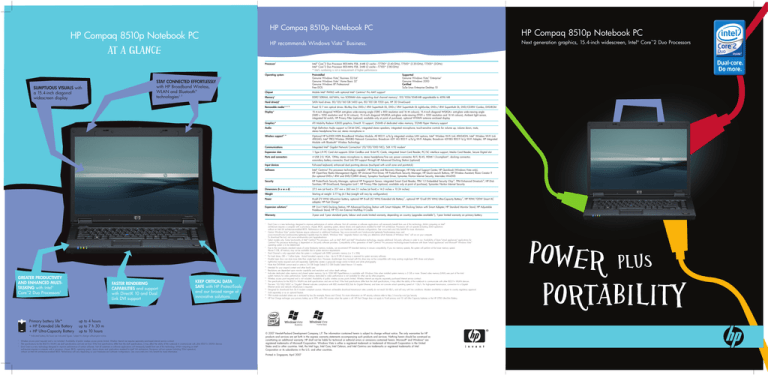

HP Compaq 8510p Notebook PC
HP Compaq 8510p Notebook PC
SUMPTUOUS VISUALS with
a 15.4-inch diagonal
widescreen display
Processor1
Intel® Core™2 Duo Processor 800-MHz FSB, 4-MB L2 cache—T7700* (2.40-GHz), T7500* (2.20-GHz), T7300* (2-GHz)
Intel® Core™2 Duo Processor 800-MHz FSB, 2-MB L2 cache—T7100* (1.80-GHz)
* Intel’s numbering is not a measurement of higher performance
Operating system
Preinstalled
Genuine Windows Vista™ Business 32/642
Genuine Windows Vista™ Home Basic 322
Genuine Windows XP Professional
Free DOS
Chipset
Mobile Intel® PM965 with optional Intel® Centrino® Pro AMT support3
DDR2 SDRAM, 667-MHz, two SODIMM slots supporting dual channel memory5, 512/1024/2048-MB upgradeable to 4096 MB
Hard drive(s)6
SATA hard drives: 80/120/160 GB 5400 rpm, 80/100 GB 7200 rpm, HP 3D DriveGuard
Removable media7, 8, 9, 10
Fixed 12.7 mm optical drives: Blu-Ray Disc DVD+/–RW SuperMulti DL, DVD+/–RW SuperMulti DL LightScribe, DVD+/–RW SuperMulti DL, DVD/CD-RW Combo, DVD-ROM
Display11
15.4-inch diagonal WXGA anti-glare wide-viewing angle (1280 x 800 resolution and 16 M colours), 15.4-inch diagonal WSXGA+ anti-glare wide-viewing angle
(1680 x 1050 resolution and 16 M colours), 15.4-inch diagonal WUXGA anti-glare wide-viewing (1920 x 1200 resolution and 16 M colours), Ambient light sensor,
integrated lid switch, HP Privacy Filter (optional, available only at point of purchase), optional WWAN antenna enclosed display
Graphics12
ATI Mobility Radeon X2600 graphics, DirectX 10 support, 256MB of dedicated video memory, 512MB Hyper Memory support
Audio
High Definition Audio support w/24-bit DAC, integrated stereo speakers, integrated microphone, touch-sensitive controls for volume up, volume down, mute,
stereo headphone/line out, stereo microphone in
Wireless support13, 14
Optional HP hs2300 HSPA Broadband Wireless Module, All 802.11 a/b/g integrated wireless LAN options, Intel® Wireless Wi-Fi Link 4965AGN, Intel® Wireless Wi-Fi Link
4965AG, Intel® PRO/Wireless 3945BG Network Connection, Broadcom 4311 AG 802.11 a/b/g Wi-Fi Adapter, Broadcom 4311BG 802.11 b/g Wi-Fi Adapter, HP Integrated
Module with Bluetooth® Wireless Technology
Communications
Integrated Intel® Gigabit Network Connection5 (10/100/1000 NIC), 56K V.92 modem6
Expansion slots
1 Type I/II PC Card slot supports 32-bit CardBus and 16-bit PC Cards, integrated Smart Card Reader, PC/SC interface support, Media Card Reader, Secure Digital slot
Ports and connectors
4 USB 2.0, VGA, 1394a, stereo microphone in, stereo headphone/line out, power connector, RJ-11, RJ-45, HDMI 1.2-compliant16, docking connector,
sceondary battery connector, Dual Link DVI support through HP Advanced Docking Station (optional)
Input devices
Full-sized keyboard, enhanced dual pointing devices (touchpad with scroll zone and pointstick)
Software
Intel® Centrino® Pro processor technology capable3, HP Backup and Recovery Manager, HP Help and Support Center, HP QuickLook (Windows Vista only),
HP OpenView Radia Management Agent, HP Universal Print Driver, HP ProtectTools Security Manager, HP Quick Launch Buttons, HP Wireless Assistant, Roxio Creator 9
(for optional DVD+/–RW and DVD/CDRW drives), Synaptics Touchpad Driver, Symantec Norton Internet Security, Intervideo WinDVD
Security
HP ProtectTools Security Manager, optional HP Fingerprint Sensor, integrated Smart Card Reader, TPM 1.2 Embedded Security Chip18, TPM Enhanced DriveLock18, HP Disk
Sanitizer, HP DriveGuard, Kensignton Lock16, HP Privacy Filter (optional, available only at point of purchase), Symantec Norton Internet Security
Dimensions (h x w x d)
27.5 mm (at front) x 357 mm x 260 mm (1.1 inches [at front] x 14.0 inches x 10.24 inches)
Weight
Starting at weight: 2.77 kg (6.1 lbs) (weight will vary by configuration)
Power
8-cell (73 WHr) Lithium-Ion battery, optional HP 8-cell (52 WHr) Extended Life Battery17, optional HP 12-cell (95 WHr) Ultra-Capacity Battery17, HP 90W/120W Smart AC
adapter, HP Fast Charge19
Expansion solutions17
HP 3-in-1 NAS Docking Station, HP Advanced Docking Station with Smart Adapter, HP Docking Station with Smart Adapter, HP Standard Monitor Stand, HP Adjustable
Notebook Stand, HP 9.5 mm External MultiBay II Cradle
Warranty
3-year and 1-year standard parts, labour and onsite limited warranty, depending on country (upgrades available17), 1-year limited warranty on primary battery
2
3
4
5
6
7
8
9
10
11
12
Primary battery life*
+ HP Extended Life Battery
+ HP Ultra-Capacity Battery
13
FASTER RENDERING
CAPABILITIES and support
with DirectX 10 and Dual
Link DVI support
KEEP CRITICAL DATA
SAFE with HP ProtectTools
and our broad range of
innovative solutions
up to 4 hours
up to 7 h 30 m
up to 10 hours
* Indicated battery life hours are indicated figures. Subject to change without prior notice.
1
2
3
Wireless access point required and is not included. Availability of public wireless access points limited. Wireless Internet use requires separately purchased Internet service contract.
The specifications for the 802.11n WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11n WLAN devices.
Dual Core is a new technology designed to improve performance of certain software. Not all customers or software applications will necessarily benefit from use of this technology. 64-bit computing on Intel®
architecture requires a computer with a processor, chipset, BIOS, operating system, device drivers and applications enabled for Intel® 64 architecture. Processors will not operate (including 32-bit operation)
without an Intel 64 architecture-enabled BIOS. Performance will vary depending on your hardware and software configurations. See www.intel.com/info/em64t for more information.
Supported
Genuine Windows Vista™ Enterprise2
Genuine Windows 2000
Certified
SuSe Linux Enterprise Desktop 10
Memory4
1
GREATER PRODUCTIVITY
AND ENHANCED MULTITASKING with Intel®
Core™2 Duo Processors3
Next generation graphics, 15.4-inch widescreen, Intel® Core™2 Duo Processors
HP recommends Windows Vista™ Business.
AT A GLANCE
STAY CONNECTED EFFORTLESSLY
with HP Broadband Wireless,
WLAN and Bluetooth®
technologies1, 2
HP Compaq 8510p Notebook PC
14
15
16
17
18
19
Dual Core is a new technology designed to improve performance of certain software. Not all customers or software applications will necessarily benefit from use of this technology. 64-bit computing on Intel®
architecture requires a computer with a processor, chipset, BIOS, operating system, device drivers and applications enabled for Intel® 64 architecture. Processors will not operate (including 32-bit operation)
without an Intel 64 architecture-enabled BIOS. Performance will vary depending on your hardware and software configurations. See www.intel.com/info/em64t for more information.
Certain Windows Vista™ product features require advanced or additional hardware. See www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and
www.microsoft.com/windowsvista/getready/capable.mspx for details. Windows Vista™ Upgrade Advisor can help you determine which features of Windows Vista™ will run on your computer.
To download the tool, visit www.windowsvista.com/upgradeadvisor
Select models only. Some functionality of Intel® Centrino® Pro processor, such as Intel® AMT and Intel® Virtualization technology, requires additional 3rd party software in order to run. Availability of future "virtual appliances" applications for
Centrino® Pro processor technology is dependant on 3rd party software providers. Compatibility of this generation of Intel® Centrino® Pro processor technology-based hardware with future "virtual appliances" and Microsoft® Windows Vista™
operating system is to be determined.
Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
Above 3 GB, all memory may not be available due to system resource requirements.
Dual Channel is only supported when the system is configured with DDR2 symmetric memory (i.e. 2 x 256)
For hard drives, GB = 1 billion bytes. Actual formatted capacity is less. Up to 8 GB of memory is reserved for system recovery software.
Double Layer discs can store more data than single layer discs. However, double-layer discs burned with this drive may not be compatible with many existing single-layer DVD drives and players.
LightScribe media required and sold separately. LightScribe creates a grayscale image similar to black and white photography.
Note that DVD-RAM cannot read or write to 2.6 GB Single Sided/5.2 GB Double Sided–Version 1.0 media.
Intended for your original content and other lawful uses.
Resolutions are dependent upon monitor capability and resolution and colour depth settings.
Indicates dedicated video memory and shared system memory. Up to 1024 MB HyperMemory is available with Windows Vista when installed system memory is 3 GB or more. Shared video memory (UMA) uses part of the total
system memory for video performance. System memory dedicated to video performance is not available for other use by other programs.
Wireless access point required and is not included. Availability of public wireless access points limited. Wireless Internet use requires separately purchased Internet service contract.
The specifications for the 802.11n WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11n WLAN devices.
The term ”10/100/1000” or ”Gigabit” Ethernet indicates compliance with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit
Ethernet server and network infrastructure is required.
Designed for downloads from 56 K modem compliant sources. Maximum achievable download transmission rates currently do not reach 56 KB/s, and will vary with line conditions. Modem availability is subject to country regulatory approval.
Sold separately or as an optional feature.
TPM module excluded where use is restricted by law (for example, Russia and China). For more information on HP security solutions refer to http://www.hp.com/go/security
HP Fast Charge recharges your primary battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to 9-cell primary and 12 cell Ultra Capacity batteries or the HP 2700 Ultra-Slim Battery.
®
© 2007 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP
products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as
constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Microsoft® and Windows® are
registered trademarks of Microsoft Corporation. Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United
States and/or other countries. Intel, the Intel logo, Intel Core, Intel Celeron, and Intel Centrino are trademarks or registered trademarks of Intel
Corporation or its subsidiaries in the U.S. and other countries.
Printed in Singapore, April 2007
Power plus
portability
A LIGHTWEIGHT SOLUTION FOR
HEAVY THINKERS
The highly mobile HP Compaq 8510p Notebook PC helps keep you
connected and productive so your office goes with you. With the latest
Intel® Core™2 Duo Processors2 and a compatibility across a range of
award-winning HP Universal Accessories, this business notebook is a
complete business solution for the globe-trotting businessman.
1
Dual Core is a new technology designed to improve performance of certain software. Not all customers or software applications will necessarily benefit from use of this technology.
64-bit computing on Intel® architecture requires a computer with a processor, chipset, BIOS, operating system, device drivers and applications enabled for Intel® 64 architecture.
Processors will not operate (including 32-bit operation) without an Intel 64 architecture-enabled BIOS. Performance will vary depending on your hardware and software
configurations. See www.intel.com/info/em64t for more information.
HP PROFESSIONAL INNOVATIONS
HP UNIVERSAL ACCESSORIES
Perfectly adapted for your total computing needs, HP Professional Innovations
come standard with every HP Compaq Business Notebook PC to help your
business run securely, smoothly and efficiently.
HP offers you a comprehensive plethora of accessories to enhance
and enrich your computing experience.
HP recommends Windows Vista™ Business.
1
Three WLAN antennas
Key features
Then you need...
Easy cable management and
the benefits of greater user
comfort and convenience
HP Docking Station
with Smart Adapter
Part No: EN488AA
Absolute Security
Two WWAN antennas
(with WWAN option)
Ambient Light Sensor
Volume mute
button with LED
HP Info/HP QuickLook
button with LED
Volume scroll zone
with up/down LED
Power button with LED
Wireless on/off
button with LED
HP Advanced Docking Station
with Smart Adapter
Part No: EN489AA
Permanently destroy data so that it cannot be easily recovered
with HP Disk Sanitizer.
Encode all your information on the hard drive volume so it
becomes unreadable to an unauthorised person with the new
Drive Encryption for HP ProtectTools.
Narrow the viewing angle of your notebook display to ensure
even more privacy when dealing with sensitive on-screen
information with HP Privacy Filter.
2
Integrated microphone
HP Presentation
button with LED
Pointstick
Pointstick buttons, three
Touchpad buttons
Directly access your email, calendars and contact information
with HP QuickLook. One-touch buttons give you all the information
you need immediately, whether your PC is on standby mode or
turned off.
HP Fingerprint Sensor
Left view
HP Lifecycle Management allows you to procure and deploy
your IT investment while reducing total cost of ownership.
Right view
Type I/II PC Card slot
RJ-11/MODEM port
Integrated Smart Card Reader
With HP QuickLook, you get convenience
at your fingertips, and information without
any hassle.
Stereo microphone in
RJ-45/Ethernet port
Stereo headphone
/line out
Secure Digital slot
Keningston Lock slot
2 USB 2.0 ports
2 USB 2.0 ports
Optical drive
Power/standby LED
rear view
Hard drive/optical drive activity/HP 3D
DriveGuard LED
Power connector
Battery charging LED
HP Standard Monitor Stand
Part No: PA507A
• Space-saving and versatile; easy connect
to all docking stations; open-sided design
for easy access to frequently-used bays
HP Bluetooth PC Card Mouse*
Part No: RJ316AA
• Slots neatly into PC card slot. With
Bluetooth® connection. Self-charging,
eliminates hassle of batteries
HP Memory1
DDR 667 MHz
• Certified HP memory maximises system
performance and creates faster start-up
times with fewer delays during
routine operations
Physical security
HP/Kensington Micro
Saver Security Lock
Part No: PC766A
• Helps secure your docking station, computer
and integrated MultiBay II drive when used
with the HP Advanced Docking Station and
HP 3-in-1 NAS Docking Station
Extended battery life
HP 8-Cell Extended Life Battery
Part No: PB993A
• Double or triple total battery life
respectively; ideal for those constantly
on the road; supports computer docking
with the 8-Cell battery attached
3
Reduce risk of corruption or loss of data and protect your
notebook from system failures caused by operational shock
with HP 3D DriveGuard.
Comprehensive hardware and software
testing result in best-in-class reliability.
Control applications easily with the touch of a finger via
Touch-sensitive controls.
Integrated
stereo speakers
• Easy adjustability with one hand;
able to connect to all docking stations;
simple cable management channels
• Supports horizontal or vertical orientation;
choice of HDD or optical drive
are available
Be informed of upgrades and relevant product changes with
HP Proactive Change Notification (free service).
Enjoy maximum durability and protect your notebook
from wear and tear with HP DuraFinish.
Wireless on/off LED
HP Adjustable Notebook Stand
Part No: PA508A
HP 9.5 mm External
MultiBay II Cradle
Part No: PA509A
Innovative Reliability
Front view
• “All-in-one” mobile office solution with
Network Attached Storage for data
backup/file sharing, 160 GB 7200 rpm
3.5" SATA hard drive and HP Backup
and Recovery Manager software
* For use with selected HP Notebooks
that are Bluetooth-enabled.
Greater storage space
• 4 USB 2.0 ports (6 USB 2.0 ports for
HP Advanced Docking Station), DVI and
S-Video, Gigabit Ethernet and legacy ports;
integrated cable lock slot designed to
secure your docking station, notebook and
integrated Multibay II drive with one lock,
AC adaptor included
HP 3-in-1 NAS Docking Station
Part No: EM537AA
Exceptional Ease Of Use
Touchpad with scroll zone
1394a
IF You would like...
HP 12-Cell Ultra Capacity Battery
Part No: EJ092AA
VGA/external
monitor connector
1
Dual Channel is only supported when the system is configured with DDR2 symmetric memory (i.e. 2 x 256).
HP Compaq 8510p Notebook PC
HP Compaq 8510p Notebook PC
SUMPTUOUS VISUALS with
a 15.4-inch diagonal
widescreen display
Processor1
Intel® Core™2 Duo Processor 800-MHz FSB, 4-MB L2 cache—T7700* (2.40-GHz), T7500* (2.20-GHz), T7300* (2-GHz)
Intel® Core™2 Duo Processor 800-MHz FSB, 2-MB L2 cache—T7100* (1.80-GHz)
* Intel’s numbering is not a measurement of higher performance
Operating system
Preinstalled
Genuine Windows Vista™ Business 32/642
Genuine Windows Vista™ Home Basic 322
Genuine Windows XP Professional
Free DOS
Chipset
Mobile Intel® PM965 with optional Intel® Centrino® Pro AMT support3
DDR2 SDRAM, 667-MHz, two SODIMM slots supporting dual channel memory5, 512/1024/2048-MB upgradeable to 4096 MB
Hard drive(s)6
SATA hard drives: 80/120/160 GB 5400 rpm, 80/100 GB 7200 rpm, HP 3D DriveGuard
Removable media7, 8, 9, 10
Fixed 12.7 mm optical drives: Blu-Ray Disc DVD+/–RW SuperMulti DL, DVD+/–RW SuperMulti DL LightScribe, DVD+/–RW SuperMulti DL, DVD/CD-RW Combo, DVD-ROM
Display11
15.4-inch diagonal WXGA anti-glare wide-viewing angle (1280 x 800 resolution and 16 M colours), 15.4-inch diagonal WSXGA+ anti-glare wide-viewing angle
(1680 x 1050 resolution and 16 M colours), 15.4-inch diagonal WUXGA anti-glare wide-viewing (1920 x 1200 resolution and 16 M colours), Ambient light sensor,
integrated lid switch, HP Privacy Filter (optional, available only at point of purchase), optional WWAN antenna enclosed display
Graphics12
ATI Mobility Radeon X2600 graphics, DirectX 10 support, 256MB of dedicated video memory, 512MB Hyper Memory support
Audio
High Definition Audio support w/24-bit DAC, integrated stereo speakers, integrated microphone, touch-sensitive controls for volume up, volume down, mute,
stereo headphone/line out, stereo microphone in
Wireless support13, 14
Optional HP hs2300 HSPA Broadband Wireless Module, All 802.11 a/b/g integrated wireless LAN options, Intel® Wireless Wi-Fi Link 4965AGN, Intel® Wireless Wi-Fi Link
4965AG, Intel® PRO/Wireless 3945BG Network Connection, Broadcom 4311 AG 802.11 a/b/g Wi-Fi Adapter, Broadcom 4311BG 802.11 b/g Wi-Fi Adapter, HP Integrated
Module with Bluetooth® Wireless Technology
Communications
Integrated Intel® Gigabit Network Connection5 (10/100/1000 NIC), 56K V.92 modem6
Expansion slots
1 Type I/II PC Card slot supports 32-bit CardBus and 16-bit PC Cards, integrated Smart Card Reader, PC/SC interface support, Media Card Reader, Secure Digital slot
Ports and connectors
4 USB 2.0, VGA, 1394a, stereo microphone in, stereo headphone/line out, power connector, RJ-11, RJ-45, HDMI 1.2-compliant16, docking connector,
sceondary battery connector, Dual Link DVI support through HP Advanced Docking Station (optional)
Input devices
Full-sized keyboard, enhanced dual pointing devices (touchpad with scroll zone and pointstick)
Software
Intel® Centrino® Pro processor technology capable3, HP Backup and Recovery Manager, HP Help and Support Center, HP QuickLook (Windows Vista only),
HP OpenView Radia Management Agent, HP Universal Print Driver, HP ProtectTools Security Manager, HP Quick Launch Buttons, HP Wireless Assistant, Roxio Creator 9
(for optional DVD+/–RW and DVD/CDRW drives), Synaptics Touchpad Driver, Symantec Norton Internet Security, Intervideo WinDVD
Security
HP ProtectTools Security Manager, optional HP Fingerprint Sensor, integrated Smart Card Reader, TPM 1.2 Embedded Security Chip18, TPM Enhanced DriveLock18, HP Disk
Sanitizer, HP DriveGuard, Kensignton Lock16, HP Privacy Filter (optional, available only at point of purchase), Symantec Norton Internet Security
Dimensions (h x w x d)
27.5 mm (at front) x 357 mm x 260 mm (1.1 inches [at front] x 14.0 inches x 10.24 inches)
Weight
Starting at weight: 2.77 kg (6.1 lbs) (weight will vary by configuration)
Power
8-cell (73 WHr) Lithium-Ion battery, optional HP 8-cell (52 WHr) Extended Life Battery17, optional HP 12-cell (95 WHr) Ultra-Capacity Battery17, HP 90W/120W Smart AC
adapter, HP Fast Charge19
Expansion solutions17
HP 3-in-1 NAS Docking Station, HP Advanced Docking Station with Smart Adapter, HP Docking Station with Smart Adapter, HP Standard Monitor Stand, HP Adjustable
Notebook Stand, HP 9.5 mm External MultiBay II Cradle
Warranty
3-year and 1-year standard parts, labour and onsite limited warranty, depending on country (upgrades available17), 1-year limited warranty on primary battery
2
3
4
5
6
7
8
9
10
11
12
Primary battery life*
+ HP Extended Life Battery
+ HP Ultra-Capacity Battery
13
FASTER RENDERING
CAPABILITIES and support
with DirectX 10 and Dual
Link DVI support
KEEP CRITICAL DATA
SAFE with HP ProtectTools
and our broad range of
innovative solutions
up to 4 hours
up to 7 h 30 m
up to 10 hours
* Indicated battery life hours are indicated figures. Subject to change without prior notice.
1
2
3
Wireless access point required and is not included. Availability of public wireless access points limited. Wireless Internet use requires separately purchased Internet service contract.
The specifications for the 802.11n WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11n WLAN devices.
Dual Core is a new technology designed to improve performance of certain software. Not all customers or software applications will necessarily benefit from use of this technology. 64-bit computing on Intel®
architecture requires a computer with a processor, chipset, BIOS, operating system, device drivers and applications enabled for Intel® 64 architecture. Processors will not operate (including 32-bit operation)
without an Intel 64 architecture-enabled BIOS. Performance will vary depending on your hardware and software configurations. See www.intel.com/info/em64t for more information.
Supported
Genuine Windows Vista™ Enterprise2
Genuine Windows 2000
Certified
SuSe Linux Enterprise Desktop 10
Memory4
1
GREATER PRODUCTIVITY
AND ENHANCED MULTITASKING with Intel®
Core™2 Duo Processors3
Next generation graphics, 15.4-inch widescreen, Intel® Core™2 Duo Processors
HP recommends Windows Vista™ Business.
AT A GLANCE
STAY CONNECTED EFFORTLESSLY
with HP Broadband Wireless,
WLAN and Bluetooth®
technologies1, 2
HP Compaq 8510p Notebook PC
14
15
16
17
18
19
Dual Core is a new technology designed to improve performance of certain software. Not all customers or software applications will necessarily benefit from use of this technology. 64-bit computing on Intel®
architecture requires a computer with a processor, chipset, BIOS, operating system, device drivers and applications enabled for Intel® 64 architecture. Processors will not operate (including 32-bit operation)
without an Intel 64 architecture-enabled BIOS. Performance will vary depending on your hardware and software configurations. See www.intel.com/info/em64t for more information.
Certain Windows Vista™ product features require advanced or additional hardware. See www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and
www.microsoft.com/windowsvista/getready/capable.mspx for details. Windows Vista™ Upgrade Advisor can help you determine which features of Windows Vista™ will run on your computer.
To download the tool, visit www.windowsvista.com/upgradeadvisor
Select models only. Some functionality of Intel® Centrino® Pro processor, such as Intel® AMT and Intel® Virtualization technology, requires additional 3rd party software in order to run. Availability of future "virtual appliances" applications for
Centrino® Pro processor technology is dependant on 3rd party software providers. Compatibility of this generation of Intel® Centrino® Pro processor technology-based hardware with future "virtual appliances" and Microsoft® Windows Vista™
operating system is to be determined.
Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
Above 3 GB, all memory may not be available due to system resource requirements.
Dual Channel is only supported when the system is configured with DDR2 symmetric memory (i.e. 2 x 256)
For hard drives, GB = 1 billion bytes. Actual formatted capacity is less. Up to 8 GB of memory is reserved for system recovery software.
Double Layer discs can store more data than single layer discs. However, double-layer discs burned with this drive may not be compatible with many existing single-layer DVD drives and players.
LightScribe media required and sold separately. LightScribe creates a grayscale image similar to black and white photography.
Note that DVD-RAM cannot read or write to 2.6 GB Single Sided/5.2 GB Double Sided–Version 1.0 media.
Intended for your original content and other lawful uses.
Resolutions are dependent upon monitor capability and resolution and colour depth settings.
Indicates dedicated video memory and shared system memory. Up to 1024 MB HyperMemory is available with Windows Vista when installed system memory is 3 GB or more. Shared video memory (UMA) uses part of the total
system memory for video performance. System memory dedicated to video performance is not available for other use by other programs.
Wireless access point required and is not included. Availability of public wireless access points limited. Wireless Internet use requires separately purchased Internet service contract.
The specifications for the 802.11n WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11n WLAN devices.
The term ”10/100/1000” or ”Gigabit” Ethernet indicates compliance with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit
Ethernet server and network infrastructure is required.
Designed for downloads from 56 K modem compliant sources. Maximum achievable download transmission rates currently do not reach 56 KB/s, and will vary with line conditions. Modem availability is subject to country regulatory approval.
Sold separately or as an optional feature.
TPM module excluded where use is restricted by law (for example, Russia and China). For more information on HP security solutions refer to http://www.hp.com/go/security
HP Fast Charge recharges your primary battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to 9-cell primary and 12 cell Ultra Capacity batteries or the HP 2700 Ultra-Slim Battery.
®
© 2007 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP
products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as
constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Microsoft® and Windows® are
registered trademarks of Microsoft Corporation. Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United
States and/or other countries. Intel, the Intel logo, Intel Core, Intel Celeron, and Intel Centrino are trademarks or registered trademarks of Intel
Corporation or its subsidiaries in the U.S. and other countries.
Printed in Singapore, April 2007
Power plus
portability
A LIGHTWEIGHT SOLUTION FOR
HEAVY THINKERS
The highly mobile HP Compaq 8510p Notebook PC helps keep you
connected and productive so your office goes with you. With the latest
Intel® Core™2 Duo Processors2 and a compatibility across a range of
award-winning HP Universal Accessories, this business notebook is a
complete business solution for the globe-trotting businessman.
1
Dual Core is a new technology designed to improve performance of certain software. Not all customers or software applications will necessarily benefit from use of this technology.
64-bit computing on Intel® architecture requires a computer with a processor, chipset, BIOS, operating system, device drivers and applications enabled for Intel® 64 architecture.
Processors will not operate (including 32-bit operation) without an Intel 64 architecture-enabled BIOS. Performance will vary depending on your hardware and software
configurations. See www.intel.com/info/em64t for more information.
HP PROFESSIONAL INNOVATIONS
HP UNIVERSAL ACCESSORIES
Perfectly adapted for your total computing needs, HP Professional Innovations
come standard with every HP Compaq Business Notebook PC to help your
business run securely, smoothly and efficiently.
HP offers you a comprehensive plethora of accessories to enhance
and enrich your computing experience.
HP recommends Windows Vista™ Business.
1
Three WLAN antennas
Key features
Then you need...
Easy cable management and
the benefits of greater user
comfort and convenience
HP Docking Station
with Smart Adapter
Part No: EN488AA
Absolute Security
Two WWAN antennas
(with WWAN option)
Ambient Light Sensor
Volume mute
button with LED
HP Info/HP QuickLook
button with LED
Volume scroll zone
with up/down LED
Power button with LED
Wireless on/off
button with LED
HP Advanced Docking Station
with Smart Adapter
Part No: EN489AA
Permanently destroy data so that it cannot be easily recovered
with HP Disk Sanitizer.
Encode all your information on the hard drive volume so it
becomes unreadable to an unauthorised person with the new
Drive Encryption for HP ProtectTools.
Narrow the viewing angle of your notebook display to ensure
even more privacy when dealing with sensitive on-screen
information with HP Privacy Filter.
2
Integrated microphone
HP Presentation
button with LED
Pointstick
Pointstick buttons, three
Touchpad buttons
Directly access your email, calendars and contact information
with HP QuickLook. One-touch buttons give you all the information
you need immediately, whether your PC is on standby mode or
turned off.
HP Fingerprint Sensor
Left view
HP Lifecycle Management allows you to procure and deploy
your IT investment while reducing total cost of ownership.
Right view
Type I/II PC Card slot
RJ-11/MODEM port
Integrated Smart Card Reader
With HP QuickLook, you get convenience
at your fingertips, and information without
any hassle.
Stereo microphone in
RJ-45/Ethernet port
Stereo headphone
/line out
Secure Digital slot
Keningston Lock slot
2 USB 2.0 ports
2 USB 2.0 ports
Optical drive
Power/standby LED
rear view
Hard drive/optical drive activity/HP 3D
DriveGuard LED
Power connector
Battery charging LED
HP Standard Monitor Stand
Part No: PA507A
• Space-saving and versatile; easy connect
to all docking stations; open-sided design
for easy access to frequently-used bays
HP Bluetooth PC Card Mouse*
Part No: RJ316AA
• Slots neatly into PC card slot. With
Bluetooth® connection. Self-charging,
eliminates hassle of batteries
HP Memory1
DDR 667 MHz
• Certified HP memory maximises system
performance and creates faster start-up
times with fewer delays during
routine operations
Physical security
HP/Kensington Micro
Saver Security Lock
Part No: PC766A
• Helps secure your docking station, computer
and integrated MultiBay II drive when used
with the HP Advanced Docking Station and
HP 3-in-1 NAS Docking Station
Extended battery life
HP 8-Cell Extended Life Battery
Part No: PB993A
• Double or triple total battery life
respectively; ideal for those constantly
on the road; supports computer docking
with the 8-Cell battery attached
3
Reduce risk of corruption or loss of data and protect your
notebook from system failures caused by operational shock
with HP 3D DriveGuard.
Comprehensive hardware and software
testing result in best-in-class reliability.
Control applications easily with the touch of a finger via
Touch-sensitive controls.
Integrated
stereo speakers
• Easy adjustability with one hand;
able to connect to all docking stations;
simple cable management channels
• Supports horizontal or vertical orientation;
choice of HDD or optical drive
are available
Be informed of upgrades and relevant product changes with
HP Proactive Change Notification (free service).
Enjoy maximum durability and protect your notebook
from wear and tear with HP DuraFinish.
Wireless on/off LED
HP Adjustable Notebook Stand
Part No: PA508A
HP 9.5 mm External
MultiBay II Cradle
Part No: PA509A
Innovative Reliability
Front view
• “All-in-one” mobile office solution with
Network Attached Storage for data
backup/file sharing, 160 GB 7200 rpm
3.5" SATA hard drive and HP Backup
and Recovery Manager software
* For use with selected HP Notebooks
that are Bluetooth-enabled.
Greater storage space
• 4 USB 2.0 ports (6 USB 2.0 ports for
HP Advanced Docking Station), DVI and
S-Video, Gigabit Ethernet and legacy ports;
integrated cable lock slot designed to
secure your docking station, notebook and
integrated Multibay II drive with one lock,
AC adaptor included
HP 3-in-1 NAS Docking Station
Part No: EM537AA
Exceptional Ease Of Use
Touchpad with scroll zone
1394a
IF You would like...
HP 12-Cell Ultra Capacity Battery
Part No: EJ092AA
VGA/external
monitor connector
1
Dual Channel is only supported when the system is configured with DDR2 symmetric memory (i.e. 2 x 256).
A LIGHTWEIGHT SOLUTION FOR
HEAVY THINKERS
The highly mobile HP Compaq 8510p Notebook PC helps keep you
connected and productive so your office goes with you. With the latest
Intel® Core™2 Duo Processors2 and a compatibility across a range of
award-winning HP Universal Accessories, this business notebook is a
complete business solution for the globe-trotting businessman.
1
Dual Core is a new technology designed to improve performance of certain software. Not all customers or software applications will necessarily benefit from use of this technology.
64-bit computing on Intel® architecture requires a computer with a processor, chipset, BIOS, operating system, device drivers and applications enabled for Intel® 64 architecture.
Processors will not operate (including 32-bit operation) without an Intel 64 architecture-enabled BIOS. Performance will vary depending on your hardware and software
configurations. See www.intel.com/info/em64t for more information.
HP PROFESSIONAL INNOVATIONS
HP UNIVERSAL ACCESSORIES
Perfectly adapted for your total computing needs, HP Professional Innovations
come standard with every HP Compaq Business Notebook PC to help your
business run securely, smoothly and efficiently.
HP offers you a comprehensive plethora of accessories to enhance
and enrich your computing experience.
HP recommends Windows Vista™ Business.
1
Three WLAN antennas
Key features
Then you need...
Easy cable management and
the benefits of greater user
comfort and convenience
HP Docking Station
with Smart Adapter
Part No: EN488AA
Absolute Security
Two WWAN antennas
(with WWAN option)
Ambient Light Sensor
Volume mute
button with LED
HP Info/HP QuickLook
button with LED
Volume scroll zone
with up/down LED
Power button with LED
Wireless on/off
button with LED
HP Advanced Docking Station
with Smart Adapter
Part No: EN489AA
Permanently destroy data so that it cannot be easily recovered
with HP Disk Sanitizer.
Encode all your information on the hard drive volume so it
becomes unreadable to an unauthorised person with the new
Drive Encryption for HP ProtectTools.
Narrow the viewing angle of your notebook display to ensure
even more privacy when dealing with sensitive on-screen
information with HP Privacy Filter.
2
Integrated microphone
HP Presentation
button with LED
Pointstick
Pointstick buttons, three
Touchpad buttons
Directly access your email, calendars and contact information
with HP QuickLook. One-touch buttons give you all the information
you need immediately, whether your PC is on standby mode or
turned off.
HP Fingerprint Sensor
Left view
HP Lifecycle Management allows you to procure and deploy
your IT investment while reducing total cost of ownership.
Right view
Type I/II PC Card slot
RJ-11/MODEM port
Integrated Smart Card Reader
With HP QuickLook, you get convenience
at your fingertips, and information without
any hassle.
Stereo microphone in
RJ-45/Ethernet port
Stereo headphone
/line out
Secure Digital slot
Keningston Lock slot
2 USB 2.0 ports
2 USB 2.0 ports
Optical drive
Power/standby LED
rear view
Hard drive/optical drive activity/HP 3D
DriveGuard LED
Power connector
Battery charging LED
HP Standard Monitor Stand
Part No: PA507A
• Space-saving and versatile; easy connect
to all docking stations; open-sided design
for easy access to frequently-used bays
HP Bluetooth PC Card Mouse*
Part No: RJ316AA
• Slots neatly into PC card slot. With
Bluetooth® connection. Self-charging,
eliminates hassle of batteries
HP Memory1
DDR 667 MHz
• Certified HP memory maximises system
performance and creates faster start-up
times with fewer delays during
routine operations
Physical security
HP/Kensington Micro
Saver Security Lock
Part No: PC766A
• Helps secure your docking station, computer
and integrated MultiBay II drive when used
with the HP Advanced Docking Station and
HP 3-in-1 NAS Docking Station
Extended battery life
HP 8-Cell Extended Life Battery
Part No: PB993A
• Double or triple total battery life
respectively; ideal for those constantly
on the road; supports computer docking
with the 8-Cell battery attached
3
Reduce risk of corruption or loss of data and protect your
notebook from system failures caused by operational shock
with HP 3D DriveGuard.
Comprehensive hardware and software
testing result in best-in-class reliability.
Control applications easily with the touch of a finger via
Touch-sensitive controls.
Integrated
stereo speakers
• Easy adjustability with one hand;
able to connect to all docking stations;
simple cable management channels
• Supports horizontal or vertical orientation;
choice of HDD or optical drive
are available
Be informed of upgrades and relevant product changes with
HP Proactive Change Notification (free service).
Enjoy maximum durability and protect your notebook
from wear and tear with HP DuraFinish.
Wireless on/off LED
HP Adjustable Notebook Stand
Part No: PA508A
HP 9.5 mm External
MultiBay II Cradle
Part No: PA509A
Innovative Reliability
Front view
• “All-in-one” mobile office solution with
Network Attached Storage for data
backup/file sharing, 160 GB 7200 rpm
3.5" SATA hard drive and HP Backup
and Recovery Manager software
* For use with selected HP Notebooks
that are Bluetooth-enabled.
Greater storage space
• 4 USB 2.0 ports (6 USB 2.0 ports for
HP Advanced Docking Station), DVI and
S-Video, Gigabit Ethernet and legacy ports;
integrated cable lock slot designed to
secure your docking station, notebook and
integrated Multibay II drive with one lock,
AC adaptor included
HP 3-in-1 NAS Docking Station
Part No: EM537AA
Exceptional Ease Of Use
Touchpad with scroll zone
1394a
IF You would like...
HP 12-Cell Ultra Capacity Battery
Part No: EJ092AA
VGA/external
monitor connector
1
Dual Channel is only supported when the system is configured with DDR2 symmetric memory (i.e. 2 x 256).
HP Compaq 8510p Notebook PC
HP Compaq 8510p Notebook PC
SUMPTUOUS VISUALS with
a 15.4-inch diagonal
widescreen display
Processor1
Intel® Core™2 Duo Processor 800-MHz FSB, 4-MB L2 cache—T7700* (2.40-GHz), T7500* (2.20-GHz), T7300* (2-GHz)
Intel® Core™2 Duo Processor 800-MHz FSB, 2-MB L2 cache—T7100* (1.80-GHz)
* Intel’s numbering is not a measurement of higher performance
Operating system
Preinstalled
Genuine Windows Vista™ Business 32/642
Genuine Windows Vista™ Home Basic 322
Genuine Windows XP Professional
Free DOS
Chipset
Mobile Intel® PM965 with optional Intel® Centrino® Pro AMT support3
DDR2 SDRAM, 667-MHz, two SODIMM slots supporting dual channel memory5, 512/1024/2048-MB upgradeable to 4096 MB
Hard drive(s)6
SATA hard drives: 80/120/160 GB 5400 rpm, 80/100 GB 7200 rpm, HP 3D DriveGuard
Removable media7, 8, 9, 10
Fixed 12.7 mm optical drives: Blu-Ray Disc DVD+/–RW SuperMulti DL, DVD+/–RW SuperMulti DL LightScribe, DVD+/–RW SuperMulti DL, DVD/CD-RW Combo, DVD-ROM
Display11
15.4-inch diagonal WXGA anti-glare wide-viewing angle (1280 x 800 resolution and 16 M colours), 15.4-inch diagonal WSXGA+ anti-glare wide-viewing angle
(1680 x 1050 resolution and 16 M colours), 15.4-inch diagonal WUXGA anti-glare wide-viewing (1920 x 1200 resolution and 16 M colours), Ambient light sensor,
integrated lid switch, HP Privacy Filter (optional, available only at point of purchase), optional WWAN antenna enclosed display
Graphics12
ATI Mobility Radeon X2600 graphics, DirectX 10 support, 256 MB of dedicated video memory, 512 MB Hyper Memory support
Audio
High Definition Audio support w/24-bit DAC, integrated stereo speakers, integrated microphone, touch-sensitive controls for volume up, volume down, mute,
stereo headphone/line out, stereo microphone in
Wireless support13, 14
Optional HP hs2300 HSPA Broadband Wireless Module, All 802.11 a/b/g integrated wireless LAN options, Intel® Wireless Wi-Fi Link 4965AGN, Intel® Wireless Wi-Fi Link
4965AG, Intel® PRO/Wireless 3945BG Network Connection, Broadcom 4311 AG 802.11 a/b/g Wi-Fi Adapter, Broadcom 4311BG 802.11 b/g Wi-Fi Adapter, HP Integrated
Module with Bluetooth® Wireless Technology
Communications
Integrated Intel® Gigabit Network Connection5 (10/100/1000 NIC), 56K V.92 modem6
Expansion slots
1 Type I/II PC Card slot supports 32-bit CardBus and 16-bit PC Cards, integrated Smart Card Reader, PC/SC interface support, Media Card Reader, Secure Digital slot
Ports and connectors
4 USB 2.0, VGA, 1394a, stereo microphone in, stereo headphone/line out, power connector, RJ-11, RJ-45, HDMI 1.2-compliant16, docking connector,
secondary battery connector, Dual Link DVI support through HP Advanced Docking Station (optional)
Input devices
Full-sized keyboard, enhanced dual pointing devices (touchpad with scroll zone and pointstick)
Software
Intel® Centrino® Pro processor technology capable3, HP Backup and Recovery Manager, HP Help and Support Center, HP QuickLook (Windows Vista only),
HP OpenView Radia Management Agent, HP Universal Print Driver, HP ProtectTools Security Manager, HP Quick Launch Buttons, HP Wireless Assistant, Roxio Creator 9
(for optional DVD+/–RW and DVD/CDRW drives), Synaptics Touchpad Driver, Symantec Norton Internet Security, Intervideo WinDVD
Security
HP ProtectTools Security Manager, optional HP Fingerprint Sensor, integrated Smart Card Reader, TPM 1.2 Embedded Security Chip18, TPM Enhanced DriveLock18, HP Disk
Sanitizer, HP DriveGuard, Kensignton Lock16, HP Privacy Filter (optional, available only at point of purchase), Symantec Norton Internet Security
Dimensions (h x w x d)
27.5 mm (at front) x 357 mm x 260 mm (1.1 inches [at front] x 14.0 inches x 10.24 inches)
Weight
Starting at weight: 2.77 kg (6.1 lbs) (weight will vary by configuration)
Power
8-cell (73 WHr) Lithium-Ion battery, optional HP 8-cell (52 WHr) Extended Life Battery17, optional HP 12-cell (95 WHr) Ultra-Capacity Battery17, HP 90W/120W Smart AC
adapter, HP Fast Charge19
Expansion solutions17
HP 3-in-1 NAS Docking Station, HP Advanced Docking Station with Smart Adapter, HP Docking Station with Smart Adapter, HP Standard Monitor Stand, HP Adjustable
Notebook Stand, HP 9.5 mm External MultiBay II Cradle
Warranty
3-year and 1-year standard parts, labour and onsite limited warranty, depending on country (upgrades available17), 1-year limited warranty on primary battery
2
3
4
5
6
7
8
9
10
11
12
Primary battery life*
+ HP Extended Life Battery
+ HP Ultra-Capacity Battery
13
FASTER RENDERING
CAPABILITIES and support
with DirectX 10 and Dual
Link DVI support
KEEP CRITICAL DATA
SAFE with HP ProtectTools
and our broad range of
innovative solutions
up to 4 hours
up to 7 h 30 m
up to 10 hours
* Indicated battery life hours are indicated figures. Subject to change without prior notice.
1
2
3
Wireless access point required and is not included. Availability of public wireless access points limited. Wireless Internet use requires separately purchased Internet service contract.
The specifications for the 802.11n WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11n WLAN devices.
Dual Core is a new technology designed to improve performance of certain software. Not all customers or software applications will necessarily benefit from use of this technology. 64-bit computing on Intel®
architecture requires a computer with a processor, chipset, BIOS, operating system, device drivers and applications enabled for Intel® 64 architecture. Processors will not operate (including 32-bit operation)
without an Intel 64 architecture-enabled BIOS. Performance will vary depending on your hardware and software configurations. See www.intel.com/info/em64t for more information.
Supported
Genuine Windows Vista™ Enterprise2
Genuine Windows 2000
Certified
SuSe Linux Enterprise Desktop 10
Memory4
1
GREATER PRODUCTIVITY
AND ENHANCED MULTITASKING with Intel®
Core™2 Duo Processors3
Next generation graphics, 15.4-inch widescreen, Intel® Core™2 Duo Processors
HP recommends Windows Vista™ Business.
AT A GLANCE
STAY CONNECTED EFFORTLESSLY
with HP Broadband Wireless,
WLAN and Bluetooth®
technologies1, 2
HP Compaq 8510p Notebook PC
14
15
16
17
18
19
Dual Core is a new technology designed to improve performance of certain software. Not all customers or software applications will necessarily benefit from use of this technology. 64-bit computing on Intel®
architecture requires a computer with a processor, chipset, BIOS, operating system, device drivers and applications enabled for Intel® 64 architecture. Processors will not operate (including 32-bit operation)
without an Intel 64 architecture-enabled BIOS. Performance will vary depending on your hardware and software configurations. See www.intel.com/info/em64t for more information.
Certain Windows Vista™ product features require advanced or additional hardware. See www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and
www.microsoft.com/windowsvista/getready/capable.mspx for details. Windows Vista™ Upgrade Advisor can help you determine which features of Windows Vista™ will run on your computer.
To download the tool, visit www.windowsvista.com/upgradeadvisor
Select models only. Some functionality of Intel® Centrino® Pro processor, such as Intel® AMT and Intel® Virtualization technology, requires additional 3rd party software in order to run. Availability of future "virtual appliances" applications for
Centrino® Pro processor technology is dependant on 3rd party software providers. Compatibility of this generation of Intel® Centrino® Pro processor technology-based hardware with future "virtual appliances" and Microsoft® Windows Vista™
operating system is to be determined.
Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
Above 3 GB, all memory may not be available due to system resource requirements.
Dual Channel is only supported when the system is configured with DDR2 symmetric memory (i.e. 2 x 256)
For hard drives, GB = 1 billion bytes. Actual formatted capacity is less. Up to 8 GB of memory is reserved for system recovery software.
Double Layer discs can store more data than single layer discs. However, double-layer discs burned with this drive may not be compatible with many existing single-layer DVD drives and players.
LightScribe media required and sold separately. LightScribe creates a grayscale image similar to black and white photography.
Note that DVD-RAM cannot read or write to 2.6 GB Single Sided/5.2 GB Double Sided–Version 1.0 media.
Intended for your original content and other lawful uses.
Resolutions are dependent upon monitor capability and resolution and colour depth settings.
Indicates dedicated video memory and shared system memory. Up to 1024 MB HyperMemory is available with Windows Vista when installed system memory is 3 GB or more. Shared video memory (UMA) uses part of the total
system memory for video performance. System memory dedicated to video performance is not available for other use by other programs.
Wireless access point required and is not included. Availability of public wireless access points limited. Wireless Internet use requires separately purchased Internet service contract.
The specifications for the 802.11n WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11n WLAN devices.
The term ”10/100/1000” or ”Gigabit” Ethernet indicates compliance with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit
Ethernet server and network infrastructure is required.
Designed for downloads from 56 K modem compliant sources. Maximum achievable download transmission rates currently do not reach 56 KB/s, and will vary with line conditions. Modem availability is subject to country regulatory approval.
Sold separately or as an optional feature.
TPM module excluded where use is restricted by law (for example, Russia and China). For more information on HP security solutions refer to http://www.hp.com/go/security
HP Fast Charge recharges your primary battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to 9-cell primary and 12 cell Ultra Capacity batteries or the HP 2700 Ultra-Slim Battery.
®
© 2007 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP
products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as
constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Microsoft® and Windows® are
registered trademarks of Microsoft Corporation. Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United
States and/or other countries. Intel, the Intel logo, Intel Core, Intel Celeron, and Intel Centrino are trademarks or registered trademarks of Intel
Corporation or its subsidiaries in the U.S. and other countries.
Printed in Singapore, April 2007
Power plus
portability
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
