Dri-Eaz DrizAir F232-A GG Owner's Manual

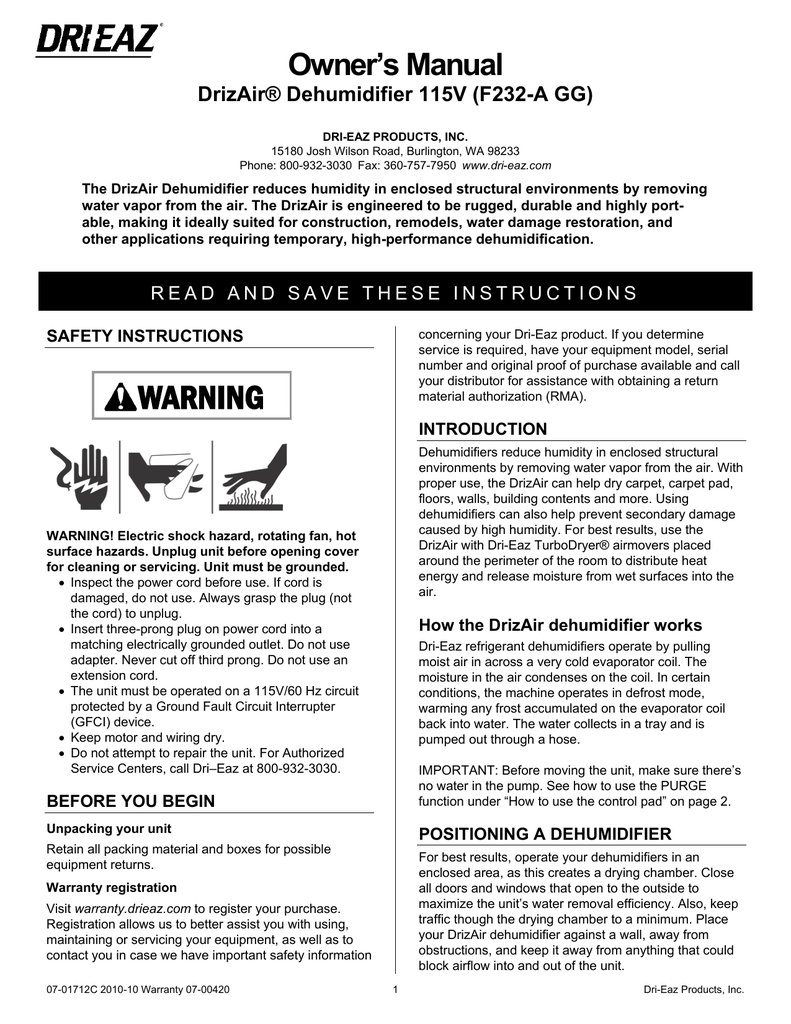

Owner’s Manual
DrizAir® Dehumidifier 115V (F232-A GG)
DRI-EAZ PRODUCTS, INC.
15180 Josh Wilson Road, Burlington, WA 98233
Phone: 800-932-3030 Fax: 360-757-7950 www.dri-eaz.com
The DrizAir Dehumidifier reduces humidity in enclosed structural environments by removing
water vapor from the air. The DrizAir is engineered to be rugged, durable and highly portable, making it ideally suited for construction, remodels, water damage restoration, and
other applications requiring temporary, high-performance dehumidification.
READ AND SAVE THESE INSTRUCTIONS
concerning your Dri-Eaz product. If you determine
service is required, have your equipment model, serial
number and original proof of purchase available and call
your distributor for assistance with obtaining a return
material authorization (RMA).
SAFETY INSTRUCTIONS
WARNING
INTRODUCTION
Dehumidifiers reduce humidity in enclosed structural
environments by removing water vapor from the air. With
proper use, the DrizAir can help dry carpet, carpet pad,
floors, walls, building contents and more. Using
dehumidifiers can also help prevent secondary damage
caused by high humidity. For best results, use the
DrizAir with Dri-Eaz TurboDryer® airmovers placed
around the perimeter of the room to distribute heat
energy and release moisture from wet surfaces into the
air.
WARNING! Electric shock hazard, rotating fan, hot
surface hazards. Unplug unit before opening cover
for cleaning or servicing. Unit must be grounded.
• Inspect the power cord before use. If cord is
damaged, do not use. Always grasp the plug (not
the cord) to unplug.
• Insert three-prong plug on power cord into a
matching electrically grounded outlet. Do not use
adapter. Never cut off third prong. Do not use an
extension cord.
• The unit must be operated on a 115V/60 Hz circuit
protected by a Ground Fault Circuit Interrupter
(GFCI) device.
• Keep motor and wiring dry.
• Do not attempt to repair the unit. For Authorized
Service Centers, call Dri–Eaz at 800-932-3030.
How the DrizAir dehumidifier works
Dri-Eaz refrigerant dehumidifiers operate by pulling
moist air in across a very cold evaporator coil. The
moisture in the air condenses on the coil. In certain
conditions, the machine operates in defrost mode,
warming any frost accumulated on the evaporator coil
back into water. The water collects in a tray and is
pumped out through a hose.
IMPORTANT: Before moving the unit, make sure there’s
no water in the pump. See how to use the PURGE
function under “How to use the control pad” on page 2.
BEFORE YOU BEGIN
Unpacking your unit
POSITIONING A DEHUMIDIFIER
Retain all packing material and boxes for possible
equipment returns.
For best results, operate your dehumidifiers in an
enclosed area, as this creates a drying chamber. Close
all doors and windows that open to the outside to
maximize the unit’s water removal efficiency. Also, keep
traffic though the drying chamber to a minimum. Place
your DrizAir dehumidifier against a wall, away from
obstructions, and keep it away from anything that could
block airflow into and out of the unit.
Warranty registration
Visit warranty.drieaz.com to register your purchase.
Registration allows us to better assist you with using,
maintaining or servicing your equipment, as well as to
contact you in case we have important safety information
07-01712C 2010-10 Warranty 07-00420
1
Dri-Eaz Products, Inc.
outside – anywhere that water can drain out safely. If
you use a bucket or other receptacle for water collection,
check it regularly to prevent spills.
Managing temperature rise
DrizAir dehumidifiers warm the air as they remove
moisture. Optimal drying temperatures range from 68–
85°F (20–29°C).
NOTE: Uncoil and straighten the entire drain hose.
Do not leave any of part of the hose coiled on the
unit and do not place the end of the hose higher
than 20 ft. (6 m) above the top of the unit. Also
check for kinks, or obstructions that would restrict
the flow of water. Failure to do so may cause a water
backup in the pump resulting in leakage.
The most accurate way to monitor temperature is with a
thermo-hygrometer; however, you can use an
indoor/outdoor thermometer to gauge temperature. Just
make sure it is located in the center of the room away
from the airflow of the dehumidifier.
For more information about creating an optimum drying
environment, contact Dri-Eaz at 800-932-3030.
Plug in electrical cord
Locate the electrical cord either on the top or back of the
unit. The DrizAir dehumidifier may be plugged in to a
115-volt (15 amp) grounded outlet, which is standard in
most homes.
OPERATING YOUR DEHUMIDIFIER
Set unit upright
NOTE: If the unit experiences a loss of power, either
from a power interruption or from thermal overload
protection, let the unit rest for five minutes before
restarting. Otherwise it might shut off again.
Always operate the dehumidifier in an upright position. If
the unit has been stored or transported in a horizontal
position, set it upright (vertical) for at least 30 minutes
before operating it. When the unit is placed in a
horizontal, oil from the compressor flows into the
refrigerant coils reducing the ability of the dehumidifier to
function.
Turn the unit on
Press the “on” button on the control panel.
How to use the control panel
FIG. A: FRONT
The control panel on DrizAir dehumidifiers has one
display and four keys. The normal display messages are
Control panel.
Process
(dry) air
outlet.
DEHUMIDIFIER OFF
DEHUMIDIFIER ON
TOTAL HRS
JOB HRS
Set up drain hose
When the unit is first connected to AC power, the control
panel display will cycle continuously through three
messages: DEHUMIDIFER OFF, TOTAL HOURS, and
JOB HOURS.
The DrizAir condensate pump connects to a plastic
drainage hose that is wrapped around the air outlet
located at the back of the unit. This hose is equipped
with a quick-connect fitting for quick attachment to the
provided 40 ft. drain hose. Unwrap the entire hose and
place the unattached end in a sink, drain, bucket or
07-01712C 2010-10 Warranty 07-00420
CMPRSR DELAY
PUMP PURGING
DEFROST ON
GET SERVICE ERXX
2
Dri-Eaz Products, Inc.
1. Turn the power off using the OFF key, and let the unit
sit plugged in for about 10 minutes. This allows water to
drip from the coils and collect in the drip pan.
ON-OFF. Press the ON-OFF key to turn the unit on
or off. When turning the machine on, usually the display
reads CMPRSR DELAY and performs a numeral count
down from a maximum of 60 seconds to 0. The
compressor delay gives the machine time to warm up
(when needed). If you don’t see a compressor delay
countdown, the machine is ready to go. Once the unit
completes the CMPRSR DELAY, the display reads
DEHUMIDIFIER ON, and continues to cycle between
TOTAL HOURS, JOB HOURS and DEHUMIDIFIER ON.
Press the ON-OFF key again to turn the unit off. The
display will read DEHUMIDIFIER OFF.
2. Press PURGE to remove residual water.
Defrost mode
During normal operation, the temperature sensor detects
frost forming on the coils, causing a defrost cycle to
start. The display will read DEFROST ON.
Dehumidification stops during the defrost cycle. When
the unit completes the cycle, the display returns to
DEHUMIDIFIER ON.
Error messages
DISPLAY. Press the DISPLAY key to stop the
display at DEHUMIDIFER ON or OFF, TOTAL HOURS,
or JOB HOURS as it cycles. Press DISPLAY again to restart the display cycle.
If the DrizAir’s onboard diagnostics discover a problem,
the unit will display “GET SERVICE,” followed by "ER”
and a numeral from 01 to 09. If this message appears,
first follow these steps:
How to change the language display
1. Unplug the unit and then plug it back in. This may reset the electronics.
2. If the error message reappears, try the solution (if one
is listed) in the “Error Messages,” 5.
CAUTION: While in the change-language mode,
pressing other keys can change the programming of the
machine. Do NOT press other keys you’re not instructed
to press.
3. If the error message still appears, please contact the
Dri-Eaz Service Department at 800-932-3030.
Use the DISPLAY key to change the display language.
Follow these steps:
At the end of the job
As with all dehumidifiers, once the drying job is
completed, it is important to make sure the unit is
completely purged of water before moving it. To ensure
that all water has drained into the pump, turn the
unit off, allow it to rest for 10 minutes, then press the
PURGE button. (The unit must be plugged in for the
purge to operate.) Once the purge cycle is complete,
unplug the unit and remove it promptly from the job.
1. Unplug the unit.
2. While holding down the DISPLAY key, plug the unit in.
The display reads ENGLISH.
3. To change to FRANCAIS, DEUTSCH, or ESPANOL,
press the DISPLAY key or the CLEAR key.
4. When the desired language is shown in the display,
unplug the unit, and the language is set.
Before transporting, be sure to remove the external drain
hose, drain it carefully, and return it to the pocket
provided on the front of the unit.
CLEAR. Press the CLEAR key to reset the JOB
HOURS
MAINTENANCE
1. As the display cycles between DEHUMIDIFIER ON,
JOB HOURS, and TOTAL HOURS, press the DISPLAY
key when JOB HOURS appears on the screen. That will
make the display read JOB HOURS steadily.
WARNING! ELECTRIC SHOCK HAZARD. Unplug
the DrizAir before performing any maintenance.
Before each use
2. Then press the CLEAR key to re-set the numerals
to 00000.
Inspect the electrical cord for damage. Look for
fraying, cuts, etc. Do not use the unit if you find any
damage. Call Dri-Eaz for the nearest Service Center at
800-932-3030.
3. Press DISPLAY again to re-start the display cycle.
NOTE: the TOTAL HOURS reading cannot be re-set.
Inspect and vacuum filter as needed. Keep a clean
filter in the unit at all times to protect internal
components from dust and other particulate build-up.
The DrizAir is equipped with a 3M™ High Air-Flow filter.
The HAF filter may be vacuumed clean and reused up to
three times. Do not rinse or wash the HAF filter, as it
will reduce the effectiveness of the electrostatic material.
PURGE. Press the PURGE key to empty water
from the pump reservoir. During normal operation, the
pump purges automatically every six minutes, or
whenever the reservoir is full. The display will read
PUMP PURGING with a numeral countdown. To purge
the pump manually:
07-01712C 2010-10 Warranty 07-00420
3
Dri-Eaz Products, Inc.
Check drain hose.
Replace only with a new 3M HAF Filter (Dri-Eaz part no.
F369). For parts and service call your local distributor or
contact the Dri-Eaz Service Department at
800-932-3030.
1. Look for obstructions. Disconnect and clear any debris
present.
2. Reattach gravity drain hose.
CAUTION: Dust can cause the unit to overheat and
shut down. Do not operate when excessive dust or
airborne particles are present, such as during
sanding or spray-painting. Inspect and clean air filter
elements and coils frequently.
Annually
Have the pump system inspected by the Dri-Eaz Service
Department (800-932-3030) or by a qualified service
center.
IMPORTANT: Replace the HAF filter whenever 1)
it has been vacuumed clean 3 times or 2) it has
been used on a mold remediation job or
otherwise exposed to potentially dangerous
contaminants.
TRANSPORT AND STORAGE
Monthly
Check coils. Dirty coils can
cause the unit to overheat.
Clean when visibly dirty. See
Fig. B.
FIG. B: CLEANING
NOTICE: Handle the unit carefully. Do not drop,
throw, or place the unit where it could fall. Rough
treatment can damage this equipment and may
create a hazardous condition or
void warranty.
IMPORTANT: Be sure to purge
the water from the pump reservoir
before moving the unit. See the
PURGE function under "How to
use the control panel" on page 2.
Note that the unit must be
plugged in for the Purge function
to operate.
1. Unplug unit
2. Remove housing, locate
coils and allow coils to dry if
wet.
1. Do not expose the control
panel to moisture, snow or rain
when transporting in uncovered
vehicles.
3. Vacuum both sides of the
coils until clean, being careful
not to let the nozzle touch the
fins; as that may cause
damage by bending them.
2. Store and transport securely to
avoid any damaging impact to
internal parts.
Check catch basin tray.
Clean when dirt and debris are
present.
READ AND SAVE
THESE INSTR
1. Wipe clean with a rag.
07-01712C 2010-10 Warranty 07-00420
4
Dri-Eaz Products, Inc.
ERROR MESSAGES
The table below shows error message that the system may detect. If the display shows an “ER” message, first unplug the
unit and then plug it back in. This may re-set the electronics, and if so, no further action is required. If the error message
reappears, try the solution shown under “Explanation.” If this still does not fix the problem, contact your local authorized
service center or the Dri-Eaz Service Department at 800-932-3030.
ERROR
EXPLANATION
MESSAGE
ER 1, 2, 3, 5, 6
ER 4
ER 8
ER 9
Problem with electronic control panel. Contact Dri-Eaz
Service.
Check the temperature or sensor cable. Contact Dri-Eaz
Service for instructions.
Check the control panel keys. Press and release each key
several times.
Check for obstructions or kinks in the drain hose.
TROUBLESHOOTING
FAULT
CAUSE
SOLUTION
Unit does not
operate
No power to machine.
Unit not switched on.
Plug in unit; check power at outlet and at base of unit.
Switch unit on.
Blower wheel
not turning
Obstructed blower.
Remove duct ring and grill.
Remove obstruction.
Replace duct ring and grill.
Unit operating,
but room not dry
Not enough time to dry.
Poor air movement in room.
Excessive moist air infiltration.
Allow more time for drying.
Increase air movement with air movers.
Reduce infiltration.
Unit
continuously in
defrost mode
Room temperature too low
Increase room temperature.
Pump does not
function
Stuck float valve
Clean float valve shaft.
Unit collects too
little water
Room air is dry.
Room temperature is too low.
Check humidity with hygrometer.
Increase room temperature.
Check filter and coils; clean as necessary.
If the problem you are experiencing is not listed here, call your local distributor or contact the Dri-Eaz Service
Department toll-free at 800-932-3030.
07-01712C 2010-10 Warranty 07-00420
5
Dri-Eaz Products, Inc.
SPECIFICATIONS
Models
DrizAir F232-A GG
Type
LGR refrigerant
Refrigerant
R-410A
Use weight
132 lbs. | 60 kg
Dimensions
(H × D × W)
40.5 × 22.5 × 24 in.
103 × 57 × 61 cm
Power (115V 60Hz)
8.5 amps at 80°F/60% RH
9.4 amps at 95°F/40% RH
10.6 amps 90°F/90% RH
7.4 amps at 80°F/20% RH
Water removal AHAM
(80°F/60% RH)
Water removal max.
(90°F/90% RH)
Water removal
80°F/20% RH
CONTACT
Dri-Eaz Products, Inc.
15180 Josh Wilson Rd.
Burlington, WA 98233
800-932-3030 www.dri-eaz.com
130 pts. | 61.5 liters / day
200 pts. | 88.5 liters / day
16 pts. | 7.6 liters / day
Max process air
360 CFM | 612 CMH
Operating Range
33°–100°F | 1°–38°C
Air filter
3M HAF filter (part no. F368)
Power cord
25 ft. | 7.6 m
Construction
Rotomolded polyethylene housing
Safety
ETL tested to UL 474 and CSA C22.2
No. 92 standards.
Specifications are subject to change without notice. Some values
may be approximate.
Warranty information is available at www.dri-eaz.com.
07-01712C 2010-10 Warranty 07-00420
6
Dri-Eaz Products, Inc.
PURCHASE
Purchase date: ________________________
Serial number: ________________________
Distributor: ________________________ Tel. _________________________
MAINTENANCE
DATE
07-01712C 2010-10 Warranty 07-00420
SERVICE
PERFORMED
7
PERFORMED
BY
Dri-Eaz Products, Inc.

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
