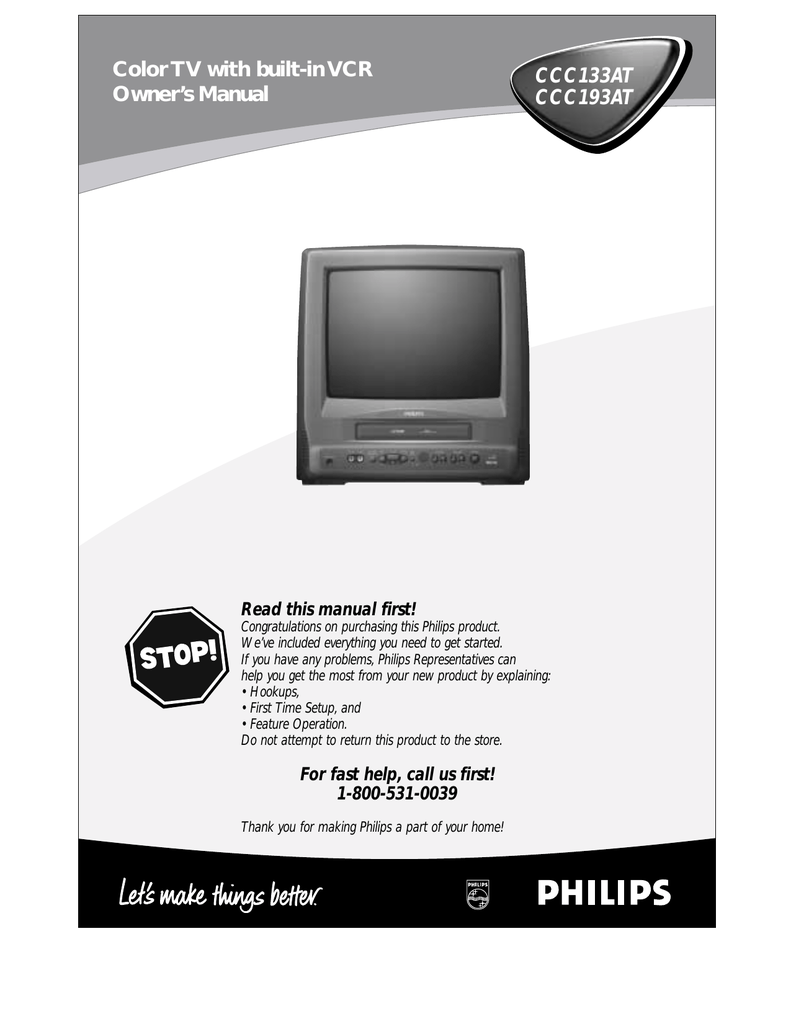

Philips CCC193 CRT Television User manual

Color TV with built-in VCR

Owner’s Manual

CCC133AT

CCC193AT

Read this manual first!

Congratulations on purchasing this Philips product.

We’ve included everything you need to get started.

If you have any problems, Philips Representatives can help you get the most from your new product by explaining:

• Hookups,

• First Time Setup, and

• Feature Operation.

Do not attempt to return this product to the store.

For fast help, call us first!

1-800-531-0039

Thank you for making Philips a part of your home!

Return your Warranty Registration card today to ensure you receive all the benefits you’re entitled to.

Once your PHILIPS purchase is registered, you’re eligible to receive all the privileges of owning a

PHILIPS product. So complete and return the Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits.

Warranty

Verification

Owner

Confirmation

Model

Registration

Registering your product within

10 days confirms your right to maximum protection under the terms and conditions of your

PHILIPS warranty.

Your completed Warranty

Registration Card serves as verification of ownership in the event of product theft or loss.

T I

O N N

Hurry!

Returning your Warranty

Registration Card right away guarantees you’ll receive all the information and special offers which you qualify for as the owner of your model.

Know these

safety

symbols

Congratulations on your purchase, and welcome to the “family!”

C A U T I O N

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Dear PHILIPS product owner:

Thank you for your confidence in PHILIPS. You’ve selected one of the best-built, best-backed products available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the PHILIPS “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry.

What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network.

And most importantly you can count on our uncompromising commitment to your total satisfaction.

All of this is our way of saying welcome-and thanks for investing in a PHILIPS product.

Sincerely,

Robert Minkhorst

President and Chief Executive Officer t

This “bolt of lightning” indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The “exclamation point” calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.

WARNING: TO PREVENT

FIRE OR SHOCK HAZARD,

DO NOT EXPOSE THIS

EQUIPMENT TO RAIN OR

MOISTURE.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

ATTENTION: Pour éviter les choc électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond.

P.S. Remember, to get the most from your PHILIPS product, you must return your Warranty

Registration Card within 10 days. So please mail it to us right now!

For Customer Use

Enter below the Serial No.

which is located on the rear of the cabinet. Retain this information for future reference.

Model No.________________

Serial No. ________________

Visit our World Wide Web Site at http://www.philips.com

Introduction 3

Welcome to your TV/VCR owner’s manual.

This manual describes two models: CCC133 and CCC193. The models may look different, but they operate exactly the same. The CCC133 is illustrated in this manual. The features described in this manual apply to both models unless otherwise specified.

Features

• A-B Repeat Play

• Automatic Channel Setup

• Automatic Head Cleaner

• Automatic Tracking Adjustment

• Blue Background

• Closed Caption

• Daylight-Savings Time

• English or Spanish displays

• Front Panel menu access

• FM Radio

• High Quality (HQ) System

• 19 micron head - provides a better picture when you view

SLP tapes

• One-Touch Recording

• Real-Time Counter

• Remote Control

• Repeat Play

• ShowGuard TM - Indefinite Timer

Recording memory

• Sleep Timer

• SmartClock TM

• SmartLock TM

• Special Effects: Forward and

Reverse Searching; Still; Slow;

Frame Advance

• S-VHS Quasi Play Back (SQPB)

• Timer Recording

• Wake Up Timer

Safety Precautions

Warning: To prevent fire or shock hazard, do not expose this equipment to rain or moisture.

Federal Communications Commission (FCC) Warning: Any unauthorized changes or modifications to this equipment void the user’s authority to operate it.

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

Philips Consumer Electronics recommends you use only video cassette tapes that have the mark. Other tapes may cause poor picture quality and excessive deposits on the video heads that the warranty may not cover if damage occurs.

This TV/VCR has a High Quality (HQ) system and is compatible with existing Video Home System (VHS) equipment.

Note to the Cable TV System Installer: This reminder calls the Cable

TV system installer’s attention to Article 820-40 of the National Electrical

Code, which provides guidelines for proper grounding – in particular, specifying that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as possible.

Declaration of Conformity

Model Numbers: CCC133AT, CCC193AT

Trade Name: Philips

Responsible Party: Philips Consumer Electronics

P.O. Box 14810

Knoxville, TN 37914-1810

(865) 521-4316

As an E

NERGY efficiency. E

TAR

NERGY

® Partner, Philips Consumer Electronics has determined that this product meets the E

TAR

® is a U.S. registered mark. Using products with the E

NERGY

TAR

NERGY

TAR

® guidelines for energy label can save energy. Saving energy reduces air pollution and lowers utility bills.

4 Table of Contents

Setting Up Your TV/VCR

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Before Using the TV/VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Hooking Up the TV/VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7

Turning On the TV/VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Language Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Automatic Channel Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-11

Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-17

Daylight-Savings Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Time Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Description of Controls

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Remote Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22-23

Adjusting the Picture Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24-25

On-Screen Status Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Reminder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Basic Operations

Playing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Recording Options

One-Touch Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Rerecording (Tape Duplication) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32-35

Defeat Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Playing Options

Repeat Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

A-B Repeat Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38-39

Real-Time Counter Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Playback Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Additional Features

SmartLock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42-45

Blue Background . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Wake Up Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Volume Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Closed Caption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50-51

FM Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Automatic Operation Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Information You May Need

Helpful Hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54-55

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Before Using the TV/VCR 5

Putting Batteries in the Remote Control

Remove the battery compartment lid on the bottom of the remote control by pressing the tab, then lifting the lid.

Place two AA batteries inside the battery compartment

with their + and – ends aligned as indicated.

Replace the battery compartment lid.

1 2 3

Battery Safety

●

Battery Usage CAUTION - To prevent battery leakage that may result in bodily injury or damage to the unit:

Install ALL batteries correctly, with the + and - markings on the battery aligned as indicated on the unit;

Do not mix batteries, for example, old with new or carbon with alkaline; and

Remove batteries when the unit will not be used for a long time.

Recording Prevention

Video cassette tapes have record tabs to ensure you do not erase recordings accidentally.

To prevent accidental recording, break off the tab with a screwdriver.

To record again, cover the hole with cellophane tape.

●

Using the Remote Control

Point the remote control at the TV/VCR’s remote sensor.

Do not put objects between the remote control and the

TV/VCR.

●

TV/VCR Maintenance

In this TV/VCR, use only tapes with the mark.

Remove any light adhesive stick-on notes from the video cas-

● sette tape before putting the tape in the TV/VCR. Removable labels can jam the TV/VCR.

The TV/VCR requires periodic maintenance to maintain its excellent performance. This TV/VCR has an automatic head cleaning system. However, the video heads will eventually require cleaning or replacement. Only an authorized service center should perform this service.

Helpful Hints

• Before doing anything else, record the

TV/VCR’s model and serial numbers in the spaces provided on page two.

These numbers will help us assist you if you ever call for help.

• Your new product, its packaging, and this manual contain materials that can be recycled and reused.

Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount that needs to be properly disposed.

Your product uses batteries that should not be thrown away when depleted but should be disposed of as small chemical waste.

Please find out about the local regulations on disposal of your old product, batteries, manual, and packaging when you replace existing equipment.

6 Hooking Up the TV/VCR

Hook up your TV/VCR using one of the connections shown.

Hooking Up Your TV/VCR

With a Cable Signal or

Outdoor Antenna

CCC133

Connect a Cable signal or an antenna to the

ANT(enna) Jack.

Hooking Up Your TV/VCR

With a Cable Box

To view any channel, set the

TV/VCR to the Cable Box output channel (channel 03 or 04). Then, select channels at the Cable Box.

Hooking Up Your TV/VCR

With an Indoor Antenna

To install a rod antenna (not supplied), push the stem of the antenna into the antenna hole on the top of the TV/VCR. Connect the antenna wire to the ANT(enna) Jack on the back of the TV/VCR as shown.

Extend the antenna and adjust its length, direction, and angle for the clearest picture.

ANT.

Connect the Cable signal to the IN Jack on the Cable Box.

Connect an RF coaxial cable (75ohm, not supplied) to the OUT Jack on the Cable Box and to the

ANT(enna) Jack on the TV/VCR.

OUT

CCC133

RF coaxial cable

(not supplied)

ANT.

Rod Antenna

(not supplied)

CCC133

ANT.

Hooking Up the TV/VCR (cont’d) 7

Hooking Up Your TV/VCR to Another Video Source

(VCR, DVD Player, Camcorder, etc.)

You may need this connection if you want to copy tapes or view tapes or discs that you are playing on the

VCR, camcorder, or DVD Player. Select channel 00 (A/V IN) at the TV/VCR when viewing tapes or discs that are playing on the VCR, camcorder, DVD Player, etc. Details are on page 31.

AUDIO/VIDEO OUT

Jacks on VCR (example)

AUDIO VIDEO

OUT

3CH

4CH

ANT.

OUT

Connect an Audio cable to the AUDIO

OUT Jack on the VCR and to the AUDIO In

Jack on the front of the TV/VCR.

CCC133

AUDIO VIDEO

OUT

3CH

4CH

ANT.

OUT

EARPHONE

AUDIO VIDEO STOP

EJECT

REW PLAY F.FWD

REC

OTR

CHANNEL VOLUME POWER

AUDIO/VIDEO In Jacks on front of TV/VCR

Connect a Video cable to the VIDEO OUT Jack on the

VCR and to the VIDEO In Jack on the front of the TV/VCR.

When all other connections are complete, plug in the TV/VCR’s power cord.

Before you turn on the TV/VCR, go to page eight.

Helpful Hints

• Before connecting an antenna or cable signal to the ANT(enna) Jack, make sure the pin is not bent. If the pin is bent, straighten it as illustrated, then connect the antenna or cable signal to the ANT(enna) Jack.

• A rod antenna (not supplied) is available from Philips Service Solutions Group. The part number is 4835 303

37006. To order, call 1-800-851-8885. (This antenna will fit the CCC133 only.)

• Audio and video cables are not supplied.

Bent pin

Crooked Pin

Straight Pin

Cable

Plug

8 Turning On the TV/VCR

Before you turn on the TV/VCR, make sure batteries are in the remote control and you have connected the TV/VCR correctly.

The instructions on this page work only when you turn on the

TV/VCR for the first time.

Press the POWER button. The TV/VCR will come on and the screen shown below will appear.

SELECT LANGUAGE

> ENGLISH ON

ESPAÑOL

SELECT KL OR

PRESS MENU TO CONTINUE

Press the PLAY/K button or the STOP/L button to select

English or Spanish on-screen displays and menus.

Press the MENU button. The screen shown below will appear.

CONNECT ANTENNA OR CABLE

TO TVCR

THEN PRESS B

TO END PRESS EXIT

Press the F.FWD/B button to begin automatic channel

setup. The TV/VCR will memorize all available channels. When channels are set, CHANNELS ARE SET will appear on the screen briefly. Then the TV/VCR will go to the lowest available channel.

If you try to set up channels when there is no antenna or cable connected to the TV/VCR, programming will appear to take place, but eventually a NO TV SIGNALS ... message will appear on the screen. Connect an antenna or cable to the ANT(enna) jack on the TV/VCR, then press the F.FWD/B button again. You may need to follow the steps on page 10 instead.

Use the CH(annel)

buttons or the Number buttons on the remote control to select a TV/VCR channel. Use the VOL(ume)

buttons to adjust the sound.

When you scan channels with the CH(annel) o/p buttons, only the memorized channels will be available. Use the Number buttons to select non-memorized channels.

EJECT

POWER

STATUS/EXIT CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

Helpful Hints

• If you do not see any on-screen displays when you turn on the TV/VCR, check your hookups, then try again.

If you still do not see any on-screen displays, follow the steps on pages nine-10 to select a language and set up channels.

• To skip step 2, press the MENU button. All on-screen displays will be in

English. To skip step 4, press the

STATUS/EXIT button. Automatic

Channel Setup will not occur, and

CHANNELS NOT SET will appear on the screen briefly.

• You cannot set up channels if you are using a Cable Box.

• Line Input mode is channel 00.

When you select channel 00, A/V IN will appear on the screen. Press the

CH(annel) o/p buttons or the

Number buttons to select another channel.

Language Selection 9

Follow the steps below to change the language of the on-screen displays and menus.

Press the MENU button.

5 2-4

PRESS

B >

PRIM. SETUP

VCR PROGRAM

VCR SETUP

CAPTION

REMINDER

BRIGHTNESS

Press the PLAY/▲ button or the STOP/▼ button to select

PRIM. SETUP. Then, press the F.FWD/B button.

PRIMARY SETUP

> SELECT LANGUAGE

AUTO PROGRAMMING

CH MEMORY REVIEW

VOLUME BAR [ON]

SET CLOCK

SELECT KL CHOOSE B

TO END PRESS EXIT

Press the PLAY/▲ button or the STOP/▼ button to

choose SELECT LANGUAGE. Then, press the F.FWD/B

button.

SELECT LANGUAGE

ENGLISH ON

ESPAÑOL

SELECT KL

TO END PRESS EXIT

Press the PLAY/▲ button or the STOP/▼ button to select

ENGLISH or ESPAÑOL (Spanish).

Press the STATUS/EXIT button.

EJECT

POWER

STATUS/EXIT CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

Helpful Hint

• If you accidentally select Spanish and need English on-screen displays and menus:

1) Press the MENU button.

2) Press the PLAY/o button or the

STOP/p button to select PREPARA-

CION, then press the F.FWD/B

button.

3) Press the PLAY/o button or the

STOP/p button to select SELEC-

CION IDIOMA, then press the

F.FWD/B button.

4) Press the PLAY/o button or the

STOP/p button to select ENGLISH.

5) Press the STATUS/EXIT button.

10 Automatic Channel Setup

Although the TV/VCR may automatically memorize the channels you receive when you turn it on for the first time, you may set up channels again by following the steps below.

Press the MENU button.

PRESS

B >

PRIM. SETUP

VCR PROGRAM

VCR SETUP

CAPTION

REMINDER

BRIGHTNESS

Press the PLAY/▲ button or the STOP/▼ button to select

PRIM. SETUP, then press the F.FWD/B button.

PRIMARY SETUP

> SELECT LANGUAGE

AUTO PROGRAMMING

CH MEMORY REVIEW

VOLUME BAR [ON]

SET CLOCK

SELECT KL CHOOSE B

TO END PRESS EXIT

Press the PLAY/▲ button or the STOP/▼ button to select

AUTO PROGRAMMING, then press the F.FWD/B button.

AUTO CH PROGRAMMING ... will appear on the screen. The

TV/VCR distinguishes between TV channels and cable channels automatically, and the TV/VCR will memorize its available channels.

EJECT

POWER

STATUS/EXIT

CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

2-3

Wait for a few minutes. When setup is complete, CHANNELS

ARE SET will appear on the screen. Then the programming of the lowest channel number will appear on the screen. Now, when you press the CH(annel) o

p buttons, you will scan only through channels you receive. You can still select non-memorized channels using the Number buttons.

Wait for the TV/VCR to set up channels.

Helpful Hints

• Line Input mode will always be channel 00. You cannot delete it.

• You can not select AUTO PRO-

GRAMMING at step 3 if you are in

Line Input mode.

Automatic Channel Setup (cont’d) 11

Adding/Deleting Channels

If your channel lineup changes, you may want to add newly available channels or remove channels that are no longer available in your area. You can use the CH(annel) o/p buttons to scroll through only the available channels. To add or delete channels from the TV/VCR’s memory, follow these steps.

Press the MENU button.

EJECT

POWER

STATUS/EXIT CLEAR

2,4

PRIM. SETUP

VCR PROGRAM

VCR SETUP

CAPTION

REMINDER

BRIGHTNESS

PRESS

Press the PLAY/o button or the STOP/p button to select

CHANNEL.

TO ADJUST PRESS { / B

CH123

SAVED

> CHANNEL

FM ANTENNA

SMARTLOCK

REVIEW

EXIT

PRIM. SETUP

Press the CH(annel)

buttons or the Number buttons to select the channel you want to add or delete.

TO ADJUST PRESS { / B

CH23

SAVED

> CHANNEL

FM ANTENNA

SMARTLOCK

REVIEW

EXIT

PRIM. SETUP

Press the F.FWD/B button or the REW(ind)/{ button to

select SAVED (to add that channel) or DELETED (to delete that channel).

Repeat steps 3-4 to add or delete other channels.

Press the STATUS/EXIT button.

Programming of the channel you added or deleted will appear.

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

Helpful Hint

• To review the memorized channels, follow these steps.

1) Press the MENU button.

2) Press the PLAY/▲ button or the

STOP/▼ button to select PRIM.

SETUP. Press the F.FWD/B button.

3) Press the PLAY/▲ button or the

STOP/▼ button to select

CH MEMORY REVIEW. Press the

F.FWD/B button. A list of

programmed channels will appear on the screen.

4) If all the programmed channels don’t fit on the screen, press the

F.FWD/B button. If you do not press

the F.FWD/B button within 10

seconds, the remaining channels will appear on the screen. (If there are no remaining channels, the previous menu will appear.) Or press the

REW(ind)/{ button to see the

previous screen of channels.

5) Press the STATUS/EXIT button once or twice.

12 Setting the Clock

There are three ways to set the clock: Manually, with Automatic PBS

Channel Selection, or with Manual PBS Channel Selection. With manual clock setting, you tell the TV/VCR the current time. With

Automatic or Manual PBS Channel Selection, the TV/VCR gets the time from your local PBS station.

If you use either Manual PBS Channel Selection or Automatic PBS

Channel Selection, follow the steps on page 19 to have the TV/VCR maintain the clock according to your Time Zone. The channel that supplies the time might broadcast from a different time zone. So, select your Time Zone to ensure the clock is correct.

Cable Box users must set the clock manually.

To set the clock manually, follow the steps on pages 12-13. To set the clock using Automatic PBS Channel Selection, follow the steps on pages 14-15. To set the clock using Manual PBS Channel

Selection, follow the steps on pages 16-17.

Before you begin, make sure:

●

You have connected and turned on the TV/VCR. Details are on

pages six-eight.

Channels are set. Details are on page 10.

You make each entry within 60 seconds of the previous entry.

Manual Clock Setting

Press the MENU button.

EJECT

POWER

STATUS/EXIT CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

2-3

> PRIM. SETUP

VCR PROGRAM

VCR SETUP

CAPTION

REMINDER

BRIGHTNESS

PRESS B

Press the PLAY/▲ button or the STOP/▼ button to select

PRIM. SETUP. Then, press the F.FWD/B button.

PRIMARY SETUP

> SELECT LANGUAGE

AUTO PROGRAMMING

CH MEMORY REVIEW

VOLUME BAR [ON]

SET CLOCK

SELECT KL CHOOSE B

TO END PRESS EXIT

Press the PLAY/▲ button or the STOP/▼ button to select

SET CLOCK. Then, press the F.FWD/B button.

SET CLOCK

> AUTO CLOCK

SET MANUAL CLOCK

DAYLIGHT SVG.TIME

SET TIME ZONE

[AUTO]

TO CONTINUE PRESS MENU

SELECT KL CHOOSE B

TO END PRESS EXIT

[ON]

Helpful Hints

• Entries that do not match the

TV/VCR’s calendar will cause a question mark (?) to appear on the screen.

• To make corrections while you are setting the clock, press the CLEAR button until the space for the number you want to correct is flashing.

Then enter the correct number.

Setting the Clock (cont’d) 13

Press the PLAY/o button or the STOP/p button to select

SET MANUAL CLOCK, then press the F.FWD/B button.

7 5-6

SET MANUAL CLOCK

TIME – – : – –

DATE – – / – – / – – – –

EJECT

POWER

STATUS/EXIT CLEAR

TO END PRESS EXIT

Press two Number buttons for the hour(s) and two

Number buttons for the minute(s). Then press 1 for AM

or 2 for PM. For example, for 9:30 PM, press 09, 30, 2.

SET MANUAL CLOCK

TIME 09 : 30 PM

MONTH – – / – – / – – – –

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

STOP

ALT.CH

PAUSE

/STILL

F.FWD

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

TO CORRECT PRESS CLEAR

TO END PRESS EXIT

Press two Number buttons for the month, two Number buttons for the day, and two Number buttons for the

year. For example, for July 1, 2001, press 07, 01, 01. The day of the week will appear automatically.

SET MANUAL CLOCK

TIME 09 : 30 PM

DATE 07 / 01 / 2001

SUNDAY

TO CORRECT PRESS CLEAR

TO END PRESS EXIT

Press the STATUS/EXIT button.

14 Setting the Clock (cont’d)

Automatic PBS Channel Selection

Press the MENU button.

PRESS B

> PRIM. SETUP

VCR PROGRAM

VCR SETUP

CAPTION

REMINDER

BRIGHTNESS

Press the PLAY/▲ button or the STOP/▼ button to select

PRIM. SETUP. Then, press the F.FWD/B button.

PRIMARY SETUP

> SELECT LANGUAGE

AUTO PROGRAMMING

CH MEMORY REVIEW

VOLUME BAR [ON]

SET CLOCK

SELECT KL CHOOSE B

TO END PRESS EXIT

Press the PLAY/▲ button or the STOP/▼ button to select

SET CLOCK. Then, press the F.FWD/B button.

SET CLOCK

> AUTO CLOCK

SET MANUAL CLOCK

DAYLIGHT SVG.TIME

SET TIME ZONE

[AUTO]

TO CONTINUE PRESS MENU

SELECT KL CHOOSE B

TO END PRESS EXIT

[ON]

If ON appears beside AUTO CLOCK, press the MENU button.

If OFF appears beside AUTO CLOCK, press the PLAY/o

button or the STOP/p button to select AUTO CLOCK,

then press the F.FWD/B button so that ON appears to the

right of AUTO CLOCK. Then, press the MENU button.

AUTO CLOCK

AUTO CLOCK USES

PBS CHANNEL DATA

> SET PBS CH. AUTO

SET PBS CH. MANUAL

SELECT KL CHOOSE B

TO END PRESS EXIT

EJECT

POWER

STATUS/EXIT CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

2-4

Press the PLAY/▲ button or the STOP/▼ button to select

SET PBS CH. AUTO. Then, press the F.FWD/B button.

SET AUTO CLOCK

TIME – – : – –

DATE – – / – – / – – – –

NOW SEARCHING

TO END PRESS EXIT

NOW SEARCHING flashes on the TV/VCR screen.

When the TV/VCR finds the PBS channel, the time will appear on the screen. Press the STATUS/EXIT button.

SET AUTO CLOCK

TIME

DATE

06 : 30 PM

07 / 01 / 2001

SUNDAY

Setting the Clock (cont’d) 15

Wait for the TV/VCR to find the time.

EJECT

POWER

STATUS/EXIT CLEAR

SLEEP/

WAKE UP

REC

/OTR

CH.

REW

PLAY

STOP

MUTE

ALT.CH

PAUSE

/STILL

F.FWD

VOL.

SPEED F.ADV

TO END PRESS EXIT

●

If CANNOT FIND CLOCK DATA flashes on the TV/VCR screen, you will be prompted to turn off the TV/VCR.

Turn off the TV/VCR. Leave it off for several minutes. When you turn on the TV/VCR again, the clock will be set.

TRACKING MEMORY SLOW

SET AUTO CLOCK

TIME

DATE

– – : – –

– – / – – / – – – –

CANNOT FIND CLOCK DATA

TO END PRESS EXIT

Follow the steps on page 19 to have the TV/VCR maintain the clock according to your time zone.

Helpful Hints

• To display the time on the TV/VCR screen, press the STATUS/EXIT button. Details are on page 26.

• You cannot use the AUTO CLOCK feature if you don’t receive a PBS channel that carries a time signal in your area. Set the clock manually.

16 Setting the Clock (cont’d)

Manual PBS Channel Selection

Press the MENU button.

PRESS B

> PRIM. SETUP

VCR PROGRAM

VCR SETUP

CAPTION

REMINDER

BRIGHTNESS

Press the PLAY/▲ button or the STOP/▼ button to select

PRIM. SETUP. Then, press the F.FWD/B button.

PRIMARY SETUP

> SELECT LANGUAGE

AUTO PROGRAMMING

CH MEMORY REVIEW

VOLUME BAR [ON]

SET CLOCK

SELECT KL CHOOSE B

TO END PRESS EXIT

Press the PLAY/▲ button or the STOP/▼ button to select

SET CLOCK. Then, press the F.FWD/B button.

SET CLOCK

AUTO CLOCK

SET MANUAL CLOCK

DAYLIGHT SVG.TIME

SET TIME ZONE

[AUTO]

TO CONTINUE PRESS MENU

SELECT KL CHOOSE B

TO END PRESS EXIT

[ON]

If ON appears beside AUTO CLOCK, press the MENU button.

If OFF appears beside AUTO CLOCK, press the PLAY/o

button or the STOP/p button to select AUTO CLOCK,

then press the F.FWD/B button so that ON appears to the

right of AUTO CLOCK. Then, press the MENU button.

AUTO CLOCK

AUTO CLOCK USES

PBS CHANNEL DATA

> SET PBS CH. AUTO

SET PBS CH. MANUAL

SELECT KL CHOOSE B

TO END PRESS EXIT

1 2-4

EJECT

POWER

STATUS/EXIT CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

Press the PLAY/▲ button or the STOP/▼ button to select

SET PBS CH. MANUAL. Then, press the F.FWD/B button.

AUTO CLOCK (PBS) CH 02

Setting the Clock (cont’d) 17

Wait for the TV/VCR to find the time.

TIME

DATE

– – : – –

– – / – – / – – – –

EJECT

POWER

STATUS/EXIT CLEAR

SELECT CHANNEL NUMBER

TO END PRESS EXIT

Use the Number buttons to select your PBS station.

AUTO CLOCK (PBS) CH 12

TIME – – : – –

DATE – – / – – / – – – –

NOW SEARCHING

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

ALT.CH

F.FWD

STOP

PAUSE

/STILL

TO END PRESS EXIT

CH.

VOL.

NOW SEARCHING flashes on the TV/VCR screen.

When the TV/VCR finds the clock data, the time will appear on the screen. Press the STATUS/EXIT button.

AUTO CLOCK (PBS) CH 12

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

TIME

DATE

06 : 30 PM

07 / 01 / 2001

SUNDAY

TO END PRESS EXIT

●

If CANNOT FIND CLOCK DATA flashes on the TV/VCR screen and you know another PBS channel, press the

PLAY/▲ button or the STOP/▼ button to choose

SELECT NEW PBS CH. Then, press the F.FWD/B but-

ton. Repeat step 6.

If CANNOT FIND CLOCK DATA flashes on the TV/VCR screen and you do not know another channel, press the

PLAY/▲ button or the STOP/▼ button to select SET PBS

CH. AUTO. Then, press the F.FWD/B button. The

TV/VCR will search for the PBS channel automatically.

• If the TV/VCR finds the PBS channel, the time will appear on the screen.

• If the TV/VCR does not find the PBS channel, you will be prompted to turn off the TV/VCR. Leave it off for several minutes.

When you turn on the TV/VCR again, the time will be set.

Follow the steps on page 19 to have the TV/VCR maintain the clock according to your time zone.

Helpful Hints

• If you have an Antenna hookup, you may select channels 2-69 at step 6.

If you have a cable connection, you may select channels 1-125 at step

6. Details about available memorized channels are on page 11.

• To display the time on the TV/VCR screen, press the STATUS/EXIT button. Details are on page 26.

18 Daylight-Savings Time

When the Daylight-Savings Time feature is ON, the TV/VCR clock will automatically move forward one hour on the first Sunday in

April and move back one hour on the last Sunday in October.

To turn Daylight-Savings Time ON or OFF, follow the steps below.

Press the MENU button.

PRESS B >

PRIM. SETUP

VCR PROGRAM

VCR SETUP

CAPTION

REMINDER

BRIGHTNESS

Press the PLAY/▲ button or the STOP/▼ button to select

PRIM. SETUP. Then, press the F.FWD/B button.

PRIMARY SETUP

SELECT LANGUAGE

AUTO PROGRAMMING

CH MEMORY REVIEW

VOLUME BAR [ON]

SET CLOCK

SELECT KL CHOOSE B

TO END PRESS EXIT

Press the PLAY/▲ button or the STOP/▼ button to select

SET CLOCK. Then, press the F.FWD/B button.

SET CLOCK

> AUTO CLOCK

SET MANUAL CLOCK

DAYLIGHT SVG.TIME

SET TIME ZONE

[AUTO]

[ON]

TO CONTINUE PRESS MENU

SELECT KL CHOOSE B

TO END PRESS EXIT

Press the PLAY/▲ button or the STOP/▼ button to select

DAYLIGHT SVG.TIME. Then, press the F.FWD/B button

so that ON or OFF appears beside DAYLIGHT SVG.

TIME (Daylight Savings Time).

Press the STATUS/EXIT button.

EJECT

POWER

STATUS/EXIT

CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

2-4

Time Zone 19

When you set the clock using AUTO CLOCK, specify your time zone.

The TV/VCR will maintain the clock according to your time zone.

Press the MENU button.

PRESS B >

PRIM. SETUP

VCR PROGRAM

VCR SETUP

CAPTION

REMINDER

BRIGHTNESS

Press the PLAY/▲ button or the STOP/▼ button to select

PRIM. SETUP. Then, press the F.FWD/B button.

PRIMARY SETUP

SELECT LANGUAGE

AUTO PROGRAMMING

CH MEMORY REVIEW

VOLUME BAR [ON]

SET CLOCK

SELECT KL CHOOSE B

TO END PRESS EXIT

Press the PLAY/▲ button or the STOP/▼ button to select

SET CLOCK. Then, press the F.FWD/B button.

SET CLOCK

AUTO CLOCK

SET MANUAL CLOCK

DAYLIGHT SVG.TIME

SET TIME ZONE

[AUTO]

[ON]

TO CONTINUE PRESS MENU

SELECT KL CHOOSE B

TO END PRESS EXIT

Press the PLAY/▲ button or the STOP/▼ button to select

SET TIME ZONE. Then, press the F.FWD/B button.

SET TIME ZONE

> AUTO

ATLANTIC

EASTERN

CENTRAL

MOUNTAIN

PACIFIC

ALASKA

HAWAII

[ON]

SELECT KL

TO CONTINUE PRESS MENU

Press the PLAY/▲ button or the STOP/▼ button to select

your time zone.

Press the MENU button, then press the STATUS/EXIT button.

EJECT

POWER

STATUS/EXIT CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

STOP

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

ALT.CH

PAUSE

/STILL

F.FWD

2-5

Helpful Hints

• If you select AUTO at step 5, the

TV/VCR will set the clock according to the time zone data of the PBS station it finds.

• You cannot select SET TIME ZONE at step 4 if AUTO CLOCK is OFF.

• You may need to turn off the

TV/VCR for several minutes to enable the TV/VCR clock to adjust to your time zone.

20 Front Panel

Cassette Compartment

Insert a video cassette tape here.

Wireless Remote Sensor

Receives a signal from your remote control so you can operate the TV/VCR from a distance.

STOP/EJECT Button

Press once to stop the tape. When playback is stopped, press to eject the tape. Press to select an item in the menu.

VIDEO In Jack

Connect this jack to the video out jack of a VCR, camcorder, DVD Player, etc. Details are on page 31.

AUDIO In Jack

Connect this jack to the audio out jack of a VCR, camcorder, DVD Player, etc. Details are on page 31.

EARPHONE Jack

Connect earphones (not supplied) here for personal listening.

REW(ind) Button

When tape playback is stopped, press to rewind the tape at high speed. During playback, press to rewind the tape while the picture stays on the screen. Press to change a setting of a menu item

(for example, to adjust the BRIGHTNESS) or to return to a previous menu.

PLAY Button

Press to play a tape. Details are on page 28.

Press to release Search or Still mode and return to normal playback. Details are on page

41. Press to select an item in the menu.

F.FWD (Fast Forward) Button

When tape playback is stopped, press to fast forward the tape at high speed. During playback, press to fast forward the tape while the picture stays on the screen. Press to change a setting of a menu item (for example, to adjust the BRIGHTNESS) or to advance to the next menu.

CCC133

EARPHONE

AUDIO VIDEO STOP

EJECT

REW PLAY F.FWD

REC

OTR

REC(ord)/OTR Button

Press once to start a recording. Details are on

page 29. Press repeatedly to start a One-Touch

Recording (an immediate timed recording, 30 minutes to eight hours long) of the channel you are watching. Details are on page 30.

Record Light

This light appears during a recording. It flashes slowly when the TV/VCR power is off for a timer recording. It blinks rapidly when a recording is paused or when the power is off for a timer recording, but there is no tape in the TV/VCR. It will blink rapidly two minutes before a timer recording is set to begin if the TV/VCR power is on.

CHANNEL VOLUME POWER

VOLUME o/p

Buttons

Press to adjust the sound level.

Press the CHANNEL o button and the

VOLUME p button on the TV/VCR at

the same time to display the main menu.

Press again to remove the main menu.

CHANNEL o/p

Buttons

Press to scan through the TV/VCR’s memorized channels. During tape playback, press to adjust the tracking.

Details are on page 53.

Press the CHANNEL o button and the

VOLUME p button on the TV/VCR at

the same time to display the main menu.

Press again to remove the main menu.

POWER Button

Press to turn the power on or off.

CCC133

Rear Panel 21

ANT.

AC Power Cord

Connect to a standard AC outlet to supply power to the TV/VCR.

ANT(enna) Jack

Connect your antenna or cable here.

Details are on page six.

Antenna Hole

Connect the stem of an indoor antenna here. Details are on page six.

22 Remote Control Buttons

CLEAR Button

Press to erase incorrect data when programming TV/VCR functions. Also, press to reset the real-time counter to 0:00:00.

Details are on page 40.

POWER Button

Press to turn on or off the TV/VCR.

EJECT Button

Press to eject the tape.

Number Buttons

Use to select channels and to program TV/VCR functions (such as setting the clock).

●

Cable Users

Enter channel numbers as a two-digit number for the quickest results.

For example, to select channel 6, press 0,6. If you only press the

Number 6 button, channel 6 will be selected after a brief delay. (There also may be a brief delay when you select channels 10, 11, and 12.) If you want to select channels 100 and above, enter channel numbers as a three-digit number. For example, to select channel 117, press 1, 1, 7.

●

Antenna Users

Enter channel numbers as a two-digit number for the quickest results.

For example, to select channel 5, press 0,5. If you only press the

Number 5 button, channel 5 will be selected after a brief delay. You may only select channels 2-69.

SLEEP/WAKE UP Button

Press to set the Sleep Timer. Details are on page 47. Press to set the

Wake Up Timer. Details are on page 48.

PLAY/

▲

Button

Press to play a tape. Details are on page 28. Press to release Search,

Slow, or Still mode and return to normal playback. Details are on

page 41. Press to select an item in the menu.

MUTE Button

Press to eliminate the TV/VCR’s sound. Press again to return to the previous volume level.

SPEED Button

Press to select the recording speed (SP or SLP).

VOL(ume)

Buttons

Press to adjust the sound level. If you press the VOL(ume) o

p buttons when the sound is muted, the sound will be restored.

F.FWD/B Button

When tape playback is stopped, press to fast forward the tape at high speed. During tape playback, press to fast forward the tape while the picture stays on the screen. Details are on page 41.

Press to change the setting of a menu item or to go to the next menu.

ALT. CH (Alternate Channel) Button

Press to return to the TV channel you were viewing immediately before switching to your current channel.

EJECT

POWER

STATUS/EXIT CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

Remote Control Buttons (cont’d) 23

MENU Button

Press to display the main menu. You also may use the buttons on the front of the TV/VCR to access the main menu. Details are on

page 20.

STATUS/EXIT Button

Press to access or remove the status display. Details are on page 26.

Press to remove the menu.

REC(ord)/OTR Button

Press once to start a recording. Details are on page 29. Or, press repeatedly to start a One-Touch Recording (an immediate timed recording, 30 minutes to eight hours long) of the channel you are watching. Details are on page 30.

REW(ind)/{ Button

When tape playback is stopped, press to rewind the tape at high speed.

During tape playback, press to rewind the tape while the picture stays on the screen. Details are on page 41.

Press to change a setting of a menu item or to return to a previous menu.

STOP/▼ Button

Press to stop the tape. Press to select an item in the menu.

CH(annel)

Buttons

Press to scan through the TV/VCR’s available channels.

FM Button

Press to select FM radio mode. Press again to return to TV mode.

Details are on page 52.

TRACKING

Buttons

Press during tape playback to adjust the tracking. Details are on

page 53.

MEMORY Button

Press to memorize a tape position at which you set the real-time counter to 0:00:00. Details are on page 40. Or, press to memorize the start and end positions of a segment on a tape when setting up A-B Repeat Play. Details are on pages 38-39.

SLOW Button

During tape playback, press to view the picture in slow motion. Details

are on page 41.

F(rame). ADV(ance) Button

Press when in Still mode to advance the picture one frame at a time.

Details are on page 41.

PAUSE/STILL Button

During recording, press to temporarily stop the recording. Press again to resume recording. Details are on page 29. You cannot pause a One-Touch Recording.

During tape playback, press to freeze the picture (still). Press again to resume normal playback. Details are on page 41.

EJECT

POWER

STATUS/EXIT

CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

ALT.CH

STOP

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

24 Adjusting the Picture Controls

Follow these steps to adjust the TV/VCR’s brightness, picture, color, tint, and sharpness.

Press the MENU button.

TO ADJUST PRESS { / B

> BRIGHTNESS


COLOR

TINT

SHARPNESS

TV RESET

Press the PLAY/▲ button or the STOP/▼ button to select

the desired control (BRIGHTNESS, for example).

Press the REW(ind)/{ button or the F.FWD/B button to

adjust the picture control. (Refer to the chart on page 25.)

When you finish, press the STATUS/EXIT button.

4 2-3

EJECT

POWER

STATUS/EXIT CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

Helpful Hints

• The menus on page 25 will disappear if you do not make adjustments within 60 seconds.

• The original settings will probably give you the best picture quality.

• To reset the picture controls to the original settings, press the MENU

button, then press the PLAY/o but-

ton or the STOP/p button to select

TV RESET, then press the F.FWD/B

button. TV RESET COMPLETED will appear on the screen briefly.

Adjusting the Picture Controls (cont’d) 25

BRIGHTNESS


COLOR

TINT

SHARPNESS

Press the REW(ind)/{ button to decrease a picture control. Press the F.FWD/B button to increase a picture control.

CCC133

Decrease

decreased brightness decreased contrast paler more purple softer

Increase

increased brightness increased contrast more brilliant more green clearer

EARPHONE

AUDIO VIDEO STOP

EJECT

REW PLAY F.FWD

REC

OTR

CHANNEL VOLUME POWER

TO ADJUST PRESS { / B

> BRIGHTNESS


COLOR

TINT

SHARPNESS

TV RESET

TO ADJUST PRESS{ / B

BRIGHTNESS


COLOR

TINT

> SHARPNESS

TV RESET

TO ADJUST PRESS { / B

BRIGHTNESS

> PICTURE

COLOR

TINT

SHARPNESS

TV RESET

TO ADJUST PRESS { / B

BRIGHTNESS


COLOR

> TINT

SHARPNESS

TV RESET

TO ADJUST PRESS { / B

BRIGHTNESS


> COLOR

TINT

SHARPNESS

TV RESET

Press the STOP/▼ button

Press the PLAY/▲ button

26 On-Screen Status Displays

A status display will appear when you press the STATUS/EXIT button or certain function buttons. The contents of the status display will vary. To choose the status display mode, follow the steps below.

If you select STATUS ON, then select COUNTER ONLY

OFF:

●

Whenever you press the STOP/p button or the PLAY/o button, the status display will appear for five seconds. Portions of the status display also may appear when you press other function buttons.

If you select STATUS ON, then select COUNTER ONLY

ON:

●

Whenever you press the PLAY/o button, the status display will appear for five seconds. After five seconds, only the counter will remain on the screen. Portions of the status display also may appear when you press other function buttons.

If you select STATUS OFF:

● The status display will not appear when you press function buttons. You must press the STATUS/EXIT button to see the status display.

Press the MENU button.

Press the PLAY/▲ button or the STOP/▼ button to select

VCR SETUP, then press the F.FWD/B button.

Press the PLAY/▲ button or the STOP/▼ button to select

ON-SCREEN MODE, then press the F.FWD/B button.

Press the PLAY/o button or the STOP/p button to select

STATUS, then press the F.FWD/B button so that ON or

OFF appears beside STATUS.

ON-SCREEN MODE

STATUS [ON]

COUNTER ONLY [OFF]

SELECT KL CHOOSE B

TO END PRESS EXIT

If you set STATUS to OFF, go to step 6. If you set STA-

TUS to ON, press the PLAY/o button or the STOP/p

button to select COUNTER ONLY, then press the

F.FWD/B button so that ON or OFF appears beside it.

Press the STATUS/EXIT button.

Channel

Time

12:00 AM

CH10

SLP

Tape

Speed

Current

Tape

Function

M 1:23:45

STOP

Counter and

Counter

Memory

Helpful Hint

• You cannot view closed captions during recording or tape playback if

COUNTER ONLY is ON. Details are on pages 50-51.

The channel number will remain on the screen at all times when you set REMINDER to ON. The exception is when closed captioning is selected.

Set REMINDER to ON or OFF by following the steps below.

Reminder 27

4 2-3

Press the MENU button.

PRESS

B > PRIM. SETUP

VCR PROGRAM

VCR SETUP

CAPTION

REMINDER

BRIGHTNESS

Press the PLAY/▲ button or the STOP/▼ button to select

REMINDER.

TO ADJUST PRESS { / B

OFF

> REMINDER

BRIGHTNESS


COLOR

TINT

SHARPNESS

Press the REW(ind)/{ button or the F.FWD/B button to

select ON or OFF. Each press of the REW(ind)/{ button or the F.FWD/B button turns REMINDER ON or OFF.

TO ADJUST PRESS { / B

CH12

REMINDER

BRIGHTNESS


COLOR

TINT

SHARPNESS

Press the STATUS/EXIT button.

EJECT

POWER

STATUS/EXIT

CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

28 Playing

Follow the steps below to play a tape.

Insert a tape in the TV/VCR. The power will come on. If the tape’s record tab is missing, playback should start automatically.

If playback does not start automatically, press the

PLAY/▲ button to start playback.

Press the STOP/▼ button to stop playback.

Press the REW(ind)/{ button to rewind the tape.

When the tape finishes rewinding, press the EJECT button to remove the tape.

Insert a tape in the TV/VCR.

EJECT

POWER

STATUS/EXIT

CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

S-VHS Quasi Play Back (SQPB)

SQPB allows you to view a tape recorded in S-VHS format. An S-

VHS format tape will play the same as a normal format tape. This unit detects whether the tape is in S-VHS format or normal format.

Helpful Hints

• If the tape you want to play is already in the TV/VCR, turn on the

TV/VCR power, then press the

PLAY/▲ button.

• Playback features and options are on pages 37-41.

• When you play an S-VHS format tape, you can not get the high resolution that would be available on an

S-VHS VCR. Noise lines (black and white streaks) may appear in the picture.

Recording 29

Read and follow the steps below to record a TV program.

Place a tape with its record tab intact (see page five) in the

TV/VCR. The power will come on. Or, if the tape is already in

the TV/VCR, press the POWER button to turn on the

TV/VCR, if necessary.

Press the SPEED button until the desired tape speed

appears on the TV/VCR screen. See tape speed details below.

Use the CH(annel)

buttons or the Number buttons to

select the channel you want to record. You can not change channels during recording.

Press the REC(ord)/OTR button once to start recording.

The Record light will glow.

●

If there is not a tape in the TV/VCR, NO CASSETTE flashes on

● the screen briefly.

If the tape does not have a record tab, PROTECTED CASSETTE

CANNOT RECORD flashes on the screen briefly. The TV/VCR will eject the tape. Insert another tape.

To pause the recording (for example, during commercials),

press the PAUSE/STILL button. The Record light will flash. To

resume recording, press the PAUSE/STILL button again or

the REC(ord)/OTR button. The Record light will glow.

To stop recording, press the STOP/▼ button.

Tape Speeds

This chart shows the recording/playback time for three types of video cassettes (T160, T120, and T60). There are three playback speeds: SP, LP, and SLP. A tape will play only in the speed in which it was recorded. When recording, you can change the tape speed using the SPEED button. You cannot record in LP speed on this

TV/VCR. The slower the speed, the more programming you can fit on the tape. SLP is the slowest speed.

Tape Speed

(Standard Play)

(Long Play)

(playback only)

SLP

(Super Long Play)

Cassette type / Playback Time

T160 T120 T60

2 hrs.

40 mins.

2 hrs.

1 hr.

5 hrs.

20 mins.

4 hrs.

2 hrs.

8 hrs.

6 hrs.

3 hrs.

EJECT

POWER

STATUS/EXIT

CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

Helpful Hints

• You cannot record one channel while watching another.

• Recording options are on pages

30-36.

• You cannot record if DEFEAT

RECORDING is ON. (REC

DEFEATED will flash on the screen.)

Details are on page 36.

• If you pause a recording for more than five minutes, the TV/VCR will switch to Stop mode automatically to protect the video cassette tape from damage.

• You can change the tape speed with the SPEED button while a recording is in progress, but some distortion may appear on the tape.

30 One-Touch Recording

A One-Touch Recording (OTR) is an immediate timed recording from 30 minutes to eight hours long.

Before you begin, make sure:

●

Channels are set. Details are on page 10.

A tape is in the TV/VCR. The record tab must be intact.

Use the CH(annel)

buttons or the Number buttons to select the channel you want to record.

Press the SPEED button until the desired recording speed

(SP or SLP) appears on the screen. Details are on page 29.

Press the REC(ord)/OTR button repeatedly until the desired recording length appears in the upper right corner of the screen.

Recording will begin immediately. The Record light will appear.

The TV/VCR will turn off at the end of the OTR.

OTR

CH12

LENGTH 0:30

Press the STOP/EJECT button on the TV/VCR to stop the OTR.

EJECT

POWER

STATUS/EXIT

CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

LENGTH : PRESS OTR

CANCEL : PRESS CLEAR

To stop an OTR before recording is finished, press the

STOP/EJECT button on the TV/VCR.

Or, press the REC(ord)/OTR button, then press the CLEAR

button, then press the STOP/▼ button on the remote con-

trol.

Helpful Hints

• To check the time remaining for an

OTR, press the STATUS/EXIT button.

• To change the recording length while an OTR is in progress, press the

REC(ord)/OTR button until the desired recording length appears on the screen.

• You can not pause an OTR.

• To cancel an OTR but continue recording, press the REC(ord)/OTR button, then press the CLEAR button.

• You cannot record if DEFEAT

RECORDING is ON. Details are on page 36.

• You can change the tape speed with the SPEED button while a recording is in progress, but some distortion may appear on the tape.

• If the end of the tape is reached during an OTR, the TV/VCR will eject the tape and turn itself off. The Record light will flash rapidly.

AUDIO and VIDEO OUT Jacks on source unit

(VCR or Camcorder)

VIDEO AUDIO

OUT

Rerecording (Tape Duplication) 31

CCC133

EARPHONE

AUDIO VIDEO STOP

EJECT

Audio Cable from

AUDIO OUT to AUDIO In

Video Cable from

VIDEO OUT to VIDEO In

AUDIO and VIDEO In

Jacks on TV/VCR

Make the connections shown above, using audio and video cables (not supplied). Connect the source unit (VCR or camcorder) to a power source after connections are made.

The source unit will play your tape. Insert a prerecorded tape in

the source unit. If playback begins, press the STOP button on the unit.

The TV/VCR will record your tape. Insert a blank tape in the

TV/VCR. Make sure the tape’s record tab is intact. The TV/VCR power will turn on automatically.

Point the TV/VCR remote control at the TV/VCR. Press

Number buttons 0, 0 so that A/V IN appears on the screen.

The TV/VCR is now in Line Input mode.

Point the TV/VCR remote control at the TV/VCR. Press the

SPEED button until the desired tape speed (SP or SLP) appears on the screen.

Press the PLAY button on the source unit and the

REC(ord)/OTR button on your TV/VCR at the same time.

Copying will begin.

To stop copying, press the STOP/EJECT button on the

TV/VCR, then stop the tape on the source unit (VCR or camcorder).

Helpful Hints

• Unauthorized recording of copyrighted television programs, video tapes, or other materials may infringe on the rights of copyright owners and violate copyright laws.

• If a program has copyright protection, it may not record clearly.

• Different brands of equipment may operate differently.

• Make sure all connections are secure.

Otherwise, you may not record both picture and sound.

32 Timer Recording

Follow the steps below to program the TV/VCR to record TV programs while you’re away from home. The TV/VCR will turn itself on, record, and turn itself off automatically. (The Record light will be on steadily during the recording. Before you begin, make sure:

●

The clock is set. If not, CLOCK MUST BE SET appears, followed by the SET CLOCK menu. Details are on pages 12-17.

Channels are set. Details are on page 10.

A tape is in the TV/VCR. Make sure the tape’s record tab is intact and the tape is long enough to record the program.

Complete each step within 60 seconds of completing the previous step. If you don’t, you may start again at step 1.

Press the MENU button.

PRESS

B > PRIM. SETUP

VCR PROGRAM

VCR SETUP

CAPTION

REMINDER

BRIGHTNESS

Press the PLAY/▲ button or the STOP/▼ button to select

VCR PROGRAM, then press the F.FWD/B button.

VCR PROGRAM

ONCE

DAILY(MON-FRI)

WEEKLY

PROGRAM REVIEW

SELECT KL CHOOSE B

TO END PRESS EXIT

Press the PLAY/▲ button or the STOP/▼ button to select

a ONCE, DAILY, OR WEEKLY recording. Then, press

the F.FWD/B button.

● ONCE: The TV/VCR will record a TV program on any day you choose, up to 12 months away.

●

DAILY: The TV/VCR will record every day from Monday to

Friday – starting at the same time and recording the same channel for the same length of time.

●

WEEKLY: The TV/VCR will record the same channel on the same day, at the same time, and for the same length of time every week.

DAILY PROGRAM (MON-FRI)

PROGRAM -1 2 3 4 5 6 7 8-

Daily

Recording

(example)

SELECT PROGRAM NUMBER

TO END PRESS EXIT

EJECT

POWER

STATUS/EXIT

CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

2-3

Helpful Hints

AUTO CLOCK. Details are on pages

14-17. If you are not using AUTO

CLOCK, reset the clock manually.

Details are on pages 12-13.) The timer recording will not occur only if it was scheduled to take place during the power failure.

• You cannot set a timer recording if

DEFEAT RECORDING is ON.

Details are on page 36.

Use the Number buttons (1-8) to select a position in

which to store the timer recording. Flashing numbers indicate an open position (one in which a timer recording has not been stored yet).

NOTE: If you select a number that already has been used to store a timer recording, PREVIOUSLY SET PROGRAM will appear on the screen for a few seconds. Then information about the program in that position will appear on the screen. If this happens, press the STATUS/EXIT button. Then use the Number buttons to select another position.

●

Use the Number buttons to enter the channel of the TV program you want to record.

If you are recording from line input, press 0, 0. A/V IN will appear on the screen.

If you are recording using a Cable Box, enter the Cable Box output channel (03 or 04). Be sure to select the channel of the

TV program at the Cable Box and leave the Cable Box on for the timer recording.

ONE TIME PROGRAM

Timer Recording (cont’d) 33

EJECT

SLEEP/

WAKE UP

REC

/OTR

CH.

REW

POWER

STATUS/EXIT CLEAR

PLAY

STOP

MUTE

ALT.CH

PAUSE

/STILL

F.FWD

VOL.

4-7

SPEED F.ADV

PROGRAM 1

CHANNEL – – –

TRACKING MEMORY SLOW

TO CORRECT PRESS CLEAR

TO END PRESS EXIT

Press two Number buttons for the hour(s) you want the recording to begin. Press two Number buttons for the minute(s) you want the recording to begin. Press 1 for

AM or 2 for PM. For example, for 9:30 PM, press 09, 30, 2.

ONE TIME PROGRAM

PROGRAM 1

CHANNEL 10

TIME ON – – : – –

TO CORRECT PRESS CLEAR

TO END PRESS EXIT

Follow the instructions in step 6 to set the recording’s

stop time. (AM or PM will be set automatically.)

ONE TIME PROGRAM

PROGRAM 1

CHANNEL 10

TIME ON 09:30 PM

TIME OFF – – : – –

TO CORRECT PRESS CLEAR

TO END PRESS EXIT

Instructions continue on page 34.

Helpful Hints

• If you enter numbers that do not match the TV/VCR’s clock or calendar, the entry will be rejected and a question mark will appear on the screen.

• To make corrections while you are programming a timer recording, press the CLEAR button until the cursor is flashing on the item you want to change. Then enter the correct information.

34 Timer Recording (cont’d)

Press the Number 1 button to record in SP speed or

press the Number 2 button to record in SLP speed. Details

about tape speed are on page 29. You cannot use the SPEED button at this time.

ONE TIME PROGRAM

PROGRAM 1

CHANNEL 10

TIME ON 09:30 PM

TIME OFF 11:00 PM

REC SPEED SLP

SP=1 SLP=2

TO CORRECT PRESS CLEAR

TO END PRESS EXIT

Press two Number buttons for the month and two

Number buttons for the day you want the program to

record. For example, for July 10, 2001, press 07, 10. The day of the week and the year will appear automatically. (You cannot program the TV/VCR to record more than one year in advance.)

ONE TIME PROGRAM

PROGRAM 1

CHANNEL

TIME ON

09:30 PM

TIME OFF 11:00 PM

REC SPEED SLP

START DATE 07/10/2001

TUESDAY

TO CORRECT PRESS CLEAR

TO END PRESS EXIT

●

Press the STATUS/EXIT button. PROGRAM WAS COM-

PLETED PLEASE TURN OFF FOR TIMER RECORDING will appear on the screen.

●

If there is not a tape in the TV/VCR, PLEASE INSERT CAS-

SETTE also appears on the screen.

If there is a tape without a record tab in the TV/VCR, PLEASE

REMOVE CASSETTE also appears on the screen. If this happens, insert a different tape.

If PROGRAM NOT COMPLETED appears, start again at step 1.

Press the POWER button to turn off the TV/VCR power.

The Record light will flash slowly. If you forget to turn off the

TV/VCR, PLEASE TURN OFF FOR TIMER RECORDING appears on the TV/VCR screen two minutes before a timer recording should begin. The Record light will flash rapidly.

EJECT

POWER

STATUS/EXIT CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

Turn off the TV/VCR for the recording.

Insert a tape in the TV/VCR.

Leave the Cable

Box/DBS on

(if applicable).

Helpful Hints

• PROGRAM NOT COMPLETED /

CLASH may appear on the screen when you finish setting a timer recording. This means the timer recording you just tried to program overlaps with another timer recording.

The latest timer recording will not occur.

• To stop a timer recording that is in progress, press the STOP/EJECT button on the TV/VCR once.

Please see page 54 for more

Helpful Hints.

Checking or Clearing Timer Recordings

With the TV/VCR on, press the MENU button.

Press the PLAY/▲ button or the STOP/▼ button to select

VCR PROGRAM, then press the F.FWD/B button.

Press the PLAY/▲ button or the STOP/▼ button to select

PROGRAM REVIEW, then press the F.FWD/B button.

The timer recording information for the program in the lowest numbered position will appear on the screen. If no timer recordings are programmed, nothing will happen when you select PRO-

GRAM REVIEW and press the F.FWD/B button.

Press the F.FWD/B button to display information about the

next timer recording. (If you do not press a button within 10 seconds, information about the next timer recording will appear automatically.) This will continue until all positions have been displayed.

Then, the menu will disappear. You can exit the Program Review at any time by pressing the STATUS/EXIT button.

Timer Recording (cont’d) 35

SLEEP/

WAKE UP

REC

/OTR

CH.

REW

EJECT

POWER

STATUS/EXIT CLEAR

PLAY

STOP

MUTE

ALT.CH

PAUSE

/STILL

F.FWD

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

2-4

To cancel the timer recording displayed, press the

CLEAR button. Either the display will disappear or information about other timer recordings will appear. If you do not press any other buttons, the display will disappear after all timer recordings have been displayed.

Repeat steps 1-4 to make sure you cleared the correct recording.

Helpful Hint

AUTO CLOCK. Details are on pages

14-17. If you are not using AUTO

CLOCK, reset the clock manually.

Details are on pages 12-13.) The timer recording will not occur only if it was scheduled to take place during the power failure.

36 Defeat Recording

Follow the steps below to prevent accidental recording.

4 2-3

Press the MENU button.

PRESS

B >

PRIM. SETUP

VCR PROGRAM

VCR SETUP

CAPTION

REMINDER

BRIGHTNESS

Press the PLAY/▲ button or the STOP/▼ button to select

VCR SETUP, then press the F.FWD/B button.

VCR SETUP

ONE TIME PLAY

REPEAT PLAY

[ON]

ON-SCREEN MODE

DEFEAT RECORDING [OFF]

BLUE BACKGROUND [ON]

SELECT KL CHOOSE B

TO END PRESS EXIT

Press the PLAY/▲ button or the STOP/▼ button to select

DEFEAT RECORDING, then press the F.FWD/B button

so that ON appears beside DEFEAT RECORDING.

VCR SETUP

ONE TIME PLAY

REPEAT PLAY

[ON]

ON-SCREEN MODE

> DEFEAT RECORDING [ON]

BLUE BACKGROUND [ON]

SELECT KL CHOOSE B

TO END PRESS EXIT

Press the STATUS/EXIT button.

Now, REC DEFEATED will flash on the screen when you press the REC(ord)/OTR button.

REC DEFEATED

EJECT

POWER

STATUS/EXIT

CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

Helpful Hints

• If you set DEFEAT RECORDING to

ON after you program a timer recording, the timer recording will not occur. The TV/VCR will not remind you of the timer recording as described on page 34.

• You can not program a timer recording if DEFEAT RECORDING is

ON.

• To set DEFEAT RECORDING to

OFF, repeat steps 1-2 above. At

step 3, press the PLAY/o button or

the STOP/p button to select

DEFEAT RECORDING, then press

the F.FWD/B button so that OFF

appears beside DEFEAT RECORD-

ING. Press the STATUS/EXIT button.

Repeat Play 37

Follow the steps below to program the TV/VCR to play a tape over and over.

EJECT

POWER

STATUS/EXIT

CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

2-3

Press the MENU button.

PRIM. SETUP

VCR PROGRAM

VCR SETUP

CAPTION

REMINDER

BRIGHTNESS

PRESS

Press the PLAY/▲ button or the STOP/▼ button to select

VCR SETUP, then press the F.FWD/B button.

VCR SETUP

ONE TIME PLAY

REPEAT PLAY

[ON]

ON-SCREEN MODE

DEFEAT RECORDING [OFF]

BLUE BACKGROUND [ON]

SELECT KL CHOOSE B

TO END PRESS EXIT

Press the PLAY/▲ button or the STOP/▼ button to select

REPEAT PLAY, then press the F.FWD/B button so that

ON appears beside REPEAT PLAY.

VCR SETUP

ONE TIME PLAY

REPEAT PLAY

ON-SCREEN MODE

[ON]

DEFEAT RECORDING [OFF]

BLUE BACKGROUND [ON]

SELECT KL CHOOSE B

TO END PRESS EXIT

Press the STATUS/EXIT button. Now, when a tape finishes playing, the TV/VCR will rewind it and start playback again.

(TV programming will appear while the tape is rewinding.)

Helpful Hints

• The TV/VCR will stay in Repeat Play mode until you set ONE TIME PLAY to ON, even if you turn off the

TV/VCR. To set ONE TIME PLAY to

ON, follow steps 1-2 above. Then,

press the PLAY/o button or the

STOP/p button to select ONE TIME

PLAY. Press the F.FWD/B button so

that ON appears beside ONE TIME

PLAY. Then, press the STATUS/EXIT button.

• The real-time counter memory will not function during Repeat Play mode.

38 A-B Repeat Play

Follow the steps below to program the TV/VCR to play the material between two specified points (A and B) on a tape over and over again.

Insert a tape in the TV/VCR.

Insert a tape in the TV/VCR.

Press the MENU button.

EJECT

POWER

STATUS/EXIT

CLEAR

PRESS

B >

PRIM. SETUP

VCR PROGRAM

VCR SETUP

CAPTION

REMINDER

BRIGHTNESS

Press the PLAY/▲ button or the STOP/▼ button to select

VCR SETUP, then press the F.FWD/B button.

VCR SETUP

ONE TIME PLAY

REPEAT PLAY

[ON]

ON-SCREEN MODE

DEFEAT RECORDING [OFF]

BLUE BACKGROUND [ON]

SELECT KL CHOOSE B

TO END PRESS EXIT

Press the PLAY/▲ button or the STOP/▼ button to select

REPEAT PLAY.

VCR SETUP

ONE TIME PLAY

REPEAT PLAY

ON-SCREEN MODE

[ON]

DEFEAT RECORDING [OFF]

BLUE BACKGROUND [ON]

SELECT KL CHOOSE B

TO END PRESS EXIT

Press the F.FWD/B button repeatedly so that A-B

appears beside REPEAT PLAY.

VCR SETUP

ONE TIME PLAY

REPEAT PLAY [A-B]

ON-SCREEN MODE

DEFEAT RECORDING [OFF]

BLUE BACKGROUND [ON]

SELECT KL CHOOSE B

TO END PRESS EXIT

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

3-5

Helpful Hints

• To cancel A-B Repeat Play, set ONE

TIME PLAY to ON. To set ONE

TIME PLAY to ON, follow steps 2-3

above. Then, press the PLAY/o but-

ton or the STOP/p button to select

ONE TIME PLAY. Press the

F.FWD/B button so that ON

appears beside ONE TIME PLAY.

Then, press the STATUS/EXIT button.

• The end position (B) must be later on the tape than the start position (A).

Press the STATUS/EXIT button to remove the menu. A-B

REPEAT will appear on the screen. Beneath it, the letter A will flash beside the real-time counter.

A-B Repeat Play (cont’d) 39

6 7-8

EJECT

POWER

STATUS/EXIT CLEAR

A-B REPEAT

A 0:12:34

Play, fast forward, or rewind the tape to the position at which you want to begin playback. Stop the tape, then press the MEMORY button to set the start position (A).

The flashing A will become a flashing B.

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

A-B REPEAT

B 0:00:00

●

Play or fast forward the tape to the position at which you want playback to end. Stop the tape, then press the

MEMORY button to set the end position (B).

The length of time between the start position (A) and the end position (B) must be at least three minutes.

The TV/VCR will immediately rewind the tape to the start position (A) and repeat playback to the end position (B) over and over.

(TV programming will appear while the tape is rewinding.)

Helpful Hints

• The counter cannot be memorized or reset when you are using this feature.

• A-B Repeat Play will be cancelled if you eject the tape or press the

REC(ord)/OTR button.

• A-B REPEAT will not appear on the screen at step 6 if a tape is not in the TV/VCR. NO CASSETTE will flash on the screen briefly.

• You cannot rewind or fast forward beyond points A or B when you are using this feature.

• A-B Repeat Play will be retained if you turn off the TV/VCR power.

40 Real-Time Counter Memory

Follow the steps below to reset the real-time counter to zero at a tape location you want to refer to later.

Play, fast forward, or rewind a tape to the location that you would like to refer to later. Stop the tape.

Press the STATUS/EXIT button. The real-time counter will appear on the screen.

01:08 PM

CH10

STOP

SLP 1 : 23 : 45

While the counter remains on the screen, press the

CLEAR button to reset the real-time counter to zero.

EJECT

POWER

STATUS/EXIT

CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

0 : 00 : 00

While the counter remains on the screen, press the MEM-

ORY button so that M appears on the screen. To erase a real-time counter memory, press the MEMORY button so that the

M disappears from the screen.

1,5

M 0 : 00 : 00

To go to the tape location where you set the real-time

counter to zero, press the REW(ind)/s button or the

F.FWD/B button when playback is stopped. When the

tape reaches the point at which you set the counter to

zero, the tape will stop. Press the PLAY/o button to

watch the tape.

Helpful Hints

• The real-time counter memory will not function during Repeat Play mode. Details are on page 37.

• You may only set one real-time counter memory at a time. If you set the real-time counter to zero at a second location, the previous realtime counter to zero setting will be lost.

Playback Options 41

Forward and Reverse Searching (SP/LP/SLP)

During tape playback, press and release the F.FWD/B button or the REW(ind)/{ button. A fast forward or reverse picture search will begin.

To return to normal playback, press the PLAY/▲ button.

Super High Speed Searching (LP/SLP)

During tape playback, press the F.FWD/B button or the

REW(ind)/{ button, then press again. The TV/VCR will now search in super high speed.

Press the F.FWD/B button or the REW(ind)/{ button repeatedly to switch between regular and super high speed searching.

To return to normal playback, press the PLAY/▲ button.

Viewing a Still Picture

During tape playback, press the PAUSE/STILL button. A still picture will appear on the screen.

To advance the still picture frame-by-frame, press the F(rame).

ADV(ance) button.

To release the still picture and return to normal playback, press the

PLAY/▲ button or press the PAUSE/STILL button again.

Viewing a Slow Motion Picture

During tape playback, press the SLOW button. The tape will play in slow motion.

To release Slow mode and return to normal playback, press the

PLAY/▲ button.

EJECT

POWER

STATUS/EXIT

CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

Helpful Hints

• Still and Slow modes will automatically switch to Stop mode after five minutes to protect the TV/VCR and the tape from damage.

• SP/LP/SLP means this feature will work with tapes recorded in

Standard Play, Long Play, or Super

Long Play. For details about tape speed, see page 29.

• LP/SLP means this feature will work with tapes recorded in Long Play and Super Long Play. For details on tape speed, see page 29.

• During forward and reverse searching, horizontal noise bars will appear on the TV/VCR screen.

42 SmartLock

SmartLock enables parents to prevent their children from watching inappropriate material on TV.

SmartLock reads the ratings for programming (except for news and sports programs, unedited movies on premium cable channels, and Emergency Broadcast System signals), then denies access to programming if the program’s rating meets or exceeds the limitations you select. The ratings are defined on page 45.

To block ratings, follow the steps below.

Press the MENU button.

PRESS

B > PRIM. SETUP

VCR PROGRAM

VCR SETUP

CAPTION

REMINDER

BRIGHTNESS

Press the PLAY/▲ button or the STOP/▼ button to select

SMARTLOCK. Then, press the F.FWD/B button.

SMARTLOCK

_ _ _ _

Enter Your Access Code

EJECT

POWER

STATUS/EXIT CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

2,4

Use the Number buttons to enter your access code.

The default code is 0711. If you have not set up your personal access code, you should use 0711. (To set up your personal access code, see page 44.)

The SMARTLOCK menu will appear.

SMARTLOCK

X X X -

Enter Your Access Code

Press the PLAY/▲ button or the STOP/▼ button to select

BLOCK. Then, press the F.FWD/B button.

SMARTLOCK

BLOCK

CHANGE CODE

SELECT KL CHOOSE B

TO END PRESS EXIT

Helpful Hints

• If the “Incorrect Access Code...” message appears after step 3, enter the correct access code.

• Programming may be rated by the

Motion Picture Association of America

(MPAA) or according to the Television

Parental Guidelines. In order to block any inappropriate programming, set your limits in both places (Movie

Ratings and Parental Guidelines).

You will complete steps 1-7 twice, choosing Movie Ratings at step 5 the first time, then choosing Parental

Guidelines at step 5 the second time.

• You can not view tape playback if the rating of the tape is blocked.

• If you enter the access code once, you may change channels without seeing the “CHANNEL XX

BLOCKED” message again. If you turn off the TV/VCR power, you will be asked for the access code again when you tune to a blocked channel.

Press the PLAY/▲ button or the STOP/▼ button to select

Movie Ratings or Parental Guidelines. Then, press the

F.FWD/B button.

BLOCK

Movie Ratings

Parental Guidelines

SELECT KL CHOOSE B

TO END PRESS EXIT

Press the PLAY/▲ button or the STOP/▼ button to select

the rating you want to block. Then, press the F.FWD/B

button so that ON appears beside the rating.

For example, if you set PG to ON, you may not view PG programming because the block is on. Programs with a PG or higher rating will be blocked. A “CHANNEL XX BLOCKED...” message will appear when someone tries to access such programming.

MOVIE RATINGS

PG-13

NC-17

[OFF]

SELECT KL CHOOSE B

TO END PRESS EXIT

PARENTAL GUIDELINES

> TV-Y

TV-Y7

- - - - - - - - - - - - - - - -

TV-G

TV-PG

TV-14

TV-MA

[OFF]

SELECT KL CHOOSE B

TO END PRESS EXIT

●

More specific sub-ratings are available for TV-Y7, TV-PG, TV-14, and TV-MA. (See example below.) When you press the

F.FWD/B button to turn on TV-Y7, TV-PG, TV-14 or TV-MA, additional sub-ratings will appear.

If you select the rating category, such as TV-PG, and turn it on or off, the specific sub-ratings, such as V for Violence, will turn on or off automatically. You can always turn specific sub-ratings on or off by selecting them individually. However, you may only set a sub-rating to ON if the rating category is set to ON.

●

Ratings are defined on page 45.

Example of specific sub-ratings

TV-PG

TV-PG [OFF]

[OFF]

SELECT KL CHOOSE B

TO END PRESS EXIT

Press the STATUS/EXIT button.

SmartLock (cont’d) 43

7 5-6

EJECT

POWER

STATUS/EXIT CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

Helpful Hints

• If the “CHANNEL XX BLOCKED...” or “PLAYBACK BLOCKED...” message appears and you want to view this programming, enter your access code.

The channel will remain blocked until you enter the correct code. If you do not know the code, you will have to

use the CH(annel) o/p buttons to

select another channel or press the

STOP/p button.

• Ratings will remain blocked even after a power failure.

• You cannot access the menu when the “CHANNEL XX BLOCKED...” or

“PLAYBACK BLOCKED...” message appears.

44 SmartLock (cont’d)

To change the access code, follow these steps.

Press the MENU button.

SMARTLOCK

REVIEW

EXIT

PRIM. SETUP

VCR PROGRAM

VCR SETUP

PRESS B

Press the PLAY/▲ button or the STOP/▼ button to select

SMARTLOCK. Then, press the F.FWD/B button.

SMARTLOCK

_ _ _ _

Enter Your Access Code

Use the Number buttons to enter your old access code.

The default code is 0711. If you have never set up your personal access code, use 0711 now.

After you enter the code, the SMARTLOCK menu will appear.

SMARTLOCK

X X X -

Enter Your Access Code

Press the PLAY/▲ button or the STOP/▼ button to select

CHANGE CODE. Then, press the F.FWD/B button.

SMARTLOCK

BLOCK

CHANGE CODE

SELECT KL CHOOSE B

TO END PRESS EXIT

Use the Number buttons to enter your desired access code in the New Code space. Then, enter the same code in the

Confirm Code space.

Your new access code should be recorded. You will return to the

SMARTLOCK menu.

New Code

Confirm Code

_ _ _ _

Press the STATUS/EXIT button.

6 2,4

EJECT

POWER

STATUS/EXIT CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

Helpful Hints

• To protect the privacy of the access code, an X will appear on the screen instead of the number you enter.

• If a “Wrong Code...” message appears on the screen after you complete step 5, you entered the wrong numbers in the Confirm Code space.

Enter the new code again, then enter the exact same code in the Confirm

Code space.

• You cannot use the default code after you set up your personal access code.

• If a power failure occurs, the default code, 0711, will be the active access code again.

• If you connect the power cord to an

AC outlet that is controlled by a wall switch, your personal access code will be erased every time you turn off the power at the wall switch. The default code will be the active code again.

To check the SmartLock settings and see which ratings you have blocked, follow these steps.

Press the MENU button.

> REVIEW

EXIT

PRIM. SETUP

VCR PROGRAM

VCR SETUP

CAPTION

PRESS B

Press the PLAY/▲ button or the STOP/▼ button to select

REVIEW. Then, press the F.FWD/B button so that the

SmartLock settings appear.

Ratings that are blocked will appear on the screen.

An “X” will appear if a specific sub-rating is blocked, such as V for

Violence in the TV-14 category.

BLOCKED RATINGS

Movie Ratings

G PG-13 NC-17

Parental Guidelines

TV-Y7

- - - - - - - - - - - - - - - - - - - -

TV-G

TV-PG

D L S V x x

TV-14 x x x x

TV-MA – x x x

Press the STATUS/EXIT button.

RATING EXPLANATIONS

For Movie Ratings

• G - General Audience

• PG - Parental Guidance suggested.

• PG-13 - Unsuitable for children under 13

• R - Restricted; under 17 requires accompanying parent or adult guardian

• NC-17 - No one under 17 admitted

• X - Mature audience only

For Parental Guidelines

• V - Violence

• S - Sexual situations

• L - Language

• D - Inappropriate dialogue

• FV - Fantasy Violence may frighten children under seven; TV-Y7 category only. Some cartoons may have this rating.

• TV-Y - Appropriate for all children

• TV-Y7 - Appropriate for children seven and older

• TV-G - General Audience

• TV-PG - Parental Guidance suggested.

• TV-14 - Unsuitable for children under 14

• TV-MA - Mature audience only

SmartLock (cont’d) 45

EJECT

POWER

STATUS/EXIT CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

46 Blue Background

If you want the TV screen to be solid blue when a weak signal is received, set BLUE BACKGROUND to ON. The screen will be blue and the sound will be muted. Or, if you want to receive the weak signal, set BLUE BACKGROUND to OFF. When you select a channel that is receiving a weak signal, you will see and hear the static in the TV programming.

To set BLUE BACKGROUND to ON or OFF, follow the steps below.

Press the MENU button.

PRESS

B > PRIM. SETUP

VCR PROGRAM

VCR SETUP

CAPTION

REMINDER

BRIGHTNESS

Press the PLAY/o p

button to select

VCR SETUP, then press the F.FWD/B

button.

VCR SETUP

> ONE TIME PLAY

REPEAT PLAY

[ON]

ON-SCREEN MODE

DEFEAT RECORDING [OFF]

BLUE BACKGROUND [ON]

SELECT KL CHOOSE B

TO END PRESS EXIT

Press the PLAY/o p

button to select

BLUE BACKGROUND. Then, press the F.FWD/B

button repeatedly so that OFF (or ON) appears beside BLUE

BACKGROUND.

VCR SETUP

ONE TIME PLAY

REPEAT PLAY

[ON]

ON-SCREEN MODE

DEFEAT RECORDING [OFF]

BLUE BACKGROUND [ON]

SELECT KL CHOOSE B

TO END PRESS EXIT

Press the STATUS/EXIT button.

4 2-3

EJECT

POWER

STATUS/EXIT CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

Helpful Hint

• A blue screen may appear briefly between channel changes if BLUE

BACKGROUND is ON. To avoid having the brief blue screen, set

BLUE BACKGROUND to OFF.

Sleep Timer 47

Use the sleep timer to program the TV/VCR to shut off in a certain amount of time.

Press the SLEEP/WAKE UP button.

TO ADJUST PRESS s B

–TIMER–

> SLEEP

WAKE UP

ON-TIME

OFF

Press the PLAY/o p

button to select

SLEEP. Then press the REW(ind)/s button or the

F.FWD/B button to select 30 MIN(utes), 60 MIN(utes),

90 MIN(utes), or 120 MIN(utes). (You can not set the sleep timer during a recording.)

TO ADJUST PRESS s

–TIMER–

SLEEP

WAKE UP

ON-TIME

30 MIN

Press the STATUS/EXIT button. The TV/VCR will shut itself off after the specified amount of time.

One minute before the TV/VCR shuts itself off, the seconds will count down on the screen.

GOOD NIGHT appears on the TV/VCR screen 10 seconds before the TV/VCR shuts itself off.

EJECT

POWER

STATUS/EXIT CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

Helpful Hints

• To cancel the sleep timer, press the

SLEEP/WAKE UP button. Press the

PLAY/o button or the STOP/p but-

ton to select SLEEP, then press the

REW(ind)/s

button or the

F.FWD/B

button to select OFF. Press the STATUS/EXIT button.

• To see how much time remains before the TV/VCR shuts itself off, press the SLEEP/WAKE UP button

once. If necessary, press the PLAY/o

button or the STOP/p button to

select SLEEP. The remaining time will appear beside SLEEP. To remove the display, press the STATUS/EXIT button.

• If you start a recording after you set the Sleep Timer, the Sleep Timer will be cancelled.

48 Wake Up Timer

The Wake Up Timer turns on the TV/VCR automatically at a specified time within the next 24 hours. You may set the TV/VCR to turn on at a TV channel (the channel at which the TV/VCR was set last) or with VCR playback. To set the Wake Up Timer, follow the steps below. Before you begin:

●

Set the clock. If the clock is not set, CLOCK MUST BE SET will appear on the screen after you select WAKE UP at step 2. Then

●

● the SET CLOCK menu will appear. Details are on pages 12-17.

Put a tape in the TV/VCR if you want the TV/VCR to start tape playback at the specified time.

Make sure no timer recordings are set for the time at which you want the TV/VCR power to come on.

Press the SLEEP/WAKE UP button.

TO ADJUST PRESS s

–TIMER–

SLEEP

WAKE UP

ON-TIME

OFF

Press the PLAY/o p

button to select

WAKE UP. Then, press the REW(ind)/s

button or the

F.FWD/B

button to select TV ON or VCR ON.

TO ADJUST PRESS s B

–TIMER–

SLEEP

WAKE UP

ON-TIME

TV ON

Press the PLAY/o p

button to select

ON-TIME. Then, press the REW(ind)/s

button or the

F.FWD/B button to select your desired wake up time. Each press of the REW(ind)/s

B button will decrease (or increase) the time by 10 minutes.

TO ADJUST PRESS s

–TIMER–

SLEEP

WAKE UP

ON-TIME

12:00 AM

Press the STATUS/EXIT button.

Press the POWER button to turn off the TV/VCR. The

TV/VCR will turn itself on at the specified time.

EJECT

POWER

STATUS/EXIT CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

2-3

Helpful Hint

• To cancel the Wake Up Timer, press the SLEEP/WAKE UP button. Press

the PLAY/o button or the STOP/p

button to select WAKE UP. Then,

press the REW(ind)/s

button or the

F.FWD/B

button to select OFF. Press the STATUS/EXIT button.

Usually, the volume bar appears when you press the VOL(ume) o

p buttons. If you do not need it, set the VOLUME BAR to

OFF. For example, when you watch a program that is being broadcast with closed captions, you may choose to set the VOLUME

BAR to OFF so the captions can remain on the screen. The captions will remain on the screen even when you press the

VOL(ume) o

p buttons or the MUTE button.

Press the MENU button.

PRESS

> PRIM. SETUP

VCR PROGRAM

VCR SETUP

CAPTION

REMINDER

BRIGHTNESS

Press the PLAY/▲ button or the STOP/▼ button to select

PRIM. SETUP. Then, press the F.FWD/B button.

PRIMARY SETUP

SELECT LANGUAGE

AUTO PROGRAMMING

CH MEMORY REVIEW

VOLUME BAR [OFF]

SET CLOCK

SELECT KL CHOOSE B

TO END PRESS EXIT

Press the PLAY/▲ button or the STOP/▼ button to select

VOLUME BAR, then press the F.FWD/B button. Each press of the F.FWD/B button will turn the VOLUME BAR ON or

OFF.

PRIMARY SETUP

SELECT LANGUAGE

AUTO PROGRAMMING

CH MEMORY REVIEW

VOLUME BAR [ON]

SET CLOCK

SELECT KL CHOOSE B

TO END PRESS EXIT

Press the STATUS/EXIT button.

Volume Bar 49

EJECT

POWER

STATUS/EXIT

CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

2-3

50 Closed Caption

When you watch a program that has closed captions, you can access on-screen boxes containing the program’s dialogue (for example, what a character is saying), dialogue in a foreign language, or information (such as a channel guide, schedule, or announcements). Follow the steps below to select closed captions.

Not all TV programs and commercials have closed captions.

Similarly, all types of closed captions (second language, half-screen text, etc.) are not always broadcast. If closed captioning is not broadcast, you cannot receive it. This does not indicate a problem with the TV/VCR. Refer to your area’s TV program listings for shows with closed captions.

Press the MENU button.

PRESS

B > PRIM. SETUP

VCR PROGRAM

VCR SETUP

CAPTION

REMINDER

BRIGHTNESS

Press the PLAY/▲ button or the STOP/▼ button to select

CAPTION.

TO ADJUST PRESS { / B

OFF

> CAPTION

REMINDER

BRIGHTNESS


COLOR

TINT

Press the REW(ind)/{ button or the F.FWD/B button to

select your desired closed caption mode.

The selected closed caption mode will appear beside CAPTION on the screen.

●

CAPTION1 displays standard closed captions (what a character

● is saying).

CAPTION2 displays foreign language closed captions (foreign

●

● language words showing what a character is saying).

TEXT1 and TEXT2 display half-screen text (such as a channel guide, schedule, or announcement).

OFF turns off closed captions. Captions will not appear on the screen.

TO ADJUST PRESS { / B

CAPTION1

CAPTION

REMINDER

BRIGHTNESS


COLOR

TINT

Example:

CAPTION1

Menu

Screen

EJECT

POWER

STATUS/EXIT CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

2-3

Press the STATUS/EXIT button. The type of closed captions you selected at step 3 will appear on the screen.

Closed Caption (cont’d) 51

EJECT

POWER

STATUS/EXIT CLEAR

SLEEP/

WAKE UP

ALT.CH

REC

/OTR

PAUSE

/STILL

PLAY

REW F.FWD

STOP

Standard Closed Captions

CH.

VOL.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

Half-screen text

Helpful Hints

• You cannot view closed captions during recording or tape playback if

COUNTER ONLY is ON. Details are on page 26.

• Abbreviations, symbols, and other grammatical shortcuts are often used in order to keep pace with the onscreen action. This does not indicate a problem with the TV/VCR.

• To cancel closed captions, follow steps 1-2 on page 50. At step 3,

press the REW(ind)/{ button or the

F.FWD/B button to select OFF.

Press the STATUS/EXIT button.

• When you change channels, the closed captions may be delayed for a few seconds.

• When you adjust the volume or mute the volume, closed captions may be delayed for a few seconds. Details are on page 49.

52 FM Radio

Follow the steps below to listen to FM radio stations through the

TV/VCR.

Press the FM button to select FM mode. The radio frequency appears on the TV/VCR screen, moving around the screen every few seconds.

FM 88.0MHz

Press the CH(annel) o p

buttons until your desired radio

frequency appears. You can choose FM stations within the band range of 88.0 ~ 108.0 MHz. You may get better FM reception by repositioning the TV/VCR.

To exit FM mode and return to TV mode, press the FM button again.

Choosing FM stations...

1,3

EJECT

POWER

STATUS/EXIT CLEAR

SLEEP/

WAKE UP

REC

/OTR

REW

PLAY

PAUSE

/STILL

F.FWD

STOP

ALT.CH

CH.

MUTE

SPEED F.ADV

TRACKING MEMORY SLOW

VOL.

Switching the Antennas

If you receive a weak radio signal, you may go to TV mode and switch between the internal (INT) and external (EXT) antennas.

When you select the external antenna, make sure your TV antenna or TV cable signal is connected to the ANT(enna) Jack on the

TV/VCR. Details are on page six.

To switch the antennas, follow these steps.

Press the FM button to return to TV mode if necessary.

Press the MENU button.

Press the PLAY/▲ button or the STOP/▼ button to select FM

ANTENNA.

Press the REW(ind)/{ button or the F.FWD/B button to select

INT or EXT.

Press the STATUS/EXIT button.

Helpful Hints

• If you turn off the TV/VCR in FM mode, the TV/VCR will be in TV mode when you turn on the TV/VCR again.

• You cannot record the FM station.

• You cannot switch to FM mode during tape playback, although tape playback is allowed while in FM mode.

• You must be in TV mode in order to select Line Input mode (A/V IN).

Automatic Operation Features 53

The following playback features will always operate.

Automatic Playback

When you put a tape in the TV/VCR, the power will come on automatically. If the tape’s record tab is missing, playback will begin. If a timer recording is set, the power will not come on automatically when you insert a tape with the record tab intact. If a timer recording is set and the TV/VCR power is off, the

TV/VCR will eject the tape if the record tab is missing.

Automatic Rewind, Eject, Off

When you play, fast forward, or record a tape to its end, the

TV/VCR will rewind the tape, stop, turn itself off, and eject the tape. If a real-time counter memory is set, the TV/VCR may only rewind the tape to the point at which the real-time counter is set to zero. The TV/VCR will not turn itself off or eject the tape.

Memory Rewind, Power Off

When you press the POWER button while the TV/VCR is rewinding a tape, REW → POWER OFF will appear on the screen. The

TV/VCR will turn itself off when the tape has finished rewinding.

If a real-time counter memory is set, the TV/VCR may only rewind the tape to the point at which the counter was set to zero, then turn itself off.

Tape Eject

A tape can be ejected with the TV/VCR power on or off (but the

TV/VCR must be plugged in). If a timer recording is programmed, a tape can not be ejected when the power is off. Turn on the

TV/VCR power, then eject the tape. Be sure to insert a tape and turn off the TV/VCR power for the timer recording.

Automatic Tracking Adjustment

The TV/VCR automatically adjusts the tracking to give you the best possible picture quality. With some recordings, however, you may get a better picture using the manual tracking controls

(see below).

Manual Tracking

To adjust the tracking manually, press the CHANNEL o/p buttons on the TV/VCR or the TRACKING o

p buttons on the remote control during playback.

Tracking returns to Automatic Tracking Adjustment when you insert a tape or press the STOP/p button.

Before

Tracking

Adjustment

After

Tracking

Adjustment

54 Helpful Hints

If you are having problems with your product, check this list of problems and possible solutions before requesting service. You may be able to solve the problem yourself.

If you need to call a customer service representative, please know the model number and serial number of your product before you call. This information is on the back of the product. Also, please take a moment to identify the problem you are having, and be prepared to explain this to the representative. If the representative will need to help you with operations, please stay near the product. Our representatives will be happy to assist you.

Location

For safe operation and satisfactory performance of your TV/VCR, remember the following:

• Shield it from direct sunlight and keep it away from sources of intense heat.

• Avoid dusty or humid places.

• Avoid places with insufficient ventilation. Do not block the ventilation openings at the top and bottom of the TV/VCR. Do not place the TV/VCR on a carpet, as this will block the ventilation openings.

• Avoid locations subject to strong vibrations.

• Do not place the TV/VCR near strong magnetic fields.

• Do not move the TV/VCR from a cold place to a hot place, or vice versa.

Electrical Shock and Fire Hazards

• Do not handle the power cord with wet hands.

• Do not pull the power cord when disconnecting the TV/VCR from the AC (alternating current) wall outlet. Grasp it by the plug.

• If you spill water on the TV/VCR, unplug the power cord immediately and take the TV/VCR to an authorized service center.

• Do not put your fingers or objects into the TV/VCR cassette compartment.

• Do not place anything on top of the TV/VCR.

Dew Warning (Moisture Condensation)

• Moisture may condense inside the unit when you move it from a cold place to a warm place, after heating a cold room, or when the humidity is high. There is no warning that moisture is in your TV/VCR. Playing a tape in a TV/VCR in which moisture has accumulated could damage the tape and the TV/VCR. If you suspect moisture inside the TV/VCR, keep the TV/VCR power on (but do not play a tape) for at least two hours. This will allow the TV/VCR to dry.

TV/VCR will not perform a timer recording.

• Set the recording start and stop times correctly. Details are on pages 32-35. Midnight is 12 a.m. Noon is 12 p.m.

• Make sure the TV/VCR power is off.

• Set the clock. Details are on pages 12-17.

• Put a tape in the TV/VCR. The tape must have a record tab.

• With ShowGuard, you don’t have to worry about losing your timer recordings. If the power fails, timer recordings will be restored when the clock is reset. (The clock will reset itself automatically if you are using AUTO CLOCK. Details are on pages 14-17. If you are not using AUTO CLOCK, reset the clock manually. Details are on pages 12-13.) The timer recording will not occur only if it was scheduled to take place during the power failure.

• Make sure DEFEAT RECORDING is OFF. Details are on page 36.

TV/VCR will not record.

• Make sure the tape has a record tab. Details are on page five.

• Make sure DEFEAT RECORDING is OFF. Details are on page 36.

• Plug the power cord into an active AC outlet. Details are on page seven.

• Check your hookups. Details are on pages six-seven.

• Set up the channels. Details are on page 10.

Channel reception is poor.

• Check connections, then set up the channels again. Details are on page 10.

The remote control is not available, or the remote control will not access the menu.

• Use the buttons on the front of the TV/VCR to access the menu. You can not enter numbers (for example, to program a timer recording) using the front panel buttons. Details are on page 20.

Helpful Hints (cont’d) 55

TV/VCR has no power.

• Connect the power plug to an AC (alternating current) outlet completely.

TV/VCR power shuts off after 15 minutes.

• To save energy, the TV/VCR will shut itself off after 15 minutes when it is on a channel that is not receiving a broadcast signal (for example, a station that has gone off the air for the night). This is normal.

TV/VCR does not have a picture.

• Adjust the antenna. Details are on page six.

• Adjust the TV/VCR picture controls. Details are on pages 24-25.

• Select an active channel.

TV/VCR has poor sound or no sound.

• Adjust the volume.

• Press the MUTE button to restore the volume.

Tape playback is poor or tape is destroyed.

• Adjust the tracking. Details are on page 53.

• If moisture has accumulated in your TV/VCR, keep the power on for at least two hours, but do not try to play a tape. Details are on page 54.

TV/VCR does not display closed captions.

• Make sure COUNTER ONLY is OFF. Details are on page 26.

• Make sure closed captioning is available for the program. Refer to the TV listings in your local newspaper.

Remote control does not operate TV/VCR.

• Aim the remote control directly at the TV/VCR’s remote sensor. Details are on pages five and 20.

• Remove all obstacles between the remote control and the TV/VCR.

• Inspect and replace the batteries in the remote control. Details are on page five.

Number buttons will not select channels above 69.

• Enter channel numbers as a two-digit number. If you want to select channels 100 and above, enter channel numbers as a three-digit number. Details are on page 22.

• If you are using an antenna, only channels 2-69 will be available. Details are on pages 10-11.

You can not insert a tape into the TV/VCR.

• Insert the tape window side up, with the record tab facing you.

• Make sure a tape isn’t already in the TV/VCR by pressing the STOP/EJECT button on the TV/VCR.

• Gently push on the center of the tape. Never force a tape into the TV/VCR.

• If you have set a timer recording and the TV/VCR power is off, the TV/VCR will eject the tape if the record tab is missing.

You can not remove the tape from the TV/VCR.

• Make sure the power plug is completely connected to an AC (alternating current) outlet.

• If a timer recording is programmed, turn on the TV/VCR power, then eject the tape. Be sure to insert a tape and turn off the TV/VCR power for the timer recording.

• Unplug the TV/VCR power cord for five minutes. Then, plug in the power cord again, then press the

POWER button on the TV/VCR. If the tape does not eject, press the STOP/EJECT button on the TV/VCR three to five times. If the tape still does not eject, you may need to have an authorized servicer remove the tape.

TV/VCR ejects the tape when you try to start a recording.

• Make sure the tape has a record tab. Details are on page five.

The cylinder rotates when tape playback is stopped.

• To enable the quick play mechanism, the cylinder will rotate for about five minutes. This is normal. The quick play mechanism switches the tape mechanism from Stop to Play in just one second.

56 Glossary

AUDIO In Jack: jack on the front of the TV/VCR which is used to receive or record audio from another source.

Automatic Channel Setup: process in which the TV/VCR memorizes all available channels. Then, when you push the

CH(annel) o/p buttons, you only scan through channels you receive.

Bands: settings that allow you to tune channels.

• Antenna – VHF (very high frequency; channels

2-13) and UHF (ultra high frequency; channels

14-69).

• Cable – all standard channels can be received without a Cable

Box.

Brightness: adjusting increases or decreases the brightness of the color on the screen.

Color: adjusting pales or brightens the TV/VCR color.

Dubbing: copying a tape using a VCR.

HQ: high quality; a feature in the TV/VCR circuitry which provides enhanced picture detail.

Line Input: The channel to which you set your TV/VCR during dubbing or when you want to watch material from other equipment that is connected to the TV/VCR. The line input channel is always channel 00 (A/V IN).

Mode: a TV/VCR operation.

OTR: One-Touch Recording; a timed recording that starts immediately and records for 30 minutes to eight hours, whichever you specify.

Picture: adjusting increases or decreases the contrast of the picture on the screen.

Sharpness: adjusting softens or clarifies the picture on the screen.

Tape Speeds: how fast the tape travels during playback or recording.

• SP (standard play) – fastest tape speed (recording time for a

T120 tape is approximately two hours); best picture quality.

• LP (long play) – average tape speed; playback only.

• SLP (super long play) – slowest tape speed (recording time for a T120 tape is approximately six hours).

Tint: adjusting changes the tints of the picture on the TV/VCR from purple to green.

VIDEO In Jack: jack on the front of the TV/VCR which is used to receive or record video from another source.

General

CRT: 13-inch in line gun (CCC133)

19-inch in line gun (CCC193)

Television system: NTSC-M

Closed caption system: Section 15.119, FCC

(Federal Communications Commission) Standard

Video Heads: Four heads

Tape width: 1/2 inch (12.65 mm)

Tape speed

SP: 33.35 mm/sec.

LP: 16.67 mm/sec.

SLP: 11.12 mm/sec.

Operating Temperature: 41˚F (5˚C) to 104˚F (40˚C)

Relative Humidity: 10% to 75%

Power requirement: AC 120V, 60Hz

Power consumption: 65W (CCC133)

90W (CCC193)

Sound output: 1W

Dimensions:

15-3/4" (H) x 15-3/16" (W) x 14-13/16" (D) (CCC133)

400mm x 386mm x 377mm

19-5/8" (H) x 19-3/8" (W) x 18-11/16" (D) (CCC193)

498mm x 492mm x 474mm

Weight: 24.3 lbs (11.0 kg) (CCC133)

Weight: 44.1 lbs (20.0 kg) (CCC193)

Tuner Broadcast Channels

VHF 2-13, UHF 14-69

Cable TV Channels

1-125

FM Radio Channels

88.0~108.0MHz

Terminals

Antenna In: VHF/UHF 75 ohms unbalanced

Video In: RCA connector

Audio In: RCA connector

Earphone: 3.5 mm CES

Electrical Specifications

Video input level: 0.5~2.0Vp-p

Audio input level: -10dBv

Video S/N ratio

SP: More than 42dBµ

Audio S/N ratio

SP: More than 38dB

Designs and specifications are subject to change without notice and without our legal obligation.

Specifications 57

58 Limited Warranty

TV/VCR COMBINATION

90 Days Free Labor/One Year Free Parts Exchange (Two Years Free Exchange on Color Picture Tube)

This product must be carried in for repair.

WHO IS COVERED?

You must have proof of purchase to receive warranty service. A sales receipt or other document showing that you purchased the product is considered proof of purchase.

uct, the local Philips service organization will attempt to provide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not readily available).

WHAT IS COVERED?

Warranty coverage begins the day you buy your product. For 90 days thereafter, all parts will be repaired or replaced, and labor is free. From 90 days

to one year from the day of purchase, all parts will be repaired or replaced, but you pay for all labor charges. From one to two years from the day of pur-

chase, you pay for the replacement or repair of all parts except the picture tube, and for all labor charges. After two years from the day of purchase, you pay for the replacement or repair of all parts, and for all labor charges.

All parts, including repaired and replaced parts, are covered only for the original warranty period. When the warranty on the product expires, the warranty on all replaced and repaired parts also expires.

MAKE SURE YOU KEEP...

Please keep your sales receipt or other document showing proof of purchase. Attach it to this owner’s manual and keep both nearby. Also keep the original box and packing material in case you need to return your product.

BEFORE REQUESTING SERVICE...

Please check your owner’s manual before requesting service. Adjustments of the controls discussed there may save you a service call.

TO GET WARRANTY SERVICE IN U.S.A., PUER-

TO RICO OR U.S. VIRGIN ISLANDS...

Take the product to a Philips factory service center

(see enclosed list) or authorized service center for repair. When the product has been repaired, you must pick up the unit at the center. Centers may keep defective parts.

(In U.S.A., Puerto Rico and U.S. Virgin Islands, all implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express warranty. But, because some states do not allow limitations on how long an implied warranty may last, this limitation may not apply to you.)

WHAT IS EXCLUDED?

Your warranty does not cover:

• labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.

• product repair and/or part replacement because of misuse, accident, unauthorized repair or other cause not within the control of Philips Consumer

Electronics.

• reception problems caused by signal conditions or cable or antenna systems outside the unit.

• a product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.

• incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This includes, but is not limited to, prerecorded material, whether copyrighted or not copyrighted.)

• damage caused by the use of non-VHS tapes or tapes that have not been tested and labeled for use in two, four, six, and eight hour VHS recorders.

• a product that is used for commercial or institutional purposes.

TO GET WARRANTY SERVICE IN CANADA...

Please contact Philips at:

1-800-661-6162 (French Speaking)

1-800-363-7278 (English Speaking)

(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances for any direct, indirect, special, incidental or consequential damages, howsoever incurred, even if notified of the possibility of such damages.)

REMEMBER...

Please record below the model and serial numbers found on the product. Also, please fill out and mail your warranty registration card promptly. It will be easier for us to notify you if necessary.

MODEL # __________________________________

WHERE IS SERVICE AVAILABLE?

Warranty service is available in all countries where the product is officially distributed by Philips

Consumer Electronics. In countries where Philips

Consumer Electronics does not distribute the prod-

SERIAL # __________________________________

This warranty gives you specific legal rights. You may have other rights which vary from state to state.

Philips Service Solutions Group, P.O. Box 2976, Longview, Texas 75606, (903) 242-4800

EL4963E006 / MAC 6108/ 03-00

a-b repeat play . . . . . . . . .38-39 accessories . . . . . . . . . . . . . . .60

ant(enna) jack . . . . . . . . . . .6, 21 audio in jack . . . . . . . . .7, 20, 31 automatic playback . . . . . . . . . . . . . . .53

rewind . . . . . . . . . . . . . . . .53

batteries . . . . . . . . . . . . . . . . . .5

blue background . . . . . . . . . . .46

brightness, adjusting . . . . .24-25 channel above 100 . . . . . . . . . . . . .22

adding . . . . . . . . . . . . . . . .11

buttons . . . . . . . . . . . . .20, 53 deleting . . . . . . . . . . . . . . .11

reviewing . . . . . . . . . . . . . .11

setup . . . . . . . . . . . . . . . . .10

ch(annel) o/p buttons . . . . .23

clear button . . . . . . . . . . . . . .22

clock . . . . . . . . . . . . . . . . .12-17 closed caption system . . . .50-51 color, adjusting . . . . . . . . .24-25 connections . . . . . . . . . . .6-7, 31 contents, table of . . . . . . . . . . .4

controls remote . . . . . . . . . . . . .22-23 tv/vcr . . . . . . . . . . . . . . . . .20

counter only mode . . . . . . . . .26

daylight-savings time . . . . . . . .18

defeat recording . . . . . . . . . . .36

duplication . . . . . . . . . . . . . . .31

earphone jack . . . . . . . . . . . . .20

eject button . . . . . . . . . . . . . .22

ejecting a tape . . . . . . . . . . . .55

f.adv button . . . . . . . . . . .23, 41 fast forward search . . . . . . . . .41

f.fwd/B button . . . . . . . . .22, 41 f.fwd button . . . . . . . . . . . . . .20

fm button . . . . . . . . . . . . .23, 52 fm radio . . . . . . . . . . . . . . . . .52

front panel . . . . . . . . . . . . . . .20

glossary . . . . . . . . . . . . . . . . .56

helpful hints . . . . . . . . . . . .54-55 hookups . . . . . . . . . . . . .6-7, 31 language selection . . . . . . . . . . .9

line input mode . . . .7, 10, 31, 56 long play . . . . . . . . . . . . . .29, 56 lp . . . . . . . . . . . . . . . . . .29, 56 memory button . . . . . . . . . . .23, 39-40 real-time counter . . . . . . . .40

rewind, power off . . . . . . .53

menu button . . . . . . . . . . . . . . . .23

front panel button access . .20

mute button . . . . . . . . . . . . . .22

number buttons . . . . . . . . . . .22

one-touch recording . . . . . . . .30

pause/still button . . . . . . .23, 41 picture, adjusting . . . . . . . .24-25 play button . . . . . . . . . . . .20, 22 playback options . . . . . . . . . . .41

playing . . . . . . . . . . . . . . . . . .28

power button . . . . . . . . . . . . .20, 22 cord . . . . . . . . . . . . . . . .7, 21 real-time counter memory . . .40

rear panel . . . . . . . . . . . . . . . .21

rec/otr button . . . . . . . . .20, 23 record light . . . . . . . . . . . . . .20

recording . . . . . . . . . . . . . . . .29

recording prevention . . . . . . . .5

reminder . . . . . . . . . . . . . . . .27

remote control buttons . . . . . . . . . .22-23 using . . . . . . . . . . . . . . . .5

sensor . . . . . . . . . . . . . . . .20

repeat play . . . . . . . . . . . . . . .37

rerecording . . . . . . . . . . . . . .31

rew(ind) button . . . . . . . . . . .20

rew(ind)/{ button . . . . . .23, 41 rewinding . . . . . . . . . . . . . . . .41

safety precautions . . . . . . . . . .3

searching . . . . . . . . . . . . . . . .41

sensor (remote) . . . . . . . . . . .20

sharpness, adjusting . . . . . .24-25 showguard . . . . . . . . .32, 35, 54 sleep timer . . . . . . . . . . . . . . .47

slow button . . . . . . . . . . . . . . . .23

motion playback . . . . . . . . .41

slp . . . . . . . . . . . . . . . . . .29, 56 smartclock . . . . . . . . . . . . .14-17

Index 59

smartlock . . . . . . . . . . . . .42-45 sp . . . . . . . . . . . . . . . . . .29, 56 specifications . . . . . . . . . . . . .57

sqpb . . . . . . . . . . . . . . . . . . . .28

standard play . . . . . . . . . .29, 56 status display . . . . . . . . . . . . .26

status/exit button . . . . . . .23, 26 still picture . . . . . . . . . . . . . . .41

stop/p button . . . . . . . . . . . .23

stop/eject button . . . . . . . . . .20

super high speed searching . . .41

super long play . . . . . . . . .29, 56 table of contents . . . . . . . . . . .4

tape duplication . . . . . . . . . . . . .31

speed . . . . . . . . . . . . . .29, 56 time setting . . . . . . . . . . . . . .12-17 zone . . . . . . . . . . . . . . . . . .19

timer recording cancelling . . . . . . . . . . . . . .35

reviewing . . . . . . . . . . . . . .35

setting . . . . . . . . . . . . . .32-34 tint, adjusting . . . . . . . . . . .24-25 tracking . . . . . . . . . . . . . . . . .53

video in jack . . . . . . . . .7, 20, 31 volume bar . . . . . . . . . . . . . . .49

wake up timer . . . . . . . . . . . .48

warranty . . . . . . . . . . . . . . . . .58

UPPLIED

CCESSORIES

The following items are supplied with your TV/VCR; they are provided to help you use or set up your TV/VCR.

Remote Control 4835 218 37326

Two AA Batteries 4835 138 17012

PTIONAL

CCESSORIES

The following additional items are not provided with your

TV/VCR, but they are designed for use with your new TV/VCR.

To order these optional accessories, contact us at:

Philips Parts & Accessories Marketing Department

401 East Old Andrew Johnson Highway

P.O. Box 555

Jefferson City, TN 37760

1-800-851-8885.

VHS Cassette Rewinder

#M61117

Monaural Audio and Video Cables (6 feet)

Color-coded for easy connection

#M61103

Three Cassette Storage Cases (plastic)

Fits VHS and Beta cassettes

#M61104

This owner’s manual is made of recycled paper.

As an E

NERGY

TAR

® Partner, Philips Consumer Electronics has determined that this product meets the

NERGY

TAR

® guidelines for energy efficiency.

NERGY

TAR

® is a U.S. registered mark.

Six High-grade, VHS, T-120 Cassettes

#MHG1206

IB8303E001

Printed in Malaysia

0EMN01820 / T5218UU * * * * *

Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Related manuals

Philips CCB190AT Owner`s manual

Philips CCZ092AT TV VCR Combo User manual

Philips CCB190AT TV VCR Combo User manual

Philips CCB 252AT TV VCR Combo User manual

Philips CCC 134AT User's Manual

Magnavox TV VCR Combo TVCRCC13B1MG User manual

Philips CCA193AT TV VCR Combo User manual

Philips CCB193AT99 TV VCR Combo User manual

Philips CCZ130AT99 Owner's Manual

Magnavox TV VCR Combo CCA192AT User manual

Philips CCW135AT TV VCR Combo User manual

Philips MC192DMG TV VCR Combo User manual

Magnavox CC13C1MG TV VCR Combo User Manual

Magnavox MC19D1MG User manual

Magnavox MC132DMG TV VCR Combo User Manual

Philips CCB 092AT TV VCR Combo User manual

Matsui VP9500 Instruction book

Philips CCA092AT TV VCR Combo User manual

Philips CCZ130AT99 Owner's Manual

Philips CCX133AT TV VCR Combo User manual

LG Electronics 42LS575T Flat Panel Television User Manual

Download PDF
