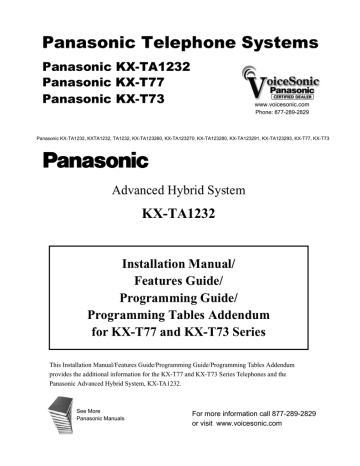

Panasonic Telephone Systems
Panasonic KX-TA1232
Panasonic KX-T77
Panasonic KX-T73
www.voicesonic.com
Phone: 877-289-2829
Panasonic KX-TA1232, KXTA1232, TA1232, KX-TA123260, KX-TA123270, KX-TA123280, KX-TA123291, KX-TA123293, KX-T77, KX-T73
Advanced Hybrid System
KX-TA1232
Installation Manual/
Features Guide/
Programming Guide/
Programming Tables Addendum
for KX-T77 and KX-T73 Series
This Installation Manual/Features Guide/Programming Guide/Programming Tables Addendum
provides the additional information for the KX-T77 and KX-T73 Series Telephones and the
Panasonic Advanced Hybrid System, KX-TA1232.
See More
Panasonic Manuals
For more information call 877-289-2829
or visit www.voicesonic.com
Table of Contents
Table of Contents
Installation Manual
System Components Table .................................................................................3
Features Guide
Buttons on Proprietary Telephones ..................................................................3
Call Log, Incoming .............................................................................................4
Caller ID ..............................................................................................................4
Caller ID Call Waiting .......................................................................................4
DSS Console ........................................................................................................4
Handset/Headset Selection .................................................................................4
Hands-free Answerback .....................................................................................4
Hands-free Operation ........................................................................................4
Room Monitor .....................................................................................................4
Station Programming .........................................................................................4
System Programming with a Proprietary Telephone ......................................4
Programming Guide
Using the Overlay ...............................................................................................5
Viewing the display .............................................................................................7
[002] System Speed Dialing Name Set ..............................................................8
[990] System Additional Information ...............................................................9
Programming Tables
[002] System Speed Dial Name Set .................................................................10
[990] System Additional Information .............................................................15
2
Installation Manual & Features Guide
System Components
The following Panasonic Proprietary Telephones (PTs) and a DSS console are available for KX-TA1232.
System Components Table (Additional)
Model
Telephone
Optional
Equipment
Description
KX-T7735
Proprietary Telephone with 16-character/3-line and backlit display
and Message/Ringer Lamp
KX-T7730
Proprietary Telephone with 16-character/1-line and backlit display
and Message/Ringer Lamp
KX-T7720
Proprietary Telephone with Message/Ringer Lamp
KX-T7750
Proprietary Telephone with Message/Ringer Lamp and MONITOR
button
KX-T7335
Proprietary Telephone with 16-character/1-line and backlit display
KX-T7320
Proprietary Telephone
KX-T7350
Proprietary Telephone with MONITOR button
KX-T7740
DSS Console
Features
Additional Information for Features
The additional information for Features
Features
Additional Information
Buttons on Proprietary
Telephone
As for Buttons on the KX-T7735, KX-T7730, KX-T7720, KX-T7750, KXT7335, KX-T7320 and KX-T7350, please refer to the User Manual
Addendum for KX-T77 and KX-T73 Series.
3
Features Guide
The following features are available with PTs depending on the type of the KX-T77 or KX-T73
series.
Features
T7735
T7335
T7730
T7720
T7320
T7750
T7350
T7740
Call Log, Incoming
Caller ID/
Caller ID Call Waiting
DSS Console*1
Handset/Headset Selection
(for T7720) (for T7750)
Hands-free Answerback
Hands-free Operation
*2
Room Monitor
Station Programming
The following programming items are available.
Call Waiting Tone Type
Assignment
Flexible Button Assignment
Intercom Alert Assignment
Preferred Line Assignment
— Incoming/Outgoing
Station Programming Data
Default Set
Self-Extension Number
Confirmation
System Programming with a
Proprietary Telephone
Note
*1 The KX-T7740 is available for the KX-TA1232. For details about DSS Console, please refer to the
Features Guide.
*2 The MONITOR button on the KX-T7750 or KX-T7350 can be used for hands-free dialing operation, etc.,
but cannot be used for a hands-free conversation.
As for other features, please refer to the Features Guide.
4
Programming Guide
System Programming
A display PT (KX-T7735, KX-T7730 or KX-T7335) is required for system programming.
Using the Overlay
A programming overlay is packed with the telephone at the factory.
This overlay should be used at all times during programming. The features of the telephone
keys change during programming as follows. (The original features are in parentheses.)
During Normal Operation
During Programming
(PAUSE)
PAUSE
(AUTO ANSWER/MUTE)
SELECT
(AUTO DIAL/STORE)
STORE
(FLASH/RECALL)
FLASH
(INTERCOM)
SECRET (T7735 or T7730)
(T7335)
(CONF or
)
, – (T7735 or T7730)
(FWD/DND or
)
(MESSAGE)
–,
(TRANSFER)
(REDIAL or
(PROGRAM)
(T7335)
CLEAR
)
PREV (PREVIOUS)
(HOLD)
(SP-PHONE or
(T7735 or T7730)
END
)
NEXT
PROGRAM
5
Programming Guide
Location of Controls with Overlay (Additional)
The picture below shows the features of the buttons of the KX-T7735 or KX-T7335 during programming.
PROGRAM
SECRET
,
PAUSE
9
10
11
12
5
6
7
8
1
INTERCOM
FLASH
SELECT
STORE
2
3
AUTO ANS/MUTE
SELECT
AUTO/STORE
STORE
4
MESSAGE
PAUSE
PAUSE
FLASH
FLASH
TRANSFER
,
PREV
PROGRAM
PROGRAM
ABC
DEF
JKL
MNO
CLEAR
VOLUME-
KX-T7330
GHI
ABC
DEF
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
8
9
1
PQRS
TUV
WXYZ
OPER
7
OPER
CLEAR
END
0
NEXT
PREV
REDIAL
END
HOLD
NEXT
SP-PHONE
ADVANCED HYBRID SYSTEM
<KX-T7735>
<KX-T7335>
Note
The KX-T7730 has the same overlay as the KX-T7735.
6
Programming Guide
Viewing the Display
The display gives you helpful information, such as the next step, previous entries, etc.
The KX-T7735 utilizes two information lines for programming.
The KX-T7730 utilizes one information line for programming.
The display capacity is 16 digits. If your entry is longer than 16 digits, the user can scroll the
display by pressing the Navigator Key ( ), or the
or
button.
<Display Example>
Display
Button for Operation
PREV (REDIAL)
or
(Navigator Key)
001 SYS SPD DIAL
000:912345678901
/
(Navigator Key
or
FWD/DND button)
NEXT (SP-PHONE)
or
(Navigator Key)
200 HOLD RECALL
Move to:
001 SYS SPD DIAL
499:912345678901
001 SYS SPD DIAL
000:123456789012
001 SYS SPD DIAL
001:Not Stored
/
(Navigator Key
or
CONF button)
151 BREAK TIME
/
(Navigator Key
or
FWD/DND button)
201 TRAN RECALL
NEXT (SP-PHONE)
or
(Navigator Key)
200 HOLD RECALL
Time:60 sec
7
Programming Guide
[002]
System Speed Dialing Name Set (Additional)
Description
Assigns names to the system speed dialing numbers assigned in program [001] System
Speed Dialing Number Set. Display telephones can show the stored number during System
Speed Dialing.
Selection
• Speed dial number: 000 through 499
• Name: 10 characters (max.)
Default
All speed dial numbers — Not stored
Programming
1. Enter 002.
Display: 002 SYS SPD NAME
2. Press NEXT.
3.
4.
5.
6.
7.
8.
Display: SPD Code?
Enter a speed dial number.
To enter speed dial number 000, you can also press NEXT.
Display example: 000:Not Stored
Enter a name.
For entering characters, please refer to “1.4 Entering Characters” in the Programming Guide
To delete the current entry, press CLEAR.
To change the current entry, press CLEAR and enter the new name.
Press STORE.
To program another speed dial number, press NEXT or PREV, or SELECT and the
desired speed dial number.
Repeat steps 4 through 6.
Press END.
Conditions
• Speed dial numbers are programmed in program [001] System Speed Dialing Number Set.
• Each name has a maximum of 10 characters.
• To go to another speed dial number in steps 3 through 6, press SELECT and start with step 3.
Feature Reference — in the Features Guide
System Speed Dialing
8
Programming Guide
[990]
System Additional Information (Additional)
< Area 10 >
Bit Number
16 15 14 13 12 11 10 9 8 7
Display Example
6
5
4
3
2
1
1 11 1 1 1 1 11 1 1 1 1 1 1 1
Explanation for Area 10
Bit
Description
Selection
1-9
Unused
10
Enables the Message/Ringer Lamp
0 : enable
flashing when an extension is in use or
1 : disable
idle, and one of the following occurs:
– An intercom call is incoming to the
extension and Call Waiting Tone 1 is
assigned.
– A doorphone call from any doorphone is
incoming to the extension.
– An outside (CO) call with Caller ID
information is incoming to the
extension.
– A doorphone call from any doorphone
and a doorbell/door chime is selected.
This programming is available for the
KX-T77 series only.
enable: Message/Ringer Lamp–Flashing
disable: Message/Ringer Lamp–Off
Default
1
Feature Guide
References
• Call Waiting
• Caller ID Call
Waiting
• Doorbell/Door
Chime
• Doorphone
Call
11-16 Unused
9
Programming Tables
Programming Tables
[002] System Speed Dial Name Set
SPD no. Name (max. 10 characters) SPD no. Name (max. 10 characters) SPD no. Name (max. 10 characters)
Name
Name
Name
SPD no.
SPD
no. stored
SPD no.
All: Not
Default
(max. 16 characters)
(max. 16 characters)
(max. 16 characters)
40 Not stored
80
00
All:
Default
41
81
01
40
75
00
42
82
02
41
76
01
43
83
03
42
77
02
44
84
04
43
78
03
45
85
05
44
79
04
46
86
06
45
80
05
47
87
07
46
81
06
48
88
08
47
82
07
49
89
09
48
83
08
50
90
10
49
84
09
51
91
11
50
85
10
52
92
12
51
86
11
53
93
13
52
87
12
54
94
14
53
88
13
55
95
15
54
89
14
56
96
16
55
90
15
57
97
17
56
91
16
58
98
18
57
92
17
59
99
19
58
93
18
60
100
20
59
94
19
61
101
21
60
95
20
62
102
22
61
96
21
63
103
23
62
97
22
64
104
24
63
98
23
65
105
25
64
99
24
66
106
26
65
25
67
107
27
66
26
68
108
28
67
27
69
109
29
68
28
70
110
30
69
29
71
111
31
70
30
72
112
32
71
31
73
113
33
72
32
74
114
34
73
33
75
115
35
74
34
76
116
36
77
117
37
78
118
38
79
119
39
10
Programming Tables
[002] System Speed Dial Name Set (contd.)
SPD no. Name (max. 10 characters) SPD no. Name (max. 10 characters) SPD no. Name (max. 10 characters)
Default
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
All: Not stored
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
11
Programming Tables
[002] System Speed Dial Name Set (contd.)
SPD no. Name (max. 10 characters) SPD no. Name (max. 10 characters) SPD no. Name (max. 10 characters)
Default
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
12
All: Not stored
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
Programming Tables
[002]
System Speed Dial Name Set (contd.)
SPD no. Name (max. 10 characters) SPD no. Name (max. 10 characters) SPD no. Name (max. 10 characters)
Default
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
All: Not stored
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
13
Programming Tables
[002]
System Speed Dial Name Set (contd.)
SPD no. Name (max. 10 characters) SPD no. Name (max. 10 characters)
All: Not stored
Default
490
480
491
481
492
482
493
483
494
484
495
485
496
486
497
487
498
488
499
489
14
Programming Tables
[990] System Additional Information
[990] System Additional Information
< Selection >
Area Bit
10 1-9
10 10
10 11-16
: Unused
: 0 (enable) / 1 (disable)
: Unused
Area 10
Bit
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Default
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Selection
15
3DQDVRQLF7HOHSKRQH6\VWHPV
See More
Panasonic Manuals
www.voicesonic.com
Phone: 877-289-2829
© 2003 Panasonic Communications Co., Ltd. All Rights Reserved.
Printed in the United Kingdom
PSQX2794ZA KK0103HK0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
