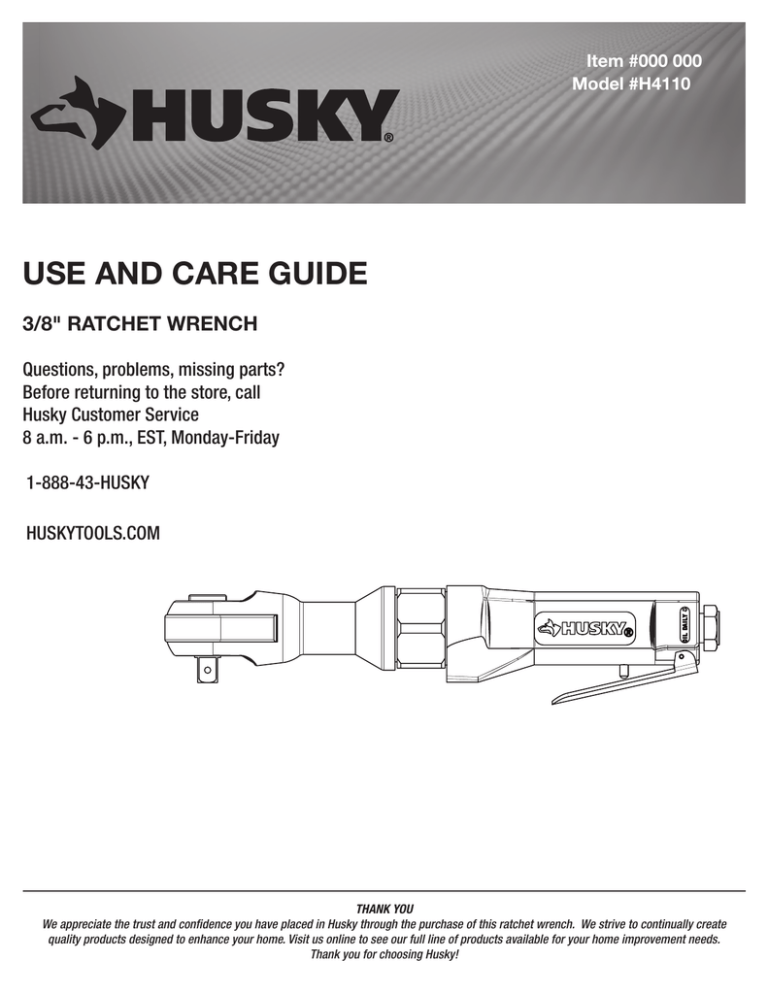

use and care guide
Item #000 000
Model #H4110
USE AND CARE GUIDE
3/8" RATCHET WRENCH
Questions, problems, missing parts?
Before returning to the store, call
Husky Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-888-43-HUSKY
HUSKYTOOLS.COM
THANK YOU
We appreciate the trust and confidence you have placed in Husky through the purchase of this ratchet wrench. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Husky!
Table of Contents
Table of Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Work Area Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Personal Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Air Compressor and Air Tool Safety. . . . . . . . . . . . . . . . . . . . . 3
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Husky Air Tools Limited Two Year Warranty. . . . . . . . . . . . . . . 3
Additional Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Pre-Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Lubrication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Service Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Safety Information
WORK AREA SAFETY
1. Keep your work area clean and well lit. Ensure floors are not
slippery from wax or dust.
2. Do not operate power tools in explosive atmospheres, such as
in the presence of flammable liquids, gases, or dust. Power
tools create sparks which may ignite the dust or fumes. Keep
bystanders, children, and visitors away while operating tools.
Distractions can cause you to lose control.
3. Always disconnect the air supply and power supply before
making adjustments, servicing a tool, changing an accessory or
when a tool is not in use.
4. For further information on the safe use of air tools, we advise
you to obtain a copy of CAGI B186.1-2009 from
Husky Air Tools
851 Jupiter Park Lane
Jupiter, Florida 33458
(877) 260-1630.
PERSONAL SAFETY
1. Use safety equipment. Always wear eye protection with side
shields when operating power tools. Dust mask, nonskid
safety shoes, hard hat, or hearing protection must be used for
appropriate conditions.
2. Stay alert when operating a power tool. Do not use the tool while
tired or under the influence of drugs, alcohol, or medication.
3. Do not wear loose clothing or jewelry. Contain long hair. Keep
your hair, clothing, and gloves away from moving parts. Loose
clothes, jewelry, or long hair can be caught in moving parts.
4. Keep proper footing and balance at all times. Proper footing
and balance enables better control of the tool in unexpected
situations.
5. Do not use on a ladder or unstable support.
2
CAUTION: This product contains chemicals known to
the State of California to cause cancer and birth defects or
other reproductive harm. Wash hands after handling.
WARNING: Some dust created by power sanding, sawing,
grinding, drilling and other construction activities contains
chemicals known to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
Lead from lead based paint, crystalline silica from bricks
and cement and other masonry products, arsenic and
chromium from chemically-treated lumber.
Your risk from those exposures varies, depending on how
often you do this type of work. To reduce your exposure to
these chemicals: work in a well-ventilated area, and work
with approved safety equipment, such as dust masks that
are specifically designed to filter out microscopic particles.
Safety Information (continued)
AIR COMPRESSOR AND AIR TOOL SAFETY
1. Risk of Bursting. Do not adjust regulator to result in output
pressure greater than marked maximum pressure of this air tool.
WARNING: Do not use at pressure greater than the rated
maximum pressure of this air tool.
2. Ensure the hose is free of obstructions or snags. Entangled or
snarled hoses can cause loss of balance or footing and may
become damaged.
WARNING: Do not attempt to modify this tool or create
accessories not recommended for use with this tool. Any
such alteration or modification is misuse and could result in
a hazardous condition leading to possible serious personal
injury.
3. Never leave a tool unattended with the air hose attached.
4. Do not operate this tool if it does not contain a legible warning
label.
WARNING: Operating any power tool can result in foreign
objects being thrown into your eyes, which can result in
severe eye damage. Before beginning operation, always
wear safety goggles, safety glasses with side shields, or
a full face shield when needed. Always use eye protection
marked to comply with ANSI Z87.1
5. Do not continue to use a tool or hose that leaks air or does not
function properly.
6. Never direct a jet of compressed air toward people or animals.
7. Protect your lungs. Wear a face or dust mask if the operation is
dusty.
WARNING: Avoid Prolonged Exposure to Vibration
Pneumatic tools can vibrate during use. Prolonged exposure
to vibration or very repetitive hand and arm movements,
can cause injury. Stop using any tool if discomfort, tingling
feeling or pain occurs. You should consult your physician
before resuming use of the tool.
WARNING: Hearing Protection is Recommended
Hearing protection should be used when the noise level
exposure equals or exceeds an 8 hour time-weighted
average sound level of 85dBA.
Warranty
HUSKY AIR TOOLS LIMITED TWO YEAR WARRANTY
If within two years from the date of purchase, this Husky air tool product fails due to a defect in materials or workmanship, please
immediately contact the Customer Service Team at 1-888-43-HUSKY 8 a.m. - 6 p.m., EST, Monday-Friday, except normal holidays. Do not
return the air tool to the store. Please be prepared to send the product, postage prepaid, to the address provided by the Customer Service
Team. The package must also include a copy of the dated first owner purchase receipt with the air tool model included and circled. The
serial number and month/year of manufacture of the air tool must also be included to determine warranty. A defective product will be
promptly replaced with a new one of equal or greater value. This warranty excludes incidental/consequential damages and failures due to
misuse, abuse or normal wear and tear. This warranty gives you specific rights, and you may also have other rights, which vary, from state
to state.
Please contact the Customer Service Team at 1-888-43-HUSKY or visit www.HUSKYTOOLS.com.
ADDITIONAL LIMITATIONS
To the extent permitted by applicable law, all implied warranties, including warranties of merchantability or fitness for a particular
purpose, are disclaimed. Any implied warranties, including warranties of merchantability or fitness for a particular purpose, that cannot
be disclaimed under state law are limited to two years from the date of purchase. Husky is not responsible for direct, indirect, incidental,
special or consequential damages. If this air compressor is used for commercial purposes, the warranty will apply for ninety (90) days
from the date of purchase. Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion
or limitation of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal
rights, and you may also have other rights, which vary from state to state.
3HUSKYTOOLS.COM
Please contact 1-888-43-HUSKY for further assistance.
Pre-Installation
SPECIFICATIONS
Free Speed
(RPM)
Maximum
Torque
Weight
(lbs)
Length
(in)
Air Cons.
(CFM)
Maximum
Operating
Pressure (PSI)
160
50 ft. lb.
2.5
10.3
4
90
PACKAGE CONTENTS
Part
A
Description
3/8 RATCHET WRENCH
4
Quantity
1
Installation
1 Cleaning the air hose
□□ A 3/8" air hose is required, with a maximum length of 25 ft.
□□ Clean the air hose of accumulated dust and moisture
before connecting it to the air supply.
NOTE: If a longer air hose is required, connect a 1/2" air
hose to the 3/8" air hose to ensure the ratchet wrench has
the necessary air supply.
2 Connecting to the air supply
Recommended Air Line Set-Up
Part
□□ Always use clean dry air. Excessive moisture and dirt will
greatly reduce the life of any air motor. We recommend the
installation of an in-line filter-regulator-lubricator as close
to the tool as possible.
□□ Ensure all hoses and fittings are the correct size and
secured tightly.
Description
A
3/8" Ratchet Wrench
B
Quick Plug
C
Quick Coupler
D
Air Hose
E
In-line Regulator
F
In-line Lubricator
G
In-line Filter
H
Air Compressor
5HUSKYTOOLS.COM
Please contact 1-888-43-HUSKY for further assistance.
Operation
1 Operating the ratchet
2 Changing the output torque direction
3
4
□□ This 3/8 inch. Air Ratchet Wrench is designed to operated
on 90 PSIG. Low pressure (below 90 PSIG) will reduce the
power output. Higher pressure (over 90 PSIG) raises the
tool performance beyond its rated capacity and could result
in serious damage to the tool and/ or operator.
Installing and removing the sockets
WARNING: Disconnect tool from air supply before servicing
or changing accessories.
To install the sockets
□□
Disconnect the tool from the air source
□□
Select the suitable and desirable socket size
□□
Press fit the anvil into the socket
To remove the impact socket
□□
Disconnect the tool from the air source;
□□
Use the hand or suitable tool to remove the socket;
6
□□ This tools features the reverse switch to change the
output torque direction to tighten( assemble) or loose
(disassemble) the bolt or fastener. Control the output torque
direction by turning the reverse switch to the F (Forward)
or R (Reverse) position to change the direction.
Tightening or loosening the bolt or
fastener
□□ Fit the socket in.
□□ Hold the ratchet wrench with one hand.
□□ Use the tool to tighten or loose the bolt of fastener
Maintenance
Ensure the air line is shut-off and drained of air before removing this tool for service or changing
sockets. This will prevent the tool from operating if the throttle is accidentally engaged.
LUBRICATION
□□ An in-line filter-regulator-lubricator is recommended as it increases tool life and keeps the tool in
sustained operation.
□□ Regularly check and fill the in-line lubricator with air tool oil. Avoid using excessive amounts of oil.
□□ Adjust the in-line lubricator by placing a sheet of paper next to the tool’s exhaust ports and holding the throttle open approximately 30
seconds. The lubricator is properly set when a light stain of oil collects on the paper.
□□ If it is necessary to store the tool for an extended period of time (overnight, weekend, etc), generously lubricate the tool through the air
inlet. Run the tool for approximately 30 seconds to ensure the oil is evenly distributed throughout the tool. Store the tool in a clean and
dry environment.
□□ Recommended lubricants: Air tool oil or any other high grade turbine oil containing moisture absorbent, rust inhibitors, metal wetting
agents, and an EP (extreme pressure) additive.
Troubleshooting
Problem
Possible Cause
Solution
The tool runs slowly or will not
operate.
There is grit or gum in the tool.
Flush the tool with air tool oil or gum solvent.
The tool is out of oil.
Lubricate the tool according to the lubrication
instructions in this manual.
The air pressure is low.
□□ Adjust the regulator on the tool to the
maximum setting.
□□ Adjust the compressor regulator to the tool’s
maximum setting of 90 psi.
The air hose leaks.
Tighten and seal the hose fittings with pipe thread
tape if leaks are found.
The air pressure drops.
□□ Ensure the hose is the proper size. Long
hoses or tools using large volumes of air may
require a hose with an I.D. of ½" or larger
depending on the total length of the hose.
□□ Do not use a multiple number of hoses
connected together with a quick connect
fitting. This causes additional pressure drops
and reduces the tool power. Directly connect
the hoses together.
There is moisture blowing out
of the tool’s exhaust.
There is a worn rotor blade in the motor.
Replace the rotor blade.
There is a worn ball bearing in the motor.
Remove and inspect the bearing for rust, dirt, and
grit. Replace or clean and grease the bearing with
bearing grease.
There is water in the tank.
Drain the tank. (See the air compressor manual
for instructions.) Lubricate the tool and run it until
water is not evident. Lubricate the tool again and
run for 1-2 seconds.
7HUSKYTOOLS.COM
Please contact 1-888-43-HUSKY for further assistance.
Service Parts
Reference Part Number
Number
Description
Description
1
93202401
Housing
23
9150140G
Planet Gear (3)
2
985002-01G
Air Inlet
24
9106481G
Needle Roller (3)
3
9479012
Plastic Plug
25
9106482G
Idle Gear Seat
4
9106467G
Valve Screw
26
9106484G
Anvil Bushing
5
9106365G
O ring
27
9106485G
Needle Bearing
6
9106465G
Valve Spring
28
9150190G
Ratchet Housing
7
93202433
O ring
29
9106486G
Crank Shaft
8
9106464G
Valve Stem
30
9106698G
Drive Bushing
9
9150070G
O ring
31
9115023G
Ratchet Yoke
10
93202435
Trigger Lever
32
915038G
Reverse Switch
11
946011G
Trigger Pin
33
915042G
Washer
12
9106469G
Bearing
34
9150180G
Anvil
13
9106470G
Rear End Plate
35
9106491G
Spring
14
9106472G
Rotor
36
9106490G
Locking Pin
15
9106471G
Rotor Blade (4)
37
9150360G
Ratchet Pawl
16
9106473G
Spring Pin
38
9150370G
Pin
17
9106686G
Cylinder
39
9106496G
Spring (2)
18
9106476G
Front End Plate
40
9106497G
Steel Ball (2)
19
9106477G
Bearing
41
9150320G
Thrust Washer
20
985020G
Exhaust Deflector
42
9106500G
Retainer Ring
21
915012-02G
Internal Gear
43
9150440G
Spring
22
9145024G
Clamp Nut
44
9150430G
Steel Ball (2)
8
Reference Part Number
Number
Questions, problems, missing parts? Before returning to the store,
call Husky Customer Service
8 a.m.-6 p.m., EST, Monday-Friday
1-888-43-HUSKY
HUSKYTOOLS.COM
Retain this manual for future use.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
