2.

Introduction and Specification

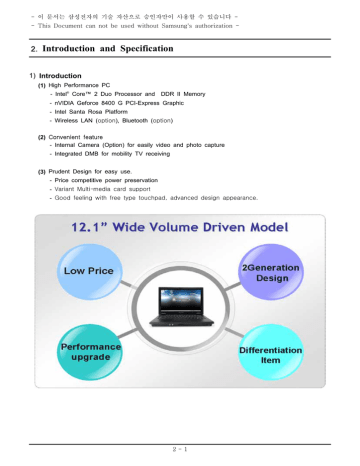

1) Introduction

(1) High Performance PC

- Intel ® Core™ 2 Duo Processor and DDR II Memory

- nVIDIA Geforce 8400 G PCI-Express Graphic

- Intel Santa Rosa Platform

- Wireless LAN (option), Bluetooth (option)

(2) Convenient feature

- Internal Camera (Option) for easily video and photo capture

- Integrated DMB for mobility TV receiving

(3) Prudent Design for easy use.

- Price competitive power preservation

- Variant Multi-media card support

- Good feeling with free type touchpad, advanced design appearance.

2 - 1

- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -

- This Document can not be used without Samsung's authorization -

2.

Introduction and Specification

2) Specification

Processor and Motherboard

CPU

Speed

Cache

Chipset

BIOS

Thermal Design Performance

Description

Intel® Core 2 Duo T7000 (1.86GHz) ~ T7700 (2.4G) and All CPU at Q4'07.35W (64bit)

T7100 : 1.8GHz

T7300 : 2.0GHz

T7500 : 2.2GHz

T7700 : 2.4GHz

4MB/2MB L2 Cache in Merom

Intel PM/GM965+ ICH8M

8 Mbit, Flash upgradable, SPI type

MAX. 35W

Memory

Memory / Max. Memory

Memory type

Memory Modules

Sockets

512MB ~ 4GB

PC2-4200(533MHz) / PC2-5300(667MHz) DDR2 SODIMM

512MB, 1GB, 2GB SODIMM

2-slot SODIMM's

Display and Graphics

LCD

LCD Vendor

12.1" WXGA (200nits 이상, Glare only)

Samsung AMLCD WXGA (LTN121W1-L03-G)

AUO WXGA (B121EW01V3)

12.1" WXGA

LCD Viewable Area

LCD Resolution

Dot Pitch

Viewing angle

Contrast Ratio

Brightness

Response time

261.12 x 163.2mm (H x V)

1280 x 800 x 262,144 color ( 18 bit )

0.204 x 0.204mm (H x V)

Hor. +40/-40, Ver. +20/-40 typ.400 (CR) min.180, typ.200 (cd/m2)

Rising typ.10ms / max.15ms, Falling typ.15ms / max.20ms

Graphics Controller

Factory option

Mobile Intel GMA X3000

NVIDIA GeForce 8400M G (Physical 128MB + TurboCache)

Intel Internal GFX Mobile Intel GMA X3000

Video Memory 128MB / 256M / 512M with DVMT

Max.Resolution for LFP LVDS 1920 x 1200 x 32Bits color (WUXGA)

Max.Resolution for External

2048 x 1536 @60HZ (CRT)

Monitor

2 - 2

- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -

- This Document can not be used without Samsung's authorization -

2.

Introduction and Specification

NVIDIA External GFX

Video Memory

NVIDIA GeForce 8400M G

NVIDIA GeForce 8400M G (Physical 128MB + TurboCache)

Max.Resolution for LFP LVDS 1680 x 1050 x 18Bits color (WSXGA+)

Max.Resolution for External

2048 x 1536 @85HZ (CRT)

Monitor

Audio

Sound

Controller

Conversion

Internal Interfaces

Speaker Power Rating

External Interfaces

Controls

Microphone

Microphone

Sensitivity

Output Impedance

Storage

High Definition Audio

HD Audio Codec, ALC262

Built-in high performance 20-bit ADC & 24-bit DAC

Embedded 2 stereo speakers, Internal microphone

2 Speakers x 2 Watt with enclosure each

Microphone, Headphone, S/PDIF

Keyboard volume control

Mono Microphone

Mono

-44dB

2.2KΩ

Hard Disk Drive

Supports

Average Access Time

Speed

Capacity

Optical Disk Drive

Type

S/W supplied

Security

9.5mmH 2.5" HDD, Removable

SMART Ultra DMA 33/66/100, DMA Mode 2/4 ; SATA

13m sec.

5400 / 7200 RPM , Hybrid HDD, TMR/PMR Type

80GB / 100GB / 120GB / 160GB / 2000GB / 250GB : HGST,

Hitachi, Samsung

- 80 ~ 250 GB SATA 5400rpm

- 80 ~ 200 GB SATA 7200rpm

- 80 ~ 160GB SATA 5400rpm, Hybride + 256MB

- 120 ~ 250GB SATA 5400rpm, Hybride + 5126MB

DVD / Combo / Super Multi DL & w/LightScribe (12.7mm/PATA)

Blueray / HD-DVD

Fixed type (Factory Option)

Cyberlink DVD Solution

RPC-II Regional Encoding

2 - 3

- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -

- This Document can not be used without Samsung's authorization -

2.

Introduction and Specification

Optical Driver Modules

Combo Drive 1

Module type

Speed

Average Access Time

Weight

S/W Supplied

Security

Combo Drive 2

Module type

Speed

Average Access Time

Weight

S/W supplied

Security

Super Multi Dual Layer 1

Module type

Speed

Average Access Time

Weight

S/W supplied

Security

Super Multi Dual Layer 2

Module type

Speed

Average Access Time

Weight

S/W supplied

Security

Super MultiDual Layer 3

Module type

Speed

Average Access Time

Weight

S/W supplied

Factory Option

Fixed 12.7mm Slim

8x DVD-ROM, 24x RW, 24x CD-R : TSST, TS-L332A

DVD 130ms Typ, CD 130ms Typ

176g or less

Cyberlink DVD Solution

RPC-II Regional Encoding

Factory Option

Fixed 12.7mm Slim

8x DVD-ROM, 24x RW, 24x CD-R, 24x CD : TSST, TS-L462D

DVD 130ms Typ, CD 130ms Typ,.

176g or less

Cyberlink DVD Solution

RPC-II Regional Encoding

Factory Option

Fixed 12.7mm Slim

5x DVD-RAM, 8x DVD±R 2.4x DVD+R DL, 4x DVD ± RW, 24x CD-R,

16x CD-RW, 8x DVD, 24x CD : Panasonic UJ-850

DVD 130ms Typ., CD 130ms Typ.

190g or less

Cyberlink DVD Solution

RPC-II Regional Encoding

Factory Option

Fixed 12.7mm Slim

5x DVD-RAM, 8x DVD±R, 6x DVD±R DL, 8x DVD+RW, 6x DVD-

RW, 24x CD-R/RW, 8x DVD, 24x CD : TSSTTS-L632D

DVD 130ms Typ., CD 130ms Typ.

180g or less

Cyberlink DVD Solution

RPC-II Regional Encoding

Factory Option

Fixed 12.7mm Slim

5x DVD-RAM, 8x DVD±R, 6x DVD±R DL, 8x DVD+RW, 6x DVD-

RW, 24x CD-R/RW, 8x DVD, 24x CD : TeacDV-W28EC

DVD 130ms Typ., CD 130ms Typ.

180g or less

Cyberlink DVD Solution

2 - 4

- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -

- This Document can not be used without Samsung's authorization -

2.

Introduction and Specification

Security

Super MultiDual Layer

Lightscribe

Module type

Speed

Average Access Time

Weight

S/W supplied

Security

Network Tools

Fax/Modem

Chipset

Features

LAN

Chipset

Features

802.11g Wireless LAN

Type

Chipset

Antenna

802.11a/g Wireless LAN

Type

Chipset

Antenna

802.11a/g/n Wireless LAN

Type

Chipset

Antenna

Bluetooth

Type

Chipset

Standard

I/O Interface

PC CardBus Slots

Controller

Support

RPC-II Regional Encoding

Factory Option

Fixed 12.7mm Slim

5x DVD-RAM, 8x DVD±R, 6x DVD±R DL, 8x DVD+RW, 6x DVD-

RW, 24x CD-R/RW, 8x DVD, 24x CD : TSST TS-L632M

DVD 130ms Typ., CD 130ms Typ.

180g or less

Cyberlink DVD Solution

RPC-II Regional Encoding

56Kbps / V.92 Azalia Modem, DELPHI (D40) (Factory Option)

CSP1040 AGR A3 & A3 5V1

RJ11 Output

10/100 Ethernet

Marvell 88E8039

RJ45 Output

Intel PRO/Wireless 3945BG:Intel 802.11b/g

Mini card (Factory Option)

Golan

Integrated 2 Antenna

Intel PRO/Wireless 3945ABG:Intel 802.11a/b/g

Mini card (Factory Option)

Golan

Integrated 2 Antenna

Intel PRO/Wireless 4965ABGN:Intel 802.11a/b/g/n

Mini card (Factory Option)

Kedron

Integrated 3 Antenna

BCM92045NMD : Factory Option

USB daughter card with integrated PIFA antenna

Broadcom BCM2045 version 2.0

1 PCMCIA Type II slot

RICOH R5C847

32bit CardBus cards

2 - 5

- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -

- This Document can not be used without Samsung's authorization -

2.

Introduction and Specification

I/O Ports

USB Port

Video (CRT) Port

Audio Jacks

Modem / LAN

Power

TV Antenna Jack

Security

Input Devices

Camera

Key board

2 (USB2.0)

1

Headphone + S/PDIF, MIC-in

RJ11, RJ45

1(5pie)

External DMB Antenna socket (Factory Option)

Kensington Lock

Touchpad

Easy Button

1.3M Pixels Digital Camera (Factory Option)

88KEY(KR/US), 89KEY(UK/FR/GM/SP)

Travel length 2.6mm/ Key Pitch 19.05mm

Synaptics Touchpad (Plat type with Scroll area)

Vista : Hot start, XP : AVS

Multi Memory Card Slot

Controller

Type

Power and Power

Management

Battery

Dimension

Weight

Recharge Time

Battery Life

Details of Cell

Voltage

Battery Capacity

Battery Rating

System Dimensions

R5C843

Memory stick / Memory stick pro / SD / xD / MMC (High speed MMC)

SSB-Q30LS6 (6cells, Smart Li-Ion Battery)

204 x 52.2 x 21mm

320g (max)

2 hours to 100% with Windows on & off over 4hours ( Battery mark 4.01)

6cells (2Parallel 3Serial)

11.1Vdc

2400mAh/cell

11.1V / 4800mAh (53.28Wh)

AC Adapter

Output Power

Dimension

Weight (AC Adapter)

Worldwide Compatibility

Line Frequency

Adapter Rating - Input

Adapter Rating - Output

AD-6019S

60Watts

160 X 70 X 29mm

300g ± 50g

Auto-sensing 100 - 240VAC

50 / 60Hz

100V - 240V, 1.8A

19.0VDC / 3.16A

Power Management Features

ACPI 3.0 support, Standby(S3), Hibernate(S4)

   

2 - 6

- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -

- This Document can not be used without Samsung's authorization -

2.

Introduction and Specification

Dimensions (W X D X H)

Weight (Full system w/ 6cell

Battery)

Materials

299 x 217 x 26.9~36.1mm

1.86kg

Status : No options, 6cell battery, 12.1" LCD

LCD back / Front : PC/ABS

Bottom / Top : PC/ABS

3)

Key Feature

Q35 Q45

CPU

Chipset

Memory

Graphic

LCD

Intel Core Solo T1300, T1400

Intel Core Duo T2300~2700.

945GM/PM (Calistoga)

DDR2 533 / 667MHz

Intel 950 GMA Solution

12.1" WXGA Glare

PATA / SATA

667/800MHz Intel Core 2 Duo Processor

(Merom)

965GM/PM(Crestline)

DDR2 533 / 667MHz

Intel GMA X3000 Solution / nVIDIA Geforce 8400M G

12.1” WXGA Glare

SATA

HDD

ODD

Port

Battery

12.7mm

12.7mm

2USB, VGA, Headphone, MIC, S/PDIF

1394(4pin), RJ45, RJ11, PC-Card, 6-in-1,

AC-IN, DMB Antenna, Kensington Lock

2USB, VGA, Headphone, MIC, S/PDIF

1394(4pin), RJ45, RJ11, PC-Card, 6-in-1,

AC-IN, DMB Antenna, Kensington Lock

6cell 6cell

Design

Proto type 2nd Proto type

2 - 7

- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -

- This Document can not be used without Samsung's authorization -

2.

Introduction and Specification

4) Option Partlist

HDD

BA59-01999A

BA59-01946A

BA59-02084A

BA59-02038A

BA59-02001A

BA59-01947A

BA59-02085A

BA59-02009A

BA59-01742A

BA59-01948A

BA59-02086A

BA59-02014A

BA59-02010A

BA59-02002A

BA59-01957A

BA59-02087A

BA59-02013A

BA59-02039A

BA59-02011A

BA59-02003A

BA59-02012A

BA59-02110A

HTS541660J9SA00

MHV2060BH-PL

MHW2060BH

HM060HI

HTS541680J9SA00

MHV2080BH-PL

MHW2080BH

ST980815AS

HTS541010G9SA00

MHV2100BH-PL

MHW2100BH

HM101JI

ST9100828AS

HTS541612J9SA00

MHV2120BH-PL

MHW2120BH

HM121JI

HM120JI

ST9120822AS

HTS541616J9SA00

ST9160821AS

MHW2160BH-PL

LCD

BA59-01889A

BA59-01893A

AMLCD

AUO

MEMORY

1105-001683

1105-001684

DDR2 667Mhz 512MB

DDR2 667Mhz 1GB

LTN121W1-L03-G

B121EW01V3

M470T6554CZ3-CE6

M470T2953CZ3-CE6

5400rpm, 60G, SATA, 8M

5400rpm, 60G, SATA, 8M

5400rpm, 60G, SATA, 8M

5400rpm, 60G, SATA, 8M

5400rpm, 80G, SATA, 8M

5400rpm, 80G, SATA, 8M

5400rpm, 80G, SATA, 8M

5400rpm, 80G, SATA, 8M

5400rpm, 100G, SATA, 8M

5400rpm, 100G, SATA, 8M

5400rpm, 100G, SATA, 8M

5400rpm, 100G, SATA, FFS

5400rpm, 100G, SATA, 8M

5400rpm, 120G, SATA, 8M

5400rpm, 120G, SATA, 8M

5400rpm, 120G, SATA, 8M

5400rpm, 120G, SATA, FFS

5400rpm, 120G, SATA, 8M

5400rpm, 120G, SATA, 8M

5400rpm, 160G, SATA, 8M

5400rpm, 160G, SATA, 8M

5400rpm, 160G, SATA, 8M

2 - 8

- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -

- This Document can not be used without Samsung's authorization -

2.

Introduction and Specification

CPU

0902-002196

0902-002197

0902-002198

0902-002199

BLUETOOTH

BA59-01691A

BA59-01916A

T_T7100(Merom Dual Core ) 1.8Ghz(FSB800) 2MB

T_T7300(Merom Dual Core ) 2.0Ghz(FSB800) 4MB

T_T7500(Merom Dual Core ) 2.2Ghz(FSB800) 4MB

T_T7700(Merom Dual Core ) 2.4Ghz(FSB800) 4MB

BT MODULE(FOX)

BT MODULE(SEM)

Bluetooth V2.0, T60H928.01, Bluetooth Module

Bluetooth V2.0, BTO2P0B2SA, Bluetooth Module,

ODD

BA96-03223A

BA96-03241A

BA96-03242A

BA96-03243A

BA96-03222A

BA96-03239A

BA96-03245A

S_MULTI(DV228EC)

S_MULTI(UJ-850)

S_MULTI(TS-L632D)

S_MULT ScriveI(TS-L632M)

COMBO(DW-224E-R)

COMBO(TS-L462D)

DVD(TS-L332A)

WLAN_GOLAN

BA59-01723A

BA59-01722A

BA59-01721A

BA59-01724A

802.11a/b/g

802.11a/b/g

802.11a/b/g

802.11a/b/g

WLAN_MIMO

BA59-02065A

BA59-02064A

BA59-02062A

BA59-02063A

802.11a/b/g/n

802.11a/b/g/n

802.11a/b/g/n

802.11a/b/g/n

TEAC

MATSUHITA

TSST

TSST

TEAC

TSST

TS-L332A

WM3B3945AGKOR

WM3B3945AGROW

WM3B3945AGMOW1

WM3B3945AGMOW2

4965AGN KOR

4965AGN ROW

4965AGN MOW1

4965AGN MOW2

2 - 9

- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -

- This Document can not be used without Samsung's authorization -

2.

Introduction and Specification

5) New Function

5)-1. Camera (Option)

Internal Camera (Option) for easily video and photo capture

5)-2. HD-DVD, Blue-Ray

2 - 10

- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -

- This Document can not be used without Samsung's authorization -

2. 제품 특징 및 사양

2 - 11

- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -

- This Document can not be used without Samsung's authorization -

2.

Introduction and Specification

5)-3. New Keyboard

2 - 12

- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -

- This Document can not be used without Samsung's authorization -

2.

Introduction and Specification

2 - 13

- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -

- This Document can not be used without Samsung's authorization -

2.

Introduction and Specification

6) System Setup (BIOS Setup)

MAIN

‰

Primary Master

=> The information on the device mounted on the Primary Master. The HDD capacity is displayed in

Torino2.

qSecondary Master

=> The information on the device mounted on the Primary Slave. The DVD/CD-ROM is displayed in

Torino2.

qTotal Memory

=> The total capacity of the current memory installed on the system.

qSlot1 Memory

=> The capacity of the memory installed in Slot 1. The Slot1 memory indicates the capacity of the On-

Board Memory in Torino2.

qSlot2 Memory

=> The capacity of the memory installed in Slot 2. The Slot2 memory indicates the capacity of the memory installed in the memory slot in Torino2.

qGraphics Memory

=> The option to determine the maximum size of the dynamic graphic memory in Torino2.

Internal

External

2 - 14

- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -

- This Document can not be used without Samsung's authorization -

2.

Introduction and Specification

Advanced

‰

Core Multi-Processing

=> The option to determine whether to switch Single core or Dual Core processing.

qIntel(R) SpeedStep(TM)

=> The option to enable or disable the SpeedStep function that automatically changes the CPU clock speed according to CPU usage. Enabling this function extends the battery use time.

qTouch Pad Mouse

=> The option to enable or disable the touch pad function. If the touch pad function is disabled using this option, the disabled status will be retained at the next boot time. For your information, if the touch pad function is disabled by pressing Fn+F9, the touch pad function is enabled at the next boot time.

qBoot from 1394/Firewire

=> The option to enable or disable the 1394 device. If this option is set to enable, you can boot from 1394 device.

qLegacy USB Support

=> The option to determine whether to support a Legacy USB device. If this option is set to Enabled, you can boot from a USB device.

qLarge Disk Access Mode

=> Currently, [DOS] should be set in Torino2. Setting this option is rarely needed.

qEDB (Execute Disable Bit)

=> If [enable], Intel Execute Enable Bit(function) will be enabled.

2 - 15

- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -

- This Document can not be used without Samsung's authorization -

2.

Introduction and Specification

qInternal LAN

=> The option to determine whether to use a cable LAN device of the system.

qCPU Power Saving Mode

=> If [Enabled] is selected, the system can enter C3 mode and save CPU power consumption. However, you may experience performance degradation.

qDelete Recovery Area

=> If you want to delete the HDD recovery solution 2 area included in the Torino2 HDD, this option should be set to [Enabled].

qPurchased Date

=> Displays the date when a user boots the PC for the 10th time.

Security

qSet the Supervisor Password

=> Select to set the supervisor password.

qSet a User Password

=> Select to set a user password qSet a HDD 0 Password

=> Select to set a HDD password qPassword on Boot

=> This is the option for determining whether to ask for a password when the system starts. The supervisor password should already be set.

2 - 16

- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -

- This Document can not be used without Samsung's authorization -

2.

Introduction and Specification

qFixed Disk Boot Sector

=> If [Write Protect] is selected, writing to the boot sector of the HDD is blocked.

Boot

qBoot Device Priority

=> Sets the priority of the booting devices.

qNumLock

=> The option to determine whether to switch NumLock on or off when booting.

qEnable Keypad

=> The option to determine how to use the keypad of the keyboard.

- If this option is set to [Only By Fn Key], you have to press a numeric key with the Fn key to enter a number.

- If this option is set to [By NumLock], you can enter a number by just pressing the corresponding numeric key if NumLock is switched On.

qSummary Screen

=> The option to determine whether to display the system information (CPU, memory, HDD) on the screen when booting.

qBoot-time Diagnostic Screen

=> The option to determine whether to display the Samsung logo on the screen when booting.

qPXE OPROM

=> The option to determine whether to always initialize PXE Oprom in relation to a network boot. Since the general user does not use network boot, setting this option to [Only with F12] is recommended.

2 - 17

- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -

- This Document can not be used without Samsung's authorization -

2.

Introduction and Specification

qBrightness Control Mode

=> If this option is set to [Auto], the screen brightness automatically changes to Level 1, when operating on battery power is detected while booting or resuming from S3 status, or when the AC adapter is removed and the system power changes to battery while using the system.

=>If this option is set to [User Control], the previous status is always remembered..

qWireless Device Control

=> If this option is set to [Always On / Off], the Wireless LAN will be turned on / off when system boot into Windows.

=> If this option is set to [Last Status], the Wireless LAN will remain its status as the last time when system in Windows mode.

qSmart Battery Calibration

=> Corrects the difference between the actual battery capacity and the remaining capacity.

2 - 18

- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -

- This Document can not be used without Samsung's authorization -

2.

Introduction and Specification

Exit

qExit Saving changes

=> Saves the changed settings and exits.

qExit Discarding Changes

=> The changed settings are not saved and the previous settings are restored. Exits without saving the changes.

qLoad Setup Defaults

=> Sets the settings to the default values.

qDiscard Changes

=> Restores the changed settings to the previous values.

qSave Changes

=> Saves the changed settings.

2 - 19

- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -

- This Document can not be used without Samsung's authorization -

2.

Introduction and Specification

2 - 20

- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -

- This Document can not be used without Samsung's authorization -

2.

Introduction and Specification

7) Description of Main board

7)-1. Top

4

5

6

7

8

3

10

9

1

12

2

11

13

15

14

16

17

21

1 CRT connector

3 DC-Jack

5 USB connector

7 Camera connector

9 MDC cable connector

11 KBD connector

13 ICH8M

15 Touchpad FFC connector

17 PCMCIA Frame

19 DMB

21 Internal MIC connector

18

20

22

19

20

10

12

14

16

6

8

2

4

18

20

22

USB connector

RJ45 connector

LCD connector

Speaker connector

RJ11 Connector

On-Top Board Connector

SODIMM Channel A

FAN Connector

MINI-CARD for HSDPA / WiBro (Option)

Touchpad button (Left & Right)

Bluetooth connector

2 - 21

- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -

- This Document can not be used without Samsung's authorization -

2.

Introduction and Specification

7)-1. Bottom

1

2

4

3

5

6

1 CPU socket

3 Graphics Controller

5 ODD connector (J510)

7 MDC

9 6in1 connector (J514)

11 USIM Board FFC Connector

13 Headphone + S/PDIF Jack

15 Debug connector

7

8

9

10

11

13 14

15

2 (G)MCH

4 Battery connector (J506)

6 SODIMM Channel B(U510)

8 SATA connector (JHDD500)

10 RTC connector (J509)

12 Minicard connector (WLAN)

14 MIC jack (J512, J511)

16 IEEE 1394 Port (4 pin)

12

16

2 - 22

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
