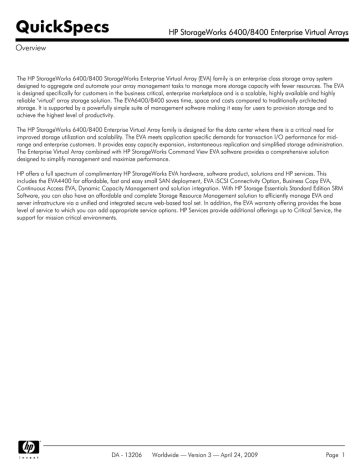

QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Overview
The HP StorageWorks 6400/8400 StorageWorks Enterprise Virtual Array (EVA) family is an enterprise class storage array system
designed to aggregate and automate your array management tasks to manage more storage capacity with fewer resources. The EVA
is designed specifically for customers in the business critical, enterprise marketplace and is a scalable, highly available and highly
reliable "virtual" array storage solution. The EVA6400/8400 saves time, space and costs compared to traditionally architected
storage. It is supported by a powerfully simple suite of management software making it easy for users to provision storage and to
achieve the highest level of productivity.
The HP StorageWorks 6400/8400 Enterprise Virtual Array family is designed for the data center where there is a critical need for
improved storage utilization and scalability. The EVA meets application specific demands for transaction I/O performance for midrange and enterprise customers. It provides easy capacity expansion, instantaneous replication and simplified storage administration.
The Enterprise Virtual Array combined with HP StorageWorks Command View EVA software provides a comprehensive solution
designed to simplify management and maximize performance.
HP offers a full spectrum of complimentary HP StorageWorks EVA hardware, software product, solutions and HP services. This
includes the EVA4400 for affordable, fast and easy small SAN deployment, EVA iSCSI Connectivity Option, Business Copy EVA,
Continuous Access EVA, Dynamic Capacity Management and solution integration. With HP Storage Essentials Standard Edition SRM
Software, you can also have an affordable and complete Storage Resource Management solution to efficiently manage EVA and
server infrastructure via a unified and integrated secure web-based tool set. In addition, the EVA warranty offering provides the base
level of service to which you can add appropriate service options. HP Services provide additional offerings up to Critical Service, the
support for mission critical environments.
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 1
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Overview
EVA6400 2C18D
EVA8400 2C27D
These drawings are informational only. The actual configuration may differ depending on the number of disk enclosures chosen and
the components being racked with the EVA. The EVA6400 can support up to 18 drive enclosures for a total of 216 disks. The
EVA8400 can support up to 27 drive enclosures in two racks for a total of 324 disks.(If a customer has a specific racking
requirement they should use the Factory Express option to define the configuration.
What's New
Support for new Low-Power Fibre Channel hard disk drives - 300GB 10K, 450GB 10K and 600GB 10K
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 2
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Product Highlights
EVA4400
EVA6400
Controller Model
HSV300
HSV400
Virtual Controller
XCS v9.5
XCS v9.5
Software (XCS)
Management Software
Command View EVA v9.0
Command View EVA v9.0
Application Environment Oracle, SAP, Microsoft Exchange, Oracle, SAP, Microsoft Exchange,
Support
SQL
SQL
Virtual Server Technology VMware, Microsoft Hyper-V, Citrix VMware, Microsoft Hyper-V, Citrix
Support
XenServer, RHEL Virtualization and XenServer, RHEL Virtualization and
Oracle Virtual Machine
Oracle Virtual Machine
Local Data Replication -Yes
Yes
HP StorageWorks
Business Copy EVA
Remote Data Replication Yes
Yes
- HP StorageWorks
Continuous Access EVA
Command View EVA
up to 16 EVAs
up to 16 EVAs
Array management and
configuration support
Application block and file
Yes
Yes
storage
O/S Support*
HP-UX
HP-UX
Support
HP OpenVMS
HP OpenVMS
Windows 2003
Windows 2003
Windows 2008
Windows 2008
Windows Server 2008 HyperV
Windows Server 2008 HyperV
Sun Solaris
Sun Solaris
Linux
Linux
IBM AIX
IBM AIX
VMware
VMware
Apple Mac OSX
Apple Mac OSX
Xen
Xen
RAID supported
Vraid 0, Vraid1, Vraid 0+1, Vraid Vraid 0, Vraid1, Vraid 0+1, Vraid
5, Vraid 0+5, Vraid 6 & Cross
5, Vraid 0+5, Vraid 6 & Cross
Vraid Snaps
Vraid Snaps
LUN size
Up to 32TB
Up to 32TB
Number of controllers
2
2
Cache
4GB
8GB
(per controller pair)
Battery Back-up Cache
Yes, up to 96 hours
Yes, up to 96 hours
Host Connectivity
Fibre Channel, iSCSI and Direct Fibre Channel, iSCSI and Direct
Connect
Connect
Number of Host
512/256
512/256
Supported
(Single Path/Dual Path)
Host Ports
4 or 2 embedded FC switches with
8
(per controller pair)
ten 8Gb/s FC SAN ports per
controller
Host Port Speed
4 Gb
4 Gb
DA - 13206
Worldwide — Version 3 — April 24, 2009
EVA8400
HSV450
XCS v9.5
Command View EVA v9.0
Oracle, SAP, Microsoft Exchange,
SQL
VMware, Microsoft Hyper-V, Citrix
XenServer, RHEL Virtualization and
Oracle Virtual Machine
Yes
Yes
up to 16 EVAs
Yes
HP-UX
HP OpenVMS
Windows 2003
Windows 2008
Windows Server 2008 HyperV
Sun Solaris
Linux
IBM AIX
VMware
Apple Mac OSX
Xen
Vraid 0, Vraid1, Vraid 0+1, Vraid
5, Vraid 0+5, Vraid 6 & Cross
Vraid Snaps
Up to 32TB
2
14 or 22GB
Yes, up to 96 hours
Fibre Channel, iSCSI and Direct
Connect
512/256
8
4 Gb
Page 3
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Product Highlights
Device Connectivity
Device Ports
(per controller pair)
Device Port Speed
Device Path Aggregate
Bandwidth
Switched device shelves
(M6412-A)
Drives per enclosure
Drive types
(mixed in any enclosure)
Supported disks,
minimum
Supported disks,
maximum
Capacity
Drive capacities and
speeds
Redundant FC-AL pairs from each Redundant FC-AL pairs from each Redundant FC-AL pairs from each
controller to switched JBOD for
controller to switched JBOD for
controller to switched JBOD for
redundant paths to dual drive
redundant paths to dual drive
redundant paths to dual drive
ports
ports
ports
4
8
12
4 Gb
16 Gb
4 Gb
32 Gb
4 Gb
48 Gb
1 to 8
2 to 18
3 to 27
12
Solid State Disks (SSD), High
Performance Fibre Channel and
Fibre Attached Technology
Adapted (FATA)
6 SSD, 8 FC and FATA
12
Solid State Disks (SSD), High
Performance Fibre Channel and
Fibre Attached Technology
Adapted (FATA)
6 SSD, 8 FC and FATA
12
Solid State Disks (SSD), High
Performance Fibre Channel and
Fibre Attached Technology
Adapted (FATA)
6 SSD, 8 FC and FATA
8 SSD, 96 FC and FATA
8 SSD, 216 FC and FATA
8 SSD, 324 FC and FATA
.4 to 96TB
.4 to 216TB
.4 to 324TB
72GB SSD
72GB SSD
72GB SSD
300GB 10K rpm
300GB 10K rpm
300GB 10K rpm
400GB 10K rpm
450GB 10K rpm
450GB 10K rpm
450GB 10K rpm
600GB 10K rpm
600GB 10K rpm
600GB 10K rpm
146GB 15K rpm
146GB 15K rpm
146GB 15K rpm
300GB 15K rpm
300GB 15K rpm
300GB 15K rpm
450GB 15K rpm
450GB 15K rpm
450GB 15K rpm
1TB FATA
1TB FATA
1TB FATA
JBOD Support (behind XP)
Yes
Yes
Yes
Drive Interface (per
Two 4Gb/s FC-AL ports per
Four 4Gb/s FC-AL ports per
Six 4Gb/s FC-AL ports per
controller)
controller in redundant pairs, two controller in redundant pairs, two controller in redundant pairs, two
paths to each dual ported drive
paths to each dual ported drive
paths to each dual ported drive
Variable Speed
Yes
Yes
Yes
Redundant Blowers
Environmental Monitoring Monitors Power and Temperature Monitors Power and Temperature Monitors Power and Temperature
Unit
Regulatory approvals
UL, CSA, TUV, FCC, CE MARK, UL, CSA, TUV, FCC, CE MARK, UL, CSA, TUV, FCC, CE MARK,
CTICK, BSMI, VCCI
CTICK, BSMI, VCCI
CTICK, BSMI, VCCI
Fibre Channel Switches & Optical Switches and Directors: http://h18006.www1.hp.com/storage/saninfrastructure/switches.html
Directors
NOTE: See Operating System, Cluster and High Availability Compatibility matrix for Operating System version detail.
EVA Capabilities
Virtualization abilities allow for easy management and excellent capacity utilization
Scale and re-configure your EVA capacity as your business grows and changes
Excellent reliability and availability established for the EVA architecture. HP's data shows that most
customers are achieving 99.999% availability with the EVA 4100/6100/8100
Support for integrated application (block) and file storage solution with EVA file services offerings
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 4
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Product Highlights
Support for dual-ported 4 Gb/s FC disk drives and 2 Gb/s dual-ported Fibre Attached Technology
Adapted (FATA) drives and dual ported Solid State Disks (SSD)
Support for Direct Attach connection to Windows storage servers without the need for SAN
switches. SAN support for integrated EVA iSCSI Connectivity Option with Windows, HP OVMS,
Linux, Apple Mac OS X, Microsoft Windows, Sun Solaris, and VMware.
Supports up to 2048 LUNs (up to 256 per HBA) ranging in size from 1GB to 32TB per Virtual
disk, in 1GB increments.
Dynamic Capacity Management support to expand LUNs up to 2TB (in 1GB increments) and
shrink LUNs 2TB or less.
NOTE: Requires Host Operating System Support.
Virtual disk data load leveling (non-disruptive background activity)
Distributed sparing of disk capacity
Proactive migration of data from a failing drive into unused space or spare space
Redundant FC-AL loops from each controller to dual disk ports
Support for HP StorageWorks Continuous Access EVA remote replication (synchronous and
asynchronous).
Support for remote replications between current EVA generations
Migration support via remote replications between current and earlier EVA generations
Support for Data-in-place upgrades from EVA4400 to EVA6400 and EVA8400 or EVA6400 to
EVA8400
Support for HP StorageWorks Business Copy EVA (Snapshot, and Vsnap (virtually capacity free
snapshots), Snapclone, MirrorClone and Cross Vraid snapshots and Snapclone).
Dual redundant controller operation for increased fault tolerance.
Multiple Bus Failover Support using industry popular multiple path software.
NOTE: Requires native OS multi-pathing support.
Battery-Back-Up for controller cache memory
Asynchronous Disk Swap (hot swap)
Clustered Server Support
Mirrored Write-Back Cache Support
Read-Ahead and Adaptive Read Caching Support
Virtual RAID Arrays (Vraid 0, Vraid 1, Vraid 0+1, Vraid 5, Vraid 0+5, Vraid 6 & Cross Vraid
Snaps)
Support for local replication between Vraid types using Vsnap or Snapclone within a disk group or
using Snapclone across disk groups (and Cross Vraid Snapshot and Snapclone)
Online XCS software upgrade capability
Online drive firmware upgrade capability
Supports connection of up to 256 hosts
Multi-Vendor Platform Support
Controller Password Protection for Configuration Control
Selective Storage Presentation and SAN-based Data Zoning (through switches).
HP StorageWorks Command View EVA GUI Interface for management and monitoring (manages
up to 16 EVAs).
Monitor and control health, HP EVA end-to-end SAN performance and monitoring, storage
utilization and reporting for all key HP EVA and SAN infrastructure including servers, storage, HP
MSA, HP EML E-series tape, HP ProLiant Storage Servers (NAS), HBAs, switches, applications and
monitor the entire backup from a single interface with HP Storage Essentials SRM Standard Edition
Software
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 5
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Product Highlights
Enterprise Virtual Array
Product Packaging
The EVA Product Family consists of the EVA4400, EVA6400 and EVA8400. They utilize the 12 bay
M6412A disk enclosure and the same family of Fibre Channel disks. These disks consist of dual ported
fibre channel solid state disk, high performance fibre channel disks and Fiber Attached Technology
Adapted (FATA) disks.
EVA6400 and EVA8400
Product Packaging
The EVA6400 is designed to address moderate capacity and performance needs ranging (from 2 to 18
drive enclosures, .4 - 216TB). The EVA6400 packaging consists of a 4U FC dual HSV400 controller
assembly and 2 to up to a full rack (18) M6412 12-bay FC Drive Enclosures. The EVA8400 is designed
to address moderate to large capacity with high performance needs ranging (from 3- 27 drive
enclosures, .4 - 324TB). The EVA8400 packaging consists of a 4U FC dual HSV450 controller assembly
with either 14GB or 22GB of cache and from 3 to up to a 27 M6412 12-bay FC Drive Enclosures in a
two racks.
The EVA6400 and EVA8400 configurations allow a wide range of configuration options. The EVA offer
flexible factory rack-mounting options in either a standard 42U cabinet (based on the HP 10000 G2
Series Rack- or a choice of 42U extended, 36U and 22U heights). Factory racking options allow the,
EVA6400 and EVA8400 to be factory integrated into cabinets with a wide variety of other HP offerings
such as servers and tape back-up offerings. The EVAs also support other HP field racking choices such as
the 5642 (42U) Rack Cabinet System and qualified customer-supplied racks.
Multi-Vendor Platform
The EVA6400/EVA8400 provide support for industry-leading Operating System platforms including:
HP-UX
HP OpenVMS
Windows Server 2003
Windows Server 2008
Windows Server 2008 Hyper-V
Sun Solaris
Linux
Red Hat
SUSE/SLES (including Open Enterprise Server)
Oracle Enterprise Linux
IBM AIX
VMware
Apple Mac OSX
Xen
Citrix Xen
RHEL Virtualization
Oracle Virtual Machine
NOTE: See Operating System, Cluster and High Availability Compatibility matrix for Operating System
version detail.
Designed for No-SinglePoint-of-Failure
The EVA family's redundant architecture and value added software is designed to eliminate single-pointsof-failure from server to storage in clustered or single server configurations with multi-pathing.
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 6
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Product Highlights
Remote Replication
Solutions
(Software options)
HP StorageWorks Continuous Access provides disaster tolerant replication across a Fibre Channel SAN.
Continuous Access EVA performs real-time replication between HP StorageWorks Enterprise Virtual
Arrays of the current and earlier generations. Continuous Access EVA provides the highest level of FC
SAN data protection to customers, in order to meet disaster tolerant business continuity implementation
goals. Through the use of MAN/WAN Fibre Channel SAN extensions, Continuous Access EVA provides
24x7 protections against disaster like scenarios, in campus, metro or continental networks. Thus,
enabling business protection against unforeseen events.
HP StorageWorks Disaster Tolerant Solution for mySAP Business Suite on EVA offers a business
continuance solution for SAP environments, where data integrity and value added functionality are high
priorities. Information on implementing remote mirroring of an SAP database as part of an overall data
protection strategy with SAP applications can be found at:
http://h71028.www7.hp.com/erc/downloads/4aa1-5683Enw.pdf
The HP StorageWorks IP Distance Gateway provides SAN over WAN connectivity for protecting and
replicating data between EVA systems. By connecting islands of SANs over WANs, the IP Distance
Gateway enables CA replication (Asynchronous and Synchronous), SAN device sharing, data migration
and other long distance data services. At the core of providing long distance data services is the ability to
copy, move and replicate data locally and over long distances. However, SANs have limited distance
capabilities (10km) and IT managers need to share, protect and move data over greater distances than
10km, routers and switches that link SANs over IP WANs is the weapon of choice for most IT managers.
The IP Distance Gateway uses the FCIP (Fibre Channel Internet Protocol) standard to extend SAN
connectivity over the WAN.
Low Cost SAN over WAN Connectivity
High Performance with data compression and load balancing
Support for FCIP for SAN extension
Bridges SANs for all FC Fabrics
Supports two Ethernet and two Fibre Channel ports
Concurrent FC and IP traffic in High Availability mode
Integrated management with HP StorageWorks mpx Manager
Supports High Availability Options
Fabric and Direct Attach support
http://h18006.www1.hp.com/storage/disk_storage/index.html
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 7
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Product Highlights
Disaster Tolerant Solutions HP Metrocluster with Continuous Access EVA and Continentalclusters are integrated solutions that offer
(Software options)
minimal downtime by rapid site recovery with automatic failover of application services (via Serviceguard)
and automatic data consistency checking and read/write enabling of remotely mirrored storage in the
event of a fault, failure, or disaster recovery.
NOTE: Metrocluster and Continentalclusters will be available following the introduction of the
EVA6400/8400. Check the following URL for more information and availability:
http://h71028.www7.hp.com/enterprise/cache/4171-0-0-0-121.html
HP StorageWorks Cluster Extension EVA software is a full-site disaster tolerance solution designed for
mid-range storage array implementation. A disaster tolerant solution for Windows 2003 and Linux
environments, Cluster Extension EVA integrates, automates, and synchronizes server cluster failover
operations with the remote replication management capabilities of HP Continuous Access EVA for a
disaster tolerant solution for EVA arrays whether used as primary storage or in a tiered-storage
configuration.
http://www.hp.com/go/clxeva
HP StorageWorks Disaster Tolerant Solution for mySAP Business Suite on EVA offers a business
continuance solution for SAP environments, where data integrity and value added functionality are high
priorities. Best practices for implementing remote mirroring of an SAP database as part of an overall data
protection strategy with SAP applications can be found at:
http://h71028.www7.hp.com/erc/downloads/4aa1-5683enw.pdf
Local Replication Solutions The HP StorageWorks Business Copy is a local replication application for the EVA family. It incorporates
(Software options)
Virtually Capacity-free Snapshot (Vsnaps), standard snapshots and Snapclone capabilities with an
improved user interface to assist the storage administrator. This product is indispensable for critical data
center operations such as non-disruptive backups, frequent snapshots of high value databases, and data
mining. The bottom line benefits include improved disk capacity utilization and increased business
continuity, data availability, and productivity savings.
Capacity Management
HP StorageWorks EVA Dynamic Capacity Management Software is a comprehensive software solution
that automates storage provisioning and improves capacity utilization on the HP StorageWorks Enterprise
Virtual Array (EVA) family. Designed for the enterprise market, EVA Dynamic Capacity Management
Software uses advanced automation to automatically "right-size" the file system and storage volumes to
ensure the highest levels of capacity utilization are achieved while reducing ongoing storage
administration needs. For more information, visit:
http://h18006.www1.hp.com/products/storage/software/eva_dcm/index.html.
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 8
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Product Highlights
Replication Management HP Business Copy EVA and HP Continuous Access EVA comes complete with HP Replication Solutions
Manager, a graphical user interface and scripting environment, that greatly simplifies storage
management by creating, running, and managing storage replication jobs using controller based
snapshots, clones and remote mirroring.
With HP Replication Solutions Manager users easily can manage both remote and local replication
across the full EVA product family. By virtually removing the complexity associated with both small and
large replication environments, point-in-time copies and remote replication are managed and configured
with just a few mouse clicks. To assist the user, Information on the replication environment is presented in
a variety of views, including an interactive topology manager that allows each user to select their viewing
preference. In addition, HP Replication Solutions Manager provides a scripting interface for additional
flexibility.
Application Integration
with Oracle
As an option to HP Business Copy EVA, the user can simply replicate an Oracle database. HP
Replication Solutions Manager will provide a graphical interface to view the components of the database
to be replicated, and allow selection of a specified database. The replication manager will automatically
suspend the Oracle application, and take a point in time copy (local or remote) of all associated array
virtual disks. The replication manager will provide the option to restart the original Oracle database after
the replicas have been initiated on the array. The user will be able to utilize the replication manager to
present the replica to another host.
Application Solutions
The EVA is the ideal solution for customers running Oracle, Microsoft, SAP environments and those
customers who are deploying virtual server technologies like VMware, Hyper-V, Xen and Oracle Virtual
Machine. HP StorageWorks Enterprise Virtual Arrays (EVA) delivers virtual storage for the midsize
customer with enhanced performance, better capacity utilization, and easier management of on-demand
storage activities.
For customers, one of the greatest concerns is always database performance. With larger LUNS and
Solid State Disk (SSD) built into the HP EVA, customers get industry leading, super fast performance
along with the scalability, availability, and ease of management capabilities they have come to expect
from HP Storage Solutions. Everything a customer depends on when managing their most critical
business asset...business data.
HP has developed an in-depth understanding of Oracle, Microsoft, SAP, and VMware technology by
extensive lab-testing best practices with HP EVAs, HP servers, and management software; high availability
and disaster recovery solutions; and backup and recovery on the Oracle, Microsoft, and SAP application
platforms. As a result, our customers can expect a wide range of operational and business benefits where
they can:
Achieve optimal performance on an Oracle, Microsoft, SAP platforms
Minimize back-up windows and simplify recovery of their database and/or application
Significantly improve Exchange messaging recovery points and recovery time
Get predictable operational results
Reduce implementation costs and risks
Gain optimum return on Oracle, Microsoft, and SAP investments
To learn more about specific HP Storage Solutions that are built with Oracle, Exchange, SAP
environments in mind, visit the solution sites supporting each of these applications.
HP Storage for Oracle hyperlink to: http://www.hp.com/storage/oracle
HP Storage for Microsoft SQL Server hyperlink to: http://www.hp.com/storage/sqlserver
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 9
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Product Highlights
HP Storage for Microsoft Exchange hyperlink to: http://www.hp.com/storage/exchange
HP Storage for SAP hyperlink to: http://www.hp.com/storage/sap
EVA with HP Storage
Essentials Storage
Resource Management
Software Family
HP Storage Essentials SRM Enterprise Suite and HP Storage Essentials SRM Standard Edition Software
integrates with HP Systems Insight Manager to provide advanced server and storage management
capabilities. HP Storage Essentials Suite Software features a base management console and an
expanding portfolio of value-add plug-ins to assist in managing EVA across the enterprise.
HP Storage Essentials Suite delivers integrated heterogeneous and multivendor functionality for network
(Arrays, DAS, SAN, NAS, HBAs, switches) management, storage resource management, reporting,
capacity metering, provisioning and application infrastructure monitoring.
http://h18006.www1.hp.com/products/storage/software/e-suite/index.html
HP Storage Essentials SRM HP Storage Essentials SRM Performance Pack Software combined with Storage Essentials SRM Enterprise
Performance Pack
Edition Software monitors performance along the complete path of business applications through
Software and EVA
underlying storage area networks (SAN) components, including host server, host bus adapter (HBA),
(end-to end EVA SAN
fabric switch and Enterprise Virtual Array. A unified and simplified interface, helps EVA administrators
Performance Management) increase efficiency, troubleshoot performance bottlenecks faster, and quickly visualize the big
performance picture of their EVA storage, hosts and SAN infrastructure with real-time monitoring,
historical trend analysis and trend extrapolation.
The SRM Performance Pack Software can be ordered separately on a per EVA basis for existing Storage
Essentials SRM Enterprise Edition SRM customers, and for Storage Essentials SRM Standard Edition
customers the SRM Standard Edition LTU includes licensing to monitor up to 3 HP EVAs. For more
information on HP Storage Essentials SRM Standard Edition Software visit:
http://h18006.www1.hp.com/products/storage/software/std-suite/index.html
HP Standard Edition SRM HP Storage Essentials Standard Edition Storage Resource Management Software and Systems Insight
Software and EVA
Manager with Command View EVA software provides a total solution that allows midsize businesses with
limited IT staff to see the big picture (storage-servers-infrastructure) thereby reducing SAN complexity by
depending on Excel spreadsheets or whiteboards to track and manage SAN storage and infrastructure. It
supports Windows and Linux servers with small to medium HP storage based SANs including HP EVA, HP
MSA, HP NAS, HP EML Tape, HBAs and fabric devices. HP Standard Edition SRM Software unified server
and storage tool-set automates complex and manual storage process and tasks with auto discovery,
visualization and topology mapping for quick device identification, integrated NAS and SAN
management, business application monitoring including Oracle, Microsoft SQL, Sybase, InterSystems
Caché, Microsoft Exchange Server and SAP Adaptive Computing Controller (ACC) environments path
dependency identification, and end-to-end EVA SAN performance monitoring and analysis. For more
information on HP Storage Essentials SRM Standard Edition Software visit:
http://h18006.www1.hp.com/products/storage/software/std-suite/index.html
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 10
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Product Highlights
HP StorageWorks 12000 Expanding the power of the HP StorageWorks Enterprise Virtual Array (EVA), the HP StorageWorks
Virtual Library System EVA 12000 Virtual Library System EVA Gateway accelerates backup performance in complex SAN
Gateway
environments while improving overall reliability. Integrating seamlessly into existing backup applications
and processes by emulating popular tape libraries and tape drive formats, the HP VLS12000 EVA
Gateway matches the existing data protection environment, removing the need to change backup
software or monitoring policies. Additionally, because the VLS EVA Gateway uses HP EVAs as the storage
pool, ease of use is maintained throughout the system. By emulating multiple tape drives simultaneously,
more backup jobs can be done in parallel resulting in reduced backup times and, because the data
resides on disk, single file restores are exceptionally fast.
The HP Virtual Library System EVA Gateway simplifies your SAN environment by providing more virtual
devices and leveraging existing switches and HP EVA infrastructure. The result is the ability to vastly
increase scale yet reduce the complexity of shared storage while maintaining the manageability of the
system. As your environment changes, the HP Virtual Library System EVA Gateway adapts to it - host
masking and mapping ensure that only the appropriate hosts have access to the HP Virtual Library
System.
The HP Virtual Library System EVA Gateway offers advanced features such as Automigration which allows
users to move data under the control of the VLS from the VLS storage to tape or another VLS. The VLS
EVA Gateway also supports accelerated deduplication which delivers fast backup performance since the
deduplication process does not impact the backup. For more information on the VLS EVA Gateway,
please visit the link below:
http://h18006.www1.hp.com/storage/disk_storage/disk_to_disk/vls/12000vls/index.html
EVA iSCSI Connectivity
EVA iSCSI support is available through the EVA iSCSI Connectivity Option. This powerful solution
provides iSCSI connectivity to an EVA utilizing the EVA's existing Fibre Channel infrastructure.
The HP StorageWorks EVA iSCSI Connectivity Option extends the advantages of Fibre Channel SANs into
smaller departments and remote locations. This EVA option allows customers to incorporate iSCSI servers
within SANs without requiring additional storage arrays or management costs. Use the EVA's Command
View software to manage the iSCSI connectivity to the array and mount the iSCSI device in the same rack
as the array.
For more information and operating system support:
http://h18006.www1.hp.com/products/storageworks/evaiscsiconnect/index.html
The EVA also supports select ProLiant Storage Servers (i.e. NAS) connected as file/print/iSCSI gateways.
The ProLiant DL380 G5 x64 SAN Storage Server and DL585 G2 Storage Server each feature Microsoft's
Windows Unified Data Storage Server 2003 operating system that includes Microsoft iSCSI Software
Target standard, while other DL380 G5 Storage Server models offer optional support for Microsoft iSCSI
Software Target. Microsoft iSCSI Software Target leverages existing management expertise and
inexpensive Ethernet infrastructure to deliver IP-based block access to an EVA or Fibre Channel SAN. So
ProLiant Storage Servers with iSCSI target functionality not only add file and print services to your EVA
investment, but they help you save even more by enabling tiered (Fibre Channel and iSCSI) block access
for application servers.
In addition, any ProLiant DL380 G5 Storage Server or DL585 G2 Storage Server is a perfect platform
from which to run Command View EVA. You stretch your investment even further when you host EVA
management, file and print services, and iSCSI connectivity all from the same ProLiant Storage Server
gateway solution.
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 11
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Product Highlights
For more information:
http://h18006.www1.hp.com/storage/nas.html
http://www.hp.com/go/storageservers
EVA File Services
File services for the EVA are supported through the use of the EFS Clustered Gateway. Using File services
with the EVA eliminates having to manage silos of storage, File Services for the EVA creates a single,
integrated storage solution that provides both easy to manage application (block) services and scalable
files services.
This solution can serve both block and file data concurrently with high availability and scalable
performance. The solution is supported by a powerfully simple suite of management software making it
easy for users to achieve high levels of productivity.
File services through the EFS Clustered Gateway supports mid-range and enterprise customers wanting a
single storage solution for their block and file data, improved storage utilization, scalable throughput
performance to meet application specific demands for consistent high transaction I/O, easy capacity
expansion, instantaneous replication, simplified storage administration and high availability. Customers
can use this solution to consolidate their individual silos of storage to gain flexibility, reduce IT costs and
complexity as compared to traditionally architected storage solutions.
The EVA and file services solution supports both CIFS (windows) and NFS file serving. The components
can be factory integrated into the HP EVA6400/8400 arrays. The components required to implement file
services on the EVA are:
Two EFS Clustered Gateway serving nodes
One Ethernet Switch
Two 8Gb FC Switches
Installation and Startup
A file service solution provides the following benefits:
Integrates and simplifies providing a single storage solution for application (block) and file data
delivering high utilization and lower TCO
Uses a single set of management tools that can be invoked from anywhere, anytime, resulting in a
very operationally efficient environment to manage.
Combines state-of-the-art application (block) data performance and file serving performance, that
can scale as needs dictate, offers customer's aggregate performance levels far in excess of
traditional file servers and NAS appliances.
Additional capacity can be added quickly and easily with any combination of high performance
Fibre Channel and/or low cost FATA drives.
Uses state-of-the-art virtualization which improves performance, disk usage and TCO while the
single, shared pool of storage allows for easy dynamic expansion, which automatically distributes
data to avoid potential hot spots.
With fully redundant components such as SAN switches, array controllers, and file serving nodes
built into every unit, this solution is perfect for demanding mid-range and enterprise storage
applications.
For more information:
http://h18006.www1.hp.com/products/storageworks/efs/index.html?jumpid=reg_r1002_usen
http://h18006.www1.hp.com/products/storageworks
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 12
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Product Highlights
EVA with HP Systems
HP SIM is the foundation for HP's unified server-storage strategy - it is packaged as value add software
Insight Manager Software with EVA, it's a management application and is derived from the heritage of Compaq Insight Manager,
HP Toptools, and HP Servicecontrol. HP SIM runs on HP Windows, Linux, and HP-UX and provides
discovery and identification, fault management, security administration, asset reporting, and centralized
configuration management across heterogeneous servers, storage and infrastructure. HP SIM is easily
extensible, integrating other HP management products and value-add plug-ins such as the ProLiant
Essentials, Integrity Essentials, and Server Essentials.
HP SIM relies on industry standards like SMI-S, SNMP, SSH, WBEM, and WMI to detect and report
heterogeneous device attributes. HP SIM may also be configured to launch array specific applications for
configuration, reporting and replication. For more information on HP Systems Insight Manager see:
http://www.docs.hp.com/en/netsys.html
Clustered Server and High Dual and multi-node cluster support is provided for host level fault tolerance and high system availability.
Availability System
See the Operating System, Cluster and High Availability Compatibility table for operating system specific
Support
support.
Factory Express
A portfolio of customized factory and deployment solutions from the desktop to the data center.
Configure an entire datacenter in a single rack with HP Factory Express.
Configure your entire order including EVAs, Storage Area Network, POD, servers and backup in a rack,
AND securely load your data prior to shipment saving time and money by providing a fully configured
greener solution.
Factory Express most popular services for server and storage:
Image Loading
Asset Tagging & Labeling
Image Recovery
Custom System Settings
3rd Party Components
Rack Integration
Blades Integration
For more information visit: www.hp.com/go/factory-express
http://h71028.www7.hp.com/enterprise/cache/97688-0-0-0-121.html?jumpid=reg_r1002_usen
Multi-Server Shared
Support for Storage
Consolidation
Heterogeneous and homogeneous host support provides the ability to share storage between multiple
servers. The EVA provides storage access control (i.e. Selective Storage Presentation or LUN masking)
assuring that a host cannot access data belonging to a different host. SAN-based zoning is also
supported.
Single-pathing (Single
HBA per host)
Single-pathing (or single HBA per host) support is provided for all supported operating systems (but may
be version dependent). Use of single-pathing, which does not offer a redundant path option, should be
used with care. Failure of the single HBA will result in loss of access for that host until the HBA is
replaced.
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 13
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Product Highlights
Enclosure Capacity
The EVA provides a high density disk storage solution. The EVA6400 and EVA8400 in the 42U HP
10000 G2 Series Rack supports up to 18 2U 12-bay M6412-A FC disk enclosures for a maximum
capacity of 216 disk drives and a maximum storage capacity of 216 TB in a single rack. For the
EVA8400 an expansion cabinet allows users to expand with another 9 enclosures for a total of up to 27
disk enclosures, providing support for up to 324 disks, and up to 324TB.
Utility Pricing solutions for HP offers a spectrum of offerings allowing customers to align their payments according to the usage of
StorageWorks EVA
storage capacity.
For customers requiring assistance in managing their storage infrastructure, Managed Storage
Solution (MSS) meets that need while providing the option to acquire storage on a utility model.
Customers have the ability to choose other options like Backup/Restore, Data Availability, Local
Copy and Remote Copy services. All these capabilities are offered at a $/GB/Month fee.
For customers that want to build and manage their own storage utility, Utility Ready Storage (URS)
provides customers with storage that never runs out; priced as the customer uses it; and is easy to
procure. URS pricing is based on $/GB/Month of average allocated capacity over the customer's
minimum commitment. URS provides a unique opportunity to allow customers access to storage
when they need it, permitting them to adapt to their changing business needs.
For customers whose need is best described by predictable growth, Pay per forecast (PPF), offered
from HP Financial Services, is an ideal fit. It is a step lease based solution where the payments are
structured upfront according to the customer's forecasted growth.
For even further demanding financial needs of customers, HP Financial Services are ready to craft
a customized solution for them.
NOTE: Support for Utility Ready Storage will be available after the introduction of the EVA6400 and
EVA8400. Please contact your local HP representative for further information
Solid State Disk Support
The EVA supports 72GB dual ported solid state fibre channel disk drives. The EVA arrays will support
mixed drive types (solid state disks, high performance and FATA) within an enclosure, The solid state disk
requires its own disk group. The minimum number of SSDs supported is 6 and the maximum is 8 per
array.
NOTE: SSDs support only Vraid 5 and some Business Copy features (Snapshots and MirrorClone) for
local replication.
High Performance Fibre The EVA supports 400 GB 10K rpm dual-ported 4 Gb/s FC and 146 GB, 300GB and 450GB 15K rpm
Channel Drives (10K 15K dual-ported 4 Gb/s FC disk drives. The minimum number of high performance fibre channel drives
rpm) Support
supported on an EVA is 8.
The EVA arrays will support single or mixed drive capacities and types (solid state disks, high
performance and FATA) within an enclosure. HP recommends using the same drive capacity type within a
disk group because virtualization allocates space proportionate to the highest capacity drive within the
group.
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 14
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Product Highlights
FATA Drive Support
The EVA supports 1TB dual ported 4 Gb/s Fibre Attached Technology Adapted (FATA) disk. An EVA will
support a full configuration of FATA disk drives. A minimum of eight FATA drives are required in a
configuration.
FATA drives are designed for lower duty cycle applications such as near on-line data replication for
back-up. These drives should not be used as a replacement for EVA's high performance, standard duty
cycle, Fibre Channel drives. Doing so could shorten the life of the drive.
Please see the following URL for more information on FATA drives, their uses and their benefits:
http://h71028.www7.hp.com/ERC/downloads/5982-7353EN.pdf
Fibre Channel Technology The EVA6400/8400 takes advantage of the benefits of Fibre Channel (FC) in distance, performance and
connectivity. The use of optical Fibre cabling allows distances between connected segments of a SAN to
be up to 500 meters @ 1 Gb/s; 300 meters @ 2 Gb/s using short wave multi-mode cable and up to 10
kilometers (6.21 miles) @ 1 Gb/s when using long wave cable. The EVA6400/8400 are 4 Gb/s
enabled on each FC path, but will also support 2 Gb/s FC paths for backwards compatibility. Storage
Area Networks (SANs) can be constructed using FC switches/directors for fabric connectivity (currently up
to a maximum of 20 FC switches supported).
Fibre Channel
Switch/Director Support
Support for up to twenty FC switches operating at 2 Gb/s and 4 Gb/s allow the full benefits of a storage
area network (SAN), providing exceptional connectivity while increasing the effective bandwidth of the
network. Supported SAN features include Zoning for communication isolation and Inter-Switch Links
(hops) up to 10 km. For more information on specific support specifications see the following Switch URL:
http://h18006.www1.hp.com/storage/saninfrastructure/switches.html
Transfer Speeds
The EVA6400/8400 has four FC host interfaces per HSV400/450 controller; eight for a controller pair.
Each controller-to-host interface is 4 Gb/s. The controllers are also compatible with 2 Gb/s, 4 Gb/s and
8 Gb/s FC switches, HBAs, servers and other storage solutions.
Each EVA controller pair interfaces with M6412 drive enclosures through redundant fibre channel
arbitrated loops. With 4 per HSV400 for EVA6400 and 6 per HSV450 for EVA8400 device ports and
dual FC I/O modules per drive enclosure, each controller can connect to each FC drive A and B port via
redundant fibre channel loops. Each controller has a redundant path to each drive.
Easy Installation
Installation and start-up services are part of the EVA6400 and EVA8400 warranty.
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 15
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Product Highlights
Fault Recovery -- HP
Continuous Access EVA
for Disaster Tolerance
Applications
HP StorageWorks Continuous Access EVA remote copy functionality is available for use with the
EVA6400/8400arrays. Continuous Access EVA is a controller-based application that performs real-time
replication between HP StorageWorks Enterprise Virtual Arrays. The solution is enhanced to perform
remote replication, and deliver high data availability and performance to users on Fibre Channel based
campus, metro or continental Storage Area Networks (SANs). For additional information about
Continuous Access EVA visit: http://h18006.www1.hp.com/storage/software.html
HP StorageWorks Disaster Tolerant Solution for mySAP Business Suite on EVA offers a business
continuance solution for SAP environments, where data integrity and value added functionality are high
priorities. Best practices for implementing remote mirroring of an SAP database as part of an overall data
protection strategy with SAP applications can be found at:
http://h71028.www7.hp.com/erc/downloads/4aa1-5683enw.pdf
High Availability/ Fault
Tolerance/
Hot pluggable support
All EVA are configured with dual HSV controllers that operate in a redundant mode. Each controller has
four redundant Fibre Channel (FC) host ports. Each EVA6400 and EVA8400 controller has four FC host
ports per controller. In the event of a path failure, the alternate paths to the controller can be utilized with
the use of multi-path software in the Operating System software or Secure Path software.
EVA6400/8400 device ports connect to the FC I/O module on each drive enclosure via a fibre channel
arbitrated loop. Up to nine enclosures can be connected in a redundant FC loop arrangement
The EVA6400, with four fibre channel device ports per HSV400 controller, supports 2 redundant fibre
channel loops. Each controller can connect to both ports on up to 216 drives.
The EVA8400, with 6 device ports per HSV450 controller, supports 3 redundant fibre channel loops (6
loops total). Each controller can connect to both ports on up to 324 drives.
The HSV controllers also have dual redundant hot plug power supplies and dual redundant hot plug
blowers. Each controller has hot plug cache batteries to maintain cache contents for up to 96 hours in
case of a total power failure.
The M6412-A FC drive enclosure has dual redundant hot plug FC I/O/Environmental Monitoring Unit
(EMU) modules that allow the controllers to distribute I/Os between the two modules and provides
redundant paths should either FC I/O module become unavailable and the EMU functionality allows you
to monitor and report the condition of the power supplies and fans. . The enclosure also has dual
redundant hot plug power supplies and dual hot plug blowers. The enclosure also has a hot plug
Environmental Monitoring Unit (EMU) The M6412-A drive enclosure provides point to point connectivity
within the enclosure.
The SSD, FC and FATA disk drives have dual FC ports which can be redundantly accessed by each
controller. The drives are hot plug. The EVA, as a virtualized array, always provides striping of the drives
across the entire disk group. The drives can then be arranged, using redundant Vraid 1, Vraid 5 or Vraid
6 protection, so that a drive failure will not cause loss of data. SSDs support Vraid 5. Optional distributed
sparing (virtual sparing) can be configured so that a drive failure will trigger an automatic rebuild of the
Vraid 1 or Vraid 5 data set into spare space. The EVA sparing protection will utilize available disk space
in the disk group and when that is exhausted, the established virtual spare space. This methodology of
using unused capacity can give customers the ability to have many disk worth of spare space for
maximum data availability, protection and peace of mind.
All EVAs have dual redundant power distribution. Two independent power cords distribute power through
two Power Distribution Units (PDUs) to each side of the EVA cabinets and to each power supply of the
controllers and to each power supply of the drive enclosures. Each cabinet power cord can be connected
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 16
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Product Highlights
to independent power sources. For maximum availability, a customer should provide redundant power
from independent power circuit breakers, independent power lines from the power company and even
independent power companies.
Integration
HP EVA6400/8400 models are 4Gb/s FC Switched Fabric "enabled" and can operate on 8Gb/s, 4Gb/s
or 2Gb/s FC Switched Fabric SANs. They can co-exist in the same FC SAN with previous generations of
EVA, FC storage solutions and many other SAN devices.
EVA Manageability
HP StorageWorks Command View EVA provides the capability to manage the EVA Array family in a SAN
or direct connect Fibre Channel host attach configuration. HP Command View EVA software runs on a
variety of server configurations using Windows Server 2003. ProLiant DL380 G5 and DL585 G2 Storage
Servers are the perfect platforms from which to run Command View EVA. ProLiant Storage Server
gateway models (including the DL380 G5 x64 SAN Storage Server and DL585 G2 Storage Server) allow
you to stretch your investment by combining EVA management, file and print services, and iSCSI
connectivity all on the same platform.
The powerful Command View EVA provides an easy mechanism to manage up to 16 EVA units in a SAN
configuration. Industry leading security enhancements in Command View now allows administrators to
take advantage of Windows domains and local groups. Command View integrates with Windows Active
Directory to authorize and authenticate users. In addition, all user actions and events that change system
state are logged. Administrators can now use the audit logging capabilities to provide an audit trail. The
Command View EVA media kits and license are required with all EVA models. HP Command View EVA
requires a License to use (LTUs) equal to, or greater than the total raw capacity of each array.
Performance
Fibre Channel host connections provide up to 400MB/s bandwidth for each path. Dual mirrored port
write caching capability, with battery backed cache, maintains optimal availability while assuring data
integrity in the event of a failure.
Each HSV400 controller (for EVA6400 configurations) has four Fibre Channel host ports (eight ports in a
redundant pair of controllers) assuring the availability of bandwidth for the most demanding applications.
In addition, up to 4GB of cache per controller pair ensures high performance.
Each HSV450 controller (for EVA8400 configurations) has four Fibre Channel host ports (eight ports in a
redundant pair of controllers) assuring the availability of bandwidth for the most stringent applications. In
addition, up to 22GB of cache per controller pair ensures high performance.
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 17
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Product Highlights
Scalability
A storage management server can manage up to 16 EVA controller pairs (EVA4400/6400/8400,
EVA4100/6100/8100s), EVA4000/6000/8000 and EVA3000/5000s in any one fabric. An EVA
controller pair will support up to 256 host connections (up to 1024 HBAs).
The EVA6400 will scale up to 216 disks in a single rack (216TB using 1TB FATA disk drives, and 97TB
using 450 GB high performance disk drives).
The EVA8400 will scale up to 216 disks in a single rack and with the addition of an expansion rack, up
to 324 disks (324TB using 1TB FATA disk drives, and 146TB using 450GB high performance disk
drives).
Configure to Order (CTO) options and the HP 10000 G2 Series Racks allow even greater server and
device integration, flexibility and scalability for the EVA6400/8400. Data center managers can customize
server, storage and back-up configurations as well as use any available cabinet U space to mount
Storage Management servers, switches and have the peace of mind that it is built with HP factory
precision manufacturing.
EVA as Virtualized Storage HP StorageWorks EVA6400/8400 disk arrays can be connected as external storage devices behind HP
behind the XP
StorageWorks XP disk arrays.
The XP24000/XP20000 simplifies the management of heterogeneous SAN environments through its
ability to support up to 247 PB/ 96 PB respectively of external storage-all configured 'behind' a single XP.
XP External Storage software uses advanced virtualization technology to allow storage administrators to
host XP Disk Array LUNs on externally attached disk arrays. Any Fibre Channel port from any CHA pair
installed in any slot can be used to connect to external storage EVA. With external EVA storage, XP
presents multiple tiers of storage to a wide range of host systems. Instead of seeing a confusing collection
of arrays, host systems perceive all the data to be stored inside the XP disk array. In effect, the XP disk
array becomes the storage controller for a flexible, multi-tiered collection of EVAs with a range of cost
and performance capabilities. By configuring EVA storage arrays behind a single XP24000/XP20000,
data can be moved back and forth dynamically across tiers, all of which is invisible to the applications.
The XP12000's virtualization feature also reduces the total cost of storage ownership by:
Exploiting common storage management across multiple vendors' systems
Easily deploying a dual-vendor policy
Facilitating simpler and lower cost data migrations
Increasing storage utilization
Extending the life of legacy storage
For more information please refer to the HP StorageWorks XP External Storage Software web page at:
http://h18006.www1.hp.com/products/storage/software/extstxp/index.html.
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 18
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Product Highlights
Servers Supported - Single HP servers (HP-UX, ProLiant, AlphaServers)
and Clustered
X86 servers
Dell servers
Sun servers
IBM servers
Apple XsApple Servers (PowerPC and Intel)
Fujitsu Siemens & Primergy Servers (Bx6x0, Rx and Tx)
EVA Required Software
HP StorageWorks EVA6400/8400 ships with XCS V9.5 factory installed on new EVAs. XCS V9.5 also
supports the EVA4400. The base XCS End User License for the EVA is contained in the hardware
shipment.
XCS v9.5 controller media download is available from HP.com. These downloads are available for
upgrades of existing EVA4400 or as archival media for the EVA6400/8400. The EVA Release Notes and
Upgrading Product software Guide are also available from the same location.
NOTE: Review the Release Notes and Upgrading Product Software documentation and compatibility
requirements of all installed Array Integrated Software completely before upgrading. Downgrading the
EVA4400 from XCS v9.5 is not supported.
XCS V9.5 is available for download at the "software & drivers" link:
http://h18006.www1.hp.com/products/storageworks/eva/index.html
HP StorageWorks Command View EVA is required software for all EVA models. HP Command View EVA
requires a License to use (LTUs) equal to, or greater than the total raw capacity of each array.
NOTE: The minimum supported version of XCS on the EVA6400/8400 is XCS V9.5
HP StorageWorks EVA
Software Selector
The following matrix will assist in identifying some of the complimentary HP software products can be
used along with the EVA to support various business applications. Please see your Sales Representative,
or go to: http://www.hp.com/ for more information on these valuable HP software products.
Just click on the product name and you will be linked to the product specification URL.
HP Command View EVA
HP Business Copy EVA
HP Continuous Access
EVA
Dynamic Capacity
Manager
HP Storage Essentials
Suite
(Heterogeneous,
EVA Device
and
Configuration
Management
X
(Required)
Backup
Solutions
Business
Continuity/
Local
Mirroring
X
X
Disaster
Recovery/
Remote
Mirroring
Storage
Resource
Management
Unified
Application
Integration
Server and
Storage
Management
X
X
X
X
End to end
provisioning
X
End to end
backup
DA - 13206
X
Discovery,
topology,
Worldwide — Version 3 — April 24, 2009
X
monitor
applications
Page 19
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Product Highlights
multivendor)
HP Storage Essentials
Standard Edition SRM
Software (Small to
medium HP Storagebased SANs)
HP Data Protector
HP Systems Insight
Manager
(hosts,
infrastructure,
storage)
Discovery,
topology
monitoring/
reporting
monitoring,
events,
applications,
NAS/SAN,
File
monitoring,
reporting,
Performance,
monitor host
clusters
X
Backup
monitoring/
reporting
X
monitoring,
events,
applications,
NAS/SAN,
File
monitoring,
reporting,
EVA
Performance,
monitor host
clusters
X
X
X
In-context
launch of CV
EVA, SAN
discovery,
monitoring,
asset,
configuration.,
security
HP Cluster Extension EVA
HP Metrocluster/
Continentalcluster with
Continuous Access EVA
HP Storage Mirroring
X
and
associated
storage/
infrastructure
(Oracle,
Microsoft
Exchange
Server,
Sybase,
Microsoft
SQL,
InterSystems
Cache'
database and
SAP ACC)
X
(Oracle,
Exchange,
Sybase, MS
SQL)
X
(Included with
EVA)
X
X
X
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 20
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Product Highlights
EVA and Value-added Software Compatibility
Model
XCS Software
HP Command View HP Continuous
EVA*
Access EVA**
EVA
EVA
HP Business Copy
EVA**
EVA
HP Replication
Solution Manager
(RSM)***
(RSM)
EVA4400/6400/8400
XCS V9.5
Command View
Continuous Access Business Copy EVA Replication Solution
EVA v9.0
EVA
Manager v 5.0
*HP StorageWorks Command View EVA is required software for all EVA models. HP Command View EVA requires a License to use
(LTUs) equal to, or greater than the total raw capacity of each array. If the EVA does not have the proper licensed capacity it will be
in violation of the End User License Agreement (EULA).
**HP StorageWorks Continuous Access EVA and HP StorageWorks Business Copy EVA requires a License to use (LTUs) equal to, or
greater than the total usable amount of data being replicated on each array. If the EVA does not have the proper licensed capacity it
will be in violation of the End User License Agreement (EULA).
***HP StorageWorks Replication Solutions Manager Software provides a powerfully simple graphical user interface (GUI) to create,
manage and configure local and remote replication on the entire EVA family. The RSM Software provides a centralized management
interface that integrates with HP Business Copy EVA Software and HP Continuous Access EVA Software for local and remote
replication, resulting in a unique, cost effective disaster recovery solution.
Operating Systems, Cluster and High Availability Compatibility
Operating System
Microsoft Windows
2003/32-bit
Microsoft Windows
2003/x64
Microsoft Windows
2003/IA64
Microsoft Windows
2008 32-bit, x64*
x64
Microsoft Windows
2008 IA64*
IA64
Microsoft Windows
Server 2008 HyperV, x64
HP-UX
Linux
Versions Supported
Standard
Enterprise
Standard
Enterprise
Enterprise
DataCenter
Standard
Enterprise
Enterprise
SP1, R2; SP2
SP1, R2; SP2
SP1, R2; SP2
SP1, R2; SP2
SP1; SP2
SP1; SP2
Cluster Server or
High Availability
Software
Microsoft Cluster
Server
(MSCS)
HA Versions
Supported
Failover Software
Windows Server
2003
Enterprise Edition
Windows 2003
DataCenter Edition
(64-bit))*
(64-bit))
Full featured MPIO,
v3.02.00 available
from HP (2003,
2008) and Microsoft
DSM from Microsoft
(2008)
Veritas Foundation
Suite/HA
5.0, 5.1 (Windows
2003)
5.1 (Windows 2008)
HP
ServiceGuard****
ServiceGuard
11.16
11.17
11.18
5.0 (11iv2, 3)
Standard
Enterprise
11i v1 (PA-RISC)
11i v2 (PA-RISC & Integrity)
11i v3 (PA-RISC & Integrity)
HP-UX 11.iv3 has
OS native multipath, pvlinks native
Veritas Foundation
in HP-UX and Veritas
Suite/HA***
DMP; HP Secure
Suite/HA
Path 3.0F
Red Hat EL Advanced Server 4.6, 4.7 HP ServiceGuard for 11.18
QLogic Failover
(IA32, IA64 & x64)
Linux****
driver, available
Linux
Red Hat EL Advanced Server 5.1, 5.2
from HP, Emulex
VERITAS Foundation 5.0 (SLES9, 10 &
(IA32, IA64 & x64)
MultiPulse available
Linux
SUSE/SLES9 (IA32, IA64 & x64)- SP3, SP4 Suite/HA for Linux***
RHEL 4, 5 x64 only)*
only) from HP and Device
(Includes Open Enterprise Server Linux)
Mapper v4.2.0
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 21
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Product Highlights
Apple Mac OS X
HP OpenVMS
Sun Solaris
SUSE/SLES10 (IA32, IA64 & x64)- SP1,
SP2 (Includes Open Enterprise Server
Linux)
Oracle Enterprise Linux V4, 5
10.4
N/A
10.5
HP OpenVMS
Alpha: 8.2, 8.3
Integrity: 8.2-1, 8.3, 8.3-1H1
Clusters
9 (SPARC)
10 (SPARC & x86)
IBM AIX
5.2
5.3
6.1
VMware
ESX Server 3.0.2, 3.0.3, and 3.5
Xen
Citrix XenServer V4.1, 5.0
RHEL Virtualization V5.2
Oracle Virtual Machine
Enablement Kit from
HP
N/A
ATTO FC HBA driver
8.2
8.2-1
8.3
8.3-1h1
3.2
5.0 (9 & 10)
Native in OS
SunCluster
VERITAS
Foundation
Suite/HA***
Suite/HA
HACMP
Native in OS
VERITAS Foundation 5.4 (AIX 5.2 & 3)
Suite/HA***
5.4.1 (AIX 6.1)
Suite/HA
5.0
Clustering** Windows Server
MSCS Clustering
2003
Enterprise Edition
Citrix
V5.0
HP ServiceGuard for SGLX 11.18
Linux (RHEL and
Oracle Virtual
Machine)
MPxIO for Solaris,
Native in OS
Veritas DMP 5.0
MPIO for IBM AIX,
Native in OS
Veritas DMP 5.0
Windows Server
2003
Enterprise Edition
Native Device
Mapper MPIO (Citrix
and RHEL)
*For more specific information on supported versions of Windows 2008, see the OS support matrix at: hp.com
**For more detailed information on Cluster Server Support see the VMware Release Notes
***Follows initial release, check posted Operating Specific Release Notes or software documentation for support.
**** For more specific information on supported versions check posted Operating Specific Release Notes or software documentation
for support
Cabinet Density
A single 42U EVA cabinet can house up to 216TB of raw capacity (using 1TB FATA disks).
NOTE: Maximum cabinet capacity will vary based available upon U space. The total number of
controllers, enclosures supported and other devices.
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 22
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Product Highlights
Racking Guidelines and
Power Distribution
Power Distribution Units (PDUs) are configured according to the voltage used in the country when the
solution is ordered. These PDUs provide redundant power. They are located in the bottom of the rack,
taking 2U of rack space. To reclaim the 2U of rack space required by the PDUs, they may be moved to
the rear of the rack using the PDU Pivot Bracket Kit. It is factory or field installable.
For the EVA6400/8400 a variety of HP 10000 G2 Series Rack offerings and integration options are
available. The EVA configurator tools utilize a 42U HP 10000 G2 Series Rack as the standard
recommendation and will provide a 220/240V PDU and country specific power cords. Both the height
and types of rack and PDUs can be modified based upon the specific customer need. If other devices,
such as servers, switches or back-up devices, are to be installed with the EVA; this can be specified and
the cabinets and PDUs can be modified to support the configuration. The EVA6400/8400 also supports
22U and 36U racks. The 47U rack is also supported, but not factory configured, because of the cabinet
height, which creates shipping limitations. It must be assembled on site.
For more information on configuration and PDU support for the 10000 G2 Series Rack please see the
following URL:
http://h18004.www1.hp.com/products/servers/proliantstorage/racks/index.html
The EVA also supports the 5642 (42U) Rack Cabinet System as a field installed option.
For more information on the 5642 rack, please see the following URL:
http://h18004.www1.hp.com/products/servers/proliantstorage/racks/5000series/5642/index.html
Other PDUs, besides the 200 - 240 V single-phase default PDU, are also supported. This includes 100 127 volt single-phase, 200 - 240 volt three-phase, and 380 - 415 volt three-phase PDUs. Monitored
PDUs are also supported.
For more information on PDU support, please see the following URL:
http://h18004.www1.hp.com/products/servers/proliantstorage/power-protection/pdu.html
NOTE: When adding additional devices to existing racks ensure that the installed PDUs will support the
new power requirements.
Total Cost of Ownership The unique virtual architecture allows up to twice the normal effective capacity utilization of traditionally
architected storage offerings. And with Virtually Capacity-Free Snapshot (Vsnap), significant duplicate
capacity requirements can be eliminated resulting in fewer/smaller storage acquisitions.
The EVA has one of the highest density disk storage solutions in the industry. Additionally, the unique
virtual architecture allows up to twice the normal effective capacity utilization of traditionally architected
storage offerings. And with the virtually Capacity-Free Snapshot (Vsnap), FATA disk drives and the ability
to change Vraid types, significant amount of duplicate capacity requirements can be eliminated, resulting
in fewer/smaller storage acquisitions.
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 23
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Service and Support, HP Care Pack, and Warranty Information
HP Care Pack Services
HP Care Pack Services. Scalable, Flexible, Dependable. Like your storage.
Your storage is evolving. Get scalable support that evolves with it. HP Care Pack Services is an easy-tobuy, easy-to-use portfolio of packaged services covering your lifecycle needs. You can rely on our highly
skilled, HP certified professionals to offer a breadth of expertise across leading storage technologies, and
work side by side with you for optimal results. Push services beyond expectations and choose support that
meets the changing needs of your business with the same reliability, scalability and flexibility you demand
of your storage.
Protect your business beyond the warranty
Standard warranty protects against product defects and some causes of downtime. HP Care Pack
Services helps you proactively guard against unplanned downtime which can reduce your productivity
and profitability. By using a standard approach to warranty uplifts, such as HP Care Pack Services,
customers can be more sure of consistency of operations for both mission-critical and standard business
computing.
"Extending warranties with HP Care Pack Services"
The key to normalizing the warranty of combined solutions-is making service uplift simple: HP Care Pack
Services. This portfolio of predefined packages, extending across the entire IT lifecycle, offering
consulting, education, technical support, optimization, risk assessment, and more. It's entirely flexible
allowing customers to extend the cover to the precise level of support required. Customer's standard
hardware warranty, for example, can be upgraded to next-business-day response, to same-day coverage,
or even to a committed six-hour call-to-repair service available 24 hours every day of the week."
Provide consistent, predictable levels of support across your entire department or business
Give you direct access to proven technical and problem-solving expertise
Offer a choice of response-time and repair-time commitments
Are available whenever and wherever you do business
For many products, post-warranty HP Care Pack Services are available when your original warranty has
expired. Choose the support levels that meet your business requirements, from basic to mission-critical.
http://www.hp.com/hps/storage
NOTE: Care Pack Services availability may vary by product and country.
Warranty and Services
The EVA6400/8400 comes with a 3-year HP's Global Limited Warranty and Technical Support, which
Included with the Product includes 3-years 9x5 hardware support, with next business day (NBD) response.
HP's warranty and support features:
Online Business Support Center and IT Resource Center
Remote Support
Technical Phone Support
Customer Self Repair (see list below)
Software Limited Warranty
On-site Warranty Service
The EVA Fibre Channel hard disk drive (HDD) warranty is 3years, parts only.
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 24
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Service and Support, HP Care Pack, and Warranty Information
For bundled deployment (I&S) service:
service
Your HP storage product includes deployment which helps you improve the productivity of your technical
staff and allows your IT resources to stay focused on their core tasks and business priorities. HP
deployment helps ensure that your product is installed smoothly, efficiently, and with minimal disruption
of your IT and business operations.
You'll benefit from:
Specialized expertise for a complex, one-time task
Reduced implementation time, impact and risk to your storage environment
Shortened time-to-ROI
Product knowledge gained during orientation session
For bundled Hardware Support (4-Hour 24x7 Same Day):
Day)
Your HP storage product includes world-class round-the-clock hardware support, providing increased
equipment availability and productivity through rapid-response onsite and remote support. 24x7
Hardware Support benefits include:
Prompt service for your storage product
Easy-to-use onsite services
Improved hardware performance and uptime
Increased return on your HP hardware investments
Online Support
HP online support capabilities include a variety of self-help tools, troubleshooting assistance, and access
to the patch database, firmware/software update packages and documentation. Register with the HP
Business Support Center and the IT Resource Center to receive product specific and proactive
notifications for the EVA6400/8400. For more information go to: www.hp.com/support or:
www.itrc.hp.com.
Remote Support
HP designed the EVA6400/8400 with support capability to facilitate remote monitoring and email
notification of array errors/events. To take full advantage of HP's remote support solutions and maximize
the service delivery experience, these features must be enabled at time of installation. Additional fault
monitoring software is included in the EVA software media kit.
Technical Phone Support
24x7 telephone technical support is available to assist with Hardware warranty related troubleshooting
and issue resolution. Call HP warranty support: 1-800-474-6836. Qualified technical resources will be
your first point of contact to assist with your service request.
Customer Self Repair (customer installed replacement parts)
HP designed the EVA6400/8400 to enable the highest degree of Customer Self Repair and parts
replacements. This feature enables maximum support flexibility, while minimizing unit down time.
Customer Self Repair parts come with step by step instructions with additional assistance available online
or by phone.
Required Customer Self-Repair (Replacement) Parts List:
Hard disk drives with drive firmware code load.
Controller enclosure power supply.
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 25
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Service and Support, HP Care Pack, and Warranty Information
Controller enclosure fan.
Controller management module
Disk enclosure power supply.
Disk enclosure fan.
Bezels.
Optional Customer Self-Repair Parts List:
Controller cache battery.
Controller module.
Controller cache memory (DIMM).
Internal enclosure boards and cables
Fiber channel Transceivers.
Fiber channel transceivers cables.
Part replacement videos can be viewed at: http://hp.com/go/sml. For the EVA6400/8400, select
Storage, then EVA Disk Arrays, then HP StorageWorks EVA6400/8400 Enterprise Virtual Array, then the
particular resource needed.
Software Warranty
If the removable HP Software media on which HP distributes the software proves to be defective in
materials or workmanship within 90-days of purchase, return the media to HP for replacement.
On-site Warranty Service
The HP EVA6400/8400 comes with 3-year on-site warranty support, for those service events not
remedied either remotely or through use of customer self-repair replaceable parts. On-site service is
made available at HP's discretion and scheduled during standard office hours.
For more information about HP's Global Limited Warranty and Technical Support, visit:
http://h18006.www1.hp.com/products/storageworks/warranty.html
For more information about HP's Global Limited Warranty and Technical Support, visit:
ftp://ftp.compaq.com/pub/products/storageworks/warranty/en_321708-008.pdf
HP warrants the HP 10000 G2 Series Rack according to the standard rack product warranty. Please refer
to product specification for further details:
http://h18004.www1.hp.com/products/servers/proliantstorage/racks/index.html
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 26
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Service and Support, HP Care Pack, and Warranty Information
Recommended Services
HP Care Pack Services recommended for optimal satisfaction of all deployments of your product.
3-Year HP Proactive 24
3-Year HP Proactive 24 Service (P24) is an integrated hardware and
software support solution, which combines industry leading technical
assistance with proactive account services to cover the entire IT infrastructure
and to improve the stability, availability, and operational effectiveness of the
IT environment.
http://h71028.www7.hp.com/ERC/downloads/5981-9842EN.pdf
Product Number
Product Name
Service Name
Care Pack Services
Product # and Band
AJ757A
HP EVA 6400 Array
3-Year HP Proactive 24
HA111A3-9DP
AJ758A
HP EVA 8400 14GB 3-Year HP Proactive 24
HA111A3-9DQ
Cache Array
AJ847A
HP EVA 8400 22GB 3-Year HP Proactive 24
HA111A3-9DR
Cache Array
AG638B
HP M6412A Fibre
3-Year HP Proactive 24
HA111A3-9DS
Channel Drive Enclosure
AR055A
HP EVA M6412 72GB 3-Year HP Proactive 24
HA111A3-9BC
FC 2 port SSD
AE324A
HP StorageWorks EVA 3-Year HP Proactive 24
HA111A3-83F
iSCSI Connectivity
Option
AE325A
HP StorageWorks EVA 3-Year HP Proactive 24
HA111A3-83F
iSCSI Connectivity
Upgrade Option
AH814B
HP StorageWorks 12000 3-Year HP Proactive 24
HA111A3-80Q
Virtual Library System
EVA Gateway
AG680A
HP StorageWorks IP
3-Year HP Proactive 24
HA111A3-87V
Distance Gateway
AG681A
HP StorageWorks IP
3-Year HP Proactive 24
HA111A3-87V
Distance Gateway
Related Services
Services that will enhance the user experience in many product deployments.
HP SAN Solution Service - a scalable service providing specialized expertise
in storage area network planning and configuration. Service ensures your
HP SAN Solution Service SAN is configured for high performance and availability and is integrated
with your applications, management environment, and business processes.
http://h71028.www7.hp.com/ERC/downloads/5981-8527EN.pdf
HP Data Migration Service helps you move critical business information while
decreasing the risk of data loss, minimizing threats to data integrity, and
HP Data Migration Service
avoiding productivity-sapping performance interruptions.
http://h71028.www7.hp.com/ERC/downloads/5982-4107EN.pdf
HP Assessment Service for SANs offers customized technical and operational
guidance to customers with a deployed storage area network (SAN)
HP Assessment Service for
infrastructure, and provides recommendations to help improve availability
SANs
levels and ongoing management of your SAN environment.
http://h71028.www7.hp.com/ERC/downloads/4AA1-2941ENW.pdf
Service Name
Care Pack Services
Alternate Care Pack Service Product
Product # and Band
#
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 27
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Service and Support, HP Care Pack, and Warranty Information
HP SAN Solution Service Contact your HP sales rep or Channel Contact your HP sales rep or Channel
Partner for assistance
Partner for assistance
HP Data Migration Service Contact your HP sales rep or Channel
n/a
Partner for assistance
HP Assessment Service for
HE807A1
n/a
SANs
HP Data Replication
Contact your HP sales rep or Channel
n/a
Solution Services - CA for
Partner for assistance
EVA
HP Data Replication
Contact your HP sales rep or Channel
n/a
Solution Services Business
Partner for assistance
Copy for EVA
HP Command View EVA
HA124A1-5AS
(CV EVA) Installation and
Startup Service
Data Sanitation Service Contact your HP sales rep or Channel
Partner for assistance
eSupport
UD490E
n/a
HP eSupport is a portfolio of technology-based services that assist you with managing your business
environment - from the desktop to the data center.
Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to
manage the daily operations of your IT environment.
Features include:
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service agreement. To access the support
portal, visit: http://www.hp.com/support
Remote Support Technology (RST)-HP Remote Support Pack
Taking a more proactive approach to IT support, the HP Remote Support pack plug-in module easily
integrates with HP Systems Insight Manager to provide a powerful, unified "single pane of glass" solution
for onsite and remote management.
HP Remote Support Pack enhances HP Systems Insight Manager with intelligent event diagnosis plus the
automatic submission of hardware event notifications securely to HP support, including acknowledgment
and status returns. It adds remote configuration collections to allow the delivery of assessment and
proactive services for your SAN storage and HP-UX environments.
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 28
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Service and Support, HP Care Pack, and Warranty Information
Customer Technical
Training
Consider education as an integral part of your strategy to get the best return on investment for your HP
storage solution. HP offers a variety of training courses on storage software, networking, archiving and
disk storage systems. Our classes are available in many delivery modalities from traditional instructor-led
courses at one of our 80 training centers worldwide to on-site training customized to your needs or
online. www.hp.com/learn/storage
HP Services Awards
HP Services continues to be recognized for service and support excellence by customers, partners,
industry organizations and publications around the world. Recent honors and award reflect our services
team's dedications, technical expertise, professionalism and uncompromising commitment to customer
satisfaction. For a list of all our awards, please visit: http://h20129.ww2.hp.com/services/cache/773180-0-225-121.html.
Additional Services
Information
For more information about HP Care Pack Services for Storage, please visit:
http://www.hp.com/hps/storage
If you have specific questions, contact your local HP representative. Contact information for a
representative in your area can be found at "Contact HP" http://www.hp.com
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 29
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
Step 1 - Choose an EVA Model
Base and Factory-Integration Information
Models
Enterprise Virtual Array
The following components are available worldwide. The EVA6400 and EVA8400
6400/8400Independent models are modular and scalable storage solutions designed to have no-single-pointComponents
of-failure, which provide disaster tolerance and business continuance support for
storage consolidation on heterogeneous SANs.
HP StorageWorks
HP StorageWorks EVA6400 Dual Controller Array
EVA6400 Dual Controller Includes one 4U Controller assembly with two HSV400 controllers mounting hardware
Array
cables and controller mounting. Order one unit for each EVA6400 array
configuration.
AJ757A
HP StorageWorks
EVA8400 14GB Cache
Dual Controller Array
HP StorageWorks EVA8400 14GB Cache Dual Controller Array
Includes one 4U Controller assembly with two HSV450 controllers mounting hardware
cables and controller mounting. Order one unit for each EVA8400 array
configuration.
AJ758A
HP StorageWorks
EVA8400 22GB Cache
Dual Controller Array
HP StorageWorks EVA8400 22GB Cache Dual Controller Array
Includes one 4U Controller assembly with two HSV450 controllers mounting hardware
cables and controller mounting. Order one unit for each EVA8400 array
configuration.
AJ847A
M6412-A FC Drive
HP StorageWorks M6412-A Fibre Channel Drive Enclosure
Enclosures & Accessories
For factory racking select up to:
AG638B
A minimum of 1 and up to 8 M6412-A drive enclosures for an EVA4400
(HSV300 and HSV300-S)
A minimum of 2 and up to 18 M6412-A enclosures EVA6400 (HSV400)
A minimum of 3 and up to 18 M6412-A enclosures EVA8400 (HSV450) in a
single rack
A minimum of 3 and up to 27 M6412-A enclosures EVA8400 (HSV450) in two
racks
Drive enclosures may also be:
Ordered for on-site capacity additions to existing EVA4400/6400/8400
configurations.
Ordered for field installation of complete EVA4400/6400/8400
Installed by HP manufacturing into EVA configurations by ordering the enclosure
with the factory integration part number (#0D1).
This drive enclosure is compatible with EVA4400/6400/8400 arrays only.
The M6412 is a 2U dual-redundant FC Loop 12-bay point to point disk enclosure
with mounting hardware, and the necessary copper FC cables for connecting to an
HSV Controller pair.
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 30
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
NOTE: An EVA requires a minimum of 8 disk drives per Fibre Channel or FATA drive
type or 6 solid state disks per EVA4400/6400/8400.
Enterprise Virtual Array
Field Installation
Please refer to the Expansion options (Step 8) - listed in the Configuration Information
and Configuration Rules - for details on components available for field installation.
These components are useful for adding EVA components to existing EVA storage
configurations or into on-site customer-supplied racks.
Step 2 - Choose File Services and EVA Connectivity Options
The EVA file services and EVA iSCSI offerings provide superior storage consolidation, management and total cost of ownership. The
EVA file services offerings support both block and file data concurrently with high availability and scalable performance. The EVA
iSCSI Connectivity Option extends the FC SAN investment with integrated multi-protocol support, allowing customers to incorporate
iSCSI servers without requiring additional storage arrays or management costs
For information on ordering file services components see:
http://h18000.www1.hp.com/products/quickspecs/12667_div/12667_div.html
http://h18006.www1.hp.com/products/storageworks
The EVA iSCSI Connectivity Options supports Windows and Linux environments
HP StorageWorks iSCSI HP StorageWorks EVA iSCSI Connectivity Option
Connectivity Option
Order this part for all new installations. Includes One unit, shelf, brackets, copper FC
cables and documentation.
Includes one unit to mount in existing shelf and documentation
HP StorageWorks EVA iSCSI Connectivity Upgrade Option
AE324A
AE325A
For multi-path (dual unit high availability) order both part numbers. (The second
hardware unit installs into the shelf that ships with AE324A.)
NOTE: For more information on the iSCSI Connectivity Options:
http://h18006.www1.hp.com/products/storageworks/evaiscsiconnect/index.html
The EVA Connectivity and Back-up offerings
HP StorageWorks 12000 Expanding the power of the HP StorageWorks Enterprise Virtual Array (EVA), the HP
Virtual Library System EVA StorageWorks 12000 Virtual Library System EVA Gateway accelerates backup
Gateway
performance in complex SAN environments while improving overall reliability. For
more information on the VLS EVA Gateway, please visit see:
http://h18006.www1.hp.com/storage/disk_storage/disk_to_disk
/vls/12000vls/index.html
HP StorageWorks IP
HP StorageWorks IP Distance Gateway
Distance Gateway
Order this part for all new installations. Includes One unit, shelf, brackets and
SAN over WAN
documentation.
connectivity, enables EVA
Continuous Access
replication over WAN
DA - 13206
Worldwide — Version 3 — April 24, 2009
AH814B
AG680A
Page 31
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
connectivity, enables EVA
Continuous Access
replication over WAN
(Asynchronous and
Synchronous)
HP StorageWorks IP Distance Gateway
Includes One unit to mount in existing shelf and documentation
For multi-path (dual unit high availability) order both part numbers. This second
hardware unit installs into the shelf that ship with AG680A.
NOTE: For more information on the IP Distance Gateway:
http://h18006.www1.hp.com/storage/disk_storage/index.html
AG681A
8Gb Switches and
Directors
Brocade 8/12c SAN Switch for HP BladeSystem c-Class
Brocade 8/24c SAN Switch for HP BladeSystem c-Class
Brocade 8/24c SAN Switch PowerPack+ for HP BladeSystem c-Class
HP StorageWorks 8/8 Base (0) e-port SAN Switch
AJ820A
AJ821A
AJ822A
AM866A
HP Storage Works 8/8 (8) Full Fabric Ports Enabled SAN Switch
HP Storage Works 8/24 Base (16) Full Fabric Ports Enabled SAN Switch
HP StorageWorks 8/40 Power Pack+ (24) Full Fabric Ports Enabled SAN Switch
HP StorageWorks 8/40 Base (24) Full Fabric Ports Enabled SAN Switch
HP StorageWorks 8/80 Power Pack+ (48) Full Fabric Ports Enabled SAN Switch
HP StorageWorks 8/80 Base (48) Full Fabric Ports Enabled SAN Switch
HP StorageWorks DC SAN Backbone Director Power Pack+
HP StorageWorks DC04 SAN Director Power Pack+
HP StorageWorks DC04 SAN Director
HP StorageWorks 8Gb Simple SAN Connection Kit
HP StorageWorks 8/20q Fibre Channel Switch (16 ports enabled)
HP StorageWorks 8/20q Fibre Channel Switch (8 ports enabled)
HP MDS 9513 with Fabric2 Module
HP MDS 9509 W/Supervisor 2 Dir Switch
HP MDS 9506 W/Supervisor 2 Dir Switch
HP MDS 9222i Multiservice Fabric Switch
AM867A
AM868A
AM870A
AM869A
AM872A
AM871A
AK857A
AR479A
AR478A
AK241A
AK242A
AQ233A
AJ905A
AE389A
AE388A
AG851A
StorageWorks B-series FC switch options
StorageWorks B-series 8- Adaptive Networking, Fabric Watch, ISL Trunking, Advanced Performance Monitoring
24 Port SAN Switch Power
Pack+ Upgrade LTU
Optional switch software ISL Trunking
Extended Fabric
Fabric Watch
Advanced Performance Monitoring
HP B-series 8-24 Pt Adaptive Networking LTU
HP B-Series Power Pack+ Upgrade
Fabric Manager, v5.x Base Edition (10 domains)
Fabric Manager, v5.x Enterprise Edition
Fabric Manager, v4 to v5 Enterprise License Upgrade
Fabric Manager, v4 to v5 Base License Upgrade
DA - 13206
Worldwide — Version 3 — April 24, 2009
T5524A
324506-B21
324505-B21
324504-B21
324507-B21
T5524A
T5521A
T4270A
T4269A
T4272A
T4271A
Page 32
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
Fabric Manager, v5 base to v5 enterprise upgrade license
NOTE: For more information on these software component options, see:
http://h18006.www1.hp.com/storage/networking/b_switches/index.html and look for
HP StorageWorks B-Series 8/8 SAN Switch information.
T4273A
Step 3 - Choose a Rack - Base and Factory Integration Information
Factory Integration
Start your order by choosing a rack to house your EVA6400/8400 based on the HP
10000 G2 Series Rack.
NOTE: The 10000 G2 Series Rack is the only series supported for factory
configuration.
Primary Configuration
Rules
Use of the EVA Factory Integration part number is required for component integration.
The EVA6400/8400may be configured into a 42U HP 10000 G2 Series Rack with
the appropriate PDU for the highest density in a Factory Integrated solution. If other
products such as servers or back-up products are included in the cab a different PDU
will be specified (if required) or can be chosen from a list of appropriate offerings
shown in the configuration tool.
The minimum EVA6400/8400 factory configured rack space required is:
EVA
Controller
Assembly
PDUs
EVA6400
EVA8400
4U
4U
1U
1U
Minimum
number of
M6412
2
3
M6412 U
space
Total U
Space
4U
6U
9U
11U
NOTE: the 1U of space required by the PDU may be reclaimed by using the EVA Pivot
Hinge.
HP 10000 G2 Series Rack must be purchased. Additional EVA6400/8400, arrays
and drive enclosures may be ordered for multiple subsystem integration at the factory.
Additional racks are required to house configurations beyond the U-space of the
initial cabinet. Ballast and stabilizers will be offered through the configurator tools for
use when required.
The EVA6400 and EVA8400 array controllers are also available for field installation.
HP Global Services or a trained EVA service provider can perform the on-site
installation.
The 5642 (42U) Rack Cabinet System is supported for field installation. This rack may
be purchased along with EVA component pieces for assembly in the field. The HP
5642 rack system is an entry level rack with sufficient features for easy access and
ease of use.
When calculating available U-space, assume that no space will be placed between
the mounted components. For redundancy, order PDUs in quantities of two. Refer to
the Configuration and User Guide in the Information Library at the Rack Solutions
webpage.
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 33
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
HP 10000 Series G2
Racks
NOTE: The number of subsystems varies and is determined by the interior U-space of
the cab.
HP Rack 10642 G2 Shock (42U)
HP Rack 10642 G2 w/Extn Shock (42U)
HP Rack 10636 G2 Shock (36U)
HP Rack 10636 G2 w/Extn Shock (36U)
HP Rack 10622 G2 Shock (22U)
HP Rack 10636 G2 Modular Cooling System (MCS) Shock (42U)
HP Rack 10842 G2 800mm Wide Shock (42U)
For PDUs and cabinet accessories see:
http://h18004.www1.hp.com/products/servers/proliantstorage/racks/
10000g2series.html
For more information on the HP rack offerings, please see the following URL:
http://h18004.www1.hp.com/products/servers/proliantstorage/racks/index.html
HP Rack 5642 System for 5642 (42U) Rack Cabinet System
Field Installation only
For additional cabinet accessories see:
http://h18004.www1.hp.com/products/quickspecs/12074_div/12074_div.html
Field Installation
Please refer to the Expansion options (Step 8) - listed in the Configuration Information
and Configuration Rules - for details on components available for field installation.
These components are useful for adding EVA4400/6400/8400 components to
existing storage configurations or into on-site customer-supplied racks.
Non-HP rack and power
requirements
For detailed information on determining compatibility of a non-HP rack, please review
the information included in the EVA User Guide which can be found at
http://www.hp.com/go/eva.
NOTE: Also refer to Step 8 for ordering instructions and components that
accommodate on-site installation of EVA4100/6100/8100 subsystems into customersupplied racks.
HP ProLiant Storage
Servers and supported
Fibre Channel HBAs
Select HP ProLiant Storage Servers (plus a Fibre Channel HBA) add file and print
services to an EVA or Fibre Channel SAN. ProLiant DL380 G5 x64 SAN Storage
Server and DL585 G2 Storage Server gateways each feature Microsoft's Windows
Unified Data Storage Server 2003 operating system that also includes Microsoft iSCSI
Software Target and a cluster license standard (Microsoft iSCSI Software Target is
optional for other DL380 G5 Storage Server models). In addition, any ProLiant DL380
G5 Storage Server or DL585 G2 Storage Server is a perfect platform from which to
run Command View EVA. You stretch your investment even further when you host EVA
management, file and print services, and iSCSI connectivity all from the same ProLiant
Storage Server gateway solution.
HP ProLiant DL380 G5 Base Storage Server
NOTE: Microsoft Windows Storage Server 2003 R2 Standard x64 Edition O/S
HP ProLiant DL380 G5 1.16TB SAS Storage Server
NOTE: Microsoft Windows Storage Server 2003 R2 Standard x64 Edition O/S
DA - 13206
Worldwide — Version 3 — April 24, 2009
AF002A
AF004A
AF012A
AF014A
AF021A
AF098A
AF042A
358254-B21
AG815A
AG816A
Page 34
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
HP ProLiant DL380 G5 x64 SAN Storage Server
NOTE: Microsoft Windows Unified Data Storage Server 2003 Enterprise x64 Edition
O/S
HP ProLiant DL585 G2 Storage Server
NOTE: Microsoft Windows Unified Data Storage Server 2003 Enterprise x64 Edition
O/S
HP StorageWorks 81E 8Gb PCI-e FC HBA
HP StorgeWorks 82E 8Gb Dual-port PCI-e FC HBA
HP StorageWorks 82Q 8Gb Dual Port PCI-e FC HBA
HP StorageWorks 81Q PCI-e FC HBA
HP StorageWorks FC2142SR 4Gb PCIe HBA
AG771A
HP StorageWorks FC2242SR Dual Channel 4 Gb PCIe HBA
HP StorageWorks FC1142SR 4Gb PCIe HBA
HP StorageWorks FC1242SR Dual Channel 4 Gb PCIe HBA
HP StorageWorks FC2143 4Gb PCI-X 2.0 HBA
HP StorageWorks FC2243 Dual Channel 4Gb PCI-X 2.0 HBA
HP StorageWorks FC1143 4Gb PCI-X 2.0 HBA
HP StorageWorks FC1243 Dual Channel 4Gb PCI-X 2.0 HBA
A8003A
AE311A
AE312A
AD167A
AD168A
AB429A
AE369A
AG630A
AJ762A
AJ763A
AJ764A
AK344A
A8002A
Step 4 - Firmware
Controller Firmware
HP StorageWorks EVA6400/8400 is factory installed with XCS v9.5. Separate Media
kits and licenses are required to support HP Command View EVA, HP Continuous
Access EVA and HP Business Copy EVA.
HP StorageWorks EVA4400/6400/8400 XCS v9.5 controller media download is
available from HP.com. These downloads are available as archival media from the
following link:
http://h18006.www1.hp.com/products/storageworks/eva/index.html
HP Command View EVA V9.0 is mandatory to support the EVA6400/8400 and XCS
V9.5. An HP Command View License-to-Use (LTU) must be purchased for each EVA
controller pair. Each HP EVA must be licensed with the appropriate HP Command
View LTU(s) to be in compliance with the End User License Agreement (EULA) and the
Command View license monitoring function.
The Command View licensed capacity per EVA must be equal to, or greater than the
total raw capacity of each EVA. HP Command View EVA may be purchased in
increments of a 1TB LTU (one or multiple 1TB LTUs based upon the EVA's raw
capacity), or an HP Command View Unlimited Capacity LTU may be purchased which
will support up to the maximum raw storage capacity of the EVA.
OPTIONAL SOFTWARE:
SOFTWARE EVA6400/8400 optional software can be found at the
following URL: http://h18006.www1.hp.com/storage/software.html
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 35
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
Step 5 - Hard Disk Drives
Drives are orderable at the time the array is purchased, or can be added in the future when additional capacity is required. Use
these SKUs whenever ordering hard disk drives for the EVA4400/6400/8400, either for factory integration or when adding
additional capacity. Note that these SKU's apply ONLY to the EVA4400/6400/8400 and can't be used with other EVA models.
HP StorageWorks FC
NOTE: A minimum of eight (8) high performance FC or FATA or 6 solid state disks
and FATA Drives
drives are required per EVA6400/8400.
HP StorageWorks 72GB 4Gb Dual Port FC EVA M6412 SSD
AR055B
HP StorageWorks 300GB 10K 4Gb Dual Port FC EVA M6412 Hard Disk Drive
AP766B
HP StorageWorks 400GB 10K 4Gb Dual Port FC EVA M6412 Hard Disk Drive
AJ711B
HP StorageWorks 450GB 10K 4Gb Dual Port FC EVA M6412 Hard Disk Drive
AP731B
HP StorageWorks 600GB 10K 4Gb Dual Port FC EVA M6412 Hard Disk Drive
AP732B
HP StorageWorks 146GB 15K 4Gb Dual Port FC EVA M6412 Hard Disk Drive
AG556B
HP StorageWorks 300GB 15K 4Gb Dual Port FC EVA M6412 Hard Disk Drive
AG690B
HP StorageWorks 450 GB 15K 4Gb Dual Port FC EVA M6412 Hard Disk Drive
AG803B
HP StorageWorks 1TB FATA Dual Port EVA M6412 Enc Hard Disk Drive
AG691B
NOTE: 0D1 will appear after this part number to indicate factory integration where
appropriate
Step 6 - Cables and SFPs
HP StorageWorks EVA
Loopback Connector
HP StorageWorks EVA Loopback Connector
Contains one Loopback connector. The loopback connector is used when an EVA host
port is not cabled to a switch or HBA (for direct connect).
NOTE: All EVA host ports must be filled with either a cable or loopback connector.
FC cable - Copper SFP
The following cables are used with the M6412 drive enclosure but are not necessary
for new installations. These cables are for use inside the cab between the controllers
and drive enclosures if replacement cables are required
Cable FC Copper SFP .6m
Cable FC Copper SFP 2m
321624-B21
324394-B21
NOTE: Before selecting the FC cables to connect between the controllers and the
switches, check to see what kind of connectors are on the switches that will be
connected to the controllers. The SFP connector can support 8Gb I/Os, 4Gb I/Os,
2Gb I/Os and/or 1Gb I/Os.
NOTE: One of these cables (either LC to SC or LC to LC) is required per FC port of
each HSV controller.
FC Short Wave 2-Meter Cable, LC/SC (1Gb to 2Gb)
FC Short Wave 5-Meter Cable, LC/SC (1Gb to 2Gb)
FC Short Wave 15-Meter Cable, LC/SC (1Gb to 2Gb)
FC Short Wave 30-Meter Cable, LC/SC (1Gb to 2Gb)
FC Short Wave 50-Meter Cable, LC/SC (1Gb to 2Gb)
221691-B21
221691-B22
221691-B23
221691-B26
221691-B27
FC cable - 1 Gb to 2
Gb/s (optional)
(LC to SC)
FC cable - 2Gb/s to
2Gb/s (optional)(LC to
LC)
AJ706A
NOTE: SFP - Small Form-Factor Profile on the ports of the EVA4x00/6x00/8x00. One
of these cables (LC to LC) is required per FC port of each HSV controller.
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 36
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
LC)
2-meter LC-LC Multi-Mode Fibre Cable
5-meter LC-LC Multi-Mode Fibre Cable
15-meter LC-LC Multi-Mode Fibre Cable
30-meter LC-LC Multi-Mode Fibre Cable
50-meter LC-LC Multi-Mode Fibre Cable
FC cable - 8Gb/s to
8Gb/s (optional)(LC to
LC)
NOTE: SFP - Small Form-Factor Profile on the ports of the EVA4x00/6x00/8x00. One
of these cables (LC to LC) is required per FC port of each HSV controller.
15-meter Multi-mode OM3 LC/LC FC Cable
30-meter Multi-mode OM3 LC/LC FC Cable
Disk drive Bulk
Pack shipping
Bulk Pack Shipping Option
Customers ordering disk drives that are not factory configured have the option of
getting the drives shipped in a bulk pack package in quantities of 10 drives per
package.
NOTE: All drives ordered with a disk drive bulk pack option must be the same type per
bulk pack. One bulk pack must be ordered for each 10 drives. The drive part numbers
must be entered directly after the bulk pack part number.
NOTE: Quantities of disk drives ordered that are are not multiples of 10 will be
shipped in individual drive shipping packages.
NOTE: 0D1 will appear after the disk drive part number to indicate that the drives are
linked to the bulk pack.
NOTE: Bulk pack option available in Americas Region.
221692-B21
221692-B22
221692-B23
221692-B26
221692-B27
AJ837A
AJ838A
519137-B21
Step 7 - Management and High Availability Software
EVA Storage Management NOTE: Command View v9.0 runs on either a management server or application host running Microsoft
/
Windows or the HP OpenView Storage Management Appliance. One management server or application
User Interface
host is required per SAN fabric containing an Enterprise Virtual Array.
An HP Command View License-to-Use (LTU) must be purchased for each EVA controller pair. Each HP
EVA must be licensed with the appropriate HP Command View LTU(s) to be in compliance with the End
User License Agreement (EULA). The licensed capacity per EVA must be equal to, or greater than the
total raw capacity of each EVA. HP Command View EVA may be purchased in increments of a 1TB LTU
(one or multiple 1TB LTUs based upon the raw capacity), or an HP Command View Unlimited Capacity
LTU may be purchased which will support up to the maximum raw storage capacity of the EVA.
See the HP StorageWorks Command View EVA QuickSpecs for detailed licensing, support and
configuration information:
http://h18006.www1.hp.com/products/storage/software/cmdvieweva/index.html
High Availability Software Industry popular multiple path software is supported on the EVA6400/8400. This software is used to
manage multiple paths between hosts and storage systems. It enables high availability through path
management and I/O load balancing. Multiple Path support is available for the following Operating
Systems:
HP-UX - HP-UX 11.31 has OS native multi-path, pvlinks native in HP-UX and Veritas DMP; HP
Secure Path 3.0F
Windows - Full featured MPIO, v3.00.00 available from HP and Microsoft DSM from Microsoft
Linux - QLogic Failover driver, available from QLogic /HP, Emulex MultiPulse available from
Emulex/HP and Device Mapper v4.0 Enablement Kit from HP
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 37
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
OpenVMS - native in OS
AIX - MPIO native in OS
Solaris - MPxIO native in OS, Veritas DMP available from Veritas
NetWare - MPIO native in OS
VMware - MPIO native in OS
Apple Mac - OS X - Included with ATTO HBA driver
Xen -Native Device Mapper MPIO
Refer to: http://h18006.www1.hp.com/products/storage/software/multipathoptions/index.html
Step 8 - Expansion Options
The EVA6400/8400 Controller Array can be added on-site into existing EVA configurations (or qualified rack systems), Additional
M6412 drive enclosures (AG638B) can be ordered to expand an EVA4400/6400/8400 configuration:
1. Ordered for on-site capacity additions to existing EVA4400/6400/8400 configurations.
2. Ordered for field installation of complete EVA4400/6400/8400 configurations HP cabinets and racks described in Step 3 or
into qualified 3rd party rack systems by HP Global Services.
3. Installed by HP manufacturing into EVA configurations by ordering the enclosure with the factory integration part number.
Up to eighteen drive enclosures are supported with each pair of HSV400 and up to 27 drive enclosures are supported with each pair
of HSV450 controllers. The M6412 is a 2U dual-redundant FC Loop 12-bay switched disk enclosure with mounting hardware, and
includes the necessary copper FC cables for connecting to an HSV400/450 Controller pair.
Order additional hard disk drives using the SKU's listed in Step 5.
Enterprise Virtual Array
The EVA customers have the option to mount supported devices in the rack used for
Racking for Expansion
EVA8400 expansion.
EVA 42U HP 10000 G2 Series Rack
Power requirements vary based on the equipment to be placed in the rack and the
country power supply. Options are:
HP PDU Pivot Kit
May be used when expanding an existing EVA6400/8400 to reclaim 2U of space in a
10000 G2 Series Rack.
Modular PDU 24A Low Volt, NA/JPN
Modular PDU 24A HV, NA/JPN
Modular PDU 32A HV, INTL
NOTE: #0D2 feature code designates the PDUs are mounted horizontally in the
bottom of the rack on real rail, above any UPS, and occupies 2U EIA space.
Low voltage PDU 252663-D71 requires additional power distribution module
AF500A. (1) AF500A supports 2 PDUs. Each PDU requires a quantity of 2 AF500As.
DA - 13206
Worldwide — Version 3 — April 24, 2009
AF002A
AG730A
252663-D71
#0D2
252663-D72
#0D2
252663-B31
#0D2
AF500A
Page 38
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
Enterprise Virtual Array Expansion Cabinet Example Configurations for EVA8400
Expansion Cabinet
EVA6400 0C9D
EVA8400 0C9D
Components
AF002A
1
1
252663-XXX
2 (minimum HV)
4 (minimum LV)
2 (minimum HV)
4 (minimum LV)
AP712A*
2
3
AG638B
9
* Use 1 AP712A per each of the first 3 shelves in an expansion rack.
9
Description
EVA 42U HP 10000 G2 Series
Rack
Country/component
requirement specific
HP EVA8400 Expansion Rack
Accessory Kit
M6412-A FC Drive Enclosure
NOTE: Supports a minimum of 1 up to 9 enclosures in each expansion rack
EVA4400 Upgrade
HP EVA6400 Controller Array
HP EVA8400 Controller Array
EVA6400
Yes
N/A
EVA8400
N/A
Yes
SKUs Required
AJ757A
AJ758A or
AJ847A
Download3
See URL1
See URL1
See URL2
See URL2
See URL2
See URL2
See URL2
HP StorageWorks EVA4400/6400/8400 XCS v9.5
Yes
Yes
Command View EVA
Yes
Yes
Command View Licenses
Yes
Yes
Business Copy EVA
Yes
Yes
Business Copy Upgrade license
Yes
Yes
Continuous Access EVA
Yes
Yes
Continuous Access EVA Upgrade license
Yes
Yes
HP Services assessment and upgrade installation
Yes
Yes
NOTES:
1Proper Command View licensing requires a License To Use (LTUs) equal to or greater than the total raw capacity of each array and
may be purchased in additive increments of 1TB or Unlimited LTUs). Correct model and capacity licensing is required.
2 Correct model and capacity licensing is required.
http://h18006.www1.hp.com/storage/software.html
http://www.hp.com/hps/storage/
http://h18006.www1.hp.com/products/storageworks/eva/
3XCS comes factory installed on the EVA. Archival or upgrade copies of the firmware may be downloaded at this site.
http://h18006.www1.hp.com/products/storageworks/eva/index.html
NOTE: When upgrading from an EVA4400 with embedded switch a separate switch must be utilized.
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 39
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
EVA6400 Upgrade
HP EVA8400 Controller Array
EVA8400
Yes
SKUs Required
AJ758A or
AJ847A
Download3
See URL1
See URL1
See URL2
See URL2
See URL2
See URL2
See URL2
HP StorageWorks EVA4400/6400/8400 XCS v9.5
Yes
Command View EVA
Yes
Command View Licenses
Yes
Business Copy EVA
Yes
Business Copy Upgrade license
Yes
Continuous Access EVA
Yes
Continuous Access EVA Upgrade license
Yes
HP Services assessment and upgrade installation
Yes
NOTES:
1Proper Command View licensing requires a License To Use (LTUs) equal to, or greater than the total raw capacity of each array and
may be purchased in additive increments of 1TB or Unlimited LTUs). Correct model and capacity licensing is required.
2 Correct model and capacity licensing is required.
http://h18006.www1.hp.com/storage/software.html
http://www.hp.com/hps/storage/
http://h18006.www1.hp.com/products/storageworks/eva/
3XCS comes factory installed on the EVA. Archival or upgrade copies of the firmware may be downloaded at this site.
Step 9 - Optional Components and Software
Remote Replication
Software
HP StorageWorks Continuous Access EVA is a controller-based application that performs real-time
replication between HP StorageWorks enterprise virtual arrays. The solution is enhanced to perform
remote replication, and deliver high data availability and performance to users on Fibre Channel based
campus, metro or continental metro or continental Storage Area Networks (SANs).
For more information, see Continuous Access description earlier in this document. Please see the product
URL for ordering information and part numbers:
http://h18006.www1.hp.com/storage/software.html
Local Replication
Software
HP StorageWorks Business Copy EVA is a local replication software product for the EVA family providing
Snapshot and clone set-up and management. Business Copy EVA is sold by utilized capacity. For more
information, see the Business Copy description earlier in this document. See the product URL for ordering
information and part numbers: http://h18000.www1.hp.com/storage/software.html
Capacity Management
Software
HP StorageWorks EVA Dynamic Capacity Management Software is a comprehensive software solution
that automates storage provisioning and improves capacity utilization on the HP StorageWorks Enterprise
Virtual Array (EVA) family. For more information, see the DCM description earlier in this document. See
the product URL for ordering information and part numbers:
http://h18000.www1.hp.com/products/quickspecs/12815_div/12815_div.html
Storage Resource
Management Software
(HP Standard Edition SRM
Software)
HP Storage Essentials Standard Edition Storage Resource Management Software allows midsize
businesses with limited IT staff to see the big picture thereby reducing SAN complexity. For more
information, see the Storage Essentials product description earlier in this document.
Standard Edition SRM Media and License to Use (LTU)
HP Storage Essentials Standard Edition SRM Media Kit
T5314AA
HP Storage Essentials Standard Edition SRM LTU
T5315AA
Add on Storage Essentials Suite plug-in licensing available to Standard Edition
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 40
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Configuration Information and Configuration Rules
HP Storage Essentials NAS Manager 1 TB LTU
HP Storage Essentials File System Viewer 1 TB LTU
HP Storage Essentials Database Viewer 1 MAL LTU
HP Storage Essentials Exchange Viewer 1 MAL LTU
HP Storage Essentials Backup Manager 1 TB LTU
VMware Site Recovery
Manager
T4294AA
T4292AA
T4289AA
T4288AA
T4295AA
VMware Site Recovery Manager (SRM) is designed to automate the recovery process and the remote
replication of HP StorageWorks Continuous Access EVA with StorageWorks Enterprise Virtual Arrays. The
solution provides central management through VMware Virtual Center and enables more frequent testing.
This solution also leverages your existing recovery site hardware to reduce operational cost of training. It
is a solution that is fully integrated with HP servers, HP Storage and HP Services, providing mid-market
customers with a total business continuity solution. For more information:
www.hp.com/go/storage/vmware
NOTES:
1. Refer to the HP Standard Edition SRM Software QuickSpec for product and licensing details:
http://h18006.www1.hp.com/products/storage/software/e-suite/index.html
2. Standard Edition SRM LTU contains bundled licensing comprising of Edition 150 MAPs, 3TBs of File System Viewer, NAS
Manager, and I MAL for either the Exchange Viewer or the Database Viewer. This is a customer choice.
Optional Hardware Accessories
Non-HP Rack installation For racks other than those specifically stated within the EVA4100/6100/8100 product set, please visit
the EVA web page for details on rack and power specifications: http://www.hp.com/go/eva
SAN Infrastructure Components
The HP StorageWorks SAN integrates best-in-class storage networking components to deliver a complete connectivity platform for
end-to-end network storage solutions. HP's fabric portfolio includes: HBA's, directors, switches, SAN extenders, NAS heads, iSCSI
routers, and fabric software. HP SAN Infrastructure components deliver the network storage infrastructure for the Adaptive Enterprise.
For details on SAN infrastructure components and storage compatibility information, please visit: http://hp.com/go/san.
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 41
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Technical Specifications
EVA6400 and EVA8400
Operating Temperature 50° to 95° F (10° to 35° C) - Reduce rating by 1° F for each 1000 ft altitude (1.8° C/1,000 m)
-40° to 150° F (-40° to 66° C)
Shipping Temperature
10% to 90% non-condensing
Humidity
5% to 90% non-condensing
Shipping Humidity
Up to 8,000 ft (2,400 m)
Altitude
Not to exceed 500,000 particles per cubic foot of air at a size of 0.5 micron or larger
Air Quality
Power Data (North America/Europe/Japan) maximum configuration
North America-3 wire NEMA No. L6-30P, 30 Amp (208 to 240V, 50-60Hz 30A)
AC plug type
(quantity 2)
Europe - 3 wire, 2 pole IEC 309, 30 amp, (220 to 240V 50Hz 32A)
Number of phases
Rated current
Nominal Line Voltage
Range Line Voltage
Line Frequency
Single
17A @ 200V-240V AC, 60Hz total, 4.25 A per power cord
North America - 208 or 230V
Europe - 230V
Japan - 206V
187 to 256V
North America 60Hz, Europe 50Hz, Japan 50 or 60 Hz
Enterprise Virtual Array 6400
NOTE: This data represents fully populated drive shelves with 15K rpm
disk drives. Other drive types may vary slightly.
EVA 6400
2C2D
2C8D
2C14D
2C12D
Typical
Total System Watts
746
2284
3821
3309
Total System BTU/hour
2544
7789
13032
11284
Input Current (A) per plug 208V
1.9
5.8
9.7
8.4
Input Current (A) per plug 230V
1.7
5.2
8.7
7.6
Input Current (A) per plug 115V
1.7
5.1
8.5
7.4
Input Current (A) per plug 100V
2.0
5.9
9.9
8.6
Inrush Current per plug 208V
116
153
190
178
Failover
Total System Watts
677
2077
3596
3022
Input Current (A) at 208V
3.3
10.5
17.7
15.3
Input Current (A) at 230V
3.0
9.5
15.9
13.8
Input Current (A) at 115V
3.0
9.3
15.6
13.5
Input Current (A) at 100V
3.5
10.8
18.2
15.7
This data represents fully populated drive shelves with 15K rpm disk drives. Other drive types may vary slightly.
For more detailed information on a specific configuration and drives please utilize the EVA Power Calculator at:
http://www.hp.com/servers/powercalculator
NOTE: Typical is described as a system in normal steady state operation. (I.E., both PDUs operating normally, the array
reading/writing to disk drives in a production environment)
2C18D
4847
16527
12.3
11.1
10.8
12.6
216
4441
22.5
20.3
19.8
23.1
Enterprise Virtual Array 8400
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 42
QuickSpecs
HP StorageWorks 6400/8400 Enterprise Virtual Arrays
Technical Specifications
NOTE: This data represents fully populated drive shelves with 15K
rpm disk drives. Other drive types may vary slightly.
Typical
Total System Watts
Total System BTU/hour
Input Current (A) per plug 208V
Input Current (A) per plug 230V
Input Current (A) per plug 115V
Input Current (A) per plug 100V
Inrush Current per plug 208V
Failover
Total System Watts
Input Current (A) at 208V
2C3D
2C9D 2C18D 2C21D*
2C21D 2C27D*
2C27D 3D**
3D
9D**
9D
1010
3444
2.6
2.3
2.2
2.6
122.0
906.5
4.6
2546 4855 5623 7160.7 768
2306
8682 16554 19175 24418 2621 7864
12.3
N/A
N/A
1.9
5.8
6.4
11.1
N/A
N/A
1.8
5.3
5.8
10.8
N/A
N/A
1.7
4.4
5.7
12.6
N/A
N/A
2.0
5.1
6.6
215
NA
N/A
110.0
153
160.0
2127
2323 4453 5162 6580.5 709
22.5
N/A
N/A
3.6
10.8
11.8
Input Current (A) at 230V
4.2
N/A
N/A
3.2
9.7
10.6
20.4
Input Current (A) at 115V
4.0
N/A
N/A
3.2
7.8
10.4
19.8
Input Current (A) at 100V
4.7
N/A
N/A
3.7
9.1
12.1
23.1
* Any system over 2C18D requires 2 cabinets; total power is given for both cabinets.
** For line cord current and inrush data for the 2C21D or 2C27D systems use the 2C18D information for the 1st cabinet and the 3D
or 9D information for the second cabinet.
Enterprise Virtual Array EVA6400/8400 Product Dimensions, Weight and Clearance
Physical Dimensions
EVA6400/8400
Controller Array
M6412-A Drive Enclosure
FC or FATA drives for
M6412-A
SSD for M6412-A
HP Rack 10642 G2
Shock (42U)
120/54.55
Req. Front
Clearance
in/cm
N/A
Req. Rear
Clearance
in/cm
N/A
23.75/60.33
N/A
57/25.86
1.9/.86
N/A
N/A
N/A
N/A
N/A
39.691/101.5
1.1/.5
253/114.84
N/A
30/76.2
N/A
30/76.2
Height
in/cm
Width
in/cm
Depth
in/cm
Max Weight
lb/kg
7.0/17.78
17.6/44.70
27.5/69.85
3.5/8.89
N/A
17.6/44.70
N/A
N/A
78.7/200
N/A
24/59.7
© Copyright 2009 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
For hard drives, 1 GB = 1 billion bytes. Actual formatted capacity is less.
DA - 13206
Worldwide — Version 3 — April 24, 2009
Page 43
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
