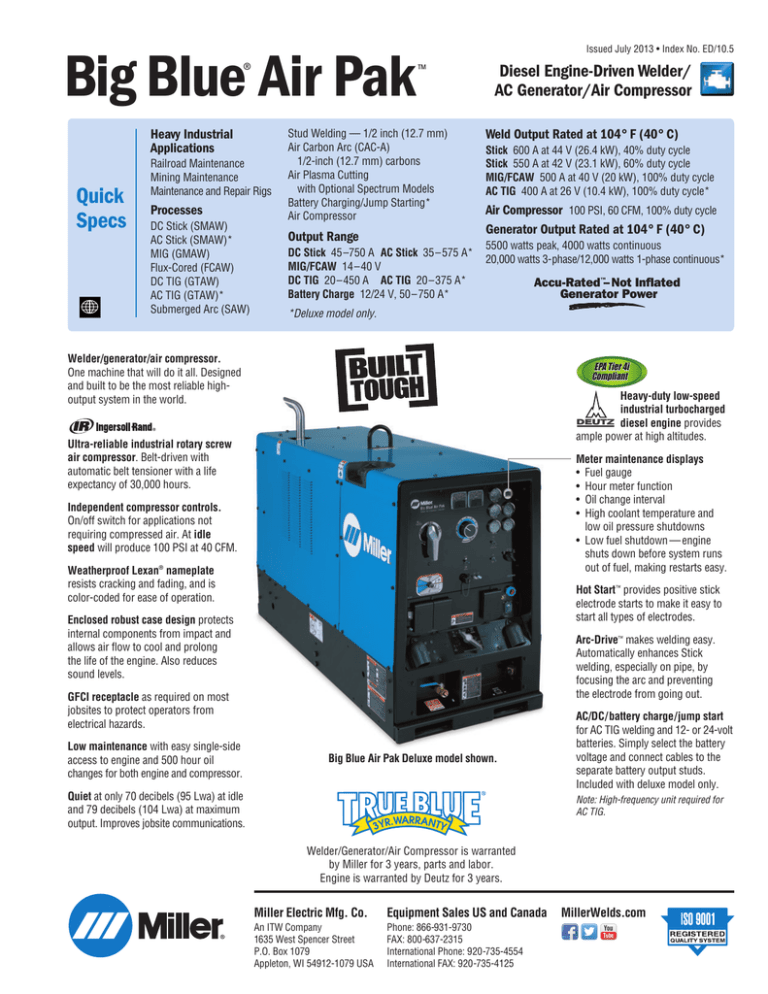

Big Blue® Air Pak

Big Blue® Air Pak
Issued July 2013 • Index No. ED/10.5
Big Blue Air Pak
®
Heavy Industrial
Applications
Quick
Specs
Railroad Maintenance
Mining Maintenance
Maintenance and Repair Rigs
Processes
DC Stick (SMAW)
AC Stick (SMAW)*
MIG (GMAW)
Flux-Cored (FCAW)
DC TIG (GTAW)
AC TIG (GTAW)*
Submerged Arc (SAW)
™
Stud Welding — 1/2 inch (12.7 mm)
Air Carbon Arc (CAC-A)
1/2-inch (12.7 mm) carbons
Air Plasma Cutting
with Optional Spectrum Models
Battery Charging/Jump Starting*
Air Compressor
Output Range
DC Stick 45–750 A AC Stick 35–575 A*
MIG/FCAW 14–40 V
DC TIG 20–450 A AC TIG 20–375 A*
Battery Charge 12/24 V, 50–750 A*
Diesel Engine-Driven Welder/
AC Generator/Air Compressor
Weld Output Rated at 104° F (40° C)
Stick 600 A at 44 V (26.4 kW), 40% duty cycle
Stick 550 A at 42 V (23.1 kW), 60% duty cycle
MIG/FCAW 500 A at 40 V (20 kW), 100% duty cycle
AC TIG 400 A at 26 V (10.4 kW), 100% duty cycle*
Air Compressor 100 PSI, 60 CFM, 100% duty cycle
Generator Output Rated at 104° F (40° C)
5500 watts peak, 4000 watts continuous
20,000 watts 3-phase/12,000 watts 1-phase continuous*
Accu-Rated™– Not Inflated
Generator Power
*Deluxe model only.
Welder/generator/air compressor.
One machine that will do it all. Designed
and built to be the most reliable highoutput system in the world.
EPA Tier 4i
Compliant
Heavy-duty low-speed
industrial turbocharged
diesel engine provides
ample power at high altitudes.
Ultra-reliable industrial rotary screw
air compressor. Belt-driven with
automatic belt tensioner with a life
expectancy of 30,000 hours.
Meter maintenance displays
• Fuel gauge
• Hour meter function
• Oil change interval
• High coolant temperature and
low oil pressure shutdowns
• Low fuel shutdown — engine
shuts down before system runs
out of fuel, making restarts easy.
Independent compressor controls.
On/off switch for applications not
requiring compressed air. At idle
speed will produce 100 PSI at 40 CFM.
Weatherproof Lexan® nameplate
resists cracking and fading, and is
color-coded for ease of operation.
Hot Start ™ provides positive stick
electrode starts to make it easy to
start all types of electrodes.
Enclosed robust case design protects
internal components from impact and
allows air flow to cool and prolong
the life of the engine. Also reduces
sound levels.
Arc-Drive™ makes welding easy.
Automatically enhances Stick
welding, especially on pipe, by
focusing the arc and preventing
the electrode from going out.
GFCI receptacle as required on most
jobsites to protect operators from
electrical hazards.
Low maintenance with easy single-side
access to engine and 500 hour oil
changes for both engine and compressor.
Big Blue Air Pak Deluxe model shown.
Quiet at only 70 decibels (95 Lwa) at idle
and 79 decibels (104 Lwa) at maximum
output. Improves jobsite communications.
AC/DC/battery charge/jump start
for AC TIG welding and 12- or 24-volt
batteries. Simply select the battery
voltage and connect cables to the
separate battery output studs.
Included with deluxe model only.
Note: High-frequency unit required for
AC TIG.
Welder/Generator/Air Compressor is warranted
by Miller for 3 years, parts and labor.
Engine is warranted by Deutz for 3 years.
Miller Electric Mfg. Co.
Equipment Sales US and Canada
An ITW Company
1635 West Spencer Street
P.O. Box 1079
Appleton, WI 54912-1079 USA
Phone: 866-931-9730
FAX: 800-637-2315
International Phone: 920-735-4554
International FAX: 920-735-4125
MillerWelds.com
Specifications (Subject to change without notice.)
Welding
Mode
Weld
Output
Range
Max. OpenCircuit
Voltage
CC/DC
20 – 750 A
600 A at 44 V (26.4 kW), 40% Duty Cycle
550 A at 42 V (23.1 kW), 60% Duty Cycle
500 A at 40 V (20 kW), 100% Duty Cycle
95
Peak: 5500 watts
Continuous: 4000 watts, 34/17 A,
120/240 VAC, 60 Hz while welding
CV/DC
14 – 40 V
500 A at 40 V (20 kW), 100% Duty Cycle
56
CC/AC*
20 – 575 A
400 A at 36 V (14.4 kW) 100% Duty Cycle
64
Battery*
Charge
Jump Start
12/24 V
750 A, 12 V, Jump Start
750 A, 24 V, Jump Start
14/28
Additional Generator Power for
Deluxe Models (while NOT welding)
3-phase: 20 kW, 48 A, 240 VAC or
1-phase: 12 kW, 50 A, 120/240 VAC
Weld Output Rated at 104˚ F (40˚ C)
NEMA Amperage and Voltage
Generator Output
Rated at 104˚ F (40˚ C)
Dimensions**
H: 43 in.
(1092 mm)
W: 28.5 in.
(724 mm)
D: 69.5 in.
(1765 mm)
Weight
(without fuel)***
Net: 1931 lb.
(876 kg)
Ship: 1982 lb.
(899 kg)
Deluxe Model
Net: 1956 lb.
(887 kg)
Ship: 2007 lb.
(910 kg)
*Deluxe model only. **Additional 7 in. (178 mm) to top of exhaust. ***Additional 165 lb. (75 kg) when fuel tank is full.
Certified by Canadian Standards Association to both the Canadian and U.S. Standards. Meets NEMA and IEC output ratings.
Engine Specifications (Engines warranted separately by the engine manufacturer.)
Automatic Engine
Shutdowns
Engine Brand
Features
HP
Type
Engine Speeds
Capacities
Deutz
TD2011L04o
EPA Tier 4i compliant, turbocharged,
direct-injected, liquid-cooled (oil) engine.
Right-side service access with service intervals
of 500 hours for oil and filters. MSHA approved
with purchase of certificate from Deutz dealer.
63.4
4-cylinder, industrial,
liquid-cooled diesel
Weld: 1850 RPM
Idle: 1250 RPM
Fuel: 25 gal. (95 L)
Oil: 11 qt. (10.4 L)
Coolant: Integrated oil
Low Oil Pressure,
High Coolant
Temperature,
Low Fuel Level
Air Compressor
Compressor
Brand
Ingersoll Rand
CE55 G1
Features
Rotary screw with electric clutch for on/off.
Oil change intervals of 500 hours (same as
engine). Life expectancy of 30,000 hours.
Free Air Delivery
at 1850 RPM
Free Air Delivery
at 1235 RPM (Idle)
Working
Pressure
Constant
60 CFM
(1.70 m3/min.)
40 CFM
(1.13 m3/min.)
100 PSIG
(7 bar)
Duty
Cycle
Oil
Capacity
Automatic
Compressor
Shutdowns
100%
5 qt. (4.7 L)
Oil Temperature
Control Panel
1
2
10
11
12
13
14
1.
2.
3.
4.
5.
3
15
4
5
16
6
17
7
18
19
6.
7.
8.
8
20
21
9.
10.
11.
AC/DC Voltmeter*
AC/DC Ammeter*
Amperage Range Switch
Amperage/Voltage Adjust Control
Amperage/Voltage Adjust Switch
and Remote Amperage/Voltage
Adjust 14-Pin Receptacle
Process/Contactor
Selector Switch
120 VAC, 20 A GFCI
Duplex Receptacle
240 VAC, 30 A TwistLock
Receptacle (NEMA L6-30)
Air Outlet Valve 3/4-inch NPT
Engine Oil Pressure Gauge
Fuel Gauge—displays engine
hours and oil change intervals
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
Engine Coolant Temperature Gauge
Battery Voltmeter
Air Compressor Pressure Gauge
Air Compressor On/Off Switch
Engine Control Switch
Starting Aid Switch*
20 kW, 3-Phase Generator*
Strain Relief*
50 A, 3-Phase Circuit Breaker*
50 A, 1-Phase 120/240 V
Receptacle (NEMA 14-50)*
22. AC/DC/Battery Charge/
Jump Start Switch*
23. International Model—240 VAC,
16 A Pin and Sleeve Receptacle
*On Select Models
International Model
22
7
9
2
23
Performance Data
FUEL CONSUMPTION CURVE
3.00
2.75
2.50
WELD AND AIR
US Gal./Hr.
2.25
2.00
1.75
1.50
WELD ONLY
1.25
1.00
0.75
0.50
0.00
IDLE WITH AIR
IDLE
0.25
0
50
100
150
200
250
300
350
400
450
500
550
600
Ingersoll Rand Rotary Screw Air Compressor
This industrial-grade compressor, has a life expectancy of 30,000
hours, is belt driven and utilizes an electric clutch control to allow
the compressor to be turned off if not needed. This design increases
efficiency, reduces fuel consumption and saves you money at the pump.
An automatic belt tensioner provides proper belt tension even after
years of service. The compressor is protected by a high-temperature
shutdown switch.
DC WELD AMPERES AT 100% DUTY CYCLE
GENERATOR POWER CURVE OPTION
280
12 kW
1-PHASE
AC VOLTS
260
240
20 kW
3-PHASE
220
200
180
0
10
20
30
40
50
60
70
50
60
70
AC AMPERES
Toolless Generator Brushes
100 percent copper-wound generator
features quick and easy brush and
slip ring inspection. Brushes can be
removed and/or replaced in a matter
of seconds.
AIR SUPPLY CURVE
140
120
100
PSI
80
IDLE
60
40
20
0
0
10
20
40
30
CFM
The Vault
Superior Circuit Board Design
Our critical circuit boards are engineered
to carry low power and low heat to reduce
thermal stress and minimize expansion and
contraction. In contrast, our competitor’s
boards carry high power and high heat,
making them more vulnerable to failure.
“The Vault” Makes Upgrading to Miller®
CC/CV Units Worry-Free
Concerns with circuit board reliability have
resulted in some operators steering clear of
CC/CV welder/generators — even though they
offer a superior arc and multiple welding
processes. Miller circuit board reliability isn’t
a concern since all Big Blue multiprocess
industrial engine drives feature the Vault.
Created out of two aluminum halves sealed
with silicone, as well as watertight harness
connections, the Vault provides a clean circuit
board environment, protecting the electronics
— and controlling output — in heavy industrial
applications. No other competitor protects their
electronics with a sealed vault, leaving critical
circuit boards exposed to harsh elements that
can disrupt the machine’s electronics, and
therefore, its operation.
3
Genuine Miller Accessories
®
FA-1D Lockable Flame Arrestor
Fuel Cap #043 947 Field
Fuel cap can be padlocked to
prevent vandalism. A built-in
flame arrestor prevents flames
or sparks from entering the
fuel tank.
Desiccant Air Dryer System #195 117
A regenerating inline air dryer system that
eliminates moisture in the air stream to
prevent air tool freeze-ups in cold climates.
Internal thermostat and heating elements
insure good air quality in all climates.
The system can be mounted on the side
of the machine or remotely for truck
mount installations.
Weld Ammeter and Voltmeter
#195 131 Field
Panel-mounted AC/DC analog meters to
monitor weld output.
U.S. Model Full KVA
Plug Kit #119 172 Field
1-phase, 120/240 VAC, 50 A
plug (NEMA 14-50P) to fit
full KVA receptacle.
International Plug
#255 416 Field
1-Phase, 240 VAC, 16 A plug
Cold Weather Starting Kit*
#195 086 Field
120 V oil pan heater element.
Engine Filter Kit #246 988 Field
Includes all filters required for proper
engine maintenance. Oil filter, primary and
secondary fuel filter, and primary air filter.
Compressor Filter Kit #246 991 Field
Includes all filters required for proper
compressor maintenance. Oil filter, air filter
and coalescing filter.
4
Vandalism
Lockout Kit
#195 118 Field
Lockable hinged
steel panels cover
and protect name
plate gauges and
ignition switch
(padlock included).
Also includes engine
compartment door
lock and key.
MIG (GMAW) or Flux-Cored (FCAW)
SuitCase® X-TREME™ 8VS Wire Feeder
#951 182
SuitCase® X-TREME™ 12VS Wire Feeder
#951 543
Lightweight, voltage-sensing wire feeders
include secondary contactor, gas valve
and drive roll kit. See Lit. Index No. M/6.41
and M/6.42.
Cable Holder
#043 946 Field
Saddle-bag-style
cable holder.
Convenient wraparound storage of
coiled cable for
transportation.
Stores 100 feet
of 2/0 cable on
each side.
Note: For best results do not weld when cable is coiled!
Protective cover cannot be used with cable holder.
Protective Cover
#195 159 Field
Blue water-resistant
canvas cover resists
stains and mildew,
and protects the
finish of your welder.
SuitCase® 8RC Wire Feeder #951 186
SuitCase® 12RC Wire Feeder #951 188
Lightweight and flexible enough to run a
variety of wires up to .062-inch diameter.
Includes remote voltage control and drive
roll kit. See Lit. Index No. M/6.5.
Note: Protective cover cannot be used with cable holder.
Stick (SMAW) Welding
Weld Leads
2/0 Stick Cable Set, 50 ft. (15 m)
#173 851
Consists of 50-foot (15 m) 2/0 electrode
cable with holder, and 50-foot (15 m) work
cable with clamp. 350 A, 100% duty cycle.
Spoolmatic® 30A Spool Gun #130 831
Air-cooled, 200-amp, 1-pound spool gun for
aluminum MIG. See Lit. Index No. M/1.73.
2/0 Stick Cable Set, 100/50 ft. (30.5/15 m)
#043 952
Consists of 100-foot (30.5 m) 2/0 electrode
cable with holder, and 50-foot (15 m) work
cable with clamp. 300 A, 100% duty cycle.
XR™ Wire Feeders and Guns
Push-pull system designed to handle
difficult-to-feed soft alloy wires such as
aluminum. See Lit. Index No. M/1.7,
M/1.71, and M/1.73.
WC-24 Control #137 549
Use with Spoolmatic 30A.
Genuine Miller Accessories (Continued)
®
TIG (GTAW) Welding
Dynasty® 200 Series
For premium
portable AC/DC TIG
arc quality. See Lit.
Index No. AD/4.8.
HF-251 Series
#042 388
HF-251D-1, 115 VAC
High-frequency arc
starter and stabilizer.
See Accessory Lit.
Index No. AY/5.0.
Remote Controls
Wireless Remote
Hand Control
#300 430
For remote current,
voltage and contactor
control. Receiver
plugs directly into
the 14-pin receptacle of Miller machine.
300-foot (91.4 m) operating range.
Requires Wireless Antenna Kit #300 749.
Wireless Antenna Kit #300 749
Required for Pro Series engine drives.
Optional on other compatible Miller products
where improved reception is desired.
Plasma Cutting
Spectrum 375 X-TREME and 625 X-TREME shown.
Spectrum® 375 X-TREME™ #907 529
See Lit. Index No. PC/9.2.
Spectrum® 625 X-TREME™ #907 531
See Lit. Index No. PC/9.6.
Spectrum® 875 #907 390-01-1
See Lit. Index No. PC/9.8.
The Spectrum 375 X-TREME and 625
X-TREME come complete with protective
X-CASE™ (not shown).
RHC-14 Hand Control #242 211 020
Miniature hand control for remote current
and contactor control. Dimensions: 4 x 4 x
3.25 inches (102 x 102 x 82 mm). Includes
20-foot (6 m) cord and 14-pin plug.
RMLS-14 #129 337
Momentary- and maintained-contact
rocker switch for contactor control. Push
forward for maintained contact and back
for momentary contact. Includes 26.5-foot
(8 m) cord and 14-pin plug.
RCC-14 Remote Contactor and Current
Control #151 086
Side-to-side rotary-motion fingertip control
fastens to TIG torch using two Velcro®
straps. Includes 26.5-foot (8 m) cord and
14-pin plug.
Extension Cables for 14-Pin
Remote Controls or 24 VAC Wire Feeders
#242 208 025 25 ft. (7.6 m)
#242 208 050 50 ft. (15.2 m)
#242 208 080 80 ft. (24.4 m)
RFCS-14 HD Foot Control #194 744
Heavy-duty foot control for current and
contactor control. Includes 20-foot (6 m)
cord and 14-pin plug.
5
Trailers and Hitches (Note: Trailers are shipped unassembled.)
Mounting Specifications
H
A
4 holes
Front Panel
B
C
D
4 West Four-Wheel Steerable
Off-Road Trailer #042 801
A heavy-duty 2570-pound (1166 kg)
capacity trailer designed for use in mines,
quarries, and other rough terrain. Has
narrow 22-foot (6.7 m) turning radius.
Includes 3-inch (76 mm) lunette eye,
universal hitch and safety chains.
HWY-224 Trailer
#043 805 For highway use.
OFR-224 Trailer
#043 802 For off-road use.
A 2650-pound (1202 kg) capacity trailer.
Welded steel tubing frame, heavy-duty axle
with roller bearing hubs and leaf-spring
suspension. Includes jack stand and 2-inch
(50 mm) ball hitch. HWY-224 also includes
fenders and lights.
Cable Tree #043 826
Provides an area to conveniently wrap weld
cables and extension cords.
E
F
G
A. 29.812 in. (757 mm)
B. 27.5 in. (699 mm)
C. 1 in. (25 mm)
D. 11.625 in. (295 mm)*
E. 46.375 in. (1178 mm)*
F. 58 in. (1473 mm)*
G. 69.5 in. (1765 mm)
H. .562 in. (14 mm) diameter
Height: 50 in. (1270 mm) (to top of exhaust)
Width: 28.5 in (724 mm)
(mounting brackets turned in)
30.75 in (781 mm)
(mounting brackets turned out)
Depth: 69.5 in (1765 mm)
*With mounting brackets in center position.
Dimensions vary with location of mounting brackets.
Dual Hitch #300 831
2-inch (50 mm) ball hitch and 3-inch
(76 mm) lunette eye in one reversible
assembly.
Trailer Specifications (Subject to change without notice.)
Gross Axle
Weight Rating
Gross Vehicle
Weight Rating
Net
Payload
Height
of Bed
Road
Clearance
Track (Center
to center of
tires)
Standard Tires
(Standard rating
or P-size rating)
4 West
2000 lb./axle
(907 kg/axle)
3000 lb.
(1361 kg)
2570 lb.
(1166 kg)
21.25 in.
(540 mm)
8 in.
(203 mm)
55.25 in.
(1403 mm)
HWY-224
OFR-224
3500 lb.
(1588 kg)
2960 lb.
(1343 kg)
2650 lb.
(1202 kg)
18.5 in.
(470 mm)
7.5 in.
(191 mm)
52 in.
(1321 mm)
Model
*Does not include tongue. **Width at outside of fenders.
6
Dimensions
Net
Weight
B78-13
Length: 91 in. (2311 mm)*
Width: 61.25 in. (1556 mm)
430 lb.
(195 kg)
B78-13
Length: 105 in. (2667 mm)
Width: HWY– 59.5 in. (1511 mm)**
OFR– 58.438 in. (1484 mm)
320 lb.
(145 kg)
Typical Installations
Stick Electrode
Stick (SMAW) Basic Equipment
Work
Flux-Cored (FCAW) Basic Equipment
SuitCase® X-TREME™ 8VS
SuitCase® X-TREME™ 12VS
Flux-Cored Gun
#951 182
#951 543
X-TREME 8VS/
X-TREME 12VS
Feeder
Work
MIG (GMAW) Basic Equipment
®
SuitCase 8RC
SuitCase® 12RC
14-Pin
MIG Gun
SuitCase
8RC/12RC
#951 186
#951 188
Work
Aluminum MIG with
Spoolmatic 30A Gun
Aluminum MIG (GMAW) Basic Equipment
Spoolmatic® 30A
WC-24
14-Pin
#130 831
#137 549
WC-24
Work
TIG (GTAW) Basic Equipment
Dynasty® 200 Series
HF-251D-1
#042 388*
*TIG power cable adapter required.
TIG
Torch
14-Pin
HF-251D-1
Work
Cutting Torch
Plasma Basic Equipment
™
Spectrum® 375 X-TREME #907 529
Spectrum® 625 X-TREME™ #907 531
Spectrum® 875
#907 390-01-1
Spectrum
Work
7
Ordering Information
Equipment and Factory Options
Stock No.
Description
Big Blue Air Pak CC/CV
#907 062
U.S. Base Model with Automatic Idle, Engine Gauges,
5.5 kW AC Generator, 12 V Intake Manifold Heater
International Model with 50/60 Hz, Dry Battery, Automatic Idle,
Engine Gauges, 5.5 kW AC Generator, 12 V Intake Manifold Heater
U.S. Cold Weather Model with Automatic Idle, Engine Gauges,
5.5 kW AC Generator, Weld Meters, Battery Lockout/Tagout Disconnect
Switch, 12 V Intake Manifold Heater, 120 V Oil Pan Heater
U.S. Deluxe Model with Automatic Idle, Engine Gauges, 5.5 kW AC
Generator, Weld Meters, Battery Lockout/Tagout Disconnect Switch,
12 V Intake Manifold Heater, 120 V Oil Pan Heater, Vandalism Lockout Kit,
AC/DC/Battery Charge/Jump Start Switch, 20 kW Generator,
®
™
#907 062-01-1
#907 062-04-1
#907 062-07-1
Field Accessories
Desiccant Air Dryer System
Weld Ammeter and Voltmeter Kit
U.S. Model Full KVA Plug Kit
International Plug
Cold Weather Starting Aid
Engine Filter Kit
Compressor Filter Kit
Lockable Flame Arrestor Fuel Cap
Vandalism Lockout Kit
Cable Holder
Protective Cover
#195 117
#195 131
#119 172
#255 416
#195 086
#246 988
#246 991
#043 947
#195 118
#043 946
#195 159
Stick Welding Leads
Plasma Cutting
Spectrum® 375 X-TREME™
Spectrum® 625 X-TREME™
Spectrum® 875
MIG/Flux-Cored Welding
SuitCase® X-TREME™ 8VS
SuitCase® X-TREME™ 12VS
SuitCase® 8RC
SuitCase® 12RC
Spoolmatic® 30A Spool Gun
WC-24 Control
XR™ Wire Feeder Control and Guns
MIG (GMAW)/Flux-Cored (FCAW) Guns
TIG Welding
Dynasty® 200 Series
HF-251D-1
Coolant System
Date:
Distributed by:
© 2013 Miller Electric Mfg. Co.
Removes moisture from air supply
AC/DC analog weld output meters
1-phase, 120/240 VAC, 50 A
1-phase, 240 V, 16 A
120 V oil pan heater
Includes air, oil and fuel filters
Includes air, oil and coalescing filters
Padlock not included
Lockable front control panel and engine compartment
Stores up to 200 ft. of 2/0 weld cable
Will not fit over machine with cable holder attached
See page 4
#907 529
#907 531
#907 390-01-1
Includes X-CASE ™. See Lit. Index No. PC/9.2
Includes X-CASE ™. See Lit. Index No. PC/9.6
See Lit. Index No. PC/9.8
#951 182
#951 543
#951 186
#951 188
#130 831
#137 549
See Lit. Index No. M/6.41
See Lit. Index No. M/6.42
See Lit. Index No. M/6.5
See Lit. Index No. M/6.5
Requires WC-24 Control. See Lit. Index No. M/1.73
See Lit. Index No. M/1.5
See Lit. Index No. M/1.7, M/1.71, and M/1.73
See Lit. Index Nos. AY/15.0, AY/16.0 and AY/17.0
#042 388
Remote Controls
Trailers and Hitches
4 West Four-Wheel Steerable Trailer
HWY-224 Trailer
OFR-224 Trailer
Cable Tree
Dual Hitch
Qty.
See Lit. Index No. AD/4.8
High-frequency unit for AC TIG welding. See Lit. Index No. AY/5.0
See Lit. Index No. AY/7.2
See page 5
#042 801
#043 805
#043 802
#043 826
#300 831
Trailer with lunette eye, universal hitch and safety chains. For off-road use
Trailer with lights, fenders and 2-in. (50 mm) ball hitch. For highway use
Trailer with 2-in. (50 mm) ball hitch. For off-road use
Trailer mounted cable holder for HWY-224 or OFR-224
Combination 2-in. (50 mm) ball hitch and 3-in. (76 mm) lunette eye in one
reversible assembly. For HWY-224 or OFR-224
Total Quoted Price:
Price
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
