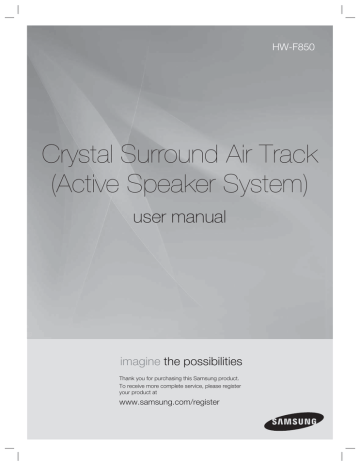

Crystal Surround Air Track (Active Speaker System)

Crystal Surround Air Track (Active Speaker System)
HW-F850
Crystal Surround Air Track
(Active Speaker System)
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
features
SoundShare
SoundShare produces TV sound on your SAT via a Bluetooth connection and controls the sound.
HDMI
HDMI transmits video and audio signals simultaneously, and provides a clearer picture.
The unit is also equipped with the ARC function which lets you listen to sound from your TV via an HDMI cable through the Crystal
Surround Air Track. This function is only available if you connect the unit to an ARC compliant TV.
3D Sound Plus
The 3D SOUND PLUS feature adds depth and spaciousness to your listening experience.
Wireless Subwoofer
Samsung’s wireless module does away with cables running between the main unit and the subwoofer.
Instead, the subwoofer connects to a compact wireless module that communicates with the main unit.
Special Sound mode
You can select from 7 different sound modes - MUSIC, NEWS, DRAMA, CINEMA, SPORTS, GAME, and STANDARD (Original
Sound) - depending on the type of content you want to enjoy.
Multi-function Remote Control
The supplied remote control can be used to control the TV connected to this unit. (Works only for Samsung TVs)
The remote control has a TV hotkey that enables you to perform various operations with the simple press of a button.
Active Speaker System
This unit features an Active Speaker System that provides high sound quality in a single slim unit. This unit does not require any
satellite loudspeakers or speaker cabling, which are normally associated with conventional surround sound systems.
USB Host support
You can connect and play music files from external USB storage devices such as MP3 players, USB flash memory, etc. using the
Air Track's USB HOST function.
Bluetooth Function
You can use connect a Bluetooth device to the SAT and enjoy music with high quality stereo sound, all without wires!
NFC
Connect your NFC compatible device via Bluetooth to the Air Track using this simple set-up procedure and play music on the
device through the Air Track.
LICENSE
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued
& pending. DTS, the Symbol, & DTS and the Symbol together are registered trademarks & DTS 2.0 Channel is a trademark of
DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other countries.
- To send inquiries and requests regarding open sources, contact Samsung via Email ([email protected]).
2
ENG
safety information
SAFETY WARNINGS
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK DO
NOT OPEN
The lighting flash and arrowhead within the
triangle indicates that there is dangerous
voltage Inside the product.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE THE
COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The explanation point within the triangle
indicates that there are important instructions
accompanying the product.
WARNING
• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
• To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.
• This product contains chemicals known to the State of California to cause cancer and reproductive toxicity.
CAUTION
• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and
readily accessible at all times.
This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent
electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections.
FCC NOTE (for U.S.A):
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet that is on a different circuit than the radio or TV.
• Consult the dealer or an experienced radio/TV technician for help.
Caution : FCC regulations state that any unauthorized changes or modifications to this equipment may void the user's authority to operate it.
Important Safety Instructions
Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions
handy for future reference.
1)
2)
3)
4)
5)
6)
7)
8)
9)
Read these instructions.
Keep these Instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with
the manufacturer's instructions.
Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized plug has two blades with one wider than the
other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your
safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
11) Only use attachment/accessories specified by
the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for
long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.
3
PRECAUTIONS
2.7 inch
3.9 inch
3.9 inch
3.9 inch
Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the back of
your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4 inches). Make sure
the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for
continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long
period of time.
During thunderstorms, disconnect the AC plug from the wall outlet.
Voltage peaks due to lightning could damage the unit.
Do not expose the unit to direct sunlight or other heat sources.
This could lead to overheating and cause the unit to malfunction.
Phones
Protect the product from moisture (i.e. vases), and excess heat
(e.g. a fireplace) or equipment creating strong magnetic or electric
fields. Disconnect the power cable from the AC supply if the unit
malfunctions. Your product is not intended for industrial use. It is for
personal use only.
Condensation may occur if your product has been stored in
cold temperatures. If transporting the unit during the winter, wait
approximately 2 hours until the unit has reached room temperature
before using.
The batteries used with this product contain chemicals that are
harmful to the environment.
Do not dispose of batteries in the general household trash.
Do not dispose of batteries in a fire.
Do not short circuit, disassemble or overheat the batteries.
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Figures and illustrations in this User Manual are provided for reference only and may differ from actual product
appearance.
4
ENG
contents
2
2
Features
License
SAFETY INFORMATION
3
4
Safety warnings
Precautions
GETTING STARTED
6
6
Before reading the user’s manual
What’s included
DESCRIPTIONS
7
8
Front/Bottom panel
Rear Panel
REMOTE CONTROL
9
Tour of the remote control
10
11
12
14
Installing the wall mount
Connecting the wireless subwoofer
Attaching the toroidal ferrite core to the
power cord of the subwoofer
Looping the power cable around the
toroidal core
Auto sound calibration (ASC)
Connecting an external device using an
HDMI cable
Connecting an external device using
Audio (analog) cable or Optical (digital)
cable
Assembling the cable clip
15
15
16
17
19
20
21
24
Input mode
ARC (HDMI out)
NFC
Bluetooth
SoundShare
USB
Using the remote control
Software upgrade
TROUBLESHOOTING
25
Troubleshooting
25
26
26
Specifications
FEATURES
2
3
6
7
9
10
CONNECTIONS
12
12
13
14
FUNCTIONS
15
APPENDIX
5
getting started
BEFORE READING THE USER’S MANUAL
Note the following terms before reading the user manual.
Icons used in this manual
Icon
Term
Definition
Caution
Indicates a situation where a function does not operate or settings may be
canceled.
Note
Indicates tips or instructions on the page that help you operate a function.
Safety Instructions and Troubleshooting
1) Be sure to familiarize yourself with the Safety Instructions before using this product. (See page 3)
2) If a problem occurs, check Troubleshooting. (See page 25)
Copyright
©2013 Samsung Electronics Co.,Ltd.
All rights reserved; no part of this user’s manual may be reproduced or copied without the prior written
permission of Samsung Electronics Co.,Ltd.
WHAT’S INCLUDED
Check for the supplied accessories shown below.
TV
SOURCE
AUX
USB
BT
HDMI
SOUND
SHARE
NEWS
DRAMA
CINEMA
SPORTS
GAME
3D SOUND+
STANDARD
D.IN
MUSIC
ASC
(Holder-screw:2EA)
MUTE
S/W LEVEL
VOL
TONE
TV CH
TV SOURCE
TV INFO
TV
MUTE
TV VOL -
TV CH
DRC
AUDIO SYNC
(Screw:2EA)
TV VOL +
TV EXIT
VT
DIMMER
AUTO POWER
REPEAT
SMART VOL SPEAKER
AH59-02583A
Remote Control /
Batteries (AAA size) User Manual
(AH59-02583A/ (AH68-02655A)
4301-000116)
Bracket-Wall
Mount
(AH61-03408B)
Screw
(AH61-03342A/
6001-001961)
USB Cable
(AH39-01178B)
(For Subwoofer
power cable 1EA)
Power Cord
(3903-000598)
DC Adapter
(BN44-00639B)
AUX Cable
(BN39-01286A)
ASC
Microphone
(AH59-02570A)
Toroidal ferrite
core
(3301-000144)
 The appearance of the accessories may differ slightly from the illustrations above.
 Use the dedicated USB cable to connect external USB devices to the unit.
6
Cable Clip
(AH65-00012B)
ENG
descriptions
FRONT/BOTTOM PANEL
1
2 3
4
VOLUME +/- VACUUM
TUBE AMP
NFC TAG
● DESCRIPTIONS
5V
0.5A
Displays the current mode.
- If there is no input from the product or remote control for 15
seconds, the display will turn off automatically.
- The display will not turn off automatically in BT READY, TV READY
and USB Playing modes.
1
DISPLAY
2
USB PORT
Connect USB devices such as MP3 players here to play files on the
devices.
3
POWER BUTTON
Turns the Crystal Surround Air Track on and off.
4
FUNCTION
BUTTON
Selects the D.IN, AUX, HDMI, BT, TV, USB input.
- While the unit is powered on, pressing the ( ) button for more than
3 seconds converts the button to the MUTE (
) button. To cancel
MUTE (
) button setup, press the ( ) button for more than 3
seconds again.
 When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.
 Do not bring cellular phones or mobile devices near the vacuum tube amp, or put other
electronic devices on the top of the product. Signals from these devices can cause noise or
distortion in the audio.
 Do not let children touch the product's surface when the set is on. It will be hot.
7
descriptions
REAR PANEL
DC 24V
HDMI IN
ASC IN
1
DC 24V
5
HDMI OUT
ASC IN
AUX IN
2
6
OPTICAL IN
3
4
1
HDMI IN JACK
Receives digital video and audio signals simultaneously from an
external source using an HDMI cable.
2
HDMI OUT JACK
Outputs digital video and audio signals simultaneously using an HDMI
cable.
3
AUX IN
Connect to the Analog output of an external device.
4
OPTICAL IN
Connect to the digital (optical) output of an external device.
5
POWER SUPPLY
IN
Connect the AC power adaptor jack to the power supply jack, and
then connect the AC power adaptor plug to a wall outlet.
6
ASC IN JACK
Used to connect the ASC Microphone.
 When disconnecting the power cable of the AC power adaptor from the wall outlet, pull the
plug. Do not pull the cable.
 Do not connect this unit or other components to an AC outlet until all connections between
components are complete.
8
ENG
remote control
TOUR OF THE REMOTE CONTROL
Turns the remote’s backlight for 5
seconds.
TV
Press to select a connected SAT source.
(SAT: Surround Air Track)
Selects the Sound Effect: (MUSIC,
NEWS, DRAMA, CINEMA, SPORTS,
GAME)
This feature adds depth and spaciousness
to the sound.
Cancels the selected Sound Effect and
switches to the standard mode (displays
STANDARD for the current Sound Effect).
Turns your Samsung TV on and off.
SOURCE
AUX
USB
BT
D.IN
HDMI
SOUND
SHARE
MUSIC
NEWS
DRAMA
CINEMA
SPORTS
GAME
3D SOUND+
STANDARD
ASC
MUTE
Press to skip backwards or forwards.
Adjusts the Subwoofer level.
S/W LEVEL
VOL
TONE
TV CH
Adjusts the volume level of the unit.
Displays the current TV status.
Switches between the available TV
channels. Adjusts the TV volume level.
You can control the brightness of the
VACUUM TUBE AMP's display.
You can use this function to enjoy Dolby
Digital sound when watching movies at
low volume at night (Standard, MAX, MIN).
Used to help sync video to audio when
connected to a digital TV.
TV SOURCE
Shortcut button for switching to custom
sound mode saved by using the ASC
function (one of the available sound effect
modes)
Press to stop a music file.
Press to play or pause a music file.
Mutes the sound from the unit. Press again
to restore the sound to the previous
volume level.
Individual BASS, MIDDLE, TREBLE
adjustment. Use VOL adjustment keys.
Press to select a connected TV's video
source.
TV INFO
TV
MUTE
TV VOL -
TV VOL +
TV EXIT
VT
DIMMER
TV CH
DRC
AUDIO SYNC
This produces TV sound on your SAT via a
Bluetooth connection and controls the
sound.
AUTO POWER
REPEAT
SMART VOL SPEAKER
AH59-02583A
Anynet+ is a function that enables you to
control other Samsung Devices with your
Samsung TV's remote control.
Mutes the sound from the TV. Press again
to restore the sound to the previous
volume level.
Exits TV (functions the same as the EXIT
button of the TV remote control)
Select Repeat File, All, Random.
Synchronizes the Air Track to a connected
Optical source via the Optical jack so it
turns on automatically when you turn on
your TV.
This button allows you to choose to listen
to audio from the Air Track or your TV.
Regulates and stabilizes the volume level
against a drastic volume change.
 SAT stands for Surround Air Track, which is a Samsung’s proprietary name.
 The remote control can operate TVs made by SAMSUNG only.
 Depending on the TV you are using, you may not be able to operate your TV with this remote control. If you
can't, operate the TV using the TV's remote control.
Installing Batteries in the Remote Control
• Make sure to match the “+” and “–” ends of the batteries with the
diagram inside the compartment.
• Assuming typical TV usage, the batteries last for about one year.
• You can use the remote control up to 23 feet (7 meters) in a
straight line from the unit. You can also operate the remote at a
horizontal angle of up to 30° from the remote control sensor.
Battery size: AAA
9
● REMOTE CONTROL
Turns the Crystal Surround Air Track on
and off.
connections
INSTALLING THE WALL MOUNT
You can use the wall mount bracket to mount this unit on a wall.
Installation Precautions
• Install on a vertical wall only.
• For the installation, avoid a location with high temperature or humidity, or a wall that cannot sustain the weight of
the set.
• Check the strength of the wall. If the wall is not strong enough to support the unit, reinforce the wall or install the
unit on a different wall that can support the unit's weight.
• Purchase and use the fixing screws or anchor appropriate for the kind of wall you have (plaster board, iron board,
wood, etc.). If possible, fix the support screws into wall studs.
• Connect cables from the unit to external devices before you install it on the wall.
• Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.
1. Place the wall mount bracket on a wall surface and then
secure it with two screws. If you are hanging the unit below a
TV, be sure to install the wall mount bracket so that the arrow
( ) is placed in the center of the TV. Also make sure the unit
is at least two inches (5 cm) below the TV.
5V
0.5A
2. Align the two HOLDER-SCREWs (screw holders) with the
screw holes on the left and right sides of the MAIN UNIT, and
then fix them to the main unit with the supplied screws.
3. Fit the unit into the corresponding slots of the wall mount
bracket. For secure installation, make sure the mounting
studs slide firmly down into the bottom of the slots.
4. The installation is complete.
2 inches (5 cm) or more
 Do not hang onto the installed unit and avoid striking or dropping the unit.
 Secure the unit firmly to the wall so that it does not fall off. If the unit falls off, it may cause an injury or
damage the product.
 When the unit is installed on a wall, please make sure that children do not pull any of the connecting
cables, as it may cause it to fall.
 For the optimal performance of a wall mount installation, install the speaker system at least 2 inches (5 cm)
below the TV.
 For your safety, if you do not mount the unit on the wall, install it on a secure, flat surface where it is
unlikely to fall.
10
The Subwoofer's linking ID is preset at the factory and the main unit and subwoofer should link (connect wirelessly)
automatically when the main unit and subwoofer are turned on. If the LINK indicator does not light when the main
unit and subwoofer are turned on, please set the ID by following the procedure below. Complete this process within
30 seconds after the Link Indicator on the subwoofer starts blinking.
ENG
CONNECTING THE WIRELESS SUBWOOFER
1. Plug the power cords of the main unit and subwoofer into an AC wall outlet.
2. Confirm that the main unit is off (in STANDBY Mode).
● CONNECTIONS
3. Press the ID SET button on the back of the subwoofer with a small, pointed object for 5 seconds.
• The LINK INDICATOR (Blue LED) on the subwoofer blinks quickly.
4. While the main unit is powered off (in STANDBY mode), press and hold
the MUTE (
) on the remote control for 5 seconds.
TV
MUTE
5. The ID SET message appears on the main unit’s OLED display.
6. To finalize the link, turn the main unit’s power on while the subwoofer’s
LINK LED blinks.
• The main unit and the subwoofer should now be linked (connected).
S/W LEVEL
TONE
TV CH
• The LINK indicator (blue LED) on the subwoofer should be turned on
and solid blue.
• If the LINK indicator is not solid blue, the linking process has failed.
Turn off the main unit and start again from Step 2.
• You can enjoy better sound from the wireless subwoofer by selecting the a sound effect. (See page 24)
 Before moving or installing the product, be sure to turn off the power and disconnect the power
cord.
 If the main unit is powered off, the wireless subwoofer will be in the standby mode and the STANDBY
LED on the upper side will come on after the LINK indicator (Blue LED) blinks for 30 seconds.
 If you use a device that uses the same frequency (2.4GHz) as the unit near the unit, interference
may cause some sound interruption.
 The transmission distance of the wireless signal between the main unit and subwoofer is about
33 ft., but may vary depending on your operating environment. If a steel-concrete or metallic
wall is between the main unit and the wireless subwoofer, the system may not operate at all,
because the wireless signal cannot penetrate metal.
 If the main unit doesn't make a wireless connection, follow steps 1-5 above to retry the
connection between the main unit and wireless subwoofer.
 The wireless receiving antenna is built into the wireless subwoofer. Keep the unit away from
water and moisture.
 For optimal listening performance, make sure that the area around the wireless subwoofer
location is clear of any obstructions.
11
connections
ATTACHING THE TOROIDAL FERRITE CORE TO THE POWER CORD
OF THE SUBWOOFER
Attaching the Toroidal ferrite core to the power cord of the subwoofer
helps prevent RF interference from radio signals.
1. Pull the fixing tab of the Toroidal ferrite core to open it.
2. Make two loops around the core with the power cable of the
subwoofer. See the illustration below.
3. Attach the Toroidal ferrite core to the Subwoofer power cord as shown
in the illustration below, and then press it until it clicks.
LOOPING THE POWER CABLE AROUND THE TOROIDAL CORE
Lift up to release the lock
and open the core.
Make two loops around the core
with the power cable. (Start
winding 5 to 10 cm [2 - 4 in.] away
from the core).
Close the lock.
AUTO SOUND CALIBRATION (ASC)
The ASC function measures the distance between the Air Track main unit, sub woofer, and your listening position
and calibrates the volume levels and frequency characteristics of the main unit and sub woofer to provide optimum
sound.
1. Place the ASC Microphone at the listening position.
DC 24V
• Please make sure to place the ASC mic on the actual listening
point for precise adjustment.
• If you turn off the Air Track or unplug the ASC microphone
before the completion message appears on the display,
calibration will be cancelled and incomplete. If this occurs, plug
the ASC microphone into the ASC IN jack again.
5V
0.5A
2. Connect the ASC Microphone to the ASC IN jack on the Air Track.
The Calibration starts automatically and takes about 2 minutes.
ASC IN
ASC microphone
• After calibration has been completed the first time, you can
re-run the calibration process. Place the ASC microphone at the
listening position, insert the ASC Microphone plug into the ASC
jack, and then select the ASC mode by pressing the Sound
Effect button on the remote control.
 During the ASC calibration, no other buttons work except the power button.
 ASC will abort with an error if you change the set’s position in the middle of the ASC calibration.
12
ENG
CONNECTING AN EXTERNAL DEVICE USING AN HDMI CABLE
HDMI is the standard digital interface for connecting to such devices as a TVs, projectors, DVD players, Blu-ray
players, set top boxes, and more.
Because HDMI transmits the highest quality digital signal, you can enjoy superior video and audio - as it was
originally created at the digital source.
DC 24V
HDMI IN
● CONNECTIONS
HDMI Cable
Digital Devices
OPTICAL IN
HDMI OUT
AUX IN
HDMI OUT
HDMI IN
ASC IN
HDMI Cable
HDMI IN
Connect an HDMI cable (not supplied) from the HDMI IN jack on the back of the product to the HDMI OUT jack on
your digital devices.
and,
HDMI OUT (HDMI)
Connect an HDMI cable from the HDMI OUT jack on the back of the product to the HDMI IN jack on your TV.
 HDMI transmits digital video and audio signals through a single cable.
13
connections
CONNECTING AN EXTERNAL DEVICE USING AUDIO (ANALOG)
CABLE OR OPTICAL (DIGITAL) CABLE
This unit comes equipped with one optical in digital jack and one audio analog in jack, giving you two ways to
connect it to a TV.
DC 24V
HDMI IN
ASC IN
Audio Cable
AUDIO
OUT
OPTICAL IN
AUX IN
HDMI OUT
AUX IN
or
OPTICAL
OUT
OPTICAL IN
BD/ DVD player/
Set-top box/ Game
console
Optical Cable
(not supplied)
AUX IN
Connect AUX IN (Audio) on the main unit to the AUDIO OUT of the TV or Source Device.
Be sure to match connector colors.
or,
OPTICAL IN
Connect the Digital Input on the main unit to the OPTICAL OUT of the TV or Source Device.
 Do not connect the power cord of this product or your TV to the wall outlet until all connections
between components are complete.
 Before moving or installing this product, be sure to turn off the power and disconnect the
power cord.
ASSEMBLING THE CABLE CLIP
DC 24V
HDMI IN
HDMI IN
DC 24V
14
AUX IN
AUX IN
OPTICAL IN
HDMI OUT
ASC IN
OPTICAL IN
HDMI OUT
ASC IN
Attach the cable clip to the unit
as shown, and then run the
cables through the clip to keep
them neat.
ENG
functions
INPUT MODE
You can select D.IN, AUX, HDMI, BT, TV input or USB input.
Press an appropriate button on the remote control to select a desired mode, or press
D.IN, AUX, HDMI, BT, TV or USB mode.
Display
D.IN
AUX input
AUX
HDMI input
HDMI
BLUETOOTH mode
BT
TV mode
TV
USB mode
USB
● FUNCTIONS
Input mode
Optical Digital input
repeatedly to select from
TV
The unit turns off automatically in the following situations:
• BT/TV/USB/HDMI/ARC/D.IN MODE
- If there is no audio signal for 20 minutes.
SOURCE
AUX
D.IN
USB
BT
HDMI
SOUND
SHARE
• AUX Mode
- If there is no KEY input for 8 hours when the AUX cable is connected.
- If the AUX cable is disconnected for 20 minutes.
 Use the provided cable if you cannot connect a USB flash memory device directly to the unit.
ARC (HDMI OUT)
HDMI Cable
• The ARC function allows digital audio to output via the HDMI OUT (ARC) port.
It can be enabled only when the Air Track is connected to a TV that supports the ARC function.
• Anynet+ must be turned on.
 This function is not available if the HDMI cable does not support ARC.
 The ARC function is activated in D.IN mode if you have connected the unit to a TV that
supports ARC.
 To turn off the ARC function, turn Anynet off.
15
functions
NFC
Connect your NFC compatible device via Bluetooth to the Air Track using this simple set-up procedure and play
music on the device through the Air Track.
Bluetooth device
1. Turn on the NFC function on the device and make sure the screen lock function on the device is off.
The device's NFC function will not work if screen lock is on.
2. Gently touch the NFC logo on the front of the Air Track with the NFC supported device.
3. A pop-up asking whether to proceed with the Bluetooth connection appears on the device. Select <Yes>.
• When the connection is complete, the 'connected' message appears.
4. To disconnect the NFC device, gently touch the device to the NFC logo on the front of the Air Track again. To
connect another NFC device while the first device is still connected, touch the device to the NFC logo on the front
of the Air Track. The Air Track will disconnect the first device and connect the second device.
 Warning: NFC pairing may not be successful if you do not place your NFC device on the Air Track
correctly. If you see an "Empty tag" error message on your mobile device, you must gently touch your NFC
device to the Air Track again and be sure you match the NFC location on your mobile device to the NFC
logo on the Air Track exactly.
 The NFC function is built into Android devices running Android OS 4.1.2 Jellybean or later.
- If your mobile device has Android OS 4.1.2 Jellybean or later, it must also have an NFC tag to run the
NFC function. See the instructions of your device for details.
- If your device has an Android OS earlier than Android OS 4.1.2 Jellybean, your device must have an
NFC tag and you must download the 'Samsung NFC Connection' application from Android market to
run the NFC function.
 The position of the NFC antenna differs on devices. Check where the NFC antenna is located before
connecting.
 If your device is covered with a thick case, the connection may not succeed.
 The N-mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other
countries.
16
ENG
BLUETOOTH
You can use a Bluetooth device to enjoy music with high quality stereo sound, all without wires!
What is Bluetooth?
Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with
each other using a short wireless connection.
• A Bluetooth device may cause noise or malfunction, depending on usage, when:
- It is subject to electrical variation from obstructions caused by a wall, corner, or office partition.
- It is exposed to electrical interference from same frequency-band devices including medical
equipment, microwave ovens, and wireless LANs.
• Pair the Air Track with the Bluetooth device while they are close together.
• The further the distance between the Air Track and Bluetooth device, the worse the quality is.
If the distance exceeds the Bluetooth operational range, the connection is lost.
• In poor reception-sensitivity areas, the Bluetooth connection may not work properly.
• The Bluetooth connection only works when it is close to the unit. The connection will be
automatically cut off if the Bluetooth device is out of range. Even within range, the sound quality
may be degraded by obstacles such as walls or doors.
• This wireless device may cause electric interference during its operation.
To connect the Air Track to a Bluetooth device
Check if the Bluetooth device supports the Bluetooth compliant stereo headset function.
Connect
Bluetooth device
1. Press the BT button on the remote control of the Air Track to display the BT message.
• The message WAIT appears at the very first Bluetooth activation after powering on. From the next
activation, BT READY will appear.
2. Select the Bluetooth menu on the Bluetooth device you want to connect. (Refer to the Bluetooth
device's user manual.)
3. Select the Stereo headset menu on the Bluetooth device.
• You will see a list of scanned devices.
4. Select "[Samsung] AirTrack" from the list.
• When the Air Track is connected to the Bluetooth device, it will display BT CONNECTED ➡ BT on
the front display.
• If the Bluetooth device has failed to pair with the Air Track, delete the previous “[Samsung] AirTrack”
found by the Bluetooth device and have it search for the Air Track again.
5. Play music on the connected device.
• You can listen to the music playing on the connected Bluetooth device over the Crystal Surround
Air Track system.
• In BT mode, the Play/Repeat/Stop/Next/Prev functions are not available.
17
● FUNCTIONS
- A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or
the Air Track.
functions
 You may be required to enter a PIN code (password) when connecting the Bluetooth device to
the Air Track. If the PIN code input window appears, enter <0000>.
 The Air Track only supports Middle Quality SBC data (up to [email protected]). It does not
support High Quality SBC data ([email protected]).
The AVRCP feature is not supported.
Connect only to a Bluetooth device that supports the A2DP (AV) function.
You cannot connect to a Bluetooth device that supports only the HF (Hands Free) function.
Only one Bluetooth device can be paired at a time.
Once you have turned off Air Track and the pairing is disconnected, the pairing will not be
restored automatically. To reconnect, you must pair the device again.
 Search or connection may not be performed properly by Air Track in the following cases:
- If there is a strong electrical field around the Air Track.
- If several Bluetooth devices are simultaneously paired with Air Track.
- If the Bluetooth device is turned off, not in place, or malfunctions.
- Note that such devices as microwave ovens, wireless LAN adaptors, fluorescent lights, and
gas stoves use the same frequency range as the Bluetooth device, which can cause electric
interference.





To disconnect the Bluetooth device from the Air Track
You can disconnect the Bluetooth device from the Air Track. For instructions, see the Bluetooth
device's user manual.
• The Air Track will be disconnected.
• When the Air Track is disconnected from the Bluetooth device the Air Track will display BT
DISCONNECTED on the front display.
To disconnect the Air Track from the Bluetooth device
Press the ( ) button on the front panel of the Air Track to switch from BT to another mode or turn
off the Air Track.
• The connected Bluetooth device will wait a certain amount of time for a response from the Air
Track before terminating the connection. (Disconnection time may differ, depending on the
Bluetooth device)
• The currently connected device will be disconnected.
 In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the
Air Track and the Bluetooth device exceeds 16.25 ft. (5m).
 If the Bluetooth device comes back into the effective range after disconnecting, you can restart
the Air Track to restore the pairing with the Bluetooth device.
 The Air Track automatically turns off after 20 minutes in the Ready state.
18
ENG
SOUNDSHARE
This section explains how to connect the Crystal Surround Air Track to a Bluetooth compatible SAMSUNG TV.
To connect the Crystal Surround Air Track to a Bluetooth
compatible Samsung TV
Press the ( ) on the front panel of the Air Track or the Sound Share button on the remote to
select the TV mode, and then connect the TV to the Crystal Surround Air Track.
• The unit will play the TV's audio when it is connected to the TV.
• If you change to another mode, except the TV SoundShare mode, or turn off the Air Track, you
will hear audio from the TV again.
<To pair to your TV>
To produce TV sound on your Air Track via a Bluetooth connection, you need to pair your system
to the Bluetooth compliant TV first. Once the pairing is established, the pairing information is
recorded and kept and no further Bluetooth connection message will appear. Bring the Air Track
and the TV close together before pairing.
1. Turn on the Samsung TV and Air Track.
• Set Add New Device in the TV's SoundShare Setting menu to On.
2. When you change the mode of the Air Track to TV, a message asking whether to proceed with
Bluetooth pairing is displayed. "[Samsung] AirTrack" appears on the TV screen.
3. Select <Yes> on the TV screen. The pairing with the Air Track will be completed.
• Once the pairing is established, when you change the Air Track to the TV mode from other input
modes, it will automatically connect to the TV.
• Changing the Air Track from TV mode to any other mode will cancel the SoundShare connection.
• If you want to cancel the existing pairing of the SAT to a TV and pair your SAT to a different TV.
- Press the PLAY /PAUSE button on the SAT for 5 seconds in the TV input mode to cancel the
existing pairing. You can now pair it to a different TV.
• In the SoundShare mode, you can control the volume and mute using either the TV remote or the
SAT remote.
 TV SoundShare operation range
- recommended pairing range: within 20 inches (within 50cm)
- recommended operation range: within 16.25 ft. (5m)
 If the distance between the Air Track and Samsung TV is over 16.25 ft. (5m), the connection or




the sound can be cut off. If this occurs, connect to the Bluetooth device again within the
operational range.
Make sure the Samsung TV's SoundShare mode is on before you use this function.
The PLAY, NEXT, PREV, STOP buttons will not work in the SoundShare mode.
Bluetooth Standby On function
- The Air Track will be powered on automatically when you turn the TV on if you connected the
TV and Air Track with SoundShare function.
- You can toggle this function On/Off by pressing the SoundShare button for more than 5
seconds when the Air Track is powered off. If set to Off, the product turns off automatically
when the TV turns off, but it does not turn on automatically.
- This feature is supported by TVs released from 2013 on.
The SoundShare feature is supported by select models released from 2012 on. Check whether
your TV supports SoundShare before you begin. (For more information, refer to the user's guide
of your TV.)
19
● FUNCTIONS
Connect
functions
USB
1. Connect the USB device to the USB port of the product.
2. Press the (
) button on the front panel of the Air Track repeatedly until USB appears.
3. USB appears on the display screen and then disappears.
• The Crystal Surround Air Track connection is complete.
• The SAT automatically turns off (Auto Power Off) if no USB device has been connected for more than 20
minutes.
 Playback will stop if you change the unit's position while playing files from a USB device.
Before you connect a USB device
Be aware of the following:
• If the file name of a folder on a USB device exceeds 10
characters, it is not displayed on the OLED.
• This product may not be compatible with certain types of USB
storage media.
• The Air Track supports the FAT16 and FAT32 file systems.
- The NTFS file system is not supported.
• Connect USB devices directly to the USB port of the product.
Otherwise, you may encounter a USB compatibility problem.
• Do not connect multiple storage devices to the product via a multi-card reader. It may not operate properly.
• Digital camera PTP protocols are not supported.
• Do not remove the USB device while it is being read.
• DRM-protected music files (MP3, WMA) from a commercial web site will not be played.
• External HDDs are not supported.
• Mobile phone devices are not supported.
5V
0.5A
• File Format Type Compatibility list:
Format
*.mp3
*.wma
*.aac
*.wav
*.Ogg
*.Flac
Codec
MPEG 1 Layer2
MPEG 1 Layer3
MPEG 2 Layer3
Wave_Format_MSAudio1
Wave_Format_MSAudio2
AAC
AAC-LC
HE-AAC
OGG 1.1.0
FLAC 1.1.0, FLAC 1.2.1
Ú Supporting Sampling Rate above 16KHz
20
ENG
USING THE REMOTE CONTROL
Play/Pause/Stop
TV
During playback, press the ►, button.
• Press the ► button again to stop playing the file temporarily.
Press the ► button to play the selected file.
• To stop playback, press the Stop () button during playback.
During playback, press the #,$ button.
MUTE
MUTE
TV CH
DRC
AUDIO SYNC
AUTO POWER
REPEAT
SMART VOL SPEAKER
• When there is more than one file and you press the $ button, the next file
is selected.
• When there is more than one file and you press the # button, the
previous file is selected.
Using the REPEAT function
Repeat playback allows you to repeatedly play a file, repeat all, randomly play
files, or turn Repeat off.
Press the REPEAT button.
MUTE
S/W LEVEL
REPEAT OFF : Cancels Repeat Playback.
REPEAT FILE : Repeat playing a track.
REPEAT ALL : Repeat playing all tracks.
REPEAT RANDOM : Plays tracks in random order. (A track that has
already been played may be played again.)
VOL
TONE
TV CH
TV SOURCE
TV INFO
TV VOL -
•
•
•
•
 You can set the REPEAT function during music playback from a
USB drive.
Muting the sound
TV
MUTE
This is useful when answering a doorbell or telephone call.
TV VOL +
TV EXIT
VT
DIMMER
1. To mute the sound of this unit, press the MUTE (
remote control.
2. To mute the TV, press the TV MUTE button on the remote control.
3. Press MUTE (
VOLUME
/
S/W LEVEL
) button on the
Using the TONE function
VOL
TONE
TV CH
)/ TV MUTE on the remote control again (or press
) to restore the sound.
TV SOURCE
TV INFO
Press TONE on the remote control.
• Each time the button is pressed, the selection changes as follows :
TREBLE ➡ MIDDLE ➡ BASS
 Use the VOL button to adjust the setting to -6 ~ +6.
Using the 3D SOUND PLUS function
CINEMA
SPORTS
3D SOUND+
STANDARD
GAME
ASC
The 3D Sound Plus feature adds depth and spaciousness to the sound.
Press 3D SOUND PLUS on the remote control.
• Each time the button is pressed, the selection changes as follows :
3D SOUND PLUS OFF ➡ 3D SOUND PLUS MUSIC ➡ 3D SOUND PLUS
MOVIE
 When you turn on 3D Sound Plus, the Sound Effect function will
automatically change to STANDARD.
21
● FUNCTIONS
Skip Forward/Back
functions
Using the SMART VOL function
TV
This will regulate and stabilize the volume level against a drastic volume
change caused by a channel change or scene transition.
Press SMART VOL on the remote control.
• Each time the button is pressed, the selection changes as follows :
SMART VOLUME ON ➡ SMART VOLUME OFF
SMART VOL SPEAKER
AUDIO SYNC
MUTE
Using the S/W LEVEL function
You can control the base volume with the S/W LEVEL button on the remote
control.
1. Press an S/W LEVEL button on the Remote control.
S/W LEVEL
2. “SW 0” appears on the display.
VOL
TONE
TV CH
TV CH
DRC
AUDIO SYNC
AUTO POWER
REPEAT
SMART VOL SPEAKER
3. Press or button on the LEVEL key if you want to increase or
decrease the subwoofer volume. You can set it from SW -6 to SW +6.
Using the AUTO POWER LINK function
The Crystal Surround Air Track is automatically turned on when you turn on
the TV or any device connected to the Air Track with the optical cable.
Press AUTO POWER on the remote control of this unit.
• The Auto power link function turns on and off each time you press AUTO
POWER.
AUTO POWER LINK
ON
OFF
Display
POWER LINK ON
POWER LINK OFF
 If a TV or any device connected to Air Track with the optical cable is
off and there is no digital input, the Air Track is turned off after 20
minutes.
 These functions are available only when the Anynet+ (HDMI-CEC) is
turned off.
TV CH
DRC
AUDIO SYNC
AUTO POWER
REPEAT
SMART VOL SPEAKER
Using the AUDIO SYNC function
Video may appear out of synch with the audio if the Air Track is connected to
a digital TV. If this occurs, adjust the audio delay time to match the video.
/
Press AUDIO SYNC
• You can use the
and 300 ms.
,
on the remote control of this unit.
buttons to set the audio delay time between 0 ms
 In USB mode, TV mode or BT mode, the Audio Sync function may
not work.
TV CH
DRC
AUDIO SYNC
AUTO POWER
REPEAT
SMART VOL SPEAKER
Using the DRC function
This feature balances the range between the loudest and quietest sounds.
You can use this function to enjoy Dolby Digital sound when watching movies
at low volume at night.
Press DRC on the remote control of this unit.
• Each time the button is pressed, the selection changes as follows :
DRC STANDARD ➡ DRCMAX ➡ DRCMIN
22
ENG
Using the VT DIMMER function
TV
This feature controls the brightness of the VACUUM TUBE AMP.
Press VT DIMMER on the remote control of this unit.
• Each time the button is pressed, the selection changes as follows :
VT DIMMER OFF ➡ VT DIMMER MIN ➡ VT DIMMER MAX
 The VT DIMMER does not function for 30 seconds when you
MUTE
TV CH
AUTO POWER
TV CH
DRC
AUDIO SYNC
AUTO POWER
SPEAKER button
If a TV and the Air Track are connected via HDMI, this button lets you select
between listening to audio through your TV or through the Air Track.
REPEAT
SMART VOL SPEAKER
Press SPEAKER on the remote control of this unit.
AUDIO MODE
HDMI IN
ARC
TV CH
DRC
AUDIO SYNC
AUTO POWER
REPEAT
SMART VOL SPEAKER
SPEAKER
TV
Air Track
TV
Air Track
Scroll Display
TV SPEAKER
AVR SPEAKER
TV SPEAKER
AVR SPEAKER
Display
TV SPK
HDMI
S MUTE
TV ARC
Using the Anynet+(HDMI-CEC) function
Anynet+ is a function that enables you to control other Samsung Devices
with your Samsung TV's remote control.
The Anynet+ function turns on and off each time you press Anynet+.
1. Connect the product to a Samsung TV with an HDMI cable. (See page 13)
2. Set the Anynet+ function on your TV and the SAT to ON. (See the TV
instruction manual for more information.)
 Depending on your TV, certain HDMI output resolutions may not
work.
 Please refer to the user’s manual of your TV and check for the
logo (If your TV has an
Anynet+ function.)
TV CH
TV SOURCE
Using the TV functions (with Samsung TVs only)
TV VOL +
•
•
•
•
•
TV INFO
TV VOL -
TV
MUTE
TV EXIT
VT
DIMMER
TV CH
logo, then it supports the
AUTO POWER
Press TV SOURCE on the remote control to change the TV's input source.
Press TV INFO on the remote control to display the TV channel information.
Press TV CH on the remote control to select the TV channel.
Press TV VOL on the remote control to increase or decrease the volume level.
To exit the TV menu, use the TV EXIT button. (It functions the same as the
EXIT button of the TV remote control.)
 When you press the SOUNDSHARE button, the TV's sound is
transmitted through the Air Track system via a Bluetooth
connection. The Air Track also controls the sound volume, sound
quality, etc.
 The remote control can operate TVs made by SAMSUNG only.
23
● FUNCTIONS
turned on the product for the very first time.
TV EXIT
VT
DIMMER
functions
Using the Sound Effect function
TV
You can select from 7 different sound modes - MUSIC, NEWS, DRAMA,
CINEMA, SPORTS, GAME and STANDARD (Original Sound) - depending on
the type of sources you want to enjoy.
Press MUSIC, NEWS, DRAMA, CINEMA, SPORTS, GAME on the remote
control.
• Select the STANDARD mode if you want to enjoy the original sound.
MUSIC
NEWS
DRAMA
CINEMA
SPORTS
GAME
3D SOUND+
STANDARD
ASC
 We recommend that you select a Sound Effect based on the
source material and your personal taste.
 When you choose a Sound Effect mode (except STANDARD), 3D
Sound Plus will automatically be turned OFF.
 Once ASC calibration is completed, the ASC mode will be added.
SOFTWARE UPGRADE
5V
0.5A
Samsung may offer upgrades for the Crystal Surround Air Track's
system firmware in the future.
If an upgrade is offered, you can upgrade the firmware by
connecting a USB drive with the firmware upgrade stored on it to the
USB port on your Air Track.
Note that if there are multiple upgrade files, you must load them onto
the USB drive singly and use them to upgrade the firmware one at a
time.
Please visit Samsung.com or contact the Samsung call center to
receive more information about downloading upgrades files.
 Insert a USB drive containing the firmware upgrade into the USB port on the main unit.
 Do not disconnect the power or remove the USB drive while upgrades are being applied. The main unit will




24
turn off automatically after completing the firmware upgrade.
When software is upgraded, settings you have made will return to their default (factory) settings.
We recommend you write down your settings so that you can easily reset them after the upgrade.
Once the software upgrade is completed, turn off the product and then press and hold the () button for a
while to reset the product.
If the firmware fails to upgrade, we recommend formatting the USB device in FAT16 and trying again.
For upgrading purposes, do not format the USB drive in NTFS format because it is not a supported file
system.
Depending on the manufacturer, some USB devices may not be supported.
ENG
troubleshooting
Refer to the table below when this product does not function properly. If the problem you are experiencing is
not listed below or if the instructions below do not help, turn off the product, disconnect the power cord, and
contact Samsung Electronics at 1-800-SAMSUNG (1-800-726-7864).
Symptom
Remedy
The unit will not turn on.
• Is the power cord plugged into
the outlet?
• Connect the power plug to the
outlet.
A function does not work when
the button is pressed.
• Is there static electricity in the
air?
• Disconnect the power plug and
connect it again.
Sound is not produced.
• Is the unit properly connected
to your TV?
• Connect it correctly.
• Is the Mute function on?
• Press the Mute button to
cancel the function.
• Is the volume set to minimum?
• Adjust the volume.
The Picture does not appear on a
TV when the function is selected.
• Is the TV connected properly?
• Connect it correctly
The remote control does not
work.
• Are the batteries drained?
• Replace with new batteries.
• Is the distance between the
remote control and main unit
too far?
• Move closer to the unit.
The sound from the left/right
channels are reversed.
• Are the left/right audio output
cables from the TV connected
properly?
• Check the left/right channel
and connect it/them correctly.
The SoundShare (TV pairing)
failed.
• Does your TV support
SoundShare?
• Is your TV firmware the latest
version?
• SoundShare is supported by
some Samsung TVs released
after 2012. Check your TV to
see if it supports SoundShare.
• Does an error occur when
connecting?
• Update your TV with the latest
firmware.
• Reset the TV MODE and
connect again.
• Contact the Samsung call
center.
• Press ► button for 5
seconds to reset the product.
25
● TROUBLESHOOTING
Check
appendix
SPECIFICATIONS
Model name HW-F850
Power supply
Main unit
Standby power consumption
Power
consumption
GENERAL
Main unit
Dimensions
(W x H x D)
0.45W
36W
Subwoofer (PS-WF850) 20W
USB
Weight
DC 24V
Subwoofer (PS-WF850) AC 120V~60Hz
5V/0.5A
Main unit
8.82 Ibs
Subwoofer (PS-WF850) 23.15 Ibs
Main unit
46.54 x 4.96 x 2.25 inches
Subwoofer (PS-WF850) 12.01 x 15.81 x 12.01 inches
Operating temperature range
+41°F to +95°F
Operating humidity range
10 % to 75 %
Rated output
power
Main Front
50W/CH, 4OHM, THD = 1%, 1kHz
Main Top
50W/CH, 4OHM, THD = 1%, 1kHz
Subwoofer (PS-WF850) 150W, 3OHM, THD = 10%, 100Hz
AMPLIFIER
S/N ratio (analog input)
65 dB
Separation (1kHz)
65 dB
* S/N ratio, distortion, separation and usable sensitivity are based on measurement using AES (Audio Engineering
Society) guidelines.
* Nominal specification
- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
- Weight and dimensions are approximate.
- Dispose of unwanted electronics through an approved recycler.
To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect or call,
(877) 278 - 0799
26
WARRANTY
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by Samsung Electronics America, Inc. (SAMSUNG) and delivered new, in the
original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and
workmanship for a limited warranty period of:
One (1) Year Parts and Labor*
(*90 Days Parts and Labor for Commercial Use)
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States. To
receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service
can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof
of purchase to SAMSUNG or SAMSUNG's authorized service center. Transportation of the product to and from the service center is the
responsibility of the purchaser.
SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or
products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property
of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety
(90) days, whichever is longer.
SAMSUNG’s obligations with respect to software products distributed by SAMSUNG under the SAMSUNG brand name are set forth in
the applicable end user license agreement. Non-SAMSUNG hardware and software products, if provided, are on an “AS IS” basis.
Non-SAMSUNG manufacturers, suppliers, publishers, and service providers may provide their own warranties.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, and except to the extent
otherwise expressly provided for in this statement, noncommercial use of this product, and shall not apply to the following, including, but
not limited to: damage which occurs in shipment; delivery and installation; applications and uses for which this product was not intended;
altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning or other acts of
nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external
wiring or connectors not supplied and authorized by SAMSUNG, or which damage this product or result in service problems; incorrect
electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, cleaning, maintenance
and environmental instructions that are covered and prescribed in the instruction book; product removal or reinstallation; reception
problems and distortion related to noise, echo, interference or other signal transmission and delivery problems. SAMSUNG does not
warrant uninterrupted or error-free operation of the product.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES WHETHER
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS
WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE
BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS
OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR
INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF
SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST
SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE
ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE
OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE,
MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF
SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS
PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential
damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
To obtain warranty hardware service, please contact SAMSUNG customer care center.
QUESTIONS OR COMMENTS?
COUNTRY
U.S.A
AH68-02655A-05
CALL
1-800-SAMSUNG
(726-7864)
OR VISIT US ONLINE AT
WRITE
www.samsung.com/us/support
Samsung Electronics America, Inc.
85 Challenger Road
Ridgefield Park, NJ 07660
AH68-02655A-05
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
