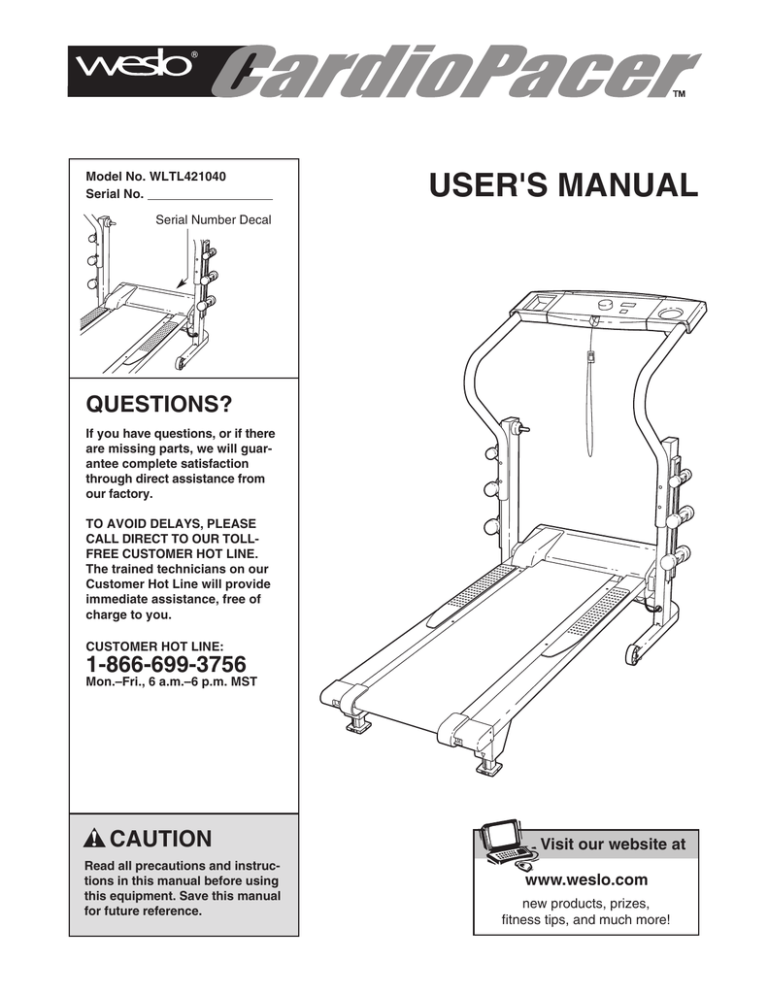

user`s manual - icon service
Model No. WLTL421040
Serial No.
USER'S MANUAL
Serial Number Decal
QUESTIONS?
If you have questions, or if there
are missing parts, we will guarantee complete satisfaction
through direct assistance from
our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLLFREE CUSTOMER HOT LINE.
The trained technicians on our
Customer Hot Line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-866-699-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
Visit our website at
www.weslo.com
new products, prizes,
fitness tips, and much more!
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual.
WESLO is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING:
To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
2. Use the treadmill only as described in this
manual.
12. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 10. To purchase a surge suppressor, see
your local WESLO dealer or call 1-866-6993756 and order part number 146148, or see
your local electronics store.
3. Place the treadmill on a level surface, with at
least eight feet of clearance behind it and two
feet on each side. Do not place the treadmill
on any surface that blocks air openings. To
protect the floor or carpet from damage, place
a mat under the treadmill.
13. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change
speed or stop unexpectedly, which may result
in a fall and serious injury.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
14. Keep the power cord and the surge suppressor away from heated surfaces.
4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See page
16 if the treadmill is not working properly.)
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Inspect and properly tighten all parts of the
treadmill regularly.
16. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
7. Keep children under the age of 12 and pets
away from the treadmill at all times.
17. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
8. The treadmill should not be used by persons
weighing more than 250 pounds.
18. Never leave the treadmill unattended while it is
running. Always remove the key and unplug
the power cord when the treadmill is not in use.
9. Never allow more than one person on the
treadmill at a time.
19. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO MOVE
THE TREADMILL on page 14.) You must be
able to safely lift 45 pounds (20 kg) to raise,
lower, or move the treadmill.
10. Wear appropriate exercise clothes when using
the treadmill. Do not wear loose clothes that
could become caught in the treadmill. Athletic
support clothes are recommended for both
men and women. Always wear athletic shoes.
Never use the treadmill with bare feet, wearing
only stockings, or in sandals.
20. Do not change the incline of the treadmill by
placing objects under the treadmill.
11. When connecting the power cord (see page
10), plug the power cord into a surge suppressor (not included) and plug the surge
suppressor into a grounded circuit capable of
carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.
21. Use the hand weights only at walking speeds.
Using weights and not holding the handrails
may compromise your ability to maintain your
balance. Exercises using weights should be
attempted only by experienced users.
3
22. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
scribed in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.
23. Never drop or insert any object into any
opening.
24.
DANGER: Always unplug the power
25. This treadmill is intended for in-home use
only. Do not use this treadmill in any commercial, rental, or institutional setting.
cord immediately after use, before cleaning
the treadmill, and before performing the maintenance and adjustment procedures de-
WARNING:
Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown here have been placed
on your treadmill. If a decal is missing, or
if it is not legible, please call our Customer
Service Department, toll-free, and order a
free replacement decal (see ORDERING
REPLACEMENT PARTS on the back cover
of this manual). Apply the decal in the location shown. Note: The decals are not
shown at actual size.
4
BEFORE YOU BEGIN
Thank you for selecting the WESLO® CARDIO
PACERTM treadmill. The CARDIO PACER treadmill
combines advanced technology with innovative design
to let you enjoy an excellent form of cardiovascular exercise in the convenience and privacy of your home.
And when you’re not exercising, the innovative CARDIO PACER treadmill can be folded up, requiring less
than half the floor space of other treadmills.
Department toll-free at 1-866-699-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please note
the product model number and serial number before
calling. The model number of the treadmill is
WLTL421040. The serial number can be found on a
decal attached to the treadmill (see the front cover of
this manual for the location).
For your benefit, read this manual carefully before
using the treadmill. If you have questions after reading this manual, please call our Customer Service
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Console
Water Bottle
Holder (Bottle
not included)
Accessory Tray
Key/Clip
Handrail
Storage Latch
RIGHT SIDE
LEFT SIDE
Hand Weight
Foot Pad
Circuit Breaker
Walking Belt
Power Cord
Wheel
Rear Roller
Adjustment Bolts
Incline Leg
5
ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is
coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of
the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there
is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included allen wrench
adjustable wrench
, wire cutters
and your own phillips screwdriver
, and needlenose pliers
,
.
For help identifying the assembly hardware, see the part drawings below. Note: The assembly hardware
and other small parts are packaged in separate part bags. Do not open the part bags until instructed to
do so.
Rack Screw (21)–12
Wheel Nut (29)–2
3/4" Screw (7)–10
3/8" Star
Washer (42)–6
3/4" Tek Screw (24)–4
5/16” Star Washer
(64)–4
2" Bolt (12)–6
3” Bolt (30)–4
6 1/2" Bolt (10)–2
1. Make sure that the power cord is unplugged.
1
24
28
24
24
12
19
19
19
29
Orient the Base (28) so the holes for the four Base Pads
(19) are on top. Open part bag A. Attach the four Base
Pads to the Base with the four 3/4" Tek Screws (24).
Attach the two Wheels (15) to the Base (28) with two 2"
Bolts (12) and two Wheel Nuts (29) as shown. Do not
overtighten the Bolts; The Wheels must be able to
turn freely.
6
24
15
19
29
15
12
2. Identify the Right Upright (6), which has a large round
hole near the lower end, and the Left Upright (17).
2
See drawing 2a. Make sure that there are two U-nuts
(63) in the lower end of each Upright (6, 17).
2a
Hole
Open part bag B. See drawing 2b. Have a second person hold the Base (28) so it is resting on the Wheels (15)
as shown. Attach the Right and Left Uprights (6, 17) to
the Base with four 3" Bolts (30) and four 5/16" Star
Washers (64). Do not tighten the Bolts yet. Make sure
that the large and small holes in the Right Upright
are on the sides shown, and that the small holes in
the Left Upright are on the indicated side. In addition,
make sure that the Base is oriented so the Base Pads
(19) are in the location shown.
6, 17
6, 17
63
Small
Holes
2b
17
64
Small
Holes
28
6
30
19
64
15
30
Large
Hole
19
15
3. Raise the Uprights (6, 17) to the vertical position. Place
the Frame (55) between the Uprights as shown.
3
17
6
Feed the Wire Harness (22) into the large round hole in
the lower end of the Right Upright (6) and out of the indicated hole. Note: It may be helpful to use needlenose pliers to pull the end of the Wire Harness out of the hole.
22
55
22
4. Hold the Right Frame Spacer (16) and the Left Frame
Spacer (not shown) against the sides of the Frame (55) as
shown. Make sure that the wide side of each Frame
Spacer is facing forward. With the help of a second person, carefully lift and hold the Frame so the Frame
Spacers are between the Right Upright (6) and the Left
Upright (not shown).
Align the hole in the Right Upright (6) with the hole in the
Right Frame Spacer (16). Tighten a 6 1/2" Bolt (10) with a
3/8" Star Washer (42) into the Right Upright, the Frame
Spacer, and the Frame (55). Repeat this step on the left
side of the treadmill. Do not overtighten the Bolts.
7
4
6
Wide
side
42
10
16
55
5. Hold a Handrail (32) near the Right Upright (6). Feed the
Wire Harness (22) into the hole near the lower end of the
Handrail and out of the hole near the upper end of the
Handrail. Note: It may be helpful to use needlenose pliers
to pull the end of the Wire Harness out of the hole.
5
6
22
22
32
6. Open part bag C. Hold the Handrail (32) with the Wire
Harness (22) against the Right Upright (6). Hand tighten
two 2" Bolts (12) with two 3/8" Star Washers (42) into the
Handrail and the Right Upright. Be careful not to pinch
the Wire Harness. Do not tighten the Bolts yet.
6
22
32
Attach the other Handrail (not shown) to the Left Upright
(17) as described above. Note: There is not a wire on the
left side. Do not tighten the Bolts yet.
17
6
Orient a Weight Rack (71) as shown, and attach it to the
Right Upright (6) with six Rack Screws (21). Start all six
Rack Screws before tightening them; do not overtighten the Screws.
22
71
21
42
Attach the other Weight Rack (not shown) to the Left
Upright (17) as described above.
12
21
42
21
7. Hold the Console Base (77) near the Handrails (32) (only
one is shown). Insert the Wire Harness (22) through the
looped plastic tie and through the hole in the Console
Base. Remove the tape holding the ends of the wires.
7
Tape
77
22
32
Tie
22
8
22
8. Hold the Console (1) near the Console Base (77). Touch
the right Handrail (32) to discharge any static.
8
1
Locate the two wires in the Wire Harness (22) that have
L-shaped connectors on the ends. Press the connectors
onto the two tabs on the switch shown in inset drawing 8a.
77
Connect the other two wires in the Wire Harness (22) to
the back of the Console (1) in the locations shown by the
arrows in drawing 8. The connectors should slide easily into the sockets and snap into place (see drawings
8b and 8c). If the connectors do not slide easily and snap
into place, turn the connectors and then insert them. IF
THE CONNECTORS ARE NOT INSERTED PROPERLY,
THE CONSOLE MAY BE DAMAGED WHEN THE
POWER IS TURNED ON.
22
32
8a
9. Securely tighten a plastic tie around the Wire Harness (22)
and under the indicated hook on the Console (1) to prevent the Wire Harness from slipping. Tighten the plastic tie
and cut off the end.
See drawing 9a. Set the Console (1) in the Console Base
(77). Make sure that the Wire Harness (not shown) is
not pinched. Next, set the Console Base on the
Handrails (32). Insert as much of the Wire Harness as
possible into the hole in the right Handrail. See step 7.
Tighten the plastic tie shown in step 7 and cut off the end.
9
8c
1
Hook
Tie
22
9a
Loosely thread six 3/4” Screws (7) into the Console Base
(77) and the Console (1). Loosely thread four 3/4” Screws
into the Handrails (only two Screws are shown). Start all
ten Screws and then tighten them; do not overtighten
the Screws.
10.Press the Latch Housing (58) into the Left Upright (17).
Remove the knob from the pin. Make sure that the collar
and the spring are on the pin as shown. Insert the pin
into the Latch Housing, and tighten the knob back onto
the pin.
8b
77
1
7
32
7 32
7
10
Knob
Spring
Collar
See step 2. Lower the Uprights (6, 17). Tighten the four
3” Bolts (30). Raise the Uprights to the vertical position.
See step 6. Tighten the four 2” Bolts (12). Set a 3-lb.
Weight (not shown) on the bottom hanger on the Weight
Rack (71), a 2-lb. Weight on the middle hanger, and a
1-lb. Weight on the top hanger.
Pin
58
17
11.Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included allen wrenches in a secure place. The allen wrench is used to adjust the walking belt (see page 17). To protect the floor or carpet, place a mat under the treadmill.
9
OPERATION AND ADJUSTMENT
THE PRE-LUBRICATED WALKING BELT
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The treadmill is not compatible with
GFCI-equipped outlets.
Your treadmill features a walking belt coated with highperformance lubricant. IMPORTANT: Never apply silicone spray or other substances to the walking
belt or the walking platform. Such substances will
deteriorate the walking belt and cause excessive
wear.
HOW TO PLUG IN THE POWER CORD
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
DANGER:
Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
1
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances being turned on or off. To decrease the possibility of your treadmill being damaged, always
use a surge suppressor with your treadmill (see
drawing 1 at the right). To purchase a surge suppressor, see your local WESLO dealer or call 1-866699-3756 and order part number 146148, or see
your local electronics store.
Grounding Pin
Grounded Outlet
Grounding Plug
2
Grounded Outlet Box
Adapter
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated
for 120 volts AC and 15 amps. There must be a
monitoring light on the surge suppressor to indicate whether it is functioning properly. Failure to
use a properly functioning surge suppressor could
result in damage to the control system of the
treadmill. If the control system is damaged, the
walking belt may change speed or stop unexpectedly, which may result in a fall and serious injury.
Surge Suppressor
Lug
Metal Screw
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is
grounded before using an adapter.
This product must be grounded. If it should malfunction or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
10
DIAGRAM OF THE CONSOLE
Monitor Displays
Speed Control
If there is a sheet of clear plastic on
the console, remove the plastic.
Clip
Key
with the negative (–) ends of the batteries touching the
springs. Close the battery cover, push up on the tab,
and then push the tab forward as shown. Make sure
that the tab locks into place.
CAUTION:
Before operating the
console, read the following precautions.
• Do not stand on the walking belt when turning on the power.
Battery
Cover
• Always wear the clip (see the drawing above)
while operating the treadmill. When the key
is removed from the console, the walking
belt will stop.
• Adjust the speed in small increments.
Batteries
• The training zones marked around the speed
control are general guidelines only. See
pages 18 and 19 for more information.
Tab
STEP-BY-STEP CONSOLE OPERATION
Before operating the console, make sure that the
power cord is properly plugged in. (See HOW TO
PLUG IN THE POWER CORD on page 10.)
• To reduce the possibility of electric shock,
keep the console dry. Avoid spilling liquids
on the console and use only a sealable water
bottle.
Stand on the foot pads of the treadmill. Find the clip attached to the key (see above), and slide the clip onto
the waistband of your clothes. Next, insert the key into
the console. Test the clip by carefully taking a few
steps backward until the key is pulled from the
console. If the key is not pulled from the console,
adjust the position of the clip as needed.
BATTERY INSTALLATION
The console requires two "AA" batteries (not included). Alkaline batteries are recommended. To install batteries, open the battery cover as shown at the
right. Press two batteries into the battery compartment,
Follow the steps on page 12 to operate the console.
11
1
Insert the key fully into the console.
3
Inserting the key will not turn on the displays. The
displays will turn on when the ON/RESET button
is pressed or when the walking belt is started.
Note: If batteries were just installed, the displays
will already be on.
2
Follow your progress with the displays.
As you exercise,
the two displays will
show five different
modes. Flashing
mode arrows will
Mode Arrows
show which modes
are currently displayed. The modes are described below.
Reset the speed control and start the walking
belt.
• Calories (CALS)—This mode displays the approximate number of calories you have burned.
Turn the speed
control to the
RESET position.
Note: Each time
the walking belt
is stopped, the
speed control
must be turned
to the RESET
position before
the walking belt
can be restarted. Next, slowly turn the speed
control until the walking belt begins to move at
slow speed. Carefully step onto the walking belt
and begin exercising. Change the speed of the
walking belt as desired by turning the speed control.
• Fat Calories (F CALS)—This mode displays the
approximate number of fat calories you have
burned (see FAT BURNING on page 18).
• Speed—This mode displays your speed, in miles
per hour.
• Time—This mode displays the elapsed time.
Note: If you stop the walking belt, the time mode
will pause.
• Distance—This mode displays the total number
of miles you have walked or run.
If desired, reset the displays by pressing the
ON/RESET button.
To stop the walking belt, step onto the foot pads
and turn the speed control to the RESET position.
4
Note: The first time the treadmill is used, observe
the alignment of the walking belt, and align the
walking belt if necessary (see page 17).
When you are finished exercising, stop the
walking belt and remove the key.
Step onto the foot pads, turn the speed control to
the RESET position, and remove the key from the
console. The displays will turn off about six minutes after the key is removed. Note: Any time that
the walking belt is stopped and the ON/RESET
button is not pressed for a few minutes, the
displays will automatically turn off to conserve
the batteries.
12
HOW TO CHANGE THE INCLINE OF THE TREADMILL
To vary the intensity of your exercise, you can change
the incline of the treadmill. There are four incline levels. Before changing the incline, remove the key
and UNPLUG THE POWER CORD.
Arrow
Incline
Leg
Next, fold the treadmill to the storage position (see
HOW TO FOLD THE TREADMILL FOR STORAGE on
page 14).
A
To change the incline, first pull one of the incline legs
out of the incline leg housing as shown at the right.
Rotate the incline leg to a different position and then
press in on the indicated button (A) as you reinsert the
incline leg. An arrow on the housing will point to one of
four numbers on the bottom of the incline leg. The
higher the number, the higher the incline will be. Adjust
the other incline leg in the same way. CAUTION:
Before using the treadmill, make sure that both incline legs are fully inserted at the same height.
Incline Leg Housing
After you have adjusted the incline legs, lower the
treadmill (see HOW TO LOWER THE TREADMILL
FOR USE on page 15).
13
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Unplug the power cord. CAUTION: You must be able to
safely lift 20 kg (45 lbs.) to raise, lower, or move the
treadmill.
1. Hold the treadmill with your hands in the locations shown
at the right. CAUTION: To decrease the possibility of injury, bend your legs and keep your back straight. As
you raise the treadmill, make sure to lift with your legs
rather than your back. Raise the treadmill about halfway
to the vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Using your left hand, pull the latch knob to
the left and hold it. Raise the treadmill until the pin on the
latch knob is aligned with the latch hole in the frame.
Slowly release the latch knob. Make sure that the pin is
inserted into the latch hole in the frame.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage
position in temperatures above 85° Fahrenheit.
Latch
Knob
Latch
Pin
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the pin
on the latch knob is inserted into the latch hole in the
frame.
1. Hold the handrails and place one foot on the base as
shown.
2. Tilt the treadmill back until it rolls freely on the front wheels.
Carefully move the treadmill to the desired location. Never
move the treadmill without tipping it back. To reduce
the risk of injury, use extreme caution while moving
the treadmill. Do not attempt to move the treadmill
over an uneven surface.
3. Place one foot on the base, and carefully lower the treadmill until it is resting in the storage position.
14
Base
Front Wheels
HOW TO LOWER THE TREADMILL FOR USE
1. Hold the upper end of the treadmill with your right hand as
shown. Using your left hand, pull the latch knob to the left
and hold it. Pivot the treadmill down until the frame is past
the latch pin. Slowly release the latch knob.
Latch
Knob
Latch
Pin
2. Hold the treadmill firmly with both hands, and lower the
treadmill to the floor. To decrease the possibility of injury, bend your legs and keep your back straight.
15
MAINTENANCE AND TROUBLESHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and
follow the steps listed. If further assistance is needed, please call our Customer Service Department tollfree at 1-866-699-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 10). Use only a single-outlet surge suppressor that meets all of the specifications described on page 10. Important: The treadmill is not compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
c. Check the circuit breaker located on the treadmill
frame near the power cord. If the switch protrudes
as shown, the circuit breaker has tripped. To reset
the circuit breaker, wait for five minutes and then
press the switch back in.
c
Tripped
Reset
Tripped
Reset
PROBLEM: The power turns off during use
SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see 1. c. above). If
the circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. If the treadmill still will not run, please call our Customer Service Department, toll-free.
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and UNPLUG THE POWER CORD. Next, remove the screws
from the hood (not shown), and carefully remove the hood.
Locate the Reed Switch (46) and the Magnet (49) on
the left side of the Pulley (53). Turn the Pulley until
the Magnet is aligned with the Reed Switch. Make
sure that the gap between the Magnet and the
Reed Switch is about 1/8 inch. If necessary, loosen
the indicated Screw (24), move the Reed Switch
slightly, and then retighten the Screw. Reattach the
hood, and run the treadmill for a few minutes to check
for a correct speed reading.
16
a
1/8"
24
53
49
46
Top View
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 10.
b. If the walking belt is overtightened, treadmill performance may decrease and the walking belt may become damaged. Remove the key and UNPLUG THE
POWER CORD. Using the allen wrench, turn both
rear roller adjustment bolts counterclockwise, 1/4 of a
turn. When the walking belt is properly tightened, you
should be able to lift each side of the walking belt 2 to
3 inches off the walking platform. Be careful to keep
the walking belt centered. Plug in the power cord, insert the key, and run the treadmill for a few minutes.
Repeat until the walking belt is properly tightened.
b
2”–3”
Rear Roller
Adjustment Bolts
c. If the walking belt still slows when walked on, please call our Customer Service Department, tollfree.
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, first remove the key
and UNPLUG THE POWER CORD. If the walking
belt has shifted to the left, use the allen wrench to
turn the left rear roller bolt clockwise 1/2 of a turn; if
the walking belt has shifted to the right, turn the
left bolt counterclockwise 1/2 of a turn. Be careful not
to overtighten the walking belt. Plug in the power cord,
insert the key, and run the treadmill for a few minutes.
Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using the
allen wrench, turn both rear roller bolts clockwise, 1/4
of a turn. When the walking belt is correctly tightened,
you should be able to lift each side of the walking belt
2 to 3 inches off the walking platform. Be careful to
keep the walking belt centered. Plug in the power
cord, insert the key, and carefully walk on the treadmill
for a few minutes. Repeat until the walking belt is
properly tightened.
17
a
b
CONDITIONING GUIDELINES
Aerobic Exercise
WARNING:
Before beginning
this or any exercise program, consult your
physician. This is especially important for individuals over the age of 35 or individuals
with pre-existing health problems.
If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the highest number in your training
zone. It may also be helpful to set the speed control on
the console to AEROBIC to help you maintain the
proper intensity level. (See page 12.)
The following guidelines will help you to plan your exercise program. For more detailed exercise information, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
High Performance Athletic Conditioning
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the desired
results is to exercise with the proper intensity. The
proper intensity level can be found by using your heart
rate as a guide. The chart below shows recommended
heart rates for fat burning and aerobic exercise.
If your goal is high performance athletic conditioning,
set the speed control on the console to PERFORMANCE to help you maintain the proper intensity level.
(See page 12.) Note: During the first few weeks of your
exercise program, keep your heart rate near the low
end of your training zone.
HOW TO MEASURE YOUR HEART RATE
To measure your
heart rate, stop exercising and place
two fingers on your
wrist as shown.
Take a six-second
heartbeat count, and
multiply the result by
ten to find your heart
rate. (A six-second count is used because your heart
rate drops quickly when you stop exercising.) If your
heart rate is too high or too low, adjust the speed or incline of the treadmill accordingly.
To find the proper heart rate for you, first find your age
at the top of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers below your
age. The three numbers are your “training zone.” The
lower two numbers are recommended heart rates for
fat burning; the highest number is the recommended
heart rate for aerobic exercise.
USING THE HAND WEIGHTS
The included hand weights let you add upper body
exercise to your workouts. As you walk on the treadmill, hold the 1-lb. weights at your sides or press the
weights above your head. To increase the intensity of
your exercise, use the 2-lb. or 3-lb. weights. WARNING:
Use the hand weights only at walking speeds.
Using weights and not holding the handrails may
compromise your ability to maintain your balance.
Exercises using weights should be attempted only
by experienced users.
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time. During
the first few minutes of exercise, your body uses easily
accessible carbohydrate calories for energy. Only after
the first few minutes does your body begin to use
stored fat calories for energy. If your goal is to burn fat,
adjust the speed and incline of the treadmill until your
heart rate is near one of the lower two numbers in your
training zone. It may also be helpful to set the speed
control on the console to FAT BURN to help you maintain the proper intensity level. (See page 12.)
18
WORKOUT GUIDELINES
A Cool-down
Each workout should include the following three parts:
Finish each workout with 5 to 10 minutes of stretching
to cool down. This will increase the flexibility of your
muscles and will help prevent post-exercise problems.
A Warm-up
EXERCISE FREQUENCY
Start each workout with 5 to 10 minutes of stretching
and light exercise. A proper warm-up increases your
body temperature, heart rate, and circulation in preparation for exercise.
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest between workouts. After a few months, you may complete up to five workouts each week if desired.
Training Zone Exercise
After warming up, increase the intensity of your exercise until your pulse is in your training zone for 20 to
60 minutes. (During the first few weeks of your exercise program, do not keep your pulse in your training
zone for longer than 20 minutes.) Breathe regularly
and deeply as you exercise—never hold your breath.
The key to success is to make exercise a regular and
enjoyable part of your everyday life.
19
PART LIST—Model No. WLTL421040
Key No.
Qty.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43*
44
1
1
1
1
6
1
13
1
1
2
2
8
1
2
2
1
1
1
4
2
12
1
1
23
1
4
2
1
6
4
1
2
2
1
1
1
2
1
1
1
1
6
1
1
Description
Console
Speed Control
Key/Clip
Choke
Electronics Screw
Right Upright
3/4" Screw
Battery Cover
Motor Tension Bolt
6 1/2" Bolt
1-lb. Weight
2" Bolt
Left Frame Spacer
3-lb. Weight
Wheel
Right Frame Spacer
Left Upright
Handrail Grommet
Base Pad
Handrail Endcap
Rack Screw
Wire Harness
Hood
3/4" Tek Screw
Belly Pan
Belt Guide Screw
Belt Guide
Base
Wheel Nut
3" Bolt
Console Warning Decal
Handrail
Roller Spacer
Right Foot Pad
Controller
Motor Bolt
Upright Endcap
Circuit Breaker
Motor Star Washer
Motor Tension Washer
Power Cord Grommet
3/8" Star Washer
Motor Assembly
Pulley/Flywheel
R0904A
Key No.
Qty.
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78*
79*
80
81
#
#
#
1
1
1
1
1
1
2
6
1
1
1
1
1
1
1
1
4
2
4
4
2
2
2
2
2
2
2
1
1
1
1
1
1
1
2
1
1
1
1
1
Description
Motor
Reed Switch
Motor Tension Nut
Reed Switch Clip
Magnet
Belt
Roller Adj. Bolt
Platform Screw
Front Roller/Pulley
Left Foot Pad
Frame
Walking Belt
Walking Platform
Latch Housing
Ground Screw
Ground Wire
8" Cable Tie
Wire Tie Clamp
U-Nuts
5/16" Star Washer
Incline Leg Housing
Roller Washer
Frame Endcap
Rear Endcap Spacer
2-lb. Weight
Incline Leg
Weight Rack
Rear Roller
Releasable Wire Tie
Allen Wrench
Latch Warning Decal
Power Cord
Console Base
Latch Assembly
Console Assembly
Speed Potentiometer
Plastic Tie
6" White Wire, Male/Female
4" Black Wire, Male/Flag
User’s Manual
* Includes all parts shown in the box
# These parts are not illustrated
51
24
66
70
65
67
74
68
24
75
61
51
62
66
73
24
60
67
72
52
5
24
68
26
70
56
57
65
54
27
4
52
55
33
49
25
50
46
24
48
34
53
24
44
29
52
24
40
45
9
26
39
27
47
38
23
33
5
36
43*
35
24
24
21
21
21
5
41
71
76
15
4
10
12
12
20
29
63
42
32
42
24
19
37
30
64
13
17
58
7
15
24
19
78*
7
28
29
7
32
77
12
12
24
19
42
7
81
20
24
19
7
8
79*
11
30
64
18
22
16
22
6
31
37
14
42
7
2
63
10
1
69
80
21
21
71
21
3
EXPLODED DRAWING—Model No. WLTL421040
R0904A
ORDERING REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-866-699-3756, Monday through
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give
the following information:
• The MODEL NUMBER of the product (WLTL421040)
• The NAME of the product (WESLO® CARDIO PACERTM treadmill)
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED
DRAWING in the center of this manual)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not
extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center; products used for commercial or rental purposes; or products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 218358 R0904A
Printed in USA © 2004 ICON IP, Inc.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
