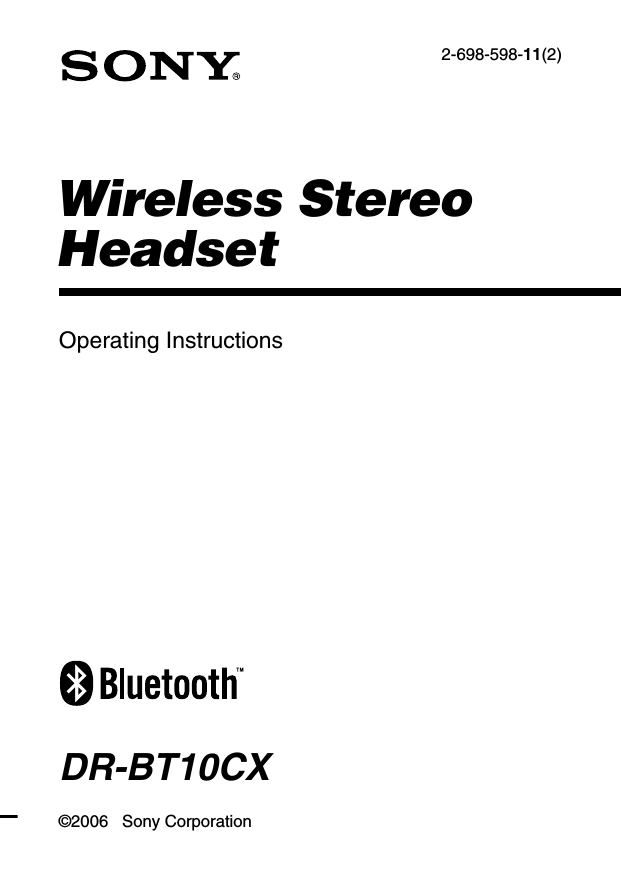

2-698-598-11(2)
Wireless Stereo
Headset
Operating Instructions
DR-BT10CX
©2006 Sony Corporation
WARNING
To reduce the risk of fire or electric
shock, do not expose this
apparatus to rain or moisture.
To reduce the risk of electrical
shock, do not open the cabinet.
Refer servicing to qualified
personnel only.
Do not install the appliance in a
confined space, such as a bookcase or
built-in cabinet.
To reduce the risk of fire, do not cover the
ventilation of the apparatus with
newspapers, tablecloths, curtains, etc.
And do not place lighted candles on the
apparatus.
To reduce the risk of fire or electric
shock, do not place objects filled with
liquids, such as vases, on the apparatus.
Connect the AC power adaptor to an
easily accessible AC outlet. Should you
notice an abnormality in the AC power
adaptor, disconnect it from the AC outlet
immediately.
Hereby, Sony Corp., declares that this
equipment is in compliance with the
essential requirements and other relevant
provisions of Directive 1999/5/EC.
For details, please access the following
URL:
http://www.compliance.sony.de/
2
Disposal of Old
Electrical &
Electronic
Equipment
(Applicable in the
European Union and
other European
countries with
separate collection
systems)
This symbol on the product or on its
packaging indicates that this product shall
not be treated as household waste. Instead
it shall be handed over to the applicable
collection point for the recycling of
electrical and electronic equipment. By
ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the
environment and human health, which
could otherwise be caused by
inappropriate waste handling of this
product. The recycling of materials will
help to conserve natural resources. For
more detailed information about
recycling of this product, please contact
your local Civic Office, your household
waste disposal service or the shop where
you purchased the product.
The Bluetooth word mark and logos are
owned by the Bluetooth SIG, Inc. and any
use of such marks by Sony Corporation is
under license.
Other trademarks and trade names are
those of their respective owners.
MPEG Layer-3 audio coding technology
and patents licensed from Fraunhofer IIS
and Thomson.
Table Of Contents
Welcome! .......................... 4
3 steps to BLUETOOTH
function ................................. 5
Location and Function of
Parts ............................... 6
Charging the unit ............. 7
Pairing ............................... 9
What is pairing? ........................ 9
Procedures of pairing ................ 9
Wearing the headset ...... 11
Indications of
BLUETOOTH function .. 12
Listening to music ......... 13
Calling ............................. 15
Controlling the BLUETOOTH
mobile phone – HFP, HSP .. 17
Calling while playing
back music .................. 18
Disposing of the unit ..... 19
Precautions .................... 20
What is BLUETOOTH
technology? ................ 22
Troubleshooting ............. 23
Initializing the unit ......... 24
Specifications ................. 25
3
Welcome!
Thank you for purchasing this Sony Wireless Stereo Headset. This unit uses
BLUETOOTHTM wireless technology.
• You can enjoy music from your BLUETOOTH device capable of
transmitting music.
• You can enjoy hands-free talking with your BLUETOOTH mobile phone
inside your bag.
• You can charge the unit using the supplied battery charging stand.
For details on BLUETOOTH technology, see page 22.
Enjoy listening to music
Talking on the phone
4
3 steps to BLUETOOTH function
Pairing (each device)
First, register (“pair”) a BLUETOOTH device (mobile phone, etc.) and
this unit with each other. Once pairing is established, there is no need for
pairing again.
BLUETOOTH
mobile phone,
etc.
Wireless Stereo
Headset
Pairing
c Page 9
Listening to music
V
Calling
BLUETOOTH connection
BLUETOOTH connection
Operate the BLUETOOTH
device to make BLUETOOTH
connection.
When the unit is turned on, the unit
starts making the BLUETOOTH
connection to the recognized
mobile phone automatically.
Connection
A2DP
V
Connection
c Page 13
V
HFP
HSP
c Page 15
V
Listening to music
Talking on the phone
You can listen to music played on
the BLUETOOTH device.
You can make and receive a call
by operating unit.
Music
c Page 13 - 14
Voice
c Page 16 - 17
5
GETTING STARTED
Location and Function of Parts
1 Multi function button
Controls various call
functions.
2 Indicator (red)
Indicates the power status of
the unit.
3 Indicator (blue)
Indicates the communication
status of the unit.
4 POWER button
5 Earpieces
6
6
7
8
9
0
VOL – button
VOL + button
Microphone
RESET button
Holding clip
Adjust the holding clip to the
desired angle and clip to your
pocket or collar.
qa Contact point
Charging the unit
The unit contains a rechargeable Lithium-Ion battery, which should be
charged before using for the first time.
1 Connect the supplied
3 Put the unit on the
AC power adaptor with
the battery charging
stand.
battery charging stand.
Wireless Stereo
Headset
Battery charging
stand (supplied)
(Rear)
Contact pin
Note
If the holding clip is turned, the unit
cannot be set on the battery charging
stand and charging does not start.
Turn the holding clip back to the
original position before charging.
AC power
adaptor
(supplied)
2 Connect the supplied
Rest the unit on the battery
charging stand so that the unit’s
contact point meets the contact
pin on the battery charging
stand, and make sure that the
indicator (red) lights up.
Charging is completed in
about 3 hours* and the
indicator (red) goes off
automatically.
AC power adaptor to an
AC outlet.
To an AC
outlet
Battery charging
stand (supplied)
* Time required for empty battery
to recharge.
Tip
When charging the battery, the unit is
turned off automatically.
Continued
7
Caution
Usage hours*
If this unit detects a problem while
charging, the indicator (red) may
turn off, although charging is not
complete.
Check for the following causes:
Status
Approx.
usage hours
Communication
time (including
music playback
time) (up to)
11 hours
Standby time
(up to)
100 hours
– Ambient temperature exceeds the range
of 0 °C – 40 °C (32 °F – 104 °F).
– There is a problem with the battery.
In this case, charge again within the
above-mentioned temperature range.
If the problem persists, consult your
nearest Sony dealer.
Notes
• If the battery is not used for a long time,
battery may be quickly depleted,
however, after a few recharges, battery
life will improve.
• If the life of the built-in rechargeable
battery drops to half the normal length,
the battery should be replaced. Consult
your nearest Sony dealer for
replacement of the rechargeable battery.
• Avoid exposure to temperature
extremes, direct sunlight, moisture,
sand, dust or mechanical shock. Never
leave in a car parked in the sun.
• Use only the supplied AC power
adaptor. Do not use any other AC
power adaptor.
* Time stated above may vary, depending
on ambient temperature or conditions of
use.
Checking the remaining
battery
When pressing the POWER button
while the unit is turned on, the
indicator (red) flashes. You can
check the remaining battery by the
number of times the indicator (red)
flashes.
Indicator (red)
Status
3 times
Full
2 times
Mid
1 time
Low
(needs to
charge)
Note
You cannot check the remaining battery
immediately after the unit is turned on, or
while pairing.
When the battery is almost empty
The indicator (red) flashes slowly
automatically.
When the battery becomes empty, a beep
sounds and the unit will turn off
automatically.
8
Pairing
What is pairing?
BLUETOOTH devices need to be
“paired” with each other
beforehand.
Once BLUETOOTH devices are
paired, there is no need for pairing
again, except in the following cases:
• When pairing information is
deleted after repair, etc.
• When this unit is paired with 9 or
more devices.
This unit can be paired with 8
BLUETOOTH devices; if a new
device is paired after 8 devices
have been paired, the device
whose latest connection time is
the oldest among the 8 paired
devices is replaced by the new
one.
• When recognition of the unit by
the device to be connected is
deleted.
• When this unit is initialized.
All pairing information is deleted.
Procedures of pairing
1 Place the connecting
device within 1 m (3 ft)
of this unit.
2 Press and hold the
POWER button for 7
seconds or more to
standby for pairing
while the unit is turned
off.
Notes
• After about 3 seconds, power is
turned on and the indicator
(blue) and indicator (red) flash
together twice. Keep the button
pressed without releasing until
both indicators start flashing
together, then release the button.
This unit enters into pairing
mode.
• If pairing is not established
within about 5 minutes, pairing
mode will be cancelled and this
unit will turn off. In this case,
start over from step 1.
Continued
9
3 Perform pairing
procedure on the
connecting device to
detect this unit.
The list of detected devices
appears on the display of the
connecting device. This unit is
displayed as “DR-BT10CX.”
Note
If “DR-BT10CX” is not displayed,
repeat from step 1.
4 Select “DR-BT10CX” on
the display of the
connecting device.
5 If Passcode* input is
required on the display
of a connecting device,
input “0000.”
Pairing is complete when the
indicator (blue) flashes slowly.
The message standing for
“Pairing complete” appears on
the display of some
BLUETOOTH devices.
* Passcode may be called
“Passkey,” “PIN code,” “PIN
number,” or “Password.”
Note
Passcode of this unit is fixed at
“0000.” This unit cannot be paired
with a BLUETOOTH device
whose Passcode is not “0000.”
10
6 Start the BLUETOOTH
connection from the
BLUETOOTH device.
This unit memorizes the
device as the latest connected
device. Some BLUETOOTH
devices may connect with the
unit automatically when
pairing is complete.
When pairing with a
BLUETOOTH device that
cannot display a list of
detected devices or that
has no display
You may pair the device by setting
both this unit and the connecting
device to pairing mode. For details,
refer to the operating instructions
supplied with the connecting device.
Tips
• To pair with other BLUETOOTH
devices, repeat steps 1 to 5 for each
device.
• To delete all pairing information, see
“Initializing the unit” (page 24).
Wearing the headset
Wear the earpiece marked R in
your right ear and the one marked
L in your left ear.
R
L
1
How to install the earbuds
correctly
If the earbuds do not fit your ears
correctly, low-bass sound may not
be heard. To enjoy better sound
quality, adjust the earbuds position
to sit on your ears comfortably or
push them into the inside of your
ears so that they fit your ears snugly.
If the earbuds do not fit your ears,
try ones of other size.
1 Turn the holding clip to the
desired angle and clip to your
pocket or collar.
How to use the holder
Store the earpieces. It prevents the
cord from tangling if you store the
earbuds.
11
Indications of BLUETOOTH function
B : Indicator (blue)
R : Indicator (red)
Pairing
Connectable
– –
B
R –
– –
– –
– –
– –
...
Connecting
B
R
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
...
...
Music
Connected
B
R
Phone
12
Flashing patterns
Searching
Connecting
Status
HFP/HSP or A2DP B
(standby for receiving audio signal)
–
–
–
–
–
–
–
–
–
–
–
–
–
–
– ...
– ...
– – – – – – – – –
– – – – – ...
–
–
R –
HFP/HSP and A2DP B
– – – – – – –
– – – ...
(standby for receiving audio signal)
R –
Listening
B
R –
– – – – – – – –
– – – – ...
Listening during standby B
for telephone call
R –
– – – – – – –
– – – ...
...
Incoming call
B
R –
Talking
B
R –
– – – – – – – –
– – – – ...
Calling while
B
playing back music
R –
– – – – – – –
– – – ...
OPERATING THE UNIT
Listening to music
VOL –
button
POWER button
VOL + button
3 Start playback on the
BLUETOOTH device.
Notes
Check the following before
operating the unit.
– The BLUETOOTH device is
turned on.
– Pairing of this unit and the
BLUETOOTH device is complete.
– The BLUETOOTH device
supports the transmitting music
function (profile: A2DP).
1 Press and hold the
POWER button for
about 3 seconds while
the unit is turned off.
The indicator (blue) and
indicator (red) flash together
twice and the unit is turned on.
Note
Do not press and hold the POWER
button for more than 7 seconds,
otherwise pairing mode is entered.
• When you play music by connecting the
unit to a BLUETOOTH device using
HSP (Headset Profile)*, sound quality
will not be high. For better sound,
change the BLUETOOTH connection
to A2DP (Advanced Audio Distribution
Profile)* by operating the
BLUETOOTH device.
• This unit cannot control music playback
functions of the connected device.
* For detail on profiles, see page 22.
To adjust the volume
Press the VOL + or – button while
listening to the music.
Tips
• When the volume level is low, raise the
volume of the connected device. The
sound will be clearer.
• Volume level for listening to music and
calling can be set independently.
Note
You cannot adjust the volume of the
BLUETOOTH device by the unit VOL
buttons.
2 Make the BLUETOOTH
connection (A2DP) from
a BLUETOOTH device to
this unit.
Refer to the operating
instructions supplied with the
BLUETOOTH device on how
to operate it.
Continued
13
To stop use
1 Terminate the
BLUETOOTH
connection by operating
the BLUETOOTH device.
2 Press and hold the
POWER button for
about 3 seconds.
The indicator (blue) and
indicator (red) light up
together, and the unit turns
off.
Tip
When you finish playing music, the
BLUETOOTH connection may terminate
automatically, depending on the
BLUETOOTH device.
14
Calling
VOL –
button
POWER button
VOL + button
Multi function
button
Check the following before
operating the unit.
– The BLUETOOTH function is
active on the mobile phone.
– Pairing of this unit and the
BLUETOOTH mobile phone is
complete.
1 Press and hold the
POWER button for
about 3 seconds while
the unit is turned off.
The indicator (blue) and
indicator (red) flash together
twice, the unit turns on and
then this unit automatically
connects to the last
BLUETOOTH mobile phone
that was used.
Note
Do not press and hold the POWER
button for more than 7 seconds,
otherwise pairing mode is entered.
Tip
This unit will stop trying to connect to the
BLUETOOTH mobile phone after 1
minute. In such a case, press the multi
function button to try to connect again.
When you want to connect the unit
to a different BLUETOOTH mobile
phone from the last time, follow the
procedure in “When this unit does
not connect to a BLUETOOTH
mobile phone automatically.”
When this unit does not
connect to a BLUETOOTH
mobile phone automatically
1 Make the BLUETOOTH
connection (HFP or
HSP) from the
BLUETOOTH mobile
phone to this unit.
Refer to the manual supplied
with your BLUETOOTH
mobile phone for operation
details.
The list of recognized devices
appears on the display of the
BLUETOOTH mobile phone.
This unit is displayed as
“DR-BT10CX.”
When you use the
BLUETOOTH mobile phone
features both HFP (Hands-free
Profile) and HSP (Headset
Profile)*, set to HFP.
* For details on profiles, see page
22.
Continued
15
Note
Note
When listening to music by operating this
unit connected to a BLUETOOTH mobile
phone, make the BLUETOOTH
connection by operating the
BLUETOOTH mobile phone. This cannot
be done with the multi function button.
If you pressed the call button on the
BLUETOOTH mobile phone, some
BLUETOOTH mobile phones may have
handset use priority. In this case, set to
talk with the unit by pressing and holding
the multi function button for about 2
seconds, or by operating the
BLUETOOTH mobile phone. For details,
refer to the manual supplied with your
BLUETOOTH mobile phone.
To call
1 Use the buttons on your
mobile phone when
making a call.
To adjust the volume
If no sound is heard through
this unit, press the multi
function button.
Tips
Tip
You can call in the following way,
depending on the BLUETOOTH mobile
phone. Refer to the manual supplied with
your mobile phone on operating details.
– When not communicating, you can call
using the voice-dial function by
pressing the multi function button.
– You can call a specific number by
pressing the multi function button for
about 2 seconds.
To receive a call
When the telephone is ringing, ring
tone will be heard through the unit.
1 Press the multi function
button on the unit.
The ring tone differs in the
following ways, depending on
your mobile phone.
– ring tone set on the unit
– ring tone set on the mobile
phone
– ring tone set on the mobile
phone only for BLUETOOTH
connection
16
Press the VOL + or – button.
• You cannot adjust the volume when not
communicating.
• Volume level for calling and listening
to music can be set independently.
To terminate a call
You can end a call by pressing the
multi function button on the unit.
To stop use
1 Terminate BLUETOOTH
connection by the
BLUETOOTH mobile
phone.
2 Press and hold the
POWER button for
about 3 seconds to turn
off the power.
The indicator (blue) and
indicator (red) light up
together, and the unit turns
off.
Controlling the
BLUETOOTH mobile
phone – HFP, HSP
The operation of the buttons on this
unit varies depending on your
mobile phone.
HFP (Hands-free Profile) or HSP
(Headset Profile) is used for
BLUETOOTH mobile phone. Refer
to the operating instructions
supplied with your BLUETOOTH
mobile phone on supported
BLUETOOTH profiles or how to
operate.
*1 Some functions may not be supported
depending on the BLUETOOTH
mobile phone.
*2 This may vary, depending on the
BLUETOOTH mobile phone.
*3 Some functions may not be supported
when calling using the BLUETOOTH
mobile phone.
HFP (Hands-free Profile)
Status
Multi function button
Short Press
Long Press
Start Voice
Dial
Last number
redial
Cancel Voice
Dial
–
Outgoing call End outgoing
call
–
Standby
Voice Dial
active
Incoming call
Answer
Reject
During call
End call
Change active
device
HSP (Headset Profile)
Status
Standby
Multi function button
Short Press
Long Press
–
Dial*1
Outgoing call End outgoing End outgoing
call*1
call or change
active device to
headset*2
Incoming call
During call
Answer
–
End call*3
Change active
device to
headset
17
Calling while playing back music
If the BLUETOOTH connection is active with the mobile phone, you can
switch the unit to call even when listening to music.
Before starting, see “Calling” (page 15) on operating details.
To call while playing back
music
To receive a call while
playing back music
1 Press the multi function
The sound through the unit changes
to a ring tone automatically.
button while playing
back music (page 15), or
operate your
BLUETOOTH mobile
phone to make a
telephone call.
If no sound is heard through
this unit, press and hold the
multi function button for about
2 seconds.
1 Press the multi function
button and talk.
After finishing the call, press
the multi function button. This
unit is switched back to music
playback.
If the sound does not
change to a ring tone
automatically
1 Stop music playback.
2 When ringing, press the
multi function button
and talk.
18
ADDITIONAL INFORMATION
Disposing of the unit
For environmental conservation, be sure to remove the built-in rechargeable
battery from the unit before disposing, and dispose of the battery
appropriately.
1 Remove 2 screws.
3 Remove the
rechargeable battery
and dispose of it.
2 Open the case and
detach the connector.
Rechargeable
battery
19
Precautions
On BLUETOOTH communication
• BLUETOOTH wireless technology
operates within a range of about 10 m
(about 30 ft).
Maximum communication range may
vary depending on obstacles (person,
metal, wall, etc.) or electromagnetic
environment.
• The aerial of this unit is built into the
unit. The sensitivity of BLUETOOTH
communication will improve by placing
a connected BLUETOOTH device near
the unit.
• The following conditions may affect the
sensitivity of BLUETOOTH
communication.
– There is an obstacle such as a person,
metal, or wall between this unit and
BLUETOOTH device.
– A device using 2.4 GHz frequency,
such as a wireless LAN device,
cordless telephone, or microwave
oven, is in use near this unit.
• Because BLUETOOTH devices and
wireless LAN (IEEE802.11b/g) use the
same frequency, microwave
interference may occur and resulting in
communication speed deterioration,
noise, or invalid connection if this unit
is used near a wireless LAN device. In
such as case, perform the following.
– Use this unit at least 10 m (about 30
ft) away from the wireless LAN
device.
– If this unit is used within 10 m (about
30 ft) of a wireless LAN device, turn
off the wireless LAN device.
– Install this unit and BLUETOOTH
device as near to each other as
possible.
• Microwaves emitting from a
BLUETOOTH device may affect the
operation of electronic medical devices.
Turn off this unit and other
20
•
•
•
•
BLUETOOTH devices in the
following locations, as it may cause
an accident.
– where inflammable gas is present,
in a hospital, train, airplane, or a
petrol station
– near automatic doors or a fire alarm
This unit supports security
capabilities that comply with the
BLUETOOTH standard to provide a
secure connection when the
BLUETOOTH wireless technology is
used, but security may not be enough
depending on the setting. Be careful
when communicating using
BLUETOOTH wireless technology.
We do not take any responsibility for
the leakage of information during
BLUETOOTH communication.
Connection with all BLUETOOTH
devices cannot be guaranteed.
– A device featuring BLUETOOTH
function is required to conform to
the BLUETOOTH standard
specified by BLUETOOTH SIG,
and be authenticated.
– Even if the connected device
conforms to the above mentioned
BLUETOOTH standard, some
devices may not be connected or
work correctly, depending on the
features or specifications of the
device.
– While talking on the phone hands
free, noise may occur, depending
on the device or communication
environment.
Depending on the device to be
connected, it may require some time
to start communication.
On the supplied AC power
adaptor
• Use the AC power adaptor supplied
with this unit. Do not use any other AC
power adaptor since it may cause the
unit to malfunction.
• Clean the earbuds by hand-washing
with a mild detergent solution. Remove
the earbuds when you clean them. After
cleaning, dry the earbuds well before
use.
• The earbuds may deteriorate due to
long-term storage or use.
• If you have any questions or problems
concerning this unit that are not covered
in this manual, please consult your
nearest Sony dealer.
Polarity of the plug
• If you are not going to use this unit for
a long time, unplug the AC power
adaptor from the AC outlet. To remove
the AC power adaptor from the wall
outlet, grasp the adaptor plug itself;
never pull the cord.
Others
• Do not place this unit in a place
exposed to humidity, dust, soot or
steam, subject to direct sunlight, or in a
car waiting at a traffic signal. It may
cause a malfunction.
• Using the BLUETOOTH device may
not function on mobile phones,
depending on radio wave conditions
and location where the equipment is
being used.
• If you experience discomfort after using
the BLUETOOTH device, stop using
the BLUETOOTH device immediately.
Should any problem persist, consult
your nearest Sony dealer.
• Do not allow small children to use this
unit.
• Listening with this unit at high volume
may affect your hearing. For traffic
safety, do not use this unit while driving
or cycling.
• If the earbuds become wet, wipe it with
a dry towel before using.
21
What is BLUETOOTH technology?
BLUETOOTH wireless technology
is a short-range wireless technology
that enables wireless data
communication between digital
devices, such as a computer or
digital camera. BLUETOOTH
wireless technology operates within
a range of about 10 m (about 30 ft).
Connecting two devices as
necessary is common, but some
devices can be connected to
multiple devices at the same time.
You do not need to use a cable for
connection since BLUETOOTH is a
wireless technology, nor is it
necessary for the devices to face one
another, such is the case with
infrared technology. For example,
you can use such a device in a bag
or pocket.
BLUETOOTH technology is an
international standard supported by
millions of companies all over the
world, and employed by various
companies worldwide.
Communication System
and Compatible
BLUETOOTH Profiles of
this unit
Profile is standardization of the
function for each BLUETOOTH
device specification. This unit
supports the following
BLUETOOTH version and profiles:
Communication System : BLUETOOTH
Specification version 2.0
Compatible BLUETOOTH Profiles:
– A2DP (Advanced Audio Distribution
Profile): Transmitting or receiving
audio content of high-quality.
– HSP (Headset Profile)*: Talking on the
phone/Operating the phone.
– HFP (Hands-free Profile)*: Talking on
the phone/Operating the phone by
hands-free.
* When you use a BLUETOOTH mobile
phone supported by both HFP (Handsfree Profile) and HSP (Headset Profile),
set to HFP.
Note
To be able to use the BLUETOOTH
function, the BLUETOOTH device to be
connected requires the same profile as the
unit’s.
Note also that even if the same profile
exists, devices may vary in function
depending on their specifications.
22
Troubleshooting
If you run into any problems using this unit, use the following checklist.
Should any problem persist, consult your nearest Sony dealer.
Common
The unit is not turned on.
, Charge the battery of the unit.
, The unit is not turned on while
charging. Remove the unit from the
battery charging stand and then turn
on the unit.
Pairing cannot be done.
, Bring this unit and the BLUETOOTH
device closer together.
Cannot make the
BLUETOOTH connection.
, Check that this unit is turned on.
, Check that the BLUETOOTH
connecting device is turned on and
the BLUETOOTH function is on.
, Connection with the BLUETOOTH
device may not be memorized on this
unit. Make the BLUETOOTH
connection from the BLUETOOTH
device to this unit soon after pairing
is complete.
, This unit or BLUETOOTH
connecting device is in sleep mode.
, The BLUETOOTH connection is
terminated. Make the BLUETOOTH
connection again.
Distorted sound
, Ensure that this unit is not receiving
interference from a wireless LAN,
other 2.4 GHz wireless device, or
microwave oven.
, Re-position this unit.
The correspondence
distance is short. (Sound
skips.)
, If a device that generates
electromagnetic radiation, such as a
wireless LAN, other BLUETOOTH
device(s), or a microwave oven is
nearby, move away from such sources.
Cannot operate the unit.
(Connection has hung up.)
, Press the RESET button. Pairing
information is not deleted by this
operation.
When listening to
music
No sound
, Check that both this unit and the
BLUETOOTH device are turned on.
, Check that both this unit and the
BLUETOOTH device are making the
BLUETOOTH connection, A2DP
(Advanced Audio Distribution Profile).
, Check that music is being played
back by the BLUETOOTH device.
, Check that the volume of the unit is
not set too low.
, Check that the volume of the
BLUETOOTH device is not set too
low if the BLUETOOTH device has a
volume control.
, Pair this unit and BLUETOOTH
device again.
Continued
23
Low sound level
, Turn up the volume of this unit.
, Turn up the volume of the
BLUETOOTH device if the
BLUETOOTH device has a volume
control.
Low sound quality
, Switch the BLUETOOTH connection
to A2DP (Advanced Audio
Distribution Profile) when HSP
(Headset Profile) is set.
When calling
The recipient’s voice
cannot be heard.
, Check that both this unit and the
BLUETOOTH mobile phone are
turned on.
, Check the connection between this
unit and the BLUETOOTH mobile
phone.
, Check that output of the
BLUETOOTH mobile phone is set
for this unit.
, Check that the volume of the unit is
not set too low.
, Check that the volume of the
BLUETOOTH mobile phone is not
set too low if the BLUETOOTH
mobile phone has a volume control.
, If you are listening to music using
this unit, stop playback, press the
multi function button and talk.
Low sound from recipient
, Turn up the volume of this unit.
, Turn up the volume of the
BLUETOOTH mobile phone if the
BLUETOOTH mobile phone has a
volume control.
24
Initializing the
unit
You can reset this unit to its default
(such as volume setting) and delete
all pairing information.
1 If this unit is turned on,
press and hold the
POWER button for
about 3 seconds to turn
off this unit.
2 Press and hold the
POWER button and
multi function button
together for about
7 seconds.
The indicator (blue) and
indicator (red) flash together
four times, and this unit is
reset to the default setting. All
pairing information is deleted.
Specifications
General
Communication system
BLUETOOTH Specification version 2.0
Output
BLUETOOTH Specification Power Class 2
Headset
Power source
DC 3.7 V: Built-in lithium-ion
rechargeable battery
Maximum communication range
Line of sight approx. 10 m (30 ft)*1
Dimensions
Approx. 25 × 51 × 29 mm
(1 × 2 × 1 3/16 in) (w/h/d)
Frequency band
2.4 GHz band (2.4000 GHz – 2.4835 GHz)
Cord (from unit to earpiece)
Approx. 0.3 m (11 7/8 in)
Modulation method
FHSS
Mass
Approx. 27 g (1.0 oz) including earpieces
and cord
Earpieces: Approx. 4 g (0.15 oz) not
including cord
Compatible BLUETOOTH Profiles*2
A2DP (Advanced Audio Distribution
Profile)
HSP (Headset Profile)
HFP (Hands-free Profile)
Rated power consumption
1.5 W
Supported codecs*3
SBC*4, MP3
Receiver
Supplied accessories
AC power adaptor (1)
Battery charging stand (1)
Earbuds (S × 2, M × 2, L × 2)
Holder (1)
Driver unit
9 mm dome type (CCAW adopted)
Type
Closed, dynamic
Reproduction frequency range
20 – 20,000 Hz
1
* The actual range will vary depending
on factors such as obstacles between
devices, magnetic fields around a
microwave oven, static electricity,
reception sensitivity, aerial’s
performance, operating system,
software application, etc.
2
* BLUETOOTH standard profiles
indicate the purpose of BLUETOOTH
communication between devices.
3
* Codec: Audio signal compression and
conversion format
*4 Subband Codec
Microphone
Type
Omni directional, electret condenser
Effective frequency range
100 – 4,000 Hz
Design and specifications are subject to
change without notice.
25
Printed in Malaysia
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
