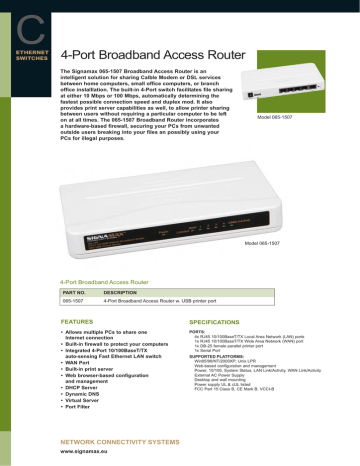

4-Port Broadband Access Router

4-Port Broadband Access Router
C
ETHERNET
SWITCHES
4-Port Broadband Access Router
The Signamax 065-1507 Broadband Access Router is an
intelligent solution for sharing Calble Modem or DSL services
between home computers, small office computers, or branch
office installlation. The built-in 4-Port switch facilitates file sharing
at either 10 Mbps or 100 Mbps, automatically determining the
fastest possible connection speed and duplex mod. It also
provides print server capabilities as well, to allow printer sharing
between users without requiring a particular computer to be left
on at all times. The 065-1507 Broadband Router incorporates
a hardware-based firewall, securing your PCs from unwanted
outside users breaking into your files an possibly using your
PCs for illegal purposes.
Model 065-1507
Model 065-1507
4-Port Broadband Access Router
PART NO.
DESCRIPTION
065-1507
4-Port Broadband Access Router w. USB printer port
FEATURES
SPECIFICATIONS
• Allows multiple PCs to share one
Internet connection
• Built-in firewall to protect your computers
• Integrated 4-Port 10/100BaseT/TX
auto-sensing Fast Ethernet LAN switch
• WAN Port
• Built-in print server
• Web browser-based configuration
and management
• DHCP Server
• Dynamic DNS
• Virtual Server
• Port Filter
PORTS:
4x RJ45 10/100BaseT/TX Local Area Network (LAN) ports
1x RJ45 10/100BaseT/TX Wide Area Network (WAN) port
1x DB-25 female parallel printer port
1x Serial Port
NETWORK CONNECTIVITY SYSTEMS
www.signamax.eu
SUPPORTED PLATFORMS:
Win95/98/NT/2000XP; Unix LPR
Web-based configuration and management
Power, 10/100, System Status, LAN Link/Activity, WAN Link/Activity
External AC Power Supply
Desktop and wall mounting
Power supply UL & cUL listed
FCC Part 15 Class B, CE Mark B, VCCI-B
