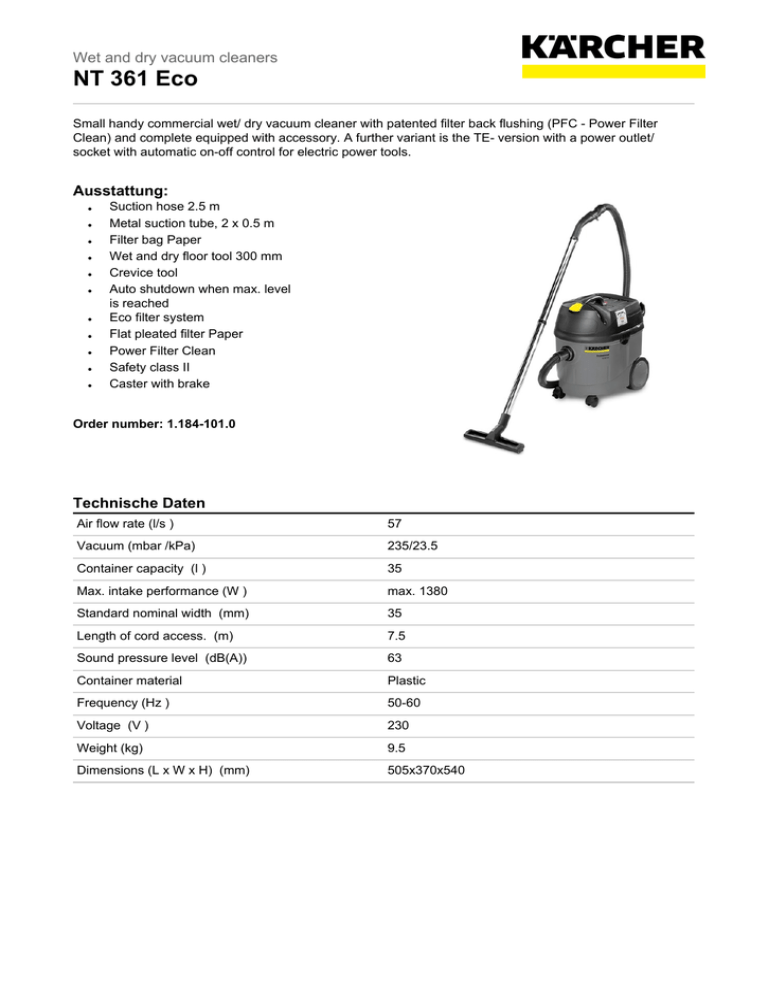

Wet and dry vacuum cleaners

NT 361 Eco

Small handy commercial wet/ dry vacuum cleaner with patented filter back flushing (PFC - Power Filter

Clean) and complete equipped with accessory. A further variant is the TE- version with a power outlet/ socket with automatic on-off control for electric power tools.

Ausstattung:

Suction hose 2.5 m

Metal suction tube, 2 x 0.5 m

Filter bag Paper

Wet and dry floor tool 300 mm

Crevice tool

Auto shutdown when max. level is reached

Eco filter system

Flat pleated filter Paper

Power Filter Clean

Safety class II

Caster with brake

Order number: 1.184-101.0

Technische Daten

Air flow rate (l/s )

Vacuum (mbar /kPa)

Container capacity (l )

Max. intake performance (W )

Standard nominal width (mm)

Length of cord access. (m)

Sound pressure level (dB(A))

Container material

Frequency (Hz )

Voltage (V )

Weight (kg)

Dimensions (L x W x H) (mm)

57

235/23.5

35 max. 1380

35

7.5

63

Plastic

50-60

230

9.5

505x370x540

Zubehör

Adapter (tube -> nozzle)

Adapter DN 35 - 40 (tube -> nozzle)

From DN 35 to 40, plastic

Order number 6.902-084.0

Adapter for electric power tools, clip on, EL (electroconductive)

Connecting sleeve, electric tool C 35, el.

Inner Ø 28 mm / outer Ø 34 mm / 38.8 mm EL Only WD vacuums

Order number 5.453-052.0

Connecting sleeve, electric tool C 35, el.

Inner Ø 32 mm / outer Ø 39 mm EL Only WD vacuums

Order number 5.453-051.0

Adapter for electric power tools, C 35, el.

Inner Ø 27 mm / outer Ø 36.5 mm / 38.8 mm EL. Only WD vacuums

Order number 5.453-050.0

Connecting sleeve, electric tool C 35, el.

Inner Ø 28.6 mm / outer Ø 37.3 mm / 38.8 mm EL Only WD vacuums

Order number 5.453-049.0

Adapter for electric power tools, C 35, el.

Inner Ø 25.4 mm / outer Ø 34.6 mm / 38 mm EL. Only WD vacuums

Order number 5.453-048.0

Adapter for electric power tools, screwable

Adapter for electric power tools, screwable 35

Inner Ø 28 mm / outer Ø 34/38.8 mm, EL

Order number 6.902-095.0

Adapter for electric power tools, screwable

Adapter for electric power tools, screwable 35

Inner Ø 32 mm / outer Ø 39 mm

Order number 6.902-059.0

Adapter for electric power tools, screwable 35

Inner Ø 28.6 mm / outer Ø 37.3/38.8 mm, EL

Order number 5.453-026.0

Adapter for electric power tools, screwable 35

Plastic, suitable for DN 26-36, EL

Order number 5.453-016.0

Adapter for electric power tools, screwable

Plastic , adaptable from DN 26-36

Order number 2.639-129.0

All-purpose brushes

All-purpose brush, DN 35

Natural bristles (ox hair), bristle element 120 x 45 mm

Order number 6.903-863.0

All-purpose nozzles (wet/dry)

All-purpose nozzle (wet/dry)

Plastic with rollers, brush strips (6.905-878.0), rubber lips (6.905-877.0)

Order number 6.906-554.0

All-purpose nozzle (wet/dry)

Plastic with rollers, brush strips (set 6.905-878) and rubber lips (set no.

6.905-877)

Order number 6.906-513.0

All-purpose nozzles (wet/dry)

All-purpose nozzle (wet/dry)

Aluminium with height-adjustable rollers, brush strips, rubber lips (Set no.

6.903-081).

Order number 6.906-384.0

All-purpose tool (wet/dry

Aluminium with height-adjustable rollers, brush strips, rubber lips (set no.

6.906-146)

Order number 6.906-383.0

All-purpose nozzle (wet/dry)

Aluminium with height-adjustable rollers, brush strips, rubber lips.

Order number 6.903-018.0

Wet dry floor nozzle DN 35

Plastic with rollers, brush strips, rubber lips (set no. 6.903-277)

Order number 6.906-512.0

Bend metal

Bends

Metal

Order number 6.900-519.0

Bends

Metal

Order number 6.900-276.0

Bend plastic

Plastic bend

Plastic with C-40 clip system, electroconductive

Order number 5.032-427.0

Plastic bend

Plastic with C-40 clip system

Order number 5.031-904.0

Plastic bend

Plastic with C-35 clip system

Order number 5.031-718.0

Bend stainless

Bends

Stainless steel

Order number 6.903-141.0

Bends

Stainless steel

Order number 6.902-079.0

Car cleaning nozzles

Car cleaning nozzle, DN 35

Plastic

Order number 6.906-108.0

Car cleaning nozzles

Car vacuuming nozzle

Plastic

Order number 6.900-952.0

Coarse filter for wet pickup

Coarse dirt filter for wet pickup

perforated metal plate, recommended for wet applications only

Order number 6.904-287.0

Combi-nozzles (dry)

Combination nozzle packaged DN35

Plastic, with stainless steel soleplate and rollers, switchable

Order number 6.906-874.0

Combination nozzles (dry), DN 35

Plastic with stainless steel soleplate, chageover Only CV and NT vacuum cleaners

Order number 6.906-639.0

Combi-nozzle (dry), DN 35

Plastic with stainless steel soleplate, switchable, with IC 35 inside cone

Order number 6.906-511.0

Connecting sleeve C-DN (clip on taper), EL (electroconductive)

Connecting sleeve C-ID (clip on taper) (electrically conductive)

Connects C 35 hose for DN 35 EL accessories

Order number 5.407-112.0

Connecting sleeve C-ID (clip on taper) (electrically conductive)

Connects C 40 hose for DN 40 EL accessories

Order number 5.407-111.0

Connecting sleeve C-ID (clip on taper) (electrically conductive)

Connects C 40 hose for DN 35 EL accessories

Order number 5.407-109.0

Connecting sleeves

Connecting sleeve

For connecting 2 suction hoses, thread on both sides

Order number 6.902-078.0

Connecting sleeve

For connecting 2 suction hoses (not ESB 28)

Order number 6.902-077.0

Connecting sleeves

Connecting sleeve

For connecting 2 suction hoses, thread on both sides

Order number 6.900-286.0

Crevice nozzles

Crevice nozzle DN 35

Plastic

Order number 6.906-240.0

Grout nozzle

Metal

Order number 6.905-817.0

Grout nozzle

Plastic

Order number 6.903-033.0

Grout nozzle

Metal

Order number 6.900-922.0

Grout nozzle

Plastic

Order number 6.900-385.0

Crevice tools

Grout nozzle, stainless steel

Grout nozzle, stainless steel, 400 mm

Order number 6.900-926.0

Grout nozzle, synthetic

Grout nozzle, plastic, 370 mm

Order number 6.900-222.0

Diaphragm filter/ fabric filter

Diaphragm filter / fabric filter

Polyester needled fleece, washable (40 °C)

Order number 6.904-212.0

Extension hoses (Clip-system)

Extension hose C 32 - C 35, el., clip system

for all C-32 and C-35 hoses, electroconductive

Order number 6.906-277.0

Extension hose C 32 - C 35 - clip system

for all C-32 and C-35 hoses

Order number 6.906-237.0

Flat pleated filter (paper)

Flat pleated filter, packed - dust class M

Paper, dust class M approved

Order number 6.904-367.0

Flat pleated filter (PES)

Flat pleated filters (PES)

Polyester fleece material,special coated, rot-proof, BIA-C dust class M approved

Order number 6.904-360.0

Fleece filter bags (3 ply)

Fleece filter bags NT 361 Eco + variants, 5 pcs.

Fleece filter bag, 3-ply, tear-resistant, dust class M / for dry applications

Order number 6.904-351.0

HEPA filter for dust class H

HEPA flat filter

HEPA surface filter, dust class H (H 14)

Order number 6.904-242.0

Nozzle sets

Nozzle set

Crevice tool, upholstery tool, round brush

Order number 2.860-116.0

Other accessories for T and NT

PFC module, C 35, el

To activate the semi-automatic filter device

Order number 4.060-478.0

Paper filter (2 ply)

Paper filter bags

BIA-C, dust class M approved, reinforced outer ply, for cement dust, etc.

Order number 6.904-259.0

Paper filter bags, 300 pcs

BIA-C dust class M approved / large-scale consumer pack

Order number 6.904-224.0

Paper filter bags, 5 pcs

BIA-C, dust class M approved

Order number 6.904-210.0

Pipe dusting nozzles

Pipe dusting nozzle

Plastic, pipe diameter 200 mm

Order number 6.903-036.0

Pipe dusting nozzle

Plastic, pipe diameter 100 mm

Order number 6.903-035.0

Plastic bend

Bends, plastic

Bends, plastic

Order number 6.902-021.0

Plastic sacks for dust-free disposal

Plastic sacks for dust-free disposal

PE plastic sack

Order number 6.596-886.0

Radiator brushes

Radiator brush

Plastic, for crevice nozzle 6.900-385

Order number 6.903-034.0

Reducer (tube -> nozzle)

Reducer (tube -> nozzle)

From DN 35 to 32, metal

Order number 6.902-072.0

Reducers (tube DN40–> nozzle)

From DN 40 to 35, plastic

Order number 6.902-017.0

Reducing sleeve

Reducer

From C-40 hose to adapter, screwable DN 35

Order number 5.407-108.0

Repair kits

Repair kit, C 35

Repair kit suction hose (clip system)

Order number 2.639-682.0

Rubber suction tools, nose 45°

Rubber suction nozzle, 45° nose

For suction of machines, oil-resistant

Order number 6.902-105.0

Rubber suction nozzle, 45° nose

For suction of machines, oil-resistant

Order number 6.902-104.0

Set reducing / extension sleeves

Set reducing/ extension sleeves

ID 40/35, ID 35/32 (tube -> nozzle), plastic

Order number 2.860-117.0

sonstiges

Extension cable

20 meter.

Order number 6.647-022.0

Special filter bags, wet filter bags

Special filter bags, wet filter bags

Approved for dust class L, general cleaning, wet and dry, tear-resistant

Order number 6.904-171.0

Suction brushes

Suction brushes

Natural bristles (cattle hair), pivotable

Order number 6.903-862.0

Suction hoses (Clip-system)

Suction hose

Suction hose with bayonet coupling, electroconductive

Order number 6.906-877.0

Suction hose (clip system)

With bayonet and clip conneciton

Order number 6.906-714.0

Suction hose (clip system)

With bayonet and clip conneciton

Order number 6.906-546.0

Suction hose C-35, el.

With bayonet and clip connection. electrically conductive

Order number 6.906-500.0

Suction hose (clip system)

With bayonet and clip conneciton

Order number 6.906-321.0

Suction hose C-35, el.

With bayonet and clip connection. electrically conductive

Order number 6.906-275.0

Suction hose C-35

With bayonet and clip conneciton

Order number 6.906-242.0

Suction hose C-35

With bayonet and clip conneciton

Order number 6.906-241.0

Suction hoses complete

Suction hose, DN 27, el. complete

Connector for electric tools / electrically conductive

Order number 4.440-462.0

Suction hose, DN 27

Connector for electric tools / electrically conductive

Order number 4.440-461.0

Suction hoses complete

Suction hose, DN 27

Connector for electric tools

Order number 4.440-446.0

Suction hose, DN 35

Temperature-resistant to 120 ° C

Order number 4.440-339.0

Suction hoses complete (Clip-system)

Suction hose, C-DN 40, complete

With bend and module (4.060-474)

Order number 4.440-679.0

Suction hose, C DN 35

With bend and module (4.060-478), electrically conductive

Order number 4.440-654.0

Suction hose, C DN 35

With bend, electrically conductive

Order number 4.440-653.0

Suction hose C-DN 35, complete

With bend

Order number 4.440-626.0

Suction hose, C-DN 35, complete

With bend and module (4.060-420)

Order number 4.440-627.0

Suction tubes

Suction tube

metal

Order number 6.900-274.0

Suction tubes metal

Suction tubes

Metal

Order number 6.900-275.0

Suction tubes metal

Suction tubes

Metal

Order number 6.900-514.0

Suction tubes plastic

Suction tube, DN 35

Plastic

Order number 6.900-384.0

Suction tubes stainless

Suction tubes

Stainless steel

Order number 6.906-531.0

Suction tubes

Stainless steel

Order number 6.902-081.0

Suction tubes

Stainless steel

Order number 6.902-046.0

Target-group-specific vacuum cleaner accessory sets

Boiler cleaning kit

with special filter bag and long crevice tool

Order number 2.638-852.0

NT suction kit DN 40 e (electrically conductive)

Electrically conductive accessories

Order number 2.638-147.0

Universal Trades and Industry Kit

3.0 m suction hose 4.440-299, metal bend 6.900-519, 2x 0.5m metal tubes

6.900-514, All-purpose tool 6.900-425, Crevice tool 6.900-385, Upholstery tool

6.900-233, Carpet/ hard floor tool 6.959-271, Floor tool for wet pickup 6.903-284

Order number 2.637-595.0

Auto kit

Component parts of kit: 4m suction hose (4.440-263) - car cleaning tool

(6.900-952) - upholstery tool ID 35 (6.900-233) - reducer ID 40/35 (6.902-017)

Order number 2.637-443.0

Professional cleaning kit

Individual parts: Suction hose 4 m (4.440-263), bend, metal (6.900-276), suction tube 2 x 0.5 m, metal (6.900-275), grout nozzle (6.903-033), floor nozzle woth rollers (6.903-051)

Order number 2.637-353.0

Target-group-specific vacuum cleaner accessory sets

Builder's Kit

Individual parts: Suction hose 4 m (4.440-263), bend, metal (6.900-276), suction tube 2 x 0.5 m, metal (6.900-275), grout nozzle (6.903-033), floor nozzle

(6.903-018)

Order number 2.637-352.0

Horse grooming kit

Grooming brush, curry comb/rubber curry comb

Order number 2.637-248.0

Tools for vacuuming smaller areas, cleaning machines

Rubber suction tool 45° DN61

Angled 45°, for suction of machines, oil-resistant

Order number 6.902-106.0

Tools for vacuuming surfaces / cleaning machines

Surface tool alu DN61, 200mm

Flat surface nozzle cpl. DN 51, 200 mm, aluminium with brush and stainless steel bumper

Order number 4.130-415.0

Turbo nozzle

Turbo nozzle

Floor nozzle, plastic, with reducing sleeve 35/32

Order number 2.860-114.0

Turbo nozzle

Upholstery nozzle, plastic with reducer ID 35/32

Order number 2.860-113.0

UBS non-conductive media

UBS non-conductive media

For switching off when vacuuming non-conductive fluids such as oils and greases

Order number 2.882-517.0

Y-piece kit

Y-junction kit

Distributor, plastic

Order number 2.637-217.0

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
