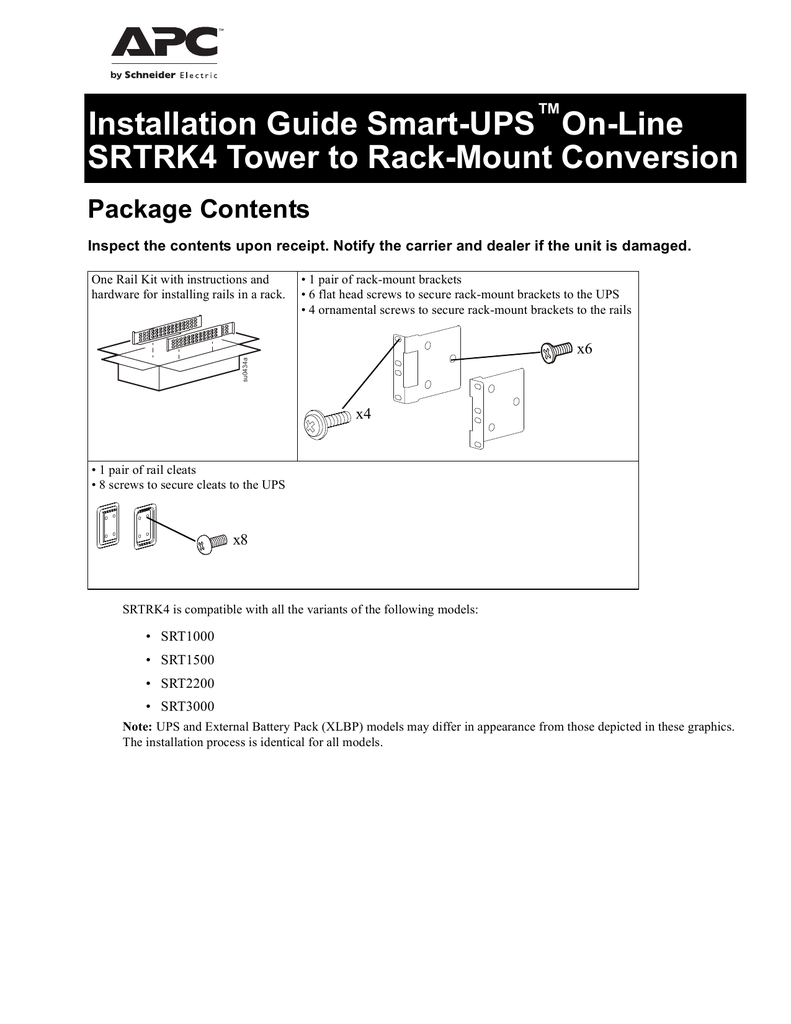

Installation Guide Smart-UPS™On-Line
SRTRK4 Tower to Rack-Mount Conversion
Package Contents
Inspect the contents upon receipt. Notify the carrier and dealer if the unit is damaged.
One Rail Kit with instructions and
hardware for installing rails in a rack.
• 1 pair of rack-mount brackets
• 6 flat head screws to secure rack-mount brackets to the UPS
• 4 ornamental screws to secure rack-mount brackets to the rails
su0434a
x6
x4
• 1 pair of rail cleats
• 8 screws to secure cleats to the UPS
x8
SRTRK4 is compatible with all the variants of the following models:
• SRT1000
• SRT1500
• SRT2200
• SRT3000
Note: UPS and External Battery Pack (XLBP) models may differ in appearance from those depicted in these graphics.
The installation process is identical for all models.
Tower to Rack-Mount Conversion of UPS
CAUTION
DAMAGE TO EQUIPMENT OR PERSONNEL
• The equipment is heavy. Each APCRBC152 battery module weighs 16.4 kg (36.2 lbs) and each APCRBC141
battery module weighs 12.5 kg (27.6 lb). Each APCRBC155 battery module weighs 11 kg (24.25 lb).
• Always practice safe lifting techniques adequate for the weight of the equipment.
• Remove the battery modules before installing the UPS.
• Use the battery module handle to carefully slide the battery module in or out of the unit.
• Do not use the battery module handle to lift or carry the battery module.
• Place the UPS on a table to remove the stabilizer brackets.
• Always install the UPS at the bottom of the rack.
• Always install the XLBP below the UPS in the rack.
Failure to follow these instructions can result in equipment damage and minor or moderate injury.

suo0875b
suo0874b


suo0873b
suo0872b

x3
2
Smart-UPS On-2 Line SRTRK4 Tower to Rack-Mount Conversion


su 08
45 b
71b
suo08
Install UPS in Rack
Refer to the Rail Kit Installation Guide for instructions on rail installation.
CAUTION
DAMAGE TO EQUIPMENT OR PERSONNEL
• The equipment is heavy. Always practice safe lifting techniques adequate for the weight of the equipment.
• Always use the recommended number of screws to secure brackets to the UPS.
• Always use the recommended number of screws to secure the UPS to the rack.
• Always install the UPS at the bottom of the rack.
• Always install the XLBP below the UPS in the rack.
Failure to follow these instructions can result in equipment damage and minor or moderate injury


s uo0
x3
866 e
x4
x3
suo 0
Smart-UPS On-2 Line SRTRK4 Tower to Rack-Mount Conversion
867 a
3


x4
su o08
65a

su o08
68a

x3
su o08
69a

59a
su08
4
Smart-UPS On-2 Line SRTRK4 Tower to Rack-Mount Conversion
su o08
70a
Tower to Rack-Mount Conversion of UPS with one
External Battery Pack

suo0839b
suo0840b

suo0837b

suo0838b


Disconnect and remove the battery module from the UPS.
See “Tower to Rack-Mount Conversion of UPS” on
page 2.
suo0835b
suo0836b

Smart-UPS On-2 Line SRTRK4 Tower to Rack-Mount Conversion
5

4c
suo083
Install UPS with one External Battery Pack in a Rack
UPS model may differ in appearance from those depicted in these graphics. The XLBP installation process is identical
for all models.
Refer to the rail kit Installation Guide for instructions on rail installation.
CAUTION
DAMAGE TO EQUIPMENT OR PERSONNEL
• The equipment is heavy. Always practice safe lifting techniques adequate for the weight of the equipment.
• Always use the recommended number of screws to secure brackets to the XLBP.
• Always use the recommended number of screws to secure the XLBP to the rack.
• Always install the XLBP at the bottom of the rack.
• Always install the XLBP below the UPS in the rack.
• Use the battery module handle to slide the battery modules in or out of the XLBP.
• Do not use the battery module handle to lift or carry the battery module.
Failure to follow these instructions can result in equipment damage and minor or moderate injury.

• Secure two brackets to the XLBP. Use three screws for
each bracket.
• Secure the cleat to the XLBP. Use four screws for each
cleat.
s u o0

Rest the XLBP on the rail shelves.
Slide the XLBP into the rack.
818d
x4
x3
su o0
6
Smart-UPS On-2 Line SRTRK4 Tower to Rack-Mount Conversion

Secure the XLBP to the rack.
Use two screws in each bracket.

Slide the left hand side battery module into the XLBP.
19a
su o08
21a
su o08

Slide the right hand side battery module into the XLBP.
su o08

Secure the RBCs to the enclosure. Use three screws on
each RBC.
x6
22a
su o08

Connect the two XLBP connectors from the enclosure to
the two RBCs. See “XLBP Connectors Installation” on
page 8.

23a
Install one XLBP bezel and one UPS bezel.
UPS
XL BP
1a
su091
su o08
24a
Smart-UPS On-2 Line SRTRK4 Tower to Rack-Mount Conversion
7
XLBP Connectors Installation
Connect the XLBP connector, labeled RBC 1, to the right hand side (RHS) RBC in rack-mount installation and to the
top RBC in tower installation, when viewed from front.
Connect the XLBP connector, labeled RBC 2, to the left hand side (LHS) RBC in rack-mount installation and to the
bottom RBC in tower installation, when viewed from front.
SRT1000/SRT1500
RBC 1
RBC
1
RBC
2
RBC 2
suo1233a
SRT2200/SRT3000
RBC
1
RBC
2
suo1097a
Customer support and warranty information is available at the APC by Schneider Electric web site,
www.apc.com.
© 2017 APC by Schneider Electric. APC, the APC logo, and Smart-UPS are owned by Schneider
Electric Industries S.A.S., or their affiliated companies. All other trademarks are property of their
respective owners.
EN 990-5649B
4/2017
