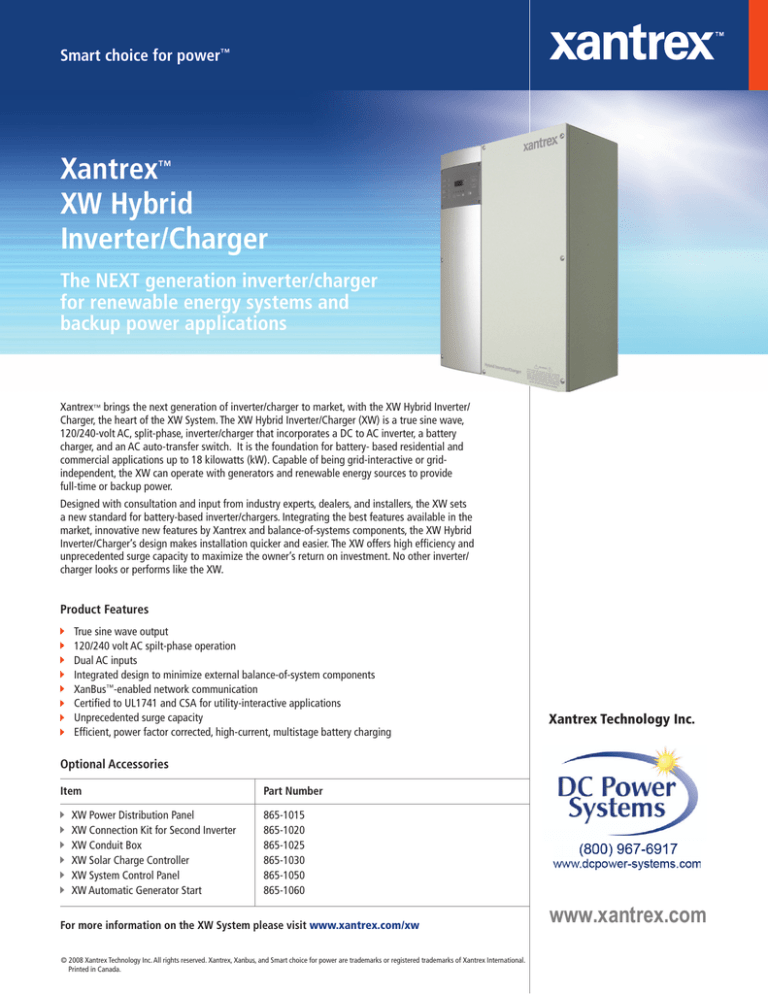

Smart choice for power™
Xantrex™
XW Hybrid
Inverter/Charger
The NEXT generation inverter/charger
for renewable energy systems and
backup power applications
Xantrex™ brings the next generation of inverter/charger to market, with the XW Hybrid Inverter/
Charger, the heart of the XW System. The XW Hybrid Inverter/Charger (XW) is a true sine wave,
120/240-volt AC, split-phase, inverter/charger that incorporates a DC to AC inverter, a battery
charger, and an AC auto-transfer switch. It is the foundation for battery- based residential and
commercial applications up to 18 kilowatts (kW). Capable of being grid-interactive or gridindependent, the XW can operate with generators and renewable energy sources to provide
full-time or backup power.
Designed with consultation and input from industry experts, dealers, and installers, the XW sets
a new standard for battery-based inverter/chargers. Integrating the best features available in the
market, innovative new features by Xantrex and balance-of-systems components, the XW Hybrid
Inverter/Charger’s design makes installation quicker and easier. The XW offers high efficiency and
unprecedented surge capacity to maximize the owner’s return on investment. No other inverter/
charger looks or performs like the XW.
Product Features
True sine wave output
120/240 volt AC spilt-phase operation
Dual AC inputs
Integrated design to minimize external balance-of-system components
XanBus™-enabled network communication
Certified to UL1741 and CSA for utility-interactive applications
Unprecedented surge capacity
Efficient, power factor corrected, high-current, multistage battery charging
Optional Accessories
Item
XW Power Distribution Panel
XW Connection Kit for Second Inverter
XW Conduit Box
XW Solar Charge Controller
XW System Control Panel
XW Automatic Generator Start
Xantrex Technology Inc.
Customer Service/Technical Support
[email protected]
Toll free: 1-800-670-0707
Part Number
865-1015
865-1020
865-1025
865-1030
865-1050
865-1060
For more information on the XW System please visit www.xantrex.com/xw
© 2008 Xantrex Technology Inc. All rights reserved. Xantrex, Xanbus, and Smart choice for power are trademarks or registered trademarks of Xantrex International. Printed in Canada.
www.xantrex.com
www.xantrex.com
Smart choice for power™
Xantrex™ XW Series Hybrid Inverter/Charger
Electrical Specifications
Model XW6048-120/240-60 XW4548-120/240-60
XW4024-120/240-60
Continuous output power 6,000 W
4500 W
4000 W
Surge rating (10 seconds)
12,000 W
9000 W
8000 W
Surge current
L-N: 105 Arms (7 sec)
L-L: 40 Arms (20 sec)
L-L: 52.5 Arms (7 sec)
L-N: 70 Arms (20 sec)
L-N: 75 Arms (20 sec)
L-L: 35 Arms (20 sec)
Waveform True sine wave
True sine wave
True sine wave
Low-load efficiency 95%
95%
95%
Idle consumption - search mode
< 8 W
< 8 W
<8W
AC connections AC1 (Grid), AC2 (Generator)
AC1 (Grid), AC2 (Generator)
AC1 (Grid), AC2 (Generator)
AC voltage 120/240 Vac split-phase
120/240 Vac split-phase 120/240 Vac split-phase
AC input breaker
60 A two-pole
60 A two-pole
60 A two-pole
Utility interactive
Yes
Yes
Yes
CEC weighted efficiency 92.5% 93%
91%
CEC power rating 5752 W 4500 W 4000 W
AC input voltage range (bypass/charge mode)
L-N: 80 - 150 Vac (120 V nominal); L-L: 160 - 270 Vac (240 V nominal)
AC input frequency range (bypass/charge mode)
55 - 65 Hz (default); 44 - 70 Hz (allowable)
AC1 voltage range – Sell mode (automatically adjusts when entering Sell mode)*
L-N: 108 - 130 +/- 1.5 Vac; L-L: 214 - 260 +/- 3.0 Vac
AC1 frequency range – Sell mode (automatically adjusts when entering Sell mode)*
59.4 - 60.4 +/- 0.05 Hz
AC output voltage
L-N: 120 Vac +/- 3%; L-L: 240 Vac +/- 3%
AC output frequency
60.0 +/-0.1 Hz
DC current at rated power 130 A
Total harmonic distortion
< 5%
Automatic transfer relay
60 A
Typical transfer time
8 ms
DC input voltage (nominal) DC input voltage range 96 A
178 A
50.4 Vdc 50.4 Vdc 25.2 Vdc
44 - 64 Vdc
44 - 64 Vdc 22 - 32 Vdc
Maximum continuous charge rate
100 A
85 A
150 A
Efficiency at maximum charge rate 89.4%
90.2%
85.8%
Power factor corrected charging 0.98
0.98
0.98
Emissions FCC Class B FCC Class B FCC Class B
Multiple-unit configurations
Up to three parallel units in 120/240-volt split-phase configuration
Auxiliary relay output 0-12 Vdc, maximum 250 mA DC
Non-volatile memory Yes System network Xanbus™ (publish-subscribe network, no need for hubs or special cards)
Yes Yes
Mechanical Specifications
Mounting
Wall mount, backplate included
Inverter dimensions (H x W x D)
23 x 16 x 9” (580 x 410 x 230 mm)
Inverter weight
125 lb (57 kg)
Shipping dimensions
28 x 22 ¼ x 10 ½” (711 x 565 x 267 mm)
Shipping weight
132 lb (60 kg)
Display panel Status LEDs indicate AC In status, faults/warnings, equalize mode, battery level. Three-character display indicates output power
or charge current, fault/warning codes. On/Off and equalize buttons
Battery temperature sensor
Included
Included
Standard warranty
Five years (10 years optional)
Five years (10 years optional)
Five years (10 years optional)
Part number
865-1000
865-1005
865-1010
115 lb (52 kg)
115 lb (52 kg)
122 lb (55 kg)
122 lb (55 kg)
Included
Environmental Specifications
Enclosure type
NEMA Type 1 – Indoor (sensitive electronic components sealed inside enclosure)
Operational temperature range
-13 to 158 °F (-25 to 70 °C)
Accessories
Remote display
Optional XW System Control Panel monitors and configures all devices connected to Xanbus™ Network
Generator support
Optional XW Automatic Generator Start module connects to Xanbus™ Network. Automatically activates generator to recharge depleted
battery bank or assist inverter with heavy loads
Power distribution & panel conduit boxes
Optional balance-of-systems components for NEC compliant installations, includes pre-wired AC and DC circuit breakers, bus bars
and multiple knockouts for conduit and additional breakers
Regulatory Approvals
UL 1741 1st Edition: 2005 Version CSA 107.1-01
Specifications subject to change without notice
© 2008 Xantrex Technology Inc. All rights reserved. Xantrex, Xanbus, and Smart choice for power are trademarks or registered trademarks of Xantrex International. Printed in Canada.
