g Operating Instructions

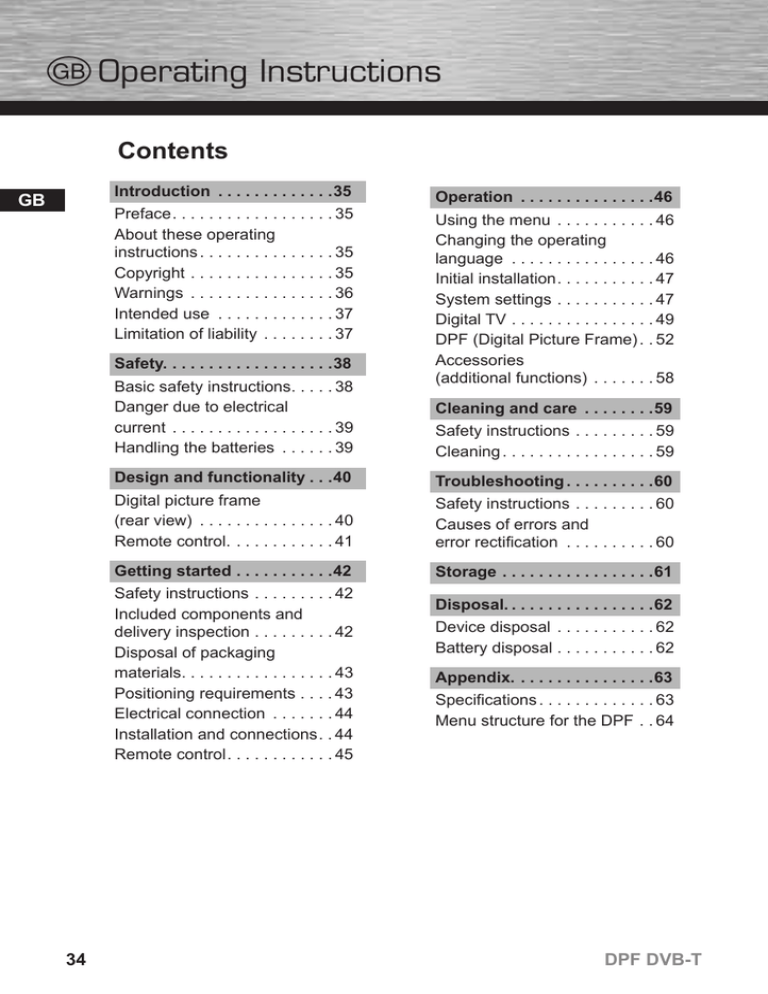

Contents
Introduction . . . . . . . . . . . . .35
GB
Preface . . . . . . . . . . . . . . . . . . 35
About these operating
instructions . . . . . . . . . . . . . . . 35
Copyright . . . . . . . . . . . . . . . . 35
Warnings . . . . . . . . . . . . . . . . 36
Intended use . . . . . . . . . . . . . 37
Limitation of liability . . . . . . . . 37
Safety. . . . . . . . . . . . . . . . . . .38
Basic safety instructions. . . . . 38
Danger due to electrical
current . . . . . . . . . . . . . . . . . . 39
Handling the batteries . . . . . . 39
Design and functionality . . .40
Digital picture frame
(rear view) . . . . . . . . . . . . . . . 40
Remote control. . . . . . . . . . . . 41
Getting started . . . . . . . . . . .42
Safety instructions . . . . . . . . . 42
Included components and
delivery inspection . . . . . . . . . 42
Disposal of packaging
materials. . . . . . . . . . . . . . . . . 43
Positioning requirements . . . . 43
Electrical connection . . . . . . . 44
Installation and connections . . 44
Remote control . . . . . . . . . . . . 45
34
Operation . . . . . . . . . . . . . . .46
Using the menu . . . . . . . . . . . 46
Changing the operating
language . . . . . . . . . . . . . . . . 46
Initial installation . . . . . . . . . . . 47
System settings . . . . . . . . . . . 47
Digital TV . . . . . . . . . . . . . . . . 49
DPF (Digital Picture Frame) . . 52
Accessories
(additional functions) . . . . . . . 58
Cleaning and care . . . . . . . .59
Safety instructions . . . . . . . . . 59
Cleaning . . . . . . . . . . . . . . . . . 59
Troubleshooting . . . . . . . . . .60
Safety instructions . . . . . . . . . 60
Causes of errors and
error rectification . . . . . . . . . . 60
Storage . . . . . . . . . . . . . . . . .61
Disposal. . . . . . . . . . . . . . . . .62
Device disposal . . . . . . . . . . . 62
Battery disposal . . . . . . . . . . . 62
Appendix. . . . . . . . . . . . . . . .63
Specifications . . . . . . . . . . . . . 63
Menu structure for the DPF . . 64
DPF DVB-T
Introduction
Preface
GB
Dear customer,
By purchasing this Hama digital picture frame, you have chosen a
quality product which conforms to state-of-the art development
standards in technology and functionality.
Read the following information carefully in order to familiarise yourself
with the device and its full range of functions.
We hope you enjoy this device for many years to come.
About these operating instructions
These operating instructions are an integral part of the digital picture
frame DVB-T (hereinafter referred to as the “device”), and provide
important information on the intended use, safety, connection and
operation of the device.
The operating instructions must be kept near the device at all times.
They must be read and adhered to by all persons responsible for
operating the device or troubleshooting.
Keep these instructions in a safe place and pass them on to subsequent
users or owners together with the device.
Copyright
This documentation is protected by copyright.
It may not be reprinted or reproduced (including illustrations) in whole
or in part without prior written consent from the manufacturer. This also
applies after changes to the documentation.
DPF DVB-T
35
Warnings
The following warnings are used in these operating instructions:
GB
DANGER
A warning of this type indicates the immediate threat of a
dangerous situation.
Death or serious injuries can result if this situation is not avoided.
► Follow the information in this warning to prevent death or serious
personal injury.
WARNING
A warning of this type indicates the possibility of a dangerous
situation.
Injuries and/or material damage can result if this situation is not
avoided.
► Follow the information in this warning to prevent personal injury
or material damage.
CAUTION
A warning of this type indicates the possibility of material
damage.
Material damage can result if this situation is not avoided.
► Observe the information in this warning to prevent material
damage.
NOTE
► A note indicates additional useful information for handling the
device.
36
DPF DVB-T
Intended use
This device is only intended for indoor use to display photos, videos,
music files and digital television.
GB
Other uses or uses that go beyond this use are considered
unintended.
WARNING
Danger caused by unintended use
Danger may result from unintended or other use of the device.
► Only use the device as intended.
► Adhere to the procedures described in these operating
instructions.
All claims made as a result of damage caused by unintended use are
excluded.
The operator alone bears the risk resulting from unintended use.
Limitation of liability
All technical information, data and instructions contained in these
operating instructions were current at the time of printing and written
to the best of our knowledge based on previous experiences and
findings.
Therefore, no claims can be derived from the specifications, illustrations
and descriptions contained in these instructions.
The manufacturer accepts no liability for damages caused by failure
to observe these instructions, improper use or repairs, unauthorised
device modifications or the use of non-approved spare parts.
DPF DVB-T
37
Safety
This chapter contains important safety instructions for handling the
device.
GB
This device complies with the applicable safety regulations. However,
improper use can lead to personal injury or material damage.
Basic safety instructions
Observe the following safety instructions to ensure safe handling of
the device:
■ Visually inspect the device before using it to make sure that there is
no external damage. Do not operate the device if it is damaged.
■ Only have the device repaired by specialists. Improper repair work
invalidates any warranty claims.
■ Faulty components may be replaced with original spare parts only.
Only original spare parts can guarantee that applicable safety
requirements are adhered to.
■ Disconnect the power supply adapter before cleaning the device,
during thunderstorms, and in the event of malfunctions.
■ Keep the device away from moisture and protect it from being
penetrated by liquids or objects. Disconnect the power supply
adapter immediately if the device comes into contact with liquids.
■ Do not place any objects on top of the device.
38
DPF DVB-T
Danger due to electrical current
DANGER
GB
Danger of death due to electrical current
Coming into contact with live electrical lines or components
can be fatal.
Adhere to the following safety instructions to avoid dangers
associated with electrical current:
► Only use the included power supply adapter, since otherwise the
device may be damaged.
► Do not operate the device when the power supply adapter,
connection cable or plug is damaged.
► Do not open the housing on the device or on the power supply
adapter under any circumstances. There is a risk of electric
shock when coming into contact with live connections or if the
electronic or mechanical layout of the device is altered.
Handling the batteries
WARNING
Danger due to improper use
Observe the following safety instructions to ensure safe handling of
the batteries:
► Do not throw the battery into a fire.
► Do not short-circuit the battery.
► Do not attempt to recharge the battery.
► Check the battery on a regular basis. Battery acid that has
leaked out can cause permanent damage to the device.
Exercise extreme caution when handling a damaged battery or
one that has leaked. There is a danger of chemical burns. Wear
protective gloves.
► Keep the battery out of the reach of children. If swallowed, seek
medical attention immediately.
► Remove the battery from the remote control when the device is
not used for an extended period of time.
DPF DVB-T
39
Design and functionality
Digital picture frame (rear view)
GB
8
15
2
3
4
5
6
7
9
10
11
12
16
13
OK
10 Headphone output
2 Menu
11 ON/OFF switch
3 Right
12 Socket for power supply
4 Left
adapter
5 Down
13 Loudspeaker
6 Up
14 Base opening
7 TV/radio
15 Socket for DVB-T antenna
8 Audio/video output
16 Connection for SD/MMC
9 USB connection
40
14
cards or memory sticks
DPF DVB-T
Remote control
MUTE
Sound ON/OFF (mute)
GB
TV/RADIO Switch between TV and radio
DPF
Open the DPF menu
INFO
Display channel information
1-9, 0
Number buttons to select the
channel
◄◄
Fast reverse
►►
Fast forward
RECALL
Return to the previous channel
FAV
Favourites function ON/OFF
│◄◄
Previous track
►►│
Next track
SETUP
Setup menu
►║
Start/pause playback
■
Stop
▲
Direction button/flip photo
horizontally/next channel
▼
Direction button/flip photo
vertically/previous channel
OK
Confirm
◄
Direction button/rotate photo
►
Direction button/rotate photo
REPEAT
Repeat
EXIT
Exit mode
MENU
Return to the main menu
LIST
Station list
TTX
Videotext (Teletext)
EPG
EPG (Electronic Programme Guide)
VOL +
Increase volume
VOL -
Decrease volume
AUDIO
Audio mode
SUBTITLE Subtitles ON/OFF (if available)
DPF DVB-T
41
Getting started
Safety instructions
GB
WARNING
Personal injury and material damage may occur when using
the device for the first time.
Observe the following safety instructions to avoid these dangers.
► Packaging materials may not be used as toys. There is a risk of
suffocation.
► Follow the instructions for positioning the device and making the
electrical connections to prevent personal injury and material
damage.
Included components and delivery inspection
The device includes the following components as standard:
● Digital picture frame
● Power supply adapter
● DVB-T antenna
● Remote control
● 1 CR2025 battery, 3 V DC
● Audio/video cable
● Operating instructions
NOTE
► Check the delivery for completeness and visible damage. Inform
your supplier/dealer in the event of incomplete or damaged
deliveries.
42
DPF DVB-T
Unpacking
When unpacking the device, proceed as follows:
GB
u Take the device out of the box and remove the packaging
material.
u Remove the packaging material for the accessories.
u Remove the protection foil on the LCD colour screen of the
device.
Disposal of packaging materials
The packaging protects the device from damage during transportation.
The packaging materials have been selected according to environmental
and disposal factors and can therefore be recycled.
Recycling packaging saves raw materials and reduces the volume
of waste. Dispose of packaging materials that are no longer needed
according to locally applicable regulations.
NOTE
► If possible, retain the original packaging for the duration of the
warranty period so that you can pack the device properly in the
event of warranty claims.
Positioning requirements
The device must be positioned according to the following requirements
in order to ensure safe and error-free operation:
■ Place the device on a flat, level surface.
■ Do not place the device in a hot, wet, or very humid environment.
■ The device requires adequate air circulation in order to function
properly. During operation, do not place the device on soft surfaces,
carpets, or other materials that might block air circulation.
■ The socket must be easily accessible so that it is easy to disconnect
the power supply adapter in case of an emergency.
DPF DVB-T
43
Electrical connection
The electrical connections must be made according to the following
instructions in order to ensure safe and error-free operation:
GB
■ Before you connect the device, compare the connection data for
the power supply adapter (voltage and frequency) on the type
plate with that of your mains power supply. This data must match
to avoid damage to the device.
■ Keep the cable away from hot surfaces and sharp edges.
■ Make sure not to bend the cable or pull it too tightly.
Installation and connections
For continuous playback, the device can be placed on a flat surface or
hung on the wall.
If you want to put the device on a flat surface, attach the supplied base
to the rear of the device.
u Screw the base into the base opening 14 on the device.
u Position the device upright or on its side. To do so, turn the base
to the appropriate position.
CAUTION
The device can be damaged if it tips over or falls down.
► Make sure that the device cannot tip over.
u Connect the connection cable to the socket 12 on the device and
plug in the power supply adapter.
NOTE
► Only use the enclosed power supply adapter.
44
DPF DVB-T
u Connect a suitable storage medium to the device. The following
types of storage media can be read:
● SD cards .
GB
● MMC cards
● Memory sticks
● USB storage media
u Connect the DVB-T antenna to the socket 15 to use the device
as a digital TV.
u Switch on the device by setting the ON/OFF switch 11 to the ON
position.
Remote control
Inserting the battery
Remove the supplied battery from the packaging.
To insert/replace the battery, proceed as follows:
u Remove the battery compartment from the remote control by
pressing in the side locking mechanism while simultaneously
pulling out the battery compartment.
u Remove the used battery and insert a new battery of type
CR2025 (button cell) in the battery compartment. Be sure to
install the battery according to the correct polarity.
u Slide the battery compartment back into the remote control.
DPF DVB-T
45
Operation
Using the menu
GB
The device is equipped with a user-friendly menu. The menu appears
on the screen.
You open the main menu using the “MENU” button. In the menu, use
the “▲▼” buttons to move around, and select the desired function.
When you confirm your selection by pressing “OK”, a corresponding
submenu appears. Use the “►” button to go to the submenu. Again,
use the “▲” or the “▼” button to move around, and select the desired
line. The selected line is highlighted in colour.
Confirm your selection using the “OK” button. Usually, an additional
menu will then appear, in which you move around using the “◄►▼▲”
buttons and select the desired setting.
Use “Exit” to exit the current menu level.
For orientation purposes, the menu structure is also included in the
Appendix.
You can control the device using the buttons on the rear or with the
included remote control.
Changing the operating language
The operating language is set to English at the factory. To change this
setting, proceed as follows:
u Press the “SETUP” button on the remote control. . .
u Select “System Setting” and confirm by pressing the “OK” button.
u Select “Language Setup” – “OSD” and then the desired operating
language, and confirm your selection by pressing the “OK”
button.
u Exit the menu by pressing the “Exit” button on the remote control.
46
DPF DVB-T
Initial installation
When the device is started up for the first time, the setup assistant
appears.
GB
u Start the setup assistant by selecting “YES”, and confirm your
selection by pressing the “OK” button.
u Select “Country” and then the country in which you want to
operate the device. Confirm by pressing the “OK” button.
u Select “Language” and then the desired menu language. Confirm
by pressing the “OK” button.
u Select “Time Zone” and then the desired time zone. Confirm by
pressing the “OK” button.
u Select “Next” to continue with the setup.
u Select “Yes” to perform an automatic channel search to receive
DVB-T stations.
System settings
Select “Setup” from the main menu and confirm with “OK” to open
the setup menu. Now select “System settings” and confirm with
“OK” to open the system setup menu. The following menu items are
available:
■ Language setting:
DPF DVB-T
OSD
Select the desired On Screen Display
language (operating language).
Encoding
Select either Western European or Central
European.
47
■ Display setting:
GB
TV standard
Choose PAL or NTSC.
Selecting AUTO automatically adjusts the
standard.
AV output
Choose between display on the device
(Format) or on a television (TV).
Display format
Select the screen format:
4:3 PS
4:3 LB
16:9
Brightness
Choose between Normal, Bright and Soft
(Dark).
Contrast
Adjust the contrast.
LCD
brightness
Adjust the brightness.
LCD contrast
Adjust the contrast.
LCD saturation Adjust the colour saturation.
■ Defaults:
Change PIN
Change the PIN
Default
Select “Read” to restore the factory settings.
■ Exit: Select this menu item or press the “EXIT” button to exit the
setup menu.
48
DPF DVB-T
Digital TV
Select “Digital TV” from the main menu and confirm with “OK” to start
DVB-T mode.
GB
Setup
Press the “SETUP” button on the remote control and select the DVB
menu to open the Digital TV setup menu.
The following menu items are available:
Station list
■ TV station/music station: the TV and music channels that were
found during the channel search are saved in station lists. The
following settings can be made:
DPF DVB-T
Fav
Select a channel and mark it as a favourite by
pressing the “OK” button.
Move
Select a channel, press the “OK” button
and use the “▲▼” buttons to move it to the
desired position. Press the “OK” button to
confirm the position.
Del
Select the channel to be deleted and press
the “OK” button to delete the channel from the
list.
49
■ Sort: within the list, the stations can be sorted by name, service ID,
or channel number.
Station search
GB
■ Auto-search: start automatic channel search for TV and radio
stations.
■ Manual search: start manual channel search for a specific
channel.
Child protection
■ Block channel: activate/deactivate blocking function for the current
channel.
NOTE
► In order to deactivate the blocking function, you have to
enter a PIN. This PIN is set to “8888” at the factory.
► You can change the PIN in the DVB menu under “System
settings” – “Defaults” – “Change PIN”.
■ Set child protection: after entering the PIN, select the stations to
be blocked and mark them by pressing the “OK” button. Save your
changes and exit the menu by pressing the “Exit” button.
System settings
■ Country: select the country for the channel search.
■ Language: select the language for the first/second audio channel
and for subtitles.
■ Use GMT: activate/deactivate automatic time setting.
■ Time zone: select the time zone in which you want to operate the
device. For Germany, this means: GMT+01:00 (German standard
time/“winter time”) or GMT+02:00 (German summer time).
■ System schedule: you can create and edit a schedule here. The
device will then automatically switch to the desired station at the
scheduled time. You can schedule a total of 10 tasks. The following
entries are required for each task:
50
DPF DVB-T
Mode
Activate/deactivate task
Frequency
Time interval for the task (once/daily/weekly)
Channel type
TV or radio station
Channel number
Station number
Time setting
Start date/start time/stop time
GB
■ Exit: Select this menu item or press the “EXIT” button to exit the
setup menu.
Operation
You can use the remote control to perform the following functions:
DPF DVB-T
Button
Function
MUTE
Switch off sound
TV/RADIO
Toggle between TV and radio reception.
INFO
Information about the current station
1-9
Channel selection
RECALL
Switch back to the last channel
FAV
Open the favourites list
SETUP
Open the setup menu
▲/▼
Move channel forward/backward
OK
Open the channel list
MENU
Open the main menu
VOL+/VOL-
Adjust volume
LIST
Open the station list
TTX
Open teletext
EPG
Open the Electronic Programme Guide
AUDIO
Adjust audio settings
SUBTITLE
Display subtitles (if available)
51
DPF (Digital Picture Frame)
Setup
GB
Select “Setup” from the main menu and confirm with “OK” to open the
setup menu. Now select “DPF Setup” and confirm with “OK” to open
the system setup menu for the digital picture frame. The following
menu items are available:
Photo settings
Interval
Select the time interval at which the images
should change. When this function is deactivated
(OFF), the images can only be changed manually.
Cross-fade
Select the transition effect to be used when the
images change.
Show type
Select the mode in which the images should be
displayed.
Fit Screen - original format
Full screen - adjust to fill the screen (taking
aspect ratio into account).
Browse
Choose a display format:
Thumbnail - display preview images
File manager - display file structure
Auto-playback
This is where you can activate (On) or deactivate (Off) automatic
playback for the photo, music and film functions.
Exit
Select this menu item or press the “EXIT” button to exit the setup
menu.
52
DPF DVB-T
DPF menu
Select “DPF” from the main menu and confirm with “OK” to open the
DPF menu.
GB
NOTE
► The device automatically checks whether a storage medium is
available.
► You cannot select different types of media at the same time.
► The device displays photos or plays music/videos automatically
if their respective “Auto-playback” settings in the setup menu are
set to “On”.
The following functions are available:
Select this function to display photos.
You can use the remote control to perform the following functions:
DPF DVB-T
Button
Function
TV/radio
Switch to TV and radio reception.
INFO
Press 2x - display image data
Press 3x - hide Infobox
│◄◄ / ►►│
Previous image/next image
SETUP
Open the setup menu
►║
Start/pause slide show
STOP
Open image preview
REAPEAT
Select repeat function:
Track, Folder, All or None
▲
Flip horizontally
▼
Flip vertically
◄
Rotate 90° to the left
►
Rotate 90° to the right
EXIT
Press 1x - return to the DPF menu
Press 2x - return to the main menu
MENU
Return to the main menu
53
Image preview:
NOTE
► Thumbnail mode is only available if the “Photo settings” “Browse” option in the setup menu is set to “Thumbnail”.
GB
In this mode, you can rotate or quickly select images for the slide
show.
u Select “Rotate” and confirm with “OK” to activate rotate mode.
u Select the image to be rotated and confirm by pressing the “OK”
button.
u Select “Reset” to undo the rotation or “Back” to return to
thumbnail mode.
Use the │◄◄ / ►►│buttons to open the individual pages of the image
preview. Select “Slide Show” to start the slide show.
NOTE
► When you press the “EXIT” button to exit image preview, the
rotated images are reset.
Music
Select this function to listen to music. The available MP3 files are
displayed in a folder structure. Select a track and confirm with “OK”
to play the track.
54
DPF DVB-T
You can use the remote control to perform the following functions:
Button
Function
TV/radio
Switch to TV and radio reception.
◄◄ / ►►
Fast reverse/fast forward
│◄◄ / ►►│
Previous track/next track
SETUP
Open the setup menu
▲►▼◄
Direction buttons
►║
Start/pause playback
STOP
Stop the track
OK
Select folder/file
REAPEAT
Select repeat function:
Track, Folder, All or None
EXIT
Press 1x - return to the DPF menu
Press 2x - return to the main menu
MENU
Return to the main menu
VOL+
Increase volume
VOL-
Decrease volume
GB
Photo + music
Select this function to play the slide show with background music.
NOTE
► This function can only be executed if photo and MP3 files have
been saved on the storage medium.
DPF DVB-T
55
Film
Select this function to watch videos. The available videos are displayed
in a folder structure. Select a video and confirm with “OK” to start the
video.
GB
You can use the remote control to perform the following functions:
56
Button
Function
TV/radio
Switch to TV and radio reception.
INFO
Press 2x - display file information
Press 3x - hide Infobox
◄◄ / ►►
Fast reverse/fast forward
│◄◄ / ►►│
Previous video/next video
SETUP
Open the setup menu
►║
Start/pause playback
STOP
Stops the video and opens the folder structure
OK
Select folder/file
REAPEAT
Select repeat function: Track, Folder, All or None
EXIT
Press 1x - return to the DPF menu
Press 2x - return to the main menu
MENU
Return to the main menu
VOL+
Increase volume
VOL-
Decrease volume
DPF DVB-T
Edit
Select this function to copy images (as favourites) from a storage
medium to the internal memory and then use them as a screen saver.
The following menu items are available:
GB
■ Copy:
u Select the photos to be copied and mark them by pressing the
“OK” button.
u Select “Save” to save the marked photos to the internal memory
or “End” to return to the DPF menu without saving.
■ Delete:
u Select “Delete” to enter “Delete mode”.
u Then select the photo to be deleted and delete the photo from
the internal memory by pressing “OK” or selecting “Delete all”.
u Select “Back” to return to edit mode.
u Select “Sort” to change the order of the photos.
u Select the photo for which you want to change the position and
mark it by pressing the “OK” button.
u Now use the direction buttons to move the photo to the desired
position and confirm this position by pressing “OK”.
u Select “Back” to return to edit mode or “Slide Show” to start the
slide show.
■ Exit: select this menu item or press the “EXIT” button to return to
the DPF menu.
Favourite
Select this function to start the slide show using the photos that have
been stored in the internal memory.
DPF DVB-T
57
Accessories (additional functions)
Select “Accessories” from the main menu and confirm with “OK” to
open the accessories menu.
GB
The following additional functions are available:
Calendar
Settings
You can set the current date here. Select the year, month and day,
using the “▲▼” buttons to change the value. Select “OK” to save your
settings or “Cancel” to cancel the operation.
Display
Select “Display” to display the calendar and a clock. Use the “EXIT”
button to exit display mode.
Cancel
Select this menu item to return to the accessories menu.
Clock
Settings
You can set the current time here. Select the hour, minute and second,
using the “▲▼” buttons to change the value. Select “OK” to save your
settings or “Cancel” to cancel the operation.
Display
Select “Display” to display the time. Use the “EXIT” button to exit
display mode.
Cancel
Select this menu item to return to the accessories menu.
Alarm
Activate
You can activate (“On”) or deactivate (“Off”) the alarm function here.
58
DPF DVB-T
Settings
Set the time for the alarm here. Select the hours and minutes, using the
“▲▼” buttons to change the value. Select “OK” to save your settings
or “Cancel” to cancel the operation.
GB
Exit
Select this menu item to return to the accessories menu.
Cleaning and care
This chapter contains important information for the cleaning and care
of the device.
Safety instructions
CAUTION
Moisture can damage the device.
► To prevent irreparable damage, make sure that no moisture gets
into the device when you clean it.
Cleaning
The display on your device is located behind protective glass.
■ Only clean the display with a dry, soft cloth.
■ Do not apply pressure to the screen surface when you clean the
device.
■ To keep from damaging the surface, do not use solvents or alcoholbased cleaners to clean the device.
NOTE
► For gentle cleaning and care of the display, we recommend that
you use a microfibre cleaning cloth. This is available from Hama
(item no. 51076/51077), individually or together with a cleaning
gel as part of a set.
■ Clean the rest of the device with a dry cloth. You can lightly dampen
the cloth if the device is very dirty.
DPF DVB-T
59
Troubleshooting
This chapter contains important information for localising and rectifying
errors. Observe the information to avoid dangers and material
damage.
GB
Safety instructions
WARNING
Observe the following safety instructions to avoid safety risks and
material damage:
► Repairs to electrical devices may only be carried out by
specialists who have been trained by the manufacturer.
Improper repairs can result in significant danger to the operator
and damage to the device.
Causes of errors and error rectification
The following table can be used to localise and rectify minor errors
with the device:
DPF
General information
Error
60
Display is blank
No image
appears
Possible cause
Solution
Device is switched
off
Switch on the
device.
Power supply
adapter not
connected correctly
Ensure that the
power supply
adapter is plugged
in and connected
to the device.
No mains power
Check your fuse
box.
Device is faulty
Inform our
customer service
department.
No storage medium
is inserted
Insert a storage
medium.
The storage medium
does not contain
data
Check your
storage medium.
DPF DVB-T
Error
Possible cause
Digital TV
No DVB-T signal
“No/weak signal”
is received, or the
message
signal is too weak
Solution
Check your
antenna. If the
reception is weak,
select another
location.
GB
If you are using
the device in a
new location,
repeat the channel
search procedure.
No sound
Headphones
Unplug the
are plugged in
headphones.
(loudspeakers are off)
Individual
channels cannot
be accessed.
The channels may
be blocked on this
device (password
required).
Check your
“Child protection”
settings.
NOTE
► Contact our customer service department if the problem
remains after taking the steps detailed above.
Storage
If you are not going to use the device for an extended period of time,
switch off the device, disconnect it from power, and store it in a clean,
dry place that is away from direct sunlight.
DPF DVB-T
61
Disposal
Device disposal
GB
Do not dispose of the device with household waste. This product
is subject to the European 2002/96/EC Waste Electrical and
Electronic Equipment (WEEE) directive.
Dispose of the device at an approved waste disposal company or at
your local waste disposal facility. Observe all applicable regulations. In
case of doubt, contact your waste disposal facility.
Battery disposal
Batteries must not be disposed of with household waste. Consumers
are obliged by law to return batteries to the public collection points
set up for this purpose. This legal obligation ensures that batteries
are disposed of in an environmentally-friendly fashion. Only return
discharged batteries.
This device complies with the basic requirements and
other relevant regulations of directive 2004/108/EC
und 2006/95/EC..
The original declaration of conformity can be found in
full at http://www.hama.com.
62
DPF DVB-T
Appendix
GB
Technical specifications
General information
Power supply input
100-240 V AC / 50/60 Hz / 0.4 A Max
Power supply output
12 V DC / 1 A
Power consumption
10 W
Dimensions (L x W x H)
Weight
Loudspeaker
25 x 3.5 x 19 cm (without the base)
Approx. 680 g
1Wx2
TV/radio
Modulation schemes
QPSK, 16-QAM, 64-QAM
Bandwidth
6.7 or 8 MHz
VHF input frequency
170-230 MHz
UHF input frequency
470-862 MHz
Screen
Display
Resolution
8" 4:3 LCD
800 x 600 x 3 (RGB)
Remote control
Button cell battery (CR 2025)
3V
Compatible storage media
SD/MMC cards, memory sticks, and USB 2.0
Supported file formats
JPEG, MP3, WMA, MPEG-1, MPEG-2, MPEG-4
DPF DVB-T
63
Menu structure for the DPF
Digital TV
GB
DVB menu
(“SETUP” button on
the remote control)
Station list
Station search
Child protection
System settings
DPF
Setup
Exit
TV station
Music station
Sort
Auto-search
Manual search
Block channel
Set child
protection
Country
Language
Use GMT
Time zone
System schedule
Music
Photo + music
Film
Edit
Favourite
DPF Setup
Copy
Delete
Exit
Photo settings
Interval
Cross-fade
Show type
Browse
64
DPF DVB-T
DVB menu (DVBT setup can only
be opened via
“Digital TV” in the
main menu and via
“SETUP”.)
System settings
Auto-playback
Exit
GB
Language setting
Display setting
Defaults
Accessories
Exit
Calendar
Clock
Alarm
TV standard
AV output
Display format
Brightness
Contrast
LCD brightness
LCD contrast
LCD saturation
Change PIN
Default
Setting
Display
Cancel
Setting
Display
Cancel
Activate
Setting
Exit
DPF DVB-T
OSD
Encoding
On
Off
65
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
