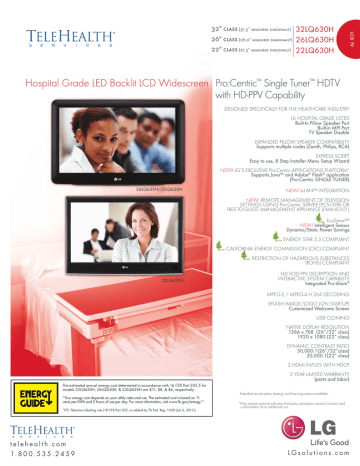

LG 22" Hospital Television Spec Sheet

LG 22" Hospital Television Spec Sheet
Hospital Grade LED Backlit LCD Widescreen Pro:Centric™ Single Tuner™ HDTV
with HD-PPV Capability
DESIGNED SPECIFICALLY FOR THE HEALTHCARE INDUSTRY
UL HOSPITAL GRADE LISTED
Built-In Pillow Speaker Port
Built-in MPI Port
TV Speaker Disable
EXPANDED PILLOW SPEAKER COMPATIBILITY
Supports multiple codes (Zenith, Philips, RCA)
EXPRESS SCRIPT
Easy to use, 8 Step Installer Menu Setup Wizard
NEW! LG’S EXCLUSIVE Pro:Centric APPLICATIONS PLATFORM1
Supports Java™ and Adobe® Flash® application
(Pro:Centric SINGLE TUNER)
26LQ630H/32LQ630H
NEW! b-LAN™ INTEGRATION
NEW! REMOTE MANAGEMENT OF TELEVISION
SETTINGS USING Pro:Centric SERVER (PCS150R) OR
FREE-TO-GUEST MANAGEMENT APPLIANCE (FMA-LG101)
EcoSmart™
NEW! Intelligent Sensor
Dynamic/Static Power Savings
ENERGY STAR 5.3 COMPLIANT
CALIFORNIA ENERGY COMMISSION (CEC) COMPLIANT
RESTRICTION OF HAZARDOUS SUBSTANCES
(ROHS) COMPLIANT
HD VOD PPV DECRYPTION AND
INTERACTIVE SYSTEM CAPABILITY
Integrated Pro:Idiom®
22LQ630H
MPEG-2 / MPEG-4 H.264 DECODING
SPLASH IMAGE/LOGO (ON STARTUP)
Customized Welcome Screen
USB CLONING
NATIVE DISPLAY RESOLUTION
1366 x 768 (26”/32” class)
1920 x 1080 (22” class)
DYNAMIC CONTRAST RATIO
50,000:1(26”/32”class)
20,000:1(22” class)
2 HDMI INPUTS WITH HDCP
2 YEAR LIMITED WARRANTY
(parts and labor)
The estimated annual energy cost determined in accordance with 16 CFR Part 305.5 for
models 32LQ630H, 26LQ630H, & 22LQ630H are $11, $8, & $6, respectively.
Extended service plans, leasing, and financing options available.
“Your energy cost depends on your utility rates and use. The estimated cost is based on 11
cents per kWh and 5 hours of use per day. For more information, visit www.ftc.gov/energy.”1
1
1
May require optional software, third party subscription service/contract, and
customization at an additional cost.
FTC Television labeling rule (18 CFR Part 305, as added by 76 Fed. Reg. 1038 (Jan 6, 2011)).
telehealth.com
1. 8 0 0 . 5 3 5 . 2 4 5 9
LG s o l u t i o n s . c o m
lcd tv
32" class (31.5” measured diagonally) 32LQ630H
26" class (26.0” measured diagonally) 26LQ630H
22" class (21.5” measured diagonally) 22LQ630H
LIFE’S GOOD...
WHEN IT ’s GREEN .
LG is committed to improving product development,
manufacturing and usage to meet the demand
for environmentally friendlier products. Our
LQ630H series televisions have technologies to
reduce power consumption and in return increase
cost savings per room.
EcoSmart
•Intelligent Sensor - Continually monitors room light conditions to automatically
optimize the picture quality for a more enjoyable viewing experience, which can help
save energy.
•Dynamic Power Savings - Using built-in algorithms, TV will automatically reduce the
power consumption based on incoming video, while maximizing picture performance.
•Static Power Savings - Picture brightness level can be set at the preferred power
consumption level to reduce power and increase energy savings.
• CEC Compliant - Meets the Appliance Efficiency Regulations of the California
Energy Commission.
• RoHS Compliant - Meets directive on restriction of hazardous substances.
• Energy Star 5.3 Qualified - Meets current reduction requirements of energy
consumption.
• Power Management - Automatic shutoff when TV has no activity after selected
1 - 7 hours of operation.
Pro:Centric
Interactive Patient Room Experience
LG'S FREE-TO-GUEST COST EFFECTIVE SOLUTION
Electronic Program Guide
When using LG televisions in For Free-To-Guest hospital installations there are now two options
for remote management of TV settings such as virtual channel mapping, cloning of installer menu
settings, and other settings:
An industry leading Pay-Per-View (PPV)
compatible television to include an embedded
applications platform, LG’s new LQ630H
series allows healthcare facilities to customize
the patient room experience. Pro:Centric
provides an easy way for the LQ630H
series to interface with interactive program
guides, games and internet data feeds, as well
as applications designed to connect patients
to services such as room service menus and
patient room information.
1. Integrated b-LAN, plus LG's Free-To-Guest Management System (FMA)
2. LG's Pro:Centric server (PCS150R)
Both remote management options avoid having to visit patient rooms to change television settings,
thereby saving labor charges to carry out this work.
HOSPITAL COSTS FOR FREE-TO-GUEST CHANNEL MANAGEMENT
Estimated
Labor Costs
Pro:Centric PLATFORM*
*MAP price
Total
Savings over
other brand
$20 (est.) x 2 times per year
Other brand
(to update channels)
$20,000
x 100 rooms x 5 years
LG Pro:Idiom TV
with b-LAN integration
plus FMA
$1,999
(FMA)
$1,999
$18,001
LG Pro:Idiom TV with
Pro:Centric Server
$2,500
$2,500
$17,500
*May require optional software, hardware, third party subscription service/contract, and customization
* MAP price subject to change.
Pro:Centric SYSTEM OVERVIEW (example for illustrative purpose only)
FREE-TO-GUEST
at an additional cost. Pro:Centric enabled pillow speaker required.
REMOTE MANAGEMENT DEVICES
FMA-LG101
HEAD-END SYSTEM
Manages channel line-up changes, channel label changes, designates a
startup channel, cloning of commercial installer menu settings, and can set
the time/date, and broadcast that information to all the terminals on a
regular basis. Also, enables Pro:Idiom tuning for Pro:Idiom encrypted
content.
PCS150R
HEAD-END SYSTEM
Dramatization
Remote management functions also supported via the Pro:Centric server.
The Pro:Centric Application software can be remotely added at a later
date to deliver the benefits of LG’s Applications features (Weather, EPG,
Billboards...)
FREE-TO-GUEST
INTEGRATED b-LAN
b-LAN
FREE-TO-GUEST TECHNOLOGY
Will allow viewing of HD secured Pro:Idiom encrypted content from
Pro:Idiom licensed Cable or Satellite providers. Compatible with
FMA-100 and FMA-LG101 head-end systems. Pay-Per-View ready.
POWER ON SPLASH IMAGE
EXPRESS SCRIPT
Welcome Screen
Express Script Installer Menu Wizard
(Modified)
(Default)
Installer Menu Wizard
Select Menu Mode

Which menu mode will you be using?
Express Script
Exit Express Script
OK
PTC: V1.00.004 CPU: V03.19.00 FPGA: 20E7
LG's hospital-grade patient room televisions feature a Splash
Image/Logo (Customized Welcome Screen) feature that allows
a healthcare facility to enhance their brand image. It gives the
installer the ability to upload a logo/image so that a patient
can view it on screen when they turn on the TV. The logo/image
is easily uploaded by using a USB memory device.
The Express Script Installer Menu Wizard enables users to
customize essential items for viewing the TV the first time it is
turned on. This 8 step process is a convenient and easy way to
provide the preferred settings recommended by the facility. The
Express Script Installer Menu Wizard can also be activated from
the commercial installer menu.
CLONING OPTIONS
32LQ630H
31.0”
11.6”
2.4”
7.1”
200mm
19.7”
100mm
SIDE JACK PANEL
(32”/26”)
Clone using a USB
Memory Device
USB IN
11.0”
IN 2
2.3”
5.6”
100mm
16.8”
100mm
7.3”
SIDE JACK PANEL
(22”)
22LQ630H
2.1”
20.7”
Clone using
OPTIONAL TLL-1100A
8.4”
3.4”
100mm
TVLink-Loader
The Installer sets up a master
TV with the preferred menu
settings. The TLL-1100A TVLinkLoader is charged up and the
MPI cable is connected to
both the TLL-1100A and the
Master TV. By selecting
buttons on this TVLink-Loader,
menu items are selected to
"Learn From TV" and stored on
the TLL-1100A (about 90
seconds). The TLL-1100A is
then plugged into a target TV.
By selecting buttons on the
TVLink-Loader, the TLL-1100A
menu items are selected to
"Teach To TV". The TVLinkLoader is then unplugged and
is ready to engage with the
next target TV.
RGB IN (PC)
25.9”
13.8”
100mm
6.5”
AV IN
AUDIO/VIDEO
REAR JACK PANEL
22LQ630H
REAR JACK PANEL
32LQ630H/26LQ630H
ANTENNA IN
PTC SERVICE CPU SERVICE TV-LINK SPEAKER OUT
8
(SERVIER ONLY) (SERVIER ONLY) CFG
GAME CONTROL
/ M.P.I.
PILLOW SPEAKER
U
OR
26LQ630H
AV IN
(AUDIO/VIDEO)
The Installer sets up a master
TV with the preferred menu
settings. A USB memory
device is plugged into the
master TV. Menu items are
selected to "Learn From TV"
and stored on the USB
memory device. The USB stick
is then plugged into a target
TV. Menu items are selected to
"Teach To TV". The USB
device is then unplugged and
is ready to engage with the
next target TV.
G
USB IN
USB IN
AUDIO IN
(RGB/DVI)
9.0”
/DVI IN 1
The LQ630H series has a convenient time
and expense saver feature. A select number
of commercial menu items are cloning
capable. This allows the cloning of a master
TV to an infinite number of the same model
target TV. This can be easily accomplished in
either of two ways, by using a USB memory
device or by using an optional LG accessory
TLL-1100A TVLink-Loader. This time saving
technique will allow the installers to program
the preferred commercial settings from a
master TV to all the required target televisions
in a hospital facility in a matter of just a few
minutes per TV.
G
AUDIO IN SPEAKER CPU SERVICE
(RGB/DVI) OUT(8Ω) (SERVICE ONLY)
PILLOW SPEAKER
RGB IN (PC)
USB INPUT (Bottom Center)
32LQ630H/26LQ630H Only

/DVI IN
1
IN
2
GAME CONTROLTV-LINK PTC SERVICE
/ M.P.I.
CFG (SERVICE ONLY)
ANTENNA
IN
specifications
lcd tv
32LQ630H 32" class (31.5” measured diagonally)
26LQ630H 26" class (26.0” measured diagonally)
22LQ630H 22" class (21.5” measured diagonally)
LGs o l u t i o n s .com
LCD SPECIFICATION
LED Backlighting
Screen Size
Native Display Resolution
Dynamic Contrast Ratio
Viewing Angle
Response Time (typ.)
Frame Rate
BROADCASTING SYSTEM
Analog (NTSC)
ATSC/Clear QAM
MPEG4
VIDEO
XD Engine
Aspect Ratio Correction
Edge lit
32” class (31.5” measured diagonally)
26” class (26.0” measured diagonally)
22” class (21.5” measured diagonally)
1366 x 768 (32”/26”), 1920 x 1080 (22”)
50,000:1 (32”/26”), 20,000:1(22”)
178°/178° (32”/26”), 170°/160° (22”)
6ms (32”/26”), 4ms (22”)
60Hz
Yes
Yes
Yes
Yes
5 Modes (16:9/Just scan/set by program/4:3/
Zoom)
Color Temperature Control
3 Modes (101 steps W50(warm)~C50(cool))
Picture Status Mode
5 Modes (Vivid/Standard /Cinema/Sport/ Game)
Just Scan 0% over scan
Yes
24p Real Cinema (24p 5:5/2:2 Pull down) Yes
Film Mode (3:2 Pull down)
Yes
xvYCC
Yes
DTV Signal Strength Indicator
Yes
AUDIO
Audio Output Power
5W + 5W
Speaker System
1 Way 2 Speakers
Dolby Digital Decoder
Yes
Surround System
Infinite Sound
Invisible Speaker (Bottom)
Yes
Sound Mode
5 Modes (Standard, Music, Cinema, Sport, Game)
Clear Voice II
Yes
Internal TV Speaker on/off
Yes
USB 2.0
System Upgrade
Yes
Back Up
Yes
Media Host
JPG/MP3/DivX
SPECIAL FEATURES
Smart Energy Saving
Yes (Backlight Control+Intelligent Sensor)
Intelligent Sensor
Yes
A/V Input Navigation
Yes
Input Labeling
Yes
Parental Control
Yes
Key Lock
Yes
Subtitle (Caption)
Yes
Quick View (Flashback)
Yes
e-streamer
Yes
OSD Language
4 (English, French, Spanish, Korean)
CHANNEL
Auto Programming
Yes
Program Add/Del
Yes
Channel Labels
Yes
TIME/CLOCK
Clock
Yes
Auto Off/Auto Sleep (When no video is present) Yes
Sleep Timer/On/Off Timer
Yes
COMMERCIAL FEATURES
USB Cloning
Yes
Bed 1/Bed 2
Yes
Power On Splash Image (Welcome Screen) Yes
b-Lan
Yes
Function Menu
Yes
Commercial Installation Menu
Yes
Pro:Centric Single Tuner
Yes (Java/Flash)
Pro:Idiom (Integrated)
Yes
TVLink Commercial
Yes
LG Electronics U.S.A., Inc.
HE B2B Division
2000 Millbrook Drive
Lincolnshire, IL 60069
Customer Service: 888.865.3026
www.LGsolutions.com/support
Contact your LG Regional Sales Representative
Healthcare/Long-Term Care: 800.535.2459
AUDIO/VIDEO INPUTS/OUTPUTS
USB 2.0
1 (side), 1 (bottom) (26”/32”)
RF In
1 (rear)
AV In (Gender Cable Incl.)
1 (side) 3.5mm Jack
HDMI/HDCP Input
2 (rear) (22”), 2 (side) (26”/32”)
RGB In (D-Sub 15pin) - PC
1 (rear) (22”), 1 (side) (26”/32”)
PC Audio Input
1 (rear) (22”), 1 (side) (26”/32”) 3.5mm Jack
PTC/CPU Service Only
2 (rear) 3.5mm Jacks
External Speaker Out
1 (rear) 3.5mm, Mono, 1W, Fixed
Pillow Speaker Jack (6-Pin)
1 (rear)
MPI Jack (RJ-12)
1 (rear) Game Port/MPI
CABINET/ACCESSORIES
Cabinet Color
Matte Black
Stand
Not Included
®
VESA Standard Mount Compatible (WxH) 200mm x 100mm (32”)
100mm x 100mm (26”, 22”)
Owner’s Manual (CD/Simple Book)
Yes (Quick Guide Only)
Remote Control
Not Included (Optional)
Kensington Lock
Yes
Cable Management
Yes
Pillow Speaker Codes (Zenith, Philips, RCA) Yes
Flame Retardant Cabinet Material
Yes
Power Indicator
Yes
Soft Touch Keys
Yes
6 foot Hospital Grade Power Cord
Yes
Cloning Capable (USB or TLL-1100A)
Yes
OPTIONAL REMOTES
Installer Remote
124-213-07 (Bed 1/Bed 2, TV menu & navigation
buttons)
Patient Remote
"Clone" Programmer
POWER
Voltage, Hz
Dynamic/Static Power Savings
Stand-by Mode
Power Consumption
REQUIRED LISTING (Certification)
Required Approvals
Lead Free
Mercury Free
ENERGY STAR 5.3
CEC Compliant
DIMENSIONS & WEIGHT
TV without stand (WxHxD)
Shipping Dimensions (WxHxD)
TV without stand weight
Shipping Weight
SERVICE/LIMITED WARRANTY
UPC CODE
32LQ630H
26LQ630H
22LQ630H
120V, 50/60HZ
Yes
Under 1W
Max 70W (32”), 60W (26”), 45W (22”)
Typical 50W (32”), 35W (26”), 25W (22”)
UL, cUL, NOM
Yes
Yes
Yes
Yes
31.0” x 19.7” x 2.4” (32”)
25.9” x 16.8” x 2.3” (26”)
20.7” x 13.8” x 2.1” (22”)
34.7" x 24.7” x 6.3” (32”)
29.2" x 19.5" x 5.8" (26”)
23.6” x 16.3” x 5.5” (22”)
19.6 Ibs (32”)
12.1 Ibs (26”)
10.0 Ibs (22”)
24.7 Ibs (32”)
16.1 Ibs (26”)
13.9 Ibs (22”)
2 Years (Parts/Labor)
7 19192 90381 4
7 19192 90380 7
7 19192 90379 1
All screen images are simulated. Dimensions and weights are approximate.
Design, features and specifications subject to change without notice.
© Copyright 2013 LG Electronics USA, Inc. All Rights Reserved. “LG Life’s Good” is
a registered trademark of LG Corp. XD Engine is a registered trademark of LG
Electronics, Inc. Pro:Centric and EcoSmart are registered trademarks or trademarks of
LG Electronics, Inc. Pro:Idiom and MPI are trademarks of Zenith Electronics Corp.
ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency.
b-LAN is a trademark of LodgeNet Interactive Corporation. VESA is a trademark of
Video Electronics Standards Association. All other product and brand names are
trademarks or registered trademarks of their respective companies.
E-mail: info@telehealth
SPEC_LQ630Hseries_Telehealth_061314_PR
124-213-08 (Bed 1/Bed 2)
TLL-1100A
Printed in the USA. June 2013
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
