N

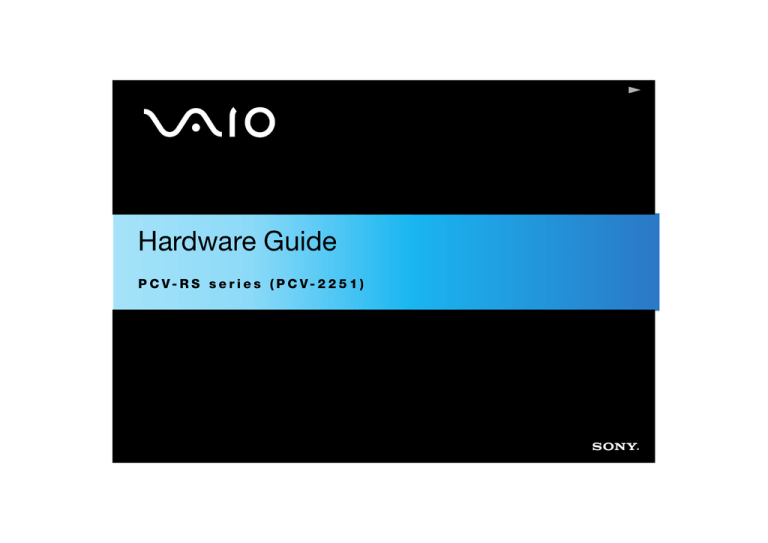

Hardware Guide
P C V- R S s e r i e s ( P C V- 2 2 5 1 )
n N
1
Hardware Guide
Read this first
Read this first
Notice
© 2004 Sony Corporation. All rights reserved.
This manual and the software described herein, in whole or in part, may not be reproduced, translated, or reduced to any machine-readable form without prior written
approval.
Sony Corporation provides no warranty with regard to this manual, the software, or other information contained herein and hereby expressly disclaims any implied
warranties or merchantability or fitness for any particular purpose with regard to this manual, the software or such other information. In no event shall Sony
Corporation be liable for any incidental, consequential, or special damages, whether based on tort, contract, or otherwise, arising out of or in connection with this
manual, the software, or other information contained herein or the use thereof.
Macrovision: This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright
protection technology must be authorised by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorised by Macrovision.
Reverse engineering or disassembly is prohibited.
In the manual, the ™ or ® marks are not specified.
Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described
herein is governed by the terms of a separate user licence agreement.
Please note that the illustrations in this manual may not necessarily apply to your model. Please see the Specifications sheet for the
specific configuration of your VAIO.
n N
2
Hardware Guide
Read this first
ENERGY STAR
As an ENERGY STAR Partner, Sony has determined that this product meets the ENERGY STAR guidelines for energy efficiency. The International ENERGY STAR
Office Equipment Program is an international program that promotes energy saving through the use of computers and their office equipment. The program backs the
development and dissemination of products with functions that effectively reduce energy consumption. It is an open system in which business proprietors can
participate voluntarily. The targeted products are office equipment such as computers, displays, printers, facsimiles and copiers. Their standards and logos are
uniform among participating nations.
ENERGY STAR is a U.S. registered mark.
Environmental information
Halogenated flame retardant not used in cabinets.
Cushions formed by corrugated board used in packaging.
Owner's record
The serial number, model number and product key are located on the back of your Sony desktop. Record the numbers and refer to
them if you call VAIO-Link. See also the printed Specifications document.
n N
3
Hardware Guide
Read this first
Safety information
General
❑
Opening the unit, for whatever reason, could lead to damages that are not covered by the guarantee.
❑
To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.
❑
To prevent fire or shock hazard, do not expose your VAIO desktop to rain or moisture.
❑
If reporting a gas leak, do not use the modem or a telephone in the vicinity of the leak.
❑
Avoid using the modem during a severe electrical storm.
❑
The power socket outlet you are using must be installed near the equipment and must be easily accessible.
❑
Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
❑
Do not move your computer while the system is in Standby mode.
❑
The magnetic properties of some objects can have serious consequences for your hard disk drive. They can erase the data on
the hard disk drive and cause the computer to malfunction. Do not place your computer near or on any objects, which emit
magnetic fields, mainly:
❑
TV sets
❑
Speakers
❑
Magnets and magnetic bracelets.
Audio/video
Audio and picture distortion may occur if this equipment is positioned in close proximity to any equipment emitting electromagnetic
radiation.
n N
4
Hardware Guide
Read this first
Connectivity
❑
Never install modem or telephone wiring during a severe lightning storm.
❑
Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.
❑
Take care when installing or modifying telephone lines.
❑
To disconnect your VAIO desktop completely from the mains voltage, unplug the power cable.
❑
Make sure that the socket outlet is easily accessible.
Optical disc drive
The use of optical instruments can cause eye hazard. As the laser beam used in this product is harmful to the eyes, do not attempt
any disassembling process. For servicing, refer to qualified personnel only.
n N
5
Hardware Guide
Read this first
Regulatory information
Sony hereby declares that this product is in compliance with the essential requirements and other relevant provisions of European Directive 1999/5/EC (radio
equipment and telecommunications terminal equipment Directive).
Declaration of Conformity
The European Union is targeting the free movement of goods for the internal market and to prevent technical barriers to trade. This effort has resulted in several EU
Directives asking that manufacturers make their products comply with essential standards. Manufacturers are required to affix the "CE" mark on the products they
sell and to draw up a "Declaration of Conformity" (DoC).
Primarily, the Declarations of Conformity are intended for the market surveillance authorities as proof that products satisfy the required standards. Additionally, Sony
provides these EU DoC's on the website http://www.compliance.sony.de as a service to our customers.
You can search for all Declarations of Conformity available for a specific product by typing in the model name in the search box. A list of matching documents will
be displayed and can be downloaded. Please note that the availability of declarations depends on the scope of the EU Directives and the individual product
specifications.
This product complies with EN 55022 Class B and EN 55024 for use in the following areas: residential, commercial, and light industrial.
This product has been tested and found compliant with the limits set out in the EMC Directive for using connection cables not longer than 3 metres (9.8 feet).
Before activating the built-in modem, please read the Modem Regulations leaflet.
There is visible and invisible radiation when the optical disc drive is open: avoid direct exposure to the laser beam. The optical disc drive is classified as a CLASS 1
LASER PRODUCT and complies with the Laser Product Safety Standard EN 60825-1.
Repair and maintenance only by authorised Sony technicians. Improper repairs and use can create safety hazards.
CLASS 1
LASER PRODUCT
TO EN 60825-1
n N
6
Hardware Guide
Read this first
Disposing of the internal memory backup battery
❑
Your Sony VAIO desktop is equipped with an internal back-up memory battery (motherboard battery) that should not have to be
replaced during the lifetime of the product. If you want to replace the battery, please contact VAIO-Link: www.vaio-link.com
❑
Keep away from children.
❑
Dispose of the battery properly at its end-of-life.
❑
In some areas the disposal of non-hazardous batteries in household or business waste may be prohibited. Please use the public
waste collection system.
Disposing of the AA batteries
The bundled remote control is powered by AA batteries.
❑
Do not handle damaged or leaking batteries.
❑
Dispose of promptly and properly at end-of-life.
❑
May explode or leak if recharged, disposed of in fire, mixed with other types of battery or improperly installed.
❑
Keep away from children.
❑
In some areas, the disposal of batteries in household or business waste may be prohibited. Please use the public collection
system.
n N
7
Hardware Guide
Welcome
Welcome
Congratulations on purchasing a Sony VAIO computer. Sony has combined leading-edge technology in audio, video, computing
and communications to provide you with state-of-the-art personal computing.
As well as exceptional performance, here are the main features you can enjoy:
❑
Dual drives – Enjoy the freedom of two optical disc drives.
❑
Sony audio and video quality – The advanced graphics card and high-quality external stereo speakers enable you to take
advantage of today’s advanced multimedia applications, games, and entertainment software.
❑
Multimedia features – Enjoy audio and video CDs and DVDs, even record them yourself.
❑
Giga Pocket – Take advantage of the Giga Pocket technology, allowing you to watch TV and record your favourite programmes
digitally and by remote control.
❑
Sony Memory Stick PRO slot – This compact digital storage medium allows you to easily transfer images, sounds, data and
text between cameras, computers, and more.
❑
Interconnectivity – Your computer has Memory Stick, USB 2.0, i.LINK, CompactFlash and SmartMedia functionalities.
❑
Windows XP – Your system includes the latest operating system from Microsoft.
❑
Excellent customer support – If you are experiencing any problems with your computer, please check the VAIO-Link website
for a possible solution: www.vaio-link.com. Before contacting VAIO-Link, please try to solve the problem by reading this guide,
your printed Guide to Troubleshooting, or the manuals and help files for the peripherals or software.
n N
8
Hardware Guide
Welcome
Documentation pack
Your documentation pack contains printed information and user guides to read on your computer.
The user guides can be found on your desktop through the My Documentation icon
.
Printed documentation
The printed part of your documentation pack includes the following:
❑
A Getting Started brochure, where you will find a brief description of the items in your box, and how to set up your computer;
❑
A Specifications sheet, containing a table of specifications, a list of bundled software and, on the reverse side, a guide to setting
up your VAIO;
❑
A Guide to Troubleshooting and Recovering your VAIO System, where you will find solutions to common problems, an
explanation of how to recover your computer’s system if you need to, and
VAIO-Link information;
❑
Your Sony Guarantee conditions;
❑
A Safety Regulations leaflet;
❑
A Modem Regulations leaflet.
n N
9
Hardware Guide
Welcome
Non-printed documentation
Click on the desktop icon My Documentation
to view the VAIO user guides.
❑
The Hardware Guide (this guide) explains the features of your VAIO in detail, how to use these features confidently and safely,
connect peripheral devices, upgrade your computer, and more.
❑
The Software Guide describes how to register your VAIO, the software features available with VAIO systems, how to change
settings, how to manage drivers and more.
❑
The Giga Pocket manual explains how to watch and record TV and video on your PC.
My Documentation also gives you:
❑ A direct link to the VAIO-Link website, Sony’s service centre. This will give you troubleshooting hints, downloads, contact details,
and everything else you need for the smooth operation of your VAIO.
❑ Help files about reading the guides.
❑
Important information about your computer, in the form of notices and announcements.
Further sources
❑
Consult the Online Help files of the software you are using for detailed information on features and troubleshooting.
❑
Go to www.club-vaio.com to find online tutorials about your favourite VAIO software.
n N
10
Hardware Guide
Welcome
Ergonomic considerations
Whenever possible, try and take into account the following ergonomic considerations when using your new computer, whether at
home or in the office:
n N
11
Hardware Guide
Welcome
❑
Position of the keyboard and mouse – Place the keyboard directly in front of you (1). Keep your forearms horizontal, with your
wrists in a neutral, comfortable position (2) while using the keyboard or mouse – not at an angle. Let your upper arms hang
naturally at your sides. Use the palm rest only briefly, to relax your wrists when you are not typing. Place the mouse at the same
level as the keyboard and use your whole arm to move it.
❑
Position and viewing angle of the monitor – Set the display at a comfortable viewing distance (3). Make sure the display screen
is at eye level or slightly lower. Use the display’s tilting feature, if available, to find the best position. You can reduce eye-strain
and muscle-fatigue by adjusting the tilt of the display to the proper position. Remember to adjust the brightness setting of the
display. If you are using a CRT monitor, make sure that the refresh rate is at an optimal level, that is, at least 75Hz.
❑
Furniture and posture – Sit in a chair with good back support (4). Adjust the level of the chair so your feet are flat on the floor.
A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning too far
backwards.
❑
Lighting – Choose a location where windows and lights do not create glare or reflection on the display. Use indirect lighting to
avoid bright spots reflecting on the display. You can also purchase accessories for your display that help reduce glare. Proper
lighting adds to your comfort and work effectiveness.
❑
Ventilation – Make sure you leave at least 25 cm of space behind and on the left of the main unit (5).
❑
And finally – Remember to have breaks during sessions with your computer. Excessive use of the computer may strain muscles
or tendons.
n N
12
Hardware Guide
Using your VAIO computer
Using your VAIO computer
Once you have read and followed the information in the printed Getting Started guide and Specifications sheet, you can start using
your computer safely and confidently. Read on to get the most out of using your VAIO computer.
❑
Shutting down your computer safely (page 13)
❑
Using the keyboard (page 14)
❑
Using the TV function (page 15)
❑
Using the mouse (page 16)
❑
Using the disc drives (page 18)
❑
Using the floppy disk drive (page 21)
❑
Using the modem (page 22)
❑
Using power modes (page 23)
❑
Using the media slots (page 26)
❑
Expansion capabilities (page 35)
n N
13
Hardware Guide
Using your VAIO computer
Shutting down your computer safely
It is important that you shut down your computer properly so you do not lose unsaved data.
To shut down your computer, proceed as follows:
1
Turn off any peripherals connected to your computer.
2
Click the Start button.
3
Click Turn Off Computer.
The Turn off computer window appears.
4
Click Turn Off.
5
Respond to any prompts warning you to save documents or to consider other users and wait for your computer to turn off
automatically.
The power indicator turns off.
✍
See the printed Troubleshooting Guide if you have problems shutting down your computer.
n N
14
Hardware Guide
Using your VAIO computer
Using the keyboard
Your computer is delivered with a VAIO keyboard. The features are much the same a standard keyboard, plus some additional
functions.
For information on the standard keys and shortcuts, please go to the Windows Help and Support Center. The VAIO-Link website
(www.vaio-link.com) also contains glossary information to help you use the keyboard.
Indicators
Light
On
Off
Num Lock
Turns on when the number keys in the numeric keypad Turns off when the alphanumeric character keys in the
are active.
keypad area are active.
Caps Lock
Turns on when the letters appear in uppercase as you
type. The <Shift> key lowers the case of typed letters
when Caps Lock is on.
Turns off when the letters appear in lowercase as you
type (unless you hold down the <Shift> key).
Scroll Lock
Turns on when the screen scrolls differently (not all
applications support this function).
Turns off when the information moves across the
display normally.
n N
15
Hardware Guide
Using your VAIO computer
Using the TV function
Your computer is equipped with a TV tuner board. In combination with Sony's Giga Pocket software, it allows you to:
❑
Watch, record and play back analogue broadcasted cable and terrestrial TV programmes, all by remote control;
❑
Digitise analogue video and audio using the S-Video or composite and audio inputs;
❑
Manage your video units (capsules), preview them and create multiple folders;
❑
Set up a timer to record channels at a repeated time;
❑
Suspend viewing TV (time-shifting);
❑
Stream your recorded TV contents via Ethernet (or WLAN) to connected PCs;
❑
Export your video capsules to MPEG2, MPEG1 and (DVI) AVI-files;
✍
Sony cannot guarantee the streaming of recorded content if it is beyond a certain level of high quality.
For details on using Giga Pocket and the remote control, please see the dedicated online guide under My Documentation
or the help files within the software itself.
n N
16
Hardware Guide
Using your VAIO computer
Using the mouse
The VAIO wheel mouse allows you to control the cursor in a number of ways. You can point to, select, drag and scroll objects on
the screen using the buttons and the wheel.
The mouse has the following functions:
Button
Function
1
Left button
Click or double-click the left button to select items. To drag and drop
items, hold the left button down while sliding the mouse, then release
the button to drop the item.
2
Right button
Press the right button once to display a context-sensitive shortcut
menu (not always an active function).
3
Central wheel
Turn the central wheel to scroll up or down a page. Press the wheel
once to lock the scroll action and control the movement by moving the
entire mouse (the scroll function is available only with applications that
support it).
You can adjust the mouse pointer speed and other functions under Mouse Properties. To display Mouse Properties, go to the
Control Panel, select Printers and Other Hardware, then select Mouse.
n N
17
Hardware Guide
Setting up the mouse for left-handed users
To set your mouse up for left-handed users, proceed as follows:
1
Go to Start, select Control Panel, then click the Printers and Other Hardware option.
2
Click the mouse icon.
The Mouse Properties dialog box appears.
3
In the Buttons tab, select the option button next to Switch primary and secondary buttons.
4
Click OK.
The new mouse settings are now in place.
Using your VAIO computer
n N
18
Hardware Guide
Using your VAIO computer
Using the disc drives
Your computer is equipped with two separate optical drives. Please see the printed Specifications sheet to see which drives your
model has.
For installing software and using the VAIO Recovery Disc it is recommended that you use the upper drive.
❑
A DVD±RW drive reads data from and writes data onto DVD and CD.
❑
A DVD-ROM drive reads data from DVDs and CDs.
❑
A CD-RW drive reads data from and writes to CDs.
❑
A CD-ROM drive reads data from CDs.
To insert a disc, proceed as follows:
1
Turn on the computer.
2
Press the appropriate eject button to open the drive.
The tray slides out.
3
Place a disc in the tray with the label side facing upwards.
Make sure the disc is secure in the centre of the tray.
4
Close the tray by pushing it gently.
✍
See the printed Guide to Troubleshooting if you have problems using discs.
To remove a disc, proceed as follows:
1
Make sure the disc indicator light is not on.
2
Press the appropriate eject button to open the drive and
remove the disc carefully.
✍
Do not press the eject button when the LED indicator is turned on. Otherwise,
data may be lost.
n N
19
Hardware Guide
Using your VAIO computer
Reading and writing CDs and DVDs
To achieve optimum performance when writing data on to disc (also called ’burning’), follow these recommendations:
❑
Only use circular discs. Do not use discs with any other shape (star, heart, card, etc.), as this may damage the disc drive.
❑
Do not strike or shake the computer while writing data to a disc.
❑
For optimal writing speed, deactivate the screensaver before writing data to a disc.
❑
Memory-resident disc utilities may cause unstable operation or data loss. Deactivate these utilities before writing data to a disc.
❑
When using a software application to burn discs, make sure you exit and close all other applications.
❑
Never touch the surface of the disc. Fingerprints and dust on the surface of a disc may cause writing errors.
❑
Never put stickers on discs. This will affect the use of the disc irreparably.
Playing DVDs
To achieve optimum performance when playing DVDs, you should follow these recommendations:
❑
Close all open applications before playing a DVD movie.
❑
You can play DVDs with the software WinDVD for VAIO.
❑
Do not switch power saving modes while playing a DVD.
❑
Do not use built-in utility applications to speed up the access of discs, because they may cause the system to become unstable.
❑
Make sure that the screensaver is deactivated.
❑
Region codes indicators are labelled on the DVDs to indicate in which region and on what type of player you can play the disc.
Unless a 2 (Europe belongs to region 2) or ALL (this means that you can play this DVD everywhere in the world) is labelled on
your DVD disc or on the packaging, you cannot play the disc on this player.
❑
Do not try to change the region code settings of the DVD drive. Any difficulties caused by changing the region code settings of
the DVD drive are out of warranty.
n N
20
Hardware Guide
Using your VAIO computer
Using two screens while watching a DVD film
To use two screens and change the DVD playback settings, proceed as follows:
1
Connect your TV / DVI display to the computer as described in Connecting a TV set (page 39)
or Connecting a display (page 37)
2
Go to Control Panel.
3
Click Appearance and Themes and then Display.
The Display Properties dialog box appears.
4
Click the Settings tab and click Advanced.
5
On the Displays tab, click
6
Make sure
7
On the Overlay tab, click Clone mode options... and make sure Overlay Display Mode is set to Theater Mode.
next to the TV or DVI button.
is selected and click OK.
n N
21
Hardware Guide
Using the floppy disk drive
Your VAIO desktop is equipped with a floppy disk drive.
Inserting a floppy disk
To insert a floppy disk, proceed as follows:
1
Hold the floppy disk with the label side facing up.
2
Gently push the disk into the floppy disk drive until it clicks into place.
Removing a floppy disk
To remove a floppy disk, proceed as follows:
1
Wait until the LED indicator turns off.
2
Press the eject button and pull the disk out gently.
✍
Do not press the eject button when the LED indicator is turned on. Otherwise, data may be lost.
Using your VAIO computer
n N
22
Hardware Guide
Using your VAIO computer
Using the modem
Your VAIO desktop is equipped with an internal modem. As described in the printed Getting Started guide, use the single RJ-11
jack
to connect the supplied modem cable to the phone line. Once you have connected the phone line and registered with an
Internet Service Provider, you can take advantage of online services and the Internet, to register your computer and software online,
and to contact VAIO-Link.
Troubleshooting the modem
If you have problems with your modem, check the printed Guide to Troubleshooting and the VAIO-Link website
(www.vaio-link.com).
n N
23
Hardware Guide
Using your VAIO computer
Using power modes
The colour of the power indicator light(s) on the main unit tells you which mode the computer is in.
’VAIO’ light
Power indicator
Mode
Blue
No light
Computer is in Normal mode
No light
Amber
Computer is in Standby mode
No light
No light
Computer is turned off or in Hibernate mode
✍
Please see the printed Specifications sheet for the exact location of the indicators.
To set the timer for your computer to automatically enter Standby or Hibernate mode after a certain amount of time, go to
Control Panel, click Performance and Maintenance and change the settings under Power Schemes.
n N
24
Hardware Guide
Using your VAIO computer
Using Standby mode
If you plan to stop using your computer for a short period of time (not overnight), you can put it into Standby mode instead of turning
it off completely. Putting the computer into Standby mode saves energy and allows a quick return to normal computer use.
To activate Standby mode manually, proceed as follows:
1
Save your work, close all applications and close your Internet connection, if applicable.
2
Press the Standby button on the keyboard
.
Alternatively;
1
From the Start menu on the Windows taskbar, select Turn Off Computer.
2
Select Stand By.
The computer goes into Standby mode, indicated by the amber light of the power indicator.
To return to Normal mode, press the Standby button again or any key on the keyboard.
✍
You can use the Standby button to turn the power on.
You can leave Windows running when using Standby.
When the computer is in Standby mode, you cannot insert a disc.
The computer comes out of Standby mode quicker than out of Hibernate mode and uses more power.
n N
25
Hardware Guide
Using your VAIO computer
Using Hibernate mode
If you are interrupted and need to leave your computer suddenly, you can put it into Hibernate mode. This power saving mode saves
you the time of shutting down in the normal way.
When you put your computer into Hibernate mode:
❑
Everything in the memory is saved to the hard disk.
❑
The monitor and system are turned off.
❑
The computer is turned off.
❑
The power indicator light turns off.
To activate Hibernate mode manually, proceed as follows:
1
Save your work.
2
From the Start menu on the Windows taskbar, select Turn Off Computer.
3
In the Turn Off Computer screen, hold down the <Shift> key to reveal the Hibernate button.
4
Click Hibernate.
The computer goes into Hibernate mode, the computer turns off.
To return to Normal mode, quickly press the power button.
Operation returns to the same state as before.
✍
You can leave Windows running when using Hibernate.
If you press the power button for more than six seconds, the computer will switch off completely.
When the computer is in Hibernate mode, you cannot insert a disc.
Hibernate uses less power than Standby and requires more time.
n N
26
Hardware Guide
Using your VAIO computer
Using the media slots
As well as the Sony Memory Stick, your VAIO computer also supports other high capacity memory card formats, such as
CompactFlash and SmartMedia. You can exchange digital data with a number of compatible products, such as digital cameras,
mobile phones or handheld devices.
The CompactFlash slot also supports Secure Digital cards which you can insert using a Memory Card (or SD) adapter. Please see
your Specifications sheet to see if this is a supplied accessory for your model.
Please refer the manual of the individual devices and memory cards.
✍
Some devices may not support the formats that this PC uses as standard. In this case, you may see a message telling you to format the card.
Before you use memory cards other than Memory Sticks in devices such as a digital camera or audio device, you must format them beforehand on the device which you
use to record data. Please be aware that formatting the card will delete all the data on it.
The Sony UMH-U HS-XX USB Device icon (or similar) is shown in the taskbar when a USB device is in use. However, it also runs Memory Sticks, CompactFlash cards and
SmartMedia. It is important that you do not use this icon to disable these memory cards, as it disables all the slots. If you accidentally remove any of the cards via this icon,
please restart your computer.
! When using a Secure Digital (SD) media card, always insert it into the Memory Card adapter to ensure proper operation. Do not attempt to insert any other type of media
card into the adapter. An incompatible media card may be difficult to remove from the adapter and can cause harm to your computer if you attempt to use it in the
CompactFlash slot.
! Do not attempt to insert any other type of media card adapter into the Memory Card adapter, such as a Mini SD adapter. The media card adapter may be difficult to remove
from the Memory Card adapter and can cause harm to your computer if you attempt to use it in the CompactFlash media slot.
n N
27
Hardware Guide
Using your VAIO computer
About Memory Sticks
Your VAIO computer is designed to support the Memory Stick. The Memory Stick is a compact, portable, and versatile device
especially designed for exchanging and sharing digital data with compatible products, such as digital cameras, mobile phones and
CLIÉ handheld devices. Because it is removable, it can be used for external data storage.
Use the flash memory technology to download anything that can be converted into digital data, such as pictures, music, words,
sounds, movies and photographs.
Please see your printed Specifications sheet to see which Memory Stick types are compatible with your VAIO and if there are any
limitations.
❑
You can purchase Memory Sticks from the Sony Style website (www.sonystyle-europe.com), or from your local Sony dealer.
❑
Detailed information about which CLIÉ handhelds are compatible with which Memory Sticks can be found here:
www.clie-link.com.
❑
Detailed information about which VAIO computers are compatible with which Memory Sticks can be found here:
www.vaio-link.com.
n N
28
Hardware Guide
Using your VAIO computer
About SmartMedia
A SmartMedia card (originally called a solid-state floppy disk card) is a memory card that uses flash memory to store data and to
make it portable among devices, such as digital cameras, personal digital assistants (PDAs), and other handheld devices.
SmartMedia is similar in size to the CompactFlash card (although significantly thinner), with storage capacities ranging up to 128 MB.
❑
This computer supports only SmartMedia with a capacity of 4 MB to 128 MB under a voltage power of 3.3 V.
❑
The SmartMedia slot is not for any use other than the writing/reading of memory cards.
Inserting a memory card
To insert a Memory Stick or other memory card, proceed as follows:
1
Locate the appropriate memory card slot on the front panel of your VAIO.
See the printed Specifications sheet for the exact location of the slots.
2
Insert the Memory Stick or other card into the slot with the arrow side pointing upwards.
3
Make sure the card is secure in the slot.
The Memory Stick or card is automatically detected by your system and appears in the My Computer window with its own drive.
✍
Always hold memory cards with the arrow pointing in the correct direction when you insert it into the slot. To avoid damaging the computer or the memory card, do not
force the card into the slot if it does not insert smoothly.
n N
29
Hardware Guide
Using your VAIO computer
Removing a memory card
To remove a Memory Stick or other memory card, proceed as follows:
1
Make sure the indicator light is not on.
2
Push the Memory Stick or card in to release it, and then pull it out.
✍
You are recommended to remove the memory card before shutting down the computer.
If an error message appears when you remove it, insert the memory card into the slot again and press <Enter>. Wait until the active application finishes, then remove the
memory card. If the message confirms the ejection of the card, click OK.
Please do not remove the memory stick when memory card access lamp is on. Otherwise, the card may not be detected the next time it is inserted into the slot. If the card
is removed by mistake and is subsequently not detected, please shut off the power of the computer, wait ten seconds and then turn it on again.
The Sony UMH-U HS-XX USB Device icon (or similar) is shown in the taskbar when a USB device is in use. However, it also runs Memory Sticks, CompactFlash cards and
SmartMedia. It is important that you do not use this icon to disable these memory cards, as it disables all the slots. If you accidentally remove any of the cards via this icon,
please restart your computer.
n N
30
Hardware Guide
Using your VAIO computer
Write-protecting Memory Sticks
Some Memory Sticks are designed with an erasure prevention switch to protect valuable data from accidental erasure or overwriting.
Move the tab horizontally or vertically to set or release write-protection. When the erasure prevention switch is off, data can be saved
on the Memory Stick. When the erasure prevention switch is on, data can be read from but not saved on the Memory Stick.
LOCK
LOCK
✍
LOCK
Some kinds of Memory Stick do not have a lock switch.
n N
31
Hardware Guide
Using your VAIO computer
Using CompactFlash cards
Your VAIO desktop has a CompactFlash slot that supports Type I or Type II cards. CompactFlash is a removable mass storage
device. And is used to interconnect digital cameras, digital music players, desktop computers, handheld PCs, personal
communicators, Palm PCs, digital voice recorders and photo printers. Its advanced features include a high transfer rate for fast copy/
download and a high storage capacity.
❑
This slot cannot be use anything except for writing and reading memory cards or storage device cards.
❑
Some CompactFlash cards may require you to disable idle devices during use.
❑
You may not be able to use some of the card’s features with this computer.
❑
Your system may run into serious problems if;
❑
you remove the card or turn the computer off while the card is in use.
❑
your working environment contains high electrical activity.
❑
When not is use, always put the CompactFlash card in its case to avoid high electrical effects.
❑
The CompactFlash slot also supports Secure Digital cards which you can insert using a Memory Card (or SD) adapter. Please
see your Specifications sheet to see if this is a supplied accessory for your model.
n N
32
Hardware Guide
Using your VAIO computer
Inserting a CompactFlash card
Simply insert the card gently into the card slot.
The card is automatically detected by your system and will appear with its own icon under My Computer.
✍
Do not force a CompactFlash card into the slot. It may damage the connector pins. If you have difficulty inserting a CompactFlash card, check that you are inserting the card
in the correct direction. See the manual supplied with your card for more information on use.
Removing a CompactFlash card
The Sony UMH-U HS-XX USB Device icon (or similar) is shown in the taskbar when a USB device is in use. However, it also runs
Memory Sticks, CompactFlash cards and SmartMedia. It is important that you do not use this icon to disable these memory cards,
as it disables all the slots. If you accidentally remove any of the cards via this icon, please restart your computer.
To remove a CompactFlash card, proceed as follows:
1
Make sure the card is not in use and the indicator is not lit.
2
Press the release button once so it is extended and ready for use.
3
Push the release button again to eject the card.
4
Gently grasp the card and pull it out.
The CompactFlash window closes automatically.
✍
If you remove the CompactFlash card from the computer when it is still in use, unsaved data may be lost. Always back up important data.
n N
33
Hardware Guide
Using your VAIO computer
Using Secure Digital cards
The Secure Digital (SD) card is a small, high-capacity data storage media card. You can use the Memory Card adapter in the
CompactFlash slot to insert standard-size SD cards and Multi Media cards only (Multi Media cards are the forerunners of SD cards).
Please see your Specifications sheet to see if this adapter is a supplied accessory for your model.
✍
The Memory Card adapter is exclusively for the use of SD cards and Multi Media cards. Please do not insert other memory cards.
Inserting a Secure Digital card with the Memory Card adapter
To insert the SD card, proceed as follows:
1
Insert the SD card into the Memory Card adapter, as shown.
2
Push the card in until it clicks into place.
3
Insert the Memory Card adapter into the CompactFlash slot with the arrow facing upwards.
The card is automatically detected by your system and will appear with its own icon under My
Computer.
✍
Do not force the adapter into the slot. If you have difficulty with it, check that you are inserting the card in the correct direction.
See the manual supplied with your card for more information on use.
! Always use the Memory Card adapter wth standard-size SD cards or Multi Media cards. Do not attempt to insert the SD card
into the slot without the adapter, or insert any other type of card into the adapter or CompactFlash slot, such as a Mini SD adapter.
n N
34
Hardware Guide
Using your VAIO computer
Removing a Secure Digital card
The Sony UMH-U HS-XX USB Device icon (or similar) is shown in the taskbar when a USB device is in use. However, it also runs
Memory Sticks, CompactFlash cards, SmartMedia and SD cards. It is important that you do not use this icon to disable these
memory cards, as it disables all the slots. If you accidentally remove any of the cards via this icon, please restart your computer.
To remove an SD card, proceed as follows:
1
Make sure the card is not in use and the indicator is not lit.
2
Press the release button once so it is extended and ready for use.
3
Push the release button again to eject the adapter.
4
Gently grasp the adapter and pull it out.
5
To remove the SD card from the adapter, push the card in to release it then you can grasp the card to remove it completely.
✍
If you remove the SD card from the computer when it is still in use, unsaved data may be lost. Always back up important data.
Troubleshooting memory cards
❑
If you plan to share a CompactFlash, Secure Digital (SD), or SmartMedia card between your VAIO and other devices, such as a
digital camera or music player, the media card must be formatted properly. Format the card by using it in the device first. See
the information supplied with the device for details on formatting cards.
❑
If your device does not recognise a media card that has been formatted by your computer, save the card’s contents to your hard
disk drive. Then reformat the card with the device.
❑
When you click Safely remove device (or a similar icon) in the taskbar, the computer can no longer access CompactFlash and
SmartMedia cards. Please restart your computer and try again. This also applies to Memory Sticks.
❑
Check the write-protect switch on your Memory Stick. If it is set to on, you cannot write or delete data on the card.
n N
35
Hardware Guide
Using your VAIO computer
Expansion capabilities
There are four expansion slots at the rear of your VAIO computer, as follows:
❑
Top slot: AGP slot containing the graphics card.
❑
Second slot: Empty PCI slot.
❑
Third slot: PCI slot containing the Giga Pocket ports.
❑
Bottom slot: CNR slot containing the modem card.
Empty PCI slots allow you the choice of adding to the expansion capabilities of your computer.
You are strongly advised not to add hardware yourself. Please contact your local Sony dealer for advice on changing the internal
hardware components.
n N
36
Hardware Guide
Connecting peripheral devices
Connecting peripheral devices
You can add functionality to your computer by using the various ports on your unit.
To identify and locate the ports on your computer, please see the printed Specifications sheet.
❑
Connecting a display (page 37)
❑
Connecting a Universal Serial Bus (USB) device (page 41)
❑
Connecting a printer (page 42)
❑
Connecting an i.LINK device (page 43)
❑
Connecting an S/PDIF device (page 44)
❑
Connecting a microphone (page 44)
❑
Connecting to a network (page 45)
Sony computer supplies, accessories and peripherals can be purchased from your local retailer or from the Sony website:
www.sonystyle-europe.com
For more information about connection compatibility, go to the VAIO-Link website: www.vaio-link.com
n N
37
Hardware Guide
Connecting peripheral devices
Connecting a display
You can connect multiple displays to your desktop, each using a different port on the back of your computer:
❑
an LCD screen using the DVI connector
❑
a TV using the TV/video out connector
❑
a CRT or LCD screen using the VGA connector
Please make note of the following viewing possibilities:
❑
If you have a VGA and a DVI connected, the image is shown on both screens by default.
❑
If you have a VGA and a TV connected, the image is shown on both screens by default.
❑
If you have a DVI and a TV connected, the image is shown on both screens by default.
❑
If you have a VGA, a DVI and a TV connected, the image will be shown on both the VGA and the DVI by default.
n N
38
Hardware Guide
Connecting peripheral devices
To change your display from VGA to DVI or vice versa, proceed as follows:
1
Connect the display(s), as described in the printed Getting Started or in the instructions delivered with the display, if applicable.
2
Go to Control Panel.
3
Click Appearance and Themes then Display.
The Display Properties dialog box appears.
4
Click the Settings tab and then Advanced.
5
On the Displays tab, click
6
Make sure
next to the DVI button.
is selected and click OK when you have finished.
n N
39
Hardware Guide
Connecting peripheral devices
Connecting a TV set
You can connect a TV directly to your computer.
In order to be able to use a TV screen, you also have to enable the TV output function.
Your VAIO desktop is delivered with a TV/video out cable (or ’converter cable’), which is for use with TV sets without an S-Video port.
Connecting a TV that has no S-Video port
To connect a TV to your VAIO desktop with the supplied TV/video out cable, proceed as follows:
1
Plug one end of the TV/video out cable into the TV/video out
port on the back of your computer.
2
Take your composite cable (not supplied) and connect one end
to the inserted TV/video out cable.
3
Connect the other end to the yellow-coloured port (video-in) on
your TV set.
The video output is now in place.
4
Connect the single end of your audio cable (not supplied) to the
headphones port, either on the back of your computer or on the
connected speaker.
5
Connect the double end of the audio cable to the red and white
ports respectively on your TV set.
The audio output is now in place and your TV is ready for use
with your computer.
n N
40
Hardware Guide
Connecting peripheral devices
Connecting a TV that has an S-Video port
To connect a TV to your VAIO desktop with an S-Video cable (not supplied), proceed as follows:
1
Plug one end of the S-Video cable into the TV/video out port on the back of your computer.
2
Plug the other end of the S-Video cable into your TV’s S-Video port.
To enable TV output, proceed as follows:
1
Go to Control Panel.
2
Click Appearance and Themes.
3
Click Display.
The Display Properties dialog box appears.
4
Click the Settings tab and then Advanced.
5
On the Displays tab, click
6
Make sure
next to the TV button.
is selected and click OK when you have finished.
n N
41
Hardware Guide
Connecting peripheral devices
Connecting a Universal Serial Bus (USB) device
You can connect a USB device such as a scanner, a floppy disk drive or a printer, to your VAIO desktop.
To connect a USB device, simply plug in the USB cable of the device into one of the
ports on your computer.
❑
USB devices are hot plug and play devices. You do not need to shut down your computer prior to connecting these devices
unless the manual supplied with the device states otherwise.
❑
For some USB devices you need to install the software before you connect the device. Not following this procedure might cause
the device not to work properly. For more information, check the manual provided with the USB device.
❑
The Sony UMH-U HS-XX USB Device icon (or similar) is shown in the taskbar when a USB device is in use. However, it also
runs Memory Sticks, CompactFlash cards and SmartMedia. It is important that you do not use this icon to disable these memory
cards, as it disables all the slots. If you accidentally remove any of the cards via this icon, please restart your computer.
n N
42
Hardware Guide
Connecting peripheral devices
Connecting a printer
To connect a printer, you can use either the printer port or a USB port, depending on the cable you use for your printer. Please see
your printer’s documentation for details on connection and installation.
Always check the printer manufacturer’s website for the latest drivers for your operating system. Some printers do not function
properly without updated drivers.
USB printer drivers should be automatically installed. Once you plug the printer’s USB cable into one of the USB ports on your
computer, the Found New Hardware Wizard will guide you through any setup procedure you need to follow.
If the printer is not automatically installed, you can try the following:
1
From the Control Panel, select Printers and Other Hardware, then Printers and Faxes.
2
Under Printer Tasks, click Add a printer.
3
Let the Add Printer Wizard guide you through the installation process.
4
Click Finish.
The printer is now installed.
✍
This procedure applies for most, but not for all printers.
Troubleshooting printing
If you have problems printing, check the printed Troubleshooting Guide; the documentation delivered with your printer; and the
VAIO-Link website (www.vaio-link.com).
n N
43
Hardware Guide
Connecting peripheral devices
Connecting an i.LINK device
Your VAIO computer includes a 4-pin i.LINK port on the front of the system and a 6-pin i.LINK port on the back of the system. Use
to connect an i.LINK device such as a digital video camera recorder, or to link up two VAIO computers so you can
these ports
copy, delete or edit files.
❑
The i.LINK device will need its own power supply.
❑
You are strongly advised to use only Sony i.LINK cables, as using other brands may cause problems with the i.LINK devices.
❑
The i.LINK connection may vary, depending on the software applications, operating system, and compatible i.LINK devices. Not
all products with an i.LINK connection may communicate with each other.
❑
Please refer to the documentation that came with your compatible i.LINK device and software for information on operating
conditions and proper connection.
Connecting a digital video camera recorder
To connect a digital video camera recorder, proceed as follows:
1
Plug one end of the i.LINK cable (not supplied) into the i.LINK port
of the computer and the other end into the DV out port
on your digital video camera recorder.
On Sony digital video cameras, ports marked DV out, DV in/out or i.LINK are i.LINK-compatible.
2
Launch the DVgate Plus application (see the Help files within the software itself for more information).
✍
If the connected i.LINK device is not recognised, disconnect the i.LINK device, then connect it again.
Troubleshooting i.LINK devices
If you have problems with your i.LINK device, check the printed Troubleshooting Guide, the documentation delivered with the
device, and the VAIO-Link website (www.vaio-link.com).
n N
44
Hardware Guide
Connecting peripheral devices
Connecting an S/PDIF device
The S/PDIF (Sony/Philips Digital Interface) port on your computer allows you to transfer audio files to optical devices. The advantage
is that is does not use the conversion to and from an analog format, which could degrade the signal quality.
Please read the documentation provided with your optical device for connection information.
Connecting a microphone
Your VAIO desktop does not contain an internal microphone. If you need to use a sound input device, for example to chat on the
Internet, you need to plug in an external microphone.
To connect an external microphone, plug the microphone cable into the microphone connector identified by the symbol
✍
Make sure your microphone is designed for computer use.
.
n N
45
Hardware Guide
Connecting peripheral devices
Connecting to a network
Your computer comes with a built-in Ethernet interface.
To connect to a network, proceed as follows:
1
Connect your 10BASE-T/100BASE-TX Ethernet cable (not supplied) to the Ethernet port, identified by the symbol
, on the
back of the computer.
If there is a sticker covering the Ethernet port, this is to remind customers in Germany not to insert an ISDN cable (see caution
below).
2
Go to Start, right-click My Computer and select Properties.
3
Click the Hardware tab and select Device Manager.
The Device Manager screen appears with the list of devices.
4
Under Network Adapters, right-click the name of the adapter and click Properties.
5
Under Device Usage, select Use this device (enable).
6
Click OK to close the Properties window.
The Ethernet connection is now enabled.
! Connect only 10BASE-T/100BASE-TX cables to the Ethernet port. Using other cables or a telephone cable may cause a malfunction, excessive heat or even fire in the port.
If using this computer in Germany, please make sure you do not use an ISDN cable. It is physically very similar, but its higher voltage of 12V may destroy the motherboard
inside the computer.
✍
For more information about connecting your VAIO desktop to the network, please consult the hardware troubleshooting section of the VAIO-Link website
(www.vaio-link.com):
For help on connecting to a network, see your network administrator if you have one.
n N
46
Hardware Guide
Upgrading your VAIO computer
Upgrading your VAIO computer
Sony recommends contacting your local dealer for upgrade or maintenance of your new computer. Your local dealer has knowledge
of this specialised personal computer and familiar with the safety practices and regulatory compliance required for using and
modifying electronic equipment.
The upgrading procedures described in this section assume that you are familiar with the general terminology associated with
personal computers and with the safety practices and regulatory compliance required for using and modifying electronic equipment.
Disconnect the computer from its power source and from telecommunication links, networks, or modems before you open the unit
or follow any procedures described in this section.
Your computer may not be equipped with all of the hardware features mentioned in this section. The interior configuration of your
system may vary from the illustrations, depending on the computer purchased.
To view the hardware configuration for your computer, see the printed Specifications sheet.
Your VAIO desktop and memory modules use high precision components and electronic connector technology. To avoid the
invalidation of your guarantee by mishandling, it is recommended that:
❑
You contact your local Sony dealer to install any new internal hardware components.
❑
You do not install memory modules yourself, if you are not familiar with upgrading memory on a computer.
❑
Please contact VAIO-Link if you need assistance.
! Failure to disconnect your computer from its power source may result in personal injury or equipment damage.
! Electrostatic discharge (ESD) can damage disk drives, add-on cards, and other components. Follow the procedures here only at an ESD workstation. Otherwise, do not work
on a carpeted area and do not handle materials that produce or hold static electricity, such as cellophane wrappers. Ground yourself by keeping constant contact with an
unpainted metal part of the unit while carrying out any of these procedures.
n N
47
Hardware Guide
Upgrading your VAIO computer
Upgrading memory
In the future, you may want to upgrade the memory installed on your VAIO by replacing / adding memory modules. However, we
recommend that you do not install them yourself unless you are familiar with upgrading memory on a computer.
For memory upgrades, use only those modules mentioned in the printed Specifications table.
Be careful when adding memory yourself. Mistakes on installation or removal of the memory module may cause a malfunction.
Electrostatic discharge can damage electronic components. Before touching a memory expansion board, remember the following:
❑
Handle the memory module gently.
❑
The procedures described in this document assume familiarity with the general terminology associated with personal computers
and with the safety practices and regulatory compliance required for using and modifying electronic equipment.
❑
Disconnect the system from its power source and from any telecommunication links, networks, or modems before you open the
system. Failure to do so may result in personal injury or equipment damage.
❑
Do not open the memory module package until you are ready to install the module. The package protects the module from ESD.
❑
Use the special bag delivered with the memory module, or wrap the module in aluminium foil to protect it from electrostatic
discharge.
✍
Do not place the memory module in places subject to: Heat sources such as radiators or air ducts, direct sunlight, excessive dust, mechanical vibration or shock, strong
magnets or speakers that are not magnetically shielded, ambient temperature of more than +35°C or less than +5°C , or high humidity.
! Introducing any liquids or any foreign substances or objects into the memory slots, or other internal components of the computer, will result in damage to the computer and
any repairs will be out of warranty.
Viewing the amount of memory
To view the amount of memory, proceed as follows:
1
Turn on the computer.
2
Click the Start button, point to All Programs, then VAIO System Information, and click VAIO System Information again.
You can view the amount of installed memory here.
n N
48
Hardware Guide
Upgrading your VAIO computer
Adding / replacing a memory module
If you are not familiar with upgrading memory on a computer, we highly recommend that you contact your dealer.
To add or change a memory module, proceed as follows:
1
Shut down the computer, unplug it, and remove any peripheral devices.
2
Wait for the computer to cool down.
The inside of the main unit becomes very hot during operation. Wait for about
one hour for the computer to cool down before opening the unit.
3
Position the main unit so the back panel is facing you.
4
Unscrew the three cover release screws located on the edges of the back panel,
and set them aside.
The cover is released.
5
Slide the cover towards the back of the unit to remove it then gently place the
unit on its side.
n N
49
Hardware Guide
Upgrading your VAIO computer
6
To remove an existing memory module, release the end latches and gently lift out the module, as shown (may vary from actual
configuration).
7
To insert a new memory module, remove it from its anti-static package, handling it only by the edges.
8
Locate the notch on the bottom edge of the memory module.
9
Align the memory module over the slot, making sure the module is facing the correct way.
n N
50
Hardware Guide
Upgrading your VAIO computer
10 Press evenly against the memory module's upper corners. The end latches snap into position automatically.
11 Reinstall any add-on cards or components you removed.
12 Replace the cover sliding the cover firmly over the unit, sliding it forward
until the cover snaps into place.
13 Replace the three release screws.
✍
The illustrations here may vary from the actual configuration of your VAIO.
! Use only the memory modules specified on the printed Specifications sheet.
! To avoid damaging a memory module or the memory module slot, move the side latches slightly
outward to relieve pressure. The module is properly inserted when the side latches click into place.
n N
51
Hardware Guide
Getting help
Getting help
This section describes how to get help and support if something goes wrong with your computer.
Sony offers you many support options for your computer.
Sony documentation
Please see the section Documentation pack (page 8) for details on the printed and online documentation delivered with your
computer, as well as further sources of reference.
Other sources of information
❑
Go to the online help files that accompany your software for instructions on using the software.
❑
VAIO-Link website: If you have any problems with your computer, you can access the VAIO-Link website for troubleshooting.
Go to: www.vaio-link.com
❑
e-Support: This interactive part of our website www.vaio-link.com allows you to get in contact with our dedicated support team
over the internet. Using a personalised account, you can log your technical queries with ease.
❑
VAIO-Link help lines: Before contacting VAIO-Link by telephone, try to solve the problem by reading the online and printed
documentation.
❑
Visit the other Sony websites:
✍
❑
www.club-vaio.com if you want to know more about VAIO and become part of the growing VAIO community.
❑
www.sonystyle-europe.com for online purchases.
❑
www.sony.net for other Sony products.
You need to set up an Internet connection before you can access the online features described here.
n N
52
Hardware Guide
Getting help
e-Support
What is e-Support?
You have searched our user guides and website (www.vaio-link.com) but have not found an answer to your question/issue? eSupport is the ideal solution for you!
Our e-Support Web Portal is an interactive website on which you can submit any technical query you may have regarding your VAIO
and receive answers from our dedicated support team.
Every submitted query will result in a unique 'case number' to ensure smooth communication between yourself and the e-Support
Team.
Who can use e-Support?
All registered VAIO customers are entitled to unlimited access to the VAIO-Link e-Support Web Portal.
How can I access the e-Support portal?
When you register your VAIO computer online at Club-VAIO (www.club-vaio.com), you will automatically receive an email with the
link to the e-Support Web Portal, your Customer ID and some basic explanation a few hours later.
All you need to do is activate your account by clicking on the provided link in the email.
You are now ready to create your first case!
You can access the e-Support Web Portal from any computer with an active Internet connection.
A complete help file is available on the e-Support Web Portal to help you use our e-Support Service.
Can I submit questions in my native language?
Since you are interacting with our e-Support Team through a portal, which connects you directly to our central database, e-Support
will only accept and deal with queries submitted in English.
n N
53
Hardware Guide
Getting help
Can I submit my questions at any time?
Yes, you can submit your questions 24/7, but please keep in mind that our e-Support Team can only treat your queries from Monday
till Friday between 8am and 6pm.
Is there a cost involved for using e-Support?
No, this is a complete free of charge service offered to all registered VAIO customers!
How do I know when the e-Support Team has handled my query/case?
As soon as your case has been dealt with by our e-Support Team, you will receive an email, notifying you that your case has been
updated.
n N
54
Hardware Guide
Precautions
This section describes safety guidelines and precautions to help you protect your computer from potential damage.
Please contact VAIO-Link if you need assistance.
❑
On handling the hard disk (page 55)
❑
On using the power source (page 56)
❑
On handling your computer (page 57)
❑
On handling LCD screens (page 58)
❑
On handling floppy disks (page 59)
❑
On handling discs (page 59)
❑
On handling Memory Sticks (page 60)
Precautions
n N
55
Hardware Guide
Precautions
On handling the hard disk
The hard disk has a high storage density and reads or writes data in a short time. However, it can be easily damaged by mechanical
vibration, shock or dust.
Although the hard disk has the internal safety device to prevent losing data due to mechanical vibration, shock or dust, you should
be careful when handling your computer.
To avoid damaging your hard disk:
❑
Do not subject your computer to sudden movements.
❑
Keep the computer away from magnets.
❑
Do not place your computer in a location subject to mechanical vibration or in an unstable position.
❑
Do not move your computer while the power is on.
❑
Do not turn off the power or restart the computer while reading or writing data to disk.
❑
Do not use your computer in a place subject to extreme changes in temperature.
✍
If the hard disk is damaged, the data cannot be restored.
n N
56
Hardware Guide
Precautions
On using the power source
❑
See the printed Specifications sheet to check the power operation of your VAIO.
❑
Do not share the AC outlet with other high power-consuming equipment, such as a photocopier or shredder.
❑
You can purchase a power strip with a surge protector. This device prevents damage to your computer caused by sudden power
surges, in an electrical storm, for example.
❑
Do not place heavy objects on the power cord.
❑
To disconnect the cord, pull it out by the plug. Never pull the cord itself.
❑
Unplug your computer from the wall outlet if you are planning to not use the computer for a long time.
❑
Make sure that the socket outlet is easily accessible.
n N
57
Hardware Guide
Precautions
On handling your computer
❑
Clean the unit with a soft cloth, which is either dry or lightly moistened with a mild detergent solution. Do not use any type of
abrasive pad, scouring powder, or solvent such as alcohol or benzene, as these may damage the finish of your computer.
❑
Should you drop a solid object or any liquid onto the computer, shut down your computer and then unplug it. You may want to
have the computer checked by qualified personnel before operating it again.
❑
Do not drop the computer or place heavy objects on top of the computer.
❑
Do not place your computer in a location subject to:
❑
Heat sources, such as radiators or air ducts
❑
Direct sunlight
❑
Excessive dust
❑
Moisture or rain
❑
Mechanical vibration or shock
❑
Strong magnets or speakers that are not magnetically shielded
❑
An ambient temperature of more than 35ºC or less than 5ºC
❑
High humidity.
❑
Do not place electronic equipment near your computer. The electromagnetic field of your computer may cause a malfunction.
❑
Provide adequate air circulation to prevent internal heat from building up. Do not place your computer on porous surfaces such
as rugs or blankets, or near material such as curtains or draperies that may block its ventilation slots.
❑
The computer uses high-frequency radio signals and may cause interference to radio or TV reception. Should this occur, relocate
the computer a suitable distance away from the set.
❑
Use only specified peripheral equipment and interface cables; otherwise, problems may occur.
❑
Do not use cut or damaged connection cables.
n N
58
Hardware Guide
Precautions
❑
If the computer is brought directly from a cold location to a warm one, moisture may condense inside your computer. In this case,
allow at least one hour before turning on your computer. If any problems occur, unplug your computer and contact VAIO-Link.
❑
Make sure you disconnect the power cord before cleaning the computer.
❑
As you may lose important data once your computer is damaged, you should back up your data regularly. You can restore most
of the original application programs from the supplied disc (read the Guide to Troubleshooting for details).
On handling LCD screens
❑
Do not leave the LCD facing the sun as it can damage the LCD. Be careful when using the computer near a window.
❑
Do not scratch the LCD or exert pressure on it. This could cause malfunction.
❑
Using the computer in low temperature conditions may produce a residual image on the screen. This is not a malfunction. When
the computer returns to normal temperature, the screen returns to normal.
❑
A residual image may appear on the screen if the same image is displayed for a lengthy period of time. The residual image
disappears in a while. You can use a screensaver to prevent residual images.
❑
The screen becomes warm during operation. This is normal and does not indicate a malfunction.
❑
The LCD is manufactured using high-precision technology. You may, however, see tiny black points and/or bright points (red,
blue, or green) that continuously appear on the LCD. This is a normal result of the manufacturing process and does not indicate
a malfunction.
❑
Avoid rubbing the LCD screen, as this can damage the screen. Use a soft, dry cloth to wipe the LCD screen.
n N
59
Hardware Guide
Precautions
On handling floppy disks
❑
Do not open the shutter manually or touch the surface of the floppy disk.
❑
Keep floppy disks away from magnets.
❑
Keep floppy disks away from direct sunlight and other sources of heat.
On handling discs
❑
Do not touch the surface of the disc.
❑
Do not drop or bend the disc.
❑
Fingerprints and dust on the surface of a disc may cause reading errors. Always hold the disc by its edge and central hole, as
shown.
❑
Proper care of the disc is essential to its continuous reliability. Do not use solvents such as benzene, thinning agents,
commercially available cleaners or anti-static spray, as they may cause damage to the disc.
❑
For normal cleaning, hold the disc by its edge and use a soft cloth to wipe the surface from the centre out.
❑
If the disc is badly soiled, moisten a soft cloth with water, wring it out well, and use it to wipe the surface of the disc from the
centre out. Wipe off any remaining moisture with a dry soft cloth.
❑
Never put stickers on discs. This will affect the use of the disc irreparably.
n N
60
Hardware Guide
On handling Memory Sticks
❑
Do not touch the Memory Stick connector with your finger or metallic objects.
❑
Use only the label supplied with the Memory Stick as a label.
❑
Do not bend, drop, or apply heavy shock to the Memory Stick.
❑
Do not disassemble or modify Memory Sticks.
❑
Do not let Memory Sticks get wet.
❑
Do not use or store Memory Sticks in a location subject to:
❑
❑
Extremely high temperatures, such as in a car parked in the sun
❑
Direct sunlight
❑
High humidity or
❑
Corrosive substances.
Use the storage case supplied with the Memory Stick.
Precautions
n N
61
Hardware Guide
Trademarks
Trademarks
Sony, BlueSpace NE, DVgate Plus, Giga Pocket, HotKey Utility, Memory Stick Formatter, PictureGear Studio, SonicStage, Sony Notebook Setup, VAIO Action Setup,
VAIO Edit Components, VAIO Media, VAIO Power Management, VAIO System Information, Memory Stick, the Memory Stick logo, VAIO and the VAIO logo are
trademarks of Sony Corporation.
Microsoft, Internet Explorer, Windows Movie Maker, Windows Media Player, Windows XP Professional, Windows XP Home Edition, Microsoft Works and the Windows
logo are trademarks or registered trademarks of Microsoft Corporation in the U.S. and other countries.
i.LINK is a trademark of Sony used only to designate that a product contains an IEEE1394 connection.
Adobe, Adobe Acrobat Elements, Adobe Photoshop Album, Adobe Reader, Adobe Premiere and Adobe Photoshop Elements are trademarks of Adobe Systems
Incorporated.
MoodLogic is a trademark of MoodLogic, Inc.
Norton Internet Security 2004 and Norton Password Manager are trademarks or registered trademarks of Symantec Corporation.
Click to DVD is a trademark of Sony Electronics.
Drag'n Drop CD and Drag'n Drop CD+DVD are registered trademarks of Easy Systems Japan Ltd and DigiOn Inc.
WinDVD for VAIO is a trademark of InterVideo, Inc.
Sun Java VM is a trademark of Sun Microsystems, Inc.
SmartMedia and CompactFlash are trademarks or registered trademarks of SanDisk Corporation.
My Info Centre contains Macromedia Flash Player software by Macromedia, Inc., Copyright © 1995-2003 Macromedia, Inc. All rights reserved. Macromedia and Flash
are trademarks of Macromedia, Inc.
Google Toolbar is a trademark of Google.
All other names of systems, products and services are trademarks of their respective owners. In the manual, the ™ or ® marks are not specified.
Specifications are subject to change without notice. All other trademarks are trademarks of their respective owners.
Please see the printed Specifications sheet to see what software is available for your model.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
