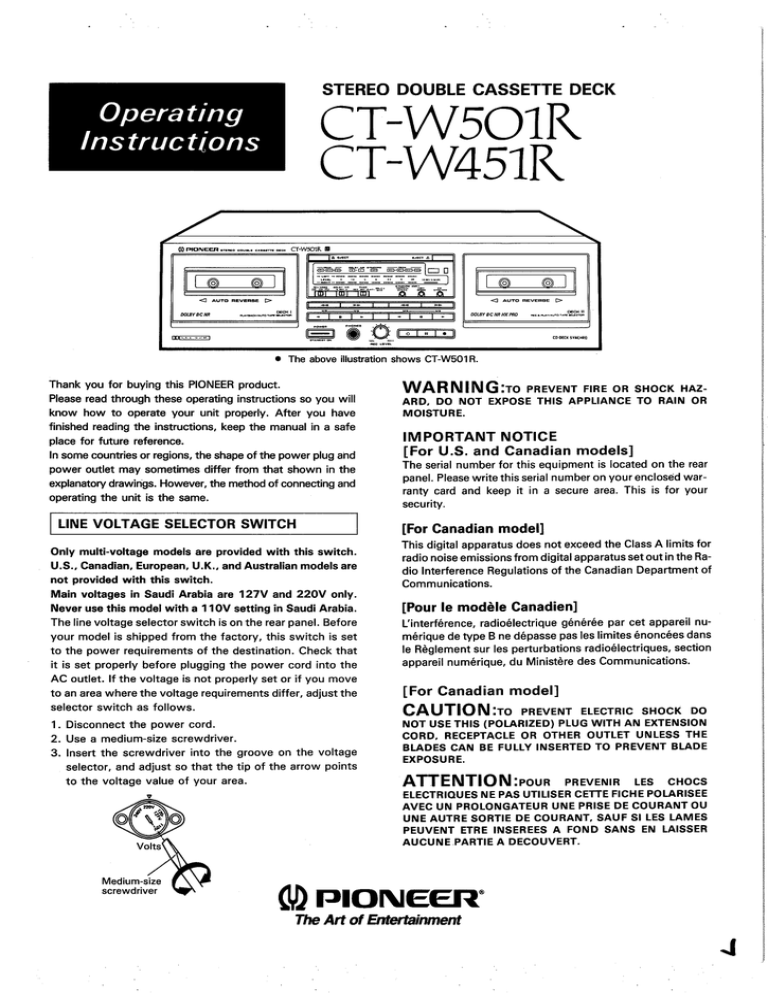

CT-WSGIR
STEREO DOUBLE CASSETTE DECK
CT-W501K
CT-WA51R
>
Operating
Instructions
00
№ PIONEER EYENLO OOUBLE CABBETYE OECK CT-WSOIR =
il E mer asmcy = |
Е à Ss ESE ces ICO |
| | | | vm LEFT ew HEINE JErádbEr abe dinedadd Aérhéunt rt din | |
© © ER aie le he al pie ZS o ©]
De Ta TEE LETTER TE TITEL TEN —
== Te mn e E E ue © ©
{ ) 2 0 © (
<] AUTO REVERSE [= < AUTO REVERSE [>
2 os ня pr
DECK I Pa. o КА вое el '
DOLBY BC NR PLAYBACC/ALTO TAPE SELECTOS - в = - = DOLBY BL NR HX PRO PEC E PLAY /ALTO as
POWER AHONEER . | >
@ Y
TANG EY Te — ass CO-DECX SYKCHRO
aC LEVEL
e The above illustration shows CT-W501R.
Thank you for buying this PIONEER product.
Please read through these operating instructions so you will
know how to operate your unit properly. After you have
finished reading the instructions, keep the manual in a safe
place for future reference.
In some countries or regions, the shape of the power plug and
power outlet may sometimes differ from that shown in the
explanatory drawings. However, the method of connecting and
operating the unit is the same. |
LINE VOLTAGE SELECTOR SWITCH
Only multi-voltage models are provided with this switch.
U.S., Canadian, European, U.K., and Australian models are
not provided with this switch.
Main voltages in Saudi Arabia are 127V and 220V only.
Never use this model with a 110V setting in Saudi Arabia.
The line voltage selector switch is on the rear panel. Before
your model is shipped from the factory, this switch is set
to the power requirements of the destination. Check that
it is set properly before plugging the power cord into the
AC outlet. If the voltage is not properly set or if you move
to an area where the voltage requirements differ, adjust the
selector switch as follows.
1. Disconnect the power cord.
2. Use a medium-size screwdriver.
3. Insert the screwdriver into the groove on the voltage
selector, and adjust so that the tip of the arrow points
to the voltage value of your area.
Medium-size
screwdriver
VWARNING:ro Prevent FIRE OR SHOCK HAZ-
ARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
IMPORTANT NOTICE
[For U.S. and Canadian models]
The serial number for this equipment is located on the rear
panel. Please write this serial number on your enclosed war-
ranty card and keep it in a secure area. This is for your
security.
[For Canadian model]
This digital apparatus does not exceed the Class A limits for
radio noise emissions from digital apparatus set out in the Ra-
dio Interference Regulations of the Canadian Department of
Communications. |
[Pour le modéle Canadien]
L'interférence, radioélectrique générée par cet appareil nu-
mérique de type B ne dépasse pas les limites énoncées dans
le Réglement sur les perturbations radioélectriques, section
appareil numérique, du Ministére des Communications.
[For Canadian model]
CAUTION :To PREVENT ELECTRIC SHOCK DO
NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION
CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE
BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.
ATTENTION:rour PREVENIR LES CHOCS
ELECTRIQUES NE PAS UTILISER CETTE FICHE POLARISEE
AVEC UN PROLONGATEUR UNE PRISE DE COURANT OU
UNE AUTRE SORTIE DE COURANT, SAUF Si LES LAMES
PEUVENT ETRE INSEREES A FOND SANS EN LAISSER
AUCUNE PARTIE A DECOUVERT.
A) PIONEER
The Art of Entertainment
IMPORTANT
The lightning flash with arrowhead, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated "dangerous voltage” within the product's
enclosure that may be of sufficient magnitude to constitute
a risk of electric shock to persons.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
READ INSTRUCTIONS — All the safety and operating
instructions should be read before the appliance is
operated.
RETAIN INSTRUCTIONS — The safety and operating
instructions should be retained for future
reference.
HEED WARNING — All warnings on the appliance and in
the operating instructions should be adhered to.
FOLLOW INSTRUCTIONS - All operating and use
instructions should be followed.
WATER AND MOISTURE — The appliance should not
be used near water — for example, near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet
basement, or near a swimming pool, etc.
LOCATION — The appliance should be installed in a
stable location.
WALL OR CEILING MOUNTING — The appliance
should not be mounted to a wall or ceiling.
VENTILATION — The appliance’should be situated so
that its location or position does not interfere with
its proper ventilation. For example, the appliance
should not be situated on a bed, sofa, rug, or similar
surface that may block the ventilation openings; or,
placed in a built-in installation, such as a bookcase
or cabinet that may impede the flow of air through
the ventilation openings.
HEAT — The appliance should be situated away from
heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers)
that produce heat.
POWER SOURCES — The appliance should be
connected to a power supply only of the type
described in the operating instructions or as
SAFETY INSTRUCTIONS
POWER LINES — An outdoor antenna should be located
away from power lines.
NONUSE PERIODS — The power cord of the appliance
should be unplugged from the outlet when left
unused for a long period of time.
OBJECT AND LIQUID ENTRY - Care should be taken
so that objects do not fall and liquids are not spilled
into the enclosure through openings.
DAMAGE REQUIRING SERVICE — The appliance
should be serviced by a Pioneer authorized service
center or qualified service personnel when:
The power-supply cord or the plug has been
damaged.
Objects have fallen, or liquid has been spilled into
the appliance.
The appliance has been exposed to rain.
The appliance does not appear to operate normally
or exhibits a marked change in performance.
The appliance has been dropped or the enclosure
damaged.
SERVICING — The user should not attempt to service
the appliance beyond that described in the
operating instructions. All other servicing should
be referred to qualified service personnel.
OUTDOOR ANTENNA GROUNDING — If an outside
antenna is connected to the antenna terminal, be
sure the antenna system is grounded so as to
provide some protection against voltage surges
and built-up static charges.
In the U.S.A. section 810 of the National Electrica!
Code, ANSI/NFPA 70, provides information with
respect to proper grounding of the mast and
supporting structure, grounding of the lead-in wire
to an antenna discharge unit, size of grounding
conductors, location of antenna discharge unit,
connection to grounding electrodes, and
requirements for the grounding electrode. See Fig.
A.
CART — An appliance and cart combination should be
moved with care. Quick stops, excessive force, and
uneven surfaces may cause the appliance and cart
combination to overturn.
NEC — NATIONAL ELECTRIC CODE
ANTENNA
LEAD IN
WIRE
marked on the appliance.
POWER-CORD PROTECTION — Power-supply cords
should be routed so that they are not likely to be
waiked on or pinched by items placed upon or
against them. Pay particular attention to cords at
plugs, convenience receptacles, and the point
where they exit from the appliance.
POLARIZATION — If your purchased product is
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810 — 20)
provided with a polarized power plug, please read
the following instructions. This productis equipped
with a polarized alternating current line plug (a plug
having one blade wider than the other). This plug
will fit into the power outlet only one way. This is a
safety feature. If you are unable to insert the plug
fully into the outlet, try reversing the plug. if the
plug should still fail to fit, contact your electrician to
replace your obsolete outlet. Do not defeat the
safety purpose of the polarized plug.
CLEANING — The appliance should be cleaned only
with a polishing cloth or a soft dry cloth. Never
clean with furniture wax, benzine, insecticides or
other volatile liquids since they may corrode the
cabinet.
ELECTRIC
SERVICE
GROUND CLAMPS
GROUNDING CONDUCTORS
(NEC SECTION 810 — 21)
=+— POWER SERVICE GROUNDING
ELECTRODE SYSTEM
FIG. A (NEC ART 250, PART H)
INFORMATION TO USER [FOR U.S. MODEL]
This equipment generates and uses radio frequency
energy and if not installed and used properly, that is, in
strict accordance with the manufacturer's instructions,
may cause interference to radio and television recep-
tion. It has been type tested and found to comply with
the limits for a Class B computing device in accordance
with the specifications in Subpart J of Part 15 of FCC
Rules, which are designed to provide reasonable pro-
tection against such interference in a residential instal-
lation. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause interference to radio or
television reception, which can be determined by turn-
ing the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the
following measures:
€ reorient the receiving antenna
e relocate this equipment with respect tu the receiver
e move this equipment away from the receiver
e plug this equipment into a different outlet so that
equipment and receiver are on different branch cir-
cuits.
If necessary, the user should consult the dealer or an
experienced radio/television technician for additional
suggestions. The user may find the following booklet
prepared by the Federal Communications Commission
helpful:
“How to Identify and Resolve Radio-TV Interference
Problems”.
This bookiet is available from the US Government
Printing Office, Washington, D.C., 20402, Stock No.
004-000-00345-4.
The above instructions apply only to units which will
be operated in the United States.
2
<RRB1117>
En
INSTALLATION. .............. eee ee
MAINTENANCE. . «o.oo rer eK
HANDLING CASSETTE TAPES...................000000m...
CONNECTIONS................. eee ere ao
FRONT PANEL FACILITIES...........…...............000000
PLAYBACK......................... Naiara a aaa
SINGLE PLAYBACK......................r ere eri.
BLANK SKIP............... e... ie
RELAY PLAYBACK ....................recmereni ee
MUSIC SEARCH... oes As
CONTENTS
RECORDING... ee 10
RECORDINGMUTE......... eee ea nana 10
TAPECOPYING ....... a ea aa a den ace ee 10
RECORDING AND PLAYBACK USING AN AUDIO TIMER.... 11
CD -DECK SYNCHRO RECORDING ......................... 12
TROUBLESHOOTING .......... e. 13
SPECIFICATIONS . .... en, 15
INSTALLATION
When installing the deck, avoid locations with high
temperatures or humidity, and make sure that the
deck receives adequate ventilation.
E Do not install the deck in locations subject to direct sunlight, or near a
space heater or other heating device, as this may cause damage to
the finish or the internal parts.
ME Malfunctions may also result if the deck is installed in an excessively
humid or dusty location. Avoid installing the deck next to kitchen
counters or other locations subject to oily smoke or humidity.
Ш If the deck is placed directly on top of an amplifier, it may pick up
humming or other noise. Also, if the amplifier generates a large
amount of heat, the deck may malfunction.
Ш If the deck is located near a television set, it may pick up interference
noise, which will be recorded as a whistling sound on the tape. In
such cases, move the deck further away from the television set or
turn the television set off when operating the deck.
Æ Do not place a cloth over the deck, or block the ventilation slots in
any other way. The ventilation slots on this deck are necessary to
keep internal parts cool. If they are blocked, the deck may
malfunction.
CONDENSATION (DEW)
When the deck is moved from a cold location to a warm location, or
when the temperature of the room changes suddenly, condensation (a
phenomenon in which moisture forms on the surface of the mechanical
parts) may occur. This can adversely affect the performance of the deck.
In such cases, wait for about one hour to allow the deck to adjust to the
room temperature. To prevent condensation when heating a room, raise
the temperature slowly.
POWER-CORD CAUTION
Handle the power cord by the plug. Do not puli out the plug by tugging
the cord and never touch the power cord when your hands are wet as
this could cause a short circuit or electric shock. Do not place the unit,
a piece of furniture, etc., on the power cord, or pinch the cord. Never
make a knot in the cord or tie it with other cords. The power cords
should be routed such that they are not likely to be stepped on. A
damaged power cord can cause fire or give you an electrical shock.
Check the power cord once in a while. When you find it damaged, ask
your nearest PIONEER authorized service center or your dealer for a
replacement.
MAINTENANCE
Capstan
Защ
Pinch roller
Combination head
Capstan
Pinch roller
CLEANING THE HEADS, PINCH ROLLERS AND
CAPSTANS
The heads, pinch rollers and capstans are likely to get dirty quite easily. If
these parts; particularly the heads; get dirty, the high frequency compo-
nents of a recording will not be reproduced and the stereo balance will be
impaired, resulting in a deterioration of the playback sound. It is therefore
recommended that the head section be cleaned regularly.
1. Set the POWER switch to STANDBY.
Press the EJECT button to open the cassette door.
Dip a cleaning swab in cleaning fluid and use it to wipe the heads,
capstans and pinch rollers.
NOTE:
After cleaning the head section, do not load a tape until the cleaning fluid
has dried completely (about 2 or 3 minutes).
DEMAGNETIZING THE HEADS
After using the cassette deck for a period of time, the heads will become
magnetized. The same effect will occur if a magnetized screwdriver,
magnet, or other magnetized object is brought too close to the heads.
When the heads become magnetized, high frequency sounds will be lost
during recording or playback, and interference noise may also occur. The
heads should be regularly demagnetized with a head demagnetizer,
which can be purchased at most audio stores.
When demagnetizing the heads, make sure that the POWER switch of
the cassette deck is set to STANDBY. For detailed instructions, refer to
the operating instructions of the head demagnetizer.
CLEANING THE FRONT PANEL
Clean the deck regularly with a soft cloth. If the front panel gets dirty or
greasy, clean it with a damp cloth and mild soap, then wipe it dry with a
soft cloth. Never use volatile cleaners like thinners, benzine or alcohol be-
cause they will damage the panel finish.
3
<RRB1117>
En
HANDLING CASSETTE TAPES
A
Turn pencil to
remove tape slack
For erasure prevention
remove
Tab for
Side B
Cover with
adhesive tape
TYPE IV (metal) tape
Sensor hoies
TYPE II (CrOz) tape
4
<RRB1117>
En
CHECK CASSETTE BEFORE USE
Check the following items before loading a cassette tape:
Is the tape loose, or is some of the tape
outside the cassette?
If some of the tape is loose or projecting outside the cassette shell, the
tape may not properly enter between the capstan and pinch roller. This
will prevent the tape from being supplied properly, and may even
damage the tape itself. In such cases, insert a pencil into the reel hole and
take up the slack (Fig. A).
Some cassette tapes come with a plastic or thick paper stopper to pre-
vent the tape from becoming slack. Remove this stopper when loading
the cassette and replace it after using the cassette.
Are the accidental erasure prevention tabs
intact?
These tabs allow you to prevent important recordings from being erased
accidentally. When the tab on the cassette shell is removed (Fig. B), it is
not possible to activate the recording function, so valuable recordings
will not be erased by mistake. |
To re-record on a cassette whose tab has been removed, simply stick a
piece of doubled adhesive tape over the hole (Fig. C).
When using TYPE IV (metal) or TYPE II (CrO:) tapes, be careful
not to block the sensor holes with the tape (Fig. D, Fig. E). If the
holes are blocked, the automatic tape selector mechanism will not
operate correctly.
NOTES:
* The accidental erasure tab for each side is the one located on
the top left when the side that you want to protect is facing you.
* When breaking off the tab, do not use a magnetized screwdriver.
AUTOMATIC TAPE SELECTOR FUNCTION
This cassette deck is equipped with an automatic tape selector function
which utilizes the sensor holes on the tape cassette to determine the
type of tape being used.
The deck is then set to match the tape recording bias and equalization.
NOTES:
® When using TYPE IV (metal) tapes, make sure that the tapes have
sensor holes.
e Make sure that the sensor holes on the cassette are not blocked;
otherewise the tape selector mechanism will not function properly.
e Do not use TYPE III (FeCr) tapes.
TIPS ON CASSETTE TAPES
e Leader tape (which cannot be recorded on) is provided at the begin-
ning of a cassette tape. Let the tape run for about 5 seconds before
starting to record, to allow the leader tape to clear the recording head.
e Do not leave a cassette tape exposed to the environment. Store the
cassette in its case after use so that dust and dirt do not adhere to
the tape, and so the tape will not get slack. Store tapes in a location
free from magnetism, dust, dirt, oil, heat and humidity.
e Because C-120 tapes are very thin, they can easily jam in the pinch
rollers and capstan, and they often are subject to other problems
such as irregular winding. It is best not to use them with this deck.
e If cassette tapes are irregularly wound, the tape may get jammed in
the rollers. This can cause damage to both the tape and the deck
itself. If you are not certain whether the tape is wound evenly, fast for-
ward or rewind the tape from beginning to end, to make sure that the
tape is properly wound.
CONNECTIONS
89 0%
Compact Disc Player
ya
JEL
PON
NN Remote control cord
Power cord
Recording
connection
cord
Playback
connection
CD -DECK SYNCHRO
control cord
N
соо О
Stereo Amplifier
Fw ‘DECK SYNCHRO
control jack
CONTROL
OUT jack
B Read through the operating instructions of the stereo compo-
nents which you intend to connect to this deck.
EH Turn the power on only after making all the connections.
№ Make sure that all of the connection plugs are inserted securely,
as improper connections may generate noise.
CONNECTING THE RECORDING AND
PLAYBACK CORDS
Left channel .
White plug
un
ac
Right channel
Connect the TAPE jacks of your amplifier to the LINE jacks of the
cassette deck. Be sure to connect the REC (INPUT) jacks of the deck to
the recording (output) jacks of the amplifier, and the PLAY (OUTPUT)
jacks of the deck to the play (input) jacks of the amplifier.
e Connect the plugs properly:
Left channel — White plug
Right channel — Red plug
CONNECTING THE POWER CORD
Insert the power cord of the cassette deck into the accessory AC outlet
of your amplifier, or into a normal household outlet.
e When performing unattended recording or wake-up playback, consult
the operating instructions of your audio timer for details on power
cord connections.
PIONEER SYSTEM REMOTE CONTROL
CONTROL IN jack
Use the enclosed Remote Control Cord to connect this jack to the CON-
TROL OUT jack of another component which bears the mark to indi-
cate that it is equipped with PIONEER System Remote Control. You will
then be able to operate this deck using the other component's PIONEER
system remote control unit. if the remote control unit does not have
separate buttons for Deck | and Deck ll, or a selection button to choose
Deck | or Deck ll; the buttons will only operate Deck ll. To operate Deck |
with a remote control unit which was not designed for double deck
cassette decks; see page 7.
CONTROL OUT jack
Intermediary jack which outputs signals from the CONTROL IN jack of
this deck to the input jack of another component. Connect this jack to
the CONTROL IN jack of another component compatible with PIONEER
System Remote Control. |
CD -DECK SYNCHRO RECORDING
e CD:DECK SYNCHRO recording can be carried out when this deck is
connected to a PIONEER CD player equipped with a CD «DECK -
SYNCHRO control jack.
Connection
Connect the CD-DECK SYNCHRO control jack of the deck to the
CD -DECK SYNCHRO control jack of the CD player using the enclosed
CD -DECK SYNCHRO control cord.
NOTES:
® Keep the input and output jacks connected between the amplifier and
the deck. Otherwise, CD -DECK SYNCHRO recording cannot be carried
out.
e Even when the CD player is connected to the amplifier with an optical
fiber cable, connect the CD player to either the amplifier or this deck
with pin plug input and output cords.
5
<RRB1117>
En
FRONT PANEL FACILITIES
CT-W501R
— JECK | — ar Na YNCHRO DECK —
= LEFT] == ITH ОО: nin ECQEEERT — GUNCANAN FEBEECEM EUNNNEOI
LEVEL - 6 —15 -8 -3 ma +3 ав CO-DECK SYNCHRO
= REET — 100101128 Nig HanuE umn | нии О EUDENENO
@ @ @ @ @ @
— DECK | a DoLeY NAlÍBYNCHRO) [— e DECK [|—
— LEFT] — N45JIED BIg iin fps ann avai sim
LEVEL -œ —15 -a La mo +3 de CO-GECK SYNCHRO
— FIGHT — 90000101 IIR ERRDNNNE GENNENOO | 17100000 sonny EJTENDAR
@ @ B 8 @ 28
D
POWER (STANDBY/ON) switch
NOTE:
The POWER switch activates the secondary transformer only. Even when
the switch is in the STANDBY position, there will be a power flow to the
decks circuits as long as the power cord is connected to a power outlet
@
© ©
®
6
O=OARY
Deck | operation buttons
<<: Fast reverse/Music search
D» : Fast forward/Music search
BP: Forward playback
E: Stop
<: Reverse playback (CT-W501R only)
Headphones (PHONES) jack
(CT-W501R only)
Recording level control (REC LEVEL)
Deck ll operation buttons
<<: Fast reverse/Music search
PP : Fast forward/Music search
Forward playback
: Stop
Reverse playback
: Recording mute
Pause
: Recording
Reverse mode switch (REV MODE)
® CT-W5O1R: For both Decks | and Il.
® CT-W451R: For Deck ll only {see page 7).
Deck | eject button (EJECT)
e |f the tape is moving (recording, playback, tape winding, etc.)
press the stop (IM) button before pressing this button.
Dolby* NR switch (B/OFF/C)
Timer mode — Relay/Skip play switch
(TIMER REC/OFF/PLAY — RELAY/SKIP)
<RRB1117>
En
© ©
13
13
15
Function display
Synchro copy buttons (SYNCHRO COPY)
® NORMAL SPEED: Copying at normal speed.
® HIGH SPEED: Copying at twice normal speed.
CD -DECK SYNCHRO recording button (CD
SYNCHRO)
Deck Il tape counter (DECK II COUNTER)
Deck II eject button (EJECT)
e If the tape is moving (recording, playback, tape winding, etc.),
press the stop (IM) button before pressing this button.
Tape counter reset button (RESET)
Function display
27
22)
23
29
23
25
° *
Deck | tape transport mode indicators
e See page 7.
Dolby NR indicators (B/C)
Synchro copy indicator (COPY)
e NORMAL SPEED: lights
e HIGH SPEED: flashes
Level meter
e The O] between the ‘’O’’ and ‘“— 3°’ marks indicates the
reference level for the Dolby NR system.
Deck Il tape transport mode indicators
e See page 7.
CD -DECK SYNCHRO recording indicator
(CD -DECK SYNCHRO)
Dolby noise reduction and HX Pro headroom extension
manufactured under license from Dolby Laboratories Licensing
Corporation. HX Pro originated by Bang & Olufsen.
“DOLBY”, the double-D symbol UC and “HX PRO” are trade-
marks of Dolby Laboratories Licensing Corporation.
FRONT PANEL FACILITIES
TAPE TRANSPORT MODE INDICATORS
E [a 2n,
DECK |
The indicators shown below indicate the current tape transport sta-
tus of Deck | or Deck il. With the CT-W451R model, Deck | has
a PLAY indicator only.
715
For both Decks I and II | =" Flashing rapidly
Forward mode Reverse mode
Stop «f= GE: =
Playback «Pao GR [av]
RAA 17 AA 14
Fast forward . fio” EEE =
77 ANN “у РУХ
NN 7 DN | ZZ
Fast reverse =) ED «Е: =
7 INN 77 INT
“NN ELA p NN A
Forward — — — -
, FED — — GE) e [AT] —
music search “ose ISSN “Zs NSN
NNN Ars
REVERSE MODE SWITCH (REV MODE)
With the CT-W451R model, this switch affects Deck Il only. With
the CT-W501R model, this switch affects both decks.
There are three settings:
One way mode — position
When the switch is set to this position, playback or recording (Deck Il
only) is performed on one side of the tape oniy. When the tape reaches
the end of the side, it stops automatically (auto stop function).
Two way mode > position
When the switch is set to this position, playback or recording (Deck II
only) can be performed on both sides of the tape. When the tape reaches
the end of the first (forward) side, its direction is automatically reversed,
and playback or recording continues or the other (reverse) side. When it
reaches the end of the reverse side, the tape stops automatically (auto
stop function). If playback or recording is started from the reverse side,
the tape will stop when it reaches the end of the side.
Repeat mode — position
When the switch is set to this position for playback, both sides of the
tape are played back repeatedly until the stop (IN) button is pressed, or
until the tape has been played completely 8 times (16 sides). If any of the
operation buttons are pressed during playback, the repeat mode will be
reset, and the tape will be played 8 times (16 sides) when playback is re-
started.
When the switch is set to this position for recording (Deck I! only), both
sides are recorded and then the tape stops, as described above for two
way mode.
Reverse = @) EER A) ED
music search ZA EZ SS ==
For Deck | of the CT-W451R 3" %Flashing rapidly
Stop
Fast forward (off)
Fast reverse
Playback
“M7
Music search = =
7 | ND
For Deck |! only = Flashing slowly
Forward mode Reverse mode
“+, ~ I~
Playback pause . "EE aa]
Recording [==]. . FX | [#55]. GE] .
Recording ‚о. Се | a
standby > E <
Recordi ~ Ls ~
ecor ing | [Fee] — . Evo — [arc]aiv]» .
mute ” | ~ „” | =
OPERATION OF DECK | WITH A REMOTE
CONTROL UNIT NOT DESIGNED FOR DOUBLE
DECKS (System Remote Control)
Selecting Deck |
In order to operate Deck | with the remote control unit, adjust the deck as
follows: With the power off, press and hold the stop (IN) button of Deck
|, and turn the power on. Continue to hold the stop (IE) button for ap-
proximately 5 seconds. Deck | can now be operated using the remote
control unit, but Deck II cannot.
Switching to Deck Il
To restore remote control operation to Deck II, press the stop (IM) button
of Deck il while Deck I! is in stop mode. Deck Il can now be operated
using the remote control unit. Remote control operation can be switched
back and forth between Deck | and Deck ll by pressing the stop (I)
button of the desired deck while it is in stop mode.
NOTE:
If the power is turned off, or if a power failure or a sudden change in the
power supply (caused by lightning, etc.) occurs, the deck is reset to its
original state. Only Deck ll can be operated by remote control. To restore
operation to either deck, repeat the above procedure from the beginning.
7
<RRB1117>
En
PLAYBACK
SINGLE PLAYBACK (Either Deck 1 or Deck Il)
1. Load a prerecorded tape in Deck | or Il.
Set the DOLBY NR switch.
e Always set the switch to the same position that was used for
recording.
3. Set the REV MODE switch (see page 7).
e Not necessary for playback on Deck | of the CT-W451R model.
Set the stereo amplifier for tape playback.
5. Press the playback (> or À) button of either
Deck | or Il.
>
To stop playback temporarily (Deck II only)
Press the pause ( 18 } button.
e To resume playback, either press the pause ( #8) button again, or
press the playback (№ ог €) button.
To stop playback
Press the stop (IN) button.
BLANK SKIP
TIMER
REC OFF PLAY.
«нору
RELAY
SKIP
This function allows you to skip unrecorded portions of the tape during
playback.
Set the TIMER switch to the PLAY-RELAY/SKIP position.
® When this mode is selected, if the deck encounters an unrecorded
portion of tape more than 15 seconds in length, it will fast forward
the tape until it encounters another recorded portion, and resume
playback from that point.
8
<RRB1117>
En
RELAY PLAYBACK
When relay playback mode is selected, continuous playback can be per-
formed. When the tape in one deck reaches the end and stops, the other
deck will automatically begin playback.
1. Load prerecorded tapes in Deck | and Deck Il.
e Make sure that both tapes have been recorded using the same
Dolby NR setting.
2. Setthe DOLBY NR switch.
e Always set the switch to the same position that was used for
recording. |
3. Set the REV MODE switch (see page 9).
4. Set the stereo amplifier for tape playback.
5. Setthe TIMER switch to the PLAY-RELAY/SKIP
position.
6. Press the playback (}> or 4) button of the deck
that will start to play first.
® When the tape in one deck ends, the other deck automatically
begins playback. |
e To cancel relay playback, set the TIMER switch to the OFF posi-
tion.
NOTES:
e Relay playback can begin from either Deck | or Deck Il.
e When the tape in one deck reaches the end, it automatically stops,
and the tape in the other deck begins playback. |
e The tape in the idle deck can be replaced during relay playback mode,
allowing many tapes to be played back continuously. This is a conve-
nient feature for parties, background music, etc.
e When this mode is selected, if the deck encounters an unrecorded
portion of tape more than 15 seconds in length, it will fast forward
the tape until it encounters another recorded portion, and resurne play-
back from that point
To stop playback temporarily (Deck II only)
Press the pause ( #1 ) button.
e To resume playback, either press the pause ( 88) button again, or
press the playback (»> or <) button.
To stop playback
Press the stop (II) button of the deck which is
currently playing.
PLAYBACK
SWITCH SETTINGS FOR REVERSE PLAYBACK
The playback sequence depends on the setting of the REV MODE
switch and on which playback button is pressed first. The playback
sequence for each of the possible selections is shown below.
| = : Deckl forward playback
Il = : Deckll forward playback
co : Auto-reverse function
| = : Deck reverse playback
#H <= : Decklireverse playback
— Relay
For CT-W501R:
REV MODE | Playback
switch button Playback sequence
«= ip Ее — || >
„= | «< | < — || >
- i» I= —| >
«= li <a | <= —| >
oD ip | — 0 | <0 =|] > со || <
=> | < a >> ol
= 1» fe ©о || <я —| => со | <
= il <a — | со |<
ео | | > со Е <а —х || 6 об lis =>...
until both tapes are played 8 times {32 sides}
= | 4 l< —lle со || < > 00 ><...
until both tapes are played 8 times (31 sides)
> il» Hes со || < — | > со | «3 —|| >. -
until both tapes are played 8 times (32 sides)
= il «< la —le ool <a — || со <a.
until both tapes are played 8 times (31 sides)
For CT-W451R: |
e During relay playback in the == or => mode, the cassette tape(s)
of one deck can be changed while the other deck is playing back
and relay playback will continue.
REV MODE | Playback
, Playback sequence
switch button
== |p | = —Н =
== Hp» I = —+| >
=r Il < h< > >
a >. | — > oo || <
= np» fer 0 © —|>
= Il < | < — | =
= |> | = — | = со || < —*| > | >.
until both tapes are played 8 times (24 sides)
«> Il» 1 > ols-—ls>-—lsolïlr>-—+ez-
until both tapes are played 8 times (24 sides)
> Il «< И == >> —I| > со | < + * > --
until both tapes are played 8 times (24 sides)
* Deck | is rewound automatically while Deck Il is playing in order for relay
playback to continue.
NOTE:
During relay playback, when a tape begins playing automatically, it
always starts from the forward (t>) playback side. Make sure that the
tapes are rewound properly before beginning relay playback.
MUSIC SEARCH
(Skipping forward or backward to play back a desired selection)
The music search function detects blanks (longer than 4 seconds) be-
tween selections, advances the tape in the forward or reverse direction
to find the beginning of the desired selection, and automatically starts
playback.
It can find a selection located up to 15 selections before or after the
current position.
During Forward Playback
When you wish to locate the next selection or a later one, press the fast
forward (PP) button as many times as the number of selections to be
skipped. When you wish to listen to the current selection from the begin-
ning, press the fast reverse (44) button once. To return to the previous
selection or an ealier one, press the fast reverse (<<) button as many
times as the number of selections to be skipped, plus one.
During Reverse Playback
When you wish to locate the next selection or a later one, press the fast
reverse (dd) button as many times as the number of selections to be
skipped. When you wish to listen to the current selection from the begin-
ning, press the fast forward (PB) button once. To return to the previous
selection or an ealier one, press the fast forward (PP) button as many
times as the number of selections to be skipped, plus one.
From the Stop Mode
Press the playback (> or €) button to select the tape transport direction,
then press the fast forward or fast reverse (PP or <<) button to per-
form music search as described above.
@ If the button is pressed more times than the number of selections on
the side, music search can continue on the other side; but ONLY if
the auto reverse function operates.
NOTES:
In the following cases, the music search function may be unable to prop-
erly detect blanks between selections, thus operating incorrectly. This is
not, however, a sign of unit malfunction.
e When using a tape with blanks between selections less than 4
seconds long.
e When listening to tapes with long low-level intervals, like classical
music tapes, or tapes with sound breaks several seconds long within
selections.
® When listening to tapes of recorded conferences or talk shows,
where the sound is discontinuous.
e When using tapes with noise in the blanks between selections.
How Selections are Counted
When the music search function is performed in the middle of a selection
and “1st previous selection” is specified (the button is pressed once),
the deck will return to the beginning of the present selection. To return to
earlier selections, count the number of selections to be skipped, plus one.
Search (44) —+——— —— Search (PP)
3rd selection
(2 selections 1st selection
before) (previous selection) 2nd Selection
2nd selection 1st selection
(previous (next selection) 3rd Selection
selection)
Ÿ Y т y Ÿ Ÿ
D J À À À » Л
Playback (»)— — — — > Л
Present position
9
<RRB1117>
En
RECORDING (Deck Il only)
1. Loada tape for recording in Deck Il.
Set the DOLBY NR switch.
3. Setthe REV MODE switch.
® To record on one side only, set the switch to the == position.
To record on both sides, set the switch to either the => or the
co position.
Press the recording ( e ) button.
5. Prepare the audio source from which you wish to
record. Turn on the stereo amplifier and prepare it
for playback of the desired audio source.
6. Adjust the recording level. For details, see
“ADJUSTING THE RECORDING LEVEL" below.
7. Press the playback (p> or €) button or the pause
( 11) button to begin recording.
e When recording on both sides, press the P button. If the «<
N
>
button is pressed, recording will stop after only one side is
recorded. The deck cannot switch from the reverse direction to
the forward direction during recording.
To Stop Recording Temporarily
Press the pause ( =» ) button.
e To resume recording, either press the pause ( ## ) button again, or
press the playback (> or €) button.
To Stop Recording
Press the stop (II) button.
ADJUSTING THE RECORDING LEVEL
The adjustment of the recording level is the most important factor
in achieving good recording results. A high level provides a good
signal-to-noise ratio and dynamic range, but an excessively high
level distorts the sound. If the level is set too low for fear of sound
distortion, irritating tape hiss will mar the recording. The charac-
teristics of tapes differ depending on the manufacturer and the type
of tape. Set the REC LEVEL control so that the level meter's “0
dB” indicator remains lit most of the time. No harm will be done
if the “+3 dB” indicator lights momentarily at peaks. When record-
ing without Dolby NR, set the REC LEVEL control so that the — 3
dB’ indicator lights, and the “O dB” indicator lights occasionally
at peaks.
NOTES:
e The optimal recording level may differ somewhat, depending on the
audio source and type of tape used. In order to obtain the best possible
results, set the recording level after actual testing. Listen to your
recordings, and adjust the level as necessary.
e The level meter may react differently during recording and playback of
the same tape. This is due to differences in tape sensitivity, and cre-
ates no problem.
10
<RRB1117 >
En
Erasure Prevention Tabs
The recording ( e ) button will not function when the erasure prevention
tabs of the loaded cassette tape have been removed (See page 4). Do
not press the recording ( ®) button with unreasonable force. When
recording on both sides, make sure that both tabs are intact.
RECORDING MUTE
Use this function to create the 4.5-second blanks needed for proper op-
eration of the music search function.
e Press the recording mute ( O ) button during recording and the deck
will create a blank space by recording a section which contains no
signal for approximately 4.5 seconds. The deck will then enter record-
ing standby mode.
e To create a blank which is more than 4.5 seconds long, hold the
button down for the desired length of time. When the button is re-
leased, the deck will enter recording standby mode.
e To resume recording, press the standby ( ts ) button or the playback
(> or €) button.
Erasing a Tape
To erase the recorded contents of a tape, load the tape in Deck il and
follow the procedure below.
1. Set the REC LEVEL control to the MIN position.
2. Press the recording ( e ) button.
3. Press the playback (> or 4) button or the pause
( =n ) button.
TAPE COPYING (From Deck | to Deck 11)
® The tape copying function lets you copy the contents of a tape from
Deck ! to Deck it.
e The SYNCHRO COPY buttons are used to select either normal speed
copying, or high speed copying (copying at twice the normal play-
back speed).
1. Load a tape for playback into Deck | and a blank
tape into Deck Il.
2. Setthe REV MODE switch.
3. Set the tape transport direction.
® Tape copying is always performed in the direction indicated by
the tape transport indicator ()> or <). To change this direction,
press the desired playback {> or €) button, then immediately
press the stop (IM) button.
4. Press one of the SYNCHRO COPY buttons to
select either NORMAL or HIGH SPEED.
NORMAL Tape copying at normal speed, allowing you to
SPEED: listen to playback (COPY indicator fights).
HIGH SPEED: Tape copying at twice the normal speed (COPY in-
dicator flashes). Playback will still audible.
RECORDING (TAPE COPYING)
For CT-W451R only.
After the forward side of the tape in Deck | ends, both decks will stop. To
continue tape copying;
1 Turn the tape in Deck | over.
2 Press the SYNCHRO COPY button again to resume tape copying.
To Stop Copying
Press the stop (ll) button of either deck. Both decks will stop.
NOTES:
e Jf a nearby television set is on while high speed copying is being per-
formed, a high pitched interference sound may be heard on the tape.
In this case, either use the normal speed copying function, or turn off
the television.
e The tape in Deck II will be recorded with the same Dolby NR charac-
teristics as the tape in Deck |, regardless of the setting of the DOLBY
NR switch. For example, if the original tape was recorded with Dolby
C-type NR, the copy will also have Dolby C-type NR.
e During high speed copying, none of the operation buttons will function
except for the stop ( Ml) button.
© During normal speed copying, the recording mute ( O } and pause
( 88 ] buttons of Deck Il also function.
e Tape copying stops when either of the two tapes reach the end.
Therefore it is advisable to use tapes of the same length.
® The sound quality of the copied tape will be somewhat less than that
of the original. Therefore when making more than one copy, always
record from the original tape (do not make a copy of a copy).
® When making tape copies, the recording level does not have to be
adjusted.
RECORDING AND PLAYBACK USING AN AUDIO TIMER
UNATTENDED RECORDING (Deck Il only)
26
1. Load a tape for recording in Deck Il.
e Timer recording always begins in the forward direction. Make
sure that the tape is properly rewound.
Set the DOLBY NR switch.
Set the REV MODE switch.
Press the recording ( e ) button.
Prepare the audio source.
e Set the amplifier input selector to tuner, then tune in the
desired station.
6. Adjust the recording level.
7. Set the audio timer.
e When the timer is set, it will turn off the power of all connect-
ed components.
8. Set the TIMER switch to the REC position.
e At the preset time, the power will be turned on, and recording
will begin automatically.
BON
NOTES:
e Timer recording will not work if the erasure prevention tabs of the
tape loaded in Deck Il have been removed.
e Operations depend on the type of audio timer used: Be sure to consult
the operating instructions of the audio timer you actually use.
e When not performing timer operations, set the TIMER switch to
the OFF position Otherwise, recording might begin unexpectedly
when the power is turned on.
e Turn down the volume of the amplifier if you do not wish to listen
to the program while it is being recorded.
WAKE-UP PLAYBACK (Deck I or Deck Il)
(1) 27
Ww
1. Load the tape(s) for playback.
® Timer playback always begins in the forward direction. Make
sure that the tapeís) are properly rewound.
Set the DOLBY NR switch.
3. Set the REV MODE switch.
e Not necessary for Deck | of the CT-W451R model.
4. Set the stereo amplfier for tape playback.
® Adjust the volume level by playing back a portion the tape.
5. Rewind the tape to the position where playback
is to start.
6. Set the audio timer.
® When the timer is set, it will turn off the power of all connect-
ed components.
7. Set the TIMER switch to the PLAY position.
e At the time set on the audio timer, the power will be turned
on and playback will begin automatically.
N
NOTES:
e Operations depend on the type of audio timer used: Be sure to consult
the operating instructions of the audio timer you actually use.
e When tapes are inserted into both Deck | and Deck Il, relay playback
from Deck 1 to Deck II will be performed when the power comes on.
e The blank skip function will operate during timer playback (see page
8).
e When not performing timer operations, set the TIMER switch to the
OFF position. Otherwise, playback might begin unexpectedly when
the power is turned on. 11
<RRB1117>
En
CD - DECK SYNCHRO RECORDING
If the CD player has a program function to determine the order of play-
back, program the CD player before beginning this operation.
1. Loada compact disc in the CD player.
2. Load the cassette for recording.
e Rewind the tape to the desired starting position.
3. Setthe REV MODE switch. |
e To record on one side only, set the switch to the — position.
To record on both sides, set the switch to either the = or the
co position.
4. Setthe DOLBY NR switch.
5. Press the play button of the CD player.
6. Adjust the recording level.
e See page 10.
7. Press the stop (MM) buttons of both the cassette
deck and the CD player.
® Unless both this deck and the CD player are in stop mode,
synchro recording cannot be performed.
8. Press the CD SYNCHRO button.
e The cassette deck begins recording, and the CD player begins
playback.
When the compact disc finishes playing:
The CD player enters stop mode and the cassette deck enters recording
standby mode. Change the disc and press the play button of the CD
player tó resume recording. If the CD player does not resume play within
1 minute, the cassette deck enters stop mode.
When the CD player changes discs (twin tray
or multi-play disc CD players):
The cassette deck enters recording standby mode, and resumes record-
ing when the CD player begins playing the next disc. A 4.5 second blank
space is automatically created between selections.
If the end of the tape is reached while the CD
player is still playing:
The CD player returns to the beginning of the currently-playing selection
and then enters pause mode. To resume recording, load another tape
and check the tape running indicator to ensure that the tape is moving in
the desired direction. if not, press the playback (» or <) button to
change the tape direction, then immediately press the stop (IN) button.
The tape running indicator will change direction. Synchro recording can
be resumed by pressing the CD SYNCHRO button again. (The CD
SYNCHRO button should be pressed within 1 minute. If more than 1
minute elapses, the CD player will enter stop mode.)
If the auto-reverse function operates while the
CD is still playing:
The CD player returns to the beginning of the current selection and
enters pause mode.
A 4.5 second blank space is automatically created on the reverse side,
then the CD player resumes playback and the deck resumes recording.
NOTES:
e Even when the CD player is connected to the amplifier with an optical
fiber cable, connect the CD player to either the amplifier or this deck
with pin plug input and output cords.
e Be sure to connect the deck and the CD player with the CD-DECK
SYNCHRO control cord.
e Although recording begins when the CD SYNCHRO button is pressed,
the CD player does not start playback until the button is released.
This function can be used to advance the tape past the leader section,
or to create a blank section on the tape.
e Only PIONEER CD players equipped with a CD -S YNCHRO control jack
can be used for CD -DECK S YNCHRO recording. Any type of CD player
which meets these requirements, including twin-tray or multi-play
models, can be used.
E Dolby NR Systems
Dolby NR systems are designed to reduce the amount of tape hiss,
mainly in the treble components. During recording, the high-pitched pia-
nissimo sounds which are most characteristic of audible noise are boost-
ed, and during playback, only these boosted sections are attenuated, so
that the sound is returned to normal. As a result, the noise is attenuated
by an amount equal to the boosting in the treble range. The Dolby B-type
NR system reduces noise in the treble range, cutting tape hiss and ex-
panding the dynamic range. The Dolby C-type NR system is even more
effective in reducing noise, as it reduces noise from the mid-range on.
NOTE:
When a tape has been recorded using the Dolby B-type or C-type NR
system, make sure that the DOLBY NR switch is set to the same position
during playback.
B Dolby HX PRO Headroom Extension System
The Dolby HX PRO system controls the bias current during recording and
maintains it at the optimal level based on the amount of high frequency
components in the music signal. It therefore provides excellent recording
quality even when recording signals from digital sources, which contain a
large amount of high-frequency components, are recorded. To guarantee
optimal results, the Dolby HX PRO system is activated automatically
when recording begins, regardless of the setting of the Dolby NR System
switch. Furthermore, since this system controls the quality of the record-
ing itself, the clarity of the sound will be maintained even when the tapes
are played back on another tape deck which does not contain the HX
PRO Headroom Extension System. |
12
<RRB1117>
En
TROUBLESHOOTING
Incorrect operations are sometimes mistaken for malfunctions. If you think that there is something wrong with this deck, check the table below to see if you
can correct the problem yourself. Sometimes, the trouble may be caused by another piece of equipment, or by faulty connections. If the trouble cannot be
rectified even after all of the checks below have been performed, contact your nearest PIONEER authorized dealer, or the place of purchase.
SYMPTOM
CAUSE
REMEDY
POWER
The power does not go on.
e The power cord is unplugged.
e The component (amplifier, timer, etc.) to which the cord
is attached is off.
e Insert the power cord correctly.
® Turn the stereo amplifier or audio timer on.
CASSETTE DOOR
The door does not open.
® The deck is not in stop mode.
e Power was turned off with the tape moving.
e Press the stop (IN) button.
e Turn power on.
The door does not close.
e The cassette is not properly loaded.
e Reinsert the cassette.
PLAYBACK
The tape stops immediately.
e The tape is completely wound.
e The tape is slack.
Playback in opposite direction.
Rewind the tape.
Take up slack (see page 4).
The levei meter does not work.
e The ta
There is no sound.
e The amplifier input selector is not set properly.
e The amplifier volume is too low.
e There are connection problems (wrong connection, poor
contact, broken wire.)
e Setthe input selector to select the deck.
e Turn up the volume.
e Check all connections (see page 5).
RECORDING
The recording indicator does
not light.
e The erasure prevention tabs are broken off.
Replace the cassette with one whose tabs are intact,
or cover the hole with a piece of tape (see page 4).
The level meter does not work.
e The REC LEVEL contro! is set too low.
e The amplifier is not delivering a signal to the deck.
e There are connection problems (wrong connection, poor
contact, broken wire).
e Turn the REC LEVEL up (see page 10).
e Set the amplifier to select the recorded signal.
® Check all connections (see page 5).
The tape stops immediately.
® The tape is completely wound.
® The tape is slack.
The tape cannot be recorded.
® Recording in opposite direction.
e Rewind the tape.
® Take up slack (see page 4).
POOR SOUND QUALITY
The sound is unstable or
interrupted.
® The tape is not uniformly wound.
® Fast forward or rewind the tape completely.
There are no high frequencies.
® A tape recorded without Dolby NR is being played back
‘with the DOLBY NR switch set to B or C position.
High frequencies are
emphasized.
© A Dolby NR tape is being played back with the DOLBY
NR switch set to OFF.
The sound from previous
recordings remains when the
tape is re-recorded.
® Set the DOLBY NR switch to OFF.
® Set the DOLBY NR switch to the same positions used
for recording.
The sound is distorted.
e The recording level is too high.
e The recorded signal itself is distorted.
e Turn the REC LEVEL control down (see page 10).
e Replace the cassette tape.
13
<RRB1117>
En
TROUBLESHOOTING
SYMPTOM CAUSE REMEDY
There is too much noise. ® A noisy tape is being used. e Replace the cassette tape.
* There is a faulty connection. e Check all connections (see page 5).
e Recording level is too low. e Turn the REC LEVEL control up (see page 10).
e The heads are magnetized.
Demagnetize the head with a demagnetizer (see page 3).
OTHER
The music search function e Blanks between selections are less than 4 ® Use a tape with blanks between selection of at least
does not operate properly. seconds long. 4 seconds.
Recording or playback starts e TIMER switch is set to PLAY or REC. e Set TIMER switch to OFF.
suddenly when the power is
turned on.
System remote control does | ® Remote control cord is not connected. e Connect remote control cord properly
not operate. (See page 5).
CD -DECK SYNCHRO recording | ® CD -DECK SYNCHRO control cord and Input/Output e Connect correctly (see page 5).
cannot be carried out. = cords are not connected.
e The cassette tape accidental erasure prevention tabs are | ® Replace the cassette with one whose tabs are intact (see
broken. page 4).
The CD SYNCHRO indicator is | ® The tape ran out during the CD ‘DECK SYNCHRO mode. |® Replace the tape with a longer one.
off during CD -DECK e After the deck entered recording standby mode, more e Change the disc and press the CD SYNCHRO button
SYNCHRO recording. than 1 minute elapsed before the CD player resumed again.
playback.
14
<RRB1117>
En
SPECIFICATIONS
System... как квекквеккуке, 4-track, 2-channel stereo
Heads................. “Hard permalloy” recording/playback head x 1
“Hard permalloy” playback head x 1
“Ferrite” erasing head x 1
Motors .....................0eonoerecoc,endereeeo DC servo motor x 2
Wow and Flutter ..................... No more than 0.10% (WRMS)
Fast Winding Time .............. Approx. 120 seconds (C-60 tape)
Frequency Response (at — 20 dB recording level)
TYPE IV (Metal) tape ....................e.eemmecceo 30 to 16,500 Hz
TYPE II (Chrome) tape ........................e... 30 to 16,000 Hz
TYPE I (Normal) tape ...................e.renveecee. 30 to 16,000 Hz
Signal-to-Noise Ratio
Dolby NR OFF ocean, More than 56 dB
Noise Reduction Effect
Dolby B-type NR ON ................. More than 10 dB (at 5 kHz)
Dolby C-type NR ON ................ More than 19 dB (at 5 kHz)
Harmonic Distortion ............ nocesanranceaa No more than 0.8%
(at —4 dB: 160 nwb/m)
Input (Sensitivity)
LINE (INPUT) Lune. 112 mV (Input impedance 56 kQ)
Output (Reference level)
LINE (OUTPUT) ................ 0.5 V (Output impedance 4.5 k®)
Headphones
(CT-W501R only) ............ 0.63 mW (Output impedance 8 9)
Miscelllaneous
Power requirements
U.S. and Canadian models ....................... AC 120 V, 60 Hz
Australian model cree. AC 240 V, 50/60 Hz
Muiti-voltage model ...................... AC 110 V/120 V-127 V/
220 V/240 V (switchable), 50/60 Hz
Power consumption
U.S. and Canadian models ...................e..eeeeeecoccaee.. 16 W
Australian and multi-voltage models ...............eomnece 21 W
Dimensions ............ee....... 420 (W) x 120 (H) x 265 (D) mm
16-9/16 (W) x 4-3/4 (H) x 10-7/16 (D) in.
Weight ..................eeacrnovonereroraraccooerece. 3.9 kg (8 Ibs. 10 oz.)
Accessories
Operating instructions ............................... ......... 1
Connectioncord withpinplugs............................... 2
Remote control cord... nea rene reneaa, 1
Features
DOLBY HX PRO recording function
DOLBY B/C types NR
Music search over +15 selections
Synchronized copy start
High-speed and normal-speed copy (Deck | — Deck ||)
Relay playback/blank skip
6-segment LED level meter
3-digit mechanical tape counter (for Deck Ii)
Automatic recording mute
Automatic tape selectors
System remote control available
Timer recording
Timer playback (Automatic relay on)
CD -DECK SYNCHRO function
Headphones jack (CT-W501R only)
Automatic reverse (except Deck | of the CT-W451R)
NOTE
Specifications and design subject to possible modifications without
notice due to improvements.
15
<RRB1117>
En
Selecting fine audio equipment such as the unit you've just
purchased is only the start of your musical enjoyment. Now it’s
time to consider how you can maximize the fun and excitement
your equipment offers. This manufacturer and the Electronic
Industries Association’s Consumer Electronics Group want you
to ger the most out of your equipment by playing it at a safe
level. One that lets the sound come through loud and clear
without annoying blaring or distortion—and, most importantly,
without affecting your sensitive hearing;
Sound can be deceiving, Over time your hearing “comfort
level” adapts to higher volumes of sound. So what sounds
- “normal” can actually be loud and harmful to your hearing.
Guard against this by setting your equipment at a safe level
BEFORE your hearing adapts.
To establish a safe level:
e Start your volume control at a low setting,
® Slowly increase the sound until you can hear it comfortably
and clearly, and without distortion.
Once you have established a comfortable sound level:
© Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing
damage or loss in the future. After ali, we want you listening for
a lifetime.
We Want You Listening For À Lifetime
Used wisely, your new sound equipment will provide a
lifetime of fun and enjoyment. Since hearing damage from loud
noise is often undetectable until it is too late, this manufacturer
and the Electronic Industries Association’s Consumer Electronics
Group recommend you avoid prolonged exposure to excessive
noise. This list of sound levels is included for your protection.
Decible
Level Example
30 Quiet library, soft whispers
40 Living room, refrigerator, bedroom away from traffic
50 Light traffic, normal conversation, quiet office
60 Air conditioner at 20 feet, sewing machine
70 Vacuum cleaner, hair dryer, noisy restaurant
80 Average city traffic, garbage disposals, alarm clock
at two feet.
THE FOLLOWING NOISES CAN BE DANGEROUS
UNDER CONSTANT EXPOSURE
90 Subway, motorcycle, truck traffic, lawn mower
100 Garbage truck, chain saw, pneumatic drill
120 Rock band concert in front of speakers, thunderclap
140 Gunshot blast, jet plane
180 Rocket launching pad
Information courtesy of the Deafness Research Foundation.
Published by Pioneer Electronic Corporation.
Copyright © 1992 Pioneer Electronic Corporation.
All rights reserved.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS [USA] INC. 2265 East 220th Street, Long Beach, California 90810, U.S.A.
P.O. BOX 1720, Long Beach, California 90801, U.S.A.
PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway Markham, Ontario L3R OP2, Canada
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium, TEL: 03/750.05.11
PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australia, TEL: [03] 580-9911
<92DO6RYOW02>
Printed in Japan <RRB1117-A>
