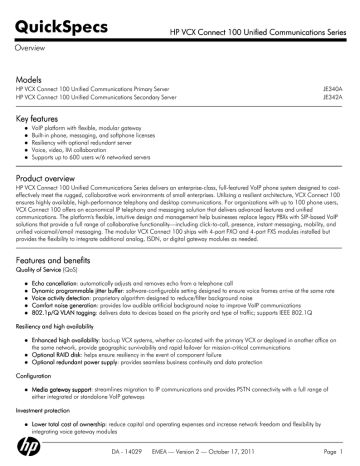

HP VCX Connect 100 Unified Communications Series

HP VCX Connect 100 Unified Communications Series

QuickSpecs

Overview

HP VCX Connect 100 Unified Communications Primary Server

HP VCX Connect 100 Unified Communications Secondary Server

VoIP platform with flexible, modular gateway

Built-in phone, messaging, and softphone licenses

Resiliency with optional redundant server

Voice, video, IM collaboration

Supports up to 600 users w/6 networked servers

JE340A

JE342A

HP VCX Connect 100 Unified Communications Series delivers an enterprise-class, full-featured VoIP phone system designed to costeffectively meet the rugged, collaborative work environments of small enterprises. Utilizing a resilient architecture, VCX Connect 100 ensures highly available, high-performance telephony and desktop communications. For organizations with up to 100 phone users,

VCX Connect 100 offers an economical IP telephony and messaging solution that delivers advanced features and unified communications. The platform's flexible, intuitive design and management help businesses replace legacy PBXs with SIP-based VoIP solutions that provide a full range of collaborative functionality—including click-to-call, presence, instant messaging, mobility, and unified voicemail/email messaging. The modular VCX Connect 100 ships with 4-port FXO and 4-port FXS modules installed but provides the flexibility to integrate additional analog, ISDN, or digital gateway modules as needed.

the same network, provide geographic survivability and rapid failover for mission-critical communications either integrated or standalone VoIP gateways integrating voice gateway modules

DA - 14029 EMEA — Version 2 — October 17, 2011 Page 1

QuickSpecs

Overview

business phone licenses, 25 IP messaging seat licenses, 25 Desktop Communicator softphone licenses, 25 Convergence

Client softphone licenses, and 4 analog/entry licenses synchronize employee contact information, thereby simplifying administration and ensuring reliable connections based on the most current user information based, wizard-like interface that walks you through the installation process which enables up to six VCX Connect 100 platforms to function as a single system corporate IP telephony system without compromising security cost of expensive third-party conferencing products, then the HP VCX V7000 IP Conferencing Series is the choice; capabilities include host and participant Web-based conference controls, instant and emergency conferences with automatic dial-out options, scheduled and meet-me restricted conferences (requires participant passcode), peer-to-peer and one-to-many conferences, and more configure, monitor, and optimize the performance of media servers, gateways, and endpoints; to monitor VoIP traffic; and to control voice network quality resiliency and end-to-end survivability; use Web-based centralized administration, global directory, and global voicemail to seamlessly link VCX systems together to scale your IP-PBX network as your business grows

Session Initiation Protocol (SIP) standards; support for third-party SIP-based applications and devices conference administrators presence capabilities within the HP Desktop Communicator; extend the Microsoft environment with HP Desktop

Communicator Outlook Edition add-on to enable click-to-call/conference via Microsoft Outlook, to capture and retrieve call

DA - 14029 EMEA — Version 2 — October 17, 2011 Page 2

QuickSpecs

Overview

notes with Microsoft Journal, and to perform desktop call recording; HP VCX is fully integrated with Lotus Sametime retrieval and management; schedule appropriate times when messages are delivered; send voicemails to individuals or groups using extensive and easy-to-maintain distribution lists; set up find me/follow me services to conveniently manage one's own anywhere, anytime access to ensure important calls are never missed; auto-deliver incoming fax calls to email and send fax from email extension settings, including voicemail, at their fingertips extension customer account and billing codes; pin code portability allows users to roam the VCX system and utilize their existing data ability to capture real-time statistics, and support for remote agents in various VCX locations www.hp.com/networking/warranty for details on the support provided and the period during which support is available

Software releases www.hp.com/networking/warranty for details on the software releases provided and the period during which software releases are available for your product(s)

DA - 14029 EMEA — Version 2 — October 17, 2011 Page 3

QuickSpecs

Technical Specifications

6 voice interface module I/O slots

1 RJ-45 autosensing 10/100 port (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex: half or full

4 RJ-11 FXO ports

4 RJ-11 FXS ports

1 RS-232C

Physical characteristics Dimensions 13.82(d) x 19.02(w) x 1.75(h) in. (35.1 x 48.3 x 4.45 cm) (1U height)

16 lb. (7.26 kg) Shipping Weight

Mounts in EIA standard 19 inch telco rack or equipment cabinet (hardware included)

Operating temperature 32ºF to 113ºF (0ºC to 45ºC)

10% to 90%, noncondensing

14ºF to 158ºF (-10ºC to 70ºC)

Electrical characteristics Voltage 100-240 VAC

50/60 Hz

UL 60950-1; EN 60950-1

EN 55022 Class B; EN 55024; FCC CFR 47 Part 15 Class B; EN 300 386; EN 61000-3-2; EN

61000-3-3

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet;

HTTPS

Integrated IP Messaging Voice Ports; up to 30 simultaneous auto-attendant, music-on-hold, fax or voicemail ports supported Integrated Gateways Options

Supports up to a maximum of six (6) analog modules

Supports up to a maximum of five (5) BRI modules

Supports up to a maximum of two (2) digital spans

Support for stand-alone VCX V7111, VCX V7122, MSR 20-xx and MSR-30 Series analog, ISDN and digital gateways

3-year, parts only, global next-day advance exchange (UW162E)

3-year, 24x7 SW phone support, software updates (UW172E)

Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

Ad hoc conferencing

Centralized management

Call detail records

Converged application based architecture

Emergency services

End-to-end SIP signaling

Global directory

Global voice mail

Mute

Paging (analog external paging system)

Paging (group - zone)

Paging (phone-to-phone), send beep with calling number

Paging (SIP external paging system)

Phone lock/unlock

Privacy (block silent monitor/barge-in)

Privacy (calling number suppression)

DA - 14029 EMEA — Version 2 — October 17, 2011 Page 4

QuickSpecs

Technical Specifications

IP telephony

IP unified messaging

Linux operating system with additional security

SIP back-to-back user Agent

Standards-based connectivity

System redundancy

Web services SDK

Serial calling (transfer with callback)

Silent monitor/barge-in

Simultaneous ringing

Speed dial (personal)

Speed dial (system)

Transfer to voicemail (direct)

Voicemail access

Warmline (warm ring down circuits)

Redundancy, IP telephony

Redundancy, IP messaging

Redundancy, IP phones and media gateways

Redundancy, optional RAID

Redundancy, optional power supply

Add VCX licenses

Administration access control

Administration secure access

Audit trails and logging enhancements

Command Line Interface

Configuration back-up and restore

CPU, memory, I/O statistics

First-time configuration

First-time data import

Importing data

Installed component versions

Multiple administrators

Multiple language support

Online administrator help

Password support, administrator and system access

Provisioning; bulk moves, adds, changes

Remove previous software versions

Resetting a VCX server

Reset to defaults

Root directory access

Searches

Site configuration data

Software upgrades and rollbacks

Switch software versions

System information

User data LDAP synchronization: Lotus Domino running on IBM; Lotus Domino running on

Windows® Server 2003, 2008; Microsoft Active

Directory on Windows Server 2003, 2008;

OpenLDAP on Linux

VCX service licensing

View VCX licensing data

Virtual numbers

Calendar bands

Call admission control

Call blocking

Daytime bands

Dialing prefixes

Direct Inward Dialing (DID)

Direct Outward Dialing (DOD)

Dialed Number Identification Service (DNIS)

E.164 numbering plan

External directory access

Holidays

NANP support

Network abbreviated dialing

Number translations

Outdial patterns

Patterns

Prioritization of trunks/routes

Private line service

Requestors

Routes

Route (plans and plan wizard)

Routing (alternate)

Routing (blacklist)

Routing (call coverage)

Routing (first available)

Routing (global directory)

Routing (IP to PSTN)

Routing (IP to IP)

Routing (least cost)

Routing (PSTN to IP)

Routing (source based)

Routing (VPN numbering plan)

Routing (white list)

Trusted end points

Weekday bands

G.711

G.729

Global voicemail central server

Redundancy (intelligent mirroring)

DSCP tagging

DA - 14029 EMEA — Version 2 — October 17, 2011 Page 5

QuickSpecs

Technical Specifications

Dynamic jitter buffer

G.711 audio codec

G.729ab audio codec

Packet-loss rate

Pay-load length

QoS: 802.1p tagging (Prioritization)

QoS: 802.1Q tagging (VLAN)

Video codec

Video resolution

Wide-band audio codec

Network security policies

Operating system security

Secure access

Security: Locking MAC addresses to switches

User authentication methods

Alarm notification

Audio performance reporting (local)

Auto discovery and management of IP devices

Intelligent Management Center Voice Service

Manager: centralized management

Maintenance, graceful shutdown of services

Operating system updates

Quality of service end of call reporting

SNMP MIB access

SNMP traps

SNMPv1, v3

System back-ups

Message annotation

Message append

Message auto-delivery

Message auto playback

Message broadcast

Message delete

Message delete retrieval

Message delivery report

Message delivery to nonsubscribers

Message deposit

Message deposit treatment options

Message folders

Message forward

Message notification

Message notification options

Message priority

Message record options

Message reply

Message retrieval

Message review

Message review options

Message review playback controls

Message save

Message schedule delivery

Message send

Message send treatment options

Mailbox login

Mailbox login

Call detail records (reporting)

Call detail records (structure)

Default system greeting

Personal busy greeting

Personal extended absence greeting

Personal normal greeting

Personal scheduled greetings

Anonymous all

Anonymous next

Anonymous call reject

Automatic call distribution (ACD)

ACD groups (call coverage)

ACD groups (calling groups)

ACD groups (CDR reporting)

ACD groups (circular)

ACD groups (feature interactions)

ACD groups (least-call count)

ACD groups (linear)

ACD groups (login/logout)

ACD groups (malicious call trace)

ACD groups (message-waiting indication)

ACD groups (most idle agent)

Administrator distribution lists

Personal distribution lists

System distribution lists

Directory search

Directory search (dial-by-name)

Auto attendants

Bulletin board

Call back

Call monitor

Family mailbox

DA - 14029 EMEA — Version 2 — October 17, 2011 Page 6

QuickSpecs

Technical Specifications

ACD groups (multisite)

ACD groups (real-time statistics)

ACD groups (view ACD group status)

Automatic line selection (multiple system appearance)

Bridged line appearance

Bridge line appearance (MWI)

Bridge line appearance (shared hold)

Busy lamp field

Call conference (drop)

Call conference (six-way calling)

Call conference (three-way calling)

Call coverage

Call drop

Call duration display

Call forward all (universal)

Call forward busy

Call forward no answer

Call forward out-of-coverage

Call forward programmable

Call forward reminder

Call forward remote

Call history (missed/answered/placed logs)

Call history display sort

Call hold

Call hold reminder

Call park/retrieve

Call park (button mapping)

Call park (fallback)

Call pick-up (directed)

Call pick-up (group)

Call restrictions (black list)

Call restrictions (blocking inbound)

Call restrictions (blocking outbound)

Call restrictions (call screening)

Call restrictions (forward to trunk)

Call restrictions (toll screening)

Call restrictions (transfer to trunk)

Call restrictions (white list)

Call return

Call transfer (attended)

Call transfer (fallback on transfer failure)

Call transfer (unattended)

Call transfer (restrictions)

Call waiting

Caller ID (called party)

Caller ID (calling party number)

Caller ID (calling party name)

Caller ID (privacy)

Camp on busy (automatic call back)

Class of service override

Customer account and billing codes

Force password change

Listen and manage voicemail messages from Web user interface

Mailbox alias

Mailbox auto login

Mailbox full alert

Mailboxes for announcements

Mailboxes for forms (Q&A)

Mailboxes for information

Mailboxes for surveys

Mailboxes for system bulletins/broadcasts

Message-waiting indication

Music-on-hold

Outline help

Personal address book

Personal auto-attendant

Privacy

Prompt bypass

Set-up assistant tutorial

Shortcut keys

User password change

User provisioning through TUI

User provisioning through Web

Virtual calling card

Zero out

Find me/follow me

Find me/follow me call intercept

Electronic fax sending

Fax auto-delivery to email

Fax auto-delivery to fax machine

Fax delivery to fax machine

Fax message deposit

Fax message retrieval

Never-busy fax

Email integration

Client integration

Email auto delivery

Email synchronization

Fax attachment in email (.tif or .pdf formats)

Unified inbox for Domino on Windows

Voicemail POP3/IMAP4 client integration

Administration of all parameters through X-terminal interface

Class of service administration

DA - 14029 EMEA — Version 2 — October 17, 2011 Page 7

QuickSpecs

Technical Specifications

Delayed or no ringing

Directory (local user)

Directory (global user)

Distinctive ringing, ring patterns (different call types)

Distinctive ringing, selective ringing (ident-a-call)

Do not disturb

DTMF dialing

Feature codes

Feature access codes

Forced account codes

Forward to mail

Hands-free support

Hotline (hot ring down circuits)

Hunt groups

Hunt groups (call coverage)

Hunt groups (calling group)

Hunt groups (circular)

Hunt groups (feature interactions)

Hunt groups (linear)

Hunt groups (login/logout)

Hunt groups (malicious call trace)

Hunt groups (message-waiting indication)

Hunt groups (multisite)

Hunt groups (view hunt group status)

Last number redial

Malicious call trace

Message-waiting indication (MWI), audio

Message-waiting indication (MWI), visual

Missed call indicator

Mobility (multisite hot desking)

Mobility (single-region hot desking)

Music on hold

Company/division administration

Export mailbox/COS

Import mailbox/COS

IMAP SSLv3 support

IP messaging Web portal

Mailbox administration

Mailbox on-the-fly

Mailbox un-login

Multiple administration

Multiple language support

Multiple permission levels

Pager templates

Send-user groups

Support for multi-language voicemail

Telephone user interface (native)

Telephone user interface (traditional)

Time zones

Upload audio files via Web interface

VPIM support

System alarms

System backup

System restoration

System status

Chinese (Mandarin), Dutch, English (Australian, UK and US), French (Canadian and Parisian), German,

Italian, Korean, Portuguese (Brazilian), Russian and

Spanish (Castilian and LAT)

6 voice interface module I/O slots

1 RJ-45 autosensing 10/100 port (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex: half or full

4 RJ-11 FXO ports

4 RJ-11 FXS ports

1 RS-232C

Physical characteristics Dimensions 13.82(d) x 19.02(w) x 1.75(h) in. (35.1 x 48.3 x 4.45 cm) (1U height)

16 lb. (7.26 kg) Shipping Weight

Mounts in EIA standard 19 inch telco rack or equipment cabinet (hardware included)

Operating temperature 32ºF to 113ºF (0ºC to 45ºC)

10% to 90%, noncondensing

14ºF to 158ºF (-10ºC to 70ºC)

DA - 14029 EMEA — Version 2 — October 17, 2011 Page 8

QuickSpecs

Technical Specifications

Electrical characteristics Voltage 100-240 VAC

50/60 Hz

UL 60950-1; EN 60950-1

EN 55022 Class B; EN 55024; FCC CFR 47 Part 15 Class B; EN 300 386; EN 61000-3-2; EN

61000-3-3

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet;

HTTPS

Integrated IP Messaging Voice Ports; up to 30 simultaneous auto-attendant, music-on-hold, fax or voicemail ports supported Integrated Gateways Options

Supports up to a maximum of six (6) analog modules

Supports up to a maximum of five (5) BRI modules

Supports up to a maximum of two (2) digital spans

Support for stand-alone VCX V7111, VCX V7122, MSR 20-xx and MSR-30 Series analog, ISDN and digital gateways

3-year, parts only, global next-day advance exchange (UW162E)

3-year, 24x7 SW phone support, software updates (UW172E)

Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

Ad hoc conferencing

Centralized management

Call detail records

Converged application based architecture

Emergency services

End-to-end SIP signaling

Global directory

Global voice mail

IP telephony

IP unified messaging

Linux operating system with additional security

SIP back-to-back user Agent

Standards-based connectivity

System redundancy

Web services SDK

Mute

Paging (analog external paging system)

Paging (group - zone)

Paging (phone-to-phone), send beep with calling number

Paging (SIP external paging system)

Phone lock/unlock

Privacy (block silent monitor/barge-in)

Privacy (calling number suppression)

Serial calling (transfer with callback)

Silent monitor/barge-in

Simultaneous ringing

Speed dial (personal)

Speed dial (system)

Transfer to voicemail (direct)

Voicemail access

Warmline (warm ring down circuits)

Redundancy, IP telephony

Redundancy, IP messaging

Redundancy, IP phones and media gateways

Redundancy, optional RAID

Redundancy, optional power supply

Add VCX licenses

Administration access control

Administration secure access

Calendar bands

Call admission control

Call blocking

Daytime bands

Dialing prefixes

Direct Inward Dialing (DID)

Direct Outward Dialing (DOD)

Dialed Number Identification Service (DNIS)

E.164 numbering plan

DA - 14029 EMEA — Version 2 — October 17, 2011 Page 9

QuickSpecs

Technical Specifications

Audit trails and logging enhancements

Command Line Interface

Configuration back-up and restore

CPU, memory, I/O statistics

First-time configuration

First-time data import

Importing data

Installed component versions

Multiple administrators

Multiple language support

Online administrator help

Password support, administrator and system access

Provisioning; bulk moves, adds, changes

Remove previous software versions

Resetting a VCX server

Reset to defaults

Root directory access

Searches

Site configuration data

Software upgrades and rollbacks

Switch software versions

System information

User data LDAP synchronization: Lotus Domino running on IBM; Lotus Domino running on

Windows® Server 2003, 2008; Microsoft Active

Directory on Windows Server 2003, 2008;

OpenLDAP on Linux

VCX service licensing

View VCX licensing data

Virtual numbers

External directory access

Holidays

NANP support

Network abbreviated dialing

Number translations

Outdial patterns

Patterns

Prioritization of trunks/routes

Private line service

Requestors

Routes

Route (plans and plan wizard)

Routing (alternate)

Routing (blacklist)

Routing (call coverage)

Routing (first available)

Routing (global directory)

Routing (IP to PSTN)

Routing (IP to IP)

Routing (least cost)

Routing (PSTN to IP)

Routing (source based)

Routing (VPN numbering plan)

Routing (white list)

Trusted end points

Weekday bands

G.711

G.729

Global voicemail central server

Redundancy (intelligent mirroring)

DSCP tagging

Dynamic jitter buffer

G.711 audio codec

G.729ab audio codec

Packet-loss rate

Pay-load length

QoS: 802.1p tagging (Prioritization)

QoS: 802.1Q tagging (VLAN)

Video codec

Video resolution

Wide-band audio codec

Network security policies

Operating system security

Secure access

Security: Locking MAC addresses to switches

User authentication methods

Message annotation

Message append

Message auto-delivery

Message auto playback

Message broadcast

Message delete

Message delete retrieval

Message delivery report

Message delivery to nonsubscribers

Message deposit

Message deposit treatment options

Message folders

Message forward

Message notification

Message notification options

Message priority

Message record options

Message reply

DA - 14029 EMEA — Version 2 — October 17, 2011 Page 10

QuickSpecs

Technical Specifications

Alarm notification

Audio performance reporting (local)

Auto discovery and management of IP devices

Intelligent Management Center Voice Service

Manager: centralized management

Maintenance, graceful shutdown of services

Operating system updates

Quality of service end of call reporting

SNMP MIB access

SNMP traps

SNMPv1, v3

System back-ups

Message retrieval

Message review

Message review options

Message review playback controls

Message save

Message schedule delivery

Message send

Message send treatment options

Mailbox login

Mailbox login

Call detail records (reporting)

Call detail records (structure)

Default system greeting

Personal busy greeting

Personal extended absence greeting

Personal normal greeting

Personal scheduled greetings

Anonymous all

Anonymous next

Anonymous call reject

Automatic call distribution (ACD)

ACD groups (call coverage)

ACD groups (calling groups)

ACD groups (CDR reporting)

ACD groups (circular)

ACD groups (feature interactions)

ACD groups (least-call count)

ACD groups (linear)

ACD groups (login/logout)

ACD groups (malicious call trace)

ACD groups (message-waiting indication)

ACD groups (most idle agent)

ACD groups (multisite)

ACD groups (real-time statistics)

ACD groups (view ACD group status)

Automatic line selection (multiple system appearance)

Bridged line appearance

Bridge line appearance (MWI)

Bridge line appearance (shared hold)

Busy lamp field

Call conference (drop)

Call conference (six-way calling)

Call conference (three-way calling)

Call coverage

Call drop

Call duration display

Call forward all (universal)

Call forward busy

Call forward no answer

Call forward out-of-coverage

Administrator distribution lists

Personal distribution lists

System distribution lists

Directory search

Directory search (dial-by-name)

Auto attendants

Bulletin board

Call back

Call monitor

Family mailbox

Force password change

Listen and manage voicemail messages from Web user interface

Mailbox alias

Mailbox auto login

Mailbox full alert

Mailboxes for announcements

Mailboxes for forms (Q&A)

Mailboxes for information

Mailboxes for surveys

Mailboxes for system bulletins/broadcasts

Message-waiting indication

Music-on-hold

Outline help

Personal address book

Personal auto-attendant

Privacy

Prompt bypass

Set-up assistant tutorial

DA - 14029 EMEA — Version 2 — October 17, 2011 Page 11

QuickSpecs

Technical Specifications

Call forward programmable

Call forward reminder

Call forward remote

Call history (missed/answered/placed logs)

Call history display sort

Call hold

Call hold reminder

Call park/retrieve

Call park (button mapping)

Call park (fallback)

Call pick-up (directed)

Call pick-up (group)

Call restrictions (black list)

Call restrictions (blocking inbound)

Call restrictions (blocking outbound)

Call restrictions (call screening)

Call restrictions (forward to trunk)

Call restrictions (toll screening)

Call restrictions (transfer to trunk)

Call restrictions (white list)

Call return

Call transfer (attended)

Call transfer (fallback on transfer failure)

Call transfer (unattended)

Call transfer (restrictions)

Call waiting

Caller ID (called party)

Caller ID (calling party number)

Caller ID (calling party name)

Caller ID (privacy)

Camp on busy (automatic call back)

Class of service override

Customer account and billing codes

Delayed or no ringing

Directory (local user)

Directory (global user)

Distinctive ringing, ring patterns (different call types)

Distinctive ringing, selective ringing (ident-a-call)

Do not disturb

DTMF dialing

Feature codes

Feature access codes

Forced account codes

Forward to mail

Hands-free support

Hotline (hot ring down circuits)

Hunt groups

Hunt groups (call coverage)

Hunt groups (calling group)

Hunt groups (circular)

Hunt groups (feature interactions)

Hunt groups (linear)

Shortcut keys

User password change

User provisioning through TUI

User provisioning through Web

Virtual calling card

Zero out

Find me/follow me

Find me/follow me call intercept

Electronic fax sending

Fax auto-delivery to email

Fax auto-delivery to fax machine

Fax delivery to fax machine

Fax message deposit

Fax message retrieval

Never-busy fax

Email integration

Client integration

Email auto delivery

Email synchronization

Fax attachment in email (.tif or .pdf formats)

Unified inbox for Domino on Windows

Voicemail POP3/IMAP4 client integration

Administration of all parameters through X-terminal interface

Class of service administration

Company/division administration

Export mailbox/COS

Import mailbox/COS

IMAP SSLv3 support

IP messaging Web portal

Mailbox administration

Mailbox on-the-fly

Mailbox un-login

Multiple administration

Multiple language support

Multiple permission levels

Pager templates

Send-user groups

Support for multi-language voicemail

Telephone user interface (native)

Telephone user interface (traditional)

Time zones

Upload audio files via Web interface

VPIM support

DA - 14029 EMEA — Version 2 — October 17, 2011 Page 12

QuickSpecs

Technical Specifications

Hunt groups (login/logout)

Hunt groups (malicious call trace)

Hunt groups (message-waiting indication)

Hunt groups (multisite)

Hunt groups (view hunt group status)

Last number redial

Malicious call trace

Message-waiting indication (MWI), audio

Message-waiting indication (MWI), visual

Missed call indicator

Mobility (multisite hot desking)

Mobility (single-region hot desking)

Music on hold

System alarms

System backup

System restoration

System status

Chinese (Mandarin), Dutch, English (Australian, UK and US), French (Canadian and Parisian), German,

Italian, Korean, Portuguese (Brazilian), Russian and

Spanish (Castilian and LAT)

DA - 14029 EMEA — Version 2 — October 17, 2011 Page 13

QuickSpecs

Accessories

HP VCX V6100 Connect 100 4-port FXO Module

HP VCX V6100 Connect 100 4-port FXS Module

HP VCX V6100 Connect 100 4-port BRI Module

HP VCX V6100 Connect 100 1-span E1/T1 Module

HP VCX V6100 Connect 100 2-span E1/T1 Module

HP VCX V6000 V6100 Connect 100 (80GB) HDD RAID Module

HP VCX V6000 V6100 Connect 100 Power Supply Module

HP VCX Desktop Communicator Standalone Soft Phone License

HP VCX Desktop Communicator Outlook Edition Standalone Soft Phone License

HP VCX Desktop Communicator to Outlook Edition Upgrade Soft Phone License

HP VCX Business IP Phone License E-LTU

HP VCX Basic IP Phone License E-LTU

HP VCX Third Party IP Phone License E-LTU

HP VCX Business IP Phone License 50 Bundle E-LTU

HP VCX Basic IP Phone License 50 Bundle E-LTU

HP VCX Business IP Phone License 250 Bundle E-LTU

HP VCX Basic IP Phone License 250 Bundle E-LTU

HP VCX Entry/Analog Phone License E-LTU

HP VCX IP Messaging Seat License E-LTU

HP VCX IP Messaging Seat License 50 Bundle E-LTU

HP VCX IP Messaging Seat License 250 Bundle E-LTU

HP VCX Desktop Communicator Standalone Soft Phone License E-LTU

HP VCX Desktop Communicator Outlook Edition Standalone Soft Phone License E-LTU

HP VCX Desktop Communicator to Outlook Edition Upgrade Soft Phone License E-

LTU

HP VCX Desktop Communicator Soft Phone License 50 Bundle E-LTU

HP VCX Desktop Communicator Outlook Edition Soft Phone License 50 Bundle E-LTU

HP VCX Desktop Communicator Soft Phone License 250 Bundle E-LTU

HP VCX Desktop Communicator Outlook Edition Soft Phone License 250 Bundle E-

LTU

HP VCX Convergence Center Client Standalone License E-LTU

HP VCX ACD Agent License E-LTU

HP VCX ACD 10 Agent License E-LTU

HP VCX ACD 5 Agent License E-LTU

JE444BAE

JE332BAE

JE329BAE

JE331BAE

JE328BAE

JE425BAE

JE301BAE

JC515BAE

JC514BAE

JE435BAE

JE436BAE

JE437BAE

JE359A

JE360A

JE361A

JE382A

JE383A

JE273A

JE272A

JE435A

JE436A

JE437A

JE427BAE

JE426BAE

JE334BAE

JE336BAE

JE333BAE

JE335BAE

JE434BAE

JE422BAE

JE423BAE

JE424BAE

DA - 14029 EMEA — Version 2 — October 17, 2011 Page 14

QuickSpecs

Accessory Product Details

(JE359A)

(JE360A)

(JE361A)

4 RJ-11 FXO ports

Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

4 RJ-11 FXS ports

Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

4 RJ-45 ISDN voice ports

Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

1 T1/E1 port

Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

2 T1/E1 ports

Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

To learn more, visit: www.hp.com/networking

© Copyright 2011 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation.

DA - 14029 EMEA — Version 2 — October 17, 2011 Page 15

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
