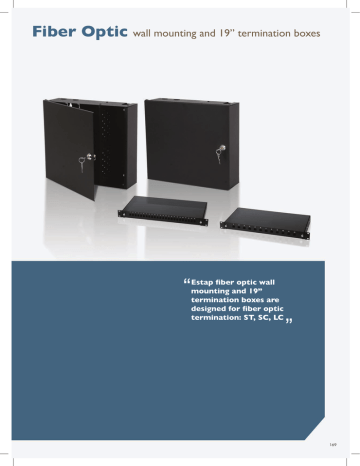

Estap fiber optic wall
mounting and 19”
termination boxes are
designed for fiber optic
termination: ST, SC, LC
169
Fiber Optic
wall mounting termination boxes
•Designed for fiber optic termination: ST, SC, LC connector plates are available in front.
•Lockable in front with spring type screws.
•Shipment configuration is 1 ea. PG16 plug and 4ea. plastic cable organiser.
•Cable clamps on the inner surface for fixing cables.
•Standard colour is RAL 9005 black.
RAL 7035 light grey colour is also available.
Unless noted shipped in black RAL 9005.
Fiber optic termination boxes - Wall mounting type
Part
number
170
Product definition
M66 FBOX 6ST
Wall mounting fiber optic termination box, capacity: 6 port ST, colour: black
M66 FBOX 24ST
Wall mounting fiber optic termination box, capacity: 24 port ST, colour: black
M66 FBOX 24SC D
Wall mounting fiber optic termination box, capacity: 24 port SC dublex, colour: black
M66 FBOX 24SC S
Wall mounting fiber optic termination box, capacity: 24 port SC simplex, colour: black
Fiber Optic 19” rack mount termination boxes
•1 U, 19” rack mount
•Sliding type tray to access pigtails
•Sliding type rack mount bracket to adjust the depth
•Welded screw in the middle of inner surface for splice cassette.
•Standard colour is RAL 9005 black.
RAL 7035 light grey colour is also available.
•Cable clamps on the inner surface for fixing cables
•Shipment configuration is 1 ea. PG16 plug and 4 ea. plastic cable organiser.
Fiber optic termination boxes - 1U, 19” Rack mount optical distribution boxes
Part
number
Product definition
WXDxH
(mm)
M66 PP 12SC D 1U 19” Optical distribution box, capacity: 12 ea. SC dublex, adaptor fixing hole diameter= XX mm 482x225x44,45
M66 PP 12SC S 1U 19” Optical distribution box, capacity: 12 ea. SC simplex, adaptor fixing hole diameter= XX mm 482x225x44,45
M66 PP 24SC D 1U 19” Optical distribution box, capacity: 24 ea. SC dublex, adaptor fixing hole diameter= XX mm 482x225x44,45
M66 PP 24SC S 1U 19” Optical distribution box, capacity: 24 ea. SC simplex, adaptor fixing hole diameter= XX mm 482x225x44,45
M66 PP 12 ST
1U 19” Optical distribution box, capacity: 12 ea. ST / FC
482x225x44,45
M66 PP 24 ST
1U 19” Optical distribution box, capacity: 24 ea. ST / FC
482x225x44,45
M66 PP 12 LC
1U 19” Optical distribution box, capacity: 12 ea. LC dublex
482x225x44,45
XX=1,8 mm - 2,4 mm - 3 mm
Please mention the adaptor fixing hole diameter in your orders.
Unless mentioned, the product will send with 3 mm hole diameter as standard.
171
