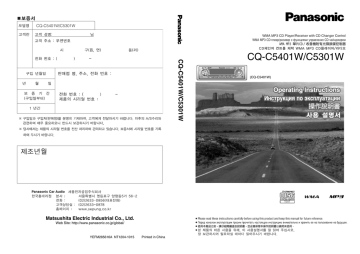

CQ-C5401W/C5301W

CQ-C5401W/C5301W

Matsushita Electric Industrial Co., Ltd.

Web Site: http://www.panasonic.co.jp/global/

YEFM285616A NT1204-1015 Printed in China

WMA MP3 CD Player/Receiver with CD Changer Control

WMA MP3 CD-ÔÎÂÂ/ÂÒË‚Âp c ÙyÌ͈ËflÏË yÔ‡‚ÎÂÌËfl CD-˜ÂÈ̉ÊÂÓÏ

WMA MP3 單片CD/收音機附有光碟換碟控制器

CD체인저 컨트롤 채택 WMA MP3 CD플레이어/라디오

CQ-C5401W/C5301W

MUTE

SRC

PWR

VO

LU

M

SQ 1 2

SCROLL

3

RANDOM

4

CQ-C5401W

SCAN

5

/T

R

AC

K

TILT/OPEN

DISC

BAND

APM

REPEAT

6

FO

CLOCK

LD

ER

DISP

(CQ-C5401W)

TEXT

2

E

N

G

L

I

S

H

1

Safety Information

Read the operating instructions for the unit and all other components of your car audio system carefully before using the system. They contain instructions about how to use the system in a safe and effective manner. Panasonic assumes no responsibility for any problems resulting from failure to observe the instructions given in this manual.

This manual uses pictographs to show you how to use the product safely and to alert you to potential dangers resulting from improper connections and operations. The meanings of the pictographs are explained below. It is important that you fully understand the meanings of the pictographs in order to use this manual and the system properly.

Warning

This pictograph intends to alert you to the presence of important operating instructions and installation instructions. Failure to heed the instructions may result in severe injury or death.

Caution

This pictograph intends to alert you to the presence of important operating instructions and installation instructions. Failure to heed the instructions may result in injury or material damage.

Warning

Observe the following warnings when using this unit.

The driver should neither watch the display nor

operate the system while driving.

Watching the display or operating the system will distract the driver from looking ahead of the vehicle and can cause accidents. Always stop the vehicle in a safe location and use the parking brake before watching the display or operating the system.

Use the proper power supply.

This product is designed for operation with a negative grounded 12 V DC battery system. Never operate this product with other battery systems, especially a 24 V DC battery system.

Keep batteries and insulation film out of reach of

infants.

Batteries and insulation film can be ingested, so keep them out of the reach of infants. If an infant ingests a battery or insulation film, please seek immediate medical attention.

Protect the Deck Mechanism.

Do not insert any foreign objects into the slot of this unit.

Do not disassemble or modify the unit.

Do not disassemble, modify the unit or attempt to repair the product yourself. If the product needs to be repaired, consult your dealer or an authorized Panasonic Service Center.

Do not use the unit when it is out of order.

If the unit is out of order (no power, no sound) or in an abnormal state (has foreign objects in it, is exposed to water, is smoking, or smells), turn it off immediately and consult your dealer.

The remote control unit should not lie about in the

car.

If the remote control unit lies about, it could fall on the floor while driving, get wedged under the brake pedal, and lead to a traffic accident.

Refer fuse replacement to qualified service person-

nel.

When the fuse blows out, eliminate the cause and have it replaced with the fuse prescribed for this unit by a qualified service engineer. Incorrect replacement of the fuse may lead to smoke, fire, and damage to the product.

Observe the following warnings when installing.

Disconnect the lead from the negative (–) battery

terminal before installation.

Wiring and installation with the negative (–) battery terminal connected may cause electrical shock and injury due to a short circuit.

Some cars equipped with the electrical safety system have specific procedures of battery terminal disconnection.

FAILURE TO FOLLOW THE PROCEDURE MAY LEAD TO THE

UNINTENDED ACTIVATION OF THE ELECTRICAL SAFETY

SYSTEM RESULTING IN DAMAGE TO THE VEHICLE AND

PERSONAL INJURY OR DEATH.

Never use safety-related components for installa-

tion, grounding, and other such functions.

Do not use safety-related vehicle components (fuel tank, brake, suspension, steering wheel, pedals, airbag, etc.) for wiring or fixing the product or its accessories.

Installing the product on the air bag cover or in a

location where it interferes with airbag operation is prohibited.

Check for piping, gasoline tank, electric wiring, and

other items before installing the product.

If you need to open a hole in the vehicle chassis to attach or wire the product, first check where the wire harness, gasoline tank, and electric wiring are located. Then open the hole from outside if possible.

Never install the product in a location where it inter-

feres with your field of vision.

Never have the power cord branched to supply other

equipment with power.

After installation and wiring, you should check the

normal operation of other electrical equipment.

The continuation of their using in abnormal conditions may cause fire, electrical shock or a traffic accident.

In the case of installation to an airbag-equipping

car, confirm warnings and cautions of the vehicle manufacturer before installation.

Make sure the leads do not interfere with driving or

getting in and out of the vehicle.

Insulate all exposed wires to prevent short circuit-

ing.

CQ-C5401W/C5301W

Caution

Observe the following cautions when using this unit.

Keep the sound volume at an appropriate level.

Keep the volume level low enough to be aware of road and traffic conditions while driving.

Do not insert or allow your hand or fingers to be

caught in the unit.

To prevent injury, do not get your hand or fingers caught in moving parts or in the disc slot. Especially watch out for infants.

This unit is designed for use exclusively in automo-

biles.

Do not operate the unit for a prolonged period with

the engine turned off.

Operating the audio system for a long period of time with the engine turned off will drain the battery.

Do not expose the unit to direct sunlight or exces-

sive heat.

Otherwise these will raise the interior temperature of the unit, and it may lead to smoke, fire, or other damage to the unit.

Do not use the product where it is exposed to water,

moisture, or dust.

Exposure of the unit to water, moisture, or dust may lead to smoke, fire, or other damage to the unit. Make especially sure that the unit does not get wet in car washes or on rainy days.

Observe the following cautions when installing.

Refer wiring and installation to qualified service

personnel.

Installation of this unit requires special skills and experience.

For maximum safety, have it installed by your dealer.

Panasonic is not liable for any problems resulting from your own installation of the unit.

Follow the instructions to install and wire the prod-

uct.

Not following the instructions to properly install and wire the product could cause an accident or fire.

Take care not to damage the leads.

When wiring, take care not to damage the leads. Prevent them from getting caught in the vehicle chassis, screws, and moving parts such as seat rails. Do not scratch, pull, bend or twist the leads. Do not run them near heat sources or place heavy objects on them. If leads must be run over sharp metal edges, protect the leads by winding them with vinyl tape or similar protection.

Use the designated parts and tools for installation.

Use the supplied or designated parts and appropriate tools to install the product. The use of parts other than those supplied or designated may result in internal damage to the unit.

Faulty installation may lead to an accident, a malfunction or fire.

Do not block the air vent or the cooling plate of the

unit.

Blocking these parts will cause the interior of the unit to overheat and will result in fire or other damage.

Do not install the product where it is exposed to

strong vibrations or is unstable.

Avoid slanted or strongly curved surfaces for installation. If the installation is not stable, the unit may fall down while driving and this can lead to an accident or injury.

Installation Angle

The product should be installed in a horizontal position with the front end up at a convenient angle, but not more than

30˚.

The user should bear in mind that in some areas there may be restrictions on how and where this unit must be installed.

Consult your dealer for further details.

Wear gloves for safety. Make sure that wiring is

completed before installation.

To prevent damage to the unit, do not connect the

power connector until the whole wiring is completed.

Do not connect more than one speaker to one set of

speaker leads. (except for connecting to a tweeter)

Observe the following cautions when handling the battery for the remote control unit.

Use only specified battery (CR2025).

Match the polarity of the battery with the (+) and (–) marks in the battery case.

Replace dead battery as soon as possible.

Remove the battery from the remote control unit when not using it for an extended period of time.

Insulate the battery (by placing them in a plastic bag or covering them with vinyl tape) before disposal or storage.

Dispose of the battery according to the local regulations.

Do not disassemble, recharge, heat or short the battery. Do not throw a battery into a fire or water.

In case of battery leakage

Thoroughly wipe the battery liquid off the battery case and insert new battery.

If any part of your body or clothing comes into contact with battery liquid, wash it with plenty of water.

If battery liquid comes into contact with your eyes, wash them with plenty of water and get immediate medical attention.

E

N

G

L

I

S

H

2

3

CQ-C5401W/C5301W

E

N

G

L

I

S

H

3

Safety Information

(continued)

Caution

THIS PRODUCT IS A CLASS I LASER PRODUCT.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE

OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN

MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR BY YOURSELF.

REFER SERVICING TO QUALIFIED PERSONNEL.

Before Reading These Instructions

Panasonic welcomes you to our constantly growing family of electronic products owners.

We endeavor to give you the advantages of precise electronic and mechanical engineering, manufactured with carefully selected components, and assembled by people who are proud of the reputation their work has built for our company. We know this product will bring you many hours of enjoyment, and after you discover the quality, value and reliability we have built into it, you too will be proud to be a member of our family.

Differences between 2 Models

¡ This operating instruction manual is for 2 models CQ-C5401W and CQ-C5301W. All illustrations throughout this manual represent model CQ-C5401W unless otherwise specified. The following table describes the differences between 2 models.

Models

Features

Pre-amp output voltage

Subwoofer output voltage

CQ-C5401W

5 V

5 V

CQ-C5301W

2.5 V

2.5 V

Features

Fully Motorized Face Plate

A touch is all it takes to slide the face plate down for access to the disc slot. A three-stage tilt function permits viewing angle to be adjusted to 15, 25 or 35 degrees for optimum display visibility.

SQ (Sound Quality)

You have 6 preset modes (FLAT, ROCK, POP, VOCAL,

JAZZ, CLUB). You can customize your setting for these

(except FLAT) and save them for instant recall.

SQ3 (3-Band Sound Quality)

Center frequency and level are adjustable in each of 3 bands. This lets you fine-tune sound quality for each genre to suit car-interior acoustics and your personal preferences. ( a

Page 22)

MP3/WMA Playback from CD-R/RW

(MP3/WMA Player a Page 16)

CD Changer

Option

You can connect the optional Panasonic CD changer unit

(CX-DP880). For details, refer to the operating instructions for the CD changer unit.

E

N

G

L

I

S

H

4

Contents

Common

Safety Information .............................................. 2

Before Reading These Instructions....................4

Features ............................................................... 5

Contents .............................................................. 5

Accessories ........................................................ 6

Remote Control Unit ......................................... 6

Preparation ........................................................ 7

General ................................................................ 8

Each source

Radio ................................................................. 12

Before Disc Playback ....................................... 14

CD Player .......................................................... 15

MP3/WMA Player .............................................. 16

Notes on MP3/WMA ......................................... 18

CD Changer Control ......................................... 20

As needed

Audio Settings .................................................. 22

Function Settings ............................................. 26

Anti-Theft System ............................................ 28

Fuse ................................................................... 29

Maintenance ..................................................... 29

Notes on Discs ................................................. 29

Troubleshooting ............................................... 30

Specifications ................................................... 35

4

CQ-C5401W/C5301W CQ-C5401W/C5301W

5

6

E

N

G

L

I

S

H

5

Accessories

XXXXXXXXXXXXXXX

XXXXXXXXXXXXXXXXX

OO-OOOOO

Operating

Instructions

(YEFM285616)

Q'ty: 1

Installation

Instructions

(YEFM293958)

Q'ty: 1

Instruction kit

Lock Cancel

Plate

Q'ty: 2

Mounting

Bolt

Q'ty: 1

Installation kit

Rubber

Bushing

Q'ty: 1

Power

Connector

(YEP0FZ5698)

(YEAJ02877)

Q'ty: 1

POWER

SOURCE MENU

SRC

SET

BAND MUTE

RANDOM

4

SCAN REPEAT

TUNE

NUMBER

TUNE

DISP

CAR AUDIO

Trim Plate Mounting

Collar

CQ-C5301W

(YEFC051004)

Q'ty: 1

CQ-C5401W

(YEFC05606)

Q'ty: 1

(YEFX0217263)

Q'ty: 1

Removable

Face Plate

Case

(YEFA131839)

Q'ty: 1

Remote

Control Unit

(Includes a battery)

(EUR7641010)

Q'ty: 1

Note:

¡ The number in parentheses underneath each accessory part name is the part number for maintenance and service.

¡ Accessories and their parts numbers are subject to modification without prior notice due to improvements.

¡ Trim Plate and Mounting Collar are mounted on the main unit at shipment.

Remote Control Unit

¡ This instruction manual explains operations for use with the buttons on the main unit. (Different operations excluded)

Power

Source

Set

Band

Pause

Random

Scan

Repeat

Track/folder/file/disc number input

Folder/disc selection

Function setting

POWER

SOURCE MENU

SET

RANDOM SCAN REPEAT

TUNE

NUMBER

CAR AUDIO

TUNE

Menu

Select

Volume/audio setting

Mute/attenuation

[0] to [9]

Tune

Track/file selection

Fast forward/fast reverse

Display

CQ-C5401W/C5301W

Preparation

Preparation Before Initial Use

Remote Control Unit

Pull the insulation film out from the backside of the remote control gently.

Warning

¡Keep batteries away from children to avoid the risk of accidents. If an infant ingests a battery, please seek immediate medical attention.

Battery Replacement

q Remove the battery holder with the remote control unit placed on a flat surface.

q Stick your thumbnail into the groove, and push the holder in the direction of the arrow at the same time.

w Pull it out in the direction of the arrow using a tough pointed object.

w Put a battery in the case with (+) side facing up.

e Put the case back.

Tough pointed object

Back side q

2

3 w

Caution

¡ Remove and dispose of an old battery immediately.

¡ Do not disassemble, heat or short a battery. Do not throw a battery into a fire or water.

¡ Follow local regulations when disposing of a battery.

¡ Improper use of a battery may cause overheating, an explosion or ignition, resulting in injury or a fire.

Note:

¡Battery Information:

Battery Type: Panasonic lithium battery (CR2025)

(Included in the remote control)

Battery Life: Approximately 6 months under normal use

(at room temperature)

Main Unit

Cancellation of demonstration Clock Setting

The demonstration message appears for initial use.

qSet your car’s ignition switch to the ACC or ON position.

The demonstration screen appears.

The 24-hour system is used for the clock.

q Press [SRC] (PWR) to turn on the power.

w Press [DISP].

Clock display wPress [DISP].

The demonstration screen is canceled, and no more appears.

Note:

¡

I f you would like to turn on the power and make the demonstration message appear, press and hold [SRC]

(PWR) for more than 4 seconds.

MUTE

SRC

PWR

VO

LU

M

E

L

SQ

[SRC]

(PWR: Power)

1 2

SCROLL

3

RANDOM

4

CQ-C5401W

SCAN

5

/T

E

R

AC

K

TILT/OPEN

DISC

BAND

APM

REPEAT

6

FO

CLOCK

LD

ER

DISP

[DISP] (Display)

[]] [[]

(Hour/minute adjustment) e Press and hold [DISP] for more than 2 seconds.

Hour blinks r Adjust the hour.

[[]: put forward hour.

[]]: put back hour.

Hour entered t Press [DISP].

Minute blinks y Adjust the minute.

[[]: put forward minute.

[]]: put back minute.

Minute entered u Press [DISP].

Completed

Note:

¡“ADJUST” is displayed before adjusting the clock.

¡Press and hold [[] or []] to change numbers rapidly.

E

N

G

L

I

S

H

7

CQ-C5401W/C5301W

8

E

N

G

L

I

S

H

7

General

[SRC: Source] (PWR: Power)

Remote control sensor ( a Page 6)

Spectrum analyzer ( a

Page 26)

CD Player mode display ( a Page 15)

(SQ3) indicator

MUTE

SRC

PWR

VO

LU

M

E

L

SE

H

SQ

SCROLL RANDOM

CQ-C5401W

SCAN

N

E

/T

R

AC

K

TILT/OPEN

DISC

BAND

APM

REPEAT

FO

CLOCK

LD

ER

DISP

[SQ] (Sound Quality)

[VOLUME] Preset Buttons [1] to [6]

[MUTE] (Mute/attenuation)

Power

Set your car’s ignition switch to the ACC or ON position.

ON:

Press [SRC] (PWR).

[DISP] (Display)

Source

Press [SRC] to change the source.

Radio

( a

Page 12)

OFF: Press and hold [SRC] (PWR) until you hear a

beep (approximately 1 second), then release it.

CD Player

( a Page 15)

Note:

¡ When the ignition switch is set to ON, the face plate is tilted to secure their former positions.

¡ If you turn the key to the ACC OFF position during the security function is active, the security message appears with a warning alarm. (Default: SLED ON)

( a Page 26 about Security Function setting)

OR

MP3/WMA Player

(When an MP3/WMA data disc is in the player a Page

16)

CD Changer Control

(When an optional CD changer is connected a

Page 20)

OR

AUX

(Sound source connecting to the AUX input terminal a

Installation Instructions)

Note:

¡AUX cannot be used when the CD changer is connected to the DIN connector.

CQ-C5401W/C5301W

Volume

Down

Up

Default: 13

Setting range: 0 to 40

Note:

¡ The volume level can be set independently for each source. (For radio, one volume setting for AM, one volume setting for all FMs)

Mute/Attenuation

ON : Press [MUTE].

OFF : Press [MUTE] again.

You can select mute or attenuation. ( a

Page 26)

SQ (Sound Quality)

You have 6 preset modes (FLAT, ROCK, POP, VOCAL,

JAZZ, CLUB). You can customize your setting for these

(except SQ-FLAT) and save them for instant recall.

SQ3 (3-Band Sound Quality)

Center frequency and level are adjustable in each of 3 bands. This lets you fine-tune sound quality for each genre to suit car-interior acoustics and your personal preferences. ( a

Page 22)

Press [SQ] to select the sound type as follows:

Preset number

(Default)

(FLAT) flat frequency response: does not emphasize any part.

E

N

G

L

I

S

H

indicator

(ROCK) speedy and heavy sound: exaggerates bass and treble.

(POP) wide-ranged and deep sound: slightly emphasizes bass and treble.

(VOCAL) clear sound: emphasizes middle tone and slightly emphasizes treble.

(JAZZ) jazz-specific deep sound: sound with emphasis on sharpness of high-hat and echo of saxophone.

(CLUB) club and disco-specific sound: reproduction of realism being in a club.

Press [DISP] to return to the regular mode.

Note:

¡ After pressing [SQ] on the main unit, you can also select a sound type by pressing the preset buttons [1] to [6].

CQ-C5401W/C5301W

9

E

N

G

L

I

S

H

9

General

(continued)

Caution

¡Do not pinch your finger or hand in the face plate.

MUTE

SRC

PWR

VO

LU

M

E

L

SE

H

SQ 1 2

SCROLL

3

RANDOM

4

CQ-C5401W

SCAN

5

N

E

/T

R

AC

K

TILT/OPEN

DISC

BAND

APM

REPEAT

6

FO

CLOCK

LD

ER

DISP

[u: Eject]

(TILT/OPEN)

Open the Face Plate

Press [u] (OPEN).

Note:

¡The face plate automatically closes after a warning alarm sounds if no operation is performed for approximately

20 seconds.

¡ When a disc is already loaded, the disc will be ejected after the face plate fully opens.

(Disc Eject a Page 14)

Close the Face Plate

Press [u] (OPEN).

[DISP]

Face Plate Angle (Tilt)

Press and hold [u] (TILT) until you hear a beep (approximately 1 second) from the speaker output, then release it.

Set the face plate to the position at which it is easy to read what is on the display. Each time the above operation is repeated, the face plate angle changes in the sequence shown below.

Clock Display (at Power off)

When the power of the unit is set to OFF, press [DISP].

(Clock time) (Default)

(Display off)

When the power is set to ON, refer to the description for each source mode.

TILT 1

TILT 2

TILT 3

OPEN

TILT OFF

Note:

¡The positions specified at “Face Plate Angle (Tilt)” are memorized even after the following operations.

¡Open/close

¡ACC on/off

10

CQ-C5401W/C5301W CQ-C5401W/C5301W

11

E

N

G

L

I

S

H

10

E

N

G

L

I

S

H

11

Radio

[SRC: Source]

(Stereo) indicator

[]] [[]

(TUNE)

MUTE

SRC

PWR

VO

LU

M

E

L

SE

H

SQ

1 2

SCROLL

3

RANDOM

4

CQ-C5401W

SCAN

5

N

E

/T

R

AC

K

TILT/OPEN

DISC

BAND

APM

REPEAT

6

FO

CLOCK

LD

ER

DISP

Preset Buttons [1] to [6]

(Preset station) q

Radio Mode

Press [SRC] to select the radio mode.

[BAND]

(APM: Auto Preset Memory)

[DISP] (Display)

Display Change

Press [DISP] to change the display as follows.

Frequency

Clock Time

Band Frequency

Preset number w

Band

Press [BAND].

Display Off e

Tuning

[[]: Higher frequency

[]]: Lower frequency

Press and hold [[] or []] for more than 0.5

seconds, then release it. Seeking will start.

12

CQ-C5401W/C5301W

Station Preset

Up to 6 stations can be stored in each of the FM1, FM2, FM3 and AM band selections.

Note:

¡ New stations overwrite existing saved stations after these procedures.

Warning

¡To ensure safety, never attempt to preset stations while you are driving.

Auto Preset Memory (APM)

With this operation, stations with good receiving conditions can be automatically stored in the preset memory.

q Select a band. ( a

Previous page) w Press and hold [BAND] (APM) for more than 2 seconds.

6 stations with first to 6th highest in signal strength will be preset to each band.

Once set, the preset stations are sequentially scanned for 5 seconds each. (scanning)

Manual Preset Memory

With this operation, a station can be manually stored in the preset memory.

q Select a band and frequency. ( a

Previous page) w Press and hold one of the preset buttons from [1] to [6] until the display blinks once.

Preset number

Note:

¡ To stop scanning, press one of the buttons from [1] to

[6].

Preset Station Calling

q Select a band. ( a Previous page) w Press one of the preset buttons from [1] to [6].

CQ-C5401W/C5301W

13

E

N

G

L

I

S

H

14

E

N

G

L

I

S

I

S

H

Before Disc Playback

Caution

¡ 8 cm discs are not available for this unit,

therefore, do not insert them.

¡ Do not use irregularly shaped discs.

¡ Do not use discs that have a seal or label attached.

¡ To avoid damaging the face plate, do not push it down or place objects on it while it is open.

¡ Do not pinch your finger or hand in the face plate.

¡ Do not insert foreign objects into the disc slot.

Disc Insert

q Press [u] (OPEN).

When a disc is already loaded ( lights), the disc will be ejected after the face plate fully opens.

TILT/OPEN

DISC

[u: Eject]

(OPEN)

w Insert a disc.

Available Discs

CD-R

CD-DA

CD-RW

CD-DA

MP3/WMA MP3/WMA

CD-TEXT

CD-DA

CD-ROM

MP3/WMA

Note:

¡ Refer to the section on “Notes on MP3/WMA” ( a

Page 18) and “Notes on Discs” ( a Page 29).

¡ The power will be turned on automatically when a disc is loaded.

¡ A disc which has both CD-DA data and MP3/WMA data on it may not be reproduced normally.

Printed Side

Note:

¡ It may take some time to start playing.

¡ Playback will start automatically after recognizing the data of the loaded disc.

OR

(

a

Page 16 about MP3/WMA Player)

Disc Eject

q Press [u] (OPEN).

The disc will be ejected after the face plate fully opens.

w Take the disc out.

e Press [u] (OPEN) to close the face plate.

Note:

¡ The face plate is automatically closed after a warning alarm sounds if no operation is performed for approximately 20 seconds.

CD Player

[SRC: Source]

MUTE

SRC

PWR

VO

LU

M

E

L

SE

H

SQ

1

indicator

2

SCROLL

3

RANDOM

4

CQ-C5401W

SCAN

5

N

E

/T

R

AC

K

TILT/OPEN

DISC

BAND

APM

REPEAT

6

FO

CLOCK

LD

ER

DISP

[s] [d] (a / f)

(Track selection/fast forward/fast reverse)

[BAND] (

y / 5

:

Pause/play)

When CD is in the player

Press [SRC] to select the CD player mode and playback starts.

Track Play time

Display Change

Press [DISP].

Track/Play time

Disc title

[3] (SCROLL)

[5] (SCAN)

[4] (RANDOM) [6] (REPEAT)

Pause (y / 5)

[DISP] (Display)

Press [BAND] (y / 5).

Press [BAND] (y / 5) again to cancel.

Random Play

All the available tracks are played in a random sequence.

Press [4] (RANDOM).

lights.

Press [4] (RANDOM) again to cancel.

Scan Play

The first 10 seconds of each track is played in sequence.

Press [5] (SCAN).

Track title

Clock time

Display off

Press [5] (SCAN) again to cancel.

Repeat Play

The current track is repeated.

Press [6] (REPEAT).

lights.

Press [6] (REPEAT) again to cancel.

Direct Track Selection

(Only for remote control unit)

Example: Track number 10

Note:

¡ “NO TEXT” is displayed when there is no information on the disc.

¡ To have another circle scroll while a title is displayed, press [3] (SCROLL). If the number of displayed characters is 8 or less, the characters do not scroll.

Track Selection

[d]: Next track

[s]: Beginning of the current track

For the previous track, press twice.

Fast Forward/Fast Reverse

Press and hold

[d] (f): Fast forward

[s] (a): Fast reverse

Release them to resume normal playback.

q Press [#].

w Press [1] [0].

e Press [BAND] (SET).

Note:

¡ To suspend direct selection, press [DISP].

¡ Random, Scan and Repeat plays are canceled once [#] is pressed.

E

N

G

L

I

S

H

15

CQ-C5401W/C5301W CQ-C5401W/C5301W

E

N

G

L

I

S

H

15

MP3/WMA Player

[SRC: Source] indicator

MUTE

SRC

PWR

VO

LU

M

E

L

SE

H

SQ

1 2

SCROLL

3

RANDOM

4

CQ-C5401W

SCAN

5

N

E

/T

R

AC

K

TILT/OPEN

DISC

BAND

APM

REPEAT

6

FO

CLOCK

LD

ER

DISP

[s] [d] (a / f)

(File selection/fast forward/fast reverse)

[{] [}] (FOLDER)

(Folder selection)

[BAND] (

y / 5

:

Pause/play)

[3] (SCROLL) [5] (SCAN)

[4] (RANDOM)

[6] (REPEAT)

When a disc is in the player

Press [SRC] to select the MP3/WMA player mode and playback starts.

[DISP] (Display)

Note:

¡ “NO TEXT” is displayed when there is no information on the disc.

¡ To have another circle scroll while a title is displayed, press [3] (SCROLL). If the number of displayed characters is 8 or less, the characters do not scroll.

Folder File

Display Change

Press [DISP].

Folder/File

Folder Selection

[}]: Next folder

[{]: Previous folder

Play time

Folder name

(

File name

(

Album name

(

)

(Data reading)

)

(Data reading)

)

(Data reading)

File Selection

[d]: Next file

[s]: Beginning of the current file

For the previous file, press twice.

Fast Forward/Fast Reverse

Press and hold

[d] (f): Fast forward

[s] (a): Fast reverse

Release them to resume normal playback.

Pause (y / 5)

Press [BAND] (y / 5).

Press [BAND] (y / 5) again to cancel.

Title and Artist name

( )

(Data reading)

Clock time

Display off

16

CQ-C5401W/C5301W

Random Play

All the available files are played in a random sequence.

Press [4] (RANDOM). lights.

Press [4] (RANDOM) again to cancel.

Folder Random Play

All the files in the current folder are played in a random sequence.

Press and hold [4] (RANDOM) for more than 2 seconds.

light.

Press and hold [4] (RANDOM) again for more than 2 seconds to cancel.

Scan Play

The first 10 seconds of each file is played in sequence.

Press [5] (SCAN).

Repeat Play

The current file is repeated.

Press [6] (REPEAT).

lights.

Press [6] (REPEAT) again to cancel.

Folder Repeat Play

The current folder is repeated.

Press and hold [6] (REPEAT) for more than 2 seconds.

light.

Press and hold [6] (REPEAT) again for more than 2 seconds to cancel.

Direct Selection

(Only for remote control)

Direct Folder Selection

Example: Folder number 10 ( a Page 19)

Press [5] (SCAN) again to cancel.

Folder Scan Play

From the next folder, the first 10 seconds of the first file in each folder is played in sequence.

Press and hold [5] (SCAN) for more than 2 seconds.

lights.

Press and hold [5] (SCAN) again for more than 2 seconds to cancel.

q Press [#] twice.

w Press [1] [0]. e Press [BAND] (SET).

Direct File Selection

Example: File number 10 q Press [#].

w Press [1] [0].

e Press [BAND] (SET).

Note:

¡To suspend direct selection, press [DISP].

¡Random, Folder Random, Scan, Folder Scan, Repeat and

Folder Repeat plays are canceled once [#] is pressed.

CQ-C5401W/C5301W

17

E

N

G

L

I

S

H

E

N

G

L

I

S

H

17

Notes on MP3/WMA

What is MP3/WMA?

MP3 (MPEG Audio Layer-3) and WMA (Windows Media TM Audio) are the compression formats of digital audio. The former is developed by MPEG (Motion Picture Experts Group), and the latter is developed by Microsoft Corporation. Using these compression formats, you can record the contents of about 10 music CDs on a single CD (This figure refers to data recorded on a 650 MB CD-R or CD-RW at a fixed bit rate of 128 kbps and a sampling frequency of 44.1 kHz).

Display Information

Displayed items

¡ CD-TEXT

Disc title

Track title

¡ MP3/WMA

Folder name

File name

¡ MP3 (ID3 tag)

Album name

Title and artist name

¡ WMA (WMA tag)

Album name

Title and artist name

Note:

¡ MP3/WMA encoding and CD writing software programs are not supplied with this unit.

Points to remember when making MP3/WMA files

Common

¡ High bit rate and high sampling frequency are recommended for high quality sound.

¡ Selecting VBR (Variable Bit Rate) is not recommended because playing time is not displayed properly and sound may be skipped.

¡ The playback sound quality differs depending on the encoding circumstances. For details, refer to the instructions of your own encoding software and writing software.

MP3

¡ It is recommended to set the bit rate to “128 kbps or more” and “fixed”.

WMA

¡ It is recommended to set the bit rate to “64 kbps or more” and “fixed”.

¡Do not set the copy protection on the WMA file to enable this unit to play back.

Displayable characters

¡ Displayable length of file name/folder name: within 128 characters.

¡ Name files and folders in accordance with the standard of each file system. Refer to the instructions of writing software for details.

¡ ASCII character set and special characters in each language can be displayed.

ASCII character set

A to Z, a to z, digits 0 to 9, and the following symbols:

(space) ! ” # $ % & ’ ( ) * + , - . / : ; < = > ? @ [ \ ] ˆ _ ` { | }

~

Special characters

À Á Â Ã Å à á â ã å

Ä ä

Ò Ó Ô Õ Ö ò ó ô õ ö

Ù Ú Û Ü ù ú û ü

Note:

¡ With some software in which MP3/WMA format files have been encoded, the character information may not be displayed properly.

¡ Undisplayable characters and symbols will be converted into an asterisk ( ).

¡It is recommended that the length of the file name is less than

8 (excluding the file extension).

Caution

¡

Never assign the “.mp3”, or “.wma” file name extension to a file that is not in the

MP3/WMA format. This may not only produce noise from the speaker damage, but also damage your hearing.

Windows Media, and the

Windows logo are trademarks, or registered trademarks of

Microsoft Corporation in the

United States and/or other countries.

18

¡ You are recommended to minimize the chances of making a

disc that contains both CD-DA files and MP3/WMA files.

¡ If CD-DA files are on the same disc as MP3 or WMA files,

the songs may not play in the intended order, or some songs may not play at all.

¡ When storing MP3 data and WMA data on the same disc,

use different folders for each data.

¡ Do not record files other than MP3/WMA files and unnecessary folder on a disc.

¡ The name of an MP3/WMA file should be added by rules as shown in the following descriptions and also comply with the rules of each file system.

¡ The file extension “.mp3” or “.wma” should be assigned to each file depending on the file format.

¡ You may encounter trouble in playing MP3/WMA files or displaying the information of MP3/WMA files recorded with certain writing software or CD recorders.

¡ This unit does not have a play list function.

¡ Although Multi-session recording is supported, the use of

Disc-at-Once is recommended.

Supported file systems

ISO 9660 Level 1/Level 2, Apple Extension to ISO 9660, Joliet,

Romeo

Note:

¡ Apple HFS, UDF 1.50, Mix CD and CD Extra are not supported.

E

N

G

L

I

S

H

Compression formats

( Recommendation: “Points to remember when making MP3/WMA files” on the previous page)

Compression method

MPEG 1 audio layer 3 (MP3)

MPEG 2 audio layer 3 (MP3)

Windows Media Audio Ver. 2, 8

Bit rate

32 k - 320 kbps

8 k - 160 kbps

64 k - 192 kbps

VBR

Yes

Yes

No

Sampling frequency

32, 44.1, 48 kHz

16, 22.05, 24 kHz

32, 44.1, 48 kHz

Folder selection order/file playback order

Maximum number of files/folders

¡ Maximum number of files: 999

¡ Maximum number of files in one folder: 255

¡ Maximum depth of trees: 8

¡ Maximum number of folders: 255 (Root folder is included.)

Note:

¡ This unit counts the number of folders irrespective of the presence or absence of an MP3/WMA file.

¡ If the selected folder does not contain any MP3/WMA files, the nearest MP3/WMA files in the order of playback will be played.

¡ Playback order may be different from other MP3/WMA players even if the same disc is used.

¡ “ROOT” appears when displaying the root folder name.

1

2

3

5

6

Root Folder

(Root Directory)

4 q

7 w

Tree 1

Tree 2

8 e

Folder Selection

In the order

1 – 8

File Selection

In the order q

– y r

Tree 3

t y

Tree 4 Tree 8

(Max.)

Copyright

It is prohibited by copyright laws to copy, distribute and deliver copyrighted materials such as music without the approval of copyright holder except enjoying yourself personally.

No warranty

Above description complies with our investigations as of

December 2004. It has no warranty for reproducibility and displayability of MP3/WMA.

19

CQ-C5401W/C5301W CQ-C5401W/C5301W

E

N

G

L

I

S

H

19

CD Changer Control

[SRC: Source] indicator

MUTE

SRC

PWR

VO

LU

M

E

L

SE

H

SQ

1 2

indicator

SCROLL

3

RANDOM

4

CQ-C5401W

SCAN

5

N

E

/T

R

AC

K

TILT/OPEN

DISC

BAND

APM

FO

REPEAT CLOCK

LD

ER

6

DISP

[s] [d] (a / f)

(Track selection/fast forward/fast reverse)

[{] [}] (DISC)

(Disc selection)

[5] (SCAN)

[4] (RANDOM) [6] (REPEAT)

[DISP] (Display)

¡CD changer functions are designed for optional

Panasonic CD changer unit (CX-DP880).

Preparation:

¡Connect the CD changer, and load a magazine (CDs).

CD Changer Mode

Press [SRC] to select the CD changer mode and playback starts.

Disc

Track

Play time

Note:

¡ Load a magazine with CDs when “NO DISC” is displayed.

¡ The power will be turned on automatically when a magazine is loaded.

Display Change

Press [DISP].

Disc Selection

[}]: Next disc

[{]: Previous disc

Track Selection

[d]: Next track

[s]: Beginning of the current track

For the previous track, press twice.

Fast Forward/Fast Reverse

Press and hold

[d] (f): Fast forward

[s] (a): Fast reverse

Release them to resume the playback.

Clock time

Display Off

20

Random Play

All the available tracks are played in a random sequence.

Press [4] (RANDOM).

lights.

Press [4] (RANDOM) again to cancel.

Disc Random Play

All the available tracks on the current disc are played in a random sequence.

Press and hold [4] (RANDOM) for more than 2 seconds.

blinks.

Press and hold [4] (RANDOM) again for more than 2 seconds to cancel.

Scan Play

The first 10 seconds of each track is played in sequence.

Press [5] (SCAN).

Repeat Play

The current track is repeated.

Press [6] (REPEAT).

lights.

Press [6] (REPEAT) again to cancel.

Disc Repeat Play

The current disc is repeated.

Press and hold [6] (REPEAT) for more than 2 seconds.

blinks.

Press and hold [6] (REPEAT) again for more than 2 seconds to cancel.

Direct Disc Selection

(Only for remote control)

Example: Disc number 5 q Press [#].

w Press [5].

e Press [BAND] (SET).

Press [5] (SCAN) again to cancel.

Disc Scan Play

From the next disc, the first 10 seconds of the first track of all the discs is played in sequence.

Press and hold [5] (SCAN) for more than 2 seconds.

Note:

¡ To suspend direct selection, press [DISP].

¡ Random, Disc Random, Scan, Disc Scan, Repeat and

Disc Repeat plays are canceled once [#] is pressed.

Press and hold [5] (SCAN) again for more than 2 seconds to cancel.

CQ-C5401W/C5301W

21

CQ-C5401W/C5301W

Note:

¡Trouble may occur while playing CD-Rs. Refer to the section on “Notes on CD/CD Media (CD-R,

CD-RW, CD-ROM)” (

a

Page 29)

¡This unit does not support the following through the CD changer.

¡CD-RW playback. (except when CX-DP880 is connected)

¡MP3/WMA playback.

¡CD text display

¡Pausing does not function in the CD changer mode.

E

N

G

L

I

S

H

E

N

G

L

I

S

H

21

Audio Settings

[SQ] (Sound Quality)

Turn [VOLUME]. (Press [VOL

}

] or

[VOL

{

] on the remote control unit.)

MUTE

SRC

PWR

VO

LU

M

E

L

SE

H

SQ

1 2

SCROLL

3

RANDOM

4

CQ-C5401W

SCAN

5

N

E

/T

R

AC

K

TILT/OPEN

DISC

BAND

APM

REPEAT

6

FO

CLOCK

LD

ER

DISP

Preset Buttons [2] to [6]

[DISP] (Return to the regular mode)

Volume

Default: 13

Setting range: 0 to 40

Press [VOLUME]

(PUSH SEL: select).

(Press [SEL] on the remote control unit.)

[[] []]

[{] [}]

[BAND]

Press [VOLUME] (PUSH SEL) to open the menu.

Bass/Treble

You can adjust the bass and treble sounds.

Default: BAS (bass) 0 dB

TRE (treble) 0 dB

Setting range: –12 dB to +12 dB (by 2 dB)

Press [VOLUME] (PUSH SEL).

Press [VOLUME] (PUSH SEL).

SQ Adjustment

You can adjust the characteristics of the currently selected sound type (SQ).

It is also possible to preset up to 5 different adjusted SQs.

Tone/SQ adjustable range: –12 dB to +12 dB (by 2 dB)

SQ Low/Bass : ± 12 dB (at 60 Hz, 80 Hz, 100 Hz, 200 Hz)

SQ Mid : ± 12 dB (at 500 Hz, 1 kHz, 2 kHz, 3 kHz)

SQ High/Treble : ± 12 dB (at 10 kHz, 12 kHz, 15 kHz, 18 kHz)

¡ The bass/treble control frequency is fixed to the frequency that has been selected for SQ.

FTo return an adjusted SQ to the default setting q Press [SQ], and select the SQ which is to be returned to the default setting. (Only for main unit) w Press and hold [BAND] for more than 2 seconds.

Press [VOLUME] (PUSH SEL).

The SQ adjustment mode can be established also by pressing [SQ] for more than 2 seconds.

(Page 24)

22

CQ-C5401W/C5301W

Regular mode VOLUME BASS TREBLE

SQ SET

BALANCE SUBW LPF SUBW LEV FADER

Note:

¡ To return to the regular mode, press [DISP].

¡ If no operation takes place for more than 5 seconds in audio setting (2 seconds in the volume adjustment, 10 seconds in the SQ adjustment), the display returns to the regular mode.

¡ The volume can also be adjusted directly using [VOLUME] on the main unit. ( a Page 9)

¡ Please refer to page 9 for calling up a preset SQ.

E

N

G

L

I

S

H

Turn [VOLUME].

q : Up w : Down

Turn [VOLUME].

q : Up w : Down

Turn [VOLUME].

q : Up w : Down

Note:

¡ You cannot save any SQ presetting value in [1] button.

¡ Any SQ adjustments will not change the call up screen names such as ROCK and JAZZ.

q

Press [[] or []] to select a frequency band (Low, Mid, High).

[[] : Higher frequency band

[]] : Lower frequency band

Turn [VOLUME] to select a frequency.

q: Higher frequency w: Lower frequency w

Press [}] or [{] to adjust the level.

[}]: Up

[{]: Down e

Press and hold one of the preset buttons from [2] to [6] for more than 2 seconds.

¡The adjusted SQ is preset in the number of the selected button, and return to the regular mode resumes.

Frequency

The selected frequency band blinks.

Level

¡When you suspend the SQ preset adjustment, each level remains your recent adjustment until a new SQ presetting operation is performed or you call up the SQ preset.

CQ-C5401W/C5301W

23

E

N

G

L

I

S

H

23

Audio Settings

(continued)

Turn [VOLUME]. (Press [VOL

}

] or

[VOL

{

] on the remote control unit.)

MUTE

SRC

PWR

VO

LU

M

E

L

SE

H

SQ

1 2

SCROLL

3

RANDOM

4

CQ-C5401W

SCAN

5

N

E

/T

R

AC

K

TILT/OPEN

DISC

BAND

APM

REPEAT

6

FO

CLOCK

LD

ER

DISP

Press [VOLUME]

(PUSH SEL: select).

(Press [SEL] on the remote control unit.)

[DISP] (Return to the regular mode)

Balance/Fader

You can adjust the sound level among the right, left, front and rear speakers.

Default: BAL (balance) CNT (center)

FAD (fader) CNT (center)

Setting range: 15 levels each and CNT (center)

Press [VOLUME] (PUSH SEL).

Press [VOLUME] (PUSH SEL).

Subwoofer Level

You can change the subwoofer volume level.

Default: 0

Setting range: MUTE (–

∞), – 6 dB to + 6 dB (by 2 dB)

Subwoofer LPF (Low Pass Filter)

You can select the upper limit frequency of the sound from subwoofer.

Default: 80 Hz

Setting range: 80 Hz, 120 Hz

Press [VOLUME] (PUSH SEL).

Press [VOLUME] (PUSH SEL).

Regular mode VOLUME BASS TREBLE

SQ SET

BALANCE SUBW LPF SUBW LEV FADER

Note:

¡ To return to the regular mode, press [DISP].

¡ If no operation takes place for more than 5 seconds in audio setting, the display returns to the regular mode.

¡ Adjustments of the subwoofer level and low pass filter are effective when the subwoofer is connected.

Turn [VOLUME].

q : Right enhanced w : Left enhanced

Turn [VOLUME].

q : Front enhanced w : Rear enhanced

Turn [VOLUME].

q : Up w : Down

Turn [VOLUME].

q : 120 Hz w : 80 Hz

E

N

G

L

I

S

H

24

24

CQ-C5401W/C5301W CQ-C5401W/C5301W

25

E

N

G

L

I

S

H

25

Function Settings

Turn [VOLUME]. (Press [8] (

}

) or [0]

(

{

) on the remote control unit.)

MUTE

SRC

PWR

VO

LU

M

E

L

SE

H

SQ

1 2

SCROLL

3

RANDOM

4

CQ-C5401W

SCAN

5

N

E

/T

R

AC

K

TILT/OPEN

DISC

BAND

APM

REPEAT

6

FO

CLOCK

LD

ER

DISP

[DISP] (Return to the regular mode)

Spectrum Analyzer Display Patterns

(PATTERN)

Default: Pattern 1

Variety: 6 types, OFF

Press and hold

[VOLUME] (PUSH

SEL: select) for more than 2 seconds. (Press and hold [SEL]

(MENU) for more than 2 seconds on the remote control unit.)

Press and hold [VOLUME]

(PUSH SEL) for more than 2 seconds to open the menu.

Mute/Attenuation

You can select mute or attenuation. ( a Page 9)

Default: MUTE

Press [VOLUME] (PUSH SEL).

Security Function

You can activate the anti-theft function when leaving your car.

Default: ON

Press [VOLUME] (PUSH SEL).

Regular mode

PATTERN MUTE KEY SECURITY

Note:

¡ To return to the regular mode, press [DISP].

¡ If no operation takes place for more than 10 seconds in function setting, the display returns to the regular mode.

Turn [VOLUME].

w q

: Off

: Pattern 1 (Default)

: Pattern 6

Turn [VOLUME].

q w

: 10 steps decrease (Attenuation)

: No sound (Mute) (Default)

Turn [VOLUME].

q

: The security function is activated. (Default) w : The security function is not activated.

SLED (Security Light Emitted Diode) ON

When the ignition switch is turned OFF...

¡ The security message will be displayed.

¡ The face plate removal alarm will be active.

( a

Page 28)

When the face plate is removed...

¡ The security indicator (SLED) blinks. ( a

Page 28)

E

N

G

L

I

S

H

26

CQ-C5401W/C5301W CQ-C5401W/C5301W

27

E

N

G

L

I

S

H

27

Anti-Theft System

This unit is equipped with a removable face plate. Removing this face plate makes the unit totally inoperable. SLED will blink.

Remove the Face Plate

q

Switch off the power of the unit.

w

Press [

] (Release) to remove the face plate. (The face plate disengages with a click when it is removed.) e

Place the face plate into the case and take it with you when you leave the car.

Note:

¡Be absolutely sure to turn off the power of the unit before removing the face plate.

¡Do not install or remove the face plate while it is moving.

[ ]

(Release)

Removable

Face Plate

Case

Contact

Install the Face Plate

q

Slide the left side of the face plate in place.

w

Press the right end of the face plate until a “click” is heard.

1

Contact

2

28

Security Indicator (SLED)

SLED blinks when the face plate is removed from the unit.

This function is activated when the Security Function is ON.

( a

Page 26)

Face Plate Removal Alarm

This alarm sounds to warn you not to forget to remove the face plate before leaving your car.

This function is activated when the Security Function is ON.

( a Page 26)

SLED

Caution

¡ This face plate is not waterproof. Do not expose it to water or excessive moisture.

¡ Do not remove the face plate while driving your car.

¡ Do not place the face plate on the dashboard or nearby areas where the temperature rises high.

¡ Do not touch the contacts on the face plate and on the main unit, since this may result in poor electrical contact.

¡ If dirt or other foreign substances get on the contacts, wipe them off with a clean and dry cloth.

¡ To avoid damaging the face plate, do not push it down or place objects on it while it is open.

¡ The face plate will automatically close about 5 seconds after [ ] (Release) is pressed while the face plate is tilted or open, so take care to ensure that your fingers will not be pinched by the closing face plate.

CQ-C5401W/C5301W

Fuse

If the fuse blows out, consult your dealer, or your nearest authorized Panasonic Service Center.

Warning

¡Use fuses of the same specified rating (15 A). Using substitutes or fuses with higher ratings, or connecting the unit directly without a fuse could cause fire or damage to the unit. If the replaced fuse fails, contact your nearest

authorized Panasonic Service Center.

Maintenance

This unit is designed and manufactured to ensure the minimum of maintenance. Use a dry, soft cloth for routine exterior cleaning. Never use benzine, thinner, or other solvents.

Notes on Discs

Notes on CD/CD Media (CD-R, CD-RW, CD-ROM)

If you use commercial CDs, they must have either of these labels shown at right.

Some copy-protected music CDs are not playable.

How to hold a disc

¡ Do not touch the underside of a disc.

¡ Do not scratch a disc.

¡ Do not bend a disc.

¡ When not in use, keep a disc in a case.

Do not use irregularly shaped discs.

Printed side

TEXT

Do not leave discs in the following places:

¡ In direct sunlight

¡ Near car heaters

¡ Dirty, dusty and damp areas

¡ On seats and dashboards

Disc cleaning

Use a dry, soft cloth to wipe from the center outward.

Do not attach any seals or labels to your discs.

Do not write on the disc label with a ballpoint pen or other hard-point pens.

<Correct>

Do not use irregularly shaped discs.

<Wrong>

Notes on CD-Rs/RWs

¡ You may have trouble playing back some CD-R/RW discs recorded using CD recorders (CD-R/RW drives), either due to their recording characteristics or dirt, fingerprints, scratches, etc. on the disc surface.

¡ CD-R/RW discs are less resistant to high temperatures and high humidity than ordinary music CDs. Leaving them inside a car for extended periods may damage and make playback impossible.

¡ Some CD-R/RWs cannot be played back successfully due to incompatibility among writing software, a CD recorder (CD-

R/RW drive) and the discs.

¡ This player cannot play the CD-R/RW discs if the session is not closed.

¡ This player cannot play the CD-R/RW discs which contain other than CD-DA or MP3/WMA data.

¡ Be sure to observe the instructions of the CD-R/RW disc for handling it.

E

N

G

L

I

S

H

29

CQ-C5401W/C5301W

E

N

G

L

I

S

H

29

Troubleshooting

If You Suspect Something Wrong

Check and take steps as described below.

If the described suggestions do not solve the problem, it is recommended to take the unit to your nearest authorized Panasonic

Service Center. The product should be serviced only by qualified personnel. Please refer the checking and the repair to professionals. Panasonic shall not be liable for any accidents arising out of neglect of checking the unit or your own repair after your checking.

Common

Problem

No power to the unit

Sound is not generated.

The demonstration screen displayed and no operable

Noise

Noise is made in step with engine revolutions.

Some operations are not executable.

Warning

¡Do not use the unit in an irregular condition, for example, without sound, or with smoke or a foul smell, which can cause ignition or electric shock. Immediately stop using the unit and consult your dealer.

¡Never try to repair the unit by yourself because it is dangerous to do so.

Possible cause a

Possible solution

The power cord (battery, power and ground) is connected in the wrong way.

a

Check the wiring.

Fuse blows out.

a

Eliminate the cause of fuse blowout and replace the fuse with new one.

Consult your dealer.

MUTE is set to ON.

a

Set MUTE to OFF.

The wiring of speaker lines is not correct, or a break or poor contact arises.

a

Check the wiring in accordance with the wiring diagram. (

a

Installation

Instructions)

You cannot operate the unit while the demonstration screen appears.

a

Press [DISP] to end the demonstration screen.

If the demonstration screen appears frequently, there is a possibility that poor contact or wrong wiring arises between the battery lead of the unit and the battery cable of the car. (The battery lead should be always powered.) a

Check the battery wiring in accordance with the wiring diagram.

There is an electromagnetic-wave generator such as a cellular phone near the unit or its electrical lines.

a

Keep the electromagnetic-wave generator such as a cellular phone away from the unit and the wiring of the unit. If noise cannot be eliminated due to the wiring harness of the car, consult your dealer.

The contact of the ground lead is poor.

a

Make sure that the ground lead is connected to an unpainted part of the chassis securely.

Alternator noise comes from the car.

a

Change the wiring position of the ground lead.

a

Mount a noise filter on the power supply.

Some operations are not executable in particular modes such as menu mode.

a

Read the operating instructions carefully and cancel the mode. If the unit is still out of order, consult your dealer.

Common (continued)

Problem

No sound from speaker(s)

The speaker channels are reversed between right and left.

The sound field is not clear in the stereo mode. Central sound is not settled.

The power of the unit fails unintentionally.

Possible cause a

Possible solution

Balance/Fader setting is not appropriate.

a

Readjust Balance/Fader.

There is a break, a short circuit, poor contact or wrong wiring regarding the speaker wiring.

a

Check the speaker wiring.

The speaker wiring is reversed between right and left.

a

Perform the speaker wiring in accordance with the wiring diagram.

The plus and minus terminals at right and left channels of speakers are connected reversely.

a

Perform the speaker wiring in accordance with the wiring diagram.

The safety device works.

a

Consult your dealer, or your nearest Panasonic Service Center.

E

N

G

L

I

S

H

Radio

Problem

Poor reception or noise

The number of auto preset stations is less than 6.

Preset stations cannot be stored.

Possible cause a

Possible solution

Antenna installation or wiring of antenna cable is faulty.

a

Check whether the antenna mounting position and its wiring are correct.

In addition, check to see whether the antenna ground is securely connected to the chassis.

No power is supplied to the antenna amplifier (when using a film antenna, etc.).

a

Check the wiring of the antenna battery lead.

The number of receivable stations is less than 6.

a

Move to an area where receivable stations number is maximum, and try presetting.

The contact of the battery lead is poor, or the battery lead is not always powered.

a

Make sure that the battery lead is connected securely, and preset stations again.

30

CQ-C5401W/C5301W CQ-C5401W/C5301W

31

E

N

G

L

I

S

H

31

Troubleshooting

CD

(continued)

Problem

No playback or disc ejected

Possible cause a

Possible solution

The disc is inserted upside down.

a

Insert a disc correctly.

There is a flaw or foreign objects on the disc.

a

Remove the foreign objects, or use a flawless disc.

Sound skipping or noise

Sound skipping due to vibration

Disc unejectable

There is a flaw or foreign objects on the disc.

a

Remove the foreign objects, or use a flawless disc.

The unit is not sufficiently secured.

a

Secure the unit to the console box.

The unit is tilted at over 30˚ in the front-to-end direction.

a

Make the angle 30˚ or less.

Something such as a peeled label obstructs the disc coming out.

a

Press and hold the [OPEN] for more than 2 seconds when the face plate is open (disc forced ejection). In case that the disc forced ejection does not work, consult your dealer.

The microcontroller in the unit operates abnormally due to noise or other factors.

a

Unplug the power cord and plug it again. In case the unit is still out of order, consult your dealer.

MP3/WMA

Problem

Possible cause a

Possible solution

No playback or disc ejected

The disc has unplayable formatted data.

a

Refer to the description about MP3/WMA for playable sound data except

CD-DA (i.e. music CD).

The CD-R/RWs that are playable on other devices are not playable on this unit.

Sound skipping or noise

The playability of some CD-R/RWs may depend on the combination of media, recording software and recorder to be used even if these CD-R/RWs are playable on other devices such as a PC.

a

Make CD-R/RWs in a different combination of media, recording software and recorder after referring to the description about MP3/WMA.

There is a flaw or foreign objects on the disc.

a

Remove the foreign objects, or use a flawless disc. For MP3/WMA, refer to the description about MP3/WMA.

Playing VBR (Variable Bit Rate) files may cause sound skipping.

a

Play Non-VBR files.

Note:

¡Refer to “Notes on MP3/WMA”. ( a

Page 18)

32

CQ-C5401W/C5301W

Remote control unit

Problem

No response to pressing buttons

Error Display Messages

CD/MP3/WMA

Display

Possible cause a

Possible solution

The battery is inserted in the wrong direction. A wrong battery is inserted.

a

Insert a correct battery in the correct direction.

The battery is weak.

a

Replace the battery with new one.

The aiming direction of the remote control unit is wrong.

a

Aim the remote control unit at the sensor of the unit and press buttons.

The sensor is exposed to direct sunlight. (The remote control unit may not be operable when the sensor is exposed to direct sunlight. In such a case, the system is not faulty.) a

Block off sunlight to the sensor.

Possible cause a

Possible solution

The disc is dirty or upside down.

a

Check the disc.

The disc has scratches.

a

Check the disc.

No operation by some cause.

a

Unplug the power cord and plug it again. In case the unit is still out of order, consult your dealer.

After 5 seconds

E

N

G

L

I

S

H

After 5 seconds

To next track/file automatically

The player for some reason cannot read the file you are trying to play.

(File recorded in an unsupported file system, compression scheme, data format, file name extension, damaged data, etc.) a

Select a file that the player can read. Check the type of data recorded on the disc. Create a new disc if necessary.

After 5 seconds

To next track/file automatically

A WMA file can be copyrighted. a

The file protected by copyright is not playable.

CQ-C5401W/C5301W

33

E

N

G

L

I

S

H

33

Troubleshooting

Error Display Messages

CD Changer

Option

Display

(continued)

Possible cause a

Possible solution

After 5 seconds

To next disc automatically

The disc is dirty or upside down.

The disc has scratches.

a

Eject the magazine.

¡Check the disc.

¡Load the disc again.

No operation by some cause.

a

Eject the magazine. If the failure persists, press the reset switch on the CD changer. If normal operation is not restored, consult your dealer or the nearest Panasonic Service Center to ask for repairs.

No disc is in the CD Changer (magazine).

a

Insert discs into the changer (magazine).

The changer has become disconnected from the unit in the changer mode.

a

Verify the wiring.

Note:

¡ Messages in the action and display sections of the error chart vary with changer. Refer to the operating instructions for the CD changer for details.

Specifications

General

Power supply

Current consumption

: DC 12 V (11 V – 16 V), test voltage 14.4 V, negative ground

: Less than 2.2 A (CD mode,

0.5 W 4 channels)

Maximum power output : 50 W x 4 (at 1 kHz) volume control maximum

Tone/SQ adjustment range : SQ Low/Bass: ± 12 dB (at 60

Hz, 80 Hz, 100 Hz, 200 Hz)

SQ Mid: ± 12 dB (at 500 Hz,

Speaker impedance

1 kHz, 2 kHz, 3 kHz)

SQ High/Treble: ± 12 dB (at

10 kHz, 12 kHz, 15 kHz,

18 kHz)

: 4 – 8

CQ-C5401W

Pre-amp output voltage : 5 V (CD mode, 1 kHz, 0 dB)

Subwoofer output voltage : 5 V

Pre-amp output impedance : 60

Subwoofer output impedance : 60

CQ-C5301W

Pre-amp output voltage : 2.5 V (CD mode, 1 kHz, 0 dB)

Subwoofer output voltage : 2.5 V

Pre-amp output impedance : 200

Subwoofer output impedance : 200

FM Stereo Radio

Frequency range

Usable sensitivity

: 87.50 MHz – 108.00 MHz

: 6 dB/µV (S/N 30 dB)

Frequency response : 30 Hz – 15 kHz (±3 dB)

Alternate channel selectivity : 75dB

Stereo separation

Image rejection ratio

IF rejection ratio

Signal to noise ratio

: 35 dB (1 kHz)

: 70 dB

: 100 dB

: 62 dB

AM Radio

Frequency range

Usable sensitivity

: 531 kHz – 1 602 kHz

: 28 dB/µV (S/N 20 dB)

CD Player

Sampling frequency

DA converter

Pick-up type

Light source

: 8 times oversampling

: 1 bit DAC System

: Astigma 3-beam

: Semiconductor laser

Wave length

Frequency response

: 790 nm

: 20 Hz – 20 kHz (±1 dB)

Signal to noise ratio : 96 dB

Total harmonic distortion : 0.01 % (1 kHz)

Wow and flutter

Channel separation

: Below measurable limits

: 75 dB

Dimensions (W x H x D) : 178 x 50 x 155 mm

Weight : 1.6 kg

E

N

G

L

I

S

H

34

CQ-C5401W/C5301W

Note:

¡Specifications and design are subject to modification without notice due to improvements.

¡Some figures and illustrations in this manual may be different from your product.

CQ-C5401W/C5301W

35

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
