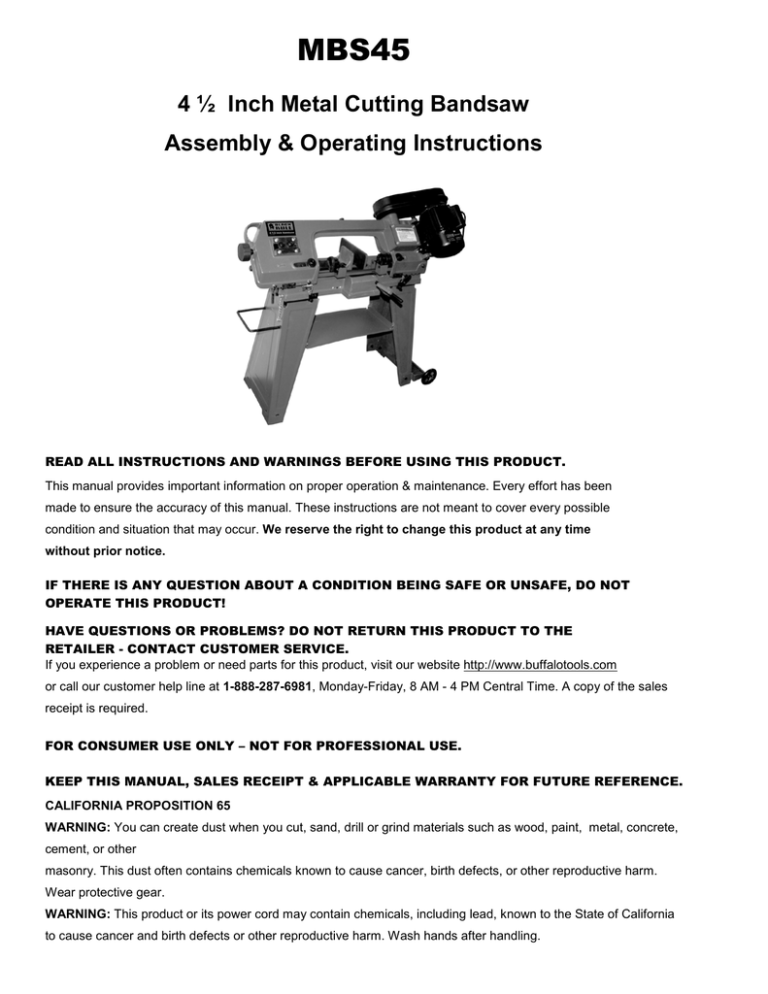

MBS45

4 ½ Inch Metal Cutting Bandsaw

Assembly & Operating Instructions

READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT.

This manual provides important information on proper operation & maintenance. Every effort has been made to ensure the accuracy of this manual. These instructions are not meant to cover every possible condition and situation that may occur. We reserve the right to change this product at any time

without prior notice.

IF THERE IS ANY QUESTION ABOUT A CONDITION BEING SAFE OR UNSAFE, DO NOT

OPERATE THIS PRODUCT!

HAVE QUESTIONS OR PROBLEMS? DO NOT RETURN THIS PRODUCT TO THE

RETAILER - CONTACT CUSTOMER SERVICE.

If you experience a problem or need parts for this product, visit our website http://www.buffalotools.com or call our customer help line at 1-888-287-6981, Monday-Friday, 8 AM - 4 PM Central Time. A copy of the sales receipt is required.

FOR CONSUMER USE ONLY – NOT FOR PROFESSIONAL USE.

KEEP THIS MANUAL, SALES RECEIPT & APPLICABLE WARRANTY FOR FUTURE REFERENCE.

CALIFORNIA PROPOSITION 65

WARNING: You can create dust when you cut, sand, drill or grind materials such as wood, paint, metal, concrete, cement, or other masonry. This dust often contains chemicals known to cause cancer, birth defects, or other reproductive harm.

Wear protective gear.

WARNING: This product or its power cord may contain chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

TABLE OF CONTENTS

RECOGNIZE SAFETY SYMBOLS, WORDS AND LABELS ............................................................... 2

SERVICE ............................................................................................................................................ 5

PACKAGE CONTENTS ...................................................................................................................... 6

COMPONENTS .................................................................................................................................. 6

ASSEMBLY ........................................................................................................................................ 6

OPERATION ...................................................................................................................................... 8

MAINTENANCE ............................................................................................................................... 11

PARTS LIST ..................................................................................................................................... 12

PARTS DIAGRAM ............................................................................................................................ 11

RECOGNIZE SAFETY SYMBOLS, WORDS AND LABELS

What You Need to Know About Safety Instructions

Warning and Important Safety Instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. Common sense, caution and care must be exercised when assembling or using this product.

Always contact your dealer, distributor, service agent or manufacturer about problems or conditions you do not understand.

This is a safety alert symbol. It is used to alert you to potential personal injury hazards.

Obey all safety messages that follow this symbol to avoid possible injury or death.

This is a safety alert symbol. It is used to alert you to potential personal injury hazards.

Obey all safety messages that follow this symbol to avoid possible injury or death.

MBS45 4.5 Inch Metal Cutting Bandsaw Assembly & Operating Instructions 2

GENERAL PRODUCT SPECIFICATIONS

FEATURES:

• 3 Speeds 80 FPM, 120FPM, 200FPM

• Miter Gauge for Angle Cutting 90º - 45º

• Full Blade Guard for Safety

• Horizontal or Vertical operation

SPECIFICATIONS

• 3/4 HP / 120V / 60 Hz

• 500 Watts / Single Phase

• 5.4 Amps

• Blade Size 64 ½” x ½”

• Cutting Table 11 ½” x 7 ½” x 23 ½” Horizontal

• Cutting Table 9 5/8” x 9 ½” x 33 ½” Vertical

KEEP THIS MANUAL, SALES RECEIPT & APPLICABLE WARRANTY FOR FUTURE

REFERENCE.

READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT.

When unpacking, check to make sure all parts listed are included. If any parts are missing or broken, please call Customer Service at 1-888-287-6981.

MBS45 4.5 Inch Metal Cutting Bandsaw Assembly & Operating Instructions 3

FOR CONSUMER USE ONLY – NOT FOR PROFESSIONAL USE

IMPORTANT SAFETY RULES

COMMON SENSE AND CAUTION ARE FACTORS WHICH CANNOT BE BUILT INTO ANY PRODUCT.

THESE FACTORS MUST BE SUPPLIED BY THE OPERATOR.

Keep your work area clean and well lit. Cluttered work benches and dark work areas may cause accidents or injury.

Keep bystanders, children and visitors away while operating the metal bender

. Distractions can cause you to lose control.

Do not force tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed.

Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained users.

Use common sense while operating this metal bender.

Do not use this tool if you are:

• Feeling tired or are under the influence of alcohol or drugs.

• Wearing loose clothing or jewelry. Keep long hair pulled back and away from moving parts.

• Overreaching or have improper footing. Handling the tool in this way could cause serious injury.

• Wear the proper safety equipment, such as safety goggles, dust masks, non-skid shoes, etc.

• Check to be sure all adjusting keys or wrenches have been removed before use.

Safety glasses and ear protection must be worn during operation.

Read the manual carefully. Learn the tool's applications and limitations, as well as specific potential hazards peculiar to it.

Ground all tools. If the tool is equipped with three-pin plug, it should be plugged into a three-pin electrical socket. Never remove the ground pin.

Avoid body contact with grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electric shock if your body is grounded.

Do not expose tool to moisture. Don't use this tool in damp or wet locations. Keep out of rain.

Do not abuse cord. Never use the cord to carry tools or pull the plug from an outlet. Keep cord away from heat, sharp edges or moving parts. Replace damaged cords immediately. Damaged cords increase the risk of electric shock.

Remove adjusting keys or wrenches before turning the tool on. A wrench or key that is left attached to a moving part of the tool may result in personal injury.

MBS45 4.5 Inch Metal Cutting Bandsaw Assembly & Operating Instructions 4

Don't overreach. Keep proper footing and balance at all times when operating this tool.

Disconnect the tool from power source before making any adjustments, storing, servicing, or changing accessories. This will reduce the risk of starting the tool accidentally.

Do not use the tool if the switch does not turn it on and off. Any tool that cannot be controlled with the switch is dangerous and must be repaired.

Check for damage. Check your tool regularly. If part of the tool is damaged it should be carefully inspected to make sure that it can perform its' intended function correctly. If in doubt, the part should be repaired. Refer all servicing to a qualified technician. Consult your dealer for advice.

Keep away from flammables. Do not attempt to operate this tool near flammable materials or combustibles. Failure to comply may cause serious injury or death.

Maintain tools with care. Keep tools sharp and clean. Properly maintained tools, with sharp cutting edges, are less likely to bind and are easier to control.

Avoid accidental starting. Make sure switch is off before plugging in power cord.

Be careful when using bandsaws in vertical position to keep fingers and hands out of the path of blade, both above and beneath the table.

Never hand-hold the material with saw in horizontal position. Always use the the vice clamp securely.

Keep all guards and wheel covers in place and in working order.

Support long heavy work from the floor.

Switch off the machine when the work is completed. Unplug power cord before adjusting, servicing and changing blade.

Moving parts should keep in alignment. All adjustments are to be made with power disconnected.

Use a sharp blade and keep tool clean for best and safest performances.

For Your Own Safety Read Instruction Manual Before Operating Saw a) Wear eye protection. b) Do not remove jammed cutoff pieces until blade has stopped. c) Maintain proper adjustment of blade tension, blade guides, and thrust bearings. d) Adjust upper guide to just clear workpiece. e) Hold workpiece firmly against table.

SERVICE

Tool service must be performed only by qualified repair personnel. Service or maintenance by unqualified personnel could result in a risk of injury.

When servicing a tool, use only identical replacement parts and follow instructions in the

manual. Use of unauthorized parts or failure to follow Maintenance Instructions may create a risk of shock or injury.

MBS45 4.5 Inch Metal Cutting Bandsaw Assembly & Operating Instructions 5

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

This manual contains important information regarding safety, operation, maintenance and storage of this product. Before use, read carefully and understand all warnings, cautions, instructions and labels.

Failure to do so could result in serious personal injury, property damage or even death.

IMPORTANT SAFETY INSTRUCTIONS

Before using this tool, you need to become familiar with its operation. If you are unsure about the operation of the tool, or have any questions about its proper use, call the Customer Service

Department at 1-888-287-6981. Follow these instructions for safe handling of the tool:

Be sure your work area is clean and secure. Be sure the area is free from all foreign material, nails, staples, or any other material.

Always use the appropriate safety gear when operating. Including but not limited to, goggles, dust mask or respirator.

3

4

PACKAGE CONTENTS

• Bandsaw

COMPONENTS

1.

Motor Assembly

2

.

Belt Adjusting Bolt

3

.

Pulley Guard

4

.

Gearbox

5.

6

7

8

9

.

.

.

.

On-Off Switch Assembly

Left Leg

Right Leg

Tool Tray

Wheel Assembly

10.

Handle

11

.

Work Stop Assembly

5

10

2

11

6

8

1

ASSEMBLY

Before performing any assembly or maintenance, make sure bandsaw is turned off and unplugged from the power supply

.

BANDSAW MUST BE GROUNDED. Use a Ground Fault Interrupter (GFI). Plug the power cord to a standard 120 volt receptacle protected by a 20 amp circuit breaker.

MBS45 4.5 Inch Metal Cutting Bandsaw Assembly & Operating Instructions 6

The bandsaw comes partly assembled. It is therefore necessary to complete the assembly as follows.

Unpack and layout all the items and identify each one.

Attach lower tray, wheels and handle in this order.

Assemble vice handle to shaft on end of main base (bed) and tighten set screw.

Ensure all guards, pulley covers etc are securely attached and properly assembled.

Legs And Tray Assembly

The legs are a three-sided section, one side of which is hinged. Lay the legs on their sides, with the open ends facing each other and approx. 18" apart.

Locate the tray and attach between the legs, using the four nuts, bolts and washers supplied.

Leave the nuts finger tight at this stage.

Important: Ensure the washer is inside the leg, next to the nut. Stand the assembly upright to form a rough "A" frame. With assistance, gently lower the main body on to the legs. Firmly secure the main body to the legs, using the three nuts and bolts at the top of each leg, ensuring there is no distortion and that the assembly is completely stable.

Note that the legs may fit either way around.

Tighten the tray nuts and bolts, checking for distortion and stability.

Work Stop Assembly

A work stop is provided, which is used to allow stock pieces of equal length to be cut without having to measure each piece individually. It comprises two parts, the work stop and the mounting rod. Push the rod into the hole in the edge of the vise, and secure with the grubscrew provided.

Mount the work stop on to the rod, with the flat face towards the saw blade, and temporarily secure with the grub screw supplied, ensuring it is not pushed on too far, as it may interfere with the saw blade when it is lowered.

Miscellaneous

A handle is provided at the left end of the machine, connected to the left leg. When the machine is lifted using this handle, it will automatically pivot on to the wheels, mounted on the bottom of the right leg, allowing the machine to be maneuvered easily and quickly around a workshop.

The handle and wheel assemblies are attached a follows. Thread the ends of the handle through the corresponding holes in the left leg, and locate on the inside of the leg using the split pins provided.

The wheel assembly comprises a bracket, axle and wheels. Attach the bracket to the base of the right leg using the nuts and bolts supplied. Thread the axle through the holes at the ends of the bracket, and insert the split pins in the holes provided in the axle, which will prevent any lateral movement. Mount the wheels at each end of the axle, and locate by inserting the split pins provided in the holes at the ends of the axle.

Before use, carry out a thorough check to ensure that all parts are completely secure and properly assembled.

MBS45 4.5 Inch Metal Cutting Bandsaw Assembly & Operating Instructions 7

OPERATION

BEFORE OPERATING YOUR BANDSAW please read manual carefully

.

BLADE GUIDE BEARING ADJUSTMENT

This is the most important adjustment on your saw. It is impossible to get satisfactory work from your saw if the blade guides are not properly adjusted. The blade guide bearings for your Metal

Cutting Bandsaw are adjusted and power tested with several test cuts before leaving the factory to ensure proper setting. The need for adjustment should rarely occur when the saw is used properly. If the guides do get out of adjustment, it is extremely important to readjust immediately. If proper adjustment is not maintained, the blade will not cut straight and if the situation is not corrected, it will cause blade damage.

Because guide adjustment is a critical factor in the performance of your saw, it is always best to try a new blade to see if this will correct poor cutting before beginning to adjust the bearings. If a blade becomes dull on one side sooner than the other, for example, it will begin cutting crooked. A simple blade change should correct this problem-the more difficult guide adjustment will not.

If a new blade does not correct the problem, check the blade guides for proper spacing. There should be 0.001" clearance between the 0.025" thickness blade and guide bearings.

To obtain this clearance adjust as follows:

1. The inner guide bearing is fixed and cannot be adjusted.

2. The outer guide bearing is mounted to an eccentric bolt and can be adjusted.

3. Loosen the nut while holding bolt with a wrench.

4. Position the eccentric by turning the bolt to the desired position of clearance.

5. Tighten the nut.

6. Adjust the second blade guide bearing in the same manner.

7. The back edge of the blade should just touch the lip of the Blade Guide Bearing.

BLADE GUIDE ASSEMBLY ADJUSTMENT

The Metal Cutting Bandsaw is equipped with two adjustable blade guide assemblies. This feature will permit you to adjust the position of the blade guides for various widths of workpieces. For the most accurate cut and prolong the life of the blade, the blade guide assemblies should be adjusted to just clear the piece to be cut.

1. Place the workpiece in the vice of bandsaw and clamp tightly.

2. Adjust catch blade guide assembly to the desired position by loosening the hand knobs and positioning the guides as required.

3. Tighten the hand knobs.

ADJUSTING BLADE TENSION

1. Make sure the motor is switched off and the machine is disconnected from electricity supply.

2. Press the blade lightly with the left hand so that the rear of the blade touches the flange of the blade wheel and adjust the blade tension adjusting knob with the right hand until no blade slipping occurs.

MBS45 4.5 Inch Metal Cutting Bandsaw Assembly & Operating Instructions 8

CHANGING

SPEED

When using your Band Saw, always change the blade speed to best suit the material being cut.

1. Disconnect power. Open the pulley guard cover. Loosen the lead screw. You can now change the position of the belt to gain the desired speed. Re-set the belt tension to allow 1/2" depression of the belt when pressed in the middle of its longest run.

2. When the tension of belt is correctly adjusted, lock the motor firmly.

3. Close the pulley guard cover.

Material Cutting Guide

Stainless or Alloy Steel, Bearing Bronzes

Speed

80 FPM

Mild Steel, Hard Brass or Bronze 120 FPM

Soft Brass, Aluminum and other Light material 200 FPM

Motor Pulley Saw Pulley

Small Large

Medium

Large

Medium

Small

BLADE SELECTION

Use a 1/2"

X

0.025'

x 64 1

/2" min. 65 1/2" max. 4 tooth per inch general use blade, included.

The choice of blade pitch is governed by the thickness of the work to be cut: the thinner the workpiece, the more teeth advised. A minimum of 3 teeth should be in the workpiece at all times for proper cutting.

If the teeth of the blade are so far apart that they straddle the work, severe damage to the workpiece and to the blade can result.

CHANGING THE BLADE

Always disconnect from electricity supply before changing blade

Raise saw head to vertical position. Loosen blade tension adjusting knob sufficiently to allow the saw blade to slip off the wheels. Install the new blade as follows:

1. Place the blade in between each of guide bearings.

2. Slip the blade around the motor pulley (bottom) with the left hand and hold in position.

3. Hold the blade taut against the motor pulley by pulling the blade upward with the right hand which is placed at the top of the blade.

4. Remove left hand from bottom pulley and place it at the top side of the blade to continue the application on the upward pull on the blade.

5. Remove right hand from blade and adjust the position of the top pulley to permit left' hand to slip the blade around the pulley using the thumb, index and little finger as guides.

6. Adjust the blade tension knob clockwise until it is just right, so no blade slippage occurs. Do not tighten excessively.

7. Place 2-3 drops of oil on the blade.

8. Replace the blade guard.

NOTE: If saw will not be used for an extended period of time, you may choose to loosen the blade after use to prolong the life of the blade.

MBS45 4.5 Inch Metal Cutting Bandsaw Assembly & Operating Instructions 9

ADJUSTING THE BLADE TRACKING

This adjustment has been completed and power-tested at the factory. The need for adjustment should rarely occur when the saw is used properly. If the tracking goes out of adjustment the blade will leave the wheel and damage will result.

Increase blade tension. Decrease blade tension.

STEP 6

Adjust the blade guide according to the material size. The arrow indicates the direction of movement of the blade.

STEP

7

Adjust guide assembly to where the blade just touches the back-up bearing.

STEP 1

Loosen blade tension.

STEP 2

Loosen hex head bolts.

STEP 3

Turn simultaneously with blade tension knob so blade tracks against shoulder of pulley.

STEP 4

Lock hex head bolts.

Automatic Switch Off

STEP 5

Tighten blade tension.

At the end of the cutting cycle (horizontal use), the machine automatically switches off. This can be adjusted by moving the bracket up or down as required.

Horizontal Cutting

1 . Raise the saw head to the vertical position.

2. Open the vice to accept the piece to be cut by rotating the wheel at the end of the base

(counter clockwise).

3. Place the workpiece on the saw bed. If the piece is long, support the end.

4. Clamp the workpiece securely in the vice by rotating the hand wheel clockwise.

5. Turn the power on, letting the head down slowly onto the work. Do not drop or force.

Let the weight of the saw head provide the cutting force. The saw automatically shuts off at the end of the cut.

MBS45 4.5 Inch Metal Cutting Bandsaw Assembly & Operating Instructions 10

Vertical Cutting

Fitting the table:

Loosen the A & B Screws from the blade guide. Take away plate D.

Locking the saw in vertical position:

Rotate the bracket to an upright position, locate in notch on saw arm and tighten. If you have difficulty positioning the bracket in the notch, adjust nearby screw at bottom of saw until bracket is positioned, then tighten bracket.

MAINTENANCE

Lubricate the parts listed below using SAE30.

1. Ball Bearing – none required

2. Blade guide bearing – none required

3. Driven wheel bearing – none required

4. Vice lead screw – as needed

5. Drive gears run in the oil bath and won’t require lubricant change more than once a year. When changing, put down the head to a horizontal position and loosen screws on the gearbox. Open the cover and place pan under the right lower corner of the gear box. Slowly raise the head until the oil flows out. Lower the head and wipe up excess oil. Add lubricant until it is full. Close cover and tighten screws.

6. If saw will not be used for an extended period of time, you may choose to loosen the blade after use to prolong the life of the blade.

PARTS DIAGRAM

MBS45 4.5 Inch Metal Cutting Bandsaw Assembly & Operating Instructions 11

MBS45 4.5 Inch Metal Cutting Bandsaw Assembly & Operating Instructions

PARTS LIST

12

0001

0032

0033

0034

0035

0036

0037

0038

0039

0040

0041

0042

0043

0044

0045

0046

0047

0048

0022

0023

0024

0025

0026

0027

0028

0029

0030

0031

0012

0013

0014

0015

0016

0017

0018

0019

0020

0021

0002

0003

0004

0005

0006

0007

0008

0009

0010

0011

0060

0061

0062

0063

0064

0065

0066

0067

0049

0050

0051

0052

0053

0054

0055

0056

0057

0058

0059

Troubleshooting

Floor stand handle

Cotter pin 3x18

Hexagon Head screw M8x20

Washer 8

Floor stand

Connecting plate

Hexagon nut M8

Wheel frame

Big washer 8

Hexagon head screw M8 x 16

Spring washer 8

Wheel 2

Hexagon socket headless screw M8x8 1

Handle 1

Handle cover

Thrust washer 13

1

1

Lead screw

Vise nut

Lock chain

Switch

Switch box

1

1

1

1

1

1

4

11

39

2

2

21

2

2

14

12

Screw M4x8

Star washer 4

Switch safety plate

Switch safety screw

Wire relief retainer

Cross head screw M6x12

Stock stop rod

Stock stop

Hexagon head screw M8x40

Support plate

Support plate cover

Bushing

Movable vise plate

Arc sliding plate

Mitering vise plate

Screw

Lock handle

Knob

Hexagon head screw M10x30

Big washer 10

Washer 8

Screw M8x12

Pivot

Pivoting rod

Hexagon head screw M12x65

Hexagon nut M12

Stop screw

Spring

Screw M8x25

Spring adjusting screw

Rear nut plate

Scale

Cross head screw M5x8

Bed

Hexagon head screw M8x30

Front nut plate

Adjusting rod

Adjusting hold cover

Blade back safety cover

Plum screw

Washer 6

Washer 6

Blade wheel (rear)

Sliding bearing

Upper blade guard

Screw M10x35

1

1

2

1

1

16

5

1

1

10

1

1

1

2

1

3

1

1

1

1

1

2

1

1

1

4

2

6

1

1

1

1

1

1

2

1

6

1

1

2

1

13

2

1

1

2

0102

0104

0105

0106

0107

0108

0109

0110

0111

0112

0113

0114

0115

0116

0117

0118

0119

0092

0093

0094

0095

0096

0097

0098

0099

0100

0101

0080

0081

0082

0083

0084

0085

0086

0087

0088

0091

0068

0069

0071

0072

0073

0074

0075

0076

0077

0078

0079

0133

0134

0135

0136

0137

0138

0139

0120

0121

0122

0123

0124

0125

0126

0127

0128

0131

0132

2

4

1

1

8

1

1

1

1

1

1

1

1

1

1

2

1

1

1

1

6

1

1

1

1

1

1

1

1

5

1

1

2

1

1

1

1

4

2

2

1

1

4

1

1

1

6

2

1

1

1

2

1

1

1

1

1

1

1

1

1

1

1

1

1

1

Screw M6x20

Lock chip

Bearing 6000 2Z

Guide pivot (left)

Thrust washer 10

Guide pivot (right)

Shaft

Blade cover

Switch cut off screw

Ball bearing 6002 2Z

Bearing bushing

Oil seal

Blade wheel bearing cover

Bushing

Blade wheel (front )

Hex. Head screw M8x8

Thrust washer 15

Blade

Cross head screw M6x12

Blade guard

Lower pulley cover

Upper pulley cover

Motor pulley

Motor

Motor cord

Strain relief

Supply cord

Vertical cutting support plate

Vertical cutting plate

Hexagon nut M6

Motor mount plate

Screw M12x30

Key 5X5X25

Spring pin 4x26

Transmission wheel shaft

Transmission gear

Gear box gasket

Gear box cover

Hexagon head screw M6x12

Hexagon head screw (with hole)

Worm gear shaft

Bearing bushing

Bearing cover

Worm gear pulley

Blade tension sliding guides

Screw M6x12

Hexagon head screw M8x20

Blade tension sliding plate

Sliding plate draw block

Spring pin 4x20

Blade wheel shaft

Shaft block

Spring

Blade tension adjustable knob

Body frame

Tool plate

V-belt

Cross head screw M4x20

Nut M4

Hex head screw M10x100

Adjust knob cover

Washer 4

Lower guide frame

Upper guide frame

Adjust support plate

Pivoting rod bushing

NOTES

14

NOTES

(MBS45201412)

15

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
