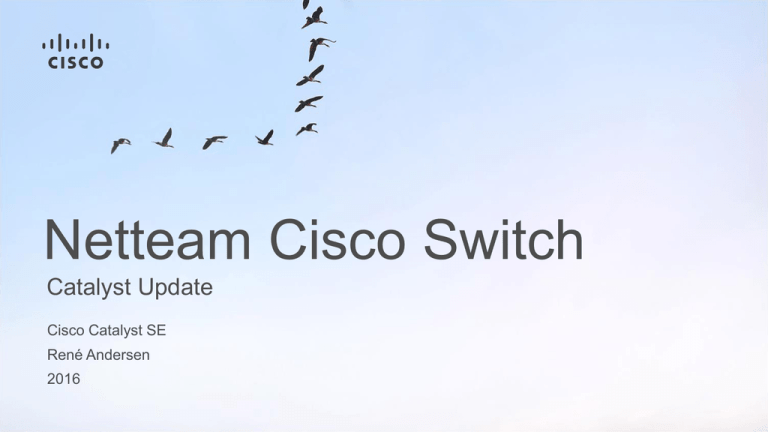

Netteam Cisco Switch

Netteam Cisco Switch

Catalyst Update

Cisco Catalyst SE

René Andersen

2016

Cisco Catalyst Switching News

Services, Software, and Systems for the Digital Enterprise

ACCESS

BACKBONE

Supervisor 8L-E

40G

40G

SOFTWARE

AVB

Jul Jul

Jul

Jul

Programmability

Jul

MPLS for campus

Jul

3650 mini 12” SKU

40G

Catalyst 6840X

40G

Catalyst Sup6T

40G

Secure Fabric Distributed Stacking

AVC

Catalyst 4500-E

(Sup8E)

Catalyst

3850

Catalyst 6880X

40G

Catalyst 6807-

XL/6500-E mGig

Converged

Access

NaaE

Catalyst 290CX

3560CX

Catalyst

2960X/XR

Catalyst

3650

Catalyst 3850

10G Fiber

Catalyst 4500X

UPoE

NaaS

APIC-EM

Catalyst 3K unique features

Catalyst Fixed Backbone Portfolio FY16

1G SFP 10G SFP+

Catalyst 3850

1G Fiber

• Fixed 1G Aggregation

Stackable

• 12p and 24p SKU

10G Network Module

NEW

Catalyst 3850

10G Fiber

• Fixed 10 G

Aggregation

• 12p, 24p and 48p

SKUs

• Stackable(12p/24p)

• 10G/40G Network

Module

Catalyst 4500-X

Fixed 10G Aggregation

• 16p and 32p Base

Units

8 port 10G network

Module

• Front-to-Back and

Back-to-Front Fans and

Power Supplies

NEW

Catalyst 6840-X

• Best-in-Class Core

Feature-set

• Up to 40 1G/10G Ports

• 40G Uplinks

• Full MPLS

• Instant Access

Catalyst 6880-X

• Best-in-Class Core

Feature-set

Up to 80 1G/10G

Ports, 20 40G ports

• Full MPLS

Instant Access

1G 1RU Aggregation 1/10G 1RU Aggregation 1/10G 1RU Aggregation 1/10G 2RU Core 1/10G 5RU Core

Catalyst 3850 10G SFP+

12 Port and 24 Port

WS-C3850-12XS

C3850-NM-

4x10G

WS-C3850-24XS

C3850-NM-

4x10G

C3850-NM-

2x40G

C3850-

NM-

8x10G

UADP ASIC

Converged

Access`

StackWise-480 StackPower

1+1 Power

Redundancy

Line-Rate

Catalyst 3850 10G: 48 Port

UADP ASIC

640GB Line-Rate

48 x SFP+ Fixed

4 x QSFP Fixed

Front-to-Back and

Back-to-Front Fan options

UADP ASIC

Converged

Access

Line-Rate No Stacking

1+1 Power

Redundancy

• New 750W AC Power Supplie s

• 1+1 Power Supply Redundancy

Front-to-Back & Back-to-Front

Fans and Power Supplies

*No StackWise or StackPower on 48p SKU

Cisco Stackwise Virtual

Phase 1 - Aggregation

SW-1

ACTIVE

HOT-STANDBY

WS-C3850-48XS | 96 x 10 Gigabit Ethernet | 8 x 40 Gigabit Ethernet

Simple

 Unified Control and

Management plane

 Simplified L2/L3 network designs

 Inherits all proven VSS architectural benefits

Scale Resilient

 High-performance 10G

Aggregation block

 Non-oversubscribe : o 96 x 10G Ports o 8 x 40G Ports

 Fully Distributed

Forwarding

 Non-stop business communication with

Cisco NSF/SSO

 Proven 1+1 HA architecture

 Next-gen In-service

Software upgrade ready

 Etherchannel – up to 8p

Flexible

 Flexible design on all next-gen UADP based systems

 Elastic topology design

– Hub/spoke,

Ring, Chain

 Simplification across multiple network layers

Advance

 Based on next-gen OS

– IOS XE Denali

 Rich IOS feature sets

– L2/L3, Routing,

Multicast, QoS, etc.

Distributed stacking will be supported in 16.3.2.. Please check release notes for compete details.

Catalyst 3850 10G for Fixed Agg Competitive Takeout

Shipping Since

September 2015

MPLS - Q3CY16

StackWise Virtual

– Q4CY16

Family PID

Catalyst

3k

WS-C3850-12XS-S

WS-C3850-12XS-E

WS-C3850-24XS-S

WS-C3850-24XS-S

WS-C3850-48XS-S

WS-C3850-48XS-E

10G

Ports

12

12

24

24

48

48

40G

Ports

Feature Set

- IP Base

- IP Services

2

**

IP Base

2

**

IP Services

4 IP Base

4 IP Services

Prices Verified in CCW on 6/17/16

Price

Updated!

Price

$13,500

$15,500

$21,000

$25,000

$26,500

$34,500

 Leveraging the power of IOS 16.x

 Advanced Serviceability through binary and radioactive tracing

 Simplified Provisioning, Easy navigation, and Improved device monitoring through webUI.

 Investment protection and expansion capability with stacking

(12p/24p SKUs) with existing 3K switches, enabling easy migration to 10G

IOX XE Denali 16.x.x Release Highlights

Single Release

Feature Consistency

Run Any Feature

Anywhere (RAFA)

Simplicity

Plug-n-Play

Enhanced Web UI

Simplified Lifecycle

Management

©

Operational Efficiency

Faster Troubleshooting

Modularized Upgrades

Some Important Features Released in 16.3.1

• MPLS

• Application Visibility and Control

• Programmability

COAP

• POE Innovations

• Enterprise Media Networks - AVB

• WCM Sub package upgrade

• MACSEC 256

• ERSPAN

©

MPLS on 3850/3650

Segmentation Technology Choices in the Campus

Cisc o ISE

Mobility Collaboration Security

VPN SGT

VPN

SGT

APIC

EM

VPN

VPN

SGT SGT

VPN

Endpoints

MPLS Based Segmentation

• Traditional label-based Segmentation with

L3 VPNs

• Centralized policy enforcement for tenant

/ segment isolation

• CLI based Manageability

SGT

Endpoints

Trustsec Based Segmentation

• Group Tags (SGT) used to create user / device policies for access and segmentation

• Distributed policy enforcement at the network Access for traffic isolation

• Cisco ISE based Manageability

Polaris | UADP | Standards-based

Branc h

Endpoints

DNA Fabric Segmentation

• VxLAN-based secure segmentation (VRFlevel segmentation with SGT-level filters)

• Distributed policy enforcement without IP address Explosion

• Controller-managed GUI provisioning

Network Segmentation in Campus

Line of business – BU segmentation

INTERNET

POS

Network

Other

Network

Payment Card Industry

Medical Device

Doctor

Hospital Network

Staff

Bring-Your-Own-Device (BYOD)

Mergers and Acquisitions

Multi-Tenancy

13

AVC

Why do you need AVC at Access?

Visibility

Threats (worms and trojans) move laterally (east-west).

Central application sensor will not see this at all

Detection

Path to server may be different than return path

—may not be able to determine application

Troubleshooting

Essential to have visibility at multiple points to break down the problem and get to resolution faster

Control

Latency metrics such as response time, transaction time, network

& application delay needed to control the apps

Application Recognition Techniques

DNS-AS

• Pre Defined Apps

Metadata on DNS

Server

• Lightweight & authoritative

• Identify most

Applications

• Detects ENCRYPTED apps

• Custom Apps

• Planned for IOS XE

3.9.0E (Cat4K) and IOS

XE 16.4 (Cat3K)

.

NBAR2

(Performance

Optimized)

• 1500 Apps

• Initial packets copied to CPU

• Good for most app except evasive app like bittorrent

• Available in IOS XE

16.3 (3650/3850)

NBAR2

DPI

• 1500 Apps

• Fine Grain DPI

• Mostly on Routers,

Enabling AVC Services

WebUI interface

AVC Monitoring

WebUI - Easy and Simple Visibility

Configuration Management

NETCONF/RESTCONF/YANG

Configuration Management Today

jafrazie$ ssh [email protected]

[email protected]'s password: cho# conf t

Enter configuration commands, one per line. End with CNTL/Z.

cho(config)#

Software

Unfriendly

Syntax/format changes

No Common

Data Model

No Error

Reporting

Task

Oriented

Human

Friendly

Easy To

Replay

No

Special

Tools

APIs & Network Configuration Protocols

NETCONF

NETCONF is an IETF configuration management protocol in response to SNMP/SMI shortcomings for managing configuration e.g.:

 Lack of support for simple things like backup-andrestore of element configuration

Separates Operational and Configuration Data management

(show commands v/s config)

Defines capabilities for managing configuration data

 Candidate buffer for validation of config before commit

 Locking the config space

Protocol Stack

Content

Operations

Messages

Transport

21

Cisco mGig

mGig

– Value to our Customers

Maintain Switch to AP Reach at Higher Speeds

Adaptive Rate Technology (FE, 1G, 2.5G, 5G, and 10G)  Future proofed for higher speeds

Infrastructure Investment Protection

Supports 100m distance with Cat5e/Cat6 cabling up to 5G speeds for Brownfield

Supports Cat6a cabling for Greenfield deployments for higher speeds

POE/POE+/UPOE

Cisco Innovation over 10GT Standard to support high end point power needs

Standards Compliant

1G and 10G BaseT IEEE standards, IEEE P802.3bz 2.5/5GBASE-T standardization in progress

NBASE-T

TM

going Standard

802.3bz Standard on Schedule for Sept 2016

Cisco continues to drive standards forward

802.3bz

MultiGigabit Use Cases

11ac Wave2 APs Uplinks for Access

Extension

Servers Connectivity at Higher Speeds

3800 APs

GigE Vision over

NBASE-T

high-performance industrial cameras

C3560-CX

BioScience

Research & Tools

mGig NIC

Aironet AP 3800

Next-Generation Wave 2 802.11ac

Side Mount Module

Cisco Aironet

®

3800 Series

New

Industry leading 4x4 MIMO:3 spatial streams (SS)

Wave 2 802.11ac access points

Dual radio, 802.11ac Wave 2, 160 MHz

Combined Data Rate of 5.2Gbps

2 x 5 GHz: 4x4: 3SS supporting

SU-MIMO / MU-MIMO

Flexible Radio Assignment: 2.4GHz, Dual-5GHz, Wireless Security

Monitoring, Wireless Service Assurance*, or Enhanced Location*

Gigabit Ethernet & multi-Gigabit Ethernet (1G, 2.5G, 5G)

HDX Technology

Enhanced Location using External Antennas*

USB 2.0

Internal and external antenna models

Smart Antenna Connector - 2 nd

Antenna Connector

Modularity: Side Mount Modular

Multi-Gigabit Wi-Fi has fully arrived.

* Post-FCS

The NEW Cisco Catalyst Multigigabit Product Family

4500E

• Best In Class Modular Access

• New 48 Ports Line Card

• 12 Ports of Multigigabit per slot

• Up to 96 multigigabit ports per system

3850

• Industry leading Fixed Access

• 24 & 48 Port Stackable Switches

• 24 & 12 Multigigabit Ports

• New Uplinks

3560CX

• NG Workspace switch

• Multigigabit in smallest form factor

• POE/POE+

• Instant Access support

Innovation in multiple form factors!!

The New Catalyst 3850 Multigigabit Switches

Q2CY15

48-port Catalyst 3850 Multigigabit Switch

Downlinks:

36 x 1G LineRate 10/100/1000BASE-T, PoE/PoE+/UPoE,

EEE, MACSec

12 x GE/mGig/10GT

– LineRate, 100M/1GE/mGiG/10GBASE-

T, PoE/PoE+, PoE/PoE+/UPoE, EEE, MACSec

Uplinks:

4x10GE SFP+, 2 x 40G (NEW), 8x10G (NEW)

24-port Catalyst 3850 Mulitgigabit Switch

Downlinks:

• 24 x GE/mGig/10GT

• EEE, MACSec

• PoE/PoE+/UPOE

Uplinks:

4x10GE SFP+, 2 x 40G (NEW), 8x10G (NEW)

Stackable with other 3850 Switches

The New Catalyst 3850 Uplink Modules

Performance

2x40Gig, QSFP

80G Non Blocking

Compatibility

Only work on mGig and 10G

Fiber

(24-port)

Switches

8x10Gig, SFP/SFP+

80G Non Blocking

Only work on mGig and 10G

Fiber

(24-port)

Switches

All 3850 Uplinks Are Supported on mGig switches

Preserve Existing Investments: Mix & Match

3850 with 48p Multigigabit

3850 with 24p Multigigabit

3850 with 1G Fiber

3850 with 1G Copper

New

New

Existing

Existing

# of mGig

Ports

Port

Capabilities

Uplinks

The New Catalyst 3650 Multigigabit Switches

Competitive 48-port Mgig

12 mGig ports

UPOE & PoE

+ SKU’s,

EEE, MACsec

2x10G, 4x10G

New 2x40G and 8x10G

Entry Level 24 port mGig

8 mGig ports

UPOE & PoE

+ SKU’s,

EEE, MACsec

2x10G

New 4x10G

Stackable with all 3650 & 3650 Mini Switches

Cisco Catalyst 3650 Mini Switches

Introducing Catalyst 3650 Mini Series Switches

Converged Access

Fixed Power Supply,

Fixed Fans,

RPS2300

11.62 inch depth, 1RU

Cisco StackWise®-160

Upto 775W PoE+ budget

2 SKU’s

• 24 x 1Gbe

• 48 x1Gbe

IP Base/IP Services

48 Ports

– 4xSFP+

24 Ports - 2xSFP & 2xSFP+

Built on Cisco “UADP” ASIC - 11.62” = 295mm deep

What Cisco Catalyst 3650 Mini Switches Offer

 Expands Cisco® Unified Access to small spaces with tight wiring closet designs

Supports converged wired and wireless networks in a stack configuration

 Provides network architects with increased flexibility and speed with PoE+ and 10G uplinks

 Reduced noise and small form factor make it ideal to deploy where real estate is a premium

 The same features, Cisco IOS® XE Software, and management as Cisco Catalyst® 3650 access switches; everything is compatible

 Easily stacks with Cisco Catalyst 3650 access switches

Catalyst 3650 Mini: 24 Port and 48 Port Switches

WS-C3650-24PDM

WS-C3650-48FQM

Fixed Power Supply & Fans

Front to Back Airflow

UADP ASIC

Converged

Access

StackWise-

160

11.62” deep

RPS 2300 support

Flexible

Netflow

Catalyst 3650 Mini SKU’s

WS-C3650-24PDM

Ports

PoE Budget

Stacking

Power Supply & Fans

Key Features

WS-C3650-48FQM

24 x 1GE

Uplinks - 2xSFP, 2xSFP+

390W

48 x1GE

Uplinks - 4xSFP+

775W

Stacks with C3650 family

— Stackwise 160

Fixed Fans, Fixed Power supplies & RPS 2300 support

PoE+, EEE, Flexible Netflow, TrustSec, MACSec

3650 Mini - Quick comparison

Width

Port speeds

PoE/UPoE

Uplinks

Power Supply & Fans

Converged Access

Power Supply Redundancy

TrustSec/MACSec

NetFlow

3750V2

11.6”

FE

PoE

SFP

Fixed

No

RPS2300

SXP, No MACSec

No

3650 Mini

11.6”

3650

17.5”

GE

PoE+

SFP/SFP+

Fixed

Yes

RPS2300

GE

PoE+

SFP/SFP+

FRU

Yes

FRU Power Supply

Full TrustSec, MACSec Full TrustSec, MACSec

Flexible Netflow Flexible Netflow

Cisco Catalyst 4500E Switches

Catalyst 4500E Campus Portfolio

FOUR CHASSIS OPTIONS

7 and 10 Slot with Sup Redundancy

4503-E 4510R+E 4507R+E 4506-E

SUPERVISORS

Traditional and Wireless Convergence

928G Wired, 20G Wireless

WS-X45-SUP8-E

PORT SCALE:

ACCESS AND COLLAPSE AGG

384 10/100/1000 POE/PoE+/UPOE

96 SFP+ , 384 SFP

10GE:

WS-X4712-SFP+E

NEW

WS-X45-SUP8L-E

1GE: 12/24/48 port

WS-X47xx-SFP-E

POWER SUPPLY

Maximize UPOE/POE+/POE delivery

Fully Loaded 10-Slot with POE

WS-X45-SUP7-E

POE:

WS-X4748-UPOE+E

WS-X45-SUP7L-E

Multi Gig

:

WS-X4748-12X48U+E

PWR-C45-9000ACV PWR-C45-6000ACV PWR-C45-4200ACV

Q1CY16

The NEW Supervisor 8L-E

Supported on

4500-E chassis

Faster CPU

Campus Fabric Ready 4 SFP+ 10G/1G

Uplinks

Attribute

Uplinks

Sup8LE

4x10G/1G

Port Scale

Chassis

Support

FIB Table Size

(V4/V6)

Campus Fabric

Capability

Converged

Access

240

3,6,7

64K/32K

Not supported

Sup8E

8x10G/1G

384

3,6,7,10

256K/128K

Low End Supervisor Based on Sup8E

Catalyst 4500 Multi-Gig

Mode

1

mGig Lite Mode

48p 1GE UPOE (First 12p usable as mGig)

Mode

2

mGig Enhanced Mode

12p mGig UPOE + 24p 1GE UPOE

Mode

3

mGig Performance Mode

12p mGig UPOE

C4500E Multigigabit Line card

Innovation with Investment Protection

Supported with Supervisor Engine 7 and 8 on all 4500-E chassis

VSS Quad SUP

VSS Quad Supervisor Redundancy

Sup7E/7-LE/8E Only

Release: IOS XE 3.8.0

VSS Active

In chassis Active

Control Plane Active

Data Plane Active

RPR

Inchassis Standby

Control Plane RPR-Cold

Default Redundancy Domain

SSO

VSL

VSS Standby

In chassis Active

Control Plane Standby

Data Plane Active

RPR

InChassis Standby

Control Plane RPR-Cold

4

Catalyst 6800

Introducing Catalyst 6840-X

Up to 40 ports of

SFP+, up to 12 ports of

QSFP

10/100/1000M GLC-T

1G SFP, 100M FX

256K IPV4 Route

1.5M Netflow

Up to 2 x 40G QSFP Uplinks

Breakout to 4 x 10G SFP/SFP+

High scale control plane with x86 CPU

Instant Access,

SGT, MACSec

Height:

2RU

Depth:

21.8”

750W/1100W

Redundant AC/DC

Front-to-Back Airflow

All Catalyst 6K Features with no Compromise in Yet a Smaller Form Factor

Catalyst 6840-X Portfolio

Providing deployment options

16x10G

15.2(1)SY

Q4CY2014

15.2(1)SY

24x10G + 2x40G

40x10G + 2x40G

Native Optics

# of 10G Ports

# of 40G Ports

Features

Additional

Hardware

Features

Price

* Includes 2 AC PS

SFP/SFP+

16

4 using reverse adapter

SFP/SFP+

32

8 using reverse adapter

Full-feature L2/L3 IPv4/IPv6,

MPLS/VPLS, LISP. 256K

IPv4 Routes, 512K NetFlow

Large Buffers, Dual Priority

Queues, 2 Level Shaping,

HQoS. SGT, MACSEC.

VSS, Instant Access

$30,000

Full-feature L2/L3 IPv4/IPv6,

MPLS/VPLS, LISP. 256K

IPv4 Routes, 1M NetFlow

Large Buffers, Dual Priority

Queues, 2 Level Shaping,

HQoS. SGT, MACSEC.

VSS, Instant Access

$50,000

SFP/SFP+ and QSFP

SFP/SFP+ and QSFP

24 +

8 using breakout

2 +

6 using reverse adapter

Full-feature L2/L3 IPv4/IPv6,

MPLS/VPLS, LISP. 256K

IPv4 Routes, 1M NetFlow

40 +

8 using breakout

2 +

10 using reverse adapter

Full-feature L2/L3 IPv4/IPv6,

MPLS/VPLS, LISP. 256K

IPv4 Routes, 1.5M NetFlow

Large Buffers, Dual Priority

Queues, 2 Level Shaping,

HQoS. SGT, MACSEC.

VSS, Instant Access

$50,000

Large Buffers, Dual Priority

Queues, 2 Level Shaping,

HQoS. SGT, MACSEC.

VSS, Instant Access

$60,000

Cisco Catalyst Fixed Solution for every customer need

Customer Needs:

• Migration path for 3k 1G customers

• UADP ASIC based

• Stacking – Stackwise and

StackPower*

• Customers who need 48p of 10G

Customer Needs:

• Rich layer 2 and 3 features

• VSS

• Large tables, deep buffers and rich multicast features

• L3 Scale and performance

Customer Needs:

• Best-in-Class Core Features –

C6k DNA

• All 3000+ 6k Features from day one

• Full Feature MPLS, VPLS

• Flexibility to grow up to 80 Ports

• XL Option for higher scale**

• Up to 220G/Slot Capability

• Instant Access

• VSS

Catalyst 6840-X

Catalyst 4500-X

Catalyst 3850

10G Fiber

Catalyst 6880-X

* On 12p and 24p SKU only ** On C6880-X

Catalyst Backbone Portfolio

FIXED

12/24p 1G

1RU Aggregation

12p/24p/48p 10G

1RU Aggregation

Scale

FCS

Q2CY15

16p/32p 1 RU

10GE Aggregation

MODULAR(*)

 Comprehensive

 Borderless Feature Set

 Highest Performance and Scalability

 Lower TCO

Up to 80 10G Ports

5 RU Core

FCS

Q3CY15

Up to 40 10G Ports

2RU, NG Backbone

Industry-Leading Campus

Backbone Platform

Scale

(*)4500-E can be used opportunistically

Supervisor 6T

Taking Catalyst 6800 to a New Level

High-Scale Control

Plane

with X86 CPU

1M IPv4 Route

1M NetFlow

256K QoS / ACL

2 x 40G QSFP and

8 x 10G SFP+ uplinks

Improved Fabric

Provides 440G/Slot in the 6807-XL

EC

Fiber & Copper

Management and

Console Ports

VSS, Instant Access,

LISP, SGT, MACSEC,

HQoS, etc on all Ports

* No CFC or Service Module Support

Feature Parity with Sup2T from Day 1: 3000+ Features

Supervisor 6T

Taking Catalyst 6800 to a New Level

Improved Fabric

Providing 440G/slot in

6807-XL

High-Performance

Control Plane with x86 CPU

EC

Fiber / Copper

2 x 40G (QSFP) and 8 x

1/10G (SFP+) Uplinks

Supporting IA, LISP, etc

Management Ports

6807-XL Bandwidth

CPU

Memory

Uplinks

Uplinks Advanced

Features

Bootdisk

Mgmt Port

SUP2T

220G /Slot

1.5Ghz

MPC8572

2 - 4GB

DDR2 667Mhz

Scalability &

Performance

SUP6T

440G /Slot

2.5Ghz

X86 Dual Core

4 - 8GB

DDR3 1333Mhz

2 x 10G (X2) &

3 x 1G (SFP)

2 x 40G (QSFP) &

8 x 1/10G (SFP+)

VSS, MACSEC,

SGT

Compact Flash

CMP

VSS, Instant

Access, MACSEC,

SGT, LISP

eUSB

Mgmt0

Feature Parity with Sup2T from Day 1: 3000+ Features

Catalyst 6800 10G Portfolio

Providing Deployment Options

32x10G SFP+

16x10G SFP+ 8x10G SFP+

Throughput in 6807

Optics:

Egress Buffer/port:

Features:

Additional Hardware

Features:

Price

160G

SFP/SFP+

250 MB

Full-feature L2/L3 module with

MPLS, VPLS. IPv4/IPv6 capabilities, 1M IPv4 Routes,

2M NetFlow

Large Buffers, SGT, MACSec,

LISP, Dual Priority Queues, Two

Level Shaping, Instant Access

$35,000 (45,000 for XL)

80G

SFP/SFP+

250 MB

Full-feature L2/L3 module with

MPLS, VPLS. IPv4/IPv6 capabilities, 1M IPv4 Routes,

1M NetFlow

Large Buffers, SGT, MACSec,

LISP, Dual Priority Queues, Two

Level Shaping, Instant Access

$25,000 (35,000 for XL)

80G

SFP/SFP+

500 MB

Full-feature L2/L3 module with

MPLS, VPLS. IPv4/IPv6 capabilities, 1M+ IPv4 Routes,

1M NetFlow

Large Buffers, SGT, MACSec,

LISP, Dual Priority Queues,

Two Level Shaping, Instant

Access

$25,000 (35,000 for XL)

Add 40G Capability to Existing 6k 10G

10GE Now

40GE Later

SFP+

QSFP

Supports All

QSFP

Types

QSFP-40G-SR4

QSFP-40G-CSR4

QSFP-40G-SR-BD

QSFP-40G-LR4

QSFP-40G-ER4

C6800-32P-10G

C6800-16P-10G

C6800-8P-10G

With Sup6T

April 2016

Phase I

15.3(1) SY

C6800-32P-10G

C6800-16P-10G

C6800-8P-10G

With Sup2T

2HCY’16

Phase II

6880-X

6840-X

1HCY’17

Phase III

The new 15.3(1)SY1 Release

Addressing Campus Backbone Challenges

Instant Access

 IA Port Scale: 1K ->2K ports

IA Stack Scale : 3->5

IA Fabric Scale : 12->160

Compact IA Client : new!

New Hardware

200+ N

EW

B

ACKBONE

F

EATURES

Innovative Features

APIC-EM*

PnP Agent

Service Discovery

Gateway 2.0

Interface Templates and Auto Config

IBNS 2.0

Customer Solutions

8, 16 and 32p

10G/1G cards

Performance mode

48p 1G cards

40G adapter

SUP 6T (6807+6500E)

OSPFv3 area filter

DHCPv6 LDRA

IPv4/v6 MVPN

VRF-aware DHCP relay

VRF-aware DNS

and Much More

Investment Protection

All E-Series Chassis and 6807-XL

Reinforce Enterprise Backbones with the Catalyst 6800

What’s New: Cisco DNA Innovations

New!

APIC-EM Automation Platform

Completely New Platform

Available Now

Base Automation:

Plug and Play

Available Now

Cloud version Controlled Availability, May 2016

Policy Services:

IWAN App

&

EasyQoS

Available Now | March 2016, respectively

New!

Enterprise NFV

Branch Service Virtualization

Controlled Availability, March 2016

New!

CMX Cloud

Presence Analytics and Connect

Available Now in US, April 2016 for ROW

Network-enabled Applications

Cloud Service Management

Policy | Orchestration

Open APIs | Developers Environment

Automation

Abstraction & Policy Control from Core to Edge

Analytics

Network Data,

Contextual Insights

Open & Programmable | Standards-Based

Virtualization

Physical & Virtual Infrastructure | App Hosting

Cloud-enabled | Software-delivered

Available on DNA-Ready Infrastructure through Cisco ONE Software

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
