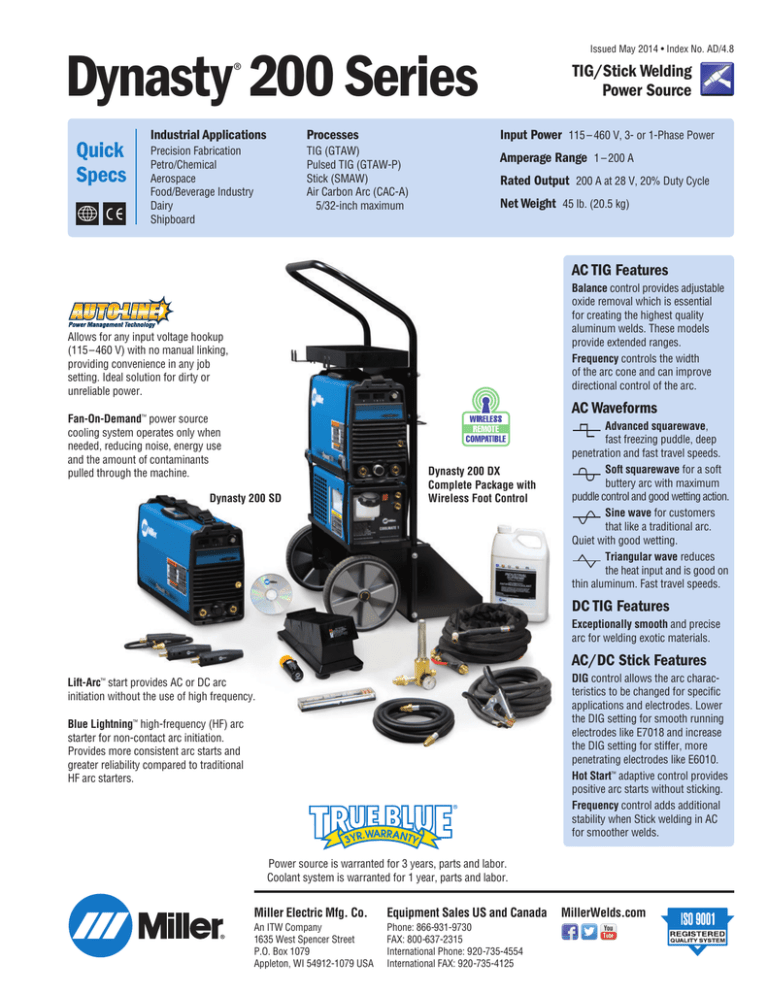

Dynasty® 200 Series

Dynasty® 200 Series
Issued May 2014 • Index No. AD/4.8
Dynasty 200 Series
®
Quick
Specs
Industrial Applications
Processes
Precision Fabrication
Petro/Chemical
Aerospace
Food/Beverage Industry
Dairy
Shipboard
TIG (GTAW)
Pulsed TIG (GTAW-P)
Stick (SMAW)
Air Carbon Arc (CAC-A)
5/32-inch maximum
TIG/Stick Welding
Power Source
Input Power 115 – 460 V, 3- or 1-Phase Power
Amperage Range 1 – 200 A
Rated Output 200 A at 28 V, 20% Duty Cycle
Net Weight 45 lb. (20.5 kg)
AC TIG Features
Balance control provides adjustable
oxide removal which is essential
for creating the highest quality
aluminum welds. These models
provide extended ranges.
Frequency controls the width
of the arc cone and can improve
directional control of the arc.
Allows for any input voltage hookup
(115–460 V) with no manual linking,
providing convenience in any job
setting. Ideal solution for dirty or
unreliable power.
AC Waveforms
Fan-On-Demand™ power source
cooling system operates only when
needed, reducing noise, energy use
and the amount of contaminants
pulled through the machine.
Dynasty 200 SD
Dynasty 200 DX
Complete Package with
Wireless Foot Control
Advanced squarewave,
fast freezing puddle, deep
penetration and fast travel speeds.
Soft squarewave for a soft
buttery arc with maximum
puddle control and good wetting action.
Sine wave for customers
that like a traditional arc.
Quiet with good wetting.
Triangular wave reduces
the heat input and is good on
thin aluminum. Fast travel speeds.
DC TIG Features
Exceptionally smooth and precise
arc for welding exotic materials.
AC/DC Stick Features
DIG control allows the arc characteristics to be changed for specific
applications and electrodes. Lower
the DIG setting for smooth running
electrodes like E7018 and increase
the DIG setting for stiffer, more
penetrating electrodes like E6010.
Hot Start™ adaptive control provides
positive arc starts without sticking.
Frequency control adds additional
stability when Stick welding in AC
for smoother welds.
Lift-Arc™ start provides AC or DC arc
initiation without the use of high frequency.
Blue Lightning™ high-frequency (HF) arc
starter for non-contact arc initiation.
Provides more consistent arc starts and
greater reliability compared to traditional
HF arc starters.
Power source is warranted for 3 years, parts and labor.
Coolant system is warranted for 1 year, parts and labor.
Miller Electric Mfg. Co.
Equipment Sales US and Canada
An ITW Company
1635 West Spencer Street
P.O. Box 1079
Appleton, WI 54912-1079 USA
Phone: 866-931-9730
FAX: 800-637-2315
International Phone: 920-735-4554
International FAX: 920-735-4125
MillerWelds.com
Specifications (Subject to change without notice.)
Welding
Amperage
Range
Welding
Mode
TIG
(GTAW)
AC 5–150 A
DC 1–150 A
(115 VAC)
Max.
OpenCircuit
Voltage
Input
Power
Rated
Output
Amps Input at Rated Load Output, 50/60 Hz
115 V 230 V 400 V 460 V KVA KW
80 VDC
3-Phase
200 A at 18 V,
20% Duty Cycle
—
—
13.7 8.7
6.9
5.5
5.2
0.16* 0.24* 0.25* 0.06* 0.03*
150 A at 16 V,
60% Duty Cycle
—
—
9.4
6.0
4.7
3.8
3.6
0.16* 0.24* 0.25* 0.06* 0.03*
150 A at 16 V,
60% Duty Cycle
—
—
15.8 —
0.23* —
140 A at 15.6 V,
40% Duty Cycle
31.0 —
0.42* —
—
—
—
—
3.6
3.5
0.05* 0.03*
100 A at 14 V,
100% Duty Cycle
20.7 —
0.42* —
—
—
—
—
2.3
2.3
0.05* 0.03*
200 A at 28 V,
20% Duty Cycle
—
—
20.8 13.0 10.2 8.1
7.8
0.16* 0.24* 0.25* 0.06* 0.03*
130 A at 25.2 V,
60% Duty Cycle
—
—
12.3 7.6
6.0
4.8
4.6
0.16* 0.24* 0.25* 0.06* 0.03*
130 A at 25.2 V,
60% Duty Cycle
—
—
20.0 —
0.23* —
100 A at 24 V,
60% Duty Cycle
31.3 —
0.42* —
—
—
—
—
3.6
3.6
0.05* 0.03*
90 A at 23.6 V,
100% Duty Cycle
27.6 —
0.42* —
—
—
—
—
3.2
3.2
0.05* 0.03*
5 – 10 VDC**
AC 5–200 A
DC 1–200 A
(200–460 VAC)
Stick
(SMAW)
AC 5–105 A
DC 1–105 A
(115 VAC)
1-Phase
80 VDC
3-Phase
5 – 10 VDC**
AC 5–200 A
DC 1–200 A
(200–460 VAC)
1-Phase
7.9
3.6
3.6
0.25* 0.05* 0.02*
Dimensions
Net
Weight
H: 13.5 in.
(343 mm)
W: 7.5 in.
(191 mm)
D: 17.5 in.
(445 mm)
Contractor
Kit
with
77 lb.
(34.9 kg)
TIGRunner®
H: 46.25 in.
(1175 mm)
W: 23.5 in.
(597 mm)
D: 22.25 in.
(565 mm)
45 lb.
(20.5 kg)
with
with
TIGRunner®
137 lb.
(62.1 kg)
10.0 4.7
4.7
0.25* 0.05* 0.03*
*While idling. **Sense voltage for Stick and Lift-Arc ™ TIG. Note: Duty cycle limitations on units with 115 V input power are due to the input power cord supplied with the unit.
Certified by Canadian Standards Association to both the Canadian and U.S. Standards.
All CE models conform to the applicable parts of the IEC 60974 series of standards.
Performance Data
DUTY CYCLE
110–120 V INPUT VOLTAGE
%
30%
40%
60%
100%
2
TIG
150 A
140 A
120 A
100 A
STICK
100 A
100 A
100 A
90 A
200–460 V INPUT VOLTAGE
%
20%
30%
40%
60%
100%
TIG
200 A
180 A
166 A
150 A
120 A
STICK
200 A
170 A
150 A
130 A
110 A
Control Panel
Dynasty 200 SD
Dynasty 200 DX
6
1
2
6
1
2
7
7
3
8
3
8
4
5
9
4
5
9
10
11
Control Panel Parameter Values
1. Voltmeter Display
Advanced Features on the Dynasty DX only:
Additional Setup Parameter Values
2. Ammeter Display
10. Sequencer Control
Initial Amps
AC: 5 – 200 A
DC: 1– 200 A
Initial Slope
0.0 – 25.0 seconds
Final Slope
0.0 – 25.0 seconds
Final Amps
AC: 5 – 200 A
DC: 1– 200 A
Preprogrammed Starts
.020 –1/8 in tungsten
3. Polarity
AC/DC
4. Process/
Arc Starting
TIG: HF Impulse, Lift Arc
STICK: Adaptive Hot Start
5. Output Control
Standard Remote,
2T Trigger Hold,
Output ON
6. Encoder Control
7. Amperage Control
8. AC Waveshape
Balance
AC Frequency
30 – 99%
20 – 250 Hz
11. Pulser Control
Pulses per Second DC: 0.1 – 500 PPS
AC: 0.1– 500 PPS
Peak Time
5 – 95%
Background Amps 5 – 95%
Programmable Starts
Amperage
AC: 5 – 200 A
DC: 1– 200 A
Time
1– 200 milliseconds
Ramp Time
1– 250 milliseconds
Minimum Amperage 1– 20 A
Polarity
EP, EN
Additional Triggers 3T, 4T, Mini Logic,
4T Momentary
Waveshapes
Advance Squarewave,
Soft Squarewave, Sine
Wave, Triangular wave
Spot/Timer
0.1– 25.0 seconds
OCV
Low OCV, Normal OCV
9. Gas/DIG Preflow 0.0 – 25.0 seconds
Postflow
0 – 50 seconds
DIG
0 – 100%
Stick Stuck Check On/Off
Lockouts
Four levels
Arc Timer
0.0 – 9999 hours
and 0 – 59 minutes
Cycle Counter
0 – 999,999 cycles
3
TIG Upgrade Chart
Which Machine is Right for You?
Why Upgrade?
Syncrowave 210 UPGRADE
Maximum Thickness Capacity
AC Frequency Control
(Aluminum TIG)
AC Balance Control
(Aluminum TIG)
Pulse Control
AC Waveforms
(Aluminum TIG)
Dynasty 200
1/4-in. Aluminum
1/4-in. Aluminum
Fixed at 100 Hz
(Expandable 60 – 150 Hz)
Variable 20–250 Hz
60 – 80%
30 – 99%
Off–50 PPS
(Expandable Off–150)
Off–500 PPS
Soft Squarewave
Advanced Squarewave
Dynasty 200 Benefits
Same material thickness capacity.
Higher frequencies provide better arc control
and faster travel speeds.
Extended Balance control provides more versatility
on specialty materials.
Provides more arc stability.
Soft Squarewave
Advanced Squarewave = Travel faster
Soft Squarewave = Maximum puddle control
Sine Wave
Triangular Wave
Sine Wave = Traditional characteristics
Triangular Wave = Reduced heat input
Portability
Power Flexibility
133.5 lb. (61 kg)
45 lb. (20.5 kg)
Auto-Line™
115–230 V
Single-Phase
Auto-Line™
115–460 V
Single-Phase or Three-Phase
Easier to move because of size and weight.
Auto-Line™ allows the unit to operate on any
voltage. Single- or three-phase. Even generators!
Pulsed TIG Controls
High-Speed Pulsed TIG Controls
• PPS Pulses per second (Hz): 0.1 – 500 PPS
• % ON – % Peak Time: 5 – 95% (Controls the amount of time during each pulse cycle at the PEAK amperage.)
• Background Amps: 5 – 99% (Sets the low-pulse amperage value as a % of the Peak Amps.)
Conventional Pulsed TIG
Peak
Amps
Peak Time %
Background
Amps
(% of Peak)
Peak
Amps
Peak Time %
Background
Amps
(% of Peak)
Pulse Cycle
Typically from 1 to 10 PPS. Provides a heating and cooling effect
on the weld puddle and can reduce distortion by lowering the
average amperage. This heating and cooling effect also produces a
distinct ripple pattern in the weld bead. The relationship between
pulse frequency and travel speed determines the distance between
the ripples. Slow pulsing can also be coordinated with filler metal
addition and can increase overall control of the weld puddle.
4
High-Speed Pulsed TIG
Pulse Cycle
In excess of 40 PPS, Pulsed TIG becomes more audible than visible —
causing increased puddle agitation for a better as-welded microstructure.
Pulsing the weld current at high speeds — between a high Peak and a
low Background amperage — can also constrict and focus the arc.
This results in maximum arc stability, increased penetration and
increased travel speeds (Common Range: 100 – 500 PPS).
AC Waveshape Controls
Feature
Setting
AC Balance Control
Weld Effect
Reduces balling
action and helps
maintain point
Bead
% EP
0
% EN
Minimum visible
oxide removal (etching)
Time
50% EN
Current
Note: Set the AC Balance control for
adequate arc cleaning (etching) action at
the sides and in front of the weld puddle.
AC Balance should be fine-tuned
according to the amount of etching
desired.
75% EN
Current
Controls arc cleaning action.
Adjusting the % EN of the AC wave
controls the width of the etching zone
surrounding the weld.
Arc Effect
Increases balling
action of the
electrode
Bead
% EP
0
Visible oxide
removal (etching)
% EN
Time
AC Frequency Control
Bead
Current
Controls the width of the arc cone.
Increasing the AC Frequency
provides a more focused arc and
increased directional control.
Wider profile
ideal for buildup work
60 Hz
% EP
0
% EN
Note: Decreasing the AC Frequency
softens the arc and broadens the weld
puddle for a wider weld.
Visible oxide
removal (etching)
Time
Current
120 Hz
%
EP
0
% EN
%
EP
Narrower profile
for fillet welds
and automated
applications
Bead
Visible oxide
removal (etching)
% EN
Time
AC Waveform Selection
Select from four different AC waveforms to optimize the arc characteristic for your application. Choose from:
Advanced Squarewave
Soft Squarewave
Fast transitions for
responsive and
dynamic arc.
0
(–)
0
(–)
Time (1 AC Cycle)
Time (1 AC Cycle)
Sinewave
Triangular Wave
0
(–)
Time (1 AC Cycle)
(+)
Amps
Square transitions
eliminate the need for
continuous HF, while
the sinewave peaks
soften the arc.
(+)
Amps
All the benefits of
advanced square,
fine tuned to provide
a smooth, soft arc
with maximum
puddle control and
good wetting action.
(+)
Amps
Amps
(+)
0
(–)
Time (1 AC Cycle)
Unconventional wave
provides the punch of
the peak amperage,
while reducing overall
heat input. Quick puddle
formation reduces weld
time — limiting heat
input and reducing weld
distortion, especially
on thin materials.
5
Packages
Dynasty 200 Power Sources
®
Dynasty 200 SD #907 099 (CSA)
Dynasty 200 DX #907 099 011 (CSA)
Dynasty 200 DX #907 356 (CE)
Includes:
Adjustable shoulder strap
8-ft. (2.4 m) primary power cord
Two Dinse 50-mm connectors
DVD Setup Video (#251 116)
One air-cooled TIG torch connector
(#195 378)
Note: See page 7 for recommended Contractor Torch Kit.
Dynasty 200 DX Contractor Kit Packages (Air Cooled)
®
Dynasty 200 DX with Contractor Kit
#951 174 (CSA) w/Foot Control
#951 175 (CSA) w/Fingertip Control
Fingertip contractor kit shown.
Packages include:
Dynasty 200 DX (#903 099 011)
RFCS-14 HD foot control (#194 744) or
RCCS-14 fingertip control (#043 688)
Weldcraft® A-150 (WP-17) 25-ft. (7.6 m)
TIG torch
200-amp Stick electrode holder with
15-ft. (4.6 m) #4 cable
Work clamp with 15-ft. (4.6 m) #4 cable
Flow gauge regulator with gas hose
AK2C accessory kit with short back cap,
nozzles, collets, collet bodies, and
2% ceriated tungsten electrodes
(.040, 1/16, and 3/32 in.)
One air-cooled TIG torch connector
(#195 378)
Protective carrying case for accessories
TIGRunner Package (Water Cooled)
®
Dynasty 200 DX TIGRunner
#907 099 021 (CSA)
Completely assembled.
Package includes:
Dynasty 200 DX (#907 099 011)
Coolmate™ 1, 115 VAC (#300 360)
One gallon of pre-mixed, low-conductivity
coolant (#043 810)
2-Wheel Trolley Cart (#300 480) with
the following features: easy-to-maneuver
single-cylinder cart with cable and torch
holders. Easy to release and remove
welder from cart for even more portability.
Convenient tray for consumable storage
and filler rod holders.
Notes: TIG Torch Connector must be ordered
separately. See page 7 for recommended W-250
(WP-20) Torch Kit (#300 185).
The Coolmate 1 requires a separate source for
electricity. The Dynasty 200 does not contain
auxiliary power.
Complete Packages (Water Cooled)
Dynasty 200 DX
Complete Package
with Wireless
Foot Control
Dynasty 200 DX Complete
#951 397 (CSA) w/Wireless Foot Control
#951 139 (CSA) w/Foot Control
#951 140 (CSA) w/Fingertip Control
Completely assembled.
Package includes:
Dynasty 200 DX (#907 099 011)
Coolmate™ 1, 115 VAC (#300 360)
One gallon of pre-mixed, low-conductivity
coolant (#043 810)
Wireless Remote Foot Control (#300 429)
or RFCS-14 HD foot control (#194 744)
or RCCS-14 fingertip control (#043 688)
6
2-Wheel Trolley Cart (#300 480) with
the following features: easy-to-maneuver
single-cylinder cart with cable and torch
holders. Easy to release and remove
welder from cart for even more portability.
Convenient tray for consumable storage
and filler rod holders.
W-250 (WP-20) Torch Kit (#300 185).
See page 7 for more details.
Note: The Coolmate 1 requires a separate source for
electricity. The Dynasty 200 does not contain
auxiliary power.
Genuine Miller Accessories
®
2-Wheel Trolley Cart
#300 480
Easy-to-maneuver two-wheel
cart features single-cylinder
rack, chain for cylinder, straps
(quick and easy to detach and
carry machine), cable holders,
torch holder, storage area, and
filler rod storage area. Works
with Dynasty® or Maxstar® 200 and Coolmate™ 1.
Water-Cooled TIG Torch
Connector #195 377
50-mm Dinse with water
return line. For use with
all Weldcraft® water-cooled torches.
#195 054
kit shown.
Contact your local distributor for filler material holders.
Universal Carrying Cart
and Cylinder Rack
#042 934
Holds power source,
and gas cylinder up to
56 inches (142 cm)
high and 6 to 9 inches
(15 to 23 cm) in diameter.
Coolmate™ 1 #300 360
115 VAC 60 Hz.
One-gallon water cooler
designed for 200 A
portable welders. Features
include fin-and-tube heat
exchanger, back-lit power switch, external filter,
polyethylene tank and coolant level sight gauge.
Low-Conductivity TIG Coolant #043 810
Sold in multiples of four in one-gallon recyclable
plastic bottles. Miller coolants contains a base of
ethylene glycol and deionized water to protect
against freezing to -37° Fahrenheit (-38° C) or
boiling to 227° Fahrenheit (108° C).
Contractor Kits
#195 054 150 A RFCS-14 HD Foot Pedal Kit
#195 055 150 A RCCS-14 Fingertip Kit
All-in-one TIG/Stick welding kit comes with
either a RFCS-14 HD foot control or RCCS-14
fingertip control, Weldcraft® A-150 TIG torch,
200-amp Stick electrode holder with 15-foot
(4.6 m) cable, 300-amp work clamp with
15-foot (4.6 m) cable, Miller | Smith flow gauge
regulator with 12-foot (3.7 m) gas hose, gas
hose coupler, AK2C torch accessory kit, TIG
torch connector, and protective carrying case.
Weldcraft® A-200 (WP-26)
TIG Torch
#WP-26-12-R (12 ft.)
#WP-26-25-R (25 ft.)
Torch body gas valve models are available.
Note: A-200 (WP-26) torch requires #195 379 connector.
Air-Cooled TIG Torch Connectors
#195 379 A-200 (WP-26)
#195 378* All others
50-mm Dinse-style for one-piece air-cooled torch.
*A-80 (WP-24) torches require 24-5 connector.
Remote Controls and Switches
W-250 (WP-20) Torch Kit #300 185
Weldcraft® W-250 (WP-20) 25-foot (7.6 m)
TIG torch with Dinse connector
Torch cable cover
Work clamp with 15-foot (4.6 m) 1/0 cable
and Dinse connector
Miller | Smith flowmeter regulator
Gas hose (regulator to machine)
AK4C torch accessory kit includes nozzles,
collets, collet bodies and 2% ceriated
tungsten electrodes (1/16, 3/32 and 1/8 inch)
Wireless Remote Foot
Control #300 429
For remote current and
contactor control. Receiver
plugs directly into the 14-pin
receptacle of Miller machine. 90-foot (27.4 m)
operating range.
Wireless Remote Hand Control
#300 430
For remote current and contactor
control. Receiver plugs directly
into the 14-pin receptacle of Miller
machine. 300-foot (91.4 m) operating range.
RCCS-14 Remote Contactor and Current Control
#043 688
North/south rotary-motion fingertip control fastens
to TIG torch using two Velcro® straps. Includes
26.5-foot (8 m) cord and 14-pin plug.
RCC-14 Remote Contactor and Current Control
#151 086
East/west rotary-motion fingertip control fastens
to TIG torch using two Velcro® straps. Includes
26.5-foot (8 m) cord and 14-pin plug.
RFCS-14 HD Foot Control #194 744
Maximum flexibility is accomplished with a
reconfigurable cord that can exit the front, back
or either side of the pedal. Foot pedal provides
remote current and contactor control. Includes
20-foot (6 m) cord and 14-pin plug.
RHC-14 Hand Control #242 211 020
Miniature hand control for remote current and
contactor control. Dimensions: 4 x 4 x 3.25 inches
(102 x 102 x 83 mm). Includes 20-foot (6 m)
cord and 14-pin plug.
RMLS-14 Switch
#129 337
Momentary- and
maintained-contact rocker switch for contactor
control. Push forward for maintained contact
and backward for momentary contact. Includes
26.5-foot (8 m) cord and 14-pin plug.
RMS-14 On/Off
Control #187 208
Momentary-contact
switch for contactor control. Rubber-covered
pushbutton dome switch ideal for repetitive
on-off applications. Includes 26.5-foot (8 m)
cord and 14-pin plug.
Extension Cables for 14-Pin Remote Controls
#242 208 025 25 ft. (7.6 m)
#242 208 050 50 ft. (15.2 m)
#242 208 080 80 ft. (24.4 m)
Educational Materials
To order, please call Miller Literature at 866-931-9732
or visit MillerWelds.com/resources/tools.
Gas Tungsten Arc Welding (TIG) Publication
#250 833
Ron Covell TIG Welding Basics DVD #196 567
DVD Setup Video #251 116
Video topics include tungsten selection, setup
menus, DC pulse, sequencer, balance and
frequency settings. (Included with machine.)
Tungsten
Tungsten
.040 in. (1.2 mm)
1/16 in. (1.6 mm)
3/32 in. (2.4 mm)
1/8 in. (3.2 mm)
5/32 in. (4.0 mm)
Amp Range
10 – 80 A
70 –150 A
140 – 250 A
225 – 400 A
300 – 500 A
2% Ceriated (AC/DC)
WC040X7
WC116X7
WC332X7
WC018X7
WC532X7
2% Lanthanated (AC/DC)
WL2040X7
WL2116X7
WL2332X7
WL2018X7
WL2532X7
7
Ordering Information
Equipment and Options
Stock No.
Description
Dynasty 200 SD
#907 099
Auto-Line 115 – 460 VAC, 50/60 Hz, CSA. 8-ft. primary cord
Dynasty® 200 DX
#907 099 011
Auto-Line™ 115 – 460 VAC, 50/60 Hz, CSA. 8-ft. primary cord
Dynasty 200 DX International
#907 356
Auto-Line™ 115 – 460 VAC, 50/60 Hz, CE. 8-ft. primary cord
Dynasty® 200 DX Contractor Kit w/Foot Control
#951 174
Auto-Line™ 115 – 460 VAC, 50/60 Hz, CSA. 8-ft. primary cord
Dynasty 200 DX Contractor Kit w/Fingertip Control
#951 175
Auto-Line™ 115 – 460 VAC, 50/60 Hz, CSA. 8-ft. primary cord
Dynasty® 200 DX TIGRunner ®
#907 099 021
Auto-Line™ 115 – 460 VAC, 50/60 Hz, CSA. 8-ft. primary cord
(Torch kit and accessories sold separately)
Dynasty® 200 DX Complete
with Wireless Remote Foot Control
#951 397
Auto-Line™ 115 – 460 VAC, 50/60 Hz, CSA. 8-ft. primary cord
Dynasty® 200 DX Complete w/Foot Control
#951 139
Auto-Line™ 115 – 460 VAC, 50/60 Hz, CSA. 8-ft. primary cord
Dynasty 200 DX Complete w/Fingertip Control
#951 140
Auto-Line™ 115 – 460 VAC, 50/60 Hz, CSA. 8-ft. primary cord
®
®
Qty.
™
Air-Cooled Packages
®
Water-Cooled Packages
®
TIG Torches, Kits and Connectors
W-250 (WP-20) Torch Kit
#300 185
Water-Cooled TIG Torch Connector
#195 377
Connects Weldcraft® water-cooled torches to Dinse connector
Air-Cooled Contractor Kits
#195 054
#195 055
Foot pedal
Fingertip
Weldcraft® A-200 (WP-26) TIG Torch
#WP-26-12-R
#WP-26-25-R
12-ft. (3.7 m) cable. Requires #195 379 connector
25-ft. (7.6 m) cable. Requires #195 379 connector
Air-Cooled TIG Torch Connectors
#195 379
#195 378
Connects Weldcraft® A-200 (WP-26) torch to Dinse connector
Connects all air-cooled Weldcraft® torches (except A-200) to
Dinse connector. A-80 (WP-24) torches require 24-5 connector
Tungsten
See page 7
Remote Controls
Wireless Remote Foot Control
#300 429
Foot control with wireless 90-ft. (27.4 m) operating range
Wireless Remote Hand Control
#300 430
Hand control with wireless 300-ft. (91.4 m) operating range
RCCS-14
#043 688
North/south fingertip control
RCC-14
#151 086
East/west fingertip control
RFCS-14 HD
#194 744
Heavy-duty foot control
RHC-14
#242 211 020
Hand control
RMLS-14
#129 337
Momentary/maintained rocker switch
RMS-14
#187 208
Momentary rubber dome switch
Extension Cables
#242 208 025
#242 208 050
#242 208 080
25 ft. (7.6 m)
50 ft. (15.2 m)
80 ft. (24.4 m)
Accessories
2-Wheel Trolley Cart
#300 480
Universal Carrying Cart and Cylinder Rack
#042 934
Coolmate™ 1
#300 360
115 VAC, 60 Hz. Requires coolant
TIG Coolant (Must be ordered in quantities of four)
#043 810
1-gallon plastic bottle
Dinse Connector 50 mm (1 male)
#042 418
Used to connect weld lead to Dinse terminal machine
Dinse Connector 50 mm (1 male, 1 female)
#042 419
Used to extend weld cables
Dinse/Tweco® Terminal Adapter
#042 465
Male Dinse to female Tweco
Dinse/Cam-Lok Terminal Adapter
#042 466
Male Dinse to female Cam-Lok
Gas Tungsten Arc Welding (TIG) Publication
#250 833
Ron Covell TIG Welding Basics DVD
#196 567
DVD Setup Video (included with machine)
#251 116
Date:
Distributed by:
© 2013 Miller Electric Mfg. Co.
Total Quoted Price:
Price
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
