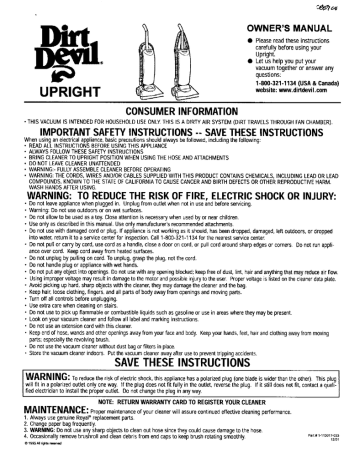

UPRIGHT
OWNER'S MANUAL
•
Please read these instructions
•
carefully before using your
Upright.
Let us help you put your
vacuum together or answer any
questions:
1-800-321-1134 (USA & Canada)
website: www.dirtdevil.com
UPRIGHT
CONSUMER INFORMATION
• THISVACUUMIS INTENDEDFORHOUSEHOLD
USEONLY.THIS IS A DIRTYAIR SYSTEM(DIRTTRAVELSTHROUGHFANCHAMBER).
IMPORTANTSAFETYINSTRUCTIONS-- SAVETHESE INSTRUCTIONS
When using an electricalappliance,basic precautionsshould alwaysbe followed, including the following:
• READALL INSTRUCTIONS
BEFOREUSINGTHIS APPLIANCE
• ALWAYSFOLLOWTHESESAFETYINSTRUCTIONS
• BRINGCLEANERTOUPRIGHTPOSITIONWHENUSINGTHEHOSEAND ATTACHMENTS
• DONOTLEAVECLEANERUNATTENDED
• WARNING:-FULLYASSEMBLECLEANERBEFOREOPERATING
• WARNING:THE CORDS,WIRESAND/ORCABLESSUPPLIEDWITH THISPRODUCTCONTAINS
CHEMICALS,INCLUDINGLEADOR LEAD
COMPOUNDS,KNOWNTOTHESTATEOFCALIFORNIATOCAUSECANCERAND BIRTHDEFECTS
OROTHERREPRODUCTIVE
HARM.
WASH HANDSAFTERUSING.
WARNING: TO REDUCETHE RISK OF FIRE, ELECTRICSHOCKOR INJURY:
•
•
•
•
•
Do not leaveappliancewhen plugged in. Unplug from outlet when not in useand beforeservicing.
Warning: Do not useoutdoors or on wet surfaces,
Do not allow to be used as a toy. Closeattention is necessarywhen usedby or near children.
Use only as described in this manual, Useonly manufacturer'srecommendedattachments.
Do not usewith damagedcord or plug, If applianceis not working as it should, has beendropped, damaged,left outdoors, or dropped
into water, return it to a servicecenter for inspection.Call 1-800-321-1134for the nearestservicecenter.
• Do not pull or carry by cord, use cord as a handle,close a door on cord, or pull cord around sharp edgesor corners. Do not run applianceover cord. Keepcord awayfrom heatedsurfaces.
• Do not unplug by pulling on cord. Tounplug, grasp the plug, not the cord.
Do not handle plug or appliancewith wet hands.
Do not put anyobject into openings,Donot usewith anyopeningblocked;keepfreeof dust, lint, hair and anythingthat may reduceair flow.
Usingimpropervoltagemay result in damageto the motor and possibleinJuryto the user. Propervoltage is listed on the cleanerdataplate,
Avoid picking up hard, sharpobjects with the cleaner,they may damagethe cleanerand the bag.
Keephair, looseclothing, fingers,and all parts of body awayfrom openingsand moving parts.
Turnoff all controls before unplugging.
Use extra carewhen cleaning on stairs.
Do not useto pick up flammableor combustible liquids such as gasolineor usein areaswherethey may be present.
Look on yourvacuum cleanerand follow all labeland marking instructions.
Do not usean extensioncord with this cleaner.
Keepend of hose,wandsand other openingsawayfrom yourfaceand body, Keepyour hands,feet, hair and clothing awayfrom moving
parts; especiallythe revolving brush.
• Do not usethevacuumcleanerwithout dust bagor filters in place.
• Storethe vacuumcleanerindoors. Putthe vacuumcleanerawayafter useto preventtrippingaccidents.
SAVETHESEINSTRUCTIONS
I
This plug I
will fit in a polarizedoutlet only one way. If the plug does not fit fully in the outlet, reversethe plug. If it still does not fit, contact a quali-
WARNING: To reducethe risk of electric shock, this appliancehas a polarizedplug (one blade is wider than the other),
fied electricianto install the proper outlet. Do not changethe pug n anyway.
NOTE: RETURN WARRANTY CARD TO REGISTERYOUR CLEANER
MAINTENANCE:Proper maintenanceof your cleanerwill assurecontinued effectivecleaningperformance.
1. Alwaysuse genuineRoyal" replacementparts.
2. Changepaper bag frequently.
3. WARNING:Do not use any sharpobjects to clean out hosesincethey could causedamageto the hose,
4. Occasionallyremove brushroll and cleandebris from end capsto keepbrush rotating smoothly.
© lgg5 A_ rlghtnr_
Pa_
#1-113olT-o33
12101
-10
-11
Featherlite ®with
stretch hose
Featherlite ®
10
Featherlite ®with
stretch hose
Featherlite ®
UPRIGHT FEATURES
Featherlite ®and Featherlite ®with stretch hose
1.
2.
Handle Grip
Front Panel Release Lever
7.
8.
3.
4.
*Headlight
Nozzle Cover
9. *Stretch Hose
9a, *Flexible Hose
15. Hose Handle
16. Crevice Tool
5.
Protective Bumper
10. Quick Cord Release
17. 2 in 1 Tool
6.
Attachment Port
11, Extension Wand
12, Extra Long Power Cord
18. Tool Caddy
*Not available
on all models
Cord Guide
Handle
13. Handle Release Pedal
14. OnlOff Switch
Featherlite®
5.
_!.:;.. !! ....
_:.'.:_
:
_::.':
_
_:_'%..,-1 "
Featherlite®with stretchhose
I
HOW TO ASSEMBLE
HandleAssembly:
TOOL REQUIRED:
..
PHILLIPS
/
SCREWDRIVER
1, Rotatehandlebaseto the uprightposition.
WARNING: BEFOREASSEMBLINGTHEBODYOFTHE CLEANERTO BASE,MAKE SUREPOWERCORDIS DOWNANDOUT OFTHEWAY TOAVOIDPINCHINGCORD,
2. With cord hook to back,piecethe body of the oleaser onte base.Pushtogetherfirmly. Insertlongersorew (1V,')into back of bedyofthe cJeanertosecure, (Diagram 1).
3. Placehandleontothe bodyof the cleaner,(Diagram2),
4. Insert clip ontool caddy into hole onbackof handle, (Diagram3), Bring tool caddydownto fit against handle.Insertshorter screw (1"} to securecaddyandhandlesections,
Insertsecond shorter ecrewjust abovecord release(Diagram 4).
AttachTools:
5. Insertnozzleconnectorend of flexible hose into holder.Wrapitexible hoseto the otherside. A) Insert hose intoholderon backof cleaner.B) Presssides of hose into place
ontool caddy,(Diagram4),
6. insertextensionwand andcrevicetool intotool caddy.Attach2-in-1 tool to clip on caddy,Push downto secure,(Diagram 5),
NOTE:Paper bagmust be properly installedbefore operating.
2,
3.
4.
•
K!
[]
=:
ii li
HOW
TO OPERATE: WARmNG:
FULLY
ASSEMBLE
BEFORE
OPERATING.
1. Quick CordRelease: To releaseyour cord withoutunwindingit turn the top cord hook to the left or right. Your power cord will nowpull off in one coil, (Diagram 1),
2. Keep the cord out ofthe way while you vacuumby snappingit into the cord guideonthe back of the handle, (Diagram2).
3, Plugcord into electricaloutlet,
4. Step onthe power switch to turn onthe cleaner. Switch is grey andlocatedon the base of the unit. (]) is the internationalsymbol for power.
FLOOR/CARPET
CLEANING:
5. Releasethe handle. With your foot, depressthe handle releasepedal on the left side of the base, (Diagram 3).
6. Move the handleandadjustit to the desired position for (a) storing the upright, (b) operating the cleaner,and (e)depress the handle releasepedal againto cleanunder low
furniture, (Diagram4).
ABOVEFLOORCLEANING:Cleanermust be in the locked upright position to lift the rotating brush off the carpet when cleaningabove the floor.
Turncleaner OFFbeforeattachingor removinghose.
1, Snap cleanerintoits uprightposition.
2. Lift door on the nozzleand inserthose endwith nozzleconnectoruntil lockedin position,(Diagram5).
3. Pullthe hose handle from sideof cleaner.
CAUTION:Brushagitator continuesto rotate whilehoseis removed or in use andat all limes while cleaneris on. Keep hair, loose clothing, fingers, andall portsofbody
away from brusharea while cleaner is on.
4, Chooseany of the handyaccessoriesor usethe hose alone. Simplypushthe attachmentfirmly onto the endof the wand or hose handle.
To removehosefrom nozzle,press latchon nozzleconnectorandpuff up, (Diagram6).
NOTE:Removehosefrom nozzlewhencleaningcarpers toinsure propercleaningperformance,
CAUTION:Revolvingbrushcontinuesto rotate while cleanerhandle is in uprightposition. Avoidtippingcleaner or setting on furniture,fringedarea tugs, or carpeted
stairs duringtool use.
Featherlite®and Featherlite®with stretchhose
2.
4.
SCENT TABLETS (OPTIONAL): Asyou vacuum,air freshenertabletsleaveyour home smelling cleanand freshwhilestale odorsdisappear. The tablets arenon-toxic
andformulated to lastthe life of the disposablepaperbag. TO USE,removean airfreshenertablet from the wrapperandplaceit directlyintothe disposablepaperbag. Add a
new tablet everytime you changeyour paperbag.
NOTE:Unplug
cleaner
beforechangingpaper
bag. Cleanermust havepaper bag in place at all times.
TYPE:
PAPER
BAG
REMOVAL
& REPLACEMENT
1SAG
o
1. To Remove:Squeezefront panel releaseleverandpulltowards you (Diagram 1).
2. Grasp cardboardcollarof paperbagwith bethhandsandpull pastraisedlockingtabs onthe dirt tube. Disposeof oldpaperbag, (Diagram 2).
3. IMPORrrANT:Extendbegawayfrom holebefore installing.Pressin openingto clearpaperaway from hole, (Diagram3).
4. To Install: Push cardboardcollar pastraised locking tabs on the dirt tube with both bands. Be sure paper bag is fully extendedand tuckedin at the top andbottom,
(Diagram4).
5. Replacefront panel by puttingthe two bottom tabs in theslots on the vacuum.Pushfront panelso release leverat_chee, (Diagram5).
_!
FILTRATION PAPER BAGS (OPTIONAL):
• Dirt Devil"s filtrationsystem for99% 1'fresh"exhaustair.
• Ideal for allergysufferers.
MieroFresh+ disposable paper bags are lined with electrostatically charged fibersthat trap fine dust andpollen particles down to 0.1 microns in size.
See an authorized Royal"dealer,a participating retailer or the enclosed quick parts mailer for MicroFresh" high filtration paper bags.
2.
3.
...._.
51
..
_Sa.
...........L;. :+
,/-_
p
.
u
BELT OR BRUSHROLL REMOVAL AND REPLACEMENT:
TOOL REQUIRED:
PHILLIPS
SCREWDRIVER
NOTE:Unplug cleaner before changing be# or brushroll. Turncleanerover. Baseshould layfiatandface up. Screwdriver required. Toremove
nozzleguard, removetwo screws near rollers. Next,releasetwo hooks on nozzle guard by pushing outward asshown by the arrows,(Diagram 1).
Gently push up on rear of nozzle guard. (NOTE:Some models may also have two screws at the rear of the nozzleguard).
TO REMOVEBELT:Be sure belt is off motor shaft. Liftandremovebrushroll. Disposeof old belt, (Diagram2).
TO REPLACEBELT:
1. Slip bruehroll through belt. Placebelt in areaof brushrollwithoutbristles, (Diagram3).
2. Loop belt aroundmot(x shaft, (Diagram4).
3. Insertbrushroll intoside holder#1 andthen#2. Follow directionof a_rowson brushendcape+(Diagram5a,). Rotatebrushrollto makesurebeltis not twisted, (Diagram5).
4. Replacenozzleguard. Match the front tabs to theslotson thenozzle basefirst. Swingdownto snaphooks, Pressfirmlyon entire nozzleguardto fit intoplace. Replaceeli
screws, (DiagramB).
IMPORTANT: Rotate brushroll by hand before starting cleaner.
HOW TO CHECKFORA CLOG: If there is no suction at the end ofthe hose,a dog may be in the baseofthe unit.To clear clog: 1. Removehosefrom
the nozzle.Presslatchon nozzleconnectorandpullup. Lift dooronthe nozzle endgentlyclearthe blockage,(Diagram 7) or 2. Removenozzle
guard(Seebeldbrushroll removalsection above- Pg. 4) andgentlyclearthe blockage.
BELT
_,
STYLE:
O
*LIGHTBULB
REMOVAL & REPLACEMENT
TOOL REQUIRED: FLATHEADSCREWDRIVER
WARNING: TO REDUCE THE RISKOF ELECTRICSHOCK -UNPLUG CLEANER BEFORE REMOVING OR REPLACINGUGHTBULB.
Thiscleaner
usesa common automotive
Iamp#906,13.0volts.
Forbulbreplacement
call
1-800-321-I
134oryourlocal
autoparts
store.
I. Leancleaner
handleback.Insert
endofstandard
(flat
head)screwdriver
intobottomslot
andpryoutwardtopopheadlight
lensout,(Diagram
I).
2, Pullbulboutofsocket
toremove.Pushbulbinto
socket
toreplace,
(Diagrem 2).
3. Snapheadlight
lenapanel
backinto
place.
*Not available on all models
PROBLEM
POSSIBLEREASON
POSSIBLESOLUTION
Cloaner won't
t. PoWercontrbutfirm
lu gedintooutleL
2. B_OWn
fuse or tdppe_ _reagkger,
3. Needs Service
1, Plugunit in firmly.
2 Ch_ck fuse or breaker In home Replace fuse/reset breaker,
3 Taketo service centeror call1-800-321-1134.
Cieanel won't pick-up or low suction
I.
2.
3,
4.
S.
6.
Paper pag is not opened
Paper bag full,
Brt.tshroll worn¸
Broken or wombelt
NoZZlelhoseclogged.
No paper bag.
1,
2
3.
4.
5,
6,
Insert finger into hole and push paper awayfrom opening.
Replace paper bag - Pg 4,
Replace brushroll - Pg 4.
Replacebelt. n*9..4.
Removenozzle/dose guardto clear blockage- Pg 4.
Install peg - pg 4.
D_st escaping from cleaner
1.
2.
3.
4.
5.
6.
Paper bag full
Bag not installedco_.
I_r,_re_ole
in paper bag.
Handleseal.
No bagin cleaner.
Hose not installedcorrectly.
1.
2.
3.
4.
5.
6,
Replacepaper bag - P! 4.
Review paper bag insu lation - Pg 4.
Rsp_ac_pe)ap_
bag - P_, 4,
Check [email protected]: - pg. 3.
InStallbag. Pg, 4.
ReviewHose Installation - pg 3.
Cleaner t_ols won't pick up
1, Hoseclogged
2. Paper _;_ full
3, No bag in cleaner.
1. Remove hose andtoots;remove obstruction- Pg. 3.
2. RepIac_ pap_"ba_- Pg. 4.
3, .inStallbag - Pg. 4.
Headlight not workin8
1. Bulb burnt out,
2, LooSeelectricalwires.
1. Replace bulb - Pq, 5,
2. Ca(I 1-800-321-1334 for nearest authorizedRoyaff Dealer.
IMPORTANT:
UNPLUGCLEANER
BEFORESERVICING
CUSTOMERSERVICE: In the eventthat further assistanceis required,seeyour YellowPagesforan authorizedRoyal*Dealer.Costsofany {ranspc_ationto andfrom any
placeofrepairareto be paidbytheowner,Theserviceparts usedin this unitareeasilyreplacedandreadilyavailable
from an authorizedRoyal*Dealeror retailer Alwaysidentifyyour
cleanerby the modelandMfg code whenrequesting
information
or orderingreplacement
parts. (ThemodelnumberandMfg code appearsonthelowerbackof thecleaner,)
LIMITED WARRANTY
Tothe consumer,Royal Appliance Mfg. Co. warrantsthisvacuum cleanerto be free of defects in material or workmanshipcommencing uponthe dateof the originalpurchase, Referto your vacuum cleanercarton for the length of warranty andsaveyour original salesreceipt to validate start of warranty period.
If the vacuumdeanershould becomedetectivewithinthe warrantyperiod,wewiltrepair or replaceanydetecbiveparts free of ch_ge, The completemachinemust be delivered oreeaid to any ROYAL"AuthorizedSales & Warranty Sen,iceStation. Pleaseinclude complete descriptionof the problem, day of purchase,copyof original sales
receipt andyour name,address andtelephonenumber. If you arenot near a WarrantyStation, callthe factory for assistancein theUSA& Canada:1-800-321-1134. Use
only genuineRoyal" replacementparts.
The warranty does not include unusualwear, damage resulting from accident or unreasonableuse of the vacuumcleaner, This warranty does not coverbelts, brushes,
beqs, belts,liltere, bulbs or fan damage. This warranty does not cover unauthorizedrepairs. This warranty gives youspedfic legal rigllts andyou may alsohave other
rigBts. (Other rights may vary from state to state in the USA).
