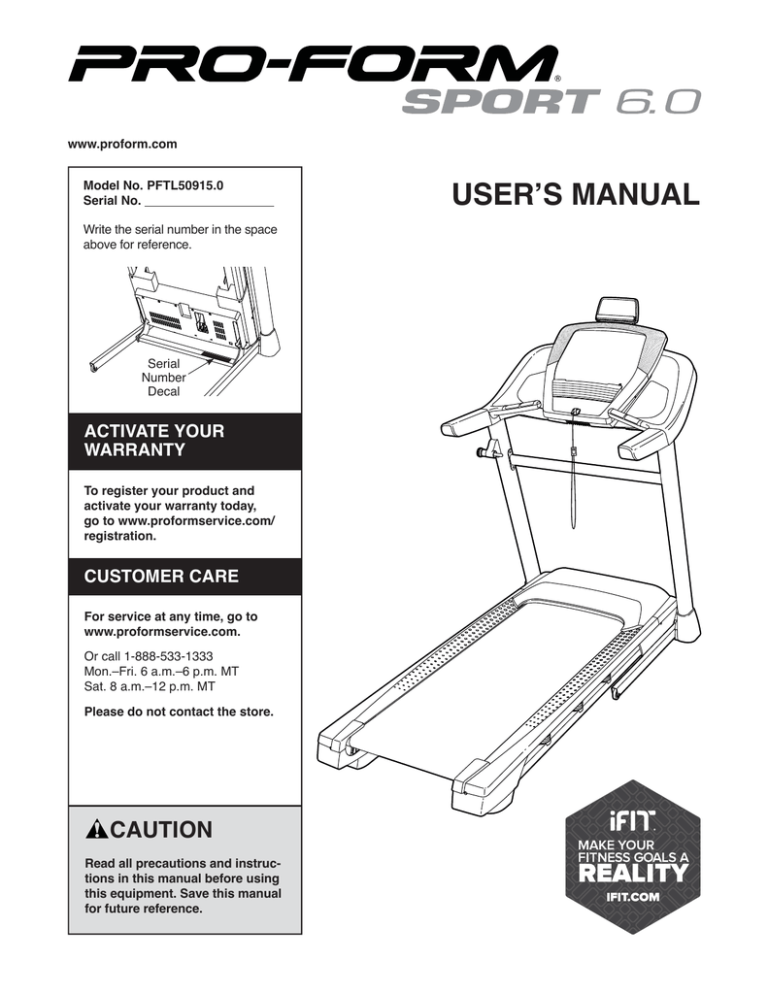

View Manual in PDF Format

www.proform.com

Model No. PFTL50915.0

Serial No.

Write the serial number in the space above for reference.

Serial

Number

Decal

ACTIVATE YOUR

WARRANTY

To register your product and activate your warranty today, go to www.proformservice.com/ registration.

CUSTOMER CARE

For service at any time, go to www.proformservice.com.

Or call 1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–12 p.m. MT

Please do not contact the store.

CAUTION

Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference.

USER’S MANUAL

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

HOW TO USE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

WARNING DECAL PLACEMENT

This drawing shows the locations of the warning decals. If a decal is missing or illegible, call the

telephone number on the front cover of this manual and request a free replacement decal.

Apply the decal in the location shown. Note:

The decals may not be shown at actual size.

PROFORM is a registered trademark of ICON Health & Fitness, Inc. IFIT is a registered trademark of ICON

Health & Fitness, Inc. App store is a trademark of Apple Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google Inc. The BLUETOOTH ® word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

2

IMPORTANT PRECAUTIONS

WARNING:

To reduce the risk of burns, fire, electric shock, or injury to persons, read all important precautions and instructions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.

2. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.

12. Wear appropriate exercise clothes while using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recommended for both men and women. Always

wear athletic shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.

3. The treadmill is not intended for use by persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the treadmill by someone responsible for their safety.

13. Plug the power cord into a surge suppressor

(not included), and plug the surge suppressor into an appropriate outlet (see page

17). To avoid overloading the circuit, do not plug other electrical devices, except for low-power devices such as cell phone chargers, into the surge suppressor or into an outlet on the same circuit.

4. Use the treadmill only as described in this manual.

5. The treadmill is intended for home use only.

Do not use the treadmill in any commercial, rental, or institutional setting.

14. Use only a surge suppressor that meets all of the specifications described on page 17.

To purchase a surge suppressor, see your local PROFORM dealer, call the telephone number on the front cover of this manual, or see your local electronics store.

6. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or near water.

7. Place the treadmill on a level surface, with at least 8 ft. (2.4 m) of clearance behind it and 2 ft. (0.6 m) on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.

8. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.

9. Keep children under age 13 and pets away from the treadmill at all times.

10. The treadmill should be used only by persons weighing 325 lbs. (147 kg) or less.

15. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may slow, accelerate, or stop unexpectedly, which may result in a fall and serious injury.

16. Keep the power cord and the surge suppressor away from heated surfaces.

17. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See

MAINTENANCE AND TROUBLESHOOTING on page 26 if the treadmill is not working properly.)

11. Never allow more than one person on the treadmill at a time.

18. Read, understand, and test the emergency stop procedure before using the treadmill

(see HOW TO TURN ON THE POWER on page 19). Always wear the clip while using the treadmill.

3

19. Always stand on the foot rails when starting or stopping the walking belt. Always hold the handrails while using the treadmill.

20. When a person is walking on the treadmill, the noise level of the treadmill will increase.

21. Keep fingers, hair, and clothing away from the moving walking belt. able to safely lift 45 lbs. (20 kg) to move the treadmill.

26. When folding or moving the treadmill, make sure that the storage latch is holding the frame securely in the storage position.

27. Do not change the incline of the treadmill by placing objects under the treadmill.

22. The treadmill is capable of high speeds.

Adjust the speed in small increments to avoid sudden jumps in speed.

28. Never insert any object into any opening on the treadmill.

23. The heart rate monitor is not a medical device. Various factors, including the user’s movement, may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determining heart rate trends in general.

24. Never leave the treadmill unattended while it is running. Always remove the key, press the power switch into the off position (see the drawing on page 6 for the location of the power switch), and unplug the power cord when the treadmill is not in use.

29. Inspect and properly tighten all parts each time the treadmill is used.

30.

DANGER:

Always unplug the power cord immediately after use, before cleaning the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.

25. Do not attempt to move the treadmill until it is properly assembled. (See ASSEMBLY on page 8 and HOW TO FOLD AND MOVE

THE TREADMILL on page 25.) You must be

31. Over exercising may result in serious injury or death. If you feel faint, if you become short of breath, or if you experience pain while exercising, stop immediately and cool down.

SAVE THESE INSTRUCTIONS

4

STANDARD SERVICE PLANS

all

5

BEFORE YOU BEGIN

Thank you for selecting the new PROFORM ®

SPORT 6.0 treadmill. The SPORT 6.0 treadmill provides an impressive selection of features designed to make your workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before

you use the treadmill. If you have questions after reading this manual, please see the front cover of this manual. To help us assist you, note the product model number and serial number before contacting us. The model number and the location of the serial number decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.

Tablet Holder

Console

Length: 6 ft. 1 in. (185 cm)

Width: 3 ft. (91 cm)

Heart Rate Monitor

Handrail

Storage Latch

Key/Clip

Walking Belt

Foot Rail

Motor Hood

Power Switch

Power Cord

Wheel

Platform Cushions

Idler Roller

Adjustment Screws

6

PART IDENTIFICATION CHART

Use the drawings below to identify small parts used for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is

preattached. Extra parts may be included.

1/4" Star

Washer (26)–6

5/16" Star

Washer (11)–12

3/8" Star

Washer (13)–8

#8 x 1/2"

Ground Screw

(10)–1

#8 x 1/2"

Screw (1)–8

#8 x 3/4"

Screw (4)–8

#8 x 1/2" Machine

Screw (27)–4

5/16" x 1 1/4"

Screw (5)–2

3/8" x 1 1/4"

Screw (63)–2

3/8" x 1 3/4" Screw (62)–2

5/16" x 1 3/4" Screw (9)–2

5/16" x 2 1/4" Screw (28)–4

3/8" x 2 1/4" Screw (7)–4

1/4" x 4 1/2" Screw (6)–2

7

ASSEMBLY

• To hire a service technician to assemble this product in your home, call 1-800-445-2480.

• Assembly requires two persons.

packing materials. Do not dispose of the packing materials until you fi nish all assembly steps.

on the exterior of the treadmill. This is normal. If there is an oily substance on the treadmill, wipe it off with a soft cloth and a mild, non-abrasive cleaner.

• Left parts are marked “L” or “Left” and right parts are marked “R” or “Right.”

• To identify small parts, see page 7.

the included hex keys one Phillips screwdriver

To avoid damaging parts, do not use power tools.

registration on your computer and register your product.

• activates your warranty

Customer Care

• allows us to notify you of upgrades and offers

Note: If you do not have Internet access, call

Customer Care (see the front cover of this manual) and register your product.

1

8

2. Make sure that the power cord is unplugged.

Remove the tie securing the Upright Wire (81) to the front of the Base (94).

Next, identify the Right Upright (90). Have a second person hold the Right Upright near the Base

(94).

See the inset drawing. Tie the wire tie (A) in the Right Upright (90) securely around the end of the Upright Wire (81). Then, insert the Upright

Wire into the lower end of the Right Upright as you pull the other end of the wire tie through the

Right Upright.

2

A

81

90

A

81

90

94

3. Lay the Right Upright (90) near the Base (94).

Press the Grommet (77) into the square hole (B) in the Right Upright. Make sure not to pinch

the ground wire (C).

Next, remove and discard the indicated screw (D).

Then, attach the ground wire to the Right Upright

(90) with a #8 x 1/2" Ground Screw (10).

3

94

10

90

77

B

D

C

9

4. Hold the Right Upright (90) against the Base

(94). Make sure not to pinch the Upright Wire

(81).

Attach the Right Upright (90) with two 3/8" x

2 1/4" Screws (7), a 3/8" x 1 1/4" Screw (63), a 3/8" x 1 3/4" Screw (62), and four 3/8" Star

Washers (13) as shown; do not fully tighten

the Screws yet.

Attach the Left Upright (not shown) in the

same way. Note: There are no wires on the left side.

4

7

13

94

63

13

x 3/4" Screws (18) from the Left and Right

Uprights (89, 90).

Identify the Left and Right Base Covers (82, 83).

Slide the Left and Right Base Covers onto the

Left and Right Uprights (89, 90) as shown. Do

not press the Base Covers into place yet.

5

18

89

82

18

81

90

13

62

90

83

10

Attach the Right Handrail (84) to the Right

Upright (90) with two 5/16" x 2 1/4" Screws (28) and two 5/16" Star Washers (11); start both

Screws, and then tighten them. Make sure

not to pinch the Upright Wire (81).

Attach the Left Handrail (not shown) to the

Left Upright (not shown) in the same way.

Note: There are no wires on the left side.

6

28

84

11

81

90 surface to avoid scratching the Console Base.

Do not lift the Console Base by the pulse grips (E).

Remove and save the four 1/4" x 1/2" Screws

(2).

Identify the Left Tray (105). Attach the Left Tray with four #8 x 1/2" Screws (1).

Attach the Right Tray (106) in the same way.

7

106

2

1

105

64

1

E

2

11

sole assembly (F) near the Right Handrail (84) and the Left Handrail (not shown).

See the inset drawing. Connect the Upright

Wire (81) to the console wire. The connectors

should slide together easily and snap into

place. If they do not, turn one connector and try again. IF YOU DO NOT CONNECT THE

CONNECTORS PROPERLY, THE CONSOLE

MAY BECOME DAMAGED WHEN YOU TURN

ON THE POWER. Then, remove the wire tie (A) from the Upright Wire.

8

F

Console

Wire

84

81

A

Console

Wire

81

Left Handrails (84, 85). Make sure that no

wires are pinched. Insert the excess Upright

Wire (81) into the Right Upright (90).

Attach the console assembly (F) to the brackets on the Handrails (84, 85) with the four 1/4" x

1/2" Screws (2) that you removed in step 7 and four 1/4" Star Washers (26); do not tighten the

Screws yet.

9

84

26

81

2

90

F

26

2

85

12

10. Attach the console assembly (F) with two 5/16" x 1 1/4" Screws (5), two 5/16" x 1 3/4" Screws

(9), and four 5/16" Washers (11); start all four

Screws, and then tighten them.

10

11

9

F

5

11. Attach the Right and Left Handrail Covers (31,

87) with six #8 x 3/4" Screws (4); do not over-

tighten the Screws.

11

87

4

31

9

11

11

5

4

13

12. Slide the Right and Left Handrail Grips (8, 79) onto the Right and Left Handrail Covers (not shown). Attach the Handrail Grips with two

#8 x 3/4" Screws (4); do not overtighten the

Screws.

12

79

4

4

8

13. Orient the Latch Assembly (66) as shown. Attach the Latch Assembly to the Left Upright (89) with two 1/4" x 4 1/2" Screws (6) and two 1/4" Star

Washers (26) ; start both Screws, and then

tighten them.

13

66

89

26

6

14

14. Firmly tighten the four 3/8" x 2 1/4" Screws

(7), the two 3/8" x 1 3/4" Screws (62), and the two 3/8" x 1 1/4" Screws (63).

Next, set the Left Inner Base Cover (100) onto the lower end of the Left Upright (89). Then, slide the Left Base Cover (82) downward and press it onto the Left Inner Base Cover.

Next, set the Right Inner Base Cover (101) onto the lower end of the Right Upright (90). Then, slide the Right Base Cover (83) downward and press it onto the Right Inner Base Cover.

14

63

83

63

90

7

15. Attach the Tablet Holder (36) to the back of the console assembly (F) with four #8 x 1/2"

Machine Screws (27); start all four Screws,

and then tighten them. Do not overtighten the

Screws.

15

27

62

36

27

101

7

62

F

89

82

100

15

16. Carefully slide the Upright Crossbar (108) between the Left and Right Uprights (89, 90).

Attach the Upright Crossbar with the four 5/16" x 3/4" Screws (18) that you removed in step 5 and four 5/16" Star Washers (11); start all four

Screws, and then tighten them.

Firmly tighten the four 1/4" x 1/2" Screws (2).

16

2

11

18

108

18

11

2

90

89

17. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill. To avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included hex key in a secure place; the hex key is used to adjust the walking belt (see page 27). Note: Extra hardware may be included.

16

HOW TO USE THE TREADMILL

HOW TO CONNECT THE POWER CORD

Use a Surge Suppressor

Your treadmill, like other electronic equipment, can be damaged by sudden voltage changes in your home’s power. Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off. To decrease the

risk of damaging the treadmill, always use a surge suppressor with the treadmill. To purchase a surge suppressor, see precaution 14 on page 3.

Use only a surge suppressor that is UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of

450 joules. The surge suppressor must also be electrically rated for 120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indicate whether it is functioning properly. Failure to use a

properly functioning surge suppressor could result in damage to the control system of the treadmill and serious injury to users.

nominal 120-volt circuit capable of carrying 15 or more amps. To avoid overloading the circuit, do not plug other electrical devices, except for lowpower devices such as cell phone chargers, into the surge suppressor or into an outlet on the same circuit. IMPORTANT: If the treadmill is connected to an AFCI-equipped outlet and your circuit breaker trips repeatedly when the treadmill is used, see the front cover of this manual to purchase an arc filter.

1

Grounded Outlet

Grounding Pin

Grounding Pin

Surge

Suppressor

Plug in the Power Cord

The treadmill must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. The treadmill power cord has a plug with a grounding pin (see drawing 1 on this page).

DANGER:

Improper connection of the power cord increases the risk of electric shock. Do not modify the plug—if it will not fit an outlet, have a proper outlet installed by a qualified electrician. If you are unsure whether the treadmill is properly grounded, contact a qualified electrician.

A temporary adapter may be used to connect the surge suppressor to a 2-pole receptacle if a properly grounded outlet is not available.

2

Lug

2-pole Receptacle

Adapter

Metal

Screw

Plug the power cord into a surge suppressor, and plug the surge suppressor into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. The outlet must be on a

The lug or wire extending from the adapter must be connected with a metal screw to a permanent ground such as a properly grounded outlet box cover.

Some 2-pole receptacle outlet box covers are not grounded. Before using an adapter, contact a qualified electrician to determine whether the outlet box cover is grounded. The temporary adapter should be used only until a properly grounded outlet can be installed by a qualified electrician.

17

CONSOLE DIAGRAM

FEATURES OF THE CONSOLE

The treadmill console offers a selection of features designed to make your workouts more effective and enjoyable.

When you use the manual mode, you can change the speed and incline of the treadmill with the touch of a button. As you exercise, the console will display instant exercise feedback. You can even measure your heart rate using the handgrip heart rate monitor or a compatible heart rate monitor. See page 23 for information

about purchasing an optional chest heart rate monitor.

To turn on the power, see page 19. To use the man-

ual mode, see page 19. To use an onboard workout, see page 21. To use an interval training workout, see page 22. To connect your smart device to the

console, see page 22. To connect your heart rate

monitor to the console, see page 23. To use the

sound system, see page 23. To use the information

mode, see page 24. To use the tablet holder, see page 24.

Note: The console can display speed and distance in either miles or kilometers. To fi nd which unit of measurement is selected, see THE INFORMATION MODE on page 24. For simplicity, all instructions in this section refer to miles.

In addition, the console features a selection of onboard workouts. Each workout automatically controls the speed and incline of the treadmill as it guides you through an effective exercise session.

You can also connect your smart device to the console and use an iFit information.

® app to record and track your workout

IMPORTANT: If there are sheets of plastic on the console, remove the plastic. To prevent damage to the walking platform, wear clean athletic shoes while using the treadmill. The fi rst time you use the treadmill, observe the alignment of the walking belt, and center the walking belt if necessary (see page 27).

You can even listen to your favorite workout music or audio books with the console’s sound system while you exercise.

18

HOW TO TURN ON THE POWER

IMPORTANT: If the treadmill has been exposed to cold temperatures, allow it to warm to room temperature before you turn on the power. If you do not do this, you may damage the console displays or other electrical components.

Plug in the power cord (see page 17). Next, locate the power switch on the treadmill frame near the power cord. Press the power switch into the reset position.

Reset

Next, stand on the foot rails of the treadmill. Find the clip attached to the key and slide the clip onto the waistband of your clothes. Then, insert the key into the console. After a moment, the display will light.

IMPORTANT: In an emergency, the key can be pulled from the console, causing the walking belt to slow to a stop. Test the clip by carefully taking

Clip

Key

a few steps backward; if the key is not pulled from the console, adjust the position of the clip.

IMPORTANT: Before you use the treadmill, take the following steps to ensure that the console shows the correct incline level of the treadmill:

First, press the Incline increase button once. Next, press either the Incline decrease button or the lowest Quick Incline button to set the treadmill to its lowest setting. When the frame stops moving, the treadmill is ready for use.

HOW TO USE THE MANUAL MODE

See HOW TO TURN ON THE POWER at the left.

Press the Manual Control button to select the manual mode.

3. Enter your weight.

Press the Wt increase or decrease button to enter your weight. This information will improve the accuracy of the power ring. Note: Press and hold the Wt increase or decrease button to enter your weight more quickly.

4. Start the walking belt.

To start the walking belt, press the Run button or one of the Quick Speed buttons.

If you press the Run button, the walking belt will begin to move at 1 mph. As you exercise, change the speed of the walking belt as desired by pressing the Speed increase and decrease buttons.

Each time you press one of the buttons, the speed setting will change by 0.1 mph; if you hold down the button, the speed setting will change in increments of 0.5 mph. Note: After you press the button, it may take a moment for the walking belt to reach the selected speed setting.

If you press one of the Quick Speed buttons, the walking belt will gradually change speed until it reaches the selected speed setting. To select a speed setting that includes a decimal—such as 3.5 mph—press two numbered buttons in succession.

For example, to select a speed setting of 3.5 mph, press the 3 button and then immediately press the

5 button. Note: This option will not function if the console is set to metric units.

To stop the walking belt, press the Stop button.

The time will begin to fl ash in the display. To restart the walking belt, press the Run button.

19

5. Change the incline of the treadmill as desired.

7. Measure your heart rate if desired.

To change the incline of the treadmill, press the

Incline increase and decrease buttons or one of the

Quick Incline buttons. Each time you press one of the buttons, the treadmill will gradually adjust to the selected incline setting.

You can measure your heart rate using either the handgrip heart rate monitor or a compatible heart rate monitor. For information about purchasing

an optional chest heart rate monitor, see page

23.

As you walk or run on the treadmill, the display can show the following workout information:

The console is compatible with all BLUETOOTH ®

Smart heart rate monitors. To connect your heart rate monitor to the console, see page 23.

Note: If you use both heart rate monitors at the same time, the BLUETOOTH Smart heart rate monitor will have priority.

burned

Press the Display button repeatedly to view the desired information in the display.

As you exercise, the power ring will indicate the approximate intensity level of your exercise.

To adjust the intensity level, press the Watts/Kg increase or decrease button. The speed and/or incline settings of the treadmill will automatically increase or decrease to reach the desired intensity level.

To reset the display, press the Stop button repeatedly, or remove the key and then reinsert the key.

Before using the handgrip heart rate monitor, remove the sheets of plastic from the metal contacts on the pulse bar. In addition, make sure that your hands are clean.

Contacts

To measure your heart rate, stand on the foot

rails and hold the pulse bar with your palms on the metal contacts; avoid moving your hands.

When your pulse is detected, your heart rate will be shown. For the most accurate heart rate read-

ing, continue to hold the contacts for about 15 seconds.

20

key from the console.

Step onto the foot rails, press the Stop button repeatedly, and adjust the incline of the treadmill

to zero. The incline must be at zero or you may

damage the treadmill when you fold it to the

storage position. Next, remove the key from the console and put it in a secure place.

When you are fi nished using the treadmill, press the power switch into the off position and unplug the power cord. IMPORTANT: If you do not do

this, the treadmill’s electrical components may wear prematurely.

Each workout is divided into segments. One speed setting and one incline setting are programmed for each segment. Note: The same speed setting and/ or incline setting may be programmed for consecutive segments.

If the speed or incline setting is too high or too low at any time during the workout, you can manually override the setting by pressing the Speed or

Incline buttons; however, when the next segment

of the workout begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.

HOW TO USE AN ONBOARD WORKOUT

To stop the workout at any time, press the Stop button. To resume the workout, press the Run button. The walking belt will begin to move at 1 mph.

When the next segment of the workout begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.

See HOW TO TURN ON THE POWER on page 19. 5. Follow your progress with the display.

2. Enter your weight.

See step 3 on page 19.

See step 6 on page 20. The display will show the time remaining instead of the elapsed time.

6. Measure your heart rate if desired.

See step 7 on page 20.

3. Select an onboard workout.

To select an onboard workout, press the Tempo

Apps button or the Interval Apps button repeatedly until the desired workout appears in the display.

4. Start the workout.

key from the console.

See step 8 at the left.

Press the Run button to start the workout. A moment after you press the button, the treadmill will automatically adjust to the fi rst speed and incline settings of the workout. Hold the handrails and begin walking.

21

HOW TO USE AN INTERVAL TRAINING WORKOUT

During an interval training workout, you will repeatedly alternate between intervals of low-intensity “recovery” exercise and intervals of high-intensity “work” exercise.

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 19.

2. Enter your weight.

See step 3 on page 19.

6. Follow your progress with the displays.

See step 6 on page 20. The display will show the time remaining instad of the elapsed time.

7. Measure your heart rate if desired.

See step 7 on page 20.

key from the console.

See step 8 on page 21.

Press the speed and incline buttons to select the desired speed setting and the desired incline setting for the recovery intervals. Then, press and hold the Recovery button until the console beeps twice.

4. Select settings for the work intervals.

HOW TO CONNECT YOUR SMART DEVICE TO THE

CONSOLE

The console supports BLUETOOTH connections to smart devices via the iFit app and to compatible heart rate monitors. Note: Other BLUETOOTH connections are not supported.

Press the speed and incline buttons to select the desired speed setting and the desired incline setting for the work intervals. Then, press and hold the

Work button until the console beeps twice.

intervals.

device.

On your IOS ® or Android TM smart device, open the

App Store SM or the Google Play TM store, search for the free iFit app, and then install the app on your smart device. Make sure that the BLE option is

enabled on your smart device.

As you exercise, press the Recovery button to select the speed and incline settings that you selected for recovery intervals. Press the Work button to select the speed and incline settings that you selected for work intervals. Alternate between the settings as many times as desired.

Then, open the iFit app and follow the instructions to set up an iFit account and customize settings.

2. Connect your smart device to the console.

To change the settings at any time, repeat steps 3 and 4.

Follow the instructions in the iFit app to connect your smart device to the console.

22

When a connection is established, the LED on the console will fl ash blue. Press the Bluetooth button on the console to confi rm the connection; the LED on the console will then turn solid blue.

Follow the instructions in the iFit app to record and track your workout information.

HOW TO CONNECT YOUR HEART RATE MONITOR

TO THE CONSOLE

The console is compatible with all BLUETOOTH Smart heart rate monitors.

To connect your BLUETOOTH Smart heart rate monitor to the console, press the Bluetooth button on the console. When a connection is established, the LED on the console will fl ash twice. Note: This may take up to

15 seconds.

Note: If there is more than one compatible heart rate monitor near the console, the console will connect to the heart rate monitor with the strongest signal.

if desired.

To disconnect your smart device from the console, press and hold the Bluetooth button on the console for 5 seconds; the LED on the console will turn off.

Note: All BLUETOOTH connections between the console and other devices (including any smart devices, heart rate monitors, and so forth) will be disconnected.

To disconnect your heart rate monitor from the console, press and hold the Bluetooth button on the console for

5 seconds; after the LED lights, release the button.

Note: All BLUETOOTH connections between the console and other devices (including any smart devices, heart rate monitors, and so forth) will be disconnected.

THE OPTIONAL CHEST HEART RATE MONITOR

Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the best results is to maintain the proper heart rate during your workouts. The optional chest heart rate monitor will enable you to continuously monitor your heart rate while you exercise, helping you to reach your personal fitness goals. To purchase a chest heart rate moni-

tor, please see the front cover of this manual.

Note: The console is compatible with all BLUETOOTH

Smart heart rate monitors.

HOW TO USE THE SOUND SYSTEM

To play music or audio books through the console sound system while you exercise, plug a 3.5 mm male to 3.5 mm male audio cable (not included) into the jack on the console and into a jack on your MP3 player,

CD player, or other personal audio player; make sure

that the audio cable is fully plugged in. Note: To purchase an audio cable, see your local electronics

store.

Next, press the play button on your personal audio player.

Adjust the volume level using the Vol increase and decrease buttons on the console or the volume control on your personal audio player.

If you are using a personal CD player and the CD skips, set the CD player on the fl oor or another fl at surface instead of on the console.

23

THE INFORMATION MODE

The console features an information mode that keeps track of treadmill usage information and allows you to select a unit of measurement for the console.

To select the information mode, insert the key into the console while holding down the Stop button. Then, release the Stop button. Note: If a workout has been selected, you may have to press the Stop button repeatedly to exit the workout before you can access the information mode.

When the information mode is selected, the following information will be shown:

The display will show the software version of the console.

An “E” for English miles or an “M” for metric kilometers will appear in the display. Press the Speed increase button to change the unit of measurement, if desired.

To exit the information mode, remove the key from the console, or press the Stop button repeatedly.

HOW TO USE THE TABLET HOLDER

You can use your tablet to browse media while you exercise. Place your tablet on the tablet holder and let the tablet holder hold your tablet in place.

Tablet

Holder

FCC INFORMATION

This console has been tested and found to comply with the limits for a Class B digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to computer or peripheral devices. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

IMPORTANT: To satisfy exposure compliance requirements, the antenna and transmitter in the console must be at least 8 in. (20 cm) from all persons and must not be near or connected to any other antenna or transmitter.

Note: The console contains either FCC ID: OMCBBICON14 or FCC ID: OMCBMD1.

24

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL

To avoid damaging the treadmill, adjust the incline to zero before you fold the treadmill. Then, remove the key and unplug the power cord. CAUTION: You must be able to safely lift 45 lbs. (20 kg) to raise, lower, or move the treadmill.

1. Hold the metal frame firmly in the location shown by the arrow below. CAUTION: Do not hold the

frame by the plastic foot rails. Bend your legs and keep your back straight as you raise the frame about halfway to the vertical position.

HOW TO MOVE THE TREADMILL

Before moving the treadmill, fold it as described at the left. CAUTION: Make sure that the latch knob is

locked in the storage position. Moving the treadmill may require two people.

1. Hold the frame and one of the handrails, and place one foot against a wheel.

1

1

Frame

Handrail

Frame

Wheel latch knob to the left and hold it. Raise the frame until the latch plate is past the latch pin. Then, slowly release the latch knob; make sure that the

latch plate is resting on the latch pin.

2

2. Pull back on the handrail until the treadmill will roll on the wheels, and carefully move it to the desired location. CAUTION: Do not move the tread-

mill without tipping it back, do not pull on the frame, and do not move the treadmill over an uneven surface.

3. Place one foot against a wheel, and carefully lower the treadmill.

HOW TO LOWER THE TREADMILL FOR USE

Engaged

Latch

Knob

Latch

Knob

Latch Pin

Latch Plate with your right hand. Pull the latch knob to the left and hold it. Next, lower the frame until it is past the latch pin. Make sure that the pin does not hit against the foot rail. Then, release the latch knob.

To protect the floor or carpet, place a mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85° F (30° C).

fi rmly with both hands, and lower it to the fl oor.

CAUTION: Do not hold the frame by the plastic foot rails, and do not drop the frame. Bend your

legs and keep your back straight.

25

MAINTENANCE AND TROUBLESHOOTING

MAINTENANCE

Regular maintenance is important for optimal performance and to reduce wear. Inspect and properly tighten all parts each time the treadmill is used.

Regularly clean the treadmill and keep the walking belt clean and dry. First, press the power switch into

the off position and unplug the power cord. Wipe exterior parts of the treadmill with a damp cloth and a small amount of mild soap. IMPORTANT: Do not

spray liquids directly onto the treadmill. To avoid damage to the console, keep liquids away from the

console. Then, thoroughly dry the treadmill with a soft towel.

TROUBLESHOOTING

SYMPTOM: The power does not turn on

frame near the power cord. If the switch protrudes as shown, the switch has tripped. To reset the power switch, wait for five minutes and then press the switch back in.

c

Tripped

If the switch has tripped, wait for five minutes and then press the switch back in.

Reset

SYMPTOM: The power turns off during use

power cord is plugged in, unplug it, wait for five minutes, and then plug it back in.

surge suppressor and that the surge suppressor is plugged into a properly grounded outlet (see page

17). Use only a surge suppressor that meets all of the specifi cations described on page 17.

IMPORTANT: If the treadmill is connected to an

AFCI-equipped outlet and your circuit breaker trips repeatedly when the treadmill is used, see the front cover of this manual to purchase an arc fi lter.

reinsert it.

cover of this manual.

sure that the key is inserted into the console.

26

SYMPTOM: The incline of the treadmill does not change correctly

button, insert the key into the console, and then release the Stop button and the Speed increase button. Next, press the Stop button, and then press the Incline increase or decrease button. The treadmill will automatically rise to the maximum incline level and then return to the minimum level.

This will recalibrate the incline system. If the incline system does not begin calibrating, press the Stop button again, and then press the Incline increase or decrease button again. When the incline system is calibrated, remove the key from the console.

high-performance lubricant. IMPORTANT: Never

apply silicone spray or other substances to the walking belt or the walking platform unless instructed to do so by an authorized service representative. Such substances may deterio-

rate the walking belt and cause excessive wear.

If you suspect that the walking belt needs more lubricant, see the front cover of this manual.

the front cover of this manual.

SYMPTOM: The walking belt is off-center or slips when walked on

SYMPTOM: The walking belt slows when walked on

a. Use only a surge suppressor that meets all of the specifi cations described on page 17.

formance may decrease and the walking belt may become damaged. Remove the key and UNPLUG

THE POWER CORD. Using the hex key, turn both idler roller screws counterclockwise, 1/4 of a turn.

When the walking belt is properly tightened, you should be able to lift each edge of the walking belt

2 to 3 in. (5 to 7 cm) off the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

a. If the walking belt is off-center, fi rst remove the key and UNPLUG THE POWER CORD. If the

walking belt has shifted to the left, use the hex key to turn the left idler roller screw clockwise 1/2 of a turn; if the walking belt has shifted to the

right, turn the left idler roller screw counterclockwise 1/2 of a turn. Be careful not to overtighten the walking belt. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes.

Repeat until the walking belt is centered. a b

2–3 in.

Idler Roller Screws

27

b. If the walking belt slips when walked on, fi rst remove the key and UNPLUG THE POWER

CORD. Using the hex key, turn both idler roller screws clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each edge of the walking belt 2 to 3 in. (5 to

7 cm) off the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and carefully walk on the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

b

28

EXERCISE GUIDELINES

WARNING:

Before beginning this or any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.

The heart rate monitor is not a medical device.

Various factors may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determining heart rate trends in general.

These guidelines will help you to plan your exercise program. For detailed exercise information, obtain a reputable book or consult your physician. Remember, proper nutrition and adequate rest are essential for successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your heart rate as a guide to find the proper intensity level.

The chart below shows recommended heart rates for fat burning and aerobic exercise.

To find the proper intensity level, find your age at the bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your age define your “training zone.” The lowest number is the heart rate for fat burning, the middle number is the heart rate for maximum fat burning, and the highest number is the heart rate for aerobic exercise.

Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses carbohydrate calories for energy. Only after the first few minutes of exercise does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest number in your training zone. For maximum fat burning, exercise with your heart rate near the middle number in your training zone.

Aerobic Exercise—If your goal is to strengthen your cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretching and light exercise. A warm-up increases your body temperature, heart rate, and circulation in preparation for exercise.

Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise; never hold your breath.

Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each week, if desired. Remember, the key to success is to make exercise a regular and enjoyable part of your everyday life.

29

PART LIST

Key No. Qty. Description

1

2

22

4

#8 x 1/2" Screw

1/4" x 1/2" Screw

3 2 Base

4

5

6

7

33

2

2

4

#8 x 3/4" Screw

5/16" x 1 1/4" Screw

1/4" x 4 1/2" Screw

3/8" x 2 1/4" Screw

8

9

10

11

12

13

14

15

1

2

9

12

4

8

6

3

Right Handrail Grip

5/16" x 1 3/4" Screw

#8 x 1/2" Ground Screw

5/16" Star Washer

#8 x 1" Tek Screw

3/8" Star Washer

#8 x 3/4" Truss Head Screw

1/4" x 2 1/2" Screw

16

17

18

19

1

2

4

4

3/8" x 1 1/2" Bolt

3/8" x 1 1/2" Wheel Bolt

5/16" x 3/4" Screw

#8 x 7/16" Screw

20 2 5/16" Motor Screw

21 2 3/8"

22

23

24

25

26

27

28

29

2

4

2

4

6

4

4

1

3/8" x 1" Bolt

5/16" x 1 3/4" Shoulder Bolt

#8 Star Washer

#8 x 1" Screw

1/4" Star Washer

#8 x 1/2" Machine Screw

5/16" x 2 1/4" Screw

3/8" x 1 3/4" Hex Head Bolt

30

31

32

33

6

1

2

6

5/16" Flat Washer

Right Handrail Cover

Incline Motor Spacer

3/8" Jam Nut

34 4 5/16"

35 2 9/32" Plastic Bushing

36 1 Tablet

37 8 #8 x 5/8" Screw

38 2 Wheel

39 4 Isolator

40 2 Rear

41 1 Latch

42 1 Left Foot Rail

43 1 Caution

44 1 Walking

45 1 Walking

46 2 Belt

47 1 Right Rear Foot

48 4 Cable

49 1 Drive

50 6 1/4" x 1 1/4" Screw

Model No. PFTL50915.0 R1115A

Key No. Qty. Description

51 12 M5 Flat Washer

52 2 3/8"

53 2 1/4" x 1 1/4" Screw

54 1 Drive

55 1 Motor

56 1 Frame

57 1 Left Rear Foot

58 1 Console Ground Wire

59 4 Rubber

60 1 Right Foot Rail

61 1 Idler

62

63

2

2

3/8" x 1 3/4" Screw

3/8" x 1 1/4" Screw

64 1 Console

65 1 Motor

66 1 Latch

67 2 Incline Frame Spacer

68 5 Hood

69 1 Incline

70 1 Incline

71 2 Frame

72 1 Controller

73 1 Controller

74 2 Roller

75 1 Power

76 1 Power

77 1 Grommet

78 1 Belly

79 1 Left Handrail Grip

80 1 Console

81 1 Upright

82

83

1

1

Left Base Cover

Right Base Cover

84 1 Right

85 1 Left

86 2 Cable

87 1 Left Handrail Cover

88 1 Key/Clip

89 1 Left

90 1 Right

91 2 Warning

92 2 Console

93 1 Left Pulse Bar

94 1 Base

95

96

1

1

Left Pulse Cover

Right Pulse Bar

97 1 Right Pulse Cover

98 1 1/4"

99 1 Controller

100 1 Left Inner Base Cover

30

Key No. Qty. Description Key No. Qty. Description

101

102

103

104

1

4

2

1

Right Inner Base Cover

3/8" Plastic Bushing

Base Pad Spacer

Power Cord Grommet

105 1 Left

106

107

108

109

*

1

1

1

6

Right

Console

Upright

Isolator

– User’s

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of this manual. *These parts are not illustrated.

31

EXPLODED DRAWING A

Model No. PFTL50915.0 R1115A

53 35

32

EXPLODED DRAWING B

4

Model No. PFTL50915.0 R1115A

4

65

4

4

71

4

68

4

67

102

52

70

33

69

16

32

29

33

4

68

33

33

52

102

67

71

72

68

4

75

68

4

10

68

4

78

4

104

76

4

33

EXPLODED DRAWING C

Model No. PFTL50915.0 R1115A

28

11

79

4

87

85

5

11

26

2

9

11

4

93

95

4 97

6

26

4

66

82

11

18

11

18

108

89

63

13

22

100

91

102

7

13

4

17

103

3

12

8

18

11

18

11

13

4

4

62

4

31

81

28

11

9

11

96

11

5

84

81

26

2

90

102

22

62

13

77

13

7

38

33

33

38

94

91

17

101

83

103

3

7

10

12

13

13

63

34

EXPLODED DRAWING D

Model No. PFTL50915.0 R1115A

88

80

1

105

1

1

1

64

4

4

107

4

92

36

25

92

10

58

25

4

27

4

27

4

1

1

1

106

35

1

86

ORDERING REPLACEMENT PARTS

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING near the end of this manual)

LIMITED WARRANTY

IMPORTANT: To protect your fi tness equipment with an extended service plan, see page 5.

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and material, under normal use and service conditions. The frame is warranted for the lifetime of the original purchaser (customer). The motor is warranted for twenty-fi ve (25) years from the date of purchase. Parts and labor are warranted for one (1) year from the date of purchase.

This warranty extends only to the customer. ICON’s obligation under this warranty is limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to a service center, freight charges to and from the service center will be the customer’s responsibility. If replacement parts are shipped while the product is under warranty, the customer will be responsible for a minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend to freight damage to the product. This warranty will automatically be voided if the product is used as a store display model, if the product is purchased or transported outside the USA, if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used, or if the product is used for commercial or rental purposes. No other warranty beyond that specifi cally set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of property, loss of revenues or profi ts, loss of enjoyment or use, or costs of removal or installation; or other consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to the customer.

The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of merchantability or fi tness for a particular purpose are limited in their scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to the customer.

This warranty provides specifi c legal rights; the customer may have other rights that vary from state to state.

ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813

Part No. 377642 R1115A Printed in China © 2015 ICON Health & Fitness, Inc.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
