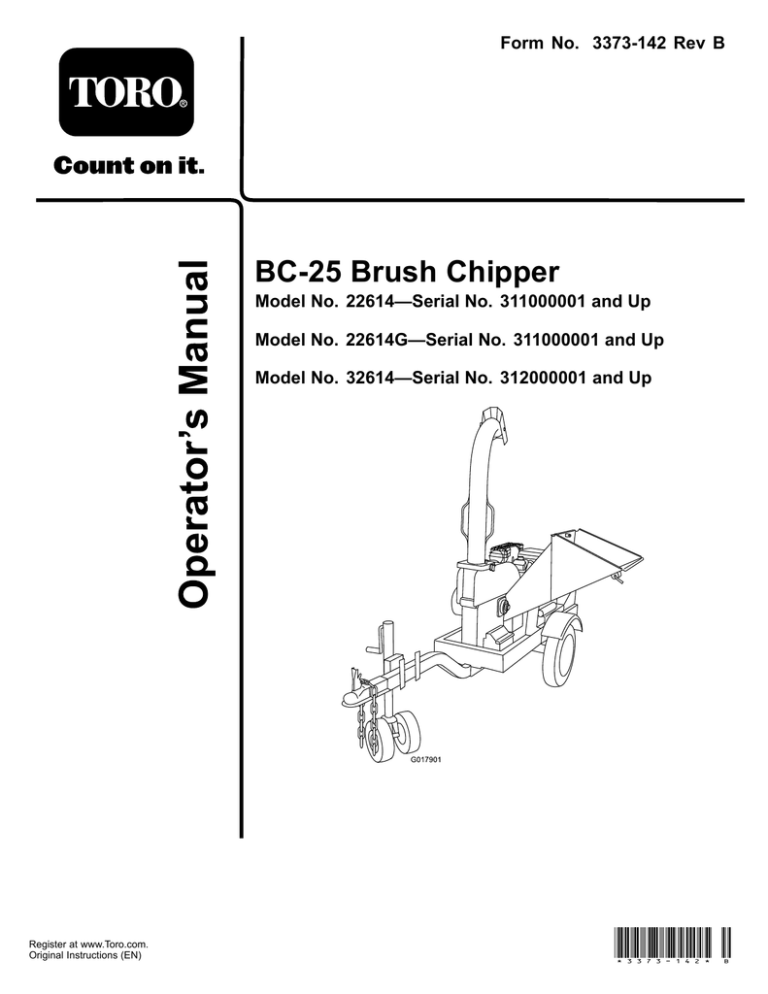

BC-25 Brush Chipper
Model No. 22614—Serial No. 311000001 and Up
Model No. 22614G—Serial No. 311000001 and Up
Model No. 32614—Serial No. 312000001 and Up
G017901
Register at www.Toro.com.
Original Instructions (EN)
*3373-142* B
You may contact Toro directly at www.Toro.com for product
and accessory information, help finding a dealer, or to register
your product.
WARNING
CALIFORNIA
Proposition 65 Warning
The engine exhaust from this product
contains chemicals known to the State of
California to cause cancer, birth defects,
or other reproductive harm.
Whenever you need service, genuine Toro parts, or additional
information, contact an Authorized Service Dealer or Toro
Customer Service and have the model and serial numbers of
your product ready. Write the numbers in the space provided.
Model No.
Serial No.
DANGER
Watch for overhead power lines in the work area.
Shock or explosion may occur if you come in to
contact with them.
This manual identifies potential hazards and has safety
messages identified by the safety alert symbol (Figure 1),
which signals a hazard that may cause serious injury or death
if you do not follow the recommended precautions.
This spark ignition system complies with Canadian ICES-002.
Because in some areas there are local, state, or federal
regulations requiring that a spark arrester be used on the
engine of this machine, a spark arrester is available as
an option. If you require a spark arrestor, contact your
Authorized Toro Service Dealer.
Figure 1
1. Safety alert symbol
Genuine Toro spark arresters are approved by the USDA
Forestry Service.
This manual uses 2 other words to highlight information.
Important calls attention to special mechanical information
and Note emphasizes general information worthy of special
attention.
Important: It is a violation of California Public
Resource Code Section 4442 to use or operate the engine
on any forest-covered, brush-covered, or grass-covered
land without a spark arrester muffler maintained in
working order, or the engine constricted, equipped, and
maintained for the prevention of fire. Other states or
federal areas may have similar laws.
Tire Information
The DOT tire identification number (TIN) is branded into
the sidewall of all street legal tires (Figure 2).
The enclosed Engine Owner's Manual is supplied for
information regarding the US Environmental Protection
Agency (EPA) and the California Emission Control
Regulation of emission systems, maintenance, and
warranty. Replacements may be ordered through the
engine manufacturer.
Figure 2
Introduction
This brush chipper is designed to chip branches, vines, leaves,
and small tree limbs up to 6 in. (15.24 cm) in diameter. It is
not intended to chip rocks, wire, metal, or any materials other
than wood. The brush chipper can be towed behind a vehicle
equipped with an appropriate ball hitch.
Read this information carefully to learn how to operate and
maintain your product properly and to avoid injury and
product damage. You are responsible for operating the
product properly and safely.
© 2012—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
2
Contact us at www.Toro.com.
Printed in the USA.
All Rights Reserved
Contents
Safety
Introduction .................................................................. 2
Safety ........................................................................... 3
Safe Operating Practices........................................... 3
Safety and Instructional Decals ................................. 6
Product Overview .......................................................... 8
Controls ................................................................ 8
Specifications ......................................................... 9
Operation ..................................................................... 9
Towing................................................................... 9
Tires and Wheels....................................................10
Before you Start .....................................................10
Adding Fuel...........................................................11
Hour Meter ...........................................................11
Checking the Engine Oil Level .................................12
Changing the Chute Position....................................12
Changing the Deflector Position ...............................12
Starting and Stopping the Engine..............................13
Using the Brush Chipper .........................................13
Maintenance .................................................................15
Recommended Maintenance Schedule(s) ......................15
Lubrication ...............................................................15
Lubricate the Cutter Wheel Bearings .........................15
Lubricate the Wheel Bearings ...................................16
Engine Maintenance ..................................................16
Servicing the Air Cleaner .........................................16
Servicing the Engine Oil..........................................17
Servicing the Spark Plug ..........................................18
Fuel System Maintenance ...........................................19
Changing the Fuel Filter ..........................................19
Belt Maintenance ......................................................19
Adjusting the Drive Belt Tension ..............................19
Replacing the Drive Belt ..........................................20
Cutter Maintenance ....................................................20
Inspecting the Cutter Block......................................20
Replacing the Cutter Blades .....................................20
Charging the Battery...................................................21
............................................................................21
Inspecting the Tires....................................................22
............................................................................22
Storage ........................................................................22
............................................................................22
Troubleshooting ...........................................................23
Improper use or maintenance by the operator or owner
can result in injury. To reduce the potential for injury,
comply with these safety instructions and always
pay attention to the safety alert symbol , which
means: Caution, Warning, or Danger—personal safety
instruction. Failure to comply with the instruction may
result in personal injury or death.
Safe Operating Practices
This product is capable of amputating hands and feet. Always
follow all safety instructions to avoid serious injury or death.
WARNING
Engine exhaust contains carbon monoxide, an
odorless, deadly poison that can kill you.
Do not run the engine indoors or in an enclosed
area.
If you believe that your vehicle* has a defect which could
cause a crash or could cause injury or death, you should
immediately inform the National Highway Traffic Safety
Administration (NHTSA) in addition to notifying The Toro
Company.
If NHTSA receives similar complaints, it may open an
investigation, and if it finds that a safety defect exists in a
group of vehicles*, it may order a recall and remedy campaign.
However, NHTSA cannot become involved in individual
problems between you, your dealer, or The Toro Company.
To contact NHTSA, you may call the Vehicle Safety Hotline
toll-free at 1–888–327–4236 (TTY: 1–800–424–9153); go
to http://www.safercar.gov ; or write to: Administrator,
NHTSA, 400 Seventh Street, SW., Washington, DC 20590.
You can also obtain other information about motor vehicle
safety from http://www.safercar.gov.
* Brush chipper trailer
Training
• Read the Operator's Manual and other training material. If
•
•
•
•
3
the operator(s) or mechanic(s) can not read English, it is
the owner's responsibility to explain this material to them.
Become familiar with the safe operation of the equipment,
operator controls, and safety signs.
All operators and mechanics should be trained. The
owner is responsible for training the users.
Never let children or untrained people operate or service
the equipment. Local regulations may restrict the age of
the operator.
The owner/user can prevent and is responsible for
accidents or injuries occurring to himself or herself, other
people or property.
Towing
protection. Long hair, loose clothing or jewelry may get
tangled in moving parts. Wear tight fitting gloves without
drawstrings or loose cuffs.
Check with your local county or state safety towing
regulations, in addition to meeting Department of
Transportation (DOT) Safety Towing Regulations, before
towing the machine.
• In order to reduce the possibility of an accident while
transporting the machine on public roads, make sure
the towing vehicle is mechanically sound and in good
operating condition.
• Shut down the engine before transporting the machine.
• Inspect the hitch and coupling for wear. NEVER tow the
machine with defective hitches, couplings, chains, etc.
• Check the tire air pressure on both of the towing vehicle
and the machine. The chipper tires should be inflated to
60 psi (410 kpa) cold.
• Check the tire tread for wear.
• Properly attach the safety chains to the towing vehicle.
• Ensure that the towing vehicle’s directional, backup, and
brake lights are working properly.
• Avoid sudden stops and starts. This can cause skidding,
or jack knifing. Smooth, gradual starts and stops will
improve towing.
• Avoid sharp turns to prevent rolling. Tow only with a
vehicle that has a hitch designed for towing. Do not
attach towed equipment except at the hitch point.
• Use extra care when handling gasoline and other fuels.
They are flammable and vapors are explosive.
– Use only an approved container
– Never remove the gas cap or add fuel with the engine
running. Allow the engine to cool before refueling.
Do not smoke.
– Never refuel or drain the machine indoors.
– Replace the gasoline cap and tighten it securely.
– Keep the container nozzle in contact with the tank
during filling.
– If gasoline is spilled, wipe it off the engine and
equipment.
• Ensure that the machine is on a level surface before
operating.
• Always operate the machine from the side of the hopper.
• Block the wheels of the machine to prevent unintended
movement.
Operation
• Before starting this machine, review the
Safety (page 3) section. Failure to follow these
rules may result in serious injury to the operator or
bystanders.
Before towing check to make certain your machine is correctly
and securely attached to the towing vehicle.
• Ensure that the ball hitch you are using is the proper size
for the hitch coupler on the machine.
• Ensure that the safety chains are properly hooked to the
vehicle, leaving enough slack for turning.
• Ensure that the jack stand is secured in the Up position.
• Do not tow the machine faster than 45 mph (75 km/h).
• Use caution when backing up; use a spotter outside the
vehicle to guide you.
• Do not allow anyone to sit or ride on the unit.
• Do not carry any cargo or wood on the unit when towing.
• Disconnect the unit from the tow vehicle before using it.
• Place chock blocks underneath the wheel to prevent
rolling while the unit is parked.
• Never run an engine in an enclosed area.
• Only operate the machine in good light, keeping away
from holes and hidden hazards.
• Only start the engine from the operator's position.
• Do not pass or stand on the discharge side of the machine
when the engine is running or when the flywheel is
turning.
• Ensure that all the guards and shields are securely in place
before operating.
• Ensure that all interlocks are attached, adjusted properly,
and functioning properly.
• Do not change the engine governor setting or overspeed
the engine.
Preparation
• Stop on level ground, and shut off the engine before
Become familiar with the safe operation of the equipment,
operator controls, and safety signs.
• Evaluate the terrain to determine what accessories and
attachments are needed to properly and safely perform
the job. Only use accessories and attachments approved
by the manufacturer.
• Wear appropriate clothing including hard hat, face shield,
safety glasses, long pants, safety shoes, and hearing
• Chock the machine or keep it attached to the towing
leaving the operator's position for any reason.
vehicle when not in use to prevent the unit from rolling.
• Keep hands and feet away from any moving parts.
• Never carry passengers, and keep pets and bystanders
away.
• Do not operate the machine under the influence of
alcohol or drugs.
4
• Ensure that the area is clear of other people before
– Inspect the coupler, ball and hitch.
operating the machine. Stop the machine if anyone enters
the area.
– Ensure that all lights are functioning properly.
– Ensure that the tires are properly inflated as
recommended.
• Never leave a running machine unattended. Always stop
the engine and verify the chipper flywheel has stopped
rotating.
– Ensure that the lug nuts are tight and torqued
properly.
• Do not touch parts which may be hot from operation.
Allow them to cool before attempting to maintain, adjust,
or service the machine.
– Ensure that the machine is properly secured.
• Lightning can cause severe injury or death. If lightning
Maintenance and Storage
is seen or thunder is heard in the area, do not operate
the machine; seek shelter.
• Stop the engine. Wait for all movement to stop before
adjusting, cleaning, or repairing.
• Do not allow anyone to operate this machine without
• Clean debris from the mufflers and engine to help prevent
proper instruction.
fires. Clean up any oil or fuel spillage.
• Keep area of discharge clear of people, animals, buildings,
• Let the engine cool before storing.
glass, or anything else that will obstruct clear discharge,
cause injury, or damage. Wind can also change discharge
direction. If it becomes necessary to push material into
the hopper, use a small diameter wood stick, not your
hands.
• Do not store fuel near flames or drain indoors.
• Park the machine on level ground. Never allow untrained
personnel to service the machine.
• Remove the spark plug wire before making any repairs.
• Do not use the machine with the hopper or discharge
chute removed.
• Keep hands and feet away from moving parts. If possible,
• Clear the area of objects such as wire, rope, etc. Inserting
do not make adjustments with the engine running.
these objects into the hopper could damage the flywheel
and/or cause injury.
• Keep all parts in good working condition and all hardware
tightened. Replace all worn or damaged decals.
• Keep your face and body away from the hopper to avoid
• Keep all nuts, bolts, screws, hydraulic fittings, and hose
accidental bounce back of any material.
clamps securely tightened. Keep equipment in good
condition.
• If you hear or see material being kicked back against the
rubber flap, shut the feeder chute door until the material
has passed.
• Do not tamper with safety devices.
• Use extra care when handling gasoline and other fuels.
• When feeding material into the hopper, be extremely
They are flammable and vapors are explosive.
careful that pieces of metal, rocks, or other foreign
objects are not included. Personal injury or damage to
the machine could result.
– Use only an approved container.
– Never remove the gas cap or add fuel when the
engine is running. Allow the engine to cool before
refueling. Do not smoke.
• Shut off the engine and wait for the moving parts to come
to a complete stop before removing processed material,
leaves, or debris from the machine.
– Never refuel the machine indoors.
• Remove the key, disconnect the spark plug wires and keep
– Never store the machine or fuel container inside
where there is an open flame, such as near a water
heater or furnace.
the wire away from the spark plug to prevent accidental
starting while adjusting the machine.
• If the cutting mechanism strikes a foreign object or if
– Never fill a container while it is inside a vehicle, trunk,
pick-up bed, or any surface other than the ground.
your machine should start making an unusual noise or
vibration, stop the engine and wait five minutes for all
moving parts to come to a complete stop and cool.
Vibration is generally a warning of trouble. Disconnect
the spark plug wires and inspect for clogging or damage.
Clean and repair and/or replace damaged parts.
– Keep container nozzle in contact with the tank during
filling.
• Stop and inspect the machine if you strike an object.
Make any necessary repairs before restarting.
• Do not touch parts that may be hot from operation.
• Use only genuine Toro replacement parts to ensure that
Allow them to cool before attempting to maintain, adjust,
or service the machine.
the original standards are maintained.
• Never move this machine while the engine is running.
• Before every use:
5
Safety and Instructional Decals
Safety decals and instructions are easily visible to the operator and are located near any area of potential
danger. Replace any decal that is damaged or lost.
117–2718
119-4698
1. Warning—read the Operator's Manual.
2. Warning—read the Operator's Manual, do not operate this
machine unless you are trained.
3. Thrown object hazard, face—wear eye protection.
4. Thrown object hazard—keep bystanders a safe distance
from the machine.
5. Cutting/dismemberment hazard of hand, blade—stay away
from moving parts, keep all guards and shields in place.
119-4696
1. Warning—do not exceed 45 mph (72 kmh) when
transporting the machine.
119-4699
1. Warning—do not operate wearing gloves with loose
gauntlets, use gloves without loose material.
2. Warning—do not entangle body with material when using
machine.
3. Cutting/dismemberment hazard arm—do not place arm in
hopper; stay away from moving parts, keep all guards and
shields in place.
119-4720
4. Thrown object hazard, face and body—do not let loose
material to escape from hopper, put shroud in place.
1. Cutting/dismemberment hazard of hand; thrown object
hazard, face—stop the engine, remove the key and wait for
all moving parts to stop before opening the guard.
117-1754
1. Rotational direction and spin indicator
6
117–4979
1. Rotating belt — Keep guard in place
120-3738
1. When chipping branches with widths of 4 to 6 inches, cut
the branches to lengths of 36 inches or less to prevent
clogging of the chipper.
7
Product Overview
4
5
6
9
7
8
10 11
12
3
13
14
15
16
2
1
18
17
G017902
Figure 3
1. Safety chains
10. Choke
2. Coupler
11. Throttle
3. Jack stand
4. Deflector locking knob
12. Air filter
13. Key switch
5. Deflector
14. Fuel level gauge
6. Chute locking pin
15. Fuel cap
7. Chute locking knob
16. Fuel filter
8. Hopper
17. Battery
9. Discharge chute
18. Flywheel bearing
Controls
Become familiar with all the controls before you start the
engine and operate the machine.
Hopper Latch
The hopper, mounted on the side of the machine, swings
down for machine operation. The revolving blades mounted
on a flywheel behind the hopper turn branches fed into the
hopper into chips. The chipper can chip branches and vines
ranging in size up to 6 inches (15 cm) in diameter and up
to 3 feet (1 meter) in length.
G016603
Figure 4
1. Hopper latch
To release the hopper or hopper latch (Figure 4), pull on
the handle and rotate it up or down to engage the latch pin
behind the stop.
Pull hopper down to open.
8
Specifications
Operation
Note: Specifications and design are subject to change
without notice.
Hopper Opening
Length
6 inches (15 cm) maximum
diameter
35 inches (89 cm)
Height
81 inches (206 cm)
Weight
1056 lbs (478 Kg)
Engine
Kohler 725cc, V-Twin, gas
Fuel Tank Capacity
Important: Before operating, check the fuel and oil
level, and remove debris from the machine. Ensure that
the area is clear of people.
111 inches (282 cm)
Width
Tire Pressure
Note: Determine the left and right sides of the machine
from the normal operating position.
Towing
Do not tow over 45 mph (72 km/h)
1. Raise hopper and lock into the up position. Rotate the
chute toward the rear of the machine, lock in position
with the chute locking pin and tighten chute locking
knob (Figure 3).
2. Crank the handle of the lift jack to align the coupler
with the ball of the tow vehicle.
3. Remove the locking pin from the lever, squeeze the
latch lock and lift the lever up to open the coupler
(Figure 5).
60 psi (413.5 kPa)
5.5 Gal (20.8 L)
3
4
G016604
Figure 5
1. Tongue
4. Coupler
2. Lever in locked position
5. Safety chain
3. Locking pin
4. Attach coupler to a class I or higher 2 inch (50.8 mm)
ball on a towing vehicle and latch securely.
• • If coupler does not fit over the ball, turn
adjustment nut one turn counter-clockwise.
• • If coupler hitch is too loose on the ball, turn
adjustment nut one turn clockwise.
WARNING
Failure to properly engage the hitch ball in
the coupler ball socket and securely lock the
coupler latch mechanism can cause the unit to
become detached from the tow vehicle while
traveling, which may cause serious injury and
property damage.
9
• Ensure that everyone, including children and animals,
5. Install the locking pin to secure the lever (Figure 5).
maintain a distance of at least 50 feet (15 m) from the
machine. Debris can be thrown out and injure people
and animals.
6. Cross or “X” the safety chains and attach them to the
holes on the hitch.
7. Plug tail light wire harness connector to the tow
vehicle connector. Check to make sure the brake lights
illuminate properly with the brake pedal applied and
the taillights flash when the turning signals are use.
• Disconnect the unit from the tow vehicle, position it on
a level location and block the wheels front and back to
prevent it from moving.
• Check the fuel and oil level of the engine.
8. Raise jack stand so caster wheels are free of the ground,
pull the release pin and rotate wheels rearward and lock
in the horizontal position (Figure 6).
G016605
Figure 6
1. Release pin
2. Jack stand
Tires and Wheels
The most common cause of tire trouble is under-inflation. It
is important that you maintain full air pressure.
Inflate main axle tires to 60 psi (410 kpa)
Check the torque of the wheel lug nuts initially and after the
first 10 hours of operation.
Torque wheel lug nuts to 80-90 ft.-lbs (108-122 Nm)
Before you Start
• Review all the machine’s safety decals.
• Use a hard-hat, hearing protection, tight fitting gloves
•
•
•
•
without draw strings or loose cuffs, and eye protection.
A mesh visor alone does not provide sufficient eye
protection; supplement with protective glasses.
Ensure that you are familiar with safety regulations and
shutdown procedures described in this unit’s Operator’s
Manual and Engine Owner’s Manual.
Ensure that all guards are in place and in good condition.
Ensure that the blades are in place and in good condition.
Ensure that the work areas and blades are free from
metallic objects such as wire, nails, etc. that could be
thrown out and injure persons in the vicinity and damage
the equipment.
10
Adding Fuel
Using Stabilizer/Conditioner
Use unleaded gasoline (87 pump octane minimum). Leaded,
regular gasoline may be used if unleaded is not available.
Use a fuel stabilizer/conditioner in the machine to provide
the following benefits:
• Keeps gasoline fresh during storage of 90 days or less.
For longer storage it is recommended that the fuel tank
be drained.
• Cleans the engine while it runs.
• Eliminates gum-like varnish buildup in the fuel system,
which causes hard starting.
DANGER
In certain conditions, gasoline is extremely
flammable and highly explosive. A fire or explosion
from gasoline can burn you and others and can
damage property.
Important: Do not use fuel additives containing
methanol or ethanol.
• Fill the fuel tank outdoors, in an open area,
when the engine is cold. Wipe up any gasoline
that spills.
Add the correct amount of gas stabilizer/conditioner to the
gas.
• Never fill the fuel tank inside an enclosed trailer.
Note: A fuel stabilizer/conditioner is most effective when
mixed with fresh gasoline. To minimize the chance of varnish
deposits in the fuel system, use fuel stabilizer at all times.
• Do not fill the fuel tank completely full. Add
gasoline to the fuel tank until the level is 1/4 to
1/2 inch (6 to 13 mm) below the bottom of the
filler neck. This empty space in the tank allows
gasoline to expand.
Filling the Fuel Tank
1. Park the machine on a level surface, and stop the
engine.
2. Allow the engine to cool.
3. Clean around the fuel tank cap and remove it (Figure 7).
• Never smoke when handling gasoline, and stay
away from an open flame or where gasoline
fumes may be ignited by a spark.
• Store gasoline in an approved container and
keep it out of the reach of children. Never buy
more than a 30-day supply of gasoline.
• Do not operate without entire exhaust system in
place and in proper working condition.
DANGER
In certain conditions during fueling, static
electricity can be released causing a spark which
can ignite the gasoline vapors. A fire or explosion
from gasoline can burn you and others and can
damage property.
G016606
Figure 7
• Always place gasoline containers on the ground
away from your vehicle before filling.
1. Fuel tank cap
• Do not fill gasoline containers inside a vehicle or
on a truck or trailer bed because interior carpets
or plastic truck bed liners may insulate the
container and slow the loss of any static charge.
4. Add unleaded gasoline to the fuel tank, until the level
is 1/4 to 1/2 inch (6 to 13 mm) below the bottom of
the filler neck.
• If a gasoline dispenser nozzle must be used,
keep the nozzle in contact with the rim of the
fuel tank or container opening at all times until
fueling is complete.
Important: This space in the tank allows gasoline
to expand. Do not fill the fuel tank completely full.
5. Install the fuel tank cap securely, turning it until it clicks.
6. Wipe up any gasoline that may have spilled.
Important: Do not use methanol, gasoline containing
methanol, or gasohol containing more than 10% ethanol
because the fuel system could be damaged. Do not mix
oil with gasoline.
Hour Meter
The hour meter records the number of hours the engine has
operated. It operates when the engine is running.
11
Changing the Chute Position
The discharge chute on this machine can be rotated to use in
various positions. Rotate to the side, away from the hopper
when using the machine.
1. To rotate, loosen the clamp knob, then press the
spring-loaded button on the locking pin handle in and
pull the locking pin from the chute plate (Figure 10).
G016607
Figure 8
1. Hour meter
Checking the Engine Oil Level
Service Interval: Before each use or daily
1. Place the machine on a flat level surface, and stop the
engine.
G016608
2. Allow the engine to cool.
Figure 10
3. Clean around the oil dipstick.
1. Locking pin button
2. Clamp knob
4. Remove the dipstick and wipe the end clean.
2. Rotate the chute into the position desired and secure
with clamp knob.
5. Slide the dipstick fully into the dipstick tube without
threading it into the filler neck.
6. Pull the dipstick out and look at the end. The oil
should be to the top of the upper limit range (Figure 9).
Changing the Deflector
Position
The deflector on the end of the chute can be rotated up and
down to direct the discharge of chips.
1. Loosen the deflector knob and rotate the chute into
the desired position (Figure 11).
1
2
Figure 9
1. Oil dipstick
3. Valve cover
2. Oil fill cap
4. Metal end
Important: Running the engine with low oil level
can cause engine damage. This type of damage is
not covered by warranty.
7. If the oil level is low, slowly pour only enough oil into
the crankcase to raise the level to the upper limit.
G017903
Figure 11
Important: Do not overfill the crankcase with oil
because the engine may be damaged.
1. Chute deflector
8. Replace the dipstick.
12
2. Knob
6. When ready to chip brush, move the throttle lever to
the Fast position.
2. Tighten the deflector knob.
Starting and Stopping the
Engine
Stopping the Engine
1. Move the throttle lever to the mid-range position.
Note: If the engine has been working hard or is hot,
let it run for a minute before turning it off. This helps
to cool the engine before stopping. In an emergency,
the engine may be stopped immediately.
Starting the Engine
1. Move the choke lever to the On position (Figure 12).
Note: A warm or hot engine may not require choking.
2. Turn the ignition switch to the Off position (Figure 13).
Using the Brush Chipper
Service Interval: Before each use or daily—Clean the inside
of the cutting chamber cover.
DANGER
The machine will cut and amputate hands and feet.
• Stay in the operator's position while the machine
is running.
• Keep all bystanders a safe distance from the
machine.
• Stop the machine immediately if any people or
animals enter the work area.
• Never place any part of your body into a position
that causes an unsafe operating condition.
G016610
Figure 12
1. Choke
2. Throttle
2. Move the throttle lever one third of the way to the Fast
position (Figure 12).
3. Turn the engine ignition switch to the Start position
(Figure 13).
2
3
4
WARNING
Using the brush chipper may throw wood chips,
soil, and other debris into the air which could injure
you or bystanders.
• Always wear protective gear, such as safety
goggles or face shield, hearing protection,
tight-fitting gloves without draw strings or loose
cuffs when using the machine.
• Keep face and body away from the feed opening.
Do not overreach. Keep proper balance and
footing at all time.
• Keep all bystanders at least 50 feet (15 meters)
from the machine during operation.
G01661 1
Figure 13
1. Ignition switch
3. Run
2. Off
4. Start
1. Place the brush chipper on level, dry ground,
disconnect from tow vehicle, and block the front and
back of both wheels to prevent any movement.
4. After the engine starts, release key to the Run position
(Figure 13).
2. Make sure you read all the recommendations from the
Safety (page 3) section before using the brush chipper.
5. Gradually move the choke lever back to the Off
position. If the engine stalls or hesitates, move the
choke back to On again until the engine warms up.
Then move it to the Off position.
3. Start the engine; refer to Starting the Engine and allow
engine to warm up at idle for two minutes.
4. Lower the hopper (Figure 14).
13
• To move a pile of processed material, use a spade,
rake, or long handle tool. Never use you hands or
feet!
• Limit the length of large branches to 3 feet long
or less; longer lengths could cause the chipper to
slow and jam.
• Wash out the cutting chamber after each use by
spraying water from a garden hose into the hopper
while the engine is running at full throttle. Do
this for a few minutes to prevent accumulation of
matter that can degrade the chipper performance.
• To stop the machine; refer to
G016612
Figure 14
Stopping the Engine (page 13).
• Do not force material into the chipper. If the
•
•
machine does not chip well, the chipper knife or
cutter block may need to be sharpened or replaced.
Extremely hard knots of wood will not process very
well. Short stubs that have not self-fed through
the chipper can be pushed through with the next
branch to be chipped, otherwise simply close the
upper chute.
Overloading the hopper will cause the rotor speed
to decrease. If you hear the engine RPM decreasing,
stop feeding material into the hopper until the
engine has returned to full speed (Figure 15).
G016613
Figure 15
• If you jam the machine and do not stop the engine,
•
it can damage the machine. For this reason, it is
important that you immediately stop the engine if
the machine becomes jammed, wait five minutes to
make certain the flywheel and all moving parts have
come to a complete stop and cool. Disconnect
the spark plug wires, keeping them away from the
spark plugs to prevent accidental starting.
Never allow processed material to build up within 3
in (76.2 mm) of the discharge chute opening. Move
the Brush Chipper or the pile as needed. Failure to
do so could result in unnecessary jamming of the
machine.
14
Maintenance
Important: Before performing any maintenance procedures, first stop the engine, wait 5 minutes to allow all moving
parts to come to a complete stop and cool, and disconnect the spark plug wires.
Recommended Maintenance Schedule(s)
Maintenance Service
Interval
Maintenance Procedure
After the first 50 hours
• Change the engine oil.
Before each use or daily
•
•
•
•
•
•
Check the engine oil level.
Clean the inside of the cutting chamber cover.
Grease the machine.
Check the drive belt tension.
Check the cutter block.
Inspect the cutter blades.
Every 25 hours
• Clean the foam pre-filter on the air filter.
Every 100 hours
•
•
•
•
Every 200 hours
• Check the spark plugs.
• Replace the fuel filter.
Every 500 hours
• Lubricate wheel bearings.
• Replace the spark plugs.
Yearly or before storage
Replace the air filter.
Change the engine oil.
Replace the drive belt.
Inspect the tires.
• Change the engine oil.
Important: Refer to your Engine Operator's Manual for additional maintenance procedures.
Lubrication
Lubricate the Cutter Wheel
Bearings
Service Interval: Before each use or daily
Grease Type: General-purpose grease.
1. Clean around grease zerk with a rag and lift the plastic
cap off the grease zerk.
2. Pump several shots of grease into the fitting until it
starts to ooze out of the bearing (Figure 16).
G016615
Figure 16
1. Grease zerk
2. Cutter wheel bearing
3. Wipe up any excess grease.
Important: Pump grease in slowly and carefully
to prevent damage to the bearing seals.
15
Engine Maintenance
Lubricate the Wheel Bearings
Service Interval: Every 500 hours
Servicing the Air Cleaner
Lubricate the wheel bearings with several pumps of No. 2
general purpose lithium base grease (Figure 17).
Removing the Air Filter
1. Unscrew the knob and remove the air cleaner cover
(Figure 18).
G016621
Figure 17
1. Grease zerk
Figure 18
1. Knob
6. Foam pre-filter
2. Air cleaner cover
7. Paper filter
3. Cover nut
4. Spacer
8. Rubber seal
9. Air cleaner base
5. Cover
2. Carefully slide the foam pre-filter off of the paper
element.
3. Unscrew the cover nut and remove the cover, spacer
and paper filter.
Cleaning the Foam Pre-Filter
Service Interval: Every 25 hours
1. Clean around the air cleaner to prevent dirt from
getting into the engine and causing damage.
2. Remove the foam pre-filter; See
Removing the Air Filter (page 16).
16
2. Park the machine so that the drain side is slightly lower
than the opposite side to ensure that the oil drains
completely.
3. Place one end of a hose on the drain valve and the
other end in a pan (Figure 20).
3. Wash the foam pre-filter in liquid soap and warm water.
When clean, rinse it thoroughly.
4. Dry the pre-filter by squeezing it in a clean cloth and
allow it to air dry.
5. Put one or two ounces of engine oil on the pre-filter
(Figure 19).
Figure 19
1. Foam element
2. Oil
6. Squeeze the pre-filter to distribute the oil.
7. Carefully slide the foam pre-filter onto the paper filter
(Figure 18).
8. Install the air cleaner cover and secure it with the knob
(Figure 18).
Figure 20
1. Oil drain valve
2. Hose
4. Open the drain valve by turning it counterclockwise,
pulling out as you turn it (Figure 20).
5. When the oil has drained completely, close the drain
valve by pushing in and rotating clockwise, and remove
the hose. Wipe up any spilled oil.
Replacing the Air Filter
Service Interval: Every 100 hours
Note: Do not clean the paper element. Replace the paper
element if it is dirty or damaged.
Note: Dispose of the used oil at a certified recycling
center.
6. Remove the old filter and wipe the filter adapter gasket
surface (Figure 21).
To prevent engine damage, always operate the engine with the
complete foam and paper air cleaner assembly installed.
1. Carefully slide the foam pre-filter onto the paper filter
(Figure 18).
2. Place the air cleaner assembly onto the air cleaner base.
3. Install the cover, spacer and secure it with the cover nut.
4. Torque the nut to 60 in-lb (7 Nm).
5. Install the air cleaner cover and secure it with the knob.
Servicing the Engine Oil
Figure 21
Note: Change the oil more frequently when the operating
conditions are extremely dusty or sandy.
1. Oil filter
3. Adapter
2. Gasket
Oil Type: Detergent oil with an API service of SG, SH, SJ
or higher.
7. Pour new oil of the proper type in through the center
hole of the filter. Stop pouring when the oil reaches
the bottom of the threads.
8. Allow a minute or two for the oil to be absorbed by
filter material, then pour off the excess oil.
9. Apply a thin coat of new oil to the rubber gasket on
the replacement filter.
10. Install the replacement oil filter to the filter adapter.
Turn the oil filter clockwise until the rubber gasket
contacts the filter adapter, then tighten the filter an
additional 3/4 turn.
Crankcase Capacity: with filter 2 qt (1.9 liters)
Viscosity: SAE 10W-30 is recommended for general use.
Changing the Engine Oil
Service Interval: After the first 50 hours
Every 100 hours
Yearly or before storage
1. Start the engine and let it run five minutes. This warms
the oil so it drains better.
17
Checking the Spark Plug
11. Remove the oil fill cap and slowly pour approximately
80% of the specified amount of oil in through the valve
cover (Figure 9).
1. Look at the center of the spark plug (Figure 23). If you
see light brown or gray on the insulator, the engine is
operating properly. A black coating on the insulator
usually means that the air cleaner is dirty.
12. Check the oil level; refer to
Checking the Engine Oil Level (page 12).
13. Slowly add additional oil to bring the level to the F
(full) mark on the dipstick.
Important: Never clean the spark plug. Always
replace the spark plug when it has a black coating,
worn electrodes, an oily film, or cracks.
14. Replace the fill cap.
Servicing the Spark Plug
Service Interval: Every 200 hours—Check the spark plugs.
Every 500 hours
6
Ensure that the air gap between the center and side electrodes
is correct before installing the spark plug. Use a spark plug
wrench for removing and installing the spark plug and a
gapping tool/feeler gauge to check and adjust the air gap.
Install a new spark plug if necessary.
G017152
Figure 23
Type: Champion XC12YC (RFI type) or equivalent
1. Center electrode insulator
Air Gap: 0.030 inch (0.76 mm)
2. Side electrode
3. Air gap (not to scale)
2. Check the gap between the center and side electrodes
(Figure 23). Bend the side electrode (Figure 23) if the
gap is not correct.
Removing the Spark Plug
1. Pull the wires off of the spark plugs (Figure 22).
Installing the Spark Plug
1. Thread the spark plug into the spark plug hole.
2. Tighten the spark plug to 18–22 ft-lb (24.4–29.8 N-m).
3. Push the wire onto the spark plug.
Figure 22
1. Spark plug wire
2. Spark plug
2. Clean around spark plugs.
3. Remove the spark plugs and the metal washers.
18
Belt Maintenance
Fuel System
Maintenance
Adjusting the Drive Belt
Tension
Changing the Fuel Filter
Service Interval: Before each use or daily—Check the drive
belt tension.
Service Interval: Every 200 hours
1. Clamp the fuel line between the carburetor and the fuel
filter to block the fuel flow.
Note: Inspect the drive belt tension by inserting a metal
scale through the slot on top of the belt cover (Figure 25)
and pressing down on the scale with a force gage. The force
should measure 15 ± .75 lbs (6.5–7.5 kg) at 0.40 inch (1cm)
belt deflection. Adjust as required.
2. Squeeze the ends of the hose clamps together and slide
away from the fuel filter (Figure 24).
1. Remove the bolts and washers securing the belt guard
to machine.
2. Remove the belt guard (Figure 25).
3
G016676
Figure 24
1. Fuel filter
2. Hose clamp
3. Fuel hose
3. Place a drain pan under the fuel lines to catch any leaks,
then remove the filter from the fuel lines (Figure 24).
4. Install a new filter, with arrow pointing toward the
carburetor, and move the hose clamps close to the filter.
G016616
5. Remove the clamp blocking fuel flow.
Figure 25
1. Bolts and washers
3. Belt guard
2. Slot in belt guard
3. Loosen the 4 engine plate mounting bolts and the 4
bolts securing the rear of the belt guard to the engine.
4. Loosen the belt tension bolt and jam nut (Figure 26).
G016617
Figure 26
1. Tension bolt and jam nut
19
2. Engine plate mounting bolt
Cutter Maintenance
5. Adjust the drive belt tension by loosening the jam
nut and tightening the tension bolt against the engine
mounting plate, pushing the engine rearward.
6. Lay a straightedge across clutch and flywheel pulleys,
tighten belt tension bolt so there is 0.40 inch (1 cm) of
flex in the belt when pushing down with 15 lbs (6.8
kg) force, at mid-span (when re-tensioning a belt in
use) or with 18 lbs (8 kg) force when installing a new
belt (Figure 27).
Inspecting the Cutter Block
Service Interval: Before each use or daily
Make sure the cutter block has a crisp edge and is no farther
than 1/8” (3.2 mm) away from the blade. If the cutter block
is worn or chipped it should be replaced (Figure 28).
G016618
Figure 27
1. Straightedge
G016620
2. Flex of 0.40 inch (1 cm)
Figure 28
1. Blade
7. Ensure that the pulleys are aligned and the engine is
parallel with the frame (not angled toward the side),
then tighten the 4 engine plate mounting bolts, the 4
bolts securing the rear of the belt guard to the engine,
and the jam nut.
8. Install the belt guard and secure it with the previously
removed washers and bolts.
2. Cutter Block
Replacing the Cutter Blades
Service Interval: Before each use or daily—Inspect the
cutter blades.
Note: Using a dull blade will decrease performance and
cause excessive vibrations that will cause damage to the Brush
Chipper or engine.
Replacing the Drive Belt
Service Interval: Every 100 hours
1. Remove the bolt and washer securing the flywheel
housing cover, swing it forward to expose the flywheel.
Note: Replace the belt if it shows any signs of wear, cracks,
glazing, or damage.
1. Remove the bolts and washers securing the belt guard
to machine.
2. Remove the belt guard (Figure 25).
3. Loosen the 4 engine plate mounting bolts and the 4
bolts securing the rear of the belt guard to the engine.
4. Loosen the belt tension bolt and jam nut, slide the
engine toward the flywheel housing to loosen belt
(Figure 26).
5. Replace drive belt.
6. Adjust tension of new belt to 18 ± 0.9 lb (7.8–8.6 kg)
force at 0.40 inch (1 cm) belt deflection at mid-span.
7. Tighten the 4 engine plate mounting bolts, the 4 bolts
securing the rear of the belt guard to the engine, and
the jam nut.
8. Install the belt guard and secure it with the previously
removed washers and bolts.
2. Rotate the flywheel using a stick until the bolts and
lock nuts attaching the cutter blades to the flywheel
are accessible (Figure 29).
20
Charging the Battery
Important: Always keep the battery fully charged (1.265
specific gravity). This is especially important to prevent
battery damage when the temperature is below 32F
(05C).
Charging the battery produces gases that can explode.
Never smoke near the battery and keep sparks and
flames away from battery.
1. Remove the battery cover.
2. Clean the top of the battery with a paper towel.
3. Charge the battery for 10 to 15 minutes at 25 to 30
amps or 30 minutes at 4 to 6 amps. Do not overcharge
the battery (Figure 30).
G016619
Figure 29
1. Flywheel
3. Sequence for tightening
(3-1, 3-2, 3-3)
4
2. Blade
2
3
3. 3. Remove the dull or damaged cutter blades and
visually inspect the flywheel slots. The blade mounting
areas must be clean so the replacement blades will
mount flush against the flywheel.
1
Important: It is very important to consistently
maintain the 35-degree angle for proper chipping
performance.
G003792
4. Reverse the blade to use the second sharp edge, or
install new or sharpened blades and finger tighten the
bolts and lock nuts to hold the blades to the flywheel.
Figure 30
5. Tighten the center bolts and nuts first, then tighten the
outer bolts and nuts, and finally tighten the inner bolts
and nut. See sequence for tightening (Figure 29).
1. Positive battery post
3. Red (+) charger lead
2. Negative battery post
4. Black (-) charger lead
4. When the battery is fully charged, unplug the charger
from the electrical outlet, then disconnect the charger
leads from the battery posts (Figure 30).
6. Torque the blade bolts to 43-53 ft-lb (58-72 N-m).
7. Scrape any sap, mulch, and dirt from inside the top
cover of the housing to prevent the flywheel from
rubbing on it or was the same way as the cutting
chamber.
5. Install the battery cover.
21
Inspecting the Tires
Storage
Service Interval: Every 100 hours
For storage over 30 days, prepare the unit as follows:
Note: Failure to maintain correct pressure may result in
tire failure and loss of control resulting in serious injury and
property damage.
1. Remove dirt and grime from the external parts of
the entire unit, especially the engine. Clean dirt and
sawdust chips from the outside of the engine cylinder
head fins and blower housing.
• Operating accidents can damage a tire or rim, so inspect
tire condition after an accident.
Important: You can wash the unit with mild
detergent and water.
• Check the tire pressure frequently to ensure proper
inflation. If the tires are not inflated to the correct
pressure, the tires will wear prematurely.
2. Add a petroleum based stabilizer/conditioner to fuel
in the tank. Follow mixing instructions from stabilizer
manufacturer. (1 oz. per US gallon). Do not use an
alcohol based stabilizer (ethanol or methanol).
• Always replace worn or damaged tires with DOT
approved tires.
• Locate the DOT tire identification numbers (Figure 31).
Note: Fuel stabilizer/conditioner is most effective
when mixed with fresh gasoline and used at all times.
Important: Do not store stabilizer/conditioned
gasoline over 90 days.
3. Run the engine to distribute conditioned fuel through
the fuel system (5 minutes).
4. Stop the engine, allow it to cool, and drain the fuel tank
using a pump type siphon. Dispose of fuel properly;
recycle as per local codes.
Figure 31
5. Start the engine and run it until it stops.
6. Choke the engine.
7. Start and run the engine until it will not start again.
8. Change the fuel filter; refer
to Changing the Fuel Filter (page 19).
9. Service the air cleaner; refer to
Servicing the Air Cleaner (page 16).
10. Change the engine crankcase oil; refer to
Changing the Engine Oil (page 17).
11. Remove the spark plug and check the condition; refer
to Servicing the Spark Plug (page 18).
Figure 32
Example of a tire wear caused by under inflation.
12. With the spark plug removed from the engine, pour
two tablespoons of engine oil into the spark plug hole.
1. Under inflated tire
13. Pull the starter slowly to crank the engine and distribute
the oil inside the cylinder.
14. Install the spark plug, but do not install the wire on
the spark plug.
15. Check and tighten all bolts, nuts, and screws. Repair or
replace any part that is damaged.
16. Paint all scratched or bare metal surfaces. Paint is
available from your Authorized Service Dealer.
Figure 33
Example of a tire wear caused by over inflation.
17. Store the unit in a clean, dry garage or storage area.
18. Cover the unit to protect it and keep it clean.
1. Over inflated tire
22
Troubleshooting
Problem
The engine will not start.
The engine runs rough.
Chipping action seems slow or the
flywheel is stalling.
The flywheel does not rotate.
Possible Cause
Corrective Action
1. The choke is open.
1. Close the choke when starting a cold
engine.
2. The fuel tank is empty.
3. The spark plug wire is loose or
disconnected.
2. Fill the tank with fresh fuel.
3. Check the electrode gap and clean or
replace the spark plug.
1. The choke is left on.
1. Open the choke.
2. The air filter is clogged.
3. The fuel line is clogged.
4. There is water or contaminants in the
fuel.
5. The spark plugs are worn or have
buildup on the electrodes.
2. Clean or replace the air filter.
3. Clean the sediment cup.
4. Drain and fill the tank with fresh fuel.
5. Check the electrode gap and clean or
replace the spark plug.
1. The engine speed is too slow causing
the clutch to slip.
1. Run the engine at full throttle.
2. Check for a loose or damaged drive
belt.
3. Check for dull or damaged blades.
4. The clutch shoes are worn.
2. Tighten or replace the drive belt.
3. Replace with sharp blades.
4. Replace the clutch.
1. Build-up of chips and debris around
flywheel.
1. Clean out the build-up of chips and
debris around the flywheel, on the outer
diameter of the wheel, upper lid of the
grinder, and inside the housing cover.
2. The belt is loose or damaged.
3. The clutch overheated, is damaged, or
the shoes are worn.
2. Check the drive belt.
3. Replace the clutch.
Drive belt is worn, burned, or jumps off of
pulley.
1. Improper drive belt adjustment.
1. Check the drive belt tension.
2. The drive belt may be stretched.
3. Pulleys are out of alignment.
2. Replace the drive belt.
3. Align the engine/clutch pulley with
flywheel.
The machine has excessive vibration.
1. Check for dull or damaged blades.
1. Replace with sharp blades.
2. Blades may not be properly seated on
the flywheel.
3. Gap between the blades and cutter
block is too great.
2. Loosen the blade mounting screws,
reset the blades and tighten the screws.
3. Adjust the flywheel position in the
housing to attain a 1/8 inch (3 mm)
clearance between the blade and cutter
block.
23
Toro Compact Utility Equipment Warranty
A One-Year Limited Warranty
Conditions and Products Covered
The Toro® Company and its affiliate, Toro Warranty Company, pursuant
to an agreement between them, jointly warrant your Toro Compact Utility
Equipment (“Product”) to be free from defects in materials or workmanship.
The following time periods apply from the date of purchase:
Items and Conditions Not Covered
Not all product failures or malfunctions that occur during the warranty
period are defects in materials or workmanship. This express warranty
does not cover the following:
•
Product failures which result from the use of non-Toro replacement
parts, or from installation and use of add-on, modified, or unapproved
accessories
•
Product failures which result from failure to perform required
maintenance and/or adjustments
•
Product failures which result from operating the Product in an
abusive, negligent or reckless manner
•
Parts subject to consumption through use unless found to be
defective. Examples of parts which are consumed, or used up, during
normal Product operation include, but are not limited to, teeth, tines,
blades, spark plugs, tires, tracks, filters, chains, etc.
•
Contact any Authorized Toro Compact Utility Equipment (CUE)
Service Dealer to arrange service at their dealership. To locate a
dealer convenient to you, access our website at www.Toro.com.
You may also call our Toro Customer Care Department toll free
at 888-865-5676 (U.S. customers) or 888-865-5691 (Canadian
customers).
Failures caused by outside influence. Items considered to be outside
influence include, but are not limited to, weather, storage practices,
contamination, use of unapproved coolants, lubricants, additives, or
chemicals, etc.
•
Normal “wear and tear” items. Normal “wear and tear” includes, but is
not limited to, worn painted surfaces, scratched decals or windows,
etc.
Bring the product and your proof of purchase (sales receipt) to the
Service Dealer.
•
•
Any component covered by a separate manufacturer’s warranty
Products
Warranty Period
Loaders, Trenchers, Stump Grinders, 1 year or 1000 operating
Chippers, Log Splitters and Attachments hours, whichever occurs first
Kohler Engines
3 years
All other Engines
2 years
Where a warrantable condition exists, we will repair the Product at no cost
to you including diagnosis, labor, and parts.
Instructions for Obtaining Warranty Service
If you think that your Toro Product contains a defect in materials or
workmanship, follow this procedure:
1.
2.
3.
CUE Products
If for any reason you are dissatisfied with the Service Dealer’s
analysis or with the assistance provided, contact us at:
LCB Customer Care Department
Toro Warranty Company
8111 Lyndale Avenue South
Bloomington, MN 55420-1196
Toll Free: 888-865-5676 (U.S. customers)
Toll Free: 888-865-5691 (Canada customers)
Owner Responsibilities
You must maintain your Toro Product by following the maintenance
procedures described in the Operator’s Manual. Such routine
maintenance, whether performed by a dealer or by you, is at your expense.
Parts scheduled for replacement as required maintenance (“Maintenance
Parts”), are warranted for the period of time up to the scheduled
replacement time for that part. Failure to perform required maintenance
and adjustments can be grounds for disallowing a warranty claim.
Pickup and delivery charges
General Conditions
Repair by an Authorized Toro Compact Utility Equipment (CUE) Service
Dealer is your sole remedy under this warranty.
Neither The Toro® Company nor Toro Warranty Company is liable
for indirect, incidental or consequential damages in connection with
the use of the Toro Products covered by this warranty, including
any cost or expense of providing substitute equipment or service
during reasonable periods of malfunction or non-use pending
completion of repairs under this warranty. All implied warranties
of merchantability and fitness for use are limited to the duration
of this express warranty. Some states do not allow exclusions of
incidental or consequential damages, or limitations on how long
an implied warranty lasts, so the above exclusions and limitations
may not apply to you.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
Except for the engine warranty coverage and the Emissions warranty
referenced below, if applicable, there is no other express warranty. The
Emissions Control System on your Product may be covered by a separate
warranty meeting requirements established by the U.S. Environmental
Protection Agency (EPA) or the California Air Resources Board (CARB).
The hour limitations set forth above do not apply to the Emissions
Control System Warranty. Refer to the California Emission Control
Warranty Statement supplied with your Product or contained in the engine
manufacturer’s documentation for details.
Countries Other than the United States or Canada
Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain
guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor’s service or have difficulty obtaining
guarantee information, contact the Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company.
374-0261 Rev B
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
