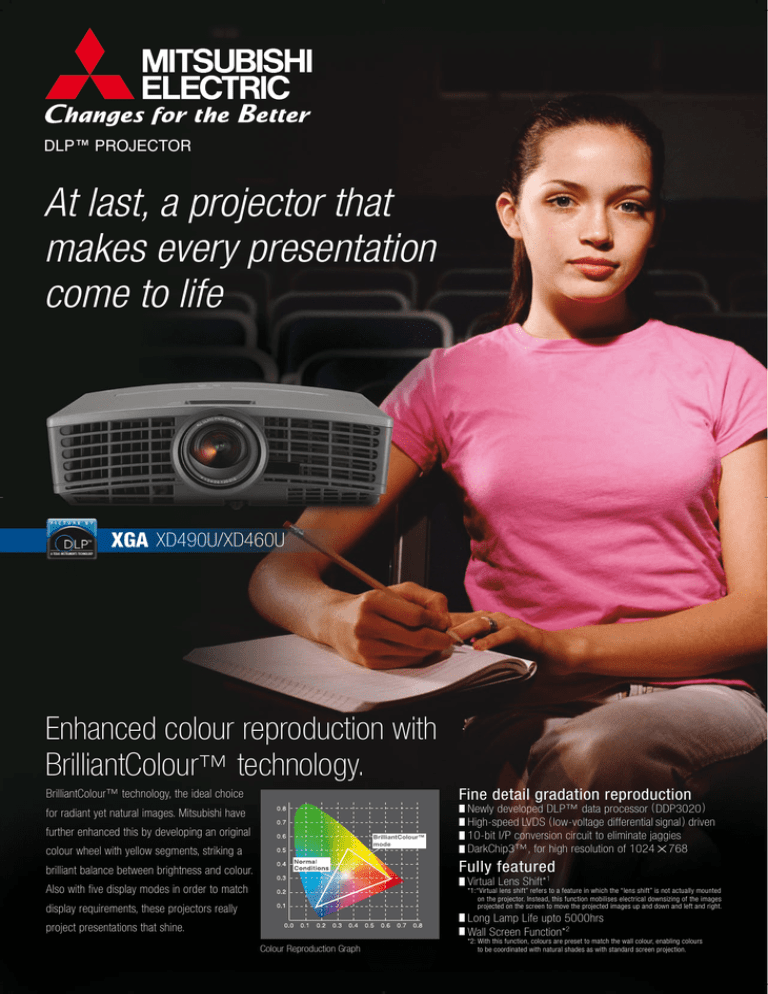

DLP™ PROJECTOR
At last, a projector that
makes every presentation
come to life
XGA XD490U/XD460U
Enhanced colour reproduction with
BrilliantColour™ technology.
Fine detail gradation reproduction
BrilliantColour™ technology, the ideal choice
for radiant yet natural images. Mitsubishi have
further enhanced this by developing an original
BrilliantColour™
mode
colour wheel with yellow segments, striking a
Newly developed DLP™ data processor ( DDP3020 )
High-speed LVDS ( low-voltage differential signal ) driven
10-bit I/P conversion circuit to eliminate jaggies
DarkChip3™, for high resolution of 1024 768
Fully featured
brilliant balance between brightness and colour.
Virtual Lens Shift*1
Also with five display modes in order to match
*1:“Virtual lens shift” refers to a feature in which the “lens shift” is not actually mounted
on the projector. Instead, this function mobilises electrical downsizing of the images
projected on the screen to move the projected images up and down and left and right.
display requirements, these projectors really
Long Lamp Life upto 5000hrs
Wall Screen Function*2
project presentations that shine.
Colour Reproduction Graph
*2: With this function, colours are preset to match the wall colour, enabling colours
to be coordinated with natural shades as with standard screen projection.
XD490U
Model
XD460U
0.7”1-chip DMD chip, 12deg. LVDS, DarkChip3TM with DDP3020
Display technology
Resolution
1024
768 (total 786,432 pixels), 600 video lines
3000 lm
Brightness
2600 lm
2500 : 1 (on / off)
Contrast
Picture size
40” ~ 300” (100” = 3.3m)
Source lamp
250W (Shut Off Time 2000Hrs) in eco mode (200W: Shut Off Time 5000Hrs)
Computer compatibility
640
480 ~ 1280
1024, True: 1024
NTSC / NTSC 4.43 / PAL (including PAL - M, N) / SECAM / PAL - 60
Component Video : 480i/p (525 i /p), 576 i /p (625 i /p), 720p (750p 50/60Hz),
1080i (1125i 60Hz), 1080i (1125i 50Hz), 1080i (1250i 50Hz),
SCART (RGB + 1Vcomp)
Video compatibility
DVI-D (with HDCP) 1, RGB: mini D-sub 15 pin
Audio: Stereo mini jack
1 (ø 3.5 mm)
PC input terminals
Video input terminals
Video: RCA
Output terminals
RGB: mini D-sub 15 pin
Communication terminals
1 + S - video
RS - 232C; 8pin
1
32dBA (eco mode)
Dimensions (W
D)
H
310
100
30dBA (eco mode)
245 mm (excluding height adjustment)
Weight
Composite Video
RS-232C
USB
1, Mouse ; USB
2
1 (ø 3.5 mm), DC(5V)
2 W mono
Fan noise
Audio Out
Remote IR
S-Video
2
1, Audio: RCA (L,R)
1, Audio: Stereo mini jack
Audio speaker
DVI-D input
RGB In
2
RGB Out
1
Audio In
768, Sync on green available
2.9kg / 6.5lbs
Power supply
AC100 ~ 120V / 220 - 240V / ±10%, 50 / 60Hz
*All brand names and product names are trademarks, registered trademarks or trade names of their respective holders.
*DLP (Digital Light Processing), BrilliantColour™,DarkChip3 are trademarks of Texas Instruments.
As seen from the side
HOLES FOR HANGER(3PLACES)
243
4.4
ø1
20.2
24
25.2
115
15
HOLE FOR OTHER PART
68.3
(Hd)
112
34.9
XD490U
XD460U
20.4
200
205
245
21
6.9
Height
41
77.1
4.
1
270
135
ø1
ø16.8
Projection Distance (L)
ø 87
310
15 26
49
Screen size chart (4:3 aspect ratio)
Screen
100
Diagonal Size
5
56
(56)
Unit : mm
Width
Distance from screen (L)/(approximate)
Height
Max. Zoom
Min. Zoom
Distance from
lens axis
(Hd)
cm
inch
inch
inch
cm
cm
inch
m
inch
m
inch
cm
102
40
32
24
81
61
51
1.3
62
1.6
2.8
7.2
152
60
48
36
122
91
77
2.0
94
2.4
4.3
10.9
203
80
64
48
163
122
103
2.6
125
3.2
5.7
14.5
100
254
80
203
60
152
130
3.3
157
4.0
7.1
18.1
150
381
120
305
90
229
196
5.0
237
6.0
10.7
27.1
200
508
406
160
120
305
262
6.6
316
8.0
36.2
14.2
250
635
508
200
150
381
327
8.3
45.2
17.8
300
762
610
240
180
457
393
10.0
54.3
21.4
The above numbers are approximate, and may be slightly different from the actual measurements.
