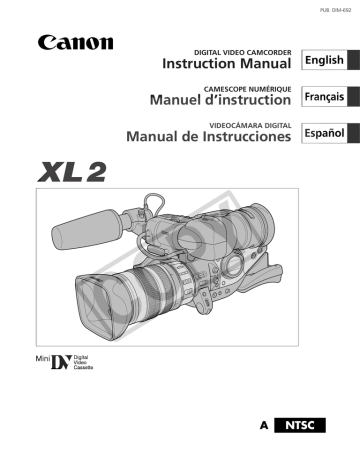

PUB. DIM-692
DIGITAL VIDEO CAMCORDER
Instruction Manual
CAMESCOPE NUMÉRIQUE
Manuel d’instruction
VIDEOCÁMARA DIGITAL
Manual de Instrucciones
Mini
English
Français
Español
Digital
Video
Cassette
A
NTSC
Important Usage Instructions
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR
MOISTURE.
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK AND TO REDUCE ANNOYING INTERFERENCE, USE THE
RECOMMENDED ACCESSORIES ONLY.
COPYRIGHT WARNING:
Unauthorized recording of copyrighted materials may infringe on the rights of copyright owners and
be contrary to copyright laws.
Digital Video Camcorder, XL2A Systems.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and use in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the manual.
If such changes or modifications should be made, you could be required to stop operation of the equipment.
Canon U.S.A. Inc.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
Tel No. (516)328-5600
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
Important Warning
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
2
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure, that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point, within an equilateral triangle,
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
product.
IMPORTANT SAFETY INSTRUCTIONS
In these safety instructions the word “product” refers to
the Canon Digital Video Camcorder XL2A and all its
accessories.
1. Read Instructions — All the safety and operating
instructions should be read before the product is
operated.
2. Retain Instructions — The safety and operating
instructions should be retained for future reference.
3. Heed Warnings — All warnings on the product and in
the operating instructions should be adhered to.
4. Follow Instructions — All operating and maintenance
instructions should be followed.
5. Cleaning — Unplug this product from the wall outlet
before cleaning. Do not use liquid or aerosol cleaners.
The product should be cleaned only as recommended
in this manual.
6. Accessories — Do not use accessories not
recommended in this manual as they may be
hazardous.
12. Power Cord Protection — Power cords should be
routed so that they are not likely to be walked on or
pinched by items placed upon or against them. Pay
particular attention to plugs and the point from which
the cords exit the product.
E
13. Outdoor Antenna Grounding — If an outside antenna
is connected to the product, be sure the antenna is
grounded so as to provide some protection against
voltage surges and built-up static charges. Section 810
of the National Electrical Code, ANSI / NFPA No. 70—
1984, provides information with respect to proper
grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge
unit, size of grounding conductors, location of antenna
discharge unit, connection to grounding electrodes,
and requirements for the grounding electrode. See
figure 1.
EXAMPLE OF ANTENNA GROUNDING AS
PER NATIONAL ELECTRICAL CODE
Fig. 1
ANTENNA
LEAD IN
WIRE
GROUND
CLAMP
ANTENNA
DISCHARGE
UNIT
(NEC SECTION
810-20)
ELECTRIC
SERVICE
EQUIPMENT
9. Placing or Moving — Do not place on an unstable cart,
stand, tripod, bracket or table. The product may fall,
causing serious injury to a child or adult, and serious
damage to the product.
A product and cart combination should
be moved with care. Quick stops,
excessive force, and uneven surfaces may
cause the product and cart combination
to overturn.
10. Power Sources — The CA-920 Compact Power
Adapter should be operated only from the type of
power source indicated on the marking label. If you are
not sure of the type of power supply to your home,
consult your product dealer or local power company.
Regarding other power sources such as battery power,
refer to instructions in this manual.
11. Polarization — The CA-920 Compact Power Adapter is
equipped with a polarized 2-prong plug (a plug having
one blade wider than the other).
The 2-prong polarized plug will fit into the power
outlet only one way. This is a safety feature. If you are
unable to insert the plug fully into the outlet, try
reversing the plug. If the plug still fails to fit, contact
your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the polarized plug.
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
NEC - NATIONAL ELECTRICAL CODE
8. Water and Moisture — Hazard of electric shock — Do
not use this product near water or in rainy/moist
situations.
Introduction
7. Avoid magnetic or electric fields — Do not use the
camera close to TV transmitters, portable
communication devices or other sources of electric or
magnetic radiation. They may cause picture
interference, or permanently damage the camera.
POWER SERVICE
GROUNDING ELECTRODE
SYSTEM
(NEC ART 250. PART H)
14. Lightning — For added protection of this product
during a lightning storm, or when it is left unattended
and unused for long periods of time, disconnect it from
the wall outlet and disconnect the antenna. This will
prevent damage to the product due to lightning and
power-line surges.
15. Power Lines — An outside antenna system should not
be located in the vicinity of overhead power lines or
other electric light or power circuits, or where it can fall
into such power lines or circuits. When installing an
outside antenna system, extreme care should be taken
to keep from touching such power lines or circuits as
contact with them might be fatal.
16. Overloading — Do not overload wall outlets and
extension cords as this can result in a risk of fire or
electric shock.
17. Objects and Liquid Entry — Never push objects of any
kind into this product through openings as they may
touch dangerous voltage points or short out parts that
could result in a fire or electric shock. Be careful not to
spill liquid of any kind onto the product.
18. Servicing — Do not attempt to service this product
yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
3
19. Damage Requiring Service — Disconnect this product
from the wall outlet and all power sources including
battery, and refer servicing to qualified service
personnel under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If any liquid has been spilled onto, or objects have
fallen into, the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally even if you
follow the operating instructions. Adjust only those
controls that are covered by the operation
instructions. Improper adjustment of other controls
may result in damage and will often require extensive
work by a qualified technician to restore the product
to its normal operation.
e. If the product has been dropped or the cabinet has
been damaged.
f. When the product exhibits a distinct change in
performance. This indicates a need for service.
20. Replacement Parts — When replacement parts are
required, be sure the service technician has used
replacement parts that are specified by Canon or that
have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric
shock or other hazards.
21. Safety Check — Upon completion of any service or
repairs to this product, ask the service technician to
perform safety checks to determine that the product is
in safe operating order.
When replacement of power supply is required, please return it to the responsible nearest Canon
Service Center and please replace it with the same type number CA-920.
The Adapter can be used with a power supply between 100 and 240 V AC. Contact your Canon
dealer for information about plug adapter for overseas use.
4
Using this Manual
Thank you for purchasing the Canon XL2. Please read this manual carefully before you use the
camcorder and retain it for future reference.
E
Symbols and References Used in This Manual
❍
: Precautions related to the camcorder operation.
❍
: Additional topics that complement the basic operating procedures.
❍
: Reference page number.
❍ Capital letters are used to refer to buttons on the camcorder or the wireless controller.
❍ [ ] are used to refer to menu items displayed on the screen.
❍ The 20× L IS Zoom Lens XL 5.4-108 mm supplied with the Lens Kit is referred to as “20× L IS Lens”.
❍ The illustrations show the camcorder attached with the 20× L IS Lens.
Setting the Time Zone, Date and Time
Set the time zone, date and time when you first start using your camcorder, or when you have
replaced the backup battery.
Setting the Time Zone/Daylight Saving Time
(
Menu item showing at its default position
26)
SYSTEM
Introduction
Operating modes
T.ZONE/DST•••N.Y.
1. Press the MENU button to open the menu.
2. Turn the SET dial to select [SYSTEM] and press the SET dial.
3. Turn the SET dial to select [T.ZONE/DST] and press the SET dial.
The time zone setting appears (see table on the next page). The default setting is New York.
4. Turn the SET dial to select the setting option that represents your time zone and press
the SET dial.
To adjust for daylight saving time, select the time zone with the U next to the area.
Setting the Date and Time
❍ Available functions depend on the operating mode and are indicated as follows:
: Function can be used in this mode.
: Function cannot be used in this mode.
Trademark Acknowledgements
•
•
•
•
Canon is a registered trademarks of Canon Inc.
D is a trademark.
m is a trademark.
Windows® is either a registered trademark or trademark of Microsoft Corporation in the United States
and/or other countries.
• Other names and products not mentioned above may be registered trademarks or trademarks of their
respective companies.
5
Contents
Introduction
Important Usage Instructions ..............................................................................................................................2
Important Safety Instructions ..............................................................................................................................3
Using this Manual ................................................................................................................................................5
Checking Supplied Accessories ............................................................................................................................8
Components Guide ..............................................................................................................................................9
Preparation
Preparing the Power Supply ..............................................................................................................................13
Installing the Backup Battery ............................................................................................................................16
Preparing the Camcorder ..................................................................................................................................17
Preparing the Lens..............................................................................................................................................22
Using the Wireless Controller ............................................................................................................................24
Loading/Unloading a Cassette ..........................................................................................................................25
Menus and Settings ............................................................................................................................................26
Setting the Time Zone, Date and Time ............................................................................................................30
Recording
Recording ............................................................................................................................................................32
End Search ..........................................................................................................................................................37
Zooming ..............................................................................................................................................................38
Adjusting the Focus ............................................................................................................................................40
Using the ND Filter (Lenses with Built-in ND Filter) ........................................................................................43
Selecting the Frame Rate ..................................................................................................................................44
Recording in 16:9 Mode ....................................................................................................................................46
Setting the Time Code........................................................................................................................................47
Setting the User Bit ............................................................................................................................................49
Audio Recording ................................................................................................................................................50
Image Stabilizer (Lenses Equipped with Image Stabilizer) ..............................................................................54
Using the Programmed AE Modes ....................................................................................................................55
Recording in the Shutter-Priority (Tv) Mode ....................................................................................................58
Recording in the Aperture-Priority (Av) Mode ................................................................................................59
Recording in the Manual Mode ........................................................................................................................60
Adjusting the Exposure ......................................................................................................................................61
Using AE Shift ....................................................................................................................................................62
Adjusting the Gain ............................................................................................................................................63
Setting the White Balance ................................................................................................................................64
Using the Zebra Pattern ....................................................................................................................................66
Using the Skin Detail Function ..........................................................................................................................67
Using the Custom Preset ....................................................................................................................................68
Using Clear Scan for Recording Computer Screens ..........................................................................................73
Using the Custom Keys ......................................................................................................................................74
Recording Color Bars/Audio Reference Signal..................................................................................................77
Recording with the Interval Timer ....................................................................................................................79
Recording with the Self-Timer ..........................................................................................................................81
Using the DV Control ........................................................................................................................................82
Other Camcorder Functions/Settings ................................................................................................................83
6
Playback
Playing Back a Tape ............................................................................................................................................85
Playing Back on a TV Screen ..............................................................................................................................87
Audio Output......................................................................................................................................................89
Returning to a Pre-Marked Position ................................................................................................................90
Index Search ........................................................................................................................................................91
Date Search ........................................................................................................................................................92
Displaying the Data Code ..................................................................................................................................93
Changing the Remote Sensor Mode ................................................................................................................95
E
Editing
Recording to a VCR or Digital Video Device ....................................................................................................96
Recording from Analog Video Devices (VCR, TV or Camcorder) ....................................................................97
Recording from Digital Video Devices (DV Dubbing) ......................................................................................98
Converting Analog Signals into Digital Signals (Analog-Digital Converter) ..................................................99
Connecting to the Computer Using a DV (IEEE1394) Cable ..........................................................................101
Additional Information
7
Introduction
Settings Retained at Power Off or STANDBY Mode ......................................................................................102
Screen Displays..................................................................................................................................................104
List of Messages ................................................................................................................................................107
Maintenance/Others ........................................................................................................................................108
Troubleshooting................................................................................................................................................113
System Diagram ................................................................................................................................................115
Optional Accessories ........................................................................................................................................116
Specifications ....................................................................................................................................................119
Index ..................................................................................................................................................................121
Audio Block Diagram ......................................................................................................................................122
Checking Supplied Accessories
Body Kit
CA-920 Compact Power
Adapter
DC-920 DC Coupler
BP-930 Battery Pack
Lithium Button Battery
CR2025
WL-D4000 Wireless
Controller
Two AAA (R03) Batteries
Color Viewfinder
Microphone Unit
Camcorder Dust Cap
SS-1000 Shoulder Strap
Adapter Holder
STV-150 Stereo Video
Cable
S-150 S-video Cable
Additional Accessories Supplied with the Lens Kit
20× L IS Zoom Lens XL 5.4108 mm (with soft case)
Lens Cap
Lens Dust Cap
Lens Hood
The serial number of this product can be found at the battery attachment unit of the camcorder. Write down the number
and other information here and retain this book as a permanent record of your purchase to aid identification in case of
theft.
Date of Purchase:
Model Name: XL2
Purchased From:
Serial No.:
Dealer Address:
Dealer Phone No.:
8
Components Guide
XL2
E
Viewfinder locking screw
( 17)
Eye cup (
Advanced Accessory shoe
( 52)
INPUT SELECT switch
(CH3, CH4) ( 52)
Microphone locking
screw ( 20)
Viewfinder cable (
18)
REC LEVEL switch
(CH3, CH4) ( 53)
17)
CH3/CH4 dials (
Stereo microphone
( 20)
53)
REC CH SELECT switch
(CH1, CH2) ( 51)
FRONT MIC ATT. switch
(CH1, CH2) ( 51)
CH1/CH2 dials (
Introduction
Focus ring (
53)
40)
INPUT SELECT switch
(CH1, CH2) ( 51)
REC LEVEL switch
(CH1, CH2) ( 53)
Power indicator
Lens hood (
LIGHT button (
23)
Zoom ring (
9)
AUDIO MONITOR button (
38)
EXP. LOCK button (
53, 89)
61)
ASPECT RATIO switch (
LENS RELEASE switch (
MENU button (
46)
22)
END SEARCH button (
26)
IRIS/SET dial (
26, 59)
FRAME RATE switch (
37)
44)
LIGHT Button
Press the LIGHT button to illuminate the side
panel for approximately 10 seconds. If you press
and hold the button for at least 3 seconds, the
panel remains illuminated until you press the
button once more to turn the backlight off.
9
CUSTOM KEYS (
74)
EJECT switch (
EVF DISPLAY button (
S-video
terminal
( 87)
Video
terminal (BNC)
( 88)
35)
25)
CUSTOM PRESET ON/OFF button (
70)
CUSTOM PRESET SELECT button (
70)
Remote sensor
( 24, 95)
AE SHIFT dial (
Tally lamp (
Microphone cable (
83)
Screw hole for
adapter holder (
62)
20)
FRONT MIC terminals (
20)
21)
Tally lamp ( 83) /
Remote sensor ( 24, 95)
RCA/BNC
selector
( 88)
Video
terminal (RCA)
( 88)
AUDIO 2
RCA terminals
( 52)
Zoom speed dial (
38)
Grip zoom lever (
38)
Remote sensor (
AUDIO 1
RCA terminals
( 51)
ZOOM SPEED switch (
Start/stop button (
XLR input
terminals
( 51, 52)
Screw holes for
adapter holder (
24, 95)
21)
Battery attachment unit (
serial number
Lens hood locking screw
( 23)
13) /
BATT. RELEASE button (
13)
Cassette compartment (
25)
Backup battery compartment
( 16)
Grip belt (
21)
Tripod socket*
* Do not use tripods with fastening screws longer than 0.2 inch (5.5 mm) as it may damage the camcorder.
About the m Terminal
m (LANC) stands for Local Application Control Bus System. The m terminal allows you to connect and control
connected devices.
❍ Connect only devices with the m mark to the m terminal.
❍ Operation cannot be guaranteed for connections with devices not bearing the m mark.
❍ Some buttons of connected devices may not operate or may operate differently than the buttons on the
camcorder.
10
32)
38)
E
LOCK lever (
START/STOP button
( 33)
33)
a (pause) button (
3 (stop) button (
` (rewind) button (
Handle zoom lever
( 38)
2 button (
Dioptric adjustment
lever ( 19)
Viewfinder (
Strap mount (
17-20)
85)
97, 98)
1 (fast forward) button
( 85)
21)
e (play) button (
Color viewfinder
socket ( 17)
Lock release button
( 19)
Lock lever (
85)
85)
Strap mount (
85)
21)
18)
PHONES LEVEL dial
ND filter unlock button
( 43)
H (phones) terminal
DV terminal (
POSITION PRESET switch
( 39, 41)
eAF switch ( 40)/
POSITION PRESET ON/SET switch
( 39, 41)
ND filter operating ring (
Focus selector (
+48V switch (
51, 52)
43)
41)
POWER dial (
Side panel (
REC SEARCH +
button ( 36, 85)
56)
106)
STANDBY button (
33)
WHITE BALANCE W button
( 64)
REC SEARCH – /
c (record review) button
( 36, 85)
COLOR BARS
ON/OFF button (
51, 52)
MIC ATT. switch (
FU-1000 Monochrome
Viewfinder Socket ( 117)
COLOR BARS
SELECT button (
98, 101)
m terminal
WHITE BALANCE dial
( 64)
GAIN dial (
77)
77)
SHUTTER r button (
58)
SHUTTER t button (
58)
61)
External control mode
VCR mode
Power off
Auto
Shutter-Priority
Aperture-Priority
Recording
Manual
programs
Spotlight
Low Light
Easy Recording
11
Introduction
STABILIZER ON/OFF switch
( 54)
WL-D4000 Wireless Controller
TV SCREEN button (
104)
START/STOP button (
32)
Transmitter
Zoom buttons (
38)
AUDIO MONITOR button
( 53, 89)
DATA CODE button (
SELF TIMER button (
93)
81)
ZERO SET MEMORY button (
MENU button (
26)
MIX BALANCE buttons (
Select buttons (
26)
REC PAUSE button (
97, 98)
SEARCH SELECT button (
REW` button (
91, 92)
INDEX WRITE button (
SET button (
26)
100)
-/+ buttons (
91, 92)
85)
85)
REMOTE SET button (
PLAYe button (
85)
STOP3 button (
85)
PAUSEa button (
12
75)
AV DV button (
END SEARCH button (
button (
89)
85)
95)
FF1 button (
85)
button (
85)
button (
SLOW
85)
button (
85)
Jog/Shuttle dial (
86)
37)
90)
Preparing the Power Supply
Charging the Battery Pack
Disconnect the DC coupler from the power adapter before charging. Remove the terminal cover of the
battery pack.
1. Connect the power cord to the adapter.
2. Plug the power cord into a power
outlet.
3. Attach the battery pack to the adapter.
e
• Press lightly and slide it in the direction of the
arrow until it clicks.
• The CHARGE indicator starts flashing. It glows
steadily when charging is complete.
4. When charging is complete, remove the
battery pack from the adapter.
5. Unplug the power cord from the power
outlet and disconnect it from the adapter.
E
q
w
CHARGE indicator
Attaching the Battery Pack
Preparation
1. Turn the POWER dial to OFF.
2. Attach the battery pack to the
camcorder.
q
Press lightly and slide it in the direction of the
arrow until it clicks.
3. Remove the battery pack after use.
Press the BATT. RELEASE button to remove the
battery.
w
13
Using a Household Power Source
1. Turn the POWER dial to OFF.
2. Attach the DC coupler to the camcorder.
q
Press lightly and slide it in the direction of the
arrow until it clicks.
3. Connect the power cord to the power
adapter.
4. Plug the power cord into a power
outlet.
5. Connect the DC coupler to the adapter.
6. Detach the DC coupler after use.
w
Press the BATT. RELEASE button to detach the
DC coupler.
e
r
t
❍ Disconnect the DC coupler from the power adapter when charging a battery pack.
❍ Turn off the camcorder before connecting or disconnecting the power adapter.
❍ If the adapter is used close to a TV, it may cause picture interference. Move the adapter away from
the TV or the antenna cable.
❍ Do not connect any products that are not expressly recommended to the power adapter.
❍ When the power adapter or battery pack is defective, the CHARGE indicator turns off, and
charging stops.
❍ The CHARGE indicator informs you about the charge status.
0-50%:
Flashes once every second
50%-75%:
Flashes twice every second
More than 75%: Flashes 3 times every second
100%:
Glows steadily
14
❍ Charging, Recording and Playback Times
Below times are approximate and vary according to the charging, recording or playback
conditions.
Battery Pack
Charging Time with the CA-920
With 20×
Maximum Recording Time
L IS Lens
Typical Recording Time*
With 16×
Manual Zoom
Lens
Maximum Recording Time
Typical Recording Time*
Playback Time
With supplied
color viewfinder
With optional FU-1000
Monochrome Viewfinder
With supplied
color viewfinder
With optional FU-1000
Monochrome Viewfinder
With supplied
color viewfinder
With optional FU-1000
Monochrome Viewfinder
With supplied
color viewfinder
With optional FU-1000
Monochrome Viewfinder
E
BP-930
145 min.
155 min.
BP-945
220 min.
230 min.
120 min.
185 min.
90 min.
135 min.
65 min.
100 min.
185 min.
280 min.
135 min.
205 min.
105 min.
160 min.
75 min.
115 min.
235 min.
360 min.
❍ We recommend charging the battery pack in temperatures between 50 ˚F and 86 ˚F (10 ˚C and
30 ˚C). Outside the temperature range of 32 ˚F to 104 ˚F (0 ˚C to 40 ˚C), the CHARGE indicator
turns off, and charging stops.
❍ A lithium ion battery pack can be charged at any charge state. Unlike conventional battery packs,
you do not need to completely use or discharge it before charging.
❍ We recommend that you prepare battery packs 2 to 3 times longer than you think you might
need.
❍ To conserve battery power, turn off the camcorder instead of leaving it in record pause mode.
15
Preparation
* Approximate times for recording with repeated operations such as start/stop, zooming, power on/off.
Actual time may be shorter.
Installing the Backup Battery
The backup battery (lithium button battery CR2025) allows the camcorder to retain date, time (
30)
and other camcorder settings while the power source is disconnected. Connect a power source to the
camcorder when replacing the backup battery to retain the settings.
1. Open the backup battery cover.
Screw the cover to the left (use, for example, a
coin).
q
w
e
2. Insert the backup battery with the + side
facing outward.
3. Close the cover.
Align the mark on the cover with the lower mark
on the camcorder and screw the cover to the
right until it clicks.
WARNING!
• The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not
recharge, disassemble, heat above 212 °F (100 °C) or incinerate the battery.
• Replace the battery with a CR2025 made by Panasonic, Hitachi Maxell, Sony, Sanyo, or with Duracell
DL2025. Use of other batteries may present a risk of fire or explosion.
❍ Do not pick up the battery using tweezers or other metal tools as this will cause a short circuit.
❍ Wipe the battery with a clean dry cloth to ensure proper contact.
❍ Keep the battery out of reach of children. If it is swallowed, seek medical assistance immediately.
The battery case may break, and the battery fluids may damage stomach and intestines.
❍ Do not disassemble, heat or immerse the battery in water to avoid the risk of explosion.
The backup battery has a life span of about a year. “j” flashes in red to inform you that it needs to
be replaced.
16
Preparing the Camcorder
Attaching and Detaching the Color Viewfinder Unit
E
Attaching the Color Viewfinder Unit
1. Slide the viewfinder unit onto the
bracket and tighten the locking screw.
q
2. Connect the viewfinder cable to the
upper socket of the camcorder body.
Align the mark on the cable with the mark on
the camcorder.
3. Hook the viewfinder cable onto the
cable clamp.
w
e
Preparation
Detaching the Viewfinder Unit
1. Detach the viewfinder cable.
2. Loosen the locking screw and slide the viewfinder unit off the bracket.
17
Detaching and Attaching the Eye Cup
You can change the position of the eye cup for use with either the left or right eye. Detach and
reattach the eye cup for use with the left eye.
Detaching the Eye Cup
Detach the eye cup as shown in the
illustration.
Attaching the Eye Cup
Align the hole for the dioptric adjustment lever with the lever, and pull the eye cup into
position.
Right eye use
Left eye use
Adjusting the Position of the Viewfinder
The viewfinder position can be changed (right/left, forward/backward).
Right/Left Adjustment
Loosen the locking screw, move the viewfinder to
the right/left and tighten the screw.
18
Forward/Backward Adjustment
Loosen the locking lever, move the viewfinder
forward/backward and tighten the lever.
Using the Viewfinder as LCD Panel
E
You can use the viewfinder as LCD panel by opening the eyepiece adapter.
Press the lock release button and open the
eyepiece adapter.
Make sure to close the eyepiece adapter when you are not using the viewfinder as LCD panel.
The screen is slightly brighter when you open the eyepiece adapter.
Dioptric Adjustment
Preparation
Turn on the camcorder and adjust the
dioptric adjustment lever.
Prevent direct sunlight getting in the viewfinder. The viewfinder LCD may become damaged due to
concentration of the light by the lens. Pay special attention when mounting the camcorder on a
tripod, or during transportation.
19
Adjusting the Viewfinder
You can adjust the brightness, contrast, color and sharpness of the viewfinder. These adjustments will
not affect the picture of your recording.
(
26)
DISPLAY SETUP/
EVF SETUP
BRIGHTNESS•••
CONTRAST•••••
COLOR••••••••
SHARPNESS••••
1.
2.
3.
4.
Press the MENU button to open the menu.
Turn the SET dial to select [DISPLAY SETUP/ ] and press the SET dial.
Turn the SET dial to select [EVF SETUP] and press the SET dial.
Turn the SET dial to select [BRIGHTNESS], [CONTRAST], [COLOR], or [SHARPNESS] and
press the SET dial.
5. Turn the SET dial up or down to adjust the setting and press the SET dial.
6. Press the MENU button to close the menu.
Attaching the Microphone Unit
1. Loosen the microphone locking screw
on the viewfinder unit, open the
microphone clamp and insert the
microphone into the microphone clamp.
2. Align the mark on the microphone with
the mark on the clamp and tighten the
screw.
3. Plug the microphone cable to the
camcorder’s FRONT MIC terminals.
w
q
e
When using a microphone other than the supplied one, attach it to the advanced accessory shoe.
20
Fastening the Grip Belt
E
Hold the camcorder with your right hand
and adjust the belt with your left.
Adjust the grip belt so that you can reach the zoom
lever with your index and middle finger, and the
start/stop button with your thumb.
Attaching the Shoulder Strap
Pass the ends through the strap mount
and adjust the length of the strap.
Be careful not to drop the camcorder when adjusting the strap.
Attach the adapter holder to use the optional CH-910 Dual Battery Charger/Holder or a commercially
available wireless microphone receiver.
1. Attach the adapter holder and secure it
by tightening the screws.
2. Adjust the position of the support bars.
Support bars
Stop lever
When using the optional CH-910, hook it onto
the support bars and secure it with the stop
lever. To detach the CH-910, press the stop lever
in the direction of the arrow and pull it off the
support bars.
21
Preparation
Attaching the Adapter Holder
Preparing the Lens
Refer also to the instruction manual of the lens.
Mounting the Lens
1. Set the POWER dial to OFF.
2. Remove the dust caps from the
camcorder and the lens.
3. Align the red mark on the lens with the
red mark on the camcorder and turn the
lens clockwise until it clicks.
w
q
e
Unmounting the Lens
1. Set the POWER dial to OFF.
2. Slide the LENS RELEASE switch, turn the
lens counter-clockwise until it stops and
remove the lens.
3. Attach the dust caps to the camcorder
and the lens.
q
w
e
❍ Be careful not to drop the lens or camcorder when mounting/unmounting the lens.
❍ Avoid direct sunlight or strong light sources when mounting/unmounting the lens.
❍ The XL mount is not compatible with the VL mount.
❍ Do not touch the lens, lens mount and the interior of the mount, or expose them to dust or dirt. If
necessary, clean it with a dry soft cloth (make sure to turn off the camcorder during cleaning).
22
Attaching the Lens Hood
E
Attach the lens hood to shade the lens from stray light and to protect the lens.
1. Place the lens hood on the front of the
lens and screw it clockwise until the
Canon logo appears on top.
q
• Be careful not to deform the lens hood.
• Make sure that the lens hood is aligned with
the thread.
2. Tighten the locking screw.
w
Preparation
23
Using the Wireless Controller
Point it at the camcorder’s remote sensor
when you press the buttons.
The camcorder has three remote sensors, two at the
front and one at the back.
Inserting Batteries
The wireless controller operates with two AAA
(R03) batteries.
1. Open the battery cover.
2. Insert the batteries following the + and
– markings.
3. Close the battery cover.
❍ Camcorder and wireless controller are equipped with 2 remote sensor modes (
95). If the
wireless controller does not work, check if camcorder and wireless controller are set to the same
mode.
❍ When the camcorder cannot be operated with the wireless controller, or when it can only be
operated in very close range, replace the batteries. Make sure to replace both batteries at the
same time.
❍ The wireless controller may not work properly when the remote sensor is subjected to strong light
sources or direct sunlight.
24
Loading/Unloading a Cassette
Use only videocassettes marked with the D logo.
E
1. Slide the EJECT switch to open the
cassette compartment cover.
The cassette compartment opens automatically.
q
2. Load/unload the cassette.
• Load the cassette with the window facing
outward.
• Unload the cassette by pulling it straight out.
3. Press the P mark on the cassette
compartment until it clicks.
e
w
Preparation
4. Wait for the cassette compartment to
retract automatically and close the
cassette compartment cover.
r
❍ Do not interfere with the cassette compartment while it is opening or closing automatically, or
attempt to close the cover before the cassette compartment has fully retracted.
❍ Be careful not to get your fingers caught in the cassette compartment cover.
If the camcorder is connected to a power source, cassettes can be loaded/unloaded even if the
POWER dial is set to OFF.
25
Menus and Settings
Many of the camcorder’s functions are selected from menus that appear on the screen.
SET dial
MENU button
Selecting Menus and Settings
1.
2.
3.
4.
5.
Press the MENU button to open the menu.
Turn the SET dial to select a submenu and press the SET dial.
Turn the SET dial to select a menu item and press the SET dial.
Turn the SET dial to select a setting option and press the SET dial.
Press the MENU button to close the menu.
❍ Pressing the MENU button at any time closes the menu.
❍ Items that are not available appear in purple.
❍ You may find it more convenient to use the wireless controller to operate the menu. Press the
MENU button on the wireless controller to open or close the menu. Use the select buttons in place
of the SET dial and press the SET button in place of pressing the SET dial.
26
Menu and Default Settings
E
Default settings are shown in boldface.
CAMERA MENU
Submenu
TIME CODE
CAMERA SETUP
ZOOM HANDLE
F SPEED PSET**
CLEAR SCAN
SELF TIMER
INTERVAL T.
INTERVAL
INT. REC TIME
PRESET SETUP
READ PRESET
Setting Options
DROP*, NON-DROP
REC-RUN, REC-RUN PS., FREE-RUN*
SET, RESET
2:3, 2:3:3:2
ON, OFF
80, 85, 90, 95, 100
HUE
CHROMA
AREA
Y LEVEL
SKIN DETAIL
OFF, HIGH , MIDDLE
LOW, MIDDLE, HIGH
LOW, MIDDLE, HIGH
47
45
66
67
, LOW
ON , OFF
ON, OFF
30sec, 1min, 5min, 10min
0.5sec, 1sec, 1.5sec, 2sec
SEL PRESET
1 PRESET_A, 2 PRESET_B, 3 PRESET_C
/CLEAR
CANCEL, PROTECT , CLEAR
GAMMA
NORMAL, CINE
KNEE
HIGH, MIDDLE, LOW
BLACK
STRETCH, MIDDLE, PRESS
COLOR MATRIX
NORMAL, CINE
COLOR GAIN
COLOR PHASE
R GAIN
G GAIN
B GAIN
V DETAIL
NORMAL, LOW
SHARPNESS
CORING
SETUP LEVEL
MASTER PED.
NR
OFF, HIGH, MIDDLE, LOW
SEL PRESET
1 PRESET_A, 2 PRESET_B, 3 PRESET_C
SEL POSITION
38
42
73
81
79
70
71
* Cannot be selected in 24p mode.
** Can only be selected when a lens with focus preset function is mounted.
27
Preparation
CUSTOM PRESET
Menu Item
FRAME SETTNG
COUNT-UP
START VALUE
24p MODE SEL
ZEBRA
ZEBRA LEVEL
SKIN D.SET
Submenu
VCR SETUP
DISPLAY SETUP/
Menu Item
REC MODE
POWER SAVE
USR BIT DATA
AUDIO MODE
1kHz TONE
AUD.M.SET
R-XLR GAINUP
EVF SETUP
SYSTEM
CENTER MARK
TV SCREEN
AUDIO LEVEL
GUIDE INFO
LANGUAGE
DATE FORMAT
USR BIT DISP
CUSTOM KEY 1
AUDIO SETUP
CUSTOM KEY 2
WL.REMOTE
TALLY LAMP
T.ZONE/DST
D/TIME SET
CHAR.REC
DV CONTROL
28
Setting Options
SP, LP
SHUT OFF, VCR STOP
SET, CLEAR
16bit, 12bit CH 1/2 , 12bit CH 1/2 , 3/4
OFF, -12dB, -20dB
NORMAL, LINE OUT
OFF, 12dB
BRIGHTNESS
CONTRAST
COLOR
SHARPNESS
ON, OFF
ON, OFF
ON, OFF
OFF, CUSTOM KEYS, D/T DISPLAY
ENGLISH,
,
ON, OFF
TIME CODE, INDEX WRITE, ZEBRA, VCR STOP, TV SCREEN,
ZOOM HANDLE, AUDIO LEVEL, (NONE)
TIME CODE, INDEX WRITE, ZEBRA, VCR STOP, TV SCREEN,
ZOOM HANDLE, AUDIO LEVEL, (NONE)
A1, A2, OFF B
ON, OFF
ON, OFF
ON, OFF
83
33
49
50
78
53
51
20
35
104
53
31, 74
84
84
49
75
95
83
30
30
83
82
VCR MENU
Submenu
TIME CODE
VCR SETUP
AUDIO SETUP
DISPLAY SETUP/
TV SCREEN
AUDIO LEVEL
DISPLAYS
6SEC.DATE
DATA CODE
D/TIME SEL.
CUSTOM KEYS
LANGUAGE
DATE FORMAT
USR BIT DISP
CUSTOM KEY 1
CUSTOM KEY 2
WL.REMOTE
TALLY LAMP
T.ZONE/DST
D/TIME SET
E
Setting Options
DROP, NON-DROP
REC-RUN, REC-RUN PS., FREE-RUN
SET, RESET
SP, LP
ON, OFF
SET, CLEAR
CH 1/3 /CH 2/4 , CH 1/3 /CH 1/3 , CH 2/4 /CH 2/4
VARIABLE, FIXED
16bit, 12bit CH 1/2 , 12bit CH 1/2 , 3/4
OFF, 12dB
BRIGHTNESS
CONTRAST
COLOR
SHARPNESS
ON, OFF
ON, OFF
ON, OFF<PLAYBK>
ON, OFF
DATE/TIME, CAMERA DATA, CAM.& D/T
DATE, TIME, DATE & TIME
ON, OFF
ENGLISH,
,
47
83
100
49
89
89
50
51
20
104
53
104
94
93
93
74
84
84
ON, OFF
49
TIME CODE, TV SCREEN, DATA CODE, AUDIO LEVEL, (NONE) 75
TIME CODE, TV SCREEN, DATA CODE, AUDIO LEVEL, (NONE)
A1, A2, OFF B
95
ON, OFF
83
30
30
29
Preparation
SYSTEM
Menu Item
FRAME SETTNG
COUNT-UP
START VALUE
REC MODE
AVaDV
USR BIT DATA
SEL AUDIO CH
MIX SELECT
AUDIO MODE
R-XLR GAINUP
EVF SETUP
Setting the Time Zone, Date and Time
Set the time zone, date and time when you first start using your camcorder, or when you have
replaced the backup battery.
Setting the Time Zone/Daylight Saving Time
(
26)
SYSTEM
T.ZONE/DST•••N.Y.
1. Press the MENU button to open the menu.
2. Turn the SET dial to select [SYSTEM] and press the SET dial.
3. Turn the SET dial to select [T.ZONE/DST] and press the SET dial.
The time zone setting appears (see table on the next page). The default setting is New York.
4. Turn the SET dial to select the setting option that represents your time zone and press
the SET dial.
To adjust for daylight saving time, select the time zone with the U next to the area.
Setting the Date and Time
(
26)
SYSTEM
D/TIME SET•••JAN. 1,2004
12:00 PM
5. Turn the SET dial to select [D/TIME SET] and press the SET dial.
The year display starts flashing.
6. Turn the SET dial to select the year, and press the SET dial.
• The next part of the display starts flashing.
• Set the month, day, hours and minutes in the same way.
7. Press the MENU button to close the menu and to start the clock.
30
E
16
1
19
4
20
18
24
2
3
17
6
7
9
10
15
8
5
21
23
14
12
22
11
13
14 15 16 17 18 19 20 21 22 23 24
1
No. Time zone
2
3
4
5
6
7
8
9
10 11 12 13
No. Time zone
Preparation
WELLGTN (Wellington)
SAMOA
HONOLU. (Honolulu)
ANCHOR. (Anchorage)
L.A. (Los Angeles)
DENVER
CHICAGO
N.Y. (New York)
CARACAS
RIO (Rio de Janeiro)
FERNAN. (Fernando de Noronha)
AZORES
LONDON
PARIS
CAIRO
MOSCOW
DUBAI
KARACHI
DACCA
BANGKOK
H. KONG (Hong Kong)
TOKYO
SYDNEY
SOLOMON
Once you have set time zone, date and time, you do not need to reset the clock each time you travel
to another time zone. Just set the time zone to the one of your destination, and the camcorder
automatically adjusts the clock.
Displaying Date and Time during Recording
You can display the date and time in the lower left corner of the screen.
(
26)
DISPLAY SETUP/
GUIDE INFO•••OFF
Open the menu and select [DISPLAY SETUP/
DISPLAY] and close the menu.
]. Select [GUIDE INFO], set it to [D/T
31
Recording
Before You Begin Recording
Make a test recording first to check if the camcorder operates correctly. If necessary, clean the video
heads (
110).
Recording
1. Remove the lens cap.
2. Press the button and set the POWER dial
to a recording program.
w
q
3. Press the start/stop button to begin
recording.
• The tally lamp starts flashing, and the REC
lamp on the viewfinder lights up.
• Press the start/stop button again to pause
recording.
e
When You Have Finished Recording
1.
2.
3.
4.
Set the POWER dial to OFF.
Replace the lens cap.
Unload the cassette.
Disconnect the power source.
❍ Wait until the tape counter stops completely before you start recording.
❍ When you do not remove the cassette, you can record the next scene without producing any
noise or blank sections between the recordings even if you turn the camcorder off.
32
Low-angle Recording
The carrying handle is equipped with a duplicate
set of recording and zoom controls, ideal for lowangle recording. Slide the LOCK lever to the right
to prevent accidental operation.
E
START/STOP
button
LOCK lever
Zoom lever
Power Saving Mechanisms
STANDBY Button
Pressing the STANDBY button for more than 1 second in record pause or VCR STOP mode activates the
power save mode (”ENTERING POWER STANDBY“ appears). This shuts the power down to the camera
and VCR sections while maintaining the camera settings. The camcorder retains the settings of
exposure lock and color bars. Press the STANDBY button again to turn the camcorder back on.
Power Save Function
(
26)
VCR SETUP
POWER SAVE•••SHUT OFF
Open the menu and select [VCR SETUP]. Select [POWER SAVE], select a setting option and
close the menu.
❍ When set to [SHUT OFF]: To turn the camcorder on, press the STANDBY button or set the POWER
dial to OFF and then back to a recording program.
❍ When set to [VCR STOP]: To start recording, press the start/stop button. To go into record pause
mode, use the custom key (
74).
33
Recording
The camcorder activates the power save function after 5 minutes in record pause mode to protect tape
and video heads. You have the option to set the camcorder to shut off (SHUT OFF) or to turn off the
VCR section leaving the camera section turned on (VCR STOP). In VCR STOP mode, the camcorder
retains camera settings such as aperture and shutter speed, so you can adjust the camera section
without worrying about the automatic shut-off. The VCR STOP function can also be assigned to a
custom key (
74).
Screen Displays during Recording
t Recording reminder
q
w
e
r
t
y
The camcorder counts from 1 to 10 seconds when
you start recording. This is helpful to avoid scenes
that are too short.
y Center marker
Use the center marker to accurately frame subjects
(
35).
q Time code
i
You can select between drop frame or non-drop
frame time code (
47).
w Remaining tape
Indicates the remaining time of the tape in minutes.
“b END“ flashes when the tape reaches the end.
• When the time left is less than 15 seconds, the
remaining tape time may not appear.
• Depending on the type of the tape, the indication
may not be displayed correctly.
e Remaining battery charge
The battery symbol indicates the charge status of
the battery pack.
• “k“ starts flashing in red when the battery
pack is empty.
• When you attach an empty battery pack, the
power may turn off without displaying “k“.
• The actual battery charge may not be indicated
accurately depending on the condition under
which battery pack and camcorder are used.
r When “j” flashes
“j“ flashes in red when the lithium button
battery is not installed, or when it needs replacing.
34
u
o
u SHUTTER lamp
Lights up when the shutter speed is changed from
the following:
60i
1/60 of a second
30p
1/30 of a second
24p
1/48 of a second
i REC lamp
Lights up during recording.
The REC lamp starts flashing when the remaining
tape is less than 5 minutes (it does not flash when
the remaining tape information is not displayed on
the screen.)
o GAIN lamp
Lights up when the AGC (auto gain control)
becomes set to -3 dB or +3 dB or higher.
You can select the amount of information shown on the screen from full, partial or no display.
The setting changes with each press of the EVF DISPLAY button.
E
/
Normal screen display
/
Audio level indicator, center marker, recording program, EXP lock, ND filter, custom preset, shutter
speed, aperture, AE shift, gain, white balance, skin detail, warning, date/time*
/
Date/time*
/
No display
* When [GUIDE INFO] is set to [D/T DISPLAY].
Displaying the Center Marker
Use the center marker to accurately frame subjects.
(
26)
DISPLAY SETUP/
CENTER MARK••OFF
]. Select [CENTER MARK], set it to [ON] and
Recording
Open the menu and select [DISPLAY SETUP/
close the menu.
35
Reviewing and Searching when Recording
REC SEARCH + button
REC SEARCH – button/ v (record review) button
Record Review
In record pause mode, this function allows you to review the last few seconds of your recording to
check if it has been recorded properly.
Press and release the c (record review) button.
The camcorder rewinds the tape, plays back the last few seconds, and returns to record pause mode.
Record Search
In record pause mode, this function allows you to play back the tape (forward or reverse) to locate the
point where you wish to begin recording.
Press and hold the REC SEARCH + button (forward) or – button (reverse).
• Release the button at the point you wish to begin recording.
• The camcorder returns to record pause mode.
36
End Search
You can use this function to locate the end of the last recorded scene.
E
END SEARCH button
Press the END SEARCH button.
• “END SEARCH” appears.
• The camcorder rewinds/fast forwards the tape, plays back the last few seconds of the recording and stops
the tape.
• Pressing the button again cancels the search.
Recording
❍ End search cannot be used once you unload the cassette.
❍ End search may not work properly if a blank section exists on the tape.
37
Zooming
You can operate the zoom from either the side grip or the carrying handle. You can also use the zoom
ring on the zoom lens or the zoom buttons on the wireless controller.
Zoom lever
Zoom buttons
Zoom ring
ZOOM SPEED switch
Move the zoom lever toward W to zoom out (wide-angle). Move it toward T to zoom in
(telephoto).
About the Variable Zoom Speeds
Zoom lever on the side grip:
When the ZOOM SPEED switch is set to CONSTANT, the zoom speed is constant. However, you can
change the zoom speed with the dial above (a number indicating the level is displayed next to the
zoom indicator).
When the ZOOM SPEED switch is set to VARIABLE, the zoom speed is linked to how hard you move the
zoom lever.
Zoom speed with 20x L IS Lens (from wide-angle to telephoto):
CONSTANT:
Level 1: approx. 60 seconds
Level 16: approx. 3.5 seconds
VARIABLE:
Up to approx. 10 seconds
Zoom speed varies depending on the lens.
Zoom lever on the carrying handle:
You can select the zoom speed from low, middle and high.
(
26)
CAMERA SETUP
ZOOM HANDLE••MIDDLE
Open the menu and select [CAMERA SETUP]. Select [ZOOM HANDLE], select the zoom
speed and close the menu.
38
Zoom ring:
E
The zoom speed is linked to the speed you turn the zoom ring.
Zoom buttons on the wireless controller:
The zoom speed is constant and cannot be adjusted.
Zoom Preset (Lenses Equipped with the Zoom Preset Function)
This function enables any given zoom setting to be memorized and to return to the zoom setting
instantly.
POSITION PRESET switch
POSITION PRESET ON/SET switch
Recording
Presetting the Zoom
1. Set the POSITION PRESET switch to ZOOM.
2. Move the POSITION PRESET ON/SET switch to SET.
The preset zoom position appears in yellow on the zoom indicator.
Returning to the Preset Zoom Position
Move the POSITION PRESET ON/SET switch to ON.
The camcorder returns to the preset zoom position.
❍ The preset setting is canceled when you attach the optional Extender XL 1.6× or mount a lens
with different magnification.
❍ The camcorder uses the zoom speed of the CONSTANT setting when returning to the preset zoom
position.
39
Adjusting the Focus
eAF switch
Focus ring
Focus selector
Autofocus (Lenses Equipped with the Autofocus Function)
Autofocus is set when the focus selector on the lens is set to AF. The camcorder uses TTL autofocus
system with a focusing range of 0.8 in. (2 cm) (at wide-angle from the front of the lens barrel) to ∞.
The camcorder focuses on the subject in the center of the screen.
Temporary Focus Override
Turn the focus ring during autofocus to focus manually.
Autofocus will resume as soon as you take your hand away from the focus ring.
When recording under bright conditions, the camcorder sets a small aperture value, and the picture
may appear blurred. This may be more noticeable at wide-angle. When you are using a lens with
built-in ND filter, turn it on/off according to the screen display (
43).
❍ When recording under dark conditions, the focusing range narrows and the picture may appear
blurred.
❍ In 30p and 24p mode, autofocus takes longer than in the 60i mode.
❍ Autofocus may not work well on the following subjects. In such case, focus manually.
- Reflective surfaces
- Subjects with low contrast or without vertical lines
- Fast moving subjects
- Through dirty or wet windows
- Night scenes
40
Manual focus
E
eAF switch/
POSITION PRESET ON/SET switch
Focus selector
1.
2.
3.
4.
Lenses equipped with autofocus function: Slide the focus selector on the lens to M.
Zoom into telephoto.
Rotate the focus ring to adjust the focus.
Operate the zoom to reframe the subject.
Temporary Autofocus
Press the eAF switch on the lens in the direction of AF and hold it.
Autofocus is activated as long as you hold the eAF switch.
When using the eAF switch, make sure the POSITION PRESET switch is set to OFF.
41
Recording
If you focus manually then leave the camcorder with the power turned on, you may lose focus on your
subject. This possible slight shift in focus is due to a rise in temperature in the camcorder interior and lens.
Check the focus before resuming shooting.
Focus Preset (Lenses Equipped with the Focus Preset Function)
This function enables a focus setting to be memorized and to return to the focus setting instantly. You
can also select the speed with which the camcorder returns to the preset focus setting.
Presetting the Focus
1. Set the focus selector to M.
”MF“ appears.
2. Set the POSITION PRESET switch to FOCUS.
3. Adjust the focus with the focus ring.
4. Move the POSITION PRESET ON/SET switch to SET.
”MF“ and the focus preset speed appear in yellow.
Setting the Focus Preset Speed
(
26)
CAMERA SETUP
F SPEED PSET•HIGH
Open the menu and select [CAMERA SETUP]. Select [F SPEED PSET], select a setting option
and close the menu.
The selected speed appears next to “MF”.
Returning to the Preset Focus Setting
Move the POSITION PRESET ON/SET switch to ON.
The camcorder returns to the preset focus setting.
The preset setting resets and sets to OFF when you turn the camcorder off or unmount the lens.
42
Using the ND Filter (Lenses with Built-in ND Filter)
When recording under bright conditions, the camcorder sets a small aperture value, and the picture
may appear blurred. When you are using a lens with built-in ND filter, turn it on/off according to the
screen display.
E
ND filter unlock button
ND filter operating ring
With the 20× L IS Lens: Press the ND filter unlock button and turn the ND filter operating
ring.
When the camcorder is set to Easy Recording or Auto mode, following displays appear:
Screen display
What it means
What you should do
ND filter is not activated
-
”ND“ displayed
ND filter is activated
-
”ND
“ flashes
ND filter required
ND ”
“ flashes
Lenses with ND filter on/off: External
Select a higher density built-in ND filter
ND filter required
or attach an external ND filter to the
Lenses with selectable ND filter density: lens*
Higher density or external ND filter
required
ND ”
“ flashes Built-in ND filter not required
Turn on the ND filter
Turn off the ND filter
* If you have no external ND filter available, use the Tv mode and set a high shutter speed, or use the Av
mode and set a small aperture value.
❍ Turning on/off the ND filter changes the aperture setting. Readjust the aperture in Av mode as
required.
❍ Depending on the scene, the color may change when turning on/off the ND filter. In such case,
setting a custom white balance may be effective.
43
Recording
No display
Selecting the Frame Rate
Select from standard 60i, 30p or 24p mode. Furthermore, images captured in 24p mode can be 2:3
pulldown-converted or 2:3:3:2 pulldown-converted.
60i Mode
Records in 60 fps interlace mode, same as TV signals.
30p Mode
Records in 30 fps progressive mode and outputs
signals converted into 60 fps interlace.
30p (camera)
60i (tape)
A
B
C
D
E
F
G
H
I
J
a abbc cdde e f f gghh i i j j
24p Mode
Records in 24 fps progressive mode like movie film cameras, creating a cine-like picture.
24p 2:3 Mode
Signals are converted into 60 fps interlace using the
2:3 pulldown method. This 24p mode is suited for
playback on a TV screen.
24p (camera)
60i (tape)
A
B
C
D
E
F
G
H
a abbbc cddde e f f f gghhh
24p 2:3:3:2 Mode
Signals are converted into 60 fps interlace using the
2:3:3:2 pulldown method. This 24p mode is ideal for
extracting true 24 frames per second in order to
transfer to film.
FRAME RATE switch
44
24p (camera)
60i (tape)
A
B
C
D
E
F
G
H
a abbbc c cdde e f f f ggghh
Selecting the Frame Rate
E
Set the FRAME RATE switch to the desired position.
The selected frame rate appears.
❍ The frame rate does not change when you operate the FRAME RATE switch during recording. It
changes once you pause recording.
❍ In 24p mode, the shutter speeds in Low Light mode will be the same as in the Easy Recording
mode. Slow shutter speeds are not available.
Selecting the 24p Pulldown Mode
(
26)
CAMERA SETUP
24P MODE SEL•2:3
Open the menu and select [CAMERA SETUP]. Select [24p MODE SEL], select a setting
option and close the menu.
• When you have selected [2:3], “24p” appears in white.
• When you have selected [2:3:3:2], “24p” appears in orange.
If you are using an editing system not supporting the 2:3:3:2 pulldown method, make sure to record
in 24p 2:3 pulldown mode.
Recording
45
Recording in 16:9 Mode
The camcorder uses the full width of the CCD, retaining image quality and providing a larger
horizontal angle of view.
ASPECT RATIO switch
Set the ASPECT RATIO switch to 16:9.
The screen changes to the “letterbox” format.
❍ If you play back a 16:9 recording on a normal TV, the image appears horizontally squeezed.
❍ If you connect the camcorder to a TV with an S (S1) terminal or Video ID-1 system, recordings
made in the 16:9 mode will be automatically played back in widescreen mode.
❍ The aspect ratio does not change when you operate the ASPECT RATIO switch during recording. It
changes once you pause recording.
46
Setting the Time Code
Selecting the Frame Setting
In 60i and 30p mode, you can select between drop frame or non-drop frame time code.
Drop frame time code synchronizes the time code of 30 fps with the actual frame rate of NTSC video,
which is 29.97 fps, by skipping numbers. The non-drop frame time code counts every single video
frame. Use the drop frame time code for actual running time, and the non-drop time code for editing.
(
26)
TIME CODE
E
FRAME SETTNG•DROP
Open the menu and select [TIME CODE]. Select [FRAME SETTNG], select a setting option
and close the menu.
Selecting the Run Options
In 60i and 30p mode, you can select from record run (REC-RUN), record run preset (REC-RUN PS.) and
free-run (FREE-RUN) time code. In 24p mode, you can select from record run or record run preset. With
record run, the time code runs only when you are recording. With free run, the time code runs
regardless of the operation of the camcorder. With record run preset and free-run, you can select the
starting point.
Normally select record-run. Select free-run time code when you wish to record with multiple
camcorders set to the same time code.
26)
TIME CODE
COUNT-UP•••••REC-RUN
Recording
(
1. Open the menu and select [TIME CODE]. Select [COUNT-UP] and set it to [REC-RUN],
[REC-RUN PS.] or [FREE-RUN].
When you selected [REC-RUN]: Close the menu.
When you selected [REC-RUN PS.] or [FREE-RUN]: The starting point set/reset options appear.
When you selected [REC-RUN PS.] or [FREE-RUN]:
2. Select [SET].
The hours display flashes.
3. Turn the SET dial to select the hour and press the SET dial.
• The next part of the display starts flashing.
• Set the minutes, seconds and frames in the same way.
4. Close the menu.
47
❍ When setting the free-run time code, the time code starts to run when you press the MENU
button in the middle of the setting, or when you press the SET dial after setting the last digits.
❍ To reset the time code to [00:00:00:00], select [RESET] in step 2.
❍ In 24p mode, the frame of the time code is set in multiples of 5. When you change to 24p from
60i/30p, the starting point will automatically become a multiple number of 5.
❍ When you mix drop frame and non-drop frame time codes, the time code at recording start may
be discontinuous.
❍ When recording over existing scenes: When a time code discontinuity occurred near the recording
start point, the time code at recording start may be discontinuous.
❍ When the backup battery is installed, the free-run time code continues to run even when you
disconnect the battery pack.
48
Setting the User Bit
The user bit display works on the hexadecimal system that consists of a mixture of eight numbers or
letters. There are sixteen possible characters, numbers 0 to 9 and letters A to F.
This is useful for labeling tapes.
(
26)
VCR SETUP
E
USR BIT DATA•SET
1. Open the menu and select [VCR SETUP] and [USR BIT DATA].
The user bit set/reset options appear.
2. Select [SET].
The first part of the display flashes.
3. Turn the SET dial to select the number/alphabet and press the SET dial.
• The next part of the display starts flashing.
• Set the rest of the display in the same way.
4. Close the menu.
❍ To reset the user bit to [00 00 00 00], select [CLEAR] in step 2.
❍ User bit can be recorded when recording with the camcorder or from analog devices. The user bit
of your camcorder cannot be recorded when recording from digital devices.
Displaying the User Bit
26)
DISPLAY SETUP/
Recording
(
USR BIT DISP•OFF
Open the menu and select [DISPLAY SETUP/
close the menu.
]. Select [USR BIT DISP], set it to [ON] and
User bit cannot be displayed during special playback.
49
Audio Recording
You can set the audio mode to 16 bit or 12 bit. With 12 bit, you can select to record on two channels,
leaving two channels free for adding sound later (12bit CH 1/2 ), or to record on four channels
simultaneously (12bit CH 1/2 , 3/4 ).
The sampling frequency in 16 bit is 48 kHz and in 12 bit 32 kHz. The 16 bit mode provides higher sound
quality.
Audio dubbing cannot be performed with this camcorder.
16bit
channel 1 channel 2 channel 1 channel 2
12bit CH 1/2
The channels next to channel 1 and 2 will not
be used.
channel 1
channel 2
channel 1
channel 2
12bit CH 1/2 , 3/4
The channels 1, 2, 3 and 4 will be recorded
simultaneously.
channel 1
channel 2
channel 3
channel 4
channel 1
channel 2
channel 3
channel 4
Selecting the Audio Mode (16bit, 12bit CH 1/2 , 12bit CH 1/2 , 3/4 )
(
26)
AUDIO SETUP
AUDIO MODE•••16bit
Open the menu and select [AUDIO SETUP]. Select [AUDIO MODE], select a setting option
and close the menu.
50
Recording on Channels 1 and 2
Select the audio input from FRONT MIC (supplied microphone unit), AUDIO1 (RCA terminals) or REAR
(XLR terminals). Refer also to the audio block diagram (
122).
E
When Using the Front Microphone
Set the INPUT SELECT switch to FRONT MIC.
Turn on the microphone attenuator (20 dB) as necessary by setting the FRONT MIC ATT. switch to ATT.
When Connecting to the RCA terminals of AUDIO1 (Line-in Recording)
1. Connect the device to the RCA terminals of AUDIO1.
2. Set the INPUT SELECT switch to AUDIO1.
Recording
When Connecting to the XLR terminals
1. Connect a microphone to the XLR terminals.
To supply a microphone with phantom power, set the +48V switch to ON. Make sure to connect the
microphone first, before turning on the phantom power. Keep the microphone connected when turning
off the phantom power.
2. Set the INPUT SELECT switch to REAR.
3. Set the REC CH SELECT switch to CH1 or CH1·CH2.
Input terminal
CH1/3
CH2/4
Position of the REC CH SELECT switch
Recorded channel
CH1
Channel 1
CH1·CH2
Channel 1+Channel 2
CH1
Channel 2
CH1·CH2
–––
4. Turn on the microphone attenuator (20 dB) as necessary by setting the MIC ATT. switch
to ATT.
5. For 12dB gain-up: Open the menu and select [AUDIO SETUP]. Select [R-XLR GAINUP], set
it to [12dB] and close the menu.
51
When connecting a microphone not supporting phantom power, make sure to set the +48V switch
to OFF. Otherwise the microphone may be damaged.
Recording on Channels 3 and 4
Select the audio input from SHOE (optional MA-300 Microphone Adapter), AUDIO2 (RCA terminals) or
REAR (XLR terminals). Refer also to the audio block diagram (
122).
Make sure to set [AUDIO MODE] to [12bit CH 1/2 , 3/4 ].
When Connecting to the Advanced Accessory Shoe
1. Attach the optional MA-300 Microphone Adapter to the advanced accessory shoe.
• With the MA-300, you can use balanced microphones on all 4 channels.
• Refer also to the MA-300 instruction manual.
2. Set the INPUT SELECT switch to SHOE.
❍ Phantom power cannot be used with the MA-300.
❍ MA-100 and MA-200 cannot be used.
When Connecting to the RCA terminals of AUDIO2 (Line-in Recording)
1. Connect the device to the RCA terminals of AUDIO2.
2. Set the INPUT SELECT switch to AUDIO2.
When Connecting to the XLR terminals
1. Connect a microphone to the XLR terminals.
To supply a microphone with phantom power, set the +48V switch to ON. Make sure to connect the
microphone first, before turning on the phantom power. Keep the microphone connected when turning
off the phantom power.
2. Set the INPUT SELECT switch to REAR.
3. Turn on the microphone attenuator (20 dB) as necessary by setting the MIC ATT. switch
to ATT.
4. For 12 dB gain-up: Open the menu and select [AUDIO SETUP]. Select [R-XLR GAINUP],
set it to [12dB] and close the menu.
52
When connecting a microphone not supporting phantom power, make sure to set the +48V switch
to OFF. Otherwise the microphone may be damaged.
E
Adjusting the Audio Recording Level
CH1, CH2, CH3, CH4 dials
REC LEVEL switch
AUDIO MONITOR button
Hiding/Displaying the Audio Level Indicator on the Screen
(
26)
DISPLAY SETUP/
AUDIO LEVEL••ON
Open the menu and select [DISPLAY SETUP/
option and close the menu.
]. Select [AUDIO LEVEL], select a setting
74).
Recording
The audio level indicator can also be turned on/off with the custom key (
Automatic Audio Adjustments
Set the REC LEVEL switch to A.
Manual Audio Adjustments
1. Set the REC LEVEL switch to M.
2. When recording on 4 channels, press the AUDIO MONITOR button and select CH1/2 or
CH3/4.
The setting changes with each press of the button in the order of CH1/2, CH3/4, CH1+3/2+4. Do not
select CH1+3/2+4 when adjusting the level.
3. Turn the respective CH1, CH2, CH3 or CH4 dial to adjust the audio level.
❍ We recommend using headphones when adjusting the audio level. If the input level is too high,
audio may become distorted even if the audio level indicator is displaying an appropriate level.
❍ You can select to synchronize the audio signal with the video signal by adding an equal amount of
delay to the audio. Open the menu and select [AUDIO SETUP]. Select [AUD.M.SET], set it to [LINE
OUT] and close the menu. If you wish to monitor audio in real time, select [NORMAL]. In either
setting, audio and video signals will be recorded synchronized on a tape.
53
Image Stabilizer (Lenses Equipped with Image Stabilizer)
The image stabilizer can be turned off.
STABILIZER ON/OFF switch
Move the STABILIZER ON/OFF switch to OFF.
❍ The image stabilizer cannot be turned off in the Easy Recording mode.
❍ The image stabilizer is designed to compensate a normal degree of camcorder shake.
❍ The image stabilizer may not be effective when attaching an optional Extender.
❍ We recommend turning off the image stabilizer when mounting the camcorder on a tripod.
54
Using the Programmed AE Modes
Programmed auto exposure modes provide automated advanced recording techniques ensuring
professional results in various shooting conditions.
E
Selecting the Programmed AE Modes
Press the button and turn the POWER dial.
The symbol of the selected mode appears.
POWER dial
Do not change the mode during recording as the brightness of the image may change abruptly.
Recording
Auto
Like the Easy Recording mode, the camcorder automatically controls camera
adjustments allowing you to simply point and shoot. However, in the Auto
mode, you have the option of adjusting the settings manually.
Shutter-Priority (
58)
Use this mode to select the shutter speed. The camcorder automatically sets a
matching aperture setting.
Aperture-Priority (
Tv
2000
Av
F2. 0
59)
Use this mode to select between 7 aperture settings - from f/1.6 to f/11 (or to
full iris close) - and the camcorder automatically sets a matching shutter speed.
This mode allows for the best control of depth of field.
55
Manual (
60)
This mode offers the creative freedom of a complete range of manual controls.
In the Manual mode, options exist to set the exposure at any combination of
shutter speed and aperture levels.
–
MANUAL
1/ 100
F2. 0
Spotlight
The Spotlight mode automatically adjusts the exposure to effectively record
images and/or subjects lit by a spotlight or other concentrated light source.
Low Light (60i/30p)
This mode allows you to continue recording even when light levels begin to
fall. The Low Light mode selects lower shutter speeds (60i: 1/8-1/59, 30p: 1/81/29) to deliver proper exposure.
Slow shutter speeds are not available in 24p mode. The shutter speeds will be
the same as in the Easy Recording mode.
❍ Moving subjects may leave a trailing afterimage.
❍ Picture quality may not be as good as in other modes.
❍ White points may appear on the screen.
❍ Autofocus may not work as well as in other modes. In such case, adjust the focus manually.
Easy Recording
The camcorder automatically controls focus, shutter speed, aperture, gain,
white balance, and AE Shift allowing you to simply point and shoot. This mode
locks all of these features and options, making them fixed and unadjustable.
56
[
+
Availability of functions in each recording program.
E
Recording programs
EXP. LOCK button
i
IRIS dial
i
i
SHUTTER button
i
i *1
h
*1
i (0)
AE SHIFT dial
i
h
*1
h
i
*1
h *2
i
i
i
h
i
i
h
i
i
i
i
i (0)
i (0 dB)
i (auto)
GAIN dial
i (auto)
WHITE BALANCE dial
i (auto)
h
Custom preset adjustments
i
h
CUSTOM PRESET SELECT
button
i
h
CUSTOM PRESET ON/OFF
button
i
h
Skin detail
i
h
Frequency selection of Clear
Scan
i
i
h *3
i
h *3
i
i
Clear Scan
i
i
h *2
i
h
i
i
h
h: Available i: Not available
*1: Available when the exposure is locked.
*2: Not available when exposure is locked.
*3: Available during clear scan.
Recording
20× L IS, 16× IS II and 3× zoom lens
Recording program
Modes other than
Manual focus ring
h
Zoom ring
h
Image Stabilizer*
i (on)
h
ND filter
Focus mode
eAF switch/PUSH AF
button
h
i (autofocus)
h
i
h
* Not available with the 3× zoom lens.
57
Recording in the Shutter-Priority (Tv) Mode
POWER dial
SHUTTER r button
SHUTTER t button
Available shutter speeds depend on the selected frame rate.
60i/30p
1/8, 1/15, 1/30, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/15000,
CS (clear scan)
24p
1/24, 1/48, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/15000,
CS (clear scan)
1. Set the POWER dial to Tv.
2. Select the shutter speed with the SHUTTER r or t button.
❍ Other settings such as aperture are set automatically.
❍ The shutter speed changes when you lock and change the exposure.
❍ When the gain is set to automatic, the shutter speed number flashes on the screen when the
selected shutter speed is too high or too low for the recording condition. In such case, readjust the
shutter speed. If you are using a ND filter, turn it off first and readjust the shutter speed.
❍ The image quality may decrease to some extend when using slow shutter speeds.
❍ Autofocus may not work when using slow shutter speeds.
❍ When recording under artificial light sources such as fluorescent, mercury or halogen lamps, the
screen may flicker depending on the shutter speed. To avoid the flicker, set the shutter speed to
1/100.
58
Recording in the Aperture-Priority (Av) Mode
E
POWER dial
IRIS dial
Available aperture values (with 20× L IS lens)
F1.6, F2.0, F2.8, F4.0, F5.6, F8.0, F11, CLOSE
1. Set the POWER dial to Av.
2. Select the aperture with the IRIS dial.
59
Recording
❍ Other settings such as shutter speed are set automatically.
❍ The aperture changes when you lock and change the exposure.
❍ When the gain is set to automatic, the aperture number flashes on the screen when the selected
aperture is not appropriate for the recording condition. In such case, readjust the aperture.
❍ When the built-in ND filter of a lens is activated, the picture may become dark when you set a
high F number. In such case, turn the ND Filter off first and readjust the aperture.
Recording in the Manual Mode
You can set the exposure at any combination of shutter speed and aperture levels.
POWER dial
IRIS dial
SHUTTER r button
SHUTTER t button
Available settings
Shutter speed
60i/30p
1/8, 1/15, 1/30, 1/60, 1/75, 1/90, 1/100, 1/120, 1/150, 1/180,
1/210, 1/250, 1/300, 1/360, 1/420, 1/500, 1/600, 1/720, 1/840,
1/1000, 1/1200, 1/1400, 1/1700, 1/2000, 1/2300, 1/2600, 1/3000,
1/4000, 1/8000, 1/15000, CS (clear scan)
24p
1/24, 1/48, 1/60, 1/75, 1/90, 1/100, 1/120, 1/150, 1/180, 1/210,
1/250, 1/300, 1/360, 1/420, 1/500, 1/600, 1/720, 1/840, 1/1000,
1/1200, 1/1400, 1/1700, 1/2000, 1/2300, 1/2600, 1/3000, 1/4000,
1/8000,1/15000, CS (clear scan)
Aperture
(with 20× L IS lens)
F1.6, F1.8, F2.0, F2.2, F2.4, F2.6, F2.8, F3.2, F3.4, F3.7, F4.0, F4.4,
F4.8, F5.2, F5.6, F6.2, F6.7, F7.3, F8.0, F8.7, F9.5, F10, F11, CLOSE
1. Set the POWER dial to M.
The exposure indicator appears.
2. Select the aperture with the IRIS dial.
3. Select the shutter speed with the SHUTTER r or t button.
60
Adjusting the Exposure
EXP. LOCK button
E
POWER dial
SHUTTER rt buttons
IRIS dial
GAIN dial
Exposure Lock
1. Set the POWER dial to n, Tv or Av.
2. Press the EXP. LOCK button.
The exposure indicator appears.
Changing the Aperture after Exposure Lock
Select the aperture with the IRIS dial.
Changing the Shutter Speed after Exposure Lock
You can select from 12 shutter speeds (with 20× L IS lens).
Select the shutter speed with the SHUTTER r or t button.
Changing the Gain after Exposure Lock
You can select from 6 gain levels .
1. Press the GAIN dial so that it pops out.
2. Turn the GAIN dial to adjust the level.
The selected level appears.
+18 dB is not available in 30p and 24p mode. When you select +18 dB, it automatically sets to
+12 dB (“12dB” appears in yellow).
61
Recording
You can select from 23 aperture settings (with 20× L IS lens). The setting can be adjusted in 1/4 steps.
However, only the following numbers are displayed on the screen: F1.6, F2.0, F2.8, F4.0, F5.6, F8.0, F11,
CLOSE.
Using AE Shift
You can use the AE Shift control to manually override the automatic exposure system to darken or
lighten the image. Select from 13 AE levels (+2.0, +1.5, +1.0, +0.75, +0.5, +0.25, ±0, -0.25, -0.5, -0.75,
-1.0, -1.5, -2.0).
POWER dial
1. Set the POWER dial to n, Tv or Av.
2. Turn the AE SHIFT dial to adjust the level.
The selected level appears.
62
AE SHIFT dial
Adjusting the Gain
Gain control adjusts the amount of video signal generated depending upon lighting and shooting
conditions. You can select from automatic gain control and preset levels that range from -3 to +18 dB.
-3 dB
For lowest noise recording for indoor, low light or low contrast scenes.
Auto
Automatic adjustment of gain.
0 dB
Life like night/artificial light scenes.
+3 dB/+6 dB/
+12 dB/+18 dB*
Increases brightness in indoor or low-light scenes. Increases depth of field.
E
* +18 dB is not available in 30p and 24p mode. When you select +18 dB, it automatically sets to +12 dB (“12dB”
appears in yellow).
POWER dial
GAIN dial
Recording
1. Set the POWER dial to n, Tv, Av or M.
2. Press the GAIN dial so that it pops out.
3. Turn the GAIN dial to adjust the level.
The selected level appears.
Noise may appear on the picture when setting a high gain level.
63
Setting the White Balance
The camcorder uses an electronic white balance process to calibrate the picture for accurate color
display in different lighting conditions (i.e. sunlight versus indoor incandescent.)
Automated white balance settings include a fully automated mode, an indoor mode and an outdoor
mode. In addition, you can set the white balance manually and save up to three white balance presets
that can be reused for non-sequential shooting.
Auto
Automated adjustments of white balance.
U (Outdoor)
T (Indoor)
Bright sunlight - 5600ºK
Preset 1, 2, 3
Custom white balance setting variable 3200 - 5600ºK.
Incandescent light - 3200ºK
POWER dial
Zoom lever
eet
White sh
r
or pape
WHITE BALANCE dial
WHITE BALANCE W button
Selecting an Automated White Balance Setting
1. Press the WHITE BALANCE dial so that it pops out.
2. Set the WHITE BALANCE dial to A, U or T.
64
Zoom ring
Setting a Custom White Balance
E
1. Press the WHITE BALANCE dial so that it pops out.
2. Set the WHITE BALANCE dial to 1, 2 or 3.
3. Point the camcorder at a white object and zoom in until it fills the whole screen.
Keep the camcorder zoomed at the white object until step 4 is completed.
4. Press the WHITE BALANCE W button.
”W“ flashes and stops flashing when setting is complete.
❍ The camcorder retains the custom white balance setting even if you turn it off.
❍ When you have set the custom white balance:
- Depending on the light source, “W” may keep flashing. The result will still be better than with
the auto setting.
- When you have turned on/off the built-in ND-filter of the lens, reset the custom white balance.
❍ Custom white balance may provide better results in the following cases:
- Changing lighting conditions
- Close-ups
- Subjects in a single color (sky, sea or forest)
- Under mercury lamps or certain types of fluorescent lights
Recording with Preset Custom White Balance
Recording
1. Set the POWER dial to a recording program other than [.
2. Turn the WHITE BALANCE dial to select a preset number.
The preset custom white balance is activated.
The custom preset settings [R GAIN], [G GAIN] and [B GAIN] (
setting set with above procedure.
69) will override the white balance
65
Using the Zebra Pattern
This camcorder has a zebra pattern feature that shows black and white diagonal stripes over the area
that is overexposed. The zebra pattern is only displayed on the screen. Use this feature to guide the
adjustment of the aperture and shutter speed. Available zebra pattern settings: 80 IRE, 85 IRE, 90 IRE,
95 IRE, and 100 IRE.
POWER dial
SET dial
MENU button
Selecting the Zebra Pattern Level
(
26)
CAMERA SETUP
ZEBRA LEVEL••90
Open the menu and select [CAMERA SETUP]. Select [ZEBRA LEVEL], select a setting option
and close the menu.
Activating the Zebra Pattern
(
26)
CAMERA SETUP
ZEBRA••••••••OFF
Open the menu and select [CAMERA SETUP]. Select [ZEBRA], set it to [ON] and close the
menu.
66
Using the Skin Detail Function
You can adjust hue, chroma, area and Y level to determine the skin area and soften the details to
reduce the appearance of skin imperfections. A zebra pattern identifying the skin area appears,
alternating with the normal picture (a white pattern appears on a connected TV or computer screen).
E
Activating the Skin Detail Function
(
26)
CAMERA SETUP
SKIN D.SET
SKIN DETAIL••OFF
Open the menu and select [CAMERA SETUP] and [SKIN D.SET]. Select [SKIN DETAIL], set it
to [HIGH ], [MIDDLE ] or [LOW ] and close the menu.
“
“ appears.
Determining the Skin Area
(
26)
CAMERA SETUP
SKIN D.SET
R
CHROMA••••••• -
+
AREA••••••••• -
+
Y LEVEL•••••• -
+
Recording
HUE••••••••••G
Open the menu and select [CAMERA SETUP] and [SKIN D.SET]. Select [HUE], [CHROMA],
[AREA] or [Y LEVEL], adjust the levels and close the menu.
• HUE: Adjust the hue for detection of the skin area. Adjusting to [R] detects reddish skin color, and to [G]
detects greenish skin color.
• CHROMA: Adjust the saturation for detection of the skin area. Adjusting to [+] detects brighter skin color,
and to [-] detects lighter skin color.
• AREA: Adjust the color range for detection of the skin area. Adjusting to [+] detects a wide color range,
and to [-] detects a narrow color range.
• Y LEVEL: Adjust the brightness for detection of the skin area. Adjusting to [+] detects brighter skin color,
and to [-] detects darker skin color.
You cannot record on the tape while determining the skin area.
67
Using the Custom Preset
You can establish three preset registrations for the following 15 camera features: gamma curve, knee,
black stretch/press, color matrix, color gain, color phase, R gain, G gain, B gain, V detail, sharpness,
coring, setup level, master pedestal and NR.
You can also import preset settings from another XL2 and save them to your camcorder.
Gamma Curve
Select between standard gamma curve ([NORMAL])
and cine-like gamma curve ([CINE]).
Output
[NORMAL]
[CINE]
Input
Representation of the setting
Knee Point Adjustment
Adjust the dynamic range (knee point) in the
highlight area of the image to prevent
overexposure. You can select from [HIGH], [MIDDLE]
or [LOW].
Output
[HIGH]
KNEE
[MIDDLE]
[LOW]
Black Stretch/Black Press
Adjust the dynamic range in the black area of the
image. You can select from [STRETCH], [MIDDLE] or
[PRESS]. [STRETCH] emphasizes contrast in the dark
area, while [PRESS] enhances or deepens darkness.
[STRETCH]
[MIDDLE]
BLACK
[PRESS]
Representation of the setting
Input
Color Matrix
Select from two color matrix settings: [NORMAL] and [CINE]. Setting gamma and color matrix to [CINE]
creates cine-like colors.
Color Gain
Adjust the saturation of the color from off (-) to oversaturated (+).
68
Color Phase
E
Adjust to [G] for adding more green to the image, and to [R] for more red.
R Gain
Adjust to [-] for white balance toward cyan, and to [+] for white balance toward red.
G Gain
Adjust to [-] for white balance toward magenta, and to [+] for white balance toward green.
B Gain
Adjust to [-] for white balance toward yellow, and to [+] for white balance toward blue.
Vertical Detail
Adjust the vertical detail frequency for recordings in 30p or 24p mode. Select from [NORMAL] and
[LOW].
• When you play back a recording on an interlaced TV with [V DETAIL] set to [NORMAL], horizontal
lines may flicker.
• Select [NORMAL] for non-interlaced playback or editing on a computer, or for transferring to a DVD.
• Image resolution will not change in the 60i mode.
• When you select a custom preset setting with [V DETAIL] set to [LOW] in 60i mode, “CP” appears in
yellow.
Sharpness
Coring
Adjust the detail noise level. Adjust to [-] to add the noise, and to [+] to reduce noise.
Setup Level
Adjust the black level of the video signal. Adjust to [-] to darken the picture, and to [+] to brighten the
shadow area.
Master Pedestal
Adjust the master pedestal level. Adjust to [-] to make dark areas darker and increase the contrast, and
to [+] to make dark areas lighter and reduce the contrast.
Noise Reduction
Select the variable range of noise reduction from [OFF], [HIGH], [MIDDLE] and [LOW]. With [HIGH],
[MIDDLE] and [LOW], the noise reduction level is adjusted according to the gain. Select [HIGH] for
maximum variable range.
• When set to [HIGH], moving subjects may leave a trailing afterimage.
• When the noise based on the gain setting is low, the NR effect may not be noticeable.
69
Recording
Adjust the degree of sharpness in the picture. Adjust to [-] for a softer picture, and to [+] for a sharper
picture. When set to the [+] side, noise may become more noticeable.
CUSTOM PRESET ON/OFF button
CUSTOM PRESET SELECT button
SET dial
MENU button
Setting the Custom Preset Settings
(
26)
CUSTOM PRESET
PRESET SETUP
SEL PRESET
1. Open the menu and select [CUSTOM PRESET].
2. Select [PRESET SETUP].
The custom preset items appear.
3. Select [SEL PRESET] and select the custom preset file you wish to change.
4. Select the preset items, select the setting options and close the menu.
❍ The custom preset menu consists of 5 pages. The items [SEL PRESET] and [
selected on each page.
❍ When you attempt to change a protected setting, “ ” starts flashing.
/CLEAR] can be
Protecting a Custom Preset File
Open the menu and select [CUSTOM PRESET], followed by [PRESET SETUP]. Select
[ /CLEAR], set it to [PROTECT ] and close the menu.
To cancel the protection, reselect [PROTECT
].
Resetting a Custom Preset File
1. Open the menu and select [CUSTOM PRESET], followed by [PRESET SETUP].
2. Select [ /CLEAR] and set it to [CLEAR].
A confirmation message appears.
3. Select [Yes] and close the menu.
A protected preset file cannot be reset.
70
Activating the Custom Preset Settings
E
1. Press the CUSTOM PRESET SELECT button.
• The setting changes with each press of the button in the order of “CP1”, “CP2”, “CP3” and “CP|”.
• When you are not using the custom preset setting, set the camcorder to “CP|”.
2. Press the CUSTOM PRESET ON/OFF button.
The setting is activated.
Importing a Custom Preset Setting from Another XL2
You can import a custom preset setting from another XL2 and save it to your camcorder.
MENU button
SET dial
Signal flow
Recording
POWER dial
Commercially available DV cable
Preparations
1. Connect the camcorders with a DV cable.
2. XL2 from which you wish import: Set the POWER dial to EXT. CONT.
XL2 to which you wish to import: Set the POWER dial to a recording program other
than [.
71
Importing (Operation on the XL2 to which you import)
1. Open the menu and select [CUSTOM PRESET] and [READ PRESET].
The IMPORT PRES. menu appears.
2. Select [SEL PRESET] and set it to the custom preset file you wish to import.
3. Select [SEL POSITION].
The SEL POSITION menu appears.
4. Select [SEL PRESET] and set it to the custom preset file you wish to overwrite.
5. Select [OVERWRITE].
A confirmation message appears.
6. Select [YES].
The custom preset file is imported.
Make sure that protection is canceled when saving a preset setting.
❍ You can review but not change the preset settings of the connected XL2.
❍ [READ PRESET] can only be selected when another XL2 is connected.
72
Using Clear Scan for Recording Computer Screens
This feature allows you to record computer CRT screen or other equipment without displaying black
band or flicker on the screen. You can adjust the frequency from 60.0 Hz to 202.5 Hz.
E
POWER dial
SHUTTER r button
(
26)
CAMERA SETUP
CLEAR SCAN•••60.0Hz
Select a frequency with which the black band does not appear.
73
Recording
1. Set the POWER dial to Tv or M.
2. Press the SHUTTER r button to display “CS”.
3. Open the menu and select [CAMERA SETUP]. Select [CLEAR SCAN], adjust the frequency
and close the menu.
Using the Custom Keys
You can assign frequently used functions to the custom keys (for recording and VCR mode
independently).
Default settings:
Recording Mode VCR Mode
CUSTOM KEY 1 TIME CODE
TV SCREEN
CUSTOM KEY 2 INDEX WRITE
DATA CODE
Following functions can be assigned to the custom keys:
Recording Mode
Time code
Index write
Zebra pattern
VCR STOP*
TV screen
Handle zoom speed
Audio level indicator
VCR Mode
Time code
TV screen
Data code
Audio level indicator
* Function that can only be operated by the custom keys.
To check the current custom key settings:
In recording mode: Open the menu and select [DISPLAY SETUP/ ]. Select [GUIDE INFO], set it to
[CUSTOM KEYS] and close the menu.
In VCR mode: Open the menu and select [DISPLAY SETUP/ ]. Select [CUSTOM KEYS], set it to [ON]
and close the menu.
74
Changing the custom keys setting
(
26)
SYSTEM
E
CUSTOM KEY 1•INDEX WRITE
Open the menu and select [SYSTEM]. Select [CUSTOM KEY 1] or [CUSTOM KEY 2], select
the function you wish to assign to the custom key and close the menu.
When you do not wish to use the custom keys, select [(NONE)].
Activating the Functions with the Custom Key
Time Code (
47)
Press the CUSTOM KEY (1 or 2) button.
The time code setting menu appears.
Index Write
You can add an index signal to your recording for easy search in VCR mode.
Recording
Press the CUSTOM KEY (1 or 2) button.
• The index signal will be recorded for approx. 6 seconds.
• When the camcorder is in record pause mode, the index signal will be written when you start recording.
❍ An index signal cannot be added or erased later.
❍ Index write cannot be used during interval timer recording.
Zebra Pattern (
66)
Press the CUSTOM KEY (1 or 2) button.
The zebra pattern is activated. Press the button again to deactivate it.
75
VCR STOP (
33)
In VCR STOP mode, the camcorder retains camera settings such as aperture and shutter speed, so you
can adjust the camera section without worrying about the automatic shut-off.
VCR STOP can only be operated with the custom keys.
Press the CUSTOM KEY (1 or 2) button.
The VCR STOP mode is activated. Press the button again to return to record pause mode.
TV Screen (
104)
You can show the camcorder display on a connected TV.
Press the CUSTOM KEY (1 or 2) button.
Handle Zoom Speed (
38)
Press the CUSTOM KEY (1 or 2) button.
The ZOOM HANDLE menu appears. Select a setting option with the SET dial.
Audio Level Indicator (
53)
Press the CUSTOM KEY (1 or 2) button.
The audio level indicator appears. Press the button again to hide the audio level indicator.
Data Code (
93)
Press the CUSTOM KEY (1 or 2) button.
The data code appears. Press the button again to hide the data code.
76
Recording Color Bars/Audio Reference Signal
Color Bars
E
You can generate and record SMPTE (Society of Motion Picture and Television Engineers) color bars.
COLOR BARS SELECT button
COLOR BARS ON/OFF button
1. Press the COLOR BARS SELECT button to display “COLOR BARS”.
The setting changes with each press of the button. “COLOR BARS” flashes.
2. Press the COLOR BARS ON/OFF button.
77
Recording
“COLOR BARS” stops flashing, and the color bars appear. Press the button again to deactivate the color
bars.
Audio Reference Signal
You can record a 1 kHz audio reference signal (-12 dB or -20 dB) along with the color bars.
(
26)
AUDIO SETUP
1kHz TONE••••OFF
Open the menu and select [AUDIO SETUP]. Select [1kHz TONE], select the audio signal and
close the menu.
The selected audio reference signal sounds.
78
Recording with the Interval Timer
With the interval timer, you can record images over a selected time with a selected interval. This
function is useful when shooting flowers, animals, and other natural events.
You can choose an interval from 30 seconds, 1 minute, 5 minutes and 10 minutes, and a recording time
from 0.5 seconds, 1 second, 1.5 seconds, and 2 seconds.
E
Example: 2 seconds recording time at a 5 minutes interval
(= standby time of 5 minutes including the recording time of 2 seconds)
2 sec.
2 sec.
4 min. 58 sec.
Record
Interval time
5 min.
4 min. 58 sec.
Record
Interval time
5 min.
Selecting Interval and Recording Time
(
26)
CAMERA SETUP
INTERVAL T.••OFF
INTERVAL•••••30sec
INT.REC.TIME•0.5sec
Open the menu and select [CAMERA SETUP].
Select [INTERVAL T.] and set it to [ON].
Select [INTERVAL] and select an interval.
Select [INT.REC.TIME] and select a recording time.
Close the menu.
Recording
1.
2.
3.
4.
5.
“INT T.” flashes.
79
Recording with the Interval Timer
Press the start/stop button to start recording.
• Interval recording starts and “INT T.” stops flashing.
• When the interval is set to 30 seconds or 1 minute, the camcorders goes into record pause mode during
the recordings. When set to 5 or 10 minutes, the camcorder goes into stop mode during the recordings.
To Pause Interval Recording
Press the start/stop button.
• The camcorder returns to record pause mode and “INT T.” starts flashing.
• Press the start/stop button to restart recording.
To Finish Interval Recording
1. Press the start/stop button.
2. Open the menu and select [CAMERA SETUP]. Select [INTERVAL T.], set it to [OFF] and
close the menu.
❍ When you record for a long time (more than 12 hours), we recommend turning off the screen
display by pressing the EVF DISPLAY button.
❍ When the display remains shown on the screen, turn off the camcorder. They will disappear in a
few hours.
❍ The remaining tape display may not appear.
80
Recording with the Self-Timer
START/STOP button
E
START/STOP button
SELF TIMER button
Start/Stop button
1. Press the SELF TIMER button on the wireless controller.
“
” appears.
2. Press the start/stop button.
The camcorder starts recording after a 10-second countdown (2 seconds when using the wireless
controller). The countdown appears on the screen.
Recording
❍ To cancel the self-timer, press the SELF TIMER button. Once the countdown has begun, you can
also press the start/stop button to cancel the self-timer.
❍ The self-timer will be canceled when you turn off the camcorder.
❍ The self-timer can also be activated through the menu: Open the menu and select [CAMERA
SETUP]. Select [SELF TIMER], set it to [ON ] and close the menu.
81
Using the DV Control
This feature enables the XL2 to control the record and stop function of a connected IEEE1394
storage/recording device. The device must comply with the IEEE1394 AV/C protocol.
Users of Windows XP can also download the DV-PC Recorder from the Canon Homepage to record
video/audio to the computer's hard disk. For details, refer to the DV-PC Recorder Software leaflet.
(
26)
SYSTEM
DV CONTROL•••OFF
1. Open the menu and select [SYSTEM]. Select [DV CONTROL], set it to [ON] and close the
menu.
2. Press the start/stop button.
When the XL2 is in record pause mode:
XL2: Recording
Connected device: Recording
When the XL2 is recording:
XL2: Record pause mode
Connected device: Record pause mode
When the XL2 is not ready for recording (no cassette loaded etc.)
Connected device: Recording/record pause mode
After loading a cassette while the connected device is recording:
XL2: Recording
Connected device: Continues recording
Pressing the start/stop button again:
XL2: Record pause mode
Connected device: Record pause mode
❍ The status of the connected device is indicated as follows:
2
Connected device is recording
3
Connected device is in record pause or stop mode
– – – Connected device is in a mode other than record pause or stop
[DV CONTROL] is set to [ON], but no DV device is connected
❍ When the XL2 stops recording without operating the start/stop button (e.g. tape has reached the
end) while both the XL2 and the connected device are recording, the connected device continues
recording.
❍ When connecting two XL2s via a DV cable, make sure to set [DV CONTROL] of the connected
device to [OFF].
❍ Only one device can be connected to the XL2 for DV control.
❍ DV control may not work properly depending on the connected non-Canon device.
❍ The DV control setting is retained by the camcorder even if you turn the power off. Make sure to
check the setting after use of the DV control function, as the tape in the connected device may be
overwritten.
❍ Do not use a DV cable longer than 14.8 ft. (4.5 m).
82
Other Camcorder Functions/Settings
Changing the Recording Mode (SP/LP)
You can choose between SP (standard play) and LP (long play). LP extends the tape usage by 1.5 times.
(
26)
VCR SETUP
E
REC MODE•••••SP
To change to LP mode, open the menu and select [VCR SETUP]. Select [REC MODE], set it
to [LP] and close the menu.
Depending on the nature and usage condition of the tape, picture and sound recorded in
LP mode may be distorted. We recommend using the SP mode for important recordings.
❍ If you record in both SP and LP modes on the same tape, the playback picture may become
distorted, and the time code may not be written correctly.
❍ If you play back a tape that has been recorded in LP mode with another digital device on this
camcorder, or vice versa, picture and sound may become distorted.
Superimposing the Screen Displays
Character record is a feature that allows for the superimposition of meta data - year, month, day, hour
and minute - permanently burned on to the video. This is ideal for surveillance and law enforcement
use.
26)
SYSTEM
CHAR. REC••••OFF
Recording
(
Open the menu and select [SYSTEM]. Select [CHAR. REC], set it to [ON] and close the
menu.
❍ Make sure to set [CHAR. REC] to [OFF] when you do not wish to superimpose the screen displays.
❍ Superimposed screen displays cannot be erased later.
Turning Off the Tally Lamps
(
26)
SYSTEM
TALLY LAMP•••ON
Open the menu and select [SYSTEM]. Select [TALLY LAMP], set it to [OFF] and close the
menu.
The tally lamps still light up when the camcorder receives a signal from the wireless controller, or during
self-timer countdown.
83
Changing the Display Language
The language used in the camcorder displays and menu items can be changed to Simplified Chinese or
Japanese.
(
26)
DISPLAY SETUP/
LANGUAGE
•••ENGLISH
To change the display language, open the menu and select [DISPLAY SETUP/
[LANGUAGE ], select a language and close the menu.
]. Select
❍ If you have mistakenly changed the language, follow the
mark next to the menu item to
change the setting.
❍ The displays “
” and “
” at the bottom of the screen refer to the button names on
the camcorder and will not change when you change the language.
Changing the Date Format
You can select between three date formats. For example, [JAN. 1, 2004], [1. JAN. 2004] and [2004. 1. 1].
(
26)
DISPLAY SETUP/
DATE FORMAT••JAN. 1,2004
Open the menu and select [DISPLAY SETUP/
and close the menu.
84
]. Select [DATE FORMAT], select a format
Playing Back a Tape
If the playback picture is distorted, clean the video heads using a Canon Head Cleaning Cassette or a
commercially available digital video head-cleaning cassette (
110).
E
REC SEARCH +/– buttons
1.
2.
3.
4.
Set the POWER dial to VCR.
Press the ` button to rewind the tape.
Press the e button to begin playback.
Press the 3 button to stop playback.
Special Playback Modes
Playback
a (Playback Pause)
To pause playback, press the a button during normal playback.
1 (Fast Forward Playback) / ` (Rewind Playback)
Plays back the tape at 9.5 times normal speed (forward or reverse). Press and hold the button during
normal playback or fast forward.
–/4a (Reverse Playback)
Press the button on the wireless controller during normal playback. Press the e (play) button to return
to normal playback.
+/ae (Frame Advance) / –/4a (Frame Reverse)
Plays back frame-by-frame. Press the button on the wireless controller repeatedly during playback
pause. Press and hold it to play back continuous frame advance/frame reverse.
85
SLOW M (Slow Forward)/(Slow Reverse)
Plays back at about 1/3 normal speed. Press the button on the wireless controller during normal or
reverse playback. Press the e (play) button to return to normal playback.
× 2 (Forward ×2 Playback)/(Reverse ×2 Playback)
Plays back at 2 times normal speed. Press the button on the wireless controller during normal or
reverse playback. Press the e (play) button to return to normal playback.
Edit search
Press and hold the REC SEARCH +/– button in playback pause mode. When you release the button, the
camcorder returns to playback pause mode.
❍ There is no sound during special playback.
❍ The picture may become distorted during some special playback modes.
❍ The camcorder stops the tape automatically after 5 minutes in playback pause mode to protect
tape and video heads.
Shuttle Dial
Use the shuttle dial in play or playback pause
mode to control the playback speed and
direction. Turn the shuttle dial to select slow, ×1
and ×2 playback modes (both forward and
reverse), as well as fast forward and rewind
playback. Turn it fully to the left/right to
rewind/fast forward while the tape is stopped.
Jog Dial
Turn the Jog dial during playback or playback
pause for frame advance/reverse or slow
forward/slow reverse playback (depending on
how far you turn the dial).
When you stop turning the dial, the camcorder goes
into playback pause mode.
86
Playback pause
Slow reverse
playback
Reverse playback
Reverse
×2 playback
Rewind playback
Slow forward
playback
Forward ×1 playback
Forward
×2 playback
Fast forward playback
Playing Back on a TV Screen
TVs with S (S1)-Video Input Terminal
E
Refer also to the TV or VCR instruction manual.
INPUT
VIDEO
STV-150 Stereo Video
Cable (supplied)
Signal flow
S-150 S-video Cable (supplied)
AUDIO
L
R
S(S1)-VIDEO
Signal flow
❍ We recommend powering the camcorder from a household power source.
❍ The picture quality is higher when connecting to a TV with an S (S1) terminal.
❍ TVs with S (S1)-terminal or Video ID-1 system: Recordings made in the 16:9 mode will be
automatically played back in widescreen mode.
87
Playback
1. Turn off all devices before starting the connections.
2. Connect the S-150 S-video Cable to the S-video terminals.
3. Connect the STV-150 Stereo Video Cable to the camcorder’s AUDIO1 terminals and the
audio terminals of the TV/VCR.
4. If connecting to a TV, set the input selector to VIDEO. If connecting to a VCR, set the
input selector to LINE.
TVs with Audio/Video Terminals
Refer also to the TV or VCR instruction manual.
INPUT
VIDEO
Signal flow
STV-150 Stereo Video Cable
(supplied)
AUDIO
L
R
1. Turn off all devices before starting the connections.
2. Connect the STV-150 Stereo Video Cable to the camcorder’s VIDEO and AUDIO1
terminals and the audio/video terminals on the TV/VCR.
3. If connecting to a TV, set the input selector to VIDEO. If connecting to a VCR, set the
input selector to LINE.
When connecting to the RCA terminal, set the RCA/BNC selector to RCA. When connecting to the
BNC terminal, set the RCA/BNC selector to BNC.
88
Audio Output
E
AUDIO2 RCA terminals
AUDIO MONITOR
button
AUDIO1 RCA terminals
Selecting the Audio Output of the RCA Terminals
Press the AUDIO MONITOR button.
The setting changes with each press of the button in the order of CH 1/2 , CH 3/4 and CH 1/2 +CH 3/4 .
Selecting the Audio Channels
(
26)
AUDIO SETUP
SEL AUDIO CH•CH1/CH2
Selecting the Audio Mix
(
26)
AUDIO SETUP
MIX SELECT•••VARIABLE
1. Open the menu and select [AUDIO SETUP]. Select [MIX SELECT], set it to [VARIABLE] or
[FIXED] and close the menu.
2. When you have selected [VARIABLE], adjust the mix balance with the MIX BALANCE
CH1/2 and CH3/4 buttons on the wireless controller.
89
Playback
Open the menu and select [AUDIO SETUP]. Select [SEL AUDIO CH], select a setting option
and close the menu.
Returning to a Pre-marked Position
If you wish to return to a particular scene later, mark the point with the zero set memory, and the tape
will stop at that point when you rewind/fast forward the tape.
This function is operated with the wireless controller.
ZERO SET MEMORY
button
REW` button
STOP 3 button
PLAYe button
1. Press the ZERO SET MEMORY button at the point you wish to return to later.
• “0:00:00 ” appears.
• To cancel, press the ZERO SET MEMORY button again.
2. When you have finished playback, rewind the tape.
• “` RTN” appears.
• The tape stops automatically at “0:00:00”.
• The tape counter changes to time code.
The zero set memory may not function correctly when the time code has not been recorded
consecutively.
90
Index Search
You can locate the point at which you have recorded the index signal (
This function is operated with the wireless controller.
75).
E
+ button
SEARCH SELECT button
STOP 3 button
- button
1. Press the SEARCH SELECT button to display “INDEX SEARCH”.
2. Press the + or - button to begin searching.
• Press more than once to search for further index signals (up to 10 times).
• Press the STOP 3 button to stop searching.
Playback may start slightly before or after the index signal.
Playback
91
Date Search
You can locate the change of the date/time zone with the date search function.
This function is operated with the wireless controller.
+ button
SEARCH SELECT button
STOP 3 button
- button
1. Press the SEARCH SELECT button to display “DATE SEARCH”.
2. Press the + or - button to begin searching.
• Press more than once to search for further date changes (up to 10 times).
• Press the STOP 3 button to stop searching.
❍ A recording of longer than a minute per date/area is required.
❍ Date search may not function if the data code is not correctly displayed
92
Displaying the Data Code
The camcorder maintains a data code containing recording date and time and other camera data such
as shutter speed, gain and exposure (f-stop). When you play back a tape, you can display the data code
and select the data code combination you wish to display.
E
MENU button
DATA CODE button
MENU button
SET button
SET dial
Selecting the Date/Time Display Combination
(
26)
DISPLAY SETUP/
D/TIME SEL.••DATE & TIME
Open the menu and select [DISPLAY SETUP/
[TIME] and close the menu.
]. Select [D/TIME SEL.], set it to [DATE] or
Selecting the Data Code Display Combination
Playback
(
26)
DISPLAY SETUP/
DATA CODE••••DATE/TIME
Open the menu and select [DISPLAY SETUP/
DATA] or [CAM.& D/T] and close the menu.
]. Select [DATA CODE], set it to [CAMERA
93
Displaying the Data Code
Press the DATA CODE button on the wireless controller.
The data code will not display the next time you turn on the camcorder.
Six-Second Auto Date
Date and time appear for 6 seconds when you begin playback, or to indicate that date or time zone
has changed.
(
26)
DISPLAY SETUP/
6SEC.DATE••••OFF
Open the menu and select [DISPLAY SETUP/
close the menu.
94
]. Select [6SEC.DATE], set it to [ON] and
Changing the Remote Sensor Mode
Two remote sensor modes and an off setting are available to prevent interference from other Canon
wireless controllers being used nearby.
E
Turning the Remote Sensor Off
(
26)
SYSTEM
WL.REMOTE••••
1
Open the menu and select [SYSTEM]. Select [WL.REMOTE], set it to [OFF B] and close
the menu.
“B” appears.
Changing the Remote Sensor Mode
(
26)
SYSTEM
WL.REMOTE••••
1
1. On the camcorder, open the menu and select [SYSTEM]. Select [WL.REMOTE], set it to
[A 2] and close the menu.
The selected mode appears for a few seconds.
2. On the wireless controller, press and hold the REMOTE SET button. Press the ZOOM T
button for mode 2. Keep the button pressed for over 2 seconds.
If you have set the camcorder to mode 1, press the ZOOM W button for mode 1.
Playback
❍ The wireless controller returns to mode 1 when you replace the batteries. Change the mode if
necessary.
❍ Make sure that camcorder and wireless controller are set to the same mode. Display the
camcorder’s mode by pressing any button on the wireless controller (except of the REMOTE SET
button) and set the wireless controller’s mode to the same mode. Change the batteries if the
wireless controller still does not work.
95
Recording to a VCR or Digital Video Device
You can copy your recordings by connecting the camcorder to a VCR or a digital video device. If you
connect a digital video device, you can copy recordings with virtually no generation loss in image and
sound quality.
Connecting the Devices
q Connecting a VCR
See Playing Back on a TV Screen (
87).
w Connecting a Digital Video Device
Refer also to the instruction manual of the digital video device.
Signal flow
Commercially available DV cable
Recording
1.
2.
3.
4.
5.
Set the POWER dial to VCR and load a recorded cassette.
Connected device: Load a blank cassette and set the device to record pause mode.
Locate the scene you wish to copy and pause playback shortly before the scene.
Play back the tape.
Connected device: Begin recording when the scene you wish to copy appears. Stop
recording when copying is complete.
6. Stop playback.
❍ When connecting a VCR, the quality of the edited tape will be slightly lower than that of the
original.
❍ When connecting a digital video device:
- If the picture does not appear, reconnect the DV cable or turn the camcorder off and back on
again.
- Proper operation cannot be guaranteed for all digital video devices equipped with a DV terminal.
If operation does not work, use the S-video or the audio and video terminals.
96
Recording from Analog Video Devices
(VCR, TV or Camcorder)
You can record videos or TV programs from a VCR or analog camcorder on the tape in the camcorder.
E
1. Connect the camcorder to the analog video device.
See Playing Back on a TV Screen (
87).
2. Set the POWER dial to VCR and load a blank cassette.
3. Open the menu and select [AUDIO SETUP]. Select [AUDIO MODE], select a setting
option and close the menu.
4. Select the audio input.
2-channel recording: Select the input with the INPUT SELECT switch of AUDIO1 (for analog line-in, set it
to AUDIO1).
4-channel recording: Select the input with the INPUT SELECT switch of AUDIO1 and AUDIO2 (for analog
line-in, set it to AUDIO1 and AUDIO2).
5. Connected device: Load the recorded cassette.
6. Press the 2 and a button (or the REC PAUSE button on the wireless controller).
In record pause mode and during recording, you can check the picture on the screen.
7. Connected device: Play back the tape.
8. Press the a button (or the PAUSE a button on the wireless controller) when the scene
you wish to record appears.
Recording starts.
9. Press the 3 button to stop recording.
• Press the a button to pause recording.
• Press the a button again to restart recording.
10.Connected device: Stop playback.
When you press only the 2 button in step 6, recording starts immediately.
Editing
97
Recording from Digital Video Devices
(DV Dubbing)
You can record from other digital video devices equipped with a DV terminal with virtually no loss in
picture and sound quality.
1. Connect the camcorder to the digital video device.
See Connecting a Digital Video Device (
96).
2. Set the POWER dial to VCR and load a blank cassette.
Make sure that [AV\DV] is set to [OFF] (
100).
3. Connected device: Load the recorded cassette.
4. Press the 2 and a button (or the REC PAUSE button on the wireless controller).
In record pause mode and during recording, you can check the picture on the screen.
5. Connected Device: Play back the tape.
6. Press the a button (or the PAUSE a button on the wireless controller) when the scene
you wish to record appears.
Recording starts.
7. Press the 3 button to stop recording.
• Press the a button to pause recording.
• Press the a button again to restart recording.
8. Connected Device: Stop playback.
❍ Blank sections may be recorded as anomalous picture.
❍ If the picture does not appear, reconnect the DV cable or turn the camcorder off and back on
again.
❍ You can only record signals from devices with the
logo recording in SD system in SP or LP
format.
❍ When you press only the 2 button in step 4, recording starts immediately.
Copyright Signal
Certain software tapes are copyright protected. If you attempt to play back such tape, “COPYRIGHT
PROTECTED PLAYBACK IS RESTRICTED” appears and you will not be able to view the contents of the
tape. If you attempt to record from such tape via the DV terminal, “COPYRIGHT PROTECTED DUBBING
RESTRICTED” appears and you will not be able to record the contents of the tape.
98
Converting Analog Signals into Digital
Signals (Analog-Digital Converter)
By connecting the camcorder to a VCR or 8mm video camcorder, you can convert analog video/audio
signals to digital signals and output the digital signals via the DV terminal. The DV terminal serves as
output terminal only.
E
Connecting the Devices
Turn off all devices before starting the connections. Unload the tape from the camcorder. Refer also to
the instruction manual of the connected device.
You can also connect to the VIDEO terminal (
88).
STV-150 Stereo Video Cable
(supplied)
VIDEO
L
AUDIO
R
Signal flow
S-150 S-video Cable (supplied)
S(S1)
-VIDEO
Signal flow
Commercially available DV cable
Editing
99
Turning On the Analog-Digital Converter
(
26)
VCR SETUP
AV DV••••••••OFF
Open the menu and select [VCR SETUP]. Select [AV\DV], set it to [ON] and close the
menu.
❍ Depending on the signal sent from the connected device, the conversion from analog to digital
signals might not work properly (e.g., signals that include copyright protective signals or
anomalous signals such as ghost signals).
❍ For normal use, set [AV\DV] to [OFF]. If it is set to [ON], digital signals cannot be input via the
camcorder’s DV terminal.
❍ Depending on the software and the specifications of your computer, you may not be able to
transfer converted signals via the DV terminal.
❍ We recommend powering the camcorder from a household power source.
❍ You can also press the AV/DV button on the wireless controller. The setting changes with each
press of the button.
100
Connecting to a Computer Using a DV
(IEEE1394) Cable
You can transfer recordings to a computer equipped with a IEEE1394 (DV) terminal or IEEE1394 capture
board. Use the editing software supplied with your computer/capture board to transfer video
recording from tape to computer. Refer to the instruction manual of the software.
A driver is preinstalled on Windows operating systems later than Windows 98 Second Edition and on
Mac operating systems later than Mac OS 9, and will be installed automatically.
Users of Windows XP can also download the DV-PC Recorder from the Canon Homepage to record
video/audio to the computer’s hard disk. For details, refer to the DV-PC Recorder Software leaflet.
E
IEEE1394 (DV) terminal
Commercially available DV cable
6-pin
4-pin
❍ Operation may not work correctly depending on the software and the specifications/settings of
your computer.
❍ If the computer freezes while you have connected the camcorder, disconnect and reconnect the
DV cable. If the problem persists, disconnect the interface cable, turn off camcorder and computer,
turn camcorder and computer back on and reconnect them.
❍ The XL2 cannot be used with DV Messenger.
Refer also to the instruction manual of the computer.
Editing
101
Settings Retained at Power Off or STANDBY Mode
The following list shows the settings that are retained when you turn the power off or press the
STANDBY button when the backup battery is installed.
Recording Mode
STANDBY Mode
Power Off
Aperture setting in Av mode
Shutter speed setting in Tv mode
Aperture, shutter speed setting in Manual mode
Custom white balance
Exposure lock on/off
Aperture, shutter speed setting during
exposure lock
Color bars setting
Color bars on/off
CAMERA MENU settings*
Self-timer on/off
Interval timer on/off
TV SCREEN on/off
EVF display
Side panel light
Zero set memory
* Except for self-timer and interval timer on/off.
102
h
h
h
h
Returns to off
h
Reset
h
Reset
Reset
h
h
h
Returns to off
Returns to off
h
Returns to normal display
Returns to off
h
The following list shows the settings that are retained when you change the programmed AE mode or
frame rate.
E
Recording Mode
When you change to
another programmed
AE mode other than
Easy Recording
Aperture setting in Av mode
Shutter speed setting in
Tv mode
Aperture, shutter speed
setting in Manual mode
Custom white balance
Exposure lock on/off
Aperture, shutter speed
setting during exposure lock
Color bars setting
Color bars on/off
CAMERA MENU setting
Self-timer on/off
Interval timer on/off
TV SCREEN on/off
EVF display
Side panel light
Zero set memory
When you change to
Easy Recording mode
When you change
the frame rate
h
Reset
h
Reset
h
Reset
h
h
Returns to off
Reset
h
h
Reset
Reset
h
h
h
h
h
h
h
Additional
Information
103
Screen Displays
Hiding the Displays on the Camcorder Screen
You can hide the displays on the screen to have a clear screen for playback.
(
26)
DISPLAY SETUP/
DISPLAYS•••••ON
Open the menu and select [DISPLAY SETUP/
[OFF <PLAYBK>] and close the menu.
]. Select [DISPLAYS], set it to
• Warning messages still appear, and the data code appears if turned on.
• Tape operation displays appear for 2 seconds.
Hiding/Showing the Displays on the TV Screen
When you connect a TV for recording, you can select to hide the camcorder displays on the TV screen.
For playback, you can show the camcorder displays on the TV screen.
(
26)
DISPLAY SETUP/
TV SCREEN••••ON
Open the menu and select [DISPLAY SETUP/
close the menu.
]. Select [TV SCREEN], set it to [OFF] and
The displays disappear from the TV screen.
(
26)
DISPLAY SETUP/
TV SCREEN••••OFF
Open the menu and select [DISPLAY SETUP/
close the menu.
The displays appear on the TV screen.
104
]. Select [TV SCREEN], set it to [ON] and
Screen Displays during Recording
See also
E
34.
Zoom position/
zoom speed ( 38)/
exposure level ( 60)
Programmed AE (
Shutter speed* (
Aperture* (
Gain (
63)
Recording mode (
Tape operation
Self-timer
( 81)
REC
PAUSE
STOP
EJECT
55)
58, 60)
59, 60)
Exposure lock (
AE shift ( 62)
61)/
White balance (
64)
Manual focus (
83)
Condensation warning (
Remote sensor mode (
Interval timer (
41)
110)
95)
79)
Frame rate (
44)
DV control (
82)
Skin detail (
67)
Audio mode (
Color bars (
77)
Accessory attached to the
advanced accessory shoe
Custom preset (
68)
Custom keys ( 74)/
date and time ( 30)
Character recording (
End search ( 37)
83)/
50)
Audio level indicator (
53)
* In Manual mode.
Additional
Information
105
Screen Displays during Playback
Tape operation (
85)
REC
PAUSE
STOP
EJECT
e
FF 1
` REW
/
/
/
2
1
Date search ( 92)/
index search ( 91)
/
/
Audio output (
: Fast forward playback/
rewind playback
2 : ×2 playback
1 : ×1 playback
: Frame advance playback/
frame reverse playback
: Playback pause
89)
Mix balance (
89)
Custom keys (
74)
Frame rate (
Data code (
44)
Audio mode (
93)
User bit (
50)
49)
Audio level indicator (
Side panel
Recording mode
Audio mode
[AUDIO LEVEL] is set
to [MANUAL]
Time code
Tape has reached
the end
Remaining battery charge
Audio output during
playback
Audio level indicator
106
53)
List of Messages
Message
Explanation
SET THE TIME ZONE,
DATE AND TIME
You have not set the time zone, date and time. This message
appears each time you turn the power on until you set the time
zone, date and time.
30
CHANGE THE BATTERY
PACK
Battery pack is exhausted. Replace or charge the battery pack.
13
THE TAPE IS SET FOR
ERASURE PREVENTION
Cassette is protected. Replace the cassette or change the position of
the protect switch.
112
REMOVE THE CASSETTE
Camcorder stopped operating to protect the tape. Unload and
reload the cassette.
25
CHECK THE INPUT
DV cable is not connected, or the connected digital device is turned
off.
98
CONDENSATION HAS
BEEN DETECTED
Condensation has been detected in the camcorder.
110
TAPE END
Tape reached the end. Rewind the tape or replace the cassette.
HEADS DIRTY, USE
CLEANING CASSETTE
Video heads are dirty. Clean the video heads.
110
ENTERING “POWER
STANDBY”
Appears for 1 second when you press the STANDBY button.
33
CHECK THE LENS
Lens is not correctly mounted. Turn the lens until it clicks. If the
message does not disappear, unmount and remount the lens.
22
You attempted to play back a copyright protected tape.
COPYRIGHT PROTECTED
PLAYBACK IS RESTRICTED
COPYRIGHT PROTECTED
DUBBING RESTRICTED
You attempted to dub a copyright protected tape. May also appear
when an anomalous signal is received during analog line-in
recording, or during analog-digital conversion of a copyright
protected tape.
E
–
98
98
Additional
Information
107
Maintenance/Others
Camcorder Handling Precautions
❍ Do not carry the camcorder by the viewfinder or the microphone.
❍ Do not leave the camcorder in places subject to high temperatures, such as a sun-heated car, and
high humidity.
❍ Do not use the camcorder in places subject to magnetic or electric fields such as near the TV
transmitters or portable communication devices.
❍ Do not point the lens or viewfinder at strong light sources. Do not leave the camcorder pointed at a
bright subject.
❍ Do not use the camcorder in dusty or sandy places. Dust or sand getting inside the cassette or
camcorder may cause damage. Dust and sand can also damage the lens. Attach the lens cap after
use.
❍ The camcorder is not waterproof. Water, mud or salt getting inside the cassette or camcorder may
cause damage.
❍ Be careful of heat generated by lighting equipment.
❍ Do not disassemble the camcorder. If the camcorder does not function properly, consult qualified
service personnel.
❍ Handle the camcorder with care. Do not subject the camcorder to shocks or vibration as this may
cause damage.
❍ Avoid sudden changes in temperature. Moving the camcorder rapidly between hot and cold
temperatures may cause condensation to form on its internal surfaces (
110).
Storage
❍ If you do not intend to use the camcorder for a long time, store it in a place free of dust, in low
humidity, and at temperatures not higher than 86 ˚F (30 ˚C).
❍ After storage, check the functions of your camcorder to make sure that the camcorder is still working
properly.
Cleaning
Camcorder Body and Lens
❍ Use a soft, dry cloth to clean the camcorder body and lens. Never use chemically treated cloth or
volatile solvents such as paint thinner.
LCD Screen
❍ Clean the LCD screen using a commercially available cleaning cloth for glasses.
❍ Condensation may form on the surface of the screen when the temperature changes suddenly. Wipe
it with a soft dry cloth.
108
Viewfinder
E
1. Pull up the eye cup and open the protect
cover (e.g. using a flathead screwdriver).
2. Clean the glass with a cotton swab.
3. Reattach the protect cover.
Additional
Information
Be careful not to scratch the glass when cleaning.
109
Video Heads
❍ When the message “HEADS DIRTY, USE CLEANING CASSETTE” appears, or when the playback picture
becomes distorted, the video heads need to be cleaned.
❍ To maintain the best picture quality, we recommend cleaning the video heads frequently with the
Canon DVM-CL Digital Video Head Cleaning Cassette or a commercially available dry cleaning
cassette.
❍ Tapes already recorded with dirty video heads may not be played back correctly even when you
clean the video heads.
❍ Do not use wet type cleaning cassettes as this may damage the camcorder.
Condensation
Moving the camcorder rapidly between hot and cold temperature may cause condensation (water
droplets) to form on its internal surfaces. Stop using the camcorder if condensation is detected.
Continued use may damage the camcorder.
Condensation may form in the following cases:
When the camcorder is moved from an airconditioned room to a warm, humid place
When the camcorder is moved from a cold place
to a warm room
When the camcorder is left in a humid room
When a cold room is heated rapidly
110
How to avoid condensation:
❍ Unload the cassette, place the camcorder in an airtight plastic bag and let it adjust to temperature
changes slowly before removing it from the bag.
E
When condensation is detected:
❍ The camcorder stops operating, and the warning message “CONDENSATION HAS BEEN DETECTED”
appears for approx. 4 seconds and “h” starts flashing.
❍ If a cassette is loaded, the warning message “REMOVE THE CASSETTE” appears and “v” starts
flashing. Remove the cassette immediately and leave the cassette compartment open. Leaving the
cassette in the camcorder may damage the tape.
❍ A cassette cannot be loaded when condensation is detected.
Resuming use:
❍ It takes about 1 hour until the water droplets evaporate. After the condensation warning stops
flashing, wait for 1 more hour before resuming use.
Battery Pack Handling Precautions
DANGER!
Treat the battery pack with care.
• Keep it away from fire (or it might explode).
• Do not expose the battery pack to temperature higher than 140 ºF (60 ºC). Do not leave it near a
heater or inside a car in hot weather.
• Do not try to disassemble or modify it.
• Do not drop or knock it.
• Do not get it wet.
111
Additional
Information
❍ Charged battery packs continue to discharge naturally. Therefore, charge them on the day of use, or
the day before, to ensure a full charge.
❍ Attach the terminal cover whenever a battery pack is not in use. Contact to metallic objects may
cause a short circuit and damage the battery pack.
❍ Dirty terminals may cause a poor contact between the battery pack and the camcorder. Wipe the
terminals with a soft cloth.
❍ Since storing a charged battery pack for a long time (about 1 year) can shorten its lifecycle or affect
performance, we recommend to discharge the battery pack fully and to store it in a dry place at
temperatures no higher than 86 ˚F (30 ˚C). If you do not use the battery pack for long periods, charge
and discharge it fully at least once a year. If you have more than 1 battery pack, perform these
precautions at the same time for all battery packs.
❍ Although the battery pack’s operating temperature range is from 32 ˚F to 104 ˚F
(0 ˚C to 40 ˚C), the optimal range is from 50 ˚F to 86 ˚F (10 ˚C to 30 ˚C). At cold temperatures,
performance will temporarily decline. Warm it in your pocket before use.
❍ Replace the battery pack if the usable time after full charge diminishes substantially at normal
temperatures.
Cassette Handling Precautions
❍ Rewind tapes after use. If the tape becomes slack and damaged, it may cause picture and sound
distortion.
❍ Return cassettes in the case and store them upright.
❍ Do not leave the cassette in the camcorder after use.
❍ Do not use spliced tapes or nonstandard cassettes as they may damage the camcorder.
❍ Do not use tapes that have been jammed as video heads may become dirty.
❍ Do not insert anything into the small holes of the cassette, or cover them with cellophane tape.
❍ Handle cassettes with care. Do not drop or subject them to severe impact as this may damage the
cassettes.
❍ Rewind tapes from time to time if they are stored for a long time.
❍ With cassettes equipped with a memory function, metal plated terminals may become dirty with use.
Clean the terminals with a cotton swab after about 10 times of loading/unloading. The memory
function is not supported by the camcorder.
Protecting Tapes from Accidental Erasure
To protect your recordings from accidental
erasure, slide the tab on the cassette to the left.
(This switch position is usually labeled SAVE or
ERASE OFF.)
If you load a protected cassette in recording
mode, the message “THE TAPE IS SET FOR
ERASURE PREVENTION” appears for approx. 4
seconds and “v” starts flashing. If you wish to record on that cassette, slide the tab back to the right.
REC
SAVE
REC
SAVE
Using the Camcorder Abroad
Power Sources
You can use the compact power adapter to operate the camcorder and to charge battery packs in any
country with power supply between 100 and 240 V AC, 50/60 Hz. Consult the Canon Service Center for
information on plug adapters for overseas use.
Playback on a TV Screen
You can only play back your recordings on TVs with NTSC system. The NTSC system is used in the
following countries/areas:
American Samoa, Antigua, Aruba, Bahamas, Barbados, Bermuda, Bolivia, Canada, Chile, Columbia,
Costa Rica, Cuba, Ecuador, El Salvador, Guam, Guatemala, Greenland, Haiti, Honduras, Jamaica, Japan,
Korea, Mexico, Micronesia, Myanmar, Nicaragua, Panama, Peru, Philippines, Puerto Rico, Saint Kitts and
Nevis, Saint Lucia, Saint Vincent and the Grenadines, Surinam, Taiwan, Trinidad and Tobago, USA,
Venezuela, Virgin Islands.
112
Troubleshooting
If you have a problem with your camcorder, refer to this checklist. Consult your dealer or a Canon
Service Center if the problem persists.
E
Power Source
Problem
Cause
Camcorder will not turn on. Battery pack is not correctly
attached.
Solution
Attach the battery pack
correctly.
13
The camcorder switches off
by itself.
Turn on the camcorder.
32
Replace or charge the battery
pack.
13
Power save function has been
activated.
Viewfinder switches on and Battery pack is exhausted.
off.
Recording/Playback
Buttons will not work.
Cassette is not loaded.
Load a cassette.
25
“h” flashes on the screen.
Condensation is detected.
See reference page.
110
“REMOVE THE CASSETTE”
appears on the screen.
Camcorder stopped operating
to protect the tape.
Unload and reload the cassette.
25
The wireless controller will
not work.
Camcorder and wireless
controller are not set to the
same remote sensor mode.
Change the remote sensor
modes.
95
Batteries of the wireless
controller are exhausted.
Replace the batteries.
24
The POWER dial is not set to a
recording program.
Set the POWER dial to a
recording program.
32
Recording
Image will not appear on
the screen.
“SET THE TIME ZONE, DATE Time zone, date and time are
Set the time zone, date and
AND TIME” appears on the not set, or the backup battery is time, or replace the backup
screen.
exhausted.
battery and reset the date and
time.
30
Pressing the start/stop
button will not start
recording.
Load a cassette.
25
The POWER dial is not set to a
recording program.
Set the POWER dial to a
recording program.
32
The lock lever on the carrying
handle is activated.
Slide the lock lever to the left
and deactivate it.
33
Autofocus does not work on
that subject.
Focus manually.
41
Viewfinder is not adjusted.
Adjust the viewfinder with the
dioptric adjustment lever.
19
Lens is dirty.
Clean the lens.
108
Set [TALLY LAMP] to [ON].
83
The tally lamp will not light [TALLY LAMP] is set to [OFF] in
up.
the menu.
113
Additional
Information
Camcorder will not focus.
Cassette is not loaded.
Recording
Problem
A vertical light bar appears
on the screen.
Cause
Solution
Bright light in a dark scene may Record in the Av mode with
cause a vertical light bar (smear) F5.6–F8.0.
to appear. This is not a
malfunction.
Viewfinder picture is
blurred.
Viewfinder is not adjusted.
Adjust the viewfinder with the
dioptric adjustment lever.
19
Audio is not recorded.
The INPUT SELECT switch is not
set to the correct position.
Set the INPUT SELECT switch to
the correct position.
51
52
Adjust the audio level correctly.
The REC LEVEL switch is set to
M, and recording level is set too
low.
59
53
Microphone connected to the
XLR terminal needs to be
powered by the phantom
power.
Set the +48V switch to ON.
51
52
Microphone attenuator is
turned on.
Set the MIC ATT. switch to OFF.
51
52
Problem
Pressing the playback
button does not start
playback.
Cause
Camcorder is turned off, or is
not set to VCR mode.
Solution
Set the camcorder to VCR
mode.
85
Cassette is not loaded.
Load a cassette.
25
Tape is running, but image
will not appear on the TV
screen.
Video heads are dirty.
Clean the video heads.
110
You attempted to play back or
dub copyright protected tape.
Stop playback/dubbing.
–
Audio is recorded in a very
low level.
Playback
Others
Lenses with built-in image
stabilizer: Detected air
bubbles inside the lens.
Sometimes air bubbles may
form inside the lens in airplanes
or on high mountains. This is
not a malfunction. The air
bubbles disappear in about 1
week.
–
–––
About the CCD
Due to the construction of the CCD, in low-light recording using the slow shutter or gaining up, small
specks of light may become visible on the screen. In such cases, increase the shutter speed, reduce the
gain or use an additional light source such as a video light.
114
System Diagram
(Availability differs from area to area)
E
ZR-1000 Zoom
Remote Controller
WL-D4000
Wireless
Controller
FU-1000 Monochrome CRT
Viewfinder Unit
MA-300 Microphone
Adapter
MiniDV
Video
Cassette
Extender XL
1.6× *
FS-72U
Filter Set
SS-1000 Shoulder Strap
16× IS II
Zoom Lens
XL 5.5-88 mm
CB-920 Car Battery
Adapter
3× Zoom Lens XL
3.4–10.2 mm
DC-920
DC Coupler
BP-930, BP-945
Battery Pack
16× Manual Zoom
Lens XL 5.4-86.4 mm
CA-920 Compact
Power Adapter
BP-930, BP-945
Battery Pack
20× L IS Zoom Lens
XL 5.4-108 mm
CH-910 Dual Battery
Charger/Holder
EF
lens**
S-150 S-video Cable
EF Adapter XL
HC-3200
System Case
STV-150 Stereo Video Cable
Additional
Information
Commercially available DV cable
TV
VCR
TA-100 Tripod Adapter
* Can be attached to the 20× L IS, 16× IS II and 16× manual zoom lenses.
** EF-S lenses cannot be used.
115
Optional Accessories
Call or visit your local retailer/dealer for genuine Canon video accessories. You can also obtain genuine
accessories for your Canon camcorder by calling: 1-800-828-4040, Canon U.S.A. Information Center.
Use of genuine Canon accessories is recommended.
This product is designed to achieve excellent performance when used with genuine Canon
accessories. Canon shall not be liable for any damage to this product and/or accidents such as fire,
etc., caused by the malfunction of non-genuine Canon accessories (e.g., a leakage and/or explosion
of a battery pack). Please note that this warranty does not apply to repairs arising out of the
malfunction of non-genuine Canon accessories, although you may request such repairs on a
chargeable basis.
Battery Packs
The BP-930 is also available as an optional
accessory.
The optional BP-945 provides 50% more
recording time than the BP-930.
Car Battery Adapter CB-920
Use the car battery adapter to power the
camcorder or charge battery packs on the move.
The car battery adapter plugs into your car’s
cigarette lighter socket and runs off a 12-24V DC
negative ground battery.
FS-72U Filter Set
Ultraviolet, neutral density and circular
polarizing filters to help you take control of
difficult lighting conditions.
HC-3200 System Case
A solid, lockable case that provides safe and
stylish protection for the camcorder during
transportation and storage.
3× Zoom Lens XL 3.4–10.2 mm
A super wide-angle lens that gives a range of
32.6–97.8 mm (35 mm film equivalent).
116
BP-930
BP-945
16× Manual Zoom Lens XL 5.4–86.4 mm
A high-resolution zoom lens with two zoom
modes (manual and powered), built-in ND filter
and AE functions.
E
Extender XL 1.6×
Attach this extender between a Canon XL lens
and the XL2 to boost the focal length of the lens
by 1.6×.
EF Adapter XL
This allows you to attach Canon EF lenses to the
XL2. The difference in size between the XL2’s
1/3-inch CCD’s and 35mm film means that the
effective focal length of still camera lenses is
multiplied by 9.6× (4:3)/7.8× (16:9).
• Consult your local service outlet to make sure there
are no compatibility problems with your chosen lens.
FU-1000 Monochrome CRT Viewfinder Unit
Professional quality B&W viewfinder with a
1.5-inch CRT.
• When you use the FU-1000 with the XL2, you
can supply power from the CA-920 or optional
CB-920. The battery adapter supplied with the
FU-1000 is not required. Attach the DC Coupler
directly to the XL2, and connect it with the
CA920/CB-920.
TA-100 Tripod Adapter
The TA-100 allows you to quickly
mount/unmount the XL2 on/from a tripod.
Additional
Information
MA-300 Microphone Adapter
With the MA-300, you can use balanced
microphones on all 4 channels.
• Phantom power cannot be used with the
MA-300.
117
CH-910 Dual Battery Charger/Holder
The CH-910 can charge two battery packs
consecutively. You can also power the camcorder
by connecting the CH-910 with charged battery
packs to the camcorder. When you attach two
battery packs, a battery pack can be exchanged
without interrupting the power supply.
Battery Pack
BP-930
BP-945
Charging Time
240 min.
280 min.
Charging time varies according to the charging condition.
Zoom Remote Controller ZR-1000
When this product is plugged into the LANC m
terminal of a Canon camcorder, it is possible to
control functions such as the start and stop of
recording and the zoom and focusing functions
while the camcorder is mounted on a tripod,
without touching the camcorder body itself.
This mark identifies genuine Canon video accessories. When you use Canon video
equipment, we recommend Canon-brand accessories or products bearing the same mark.
Optional accessories:
Provided accessories:
CA-920 Compact Power Adapter
DC-920 DC Coupler
BP-930 Battery Pack
SS-1000 Shoulder Strap
WL-D4000 Wireless Controller
S-150 S-Video Cable
STV-150 Stereo Video Cable
Adapter holder
8029A002AA
8033A001AA
3058A002AA
D81-1220-000
D83-0690-000
3062A002AA
3065A002AA
D82-0780-000
Additional accessories supplied with the Lens Kit:
20× L IS Lens
Lens Hood
Lens Soft Case
118
9825A002AA
D52-0290-000
D81-1490-000
BP-945 Battery Pack
CB-920 Car Battery Adapter
CH-910 Dual Battery Charger/Holder
ZR-1000 Zoom Remote Controller
TA-100 Tripod Adapter
Extender XL 1.6×
EF Adapter XL
3× Zoom Lens XL 3.4-10.2mm
16× Zoom Lens XL 5.4-86.4mm
FS-72U Filter Set
HC-3200 System Case
DVM-CL DV Cleaning Cassette
FU-1000 Monochrome Viewfinder
4244A002AA
8034A002AA
3036A002AA
3089A002AA
9859A001AA
3163A002AA
3162A002AA
3159A002AA
7122A002AA
3093A002AA
9826A001AA
3134A002AA
4252A001AA
Specifications
XL2
E
System
Video Recording System
2 rotary heads, helical scanning DV system (consumer digital VCR SD system),
digital component recording
Audio Recording System
PCM digital sound: 16 bit (48 kHz/2 ch); 12 bit (32 kHz/4 ch)
Television System
EIA standard (525 lines, 60 fields) NTSC color signal
Image Sensor
1/3-inch CCD x 3 (horizontal pixel shift), approx. 680,000 pixels
Effective pixels: 4:3 approx. 350,000 pixels
16:9 approx. 460,000 pixels
Tape Format
Videocassettes bearing the “MiniDV” mark.
Tape Speed
SP: 0.74 ips (18.81 mm/s), LP: 0.49 ips (12.56 mm/s)
Maximum Recording Time
(80 min. cassette)
SP: 80 min., LP: 120 min.
Fast Forward/Rewind Time
Approx. 2 min. 20 sec. (with a 60 min. cassette)
Viewfinder
2-inch. TFT color, approx. 200,000 pixels, RGB delta configuration
Microphone
Stereo electret condenser microphone
Lens mount
XL interchangeable mount system
AF system
TTL autofocus, manual focusing with focus ring (with 20× L IS lens)
White Balance
Auto white balance, pre-set white balance (indoor, outdoor) or custom
white balance
Minimum Illumination
0.7 lx (with 20× L IS lens, 60i mode, Manual mode, 1/8 shutter, F1.6,
Gain 18 dB)
Recommended Illumination
More than 100 lx
Input/Output Terminals
1 Vp-p/75 ohms (Y signal), 0.286 Vp-p/75 ohms (C signal)
Video Terminal
RCA jack/BNC jack
1 Vp-p/75 ohms unbalanced
Audio Out Terminals
RCA jack (L, R) 2 sets
-10 dBv (47 kohm load, full-scale -12 dB)/3 kohms or less, unbalanced
Audio In Terminals
FRONT MIC: ø3.5 stereo mini jack (unbalanced), ATT: 20 dB
-55 dBv (Auto mode)/600 ohms
Max: -67 dBv (Manual mode, max. volume)
AUDIO 1, 2: RCA jack (unbalanced)
-10 dBv/47 kohms
REAR:
XLR jack (pin1: shield, pin2: hot, pin3: cold), ATT: 20 dB
-54 dBv (Auto mode)/600 ohms
Max 1: -66 dBv (Auto mode, REAR MIC Gain Up 12 dB)
Max 2: -66 dBv (Manual mode, max. volume)
Max 3: -78 dBv (Manual mode, max. volume, REAR MIC Gain
Up 12 dB)
DV Terminal
Special 4-pin connector (IEEE1394 compliant)
Headphone Terminal
ø3.5 mm stereo mini-jack
-23.5 dBv (16 ohm load)/50 ohms
LANC Terminal
ø2.5 mm stereo mini-jack
119
Additional
Information
S-video Terminal
Power/Others
Power supply (rated)
7.2 V DC
Power consumption
7.1 W (recording with autofocus, 20× L IS Lens mounted)
Operating temperature
32 – 104 ˚F (0 – 40 ˚C)
Dimensions (W × H × D)
8.9 × 8.7 × 19.5 in. (225 × 220 × 496 mm)
Weight (camcorder body only)
(fully loaded)
5.3 lb. (2410 g)
7.8 lb. (3545 g)
Lens
Some lens specifications change as shown below when mounting on the XL2.
Field size at closest
focusing distance
Telephoto
Wide angle
Telephoto
1° 54’ × 1° 24’ (4:3)
[20 mm]
[1 m]
2° 36’ × 1° 24’ (16:9)
44.1 × 32.0 mm (4:3)
49.1 × 36.0 mm (4:3)
60.0 × 32.0 mm (16:9) 65.6 × 36.0 mm (16:9)
2° 24’ × 1° 42’ (4:3)
[20 mm]
[1 m]
3° 12’ × 1° 42’ (16:9)
41.9 × 30.4 mm (4:3)
55.2 × 40.4 mm (4:3)
57.1 × 30.4 mm (16:9) 73.8 × 40.4 mm (16:9)
20° 12’ × 14° 54’ (4:3)
[20 mm]
[0.5 m]
26° 48’ × 14° 54’ (16:9) 54.6 × 40.0 mm (4:3) 188.5 × 138.3 mm (4:3)
72.8 × 40.0 mm (16:9) 251.6 × 138.3 mm (16:9)
2° 24’ × 1° 48’ (4:3)
[50 mm]
[1 m]
3° 12’ × 1° 48’ (16:9)
55.6 × 40.2 mm (4:3)
39.1 × 28.7 mm (4:3)
75.7 × 40.2 mm (16:9) 52.0 × 28.7 mm (16:9)
Angle of view
20× L IS Lens
Wide angle
37° 12’ × 27° 42’ (4:3)
48° 24’ × 27° 42’ (16:9)
16× IS II
Zoom Lens
36° 36’ × 27° 12’ (4:3)
47° 42’ × 27° 12’ (16:9)
3× Zoom
XL Lens
56° 18’ × 42° 48’ (4:3)
71° 6’ × 42° 48’ (16:9)
16× Manual
Zoom Lens
37° 12’ × 27° 42’ (4:3)
48° 24’× 27° 42’ (16:9)
CA-920 Compact Power Adapter
Power supply
100 – 240 V AC, 50/60 Hz
Power consumption
24 W
Rated output
Adapter: 7.2 V DC, 2.0 A, Charger: 8.4 V DC, 1.5 A
Operating temperature
32°– 104 ˚F (0°– 40 ˚C)
Dimensions
3.0 × 3.9 × 2.0 in. (75 × 99 × 51 mm)
Weight
7.6 oz. (215 g) without power cable
BP-930 Battery Pack
Battery type
Rechargeable lithium ion battery
Rated voltage
7.2 V DC
Operating temperature
32°– 104 °F (0°– 40 °C)
Battery capacity
3,000 mAh
Dimensions
1.5 × 1.5 × 2.8 in. (38.2 × 39.0 × 70.5 mm)
Weight
6.7 oz. (190 g)
Weight and dimensions are approximate. Errors and omissions excepted. Subject to change without notice.
120
Index
16:9 . . . . . . . . . . . . . . . . . . . . . . 46
A
Abroad, using the
camcorder . . . . . . . . . . . . . . . 112
Accessories . . . . . . . . . . . . . 8, 116
AE shift . . . . . . . . . . . . . . . . . . . 62
Analog-digital converter . . . . . 99
Analog line-in . . . . . . . . . . . . . . 97
Audio level indicator . . . . . . . . 53
Audio mode . . . . . . . . . . . . . . . 50
Audio output . . . . . . . . . . . . . . 89
Audio recording . . . . . . . . . . . . 50
Audio reference signal . . . . . . . 78
Auto . . . . . . . . . . . . . . . . . . . . . 55
Autofocus . . . . . . . . . . . . . . . . . 40
Av mode . . . . . . . . . . . . . . . . . . 55
G
Gain . . . . .
Gamma . . .
Grip belt . .
Grip zoom .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
63
68
21
38
H
Handle zoom . . . . . . . . . . . . . . 38
Hue . . . . . . . . . . . . . . . . . . . . . . 67
I
Index search . . . . . . . . . . . . . . . 91
Index write . . . . . . . . . . . . . . . . 75
Interval timer . . . . . . . . . . . . . . 79
Setup level . . .
Sharpness . . . .
Shoulder strap
Shutter speed .
Skin detail . . . .
Spotlight . . . . .
SP Mode . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. . . . . 69
. . . . . 69
. . . . . 21
. . . . . 58
. . . . . 67
. . . . . 55
. . . . . 83
E
T
Tally lamp . . . . .
Tape protection
Time code . . . . .
Troubleshooting
Tv mode . . . . . .
TV screen . . . . .
. . . . . . . . . . . . 83
. . . . . . . . . . . 112
. . . . . . . . . . . . 47
. . . . . . . . . . . 113
. . . . . . . . . . . . 55
. . . . . . . . . . . . 87
K
Knee . . . . . . . . . . . . . . . . . . . . . 68
U
User Bit . . . . . . . . . . . . . . . . . . . 49
B
L
Backup battery . . . . . . . . . . . . . 16
Battery pack . . . . . . . . . . . . . . . 13
Black level . . . . . . . . . . . . . . . . . 68
C
Center marker. . . . . . . . . . . . . . 34
Character recording . . . . . . . . . 83
Clear scan . . . . . . . . . . . . . . . . . 73
Color bars . . . . . . . . . . . . . . . . . 77
Color gain . . . . . . . . . . . . . . . . . 68
Color matrix . . . . . . . . . . . . . . . 68
Color phase. . . . . . . . . . . . . . . . 69
Condensation . . . . . . . . . . . . . 110
Coring . . . . . . . . . . . . . . . . . . . . 69
Custom keys . . . . . . . . . . . . . . . 74
Custom preset. . . . . . . . . . . . . . 68
Language . . . . . . . . .
LCD panel . . . . . . . . .
Lens hood . . . . . . . . .
Low-angle recording.
Low light mode . . . .
LP mode . . . . . . . . . .
.
.
.
.
.
.
. . . . . . . 84
. . . . . . . 19
. . . . . . . 23
. . . . . . . 33
. . . . . . . 56
. . . . . . . 83
M
Maintenance . . . . . . . . . . . . . . 108
Manual focus . . . . . . . . . . . . . . 41
Manual mode . . . . . . . . . . . . . . 55
Master pedestal . . . . . . . . . . . . 69
Menu . . . . . . . . . . . . . . . . . . . . 26
Microphone. . . . . . . . . . . . . 20, 51
Mix balance . . . . . . . . . . . . . . . 89
N
D
Data code . . . . . . . . . . . . . . . . . 93
Date and time. . . . . . . . . . . . . . 30
Date format . . . . . . . . . . . . . . . 84
Date search . . . . . . . . . . . . . . . . 92
DC coupler . . . . . . . . . . . . . . . . 14
DV control. . . . . . . . . . . . . . . . . 82
DV dubbing . . . . . . . . . . . . . . . 98
DV terminal. . . . . . . . . . . . 98, 101
E
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
55
86
37
61
F
Focus preset . . . . . . . . . . . . . . . 42
Focusing . . . . . . . . . . . . . . . . . . 41
Frame rate . . . . . . . . . . . . . . . . 44
W
Widescreen . . . . . . . . . . . . . . . . 46
Wireless controller . . . . . . . . . . 24
White balance. . . . . . . . . . . . . . 64
X
XL lens. . . . . . . . . . . . . . . . 22, 116
Z
Zebra pattern . . .
Zero set memory.
Zoom preset . . . .
Zooming . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. . . . . 66
. . . . . 90
. . . . . 39
. . . . . 38
O
Optional accessories . . . . . . . . 116
P
Playback . . . . . .
Power adapter .
Power save . . . .
Programmed AE
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
85
13
33
55
Recording . . . . . . . . .
Recording Programs .
Record review . . . . . .
Record search . . . . . .
Remote sensor . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. . . 32
. . . 55
. . . 36
. . . 36
. . . 24
Additional
Information
Easy recording mode
Edit search . . . . . . . .
End search. . . . . . . . .
Exposure . . . . . . . . . .
ND filter . . . . . . . . . . . . . . . . . . 43
NR . . . . . . . . . . . . . . . . . . . . . . . 69
V
VCR STOP . . . . . . . . . . . . . . 33, 74
Video heads . . . . . . . . . . . . . . 110
Viewfinder . . . . . . . . . . . . . . 17-20
R
S
Screen display . . . . . . . . . 104-106
Self-timer . . . . . . . . . . . . . . . . . 81
121
122
CH 2/ 4
CH 4
Advanced
accessory shoe
CH 1/ 3
CH 3
PHONES
Mic Power
CH 2/ CH 4
FRONT
1 : shield
2 : hot
3 : cold
CH 1/ CH 3
REAR
ON/OFF
Phantom
48V
balance/
unbalance
Head Amp
ATT
Head Amp
Head Amp
Phone
Amp
Phone
Amp
Head Amp
ATT
Head Amp
ATT
ATT : FRONT MIC ATT SW
balance/
unbalance
Head Amp
ATT
ATT : Rear MIC ATT SW
INPUT
SELECT SW
INPUT
SELECT SW
Audio process 1
Input
Output
PHONE
OUT
PHONE
OUT
D/A
A/D
VOL
Pre Amp
D/A
A/D
R-XLR GAINUP (menu)
VOL
Pre Amp
R-XLR GAINUP (menu)
Line Amp
SEL AUDIO
CH (menu)
Digital
Process
Line Amp
SEL AUDIO
CH (menu)
Digital
Process
Filters
ALC
EVR
Filters
ALC
EVR
32kHz : CH 3/ CH 4
48kHz :
32kHz : CH 1/ CH 2
48kHz : CH 1/ CH 2
Audio Block Diagram
Additional
Information
Driver
CH 4
RCA CH 4
RCA CH 3
CH 3
CVF display
CH 2
PHONE Rch
METER Rch
RCA CH 2/CH 4
PHONE Lch
METER Lch
RCA CH 1/CH 3
CH 1
Audio process 2
MUTE
MUTE
CH1 CH2
MUTE
MUTE
CH4
CH3
DELAY
normal
DELAY
Line Out
PB
Line Out
PB
normal
DELAY
AUD. M. SET (menu)
REC CH
SELECT SW
CH1
normal
Line Out
PB
CH2
CH4
Line Out
PB
normal
DELAY
CH3
AUDIO
MONITOR
MIX
MIX
CH1
AUDIO
MONITOR
AUD. M. SET (menu)
to 1394
to Tape
from 1394
from Tape
E
123
U.S.A.
CANON CONSUMER DIGITAL VIDEO EQUIPMENT LIMITED WARRANTY FOR THE UNITED STATES
The warranty set forward below is given by Canon U.S.A., Inc. with respect to equipment purchased in the
United States. The limited warranty is only effective upon presentation of your Bill of Sale or other proof of purchase.
Canon consumer digital video equipment is warranted under normal, non-commercial, personal use, against defective materials or workmanship as follows:
Parts:
Defective parts will be exchanged for new parts or comparable rebuilt parts for a period of ONE YEAR from the date of original purchase, except for a defective
Video Head, which will be exchanged for a period of three months from the date of purchase.
Labor:
For a period of ONE YEAR from the date of original purchase, labor will be provided free of charge by our factory service centers or designated service facilities
located in the United States.
When returning equipment under this warranty, you must pre-pay the shipping charges, and you must enclose the Bill of Sale or other proof of purchase with a complete
explanation of the problem. During your ONE-YEAR warranty period, repairs will be made and the equipment return-shipped to you free of charge. After your warranty
period is over, you will be given an estimate of the cost of repair and an opportunity to approve or disapprove of the repair expense before it is incurred. If you approve,
repairs will be made and the equipment return-shipped to you. (shipping charges apply). If you disapprove, we will return-ship the equipment at no charge to you.
Non-Canon brand peripheral equipment and software which may be distributed with Canon DV camcorders are sold “AS IS” without warranty of any kind
by CUSA, including any implied warranty regarding merchantability or fitness for a particular purpose. The sole warranty with respect to such non-Canon
brand items is given by the manufacturer or producer thereof.
CUSA shall have no responsibility under this limited warranty for use of Canon DV Camcorders in conjunction with incompatible peripheral equipment and incompatible
software.
In order to obtain warranty service, contact the authorized Canon retail dealer from whom you purchased the DV Camcorder or call the CANON INFORMATION CENTER AT
1-800-828-4040). You will be directed to the nearest service facility for your product.
This Limited Warranty covers all defects encountered in normal use of the equipment and does not apply in the following cases:
A) Loss or damage to the equipment due to abuse, mishandling, accident, improper maintenance, or failure to follow operating instructions;
B) If the equipment is defective as a result of leaking batteries, sand, dirt or water damage;
C) If defects or damages are caused by the use of unauthorized parts or by service other than our authorized agent;
D) If the equipment is used for commercial or industrial use.
This Limited Warranty does not cover cabinet (exterior finish), video cassette tape, head cleanings, nor does it apply to equipment purchased outside the United States. This
warranty does not cover units sold to rental firms, military operations, hotels, schools, hospitals or for other commercial, industrial, or institutional applications. These uses
are covered only by such specific warranty as Canon may issue with such sales.
This Limited Warranty does not apply to accessories or consumables for the DV Camcorder, which are sold “AS IS”, without warranty of any kind by CUSA.
Please retain this warranty card and your Bill of Sale as a permanent record of your purchase. This card is most important in order to be sure you are contacted right away
should there be a safety inspection, modification or product recall under applicable laws or regulations.
NO IMPLIED WARRANTY, INCLUDING MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE APPLIES TO THIS EQUIPMENT AFTER THE APPLICABLE PERIOD OF
EXPRESS WARRANTY OR GUARANTY, EXCEPT AS MENTIONED ABOVE, GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS EQUIPMENT SHALL BIND
THE UNDERSIGNED. (SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT
APPLY TO YOU). CUSA SHALL NOT BE LIABLE FOR LOSS OF REVENUES OR PROFITS, EXPENSE FOR SUBSTITUTE EQUIPMENT OR SERVICE, STORAGE CHARGES, LOSS OF
DATA, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THE DV CAMCORDER, REGARDLESS OF
THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF CUSA HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY
KIND AGAINST CUSA BE GREATER THAN THE PURCHASE PRICE OF THE DV CAMCORDER SOLD BY CUSA AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE
FOREGOING, YOU ASSUME ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO YOU AND YOUR PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT
OF USE, MISUSE OR INABILITY TO USE THE DV CAMCORDER NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF CUSA. (SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTIAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU).THIS WARRANTY SHALL NOT EXTEND TO ANYONE
OTHER THAN THE ORIGINAL PURCHASER OF THIS EQUIPMENT OR THE PERSON FOR WHOM IT WAS PURCHASED AS A GIFT.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
CANON U.S.A., INC.
CANADA
CANON CONSUMER DIGITAL VIDEO EQUIPMENT LIMITED WARRANTY
The limited warranty set forth below is given by Canon Canada Inc. (“Canon Canada”) with respect to Canon digital video equipment purchased in Canada. This limited warranty is only effective upon
presentation of a bill of sale or other proof of purchase for this Canon digital video equipment to a Canon Service Facility when repairs are required.
Canon consumer video digital equipment is warranted under normal, non-commercial, personal use, against defective materials or workmanship as follows:
Parts:
Defective parts will be exchanged for new parts or, at Canon Canada’s option, comparable rebuilt parts for a period of one year from the date of original purchase, except Video Heads which will
be exchanged for a period of 3 months from the date of purchase.
Labour: For a period of one year from the date of original purchase, labour will be provided free of charge by our Canon Service Facilities in Canada.
This limited warranty covers all defects except where:
(a)
The loss or damage to the product results from:
i) accident, natural disaster, mishandling, abuse, neglect, unauthorized product modification or failure to follow instructions contained in the instruction manual;
ii) the use of accessories, attachments, products, supplies, parts or devices with this Canon product that do not conform to Canon specifications or that cause abnormally frequent service problems;
iii) repairs or services performed by any party other than a Canon Service Facility;
iv) defective batteries or any exposure to water, sand or dirt;
v) shipping (claim must be presented to the shipper);
(b) Any serial number on the video equipment is altered or removed.
(c)
The digital video equipment is used for commercial, professional or industrial purposes.
This limited warranty does not cover the cabinet (exterior finish) of the digital video equipment, video cassette tapes, head cleanings, nor does it apply to digital video equipment purchased outside Canada.
TO OBTAIN WARRANTY SERVICE
Ship your Canon digital video equipment in its original carton, box or equivalent, properly packed, fully insured with shipping charges prepaid, together with a copy of your bill of sale or other proof of
purchase and a description of the problem to any of the Canon Service Facilities in Canada.
LIMITATIONS
Except as otherwise required by applicable legislation, this warranty is in lieu of all other warranties, conditions, guarantees or representations, express or implied, statutory or otherwise, relative to this Canon
product, including implied warranties or conditions of merchantability or fitness for a particular purpose.
Canon Canada assumes no liability for special, consequential or incidental damages or loss that may arise, whether on account of negligence or otherwise, from the use, misuse or inability to use this Canon
product (including loss of profit, revenue, video tapes or enjoyment) or from failure to conform to any express or implied warranties, conditions, guarantees or representations. Any recovery under this limited
warranty shall not exceed the purchase price of the product. Canon Canada does not assume or authorize any other person to assume for Canon Canada any other liability with respect to this Canon product.
This warranty does not extend to any person other than the original purchaser of this Canon product or the person for whom it was purchased as a gift and states your exclusive remedy.
NOTICE TO CONSUMER
If you plan to take important videos or if the product has not been used for some time, please check all functions with the instruction book before using it.
124
