HBB Sleeptight Travel Cot Instructions

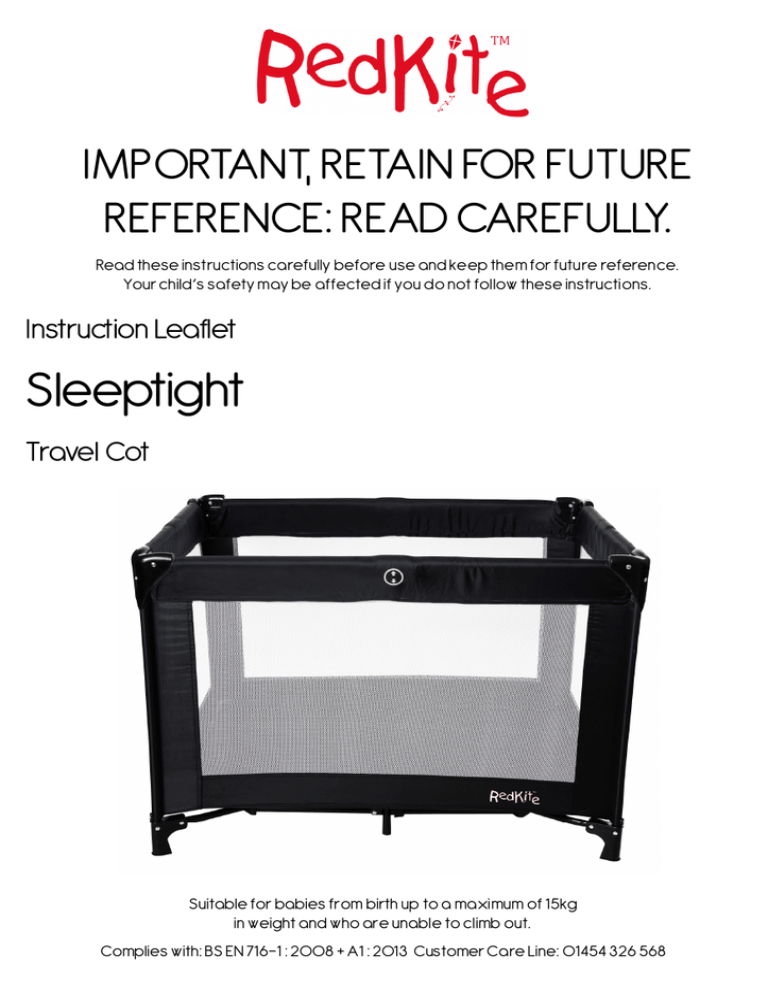

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY. Read these instructions carefully before use and keep them for future reference. Your child’s safety may be affected if you do not follow these instructions. Instruction Leaflet Sleeptight Travel Cot Suitable for babies from birth up to a maximum of 15kg in weight and who are unable to climb out. Complies with: BS EN 716-1 : 2008 + A1 : 2013 Customer Care Line: 01454 326 568 To open 1. Pull back the Velcro straps, remove the mattress and set aside. Fig 1. Open and unfold the mattress Fig 1. Velcro straps 2. Lift the four top folding rails up until they click into place. Do not push the centre hub down until all four folding rail locks are fully locked and engaged. The rails will be horizontal and rigid when this is done correctly. Fig 2. Centre hub Fig 2. NOTE If the folding rails do not click into place easily, check again that the centre hub is raised. Do not apply excessive force. 3. When all four folding rails have clicked and locked into place, spread the legs of the travel cot and then firmly press the centre hub down. The safety lock in the centre hub will then automatically engage. Fig 3. Folding joint with button underneath Folding rail Fig 3. 2. Push centre hub down 4. Place the mattress inside the travel cot with the padded side up. Fig 4. 5. Feed the Velcro straps on the bottom of the mattress through the corresponding holes on the base of the travel cot. Attach the straps to the other Velcro fastening under the cot. This ensures your mattress remains secured safely. You may need to lift the travel cot slightly to do this. Fig 5. 1. Spread legs of travel cot Fig 4. Mattress Safety Ensure the travel cot is correctly assembled before use, with the top bars locked straight, the centre foot firmly on the ground and the mattress in position. Do not, under any circumstances, use the travel cot unless all folding rails are fully engaged. Fig 5. Central folding mechanism Under side of travel cot Folding rail Folding rail Velcro tab and strap (x4) Pull centre hub up To fold 6. Remove the mattress. Pull the centre hub up to a raised position. Approx to half way or more. Fig 6. Fig 6. 7. Lift the folding rails in the centre marked by the arrows. Squeeze the button underneath the rail (folding joint), keep the button pressed in and drop the rails down. Fig 7. If you are experiencing difficulty with getting the folding rails to unlock, make sure the centre hub has been pulled all the way up and that you have lifted the folding rail before squeezing the button. Fig 7. Central folding mechanism (button underneath rail) 8. Pull the centre hub completely up and draw in the four corners of the travel cot and tuck in any loose fabric. Fig 8. Folding rails To store 9. Wrap the mattress around the travel cot and secure with the Velcro straps. Store in the carry bag. Fig 8. Handy hints For added safety this product features two safety devices that prevent inadvertent release of the folding mechanism. Please see the following helpful tips to ensure correct operation of the safety functions on this model. Centre hub Once the centre hub has been pushed fully down it is not possible to assemble / release the top folding rails. Draw corners in Fig 9. When assembling the travel cot, the top folding rails must be fully engaged before pushing the centre hub down. When folding the travel cot, the centre hub must be raised to allow the top folding rails to be folded. Top rails The top folding rail consists of three parts. There are two rods held either side of a central folding mechanism. Both sides of the central lock need to be released individually to enable the top rail to fold. Wrap mattress around General care: • The correct use and maintenance of this travel cot is essential. • Do not leave the travel cot in direct sunlight for long periods of time as this will cause the fabrics to fade. • Always store in a dry place. Cleaning: • Fabric covers, trims and the carry bag may be sponged clean with a mild detergent and warm water. Dry in the open position in a ventilated area and out of direct sunlight. The covering fabric is not removable. • Metal parts can be cleaned with a damp cloth then wiped dry. • Clean plastic parts with a mild soap and water solution. Maintenance: • Regularly inspect for loose, damaged or missing parts. Use the travel cot in accordance with the instructions; failure to do this or misuse may invalidate your warranty and be dangerous for the user. Extra Information: • Unlike cots that have rigid sides the Sleeptight travel cot has flexible sides. As a result the mattress is specially designed to prevent a suffocation hazard. The mattress has a solid base, a specific length and width and is less than 25mm thick in order to meet the relevant safety standards. Using a thicker or differently sized mattress may allow a child’s head to get between the mattress and the side of the travel cot causing suffocation. The mattress size used on this product is 950mm x 650mm x 25mm. • Do not use for a child that is able to climb out, reaches 86 cm in height or weighs more than 15kgs. (Whichever is first). • Intended for use by children under 3 years of age. • Never allow other children to play with the product. The travel cot is designed for baby whist sleeping not as a restraint device. Safety warnings: • WARNING: Your child’s safety is your responsibility. • WARNING: Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires, etc. in the near vicinity of the cot. • WARNING: Do not use the cot if any part is broken, torn or missing and use only spare parts approved by the manufacturer. • WARNING: Do not leave anything in the cot or place the cot close to another product, which could provide a foothold or present a danger of suffocation or strangulation, e.g. strings, blind/curtain cords, etc. • WARNING: Do not use more than one mattress in the cot. • Do not leave a child unattended in this product. Always keep your child in view. • Ensure that the product is correctly assembled before use; with the top bars locked straight, the centre foot firmly on the ground and the mattress in position. • Use only the mattress supplied with this product and ensure it remains in position. Do not use pillows. • Do not allow a child to lift the sides of the mattress up. • Position the product on a level and stable surface • Keep the product away from trailing cords and flexes. • This travel cot is designed for convenient limited use, it is not designed to replace a cot on a long term basis. • Do not use for more than one child at a time. Complies with: BS EN 716-1 : 2008 + A1 : 2013 Customer Care Line: 01454 326 568 Imported by: The Red Kite Baby Co Ltd. 35 Lavenham Road, Beeches Industrial Estate, Yate, Bristol, BS37 5QX. UK.
