QuickSpecs
HP StorageWorks 600 Modular Disk System
Overview
Finding it difficult to keep up with the growth in unstructured data? Looking for a cost-effective high capacity storage option?
With the HP StorageWorks 600 Modular Disk System, HP extends and redefines direct-attached storage for BladeSystem servers,
combining the simplicity and cost effectiveness of direct-attached storage without sacrificing flexibility or performance.
Use the MDS600 as part of a straight-forward in-rack 3 Gb/s SAS implementation that delivers high-density, low-cost external zoned
direct attach storage for HP BladeSystem servers. Easily configure storage on the fly with easy to use management software.
Up to six MDS600 storage devices can be supported off a single BladeSystem enclosure for up to 420 TB of capacity. End-to-end 3
Gb/s SAS connectivity enables a high performance storage solution using an HP Smart Array P700m controller, 3Gb SAS BL
switches, and the MDS600.
For more information on 3 Gb/s SAS storage solutions for HP BladeSystem, see: www.hp.com/go/directconnect.

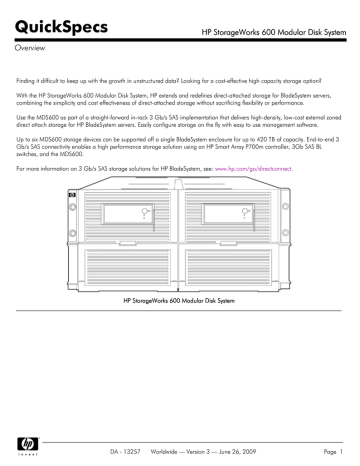

HP StorageWorks 600 Modular Disk System
DA - 13257
Worldwide — Version 3 — June 26, 2009
Page 1
QuickSpecs
HP StorageWorks 600 Modular Disk System
Overview
1.
2.
3.
4.
5.
6.
7.
8.
Power supply 1
Power On/UID 2 status panel
Fan module 1 (Drawer 2)
Primary I/O module (Drawer 2)
SAS in connector
SAS out connector
Power supply 3
UID 1 status pane
9.
10.
11.
12.
13.
14.
15.
16.
Fan module 1 (Drawer 1)
Primary I/O module (Drawer 1)
SAS in connector
SAS out connector
SAS in connector
SAS out connector
Secondary I/O module (Drawer 1)
Fan module 2 (Drawer 1)
17.
18.
19.
20.
21.
22.
Power supply 4
SAS in connector
SAS out connector
Secondary I/O module (Drawer 2)
Fan module 2 (Drawer 2)
Power supply 2
At A Glance
5U rackmount form factor
Supports seventy 3.5" LFF Universal hot pluggable SAS or SATA drives
Two pull-out drive drawers support hot plug large form factor dual-ported SAS or archival-class SATA drives in just 5U of rack
space (35 hot plug drives per drawer)
3 Gb/s SAS connectivity using HP StorageWorks 3Gb SAS BL switches in the interconnect bays, and HP Smart Array P700m
Controllers in each BladeSystem server
Using the Virtual SAS Manager (VSM) in the HP StorageWorks 3Gb SAS BL switch, assign or 'zone' drives of the MDS600
directly to BladeSystem servers; supports up to100 drives per BladeSystem server
Includes redundant hot plug fans and redundant 1200W 12V hot plug power supplies standard
Two dual port I/O module system recommended for SATA customers in single domain environments
Additional option kit with two dual port I/O modules is added for SAS drives, creating a dual domain environment
A single BladeSystem enclosure supports up to six MDS600's externally. When using SATA drives, a single redundant pair of
3Gb SAS BL switches can be used for this maximum configuration. When using SAS drives, a pair of redundant 3Gb SAS BL
switches are required.
3-0-0 warranty
DA - 13257
Worldwide — Version 3 — June 26, 2009
Page 2
QuickSpecs
HP StorageWorks 600 Modular Disk System
Overview
For detailed deployment information, see the HP direct connect external SAS storage for HP BladeSystem deployment guide:
http://h20000.www2.hp.com/bizsupport/TechSupport/DocumentIndex.jsp?contentType=SupportManual&lang=en&cc=
us&docIndexId=64180&taskId=101&prodTypeId=3709945&prodSeriesId=3832737
DA - 13257
Worldwide — Version 3 — June 26, 2009
Page 3
QuickSpecs
HP StorageWorks 600 Modular Disk System
Models
HP StorageWorks 600
Modular Disk System
HP MDS600 with two Dual Port I/O Module System
NOTE: Base model for SAS and SATA drives. Add AP763A when using dual ported
SAS drives to create a dual domain environment.
NOTE: Includes redundant hot plug power supplies and redundant hot plug fans.
NOTE: Includes two right angle and two left angle power cords.
HP StorageWorks MDS600 Dual I/O Module Option Kit
NOTE: Add AP763A option kit to AJ866A when using dual-ported SAS drives to
create a dual domain environment.
NOTE: Configuring the MDS600 with four I/O modules and dual port SAS hard
drives creates a dual domain environment for data path redundancy.
Configurations using single port SATA hard drives and only two dual port I/O
modules will not have data path redundancy, and a warning message will occur
stating that the storage shelf is not redundant.
HP StorageWorks MDS600 with (35) 1TB LFF SATA Hard Disk Drive Bundle
NOTE: Includes thirty-five 1TB LFF SATA drives, two dual port I/O modules,
redundant hot plug power supplies and redundant hot plug fans.
HP StorageWorks MDS 600 with (35) 450GB LFF SAS Hard Disk Drive Bundle
NOTE: Includes thirty-five 450GB LFF SAS drives, four dual port I/O modules,
redundant hot plug power supplies and redundant hot plug fans.
HP MDS600 Rack Crossbrace Option Kit
NOTE: Must order one rack support bracket option kit per rack if the MDS600 is
mounted at the bottom most location within an HP rack
NOTE: An MDS600 fully loaded with drives weighs 300lbs.
HP MDS6001U Support Tray Option Kit
NOTE: Must be ordered to support the MDS600 in an HP or 3rd party rack if no
other equipment is loaded directly beneath it. Order one kit per MDS600.
NOTE: This kit takes up 1U.
HP 2 Stk 4X Fixed C-13 Offset Power Cord Option Kit
NOTE: This power cord option kit connects four MDS600 power supplies to a single
power plug, reducing the number of PDUs needed in a rack. Can be used in several
configurations, including all four power supplies on a single MDS600 or with two
power supplies on each of two adjacent MDS600.
DA - 13257
Worldwide — Version 3 — June 26, 2009
AJ866A
AP763A
AP764A
AP765A
501879-B21
501037-B21
AF502B
Page 4
QuickSpecs
HP StorageWorks 600 Modular Disk System
Models
Related Items
HP StorageWorks 3Gb
SAS BL Switch
HP StorageWorks 3Gb SAS BL Switch - Single Pack
HP StorageWorks 3Gb SAS BL Switch - Dual Pack
Configuration Rules:
AJ864A
AJ865A
1. The SAS Switch is supported only in the HP c-Class Enclosures (c7000 &
c3000)
2. Support installation of the 3Gb SAS BL Switch in up to 4 interconnect bays in
the c7000 and up to 2 interconnect bays in the c3000.
3. (2) SAS Switches are required in the same c-Class enclosure interconnect bay
row for redundancy. Single switch configurations are supported as nonredundant.
4. For the c3000 enclosure, the SAS Switch can only be placed into interconnect
bays (3 and 4)
5. For the c7000 enclosure, the SAS Switch can only be placed into interconnect
bays (3 and 4), or (5 and 6) or (7 and 8).
6. For the c3000 enclosure using a server's mezzanine slot 1 along with enclosure
interconnect bay 2 is not supported.
P700m Smart Array
Controller
HP Smart Array P700m Controller/512
NOTE: P700m Smart Array Controller/512 recommended for optimum performance
with the MDS600.
Battery Kit for P700m Controller/512
HP Smart Array P700m Controller/256
NOTE: Does not support RAID 5 or 6. Does not support battery-backup.
Configuration Rules:
508226-B21
452348-B21
507925-B21
1. A half height blade server must have a P700m (508226-B21 or 507925-B21)
installed in server mezzanine slot 1 or mezzanine slot 2.
2. A full height blade server must have a P700m (508226-B21 or 507925-B21)
installed in server mezzanine slot 1, mezzanine slot 2 or mezzanine slot 3.
3. A double density blade server must have a P700m (508226-B21 or 507925B21) installed in server mezzanine slot 2 of each server. 4 SAS Switches in
interconnect bays 5, 6, 7 and 8 must also be included in this configuration.
For more information on the P700m, see: www.hp.com/go/p700m.
Tape Backup
HP StorageWorks 1/8 G2 SAS Tape Autoloaders (LTO-3 and LTO-4)
HP StorageWorks MSL2024 SAS Tape Libraries (LTO-3 and LTO-4)
HP StorageWorks MSL4048 SAS Tape Libraries (LTO-3 and LTO-4)
HP StorageWorks MSL8096 SAS Tape Libraries (LTO-3 and LTO-4)
D2D Backup System
HP StorageWorks D2D2500 Backup System
HP StorageWorks D2D4000 Backup System
DA - 13257
Worldwide — Version 3 — June 26, 2009
Page 5
QuickSpecs
HP StorageWorks 600 Modular Disk System
Features and Benefits
Key Features
High density, low cost SAS
storage for BladeSystem
servers
70 LFF Universal SAS or SATA drives in 5U
Two pull-out drive drawers support hot plug large form factor dual-ported SAS or archival-class
SATA drives in just 5U of rack space
Each pull-out drive drawer accesses a redundant set of hot plug power supplies and redundant hot
plug fans.
Straight forward SAS architecture provides zoned direct attach storage for BladeSystem servers; just
a Smart Array P700m controller in the blade server, a redundant pair of 3Gb SAS BL switches in
the chassis connected to an MDS600.
The same 3Gb SAS BL switch can be used to support the MSA2000sa in a shared SAS storage
environment. Use of both the MSA2000sa and the MDS600 off the same 3Gb SAS BL switch(es) is
not supported.
Build BladeSystem server
storage on the fly
MDS600 drives are assigned or 'zoned' to individual blade servers using SAS 2.0 zoning
capabilities. Use the Virtual SAS Manager (VSM) in the 3Gb SAS BL switch to dynamically assign
up to 100 drives specific BladeSystem servers, without complex configuration or re-cabling. Drives
zoned to each server appear as local storage to that server. This allows complete flexibility to
reconfigure quickly and easily without moving cables
With zoned direct attach capabilities; server administrators can build local storage on the fly
according to their configuration requirements.
Quickly deploy and expand capacity by configuring additional drives to a servers' drive zone
without moving a single cable.
High performance 3 Gb/s
SAS connectivity to
external storage
End-to-end 3 Gb/s SAS connectivity ensures a high performance storage solution using a P700m
Smart Array controller, 3Gb BL SAS switches, and the MDS600.
Since storage is contained within the rack, latency is reduced as data does not travel over large
distances.
To enhance performance even further, the Smart Array P700m controller installed in the blade
server provides 512 MB battery-backed write cache (BBWC).
HP reliability
Deploy with confidence. HP offers a complete end-to-end storage solution including the MDS600
storage enclosure, HP 3Gb SAS BL Switch, Smart Array P700m controller and HP ProLiant and
Integrity Blade Servers and c-Class Enclosures.
Familiar Smart Array technology of the Smart Array P700m Controller/512 MB enables support
for RAID levels 0, 1, 1+0, 5 and RAID 6 with ADG. Optional battery-backed write cache.
Advanced Data Guarding (RAID 6): This is the highest level of fault tolerance. It allocates
two sets of parity data across drives and allows simultaneous write operations. This level of
fault tolerance can withstand two simultaneous drive failures without downtime or data loss.
Distributed Data Guarding (RAID 5): This allocates parity data across multiple drives and
allows simultaneous write operations. It is recommended for up to 14 hard drives.
Receive pre-failure alerts with HP SIM. When drives installed in an MDS600 are used in
conjunction with the Smart Array P700m Controller and Systems Insight Manager, the Smart Array
firmware in HP hard drives enables extensive fault prediction capabilities. If potential problems
develop in one of the drives, the Smart Array Controller, Systems Insight Manager and/or Smart
hard disk drive will send a pre-failure alert so you can have the drive replaced, before it fails,
under warranty.
DA - 13257
Worldwide — Version 3 — June 26, 2009
Page 6
QuickSpecs
HP StorageWorks 600 Modular Disk System
Family Information
Product Technology
SAS
Modular Chassis
Drives available
Scalability
RAID
Power supplies
3Gb/s SAS
5U, 70 Large Form Factor Universal SAS or SATA drive bays for SAS and
SATA hard
Serial Attached SCSI (SAS) enterprise-class drives designed for high volume
24x7 usage. Serial-ATA (SATA) are usually reserved for archival of data as
they are both relatively inexpensive and are available in very large capacities.
The MDS600 can accommodate both SAS and SATA drives within the same
enclosure. SAS drive performance can be approximately 30% greater than
SATA performance on sequential host IO. SAS performance excels in
sequential lower latency response time and random IO per second
transaction performance due to higher rpm disk speeds yielding lower seek
times.
Up to 70 SAS or SATA 3.5" hot plug hard drives per MDS600
A single BladeSystem enclosure supports up to six MDS600's externally.
When using SATA drives, a single redundant pair of 3Gb SAS BL switches
can be used for this maximum configuration. When using SAS drives, a pair
of redundant 3Gb SAS BL switches are required.
RAID is provided by the Smart Array P700m Controller installed in each
BladeSystem server. For optimum performance, the Smart Array P700m
Controller/512 with BBWC is recommended.
http://h18004.www1.hp.com/products/servers/proliantstorage/
arraycontrollers/smartarrayp700m/index.html
Includes four redundant hot plug 1200W 12V hot plug power supplies
Two right angle and two left angle power cords shipped standard.
Each pull-out drive drawer accesses a redundant set of power
supplies.
Includes four redundant hot plug fans.
Each pull-out drive drawer accesses a redundant set of redundant
fans.
Fans
Configuration and
Management Tools
Management/Health
Utilities
DA - 13257
3Gb SAS BL switch: Use the Virtual SAS Manager (VSM) to dynamically
assign drives in the MDS600 to each BladeSystem server, without complex
configuration or re-cabling. This allows complete flexibility to reconfigure
quickly and easily without moving cables.
Smart Array P700mcontroller: Array Configuration Utility (ACU) provides
configuration and management of hard drives, and supports online array
capacity expansion, logical drive extension, assignment of online spares and
RAID or stripe size migration.
Active hardware management using HP SIM: Manage the array with the
highly refined HP Systems Insight Manager. Smart Components are available
to easily update firmware. A convenient Integrated Management Log records
hundreds of events and stores them in an easy-to-view format.
Worldwide — Version 3 — June 26, 2009
Page 7
QuickSpecs
HP StorageWorks 600 Modular Disk System
Family Information
Server Compatibility
BL2x220 G5
BL260G5
BL280c G6
BL460c G1/G5/G6
BL465c G5
BL480c G1
BL490c G6
BL495c G5
BL680c G1/G5
BL685c G5/G6
BL860c (MDS600 supports SAS drives only for this server)
BL870c (MDS600 supports SAS drives only for this server)
OS Support
Windows Server 2003
Windows Server 2008
Red Hat Enterprise Linux
RHEL4 U6
RHEL5 U2
SLES (x86) (AMD64/EM64T)
SLES9 SP4
SLES10 SP2
VMware ESX 3.5 u4 and ESX 4.0
HP-UX 11iv2
HP-UX 11iv3
Open VMS V8.3-1H1
Integrity Windows Release 6.2 for 2003
Integrity Windows Release 6.2 for 2008
DA - 13257
Worldwide — Version 3 — June 26, 2009
Page 8
QuickSpecs
HP StorageWorks 600 Modular Disk System
Service and Support, HP Care Pack and Warranty Information
Warranty
Warranty Upgrade
Options
3-0-0 warranty
Three-year limited warranty, no parts exchange, no next business day delivery
NOTE: The warranties of the hard drive options purchased for the MDS600 are different for SAS hard
drives versus SATA hard drives. SAS hard drive options have a three year warranty and SATA hard drives
options have a one year warranty. Reference HP's communication for further details: http://www.hp.com
go to search, enter CN0089W
Response - Upgrade on-site response from next business day to same day 4-hour response or 6
Hour Call To Repair
Coverage - Extend hours of coverage from next business day to 9 hours x 5 days to 24 hours x 7
days
Duration Select duration of coverage for a period of 1, 3, 4 or 5 years
HP Care Pack Services. Scalable, Flexible, Dependable. Like your storage.
Your storage is evolving. Get scalable support that evolves with it. HP Care Pack Services is an easy-to-buy, easy-to-use portfolio of
packaged services covering your lifecycle needs. You can rely on our highly skilled, HP certified professionals to offer a breadth of
expertise across leading storage technologies, and work side by side with you for optimal results. Partner with HP Technology
Services to boost availability and avoid costly downtime by mitigating technology-related business risks. To help take the worry out of
deploying, supporting and managing your storage technologies, we've designed a portfolio of service options that are as flexible,
scalable and affordable as our storage.
Protect your business beyond the warranty
Standard warranty protects against product defects and some causes of downtime. HP Care Pack Services helps you proactively
guard against unplanned downtime which can reduce your productivity and profitability. By using a standard approach to warranty
uplifts, such as HP Care Pack Services, customers can be certain of consistency of operations for both mission-critical and standard
business computing.
Extending warranties with HP Care Pack Services
The key to normalizing the warranty of combined solutions-is making service uplift simple: HP Care Pack Services. This portfolio of
predefined packages, extending across the entire IT lifecycle, offering consulting, education, technical support, optimization, risk
assessment, and more. It's entirely flexible allowing customers to extend the cover to the precise level of support required. Customer's
standard hardware warranty, for example, can be upgraded to next-business-day response, to same-day coverage, or even to a
committed six-hour call-to-repair service available 24 hours every day of the week.
Provide consistent, predictable levels of support across your entire department or business
Give you direct access to proven technical and problem-solving expertise
Offer a choice of response-time and repair-time commitments
Are available whenever and wherever you do business
For many products, post-warranty HP Care Pack Services are available when your original warranty has expired. Choose the support
levels that meet your business requirements, from basic to mission-critical. In the new world of business technology, when your
technology has to work for your business to work, who can you trust to make your technology work? HP Technology Services, the
trusted business technology experts who manage your technology in action, because when technology works, business works.
http://www.hp.com/hps/storage
NOTE: Care Pack Services availability may vary by product and country.
DA - 13257
Worldwide — Version 3 — June 26, 2009
Page 9
QuickSpecs
HP StorageWorks 600 Modular Disk System
Service and Support, HP Care Pack and Warranty Information
Recommended Services
HP Care Pack Services recommended for optimal satisfaction of all deployments of your product.
3-Year HP Support Plus 24 3-Year HP Support Plus 24 provides integrated hardware and software
support services designed specifically for your technology. HP Services
engineers deliver reactive onsite hardware support and over-the-phone
software support around-the-clock.
HP Installation Service
HP Hardware Installation provides initial hardware installation of your
product into your technology environment (System configuration is not
included)
Product Number
Product Name
AJ866A
HP MDS600
AP764A
AP765A
Related Services
Service Name
3-Year HP Support Plus
24
HP 3y 4h 24x7 MDS600
HW Supp
HP Installation Service
HP MDS600 Bundle w/HD 3-Year HP Support Plus
24
HP 3y 4h 24x7 MDS600
HW Supp
HP Installation Service
HP MDS600 Bundle w/HD 3-Year HP Support Plus
24
HP 3y 4h 24x7 MDS600
HW Supp
HP Installation Service
Care Pack Services
Product # and Band
HA110A3-4ZZ
Alternate Care Pack
Services Product #
UQ292E
HA113A1-5BT
HA110A3-4ZZ
UQ307E
UQ292E
HA113A1-5BT
UQ307E
HA110A3-4ZZ
UQ292E
HA113A1-5BT
UQ307E
Services that will enhance the user experience in many product deployments.
HP Proactive Select Service HP Proactive Select Service improves IT performance and manageability
through the use of cost effective flexible proactive services. This proactive
service allows you to accelerate the ROI of your technology environment, by
tailoring specific services to more quickly take advantage of your investment.
HP Entry Storage Data
HP Entry Storage Data Migration Service for Windows offers you a cost
Migration Service for
competitive and convenient way to accommodate data migration triggered
Windows
by a need to refresh or consolidate storage, or to create different storage
tiers. This service offers a migration cost in line with the costs of storage
products in small and medium-sized storage environments. The service is
delivered via a skilled HP service specialist with special consideration for
data availability, integrity, and ongoing operational performance during the
transfer process
DA - 13257
Worldwide — Version 3 — June 26, 2009
Page 10
QuickSpecs
HP StorageWorks 600 Modular Disk System
Service and Support, HP Care Pack and Warranty Information
Service Name
HP Proactive Select Service
HP Entry Storage Data Migration Service
for Windows
eSupport
Care Pack Services
Product # and Band
Contact your HP sales rep or Channel
Partner for assistance
Contact your HP sales rep or Channel
Partner for assistance
Alternate Care Pack Service Product #
Contact your HP sales rep or Channel
Partner for assistance
Contact your HP sales rep or Channel
Partner for assistance
HP eSupport is a portfolio of technology-based services that assist you with managing your business
environment - from the desktop to the data center.
Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to
manage the daily operations of your IT environment.
Features include:
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service agreement. To access the support
portal, visit: http://www.hp.com/support
Remote Support Technology (RST)-HP Remote Support Pack
Taking a more proactive approach to IT support, the HP Remote Support pack plug-in module easily
integrates with HP Systems Insight Manager to provide a powerful, unified "single pane of glass" solution
for onsite and remote management.
HP Remote Support Pack enhances HP Systems Insight Manager with intelligent event diagnosis plus the
automatic submission of hardware event notifications securely to HP support, including acknowledgment
and status returns. It adds remote configuration collections to allow the delivery of assessment and
proactive services for your SAN storage and HP-UX environments.
Customer Technical
Training
Consider education as an integral part of your strategy to get the best return on investment for your HP
storage solution. HP offers a variety of training courses on storage software, networking, archiving and
disk storage systems. Our classes are available in many delivery modalities from traditional instructor-led
courses at one of our 80 training centers worldwide to on-site training customized to your needs or
online. www.hp.com/learn/storage
HP Services Awards
HP Services continues to be recognized for service and support excellence by customers, partners,
industry organizations and publications around the world. Recent honors and award reflect our services
team's dedications, technical expertise, professionalism and uncompromising commitment to customer
satisfaction. For a list of all our awards, please visit:
http://h20129.ww2.hp.com/services/cache/77318-0-0-225-121.html.
DA - 13257
Worldwide — Version 3 — June 26, 2009
Page 11
QuickSpecs
HP StorageWorks 600 Modular Disk System
Service and Support, HP Care Pack and Warranty Information
Additional Services
Information
For more information about HP Care Pack Services for Storage, please visit:
http://www.hp.com/hps/storage
If you have specific questions, contact your local HP representative. Contact information for a
representative in your area can be found at "Contact HP" http://www.hp.com
DA - 13257
Worldwide — Version 3 — June 26, 2009
Page 12
QuickSpecs
HP StorageWorks 600 Modular Disk System
Configuration Information
Step 1 - MDS600 - Choose SAS or SATA configurations
Select one:
Model Name
MDS600
Model Description:
HP MDS600 with two Dual Port I/O Module System
NOTE: Base model for SAS and SATA drives. Add AP763A when using dual-ported
SAS drives to create a dual domain environment.
NOTE: Includes four hot plug power supplies and four hot plug fans for n+2
redundancy.
NOTE: Includes two right angle and two left angle power cords.
HP StorageWorks MDS 600 Dual I/O Module Option Kit
NOTE: Add AP763A option kit to AJ866A when using dual-ported SAS drives to
create a dual domain environment.
HP StorageWorks MDS 600 with (35) 1TB LFF SATA Hard Disk Drive Bundle
NOTE: Includes thirty-five 1TB LFF SATA drives, two dual port I/O modules,
redundant hot plug power supplies and redundant hot plug fans.
HP StorageWorks MDS 600 with (35) 450GB LFF SAS Hard Disk Drive Bundle
NOTE: Includes thirty-five 450GB LFF SAS drives, four dual port I/O modules,
redundant hot plug power supplies and redundant hot plug fans.
Part Number
AJ866A
AP763A
AP764A
AP765A
Step 2 - Choose Supported Options For Smart Array P700m Controller
Select each required option with quantities specified.
SAS Controller:
HP Smart Array P700m Controller/512
Smart Array P700m
controller
Battery Kit for P700m Smart Array Controller/512
HP Smart Array P700m Controller/256
SAS Switch:
HP StorageWorks 3Gb SAS BL Switch - Single Pack
3Gb SAS BL Switch
HP StorageWorks 3Gb SAS BL Switch - Dual Pack
Part Number
508226-B21
452348-B21
507925-B21
AJ864A
AJ865A
Step 2b - SAS Cables (as needed for connecting MDS600 to 3Gb/s SAS BL Switch)
Model Description
mini-SAS 4x 2M Cable All
407339-B21
DA - 13257
Worldwide — Version 3 — June 26, 2009
Page 13
QuickSpecs
HP StorageWorks 600 Modular Disk System
Configuration Information
Step 3 - MDS600 SAS and SATA Drive Options
NOTE: an MDS600 fully loaded with drives weighs 300lbs.
Hot Plug 3.5" SAS Drives
HP 146GB SAS 3.5" 15K DP HDD
HP 300GB SAS 3.5" 15K DP HDD
HP 400GB SAS 3.5" 10K DP HDD
HP 450GB SAS 3.5" 15K DP HDD
HP 750 GB 7.2k 3.5" DP SAS MDL HDD
HP 1 TB 7.2k 3.5" DP SAS MDL HDD
Hot Plug 3.5" SATA Drives
HP 500GB 3G SATA 7.2K 3.5" HDD
HP 750GB 3G SATA 7.2K 3.5" HDD
HP 1TB 3G SATA 7.2K 3.5" MDL HDD
384854-B21
416127-B21
459508-B21
454232-B21
461135-B21
461137-B21
458928-B21
458930-B21
454146-B21
Step 4 - Choose Rack Options
Choose HP Rack 10000 series Cabinets for the MDS600
The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers.
The 10000 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using
the latest processors.
http://h18004.www1.hp.com/products/servers/proliantstorage/racks/10000series/index.html
NOTE: An MDS600 fully loaded with drives weighs 300lbs.
DA - 13257
Worldwide — Version 3 — June 26, 2009
Page 14
QuickSpecs
HP StorageWorks 600 Modular Disk System
Technical Specifications
MDS600
INPUT POWER
(per power supply)
TEMPERATURE AND
HUMIDITY RANGES
PHYSICAL
BTU Rating (maximum)
Rated Line Voltage
Rated Input Frequency
Rated Input Current
Rates Input Power
Operating Temperature
90 to 132 VAC 180 to 264 VAC
47 to 63 Hz
10A (at 100 VAC), 7.8A (at 200VAC)
964 W (at 100 VAC), 1412 W (at 240 VAC)
50° to 95° F (10° to 35° C)
NOTE: Maximum Rated 10°C per/hr (50°F/hr)
Storage Temperature
-22° to 140° F (-30° to 60° C)
NOTE: Maximum Rated 20°C/hr (68°F/hr)
Operating Humidity
10% to 90% relative humidity (Rh), 28º C (82.4º
F) maximum wet bulb temperature, noncondensing
Non-Operating Humidity 5% to 95% relative humidity (Rh), 38.7º C
(101.66º F) maximum wet bulb temperature,
non-condensing
Length
89.12 cm
Width
44.7 cm (17.6 in)
Height
22.1 cm (8.7 in)
Chassis
72.58 kg (160 lb) with no hard drives installed
Weight
136 kg (300 lb) with hard drives installed
3535 Btu/hr
Power consumption at 208V
Drive Type
Typical
Service Position Maximum
7200 RPM SATA
800W
1140W
10K 400G SAS
940W
1340W
15K SAS
1280W
1710W
Power consumption at 120V
Drive Type
Typical
Service Position Maximum
7200 RPM SATA
1000W
1500W
10K 400G SAS
1100W
1600W
15K SAS
1320W
1770W
NOTE: Input Power and Heat Dissipation specifications are maximum values and apply to worst-case
conditions at full rated power supply load. The power/heat dissipation for your installation will vary
depending on the equipment configuration.
NOTE: Temperature ratings shown are for sea level. An altitude derating of 1°C per 300 m (1.8°F per
1,000 ft) to 3048 m (10,000 ft) is applicable. No direct sunlight allowed. The upper limit may be limited
by the type and number of options installed.
NOTE: Storage maximum humidity of 95% is based on a maximum temperature of 45°C (113°F).
Altitude maximum for storage corresponds to a pressure minimum of 70 KPa.
RAID Support
RAID 6 with ADG (Advanced Data Guarding) available on the P700m/512
RAID 5 (Distributed Data Guarding) available on the P700m/512
RAID 1 + 0 (Mirroring and Stripping)
RAID 1 (Mirroring)
RAID 0 (Stripping)
Upgradeable Firmware
Yes - Online and Offline
Disk Drives and Enclosure HP 3.5" SAS 3 Gb/s
Protocol Support
DA - 13257
Worldwide — Version 3 — June 26, 2009
Page 15
QuickSpecs
HP StorageWorks 600 Modular Disk System
Technical Specifications
I/O Module
Connector Type
Number of Ports
External mini-SAS 4x (SFF8088)
Two
© Copyright 2009 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel
Corporation. Unix is a registered trademark of The Open Group.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
DA - 13257
Worldwide — Version 3 — June 26, 2009
Page 16
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
