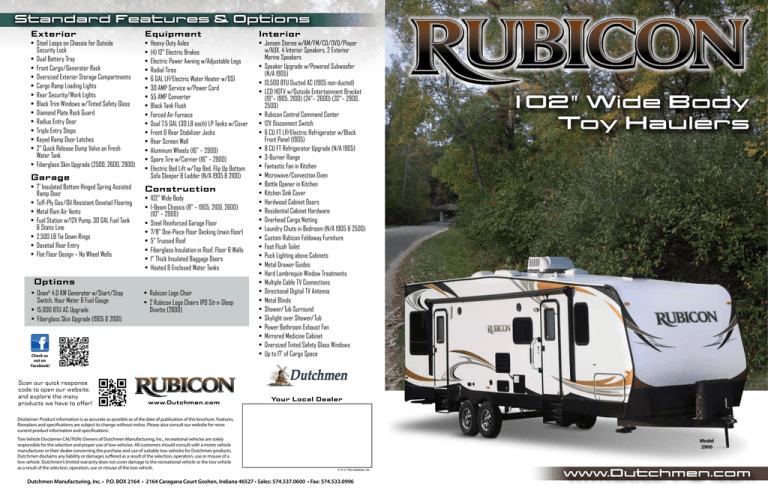

2014 Rubicon Brochure
Standard Features & Options
Exterior
Equipment
Interior
• Steel Loops on Chassis for Outside
Security Lock
• Dual Battery Tray
• Front Cargo/Generator Rack
• Oversized Exterior Storage Compartments
• Cargo Ramp Loading Lights
• Rear Security/Work Lights
• Black Trim Windows w/Tinted Safety Glass
• Diamond Plate Rock Guard
• Radius Entry Door
• Triple Entry Steps
• Keyed Ramp Door Latches
• 2" Quick Release Dump Valve on Fresh
Water Tank
• Fiberglass Skin Upgrade (2500, 2600, 2900)
• Heavy-Duty Axles
• (4) 12" Electric Brakes
• Electric Power Awning w/Adjustable Legs
• Radial Tires
• 6 GAL LP/Electric Water Heater w/DSI
• 30 AMP Service w/Power Cord
• 55 AMP Converter
• Black Tank Flush
• Forced Air Furnace
• Dual 7.5 GAL (30 LB each) LP Tanks w/Cover
• Front & Rear Stabilizer Jacks
• Rear Screen Wall
• Aluminum Wheels (16" – 2900)
• Spare Tire w/Carrier (16" – 2900)
• Electric Bed Lift w/Top Bed, Flip Up Bottom
Sofa Sleeper & Ladder (N/A 1905 & 2100)
• Jensen Stereo w/AM/FM/CD/DVD/Player
w/AUX, 4 Interior Speakers, 2 Exterior
Marine Speakers
• Speaker Upgrade w/Powered Subwoofer
(N/A 1905)
• 13,500 BTU Ducted AC (1905 non-ducted)
• LCD HDTV w/Outside Entertainment Bracket
(19"– 1905, 2100) (24"– 2600) (32"– 2900,
2500)
• Rubicon Central Command Center
• 12V Disconnect Switch
• 6 CU FT LP/Electric Refrigerator w/Black
Front Panel (1905)
• 8 CU FT Refrigerator Upgrade (N/A 1905)
• 3-Burner Range
• Fantastic Fan in Kitchen
• Microwave/Convection Oven
• Bottle Opener in Kitchen
• Kitchen Sink Cover
• Hardwood Cabinet Doors
• Residential Cabinet Hardware
• Overhead Cargo Netting
• Laundry Chute in Bedroom (N/A 1905 & 2500)
• Custom Rubicon Foldaway Furniture
• Foot Flush Toilet
• Puck Lighting above Cabinets
• Metal Drawer Guides
• Hard Lambrequin Window Treatments
• Multiple Cable TV Connections
• Directional Digital TV Antenna
• Metal Blinds
• Shower/Tub Surround
• Skylight over Shower/Tub
• Power Bathroom Exhaust Fan
• Mirrored Medicine Cabinet
• Oversized Tinted Safety Glass Windows
• Up to 17' of Cargo Space
Garage
• 7' Insulated Bottom Hinged Spring Assisted
Ramp Door
• Tuff-Ply Gas/Oil Resistant Dovetail Flooring
• Metal Ram Air Vents
• Fuel Station w/12V Pump, 30 GAL Fuel Tank
& Static Line
• 2,500 LB Tie Down Rings
• Dovetail Rear Entry
• Flat Floor Design – No Wheel Wells
Construction
• 102" Wide Body
• I-Beam Chassis (8" – 1905, 2100, 2600)
(10" – 2900)
• Steel Reinforced Garage Floor
• 7/8" One-Piece Floor Decking (main floor)
• 5" Trussed Roof
• Fiberglass Insulation in Roof, Floor & Walls
• 1" Thick Insulated Baggage Doors
• Heated & Enclosed Water Tanks
Options
•Onan® 4.0 KW Generator w/Start/Stop
Switch, Hour Meter & Fuel Gauge
• 15,000 BTU AC Upgrade
• Fiberglass Skin Upgrade (1905 & 2100)
• Rubicon Logo Chair
• 2 Rubicon Logo Chairs IPO Sit-n-Sleep Dinette (2600)
Check us
out on
Facebook!
Scan our quick response
code to open our website,
and explore the many
products we have to offer!
www.Dutchmen.com
102" Wide Body
Toy Haulers
Your Local Dealer
Disclaimer: Product information is as accurate as possible as of the date of publication of this brochure. Features,
floorplans and specifications are subject to change without notice. Please also consult our website for more
current product information and specifications.
Tow Vehicle Disclaimer CAUTION: Owners of Dutchmen Manufacturing, Inc., recreational vehicles are solely
responsible for the selection and proper use of tow vehicles. All customers should consult with a motor vehicle
manufacturer or their dealer concerning the purchase and use of suitable tow vehicles for Dutchmen products.
Dutchmen disclaims any liability or damages suffered as a result of the selection, operation, use or misuse of a
tow vehicle. Dutchmen’s limited warranty does not cover damage to the recreational vehicle or the tow vehicle
as a result of the selection, operation, use or misuse of the tow vehicle.
Model
2900
5.14 © Thor Industries, Inc.
Dutchmen Manufacturing, Inc. • P.O. BOX 2164 • 2164 Caragana Court Goshen, Indiana 46527 • Sales: 574.537.0600 • Fax: 574.533.0996
www.Dutchmen.com
Rubicon offers something
for everyone! Custom
foldaway furniture,
Jensen stereo system,
roomy sleeping areas,
storage cabinets
everywhere you turn,
and durable flooring all
1905
OHC
OHC
MICRO
REFER
SOFA
14'
FOLD-AWAY
DINETTE
FUEL FILL
OHC
CONTROL
CENTER
OPTIONAL
CHAIR
1905
Avg Ship Wt . . . . . . . . . . . 5,834
Hitch Weight . . . . . . . . . . . 817
Cargo Capacity . . . . . . . . 3,166
Height . . . . . . . . . . . . . . . . 11' 8"
Length . . . . . . . . . . . . . . . 24' 8"
Fresh Water Capacity . . . . *82
Black Water Capacity . . . . . 42
Grey Water Capacity . . . . . . 42
2100
Avg Ship Wt . . . . . . . . . . . 6,708
Hitch Weight . . . . . . . . . . . 939
Cargo Capacity . . . . . . . . 2,792
Height . . . . . . . . . . . . . . . 12' 1"
Length . . . . . . . . . . . . . . . 26' 1"
Fresh Water Capacity . . . . *92
Black Water Capacity . . . . . 42
Grey Water Capacity . . . . . . 42
2500
Avg Ship Wt . . . . . . . . . . . 7,902
Hitch Weight . . . . . . . . . . 1,186
Cargo Capacity . . . . . . . . 3,098
Height . . . . . . . . . . . . . 11' 11"
Length . . . . . . . . . . . . . . . 31' 6"
Fresh Water Capacity . . . . *82
Black Water Capacity . . . . . 42
Grey Water Capacity . . . . . . 42
2600
Avg Ship Wt . . . . . . . . . . . 7,842
Hitch Weight . . . . . . . . . . 1,098
Cargo Capacity . . . . . . . . 3,158
Height . . . . . . . . . . . . . . . 12' 1"
Length . . . . . . . . . . . . . . . 31' 1"
Fresh Water Capacity . . . . *92
Black Water Capacity . . . . . 42
Grey Water Capacity . . . . . . 42
2900
Avg Ship Wt . . . . . . . . . . . 9,380
Hitch Weight . . . . . . . . . . 1,595
Cargo Capacity . . . . . . . . 2,620
Height . . . . . . . . . . . . . . . 12' 3"
Length . . . . . . . . . . . . . . . 34' 8"
Fresh Water Capacity . . . . *92
Black Water Capacity . . . . . 42
Grey Water Capacity . . . . . . 42
EXTERIOR SHOWER
OHC MICRO
OHC
NIGHTSTAND
SOFA
OHC
RADIO
TV / DVD
OHC
QUEEN BED
BATTERY /
STORAGE TRAY
OHC
12' 3"
FOLD-AWAY
DINETTE
OHC
TUB / SHOWER
REFER
SOFA
SPRING ASSIST
RAMP DOOR
OHC
TV / RADIO / DVD
OHC
2100
PANTRY
SOFA
TUB / SHOWER
SPRING ASSIST
RAMP DOOR
QUEEN BED
BATTERY /
STORAGE TRAY
1905 BATH
1905 IN SAND
OHC
great flexibility.
FUEL FILL
WARD
provide interiors with
Specifications
WARD
OHC
OPTIONAL
CHAIR
TV LOCATION
CONTROL
CENTER
2500
OHC
EN
TC
R
TABLE
OHC
EXTERIOR SHOWER
OHC
OHC
MICRO
REFER
TUB / SHOWER
QUEEN BED
FOLD-AWAY
DINETTE
BATTERY /
STORAGE TRAY
17' 3"
OPTIONAL
HAPPIJAC
POWER
BUNKS
OHC
NIGHTSTAND
OHC
SOFA
SPRING ASSIST
RAMP DOOR
NIGHT
STAND
OHC
FUEL FILL
SHIRT
CLOSET
60" ROLL-OVER SOFA
OHC
2600
OHC
QUEEN BED
TE
QUEEN
HAPPIJAC
POWER
BUNKS
BATTERY /
STORAGE TRAY
14'
WARDROBE
EN
SPRING ASSIST
RAMP DOOR
TUB/SHOWER
DRESSER/
38 X 24
LINEN
REFER/
PANTRY
TV
OHC
OHC
WARD
TV / RADIO / DVD
CONTROL
CENTER
OPTIONAL
CHAIR
OPTIONAL
(2) CHAIRS
IPO DINETTE
OHC
OPTIONAL
HAPPIJAC
POWER
BUNKS
TUB
REFER
OHC
Decor Choices
You’ll appreciate Rubicon’s stain-resistant
fabrics, generous counter and storage spaces
Sand
and attention to detail. Our 8-1/2 foot wide
WARD
OHC
QUEEN
BED
S/C
10'
OHC
2900 IN SLATE
STOWABLE
TABLE
NIGHT
STAND
BATTERY /
STORAGE TRAY
SPRING ASSIST
RAMP DOOR
RECLINING SOFA SEATING
FUEL FILL
ENT CENTER
2900
OPTIONAL
CHAIR
*Fresh water capacity includes water heater
Disclaimer: Features, floorplans and specifications are subject to
change without notice. Our weights represent how most units are
built, inclusive of many commonly-ordered options.
Slate
body gives your family extra space to play and
relax. From practical, no-nonsense design and
comfortable interiors to unlimited versatility,
Rubicon makes the perfect base camp.
www.Dutchmen.com
2900 BEDROOM
