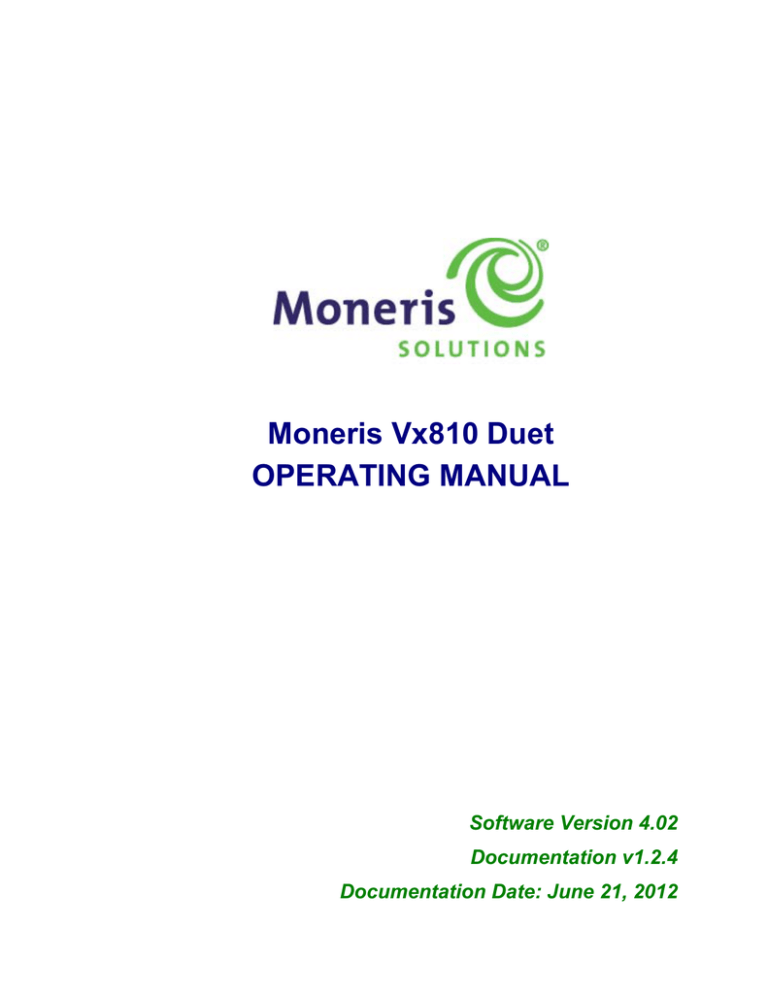

Moneris Vx810 Duet

OPERATING MANUAL

Software Version 4.02

Documentation v1.2.4

Documentation Date: June 21, 2012

® Moneris and the Moneris Solutions design are registered trademarks of Moneris Solutions Corporation. All other marks or registered trademarks are the marks or registered trademarks of their respective owners.

Copyright – © 2012 Moneris Solutions, 3300 Bloor Street West, Toronto, Ontario, M8X 2X2

All Rights Reserved. This manual shall not wholly or in part, in any form or by any means, electronic, mechanical, including photocopying, be reproduced or transmitted without the authorized consent of Moneris Solutions.

For informational purposes only. Neither Moneris Solutions Corporation (“Moneris”) nor any of its affiliates shall be liable for any direct, indirect, incidental, consequential or punitive damages arising out of use of any of the information contained in this guide. Neither Moneris or any of its affiliates nor any of our or their respective licensors, licensees, service providers or suppliers warrant or make any representation regarding the use or the results of the use of the information, content and materials contained in this guide in terms of their correctness, accuracy, reliability or otherwise.

Your credit and/or debit card processing is separately governed by the Terms and Conditions of your Moneris VISA

Merchant Agreement, your Moneris MasterCard Merchant Agreement and/or your Moneris Debit Card and Terminal

Agreement (collectively the “Merchant Agreements”), as applicable with Moneris. It is the merchant’s responsibility to ensure that proper card processing procedures are followed at all times. Please refer to your Merchant manuals and the Terms and Conditions of your Merchant Agreement(s) for details. The Moneris Merchant Operating Manual is available for free download at moneris.com/en/Support/Downloads/MerchantManuals.aspx.

Table of Contents

CHAPTER

1.

INTRODUCTION .......................................................................................................... 1

1.1

Getting Started .................................................................................................................1

1.2

Learning About the Terminal...........................................................................................1

1.3

Caring for your Moneris Hardware..................................................................................2

1.3.1

Caring for the Terminal.....................................................................................2

1.3.2

Caring for the Base............................................................................................2

CHAPTER

2.

FEATURES AND PROCEDURES ............................................................................... 3

2.1

Standard Features.............................................................................................................3

2.1.1

Language Selection for Display, Receipts and Reports .....................................3

2.1.2

Card Information Security.................................................................................4

2.1.3

Communications Status .....................................................................................5

2.1.4

The Menu Feature .............................................................................................5

2.1.5

Demo Mode .....................................................................................................28

2.2

Optional Features ...........................................................................................................30

2.2.1

Optional Features............................................................................................30

2.2.2

Chip Cards.......................................................................................................31

2.2.3

Contactless Cards............................................................................................32

2.2.4

Signatureless Transactions..............................................................................33

2.2.5

Tip Processing .................................................................................................34

2.2.6

Cashback .........................................................................................................35

2.2.7

Clerk ID Prompting and Clerk Sub-Totalling .................................................35

2.2.8

Invoice Number Prompting..............................................................................36

2.2.9

Personalized Receipts......................................................................................36

2.2.10

PAN Fraud Control .........................................................................................36

2.2.11

The Manager Password...................................................................................37

2.2.12

Manual Card Entry Feature ............................................................................37

2.2.13

Password Protection on Manual Card Entry Feature.....................................38

2.2.14

Multi-Terminal Reporting................................................................................38

2.2.15

Terminal Names...............................................................................................39

2.2.16

Private Label Cards.........................................................................................39

2.2.17

Corporate Cards..............................................................................................39

2.2.18

The Moneris Gift & Loyalty Programs............................................................40

2.3

Procedures......................................................................................................................41

2.3.1

Procedures.......................................................................................................41

Moneris Vx810 Duet Operating Manual v1.2.4 i

Table of Contents

2.3.2

Powering Up the Vx810 Duet ..........................................................................42

2.3.3

Powering Down the Vx810 Duet .....................................................................43

2.3.4

Loading Paper in the Integrated Printer .........................................................44

2.3.5

Selecting the Terminal Language ....................................................................45

2.3.6

Taking a Manual Imprint of a Credit Card .....................................................46

2.3.7

Responding to Basic Transaction Prompts......................................................47

2.3.8

Entering a Tip Amount ....................................................................................49

2.3.9

Entering a Cashback Amount on a Debit Transaction ....................................51

2.3.10

Entering the Clerk ID ......................................................................................52

2.3.11

Entering an Invoice Number............................................................................52

2.3.12

Finding a Transaction's Sequence and Orig Auth Numbers............................53

2.3.13

Signing Credit Card Receipts ..........................................................................54

2.3.14

Reprinting Receipts..........................................................................................55

2.3.15

Printing a Cash Receipt...................................................................................55

2.3.16

Entering Alphabetic Characters and Punctuation...........................................56

2.3.17

Cancelling a Transaction ................................................................................58

2.3.18

Cancelling a Report.........................................................................................58

2.3.19

Changing the Manager Password ...................................................................58

2.3.20

Requesting a Code 10 Authorization ...............................................................59

2.3.21

Dealing With Disputed Debit Transactions.....................................................59

CHAPTER

3.

THE MONERIS VX810 HARDWARE ........................................................................ 61

3.1

The Moneris Vx810 Duet Terminal...............................................................................61

3.2

Setting up the Terminal..................................................................................................61

3.3

The Communications Base ............................................................................................62

3.4

The Communications Cables .........................................................................................63

3.4.1

The Dial Communications Cable.....................................................................63

3.4.2

The Ethernet Communications Cable ..............................................................63

3.5

The Terminal Keypad ....................................................................................................64

3.5.1

Alphanumeric Keys..........................................................................................64

3.5.2

The Function Keys ...........................................................................................64

3.6

The Magnetic Stripe Card Reader..................................................................................66

3.7

The Chip Card Reader ...................................................................................................67

3.8

The Integrated Printer ....................................................................................................67

3.9

The External PINpad......................................................................................................68

3.9.1

Setting up the External PINpad .......................................................................68

3.9.2

Transactions With the PINpad.........................................................................69

ii Moneris Vx810 Duet Operating Manual v1.2.4

Table of Contents

3.10

The Modular Contactless Reader ...................................................................................70

3.10.1

Contactless Transactions Allowed...................................................................70

3.10.2

Maximum Contactless Dollar Value (CDV) ....................................................70

CHAPTER

4.

CONFIGURING YOUR TERMINAL........................................................................... 71

4.1

Configuring Your Terminal ...........................................................................................71

4.2

Using Quick Setup .........................................................................................................72

4.2.1

Options for Each Parameter............................................................................72

4.2.2

Parameters ......................................................................................................72

4.3

Configuring Communications........................................................................................74

4.3.1

Configuring Communications..........................................................................74

4.3.2

Configuring Dial Communications..................................................................74

4.3.3

Configuring Dynamic IP Communications......................................................76

4.3.4

Configuring Static IP Communications ...........................................................77

4.4

Configuring Dial Backup Support for IP .......................................................................78

4.4.1

Dial Communications as Automatic Backup for IP .........................................78

4.4.2

Other Backup Support Options........................................................................78

4.5

Configuring Your Merchant ID and Terminal ID..........................................................79

4.6

Configuring the External PINpad ..................................................................................79

4.7

Configuring the Modular Contactless Reader................................................................80

4.8

Disabling Manual Entry on Credit Cards.......................................................................81

4.8.1

The Edit Cards Screen Matrix .........................................................................82

4.9

Configuring Password Protection on Manual Entry ......................................................83

4.9.1

Enabling the Manual Entry Password Feature ...............................................83

4.9.2

Disabling Password Protection on Manual Entry...........................................84

4.10

Configuring Receipt Printing .........................................................................................85

4.10.1

Enable the Printer ...........................................................................................85

4.10.2

Configure Receipt Headers and Footers .........................................................85

4.10.3

Enable Large Amount Printing........................................................................85

4.10.4

Enable Printing of Customer Copies ...............................................................85

4.10.5

Enable Re-Printing of Merchant Copies .........................................................85

4.10.6

Configure the Print Prompt Beep Delay..........................................................85

4.11

Configuring Tip Processing ...........................................................................................86

4.11.1

Basic Tip Processing .......................................................................................86

4.11.2

Enhanced Tip Processing ................................................................................86

4.11.3

Gratuity Guidelines Printing on Pre-Authorization Receipts..........................86

4.11.4

Tip Percentage on Purchases ..........................................................................87

Moneris Vx810 Duet Operating Manual v1.2.4 iii

Table of Contents

4.12

Configuring the Cashback Feature.................................................................................87

4.12.1

Cashback Amount Prompting on Debit Transactions......................................87

4.12.2

Changing Cashback Amounts..........................................................................87

4.12.3

Setting the Cashback Limit ..............................................................................87

4.13

Configuring Clerk ID Prompting and Clerk Sub-Totalling............................................88

4.13.1

Configuring Clerk ID Prompting and Clerk Sub-Totalling .............................88

4.13.2

Adding Clerk IDs (including the Default Clerk ID).........................................89

4.13.3

Deleting Clerk IDs...........................................................................................89

4.14

Configuring Invoice Number Prompting .......................................................................90

4.15

Configuring Multi-Terminal Reporting .........................................................................90

4.15.1

Configuring Multi-Terminal Reporting ...........................................................90

4.15.2

Adding a Terminal Name.................................................................................91

4.15.3

Deleting a Terminal Name...............................................................................91

4.16

Configuring Private Label Cards ...................................................................................92

4.17

Configuring Corporate Cards.........................................................................................92

4.17.1

Enabling the Corporate Card Feature ............................................................92

4.17.2

Enabling Tax Amount Prompting ....................................................................92

4.17.3

Configuring Tax Type and Tax Registration Numbers ....................................92

4.18

Initializing Your Terminal .............................................................................................93

CHAPTER

5.

FINANCIAL TRANSACTIONS................................................................................... 95

5.1

Card and Transaction Types ..........................................................................................95

5.2

Transaction General Guidelines.....................................................................................96

5.3

Card Entry Options ........................................................................................................96

5.3.1

Magnetic Stripe Cards - Swipe ........................................................................96

5.3.2

Chip Cards - Insert ..........................................................................................96

5.3.3

Contactless Cards - Tap ..................................................................................97

5.3.4

Manual Entry...................................................................................................97

5.4

Transaction Procedures..................................................................................................97

5.5

Processing a Purchase ....................................................................................................98

5.6

Processing a Refund.......................................................................................................99

5.7

Processing a Correction (Void)....................................................................................100

5.8

Processing a Pre-Authorization....................................................................................101

5.9

Processing a Pre-Authorization Completion ................................................................102

5.10

Processing a Pre-Authorization Deletion .....................................................................103

5.11

Processing an Advice...................................................................................................104

5.12

Transacting a Purchase on a Corporate Card ...............................................................105

iv Moneris Vx810 Duet Operating Manual v1.2.4

Table of Contents

5.13

Transacting a Payment on a Private Label Card ..........................................................107

5.14

Manually Processing Credit Transactions....................................................................108

5.15

Manually Processing Credit Transactions UNDER the Floor Limit............................108

5.16

Manually Processing Credit Transactions OVER Floor Limit ....................................109

CHAPTER

6.

ADMIN TRANSACTIONS ........................................................................................ 111

6.1

Admin Transactions .....................................................................................................111

6.2

Logging On ..................................................................................................................111

6.3

Logging Off .................................................................................................................112

6.4

Re-Initializing the Terminal.........................................................................................112

6.5

Demo Mode .................................................................................................................113

6.5.1

Demo Mode Transactions..............................................................................113

6.5.2

Entering Demo Mode.....................................................................................115

6.5.3

Exiting Demo Mode .......................................................................................116

CHAPTER

7.

REPORTS ................................................................................................................ 117

7.1

Reports.........................................................................................................................117

7.2

Stored Transactions Report..........................................................................................117

7.3

Merchant Sub-Totals Report........................................................................................118

7.4

Clerk Sub-Totals Report ..............................................................................................118

7.4.1

For One or More Clerks ................................................................................118

7.4.2

For All Clerks ................................................................................................119

7.5

Deposit Totals Report ..................................................................................................119

7.6

Multi-Terminal Deposit Totals Report.........................................................................120

7.7

Pre Auth Transactions Report ......................................................................................120

7.8

Tip Report ....................................................................................................................121

7.9

Batch Totals Report .....................................................................................................122

7.10

The Terminal Parameters Report .................................................................................122

7.11

The EMV Parameters Report.......................................................................................123

7.12

Private Label Card Transactions on Reports................................................................123

CHAPTER

8.

THE MONERIS GIFT & LOYALTY PROGRAMS.................................................... 125

8.1

The Moneris Gift & Loyalty Programs........................................................................125

8.2

Enabling Gift & Loyalty Programs ..............................................................................125

8.3

Gift Card Transactions.................................................................................................126

8.3.1

Processing a Purchase with a Gift Card .......................................................126

8.3.2

Entering a Tip Amount on a Gift Card Purchase ..........................................127

8.3.3

Deactivate a Moneris Gift Card ....................................................................129

8.3.4

Processing a Refund with a Gift Card ...........................................................130

Moneris Vx810 Duet Operating Manual v1.2.4 v

Table of Contents

8.4

Loyalty Card Transactions ...........................................................................................131

8.4.1

Processing a Purchase with a Loyalty Card (Point Accumulation) ..............131

8.4.2

Deactivate a Moneris Loyalty Card...............................................................132

8.4.3

Processing a Refund with a Loyalty Card .....................................................133

8.4.4

Processing a Redemption with a Loyalty Card..............................................134

8.5

Gift & Loyalty Transactions ........................................................................................135

8.5.1

Activating Gift or Loyalty Cards and Loading Value on Gift Cards .............135

8.5.2

Gift or Loyalty Card Transaction With a Balance Due .................................136

8.5.3

Voiding a Gift or Loyalty Transaction...........................................................137

8.5.4

Gift or Loyalty Card Inquiry..........................................................................138

8.5.5

Reprinting a Gift or Loyalty Receipt..............................................................139

8.6

The Gift & Loyalty Menu Feature ...............................................................................140

8.6.1

The Gift & Loyalty Transactions Menu .........................................................140

8.6.2

The Gift & Loyalty Reports Menu .................................................................141

8.6.3

The Gift & Loyalty Setup Menu .....................................................................142

8.7

Gift & Loyalty Admin Transactions ............................................................................143

8.7.1

Gift & Loyalty Batch Close............................................................................143

8.7.2

Initialization to the Moneris/Ernex Host .......................................................144

8.8

Gift & Loyalty Reports ................................................................................................145

8.8.1

Gift & Loyalty Transaction List.....................................................................145

8.8.2

Gift & Loyalty Transaction Inquiry ...............................................................146

8.8.3

Clerk Subtotals Report for Gift & Loyalty Transactions ...............................147

8.8.4

Configuration List for Gift & Loyalty............................................................148

8.8.5

Gift and Loyalty Tip Totals Report ................................................................148

8.9

Gift & Loyalty Configuration ......................................................................................149

8.9.1

Gift & Loyalty Printer and Receipt Parameters ............................................149

8.9.2

Gift & Loyalty Merchant Parameters............................................................150

8.9.3

Gift & Loyalty Communications Parameters ................................................151

8.9.4

Gift & Loyalty Terminal Parameters.............................................................152

8.9.5

Adding Clerk IDs to the Moneris Gift & Loyalty Application .......................154

8.9.6

Deleting Clerk IDs From the Moneris Gift & Loyalty Application ...............155

8.9.7

Configuring Tip Processing for Moneris Gift Cards .....................................156

8.10

Gift & Loyalty Demo Mode ........................................................................................157

8.10.1

Gift & Loyalty Demo Mode ...........................................................................157

8.10.2

Entering Gift & Loyalty Demo Mode ............................................................158

8.10.3

Exiting Gift & Loyalty Demo Mode...............................................................159

vi Moneris Vx810 Duet Operating Manual v1.2.4

Table of Contents

CHAPTER

9.

END-OF-DAY PROCEDURE ................................................................................... 161

9.1

End-of-Day Procedures................................................................................................161

9.2

Processing a Batch Close .............................................................................................161

9.2.1

Merchant Close .............................................................................................162

9.2.2

System Close..................................................................................................162

9.3

Processing a Batch Clear .............................................................................................163

9.4

Processing a Batch Review ..........................................................................................163

9.5

Processing a Multi-Terminal Batch Close ...................................................................164

9.5.1

By Terminal Name .........................................................................................164

9.5.2

For All Terminals ..........................................................................................165

CHAPTER

10.

TROUBLESHOOTING ............................................................................................. 167

10.1

Troubleshooting ...........................................................................................................167

10.2

Error Messages on the Moneris Vx810 Duet Terminal ...............................................167

10.3

Gift & Loyalty Error Messages on the Vx810 Duet Terminal.....................................175

10.4

Solving Hardware Problems ........................................................................................176

10.5

Additional Documentation...........................................................................................177

10.6

Merchant Direct Secure Message Centre.....................................................................177

10.7

Telephone Assistance...................................................................................................178

Moneris Vx810 Duet Operating Manual v1.2.4 vii

1. Introduction

1.1 Getting Started

You must prepare your terminal before you process transactions:

1.

Set up the hardware

.

2.

Configure the terminal

.

3.

Initialize the terminal .

4.

Log on to the Moneris Host

.

Once the terminal is ready to use, practice performing transactions in Demo Mode

to ensure that any errors made while learning to perform transactions do not affect your business account.

1.2 Learning About the Terminal

The Moneris Vx810 Duet is an all-in-one POS solution consisting of the lightweight Vx810 terminal, incorporating a display screen and keypad, that connects to the Duet base containing the printer and communications hardware. The Duet can be operated with two optional devices: an external PINpad and a modular contactless reader.

The display screen displays prompts for you to respond to as well as other prompts for the customer.

During transactions that require customer input, you will need to pass the PINpad back and forth so that you and the customer can view prompts and respond to them using the keypad.

The Vx810 Duet supports magnetic stripe and chip cards for debit and credit transactions, contactless cards for credit (and some debit) transactions, and magnetic stripe cards for purchasing card transactions.

To introduce yourself to the terminal, read these sections :

•

Moneris Vx810 Duet Hardware

•

Features and Procedures

•

Demo Mode

•

The Menu Feature

Moneris Vx810 Duet Operating Manual v1.2.4 1

1. Introduction

1.3 Caring for your Moneris Hardware

Proper care of your

terminal and base will help ensure uninterrupted service. Here are some

recommendations for maintaining the hardware in good working order:

IMPORTANT: Misuse of equipment can result in replacement liability.

• DO clean the hardware components with a dry or slightly damp cloth rinsed in a mild soap solution.

• Do NOT use solvents, detergents, cleaning fluids or abrasives on any of the hardware components.

• Avoid spilling liquids on components.

• Do NOT expose components to extreme temperatures.

1.3.1 Caring for the Terminal

• Clean the Magnetic Stripe Reader (MSR) periodically, using a Moneris POS cleaning card. These cards can be ordered online at shopmoneris.com

or by phone at 1-866-421-1666.

Note: Do NOT use the MSR cleaning card in the Chip Card Reader.

• It is recommended that merchants obtain their POS stationery and paper rolls from Moneris to

ensure that these supplies comply with the applicable specifications. Contact the Moneris

Merchant Service Centre to obtain additional supplies for your terminal or order online at

shopmoneris.com

.

•

Load the paper into the printer correctly.

1.3.2 Caring for the Base

• Avoid unnecessary movement of the base to prevent accidental disconnection of the power cables.

IMPORTANT: You must use the exact power adaptor provided with the terminal by

Moneris Solutions. Failure to do so may affect the operability of, or cause damage to the terminal and Moneris Solutions shall have no liability whatsoever for a failure to follow these instructions.

2 Moneris Vx810 Duet Operating Manual v1.2.4

2. Features and Procedures

The Vx810 Duet terminal can be set up to access and process a variety of transactions for a variety of card types. The terminal supports magnetic stripe and chip cards for debit and credit transactions, contactless cards for credit (and some debit) transactions, and magnetic stripe cards for purchasing card transactions.

2.1 Standard Features

These features are available and enabled on all Moneris Vx810 Duet terminals.

•

Language selection

•

Card information security

•

Communications status

•

Menu-driven interface

•

Demo Mode

2.1.1 Language Selection for Display, Receipts and Reports

The Moneris Vx810 Duet supports two language selections: 1) Merchant Language and 2) Customer

Language .

Merchant Language

Supported languages:

1. English

2. French

Used to:

1. Display merchant prompts

2. Print merchant copies of receipts

3. Print reports

Initial setting:

Set on the Moneris Host.

Changing the language:

The Merchant Language can be changed at any time. For details, see

Selecting the Terminal

Language

.

Moneris Vx810 Duet Operating Manual v1.2.4 3

2. Features and Procedures

Customer Language

Supported languages:

1. English

2. French

Used to:

1. Display customer prompts

2. Print copies of customer receipts

Initial setting:

Default is set by the Merchant Language but is set for each individual transaction based on the

Language Code on the customer's card.

Changing the language:

If the Language Code is not present on the customer's card or if the code is neither English nor

French, the customer is prompted to select either English or French. For details, see Selecting the

Terminal Language .

2.1.2 Card Information Security

To reduce the risk of fraudulent card use, masking and/or truncation are applied to card numbers and expiry dates printed on receipts and reports.

Masking replaces a card's numbers (except for the last 4) with *'s. For example, the card number 1234

5678 9012 3456 is printed as ************3456.

If a card number is truncated, only the last 4 digits are printed. For example, the card number 1234 5678

9012 3456 would appear as 3456.

Card Numbers on Receipts

Numbers of debit and credit cards are always masked on both Merchant and Customer copies of transaction receipts.

Note: Each Moneris Gift & Loyalty program can have its own card masking rules that

are configured on the Moneris/Ernex host.

Card Numbers on Reports

Card numbers are truncated on all reports containing transaction details.

Reports that require the manager password, e.g. Batch Review, display the entire card number but the resulting report prints the truncated card number.

Expiry Date on Receipts

The credit card expiry date is not printed on receipts for credit card transactions.

Expiry Date on Reports

The credit card expiry date is printed in full on all reports containing transaction details.

4 Moneris Vx810 Duet Operating Manual v1.2.4

2. Features and Procedures

2.1.3 Communications Status

The terminal connects to the Moneris Host each time you begin a transaction (it does not make any noise when it attempts to connect). As the terminal communicates with the Moneris Host, it displays

"Processing" to indicate that the transaction is proceeding correctly. If there is a problem with the communications, an error message will appear.

2.1.4 The Menu Feature

The Menu Feature

All transactions and functions can be accessed through menus and sub-menus starting at the

applications menu .

Navigating through menus:

To scroll down:

Select the icon (press the left-most purple key) to move down to the next menu screen.

To scroll up:

1. Press the yellow CORR key to change the direction of the arrow on the display screen.

2. Select the icon (press the left-most purple key) to move up to the next menu screen.

To select an item:

Press the function key beside the menu item (e.g., on the transactions menu , press F1 to select

Purchase).

Navigating through parameters:

To move to the next feature:

Select Next.

To move back to the last feature displayed:

Select Previous.

Changing the value of a parameter:

1. Select Edit.

2. Select Next to scroll through the values and select Slct to select a displayed value.

OR

Key in a new value and press the green OK key.

3. Select Next to move to the next feature.

When you are finished making changes:

1. Select Exit. The "Save Changes?" prompt appears.

2. Select OK. The menu re-appears.

Moneris Vx810 Duet Operating Manual v1.2.4 5

2. Features and Procedures

Icons displayed on the menus:

Icon Indicates:

CommServer is being used for Ethernet communications

The Applications Menu

The applications menu gives you access to the applications available on the terminal. When the terminal is not performing any transactions or functions and has been idle for a pre-set period of time, it displays the applications menu.

The applications are listed here in the order they appear on the menu.

MM/DD/YY HH:MM F1

DEBIT & CREDIT F2

GIFT & LOYALTY F3

F4

The Applications Menu

To access the applications menu from any screen:

Press the * (ASTERISK) key.

Note: For instructions on navigation through the menus, see

The Menu Feature

.

6 Moneris Vx810 Duet Operating Manual v1.2.4

2. Features and Procedures

The Transactions (DEBIT & CREDIT) Menu

This transactions menu allows you to select the type of transaction you want to process. The menu also provides access to the

CONFIGURATION menu

(press the green OK key) and to the REPORTS menu

(press the 1st purple key on the right).

The transactions are listed here in the order they appear on the menu. Some items may not appear on the terminal until a specific feature is enabled.

MM/DD/YY HH:MM

Purchase

Pre Auth

Refund

Advice

Correction

Batch Close

Batch Review

Batch Clear

Select this menu item to:

process a Credit or Debit Purchase

open the Pre Auth menu

process a Credit or Debit Refund

process a Credit

Advice

process a Credit or Debit Correction

(void) process a

Batch Close

search for a transaction in the open batch clear the batch on the terminal

The Transactions Menu

To access the transactions (DEBIT & CREDIT) menu:

On the

applications menu

, select DEBIT & CREDIT.

To return to the applications menu:

Press the * (ASTERISK) key.

Note: For instructions on navigation through the menus, see

The Menu Feature

.

Moneris Vx810 Duet Operating Manual v1.2.4 7

2. Features and Procedures

The Pre Auth Menu

This menu allows you to select the type of pre-authorization transaction you wish to process.

The transactions are listed here in the order they appear on the menu.

Pre Auth

Select this menu item to:

Pre Auth

process a Pre-Authorization

Completion

process a Pre-Authorization Completion

Del Pre Auth

process a Pre-Authorization Deletion

Pre-Auth Rpt

print the Pre-Auth Transactions Report

The Pre Auth Menu

To access the Pre Auth menu:

1. On the

applications menu

, select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu appears.

2. Select Pre Auth.

To return to the applications menu:

Press the red CANC ANNUL key then press the * (ASTERISK) key.

Note: For instructions on navigation through the menus, see

The Menu Feature

.

8 Moneris Vx810 Duet Operating Manual v1.2.4

2. Features and Procedures

The Reports Menu

This menu allows you to produce a variety of reports containing information about transactions stored in the terminal memory, transactions stored on the Moneris host and the configuration of the terminal.

The terminal must be initialized

before this menu can be accessed.

The reports are listed in the order they appear on the menu. Some items may not appear on the terminal until a specific feature is enabled.

REPORTS

This report contains:

Stored Trans

a list of all transactions in the terminal memory

Deposit Totals

a list of deposit totals by card and transaction type

Clerk SubTotals

a list of totals for one or more clerks (only active if clerk

IDs are configured)

Multi Terminal

a Deposit Totals report for one or more terminals

Merch SubTotals

a list of totals in the current batch by card and transaction type

Tip Report

a lit of tip activity for the current batch by clerk and period (only active if Clerk and Tip Processing are enabled)

Terminal Parms

a list of the current settings for each parameter

Terminal Stats a list of the number of occurrences of error situations

EMV Param Rpt

a list of chip program parameters by card type

EMV Diagnostics prints the data on the last transaction if a chip card was used

The REPORTS Menu

To access the REPORTS menu:

1. On the

applications menu

, select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu appears.

2. Press the REPORTS key (first purple key on the right ).

To return to the applications menu:

Press the red CANC ANNUL key then press the * (ASTERISK) key.

Note: For instructions on navigation through the menus, see

The Menu Feature

.

Moneris Vx810 Duet Operating Manual v1.2.4 9

2. Features and Procedures

The Configuration Menu

This menu allows you to configure a number of features and procedures and perform administrative functions.

The parameters and functions are listed in the order they appear on the menu.

CONFIGURATION

Select this menu item to:

Setup

configure parameters on the terminal

Servers

configure server/clerk IDs

Terminal Name

configure multi-terminal names

Menus/Keys

configure password level on menus

Set Language

set the display language

Initialize

initialize the terminal to the Moneris host

Host Logon

log the terminal on to the Moneris host

Host Logoff

log the terminal off of the Moneris host

About display application version information (press the green OK key to exit)

Contrast increase or decrease the contrast of the display

(The display changes immediately.)

The CONFIGURATION Menu

To access the CONFIGURATION menu:

1. On the

applications menu

, select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu appears.

2. Press the green OK key.

To return to the applications menu:

Press the red CANC ANNUL key then press the * (ASTERISK) key.

Note: For instructions on navigation through the menus, see

The Menu Feature

.

10 Moneris Vx810 Duet Operating Manual v1.2.4

2. Features and Procedures

The Setup Menu

This menu allows you to set values for a number of parameters on your terminal.

The parameters are listed in the order they appear on the menu. Some items may not appear on the terminal until a specific feature is enabled.

SETUP

Select this menu item to:

Demo

Enter and exit Demo Mode

Printer

Configure the receipt format

Terminal

Configure a variety of features on the terminal

Merchant

Configure a variety of features

Comm

Configure dial communications-related parameters

Host

Configure communications type parameters

Merchant IDs

Configure additional receipt parameters

IP Hosts

Do Not Use

Lock Kbd

Do Not Use

Date/Time

Do Not Use

Cashback

Configure Cashback parameters

Edit Cards

Do Not Use

The Setup Menu

To access the Setup menu:

1. On the

applications menu

, select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu appears.

2. Press the green OK key to display the CONFIGURATION menu.

3. Select Setup.

4. At the "Password:" prompt, key in the manager password

and press the green OK key.

To return to the applications menu:

Press the red CANC ANNUL key then press the * (ASTERISK) key.

Note: For instructions on navigation through the menus, see

The Menu Feature

.

Moneris Vx810 Duet Operating Manual v1.2.4 11

2. Features and Procedures

Terminal Parameters (Edit Terminal Menu)

The Edit Terminal menu allows you to edit Terminal parameters.

Transactions menu (DEBIT & CREDIT) > CONFIGURATION menu (press the green OK key) >

Setup menu > Terminal > Edit Terminal menu

Note: For instructions on navigation through the menus, see

The Menu Feature

.

IMPORTANT: Do Not Edit the parameters in this menu unless directed by Moneris. Only some of the menu's parameters are listed below. You can ignore all other parameters.

Tip% nn.nn

Sets a predetermined percentage of tip automatically added to Purchase transaction amounts (0-

9999). If set to 0 (default) no tip is added.

Key in a percentage and press the green OK key.

Tip Processing

Enables/disables

tip prompting on Purchase, Pre-Authorization Completion and Advice

transactions.

Enables/disables printing of the tip line

on Pre-Authorization transaction receipts.

None (default)

On - Prompt

Sug Tip% 1 nn

default = 15

Sug Tip% 2 nn

default = 20

Sug Tip% 3 nn

default = 25

The Sug Tip% 1 nn, Sug Tip% 2 nn and Sug Tip% 3 nn parameters determine up to three

suggested tip amounts for gratuity guidelines

printed on Pre-Authorization receipts.

Note: The

Tip Processing

and Gratuity Guide?

parameters must be enabled.

The parameters also determine the suggested tip amounts displayed when

Enhanced Tip

Processing is enabled (

EnhancedTipProc

parameter is set to On).

Note: If all three parameters are set to 0, selecting % on Enhanced Tip Processing

prompts the customer to key in a % amount (if an external PINpad is connected to your terminal, the options still appear showing 0%). The Gratuity Guide? parameter does not need to be enabled to use Enhanced Tip Processing.

Key in a percentage and press the green OK key.

12 Moneris Vx810 Duet Operating Manual v1.2.4

2. Features and Procedures

Manager Pwd

Changes the

manager password .

Key in password and press the green OK key.

Clrk/Srvr Mode

Enables/disables the

Clerk Id: prompt.

0 - None (default)

2 - Prompt

Note: If the

Use Def. Clrk?

parameter is enabled, the prompt is disabled.

Idle Timeout

Sets the number of seconds the error message is displayed before the terminal returns the "Swipe or Insert Card" prompt.

Key in number of seconds and press the green OK key.

PINpad Type

Configures the PINpad type, if one is connected to the terminal.

IPP - Standalone mode (default).

External XPI - An external PINpad is connected.

None - No PINpad type set. Do not use.

Note: You must

power down

and then

restart the terminal after switching the PINPad

Type between IPP and External XPI.

PABX Code

Sets the value of the PABX prefix that must be dialled to access an outside line.

Key in the prefix ( min. 1, max. 4

alphanumeric characters

) and press the green OK key.

Note: This value is listed as the " PABX Access Code" on the

Terminal Parameters

Report

.

Histories Limit

Do Not change this parameter unless directed to do so by Moneris.

Show CB Choices

Enables/disables the display of debit transaction Cashback pre-set amounts on the terminal and, if

applicable, the external PINpad. On the terminal, the customer can also select Other to key an amount of their choice.

On - pre-set amounts are displayed for selection by the customer (default)

Off - the customer must key in a cashback amount

Note: The

CashBack Option parameter must be enabled. The desired pre-set amounts are

configured via the Amt 1

, Amt 2 and Amt 3 parameters.

Moneris Vx810 Duet Operating Manual v1.2.4 13

2. Features and Procedures

Enable CTLS

Enables/disables use of a modular contactless reader connected to the terminal.

On (default if your Moneris merchant account is configured for contactless reader use)

Off (default if your Moneris merchant account is NOT configured for contactless reader use)

Idle Time Fmt

Sets the time format of the clock displayed on the

transactions menu

.

24 Hr (e.g. 14:24)

12 Hr (e.g. 02:24pm)

Terminal Beep

Enables/disables key beeping.

On (default)

Off

Process Tax

Enables/disables tax amount prompting on Purchasing Card

transactions (the "xST Amt: $" prompt).

On

Off (default)

Note: You must enable the

Commercial on?

parameter. The Tax Type (xST) parameter is

configured on the Moneris host.

Trning Settle?

Enables/disables settlement during Demo Mode .

On

Off (default)

Manual Password

Enables/disables the

manager password prompt when a card number is manually entered during a

transaction.

On (password prompt is displayed)

Off (default - no password required)

14 Moneris Vx810 Duet Operating Manual v1.2.4

2. Features and Procedures

CashBack Option

Enables/disables the

Cashback Option

on Debit transactions.

On

Off (default)

Note: The

Show CB Choices

parameter must be enabled. You can configure the pre-set

cashback amounts ( Amt 1

, Amt 2, Amt 3) that are displayed for selection by the customer. You can also configure the maximum dollar amount the customer can request as cashback (

Amt Limit

).

Commercial On?

Enables/disables processing of

Purchasing Cards

( a.k.a., Commercial Cards or Corporate Cards).

On

Off (default)

Gratuity Guide?

Enables/disables printing of three suggested tip amounts on Pre-Authorization receipts.

On

Off (default)

Note: The

Tip Processing

parameter must be enabled. You can configure the amounts via the three

Sug Tip%

parameters.

Moneris Vx810 Duet Operating Manual v1.2.4 15

2. Features and Procedures

Receipt Parameters Menu (Edit PCT)

The Edit PCT menu allows you to edit Printer parameters.

Transactions menu (DEBIT & CREDIT) > CONFIGURATION menu (press the green OK key) >

Setup menu > Printer > Edit PCT menu

Note: For instructions on navigation through the menus, see

The Menu Feature

.

IMPORTANT: Do Not Edit the parameters in this menu unless directed by Moneris. Only some of the menu's parameters are listed below. You can ignore all other parameters.

Header Line 2 to 5

The third through sixth lines of text that appears after your merchant name and address at the top of the receipt.

You may also edit the Header Line 1 and Header Line 6

parameters

Key in alphanumeric text

(max. 40 characters) and press the green OK key.

Footer 1 to 3

The text that appears at the bottom of the receipt.

You may also edit the Footer 4 parameter.

Key in alphanumeric text

(max. 40 characters) and the green OK key.

Customer Copy

Determines whether to print a Customer copy of the receipt along with the Merchant copy.

16 Moneris Vx810 Duet Operating Manual v1.2.4

2. Features and Procedures

Merchant Parameters (Edit Format Menu)

Use the Edit Format menu to edit Merchant parameters.

Transactions menu (DEBIT & CREDIT) > CONFIGURATION menu (press the green OK key) >

Setup menu > Merchant > Edit Format menu

Note: For instructions on navigation through the menus, see

The Menu Feature

.

IMPORTANT: Do Not Edit the parameters in this menu unless directed by Moneris. Only some of the menu's parameters are listed below. You can ignore all other parameters.

Term Id

The Moneris Terminal ID.

Key in the Terminal ID and press the green OK key.

Merch Num.

Your Moneris Merchant ID.

Key in the Merchant ID and press the OK key.

Default Clerk

The Clerk ID

that will be used for all transactions when the

Use Def. Clrk?

parameter is enabled.

Key in the alphanumeric Clerk ID and press the green OK key.

GST Tax Reg #

QST Tax Reg #

PST Tax Reg #

HST Tax Reg #

Your tax registration number for the tax type.

Key in your alphanumeric tax registration number and press the green OK key.

Tax Type

The type of tax you are required to apply to all purchases. o

0 - No Tax (default) o

1 - HST o

2 - GST Only o

3 - PST/GST o

4 - QST/GST

Moneris Vx810 Duet Operating Manual v1.2.4 17

2. Features and Procedures

EnhancedTipProc

Enables/disables the

Enhanced Tip Processing

feature.

On

Off (default)

Note: The

Tip Processing

parameter must be enabled to setup Enhanced Tip Processing.

TipNone

Enables/disables the display of the No Tip option on Enhanced Tip Processing .

On

Off (default)

Note: The

EnhancedTipProc parameter must be enabled.

Note: This parameter does not apply if an external PINpad is connected to your terminal.

Ask Inv Num?

Enables/disables the

Invoice #:

prompt.

On

Off (default)

Chip on PreAuth

Enables/disables the use of chip cards for Pre-Authorization transactions. This parameter does not affect the use of magnetic stripe cards for Pre-Authorization transactions.

On

Off (default)

Note: Many chip cards require a PIN instead of a signature from the cardholder. If a

chip and PIN card is used during a Pre-Authorization, the cardholder MUST be present to enter their PIN during the transaction. For this reason, some businesses may wish to disable the use of chip cards for Pre-Authorization transactions. If the Chip on Preauth parameter is set to Off, the "Swipe Card" prompt appears instead of the "Swipe or Insert Card" prompt during a Pre-

Authorization and you can swipe the card even if it is a chip card.

DispEMVPreAuth

Do Not change this parameter unless directed to do so by Moneris.

Use Def. Clrk?

Enables/disables the automatic use of the

Default Clerk ID

.

On

Off (default)

Note: The

Default Clerk

parameter must be configured.

18 Moneris Vx810 Duet Operating Manual v1.2.4

2. Features and Procedures

Dial Communications Parameters (Edit CPT Menu)

Use the Edit CPT menu to edit dial communications parameters.

Transactions menu > CONFIGURATION menu (press the green OK key) > Setup menu > Comm >

Edit CPT menu

Note: For instructions on navigation through the menus, see

The Menu Feature

.

IMPORTANT: Some parameters cannot be edited unless the terminal batch is empty. If the

"Edit Not Allwd Batch Not Empty" message appears, perform a Batch

Close

transaction then try editing the parameter again.

Pri Auth Phone

The Moneris phone number is automatically loaded into this parameter during

initialization .

If blank, key in the Moneris authorization phone number and press the green OK key.

Sec Auth Phone

The Moneris phone number is automatically loaded into this parameter during

initialization .

Pri Sett Phone

The Moneris phone number is automatically loaded into this parameter during

initialization .

Sec Sett Phone

The Moneris phone number is automatically loaded into this parameter during

initialization .

Pri Init Phone

The Moneris initialization phone number.

If blank, key in the Moneris initialization phone number and press the green OK key.

Sec Init Phone

This is the same value as Pri Init Phone .

Baud Rate

Sets the data transmission rate of the dial modem. o

300 BAUD o

1200 BAUD (default) o

2400 BAUD o

4800 BAUD o

9600 BAUD o

14400 BAUD

Moneris Vx810 Duet Operating Manual v1.2.4 19

2. Features and Procedures

Mdm FastConnect

Do Not change this parameter unless directed by Moneris.

Blind Dial

Allows the terminal to dial without checking for a dial tone.

On

Off (default)

Dial Type

Sets the dial type.

Tone (default)

Pulse

Moneris Host Parameters (Edit Hosts Menu)

Use the Edit Hosts menu to edit Moneris Host parameters.

Transactions menu > CONFIGURATION menu (press the green OK key) > Setup menu > Host >

Edit Hosts menu

Note: For instructions on navigation through the menus, see

The Menu Feature

.

IMPORTANT: Some parameters cannot be edited unless the terminal batch is empty. If the

"Edit Not Allwd Batch Not Empty" message appears, perform a Batch

Close

transaction then try editing the parameter again.

Comm Link Type

Sets the primary communication type. o

Dial - sets dial as the primary communications type o

CommServer - sets Ethernet as the primary communications type (default) o

Alternate Dial - Do Not Use o

ECRi - Do Not Use

20 Moneris Vx810 Duet Operating Manual v1.2.4

2. Features and Procedures

Backup Support

If the terminal is configured for Ethernet communications, this parameter can be used to switch the terminal to dial communication if Ethernet communication is not available.

Note: The

dial communications cable must be connected to the Duet base and a

functioning telephone line before the terminal can successfully use dial communication as a backup.

o

None - If Ethernet communication is not available, the terminal cannot process transactions (default) o

Auto Backup - If Ethernet communication is not available, the terminal will display "IP

Connection Failed" then automatically attempt to use the dial line to communicate with the Moneris Host. o

Prompt Backup - If Ethernet communication is not available, the terminal will display

"Use Backup Com Confirm". Select Yes to have the terminal attempt to use the dial line to communicate with the Moneris Host OR select NO to cancel the transaction. The "IP

Connection Failed" message appears then the terminal display the transaction menu. o

Switch Backup - Moneris does NOT recommend using this setting. If Ethernet communication is not available, the terminal will switch to dial communication and stay on dial communications until this parameter is changed to None, Auto Backup or Prompt

Backup. o

Use Backup - The terminal will always use dial communication.

Settle Comm Type

Sets the primary communication type for settlement. This must match the

Comm Link Type

parameter value. o

Dial - sets dial as the primary communications type o

CommServer - sets Ethernet as the primary communications type o

Alternate Dial - Do Not Use o

ECRi - Do Not Use

Card Imprt

Enables/disables the

Imprint Card Press OK Key prompt

. This prompt may appear during a

Purchase or Refund transaction.

Key in 0 to turn the feature off

Key in 1 to turn the feature on

Moneris Vx810 Duet Operating Manual v1.2.4 21

2. Features and Procedures

Additional Merchant Parameters (Edit MIT Menu)

Use the Edit MIT menu to edit additional merchant-related parameters.

Transactions menu (DEBIT & CREDIT) > CONFIGURATION menu (press the green OK key) >

Setup menu > Merchant IDs > Edit MIT menu

Note: For instructions on navigation through the menus, see

The Menu Feature

.

IMPORTANT: Do Not Edit the parameters in this menu unless directed by Moneris. Only some of the menu's parameters are listed below. You can ignore all other parameters.

Merchant Number

Do Not Change .

Header Line 1

First line of text that appears after your merchant name and address at the top of receipts. You can

also edit the Header Lines 2 through 5 parameters.

Key in alphanumeric text

(max. 40 characters) and press the green OK key.

Header Line 6

Second line of text that appears after your merchant name and address at the top of receipts. You can also edit the

Header Lines 2 through 5

parameters.

Key in alphanumeric text

(max. 40 characters) and press the green OK key.

Footer 4

Last line of text that appears at the bottom of receipts. You can also edit the

Footer Lines 1 through 3 parameters.

Key in alphanumeric text

(max. 40 characters) and press the green OK key.

22 Moneris Vx810 Duet Operating Manual v1.2.4

2. Features and Procedures

Ethernet Communication Parameters (Edit ECT Menu)

Use the Edit ECT menu to display the Ethernet communications parameters.

Transactions menu (DEBIT & CREDIT) > CONFIGURATION menu (press the green OK key) >

Setup menu > IP Hosts > Edit ECT

Note: For instructions on navigation through the menus, see

The Menu Feature

.

IMPORTANT: Do Not Edit the parameters in this menu unless directed by Moneris. Only some of the menu's parameters are listed below. You can ignore all other parameters.

Pri Auth URL

The URL is automatically loaded into this parameter during Initialization

.

Pri Auth Port

The port number is automatically loaded into this parameter during

Initialization

.

Sec Auth URL

The URL is automatically loaded into this parameter during Initialization

. This is the same value

as Pri Auth URL

.

Sec Auth Port

The port number is automatically loaded into this parameter during

Initialization

. This is the same

value as Pri Auth Port .

Pri Sett URL

The URL is automatically loaded into this parameter during Initialization

. This is the same value

as Pri Auth URL

.

Pri Sett Port

The port number is automatically loaded into this parameter during

Initialization

. This is the same

value as Pri Auth Port .

Sec Sett URL

The URL is automatically loaded into this parameter during Initialization

. This is the same value

as Pri Auth URL

.

Sec Sett Port

The port number is automatically loaded into this parameter during

Initialization

. This is the same

value as Pri Auth Port .

Moneris Vx810 Duet Operating Manual v1.2.4 23

2. Features and Procedures

Cashback Parameters (Cashback Menu)

Use the Cashback menu to configure parameters related to the Cashback feature .

Transactions menu (DEBIT & CREDIT) > CONFIGURATION menu (press the green OK key) >

Setup menu > Cashback menu

Note: For instructions on navigation through the menus, see

The Menu Feature

.

Amt 1 ($10)

default = $10

Amt 2 ($20)

default = $20

Amt 3 ($30)

default = $30

Determine the dollar amounts displayed on the terminal when the customer selects the Cashback option on Debit transactions. The value displayed in brackets (e.g., "$10") is the parameter's current setting.

Select the parameter, key in the new dollar value (must be a multiple of 10) then press the green

OK key.

Note: The Cashback feature must be enabled (

Cashback Option parameter set to On).

Each Amt parameter has an allowable range, which is displayed when editing.

The range is calculated based on the dollar amounts of the other Amt parameters.

Hint: If you are increasing the amounts, start with Amt 3 then Amt 2 then Amt 1 to avoid

overlapping ranges.

Amt Limit ($40)

default = $40

The maximum dollar amount customers can request (key in) if they do not select a pre-set

Cashback amount. The value displayed in brackets ($40) is the parameter's current setting.

Select the parameter, key in the new dollar value (must be a multiple of 10) then press the green

OK key.

Note: The Cashback feature must be enabled (

Cashback Option parameter set to On).

The maximum value for this parameter is $990.

24 Moneris Vx810 Duet Operating Manual v1.2.4

2. Features and Procedures

Menu and Editing Parameters (Menu Config Menu)

The Menu Config menu allows you to determine the menu items that are displayed and which of these

require the manager password

for access.

Transactions menu (DEBIT & CREDIT) > CONFIGURATION menu (press the green OK key) >

Menus/Keys > Menu Config menu

Note: For instructions on navigation through the menus, see

The Menu Feature

.

IMPORTANT: Some parameters cannot be edited unless the terminal batch is empty. If the

"Edit Not Allwd Batch Not Empty" message appears, perform a Batch

Close

then try editing the parameter again.

Display on Menu options: o

Yes o

No

Password-Level options: o

None o

Manager

Main Menu/Keys

Press Slct to display and edit the following sub-items:

REPRINT o

Password Level

REPORTS o

Password Level

Quick Setup o

Password Level

Cash Receipt o

Password Level

Purchase o

Display on Menu o

Password Level

Pre Auth o

Display on Menu o

Password Level

Refund o

Display on Menu o

Password Level

Moneris Vx810 Duet Operating Manual v1.2.4 25

2. Features and Procedures

Mail/Phone o

Display on Menu o

Password Level

Advice o

Display on Menu o

Password Level

Payment o

Display on Menu o

Password Level

Correction o

Display on Menu o

Password Level

Batch Close o

Display on Menu o

Password Level

Batch Review o

Display on Menu o

Password Level

Batch Clear o

Display on Menu o

Password Level

CONFIGURATION

Press Slct to display and edit the following sub-items:

Setup o

Display on Menu o

Password Level

Servers o

Display on Menu o

Password Level

Terminal Name o

Display on Menu o

Password Level

Menus/Keys o

Display on Menu o

Password Level

26 Moneris Vx810 Duet Operating Manual v1.2.4

Set Language o

Display on Menu o

Password Level

Initialize o

Display on Menu o

Password Level

Host Logon o

Display on Menu o

Password Level

Host Logoff o

Display on Menu o

Password Level

Contrast o

Display on Menu o

Password Level

SETUP

Press Slct to display and edit the following sub-items:

Cashback o

Display on Menu o

Password Level

Edit Tables o

Display on Menu o

Password Level

Pre Auth

Press Slct to display and edit the following sub-items:

Pre-Auth Rpt o

Display on Menu o

Password Level

2. Features and Procedures

Moneris Vx810 Duet Operating Manual v1.2.4 27

2. Features and Procedures

The following items cannot be edited:

• Quick Setup

• Phone

• Terminal

• Communications

• IP Hosts

• REPRINT

• REPORTS

• CONFIGURE SERVER

• DOWNLOAD

• TERM DOWNLOAD

• BATCH HIST RPTS

2.1.5 Demo Mode

Demo Mode allows you and your employees to practice operating the Moneris Vx810 Duet terminal

WITHOUT affecting your terminal total amounts, your financial accounts or your customers’ accounts.

Note: Demo Mode is available only if you close your terminal batches on the terminal

(Merchant Close). If your terminal uses System Close, you cannot use Demo

Mode. (See

Processing a Batch Close .)

While the terminal is in Demo Mode:

• The DEMO icon ( ) is displayed on the left side of the screen on all menus (except the applications menu).

• All financial transaction types that are supported on your terminal can be performed in Demo mode.

• All financial transactions will be approved.

• The message APPROVED DEMO will be displayed on the screen.

• All transactions will be stored in the terminal’s memory while you remain in Demo mode.

• All receipts for demo transactions and reports on demo totals will have a DEMO banner printed across the top of them.

• The initial transaction amount must be $1.00 or less.

• If you wish to add a tip to the Purchase amount, the tip amount must be $1.00 or less.

• If you select or key in a Cashback amount during a Debit Purchase, only $1.00 is added to the transaction amount regardless of which Cashback amount is selected or keyed in.

28 Moneris Vx810 Duet Operating Manual v1.2.4

2. Features and Procedures

• If you change parameters values while the terminal is in demo mode, those changes will not be cleared when you exit Demo mode. Parameter values affect the way the terminal works in both live mode and demo mode. Any changes you make in demo mode will also affect the way terminal works when you perform live transactions.

• If you power off the terminal while it is in Demo mode, it will still be in Demo mode the next time you power up the terminal.

For instructions on using Demo Mode, see: o

Transactions Available in Demo Mode

o

Entering Demo Mode

o

Exiting Demo Mode

Moneris Vx810 Duet Operating Manual v1.2.4 29

2. Features and Procedures

2.2 Optional Features

2.2.1 Optional Features

These features may be available on your terminal depending on the configuration of your Merchant ID on

the Moneris Host. If a feature is available on your terminal and you want to use it, you must enable and configure it

. If you do not want to use a feature, you can disable it.

Contact the Moneris Merchant Service Centre to discuss these options and determine whether changes to your Merchant ID configuration are required in order to enable them.

IMPORTANT: Some of these programs require agreements with a service provider other than Moneris Solutions. Please ensure that the necessary agreements are in place before attempting to enable those programs on the terminal.

•

Chip Cards

•

Contactless Cards

•

Signatureless Transactions

•

Tip Processing

•

Cashback (Debit transactions)

•

Clerk IDs and Clerk Sub-totalling

•

Invoice Number Prompting

•

Manual Card Entry

•

Personalized receipts

•

PAN Fraud Control

•

Manager Password

•

Password Protection Manual Card Entry

•

Multi-Terminal Reporting

•

Private Label Cards

•

Corporate Cards

•

Ernex Gift Program

•

Ernex Loyalty Program

•

Moneris Gift Program

•

Moneris Loyalty Program

30 Moneris Vx810 Duet Operating Manual v1.2.4

2. Features and Procedures

2.2.2 Chip Cards

Cards with a chip in them, called "chip cards," must be inserted into the

chip card reader

and left in the reader for the entire transaction. The terminal will prompt you when it is time to remove the chip card from the chip card reader.

Chip cards can be customized by the card issuer to have different applications and methods of verifying the cardholder, so different chip cards may have different prompts. Some prompt for a PIN (like a debit card), while others prompt for a signature on the receipt (like a stripe credit card).

If the chip card prompts for a PIN, the cardholder must enter their PIN. If the PIN is wrong, they will be prompted to retry. If they forget their PIN, cancel the transaction, request another form of payment and direct the cardholder to contact the card issuer.

Note: Not all chip card types are currently supported. If you insert an unsupported chip

card, you will be prompted to swipe the card.

Note: If you swipe a supported chip card, you will be prompted to insert the chip card.

If the transaction cannot be completed with the chip card, request another form of payment, and tell the cardholder to contact the card issuer.

As a best practice, always look for "VERIFIED BY PIN" on the Merchant copy of the receipt.

If "VERIFIED BY PIN" appears, no signature is required.

If a signature line appears, the cardholder must sign the receipt.

Identifying a Chip Card

Every time a cardholder presents a card:

Moneris Vx810 Duet Operating Manual v1.2.4 31

2. Features and Procedures

2.2.3 Contactless Cards

If an optional modular contactless reader is connected to the Vx810 Duet terminal and your merchant account is configured for it, you can process transactions with contactless cards. Customers can simply tap or wave their card in front of a contactless reader and a transaction is completed in seconds with no signature verification or PIN entry.

The Vx810 Duet supports four Contactless Programs: Visa payWave, MasterCard PayPass, American

Express ExpressPay and Interac Flash.

To process a transaction with a contactless card, look for the Visa payWave, MasterCard PayPass,

American Express ExpressPay or Interac Flash logo. When prompted, the customer taps the card on the contactless reader where the Contactless logo is located.

The card does not need to touch the reader but must be within 0.5 in. (1.1 cm) of it. The card must be tapped or waved by itself (e.g., the customer cannot leave the card in their wallet and wave it in front of the reader).

If the card does not work or is unsupported:

• If the card is also a chip card, insert it into the chip card reader.

• If that doesn’t work, try swiping the card on the magnetic stripe card reader (look for the magnetic stripe).

To configure the modular contactless reader, see Configuring the Contactless Reader

.

To set up the modular contactless reader, see The Modular Contactless Reader .

32 Moneris Vx810 Duet Operating Manual v1.2.4

2. Features and Procedures

2.2.4 Signatureless Transactions

A "signatureless" transaction is a swiped or tapped Purchase for which a cardholder signature is not required because the Purchase amount is at or below the card's maximum Signatureless Dollar Value

(SDV). Depending on the card type and how your terminal is configured, receipts may or may not print for a signatureless transaction.

Note: Signatureless transactions for swiped purchases apply only when a customer uses a

swipe-only card, not when the customer is instructed to swipe a chip or contactless card.

Maximum Signatureless Dollar Value (SDV)

To determine the maximum SDV for a card, print an EMV Parameters Report and locate the

Contactless CVM Limit parameter under the report's section for the card. An SDV of 9999 means there is no maximum limit.

See Signing Credit Card Receipts .

Moneris Vx810 Duet Operating Manual v1.2.4 33

2. Features and Procedures

2.2.5 Tip Processing

Tip processing on the Vx810 Duet has a number of features.

Basic Tip Processing

You can configure the terminal to prompt customers for a tip amount on Purchase, Pre-

Authorization Completion and Advice transactions. If the customer enters a tip amount greater than 0, the amount is printed on the receipt below the base amount. For tip amount entry by customers on receipts, Basic Tip Processing prints a blank tip line below the base amount on Pre-

Authorization receipts.

Note: Tip Processing is skipped on

Signatureless Transactions

.

Enhanced Tip Processing

This feature gives customers the option of keying in a dollar amount or a percentage when prompted for a tip on Purchases. If a customer opts for a percentage, the terminal displays up to three pre-configured, selectable percentage amounts. You can also configure your terminal to give customers a No Tip option.

Note: On Pre-Authorizations and Pre-Authorization Completions, Enhanced Tip

Processing works the same way as Basic Tip Processing.

Gratuity Guidelines

You can configure the terminal to print suggested tip amounts on the Merchant copy of Pre-

Authorization receipts. The tip amounts are calculated on the base amount using three preconfigured percentage amounts.

Tip Percentage on Purchases

You can configure your terminal to automatically add a pre-set Tip Percentage to all Purchase transactions. Tip Percentage is calculated on the base amount and printed on the receipt.

Note: Tip Percentage is skipped on

Signatureless Transactions .

IMPORTANT: On magnetic stripe credit cards, the tip is added automatically WITHOUT customer acceptance.

For customer tip entry procedures, see Entering a Tip Amount

.

To configure Tip Processing, see

Configuring Tip Processing

.

34 Moneris Vx810 Duet Operating Manual v1.2.4

2. Features and Procedures

2.2.6 Cashback

This feature gives your customers the option of withdrawing cash from their debit account when they make a purchase at your place of business. You provide the cash to your customer and your business account is reimbursed for the amount of the Cashback when the Batch Close transaction is processed.

Cashback is available only on Debit Purchases.

IMPORTANT: The Cashback option is not available for contactless debit (Interac Flash) transactions.

When customers choose to receive cash back, the terminal prompts them to:

• select a pre-set Cashback amount,

• manually key in another amount, or

• skip Cashback altogether.

Your terminal is configured with three pre-set Cashback amounts ($10, $20, $30), but you can change these to amounts of your choice. You terminal is also configured with a Cashback limit that is applied when customers manually key an amount instead of selecting a pre-set amount ($40), but you can change it to an amount of your choice.

Note: When an external PINpad is connected to your terminal, the customer is offered the

pre-set Cashback limit as a fourth selectable amount.

For Cashback customer entry procedures, see Entering a Cashback Amount

.

To configure the Cashback feature on the terminal, see

Configuring Cashback

.

2.2.7 Clerk ID Prompting and Clerk Sub-Totalling

This feature allows you to set up individual Clerk IDs on your terminal. Clerk IDs are unique identifiers that a terminal operator keys in when prompted each time he/she performs a transaction.

This allows you to produce Clerk Sub-Totals Reports

that track financial totals and number of

transactions by clerk. Using this feature also allows you to produce Tip Reports in order to track tip

activity by individual clerk.

Each Clerk ID can have one to six alphanumeric characters (punctuation and special characters are not allowed). A maximum of 255 Clerk IDs can be added for one Merchant ID. Once Clerk IDs are set up and associated with your Merchant ID, they can be used on any handheld terminal that has been configured using your Merchant ID.

IMPORTANT: Clerk Subtotals must be cleared on a regular basis (weekly is recommended). If not, the Moneris Host will automatically clear the totals when the number of transactions for a card type processed by a

Clerk ID reaches 10,000.

Default Clerk ID

A default Clerk ID can be set up on your terminal to be automatically used on all transactions (no

Clerk ID prompting). When this feature is enabled, all transactions performed on that terminal will be added to the Default Clerk IDs totals regardless of which operator performs the transaction.

For the Clerk ID prompting procedure, see

Entering the Clerk ID

.

To configure Clerk Mode on your terminal, see Configuring Clerk Mode

.

Moneris Vx810 Duet Operating Manual v1.2.4 35

2. Features and Procedures

2.2.8 Invoice Number Prompting

This feature enables a prompt to key in an Invoice Number for every Credit and Debit financial transaction. If this feature is enabled, you have the option of entering an Invoice Number or bypassing the prompt by simply pressing the green OK key when the prompt appears.

The Invoice Number can be up to 10 characters long and any combination of alphabetic and numeric characters (punctuation and special characters are not allowed).

If a

Private Label Card

or a

Purchasing Card

is used, the Invoice Number can be up to 7 characters long and you cannot bypass prompt.

For Invoice Number Prompting procedures, see Entering an Invoice Number

.

To enable Invoice Number Prompting, see

Configuring Invoice Number Prompting

.

2.2.9 Personalized Receipts

You can configure your terminal to print receipts with personalized headers and footers. You can configure up to six headers and four footers. The language in which receipt text is printed is based on

your terminal's Language Selection configuration.

You can also configure your terminal to print receipts with double-wide characters for amount lines and the

Sequence Number and Approval Code lines.

In addition, you can configure your terminal to determine whether a Customer copy of the receipt after the Merchant copy on credit non-EMV (non-chip) transactions.

To configure your terminal's receipt printing, see Configuring Receipt Printing .

2.2.10 PAN Fraud Control

To reduce the fraudulent use of credit cards, this security feature prompts you to key in the last four digits of a credit card number after the card has been swiped. PAN Fraud Check then compares the keyed-in digits to the information contained in the card’s magnetic stripe or chip to confirm that the numbers are valid. If the numbers are invalid, the transaction cannot continue.

This feature is enabled on the Moneris Host.

For PAN Fraud Control procedures, see Responding to Basic Transaction Prompts .

36 Moneris Vx810 Duet Operating Manual v1.2.4

2. Features and Procedures

2.2.11 The Manager Password

The Manager Password restricts access to various terminal functions as well as financial transactions that impact your financial account (e.g. refunds and voids).

IMPORTANT: You, the merchant, are solely responsible for the security of the Manager

Password at all times. If your Manager Password is compromised,

change the password

immediately.

There are a number of factors that affect whether the terminal prompts for a Manager Password including

how the terminal is set up on the Moneris Host and how you have configured the use of passwords on the

terminal.

Note: On some functions, the "Password:" prompt may still appear regardless of your

terminal's configuration.

To change the Manager Password, see

Changing the Manager Password

.

To configure the use of passwords on your terminal, see Menu and Editing Parameters (Menu

Config Menu)

.

2.2.12 Manual Card Entry Feature

This feature controls the ability to manually enter card numbers for specific credit card types. By default, all card types that you accept are capable of being manually keyed in on the terminal. It is now possible to disable manual credit card entry for some card types, while leaving others enabled. It works in tandem

with the Password Protection on Manual Card Entry feature.

Note: Once a card type has been exempted from manual entry, a user who attempts to

manually key in a card number on the terminal will be prompted SWIPE ONLY.

The external PINpad will not accept any manual entry.

For more information on disabling card types from manual card entry, refer to section

Disabling

Manual Entry on Credit Cards .

Moneris Vx810 Duet Operating Manual v1.2.4 37

2. Features and Procedures

2.2.13 Password Protection on Manual Card Entry Feature

This feature is used during manual credit card entry. Once the card number and expiry date have been

typed, the terminal will prompt for the manager password before proceeding to complete the transaction.

It works in tandem with the Manual Card Entry Feature . If you allow credit card numbers to be manually

keyed into the terminal, you can password protect that feature to prevent unauthorized keypad entry during a transaction.

This feature is only applicable to Credit Card transactions where the card number is manually entered. It is not applicable to Debit, swiped, tapped or Chip Card transactions.

When password protection on manual card entry is enabled, the transaction flow will proceed in the following order:

1. Perform the

purchase transaction .

2. At the card prompt screen (Swipe, Tap or Insert Card) enter the full PAN card number on the numeric keypad.

3. Enter the card expiry date. At this point, the terminal prompts for the manager password.

4. Enter the manager password

.

5. Enter the CVV number on the back of the card.

6. The terminal will proceed with the online transaction.

If the Manual Entry Password feature is

disabled , the transaction flow is slightly different and is

described in the

Purchase topic.

To configure the password protection on manual card entry, see

Configuring Password Protection on Manual Entry .

2.2.14 Multi-Terminal Reporting

If you have more than one terminal associated with your Merchant Number operating in one location,

Multi-Terminal Reporting allows you to perform a

Batch Close

and print a Deposit Totals Report on all

your terminals or a sub-set of the terminals from a single terminal.

In order to use Multi-Terminal Reporting, you must set up a Terminal Name on each terminal you want to include in the function. At any time, you can add a new Terminal Name or delete a Terminal Name.

IMPORTANT: When doing a multi-terminal Batch Close and running the Multi-Terminal

Deposit Totals Report, totals are cleared on the terminal on which the functions are performed, but are NOT cleared on the other associated terminals.

To configure Multi-Terminal Reporting, see

Configuring Multi-Terminal Reporting

.

To use Multi-Terminal Reporting, see

Processing a Multi-Terminal Batch Close

and Multi-

Terminal Deposit Totals Report

.

38 Moneris Vx810 Duet Operating Manual v1.2.4

2. Features and Procedures

2.2.15 Terminal Names

If you have more than one terminal operating in one location, you can use this feature to identify individual terminals by assigning a unique alphanumeric name to each terminal.

If you are using Multi-Terminal Batch Close

, a Terminal Name must be assigned to each terminal you

want to include in the Multi-Terminal Reporting and Batch Close processes.

To enable Multi-Terminal reporting and add/delete Terminal Names, see Configuring Multi-Terminal

Reporting .

2.2.16 Private Label Cards

The Private Label feature allows you to offer your customers a credit card that can be used exclusively in your store or stores.

Purchases

All standard financial transactions can be processed using a Private Label Card. For example, a

Private Label Card Purchase transaction follows the same steps as a regular credit card Purchase with one possible additional step: the "Promo Code:" prompt may appear. Promo codes (or promotion codes) are supplied to you by the Private Label Card Issuer.

Payments

There is one transaction that is unique to Private Label Cards. The Payment transaction is used to

apply a dollar amount towards the balance on a cardholder's Private Label Card.

Reporting

Private Label Card transactions appear as a separate card type on all reports that include credit card transactions.

To configure Private Label Cards on the terminal, see

Configuring Private Label Cards .

To transact a Payment on a Private Label Card, see Transacting a Payment on a Private Label

Card

.

2.2.17 Corporate Cards

Corporate Cards (also known as Purchasing Cards) are a special type of credit card that provides enhanced reporting data to help cardholders with cost allocation, tax compliance and account reconciliation.

If the terminal is configured to accept Corporate Cards, it prompts for a Customer Reference Number and tax amounts when a Corporate Card is entered on a transaction. The Customer Reference Number and tax amounts are printed on receipts and also appear on the cardholder's monthly statement from the Corporate

Card issuer.

To enable and configure this feature, see Configuring Corporate Cards .

To transact a Purchase on a Corporate Card, see Transacting a Purchase on a Corporate Card .

Moneris Vx810 Duet Operating Manual v1.2.4 39

2. Features and Procedures

2.2.18 The Moneris Gift & Loyalty Programs

The Moneris Gift & Loyalty programs allow you to offer your customers an electronic card-based program that is activated and processed through the Moneris Vx810 Duet terminal. There are two programs available:

• Gift Cards: allows you to offer your customers stored-value gift cards for pre-defined dollar values as well as variable-value cards and rechargeable cards. This is available for small businesses as the Moneris Gift Card program and as a customized program for national chains.

• Loyalty Points: allows you to reward customer loyalty by awarding points based on the dollar value of purchases a cardholder makes. This is available for small businesses as the Moneris

Loyalty Card program and as a customized program for national chains.

All transactions, administrative and configuration functions begin at the

GIFT & LOYALTY transactions menu

.

40 Moneris Vx810 Duet Operating Manual v1.2.4

2. Features and Procedures

2.3 Procedures

2.3.1 Procedures

Listed below are some of the more common procedures followed on the Vx810Duet .

For other, more specific procedures, see

Financial Transactions

,

Admin Transactions ,

Reports ,

End-of-

Day Procedure

and

Demo Mode Transactions

.

•

Powering up the terminal

•

Powering down the terminal

•

Loading paper in the printer

•

Selecting the terminal language

•

Taking a manual imprint of a credit card

• Transaction prompts:

•

Responding to basic transaction prompts

•

Entering a tip amount

•

Entering a Cashback amount on a debit transaction

•

Entering the Clerk ID

•

Entering an Invoice number

• Receipts:

•

Finding a transaction's Sequence and Orig Auth numbers

•

Signing credit card receipts

•

Reprinting a receipt

•

Printing a cash receipt

•

Entering alphabetic characters and punctuation

•

Cancelling a transaction

•

Cancelling a report

• Terminal security:

•

Changing the manager password

•

Requesting a Code 10 Authorization

•

Dealing with disputed debit transactions

Moneris Vx810 Duet Operating Manual v1.2.4 41

2. Features and Procedures

2.3.2 Powering Up the Vx810 Duet

The Moneris Vx810 Duet terminal does not have an ON/OFF switch.

42

The Vx810 Duet 2-part Power Cable

IMPORTANT: You must use the exact power adaptor and cable provided with the terminal by Moneris Solutions. Failure to do so may affect the operability of, or cause damage to, the terminal and/or charging base.

To power up (or turn on) the terminal :

1. Plug the power adaptor cable into the power port ( ) on the base

.

The terminal is ready when the applications menu appears.

Note: For power up instructions when an external PINpad is connected to the terminal,

see The External PINpad .

Moneris Vx810 Duet Operating Manual v1.2.4

2. Features and Procedures

2.3.3 Powering Down the Vx810 Duet

The Moneris Vx810 Duet terminal does not have an ON/OFF switch.

To power down (or turn off) the terminal, simply unplug the power cable from the power source, e.g. the wall jack or a power bar.

The screen will go blank and the backlight will turn off.

Note: See

Powering Up the Terminal

.

Moneris Vx810 Duet Operating Manual v1.2.4 43

2. Features and Procedures

2.3.4 Loading Paper in the Integrated Printer

44

Paper well open and empty Paper well open with roll of paper

To load a paper roll into the terminal:

1. Open the paper well at the.

2. Push the printer latch up and towards the back of the base.

3. Remove the paper roll that is in the paper well.

4. Prepare the new paper roll: Loosen the glued leading edge of paper and unwind the paper roll past any glue residue on the paper, or remove the protective strip.

5. Place the new paper roll into the paper well with the loose end unrolling from the bottom of the roll towards the front of the base.

6. Pull the loose end of the paper towards the front of the base at least one inch (2.2 cm) past the metal teeth at the front of the paper well. Make sure any glue residue on the paper role is past the cutting teeth of the printer.

7. Close the printer lid and press firmly on it to ensure that it is securely latched.

8. Tear off the loose end of the paper by pulling it down then sideways across the metal teeth.

9. Select DEBIT & CREDIT and then press the 3 key to feed paper through the printer and ensure it is working properly.

10. Press the * (ASTERISK) key to return to the applications menu.

The printer is ready to print again.

Note: If the printer ran out of paper in the middle of a receipt or report, you may be able

to reprint the receipt or report

.

Moneris Vx810 Duet Operating Manual v1.2.4

2. Features and Procedures

2.3.5 Selecting the Terminal Language

The text on the terminal display, receipts and reports can be in one of two languages: English and French.

One language can be selected for the Merchant and another for the Customer.

Selecting the Merchant Language

The Merchant Language is used on merchant terminal prompts, the merchant copy of receipts and reports. The language is initially set on the Moneris Host but it can be changed anytime through

the CONFIGURATION menu

.

IMPORTANT: The language can be changed only AFTER the

terminal's first initialization .

To change the Merchant Language:

1. On the applications menu , select DEBIT & CREDIT.

The transactions menu appears.

2. Press the green OK key to access the CONFIGURATION menu.

3. Scroll down and select Set Language.

4. Select ENG (English) or FRN (French).

5. Press the red CANC ANNUL key then press the * (ASTERISK) key to return to the applications menu.

Selecting the Customer Language

The Customer Language is used on customer terminal prompts and customer copies of receipts.

By default, the language is the same as the Merchant Language but is set for each individual transaction based on the Language Code on the customer's card. When the terminal detects the code, it switches to that language for the duration of the transaction. When the transaction is complete, the terminal reverts to the Merchant Language.

If a Language Code is not present on the card or if it is neither English nor French, the terminal prompts the customer to select either English or French.

To change the Customer Language on the terminal:

1. You or the customer swipes or inserts the card .

2. At the "Select Language" prompt, the customer selects ENG or FRN.

The selected language is used for the duration of the transaction.

To change the Customer Language on the PINpad:

1. The customer swipes or inserts the card.

2. At the "SELECT" prompt, the customer selects ENGLISH or FRENCH.

The selected language is used for the duration of the transaction.

Moneris Vx810 Duet Operating Manual v1.2.4 45

2. Features and Procedures

2.3.6 Taking a Manual Imprint of a Credit Card

If the "Imprint Card Press OK Key" prompt appears:

1. Take an imprint of the customer's credit card using the imprinter and the appropriate paper Sales

Draft (e.g. a Visa Purchase paper sales draft for a Purchase on a Visa card).

2. Ensure that the Card Number, Issue Date, Expiry Date and Cardholder Name are legible.

3. Print the transaction date and amount on the paper sales draft.

Note: If the transaction amount is over your Merchant Floor Limit,

call the Moneris

Credit Voice Authorization number to obtain a Voice Authorization Number for

the transaction and record the Voice Authorization Number on the paper sales draft.

4. To process a Purchase, have the cardholder sign the sales draft. Ensure the signature matches the

signature on the card. If not, contact

the Moneris Merchant Service Centre

.

OR

To process a Refund, sign the sales draft yourself.

5. Provide the customer with the Cardholder Copy of the Sales Draft and retain the Merchant Copy for your records.

6. Press the green OK key to continue the transaction.

46 Moneris Vx810 Duet Operating Manual v1.2.4

2. Features and Procedures

2.3.7 Responding to Basic Transaction Prompts

Merchant Prompts Appearing on the Terminal

If this prompt appears ... Take this action

Customer Press OK to Continue Pass the terminal to the customer, who follows the prompts.

Return to Clerk

Last 4 Digits

Exp Date (MMYY)

Validation Code

Code present?

Password:

Promo Code:

Retrieve the terminal and press the green

OK key to continue.

Key in the last four digits of the card number and press the green OK key.

Key in the card's expiry date (MMYY) and press the green OK key.

Key in the three- or four-digit validation code on the back of the card and press the green OK key.

If the code is not there, select No. If the code is not readable, select Xread.

Key in the manager password

.

Key in the six-digit Private Label

promotion code and press the green OK key.

Merchant Prompts Appearing on the Terminal (if a PINpad is Connected)

If this prompt appears ... Take this action

Pass the PINpad to the customer for card entry or tap.

Swipe Card

Swipe or Insert Card

Swipe, Tap, or Insert Card

Approved OK to Continue Retrieve the PINpad and press the green

OK key on the terminal to complete the transaction.

Moneris Vx810 Duet Operating Manual v1.2.4 47

2. Features and Procedures

Customer Prompts Appearing on the Terminal or PINpad

If this prompt appears ... Take this action

Customer Press OK to Continue Press the green OK key.

Select Language

Select Appl:

<Application name>-OK?

Purchase Amount OK?

Purchase Total OK?

Select Account:

Enter PIN & OK:

Remove Card

Return to Clerk

Wait for PINPAD

Select ENG (English) or FRN (French).

Select a displayed application by pressing the corresponding function key (F1, F2, etc.).

Select Yes to confirm use of the displayed application.

Check the Purchase amount and select Yes to accept it.

Check total Purchase +

Cashback +

Tip

Amount

and select Yes to accept it.

Select CHQ (Chequing) or SAV

(Savings).

Key in the customer's PIN (Personal

Identification Number) and press the green

OK key.

Remove the chip card from the reader.

Return the device to you.

Follow the prompts on the PINpad.

Customer Prompts Appearing on the PINpad Only

If this prompt appears ... Take this action

PLEASE REMOVE CARD Remove the chip card from the reader on the PINpad and return the PINpad to you.

48

PURCHASE OK?

TOTAL OK?

Check the Purchase amount and press the green OK key to accept it.

Check total Purchase +

Cashback +

Tip

Amount

and select Yes to accept it.

Moneris Vx810 Duet Operating Manual v1.2.4

2. Features and Procedures

2.3.8 Entering a Tip Amount

Basic Tip Processing

If

Basic Tip Processing

is enabled on the terminal, the customer is prompted as shown below on

Purchase, Pre-Authorization Completion and Advice transactions.

On the Standalone Vx810

1. "Tip: $0.00" appears on the terminal.

2. The customer (or in some cases you) keys in a tip amount to add to the transaction and presses the green OK key to continue the transaction with the tip added.

OR

The customer presses the green OK key without keying in a tip amount and the transaction continues with no tip added.

With the External PINpad

1. "ADD TIP?" appears on the PINpad.

2. The customer selects YES to add a tip amount to the transaction.

3. At the "ENTER TIP + OK" prompt, the customer keys in a tip amount and presses the green OK key to continue the transaction with the tip added.

OR

The customer selects NO and the transaction continues with no tip added.

Note: Tip Processing is skipped on

Signatureless Transactions

.

Moneris Vx810 Duet Operating Manual v1.2.4 49

2. Features and Procedures

Enhanced Tip Processing

IMPORTANT: Basic Tip Processing must be enabled in order for Enhanced Tip Processing to work.

To configure Tip Processing, see

Configuring Tip Processing

.

On the Standalone Vx810

If

Enhanced Tip Processing

is enabled on the terminal, the customer is prompted as shown below on Purchase transactions.

Note: On Pre-Authorizations and Pre-Authorization Completions, Enhanced Tip

Processing works the same way as Basic Tip Processing.

1. "Tip Type:" appears on the terminal.

2. The customer selects %.

If up to three

configured suggested percentages appear with an Other selection, the customer

selects the desired tip percentage OR selects Other, keys in a tip percentage and then presses the green OK key to continue the transaction with the tip added accordingly.

If no tip percentages have been configured on the terminal, the "Tip %:" prompt appears, and the customer keys in a tip percentage and then presses the green OK key to continue the transaction with the tip added accordingly.

OR

The customer selects $.

At the "Tip:" prompt, the customer keys in a tip amount and then presses the green OK key to continue the transaction with the tip added.

OR

The customer selects No Tip (selection is available only if the No Tip option is enabled on the

terminal) and the transaction continues with no tip added.

With the External PINpad

1. The "TIP Option" prompt appears on the PINpad.

2. The customer selects %.

Three

configured suggested percentages

appear with an Other selection, the customer selects the desired tip percentage OR selects Other, keys in a tip percentage and then presses the green OK key to continue the transaction with the tip added accordingly.

OR

The customer selects Other.

At the "ENTER TIP + OK" prompt, the customer keys in a tip amount and then presses the green

OK key to continue the transaction with the tip added.

OR

The customer selects None and the transaction continues with no tip added.

50 Moneris Vx810 Duet Operating Manual v1.2.4

2. Features and Procedures

2.3.9 Entering a Cashback Amount on a Debit Transaction

If the

Cashback option

is enabled on the terminal, the customer is prompted as follows on Debit Purchase transactions.

IMPORTANT: The Cashback option is not available for contactless debit (Interac Flash) transactions.

Note: The Cashback amount is withdrawn from the same account used for the Purchase

transaction.

To configure the Cashback option, see

Configuring Cashback

.

Standalone Vx810

1. The "Cashback?" prompt appears on the terminal.

2. The customer selects Yes.

Three pre-set amounts

appear with an Other selection.

If the customer selects a pre-set amount, the transaction continues with the amount added to the

Purchase.

If the customer selects Other, the "Cash:" prompt appears, and the customer keys in a cash amount then presses the green OK key to continue the transaction with the amount added to the

Purchase.

If the customer selects Other and the keyed in amount exceeds

the maximum Cashback allowed ,

an "Out of range" message appears and the customer is prompted to key in another amount.

OR

The customer selects No and the transaction continues with no Cashback amount added.

With the External PINpad

1. The "CASHBACK" prompt appears on the PINpad.

2. The customer selects $.

Four pre-set amounts appear, the customer selects the desired amount and the transaction continues with the amount added to the Purchase.

OR

The customer selects Other, keys in a cash amount at the prompt, and then presses the green OK key to continue the transaction with the amount added to the Purchase.

OR

The customer selects None and the transaction continues with no Cashback added.

Moneris Vx810 Duet Operating Manual v1.2.4 51

2. Features and Procedures

2.3.10 Entering the Clerk ID

If

Clerk ID prompting is enabled, the terminal prompts you as shown below on all transactions.

1. The "Clerk Id:" prompt appears on the terminal.

2. Key in a Clerk ID (1-6 digits) and press the green OK key to continue the transaction.

Note: You are required to key in a Clerk ID when prompted for one.

To configure Clerk ID prompting, see Configuring Clerk Mode .

2.3.11 Entering an Invoice Number

If

Invoice Number prompting is enabled, the terminal prompts you for an Invoice ID on Credit Card and

Debit transactions.

1. The "Invoice Id:" prompt appears on the terminal.

2. Key in an alphanumeric Invoice ID up to 10 characters long and press the green OK key to continue the transaction.

OR

Press the green OK key to bypass the prompt.

Note: If prompted for an Invoice Number during a

Corporate Card Purchase transaction,

you must key in a number with a maximum of 7 characters.

To configure Invoice Number Prompting, see

Configuring Invoice Number Prompting

.

52 Moneris Vx810 Duet Operating Manual v1.2.4

2. Features and Procedures

2.3.12 Finding a Transaction's Sequence and Orig Auth Numbers

Sequence Number

The Sequence Number is printed on the receipt for all transactions.

A transaction's Sequence Number is the first 6 of the last 7 digits of the Seq # printed on the receipt. For example, if the

Seq # on a receipt is 0001234560, the Sequence Number is

123456.

The Sequence Number is used to select transactions from the terminal memory to process Corrections, Pre-Authorization

Completions and Pre-Authorization Deletions, to reprint receipts

and to use the Batch Review function.

To process a Pre-Authorization Completion or Deletion:

Use the Sequence Number printed on the Pre-Authorization receipt.

Note: If you do not have the Pre-Authorization receipt, print

the Pre-Auth Transactions Report to obtain the Pre-

Authorization's Sequence Number.

To process a Correction (transaction void):

Use the Sequence Number printed on the receipt of the transaction you want to void.

Note: If you do not have the original receipt, use the Batch

Review

function to obtain the Sequence Number of the transaction you want to void.

Orig Auth #

The Orig Auth # is printed on the receipt for all transactions. A transaction's Orig Auth # is the 6-digit Appr Code printed on the receipt (e.g., 654321).

The Orig Auth # is used to select transactions from the terminal memory to process Refunds.

To process a Refund:

1. Use the Orig Auth # ( Appr Code) on the receipt of the transaction you want to refund.

Moneris Vx810 Duet Operating Manual v1.2.4 53

2. Features and Procedures

2.3.13 Signing Credit Card Receipts

General Guidelines

• If a signature line appears on the Merchant copy of a receipt, the cardholder must sign the receipt.

• If NO SIGNATURE REQUIRED or VERIFIED

BY PIN appears on the Merchant copy of a receipt, a signature is not required.

• If a signature line appears on the Customer copy of a receipt, you (the merchant) must sign the receipt.

Signatureless Transactions

A "signatureless" transaction is a swiped or tapped Purchase for which a cardholder s ignatu re is not required because the Purchase amount is at or below the card's maximum Signatureless

Dollar Value ( SDV). Depending on the card type and how your terminal is configured, receipts may or may not print for a signatureless transaction.

To configure receipt printing, see Configuring

Receipt Printing

.

Note: Signatureless transactions for swiped purchases apply only when a customer uses a swipe-only card, not when the customer is instructed to swipe a chip or contactless card.

54 Moneris Vx810 Duet Operating Manual v1.2.4

2. Features and Procedures

2.3.14 Reprinting Receipts

This function prints a duplicate Customer copy of a receipt.

Note: To have the function print the Merchant copy of a receipt as well as the Customer

copy, enable the Reprnt Merch Copy

parameter (see

Configuring Receipt

Printing

).

Note: For debit transactions, if you set the

Customer Copy parameter to “None”, only

the Merchant copy of the receipt initially prints. But if you perform a reprint receipt, the Customer copy is printed.

To reprint a receipt:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu

appears.

2. Press the REPRINT key (second purple key from the right ).

The REPRINT menu appears.

3. To reprint the Customer copy of the last transaction receipt, select Last Receipt.

OR

To reprint a different receipt, select Any Receipt, key in the transaction's Sequence Number and

press the green OK key.

4. The terminal prints the Customer copy of the receipt.

Note: On

Signatureless Transactions

, only the Customer copy is printed regardless of the

Reprnt Merch Copy setting.

5. If the "Reprint Last Merchant Cpy" prompt appears:

• Select Yes to print the Merchant Copy of the receipt.

OR

• Select No to return directly to the transactions menu.

2.3.15 Printing a Cash Receipt

Use this function to print a receipt for a cash purchase.

To print a cash receipt:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu

appears.

2. Press 9 to print a cash receipt.

If the "Clerk Id:" prompt appears, key in your Clerk ID and press the green OK key.

The "Amount: $" prompt appears.

3. Key in the amount of the purchase and press the green OK key.

4. If the "Tip: $0.00" prompt appears:

The customer can key in a tip amount and press the green OK key.

OR

You can press the green OK key to print a Tip line and Total line on the cash receipt.

Moneris Vx810 Duet Operating Manual v1.2.4 55

2. Features and Procedures

2.3.16 Entering Alphabetic Characters and Punctuation

Alphabetic Characters

To key in alphabetic characters:

1. Press the number key with the character you want to display.

2. Press the ALPHA key repeatedly until the character appears on the screen.

For example, to key in THANK YOU:

To key in this text:

Press these keys on the keypad:

T

H

A

N

K

8 ALPHA

4 ALPHA

ALPHA

2 ALPHA

6 ALPHA ALPH

5 ALPHA

ALPHA

[space]

0 ALPHA

ALPHA

Y

O

U

9 ALPHA

ALPHA ALPHA

6 ALPHA

ALPHA ALPHA

8 ALPHA

ALPHA

[period]

.

1 ALPHA

ALPHA ALPHA

Note: Use the yellow CORR key to delete single characters.

56 Moneris Vx810 Duet Operating Manual v1.2.4

Punctuation and Special Characters

KEY CHARACTER

1 . (period or dot)

\ (backslash)

3 %

2. Features and Procedures

6 ?

7 [

8 ]

9 {

, (comma)

' (apostrophe)

" (quotation mark)

}

(space)

+

&

# # (pound or number sign)

=

:

$

^

Note: These are not allowed for

Clerk IDs

and Invoice Numbers .

Moneris Vx810 Duet Operating Manual v1.2.4 57

2. Features and Procedures

2.3.17 Cancelling a Transaction

Note: Once the terminal has begun communicating with the Moneris host, i.e., once the

"Processing" message is displayed, the transaction can no longer be cancelled.

To cancel a transaction:

o

Press the red CANC ANNUL key.

The terminal prints the Merchant Copy of the receipt with TRANS CANCELLED on it, if configured, prints the Customer Copy of the receipt with TRANS CANCELLED on it then returns to the transactions menu.

2.3.18 Cancelling a Report

To cancel a report:

a. Press the red CANC ANNUL key.

If the report has begun printing, the terminal stops printing the report and returns to the REPORTS menu.

Note: The Terminal Stats report continues to print until the report is finished.

b. Press the red CANC ANNUL key to return to the transaction menu.

2.3.19 Changing the Manager Password

IMPORTANT: For security purposes, we strongly recommend you change your terminal's temporary Manager Password to a secure password of your own. The

password should not be changed until after the terminal's first initialization .

To change the Manager Password:

1. On the applications menu , select DEBIT & CREDIT.

The transactions menu appears.

2. Press the green OK key to access the CONFIGURATION menu.

3. Select Setup, key in the current manager password or the temporary password, and press the green

OK key.

4. Select Terminal.

5. Select Next until "Manager Pwd" appears.

6. Select Edit, key in your new password and press the green OK key.

Note: The password must be 5-10 digits long and must consist of numbers only.

7. Select Exit then select the green OK key to save changes.

8. Press the red CANC ANNUL key then press the * (ASTERISK) key to return to the applications menu.

See The Manager Password .

58 Moneris Vx810 Duet Operating Manual v1.2.4

2. Features and Procedures

2.3.20 Requesting a Code 10 Authorization

During a transaction, if you feel that a customer, card or transaction is suspicious and needs investigating, call the Moneris Merchant Service Centre and state that the call is a Code 10. This will alert the Moneris agent without alarming your customer. The operator will ask you some "Yes/No" questions and then provide instructions.

Reasons for calling in a Code 10 include:

• the signature on the credit card does not seem to match the signature on the receipt.

• the card appears to have been tampered with.

• the name on the card is inconsistent with the person’s gender.

• the customer is purchasing an unusual number of expensive items.

• the customer’s purchases seem randomly selected, with little regard for size, quality or value.

• the customer seems nervous or signs slowly with uncertainty.

2.3.21 Dealing With Disputed Debit Transactions

Do not attempt to resolve or compensate a cardholder for a disputed Debit transaction. Refer the

Cardholder to their Financial Institution.

Moneris Vx810 Duet Operating Manual v1.2.4 59

3. The Moneris Vx810 Hardware

3.1 The Moneris Vx810 Duet Terminal

The terminal consists of:

• a hand-held terminal with:

• an integrated PINpad

• a backlit display

• a keypad

• a magnetic stripe reader

• a chip card reader

• a communications base with:

• an integrated

printer

• ports for communications and peripherals

• a power port

• an optional

external PINpad

• an optional

modular contactless reader

3.2 Setting up the Terminal

Follow these three steps to set up the terminal hardware:

1. Connect the

power cable

to the base .

2. Connect the

communications cable(s) to the base

.

3. Check the printer for paper: a. From the applications menu, select DEBIT & CREDIT. b. b. Press the 3 key to see if paper appears.

Note: If no paper appears,

load a paper roll in the printer

.

Moneris Vx810 Duet Operating Manual v1.2.4 61

3. The Moneris Vx810 Hardware

3.3 The Communications Base

The Ports on the Vx810 Duet Communication Base

The Duet communications base has 5 (five) ports:

Icon Description

Use for the

dial communications cable .

10BaseT

Use for the

Ethernet communications cable

.

DO NOT USE

Use for the

power adaptor cable .

RS232

Use for the

external PINpad .

62 Moneris Vx810 Duet Operating Manual v1.2.4

3. The Moneris Vx810 Hardware

3.4 The Communications Cables

The Vx810 Duet supports two types of communication, dial and IP, and has a separate port on the Duet base for each type of communications cable.

3.4.1 The Dial Communications Cable

The Dial Communications Cable

1. Plug one end of the dial communications cable into the dial port ( ) on the

base

.

2. Plug the other end of the dial communications cable into an analog telephone wall jack.

3.4.2 The Ethernet Communications Cable

The Ethernet Communications Cable

1. Plug one end of the Ethernet communications cable into the 10BaseT port on the base

.

2. Plug the other end of the Ethernet communications cable into an Ethernet wall jack or a router.

When the terminal is not performing any transactions or functions, and has been idle for a pre-set period

of time, the terminal will display the applications menu .

Moneris Vx810 Duet Operating Manual v1.2.4 63

3. The Moneris Vx810 Hardware

3.5 The Terminal Keypad

The Vx810 Duet keypad and purple function keys

The terminal keypad contains alphanumeric keys and function keys.

3.5.1 Alphanumeric Keys

These keys allow you to enter amounts for transactions, text for receipt messages and selection criteria for reports. Some alphanumeric keys also act as function keys (see below).

3.5.2 The Function Keys

NAME ALLOWS YOU TO...

F1 to F4 select the option displayed on the right-hand side of the display screen beside the function key

Purple keys

Arrow Key scroll down or up (press the yellow CORR key to toggle between scrolling up and down)

Reprint Key

Reports Key

The first purple key on the left, located under the arrow icon ( or ). launch the

REPRINT menu

The second purple key from the right. launch the

REPORTS menu

The first purple key on the right.

64 Moneris Vx810 Duet Operating Manual v1.2.4

3. The Moneris Vx810 Hardware

NAME

ALPHA

CANC

ANNUL

CORR

OK

3

ALLOWS YOU TO...

enter alphabetic characters for personalized receipt text, Clerk IDs, etc.

Located in the middle of the row of purple keys.

- cancel a transaction

- return to the transaction menu after completing a transaction

- return to the previous menu when performing ADMIN functions

The red key located at the bottom left of the keypad.

- clear the last character or number entered (by the cardholder or the merchant)

- return to the previous cardholder prompt if no value is currently displayed for the cardholder prompt

- clear the value displayed when a prompt is first displayed

- change the direction of the arrow icon above the 1st purple function key.

The yellow key located at the bottom centre of the keypad.

- confirm the data input is complete

- confirm the data displayed is correct

- display the

CONFIGURATION menu

if pressed when the terminal is at the

transactions menu .

The green key located at the bottom right of the keypad.

advance the paper in the printer

* (asterisk)

return to the applications menu

Moneris Vx810 Duet Operating Manual v1.2.4 65

3. The Moneris Vx810 Hardware

3.6 The Magnetic Stripe Card Reader

The Magnetic Stripe Reader (MSR) is located in a slot on the right-hand side of the terminal. When a payment card is swiped, the MSR reads the information encoded on the card's magnetic stripe.

To swipe a card, the magnetic stripe must be down and facing towards the terminal.

Cards can be swiped from the back of the terminal forwards or from the front of the terminal backwards.

66 Moneris Vx810 Duet Operating Manual v1.2.4

3. The Moneris Vx810 Hardware

3.7 The Chip Card Reader

The chip card reader is located in a slot in the front of the terminal. When a chip card is inserted, the chip card reader reads the information on the card's chip (e.g., whether to prompt for PIN or print a signature line on the receipt).

To correctly insert the chip card into the chip card reader:

1. Ensure that the card is facing up

AND the chip is closest to chip card reader slot on the terminal.

2. Slide the card into the chip card reader slot until the card stops sliding in.

Inserting a Chip Card in to the Chip Card Reader

IMPORTANT: Leave the chip card in the reader for the entire transaction.

3. When the "Remove Card" prompt appears, pull the card gently out of the chip card reader.

3.8 The Integrated Printer

A thermal printer is integrated into the Moneris 810 Duet base . It prints black text on white, one-part thermal paper.

To order additional paper rolls, see Assistance

. To load a paper roll in the printer, see Loading

Paper in the Printer .

Moneris Vx810 Duet Operating Manual v1.2.4 67

3. The Moneris Vx810 Hardware

3.9 The External PINpad

If you ordered the optional Vx810 external PINpad, please confirm that you have received the PINpad and the attached PINpad power cable.

If an optional Vx810 external PINpad is connected to the Vx810 Duet and your merchant account is configured for it, customers must use the PINpad during transactions requiring their input to key in information while you keep the terminal in front of you.

3.9.1 Setting up the External PINpad

1. Locate the PINpad cable (attached to the external PINpad).

68

2. Plug the RS232 connector into the RS232 port on the back of the terminal base. Plug the power connector into the power port ( ) on the back of the base in the unlock position. Turn the plug counter-clockwise to put it in the lock position.

3. Locate the power cable and the power adaptor cable. Plug the power cable into the power adaptor cable. Plug the other end of the power adaptor cable into the power port box in the middle of the

PINpad power cable. Insert the connector at a right angle to the box then turn it counter-clockwise to lock it in place.

Moneris Vx810 Duet Operating Manual v1.2.4

3. The Moneris Vx810 Hardware

4. Plug the other end of the power cable into a power source.

Recommendations: Always plug the power cable into the power source last to avoid power surges. Use a power bar with surge protection where possible.

IMPORTANT: You must use the exact power adaptor and cables provided by Moneris

Solutions to work with the Moneris Vx810 terminal and PINpad.

Failure to do so may affect the operability of or cause damage to the equipment.

The terminal is ready when the

applications menu

appears.

3.9.2 Transactions With the PINpad

1. Begin the transaction on the Vx810 Duet terminal.

2. When "Swipe Card:" appears on the terminal, pass the PINpad to the customer for card entry (see

Procedures ).

3. When "Wait for PINpad" appears on the terminal, the customer follows the prompts on the

PINpad.

4. When "Approved OK to Continue" appears on the terminal, retrieve the PINpad, press the green

OK key on the terminal and complete the transaction on the terminal following the prompts.

Moneris Vx810 Duet Operating Manual v1.2.4 69

3. The Moneris Vx810 Hardware

3.10 The Modular Contactless Reader

If an optional modular contactless reader is connected to the Vx810

Duet terminal and your merchant account is configured for it, you can process contactless transactions. In a contactless transaction, t h e customer taps a contactless card on the contactless reader inste ad of swiping or inserting it.

Note: If an optional external PINpad is connected to the Vx810

Duet, the contactless reader is connected to the PINpad instead of t o the terminal.

3.10.1 Contactless Transactions Allowed

Contactless cards can be tapped on a contactless reader for credit

Purchases and Refunds only if the amount is at or below the maximum Contactless Dollar Value (CDV).

3.10.2 Maximum Contactless Dollar Value (CDV)

To determine the maximum CDV for a card, print the EMV Parameters Report

and locate the

Contactless Trans Limit parameter under the report's record for the card. A CDV of 9999 means there is no maximum limit.

70 Moneris Vx810 Duet Operating Manual v1.2.4

4. Configuring Your Terminal

4.1 Configuring Your Terminal

Your Vx810 Duet terminal can be set up to accept and process a variety of cards including debit cards, credit cards, Private Label credit cards, and corporate ( a.k.a. purchasing) credit cards. The terminal can also be set up to support gift card programs and loyalty programs.

Before you begin using your terminal to process transactions, you must configure it, inputting any special values and parameters needed for the options you want to use. Before you start, ensure you have the following information available:

• your Merchant ID

• your Terminal ID

1. Configure the

communications parameters

.

2. Configure your

Merchant ID and Terminal ID .

3. If applicable, configure the optional external PINpad .

4. If applicable, configure the optional modular contactless reader .

5. Select the standard features

and the

optional features you intend to use on the terminal.

6. Configure the selected features:

•

Receipt printing

•

Tip Processing

•

Cashback

•

Clerk IDs and Clerk Sub-Totalling

•

Invoice Prompting

•

Multi-Terminal Reporting

•

Private Label Cards

•

Corporate Cards

Note: Some terminal parameters can be edited using the

Quick Setup menu

.

7.

Initialize your terminal .

8.

Print a Terminal Parameters Report

.

Moneris Vx810 Duet Operating Manual v1.2.4 71

4. Configuring Your Terminal

4.2 Using Quick Setup

The Quick Setup menu provides quick access to a number of popular terminal configuration parameters.

See the list of parameters below.

To access Quick Setup:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu appears.

2. From the transactions menu, press 6.

The "Password:" prompt appears.

3. Key in the manager password

and press the green OK key.

The first Quick Setup menu appears.

4.2.1 Options for Each Parameter

• View (display and edit parameters)

• Print (print a list of parameters in the sub-menu and their current values)

4.2.2 Parameters

These parameters can also be found on other menus. For instructions on editing the parameters, refer to the section for the menu indicated in parentheses beside the parameter.

Phone

• PABX Code (also found in the

Edit Terminal menu

)

• MONC Primary (also found in the

Edit CPT menu

as Pri Auth Phone)

• MONC Secondary (also found in the

Edit CPT menu

as Sec Auth Phone)

• MONC Settle (also found in the

Edit CPT menu

as Pri Sett Phone)

• MONC Sec. Settle (also found in the

Edit CPT menu

as Sec Sett Phone)

• Blind Dial (also found in the

Edit CPT menu

)

Terminal

• MONC Term Id (also found in the

Edit Format menu

)

• MONC Merch Num (also found in the

Edit Format menu )

• Tip Processing (also found in the

Edit Terminal menu

)

• Clrk/Srvr Mode (also found in the

Edit Terminal menu

)

• Customer Copy (also found in the

Receipt Parameters menu )

• Header Line 1 to 6 (also found in the

Receipt Parameters menu and the

Edit MIT menu

)

• Terminal Beep (also found in the

Edit Terminal menu

)

72 Moneris Vx810 Duet Operating Manual v1.2.4

Communications

Do Not Use

IP Hosts

• Pri Auth URL (also found in the

Edit ECT menu

)

• Pri Auth Port (also found in the

Edit ECT menu

)

• Sec Auth URL (also found in the

Edit ECT menu

)

• Sec Auth Port (also found in the

Edit ECT menu

)

• Pri Sett URL (also found in the

Edit ECT menu

)

• Pri Sett Port (also found in the

Edit ECT menu )

• Sec Sett URL (also found in the

Edit ECT menu )

• Sec Sett Port (also found in the

Edit ECT menu )

4. Configuring Your Terminal

Moneris Vx810 Duet Operating Manual v1.2.4 73

4. Configuring Your Terminal

4.3 Configuring Communications

4.3.1 Configuring Communications

The terminal can communicate with the Moneris host over Ethernet and Dial communications.

•

Dial communications

• IP communications with

Dynamic addressing

• IP communications with

Static addressing

•

Dial backup support for IP communications

IMPORTANT: You must contact Moneris before changing from one communication type to another. Changes may be required on the Moneris Host to allow the terminal to communicate successfully using the new communications type.

4.3.2 Configuring Dial Communications

If your terminal will communicate with the Moneris Host over a standard analog telephone line, you will need to set up these parameters.

WARNING: Due to data security issues, terminals using dial communications must use a true analog phone line connecting to a public switched telephone network. Analog telephone adaptors (

ATAs) and digital phone service over IP communications (e.g. VoIP) must NOT be used as an alternative to dial communications.

Moneris recommends installing a dedicated telephone line for the terminal to ensure transactions are processed quickly and reliably. Sharing the line with another device (e.g. a fax machine) can cause communication problems. Line splitters and filters are not recommended.

Note: The Dial Communications cable must be connected before attempting to

communicate with the Moneris Host.

1. Ensure the

dial cable is connected to the base and an analog telephone wall jack.

2. Set the Comm Link Typ parameter:

a. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu appears. b. Press the green OK key to access the CONFIGURATION menu. c. Select Setup, key in the

manager password and press the green OK key.

d. Scroll down and select Host.

"Comm Link Typ" appears on the Edit Hosts menu. e. Make sure Comm Link Typ is set to Dial. If yes, skip to step g. If no, proceed to step f. f. Select Edit, select Next until Dial appears then select Slct. g. Select Exit. If prompted to save changes, select OK. h. Press the red CANC ANNUL key then press the * (ASTERISK) to return to the applications menu.

74 Moneris Vx810 Duet Operating Manual v1.2.4

4. Configuring Your Terminal

3. If you need to dial a prefix (e.g., a 9) to connect to an outside line:

a. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu appears. b. Press the green OK key to access the CONFIGURATION menu. c. Select Setup, key in the

manager password and press the green OK key.

d. Scroll down and select Terminal.

e. Select Next until " PABX Code " appears.

f. Select Edit, key in the prefix number (e.g., 9) then press the green OK key. g. Select Exit then select OK to save changes. h. Press the red CANC ANNUL key then press the * (ASTERISK) to return to the applications menu.

4. Enter the initialization phone number:

a. On the applications menu

, select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu appears. b. Press the green OK key to access the CONFIGURATION menu. c. Select Setup, key in the

manager password and press the green OK key.

d. Scroll down and select Comm then select Next until "Pri Init Phone" appears. e. Select Edit, key in the initialization phone number as follows then press the green OK key.

If your merchant number begins with:

Key in:

00301 1-888-699-7299

00302 1-888-358-8602

00304 1-888-332-8433 f. Select Exit then select OK to save changes. g. Press the red CANC ANNUL key then press the * (ASTERISK).

Moneris Vx810 Duet Operating Manual v1.2.4 75

4. Configuring Your Terminal

4.3.3 Configuring Dynamic IP Communications

If your terminal will communicate with the Moneris Host over the Internet using Public IP with dynamic

IP addressing, you will need to set up these parameters.

Note: If the terminal is configured to use Ethernet communications and dial backup is

available, when Ethernet communication is not available the terminal will attempt to use dial communications.

Note: The terminal's MAC address can be found on the yellow sticker on the bottom of

the Duet base.

1. Ensure the

Ethernet cable is connected to the base and the wall jack.

2. Set the Comm Link parameters:

a. On the applications menu

, select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu appears. b. Press the green OK key to display the CONFIGURATION menu. c. Select Setup, key in the

manager password and press the green OK key.

d. Scroll down and select Host. e. Scroll to the following parameters and edit them:

•

Comm Link Type - set to "CommServer".

•

Settle Comm Type

- set to "CommServer".

• If you wish to configure dial backup, set the

Backup Support

parameter to "Auto

Backup" or "Prompt Backup". If dial is set up as backup, the terminal will attempt to use dial communications when Ethernet communication is not available. f. Select Exit then select OK to save changes. g. Press the red CANC ANNUL key then press the * (ASTERISK) to return to the applications menu.

3. Set the dynamic IP Settings parameters: a. While the applications menu is displayed, press the 2 key. b. Key in the manager password and press the green OK key. c. Press the Ethernet Config key ( ) then select IP. "IP Settings" appears. d. Select Edit then select DHCP. e. Select Exit then select Yes to save changes.

CommServer restarts and the terminal reboots back to the applications menu.

76 Moneris Vx810 Duet Operating Manual v1.2.4

4. Configuring Your Terminal

4.3.4 Configuring Static IP Communications

If your terminal will communicate with the Moneris Host over the Internet using Public IP with static IP addressing, you will need to set up these parameters.

Note: If the terminal is configured to use Ethernet communications and dial backup is

available, when Ethernet communication is not available the terminal will attempt to use dial communications.

Note: The terminal's MAC address can be found on the yellow sticker on the bottom of

the Duet base.

1. Disconnect the Ethernet cable from the base BEFORE completing these steps.

2. Set the Comm Link parameters:

a. On the applications menu

, select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu appears. b. Press the green OK key to display the CONFIGURATION menu. c. Select Setup, key in the

manager password and press the green OK key.

d. Scroll down and select Host. e. Scroll to the following parameters and edit them:

•

Comm Link Type - set to "CommServer".

•

Settle Comm Type

- set to "CommServer".

• If you wish to configure dial backup, set the

Backup Support

parameter to "Auto

Backup" or "Prompt Backup". If dial is set up as backup, the terminal will attempt to use dial communications when Ethernet communication is not available. f. Select Exit then select OK to save changes. g. Press the red CANC ANNUL key then press the * (ASTERISK) to return to the applications menu.

3. Set the static IP Settings parameters. a. At the applications menu, press the 2 key. b. Key in the manager password and press the green OK key. c. Press the Ethernet Config key ( ) then select IP. "IP Settings" appears. d. Select Edit then select Static. e. If your Ethernet network requires the parameters listed below, perform steps f and g for each parameter. Otherwise skip to step h. f. Select Next to view these parameters. g. Select Edit to key in the address for each of these parameters. To key in a period (.), press the number 1 key then the ALPHA key. Contact your Internet Service Provider (

ISP) to determine the addresses.

• IP Address

• Subnet Mask

• Gateway IP Add

• DNS1 IP Address

Moneris Vx810 Duet Operating Manual v1.2.4 77

4. Configuring Your Terminal

• DNS2 IP Address (your Ethernet network may not require this parameter) h. Select Exit then select Yes to save changes. CommServer restarts and the terminal reboots back to the applications menu.

4. Reconnect the Ethernet cable

to the

base

and the wall jack.

4.4 Configuring Dial Backup Support for IP

4.4.1 Dial Communications as Automatic Backup for IP

With this configuration, the terminal will automatically attempt to use dial communications when

Ethernet communications is not available.

1. Finish setting up communications for IP ( dynamic or

static

).

2. Plug in the dial cable and follow the steps for Dial Setup under Configuring Dial

Communications .

Note: Dial communications must be configured for Dial Backup to work.

3. On the applications menu , select DEBIT & CREDIT.

4. Press the green OK key to access the CONFIGURATION menu.

5. Select Setup, key in your

manager password

and press the green OK key.

6. Scroll down and select Host.

7. Select Next until “Backup Support” appears.

8. Select Edit, select Next until “Auto Backup” appears then select Slct.

9. Select Exit then select OK to save changes.

10. Press the red CANC ANNUL key then press the * (ASTERISK) key to return to the applications menu.

4.4.2 Other Backup Support Options

• None - Dial backup is disabled (default)

• Prompt Backup - The terminal prompts for confirmation before attempting dial

• Switch Backup - Do Not Use

• Use Backup - Do Not Use

78 Moneris Vx810 Duet Operating Manual v1.2.4

4. Configuring Your Terminal

4.5 Configuring Your Merchant ID and Terminal ID

To configure your Merchant ID and Terminal ID:

1. On the applications menu, select DEBIT & CREDIT.

"Activating App" appears followed by the transactions menu.

2. Press the green OK key to access the CONFIGURATION menu.

3. Select Setup, key in the temporary password and press the green OK key.

4. Scroll down and select Merchant.

"Term Id" appears.

5. Select Edit, key in the Terminal ID (the eight-digit number starting with 28 found on the back of the terminal, e.g. 28123456) and press the green OK key.

6. Select Next until "Merch Num" appears.

7. Select Edit, key in your 13-digit Moneris Merchant ID (e.g. 0030212345678) and press the green

OK key.

Note: Your Moneris Merchant ID was provided to you when Moneris contacted you to

confirm your terminal order. If you currently have a 9-digit merchant number beginning with a 1, 2 or 4, simply add 0030 to the beginning (i.e., 123456789 becomes 0030123456789).

8. Select Exit then select OK to save changes.

9. Press the red CANC ANNUL key then press the * (ASTERISK) key to return to the applications menu.

4.6 Configuring the External PINpad

If you have

set up an external PINpad for use with your terminal, follow the instructions below to

configure it on your terminal.

IMPORTANT: You must configure the external PINpad on your terminal BEFORE you

initialize your terminal for the first time.

To configure the external PINpad:

1. On the applications menu, select DEBIT & CREDIT.

"Activating App" appears followed by the transactions menu.

2. Press the green OK key to access the CONFIGURATION menu.

3. Select Setup, key in your

manager password and press the green OK key.

4. Select Terminal.

"Tip % nn.nn" appears on the Edit Terminal menu.

5. Select Next until "PINpad Type" appears.

6. Select Edit then select Next until "External XPI" appears.

7. Select Slct.

8. Select Exit and then select OK to save changes.

9. Press the red CANC ANNUL key then press the * (ASTERISK) key to return to the applications menu.

Moneris Vx810 Duet Operating Manual v1.2.4 79

4. Configuring Your Terminal

Note: You must

power down

and then

restart the terminal after switching the PINPad

Type between IPP and External XPI.

4.7 Configuring the Modular Contactless Reader

If you have set up an optional modular contactless reader for use with your terminal, follow the instructions below to configure it on your terminal.

To configure the contactless reader:

1. On the applications menu, select DEBIT & CREDIT.

"Activating App" appears followed by the transactions menu.

2. Press the green OK key to access the CONFIGURATION menu.

3. Select Setup, key in your

manager password and then press the green OK key.

4. Select Terminal then select Next until "Enable CTLS" appears.

5. Make sure "Enable CTLS" is set to On. If yes, skip to step 7. If no, proceed with step 6.

6. Select Edit and then select On.

7. Select Exit. If prompted to save changes, press the green OK key.

8. Press the red CANC ANNUL key then press the * (ASTERISK) key to return to the applications menu.

80 Moneris Vx810 Duet Operating Manual v1.2.4

4. Configuring Your Terminal

4.8 Disabling Manual Entry on Credit Cards

The

Manual Card Entry Feature gives merchants the ability to enable or disable manual entry of specific

credit card types. By default all credit card types are set to Yes, which means they are able to be manually keyed in on the terminal.

But if you want to disable manual credit card entry

on specific card types (while leaving others enabled), follow the instructions below:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." appears followed by the transactions menu .

2. Press the green OK key to enter the Configuration menu.

3. Select SETUP.

4. When prompted, enter the manager password

and press the green OK key.

5. Use the first purple function key on the left to scroll down to the EDIT CARDS menu.

6. Select EDIT CARDS.

7. In the Edit Cards screen, press the Next function key to display card type that you wish to change.

8. Press the Slct function key to select it. Refer to the matrix

below to determine which card type to select.

9. Press the Next function key until Manual Entry is the displayed option.

10. Press the Edit function key to edit the card type.

11. Press the No function key to disable manual entry for this card type.

12. Press the Exit function key to exit the card type.

13. Press the OK function key to save the changes.

14. Repeat steps 7 - 13 again as necessary to disable manual entry of specific card types.

Once manual entry on certain card types has been prevented, a clerk or cardholder who tries to manually key in a card number

will be presented with a prompt that says "Swipe Only". The user is only allowed to swipe, insert or tap their credit card.

If manual entry on a card type is left enabled (the default) and the

Password Protection on Manual

Card Entry

feature is also enabled, the user will be prompted for the manager password .

Moneris Vx810 Duet Operating Manual v1.2.4 81

4. Configuring Your Terminal

4.8.1 The Edit Cards Screen Matrix

Use the table below to understand the syntax of what is displayed in the Edit Cards screen.

Value on the

Screen

#X/XX

UK

Card Type it

Represents

Card

Number/Total

Cards (e.g.

#3/21)

System card type

- Do not use

V Visa

M Mastercard

AX Amex

C1 JCB if left blank, unused

82 Moneris Vx810 Duet Operating Manual v1.2.4

4. Configuring Your Terminal

4.9 Configuring Password Protection on Manual Entry

When a user manually enters a credit card number on the terminal, the device can challenge for the

manager password . Follow the instructions below to enable or disable

password protection for manual

card entry.

4.9.1 Enabling the Manual Entry Password Feature

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." appears followed by the transactions menu .

2. Press the green OK key to enter the Configuration menu.

3. Select SETUP.

4. When prompted, enter the manager password

and press the green OK key.

5. In the Setup menu, select Terminal.

6. In the Edit Terminal menu, press the Next function key until Manual Password is the displayed option.

7. Press the Edit function key.

8. In the Edit Terminal - Manual Password section press the On function key. This will return you to the previous Edit Terminal screen.

9. Press the Exit function key.

10. When prompted to save your changes, press the Ok function key.

At this point, the terminal will prompt for the

manager password when a clerk or a cardholder manually

keys in a credit card number on the terminal.

Note: Manual card entry can only be performed on the terminal. The external PINpad's number keys are inactive, but audible when pressed.

Moneris Vx810 Duet Operating Manual v1.2.4 83

4. Configuring Your Terminal

4.9.2 Disabling Password Protection on Manual Entry

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." appears followed by the transactions menu .

2. Press the green OK key to enter the Configuration menu.

3. Select SETUP.

4. When prompted, enter the manager password

and press the green OK key.

5. In the Setup menu, select Terminal.

6. In the Edit Terminal menu, press the Next function key until Manual Password is the displayed option.

7. Press the Edit function key.

8. In the Edit Terminal - Manual Password section press the Off function key. This will return you to the previous Edit Terminal screen.

9. Press the Exit function key.

10. When prompted to save your changes, press the Ok function key.

At this point, there is no longer password protection on manual card entry. The terminal will not prompt

for the manager password

when a clerk or a cardholder manually keys in a credit card number on the terminal.

84 Moneris Vx810 Duet Operating Manual v1.2.4

4. Configuring Your Terminal

4.10 Configuring Receipt Printing

There are several parameters you can edit to configure what your receipts will look like and how they will print.

4.10.1 Enable the Printer

Use the Enable Printer

parameter to enable/disable the integrated printer. The printer is enabled by default.

4.10.2 Configure Receipt Headers and Footers

Use these parameters to configure the lines of text you want to appear at the top of your receipts: Header

Line 1

, Header Line 2 to 5 ,

Header Line 6 .

Use these parameters to configure the lines of text you want to appear at the bottom of your receipts:

Footer 1 to 3 ,

Footer 4 .

All the parameters are blank by default.

4.10.3 Enable Large Amount Printing

Use the Large Amt Print

parameter to enable/disable printing of double-wide characters for amount lines

and the Sequence number and Approval Code lines (see Finding Sequence and Orig Auth Numbers

). The feature is enabled by default.

4.10.4 Enable Printing of Customer Copies

Use the Customer Copy parameter to enable/disable and configure printing of Customer copies of

receipts from non-chip transactions. By default, the terminal is configured to print Customer copies automatically.

4.10.5 Enable Re-Printing of Merchant Copies

Use the Reprnt Merch Copy parameter to enable/disable and configure re-printing of Merchant copies of

receipts in addition to Customer copies. Re-printing of Merchant copies is disabled by default.

4.10.6 Configure the Print Prompt Beep Delay

Use the Prompt Beep Delay

parameter to configure the number of seconds you want the terminal to wait before printing the Customer copy after beeping and displaying the "Tear Receipt; Press OK key" prompt.

For receipt-related procedures, see Finding Sequence and Orig Auth Numbers

,

Signing Credit

Card Receipts

,

Reprinting Receipts

and Printing a Cash Receipt

.

Moneris Vx810 Duet Operating Manual v1.2.4 85

4. Configuring Your Terminal

4.11 Configuring Tip Processing

4.11.1 Basic Tip Processing

To enable Basic Tip Processing:

1. Set the Tip Processing parameter to On - Prompt.

2. Set the Tip % nn.nn

parameter to 0.

Note: Tip Processing is skipped on

Signatureless Transactions

.

4.11.2 Enhanced Tip Processing

Note: On Pre-Authorizations and Pre-Authorization Completions, Enhanced Tip

Processing works the same way as Basic Tip Processing.

To enable Enhanced Tip Processing:

1. Set the EnhancedTipProc parameter to On.

2. Set the Tip Processing parameter to On - Prompt.

IMPORTANT: Basic Tip Processing must be enabled in order for Enhanced Tip Processing to work.

To enable the No Tip option:

1. Make sure Enhanced Tip Processing is enabled.

2. Set the TipNone

parameter to On.

To configure the suggested tip percentage amounts:

1. Make sure Enhanced Tip Processing is enabled.

2. Set any of the

Sug Tip% 1 nn

,

Sug Tip% 2 nn and Sug Tip% 3 nn parameters to the desired

percentage amount (e.g., for 15%, key in 15).

Note: If all three parameters are set to 0, the customer is prompted to enter a percentage

amount if he/she selects the percentage option on tip prompting. If an external

PINpad is connected to your terminal, the options still appear showing 0%.

4.11.3 Gratuity Guidelines Printing on Pre-Authorization Receipts

To enable printing of Gratuity Guidelines:

1. Set the Gratuity Guide?

parameter to On.

2. Set all of the Sug Tip% 1 nn

,

Sug Tip% 2 nn and Sug Tip% 3 nn parameters to a value greater

than 0 (e.g., for 15%, 20% and 30%, key in 15, 20 and 30).

3. Set the Tip Processing parameter to On - Prompt.

Note: Both the Enhanced Tip Processing feature and the Gratuity Guidelines feature

make use of the Sug Tip% parameters when enabled. However, these features operate independently of each other, and you do not need to enable Gratuity

Guidelines to use Enhanced Tip Processing.

86 Moneris Vx810 Duet Operating Manual v1.2.4

4. Configuring Your Terminal

4.11.4 Tip Percentage on Purchases

To configure Tip Percentage:

1. Set the Tip % nn.nn

parameter to a value greater than 0 (e.g., for 15%, key in 1500).

2. Set the Tip Processing parameter to On - Prompt.

Note: Tip Percentage is skipped on

Signatureless Transactions .

IMPORTANT: On transactions with magnetic stripe credit cards, tip is automatically added

WITHOUT customer confirmation.

For Tip Processing customer entry procedures, see Entering a Tip Amount .

4.12 Configuring the Cashback Feature

4.12.1 Cashback Amount Prompting on Debit Transactions

To enable Cashback prompting:

1. Set the CashBack Option

parameter to On.

2. Make sure the

Show CB Choices parameter is set to On.

IMPORTANT: The Cashback option is not available for contactless debit (Interac Flash) transactions.

4.12.2 Changing Cashback Amounts

To change the pre-set Cashback amounts:

1. Set any of the

Amt 1 , Amt 2 and Amt 3

parameters to new amounts of your choice.

2. Make sure the

CashBack Option

parameter is set to On.

Note: When an external PINpad is connected to your terminal, the customer is offered the

pre-set Cashback limit ( Amt Limit ) as a fourth selectable amount.

4.12.3 Setting the Cashback Limit

To change the pre-set Cashback limit:

1. Set the Amt Limit parameter to a new amount of your choice.

For Cashback customer entry procedures, see Entering a Cashback Amount

.

Moneris Vx810 Duet Operating Manual v1.2.4 87

4. Configuring Your Terminal

4.13 Configuring Clerk ID Prompting and Clerk Sub-

Totalling

4.13.1 Configuring Clerk ID Prompting and Clerk Sub-Totalling

Clerk ID Prompting

To enable the Clerk ID prompt:

1. Set the Clrk/ Srvr Mode

parameter to Prompt.

For the Clerk ID prompting procedure, see

Entering the Clerk ID

.

Using a Default Clerk ID

To automatically use the same Clerk ID for all transactions (no ID prompting):

1. Set the Clrk/ Srvr Mode

parameter to None.

2.

Add the Clerk ID to your terminal.

3. Set the Use Def. Clrk?

parameter to On.

4. Set the Default Clerk

parameter to the Clerk ID added in step 2.

Note: Clerk ID prompting must be disabled in order to use a default Clerk ID. Before

setting a Clerk ID as the default, you must add it to your terminal.

IMPORTANT: If you have more than one terminal, use must configure the Default Clerk ID on each terminal individually.

Clerk Sub-Totalling

To enable Clerk Sub-Totalling on your terminal to produce Clerk Sub-Total Reports :

1. Set the

Clrk/ Srvr Mode parameter to Prompt.

2.

Add Clerk IDs

as needed.

To delete Clerk IDs added to your terminal:

3. See Deleting Clerk IDs .

88 Moneris Vx810 Duet Operating Manual v1.2.4

4. Configuring Your Terminal

4.13.2 Adding Clerk IDs (including the Default Clerk ID)

Use this function to add the Clerk IDs to be associated with your Merchant ID. The terminal must communicate with the Moneris Host in order to complete this function.

The Clerk IDs you enter here can be entered at the "Clerk Id" prompt during transactions and will be used in Clerk Subtotals Reporting.

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu appears.

2. Press the green OK key to display the CONFIGURATION menu.

3. Select Servers.

If the "Password:" entry screen appears, key in the manager password

and press the green OK key.

4. The CONFIGURE SERVER menu appears.

5. Select Add Server to add a clerk ID.

The "Clerk ID:" prompt appears.

6. Key in the Clerk ID to be added and press the green OK key. For help, see Entering Alpha

Characters and Punctuation .

The "Clerk ID:" prompt re-appears.

7. To continue adding Clerk IDs, repeat step 5. You can add a maximum of 20 Clerk IDs at one time.

8. Once 20 Clerk IDs have been entered for addition, the terminal communicates with the Moneris

Host to add the Clerk IDs to the Host.

9. When all the Clerk IDs have been entered for addition, press the red CANC ANNUL key.

The "Send to Host?" prompt appears.

10. Select Yes to send the Clerk IDs to the Moneris host for addition.

The terminal communicates with the Moneris Host then displays "APPROVED" and beeps.

11. Press the green OK key to return to the CONFIGURE SERVER menu.

12. Press the red CANC ANNUL key twice to return to the transaction menu.

Note:

Clerk IDs

can also be

deleted

.

4.13.3 Deleting Clerk IDs

Use this function to remove Clerk IDs associated with your Merchant ID. The terminal must communicate with the Moneris Host in order to complete this function.

The Clerk IDs you remove here can no longer be entered at the "Clerk Id" prompt during transactions and

cannot be used in

Clerk Subtotal Reports

.

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu appears.

2. Press the green OK key to display the CONFIGURATION menu.

3. Select Servers.

If the "Password:" prompt appears, key in the

manager password and press the green OK key.

4. The CONFIGURE SERVER menu appears.

5. Select Delete Server to delete a Clerk ID.

The "Clerk ID:" prompt appears.

Moneris Vx810 Duet Operating Manual v1.2.4 89

4. Configuring Your Terminal

6. Key in the Clerk ID to be removed and press the green OK key. For help, see

Entering Alpha

Characters and Punctuation .

The "Clerk ID:" prompt re-appears.

7. To continue removing Clerk IDs, repeat step 5. You can remove a maximum of 20 Clerk IDs at one time.

8. Once 20 Clerk IDs have been entered for removal, the terminal communicates with the Moneris

Host to remove the Clerk IDs from the Host.

9. When all the Clerk IDs have been entered for removal, press the red CANC ANNUL key.

The "Send to Host?" prompt appears.

10. Select Yes to send the Clerk IDs to the Moneris host for removal.

The terminal communicates with the Moneris Host then displays "APPROVED" and beeps.

11. Press the green OK key to return to the CONFIGURE SERVER menu.

12. Press the red CANC ANNUL key twice to return to the transaction menu.

Note: Clerk IDs can also be

added

on the terminal.

4.14 Configuring Invoice Number Prompting

When Invoice Number Prompting

is enabled, your terminal prompts you for an Invoice Number during

Credit Card and Debit transactions ("Invoice Id:").

To enable Invoice Number Prompting:

1. Set the Ask Inv Num?

parameter to On.

For Invoice Number Prompting procedures, see Entering an Invoice Number

.

4.15 Configuring Multi-Terminal Reporting

4.15.1 Configuring Multi-Terminal Reporting

To use Multi-Terminal Reporting, you must set up a Terminal Name on each terminal you want to

include in the multi-terminal Batch Close and reporting process (see Processing a Batch Close

and Multi-

Terminal Deposit Totals Report ). You can delete a Terminal Name at any time.

90 Moneris Vx810 Duet Operating Manual v1.2.4

4. Configuring Your Terminal

4.15.2 Adding a Terminal Name

Use this function to set up a Terminal Name associated with your Merchant Number on a terminal you

want to include in Multi-Terminal Reporting

. The terminal must communicate with the Moneris Host in order to complete this function.

1. On the applications menu of the terminal for which you want to add a name, select DEBIT &

CREDIT.

The message "Activating App..." is displayed then the transactions menu appears.

2. Press the green OK key to display the CONFIGURATION menu.

3. Select Terminal Name.

If the "Password:" prompt appears, key in the

manager password and press the green OK key.

4. The Term Name Config menu appears.

5. Select Add Terminal to add the terminal name.

The "Terminal Name:" prompt appears.

6. Key in the terminal name for this terminal and press the green OK key. For help, see

Entering

Alpha Characters and Punctuation

.

The "Send to Host?" prompt appears.

7. Select Yes to send the terminal name to the Moneris Host to be added to and associated with your

Merchant Number.

The terminal communicates with the Moneris Host then displays "APPROVED" and beeps.

8. Press the green OK key to return to the Term Name Config menu.

9. Press the red CANC ANNUL key twice to return to the transactions menu.

Note: See

Deleting a Terminal Name .

4.15.3 Deleting a Terminal Name

Use this function to delete a terminal's Terminal Name, disassociate the name from your Merchant

Number and make the terminal no longer available for Multi-Terminal Reporting. The terminal must communicate with the Moneris Host in order to complete this function.

1. On the applications menu of the terminal whose name you want to delete, select DEBIT &

CREDIT.

The message "Activating App..." is displayed then the transactions menu appears.

2. Press the green OK key to display the CONFIGURATION menu.

3. Select Terminal Name.

If the "Password:" prompt appears, key in the

manager password and press the green OK key.

4. The Term Name Config menu appears.

5. Select Del Terminal to delete the terminal name.

The "Delete Now?" prompt appears.

6. Select Yes to send the terminal name to the Moneris Host to be deleted from and disassociated with your Merchant Number.

The terminal communicates with the Moneris Host then displays "APPROVED" and beeps.

7. Press the green OK key to return to the Term Name Config menu.

8. Press the red CANC ANNUL key twice to return to the transaction menu.

Note: See

Adding a Terminal Name

.

Moneris Vx810 Duet Operating Manual v1.2.4 91

4. Configuring Your Terminal

4.16 Configuring Private Label Cards

The terminal does not require additional configuration in order to process Private Label credit cards.

However, before using Private Label cards you must:

• Contact Moneris to obtain a list of Private Label card Issuers.

• Contact the Private Label card Issuer and arrange for service from them.

• Notify Moneris that you will be using this service to ensure that your terminal's initialization parameters are updated on the Moneris Host.

•

Re-Initialize your terminal.

4.17 Configuring Corporate Cards

4.17.1 Enabling the Corporate Card Feature

To enable the terminal to accept

Corporate Cards

:

1. Set the

Commercial On?

parameter to On.

4.17.2 Enabling Tax Amount Prompting

To enable the terminal to prompt for a tax amount on Corporate Card transactions:

1. Set the Commercial On?

parameter to On.

2. Set the Process Tax parameter to On.

3. Configure the applicable tax type and tax registration number as shown below.

4.17.3 Configuring Tax Type and Tax Registration Numbers

When you enable the terminal to prompt for a tax amount on Corporate Card transactions, you need to configure the type of tax you are required to charge (based on your geographic location) and the related

Tax Registration Number(s). This configuration determines the type of tax the terminal prompts for and the number that appears on customer monthly statements.

To configure Tax Type and Tax Registration Numbers:

1. Set the Commercial On?

parameter to On.

2. Set the Process Tax parameter to On.

3. Set the Tax Type parameter to the applicable tax type.

4. In one or more of the

Tax_Type parameters, key in the tax registration number as appropriate.

To process a Purchase on a Corporate Card, see Transacting a Purchase on a Corporate Card

.

92 Moneris Vx810 Duet Operating Manual v1.2.4

4. Configuring Your Terminal

4.18 Initializing Your Terminal

This function sends information about the terminal to the Moneris Host and receives additional parameters and information from the Host. The instructions below are for initializing your terminal the

FIRST time. For instructions on performing subsequent initializations, see Re-Initializing Your Terminal

.

IMPORTANT: If you have set up an optional external PINpad

for use with your terminal, you

must configure it on the terminal BEFORE following the initialization instructions below.

To initialize your terminal:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu appears.

2. Configure the

Terminal ID

and your

Merchant ID in the terminal (see

Configuring Your Merchant and Terminal IDs ).

3. Initialize the terminal:

• On the applications menu, select DEBIT & CREDIT.

• Press the green OK key to access the CONFIGURATION menu.

• Scroll down and select Initialize.

• When "Retain IDs?" appears, select Yes.

• When "Transmitting...", "Receiving..." and "Please wait" appear on the terminal, please wait while the terminal communicates with Moneris. When the initialization is finished,

"Init Successful" appears then the transactions menu appears.

• If you have set up and configured an external PINpad, "WELCOME/BONJOUR" appears on the PINpad.

4. Do a Host Logon:

• On the transactions menu, press the green OK key to access the CONFIGURATION menu.

• Scroll down and select Host Logon.

• Key in the manager password

and press the green OK key.

"Logon Success" appears then the transactions menu appears.

5. Press the * (ASTERISK) key to return to the applications menu.

Your terminal is now ready to process transactions.

Moneris Vx810 Duet Operating Manual v1.2.4 93

5. Financial Transactions

5.1 Card and Transaction Types

A financial transaction involves the transfer of funds between a cardholder's account and your own business account. For example, a credit card Purchase transaction moves funds from the credit cardholder's account to your business account, and a debit card Refund moves funds from your business account to the debit cardholder's chequing or savings account.

The Moneris Vx810 Duet Point of Sale terminal can process various financial transactions on a number of card types. The matrix below displays the supported card types and the transactions each card type supports.

Transaction /

Card Type

Magnetic Stripe Cards Chip Cards Contactless

Cards

Private

Label Cards

Purchase

Refund

Correction (Void)

Debit Credit Debit Credit Debit / Credit Credit

Y Y Y Y Y Y

Y Y Y Y Y Y

Y Y Y Y N Y

Pre-Authorization

Pre-Authorization

Completion

Pre-Authorization

Deletion

Advice

Payment

N Y N Y

N Y N Y

N Y N Y

N

N

N

Y

Y

Y

N Y N Y N N

N N N N N Y

IMPORTANT: It is the merchant’s responsibility to ensure that proper card processing procedures are followed at all times. Please refer to your Merchant manuals and the Terms & Conditions of your Merchant Agreement for details.

The Moneris Merchant Operating Manual, covering credit card procedures, is available for free download at www.moneris.net/en/Support/Downloads/MerchantManuals.aspx

. Scroll down to the

'Other' section and select "Merchant Operating Manual".

Moneris Vx810 Duet Operating Manual v1.2.4 95

5. Financial Transactions

5.2 Transaction General Guidelines

When performing financial transactions, follow these general guidelines:

1. Determine the transaction to be processed (i.e., Purchase, Refund, etc.).

2. Establish the means of payment (i.e., debit or credit).

3. Identify the card entry method and enter the card data on the POS device accordingly (see Card

Entry Options ).

4. Follow the terminal prompts (see Transaction Procedures ).

5. Process receipts (see

Signing Credit Card Receipts

).

Note: Terminal prompts may vary depending on variables such as terminal setup,

merchant setup and card type.

5.3 Card Entry Options

5.3.1 Magnetic Stripe Cards - Swipe

• Look for the magnetic stripe on the back of the card.

• When "Swipe Card:", "Insert or Swipe Card:" or "Swipe, Tap, or Insert Card:" appears on the terminal or PINpad, swipe the card on the magnetic stripe reader and follow the prompts.

5.3.2 Chip Cards - Insert

• Look for the chip on the card.

• When "Swipe Card:" or "Insert or Swipe Card:" appears on the terminal or PINpad, you or the customer inserts the card in the chip card reader.

Note: If an optional external PINpad is connected to the Vx810 Duet, the card must be

inserted in the external PINpad’s chip card reader.

• When prompted, the customer keys in his/her PIN.

• The chip card must remain inserted in the reader until the "Remove Card" prompt appears on the display.

Note: Unless the device prompts otherwise, do not swipe a chip card even if it has a

magnetic stripe.

96 Moneris Vx810 Duet Operating Manual v1.2.4

5. Financial Transactions

5.3.3 Contactless Cards - Tap

• Look for the Visa payWave, MasterCard PayPass™, American Express ExpressPay or Interac

Flash logo on the card.

• When "Swipe, Tap, or Insert Card:" appears on the terminal or PINpad, the customer taps the card on the modular contactless reader.

Note: The card does not need to touch the reader but must be within 0.5 in. (1.1 cm) of it.

The card must be tapped by itself (i.e., not in a wallet).

1. If the card does not work or is unsupported, try inserting it in the chip card reader (if it is a chip card) or swiping the card on the terminal.

5.3.4 Manual Entry

In the event that the magnetic stripe and the chip are unreadable by the terminal(or the external PINpad), you can use the numeric keypad on the terminal to key in the card number, expiry date and CVV.

• When "Swipe Card:" or "Insert or Swipe Card:" appears on the terminal or PINpad, have the cardholder hand you their card.

• On the terminal keypad, key in the credit card number and expiry date.

• If prompted for a password, enter the manager password

.

• Key in the CVV number on the back of the card.

See Manually Processing Credit Card Transactions .

5.4 Transaction Procedures

Follow the procedures in this section to process these transactions:

1.

Purchase

2.

Refund

3.

Correction

4.

Pre-Authorization

5.

Pre-Authorization Completion

6.

Pre-Authorization Deletion

7.

Advice

8.

Purchase on a Corporate Card

9.

Payment on a Private Label (Purchasing) Card

10.

Manual Credit Transactions

Moneris Vx810 Duet Operating Manual v1.2.4 97

5. Financial Transactions

5.5 Processing a Purchase

Follow the procedure below to process the sale of goods using a debit or credit card.

To process a Purchase:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." appears followed by the transactions menu .

2. To begin the transaction, select Purchase.

If the "Password:" prompt appears, key in the

manager password and press the green OK key.

3. Key in the Purchase amount and press the green OK key.

4. Follow the prompts on the terminal.

• If prompted for a Clerk ID ("Clerk Id:"), see

Entering the Clerk ID

.

• If prompted for an Invoice Number ("Invoice Id:"), see

Entering an Invoice Number

.

• If prompted for Tip Entry, see

Entering a Tip Amount

.

• If prompted for a password during manual card entry, see

Password Protection on Manual

Card Entry

.

• If prompted for a Cashback amount ("Cashback?"), see

Entering a Cashback Amount

.

5. Process receipts (see

Personalized Receipts and

Signing Credit Card Receipts

).

Note: If processing the Purchase on a Private Label Card, you may be prompted for a

Promo Code. To process a Purchase on a Corporate Card, see Processing a

Purchase on a Corporate Card

.

For details on basic prompts, see

Responding to Basic Transaction Prompts .

98 Moneris Vx810 Duet Operating Manual v1.2.4

5. Financial Transactions

5.6 Processing a Refund

Follow the procedure below to credit a customer's account for a previous debit or credit Purchase.

To process a Refund:

a. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." appears followed by the transactions menu .

b. To begin the transaction, select Refund.

If the "Password:" prompt appears, key in the

Manager Password and press the green OK key.

c. Key in the Refund amount and press the green OK key. d. When the "Orig Auth #:" prompt appears, key in the 6-digit Appr Code printed on the original

receipt and press the green OK key (see Finding Sequence and Orig Auth Numbers

).

Note: If you do not have the Appr Code, press the green OK key to bypass the prompt.

e. Follow the remaining prompts on the terminal.

• If prompted for a Clerk ID ("Clerk Id:"), see

Entering the Clerk ID

.

• If prompted for an Invoice Number ("Invoice Id:"), see

Entering an Invoice Number

.

• If prompted for a password during manual card entry, see

Password Protection on Manual

Card Entry

. f. Process receipts (see

Personalized Receipts and

Signing Credit Card Receipts

).

Note: If processing the Refund on a Private Label Card, you may be prompted for a

Promo Code.

For details on basic prompts, see

Responding to Basic Transaction Prompts .

Moneris Vx810 Duet Operating Manual v1.2.4 99

5. Financial Transactions

5.7 Processing a Correction (Void)

Follow the procedure below to correct (void) a previous Purchase or Refund transaction processed on a debit or credit card.

Note: The correction MUST be performed in the same batch as the original transaction.

IMPORTANT: You cannot perform a Correction on a Contactless Purchase or Refund.

To process a Correction:

6. On the

applications menu

, select DEBIT & CREDIT.

The message "Activating App..." appears followed by the transactions menu .

7. To begin the transaction, select Correction.

If the "Password:" prompt appears, key in the manager password and press the green OK

key.

8. If prompted for a Clerk ID ("Clerk Id:"), see Entering the Clerk ID .

A. To correct the last transaction performed on the terminal: i. Select Yes. ii. Select Yes again to confirm the displayed transaction is the one you want to correct.

OR

B. To correct a different transaction: i. Select No. ii. To retrieve the transaction by Sequence Number, select Seq#, key in the 6-digit

Sequence Number printed on the original receipt and press the green OK key

(see

Finding Sequence and Orig Auth Numbers ).

OR

3. To retrieve the transaction by card number, select Acct#, key in the last 4 digits of the card number and press the green OK key.

4. Select Yes to confirm the displayed transaction is the one you want to correct.

5. Follow the remaining prompts on the terminal.

• If prompted for an Invoice Number ("Invoice Id:"), see

Entering an Invoice

Number

.

6. Process receipts (see

Personalized Receipts and

Signing Credit Card Receipts

).

Note: If processing the Correction on a Private Label Card, you may be prompted for a

Promo Code.

For details on basic prompts, see

Responding to Basic Transaction Prompts .

100 Moneris Vx810 Duet Operating Manual v1.2.4

5. Financial Transactions

5.8 Processing a Pre-Authorization

Follow the procedure below to authorize a temporary amount when the final amount of a credit card

Purchase is not known.

To process a Pre-Authorization:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." appears followed by the transactions menu .

2. To begin the transaction, select Pre Auth.

If the "Password:" prompt appears, key in the

manager password and press the green OK key.

3. On the Pre Auth menu, select Pre Auth again.

4. Key in the Pre-Authorization amount and press the green OK key.

5. Follow the prompts on the terminal.

• If prompted for a Clerk ID ("Clerk Id:"), see

Entering the Clerk ID

.

• If prompted for an Invoice Number ("Invoice Id:"), see

Entering an Invoice Number

.

• If prompted for a password during manual card entry, see

Password Protection on Manual

Card Entry

.

6. Process receipts (see

Personalized Receipts and

Signing Credit Card Receipts

).

Note: If

Tip Processing is enabled, a blank Tip line is printed on the receipt below the

base amount. If a signature line is printed on the Pre-Authorization receipt, the cardholder MUST sign the receipt.

7. When the final amount of the purchase is known, process a Pre-Authorization Completion

for the final amount using the same card number.

Note: If processing the Pre-Authorization on a Private Label Card, you may be prompted

for a Promo Code.

For details on basic prompts, see

Responding to Basic Transaction Prompts .

Moneris Vx810 Duet Operating Manual v1.2.4 101

5. Financial Transactions

5.9 Processing a Pre-Authorization Completion

Follow the procedure below to complete a

Pre-Authorization

once the final amount is known.

Note: A Completion must be performed on the same terminal using the same card

number. The card does not need to be present.

To process a Pre-Authorization Completion:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." appears followed by the transactions menu .

2. To begin the transaction, select Pre Auth.

3. On the Pre Auth menu, select Completion.

If the "Password:" prompt appears, key in the

manager password and press the green OK key.

4. Key in the 6-digit Sequence Number printed on the Pre-Authorization transaction’s receipt and

press the green OK key (see Finding Sequence and Orig Auth Numbers

).

If the message "No Record Found" appears, repeat step 2.

The terminal displays the following information about the Pre-Authorization:

Seq#:

Card Name

Transaction Type

Card Number

Amount

5. Compare the displayed information to the Pre-Authorization's receipt. If the information matches, select Yes to proceed. To cancel the Completion, select No.

Note: If the displayed Pre-Authorization is not the one you want, select Next to display

the next Pre-Authorization in the terminal memory. Repeat until the transaction you want is displayed.

• If prompted for a Clerk ID ("Clerk Id:"), see

Entering the Clerk ID

.

• If prompted for an Invoice Number ("Invoice Id:"), see

Entering an Invoice Number

.

6. When the Pre-Authorization amount and the "New Amt:" prompt appear:

• To change the Pre-Authorization amount, key in the amount and press the green OK key.

OR

• To continue the transaction with the original amount, press the green OK key.

OR

• To release the funds, key in an amount of $0.00 and press the green OK key.

Note: If Tip Processing is enabled and the cardholder has entered a tip amount on the

Pre-Authorization receipt's Tip line and you want the Tip amount printed on a separate line on the Completion's receipt, press the green OK key to key in the amount at the Tip prompt, as shown below.

7. Follow the remaining prompts on the terminal.

• If prompted for Tip Entry, see

Entering a Tip Amount

. If you chose to print the Tip amount on a separate line (step 4) above, key in this amount at the Tip prompt.

8. Process receipts (see

Personalized Receipts and

Signing Credit Card Receipts

).

102 Moneris Vx810 Duet Operating Manual v1.2.4

5. Financial Transactions

Note: If processing the Pre-Authorization Completion on a Private Label Card, you may

be prompted for a Promo Code.

For details on basic prompts, see

Responding to Basic Transaction Prompts .

5.10 Processing a Pre-Authorization Deletion

Follow the procedure below to delete a Pre-Authorization in the terminal memory before it is completed.

To process a Pre-Authorization Deletion:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." appears followed by the transactions menu .

2. To begin the transaction, select Pre Auth.

3. On the Pre Auth menu, select Del PreAuth.

If the "Password:" prompt appears, key in the

manager password and press the green OK key.

4. Select the method to retrieve the Pre-Authorization you want to delete: a. To retrieve by Sequence Number: i. Select Seq #. ii. Key in the 6-digit Sequence Number printed on the Pre-Authorization

transaction’s receipt and press the green OK key (see Finding Sequence and

Orig Auth Numbers ). If the message "No Record Found" appears, repeat step 3.

OR

b. To retrieve by Account Number: i. Select Acct. ii. Key in the last 4 digits of the credit card number and press the green OK key.

The terminal displays the following information about the Pre-Authorization:

Seq#:

Card Name

Transaction Type

Card Number

Amount

Compare the displayed information to the Pre-Authorization's receipt. If the information matches, select Yes to proceed. To cancel the Deletion, select No.

Note: If the displayed Pre-Authorization is not the one you want, select Next to display

the next Pre-Authorization in the terminal memory. Repeat until the transaction you want is displayed.

5. Follow any remaining prompts.

6. Process receipts (see

Personalized Receipts and

Signing Credit Card Receipts

).

Note: If processing the Pre-Authorization Deletion on a Private Label Card, you may be

prompted for a Promo Code.

For details on basic prompts, see

Responding to Basic Transaction Prompts .

Moneris Vx810 Duet Operating Manual v1.2.4 103

5. Financial Transactions

5.11 Processing an Advice

Follow the procedure below to complete a voice-authorized Purchase on a credit card.

To process an Advice:

6. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." appears followed by the transactions menu .

7. To begin the transaction, select Advice.

If the "Password:" prompt appears, key in the

manager password and press the green OK key.

8. At the "Amount:" prompt, key in the transaction amount and press the green OK key.

• If prompted for a Clerk ID ("Clerk Id:"), see

Entering the Clerk ID

.

• If prompted for an Invoice Number ("Invoice Id:"), see

Entering an Invoice Number

.

4. Follow the terminal prompts below:

6. At the “Auth #:” prompt, key in the Voice Authorization Number that you wrote on the paper sales draft when you called the Moneris Merchant Service Centre for Voice Authorization and press the green OK key. b. At the “Account #:” prompt, key in the card number and press the green OK key. c. At the “Exp Date (MMYY):” prompt, key in the card’s expiry date and press the green OK key.

• If prompted for a password during manual card entry, see

Password Protection on Manual

Card Entry

.

5. Follow the remaining terminal prompts.

• If prompted for Tip Entry, see

Entering a Tip Amount

.

6. Process receipts (see

Personalized Receipts and

Signing Credit Card Receipts

).

For details on basic prompts, see

Responding to Basic Transaction Prompts .

104 Moneris Vx810 Duet Operating Manual v1.2.4

5. Financial Transactions

5.12 Transacting a Purchase on a Corporate Card

Follow the procedure below to transact a Purchase on a Corporate Card. Corporate Cards are also referred to as Purchasing Cards.

Note: If

Tip Entry has been enabled for credit cards, the cardholder must perform some

of the steps. The bold text below indicates the additional steps required for a

Corporate card transaction.

To transact a purchase on a Corporate Card:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." appears followed by the transactions menu .

2. Select Purchase.

If the "Password:" prompt appears, key in the

manager password and press the green OK key.

The "Amount: $ 0.00" prompt appears.

3. Key in the amount of the purchase and press the green OK key.

• If prompted for a Clerk ID, ("Clerk Id:"), key in your

Clerk ID and press the green OK

key.

• If prompted for an Invoice Number ("Invoice #:"), key in the

Invoice Number (max. 7

alphanumeric characters) and press the green OK key, or simply press the green OK key to leave this blank.

The "Swipe or Insert Card:" prompt appears.

4. Swipe the credit card on the terminal.

• If the "Last 4 Digits:" prompt appears, key in the last 4 digits of the card number and press the green OK key.

OR

Manually process the transaction: i. Key in the card number.

The " Exp Date (MMYY):" prompt appears. ii. Key in the card's expiry date and press the green OK key. iii. If prompted for a password during manual card entry, see

Password Protection on Manual

Card Entry

. iv. The "Validation Code:" prompt appears. v. If the "Imprint Card Press OK Key" prompt appears, you must take a manual imprint of

the credit card. For help, see Taking a Manual Imprint of a Credit Card

. vi. Key in the validation code found on the back of the card and press the green OK key. If you do not have the validation code, press the green OK key and, when the "Code present?" prompt appears, select No.

If the "Customer Press OK To Continue" prompt appears, the cardholder must respond to the

cardholder prompts. For help, see Entering a Tip Amount .

If the "Select Language" prompt appears, select ENGL for English or select FREN for French.

The cardholder receipt will be printed in the selected language.

Moneris Vx810 Duet Operating Manual v1.2.4 105

5. Financial Transactions

5. The xST Amt: entry screen appears.

Key in the tax amount and press the green OK key, or simply press the green OK key to leave this blank.

The "Reference #:" entry screen appears.

6. Key in the customer reference number (max. 16 alphanumeric characters) and press the green OK key, or simply press the green OK key to leave this blank.

If the "Promo Code:" prompt appears, key in the

promotion code

(max. 6 alphanumeric characters) supplied to you by the Private Label card provider and press the green OK key, or simply press the green OK key to leave this blank.

The terminal communicates with the Moneris Host.

7. Please wait while the terminal processes the transaction.

The "APPROVED" message appears.

The "Tear Receipt Press OK Key" message is displayed while the merchant receipt is printed then terminal begins beeping.

8. Tear off the merchant copy of the receipt and give it to the cardholder to sign.

9. Press the green OK key to stop the beeping and print the cardholder copy of the receipt, or simply press the red CANC ANNUL key to stop the beeping and return to the transaction menu.

If the cardholder copy of the receipt is printed, give the cardholder copy of the receipt to the cardholder then press the green OK key to return to the transactions menu.

106 Moneris Vx810 Duet Operating Manual v1.2.4

5. Financial Transactions

5.13 Transacting a Payment on a Private Label Card

This transaction allows a cardholder to make a payment towards the balance on their Private Label credit card.

To transact a payment on a Private Label card:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." appears followed by the transactions menu .

2. Select Payment.

If the "Password:" prompt appears, key in the

manager password and press the green OK key.

The "Amount: $0.00" prompt appears.

3. Key in the amount of the payment and press the green OK key.

If prompted for a Clerk ID, ("Clerk Id:"), key in your Clerk ID and press the green OK key.

If prompted for an Invoice Number ("Invoice #:"), key in the Invoice Number (max. 7

alphanumeric characters) and press the green OK key, or simply press the green OK key to leave this blank.

The "Swipe or Insert Card:" prompt appears.

4. Swipe the private label credit card on the terminal.

If the "Last 4 Digits:" prompt appears, key in the last 4 digits of the card number and press the green OK key.

OR

Manually process the transaction: i. Key in the card number.

The "Exp Date (MMYY):" prompt appears. ii. Key in the card's expiry date and press the green OK key.

The "Validation Code:" prompt appears.

If the "Imprint Card Press OK Key" prompt appears, you must take a manual

imprint of the credit card. For help, see Taking a Manual Imprint of a Credit

Card

. iii. Key in the validation code found on the back of the card and press the green OK key.

If you do not have the validation code, press the green OK key and, when the "Code present?" prompt appears, select No.

If the "Select Language" prompt appears, select ENGL for English or select

FREN for French.

The cardholder receipt will be printed in the selected language.

If the "Promo Code:" entry screen appears, key in the promotion code (max.

6 alphanumeric characters) supplied to you by the Private Label card provider and press the green OK key, or simply press the green OK key to leave this blank.

The terminal communicates with the Moneris Host.

5. Please wait while the terminal processes the transaction.

Moneris Vx810 Duet Operating Manual v1.2.4 107

5. Financial Transactions

The APPROVED message appears.

The "Tear Receipt Press OK Key" message is displayed while the merchant receipt is printed then terminal begins beeping.

6. Tear off the merchant copy of the receipt and give it to the cardholder to sign.

7. Press the green OK key to stop the beeping and print the cardholder copy of the receipt, or simply press the red CANC ANNUL key to stop the beeping and return to the transaction menu.

If the cardholder copy of the receipt is printed, give the cardholder copy of the receipt to the cardholder then press the green OK key to return to the transactions menu.

5.14 Manually Processing Credit Transactions

In order to process Credit Purchases and Refunds manually you must have a paper sales draft for the card

type (e.g. a VISA sales draft for a purchase on a VISA card) and an imprinter. Contact the Moneris

Merchant Service Centre to obtain these supplies if you do not have them.

IMPORTANT: Debit transactions CANNOT be processed manually.

To manually process a credit card transaction:

Use one of the following procedures to complete a Credit Purchase or Refund transaction when the terminal is down:

• If the transaction amount is less than your floor limit, see

Manual Credit Transaction Under Floor

Limit

.

• If the transaction amount is higher than your floor limit,

Manual Credit Transaction Over Floor

Limit

.

Note: Floor limits are established by Moneris. Contact your Moneris account manager

for more information.

5.15 Manually Processing Credit Transactions UNDER the

Floor Limit

If the terminal is down, report the problem to the Moneris Merchant Service Centre then follow these instructions to process the transaction manually.

Note: In order to process Credit Purchases and Refunds manually you must have a

paper sales draft for the card type (e.g. a VISA sales draft for a purchase on a

VISA card) and an imprinter. Contact the Moneris Merchant Service Centre to obtain these supplies if you do not have them.

While the terminal is down:

•

Take an imprint of the customer's Credit Card.

When the terminal is functioning properly again:

i.

Process a Purchase

or Refund

transaction on the terminal for the amount on the sales draft. You will need to key in the card number, expiry date and validation code (3 or 4 digit V-code on the back of the credit card). ii. Attach the Merchant Copy of the terminal's receipt to the Merchant Copy of the Sales Draft and retain the two copies for your records.

108 Moneris Vx810 Duet Operating Manual v1.2.4

5. Financial Transactions

5.16 Manually Processing Credit Transactions OVER Floor

Limit

If the terminal is down, report the problem to the Moneris Merchant Service Centre then follow these instructions to process the transaction manually.

Note: In order to process Credit Purchases manually you must have a paper sales draft

for the card type (e.g. a VISA sales draft for a purchase on a VISA card) and an imprinter. Contact the Moneris Merchant Service Centre to obtain these supplies if you do not have them.

While the terminal is down:

1.

Take an imprint of the customer's credit card.

2. Call the Moneris Merchant Service Centre to obtain a Voice Authorization Number for the transaction and record the Voice Authorization Number on the paper sales draft.

When the terminal is functioning properly again:

1. Process an

Advice transaction on the terminal for the amount on the sales draft. You will need to

key in the card number, expiry date, validation code (3 or 4 digit V-code on the back of the credit card) and Voice Authorization Number.

2. Attach the Merchant Copy of the terminal's receipt to the Merchant Copy of the Sales Draft and retain the two copies for your records.

Moneris Vx810 Duet Operating Manual v1.2.4 109

6. Admin Transactions

6.1 Admin Transactions

The following Admin Transactions are available:

•

Logging On

•

Logging Off

•

Re-Initializing the Terminal

• Demo Mode

•

Demo Mode Transactions

•

Entering Demo Mode

•

Exiting Demo Mode

6.2 Logging On

If the "Host Logon Required" prompt appears, you must log on before you can perform transactions on the terminal.

To log on to the terminal:

1. On the applications menu , select DEBIT & CREDIT.

The transactions menu appears.

2. Press the green OK key to access the CONFIGURATION menu.

3. Scroll down and select Host Logon.

4. At the "Password:" prompt, key in the Manager Password and press the green OK key.

The terminal communicates with the Moneris host, displays "Logon Success" and then returns to the transactions menu.

The terminal is now ready to process transactions. If this is your first time using the terminal, use the

Demo Mode

to practice performing transactions.

Note: To ensure unauthorized transactions cannot be processed, the terminal should be

logged off at the end of the business day.

Moneris Vx810 Duet Operating Manual v1.2.4 111

6. Admin Transactions

6.3 Logging Off

To ensure unauthorized transactions cannot be processed, your terminal should be logged off at the end of the business day.

To log off the terminal:

1. On the applications menu , select DEBIT & CREDIT.

The transactions menu appears.

2. Press the green OK key to access the CONFIGURATION menu.

3. Scroll down and select Host Logoff.

The terminal communicates with the Moneris host, displays "Logoff Success" then returns to the transactions menu.

Note: There is a short delay before the transaction menu appears. Press the green OK

key to go directly to the transaction menu.

Note: To process transactions again, the terminal must be

logged on

.

6.4 Re-Initializing the Terminal

This function sends information about the terminal to the Moneris Host and receives additional parameters and information from the Host.

If changes have been made to your terminal configuration or your merchant account, the terminal may display 'Init Required' or the Service Centre may call and ask you to re-initialize your terminal.

To re-initialize the terminal:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu

appears.

2. Press the green OK key to display the CONFIGURATION menu.

3. Scroll down and select Initialize.

If the "Password:" prompt appears, key in the Manager Password and press the green OK key.

4. At the "Retain Settings?" prompt, select Yes.

The terminal communicates with the Moneris Host (this may take a few minutes). When the initialization is complete, the transactions menu re-appears.

5. If the "Host Logon Required" prompt appears, log on

to the terminal.

Note: For instructions on initializing your terminal the first time, see

Initializing Your

Terminal .

112 Moneris Vx810 Duet Operating Manual v1.2.4

6. Admin Transactions

6.5 Demo Mode

6.5.1 Demo Mode Transactions

Most transactions can be practiced in Demo Mode

on the terminal (see Entering Demo Mode and

Exiting

Demo Mode

).

•

Financial Transactions by Card Type

•

Reporting Functions

•

Administrative Functions

•

Shortcuts

Transactions that cannot be performed do not appear on the terminal screen while in Demo Mode.

The terminal CANNOT perform a Batch Close in Demo mode. You can clear transactions from the Demo batch by using the Batch Clear function while in Demo mode or by selecting Yes at the "Clear Batch" prompt when you exit Demo Mode.

Note: Demo transactions are limited to a maximum amount of $1.00.

If

Tip Processing is enabled, the maximum tip amount in Demo Mode is $1.00.

If

Cashback is enabled, the maximum Cashback amount in Demo Mode is $1.00.

The maximum final total amount (purchase + tip + cashback) is $3.00.

Financial Transactions

Most financial transactions are available regardless of the type of card used, however Purchasing Cards

(i.e., Corporate Cards) cannot be used while in Demo Mode.

• Purchase

• Refund

• Correction

• Pre-Authorization

• Pre-Authorization Completion

• Pre-Authorization Deletion

• Advice

Moneris Vx810 Duet Operating Manual v1.2.4 113

6. Admin Transactions

Functions

Reporting

Functions

Stored Tran Rpt

Deposit Totals

Clerk SubTotals

Multi Terminal

Merch SubTotals

Terminal Parms

Terminal Stats

EMV Param Rpt

EMV Diagnostics

Pre-Auth Rpt

Admin

Functions

Reprint

Demo

Batch Review

Batch Clear

Shortcuts

3 = Paper feed

6 =

Quick Setup

9 =

Cash Receipt

Green OK Key =

Configuration menu

* =

Applications menu

The following Setup functions should NOT be used in Demo Mode although they are available:

• Printer

• Comm

• Host

• Merchant IDs

• IP Hosts

• Date/Time

114 Moneris Vx810 Duet Operating Manual v1.2.4

6. Admin Transactions

6.5.2 Entering Demo Mode

Note:

Demo Mode

can be activated only on terminals that have been configured, initialized and logged on.

IMPORTANT: You must close the current batch

before you can enter Demo Mode. Do NOT clear the batch.

IMPORTANT: Ensure that you exit Demo Mode

before processing actual financial transactions. Transactions processed in Demo Mode will NOT affect your terminal totals, financial accounts or customer accounts.

To enter Demo Mode:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions

menu appears.

2. Press the green OK key to display the CONFIGURATION menu.

3. Select Setup.

If the "Password:" prompt appears, key in the

Manager Password and press the green OK key.

4. On the Setup menu, select Demo.

5. At the "Demo Mode" prompt, select On.

If the "Batch Not Empty Clear Batch" message appears, the terminal has transactions in terminal memory and you must follow the steps below: a. Select No. The "TRANS CANCELLED" message appears. b. Press the green OK key to return to the Setup menu then press the red CANC ANNUL key two times to return to the transactions menu.

c. Perform a Batch Close

then try entering Demo Mode again.

IMPORTANT: Do NOT select Yes. If you do, the batch will be deleted and you will lose all transactions in the batch in the terminal memory. You will be unable to close that batch and will be out of balance with the Moneris Host.

The terminal displays "DEMO MODE ON" then the Setup menu re-appears with the DEMO icon

( ) displayed on the left side of the screen.

6. Press the red CANC ANNUL key two times to return to the transactions menu.

IMPORTANT: Ensure that you exit Demo Mode

before processing actual financial transactions. Transactions processed in Demo Mode will not affect your terminal totals, financial accounts and customers’ accounts.

Moneris Vx810 Duet Operating Manual v1.2.4 115

6. Admin Transactions

6.5.3 Exiting Demo Mode

IMPORTANT: Ensure that you exit Demo Mode before processing actual financial transactions. Transactions processed in Demo Mode will NOT affect your terminal totals, financial accounts and customers’ accounts.

To exit Demo Mode:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions

menu appears.

2. Press the green OK key to display the CONFIGURATION menu.

3. Select Setup.

If the "Password:" prompt appears, key in the

Manager Password and press the green OK key.

4. On the Setup menu, select Demo.

5. At the "Demo Mode" prompt, select Off.

If the "Batch Not Empty Clear Batch" message appears, the terminal has Demo transactions in terminal memory and you must do the following: a. Select Yes.

The terminal displays "BATCH DELETED" and all Demo transactions in the terminal memory are deleted. b. The "DEMO MODE OFF" message is displayed then the Setup menu re-appears

WITHOUT the DEMO icon displayed on the left side of the screen.

6. Press the red CANC ANNUL key two times to return to the transactions menu.

IMPORTANT: All transactions performed on the terminal as of this point will be in normal mode and WILL affect your terminal totals, your financial accounts and your customers’ accounts.

116 Moneris Vx810 Duet Operating Manual v1.2.4

7. Reports

7.1 Reports

The following reports are available:

•

Stored Transactions

•

Merchant Sub-Totals

•

Clerk Sub-Totals (one or more clerks OR all clerks)

•

Deposit Totals

•

Multi-Terminal Deposit Totals

•

Pre-Auth Transactions

•

Tip

•

Batch Totals

•

Terminal Parameters

•

EMV Parameters

•

Private Label Card Transactions on Reports

7.2 Stored Transactions Report

This report prints a detailed list of all transactions for the current batch in the terminal's memory, sorted by date. The report also prints transaction type totals sorted by card type and grand totals sorted by transaction type.

Note: This report does not include Pre-Authorization transactions. These transactions

are listed in The Pre-Auth Transactions Report .

Note: Interac Flash transactions are included in the Interac transaction totals.

To print the Stored Transactions Report:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu

appears.

2. Press the REPORTS key (first purple key on the right).

If the "Password:" prompt appears, key in the

Manager Password and press the green OK key.

3. Select Stored Tran.

The " Rpt Period:" prompt appears.

4. To print transactions and totals for a specific date: a. Select Date. b. At the "Date ( YYYYMMDD):" prompt, key in the date and press the green OK key.

To print all transactions and totals: c. Select All.

The terminal prints the Stored Transactions report and returns to the REPORTS menu.

5. Press the red CANC ANNUL key to return to the transactions menu.

Moneris Vx810 Duet Operating Manual v1.2.4 117

7. Reports

7.3 Merchant Sub-Totals Report

This report prints totals of all transaction types in the current batch on the Moneris host. Transaction type totals are sorted by card type and grand totals are sorted by transaction type. The report does NOT close the batch.

Note: Interac Flash transactions are included in the Interac transaction totals.

To print the Merchant Sub-Totals Report:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu

appears.

2. Press the REPORTS key (first purple key on the right).

If the "Password:" prompt appears, key in the

Manager Password and press the green OK key.

3. Scroll down and select Merch SubTotals.

The terminal communicates with the Moneris Host.

4. If the terminal displays "APPROVED", press the green OK key.

The terminal prints the report and returns to the REPORTS menu.

5. Press the red CANC ANNUL key to return to the transactions menu.

7.4 Clerk Sub-Totals Report

This report prints totals for all gift and loyalty card transactions for one or more Clerk IDs. Clerk subtotals remain in memory, even when a batch is closed and deleted. The steps below include the option of resetting the clerk sub-totals to zero. Transaction type totals are sorted by card type and grand totals are sorted by transaction type, by Clerk ID.

IMPORTANT: Clerk IDs must be set up for your merchant account on the Moneris host

before this report can be used (see Clerk Mode

).

Note: Interac Flash transactions are included in the Interac transaction totals.

7.4.1 For One or More Clerks

To print the Clerk Sub-Totals Report for one or more Clerks:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu

appears.

2. Press the REPORTS key (first purple key on the right).

If the "Password:" prompt appears, key in the

Manager Password and press the green OK key.

3. Select Clerk SubTotals.

4. At the "Clerk Id:" prompt, key in the Clerk ID and press the green OK key.

Note: You must enter a Clerk ID.

5. The "Add Another Clerk?" prompt appears. a. To print sub-totals only for the keyed-in Clerk ID, select No.

OR

b. To print sub-totals for more Clerk IDs, select Yes then repeat steps 4 and 5 for each additional

Clerk ID.

118 Moneris Vx810 Duet Operating Manual v1.2.4

7. Reports

6. At the "Clear Totals?" prompt, select No.

The terminal communicates with the Moneris host then prints the report and returns to the first

REPORTS menu screen.

7. Press the red CANC ANNUL key to return to the transactions menu.

IMPORTANT: Clerk Subtotals must be cleared on a regular basis (weekly is recommended). If not, the Moneris Host will automatically clear the totals when the number of transactions for a card type within a Clerk

ID reaches 10,000.

7.4.2 For All Clerks

To print the Clerk Sub-Totals Report for all Clerks:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu

appears.

2. Press the REPORTS key (first purple key on the right).

If the "Password:" prompt appears, key in the

Manager Password and press the green OK key.

3. Select Clerk SubTotals.

4. At the "Clerk Id:" prompt, press the (*) ASTERISK key then press the green OK key.

The "Add Another Clerk?" selection screen appears.

5. When the "Add Another Clerk?" prompt appears, select No.

6. At the "Clear Totals?" prompt, select No.

The terminal communicates with the Moneris host then prints the report and returns to the first

REPORTS menu screen.

8. Press the red CANC ANNUL key to return to the transactions menu.

IMPORTANT: Clerk Subtotals must be cleared on a regular basis (weekly is recommended). If not, the Moneris Host will automatically clear the totals when the number of transactions for a card type within a Clerk

ID reaches 10,000.

7.5 Deposit Totals Report

This report prints totals for all transactions in closed batches on the Moneris Host. Transaction type totals are sorted by card type and grand totals are sorted by transaction type.

To print the Deposit Totals Report:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu

appears.

2. Press the REPORTS key (first purple key on the right).

If the "Password:" prompt appears, key in the

Manager Password and press the green OK key.

3. On the REPORTS menu, select Deposit Totals.

The terminal communicates with the Moneris host.

4. If the terminal displays "APPROVED", press the green OK key.

The terminal prints the report and returns to the REPORTS menu.

5. Press the red CANC ANNUL key to return to the transactions menu.

Moneris Vx810 Duet Operating Manual v1.2.4 119

7. Reports

7.6 Multi-Terminal Deposit Totals Report

This report prints totals for all transactions in closed batches on the Moneris Host, for all terminals.

Transaction type totals are sorted by Terminal Name then by card type; overall transaction type totals are sorted by card type; grand totals are sorted by transaction type.

IMPORTANT: Terminal Names must be set up for your merchant account on the Moneris

Host before this report can be used (see

Configuring Multi-Terminal

Reporting ).

Note: Interac Flash transactions are included in the Interac transaction totals.

To print the Multi-Terminal Deposit Totals Report:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu

appears.

2. Press the REPORTS key (first purple key on the right).

If the "Password:" prompt appears, key in the

Manager Password and press the green OK key.

3. Select Multi Terminal.

The "Terminal Name:" prompt appears.

4. To print the report for a specific terminal, key in the Terminal Name, press the green OK key and proceed to step 5.

OR

To print the report for all terminals, press the (*) ASTERISK key, press the green OK key and proceed to step 6.

5. At the "Add Another Terminal?" prompt, select Yes, repeat step 4 until you have added all the desired terminals (maximum 20) then press No.

6. At the "Deposit Ttls" prompt, select Yes.

The terminal prints the report and returns to the REPORTS menu.

7. Press the red CANC ANNUL key to return to the transactions menu.

7.7 Pre Auth Transactions Report

This report prints details of all open Pre-Authorization transactions in the terminal memory (i.e., Pre-

Authorizations that have not been completed).

To print the Pre Auth Transactions Report:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu

appears.

2. Select Pre Auth.

3. At the

Pre Auth menu , select Pre-Auth Rpt.

If the "Password:" prompt appears, key in the

Manager Password and press the green OK key.

4. The terminal prints the report and returns to Pre Auth menu.

5. Press the red CANC ANNUL key to return to the transactions menu.

120 Moneris Vx810 Duet Operating Manual v1.2.4

7. Reports

7.8 Tip Report

This report prints tip activity for a given Clerk or for all Clerks, for a given date or for the current batch.

Clerk totals are sorted by card type and totalled for all cards; overall totals for all Clerks are sorted by card type and totalled for all cards.

IMPORTANT: Tip Processing must be enabled and Clerk IDs must be set up for your merchant account on the Moneris host before this report can be used

(see

Tip Processing

and Clerk Mode

).

To print the Tip Report:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu

appears.

2. Press the REPORTS key (first purple key on the right).

If the "Password:" prompt appears, key in the

Manager Password and press the green OK key.

3. On the REPORTS menu, select Tip Report.

The "Clrk Rpt Opt" prompt appears.

4. At the "Clrk Rpt Opt" prompt:

• To print the report for a specific Clerk, select One and proceed to step 5.

OR

• To print the report for all Clerks, select All and proceed to step 6.

5. At the "Clerk Id:" prompt, key in the Clerk ID and press the green OK key.

6. At the "Rpt Period:" prompt:

• To print the report for a specific date, select Date and, at the "Date (YYYYMMDD):" prompt, key in the date and press the green OK key.

OR

• To print the report for all tip activity in the current batch, select All.

7. The terminal prints the report and returns to the REPORTS menu.

8. Press the red CANC ANNUL key to return to the transactions menu.

Moneris Vx810 Duet Operating Manual v1.2.4 121

7. Reports

7.9 Batch Totals Report

This report is printed as part of the Merchant

Batch Close process but can be printed WITHOUT closing

the batch.

Note: Interac Flash transactions are included in the Interac transaction totals.

To print the Batch Totals Report:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu

appears.

2. Scroll down and select Batch Close.

If the "Password:" prompt appears, key in the

Manager Password and press the green OK key.

3. At the "Close Type?" prompt, select Sngl.

The terminal communicates with the Moneris Host and prints the Batch Totals section of the

Batch Close Report.

4. At the "Prt Stored Trans?" prompt, select No.

5. At the "Close Batch?" prompt, select No.

The terminal displays a "Batch Close Failed" message, finishes printing the report with the message on it and returns to the transactions menu.

7.10 The Terminal Parameters Report

This report provides a printout of the current parameter configuration on the terminal. Included in the printout are:

• software revision number (Application ID),

• terminal identification information (Terminal Serial #:),

• PINpad configuration,

• features enabled from the CONFIGURATION menu, including Terminal Parameters, Debit

Parameters and Tip Parameters,

• tip processing setup (Tip Parameters),

• receipt setup (Receipt Parameters) and

• communications parameters (Dial Parameters and Ethernet Parameters).

To print the Terminal Parameters Report:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu appears.

2. Press the REPORTS key (first purple key on the right).

If the "Password:" prompt appears, key in the

Manager Password

and press the green OK key.

3. On the REPORTS menu, select Terminal Parms.

The terminal prints the report and returns to the REPORTS menu.

4. Press the red CANC ANNUL key to return to the transactions menu.

122 Moneris Vx810 Duet Operating Manual v1.2.4

7. Reports

7.11 The EMV Parameters Report

This report prints a list of EMV parameters and their values by EMV card record number.

To print the EMV Parameters Report:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu

appears.

2. Press the REPORTS key (first purple key on the right).

If the "Password:" prompt appears, key in the

Manager Password and press the green OK key.

3. On the REPORTS menu, scroll down and select EMV Param Rpt.

The terminal prints the report and returns to the REPORTS menu.

4. Press the red CANC ANNUL key to return to the transactions menu.

7.12 Private Label Card Transactions on Reports

Private Label Card transactions appear as a separate card type on all reports that include credit card transactions including:

•

Stored Transactions

•

Merchant Sub-Totals

•

Clerk Sub-Totals

•

Deposit Total

•

Multi-Terminal Deposit Totals

•

Batch Review

Moneris Vx810 Duet Operating Manual v1.2.4 123

8. The Moneris Gift & Loyalty Programs

8.1 The Moneris Gift & Loyalty Programs

The Moneris Gift & Loyalty programs allow you to offer your customers an electronic card-based program that is activated and processed through the Moneris Vx810 Duet terminal. There are two programs available:

• Gift Cards: allows you to offer your customers stored-value gift cards for pre-defined dollar values as well as variable-value cards and rechargeable cards. This is available for small businesses as the Moneris Gift Card program and as a customized program for national chains.

• Loyalty Points: allows you to reward customer loyalty by awarding points based on the dollar value of purchases a cardholder makes. This is available for small businesses as the Moneris

Loyalty Card program and as a customized program for national chains.

All transactions, administrative and configuration functions begin at the

GIFT & LOYALTY transactions menu

.

8.2 Enabling Gift & Loyalty Programs

To enable a Gift & Loyalty program on your terminal:

1. Contact Moneris Solutions.

Note: If you wish to have a gift or loyalty program set up for a national chain, you will

also need to contact Moneris.

2.

Initialize the terminal to the Moneris host.

3. Key in the Gift & Loyalty parameter values:

• Key in the

Moneris merchant ID , Moneris terminal ID and Ernex terminal ID .

• Key in the

Moneris device type .

4.

Initialize the terminal to the Moneris/Ernex host.

Moneris Vx810 Duet Operating Manual v1.2.4 125

8. The Moneris Gift & Loyalty Programs

8.3 Gift Card Transactions

8.3.1 Processing a Purchase with a Gift Card

Follow the procedure below to process the sale of goods or services using a Moneris gift card.

To process a Purchase with a gift card:

1. On the applications menu , select GIFT & LOYALTY.

The message "Activating App..." is displayed then the transactions menu appears.

2. Select Purchase.

The "Total Amount" prompt appears.

3. Key in the total amount and press the green OK key.

The "Accept amount?" prompt appears.

4. Select Yes to proceed.

The "Swipe or Enter Card" prompt appears. Proceed to step 5.

OR

Select No.

The "Total Amount" prompt appears. Repeat step 3.

5. Swipe the gift card OR key in the gift card number and press the green OK key.

If the "Password:" prompt appears, key in the

manager password and press the green OK key.

The "Enter CVC" prompt appears.

6. Key in the CVC number and press the green OK key.

• If the "Clerk ID" prompt appears, key in the clerk ID and press the green OK key.

• If the "Info" prompt appears, key in the additional transaction information (optional) and press the green OK key.

• If prompted for Tip Entry, see

Entering a Tip Amount on a Gift Card Purchase to

complete the purchase.

• If the "Invoice Number" prompt appears, key in the invoice number and press the green

OK key.

The terminal displays "Approved" for 20 seconds, or until you press the green OK key, and then prints the customer copy of the receipt.

• If the terminal displays "Balance Due $###.##", follow the

Gift or Loyalty Card

Transaction With a Balance Due instructions to complete the transaction.

The "Press OK key" prompt appears.

7. Press the green OK key to print the merchant copy of the receipt and return to the GIFT &

LOYALTY transactions menu.

126 Moneris Vx810 Duet Operating Manual v1.2.4

8. The Moneris Gift & Loyalty Programs

8.3.2 Entering a Tip Amount on a Gift Card Purchase

Note: To configure Gift & Loyalty gift card Tip Processing, see

Configuring Tip

Processing for Moneris Gift Cards

.

Note: When tipping is enabled for Gift & Loyalty and the Gift & Loyalty application

starts the Debit & Credit application to pay a balance due, the tip prompt will not reappear for the debit/credit transaction.

Basic Tip Processing

If

Basic Tip Processing

is enabled on the terminal, the customer is prompted as shown below to add a tip amount on gift card purchases.

To enter a tip on a gift card purchase with Basic Tip Processing enabled:

1. The "Tip: $0.00" prompt appears on the terminal.

2. Pass the terminal to the customer, who will follow the prompts.

3. The customer keys in a tip amount to add to the transaction and presses the green OK key to continue the transaction with the tip added.

• If "Excess Tip" appears, the tip percentage added exceeds the maximum allowed. Use the yellow CORR key to remove the value, and then re-enter a lower percentage.

• If the "Invoice Number" prompt appears, you must key in the invoice number, press the green OK key, and then return the terminal to the customer.

The "Accept Total?" prompt appears.

OR

The customer presses the green OK key without keying in a tip amount and the transaction continues with no tip added.

• If the "Invoice Number" prompt appears, you must key in the invoice number, press the green OK key, and then return the terminal to the customer.

The "Accept Total?" prompt appears.

4. Click Yes to accept the total.

The terminal displays "Approved" for 20 seconds, or until you press the green OK key, and then prints the customer copy of the receipt.

• If the terminal displays "Balance Due $###.##", follow the

Gift or Loyalty Card

Transaction With a Balance Due instructions to complete the transaction.

The "Press OK key" prompt appears.

5. Press the green OK key to print the merchant copy of the receipt and return to the GIFT &

LOYALTY transactions menu.

Moneris Vx810 Duet Operating Manual v1.2.4 127

8. The Moneris Gift & Loyalty Programs

Enhanced Tip Processing

If

Enhanced Tip Processing is enabled on the terminal, the customer is prompted as shown below to add a

tip amount on gift card purchases.

To enter a tip on a gift card purchase with Enhanced Tipping enabled:

i. The "Tip Type:" prompt appears on the terminal. ii. Pass the terminal to the customer, who will follow the prompts. iii. A. The customer selects %.

• If

suggested percentages appear (up to three) with an Other selection, the customer

selects the desired tip percentage OR selects Other, keys in a tip percentage and then presses the green OK key to continue the transaction with the tip added accordingly.

• If no tip percentages have been configured on the terminal, the "Tip %:" prompt appears, and the customer keys in a tip percentage and then presses the green OK key to continue the transaction with the tip added.

• If "Excess Tip" appears, the tip percentage added exceeds the maximum allowed. Use the yellow CORR key to remove the value, and then re-enter a lower percentage.

• If the "Invoice Number" prompt appears, you must key in the invoice number, press the green OK key, and then return the terminal to the customer.

B. The "Accept Total?" prompt appears.

OR

The customer selects $.

At the "Tip:" prompt, the customer keys in a tip amount and then presses the green OK key to continue the transaction with the tip added.

• If "Excess Tip" appears, the tip amount added exceeds the maximum allowed value. Use the yellow CORR key to remove the amount, and then re-enter a lower tip.

• If the "Invoice Number" prompt appears, you must key in the invoice number, press the green OK key, and then return the terminal to the customer.

The "Accept Total?" prompt appears.

OR

C. The customer selects No Tip (selection is available only if the

No Tip option is enabled on the

terminal) and the transaction continues with no tip added.

The "Accept Total?" prompt appears. iv. Click Yes to accept the total.

The terminal displays "Approved" for 20 seconds, or until you press the green OK key, and then prints the customer copy of the receipt. v. If the terminal displays "Balance Due $###.##", follow the

Gift or Loyalty Card Transaction With a Balance Due instructions to complete the transaction.

The "Press OK key" prompt appears. vi. Press the green OK key to print the merchant copy of the receipt and return to the GIFT &

LOYALTY transactions menu.

128 Moneris Vx810 Duet Operating Manual v1.2.4

8. The Moneris Gift & Loyalty Programs

8.3.3 Deactivate a Moneris Gift Card

Follow the procedure below to deactivate a Moneris gift card.

IMPORTANT: Once the gift card is deactivated, it can never be used again.

To deactivate a Moneris gift card:

1. On the applications menu , select GIFT & LOYALTY.

The message "Activating App..." is displayed then the transactions menu appears.

2. Select Deactivate.

The "Swipe or Enter Card" prompt appears.

3. Swipe the gift card OR key in the gift card number.

The terminal displays the last four digits of the card number then the "Enter CVC" prompt appears.

4. Key in the CVC number and press the green OK key.

• If the "Clerk ID" prompt appears, key in the clerk ID and press the green OK key.

• If prompted, key in the additional transaction information and press the green OK key.

• If the "Invoice Number" prompt appears, key in the Invoice number and press the green

OK key.

• The terminal displays "Approved" and prints the customer copy of the receipt then displays "Press OK key".

5. Press the green OK key to print the merchant copy of the receipt.

The "Transfer Balance to New Card?" prompt appears.

6. A. To move the remaining balance to a new gift card: i. Select Yes.

ii. Proceed with step 3 in the Activation

instructions using the new gift card.

IMPORTANT: The balance can be transferred to an existing variable-value, reloadable gift card or applied when activating a new variable-value, reloadable or non-reloadable gift card. The balance cannot be transferred to fixedvalue cards or active, non-reloadable gift cards.

OR

B. To deactivate the card and delete the balance: i. Select No.

The gift card can no longer be used.

7. The terminal returns to the GIFT & LOYALTY transactions menu.

Moneris Vx810 Duet Operating Manual v1.2.4 129

8. The Moneris Gift & Loyalty Programs

8.3.4 Processing a Refund with a Gift Card

Follow the procedure below to refund a gift card transaction. This credits a cardholder’s gift card for a previous gift card transaction.

To process a Refund with a gift card:

4. On the applications menu , select GIFT & LOYALTY.

The message "Activating App..." is displayed then the transactions menu appears.

5. Select Refund.

The "Total Amount" prompt appears.

6. Key in the refund amount and press the green OK key.

The "Swipe or Enter Card" prompt appears.

7. Swipe the gift card.

The "Enter CVC" prompt appears.

8. Key in the CVC number and press the green OK key.

• If the "Clerk ID" prompt appears, key in the clerk ID and press the green OK key.

• If prompted, key in the additional transaction information and press the green OK key.

The "Ernex Ref Number" prompt appears.

6. Key in the original reference number from the Gift Card transaction receipt and press the green

OK key.

OR

Press the green OK key to leave this blank.

• If the "Invoice Number" prompt appears, key in the invoice number and press the green OK key.

The terminal displays "Approved" and prints the customer copy of the receipt then displays the

"Press OK key" prompt.

7. Press the green OK key to print the merchant copy of the receipt and return to the GIFT &

LOYALTY transactions menu.

130 Moneris Vx810 Duet Operating Manual v1.2.4

8. The Moneris Gift & Loyalty Programs

8.4 Loyalty Card Transactions

8.4.1 Processing a Purchase with a Loyalty Card (Point Accumulation)

Follow the procedure below to process an accumulation of loyalty points with a purchase by credit card,

debit card or cash; or with a credit pre-auth ,

completion or

advice

.

IMPORTANT: When to awards points for a Pre Auth transaction:

• Award points when you perform a

PRE AUTH

if you know that you will

NOT have the loyalty card available later when you perform the pre-auth completion.

• Award points when you perform the

PRE AUTH COMPLETION if you

know that you WILL have the loyalty card available at that time.

To process a purchase with a loyalty card:

4. Complete the purchase, pre-auth, completion or advice transaction that will accumulate points.

5. On the applications menu , select GIFT & LOYALTY.

The message "Activating App..." is displayed then the transactions menu appears.

6. Select Purchase.

The "Total Amount" prompt appears.

7. Key in the total amount and press the green OK key.

The "Accept amount?" prompt appears.

Note: Consult your manager to determine the dollar amount to be entered (e.g., before

taxes or including tip amount) to award points.

5. Select Yes to proceed.

The "Swipe or Enter Card" prompt appears. Proceed to step 6.

OR

Select No.

The "Total Amount" prompt appears. Repeat step 4.

6. Swipe the loyalty card.

OR

Key in the card number and press the green OK key.

• If the "Clerk ID" prompt appears, key in the clerk ID and press the green OK key.

• If prompted, key in the additional transaction information and press the green

OK key.

• If the "Benefit Amount" prompt appears, press the green OK key to confirm the amount displayed OR key in the benefit amount to be rewarded and then press the green OK key.

Note: Depending on the Loyalty Program configuration, the benefit amount prompt can

differ.

Note: The benefit amount must be equal to or less than the Total Amount value.

• If the "Invoice Number" prompt appears, key in the invoice number and press the green OK key.

Moneris Vx810 Duet Operating Manual v1.2.4 131

8. The Moneris Gift & Loyalty Programs

The terminal displays "Approved" for 20 seconds, or until you press the green OK key, and then prints the customer copy of the receipt.

The "Press OK key" prompt appears.

7. Press the green OK key to print the merchant copy of the receipt and return to the GIFT &

LOYALTY transactions menu.

8.4.2 Deactivate a Moneris Loyalty Card

Follow the procedure below to deactivate a Moneris loyalty card.

IMPORTANT: Once the loyalty card is deactivated, it can never be used again.

To deactivate a loyalty card:

1. On the applications menu , select GIFT & LOYALTY.

The message "Activating App..." is displayed then the transactions menu appears.

2. Select Deactivate.

The "Swipe or Enter Card" prompt appears.

3. Swipe the loyalty card.

OR

Key in the loyalty card number and press the green OK key.

The terminal displays the last four digits of the card number.

• If the "Clerk ID" prompt appears, key in the clerk ID and press the green OK key.

• If prompted, key in the additional transaction information and press the green

OK key.

• If the "Invoice Number" prompt appears, key in the Invoice number and press the green OK key.

The terminal displays "Approved" and prints the customer copy of the receipt then displays "Press

OK key".

4. Press the green OK key to print the merchant copy of the receipt and returns to the GIFT &

LOYALTY transactions menu.

132 Moneris Vx810 Duet Operating Manual v1.2.4

8. The Moneris Gift & Loyalty Programs

8.4.3 Processing a Refund with a Loyalty Card

Follow this procedure to remove points from a cardholder’s account when a purchase that qualified for points is refunded.

To process a Refund with a loyalty card:

1. On the applications menu , select GIFT & LOYALTY.

The message "Activating App..." is displayed then the transactions menu appears.

2. Select Refund.

The "Total Amount" prompt appears.

3. Key in the refund amount and press the green OK key.

The "Swipe or Enter Card" prompt appears.

4. Swipe the loyalty card.

OR

Key in the card number and press the green OK key.

5. If the "Clerk ID" prompt appears, key in the clerk ID and press the green OK key.

• If prompted, key in the additional transaction information and press the green

OK key.

• If the "Benefit Amt" prompt appears, key in the benefit amount from the original loyalty card transaction receipt and press the green OK key.

• If the "Benefit Amt" prompt appears, key in the benefit amount to be refunded from the original loyalty card transaction receipt and press the green OK key.

(Note: The refund benefit amount cannot exceed the benefit amount from the original loyalty card transaction receipt.)

The "Ernex Ref Number" prompt appears.

5. Key in the original reference number from the loyalty card transaction receipt and press the green

OK key.

OR

Press the green OK key to leave this blank.

• If the "Invoice Number" prompt appears, key in the invoice number and press the green OK key.

The terminal displays "Approved" and prints the customer copy of the receipt, then the "Press OK key" prompt appears.

6. Press the green OK key to print the merchant copy of the receipt and return to the GIFT &

LOYALTY transactions menu.

Moneris Vx810 Duet Operating Manual v1.2.4 133

8. The Moneris Gift & Loyalty Programs

8.4.4 Processing a Redemption with a Loyalty Card

Follow the procedure below to process a payment for goods and services using a Moneris loyalty card.

To process a Redemption with a loyalty card:

1. On the applications menu , select GIFT & LOYALTY.

The message "Activating App..." is displayed then the transactions menu appears.

2. Select Redemption.

The "Swipe or Enter Card" prompt appears.

3. Swipe the loyalty card.

OR

Key in the card number and press the green OK key.

• If the "Clerk ID" prompt appears, key in the clerk ID and press the green OK key.

• If prompted, key in the additional transaction information and press the green

OK key.

For a Redemption by Dollars transaction, the "Enter Amount" prompt appears. For a Redemption by Points transaction, the "Number of Points" prompt appears.

4. For a Redemption by Dollars transaction, key in the total dollar amount and press the green OK key. a. If the "Invoice Number" prompt appears, key in the invoice number and press the green OK key. b. The terminal displays "Approved" and prints the customer copy of the receipt, then the "Press

OK key" prompt appears.

Note: If the terminal displays a "Balance Due" message, follow the steps in

Gift or

Loyalty Card Transaction With a Balance Due .

OR

For a Redemption by Points, key in the number of points to be redeemed and press the green OK key. a. If the "Invoice Number" prompt appears, key in the invoice number and press the green OK key. b. The terminal displays "Approved" and prints the customer copy of the receipt, then the "Press

OK key" prompt appears.

5. Press the green OK key to print the merchant copy of the receipt and return to the GIFT &

LOYALTY transactions menu.

134 Moneris Vx810 Duet Operating Manual v1.2.4

8. The Moneris Gift & Loyalty Programs

8.5 Gift & Loyalty Transactions

8.5.1 Activating Gift or Loyalty Cards and Loading Value on Gift Cards

Follow the procedure below to activate a new Moneris gift or loyalty card.

For gift cards, the procedure is also used to load an initial balance on a new gift card or increase the balance on an existing gift card.

To activate or load additional value on a Moneris gift or loyalty card:

1. On the applications menu , select GIFT & LOYALTY.

The message "Activating App..." is displayed then the transactions menu appears.

2. Select Activate/Load.

The "Swipe or Enter Card" prompt appears.

3. Swipe the gift or loyalty card OR key in the loyalty card number and press the green OK key.

The terminal displays the last four digits of the card number.

• If the "Enter CVC" prompt appears, key in the CVC number and press the green

OK key.

• If the "Clerk ID" prompt appears, key in the clerk ID and press the green OK key.

• If prompted, key in the additional transaction information and press the green

OK key.

• If the "Enter Amount" prompt appears, key in the dollar amount to be loaded on the card and press the green OK key.

• If the "Invoice Number" prompt appears, key in the Invoice number and press the green OK key.

The terminal displays first displays "Approved" and then the "Activate/Load another card?" prompt appears.

4. Do one of the following: a. Select Yes to activate or load additional cards.

Repeat step 3 for the next card. b. Select No to proceed.

For loyalty cards, the card is activated and the procedure is complete.

For gift cards, the terminal displays "Balance Due" and then the "Press OK Key" prompt appears.

For gift cards, follow the Gift or Loyalty Transaction With a Balance Due

instructions to complete the transaction.

Moneris Vx810 Duet Operating Manual v1.2.4 135

8. The Moneris Gift & Loyalty Programs

8.5.2 Gift or Loyalty Card Transaction With a Balance Due

Gift card purchases, activations, and reloads can be paid for with more than one payment type to cover transactions where there is a balance due. For example, if the total amount due is $50 and a gift card has only $30 remaining on it, the balance due of $20 can be paid for with cash.

Note: When tipping is enabled for Gift & Loyalty and the Gift & Loyalty application

starts the Debit & Credit application to pay a balance due, the tip prompt will not reappear for the debit/credit transaction.

When the terminal displays the "Balance Due $###.##" message followed by the "Press OK key" prompt:

1. Press the green OK key.

The "Select Payment For Balance Due" prompt appears.

2. Use the function keys to select the payment type:

• For payment by debit or credit card, select DbCr.

• For payment by gift card, select Gift.

• For payment by cash, select Cash.

• For payment by split tender, select Splt.

The terminal displays "Approved" or "Tear Receipt" and prints the customer copy of the receipt then displays the "Press OK key" prompt.

3. Press the green OK key to print the merchant copy of the receipt.

4. If you selected:

• DbCr: The terminal begins a

purchase transaction

(debit or credit) beginning at the "Swipe or Enter Card" prompt.

• Gift: The terminal begins a

gift card purchase

transaction beginning at the

"Swipe or Enter Card" prompt.

• Cash: The transaction is complete.

• Splt: The terminal begins a

purchase transaction (debit or credit) beginning at

the "Swipe or Enter Card" prompt.

5. The transaction is completed when the balance due is $0.

136 Moneris Vx810 Duet Operating Manual v1.2.4

8. The Moneris Gift & Loyalty Programs

8.5.3 Voiding a Gift or Loyalty Transaction

Follow the procedure below to void a gift or loyalty card transaction.

IMPORTANT: This transaction must be performed in the same batch and for the same amount as the original transaction.

To void a Gift & Loyalty transaction:

1. On the applications menu , select GIFT & LOYALTY.

The message "Activating App..." is displayed then the transactions menu appears.

2. Select Void.

The "Password:" prompt appears.

3. Key in the manager password and press the green OK key.

The "Swipe or Enter Card" prompt appears.

4. Swipe the gift or loyalty card.

• If the "Enter CVC" prompt appears, key in the CVC number and press the green

OK key.

• If the "Clerk ID" prompt appears, key the clerk ID and press the green OK key.

The "Ernex Ref Number" prompt appears.

5. Key in the original reference number from the gift card or loyalty card transaction receipt and press the green OK key.

• If the "Invoice Number" prompt appears, key in the invoice number and press the green OK key.

The terminal displays "Approved" and prints the customer copy of the receipt, then the "Press OK key" prompt appears.

6. Press the green OK key to print the merchant copy of the receipt and return to the GIFT &

LOYALTY transactions menu.

Moneris Vx810 Duet Operating Manual v1.2.4 137

8. The Moneris Gift & Loyalty Programs

8.5.4 Gift or Loyalty Card Inquiry

Display or print a Moneris gift card or loyalty card balance and card status.

To process a gift or loyalty card inquiry:

1. On the applications menu , select GIFT & LOYALTY.

The message "Activating App..." is displayed then the transactions menu appears.

2. Select Card Inquiry.

The "Swipe or Enter Card" prompt appears.

3. Swipe the gift card or loyalty card.

OR

Key in the gift card number or the loyalty card number and press the green OK key.

The terminal displays the last four digits of the card number.

• If the "Enter CVC" prompt appears, key in the CVC number and press the green

OK key.

• If the "Clerk ID" prompt appears, key in the Clerk ID and press the green OK key.

The "Card Inquiry 000 Inquiry Complete" prompt appears.

4. Press the green OK key.

The terminal displays the Card Balance and Card Status then the "Press OK key" prompt.

5. Press the green OK key.

The "Print Receipt?" prompt appears.

6. To print the receipt, select Yes.

OR

To skip printing the receipt, select No.

The terminal returns to the GIFT & LOYALTY transactions menu.

138 Moneris Vx810 Duet Operating Manual v1.2.4

8. The Moneris Gift & Loyalty Programs

8.5.5 Reprinting a Gift or Loyalty Receipt

This function prints a duplicate of a gift or loyalty receipt.

To reprint a Gift or Loyalty receipt:

1. On the applications menu , select GIFT & LOYALTY.

The message "Activating App..." is displayed then the transactions menu appears.

2. Press the reprint key (second purple key from the right ).

3. Select the receipt you wish to print:

To print the most recent receipt:

• Select Last Receipt.

To print an earlier receipt:

• Select Any Receipt.

The "Ernex Ref Number" prompt appears.

• Key in the reference number and press the green OK key.

4. The terminal reprints the customer copy of the receipt.

Note: The card number on the reprinted receipt will be

masked

, i.e., only the last four digits will be printed. For example, *************1234. Each Moneris Gift &

Loyalty program can have its own card masking rules that are configured on the

Moneris/Ernex host.

Moneris Vx810 Duet Operating Manual v1.2.4 139

8. The Moneris Gift & Loyalty Programs

8.6 The Gift & Loyalty Menu Feature

8.6.1 The Gift & Loyalty Transactions Menu

This menu allows you to select the type of Gift & Loyalty transaction you wish to process. The transactions are listed here in the order they appear on the menu. Some items may not appear on the terminal until a specific feature is enabled.

Click on the links in the table below to go to the appropriate instructions.

MM/DD/YY HH:MM

Use this transaction to:

Purchase perform a

gift card purchase

or a loyalty card purchase

Refund perform a

gift card refund

or a loyalty card refund

Redemption perform a

loyalty card redemption

Activate/Load

activate a gift card OR load

additional value on a gift card

Deactivate

deactivate a gift card or

loyalty card , OR

transfer a balance from one gift card to another

Card Inquiry display or print the

balance and status of a gift card or a loyalty card

Void

void any gift card or loyalty card transaction

Clerk Admin

add and

delete Clerk IDs to your gift or loyalty program

Setup

configure gift & loyalty program parameters

Gift & Loyalty Transactions Menu

To access the Gift & Loyalty transactions menu:

1. On the applications menu , select GIFT & LOYALTY.

The message "Activating App..." is displayed then the transactions menu appears.

Note: For instructions on navigating through the menus and editing parameters, see

The

Menu Feature

.

140 Moneris Vx810 Duet Operating Manual v1.2.4

8. The Moneris Gift & Loyalty Programs

8.6.2 The Gift & Loyalty Reports Menu

This menu allows you to print a number of Gift & Loyalty reports.

Click on a report name in the table below to go to the appropriate instructions.

MM/DD/YY HH:MM Select this menu item to:

Trans List

print a list of all Gift & Loyalty transactions in the terminal memory

Trans Inquiry

print the Transaction Inquiry report

Clerk Subtotals

print a list of totals for one or more clerks

(only active if clerk IDs are configured)

Batch Close

close the Gift & Loyalty Batch

Config List

print a list of the current settings for each parameter

Tip Totals

print a list of the current tip totals for one or more clerks

Gift & Loyalty Reports Menu

To access the Gift & Loyalty Reports menu:

1. On the applications menu , select GIFT & LOYALTY.

The message "Activating App..." is displayed then the transactions menu appears.

2. Press the Reports key (first purple key on the right).

Note: For instructions on navigating through the menus and editing parameters, see

The

Menu Feature

.

Moneris Vx810 Duet Operating Manual v1.2.4 141

8. The Moneris Gift & Loyalty Programs

8.6.3 The Gift & Loyalty Setup Menu

This menu allows you to set values for a number of Gift & Loyalty parameters on your terminal. The parameters are listed in the order they appear on the menu. Some items may not appear on the terminal until a specific feature is enabled.

Click on a setup option type in the table below to go to the appropriate instructions.

MM/DD/YY HH:MM

Select this menu item to:

Printer

configure the Gift & Loyalty receipt format

Merchant

configure a variety of Gift & Loyalty features

Comm

Do Not Use

IP Hosts

Do Not Use

Terminal

configure a variety of Gift & Loyalty features

Initialization

initialize the terminal to the Moneris/Ernex host

About displays Gift & Loyalty application version information (press the green OK key to exit)

Date/Time

Do Not Use

Demo

enter and exit Gift & Loyalty Demo Mode

Gift & Loyalty Setup Menu

To access the Gift & Loyalty Setup menu:

1. On the applications menu , select GIFT & LOYALTY.

The message "Activating App..." is displayed then the transactions menu appears.

2. Select Setup.

If the "Password:" prompt appears, key in the

manager password and press the green OK key.

Note: For instructions on navigating through the menus and editing parameters, see

The

Menu Feature

.

142 Moneris Vx810 Duet Operating Manual v1.2.4

8. The Moneris Gift & Loyalty Programs

8.7 Gift & Loyalty Admin Transactions

8.7.1 Gift & Loyalty Batch Close

This function closes a Moneris gift and/or loyalty card batch on the terminal and the Moneris/Ernex host and prints a detailed transaction report.

To close a Gift & Loyalty batch:

1. On the applications menu , select GIFT & LOYALTY.

The message "Activating App..." is displayed then the transactions menu appears.

2. Press the Reports key (first purple key on the right).

The Reports menu appears.

3. Select Batch Close.

If the "Clerk ID" prompt appears, key in the Clerk ID and press the green OK key.

The terminal communicates with the Moneris/Ernex host then the "Print Details Report?" prompt appears.

4. To include details for each transaction in the batch summary report, select Yes. This produces the same report as a

Transaction Inquiry

performed for all transactions in the current batch.

OR

To print only totals in the batch summary report, select No.

The terminal prints the batch summary report, communicates with the Moneris/Ernex host then returns to the Reports main menu.

5. Press the red CANC ANNUL key to return to the GIFT & LOYALTY main menu.

Moneris Vx810 Duet Operating Manual v1.2.4 143

8. The Moneris Gift & Loyalty Programs

8.7.2 Initialization to the Moneris/Ernex Host

This function sends information about the terminal to the Moneris/Ernex Host and receives additional parameters and information from the Host. If you are setting up your terminal for the first time, follow the

First Initialization instructions below.

If changes have been made to your Gift & Loyalty configuration or your Gift & Loyalty account, the terminal may display "Initialization Required" or the Service Centre may call and ask you to re-initialize

your terminal. Follow the Re-Initialization

instructions below.

First Initialization

This function MUST be performed once, after completing configuration, in order to use your terminal to process gift card or loyalty card transactions.

To perform the first Gift & Loyalty initialization on your terminal:

1. On the applications menu , select GIFT & LOYALTY.

The message "Activating App..." is displayed then the transactions menu appears.

2. Select Setup.

The "Password:" prompt appears.

3. Key in the manager password

and press the green OK key.

4. On the Setup menu, select Initialization.

The "Ernex Term ID" prompt appears.

5. Key in the Ernex Terminal ID and press the green OK key.

The terminal completes the initialization and returns to the Setup menu.

6. Press the red CANC ANNUL key to return to the GIFT & LOYALTY menu.

Re-Initialization

If changes have been made to your Gift & Loyalty configuration or your Gift & Loyalty account, the terminal may display 'Initialization Required' or the Service Centre may call and ask you to re-initialize your terminal.

To re-initialize your terminal:

1. On the applications menu , select GIFT & LOYALTY.

The message "Activating App..." is displayed then the transactions menu appears.

2. Select Setup.

The "Password:" prompt appears.

3. Key in the manager password

and press the green OK key.

4. Select Initialization.

5. If the "Batch Not Empty Close Batch?" prompt appears:

Select Yes to close the Gift & Loyalty batch.

OR

Select No to leave the Gift & Loyalty batch open.

The "Ernex Term ID" prompt appears.

6. Press the green OK key to continue.

The terminal completes the initialization and returns to the Setup menu.

7. Press the red CANC ANNUL key to return to the GIFT & LOYALTY transactions menu.

144 Moneris Vx810 Duet Operating Manual v1.2.4

8. The Moneris Gift & Loyalty Programs

8.8 Gift & Loyalty Reports

8.8.1 Gift & Loyalty Transaction List

This report displays or prints Moneris gift and/or loyalty card transactions stored on the terminal in the current batch without closing the batch.

To display a list of Gift & Loyalty transactions:

a. On the applications menu , select GIFT & LOYALTY.

The message "Activating App..." is displayed then the transactions menu appears. b. Press the Reports key (first purple key on the right).

The Reports menu appears. c. Select Trans List.

If the "Clerk ID" prompt appears, key in the Clerk ID and press the green OK key.

The "Print by Date or Batch?" prompt appears. d. Choose the selection method:

By Date: a. Select Date.

The "Date" prompt appears. b. Key in the date and press the green OK key.

OR

Press the green OK key for all dates.

By Batch Number:

6. Select Batch Number.

The "Batch Num" prompt appears.

7. Key in the batch number (5 numeric digits) and press the green OK key.

OR

Press the green OK key for all batches

If the "Print Totals Only" prompt appears:

• Select Yes to print just the terminal batch totals.

OR

Select No to print the transaction details as well as the terminal batch totals.

• The terminal prints the list of Gift & Loyalty transactions. e. Press the red CANC ANNUL key to return to the GIFT & LOYALTY main menu.

Moneris Vx810 Duet Operating Manual v1.2.4 145

8. The Moneris Gift & Loyalty Programs

8.8.2 Gift & Loyalty Transaction Inquiry

This report displays or prints details of Moneris gift and/or loyalty card transactions in the current batch

WITHOUT closing the batch.

To print a Transaction Inquiry for Gift & Loyalty transactions:

1. On the applications menu , select GIFT & LOYALTY.

The message "Activating App..." is displayed then the transactions menu appears.

2. Press the Reports key (first purple key on the right).

The Reports menu appears.

3. Select Trans Inquiry.

If the "Clerk ID" prompt appears, key in the Clerk ID and press the green OK key.

The "All" prompt appears.

Note: If the

manager password

is entered, the gift and loyalty card numbers in the report are displayed in full. If the password is bypassed (press the red CANC ANNUL

key), the card numbers will be masked , i.e., only the last four digits will be

printed. For example, *************1234.

4. Do one of the following: i. To retrieve all transactions for all gift and loyalty cards.

• With the All prompt displayed, press the green OK key.

The "Card #:" prompt appears.

• Press the green OK key for all cards.

The "Enter Amount:" prompt appears. Proceed to step 5. ii. To retrieve information for a specific card type.

• Scroll through the list of card type descriptions.

• To scroll forwards, select Next.

To scroll backwards, select Prev.

• When the correct card type description is displayed, press the green OK key.

The "Enter Amount:" prompt appears. Proceed to step 5.

1. To retrieve information about a specific card number.

• Select Slct.

The "Card #" prompt appears.

• Key in the gift or loyalty card number and press the green OK key.

The "Enter Amount:" prompt appears. Proceed to step 5.

2. To return to the Reports menu.

• Select Exit.

The Reports menu appears.

5. Key in a dollar amount and press the green OK key.

OR

Press the green OK key for all amounts.

The "Date:" prompt appears.

6. Key in the date and press the green OK key.

OR

Press the green OK key for all dates.

146 Moneris Vx810 Duet Operating Manual v1.2.4

8. The Moneris Gift & Loyalty Programs

The "Select option" prompt appears.

7. To view information on the terminal, select View and scroll through the information.

• To scroll forwards, select Next.

• To scroll backwards, select Prev.

8. To print the transaction information, select Print.

The terminal prints the report and returns to the Reports menu.

9. To return to the Reports menu, select Cncl.

10. Press the red CANC ANNUL key to return to the GIFT & LOYALTY menu.

8.8.3 Clerk Subtotals Report for Gift & Loyalty Transactions

This report displays or prints the totals of all Moneris gift and/or loyalty transaction types for one or more clerk IDs in the current batch without closing the batch.

To print the Clerk Subtotals report for transactions:

1. On the applications menu

, select GIFT & LOYALTY.

The message "Activating App..." is displayed then the transactions menu appears.

2. Press the Reports key (first purple key on the right).

The Reports menu appears.

3. Select Clerk Subtotals.

If the "Clerk ID" prompt appears, key in the Clerk ID and press the green OK key.

The "Zero Clerk totals" prompt appears.

4. To reset clerk totals to zero (0) upon completion of the report, select Yes.

OR

To continue accumulating clerk totals upon completion of the report, select No.

The "Select Clerks" prompt appears.

5. To print subtotals for one clerk: a. Select One. b. Key in the Clerk ID and press the green OK key.

To print subtotals for a group of clerks: a. Select Grp. b. Key in the group ID and press the green OK key.

To print subtotals for more than one clerk: a. Select List. b. Key in the clerk ID and press the green OK key.

The "Add more?" prompt appears. c. Select Yes to add more clerks to the list.

OR

Select No to finish the list and print the report.

To print subtotals for all clerks: a. Select All.

6. The terminal prints the report and returns to the Reports menu.

7. Press the red CANC ANNUL key to return to the GIFT & LOYALTY menu.

Moneris Vx810 Duet Operating Manual v1.2.4 147

8. The Moneris Gift & Loyalty Programs

8.8.4 Configuration List for Gift & Loyalty

When you have finished configuring the gift and/or loyalty program on your terminal, print the Gift &

Loyalty Configuration List to have a printed record of the terminal’s Gift & Loyalty parameters.

To print the Gift & Loyalty Configuration list:

1. On the applications menu , select GIFT & LOYALTY.

The message "Activating App..." is displayed then the transactions menu appears.

2. Press the Reports key (first purple key on the right).

The Reports menu appears.

3. Select Config List.

The terminal prints the report and returns to the Reports menu.

4. Press the red CANC ANNUL key to return to the GIFT & LOYALTY menu.

8.8.5 Gift and Loyalty Tip Totals Report

This report prints Moneris gift and/or loyalty tip activity for a selected Clerk or for all Clerks, for a given date or for the current batch.

IMPORTANT: Tip Processing must be enabled

and the Tip Total Report parameter set to

"On" before this report can be generated.

If you use Clerk IDs, the report shows the individual clerk totals, grouped by Gift Program card types and then followed by the clerk's totals across all gift card types. When there are multiple clerks, the final section of the report shows the Overall Clerk Totals.

If you are not using Clerk IDs, the report shows the totals grouped by Gift Program card types followed by the Overall Totals, and the Clerk ID related prompts do not appear in the following procedure.

To print the Tip Totals report for transactions:

a. On the applications menu , select GIFT & LOYALTY.

The message "Activating App..." is displayed then the transactions menu appears. b. Press the Reports key (first purple key on the right).

The Reports menu appears. c. Select Tip Totals.

If the "Password:" prompt appears, key in the

manager password and press the green OK key.

Note: If you are not using Clerk IDs, the terminal prints the report showing all tip

activity in the current batch and returns to the REPORTS menu. Proceed to step

7.

d. If The "Clrk Rpt Opt" prompt appears, do one of the following. i. To print the report for a specific Clerk, select One and proceed to step 5.

OR

ii. To print the report for all Clerks, select All and proceed to step 6. e. At the "Clerk Id:" prompt, key in the Clerk ID and press the green OK key. f. At the "Rpt Period:" prompt: i. To print the report for a specific date, select Date and, at the "Date (MMDDYYYY):" prompt, key in the date and press the green OK key.

148 Moneris Vx810 Duet Operating Manual v1.2.4

8. The Moneris Gift & Loyalty Programs

OR

ii. To print the report for all tip activity in the current batch, select All.

The terminal prints the report and returns to the REPORTS menu. g. Press the red CANC ANNUL key to return to the transactions menu.

8.9 Gift & Loyalty Configuration

8.9.1 Gift & Loyalty Printer and Receipt Parameters

Use the Printer selection on the Gift & Loyalty Setup menu to configure Gift & Loyalty printer and receipt parameters.

Transactions menu (GIFT & LOYALTY) > Setup menu > Printer

Note: For instructions on navigating through the menus, see

The Menu Feature

.

Prmpt Beep Delay

Number of seconds to wait after beeping and displaying the "Tear Receipt; Press OK key" message before printing the customer receipt.

Key in number of seconds and press the green OK key (120 = default).

Pre-print

Sets the terminal to begin printing the receipt header before the transaction is complete.

Off

On = Default

Enable Printer

Turns the printer on or off.

On = Default

Off (results in the "Printer Disabled" message any time a report should be printed or the "Printer

Error" message any time a financial transaction is attempted)

Number of Copies

Sets the number of receipts printed for each transaction.

0 COPY - no receipts are printed

1 COPY - prints the customer copy

2 COPIES - prints the customer copy and the merchant copy = Default

2 COPIES OPTN - prints the customer copy and prompts for confirmation to print the merchant copy

3 COPIES - prints the customer copy, the merchant copy and a duplicate of the merchant copy

3 COPIES OPTN - prints the customer copy and the merchant copy and prompts for confirmation to print a duplicate of the merchant copy

Moneris Vx810 Duet Operating Manual v1.2.4 149

8. The Moneris Gift & Loyalty Programs

8.9.2 Gift & Loyalty Merchant Parameters

Use the Merchant selection on the Gift & Loyalty Setup menu to configure Gift & Loyalty Merchant parameters.

Transactions menu (GIFT & LOYALTY) > Setup menu > Merchant

Note: For instructions on navigating through the menus, see

The Menu Feature

.

Merchant ID

Your Moneris Merchant ID.

Key in the numeric Merchant ID assigned to you by Moneris and press the green OK key.

Moneris Term ID

Your Moneris Terminal ID (the eight-digit number starting with 28 found on the back of the terminal, e.g. 28123456).

Key in the numeric Terminal ID assigned to you by Moneris and press the green OK key.

Ernex Term ID

Your Ernex Terminal ID.

Key in the Ernex Terminal ID (maximum 8-digits) assigned to you by Moneris and press the green

OK key.

Rct Hdr 1 to 7

The seven lines of text that appear at the top of receipts.

Key in alphanumeric text

(max. 40 characters) and press the green OK key.

Footer 1 to 6

The six lines of text that appear at the bottom of receipts.

Key in alphanumeric text

(max. 40 characters) and press the green OK key.

Seq #

Cannot be edited.

AutoClos Time

This parameter is updated to match the host each time the GIFT & LOYALTY application is

initialized .

HHMMSS (230000 = default)

Auto Close Tries

The number of times the terminal tries to perform an automatic batch close.

Key in a 2-digit numeric value (displayed in seconds, e.g. 60 = 60 seconds) and press the green

OK key (3 = default).

150 Moneris Vx810 Duet Operating Manual v1.2.4

8. The Moneris Gift & Loyalty Programs

Auto Close Delay

The amount of time the terminal waits between attempts to perform an automatic batch close.

Key in a 2-digit numeric value and press the green OK key (10 = default).

Auto Close Opt

Determines whether the terminal will attempt an automatic batch close each day or the batch must be closed manually.

No - you must perform a batch close manually (default).

Yes - the terminal will automatically attempt to close each day.

Beneft Amt Prmpt

Cannot be edited.

Coupon Validation

Enables or disables coupon validation.

No (default)

Yes

Amt Verification

Enables or disables the verification prompt for the amount entered during a gift and/or loyalty transaction.

No (default)

Yes

8.9.3 Gift & Loyalty Communications Parameters

Use the Comm selection on the Gift & Loyalty Setup menu to configure Gift & Loyalty communications parameters.

Transactions menu (GIFT & LOYALTY) > Setup menu > Comm

Note: For instructions on navigating through the menus, see

The Menu Feature

.

Pri Auth Phone

Do Not Use

Sec Auth Phone

Do Not Use

Baud Rate

Do Not Use

Blind Dial

Do Not Use

Moneris Vx810 Duet Operating Manual v1.2.4 151

8. The Moneris Gift & Loyalty Programs

Device Type

The Moneris device type

Key in the 2-digit alphanumeric device type assigned by Moneris and press the green OK key.

Note: For help on keying in alphabetic characters, see

Entering Alpha Characters and

Punctuation .

Dial Type

Do Not Use

Backup Support

Do Not Use

Num Retries

Do Not Use

Reversal Retries

Do Not Use

8.9.4 Gift & Loyalty Terminal Parameters

Use the Terminal selection on the Gift & Loyalty Setup menu to configure Gift & Loyalty terminal parameters.

Transactions menu (GIFT & LOYALTY) > Setup menu > Terminal

Note: For instructions on navigating through the menus, see

The Menu Feature

.

Clrk/ Srvr Mode

Enables or disables the "Clerk ID:" prompt. If Clerk Totals and Clerk ID input are supported, select Prompt.

None (default)

Prompt

Terminal Beep

Turns the key beep on or off.

Off

On (default)

PABX Code

Do Not Use

Demo Mode

Turns Gift & Loyalty Demo Mode on or off.

Off (default)

On

152 Moneris Vx810 Duet Operating Manual v1.2.4

8. The Moneris Gift & Loyalty Programs

Man Inv Prompt

Enables or disables the "Invoice Number" prompt during gift and/or loyalty transactions. Entry at the prompt is not required and can be bypassed by pressing the green OK key. The Invoice

Number can be a maximum of 9 digits.

Off (default)

On

Ernex Route Code

Do Not Use.

Language

Sets the terminal display language.

English (default)

French

Tip Processing

Enables or disables the "Tip Processing" prompt.

None (default)

Basic Tip (The customer can enter a dollar tip amount)

Enhanced Tip Processing (Allows the customer to choose between entering the tip as a dollar amount or a percentage)

Note: For information on configuring Basic or Enhanced tip processing, see

Configuring

Tip Processing for Moneris Gift Cards

.

Sug Tip% 1 nn

Suggested tip % amount #1 if Enhanced Tip Processing is enabled (see Tip Processing

above). To set 10%, enter 10. This parameter applies to Enhanced Tip Processing only (see

Tip Processing

above).

Default = 0 (no % amount set and the option does not appear on the terminal screen)

Note: Suggested tip options appear on the terminal screen only if their associated

parameter has a value set.

Sug Tip% 2 nn

Suggested tip % amount #2 if Enhanced Tip Processing is enabled (see Tip Processing

above). To set 15%, enter 15.

Default = 0 (no % amount set and the option does not appear on the terminal screen)

Sug Tip% 3 nn

Suggested tip % amount #3 if Enhanced Tip Processing is enabled (see Tip Processing

above). To set 20%, enter 20.

Default = 0 (no % amount set and the option does not appear on the terminal screen)

Moneris Vx810 Duet Operating Manual v1.2.4 153

8. The Moneris Gift & Loyalty Programs

TipNone

Indicates if the "No Tip" option appears if Enhanced Tip Processing is enabled (see

Tip

Processing above).

Off (default)

On

Note: This parameter can only be changed when the Batch is empty.

Excess Tip nn%

Sets the maximum tip percentage that a customer can enter. This parameter applies to Enhanced

Tip Processing only (see

Tip Processing

above).

Default = 30 (30%)

Tip Total Report

Enables or disables the Tip Totals report.

Off (default)

On

Note: This parameter can only be changed when the Batch is empty.

MaxTipAmt

Sets the maximum dollar amount when a $ tip amount is entered for Basic Tip or Enhanced Tip

Processing (see

Tip Processing

above). To set a maximum tip amount of $50.50, enter 5050. The last two digits represent the cents.

Default = 0 (no upper limit)

8.9.5 Adding Clerk IDs to the Moneris Gift & Loyalty Application

Follow the procedure below to add Clerk IDs to be used when processing gift and loyalty transactions.

To add a Clerk ID:

1. On the applications menu , select GIFT & LOYALTY.

The message "Activating App..." is displayed then the transactions menu appears.

2. Select Clerk Admin.

If the "Password:" prompt appears, key in the

manager password and press the green OK key.

3. The CLERK ADMIN menu appears.

4. Select Add Clerk to add a clerk ID.

The "Clerk ID:" prompt appears.

5. Key in the Clerk ID to be added and press the green OK key. For help, see Entering Alpha

Characters and Punctuation .

The "Clerk Added" message appears then the "Clerk ID:" prompt re-appears.

6. To continue adding Clerk IDs, repeat step 5 as needed. You can add a maximum of 20 Clerk IDs at one time.

154 Moneris Vx810 Duet Operating Manual v1.2.4

8. The Moneris Gift & Loyalty Programs

Note: Once 20 Clerk IDs have been entered for addition, the terminal returns to the

CLERK ADMIN menu.

7. When all the Clerk IDs have been entered for addition, press the red CANC ANNUL key.

The terminal returns to the CLERK ADMIN menu.

8. Press the red CANC ANNUL key to return to the GIFT & LOYALTY transactions menu.

Note:

Clerk IDs

can also be

deleted

.

8.9.6 Deleting Clerk IDs From the Moneris Gift & Loyalty Application

Use this function to remove Clerk IDs so they can no longer be used when processing gift and loyalty transactions.

To delete a Clerk ID:

1. On the applications menu , select GIFT & LOYALTY.

The message "Activating App..." is displayed then the transactions menu appears.

2. Select Clerk Admin.

If the "Password:" prompt appears, key in the

manager password and press the green OK key.

The CLERK ADMIN menu appears.

3. Select Delete Clerk to delete a clerk ID.

The "Clerk ID:" prompt appears.

4. Key in the Clerk ID to be removed and press the green OK key. For help, see

Entering Alpha

Characters and Punctuation .

The "Clerk Deleted" message appears then "Clerk ID:" entry screen re-appears.

5. To continue deleting Clerk IDs, repeat step 4 as needed.

6. When all the desired Clerk IDs have been deleted, press the red CANC ANNUL key.

The terminal returns to the CLERK ADMIN menu.

7. Press the red CANC ANNUL key to return to the GIFT & LOYALTY transactions menu.

Note:

Clerk IDs

can also be

added

.

Moneris Vx810 Duet Operating Manual v1.2.4 155

8. The Moneris Gift & Loyalty Programs

8.9.7 Configuring Tip Processing for Moneris Gift Cards

Follow the appropriate procedure below to configure Basic or Enhanced tip processing for Moneris gift cards.

Basic Tip Processing

Basic Tipping allows the customer to enter a tip as a dollar amount.

To enable Basic Tip Processing:

1. Set the Tip Processing parameter to Basic Tip.

2. If required, set the

MaxTipAmt parameter to the maximum dollar amount allowed for a tip. The

default is 0 (no upper limit).

Enhanced Tip Processing

Enhanced Tipping allows the customer to choose between entering the tip as a dollar amount or a percentage.

To enable and configure Enhanced Tip Processing:

1. Set the Tip Processing parameter to Enhanced Tip.

2. To enable the No Tip option, set the TipNone parameter to On.

3. To configure up to three suggested tip percentage amounts, set the Sug Tip% 1 nn , Sug Tip% 2 nn and Sug Tip% 3 nn parameters to the desired percentage amounts (e.g., for 15%, key in 15).

Note: If all three parameters are set to 0 (no % amount set), the suggested tip amount

options do not appear on the terminal screen and the customer must manually enter the percentage amount.

4. To set the maximum dollar amount allowed for a tip, configure the MaxTipAmt

parameter. The default is 0 (no upper limit).

5. To set the maximum tip percentage a customer can enter, configure the Excess Tip nn%

parameter. The default is 30 (30%).

156 Moneris Vx810 Duet Operating Manual v1.2.4

8. The Moneris Gift & Loyalty Programs

8.10 Gift & Loyalty Demo Mode

8.10.1 Gift & Loyalty Demo Mode

Demo Mode allows you and your employees to practice performing gift and loyalty transactions on your

Moneris terminal WITHOUT affecting your terminal total amounts, your financial accounts and your customers’ accounts.

Note: Demo Mode is only available if you close your terminal batches on the terminal. If

your terminal uses system close, you cannot use Demo mode.

While the terminal is in Demo mode:

• DEMO is printed at the top of each receipt and report

• There is no transaction maximum, however, demo transactions for more than $10 produce a decline message.

• Transaction amounts equal to or greater than $1.00 produce a "Balance Due" message with an amount due of $1.00.

• All gift and loyalty transactions are supported

Note: To use Demo Mode, see

Entering Gift & Loyalty Demo Mode and

Exiting Gift &

Loyalty Demo Mode

.

Moneris Vx810 Duet Operating Manual v1.2.4 157

8. The Moneris Gift & Loyalty Programs

8.10.2 Entering Gift & Loyalty Demo Mode

Note:

Demo mode

can only be activated on terminals that have been configured and initialized to the Moneris/Ernex host.

IMPORTANT: You must close the current Gift & Loyalty batch before you can enter Demo

mode. Do NOT clear the batch.

IMPORTANT: Ensure that you exit Demo Mode

before processing actual gift or loyalty transactions. Transactions processed in Demo Mode will NOT affect your terminal totals, Gift & Loyalty accounts or customers’ accounts.

To enter Gift & Loyalty Demo Mode:

1. On the applications menu , select GIFT & LOYALTY.

The message "Activating App..." is displayed then the transactions menu appears.

2. Select Setup.

If the "Password:" prompt appears, key in the

manager password and press the green OK key.

The Setup menu appears.

3. Select Demo.

The "Demo Mode" prompt appears.

4. Select On.

The terminal displays "DEMO MODE ON" then the Setup menu re-appears with the DEMO icon

( ) displayed on the left side of the screen.

5. Press the red CANC ANNUL key two times to return to the GIFT & LOYALTY transactions menu.

IMPORTANT: Ensure that you exit Demo Mode

before processing actual gift or loyalty transactions. Transactions processed in Demo Mode will not affect your terminal totals, Gift & Loyalty accounts or customers’ accounts.

158 Moneris Vx810 Duet Operating Manual v1.2.4

8. The Moneris Gift & Loyalty Programs

8.10.3 Exiting Gift & Loyalty Demo Mode

IMPORTANT: Ensure that you exit Demo Mode before processing actual gift or loyalty transactions. Transactions processed in Demo Mode will NOT affect your terminal totals, Gift & Loyalty accounts or customers’ accounts.

To exit Gift & Loyalty Demo Mode:

1. On the applications menu , select GIFT & LOYALTY.

The message "Activating App..." is displayed then the transactions menu appears.

2. Select Setup.

If the "Password:" prompt appears, key in the

manager password and press the green OK key.

The Setup menu appears.

3. Select Demo.

The "Demo Mode" prompt appears.

4. Select Off.

The "Batch Not Empty Clear Batch" message appears.

5. Select Yes to clear the demo batch so it does not affect totals of real Gift & Loyalty transactions.

The terminal displays "DEMO MODE OFF" then the Setup menu re-appears. The DEMO icon (

) is no longer displayed on the screen.

6. Press the red CANC ANNUL key two times to return to the GIFT & LOYALTY transactions menu.

IMPORTANT: Ensure that you exit Demo Mode before processing actual gift or loyalty transactions. Transactions processed in Demo Mode will NOT affect your terminal totals, Gift & Loyalty accounts or customers’ accounts.

Moneris Vx810 Duet Operating Manual v1.2.4 159

9. End-of-Day Procedure

9.1 End-of-Day Procedures

The end-of-day process comprises a number of procedures:

•

Batch Close

•

Batch Clear

•

Batch Review

•

Multi-Terminal Batch Close

9.2 Processing a Batch Close

Moneris has two types of settlement:

•

Merchant Close

- You are responsible for settlement/Batch Close at the end of each day.

•

System Close

- Moneris automatically settles your transactions at the end of the day.

Note: To close multiple terminals at once, see

Multi-Terminal Batch Close .

Note: To print the Batch Totals report without closing the batch, see

The Batch Totals

Report

.

Moneris Vx810 Duet Operating Manual v1.2.4 161

9. End-of-Day Procedure

9.2.1 Merchant Close

If your merchant account is set up for Merchant Close settlement, you must process a Batch Close transaction in order to have the funds from your POS transactions deposited to your business account.

Here’s how:

Step 1: Process a Batch Close Transaction

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu

appears.

2. Scroll down and select Batch Close.

If the "Password:" prompt appears, key in the

Manager Password and press the green OK key.

3. At the "Close Type?" prompt, select Sngl.

The terminal communicates with the Moneris Host then prints the Batch Totals section of the

Batch Close Report.

4. At the "Prt Stored Trans?" prompt, select Yes to print the Stored Transactions Report

.

5. At the " Rpt Period:" prompt: a. To print the transactions for a specific date, select Date, key in the date at the Date "

YYYYMMDD:" prompt then press the green OK key.

OR

b. To print all transactions in the batch, select All.

6. The terminal prints the Stored Transactions Report and the "Close Batch?" prompt appears.

Step 2: Confirmation

1. When the "Close Batch?" prompt appears, check that the totals on the Batch Totals Report match

the totals on the printed Stored Transactions Report.

2. If they match, select Yes to close the batch. The terminal finishes printing the Batch Close Report and returns to the transactions menu.

OR

If they do NOT match, select No to cancel the Batch Close process and call Moneris the next business day for reconciliation assistance.

Note: If you don’t make a selection at the "Close Batch?" prompt within two minutes, the

terminal will beep three times then return to the transactions menu without closing the batch.

9.2.2 System Close

If your account is set up for System Close settlement, Morris automatically settles your transactions for you at the end of each day. You must verify transaction totals on a daily basis. Here’s how:

Step 1: Print a

Stored Transactions Report .

Step 2: Print a

Merchant Sub-Totals Report .

IMPORTANT: The Merchant Sub-Totals Report must be printed before 11:00 p.m. local time.

Step 3: Confirmation

Confirm that the totals on the Merchant Sub-Totals Report match the totals on the Stored

Transactions Report. If they do not match, contact Moneris within 30 days for reconciliation assistance.

162 Moneris Vx810 Duet Operating Manual v1.2.4

9. End-of-Day Procedure

9.3 Processing a Batch Clear

This function is primarily used by System Close merchants to clear the batch in the terminal memory. A system close is initiated by the Moneris Host and clears the batch on the host but not on the terminal. If the batch on the terminal is never cleared, any totals reports that rely on the terminal batch will continue to increment each day.

To process a Batch Clear:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu

appears.

2. Scroll down and select Batch Clear.

If the "Password:" prompt appears, key in the

Manager Password and press the green OK key.

3. At the "Clear Batch?" prompt, select Yes.

The terminal clears the batch and returns to the transactions menu.

Note: If you select No, the terminal returns to the transactions menu without clearing the

batch.

9.4 Processing a Batch Review

The Batch Review process retrieves transactions in the current batch by using the following retrieval methods:

• Clerk ID (Clrk)

• Transaction Amount (Amt)

• Last 4 Digits of the Card Number ( Acct)

• Sequence Number (Seq#)

Once the transaction is retrieved, you can print a Transaction Inquiry, reprint the Merchant copy of the receipt, or correct (void) the transaction.

Note: To use the Clerk ID retrieval method, you must enable

Clerk ID Prompting

. The

method is not available if the Default Clerk ID

option is enabled.

Note: This function does NOT include Pre-Authorization transactions. To review these

transactions, you must print a Pre-Auth Transactions Report .

To process a Batch Review:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu

appears.

2. Scroll down and select Batch Review.

If the "Password:" prompt appears, key in the

Manager Password and press the green OK key.

3. At the "Retrieve By" prompt, select the method you want to use to retrieve transactions: ii. Clrk => key in the transaction Clerk ID and press the green OK key. iii. Amt => key in the transaction amount press the green OK key. iv. Acct => key in the last 4 digits of the transaction card number and press the green OK key. v. Seq# => key in the transaction Sequence Number and press the green OK key.

To review the first transaction in the batch, press the green OK key.

Moneris Vx810 Duet Operating Manual v1.2.4 163

9. End-of-Day Procedure

The terminal displays the following information for the first transaction that matches the criteria:

• Seq#:

• Card Name

• Transaction Type

• Card Number

• Amount

4. Select the action you want to perform: i. Corr => perform a Correction on that transaction ii. Prev => move back to the previous transaction that matches the criteria iii. Next => move forward to the next transaction that matches the criteria iv. Prnt => print the details displayed on the screen in the Transaction Inquiry report format

OR

Press the REPRINT key (2nd purple key from the right) to reprint the Merchant copy of the displayed transaction's receipt.

5. Press the red CANC ANNUL key twice to return to the applications menu.

9.5 Processing a Multi-Terminal Batch Close

This feature allows you to close batches by Terminal Name (i.e., on one or more terminals) or on all terminals from another terminal.

This function does NOT compare totals stored in the terminal memory to totals stored on the Moneris

Host. Therefore, you should check that your receipts balance with the Batch Totals printed on the Multi-

Terminal Batch Close Report. You can also check the balance by printing a Stored Transactions Report

on each terminal included in the Batch Close.

IMPORTANT: A Multi-Terminal Batch Close can be performed only for terminals that are added to and associated with your Merchant Number on the Moneris

Host (see

Adding a Terminal Name

).

9.5.1 By Terminal Name

You can process a Batch Close on one or more terminals by selecting the appropriate Terminal Name(s).

You must therefore know the Terminal Name of the terminal whose batch you want to close.

To process a Batch Close on one or more terminals by Terminal Name:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu

appears.

2. Scroll down and select Batch Close.

If the "Password:" prompt appears, key in the

Manager Password and press the green OK key.

3. At the "Close Type?" prompt, select Mult.

4. At the "Terminal Name:" prompt, key in the name of the terminal and press the green OK key.

The "Add Another Terminal?" prompt appears.

164 Moneris Vx810 Duet Operating Manual v1.2.4

9. End-of-Day Procedure

5. To include more terminals in the Batch Close, select Yes then repeat steps 4 and 5 for each additional terminal to create the Batch Close process list. After you finish adding terminals, select

No.

OR

To include only the terminal selected in step 4, select No.

IMPORTANT: To close the batch for the terminal in use, you must add its Terminal Name to the Batch Close process list.

Note: You can include up to 20 terminals in a Batch Close. When you enter the 20th

Terminal Name, the terminal automatically processes the Batch Close on them and returns to the "Add Another Terminal?" prompt. You can then add more terminals as above or select No to complete the Batch Close.

6. The terminal communicates with the Moneris Host then prints the Batch Totals section of the

Multi-Terminal Batch Close Report.

7. At the "Batch Close?" prompt, select Yes.

The terminal communicates with the Moneris Host to close the batch, finishes printing the report with the Batch Close section and returns to the REPORTS menu.

8. Press the red CANC ANNUL key to return to the transactions menu.

9.5.2 For All Terminals

You can process a Batch Close on all terminals associated with your Merchant Number on the Moneris

Host.

To process a Batch Close on all terminals:

1. On the applications menu , select DEBIT & CREDIT.

The message "Activating App..." is displayed then the transactions menu

appears.

2. Scroll down and select Batch Close.

If the "Password:" prompt appears, key in the

Manager Password and press the green OK key.

3. At the "Close Type?" prompt, select Mult.

4. At the "Terminal Name:" prompt, press the (*) ASTERISK key and then press the green OK key.

5. At the "Add Another Terminal?" prompt, select No.

6. At the "Batch Close?" prompt, select Yes.

The terminal communicates with the Moneris host to close the batch, finishes printing the report with the Batch Close section and returns to the REPORTS menu.

7. Press the red CANC ANNUL key to return to the transactions menu.

Moneris Vx810 Duet Operating Manual v1.2.4 165

10. Troubleshooting

10.1 Troubleshooting

If your terminal is not working properly and an error message appears on the screen, go to the list of Error

Messages

and locate the message you see on the terminal. If the problem appears to be with the hardware,

go to the list of Hardware Problems and locate the symptom. Then, review the possible problems and try

the suggested solution.

Note: Please keep any receipts printed during problem transactions. The Service Centre

representative may require information that appears on the receipts.

If this does not resolve the problem, contact the Moneris Merchant Service Centre for assistance.

10.2 Error Messages on the Moneris Vx810 Duet Terminal

A message will appear on the display if an error occurs. In the table below, find the error message that appears on the terminal and try the solution. If the error message re-appears, contact the Moneris

Merchant Service Centre for assistance.

All error messages are listed in alphabetical order (regardless of their cause).

ERROR

MESSAGE

ADJUST NOT

ALLOW

APP EXPIRED

PROBLEM & SOLUTION

You cannot perform a Correction (void) on a Contactless Purchase or Refund.

The application on the contactless card is expired.

Request another form of payment.

CARD BLOCKED The contactless card was blocked.

Request another form of payment.

CARD FAIL

INSERT OR

SWIPE

There was an error reading the contactless card.

Insert or swipe the same card or another card.

CARD FAIL There was an error reading the contactless card.

Request another form of payment.

Moneris Vx810 Duet Operating Manual v1.2.4 167

10. Troubleshooting

ERROR

MESSAGE

PROBLEM & SOLUTION

CARD NOT

SUPPORTED

The type of card swiped on the terminal does not match the card type selected at the

READY screen. For example, a Debit card was swiped during a Credit Pre-

Authoirzation transaction or an Ernex Gift Card was swiped for an Ernex Loyalty Card transaction .

Try swiping the card again.

If this message reappears, press the red CANC ANNUL key to cancel the transaction and retry the transaction.

-OR-

Your merchant account with Moneris is not set up to accept the card type that was swiped.

Request another form of payment.

If desired, contact the Moneris Merchant Service Centre to discuss how to add the card type to your merchant account.

CARD

REMOVED - 991

The chip card was removed before the end of the transaction.

Retry the transaction.

CARD SWIPE

ERROR

CD NOT

SUPPORTED

There is a problem with the magnetic stripe on the card that was swiped.

Try swiping the card again, this time more slowly or quickly, or from front of the terminal to the back.

If the message reappears:

- for credit card with stripe – key in the card number.

- for debit card with stripe or chip – request another form of payment.

The type of contactless card tapped is not supported by the contactless reader.

Request another form of payment.

If desired, contact the Moneris Merchant Service Centre to discuss adding contactless support for the card type to your merchant account.

CHIP CARD

MALFUNCTION

There was an error reading the chip card.

Remove the card and retry the transaction. If the message reappears, swipe the card.

CHIP CARD

SWIPED

CommServer Not

Responding to

VMAC

A chip-enabled card was swiped.

Insert the card in the chip card reader and resume the transaction.

The Ethernet cable

was connected to the base and the wall jack while you configured

the static IP parameters

.

Power off then

power

on the terminal (leave the Ethernet cable connected to the base

and the wall jack).

168 Moneris Vx810 Duet Operating Manual v1.2.4

10. Troubleshooting

ERROR

MESSAGE

COMMSVR

ENTRY

PASSWORD

-----------------

PROBLEM & SOLUTION

The 2 key was pressed when the terminal was at the

Press the red CANC ANNUL key to return to the applications menu

to key in a dollar value of $20.00 or another value that includes a 2).

applications menu .

(e.g. attempting

This symbol appears when the terminal is in Demo Mode.

Exit Demo Mode

to remove the symbol from the display.

EMPTY BATCH

If you attempt a Pre Auth Completion

but there are no uncompleted pre auths in the terminal memory, the Empty Batch message appears.

Press the green OK key to return to the Pre Auth menu

.

ERR READ CARD

NO.

There is a problem with the magnetic stripe on the card that was swiped.

Try swiping the card again, this time more slowly or quickly, or from front of the terminal to the back.

If the message reappears:

- for credit card with stripe – key in the card number.

- for credit card with chip – swipe the card

- for debit card with stripe or chip – request another form of payment.

EXCEEDS LIMIT

INSERT OR

SWIPE

The transaction amount is over the contactless card's maximum Contactless Dollar

Value (CDV)

.

Insert or swipe the same card or another card.

EXCEEDS

REFUND LIMIT

The total value of refunds performed today is greater than your daily refund limit.

Call the Moneris Merchant Service Centre for a temporary increase. Please have the original purchase receipt available for reference.

Exc Refund Limit The total value of refunds performed today is greater than your daily refund limit.

Call the Moneris Merchant Service Centre for a temporary increase. Please have the original purchase receipt available for reference.

EXPIRED CARD The expiry date on the card that was swiped has passed.

Request another form of payment.

HOST LOGON

REQUIRED

The terminal has been

logged off to protect it from attempts to perform unauthorized

transactions.

Perform a Logon transaction.

Moneris Vx810 Duet Operating Manual v1.2.4 169

10. Troubleshooting

ERROR

MESSAGE

PROBLEM & SOLUTION

INIT REQUIRED When this message is displayed at the top of the screen (alternating with the date and

time), the Moneris host is requesting a re-initialization of the terminal.

INSERT ON

PINPAD

A chip card was inserted in the terminal chip reader when there is an external PINpad attached.

Insert the card in the PINpad chip reader.

INVALID The password entered does not match the manager's password.

Press the red CANC ANNUL key then re-enter the manager password and press the green OK key.

INVALID ACCNT

NO.

During a swiped credit card transaction, the digits entered as the last four of the credit card do not match the last four digits of the card number encoded on the card's magnetic stripe.

Check the card number and re-enter the last four digits when the "Last 4 digits:" prompt re-appears.

If the prompt reappears, contact the Moneris Merchant Service Centre for assistance.

INVALID CARD An invalid card type was used.

Use another card or request another form of payment.

INVALID DATE The date entered is not a valid date.

The date must be entered in the MMYY format and must be a valid calendar date, e.g.

1409 is not a valid date.

Check the date and re-enter it when the prompt re-appears.

Inv# is 7 char max

Press OK key

The Private Label card or Purchasing card used for this transaction only supports

invoice numbers with a maximum of 7 characters. The invoice number keyed in earlier in the transaction was longer than 7 characters.

Press the green OK key. The "Invoice #:" entry screen appears.

Check the invoice number, enter the correct number of characters and press the green

OK key to continue the transaction.

LINE BUSY Check if the phone line is shared with another piece of equipment, e.g. a fax machine.

If it is, disconnect the other piece of equipment to leave the line free for the terminal and try the transaction again.

OR

Check if a prefix is required to dial out.

If it is, set the PABX code to the required prefix then try the transaction again.

170 Moneris Vx810 Duet Operating Manual v1.2.4

10. Troubleshooting

ERROR

MESSAGE

NO ACTIVITY

PROBLEM & SOLUTION

No Chip CD On

Pre Auth

Please Remove

Card

NO LINE

NO MATCH

NO NETWORK

CONNECTION

NOT

COMPLETED

There are no transactions associated with that clerk ID.

OR

That Clerk ID does not exist.

Check the Clerk ID and try the

Clerk Subtotals report

again.

Your terminal is not configured to process Pre Auth transactions using a chip card and a chip card has been inserted during a Pre Auth transaction.

Remove the chip card, press the red CANC ANNUL key to return to the transaction menu and perform a Purchase transaction with the chip card.

The terminal cannot detect a dial communications line.

Check that all communications cables are connected to the base and the wall jack correctly. If they are, check the phone line for dial tone.

Check that the phone line is an analog dial line. The terminal will not work on a digital phone line or on VoIP.

Try the transaction again. If the message reappears, unplug and replug the power cable at the power source.

The information you have used to find a transaction in memory can not be found.

Check the information and try again.

Check the communications cable to ensure it is connected to the terminal and the wall jack.

The contactless card transaction was not completed. A "Not Completed" receipt is printed.

Retry the transaction. If the contactless transaction fails again, request another form of payment and then contact the Moneris Merchant Service Centre to diagnose the problem.

Moneris Vx810 Duet Operating Manual v1.2.4 171

10. Troubleshooting

ERROR

MESSAGE

PROBLEM & SOLUTION

OUT OF RANGE

The Cashback amount requested exceeds the maximum cashback value

set on the terminal.

Ask the cardholder to key in an amount lower than the maximum amount when the

"Cash: " prompt re-appears.

If this error message appears on a regular basis, consider

increasing the cashback limit

set on the terminal.

OR

The total amount of the transaction, including the amount, tip and Cashback, exceeds

$999,999.99.

Ask the cardholder to key in lower amounts when prompted.

OR

If this message appears while the terminal is in Demo mode

, ensure the amount of the transaction plus Cashback is $1.00 or less, and the tip is $1.00 or less.

PAPER OUT A problem has been detected with the printer.

Open the printer and check that:

- there is paper in the printer

- the paper feed is clear.

- the paper roll is seated correctly.

Close the printer lid and ensure that it is closed completely.

If the problem is fixed:

The printer will finish printing the receipt or report that was in progress and complete the transaction.

If the problem is not fixed:

Press the green OK key. The terminal will complete the transaction. Fix the problem then

reprint the transaction.

Note: Transactions should not be performed until the printer problem is fixed.

PHONE NUM

FLDS EMPTY

PRINTER ERR

The terminal has attempted to dial out but the phone number parameters are empty. If this message occurs during:

- a financial transaction, call the Moneris Merchant Service Centre for assistance.

- a Batch Close

transaction, perform a

Re-initialization

then try the transaction again.

Open the printer

, check that there is a paper roll and that the roll is loaded properly then close the printer.

172 Moneris Vx810 Duet Operating Manual v1.2.4

10. Troubleshooting

ERROR

MESSAGE

PROBLEM & SOLUTION

PRESENT 1

CARD

READ CARD ERR There is a problem with the magnetic stripe on the card that was swiped.

Try swiping the card again, this time more slowly or quickly, or from front of the terminal to the back.

If the message reappears:

- for credit card with stripe – key in the card number.

- for credit card with chip – swipe the card.

- for debit card with stripe or chip – request another form of payment.

RECORD NOT

FOUND

Two or more contactless cards were detected in the range of the contactless reader.

Request the customer to use one contactless card only.

REFUND LIMIT

EXCEEDED

The information you have used to find a transaction in memory can not be found.

Check the information and try again.

The total value of refunds performed today is greater than your daily refund limit.

Call the Moneris Merchant Service Centre for a temporary increase. Please have the original purchase receipt available for reference.

RETRY TRAN?

SETTLE FAILED The connection with the Moneris host was lost during the batch close function and the settlement was not completed.

Try the

Batch Close

again. If the batch totals are $0, print a Deposit Totals report and a

Stored Transactions report

then call the Moneris Merchant Service Centre.

SYSTEM

PROBLEM

Select YES to retry the transaction. The terminal will try to send the transaction to the

Moneris Host using the card data already entered.

Select NO to return to the transactions menu.

This message will be followed by one of the three following messages:

- TCP INIT ERR: ####

- TCP RECV ERR: ####

- TCP SEND ERR: ####

A communication error has occurred.

Call the Moneris Merchant Service Centre and give the agent the four-digit number.

TABLE FULL You have tried to add too many Clerk IDs or Terminal Names.

You can add a maximum of 255 different Clerk IDs and 100 different Terminal Names.

Moneris Vx810 Duet Operating Manual v1.2.4 173

10. Troubleshooting

ERROR

MESSAGE

TAP NOT

ACCEPTED

INSERT OR

SWIPE

TCP INIT ERR:

####

PROBLEM & SOLUTION

A contactless error occurred during the transaction.

Insert or swipe the same card or another card.

Refer to the

SYSTEM PROBLEM

error message.

TCP RECV ERR:

####

Refer to the

SYSTEM PROBLEM

error message.

Refer to the

SYSTEM PROBLEM

error message. TCP SEND ERR:

####

TIP ERROR The cardholder has keyed in a tip amount that is greater that the standard percentage or a tip percentage that is not defined in the terminal.

TRANS

CANCELLED

TRANS NOT

ALLOWED

USE MAG

STRIPE ON

TERMINAL

VIVO ENTRY

PASSWORD

The red CANC ANNUL key was pressed during the transaction.

- If the cardholder pressed the CANC ANNUL key, ask the cardholder to return the pinpad/terminal.

- Press the green OK key to display the merchant prompts and print the merchant copy of the cancelled receipt.

- Retry the transaction.

You have attempted to perform a transaction that is either not configured on your terminal or not set up in your merchant account.

If this appears during a Batch Close

transaction, your merchant account is set up to

close your batches automatically. Simply print a Merchant Sub-totals report at the end

of each business day.

Call the Moneris Merchant Service Centre for assistance.

Your terminal is configured for Visa Debit Opt Out and you have attempted to perform a Visa Debit transaction. The message appears when you remove the card from the terminal after you receive a "Card Not Accepted" message and then press the green OK key at the "Remove Card" prompt.

Press the red CANC ANNUL key and request another form of payment.

The "8" key was pressed when the terminal was at the

applications menu

(e.g. attempting to key in a dollar value of $8.00 or another value that includes an 8).

Press the red CANC ANNUL key to return to the applications menu .

174 Moneris Vx810 Duet Operating Manual v1.2.4

10. Troubleshooting

10.3 Gift & Loyalty Error Messages on the Vx810 Duet

Terminal

A message will appear on the display if an error occurs in the GIFT & LOYALTY application. In the table below, find the error message that appears on the terminal and try the solution. If the error message re-appears,

contact the Moneris Merchant Service Centre for assistance.

Additional error messages can be found in

Error Messages on the Vx810Duet Terminal .

ERROR

MESSAGE

PROBLEM & SOLUTION

811 SYSTEM

ERROR PLEASE

TRY LATER

The connection with the host was lost during the transaction processing and the transaction was not completed.

Call the Moneris Merchant Service Centre.

Batch Balance –

NO

CARD NOT IN

BIN RANGE

If this message is printed on the batch summary report during an

Gift & Loyalty Batch

Close

, contact the

Moneris Merchant Service Centre the next business day for

reconciliation assistance.

The card type you swiped cannot be used for that transaction type.

OR

Your merchant account is not set up to accept the card type that was swiped.

Request another form of payment.

CARD READ

ERROR

There is a problem with the magnetic stripe on the card that was swiped.

Try swiping the card again, this time more slowly or quickly, or from front of the terminal to the back.

If the message reappears request another form of payment.

Open the printer, check that there is a paper roll and that the roll is loaded properly then close the printer.

ERROR IN

PRINTING

NO MATCH

FOUND

The information you have used to find a transaction in memory can not be found.

Check the information and try again

NOT A

LOYALTY CARD

The card swiped (or card number entered) during a Redemption transaction is not a loyalty card.

Check the card and try again.

Moneris Vx810 Duet Operating Manual v1.2.4 175

10. Troubleshooting

10.4 Solving Hardware Problems

If terminal does not display an error message but is not functioning correctly, review this list of hardware problems to find suggested solutions.

HARDWARE

PROBLEM

Communication problems are happening intermittently.

Chip cards can not be processed.

SOLUTION

Contact the Moneris Merchant Service Centre for assistance.

If the card entry prompt is "Swipe Card" and the terminal won’t accept inserted chip cards (i.e. it beeps and remains at "Swipe Card" when a chip card is inserted),

contact the Moneris Merchant Service Centre for assistance.

Display screen is blank Ensure that the

power cable

is firmly connected to the power port on the Duet base

and the wall jack.

If the display is still blank, contact the Moneris Merchant Service Centre for assistance.

Display lighting is too bright or too dark

The contrast setting is too high or too low.

Check the contrast setting

and increase or decrease it to work with the lighting at the terminal location.

Magnetic Stripe Card reader won't read cards.

Try swiping the card more quickly or more slowly or from the front of the reader towards the back.

Try swiping a different card. If this card can be read, the problem is with the first card. Request another form of payment.

Use a Head Cleaning Card to clean the card reader ( a.k.a. the magnetic stripe reader or MSR). Contact the Moneris Merchant Service Centre if you need Head

Cleaning Cards.

If the card reader still won't read cards, contact the Moneris Merchant Service

Centre for assistance.

Leftmost LED on the contactless reader is not lit up.

Check that the contactless reader module is securely connected to the terminal or to the top of the Vx810 PINpad.

Nothing is possible on the terminal after initial communications configuration is completed: not initialization, not transactions

Contact the Moneris Merchant Service Centre for assistance.

176 Moneris Vx810 Duet Operating Manual v1.2.4

10. Troubleshooting

HARDWARE

PROBLEM

Printer Jam

SOLUTION

Open the printer

and check that:

- the paper feed is clear.

- the paper roll is seated correctly.

Close the printer lid and ensure that it is closed completely.

When the problem is fixed, the printer will finish printing the receipt or report that was in progress. If necessary,

reprint

the transaction.

Note: Debit transactions cannot be performed until the printer problem is fixed.

Credit transactions can be performed manually

if necessary.

10.5 Additional Documentation

Additional documentation for the Vx810 Duet can be accessed in a number of ways:

• On performing transactions and end-of-day procedures, please refer to the Moneris Vx810 Duet

Using Your Terminal guide shipped with your hardware.

• On setting up your terminal, please refer to the Moneris Vx810 Duet Setting up Your Terminal guide also shopped with your hardware.

• For complete instructions, please refer to the Moneris Vx810 Duet Operating Manual. To download a printable PDF of this manual, go to www.moneris.com/duet.

• To access the Moneris Vx810 Duet Webhelp, go to www.moneris.com/duet.

• For a copy of the Moneris Merchant Operating Manual, go to www.moneris.com/Support/Downloads/MerchantManuals.aspx

.

To download other documentation, visit the Support - Downloads pages on our website www.moneris.com

.

10.6 Merchant Direct Secure Message Centre

Log in to Merchant Direct and use the Message Centre to send a secure message directly to the Moneris

Merchant Service Centre.

Moneris Vx810 Duet Operating Manual v1.2.4 177

10. Troubleshooting

10.7 Telephone Assistance

Contact Telephone Assistance when you need:

• to order POS stationary supplies including printer rolls

• to resolve balancing issues

• to solve problems with your terminal

• to report a

Code 10 situation

• assistance changing your terminal configuration

•

Credit Voice Authorizations

Please Contact the Moneris Merchant Service Centre

Toll free 1-866-319-7450

24 hours a day, 7 days a week

178 Moneris Vx810 Duet Operating Manual v1.2.4
