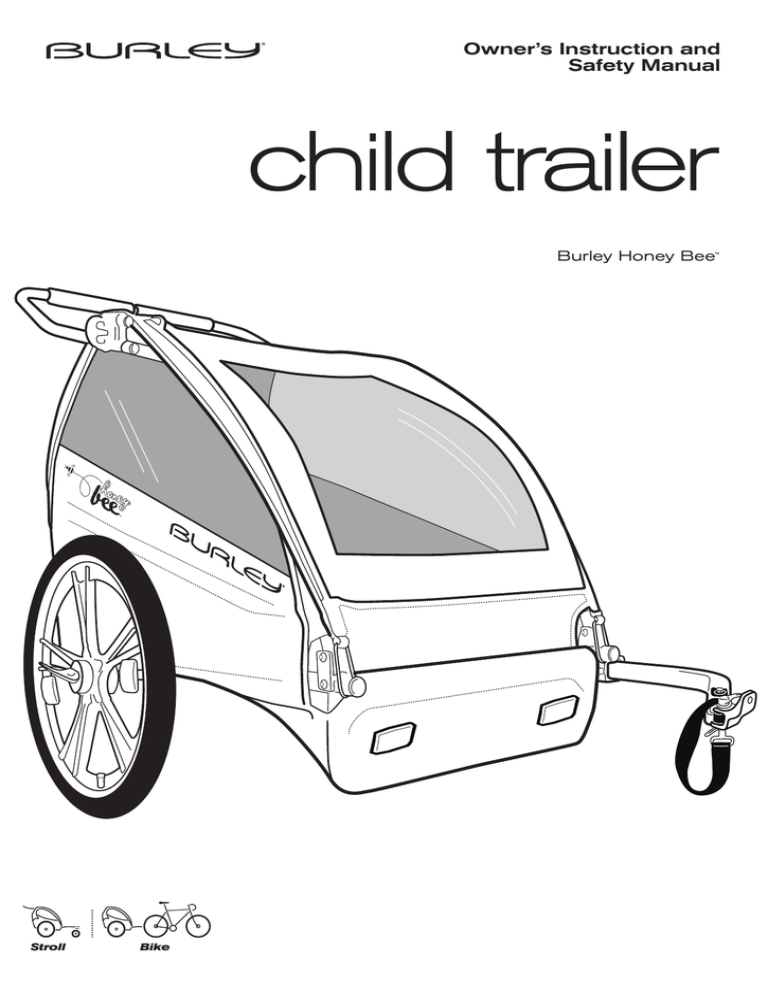

Owner’s Instruction and
Safety Manual
child trailer
Burley Honey Bee™
Stroll
Bike
Ski
Jog
Contents
Owner’s Instruction
and Safety Manual
Burley Honey Bee ™
3 Introduction
3 Safety Guidelines
3 Parts Bag Contents
3 Tool List
4 Opening and Closing Your Trailer
4 Attaching the Seat
5 Mounting Reflectors
5 Installing Wheel Guards
5 Attaching Wheels
6 Using Parking Brake
6 Installing Tow Bar
6 Installing Handle Bar Receivers
7 Installing Cover
7 Attaching Handle
7 Installing Safety Flag
8 Using Seat Harness
9 Hitching Trailer to Your Bicycle
10 Safety Checklists
10 Maintenance and Storage
10 Replacement Parts List
11 Replacement Parts Diagram
12 Warranty
Congratulations!
Your Burley ® trailer is the leading choice of refined bicycle
trailer owners worldwide. Every effort has been made to
ensure your purchase is a top-quality, thoroughly-tested
design, ready to provide many years and miles of happy,
safe trailering.
Please go to www.burley.com or contact us at
[email protected] to register your warranty information.
IMPORTANT
IT IS VERY IMPORTANT FOR YOU TO FAMILIARIZE YOURSELF WITH
YOUR BURLEY BY READING THIS ENTIRE MANUAL BEFORE USE.
IF YOU HAVE ANY QUESTIONS, PLEASE CONTACT YOUR
AUTHORIZED BURLEY DEALER OR VISIT WWW.BURLEY.COM.
Introduction
Once you’ve done the initial assembly and read the safety
guidelines, you’re ready to go! Before trailering, be sure you
have the safety harness, seat belt, tow bar, trailer wheels and
hitch securely attached.
Note:Any reference to left or right is made in direction of
travel, as if you were standing behind the trailer,
looking forward.
Safety Guidelines
WARNING
BICYCLING WITH A TRAILER, AND BICYCLING IN GENERAL, CAN
BE HAZARDOUS. FAILURE TO OBSERVE ANY OF THE SAFETY
GUIDELINES IN THIS MANUAL COULD RESULT IN AN ACCIDENT
AND SERIOUS INJURY OR DEATH.
1. Inspect and maintain your bicycle and trailer regularly. See
“Safety Checklists” on page 10.
2. Because of the trailer’s additional weight, a bicycle pulling
a trailer is heavier and less responsive. Avoid sudden
swerving, rocks and curbs. Experiment with the loaded
trailer in an uncongested area until you become familiar
with it.
3. The total weight limit for the trailer, children and/or cargo
is 100 lbs (40 kg by law in Europe). Load children and/or
cargo securely in the center of the trailer, forward of the
axle and as low as possible.
4. The trailer seat is intended for 1 or 2 children who are
old enough to wear a helmet, sit upright without physical
support, and with adequate neck strength to hold their
heads upright while trailering, unless using Burleyapproved infant accessory seat. A physician should
evaluate anyone who is of questionable developmental age
for trailering.
Note: Go to www.burley.com to see Burley’s line of infant
seats and adapters for younger children.
5. The maximum age for passengers is 6 years. Never carry
children whose seated height (with helmet) exceeds 4
inches (100mm) below the internal roll bar.
6. Fasten the seat belt and shoulder harnesses so that each
child is held securely. Seat a single child in the center.
Periodically check the placement of the shoulder straps,
especially on sleeping children.
7. Make sure children cannot put a finger into the wheel
spokes.
8. Instruct children not to bounce or lean, as a weight shift
could cause the trailer to tip over.
9. To protect children from flying debris, always use your
cover. Never leave children unattended. Check children
frequently, especially during hot or cold weather.
10.Observe recommended speed limits: a maximum of
15 mph (24 km/h) on smooth, straight roads and
5 mph (8 km/h) or less when turning or on uneven roads.
11.Set your parking brake before removing your children
or cargo.
12.Never pull your trailer with a motorized vehicle.
13.The cyclist and passengers must wear helmets.
14.Only use factory-supplied wheels, with the tires inflated
to the pressure recommended on the tire side wall. Check
pressure before each use. Do not use higher-pressure or
knobby tires.
15.Clamp the hitch securely to the bicycle frame, and check
for a tight attachment before each ride.
16.Use the safety flag.
17.Do not make alterations to the trailer. Contact your
Authorized Burley Dealer or go to www.burley.com for
replacement of any damaged, worn-out or missing parts.
18.Do not use your trailer on icy roads or when inclement
weather makes cycling hazardous.
19.The use of a mirror on your bicycle is recommended.
20.For emergencies, breakdowns or flat tires, pull completely
off the road and move your children to a safe area before
doing repairs.
Parts Bag Contents:
(1) Burley Owner’s Instruction and Safety Manual (1) Hitch (2) Red reflectors with screws
(2) Reflector brackets
(1) Wheel guard assembly:
(2) wheel guards, (4) screws
(1) Handle bar receiver set:
(2) handle bar receiver pairs, (2) knobs, (4) screws, (4) lock nuts
Tools Required: Phillips screwdriver
5mm hex wrench (provided)
BURLEY HONEY BEE OWNER’S INSTRUCTION AND SAFETY MANUAL
Note: The tow bar mount clamps also function as wheel
WARNING
guards. They will be referred to as clamps in these
assembly instructions.
Front
TRAILERS CAN TIP OVER, CAUSING DAMAGE TO TRAILER AND
SERIOUS INJURY TO PASSENGERS. AVOID CAUSES OF TIP OVER,
ESPECIALLY:
• CHILDREN LEANING OR BOUNCING
• HITTING POTHOLES, CURBS, OTHER ROAD OBSTRUCTIONS
• TAKING TURNS TOO FAST
• SUDDEN SWERVING
• IMPROPER WHEEL INSTALLATION OR TIRE INFLATION
Rear
Opening and Closing Your Trailer
1. Rotate front tube upward and rear tube back until they
meet on plastic saddles. Figure 1
2. Rotate frame locks and snap onto rear tube. Figure 2
FIGURE 1
3. To close trailer, reverse opening process.
To view a video clip of “Opening and Closing Your
Trailer” go to: www.burley.com/support/tutorials.cfm.
WARNING
Plastic Saddles
CHECK THAT THE FRAME LOCKS ARE PROPERLY ENGAGED
BEFORE USING THE TRAILER. FAILURE TO DO SO CAN RESULT IN
SERIOUS INJURY.
Frame Locks
FIGURE 2
Attaching the Seat
Attach hooks on seat sides to D-rings by windows. Photo 1
IMPORTANT
ALWAYS KEEP SEAT ATTACHMENTS FASTENED
WHILE TRAILERING.
D-ring
Hook
PHOTO 1: Seat sides
B U R L E Y H O N E Y B E E O W N E R ’ S I N S T R U C T I O N A N D S A F E T Y M A N U A L
Mounting Reflectors
1. Screw reflectors and brackets together.
Bracket
2. Loosen screws on reflector brackets. Mount reflectors/
brackets horizontally on rear corners of side frame tubes,
with reflectors extending out past trailer sides.
3. Tighten screws securely. Photo 2
WARNING
MAKE SURE REFLECTORS FACE OUTWARD. INCORRECTLY
INSTALLED REFLECTORS CAN REDUCE VISIBILITY AND CAUSE AN
ACCIDENT OR SERIOUS INJURY.
Reflector
Left Side
Frame Tube
PHOTO 2: Trailer left rear corner
Installing Wheel Guards
1. Match holes in wheel guards with holes on outside of lower
side frame tubes.
Screws
2. From inside the frame, insert wheel guard screws through
frame tube and wheel guards. Tighten securely. Figure 3
Wheel Guard
Lower Side
Frame Tube
figure 3: Wheel guard installation
Attaching Wheels
1. Insert wheel axle assembly completely into trailer
axle. Figure 4
2. Close quick release lever, with lever aimed at trailer rear.
A properly adjusted quick release lever should leave an
imprint on your palm when the lever is rotated to the closed
position. Figure 5
3. Verify that tires are inflated to pressure marked on tire
side wall.
Trailer
Rear
4. To remove wheel from trailer axle, open quick release lever.
WARNING
Top View
figure 4: Quick release lever in unlocked
“open” position
Top View
figure 5: Quick release lever in locked
“closed” position
MAKE SURE WHEELS ARE HELD SECURELY, WITH WHEEL AXLE
ASSEMBLY FULLY INSERTED INTO TRAILER AXLE. YOU SHOULD
NOT BE ABLE TO ROCK OR SHIFT WHEELS. IMPROPERLY
INSTALLED WHEELS CAN FALL OFF, CAUSING AN ACCIDENT OR
SERIOUS INJURY.
BURLEY HONEY BEE OWNER’S INSTRUCTION AND SAFETY MANUAL
Using Parking Brake
Engage parking brake by pushing handle to the right. Exercise
caution when disengaging brake, as it may spring to the left. Photo 3
Brake Handle Engaged
Brake
PHOTO 3
Installing Tow Bar
1. Slide tow bar through both tow bar mounts on left side.
2. Match rear tow bar hole with rear mount hole.
3. Insert the retaining pin through both holes, and lock
retaining hoop securely. Figure 6
WARNING
Retaining Hoop
NEVER OPERATE TRAILER WITHOUT RETAINING PIN LOCKED IN
PLACE. AN UNLOCKED TOW BAR CAN LOOSEN OR DETACH,
CAUSING ACCIDENT RESULTING IN SERIOUS INJURY.
Front
Tow Bar
Mount
Rear Tow
Bar Mount
Figure 6
Installing Handle Bar Receivers
1. Using provided hex key wrench and handlebar screws,
install inner handlebar receiver sections on upper frame,
with narrow end of receiver sections toward trailer rear.
Photo 4 and Figure 7
Screws
Trailer Rear
2. Match outer to inner receiver sections.
3. Insert and tighten knobs.
Inner Receiver
Outer Receiver
Knob
PHOTO 4: Inner Receiver
B U R L E Y H O N E Y B E E O W N E R ’ S I N S T R U C T I O N A N D S A F E T Y M A N U A L
figure 7
Installing Cover
1. At top of frame, stretch elastic loops around handlebar
mounts.
2. Match hook and loop fastener strips on cover to strips on
trailer front and rear.
3. Hook O-rings on cover over ends of side frame tubes.
Attaching Handle
1. Loosen knobs.
Handle Bar
2. Slide handle into lower handlebar receivers and tighten
knobs securely. To change height position, flip handle
over. Photo 5
Tighten Knob
PHOTO 5: Tighten knob clockwise
Installing Safety Flag
Inserting flag pole in handlebar receiver
Insert flag pole into hole in top of LEFT handle bar
receiver. Photo 6
IMPORTANT
DO NOT USE TRAILER WITHOUT SAFETY FLAG.
PHOTO 6
BURLEY HONEY BEE OWNER’S INSTRUCTION AND SAFETY MANUAL
Using Seat Harness
One Passenger:
Note: In two-passenger trailers, use inner shoulder straps and
middle crotch strap.
1. Place child in center of seat.
2. Snap shoulder straps into Y-buckle, with buckle positioned
at child’s sternum. Adjust straps so that child cannot move
too far forward in seat.
Strap Tubes
3. Fasten and adjust lap belt snugly. Figure 8
IMPORTANT
Lap Belt
SINGLE PASSENGER MUST BE SEATED IN CENTER POSITION.
Figure 8
Two passengers:
Note:For two children, use both shoulder harnesses and two
outer crotch straps.
1. Seat first child on one side of seat.
2. Snap shoulder straps into Y-buckle, with buckle positioned
at child’s sternum. Adjust straps so that child cannot move
too far forward in seat.
Strap
Tubes
Strap
Tubes
3. Repeat for second child.
4. Fasten and adjust lap belt snugly. To remove children,
release lap belt and harness buckles. Figure 9
WARNING
ALWAYS SECURE CHILDREN WITH HARNESS AND LAP BELT
BEFORE USE. ONLY USE THIS SEAT IF YOUR CHILD IS CAPABLE OF
SITTING UPRIGHT ALONE. FAILURE TO DO SO COULD RESULT IN
AN ACCIDENT AND SERIOUS INJURY OR DEATH.
B U R L E Y H O N E Y B E E O W N E R ’ S I N S T R U C T I O N A N D S A F E T Y M A N U A L
Outer Crotch
Strap
Figure 9
Lap Belt
Outer Crotch
Strap
Hitching Trailer to Your Bicycle
Note: The Burley Forged Standard Hitch is used
for bicycles with either nutted axles Figure 10 or quick release assemblies Figures 11 & 12
1. Remove axle nut or rear quick release lever
assembly from bike.
2. Match hole on flat side of hitch upper arm to left (non-chain ring
side) rear dropout hole, and place hitch flat against the dropout.
3. Loosely reassemble axle nut or quick release assembly through
hitch, dropout and wheel. Racks, bags, or fittings should not
interfere with hitch.
4. Slide flex connector between hitch side arms, and match holes.
5. Open retaining pin and insert through hitch and flex connector
holes from above. Close retaining pin.
6. Tighten axle nut or tighten and close quick release lever, with lever
pointing to rear of bike. A properly adjusted quick release lever
should leave an imprint on your palm when the lever is rotated
to the closed position. Verify that hitch is secure and cannot be
rotated by hand.
7. Wrap safety strap twice around inside of chain stay. Fasten hook
to D-ring on underside of tow bar end. Figure 12
8. To remove trailer from bicycle, unfasten clip from D-ring and
remove retaining pin.
Hitch
Nut
Figure 10: Nutted axle assembly
Hitch
Nut
Quick Release
WARNING
QUICK RELEASE LEVER MUST BE IN CLOSED POSITION AND
HITCH SAFETY STRAP PROPERLY INSTALLED. NUTTED AXLES
MUST BE TIGHTENED SECURELY. HITCH MUST NOT INTERFERE
WITH RACKS, BAGS OR FITTINGS. INSPECT HITCH AND TOW BAR
FREQUENTLY FOR DAMAGE OR LOOSE FASTENERS. DAMAGED OR
IMPROPERLY INSTALLED HITCHES OR INTERFERING PARTS CAN
CAUSE ACCIDENTS RESULTING IN SERIOUS INJURY.
Figure 11: Quick release assembly
Hitch Upper Arm
Safety strap
wrapped twice
around chainstay
Quick Release Lever
Retaining Pin
Flex Connector
Hook fastened to
D-ring under tow bar
Figure 12: Forged hitch shown
BURLEY HONEY BEE OWNER’S INSTRUCTION AND SAFETY MANUAL
Safety Checklists
Check Before Each Ride:
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Wheels tightly and securely attached
Tires inflated to recommended pressure on tire side wall
Hitch properly secured with safety strap in place
Tow bar locked securely in place
Maximum load 100 lbs (40 kg by law in Europe)
Bicycle safety check, especially brakes and tires
Helmet for passengers and cyclist
Safety flag in place
All seat straps properly attached
Children properly secured with harnesses and lap belt
Monthly Checklist:
✓ Inspect tow bar, hitch, frame tubing, flex connector and
hardware for damage
✓ Inspect tires for wear and cracks
✓ Inspect wheels for trueness and cracks
✓ Inspect wheel bearings for wear
✓ Inspect fabric parts for rips, abrasion, or missing or
damaged hardware
✓ Contact your Authorized Burley Dealer for replacement of
any damaged or worn-out parts
Maintenance and Storage
Hitch and Tow Bar Maintenance
Store trailer indoors if possible. Do not use or store trailer
at temperatures below 32˚F (0°C), as hitch flex connector
can become brittle and possibly break, causing an accident
resulting in serious injury.
Fabric Care
Hand wash fabric parts with mild soap or detergent and warm
water. For heavy soiling, use a nylon bristle brush. Do not use
bleach. Line-dry trailer cover. Polyester fabric will eventually
fade, especially when exposed to direct sunlight. Wipe dry
(to help avoid mildew) and store out of direct sunlight in a dry,
well ventilated area, or use a Burley Trailer Storage Cover to
protect your trailer. Clean windows with a damp, soft cloth.
Cover window may crack if trailer is stored below 32°F (0°C).
Replace any damaged parts.
10 B U R L E Y H O N E Y B E E O W N E R ’ S I N S T R U C T I O N A N D S A F E T Y M A N U A L
2009 Honey Bee Replacement Parts and Diagram
Diagram #
Honey
Bee
Part #
Description
Warranty
1
960041
Forged Standard Hitch
2
960009
Safety Flag
5 years
1 year
3
950003
Handle Bar Clamp Kit
3 years
4
250033
Handle Assembly w/Tether
5 years
5
950004
Shoulder Safety Strap (Set of 2)
1 year
950094
Strap Tube Kit (Set of 2) (NOT SHOWN)
1 year
250291
Seat (NOT SHOWN)
1 year
1 year
250292
Bag/Side Panels (NOT SHOWN)
6
250100
Cover
1 year
7
950005
Tow Bar Receiver Kit (tow bar receivers, bolts, nuts)
3 years
8
250027
Tow Bar Assembly (tow bar, safety strap,
flex connector) (Hitch is NOT Included)
5 years-tow bar
3 years- flex connector/safety strap
9
950008
Frame Assembly, Front (tube, frame locks, hinges)
5 years
10
950012
Frame Assembly, Rear (tube, saddles, hinges)
5 years
11
950015
Lower Frame Kit (Main frame L & R), Cross Frame
(Front & Rear), Bag Holder
5 years
12
160011
Wheel (quick release, reflectors, axle, tire, wedges,
lock nut, inner tube) (SOLD INDIVIDUALLY)
3 years
13
950021
Brake Assembly
5 years
14
250032
External Roll Bar (available ONLY in Europe)
5 years
15
950016
Axle Receiver Kit w/ Handle Receiver
5 years
250160
Wheel Guard Assembly (Set of 2) (NOT SHOWN)
3 years
950038
Flex Connector for Square Tow Bar w/ Safety Strap
3 years
16
Recommended Accessories
• Stroller Kit
• Storage Cover
• Baby Snuggler
• Handle Bar Console
• Alternative Hitches
Please go to www.burleygear.com for updated product parts list, diagrams and available accessories
BURLEY HONEY BEE OWNER’S INSTRUCTION AND SAFETY MANUAL
11
Burley Trailer Limited Warranty
Burley trailers are warranted from date of purchase against defects in materials and workmanship under normal use and
service. Burley will repair or replace parts it determines to be defective as follows: fabric parts for one year, plastic parts
for three years and durable frame parts for five years. The Burley trailer owner must present the trailer for repair at place
of purchase, with an original sales receipt or similar proof of purchase. This warranty applies only to the original owner and
is nontransferable. Burley can not be responsible for failure due to improper assembly, modification of parts or instructions,
neglect, abuse, accident, and/or normal wear. The warranty does not cover any trailer used for rental, competition, or
commercial use.
Burley neither assumes nor authorizes any person to assume any other liability in connection with this Burley product, and
there are no oral agreements or warranties collateral to or affecting this agreement. This warranty gives you specific rights.
You may also have other rights which vary by state or country.
BU R LEY DES IG N
4020 Stewart Rd. Eugene, OR 97402
PH 541.687.1644 800.423.8445 FAX 541.687.0436
burley @ burley.com : burley.com
Copyright ©2008 by Burley Design LLC.
“Burley” is a registered trademark of Burley Design LLC
170134 Manual Honey Bee Child Trailer r1 : RTFM : Rev 08.08
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
