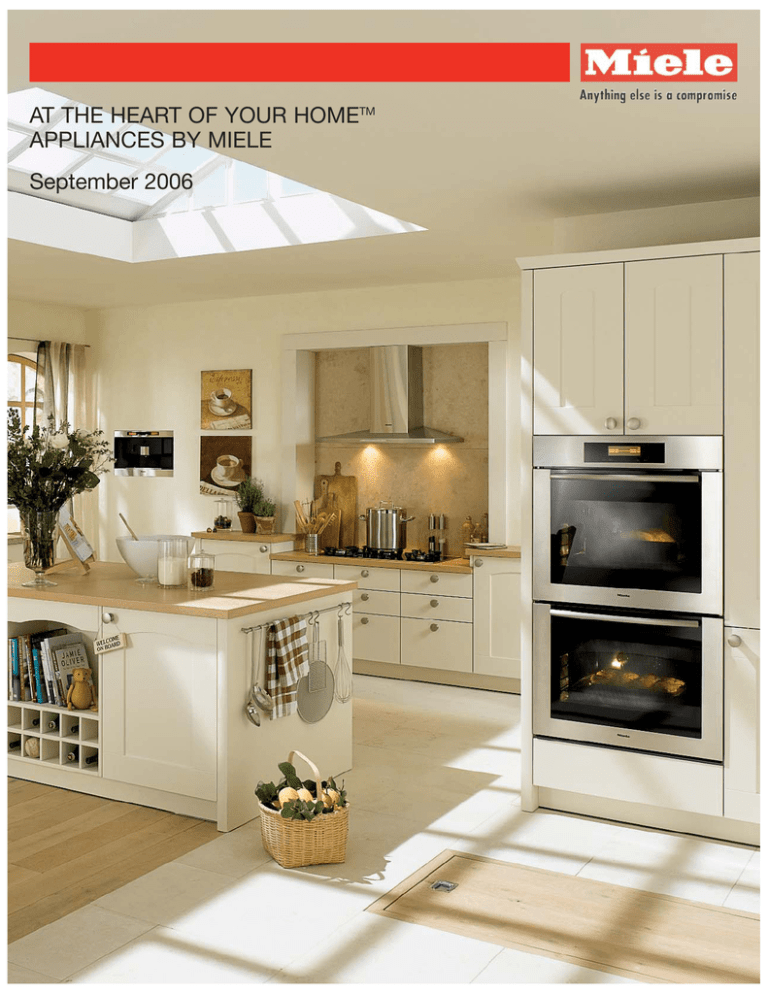

AT THE HEART OF YOUR HOMETM
APPLIANCES BY MIELE
September 2006
A Unique Family Making
Extraordinary Appliances, Immer Besser
2
Welcome to Miele
When the Miele Company was established in 1899 in Germany, our founders
believed that success was only achievable in the long term by being totally
convinced of the quality of one’s
product. To this point, Miele elected to
produce machines that were both
durable and long lasting, in other words,
a quality product rather than an
inexpensive one.
Over 107 years have passed and our
mantra, Immer Besser (which is translated as Forever Better), continues to
represent the guiding principle and very
backbone of the organization. Immer
Besser permeates through every aspect
of our business from the drawing board
to the production line and the
relationships we maintain with our
retailers and, most importantly, with our
customers. Thanks to Immer Besser,
the Miele brand is synonymous with
unsurpassed product quality the world
over.
These characteristics, or family traditions
as we call them, are critical because
collectively they define the very essence
of our brand. As the world’s largest
family-owned and operated appliance
company, we believe in a higher level
of responsibility to each and every
customer within the context of a business plan that respects our environment
for future generations.
Contents
Convection Wall Ovens
5
30 inch Single
12
30 inch Double
14
60 cm / 70 cm Single
16
Speed Oven
18
Steam Ovens
20
If you select Miele appliances to be
installed in your home, we are confident
that you will derive as much pleasure
from your kitchen as we do from ours.
And why should you be so confident?
Because we place the family name on
each and every product we produce.
Food Warming Drawers
24
The kitchen appliances depicted over
the following pages represent the widest
selection, best detail and performance
we have ever produced. We are eager
for you to visit one of our many
authorized dealerships and thank you
for considering Miele for your home
appliance purchase.
Lift Doors
34
Cooking Surfaces
36
Gas Cooktops
36
Electric Cooktops
40
CombiSets
43
Plate and Cup
Warming Drawers
Coffee Systems
CVA 4070
28
30
CVA 2650 / 2660
Bon appetit.
26
TM
Ventilation Hoods
32
46
Built-in
47
Canopy
48
Island
49
Wall
51
Dishwashers
55
Laundry Systems and
Vacuum Cleaners
56
Support Services and
MieleCare Program
57
Cooking Product Accessories 58
3
Genius Details in a Progressive Design
Exceeding the Benchmarks
Impeccable craftsmanship and unsurpassed quality are global benchmarks,
and the demand for products that meet
these standards is universal. Miele offers
a broad range of appliances that exceed
these general requirements and reflect a
multitude of lifestyle needs.
From the groundbreaking market innovations of our coffee system, steam oven
and advanced cooking products to the
stunning and high performing decorative
ventilation hoods, the Miele brand is
firmly established throughout the world
as a design and innovation leader.
Matter of fact, Miele registers over 100
new international patents every year,
has won numerous design awards,
boasts an impressive list of ‘world’s
firsts’ and has been voted by Readers
Digest as The Most Trusted Brand in
kitchen appliances every year the survey
has been conducted.
Stunning Design With Perfect Function
Today’s kitchen is a focal part of our
lives. A place where families gather,
friends converse and many a party
finishes. It is a place that has become
more open to the home, where we feel
comfortable and want to enjoy life. For
this reason it is especially important to
create a pleasant environment. With
their striking design and high quality
materials, Miele appliances set just the
right tone.
The skillful combination of color, shapes
and materials, can help you realize your
dream of a perfect kitchen. The chic
design of the appliances plays a vital
role here. With simple lines and a
characteristic design underpinning the
entire product range, Miele cooking
appliances will blend seamlessly and
unobtrusively into any décor you
select – from the most traditional to the
ultra modern.
A New Line
The design inspiration for the Miele
MasterChef CollectionTM came from a
single purposeful design appeal. A
concept built on the premise that no
matter how you stack or configure your
appliances – horizontally, vertically or
on completely opposite sides of your
kitchen – that each cooking instrument
exactly matches. All of the appliances
align with each other, in addition to the
masterful lines in the designer’s vision.
The net effect is simply stunning – an
arrangement unobtrusively blending with
any kitchen design. Timeless architecture
that will look as fresh and appealing
today as it will decades from now.
4
Introducing the Miele MasterChef CollectionTM
Wall Ovens
At the Heart of Your KitchenTM
In most kitchens, the oven takes center
stage. Its location usually determines
where many of the other kitchen
appliances are installed... and in a kitchen
with a Miele oven this is certainly the case.
Miele ovens are designed and engineered
to perform at the highest possible
standard. By that, we mean, bake
beautifully, roast for succulent results,
broil with searing heat and much, much
more.
For us at Miele, cuisine is part ingredients,
part skill, part imagination and part
equipment. Creating an oven is very
similar. The following pages thoroughly
explain our know-how and experience in
producing this product, giving you the
confidence to create fine cuisine!
Left photo: Featured in stainless steel are
the MLT 4800 lift door, H 4880 BP (30 inch) single
oven and ESW 4820 warming drawer in u-design
all with Profi door handles.
Right photo: Featured in stainless steel are the
H 4890 BP2 (30 inch) double oven with Profi door
handles, DA 409 wall ventilation hood and
KM 391 gas cooktop in black glass finish.
5
Your Personal MasterChef
Progression
Miele was the first appliance company in
the world to introduce touch-controlled
appliances in 1978.
Today, we remain a leader in the design
and manufacture of microchip controlled,
intelligent appliances, as evidenced in our
progressive MasterChef Collection. These
Miele-made navigational electronics are
called NavitronicsTM and guarantee simple
operation and intuitive use.
Culinary Know-How at Your Fingertips
If you could garner the combined
knowledge of all the great chefs of the
world into one comprehensive, yet
easy-to-use reference tool, then you
would have defined the essence of
Miele’s MasterChef cooking products.
High performance convection systems
that eliminate flavor transfer so you can
cook several dishes on multiple levels
simultaneously. Cooking temperatures so
precise that every cookie, every pastry
and every filet is perfectly done. Unique
programs that know exactly how long to
sear, then roast at a lower temperature for
succulent results. This is just a taste of
the culinary know-how MasterChef puts
at your fingertips.
So Easy to Use
Using the context sensitive control panel
on the front of the appliance, simply
touch the On button… and you’re on
your way. The oven will deliver a menu of
options that, in plain English, will guide
you to the next steps until you’ve arrived
at your desired program... which is
typically only four steps away!
In addition to the many baking and
broiling modes available, there is something else that makes the Miele
MasterChef oven very unique. Imagine
owning an automobile, and with the
touch of a button you could switch from
manual to automatic transmission. On
some drives, you many want the control
of manual shift. On others, in the city for
example, you want the convenience of
automatic.
The Miele MasterChef CollectionTM gives
you this choice. A light touch to the
flush, interactive control pad engages
Miele’s proprietary MasterChef menus –
an innovative program that works with
gourmets of any expertise to effortlessly
create outstanding meals. A wide array
of cooking modes puts you in charge,
allowing total flexibility over temperature
and time. Similarly, if you say, “all I want
is to roast a chicken”, the MasterChef
mode will take all the guesswork out.
The controls guide you step-by-step to
the perfect result... a total of four or five
keystrokes away.
The brilliantly flush control panel is as
easy to clean, as it is to command and
the entire oven blends impeccably into
virtually any kitchen motif.
Right photo: Featured in stainless steel are the
DA 403 island ventilation hood, CVA 2260 coffee
system, H 4080 BM (60 cm) speed oven (with
EBA 4476 trim kit) and H 4880 BP (30 inch) single
oven. Both ovens featured are with Profi door
handles. The gas cooktop is model KM 391
featured in black glass finish.
6
7
Ovens That Cook in Many Different Ways
Perfect Results
Incredible results are achieved via a
unique advanced European convection
system. Even heat, created by this
system, allows for up to five levels to be
utilized simultaneously. Heated air,
directionally channeled by the convection
fan to all corners of the oven, ensures a
constant movement of air over the food,
thus producing perfect, even cooking
results.
The oven is designed with a concealed
lower heating element under the floor of
the cavity to aid in even heat distribution
and to increase the overall usable space
of the oven.
Surround Bake
For ‘slow cooked’ items, the Surround
Bake mode is an ideal solution. Utilizing
top and bottom heating elements,
Surround Bake creates an even
distribution of heat from both above and
below the individual item being cooked.
Whether preparing a pot roast, fruitcake,
souffle or pastry, this baking mode
delivers even and delectable results.
Intensive Bake
A combination of radiant heat from
the bottom heating element and air
movement via the convection fan is
available by selecting the Intensive Bake
mode. This baking mode is an optimal
solution for baking pizza, quiches and
cheesecakes and any food that needs a
crisp base and moist top.
Indoor Grilling
Available on all our ovens is a two-zone
broiler. These modes can be set for
either small or large capacity broiling. In
either setting, grilling is fast and food
is cooked evenly each and every time. In
the Convection Broil mode, the broilers
and circulation fan work together to
quickly distribute heat from the heating
elements to every part of the food. This
is an ideal mode for preparing kebabs
and chicken.
No Flavor Transfer
The advanced convection system in
Miele ovens enables different food items
to be cooked together - without flavor
transfer. Yes, imagine fish on one level,
with a dessert item on another. This
is possible because Miele ovens
recirculate air fifty times a minute over
the heating element. By doing so, odors
are incinerated!
Rapid Heat Up
All Miele convection ovens are equipped
with an innovative Rapid Heat Up
function. When applied, the oven uses all
its heating elements and the convection
fan to raise the interior temperature to
over 350o F in just 10 minutes. With Rapid
Heat Up, you spend less time waiting and
more time enjoying your family and
friends.
8
Succulent Roasting
At Miele, we have turned roasting into a
science. Using the Miele roast probe, you
can determine the core temperature of the
roast or let the MasterChef mode do it for
you depending on the food item selected.
For example, 145O F for medium beef, or
175O F for a perfect turkey. By using the
AutoRoastTM or MasterChef modes, the
guesswork is completely removed. The
oven will automatically take the initial
cavity temperature to a much higher level
than you have set, searing the food,
leaving all of the flavorful juices inside the
roast. After, the oven temperature will
gradually reduce to the desired cooking
temperature and eventually countdown
the remaining time so you can estimate
the preparation time of other food items to
be served.
Observing the Sabbath
Miele’s MasterChef ovens are specially
programmed to provide observant Jewish
homes with delicious hot meals during the
Sabbath and religious holidays. The
Sabbath mode allows you to program
your oven to stay on for up to 72 hours.
Additionally, the oven will not activate
until the food is placed inside, further
balancing Kosher cooking needs with
energy consumption concerns. When set
to the Sabbath mode, the display and
lighting remain unchanged – another critical feature for religious observance.
Ovens That Clean Themselves
Miele’s self-cleaning oven offers the
ultimate in convenience. In the ThermoCleanTM mode, the oven temperature is
raised to over 900o F. This intense temperature is required to oxidize soiling in the
oven, turning it into a light ash, which
can be simply wiped away. For complete
safety, the oven door locks automatically
during this mode.
ThermoCleanTM leaves the interior clean
and free from grease with no effort on
your part!
On the non-self cleaning ovens, catalytic
liners are fitted into the oven interior.
These liners help oxidize fat and grease
reducing clean up.
9
Quality and Performance in Any Dimension
Oven Selection
Whether your kitchen is equipped with a
MasterChef oven in 30 inch, mid-size
70 cm or the compact 60 cm, there are
some aspects of your oven that will not
differ.
To start, consider the quality of the
product. At Miele, we say that the genius
is in the details, and that is why you will
find quality in every single product
detail.
From the way the door opens, to the feel
and responsiveness of the controls,
everything is important to us because
we know that it is important to you. For
this reason, Miele designs and makes
the key components, including the
electronics, ourself, avoiding the typical
manufacturing process of outsourcing.
And before the product leaves our
factory, we test every oven, putting all
functions of the product through its
paces.
The result is the oven is built well, in
order to perform to the highest possible
standard. After all, behind fine cuisine
you will find good ingredients, skill,
imagination and precision equipment.
Top left photo: Featured in stainless steel is the
H 4680 B (60 cm) single oven.
Bottom left photo: Featured in stainless steel
are the H 4780 BP (70 cm) single oven and
ESW 4720 warming drawer in u-design.
Right photo: Featured in stainless steel are the
H 4890 BP2 (30 inch) double oven, DA 409 wall
ventilation hood, CVA 2660 (60 cm) coffee
system and KM 391 gas cooktop in black glass
finish.
All ovens shown are equipped with the stainless
steel Profi handle.
10
11
Miele MasterChef CollectionTM
30 inch Single Wall Ovens
Performance and Design in Harmony
Miele’s 30 inch single oven is a welcome
companion to any kitchen. With 17
cooking modes, including unique
programs like AutoRoastTM, Intensive
Bake and the international renowned
MasterChef food driven menu system,
creating culinary delights is as easy as a
push of the button.
In addition to offering voluminous
capacity, the 30 inch single oven is kind
to your overall kitchen design. Available
in black glass or stainless steel finish
with three door handle options, the oven
is understated, allowing your eyes, and
those of your guests, to focus on
specialty décor such as ornamental tiles,
cabinetry and the colors and fabrics you
have selected.
12
The Oven That Works In
Every Kitchen Design
Though modest, the oven affords
tremendous versatility both in baking
and roasting, as well as installation.
Miele’s oven can be easily installed
under the counter – typically with a
cooktop above – or in a tall cabinet
structure. Other Miele appliances can
also be specified around the oven
offering maximum convenience and a
unique design element. You may elect to
install a steam or speed oven, coffee
system or lift door above the oven.
Below, you may ponder a food warming
drawer to manage those busy dinner
parties or to be prepared for the
unplanned wait. The choice is yours.
H 4880 B
H 4880 BP
NavitronicTM touch control pad
NavitronicTM touch control pad
Context sensitive controls
Context sensitive controls
Multi-lingual LCD display
Multi-lingual LCD display
Metric / English conversion
Metric / English conversion
Multi-tier operating modes
Multi-tier operating modes
17 operating modes, including
AutoRoastTM, Intensive Bake
and Sabbath
17 operating modes, including
AutoRoastTM, Intensive Bake
and Sabbath
MasterChef functionality
MasterChef functionality
Food driven menu system
Food driven menu system
Favorites storage
Favorites storage
Automatic temperature settings
Automatic temperature settings
Electronic temperature control
Electronic temperature control
True European convection
True European convection
Residual heat cooking
Residual heat cooking
Time remaining calculation
Time remaining calculation
Two-zone infrared broiling
Two-zone infrared broiling
PerfectCleanTM enamel interior
Clean enamel interior
Self cleaning oven
ThermoCleanTM system
Top left photo: Featured in black glass are
the H 4880 BP (30 inch) single oven and ESW
4810 warming drawer. Both with the black classic
door handle.
Bottom left photo: Featured in stainless steel is
the H 4880 BP (30 inch) single oven with Profi
door handle. The gas cooktop is model KM 391
in black glass.
2 side mounted halogen interior lights
2 side mounted halogen interior lights
Dual timers
Dual timers
Delay start function
Delay start function
Width: 30 inch
Width: 30 inch
Accessories included:
Accessories included:
3 wire racks
3 wire racks
1 roasting pan
1 roasting pan
Double rotisserie
Double rotisserie
Roast probe
Roast probe
Convection fan filter
Convection fan filter
Optional accessories:
Optional accessories:
Stainless steel Profi door handle
(DS 4030)
Stainless steel Profi door handle
(DS 4030)
Stainless steel classic door handle
(DS 4031)
Stainless steel classic door handle
(DS 4031)
Stainless steel square door handle
(DS 4032)
Stainless steel square door handle
(DS 4032)
Available finishes:
Available finishes:
Stainless steel with stainless steel
Profi door handle
Stainless steel with stainless steel
Profi door handle
Black glass with black classic
door handle
Black glass with black classic
door handle
13
Miele MasterChef CollectionTM
30 inch Double Wall Ovens
14
30 Inch Double Wall Ovens
Product Assortment
For the Busy Kitchen
Miele’s 30 inch double oven offers
maximum convenience and huge
capacity for active kitchens. The oven is
available in two finishes. In stainless
steel, one of the most popular, it is
equipped with Miele’s unique Profi
(Professional) door handle. This robust,
yet unobtrusive handle meshes perfectly
into virtually any kitchen décor and
provides a progressive look to the
appliance. The second available oven
finish is black glass. With this model,
the handle is of a sleek classic design,
offering superb handling and a very
distinct look to the oven.
Because we recognize the importance
for many people to tailor the look of their
appliances so they look perfect in their
unique décor, Miele has made it easy to
switch door handles and we offer several optional designs in stainless steel to
select from.
H 4890 B2
H 4890 BP2
NavitronicTM touch control pad
NavitronicTM touch control pad
Context sensitive controls
Context sensitive controls
Multi-lingual LCD display
Multi-lingual LCD display
Metric / English conversion
Metric / English conversion
Multi-tier operating modes
Multi-tier operating modes
17 operating modes, including
AutoRoastTM, Intensive Bake
and Sabbath
17 operating modes, including
AutoRoastTM, Intensive Bake
and Sabbath
MasterChef functionality
MasterChef functionality
Food driven menu system
Food driven menu system
Favorites storage
Favorites storage
Automatic temperature settings
Automatic temperature settings
Electronic temperature control
Electronic temperature control
True European convection
True European convection
Residual heat cooking
Residual heat cooking
Time remaining calculation
Time remaining calculation
Two-zone infrared broiling
Two-zone infrared broiling
PerfectCleanTM enamel interior
Clean enamel interior
Self cleaning oven
ThermoCleanTM system
Left photo: Featured in stainless steel are the
H 4890 BP2 (30 inch) double oven with Profi
handle, DA 409 wall ventilation hood and CVA
2660 coffee system. The gas cooktop is model
KM 391 in black glass finish.
4 side mounted halogen interior lights
4 side mounted halogen interior lights
Dual timers with delay start function
Dual timers with delay start function
Width: 30 inch
Width: 30 inch
Accessories included:
Accessories included:
6 wire racks
6 wire racks
2 roasting pans
2 roasting pan
Double rotisserie
Double rotisserie
Roast probe
Roast probe
Convection fan filter
Convection fan filter
Optional accessories:
Optional accessories:
Stainless steel Profi door handle
(DS 4030)
Stainless steel Profi door handle
(DS 4030)
Stainless steel classic door handle
(DS 4031)
Stainless steel classic door handle
(DS 4031)
Stainless steel square door handle
(DS 4032)
Stainless steel square door handle
(DS 4032)
Available finishes:
Available finishes:
Stainless steel with stainless steel
Profi door handle
Stainless steel with stainless steel
Profi door handle
Black glass with black classic
door handle
Black glass with black classic
door handle
15
Miele MasterChef CollectionTM
60 cm and 70 cm Single Ovens
Just Your Size
No two kitchens are alike – some offer
more cabinet space, while others more
countertop space. Recognizing the
need to accommodate a variety of
space configurations, Miele offers ovens
in widths of 70 cm and 60 cm, in
addition to our 30 inch models. Whether
you’re looking for a large, mid-sized or
compact oven, Miele’s MasterChef
CollectionTM provides a high-performing
option that will deliver the ultimate in
ease of use and user flexibility. Universal
to the full range is the underlying
technology and masterful NavitronicTM
controls. You may opt to customize the
look, size or design of your oven, but the
savory results will remain the same.
Both 70 cm ovens come standard in
stainless steel, while you can select
between a black glass or stainless steel
finish for the 60 cm model. All Miele
ovens offer handle options, ensuring the
perfect finishing touch to any kitchen…
of any design.
Top photo: Featured in stainless steel are the
DG 4080 (60 cm) steam oven (with EBA 4470 trim
kit) and H 4780 BP (70 cm) single oven.
Right photo: Featured in stainless steel is the
H 4680 B (60 cm) single oven.
All ovens shown are equipped with the Profi door
handle.
16
H 4680 B
H 4780 B
H 4780 BP
NavitronicTM touch control pad
NavitronicTM touch control pad
NavitronicTM touch control pad
Context sensitive controls
Context sensitive controls
Context sensitive controls
Multi-lingual LCD display
Multi-lingual LCD display
Multi-lingual LCD display
Metric / English conversion
Metric / English conversion
Metric / English conversion
Multi-tier operating modes
Multi-tier operating modes
Multi-tier operating modes
17 operating modes, including
AutoRoastTM, Intensive Bake
and Sabbath
17 operating modes, including
AutoRoastTM, Intensive Bake
and Sabbath
17 operating modes, including
AutoRoastTM, Intensive Bake
and Sabbath
MasterChef functionality
MasterChef functionality
MasterChef functionality
Food driven menu system
Food driven menu system
Food driven menu system
Favorites storage
Favorites storage
Favorites storage
Automatic temperature settings
Automatic temperature settings
Automatic temperature settings
Electronic temperature control
Electronic temperature control
Electronic temperature control
True European convection
True European convection
True European convection
Residual heat cooking
Residual heat cooking
Residual heat cooking
Time remaining calculation
Time remaining calculation
Time remaining calculation
Two-zone infrared broiling
Two-zone infrared broiling
Two-zone infrared broiling
PerfectCleanTM enamel interior
PerfectCleanTM enamel interior
Clean enamel interior
Self cleaning oven
ThermoCleanTM system
2 side mounted halogen interior lights
2 side mounted halogen interior lights
2 side mounted halogen interior lights
Dual timers
Dual timers
Dual timers
Delay start function
Delay start function
Delay start function
Width: 60 cm (approx. 24 inch)
Width: 70 cm (approx. 27 inch)
Width: 70 cm (approx. 27 inch)
Accessories included:
Accessories included:
Accessories included:
1 wire rack
2 wire racks
2 wire racks
1 roasting pan
1 roasting pan
1 roasting pan
Roast probe
Roast probe
Roast probe
Convection fan filter
Convection fan filter
Convection fan filter
Optional accessories:
Optional accessories:
Optional accessories:
2 cookie sheets
Stainless steel Profi door handle
(DS 4030)
Stainless steel classic door handle
(DS 4031)
Stainless steel classic door handle
(DS 4031)
Stainless steel classic door handle
(DS 4031)
Stainless steel square door handle
(DS 4032)
Stainless steel square door handle
(DS 4032)
Stainless steel square door handle
(DS 4032)
Single rotisserie (HGE 60)
Available finishes:
Stainless steel with stainless steel
Profi door handle
Double rotisserie (HGE 70)
Available finishes:
Stainless steel with stainless steel
Profi door handle
Double rotisserie (HGE 70)
Available finishes:
Stainless steel with stainless steel
Profi door handle
Black glass with black classic
door handle
17
Miele MasterChef CollectionTM
Speed Oven
Fastest - Faster - Fast
Miele’s state-of-the-art speed oven
delivers ultimate flexibility by fusing two
ovens into one. The microwave function,
by itself, is ideal for defrosting, reheating
and cooking a variety of food items or
simply to use for popping corn. The
oven, with its convection mode and
browning element, offers you all the
functions you need for roasting and
baking.
The great advantage of this oven is
that you can cook exclusively via
microwave and convection baking
modes or select optional programs that
automatically combine the two. This
delivers the speed advantage of
microwave technology, but ensures the
succulent results offered by more
conventional cooking methods.
Imagine the convenience of defrosting,
cooking and crisping all in one space
saving multi-functional appliance.
Left photo: Featured in stainless steel and
equipped with the Profi door handle are the
H 4080 BM (60 cm) speed oven (with EBA 4470
trim kit) and H 4780 BP (70 cm) single oven.
18
Well Designed, Inside and Out
The oven has distinctive design features
that match Miele’s other appliances, so
installing the speed oven on top, below
or next to another Miele product is easy
and creates a very uniform design in
your kitchen. The control panel is clear
and uncluttered, offering you instant
information on what’s happening inside
the oven. When activated, the control
panel displays the cooking mode,
temperature level and time remaining.
The design style continues down
through the appliance door and, as with
all Miele ovens, the door handle can be
changed to create a unique look
matching your personal taste.
On the inside, the oven door is made
from a sealed piece of smooth glass,
which can be easily cleaned with a
single wipe. The door is also useful as a
drop-down working surface on which to
rest dishes and plates. The stainless
steel oven interior is finished with a
state-of-the-art scratch resistant surface
that is also easy to maintain. Compared
with a traditional smooth surface, the
finish on Miele’s speed oven is robust
and resilient to stubborn stains.
H 4080 BM
NavitronicTM touch control pad
Context sensitive controls
Amazingly Easy to Use
With Miele’s NavitronicTM controls, it is
amazing just how easy it is to cook, reheat
or defrost an endless range of different
dishes in the speed oven. With the
MasterChef menu, all you have to do is
select the type of food, and, depending
on the recipe, enter additional information
such as the weight, quantity and finish
you require. Selecting the cooking
function, time and temperature is no
longer necessary as this has all been done
for you. Useful tips, such as the best shelf
level to use are also given on the display
to make it even easier for you to get
perfect results every time.
Multi-lingual LCD display
Metric / English conversion
Combination and individual
convection / microwave programs
True European convection
MasterChef functionality
Favorites storage
1,000 watt microwave
Minute plus function
Multi-tier operating modes
11 operating modes, including
AutoRoastTM
Infrared broiling system
Residual heat cooking
Automatic temperature settings
Electronic temperature control
Halogen interior light
Dual timers
Delay start function
Stainless steel interior cavity
Width: 60 cm (approx. 24 inch)
Accessories included:
1 wire rack
1 glass tray
Roast probe
Boiling stick
Optional accessories:
Stainless steel Profi door handle
(DS 4030)
Stainless steel classic door handle
(DS 4031)
Stainless steel square door handle
(DS 4032)
Optional trim kits:
Trim kit for 30 inch niche (EBA 4476)
available in black glass and
stainless steel
Trim kit for 70 cm (approx. 27 inch)
niche (EBA 4470) available
in stainless steel only
Available finishes:
Stainless steel with Profi door handle
Black glass with black classic
door handle
19
Miele MasterChef CollectionTM
Steam Ovens
20
A Miele Specialty
Cooking with steam has been a forte of
Miele since we introduced the world’s
first built-in convection steam oven in
1999. Our steam ovens are ideal for those
who enjoy eating healthy and for those
who simply value speed, convenience
and great tasting results every time. Long
considered a chef’s secret cooking tool,
the steam oven is the perfect partner to
a Miele cooktop and convection oven.
Whether you are cooking individual side
dishes or a complete menu, there is
virtually no limit to what can be cooked in
a steam oven.
Variety, the Spice of Life
Vegetables are an important food group
and critical for maintaining a healthy
lifestyle, but only one category of food
that can be cooked in the steam oven.
Miele’s steam oven enables you to
create entire, succulent meals using the
power of injection steam. Salmon,
shrimp and steamers. Poultry and rice.
Beef cubes, complete stews and even
meatballs. Top it off by creating a
variety of fabulous desserts like bread
pudding or cinnamon pears and apples.
The possibilities are limited only by your
imagination! Regardless of your selection, the byproduct of using Miele’s
steam oven is the delivery of flavorful,
nutrient packed delicacies for you and
your family to enjoy. Once you purchase
the oven, visit steamoven.com regularly
to experiment with some of Miele’s
favorite recipes and share some of yours
for others to enjoy as well!
Versatile, Simple to Install
and Easy to Use
Steam oven (model DG 4080) will
enhance and expand your culinary
repertoire with its unique, easy-to-use
food driven menu system powered by
Miele’s patented NavitronicsTM. Enjoy
creating omelets, pasta dishes – even
poultry and desserts that are truly
delicious solely using the power of
steam with the simple touch of the
control pad. With more than 900 automatic programs for cooking, heating and
defrosting stored in the memory, the
choices are endless.
You command the system by selecting
the type of food and providing
additional information such as the
weight, quantity and desired finish when
prompted… the needs assessment
conducted by this oven exceeds the
service provided by the top waiter in
your favorite restaurant. The result is
perfect, delicious dishes!
With the numerous automatic programs
you do not have to worry about the oven
function, time or temperature settings.
Reminders will appear in the display if
you have to do something like turn the
food or add sauces during the cooking
process. In the Favorites menu, you can
even store your own programs
(controlling time and temperature) and
name them as you see fit. With no
special plumbing required, both steam
ovens can be built-in virtually anywhere
in your kitchen, thereby reducing
countertop clutter and adding a unique
look to your environment.
Left photo: Featured in stainless steel and with
the Profi handle is the DG 4080 (60 cm) steam
oven joined with the DA 409 wall ventilation hood
and KM 391 gas cooktop in black glass.
21
Miele Unique
While traditional steamers and pressure
cookers generate steam slowly and raise
the temperature gradually, Miele steam
ovens are constructed with an external
steam generator, which is located outside
of the oven cavity. This arrangement has
several distinct advantages. First, the
oven’s interior capacity is greater so you
can cook several dishes simultaneously.
The temperature is more accurately
measured and can be kept at a constant
level. When it is introduced, the steam
surrounds the food from all sides. This
immediate and intense exchange of heat
ensures that food is heated rapidly and is
sealed instantly to retain all the vitamins,
color and flavor. Cooking times are also
reduced so you and your family can eat
faster and energy consumption can be
kept to a minimum.
22
DG 2661
DG 4080
NavitronicTM touch control pad
Context sensitive controls
Jog shuttle controls
Multi-lingual LCD display
Multi-lingual LCD display
Metric / English conversion
Metric / English conversion
Multi-tier operating modes
Multi-tier operating modes
MasterChef functionality
Food driven menu system
Food driven menu system
Favorites storage
Automatic temperature settings
Automatic temperature settings
Electronic temperature control
Electronic temperature control
Time remaining calculation
Time remaining calculation
1.35 quart (1.3 liter) water reservoir
1.35 quart (1.3 liter) water reservoir
Width: 60 cm (approx. 24 inch)
Width: 60 cm (approx. 24 inch)
Accessories included:
Accessories included:
2 perforated stainless steel pans
3 perforated stainless steel pans
1 solid stainless steel drip pan
1 solid stainless steel drip pan
1 stainless steel wire rack
Optional accessories:
1 stainless steel wire rack
Optional accessories:
Plate warming drawer
(EGW 2060)
System drawer
(ESS 2060)
Stainless steel Profi door handle
(DS 4030)
Stainless steel classic door handle
(DS 4031)
Stainless steel square door handle
(DS 4032)
Optional trim kits:
Optional trim kits:
Trim kit for 30 inch niche (EBA 4376)
available in stainless steel finish
Trim kit for 30 inch niche (EBA 4476)
available in black glass and
stainless steel finishes
Trim kit for 70 cm (approx. 27 inch)
niche (EBA 4370) available
in stainless steel
Trim kit for 70 cm (approx. 27 inch)
niche (EBA 4470) available
in stainless steel only
Available finishes:
Stainless steel with integrated
door handle
Available finishes:
Stainless steel with Profi
door handle
Black glass with black classic
door handle
Left photo: Featured in stainless steel are the
CVA 2660 (60 cm) coffee system and new
DG 2661 (60 cm) steam oven.
23
Food Warming Drawers
Perfecting the Wait
Timing is everything, especially when
you are working hard to serve a fresh
and delicious multi-course meal to
impress your guests. All the food items
that you have taken time and so much
care to prepare must be staged well in
order to enjoy the original warm flavor
and delicious taste, not cold and dried
out. Miele’s food warming drawers are a
superb solution to help you accomplish
this - keeping food warm for hours, at
the perfect temperature and moisture
level, until you decide it’s time to serve.
In addition to the quality and reliability
you know to expect from all Miele
products, several features distinguish
our food warming drawers. For instance,
while other drawers take from 25 - 40
minutes to reach a 160o F setting, a small
convection fan helps Miele’s attain the
same temperature level in under 10
minutes. Its open-sided design is ideal
for large serving platters or dishes with
gravy, allowing easy access without the
danger of burning your hands or spilling.
The moveable, integrated wire rack
allows full use of the drawer’s base, and
it can operate continuously, or be set to
a 4-hour timer, all with your choice of
humidity control.
Miele oven or in another location in the
kitchen can be done inconspicuously by
incorporating a custom panel or by
creating a unique design in stainless
steel or a black glass finish with three
Miele handle options.
Eliminate stress when preparing an
elaborate dinner or staging food for a
party. Don’t fear the telephone call, “I’m
running late” or “the soccer game is
going into overtime”. Use the Miele
warming drawer, which is designed to
help you perfect the planned and
unplanned wait.
These unique products are available in
multiple finishes, so installation under a
Bottom photo: Featured in stainless steel
and equipped with the Profi door handle are
the H 4780 BP (70 cm) single oven and the
ESW 4720 (70 cm) warming drawer.
24
ESW 4700 FB
ESW 4710
ESW 4720
Full extension drawer
Full extension drawer
Full extension drawer
Unique, open-sided design
Unique, open-sided design
Unique, open-sided design
Revolutionary “dual heating system”
Revolutionary “dual heating system”
Revolutionary “dual heating system”
Rapid heat-up
Rapid heat-up
Rapid heat-up
Moisture and humidity control damper
Moisture and humidity control damper
Moisture and humidity control damper
Time control, 4-hour timer
Time control, 4-hour timer
Time control, 4-hour timer
Continuous operation setting
Continuous operation setting
Continuous operation setting
Temperature settings from
140o F to 200o F
Temperature settings from
140o F to 200o F
Temperature settings from 140oF to 200oF
140o F to 200o F
Width: 70 cm (approx. 27 inch)
Width: 70 cm (approx. 27 inch)
Width: 70 cm (approx. 27 inch)
Accessories included:
Accessories included:
Accessories included:
Movable half rack insert
Movable half rack insert
Anti-slip pad
Anti-slip pad
Optional accessories:
Stainless steel classic door handle
(DS 4031)
Stainless steel square door handle
(DS 4032)
Available finishes:
Custom front panel, not included please consult miele.com and product
specifications for exact dimensions
Available finishes:
Stainless steel with Profi door handle
Movable half rack insert
Anti-slip pad
Optional accessories:
Stainless steel classic door handle
(DS 4031)
Stainless steel square door handle
(DS 4032)
Available finishes:
Stainless steel, u-shaped design
with Profi door handle
ESW 4800 FB
ESW 4810
ESW 4820
Full extension drawer
Full extension drawer
Full extension drawer
Unique, open-sided design
Unique, open-sided design
Unique, open-sided design
Revolutionary “dual heating system”
Revolutionary “dual heating system”
Revolutionary “dual heating system”
Rapid heat-up
Rapid heat-up
Rapid heat-up
Moisture and humidity control damper
Moisture and humidity control damper
Moisture and humidity control damper
Time control, 4-hour timer
Time control, 4-hour timer
Time control, 4-hour timer
Continuous operation setting
Continuous operation setting
Continuous operation setting
Temperature settings from
140o F to 200o F
Temperature settings from
140o F to 200o F
Temperature settings from
140o F to 200o F
Width: 30 inch
Width: 30 inch
Width: 30 inch
Accessories included:
Accessories included:
Accessories included:
Movable half rack insert
Movable half rack insert
Anti-slip pad
Anti-slip pad
Optional accessories:
Movable half rack insert
Anti-slip pad
Optional accessories:
Stainless steel Profi door handle
(DS 4030)
Available finishes:
Custom front panel, not included please consult miele.com and product
specifications for exact dimensions
Stainless steel classic door handle
(DS 4031)
Stainless steel classic door handle
(DS 4031)
Stainless steel square door handle
(DS 4032)
Stainless steel square door handle
(DS 4032)
Available finishes:
Stainless steel with Profi door handle
Black glass with black classic door
handle
Available finishes:
Stainless steel, u-shaped design
with Profi door handle
25
Plate and Cup Warming Drawers
Finishing Touches
Many food items and drinks, which
should be served hot, quickly lose their
characteristic flavor as they cool. Cold
china is traditionally the culprit as it
literally robs food and drink of its original
heat, thereby stopping the aromas from
unfolding and reducing the desired,
unique flavor.
To serve and enjoy your food and hot
beverages in their authentic form, Miele
introduces the plate and cup warming
drawer. Concealed below a coffee
system or oven, these silent workers will
bring your plates, cups, bowls and
serving dishes quickly and evenly to the
right temperature.
A unique convection, forced-air heating
system instantly circulates warm or hot
air through the drawer cavity. An infinite
temperature selection, ranging from
85o F up to 120o F, can heat a complete
table setting in less than 15 minutes
allowing you plenty of time to socialize
with your dinner guests. Smooth,
telescopic runners fully extend the
drawer giving you a complete view and
access to the interior. They are easy to
load and unload given its open-sided
construction, and the non-slip base
ensures that your china will sit firmly in
place.
For true harmony, Miele’s built-in plate
and cup warmers are designed for
combining with other Miele appliances,
creating a stunning design element to
your kitchen décor and delivering
professional, flavorful results to your
dinner table.
The System Drawer
Crafted to nestle discreetly under the CVA
2660 coffee system and the DG 2661
steam oven, the system drawer is a
great way to organize your Nespresso®
capsules, hot plates and other necessities
for creating unique hot beverages and
appetizing healthy food for your family
and friends to enjoy. The drawer opens
easily using a push / pull mechanism and
its clever, open-sided design allows you
full access to the inside.
Left photo: Featured in stainless steel and with
the Profi style door handle are the H 4680 B
(60 cm) single oven and EGW 4060-14
(60 cm) plate and cup warmer.
Right photo: Featured in stainless steel is the
ESS 2060 (60 cm) system drawer (mounted
above is the CVA 2660 (60 cm) coffee system
in stainless steel).
Far right photo: Featured in stainless steel is
the EGW 4060-14 plate and cup warmer with
the optional square handle (mounted above is
the CVA 4070 (60 cm) coffee system).
26
ESS 2060
EGW 2060
EGW 4060-14
System drawer
Plate and cup warmer
Plate and cup warmer
Full extension drawer
Full extension drawer
Full extension drawer
Unique, open-sided design
Unique, open-sided design
Unique, open-sided design
Convection heating system
Convection heating system
Rapid heat-up
Rapid heat-up
Continuous operation setting
Continuous operation setting
Plate or cup temperature setting
“On” indicator light
“On” indicator light
Push / pull easy opening system
Push / pull easy opening system
Width: 60 cm (approx. 24 inch)
Width: 60 cm (approx. 24 inch)
Width: 60 cm (approx. 24 inch)
Accessories included:
Accessories included:
Accessories included:
Anti-slip pad
Anti-slip pad
Anti-slip pad
Optional accessories:
Stainless steel Profi door handle
(DS 4030)
Stainless steel classic door handle
(DS 4031)
Stainless steel square door handle
(DS 4032)
For use with:
For use with:
For use with:
CVA 4070 coffee system
CVA 2660 coffee system
CVA 2660 coffee system
DG 2661 steam oven
DG 2661 steam oven
DG 4080 steam oven
H 4080 BM speed oven
Available finishes:
Available finishes:
Stainless steel
Stainless steel
Available finishes:
Stainless steel with Profi door handle
Black glass with black classic handle
ESS 2060, EGW 2060 and EGW 4060-14 are not designed for maintaining food.
See page 24 for detailed information pertaining to Miele food warming drawers for this requirement.
27
Coffee Systems
An Unparalleled Coffee
Experience… Right at Home
One cannot help but notice the
popularity coffee drinking has gained
over the past decade. This is a
phenomena the world over. With coffee
bars and cafés continuing to spring up
on America’s main streets and shopping
malls, it is not just the hot drink that
people are interested in. Coffee has
become a symbol in society and is
somewhat of a centerpiece for
gathering. For many people it is a
great way to get together in cordial
surroundings and enjoy each other’s
company or, for some, the perfect way
to relax in a peaceful and familiar
environment.
In 1999, Miele brought this atmosphere
into homes throughout the seven
continents, introducing the world’s first
built-in coffee system using whole beans
and a unique brewing process. With
countless satisfied customers, Miele
introduced the world’s first built-in
capsule coffee system using the unique
and flavorful blends of Nespresso® in
2003. Today, Miele continues its legacy
in this category with the introduction
of the new whole bean system, model
CVA 4070.
Regardless of your selection, each
product is programmed to deliver a wide
variety of perfectly brewed coffee,
espresso and other fine beverages that
are sure to please virtually everyone,
from the coffee novice to the most jaded
barista. The only question is… which
model would you prefer?
28
An Epicurean's Passion…
A Designer's Dream
If there is one thing almost every kitchen
needs, it’s more countertop space. Miele
coffee systems fit neatly into your
cabinetry, at a comfortable user height,
thereby eliminating countertop clutter.
Alternatively, custom, stainless steel
housing units allow for convenient
installation under upper cabinets or as a
tabletop unit that can easily be transported throughout your home (applicable only
to the CVA 2650 system).
Not requiring a fixed water supply
connection or special electric wiring, the
unit can easily be installed virtually
anywhere within the design of your
kitchen – above or next to other Miele
appliances – or in your master bedroom
suite, wet-bar, lanai or your favorite
home entertainment area.
Available in black glass or stainless steel
finish, these products integrate superbly
into any décor, from the most traditional
to ultra contemporary. This exposure
offers you and your guests convenient,
on-demand access to a variety of hot
beverages.
Left photo: Featured in black glass is the
CVA 2660 (60 cm) coffee system.
29
Coffee Systems
CVA 4070
Café, Caffe, Kaffee, Koffie or Coffee
No Matter How You Say it,
Miele Delivers
The CVA 4070 delivers espresso,
cappuccino, latté or regular coffee
easily and with an incredible flavor sure
to please even the most critical
connoisseur. Instantly, at the press of a
single button, the system takes whole
coffee beans and grinds them to your
personal setting. Pressurized hot water
is then injected through the ground
bean. This fast process extracts the
maximum flavor from the bean, the final
result being a drink rich in flavor and
taste.
Below photo: Featured in stainless steel is the
new CVA 4070 coffee system. Available fall 2006.
30
The unique frothing system quickly, and
without mess, produces hot milk for latté
or hot chocolate, or foam for that homemade cappuccino. A separate hot water
dispenser is ideal for making a quick cup
of tea on demand. Regal looking and
easy to use, the new Miele CVA 4070
coffee system allows you to create and
enjoy authentic hot beverages once
thought to be available only in Europe.
30 Inch Double Wall Ovens
Product Assortment
CVA 4070
Whole coffee bean system
Door hinged left / concealed handle
Patented brewing unit
Conical grinding system
500 g coffee bean container
Grinds from 6 to 12 g coffee beans
per cup
Adjustable grinder (coarse to fine)
Pre-brew system (on/off)
Coffee for Two
Dual dispensing spouts allow you to
serve two hot beverages simultaneously
or cut the preparation time of one cup in
half!
Tall or Grande?
The dispensing spout is height adjustable
to accommodate an array of cup sizes...
from the classic petit espresso cup to
average American mug.
Large capacity container for used
coffee grounds
2.64 quart (2.5 liter) water reservoir
Adjustable cup size settings
Variable water temperature control
Water hardness setting
Integrated LED lighting
Dual dispensing spouts
Hot water spout
Frothing system
Safety lock
Multi-lingual LCD display, 7 languages
Stand-by function with delay start
Fault diagnosis
Width: 60 cm (approx. 24 inch)
Accessories included:
Cleaning agent
Optional accessories:
Plate and cup warmer (EGW 4060-14)
Optional trim kits:
Stainless steel trim kit for 30” inch
niche (EBA 4476)
Stainless steel trim kit for 70 cm
(approx. 27 inch) niche (EBA 4470)
Available finishes:
Stainless steel
Unique Frothing
Froth is considered to be the crowning
touch of a cappuccino or a critical ingredient for a latté. To steam milk for these
and other beverages our new frothing
system is easy-to-use and assures
perfect results in minutes.
Grinder Bypass
The traditional, fresh grind and brew
process can easily be bypassed by
opening the coffee system door and
pouring ground coffee into the designated
chamber. Oscillating between caffeinated
and decaffeinated beverages, for example, makes this system very versatile.
31
Coffee Systems
CVA 2000 Series
Great Taste, Both in its Design
and in its Cup
The Miele coffee system (models
2650 and 2660) represents a unique
combination
of
Miele’s
exacting
engineering and the exclusive savoir faire
of the Nespresso® coffee capsule – two
international brands synonymous with
expertise in their fields – working in
tandem to produce the ultimate at home
coffee system.
Individuality
There is much doubt that your friends
and family will have similar tastes
when it comes to their favorite hot
beverage. Some people will like their
32
coffee short and strong, others will
prefer theirs mild with plenty of froth.
The Miele CVA 2650/2660 system is the
perfect solution for serving up a tailored
beverage to engage even the most
discriminating coffee drinker. An
integrated capsule carousel within the
system holds 20 individual capsules
enabling you to offer 5 different blends
— something for everyone!
Nespresso® capsules are easily ordered
direct via the Internet, phone or fax with
delivery guaranteed within two business
days!
Easy Frothing
Froth is the uncontested crowning
glory of any coffee and the Miele system
is an expert in this field. Its unique
Cappuccinatore is an easy to use frothing cup that either delivers the froth
directly into the cup or retains it,
providing you the pleasure of placing it
into the beverage.
Above or Below… Atop or by Itself
The Miele CVA 2650/2660 coffee system
can be installed virtually anywhere in
your home – offering a plethora of
possible positions in new construction
or post remodel applications. As an
example of the installation options in a
kitchen, the Miele CVA 2650/2660
system can be mounted above the
counter, rest on the counter or be
installed into your cabinetry at a
variety of heights above, below or near
other Miele appliances or somewhere
special by itself. Installation restrictions
are virtually nonexistent with this
revolutionary product with the patented
door hinge making access to the water
reservoir most convenient. Please visit
miele.com to preview these installation
options.
CVA 2650
CVA 2660
Nespresso® capsule coffee system
Nespresso® capsule coffee system
Door hinged left / concealed handle
Door hinged left / concealed handle
Patented brewing unit
Patented brewing unit
Removable capsule holder
Removable capsule holder
20 coffee capsule capacity
20 coffee capsule capacity
5 individual coffee sleeves
5 individual coffee sleeves
4 custom user profiles possible
4 custom user profiles possible
Automatic rinse and cleaning programs
Automatic rinse and cleaning programs
Large capacity container for 25 used
capsules
Large capacity container for 25 used
capsules
1.6 quart (1.5 liter) water reservoir
1.6 quart (1.5 Liter) water reservoir
Water volume dispensed adjustable per
cup size
Water volume dispensed adjustable per
cup size
Water hardness setting
Water hardness setting
Four programmable cup sizes
Espresso, double espresso,
coffee, double coffee
Four programmable cup sizes
Espresso, double espresso,
coffee, double coffee
LED illumination of work area
LED illumination of work area
Dispensing spout
Dispensing spout
Hot water preparation
Hot water preparation
Unique Cappuccinatore jug for
frothing milk
Unique Cappuccinatore jug for
frothing milk
Safety lock
Multi-lingual LCD display, 15 languages
Safety lock
Multi-lingual LCD display, 15 languages
Stand-by function
Stand-by function
Delay start / stop function
Delay start / stop function
Fault diagnosis
Width: 50 cm (approx. 20 inch)
Fault diagnosis
Width: 60 cm (approx. 24 inch)
Accessories included:
Accessories included:
2 espresso cups and saucers
2 cappuccino cups and saucers
Cleaning agent
Optional accessories:
2 espresso cups and saucers
2 cappuccino cups and saucers
Cleaning agent
Optional accessories:
Stainless steel sitting housing unit
(CVSG 50)
Stainless steel hanging housing unit
(CVUG 50)
Plate and cup warmer (EGW 2060)
System drawer (ESS 2060)
Mobile coffee cart (MES 45)
Optional trim kits:
Trim kit for 30 inch niche (EBA 4376)
available in black glass and
stainless steel
Trim kit for 70 cm (approx. 27 inch)
niche (EBA 4370) available
available in stainless steel
Left photo: Featured in stainless steel is the
CVA 2660 (60 cm) coffee system.
Available finishes:
Available finishes:
Stainless steel
Stainless steel
Black glass
Black glass
33
The Lift Door
An Open and Shut Case
of Pure Genius
The Miele lift door is a unique,
integrated solution to create a home for
portable countertop appliances like
toasters, microwaves, mixers or even a
television set… keeping them tucked
away neatly, but convenient enough to
quickly access them. Simply lift the
door to access the product you need.
This design piece is available in stainless
steel with u-design to match Miele oven
products and black glass finish.
34
MLT 4600
MLT 4700
MLT 4800
Decorative lift door
Decorative lift door
Decorative lift door
Easy open / close hydraulic hinges
Easy open / close hydraulic hinges
Easy open / close hydraulic hinges
Conceals microwave / small appliance
Conceals microwave / small appliance
Conceals microwave / small appliance
Width: 60 cm (approx. 24 inch)
Width: 70 cm (approx. 27 inch)
Width: 30 inch
Optional accessories:
Optional accessories:
Optional accessories:
Stainless steel Profi door handle
(DS 4030)
Stainless steel classic door handle
(DS 4031)
Stainless steel square door handle
(DS 4032)
For use with:
Stainless steel Profi door handle
(DS 4030)
Stainless steel classic door handle
(DS 4031)
Stainless steel square door handle
(DS 4032)
For use with:
Stainless steel classic door handle
(DS 4031)
Stainless steel square door handle
(DS 4032)
For use with:
CVA 4070 coffee system
CVA 2660 coffee system
DG 4080 steam oven
H 4680 B convection oven
H 4780 B / BP convection oven
H 4880 B / BP convection oven
H 4080 BM speed oven
Available finishes:
Stainless steel with Profi door handle
Black glass with black classic
door handle
Available finishes:
Stainless steel with Profi door handle
Available finishes:
Stainless steel with Profi door handle
Black glass with black classic
door handle
Far top left photo: Featured in stainless steel are
the MLT 4700 (70 cm) lift door, H 4780 BP (70 cm)
single oven and ESW 4720 (70 cm) u-design
warming drawer. All products are shown with the
Profi style handle.
Bottom left photo: Featured in black glass with
the classic handle design are the MLT 4800
(30 inch) lift door and H 4880 BP (30 inch) single
oven.
Right photo: Featured in stainless steel and
equipped with the Profi handle are the MLT 4600
(60 cm) lift door and H 4680 B (60 cm) single
oven.
35
Gas Cooktops
Powerful Performance, Unique Design
Cook on a Higher Level
The responsiveness afforded by a Miele
gas cooktop is only matched by the
product’s performance. Equipped with a
wide variety of burners to manage
virtually any cooking task, units provide
significant heat output. The KM 3474, for
example, has a combined 60,000 BTUs
of power.
The double inset and super burners are
conveniently located in the front right
and/or left of the cooktop, making wok
stir-fry, pan sautéing or just big pot
cooking practical and safe.
Finesse as Well
Cooking with gas is not always about
the power; control is essential too.
Operating at a low heat output is often
as important as a high power setting,
and all Miele units allow you to do that.
36
Most of the cooktops will regulate as low
as 620 BTUs. To minimize the heat
further still, a Simmer Plate ensures
excess heat is diverted away from the
pan.
Peace of Mind
Sometimes, gas cooktops can go out
when you don’t want them to. Miele has
solved this worry with its unique
re-ignition system. This solution combines the speed and reliability of automatic re-ignition with the flexibility of
thermocouple protection. If a flame goes
out for any reason, re-ignition is initiated.
Should the flame not re-light, the system
shuts down the flow of gas, ensuring
optimal safety. The cooktop is watching
out for itself, giving you one less thing to
worry about.
Grate Choices
Miele’s collection of gas cooking surfaces
represent powerful performance with a
design that allows you to choose the right
look for your kitchen environment. On
select models, the cooktop is available
with your choice of grate... select from the
contemporary linear or hexa grate design.
The final look is completely different,
that’s why we leave the choice up to you.
KM 360
KM 391
Natural or LP gas connection
Natural or LP gas connection
4 completely sealed burners
5 completely sealed burners
Super burner
1 burner: 15,300 BTU output
High speed burner
1 burner: 10,200 BTU output
Normal burner
2 burners: 6,000 BTU output
Auxiliary burner
1 burner: 3,400 BTU output
High speed burner
1 burner: 9,500 BTU output
Normal burner
2 burners: 6,000 BTU output
Auxiliary burner
1 burner: 5,000 BTU output
Center control panel
Center control panel
Stainless steel knob controls
Stainless steel knob controls
Ignition safety control
Ignition safety control
Cast iron grates - included
Cast iron grates - included
Width: 60 cm (approx. 24 inch)
Width: 93 cm (approx. 36 inch)
Accessories included:
Wok ring
Trivet
Available finishes:
Stainless steel
Available finishes:
Black glass with stainless steel frame
Left photo: Featured in stainless steel is the
KM 3474 with hexa grates and stainless steel
knob controls.
37
KM 3464
KM 3465
KM 3474
Natural or LP gas connection
Natural or LP gas connection
Natural or LP gas connection
4 completely sealed burners
4 completely sealed burners
5 completely sealed burners
Double inset super burners
1 burner: 15,300 BTU output
Super burner
1 burner: 12,000 BTU output
High speed burners
2 burners: 9,000 BTU output
Double inset super burners
1 burner: 15,300 BTU output
Super burner
1 burner: 12,000 BTU output
High speed burners
2 burners: 9,000 BTU output
Double inset super burners
2 burners: 15,300 BTU output
Super burner
1 burner: 12,000 BTU output
High speed burners
2 burners: 9,000 BTU output
Side control panel
Side control panel
Center control panel
Stainless steel knob controls
Stainless steel knob controls
Stainless steel knob controls
Fast ignition system
Fast ignition system
Fast ignition system
Ignition safety control
Ignition safety control
Ignition safety control
Cast iron grates: hexa design
Width: 30 inch
Cast iron grates: linear design
Width: 30 inch
Cast iron grates: hexa design
Width: 36 inch
Accessories included:
Accessories included:
Accessories included:
Wok ring
Optional accessories:
Wok ring
Optional accessories:
Wok ring
Optional accessories:
Simmer plate (KMSP 340)
Simmer plate (KMSP 340)
Simmer plate (KMSP 340)
Griddle plate (KMGP 340)
Griddle plate (KMGP 340)
Griddle plate (KMGP 340)
Grate set (KMTT 5A), circular design
38
Available finishes:
Available finishes:
Available finishes:
Stainless steel
Stainless steel
Stainless steel
KM 3475
KM 3484
KM 3485
Natural or LP gas connection
Natural or LP gas connection
Natural or LP gas connection
5 completely sealed burners
6 completely sealed burners
6 completely sealed burners
Double inset super burners
2 burners: 15,300 BTU output
Double inset super burners
1 burner: 16,500 BTU output
1 burner: 15,300 BTU output
Super burner
1 burner: 12,000 BTU output
High speed burners
2 burners: 9,000 BTU output
Super burners
2 burners: 12,000 BTU output
High speed burners
2 burners: 9,000 BTU output
Double inset super burners
1 burner: 16,500 BTU output
1 burner: 15,300 BTU output
Super burners
2 burners: 12,000 BTU output
High speed burners
2 burners: 9,000 BTU output
Center control panel
Side control panel
Side control panel
Stainless steel knob controls
Stainless steel knob controls
Stainless steel knob controls
Fast ignition system
Fast ignition system
Fast ignition system
Ignition safety control
Ignition safety control
Ignition safety control
Cast iron grates: linear design
Width: 36 inch
Cast iron grates: hexa design
Width: 42 inch
Cast iron grates: linear design
Width: 42 inch
Accessories included:
Accessories included:
Accessories included:
Wok ring
Optional accessories:
Wok ring
Optional accessories:
Wok ring
Optional accessories:
Simmer plate (KMSP 340)
Simmer plate (KMSP 340)
Simmer plate (KMSP 340)
Griddle plate (KMGP 340)
Griddle plate (KMGP 340)
Griddle plate (KMGP 340)
Grate set (KMTT 5A), circular design
Grate set (KMTT 6A), circular design
Grate set (KMTT 6A), circular design
Available finishes:
Available finishes:
Available finishes:
Stainless steel
Stainless steel
Stainless steel
Left photo: Featured product in stainless steel is
the KM 3485 gas cooktop with linear grate
design.
39
Electric Cooktops
Fast, Responsive and Convenient
Performance Plus
A common misconception is that you
can’t have top-class performance
cooking if you have an electric cooktop.
In designing the Miele electric cooktop
series, we set out to change this
perception forever.
High-speed ribbon burners create
considerable heat fast, bringing pots of
water to boil quickly, and certainly no
longer than cooking with gas. Similarly,
simmering is designed into the product,
as the burners will cycle on and off to
maintain a constant heat range.
Flexibility
A major advantage of the Miele Ceran®
glass electric cooktop is the flexibility to
adjust the size of the cooking zone. The
30 inch and 36 inch products feature
two and three such variable burners. A
burner that is used for a large pasta pot
at one time during preparation can be
scaled back to accommodate a delicate
sauce pan in just a moment.
The elongated burner is ideal for unique
cooking appliances, such as the oval
pot utilized for salmon poaching or
asparagus.
The Cleanup Convenience
The smooth surface of all of the electric
cooktops makes cleanup extremely
easy. The surface retains its gloss-like
finish even after many years of use, as
the tough glass material has a durability
at odds with its sleek appearance.
The Miele electric cooktop; we are
confident that its many advantages will
leave you convinced that you can have
top-class performance and much more.
Right photo: Featured is a KM 5676 electric cooktop in black glass.
40
KM 421
KM 424
KM 427
4 heating elements
4 heating elements
5 heating elements
4 cooking zones
7 cooking zones
8 cooking zones
2 single zones of 7 inch
1 variable zone of max 81/4 inch
1 variable zone of max 9 inch
2 single zones of 53/4 inch
1 variable zone of max 7 inch
1 variable zone of max 7 inch
1 oval zone of max 63/4 x 101/2 inch
1 rectangular zone of max
63/4 x 101/2 inch
1 single zone of 53/4 inch
2 single zones of 53/4 inch
Side control panel
Center control panel
Center control panel
Black knob controls
Black knob controls
Black knob controls
Residual heat indicators for all zones
Residual heat indicators for all zones
Residual heat indicators for all zones
High-impact Ceran® surface
High-impact Ceran® surface
High-impact Ceran® surface
High speed ribbon element design
High speed ribbon element design
High speed ribbon element design
Width: 24 inch
Width: 30 inch
Width: 36 inch
Optional accessories:
Optional accessories:
Optional accessories:
Stainless steel control knobs
Available finishes:
Black Ceran® glass with stainless
steel frame
Stainless steel control knobs
Available finishes:
Black Ceran® glass with stainless
steel frame
Stainless steel control knobs
Available finishes:
Black Ceran® glass with stainless
steel frame
41
KM 5656
KM 5676
KM 452
4 heating elements
5 heating elements
6 heating elements
6 cooking zones
8 cooking zones
9 cooking zones
1 variable zone 51/2 or 81/2 inch
1 variable zone of 51/2 or 9 inch
1 variable zone of max 9 inch
1 oval zone 61/2 x 101/2 inch
1 variable zone of 41/2 or 7 inch
1 variable zone of max 81/4 inch
1 single zone 7 inch
1 single zone of 51/2 inch
1 rectangular zone of 61/2 x 111/2 inch
2 single zones of 51/2 inch
2 single zones of 71/16 inch
that extend to 161/4 x 71/16 inch
2 single zones of max 53/4 inch
Front control panel
Center control panel
Center control panel
Concealed infrared controls
Concealed infrared controls
Concealed infrared controls
Residual heat indicators for all zones
Residual heat indicators for all zones
Residual heat indicators for all zones
Timer, freely assignable for all
cooking zones
Timer, freely assignable for all
High-impact Ceran® surface
High-impact Ceran® surface
High-impact Ceran® surface
High-speed ribbon element design
High-speed ribbon element design
High speed ribbon element design
Width: 30 inch
Width: 36 inch
Width: 42 inch
Available finishes:
Available finishes:
Available finishes:
Black Ceran® glass finish with stainless
steel frame
42
cooking zones
Black Ceran® glass finish with stainless
steel frame
Black Ceran® glass with stainless
steel frame
Miele CombiSetsTM
The Ultimate Customized
Cooking Surface
The innovative design of Miele’s
CombiSetTM range allows you to have
the best of both worlds – gas and
electric cooking surfaces – side by side.
The modular design of CombiSetsTM
enables you to tailor surfaces that truly
fit your cooking habits and desires. A
gas CombiSetTM to the right or left of an
electric one is simply up to you. Each
unit has an identical width and depth, so
they combine easily to form a single,
uniform surface.
Limitless Choices
Imagine this. After allowing the contact
griddle to heat up to searing point, you
slide a block of beef onto the surface.
Counting to ten, you turn the fish,
repeating until all sides have seared. Or
prepare a breakfast of pancakes, or
lunch with strip steak. Marry this up with
a powerful gas super burner, or lava rock
grill, deep fryer or powerful two-burner
gas or Ceran® glass electric burners and
you may be spoilt for choice.
Large or Small
The flexibility of CombiSetTM cooking is
not just defined by the type of surfaces
that can be placed together, but also by
the number.
CombiSetsTM are, for example, ideal for
small apartments. As few as a single two
burner unit can make a single person
kitchen totally functional. Conversely, an
expansive island setting lends itself
nicely to the style, functionality and
versatility of CombiSetTM cooking.
Large or small, a Miele CombiSetTM
selection can be tailor-made to fit any
kitchen setting.
Right photo: Featured in black Ceran® is the
CSWA 400 pot rest with weighing function,
KM 406 wok burner, KM 400 ceramic double
burner and KM 411 electric barbecue.
43
CombiSetsTM Product Assortment
KM 400
KM 403
KM 404
Ceramic double burner
Electric boiler / fryer
Double gas burner
Electric burners beneath Ceran® surface
Variable zone of max 71/4 inch
Nickel plated wire basket with
folding handle
Natural or LP gas connection
Single zone of 53/4 inch
Temperature control between 212º F - 390º F
Residual heat indicators
Stainless steel filter
Available finishes:
Cold oil zone prevents oil penetration
into foods
Black Ceran® glass with
stainless steel frame
High speed burner
1 burner: 10,000 BTU output
Normal burner
1 burner: 6,000 BTU output
Can be filled with water for easier cleaning
Cast iron grate and trivet insert
Drain valve underneath
Electric spark ignition
Available finishes:
Available finishes:
Black glass control panel with
stainless steel frame
Black Ceran® glass with
stainless steel frame
KM 406
KM 408
KM 411
Wok burner
Contact griddle
Electric barbecue
Natural or LP gas connection
Large 13 x 71/16 inch burner: 1,650 watt
Cast iron grate
Completely sealed burners
Operated by single variable control knob
Hinged element for easy cleaning
Residual heat indicator
Operated by single variable control knob
Available finishes:
Can be filled with water for grilling
and easier cleaning
1 burner: 620 BTU - 17,500 BTU output
Cast iron grate
Single knob control
Black glass with stainless steel frame
Electric spark ignition
Drain valve underneath
Available finishes:
Available finishes:
Black glass with stainless steel frame
44
2 completely sealed burners
Black glass control panel with
stainless steel frame
CSAW 400
CSGP 400
CSAF 400
Scale
Cast iron griddle
Pot rest
Up to 20 pound capacity
For use with KM 411 electric barbecue
Pound / kilo display
Cast aluminum construction
Available finishes:
Black glass with stainless steel frame
Tare function, self calibrating
One side fluted, one side smooth
Battery operated
Rubber feet to prevent scratching
Available finishes:
Black glass with stainless steel frame
Featured left to right in black Ceran® are the KM
404 gas double burner and KM 406 wok burner.
Featured left to right in black Ceran® are the
KM 400 ceramic double burner and KM 406 wok
burner.
Featured left to right is the CSAF 400 pot rest
with fluted Ceran® design the and KM 408 contact
griddle in black Ceran®.
45
Miele Ventilation Hoods
Moving Air, in Style
Miele offers one of the world’s largest
ranges of ventilation hoods on the market
and there is a design to suit virtually all
styles and design requirements. Many
ventilation hoods incorporate glass and
feature lighting, while others offer a sleek
stainless steel design to create a minimal,
symmetrical and clean finish. Miele offers
a variety of sizes from 24 to 48 inch
widths including integrated, canopy, wall
mounted and decorative island models.
Each ventilation hood offers extremely
powerful extraction rates to keep the
atmosphere in your kitchen comfortable.
They have low noise levels too, which
means you can entertain while cooking!
Hand Crafted Quality
At Miele, the genius is in the details and
nowhere is this more evident than in the
ventilation hood selection. After precision
tools have cut the materials, experienced
craftspeople go about hand-sculpting
the finished product. The result is an
unblemished, seamless finish that will
grace any kitchen for years.
Additional customization is also available.
The exact chimney height for the hood
can be handmade to your specifications.
More Than Just Hot Air
The quality of Miele hoods, of course,
goes beyond the exterior. Unique
double-sided blowers provide excellent
air extraction, optimizing a careful
balance between air removal and energy
efficiency. This dual blower system also
builds longevity right into the design.
Despite the high-efficient air extraction,
the hoods are comfortably quiet. A
special acoustic package works in
conjunction with the latest in motor
technology to ensure the performance is
not compromised. Easy operation is
possible using Miele-made electronics –
Novotronics. For proper maintenance
there is an indicator light that alerts you
when the metal grease filters need to be
cleaned or when the charcoal filter has
to be replaced. To operate, easy to use,
push button controls allow you to set the
hood on a timer, switching the unit off,
automatically, 5 or 15 minutes after you
walk away. Also, you have the ability to
adjust the feature lighting to suit your
environment.
Style in Many Shapes and Sizes
Miele ventilation hoods come in a variety
of designs and can fit beautifully into
both traditional and contemporary
kitchen décor. Application solutions are
offered via the decorative wall and island
products. Built-in models can fit under
an ornate canopy or position seamlessly
in an overhead cabinet.
Decorative hoods come featured with
halogen lighting, creating a unique
kitchen ambience whether you are
cooking or not. And for the ultimate in
customization, several hoods can be
chosen in any one of over two hundred
different RAL colors.
Left photo: Featured in stainless steel is the
DA 289-4 wall ventilation hood.
Top right photo: Featured is the DA 3190 built-in
ventilation hood with custom front panel.
46
Built-in Ventilation Hoods
A Custom Fit Solution
Miele’s built-in ventilation hoods are a
perfect solution to discreetly mount an
extractor against a wall, into the upper
cabinet. This option is perfect if space is
a premium or if the ventilation hood is
not wanted as an overly ornamental
piece in the kitchen.
Effective, convenient and attractive,
Miele’s built-in ventilation models fit
neatly into a wall cabinet, flush and
unobtrusive.
DA 3160
DA 3180
DA 3190
For wall cabinet installation
For wall cabinet installation
For wall cabinet installation
Expandable fume deflector
Expandable fume deflector
Expandable fume deflector
Vented or recirculating
Vented or recirculating
Vented or recirculating
Front mounted controls for
Front mounted controls for
Front mounted controls for
Lights
Lights
4 fan speeds
4 fan speeds
Lights
4 fan speeds
Automatic activation when fume
deflector is expanded
Automatic activation when fume
deflector is expanded
Automatic activation when fume
deflector is expanded
Automatic shut-off of intensive level,
programmable for 10 minutes
Automatic shut-off of intensive level,
programmable for 10 minutes
Automatic shut-off of intensive level,
programmable for 10 minutes
Integrated halogen lighting
Integrated halogen lighting
Integrated halogen lighting
Dishwasher safe metal filters
Dishwasher safe metal filters
Dishwasher safe metal filters
Double sided blower
Double sided blower
Double sided blower
625 CFM max. setting
625 CFM max. setting
625 CFM max. setting
Width: 60 cm (approx. 24 inch)
Width: 30 inch
Width: 90 cm (approx. 36 inch)
Optional accessories:
Optional accessories:
Optional accessories:
Charcoal filter (DKF 13)
Charcoal filter (DKF 13)
Charcoal filter (DKF 13)
Custom front panel installation kit
(DML 300)
Custom front panel installation kit
(DML 300)
Custom front panel installation kit
(DML 300)
Recirculation kit (DUU 150)
Recirculation kit (DUU 150)
Recirculation kit (DUU 150)
Available finishes:
Available finishes:
Available finishes:
Stainless steel
Stainless steel
Stainless steel
Can accept custom front panel
(installation kit DML 300 is needed)
Can accept custom front panel
(installation kit DML 300 is needed)
Can accept custom front panel
(installation kit DML 300 is needed)
47
Canopy
Ventilation Hoods
Convenient and Discreet
The Miele canopy under-mount ventilation hood is a subtle, yet powerful
worker. Mounted in your choice of
custom cabinetry, which can be as
discreet or as dramatic as you elect, the
Miele canopy hood allows for virtually
silent extraction of cooking odors.
The unique joystick control switch is in
a convenient position and allows you to
control the integrated halogen lighting or
toggle between four fan motor speeds.
With a light touch of the finger or gentle
movement of your backhand - which is
very helpful when your hands are a bit
dirty from cooking - the joystick is a
perfect way to control your ventilation
hood.
Below photos: Featured in stainless steel is the
DA 362-110 canopy under-mounted ventilation
hood with unique joystick selection switch for
convenient operation.
48
DA 362-75
DA 362-110
For framed 36 inch canopy installation
For framed 48 inch canopy installation
Vented or recirculating
Vented or recirculating
Joystick selector switch
Joystick selector switch
Light controls
4 fan speeds
Delayed shutdown for 5 or 15 minutes
Light controls
4 fan speeds
Delayed shutdown for 5 or 15 minutes
Integrated halogen lighting
Integrated halogen lighting
Dishwasher safe metal filters
Dishwasher safe metal filters
Programmable filter saturation timers
Programmable filter saturation timers
Dual motors
Four motors
425 CFM max. setting
850 CFM max. setting
Width: 30 inch
Width: 110 cm (approx. 43 inch)
Optional accessories:
Optional accessories:
Charcoal filter (DKF 2)
Charcoal filter (2 DKF 2)
Island
30
Inch Double Wall Ovens
Product Assortment
Ventilation
Hoods
Decorative, Yet Powerful
Straight-edged or curved, the island
hood collection is so diverse in its
design, because we know it may well be
a defining object in your kitchen.
And your design choices are not limited
to the color of the hood. All hoods with
the RAL color symbol below the technical
specifications (see page 50) indicate your
option to receive the hood in any one of
up to 200 colors. Please ask your Miele
product specialist for further details
regarding this tailor-made option.
DA 220
Vented
Front mounted controls for
Lights
4 fan speeds
Delayed shutdown for 5 or 15 minutes
Integrated halogen lighting with
dimmer function
Dishwasher safe metal filters
Programmable filter saturation timer
Double sided blower
625 CFM max. setting
Width: 100 cm (approx. 39 inch)
Available finishes:
Stainless steel
Left photo: Featured in stainless steel is the DA 220
island ventilation hood.
49
DA 250
DA 270
DA 403
Vented
Vented
Vented
Front mounted controls for
Front mounted controls for
Front mounted controls for
Lights
Lights
4 fan speeds
4 fan speeds
Lights
4 fan speeds
Delayed shutdown for 5 or 15 minutes
Delayed shutdown for 5 or 15 minutes
Delayed shutdown for 5 or 15 minutes
Integrated halogen lighting with
dimmer function
Integrated halogen lighting with
dimmer function
Integrated halogen lighting with
dimmer function
Indirect lighting
Dishwasher safe metal filters
Dishwasher safe metal filters
Dishwasher safe metal filters
Programmable filter saturation timer
Programmable filter saturation timer
Programmable filter saturation timers
Double sided blower
Double sided blower
Double sided blower
625 CFM max. setting
625 CFM max. setting
625 CFM max. setting
Width: 100 cm (approx. 39 inch)
Width: 90 cm (approx. 36 inch)
Width: 100 cm (approx. 39 inch)
Optional accessories:
Charcoal filter (DKF 12)
Recirculation kit (DUI 20)
Available finishes:
Available finishes:
Available finishes:
Stainless steel
Stainless steel
Stainless steel
RAL colors, over 200 options
DA 270 U
Recirculation model (not vented)
All other features, same as DA 270
detailed above
Optional accessories:
Charcoal filter (DKF 10)
50
Wall
Ventilation Hoods
Who Said Ventilation Hoods
Can't be Stunning
Miele’s assortment of wall mounted
ventilation hoods offers a superb range
of choices in virtually unlimited colors
to fit any kitchen décor, from the
ultra-modern to the most traditional.
Each ventilation hood has its own
unique array of attributes that are
assured to please you. For example,
the DA 279-4 incorporates sharp
straight lines with a rectangular chimney
and a very unique strip of indirect
lighting, detailed in the bottom right
image. The top of the hood is level, so it
can be used to house useful items such
as spices, oils and cookbooks or you
can elect to leave it empty for a very
clean look.
A pride of the Miele ventilation hood
assortment is the DA 289-4, featured top
right. This exceptional hood demonstrates
a rare combination of glass and stainless
steel and offers an exclusive look to any
kitchen environment. Having won multiple
design awards, the international design
community and consumers are drawn to
this hood’s majestic stature that allows for
even extraction of cooking odors and an
unlimited view to pots… even those on
the far back burners.
The DA 252-4, shown bottom left, is an
extremely useful stainless steel ventilation hood and has plenty of space, on
two levels, to store cooking essentials.
The two upper shelves bring in a touch
of glass that gives this hood a subtle,
unique look. Additionally, there are
two, integrated utensil hangers that
keep large spoons and ladles handy for
immediate use while preparing your
favorite meals.
Regardless of the model selected, Miele
engineers, who we feel have found a
perfect blend of technology and
artwork, handcraft each ventilation hood
at our factory in Germany. Powerful,
yet quiet extraction motors, highly
effective filtration - either in vented or
recirculating - are housed in the finest
raw materials making Miele ventilation
hoods durable for a lifetime of use.
Top photo: Featured in stainless steel and glass is
the DA 289-4 wall ventilation hood.
Above detail photo: Integrated light strip of the
DA 279-4 wall ventilation hood.
Left photo: Featured in stainless steel is the
DA 252-4 wall ventilation hood.
51
Wall Ventilation Hoods Product Assortment
DA 249-4
DA 251-4
DA 252-4
Vented or recirculating
Vented
Vented
Front mounted controls for
Front mounted controls for
Front mounted controls for
Lights
Lights
4 fan speeds
4 fan speeds
Lights
4 fan speeds
Automatic shutdown of intensive
level, programmable for 10 minutes
Automatic shutdown of intensive
level, programmable for 10 minutes
Automatic shutdown of intensive
level, programmable for 10 minutes
Delayed shutdown for 5 or 15 minutes
Delayed shutdown for 5 or 15 minutes
Delayed shutdown for 5 or 15 minutes
Integrated halogen lighting with
dimmer function
Integrated halogen lighting with
dimmer function
Integrated halogen lighting with
dimmer function
Indirect lighting
Indirect lighting
Dishwasher safe metal filters
Dishwasher safe metal filters
Dishwasher safe metal filters
Programmable filter saturation timer
Programmable filter saturation timer
Programmable filter saturation timer
Double sided blower
Double sided blower
Double sided blower
625 CFM max. setting
625 CFM max. setting
625 CFM max. setting
Width: 90 cm (approx. 36 inch)
Width: 42 inch
Width: 120 cm (approx. 48 inch)
Chimney extension kits:
Chimney extension kits:
DATK 252/259-850
DATK 252/259-850
Optional accessories:
Charcoal filter (DKF 9)
Recirculation kit (DUW 10)
Chimney extension kits:
DATK 249-2-610
DATK 249-2-860
Available finishes:
Available finishes:
Available finishes:
Stainless steel
Stainless steel
Stainless steel
RAL colors, over 200 options
52
DA 259-4
DA 279-4
DA 289-4
Vented
Vented or recirculating
Vented
Front mounted controls for
Front mounted controls for
Front mounted controls for
Lights
Lights
4 fan speeds
4 fan speeds
Lights
4 fan speeds
Automatic shutdown of intensive
level, programmable for 10 minutes
Automatic shutdown of intensive
level, programmable for 10 minutes
Automatic shutdown of intensive
level, programmable for 10 minutes
Delayed shutdown for 5 or 15 minutes
Delayed shutdown for 5 or 15 minutes
Delayed shutdown for 5 or 15 minutes
Integrated halogen lighting with
dimmer function
Integrated halogen lighting with
dimmer function
Integrated halogen lighting with
dimmer function
Indirect lighting
Indirect lighting
Dishwasher safe metal filters
Dishwasher safe metal filters
Dishwasher safe metal filters
Programmable filter saturation timer
Programmable filter saturation timer
Programmable filter saturation timer
Double sided blower
Double sided blower
Double sided blower
625 CFM max. setting
625 CFM max. setting
625 CFM max. setting
Width: 90 cm (approx. 36 inch)
Width: 90 cm (approx. 36 inch)
Width: 90 cm (approx. 36 inch)
Optional accessories:
Charcoal filter (DKF 10)
Recirculation kit (DUW 20)
Chimney extension kits:
DATK 252/259-850
Chimney extension kits:
DATK 1-760
Chimney extension kits:
DATK 289-760
Available finishes:
DATK 2-1000
Available finishes:
DATK 289-1080
Available finishes:
Stainless steel
Stainless steel
Stainless steel
53
DA 402
DA 408
DA 409
Vented
Vented or recirculating
Vented or recirculating
Front mounted controls for
Front mounted controls for
Front mounted controls for
Lights
Lights
4 fan speeds
4 fan speeds
4 fan speeds
Automatic shut-off of intensive level,
programmable for 10 minutes
Automatic shut-off of intensive level,
programmable for 10 minutes
Automatic shut-off of intensive level,
programmable for 10 minutes
Delayed shutdown for 5 or 15 minutes
Delayed shutdown for 5 or 15 minutes
Delayed shutdown for 5 or 15 minutes
Integrated halogen lighting with
dimmer function
Integrated halogen lighting with
dimmer function
Integrated halogen lighting with
dimmer function
Dishwasher safe metal filters
Dishwasher safe metal filters
Dishwasher safe metal filters
Programmable filter saturation timer
Programmable filter saturation timers
Programmable filter saturation timers
Double sided blower
Double sided blower
Double sided blower
625 CFM max. setting
625 CFM max. setting
625 CFM max. setting
Width: 120 cm (approx. 48 inch)
Width: 30 inch
Width: 90 cm (approx. 36 inch)
Optional accessories:
Optional accessories:
Charcoal filter (DKF 12)
Recirculation kit (DUW 20)
54
Lights
Charcoal filter (DKF 12)
Recirculation kit (DUW 20)
Chimney extension kits:
Chimney extension kits:
Chimney extension kits:
DATK 39x/40x-770
DATK 39x/40x-770
DATK 39x/40x-770
DATK 39x/40x-1000
Available finishes:
DATK 39x/40x-1000
Available finishes:
DATK 39x/40x-1000
Available finishes:
Stainless steel
Stainless steel
Stainless steel
RAL colors, over 200 options
RAL colors, over 200 options
RAL colors, over 200 options
Miele Dishwashers
Unique in So Many Ways
A Very Quiet Worker
A dishwasher helps keep a kitchen
looking neat and tidy, since for most of its
life a dishwasher just stores dirty dishes!
So while every dishwasher is quiet
performing this task, nothing is quieter
than a Miele when it comes to the
actual cleaning. And that is important
when you decide on your kitchen
design. With a Miele dishwasher purring
away, your kitchen can be as open to the
rest of your house as you wish.
A Size For All Needs
In addition to a standard width, Miele also
offers a Slimline version. This product is
intended to fit an 18 inch opening, making
it ideal for small apartments, entertainment areas or as a secondary dishwasher
in a busy kitchen or pantry.
Miele also offers a special height product,
designed to accommodate special
installations or ADA requirements.
For more details on Miele’s extensive line
of dishwashers, please refer to a separate
brochure, miele.com or ask your product
specialist for assistance.
A Design For All Settings
A Miele dishwasher can take on many
different appearances. When closed, it
can be completely indistinguishable from
the surrounding cabinets, thanks to
concealed controls in the top of the
dishwasher. You can customize many
Miele dishwashers with a cabinet front to
completely hide the appliance or leave
the control panel exposed in black, white
or stainless steel while covering the lower
section only.
Of course, Miele dishwashers are also
available in the traditional finishes black,
white and stainless steel and different
handle options to choose from as well.
Right photo: Featured is the G 2140 SCi Inspira
series dishwasher with a custom door panel.
55
Miele Clean
Floor to Ceiling Clean
For complete peace of mind, homeowners
have found that they simply cannot do
without a Miele vacuum cleaner. Since
1927, Miele has offered advanced
floorcare solutions – designed to meet the
unique and varying needs of diverse home
environments. Ranging from compact
models suited for city living, to more
specialized vacuum cleaners engineered
to help allergy and asthma sufferers or
units designed specifically to care for
smooth floors, plush carpets, delicate area
rugs or flooring somewhere in between.
Thanks to their powerful performance,
advanced filtration and intelligent Sealed
SystemTM design, we invite you to join the
increasing number of satisfied customers
who have found that Miele vacuum
cleaners are simply the most convenient,
effective and hygienic way to rid your
home of unwanted dust, dirt and allergens.
Top photo: Featured above are select models
from the S4 vacuum cleaner series.
Cleaning with Care
Most people when asked what is the
most valuable component of their
washing machine answer, “the motor”.
At Miele we see it differently, because
we know it is the value of the fabrics a
washing machine is asked to clean.
Starting from this perspective, and
combined with over 107 years of
know-how making laundry products, a
Miele washing machine will not only
clean your clothes, but care for them at
the same time. Nothing, not even
hand-washing can be so gentle, yet so
thorough.
Right photo: Featured in stainless steel are the
T 1415 tumble dryer and W 1215 washing machine.
56
Support Services You Can Count On
From the Beginning
Miele’s philosophy is that the relationship with the consumer just begins with
the purchase of one of our appliances.
It is our belief that at the time of
purchase, we are entering into a longterm partnership with you and your
family. A partnership that includes
installation and technical services that
you can count on for a lifetime.
Installation Made Easy
To ensure that you begin enjoying your
new Miele products from the first day
on, it is recommended that you use an
authorized Miele installer. Not only will
they get the job done right the first time,
they’ll also walk you through the
product, giving an overview of its usage.
Worry-free Operation
MieleCare is our unique Extended
Service Contract program. With MieleCare
your investment is protected by an
amplified five year, worry free contract
that includes:
●
Genuine Miele parts;
● Factory-trained technical specialists;
●
Power surge protection and more.
MieleCare is the only Extended Service
Contract in the industry that guarantees
repairs by a Miele Authorized Service
Provider using only genuine Miele parts.
Only genuine Miele parts installed by
factory-trained
professionals
can
guarantee the safety, reliability and
longevity of your Miele appliance.
Please note that unless expressly
approved in writing by Miele's Service
Department, Extended Service Contracts
offered by other providers for Miele
products will not be recognized by
Miele. Our goal here is to prevent
unauthorized (and untrained) service
personnel from working on your Miele
products, possibly doing further damage
to them, you and/or your home.
For your convenience, you can purchase
a MieleCare Extended Service Contract
on your new appliance from your
Miele dealer either at the time you buy
the product or anytime within the first
year. You can also purchase the
contract directly from Miele by visiting
miele.com or by calling us toll free at
800-356-0991.
Miele is so confident in the benefits of
this service that the warranty of any
products installed by a Miele authorized
installer is doubled to two years.
As with most superior products, service
by finely trained technicians is part of
the Miele experience. Our technicians
must complete a demanding technical
certification program, facilitated and
taught by the Miele Technical Training
Support Group.
57
Cooking Product
Accessories
HUB 61-22 Gourmet Oven Dish
HGE 60 / 70 Rotisserie (not shown)
The HGE 60 rotisserie can be used in the
H 4680 B ovens; the HGE 70 can be used in
the H 4780 B / BP ovens. It evenly broils and
adds a finishing touch to stuffed meat, tied
roasts, poultry and kabobs by gently turning
the items during the broiling function.
Stainless Steel Housing Units
CVSG 50: Sitting housing unit. Allows for
the CVA 2650 coffee system to stand alone
on any countertop.
CVUG 50: Hanging housing unit. Allows for
installation of the CVA 2650 coffee system
under upper cabinets.
58
HUB 61-35 Gourmet Oven Dish
Deep sided oven dish, high quality cast
aluminum base with Teflon® Platinum
coating. Suitable for use in all current Miele
ovens (sits in the shelf supports of 60 cm
wide ovens and may be placed on the wire
rack or baking tray in wider ovens). Also
suitable for cooking on conventional
ceramic cooktops. Not suitable for gas
cooktops.
W x D x H: 15 x 81/2 x 31/2 inch
For 8 -10 servings
Deep sided oven dish, high quality cast
aluminum base with Teflon® Platinum
coating. Suitable for use in all current Miele
ovens (sits in the shelf supports of 60 cm
wide ovens and may be placed on the wire
rack or baking tray in wider ovens). Also
suitable for cooking on conventional
ceramic cooktops. Not suitable for gas
cooktops.
W x D x H: 15 x 14 x 31/2 inch
For 16-20 servings
HBD 60-22 Gourmet Oven Dish Lid
HBD 60-35 Gourmet Oven Dish Lid
Stainless steel lid with stainless steel
handle. For use with HUB 61-22 gourmet
oven dish. Total height with HUB 61-22 is
61/2 inches.
Stainless steel lid with stainless steel
handle for use with HUB 61-35 gourmet
oven dish. Total height with HUB 61-35 is
81/2 inches.
HBS 60 Gourmet Baking Stone
Glazed firebrick with easy-clean surface
coating. Suitable for use on the wire rack in
all current Miele ovens. For baking pizza,
bread and rolls. Excellent heat storage
properties that ensure crispy results.
Supplied with wooden paddle.
Perforated Cooking Pan
DGGL 4: Capacity: 4.2 quart / 4.0 liter
W x D x H: 13 x 101/2 x 21/2 inch
DGGL 5: Capacity: 2.6 quart / 2.5 liter
W x D x H: 13 x 7 x 21/2 inch
DGGL 6: Capacity: 4.2 quart / 4.0 liter
W x D x H: 13 x 7 x 4 inch
Suitable for use in Miele’s steam oven.
HPT 1 Gourmet Pizza Form
This 101/2 inch circular pan is PerfectClean
coated and perfect for cooking pizza and
quiche. It is particularly suitable for use in
ovens, which have the Intensive Bake
mode.
Solid Cooking Pan
DGG 2: Capacity: 2.6 quart / 2.5 liter
W x D x H: 13 x 7 x 21/2 inch
DGG 3: Capacity: 4.2 quart / 4.0 liter
W x D x H: 13 x 101/2 x 21/2 inch
DGG 7: Capacity: 4.2 quart / 4.0 liter
W x D x H: 13 x 7 x 4 inch
Suitable for use in Miele’s steam oven.
KMGP 340 Griddle Plate
Provides a ridged pattern grill surface
across two burners for cooktop grilling.
KMSP 340 Simmer Plate
For use with small pots or to achieve a
more even heat distribution.
GCEO Dishwasher Insert
For use with the CVA 2000 series’
Cappuccinatore. The pitcher can be
disassembled into 7 pieces, and the
dishwasher insert has a special spot for
each component ensuring perfect cleaning
results.
KMTT 5A / 6A Circular Grate Set
As an option, you may consider customizing
your Miele gas cooktop using the circular
grate design to add a unique appeal to your
kitchen.
MES 45 Mobile Coffee Cart
Designed to house the CVA 2660 coffee
system with an ESS 2060 system drawer.
Laminate front panels in almond with
reproduction walnut. Stainless steel
handles. Two laminated adjustable
shelves. Integrated pull-out for cups and
saucers. Dimensions: 251/2”Wx24”Dx64”H.
Handle Options
Three handle designs in stainless steel let
you customize the look of your Miele
appliances to match your personal taste...
also making future kitchen style changes
easy. Choose from square (top), Profi
(middle) or classic (bottom) designs. Please
consult your authorized Miele dealer for
complete details.
59
Miele, Inc.
✆800.843.7231
609.419.4298
miele.com
Beverly Hills
310.855.9470
Boca Raton
800.220.1744 x 5752
Boston/Wellesley
781.431.2225
Chicago/Kenilworth
800.843.7231 x 4838
Dallas
800.843.7231 x 5137
Denver
303.893.1423
Princeton
800.843.7231
Salt Lake City
801.466.0569
San Francisco
415.431.8686
Seattle
206.574.0770
Every effort has been made to ensure that the
information given in this brochure is correct
at the time of printing. However, due to
continuous product improvement, Miele reserves the right to make changes to products
and technical data without prior notice.
©2006 Miele, Inc.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
