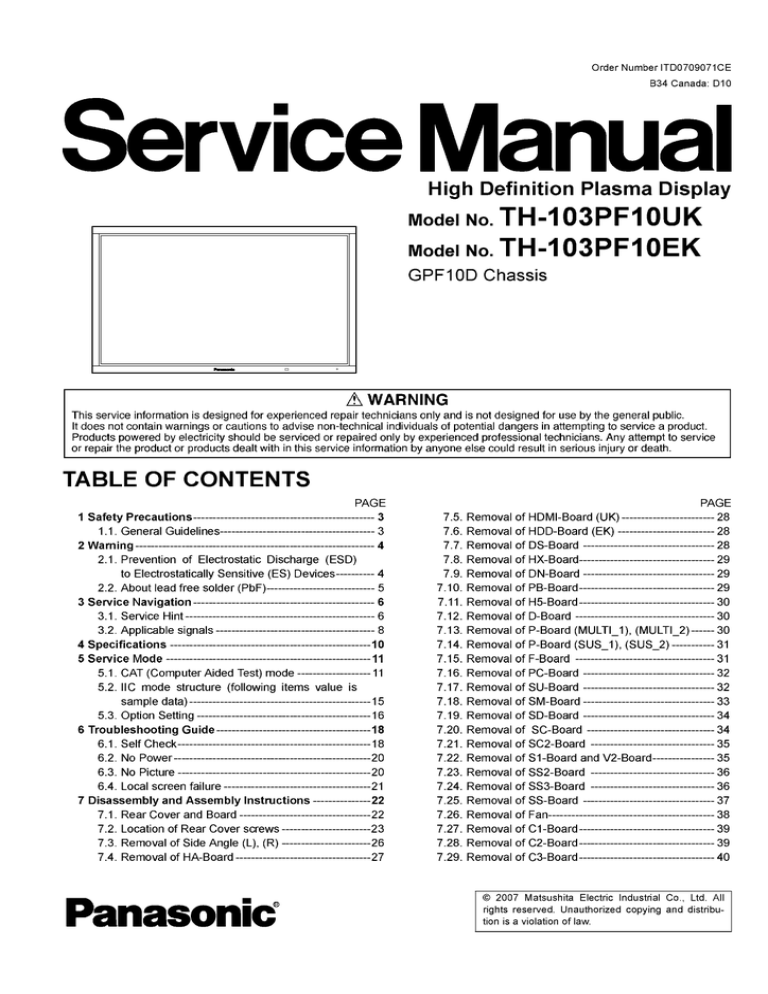

O rder Num ber ITD 0709071CE

B34 Canada: D10

Service Manual

High Definition Plasma Display

Model No.

TH-103PF10UK

Model No.

TH-103PF10EK

GPF10D Chassis

A

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.

Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

TABLE OF CONTENTS

PAGE

1 Safety Precautions------------------------------------------------------- 3

1.1. General Guidelines----------------------------------------------- 3

2 W arn in g ------------------------------------------------------------------------4

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) D evices------------- 4

2.2. About lead free solder (PbF)--------------------------------- 5

3 Service N avigation------------------------------------------------------- 6

3.1. Service H in t--------------------------------------------------------- 6

3.2. Applicable s ig n a ls ------------------------------------------------ 8

4 S p e c ific a tio n s ------------------------------------------------------------ 10

5 Service M o d e --------------------------------------------------------------11

5.1. CAT (Computer Aided Test) m o d e ----------------------- 11

5.2. IIC mode structure (following items value is sample d a ta )------------------------------------------------------ 15

5.3. Option S e ttin g ---------------------------------------------------- 16

6 Troubleshooting G u id e ---------------------------------------------- 18

6.1. Self Check----------------------------------------------------------18

6.2. No P o w e r-----------------------------------------------------------20

6.3. No P ic tu re --------------------------------------------------------- 20

6.4. Local screen fa ilu re -------------------------------------------- 21

7 Disassem bly and A ssem bly In s tru c tio n s ------------------ 22

7.1. Rear C over and B o a rd ----------------------------------------22

7.2. Location of Rear Cover s c re w s ------------------------- 23

7.3. Removal of Side Angle (L), ( R ) ------------------------- 26

7.4. Removal of H A -B oard-----------------------------------------27

PAGE

7.5. Removal of HDMI-Board (U K )---------------------------- 28

7.6. Removal of HDD-Board (E K )----------------------------- 28

7.7. Removal of D S -B o a rd --------------------------------------- 28

7.8. Removal of HX-Board---------------------------------------- 29

7.9. Removal of D N -B o a rd --------------------------------------- 29

7.10. Removal of PB-Board---------------------------------------- 29

7.11. Removal of H 5-B oard---------------------------------------- 30

7.12. Removal of D -B o a rd ------------------------------------------30

7.13. Removal of P-Board (MULTI_1), (M ULTI_2)------30

7.14. Removal of P-Board (SUS_1), (S U S _ 2 )-------------- 31

7.15. Removal of F -B o a rd ------------------------------------------ 31

7.16. Removal of P C -B o a rd --------------------------------------- 32

7.17. Removal of S U -B o a rd ---------------------------------------- 32

7.18. Removal of S M -B o a rd --------------------------------------- 33

7.19. Removal of S D -B o a rd --------------------------------------- 34

7.20. Removal of S C -B o a rd -------------------------------------- 34

7.21. Removal of S C 2 -B o a rd ------------------------------------- 35

7.22. Removal of S1-Board and V 2-B oard------------------- 35

7.23. Removal of SS2-Board ------------------------------------- 36

7.24. Removal of SS3-Board ------------------------------------- 36

7.25. Removal of S S -B o a rd --------------------------------------- 37

7.26. Removal of Fan--------------------------------------------------38

7.27. Removal of C 1-B oard---------------------------------------- 39

7.28. Removal of C 2-B oard---------------------------------------- 39

7.29. Removal of C 3-B oard---------------------------------------- 40

Panasonic'

© 2007 M atsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribu­ tion is a violation of law.

TH-103PF10UK/EK

7.30. Removal of C4-Board ------------------------------- ------- 41

7.31. Removal of C5-Board ------------------------------- ------- 41

7.32. Removal of C6-Board ------------------------------- ------- 42

7.33. Removal of C7-Board ------------------------------- ------- 42

7.34. Removal of C8-Board ------------------------------- ------- 43

7.35. Removal of C9-Board ------------------------------- ------- 43

7.36. Removal of C X-Board------------------------------- ------- 44

7.37. Removal of C Y-Board------------------------------- ------- 44

7.38. Removal of C Z-Board------------------------------- ------- 45

7.39. Removal of DR1-Board (A )----------------------- ------- 45

7.40. Removal of DR1-Board (B )----------------------- ------- 46

7.41. Removal of DR2-Board (A) ----------------------- ------- 46

7.42. Removal of DR2-Board (B) ----------------------- ------- 46

7.43. Removal of CD-Board------------------------------- ------- 47

7.44. Removal of AC In le t--------------------------------- ------- 48

7.45. Removal of Cabinet and Front G lass------- ------- 48

7.46. Removal of V1-Board and V 3-B oard----------------- 51

7.47. Removal of Plasma P a n e l------------------------ ------- 51

8 Measurements and A d ju s tm e n ts ------------------------------58

8.1. A djustm ent P rocedure--------------------------------------- 58

8.2. A djustm ent--------------------------------------------------------62

9 Block D ia g ra m ---------------------------------------------------------- 67

9.1. D iagram N ote---------------------------------------------------- 67

9.2. Main (1 of 2) Block Diagram------------------------------- 68

9.3. Main (2 of 2) Block Diagram------------------------------- 69

9.4. P-Board (1 of 2) and F-Board Block Diagram----- 70

9.5. P-Board (2 of 2) Block D ia g ra m --------------------------71

9.6. HA, HX, PC, PB, V1, V2 and V3-Board Block

Diagram------------------------------------------------------------ 72

9.7. HDMI-Board (1 of 2) Block D ia g ra m -------------------73

9.8. HDMI-Board (2 of 2) Block D ia g ra m -------------------74

9.9. HDD-Board Block D iagram -------------------------------- 75

9.10. DS-Board (1 of 2) and H3-Board Block

Diagram------------------------------------------------------------ 76

9.11. DS-Board (2 of 2) Block D iagram ----------------------- 77

9.12. DN-Board (1 of 2) Block D iagram ----------------------- 78

9.13. DN-Board (2 of 2) Block D iagram ----------------------- 79

9.14. D-Board (1 of 2) Block D iagram ------------------------- 80

9.15. D-Board (2 of 2) Block D iagram --------------------------81

9.16. C1, C2, CY and CZ-Board Block Diagram -------- 82

9.17. C2, C3, CX and CY-Board Block D iagram -------- 83

9.18. C4, C5, C8 and C9-Board Block D ia g ra m -------- 84

9.19. C5, C6, C7 and C8-Board Block D ia g ra m -------- 85

9.20. SC2 and S1-Board Block D ia g ra m --------------------- 86

9.21. SC-Board Block D ia g ra m ---------------------------------- 87

9.22. SU, SM and SD-Board Block D ia g ra m --------------- 88

9.23. SS, SS2 and SS3-Board Block D iagram ------------- 89

9.24. DR1, DR2 and CD-Board Block D iagram ------------90

10 W iring Connection D iagram -------------------------------------- 91

10.1. Interconnection (1 of 8) D iagram ------------------------ 91

10.2. Interconnection (2 of 8) D iagram ------------------------92

10.3. Interconnection (3 of 8) D iagram ------------------------93

10.4. Interconnection (4 of 8) D iagram ------------------------94

10.5. Interconnection (5 of 8) D iagram ------------------------95

10.6. Interconnection (6 of 8) D iagram ------------------------96

10.7. Interconnection (7 of 8) D iagram ------------------------97

10.8. Interconnection (8 of 8) D iagram ------------------------98

10.9. Lead Wiring ( 1 ) ------------------------------------------------- 99

10.10. Lead Wiring ( 2 ) ----------------------------------------------100

10.11. Lead Wiring ( 3 ) ---------------------------------------------- 101

10.12. Lead Wiring ( 4 ) ----------------------------------------------102

10.13. Lead Wiring (5 )-----------------------------------------------103

10.14. Lead Wiring (6 )-----------------------------------------------104

10.15. Lead Wiring (7 )-----------------------------------------------105

10.16. Lead Wiring (8 )-----------------------------------------------106

10.17. Lead Wiring (9 )-----------------------------------------------107

11 Exploded View and Replacement Parts List-----------108

2

TH-103PF10UK/EK

1 Safety Precautions

1.1. General Guidelines

1. W hen conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials.

2. W hen wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the wires have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead.

3. W hen conducting repairs and servicing, do not twist the Faston connectors but plug them straight in or unplug them straight out.

4. W hen servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit.

5. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

6. After servicing, make the following leakage current checks to prevent the custom er from being exposed to shock hazards.

1.1.1. Leakage Current Cold Check

1. Unplug the AC cord and connect a jum per between the two prongs on the plug.

2. Measure the resistance value, with an ohmmeter, between the jumpered AC plug and each exposed metal­ lic cabinet part on the equipm ent such as screwheads, connectors, control shafts, etc. W hen the exposed metal­ lic part has a return path to the chassis, the reading should be between 1Mohm and 5.2Mohm.

W hen the exposed metal does not have a return path to the chassis, the reading must beO O .

1.1

1.2.

Leakage Current Hot Check (See

Figure 1.)

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transform er for this check.

2. Connect a 1.5kohm, 10 watts resistor, in parallel with a

0.15|iF capacitors, between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Figure 1.

3. Use an AC voltmeter, with 1000 ohm s/volt or more sensi­ tivity, to measure the potential across the resistor.

4. Check each exposed metallic part, and measure the volt­ age at each point.

5. Reverse the AC plug in the AC outlet and repeat each of the above measurements.

6. The potential at any point should not exceed 0.75 volts

RMS. A leakage current tester (Simpson Model 229 or equivalent) may be used to make the hot checks, leakage current must not exceed 1/2 milliamp. In case a measure­ ment is outside of the limits specified, there is a possibility of a shock hazard, and the equipm ent should be repaired and rechecked before it is returned to the customer.

Figure 1

3

TH-103PF10UK/EK

2 Warning

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensi­ tive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components comm only are called Elec­ trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and sem iconductor "chip" components. The following techniques should be used to help reduce the incidence of com ponent damage caused by electrostatic discharge (ESD).

1. Immediately before handling any sem iconductor com ponent or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and w ear a comm ercially available discharging ESD w rist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.

2. A fter removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as alumi­ num foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD protected)" can generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or compara­ ble conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the brush­ ing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device).

IMPORTANT SAFETY NOTICE

T here are sp e cia l c o m p o n e n ts used in this e q u ip m e n t w hich are im porant for safety.

T hese p a rts are m arked by Д in the schem atic diagram s, Exploded View s and replacem ent p arts list. It is essential that th e se critical p a rts should be replaced with m anufacturer's sp ecified parts to prevent shock, fire, or o th er hazards. Do not m odify th e original design w ithout perm ission of m anufacturer.

4

TH-103PF10UK/EK

2.2. About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table o f elements.

In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.

The Lead Free S older used in our m anufacturing process and discussed below is (Sn+Ag+Cu).

T hat is Tin (Sn), Silver (Ag) and C opper (Cu) although other types are available.

This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, w e ’d suggest the use of Pb free solder as well, although Pb solder may be used.

PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.

Caution

• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please use a high tem perature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).

If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb sol­ der. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

• After applying PbF solder to double layered boards, please check the com ponent side for excess solder which may flow onto the opposite side. (see figure below)

Suggested Pb free solder

There are several kinds of Pb free solder available fo r purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. How­ ever, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.

5

TH-103PF10UK/EK

3 Service Navigation

3.1. Service Hint

6

TH-103PF10UK/EK

D

Board Name

DS

C3

C4

C5

C6

C7

C8

C9

SS

SC

SC2

SU

SM

SD

C1

C2

Function

Digital Signal Processor,

Form at Converter,

Plasma A I Processor

Sub-Field Processor

CX

CY

CZ

H5

Slot Interface (Audio / Video / Sync Input S1

Switch),

SYNC Processor, Audio Processor,

SS2

SS3

Speaker Out Amplifier,

DC-DC Converter

V1

Board Name

Sustain Drive

Scan Drive

DC-DC C onverter For Scan Drive

V2

V3

PB

Scan Out (Upper)

Scan Out (Middle)

Scan Out (Lower)

Data Drive (1)

Data Drive (2)

Data Drive (3)

Data Drive (4)

Data Drive (5)

Data Drive (6)

Data Drive (7)

Data Drive (8)

Data Drive (9)

P(SUS_1/2)

P(MULTI_1/2)

F

PC

HX

HA

DN

HDD

HDMI

CD

DR1

DR2

Note:

Extension cable kit for Slot Board is supplied as service fixtures and tools.

(Part No. TZSC07040)

Data Drive (X)

Data Drive (Y)

Data Drive (Z)

Audio Out

Pow er Switch

Sustain Out (Upper)

Sustain Out (Lower)

LED_G, R

Function

Key Scan

Rem ocon Receiver

Fan Control

Power Supply

Pow er Supply

Line Filter

Power Control

PC / RS-232C

BNC Com ponent Video

Digital Signal Processor, M icrocom puter

DVI-D Terminal (EK)

Dual HDMI (UK)

C-Board / D-Board Connection

Energy Data Recovery

Energy Data Recovery

7

TH-103PF10UK/EK

3.2. Applicable signals

Applicable input signals for Component

I

RGB, Mini D-sub 15P(* Mark)

39

40

41

42

33

34

35

36

37

38

29

30

31

32

25

26

27

28

43

44

45

46

47

48

49

50

18

19

20

21

22

23

24

14

15

16

17

10

11

12

13

7

8

9

5

6

3

4

1

2

Signal name

525 (480) / 60i

525 (4 8 0 )/6 0 p

625 (575) / 50i

625 (5 7 5 )/5 0 p

625 (5 7 6 )/5 0 p

750 (7 2 0 )/6 0 p

750 (7 2 0 )/5 0 p

1,125 (1,080) / 60p

1,125 (1,080) / 60i

1,125 (1,080) / 50p

1,125 (1,080) / 50i

1,125 (1 ,0 8 0 )/2 4 s F

1,125 (1 ,0 8 0 )/3 0 p

1,125 (1 ,0 8 0 )/2 5 р

1,125 (1 ,0 8 0 )/2 4 р

1,250 (1,080) / 50i

640 x 400 @70 Hz

640 x 480 @60 Hz

640 x 480 @72 Hz

640 x 480 @75 Hz

640 x 480 @85 Hz

800 x 600 @56 Hz

800 x 600 @60 Hz

800 x 600 @72 Hz

800 x 600 @75 Hz

800 x 600 @85 Hz

852 x 480 @60 Hz

1,024 x 768 @50 Hz

1,024 x 768 @60 Hz

1,024 x 768 @70 Hz

1,024 x 768 @75 Hz

1,024 x 768 @85 Hz

1,066 x 600 @60 Hz

1,152 x 864 @60 Hz

1,152 x 864 @75 Hz

1,280 x 960 @60 Hz

1,280 x 960 @85 Hz

1,280 x 1,024 @60 Hz

1,280 x 1,024 @75 Hz

1,280 x 1,024 @85 Hz

1,366 x 768 @50 Hz

1,366 x 768 @60 Hz

1,400 x 1,050 @60 Hz

1,600 x 1,200 @60 Hz

1,600 x 1,200 @65 Hz

1,920 x 1,080 @60 Hz

1,920 x 1,200 @60 Hz

Macintosh13” (6 4 0 x 4 8 0 )

Macintosh16” (8 3 2 x 6 2 4 )

Macintosh21” (1 ,1 5 2 x 870)

Horizontal frequency (kHz) Vertical frequency (Hz)

37.64

53.70

67.50

60.00

85.94

63.98

79.98

91.15

39.55

48.36

46.88

53.67

31.47

39.55

48.36

56.48

60.02

68.68

65.22

75.00

81.25

67.50

74.04

35.00

49.72

68.68

31.47

37.86

37.50

43.27

35.16

37.88

48.08

56.26

28.13

27.00

33.75

28.13

27.00

31.25

31.46

15.73

31.47

15.63

31.25

31.25

45.00

37.50

67.50

33.75

59.94

60.00

75.00

60.00

85.00

60.02

75.03

85.02

50.00

60.00

75.00

85.06

59.94

50.00

60.00

70.07

75.03

85.00

60.00

60.00

65.00

60.00

59.95

66.67

74.54

75.06

59.94

72.81

75.00

85.01

56.25

60.32

72.19

50.00

50.00

47.92

30.00

25.00

24.00

50.00

70.07

59.94

59.94

50.00

50.00

50.00

60.00

50.00

60.00

60.00

Component / RGB / Mini D-sub

15P (Dot clock (MHz))

4 (13.5)

4 (27.0) * 4

4 (13.5)

4 (27.0)

4 (74.25)

4 (74.25)

4 (148.5) *1

4 (74.25) *1

4 (148.5) *1

4 (74.25) *1

4 (74.25) *1

4 (74.25) *1

4 (74.25) *1

4 (74.25) *1

4 (74.25) * 2

4 (25.17)

4 (25.18) * 5

4 (31.5)

4 (31.5)

4 (36.0)

4 (36.0)

4 (40.0)

4 (50.0)

4 (49.5)

4 (56.25)

4 (33.54) * 5

4 (65.0)

4 (75.0)

4 (78.75)

4 (94.5)

4 (53.0)

4 (108.0)

4 (108.0)

4 (148.5)

4 (108.0)

4 (135.0)

4 (157.5)

4 (86.71)

4 (162.0)

4 (175.5)

4 (148.5) * 3

4 (30.24)

4 (57.28)

4 (100.0)

1: Based on SMPTE274M standard.

2: Based on SMPTE295M standard.

3: The input signal is recognized as 1,125 (1,080)

1

60p.

4: When selected the RGB format and 525p signal input to the Mini D-sub 15P terminal, it is recognized as VGA60Hz signal.

5: When inputted VG A60Hz format signal from the other than Mini D-sub 15P terminal, it is recognized as 525p signal

Note: Signals without above speci cation may not be displayed properly.

8

TH-103PF10UK/EK

VIDEO input (HDMI)

Signal format

1 VGA60

2 525/60p

3 625/50p

4 750/60p

5 750/50p

6 1125/60i

7 1125/50i

8

1125/60p*

9

1125/50p*

10

1125/24p*

Vertical frequency (Hz)

Horizontal frequency (kHz)

59.94

59.94

50.00

60.00

50.00

60.00

50.00

60.00

50.00

24.00

31.47

31.47

31.25

45.00

37.50

33.75

28.13

67.50

56.26

27.00

*N o t compatible with HDMI Terminal Board (TY-FB8HM)

A udio signal Linear PCM : 48/44.1/32 kHz

Dot clock

(MHz)

25.18

27.00

27.00

74.25

74.25

74.25

74.25

148.50

148.50

74.25

Number of active pixels

640

720

720

1280

1280

1920

1920

1920

1920

1920

Total number of pixels

800

858

864

1650

1980

2200

2640

2200

2640

2750

Number of active lines

480

480

576

720

720

1080

1080

1080

1080

1080

Total number of lines

525

525

625

750

750

1125

1125

1125

1125

1125

9

TH-103PF10UK/EK

4 Specifications

Power Source (UK)

Power Source (EK)

Power Consumption

Power on (UK)

Power on (EK)

Stand-by condition

Pow er off condition

Plasma Display panel

Screen size

(No. o f pixels)

Operating condition

Temperature

Humidity

Applicable signals

Scanning form at

PC signals

Connection terminals

HDMI A-B (UK)

DVI-D (EK)

CO M PO N EN T / RGB IN

PC IN

200 V - 240V AC, 50 / 60Hz

220 V - 240 V AC, 50 / 60Hz

1,550 W

1,500 W

Save OFF 1.0 W, Save ON 0.9 W

0.5 W

Drive method: AC type 103-inch, 16:9 aspect ratio

89.5” (2,269 mm) (W) x

50.5” (1,277 mm) (H) x

103” (2,604 mm) (diagonal)

2,073,600 (1,920 (W) x

1,080 (H)) [5,760 x

1,080 dots]

32

°

F - 104

°

F (0

°

C - 40

°

C)

20 % - 80 %

525 (480) / 6 0 i* 6 0 p , 625 (575) / 5 0 i* 5 0 p , 750 (720) / 6 0 p * 5 0 p , 1125 (1080) /

60i * 60p * 50i * 50p * 24p * 25p * 30p * 24sF, 1250 (1080) / 50i

VGA, SVGA, XG A, SXGA,

U X G A .....(com pressed)

Horizontal scanning frequency 15 - 110 kHz

Vertical scanning frequency 48 - 120 Hz

TYPE A Connector x 2

Video Input

Audio Input

Content Protection

Y / G (BNC)

PB / B (BNC), PR / R (BNC)

AU D IO IN (RCA PIN JA C K x

2)

(HIG H-DENSITY Mini D-SUB 15PIN)

B / P b

/ C b

R / P r

/ C r

:

HD / VD:

VBS (use HD port) (EK)

AU D IO IN (M3 JACK)

EXTERNAL CO NTRO L TERM INAL (D-SUB 9PIN)

RCA PIN JA C K x

2 (L / R)

DVI-D 24 Pin x

1 compliance with DVI Revision 1.0

Stereo mini jack (M3) x

1

0.5Vrms

Compatible with HDCP 1.1 with / sync 1.0 Vp-p (75-ohm)

0.7 Vp-p (75-ohm)

0.5 Vrms

Y or G with / sync 1.0 Vp-p (75-ohm)

Y or G w ithout / sync 0.7 Vp-p (75-ohm)

0.7 Vp-p (75-ohm)

0.7 Vp-p (75-ohm)

1.0 - 5.0 Vp-p (high impedance) with / picture 1.0 Vp-p (high impedance) without / picture 0.3 Vp-p (high impedance)

0.5 Vrms (high im pedance)

RS-232C COMPATIBLE SERIAL

AU D IO OUT

O UTPUT LEVEL : VARIABLE (-< *> - 0 dB)

[INPUT 1KHz / 0dB, 10Kohm Load]

Accessories Supplied

Remote Control Transm itter EUR7636070R

(UK)

Remote Control Transm itter EUR7636090R

(EK)

Batteries (UK)

Batteries (EK)

Fixing bands

Dimensions (W

x

H

x

D)

A A Size x 2

R6 Size x 2

(TM ME203) x

2

95.0” (2,414 mm) x

56.0” (1,421 mm) x

5.0” (129 mm) (5.6” (141 mm) when including protruding portion of slots)

Mass (weight)

main unit only (UK) main unit only (EK) approx. 485.0 lbs approx. 220.0 kg net

Notes:

Design and specifications are subject to change without notice. M ass and dim ensions shown are approximate.

This equipm ent com plies with the EMC standards EN55022, EN55024, EN61000-3-2, EN61000-3-3. (TH-103PF10EK)

10

5 Service Mode

5.1. CAT (Computer Aided Test) mode

TH-103PF10UK/EK

To exit the CAT m ode, access the ID mode and switch off the main power.

5.1.1. IIC mode

Select the IIC mode by Up / Down button on the remote control at the front page of CAT mode and then press the Action button on the remote control.

OSD

OTHER: JUST Mid

Panel W/B Adj.

R-Drive

-

Subject

Item

E8 E8

T

. New data

Original data

How to use the 11C mode.

1. Select the alignment Subject by Up/Down

buttons on the remote control.

2 Select the alignment Item by Left/Right buttons on the remote control.

3. Adjust optimum setting by Volume Up/Down

buttons on the remote control.

4. The data is memorized when press the R button on the remote control or change the alignment

Subject (or Items).

Subject and item are mentioned on “ IIC mode structure”.

To exit the IIC mode, press the R button on the remote control.

11

TH-103PF10UK/EK

5.1.2. CD mode

Select the CD mode by Up / Down button on the remote control at the front page of CAT mode and then press the M ute button on the remote control more than 3 seconds.

CD

MOSI I TOR—MCU

MON 1 TOR—EEPROM DN

MONITOR-EEPROM H

MONITOR-FPGA 1/2

MONITOR-EEPROM Change Addr

Data

PANEL-MCU

PANEL-EEPROM

PANEL-FPGA

PANEL-PDROM

PTCT

1.0100F10

OK !

71.01 1 ЗС 7C !

7. 00

10

ED 4B ;

5

00

01

7T00

97103

97102

01

01 ■

98100

00. (10. 00. 00. 00. ■

Factory use

■ New data

■SOS history

■Original data

Microcomputer software version (IC4002), this version can be upgrade by

1. replace of new version IC

2. Loading the new version software from loader tool, TZSC07036.

Memory data change

Address

0

_

0

... Change by U p /D o w n buttons on the remote control.

Change by L e ft/R ig h t buttons on the remote control.

Data

0 0

■Change by V O L Up /D o w n buttons on the remote control.

The data is memorized when switch off the main power.

To exit the CD mode, press the R button on the remote control.

5.1.3. SD mode

Select the SD mode by Up / Down button on the remote control at the front page of CAT mode and then press the Action button on the remote control.

To exit the SD mode, press the R button on the remote control.

12

TH-103PF10UK/EK

5.1.4. MS mode

Select the MS mode by Up / Down button on the remote control at the front page of CAT mode and then press the Mute button on the remote control more than 3 seconds.

To exit the MS mode, press the R button on the remote control.

Caution:

Market Select should be set after exchange of DN-Board.

Destination number

13

14

15

9

10

11

12

7

8

5

6

Num ber

2

3

0

1

4

Destination

Japan

North Am erica

Europe

Others

Britain

Taiwan

Thailand

--

Japan (Hotel)

North Am erica (H otel)

Europe (Hotel)

--

Britain (Hotel)

--

Thailand (Hotel)

--

29

30

31

25

26

27

28

21

22

23

24

Num ber

16

17

18

19

20

1

Num ber

Default setting

Destination

North Am erica

Destination

--

--

China

China (Hotel)

Russia

Russia (Hotel)

Hong Kong

--

--

--

--

--

M iddle East/Hong Kong

M iddle East/Hong Kong (Hotel)

Australia

Australia (Hotel)

13

TH-103PF10UK/EK

5.1.5. ID mode

Select the ID mode by Up / Down button on the remote control at the front page of CAT mode and then press the Mute button on the remote control more than 3 seconds.

Qjj] N C O М С 2 П М С З П М С 4 П s O

IC4606 OK H61

IC5101 OK H56

IC5603 OK H57

IC4609 OK H31

IC5103 OK H32

IC5102 OK H33

IC5301 OK H51

IC8181 OK H51 I

IC3001 OK H22

IC3003 OK H63

IC3004 OK H64

IC3005 OK H65

IC2303 OK H21

PANEL OK ■

MON I TOR—MCU 1.0100F10 II

OK I

MONITOR-EEPROM DN 71.00 1 ЗС 7C

PANEL-MCU/EEPROM 7.00

97.03

To exit the ID mode, press the R button on the remote control.

14

5.2. IIC mode structure (following items value is sample data)

TH-103PF10UK/EK

15

TH-103PF10UK/EK

5.3. Option Setting

16

TH-103PF10UK/EK

Option Menu for G PF10D series

GPH10D chassis series have special function and operation setting facility called Option Menu. This Option Menu is use­ ful for special function required customers. This should be set at the installation stage.

Option menus

W eekly Com m and Timer

O nscreen display

Initial INPUT

Initial VOL level

M aximum VOL Level

INPUT lock

Button lock

Rem ocon User Level

Advanced PIP

Off-tim er function

Initial Power Mode

ID select

Remote ID

Serial ID

Display size

Studio W/B

Studio Gain

Slot power

Power On Screen Delay

V. Installation

Rotate

Serial Slot Select

---

On default setting

O ff

O ff

O ff

O ff

O ff

O ff

O ff

Enable

Normal

0

O ff

O ff

O ff

O ff

O ff

O ff

O ff

O ff

O ff

Slot1

Contents

O ff-tim er Sets W eekly Com mand Timer. Enable/Disable.

Enable/Disable to display input mode indication after power on and no signal indication.

Sets the initial input mode when the pow er is turned on. Allow input mode selec­ tion while pow er is on.

Sets the initial volum e level when the power is turned on. Allow Volume control while power is on.

Sets the m aximum volum e to desired level. Volume cannot exceed this level.

Fixes the input mode to AV, Com ponent/RG B or PC. Can not change input mode by input selection key

Enable/Disable bottom operation buttons (Input, Menu, Enter and/or volum e up/ down)

Remote key invalidation.

Off: Valid key is all key o f remote.

User1: Valid key are only Stand-by (ON/OFF), Input, Direct input, Status, Sur­ round, Sound mute On/Off, and volum e adjustment.

User2: Valid key is only Stand-by (ON/OFF).

User3: All keys are null and void

Off: Sets normal two screen display mode.

On: Sets Advanced PIP mode.

O ff-tim er operation Enable/Disable.

Sets the power mode o f the unit for when the power recovers from failure or after plugging o ff and in again.

Set ID num ber from 0 to 100.

Remote ID function On/Off.

(While the Remote ID on, standard remote function can not control the unit.)

Serial ID function O n/O ff

Adjusts the im age display size on screen.

On: Sets the image display size approxim ately 95% o f the norm al im age dis­ play.

Set warm mode color tem perature to 3,200 Kelvin.

Sharpens the contrast for a better view when a part o f the image is too light to see

Sets the slot power mode while the power is turned on.

Allow O ptional Terminal Board insert Slots while power is on.

You can set the power-on delay time o f the displays to reduce the power load, when you press ( [ ) / | to turn on the m ultiple displays that are set together, for example, on MULTI DISPLAY system.

Set each display'fs setting individually.

V. Installation function O n/O ff (Not used)

The image rotates 180 degrees (up-down)

Selects the slot which com m unicates serial.

Note:

The setting o f an external com m and can be set only from the fixed serial term inal.

Note:

W hen both main unit buttons and remote control are disabled due to the "Button lock", "Remocon User level" or "Rem ote ID" adjustments, set all the values "Off" so that all the buttons are enabled again.

Press the "Volume down" button on main unit together with "R" button on the remote control and hold for more than 5 seconds.

The "SHIPPING" menu is displayed and the lock is released when it disappears.

17

TH-103PF10UK/EK

6 Troubleshooting Guide

6.1. Self Check

6.1.1. Display Indication

1. Self-check is used to autom atically check the bus line controlled circuit of the Plasma display.

2. To get into the Self-check mode, press the volum e down button on the custom er controls at the side of the set, at the same time pressing the OFF-TIM ER button on the remote control, and the screen will show.

If the IIC ports have been checked and found to be incorrect.

Or not located then " - - " will appear in place of " OK ".

“ 01 “ in the line of the “ PTCT ” means the number of blinks of the Power LED is 1. (Refer to 7.1.2)

“ H09 “ in the line of the “ PTCT ” is the error code.

To exit Self Check mode, switch off the main power.

Note:

The line of the “ PTCT ” displays when you get into the Self-check mode for the first time only after the Power LED blinks.

0 3 I I C Q М С 2 П М С З П М С 4 П s O

DN IC4003 OK H90

IC4606 OK H61

IC5101 OK H56

IC5603 OK H57

IC4609 OK H31

IC5103 OK H32

IC5102 OK H33

IC5301 OK H51

DS IC8181 OK H51 I

IC3001 OK H22

IC3003 OK H63

IC3004 OK H64

IC3005 OK H65

IC2303 OK H21

| PANEL OK

U

PTCT 01 H09

INCHMXXXPXXX

MON I TOR—MCU 1. 01 OOF10 II 0K I

MONITOR-EEPROM DN 71.00 1 ЗС 7C

PANEL-MCU/EEPROM 7.00

97.03

18

TH-103PF10UK/EK

6.1.2. Power LED Blinking timing chart

1. Subject

Information of LED Blinking timing chart.

2. Contents

W hen an abnorm ality has occurred to the unit, the protection circuit operates and resets to the stand by mode. A t this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.

3. Remarks

Above Fan function is operated during the fans are installed.

A bout blinking LED

[When blinking four times] Lighting up

(

Ш Ш Ш

1st olink 2nd blink 3rd blink 4th

Dlink

One eye :le

•*

----

P a u s e fo r

3 s e c o n d s

N

^

/

19

(

TH-103PF10UK/EK

6.2. No Power

First check point

There are following 3 states of No Power indication by power LED.

1. No lit.

2. Green is lit then turns red blinking a few seconds later.

3. Only red is lit.

6.3. No Picture

NO Picture

20

TH-103PF10UK/EK

6.4. Local screen failure

Plasma display may have local area failure on the screen. Fig - 1 is the possible defect P.C.B. for each local area.

C6 board

D board

C5 board

D board

C4 board

D board

_ A ____

''V'

_ _ л _ _

СЗ board

D board

____A .

С2 board

D board

- V "

___

С1 board

D board

SU board

r - - - -

V

C7 board \ C8 board

D board XD board

\

V

C9 board

D board

V

CX board

D board

V "

CY board

D board

CZ board

D board

Panel (Thin vertical line)

<Local screen failure chart>

Fig - 1

SD board

У

SS board

SC board

D board

21

TH-103PF10UK/EK

7 Disassembly and Assembly Instructions

• To disassemble P.C.B., w ait for 1 minute after power was off for discharge from electrolysis capacitors.

• ♦ and О marks indicate screw positions.

7.1. Rear Cover and Board

Rear Cover required to rem ove for each board exchange.

D-Board

DS-Board

SS-Board

SC-Board

SC2-Board

SU-Board

SM -Board

SD-Board

C1-Board

C2-Board

C3-Board

C4-Board

C5-Board

C6-Board

C7-Board

C8-Board

C9-Board

CX-Board

CY-Board

CZ-Board

H5-Board

S1-Board

SS2-Board

SS3-Board

V1-Board

V2-Board

V3-Board

Board Name

D

B

F

A, B, C

A

A

A, C

A

A

A

B

A

E, F

C, E

C, E

A, C

F

F

A, B

B, D

B, D

D, F

F

F

A, B, C, D, E, F

A

A, B, C, D, E, F

22

Rear Cover

Board Name

PB-Board

P-Board (MULTI_1)

P-Board (SUS_1)

P-Board (MULTI_2)

P-Board (SUS_2)

F-Board

PC-Board

HX-Board

HA-Board

DN-Board

HDM I-Board (UK)

HDD-Board (EK)

CD-Board (A)

CD-Board (B)

CD-Board (C)

CD-Board (D)

CD-Board (E)

CD-Board (F)

DR1-Board (A)

DR1-Board (B)

DR2-Board (A)

DR2-Board (B)

D

D

D

D

B

B

B

B

B

B

A

F

A

F

C

C

E

D

B

B

E

E

7.2. Location of Rear Cover screws

Rear Cover

TH-103PF10UK/EK

23

TH-103PF10UK/EK

7.2.1. Removal of Rear Cover ( A )

1. Remove Eye Bolt Covers.

2.

Remove screws

(x21 O, x2

□ ) and then remove the

Rear Cover ( A ).

7.2.2. Removal of Rear Cover ( B )

1. Remove screws (x21

O, x7 □ ) and then remove the

Rear Cover ( B ).

Tighten screw first in order of © , ® and ® when m ount­

ing the Rear cover B .

24

TH-103PF10UK/EK

7.2.3. Removal of Rear Cover ( C )

1. Remove screws (x19 О ) and then remove the Rear

Cover ( C ).

Tighten the screw first_ in order of © and © w h e n m ount­

ing the Rear Cover C .

7.2.5. Removal of Rear Cover ( E )

1. Remove screws (x25 О ) and then remove the Rear

Cover ( E ).

Tighten screw first in order of © and © w h e n mounting

the Rear cover E.

7.2.4. Removal of Rear Cover ( D )

1. Remove screws (x21 О ) and then remove the Rear

Cover ( D ).

Tighten screw first in order o f ® and @ when mounting

the Rear cover D.

7.2.6. Removal of Rear Cover ( F )

1. Remove Eye Bolt Covers.

25

TH-103PF10UK/EK

7.3.1. Removal of Side Angle (L)

1. Remove 4 screws (A) of the Plate.

2. Remove screws (x21 О ) and then remove the Rear

Cover ( F ).

2. Remove 19 screws and then remove the Side Angle (L).

7.3. Removal of Side Angle (L), (R)

1. Remove Side Angle (L), (R) beforehand when remove the following Boards.

Board name

SU-Board

SM-Board

SD-Board

SC-Board

SS2-Board

SS3-Board

SS-Board

Side Angle

Side Angle (R)

Side Angle (R)

Side Angle (R)

Side Angle (R)

Side Angle (L)

Side Angle (L)

Side Angle (L)

26

7.3.2. Removal of Side Angle (R)

1. Disconnect the connectors (DS15, SC34).

TH-103PF10UK/EK

5. Remove 19 screws and then remove the Side Angle (R).

2. Remove 4 screws, and then side the Side Power Unit upward.

3. Remode the side Power Unit.

7.4. Removal of HA-Board

1. Remove 4 screws (C) and then remove the HA Terminal

Block.

2. Remove 4 screws (D) and remove Shield Plate.

3. Remove 2 Hexagonal-Head screws (E) and then remove

HA-Board.

4. Remove 4 screws (B) of the Plate.

27

TH-103PF10UK/EK

7.5. Removal of HDMI-Board (UK)

1. Remove 4 screws (E) and then remove the HDMI Termi­ nal Block.

2. Remove 4 screws (F) and remove Shield Plate.

3. Remove 2 Hexagonal-Head screws (G) and then remove

HDMI-Board.

7.7. Removal of DS-Board

1. Disconnect the connectors (DS1, DS2, DS3, DS4, DS6,

DS9, DS10, DS14, DS15, DS30).

2. Remove 5 screws and then remove the Slot Block Case.

7.6. Removal of HDD-Board (EK)

1. Remove 4 screws (H) and then remove the HDD-Termi­ nal Block.

2. Remove 4 screws (J) and remove Shield Plate.

3. Remove 2 Hexagonal-Head screws (K) and then remove

HDD-Board.

3. Remove 11 screws and then remove DS-Board.

28

7.8. Removal of HX-Board

TH-103PF10UK/EK

7.9. Removal of DN-Board

1. Remove the HA Terminal Block.

(Refer to Removal of HA-Board)

2. Remove the HDMI Terminal Block.(UK)

(Refer to Removal of HDMI-Board)

3. Remove the HDD Terminal Block.(EK)

(Refer to Removal of HDD-Board)

4. Disconnect the connectors (HX1).

5. Remove 4 screws and then remove the Slot Block Case.

1. Remove the flexible cables from the connectors (DN1,

DN6).

2. Disconnect the connectors (DN2, DN3, DN5).

3. Remove 4 screws and then remove DN-Board.

6. Remove 4 Hexagonal-Head screws (M) and 2 screws on

HX-Board, and then remove HX-Board.

7.10. Removal of PB-Board

1. Disconnect the connectors (PB30, PB31, PB51, PB53,

PB54, PB56, PB59, PB61, PB62, PB64, PB66, PB69,

PB71).

2. Remove 4 screws and then remove PB-Board.

29

TH-103PF10UK/EK

7.12. Removal of D-Board

7.11. Removal of H5-Board

1. Remove the flexible cables from the connectors (D31,

D32, D33, D34, D35, D36).

2. Disconnect the connectors (D3, D5, D20, D25).

3. Remove 4 screws and then remove D-Board.

1. Disconnect a connector (H51).

2. Remove 2 screws and then remove H5-Board Block.

7.13. Removal of P-Board (MULTI_1),

(MULTI_2)

3. Remove 3 screws (N) and then remove H5-Board.

The fuses are not included in P-Board for the repair.

30

TH-103PF10UK/EK

7.13.1. Removal of P-Board (MULTI_1)

1. Disconnect the connectors (P5, P12, P25, P51, P53,

P55).

2. Remove 9 screws and then remove P-Board (MULTI_1).

7.14.1. Removal of P-Board (SUS1)

1. Disconnect the connectors (P2, P9, P52, P54, P56).

2. Remove 10 screws and then remove P-Board (SUS_1)

, = = =

o D = 0

D

* с

Ш* о

1 в

I

О

0

П

u

D

D о

D

D

0

i °

.jaa

о 1 1=1

f

*

О

=

t

®

®

7.13.2. Removal of P-Board (MULTI_2)

1. Disconnect the connectors (P5, P10, P12, P23, P25, P51,

P53, P55).

2. Remove 9 screw and then remove P-Board (MULTI_2).

7.14.2. Removal of P-Board (SUS2)

1. Disconnect the connectors (P2, P9, P11, P52, P54, P56).

2. Remove 10 screws and then remove P-Board (SUS_2).

0

1

±

1=1 0

1=1 о

i

6

I

\ssi

с о

1

iiasa

о о о

0 o i

i

О

с

i

— i

D

■ т а я

0

D

D

0

D o

.. °

' . i i

о " 1 = 1

* о

1

--

1

f

P-Board(SUS_2)

С s

7.15. Removal of F-Board

7.14. Removal of P-Board (SUS_1),

(SUS_2)

The fuses are not included in P-Board for the repair.

The fuses (F900, F901, F903, F904) are not included in F-

Board fo r the repair.

31

TH-103PF10UK/EK

1. Disconnect the connectors (F1, F8, F9).

2. Remove 5 screws and then remove F-Board.

0 о

§>

<

О

©

° о

Ф

о о о

r

о f

§> ^ ®

t

F-Board

,1 n .

7.16. Removal of PC-Board

1. Remove the Side Angle (R).

(Refer to Removal of the Side Angle (L), (R) )

2. Remove 6 screws and then remove the Reinforcement

Angle (A).

R einforcement Angle (A)

3. Disconnect the Fan relay connectors.

4. Remove 4 screws and then remove the Fan Block (A),

(B).

1. Disconnect the connectors (PC201, PC202, PC203,

PC204, PC205).

2. Remove 2 screws and then remove PC-Board.

5. Remove the flexible cables from the connectors (SU1,

SU2, SU3, SU4, SU55).

6. Disconnect the connector (SU45).

Flexible cables

7.17. Removal of SU-Board

Flexible cables

7. Remove 9 screws.

8. Slide the SU-Board to the upper direction to remove the

SU-Board from the connectors (SU41, SU42).

Take out so as not to dam age SU-Board.

32

TH-103PF10UK/EK

4. Remove the flexible cables from the connectors (SM1,

SM2, SM3, SM4,SM55, SM56).

5. Disconnect the connectors (SM50, SM51).

9. Slide the SU-Board to the bottom direction to remove the

SU-Board.

6. Remove 8 screws.

7. Slide SM-Board to the left direction to remove SM-Board from the connectors (SC43, SC46).

7.18. Removal of SM-Board

1. Remove the Side Angle (R).

(Refer to Removal of the Side Angle (L), (R) )

2. Disconnect the Fan relay connectors.

3. Remove 2 screws and then remove the Fan Block (A).

33

TH-103PF10UK/EK

7.19. Removal of SD-Board

1. Remove the Side Angle (R).

(Refer to Removal of the Side Angle (L), (R) )

2. Remove 6 screws and then remove the Reinforcement

Angle (B).

7. Slide the SD-Board to the upper direction to remove the

SD-Board.

3. Remove the flexible cables from the connectors (SD1,

SD2, SD3, SD4, SD56).

4. Disconnect the connectors (SD52).

7.20. Removal of SC-Board

5. Remove 9 screws.

6. Slide SD-Board to the bottom direction to remove SD-

Board from the connectors (SC47, SC48).

Take out so as not dam age SD-Board.

1. Remove SU-Board.

(Refer to Removal of SU-Board)

2. Remove SM-Board.

(Refer to Removal of SM-Board)

3. Remove SD-Board.

(Refer to Removal of SD-Board)

4. Remove the Eye Bolt and Eye Bolt Cover.

5. Remove 5 screws and then remove the Rear Cover Angle

(A).

34

TH-103PF10UK/EK

6. Disconnect the connectors (SC2, SC20, SC23, SC80,

SC81).

7. Remove 16 screws and then remove SC-Board.

7.22. Removal of S1-Board and V2-

Board

7.21. Removal of SC2-Board

7.22.1. Removal of S1-Board

1. Remove the Side Power Unit.

(Reference to Removal of the Side Angle (L), (R))

2. Remove 2 screws (L).

3. Remove 1 screw (P).

4. Disconnect the connector (S34) and then remove S1-

Board.s

1. Disconnect the connectors (SC12, SC13, SC14, SC34,

SC82,SC83, SC84).

2. Remove 4 screws and then remove SC2-Board.

35

TH-103PF10UK/EK

7.22.2. Removal of V2-Board

1. Removal the S1-Board

(Refer to Removal of the S1-Board and V2-Board)

2. Remove 4 screws (Q).

3. Disconnect the connector (V15) and then remove V2-

Board.

5. Remove the flexible cables from the connectors (SS29,

SS30,SS51, SS52, SS53, SS54).

6. Remove 6 screws and then remove SS2-Board.

7.23. Removal of SS2-Board

7.24. Removal of SS3-Board

1. Remove the Side Angle (L).

(Refer to Removal of the Side Angle (L),(R))

2. Disconnect the Fan relay connectors.

3. Remove 6 screws and then remove the Fan (D) and Fan

Block (E).

1. Remove the Side Angle (L).

(Refer to Removal of Side Angle (L)(R))

2. Disconnect the Fan relay connectors.

3. Remove 5 screws and then remove the Fan Block (G) and Fan (K).

4. Remove 6 screws and then remove the Reinforcement

Angle (E).

36

TH-103PF10UK/EK

9. Remove 6 screws and then remove SS3-Board.

4. Remove 2 screws ( ♦ ) and then remove the Rear Cover

Angle (H).

5. Remove 2 Eye Bolt Covers.

6. Remove 5 screws (“Ch) and then remove the Rear Cover

Angle (F).

7.25. Removal of SS-Board

1. Remove the Side Angle (L).

(R efer to Removal of Side Angle (L),(R))

2. Disconnect the Fan relay connectors.

3. Remove 4 screws and then remove the Fan Block (F),

(G).

7. Remove 6 screws and then remove the Reinforcement

Angle (F).

8. Remove the flexible cables from the connectors (SS36,

SS37, SS59, SS60, SS61, SS62).

4. Remove the flexible cables from the connectors (SS21,

SS23, SS26, SS27, SS55, SS56, SS57, SS58).

5. Disconnect the connectors (SS2, SS13, SS35, SS42,

SS44).

6. Remove 13 screws and then remove SS-Board.

37

TH-103PF10UK/EK

7.26. Removal of Fan

Fan (K)

1. Disconnect the Fan relay connectors.

2. Remove each 4 screws of Fan Block (A), (B), (E), (H), (J) and then remove the Fan Blocks.

3. Remove each 4 screws of Fan (C), (F), (G) and then remove the Fans.

4. Remove each 3 screws of Fan (D), (K) and then remove the Fans.

5. Remove each 4 screws and then remove the Fans.

38

Back side of Fan

TH-103PF10UK/EK

3. Remove 4 screws of the flexible cable.

4. Disconnect the connector (C14).

5. Remove the flexible cables from the connectors (CA1,

CA2, C11).

Note:

• The Sponge (of Fans) is not re-useable.

Please use a new one when Fan exchange.

6. Remove 4 screws and then remove C1-Board.

7.28. Removal of C2-Board

7.27. Removal of C1-Board

1. Remove 2 screws ( ♦ ) of Side Angle (R).

2. Remove 6 screws (“Ch) and then remove the Reinforce­ ment Angle (A).

1. Remove the Fan Block (A), (B).

(R efer to Removal of Fan)

2. Remove the Eye Bolt and Eye Bolt Cover.

3. Remove 5 screws and then remove the Rear Cover Angle

(A).

39

TH-103PF10UK/EK

1. Remove the Eye Bolt.

2. Remove 5 screws and then remove the Rear Cover Angle

(C).

4. Remove the Reinforcement Angle (A).

(Refer to Removal of C1-Board)

5. Remove 6 screws of the flexible cable.

6. Remove the flexible cables from the connectors (CA3,

CA4, CA5, C20, C21, C23).

7. Disconnect the connectors (C22, C24).

3. Remove 6 screws and then remove the Reinforcement

Angle (C).

8. Remove 6 screws and then remove C2-Board.

4. Remove 6 screws of the flexible cable.

5. Remove the flexible cables from the connectors (CA6,

CA7, CA8, C31, C32).

6. Disconnect the connector (C34).

7.29. Removal of C3-Board

7. Remove 5 screws and then remove C3-Board.

40

7.30. Removal of C4-Board

TH-103PF10UK/EK

2. Remove 15 screws ( ♦ ) and then remove the Fan (C), (D) and Fan Block (E), (F).

3. Remove 5 screws (“Ch) and then remove the Rear Cover

Angle (E).

1. Remove the Eye Bolt.

(Refer to Removal of C3-Board)

2. Remove the Rear Cover Angle (C).

(Refer to Removal of C3-Board)

3. Remove the Reinforcement Angle (C).

(Refer to Removal of C3-Board)

4. Remove 6 screws of the flexible cable.

5. Remove the flexible cables from the connectors (CA9,

CA10, CA11, C40, C41, C42).

6. Disconnect the connectors (C43, C44).

4. Remove 2 screws ( ♦ ) of Side Angle (L).

5. Remove 6 screws (“u“) and then remove the Reinforce­ ment Angle (E).

7. Remove 5 screws and then remove C4-Board.

6. Remove 6 screws of the flexible cable.

7. Remove the flexible cables from the connectors (CA12,

CA13, CA14, C50, C51, C53).

8. Disconnect the connectors (C52, C54).

7.31. Removal of C5-Board

1. Remove the Eye Bolt and Eye Bolt Cover.

41

9. Remove 6 screws and then remove C5-Board.

TH-103PF10UK/EK

7.33. Removal of C7-Board

7.32. Removal of C6-Board

1. Remove 7 screws and then remove the Fan Block (G) and Fan (K).

1. Remove the Eye Bolt.

(Refer to Removal of C3-Board)

2. Remove the Fan (D).

(Refer to Removal of C5-Board)

3. Remove the Reinforcement Angle (E).

(Refer to Removal of C5-Board)

4. Remove 4 screws of the flexible cable.

5. Remove the flexible cables from the connectors (CA15,

CA16, C61).

6. Disconnect the connector (C64).

2. Remove 2 screws ( ♦ ) and then remove the Rear Cover

Angle (H).

3. Remove the Eye Bolt Covers.

4. Remove 5 screws (“u1) and then remove the Rear Cover

Angle (F).

7. Remove 4 screws and then remove C6-Board.

42

5. Remove 2 screws ( ♦ ) of Side Angle (L).

6. Remove 6 screws (“и1) and then remove the Reinforce­ ment Angle (F).

TH-103PF10UK/EK

6. Disconnect the connectors (C82, C84, C88).

7. Remove 4 screws of the flexible cable.

8. Remove the flexible cables from the connectors (CB15,

CB16, C71).

9. Disconnect the connector (C74).

Flexible cables Flexible cables

7. Remove 6 screws and then remove C8-Board.

7.35. Removal of C9-Board

Flexible i

10. Remove 4 screws and then remove C7-Board.

7.34. Removal of C8-Board

1. Remove 4 screws ( ♦ ) and then the Rear Cover Angle

(G), (H).

2. Remove 5 screws (“Ch) and then remove the Rear Cover

Angle (D).

1. Remove the Fan Block (G) and Fan (K).

(Refer to Removal of C7-Board)

2. Remove the Rear Cover Angle (F), (H).

(Refer to Removal of C7-Board)

3. Remove the Reinforcement Angle (F).

(Refer to Removal of C7-Board)

4. Remove 6 screws of the flexible cable.

5. Remove the flexible cables from the connectors (CB12,

CB13, CB14, C80, C81, C83).

3. Remove 6 screws and then remove the Reinforcement

Angle (D).

43

TH-103PF10UK/EK

5. Disconnect the connector (CX4).

4. Remove 6 screws of the flexible cable.

5. Remove the flexible cables from the connectors ( C90,

C 91, C93,CB9, CB10, CB11).

6. Disconnect the connectors (C92, C94).

Flexible cables

6. Remove 5 screws and then remove CX-Board.

Flexible cables

7. Remove 5 screws and then remove C9-Board.

7.37. Removal of CY-Board

7.36. Removal of CX-Board

1. Remove 2 screws ( ♦ ) and then the Rear Cover Angle

(G).

2. Remove 2 Eye Bolt Covers.

3. Remove 5 screws (“и1) and then remove the Rear Cover

Angle (B).

1. Remove the Rear Cover Angle (D), (G), (H).

(Refer to Removal of C9-Board)

2. Remove the Reinforcement Angle (D).

(Refer to Removal of C9-Board)

3. Remove 6 screws of the flexible cable.

4. Remove the flexible cables from the connectors (CB6,

CB7, CB8, CX1, CX2).

Eye Bolt Cover Rear Cover Angle (B)

4. Remove 2 screws ( ♦ ) of Side Angle (R).

44

5. Remove 6 screws (“Ch) and then remove the Reinforce­ ment Angle (B).

TH-103PF10UK/EK

4. Remove the flexible cables from the connectors (CB1,

CB2, CZ1).

6. Remove 6 screws of the flexible cable.

7. Remove the flexible cables from the connectors (CB3,

CB4, CB5, CY0, CY1, CY3).

8. Disconnect the connectors (CY2, CY4).

Flexible cables

5. Remove 4 screws and then remove CZ-Board.

7.39. Removal of DR1-Board (A)

9. Remove 6 screws and then remove CY-Board.

1. Disconnect the Fan relay connectors.

2. Remove 4 screws and then remove the Fan Block (B).

7.38. Removal of CZ-Board

3. Disconnect the connectors (DR1, DR2, DR3, DR4, DR5).

4. Remove 5 screws and then remove the DR1-Board (A).

1. Remove the Reinforcement Angle (B).

(Refer to Removal of CY-Board)

2. Remove 4 screws of the flexible cable.

3. Disconnect the connector (CZ4).

45

TH-103PF10UK/EK

7.40. Removal of DR1-Board (B)

Attaching short ju m p er to connector (DR6).

Attach Short Jum per to the connector (DR6) when replacing

DR1-Board.

7.42. Removal of DR2-Board (B)

Attaching short ju m p er to connector (DR16).

Attach Short Jum per to the connector (DR16) when replacing

DR2-Board.

1. Disconnect the connectors (DR1, DR2, DR3, DR4, DR5).

2. Remove 5 screws and then remove DR1-Board (B).

3. Remove Short Jum per attaching to the connector (DR6) on DR1-Board you removed and attach it to the connector

(DR6).

1. Remove 4 screws and then remove Fan Block (E).

2. Disconnect the connectors (DR11, DR12, DR13, DR14,

DR15).

3. Remove 5 screws and then remove DR2-Board (B).

4. Remove Short Jum per attaching to the connector (DR16) on DR2-Board you removed and attach it to the connector

(DR16).

7.41. Removal of DR2-Board (A)

1. Disconnect the connectors (DR11, DR12, DR13, DR14,

DR15).

2. Remove 5 screws and then remove DR2-Board (A).

46

7.43. Removal of CD-Board

TH-103PF10UK/EK

7.43.3. Removal of CD-Board (C)

1. Remove the flexible cables from the connectors (CD1,

CD2).

2. Remove 2 screws and then remove CD-Board (C).

7.43.1. Removal of CD-Board (A)

1. Remove the flexible cables from the connectors (CD1,

CD2).

2. Remove 2 screws and then remove CD-Board (A).

7.43.4. Removal of CD-Board (D)

1. Remove the Fan Block (H).

(R efer to Removal of the Fan)

2. Remove the flexible cables from the connectors (CD1,

CD2).

3. Remove 2 screws and then remove CD-Board (D).

7.43.2. Removal of CD-Board (B)

1. Remove the flexible cables from the connectors (CD1,

CD2).

2. Remove 2 screws and then remove CD-Board (B).

7.43.5. Removal of CD-Board (E)

1. Remove 2 screws and then remove the Rear Cover Angle

(H).

47

TH-103PF10UK/EK

2. Remove the flexible cables from the connectors (CD1,

CD2).

3. Remove 2 screws and then remove CD-Board (E).

2. Disconnect a connector (F1).

3. Remove 3 screws and then remove the AC-Inlet.

7.43.6. Removal of CD-Board (F)

1. Remove the Fan Block (J).

(Refer to Removal of Fan)

2. Remove the flexible cables from the connectors (CD1,

CD2).

3. Remove 2 screws and then remove CD-Board (F).

7.45. Removal of Cabinet and Front

Glass

7.45.1. Removal of Front Glass

1. Disconnect the connectors (DS15, SC34).

7.44. Removal of AC Inlet

2. Remove 4 screws, and then side the Side Power Unit upward.

3. Remode the side Power Unit.

1. Remove 2 screws and then remove the AC Inlet Cover.

48

4. Remove 44 screws and then remove cabinet with front glass.

TH-103PF10UK/EK

Be sure to lift the instruction six positions of the figure,

when rem ove the Front Glass.

(Note)

• W hen removing the Cabinet with Front Glass, take

care not to dam age the flexible cable o f the Plasma

Panel circum ference.

Note: W hen replacing the Front Glass

• The sponges for the Front Glass cannot be recycled.

• W hen replacing the Front Glass, use the new sponges.

5. Remove 26 screws ( ♦ ) (left and right side) and 18 screws (“Ch) (top and bottom side) and then remove the

Fixed Angles (А), (В), (C), (D).

6. Remove the Front Glass.

(Note)

• W hen removing the Front Glass from Cabinet, there is a

risk o f the glass center bending damage.

49

TH-103PF10UK/EK

7.45.2.

Removal of Cabinet

1. Remove the Front Glass.

(Refer to Removal of Front Glass.)

7.45.2.1. Removeval of Cabinet Top

1. Remove each 5 screws ( ♦ ) .

2. Remove each 2 screws (“Ch) and then remove the Con­ nection Angles (A), (AS), (B), (BS).

7.45.2.2. Removeval of Cabinet Bottom

1. Remove each 5 screws ( ♦ )

2. Remove each 2 screws (О ) and then remove the Con­ nection Angles (A), (AS), (B), (BS).

3. Remove the Cabinet Top.

3. Remove the Cabinet Bottom.

7.45.2.3. Removeval of Cabinet Right

1. Remove each 5 screws ( ♦ ) .

2. Remove each 2 screws (О ) and then remove the Con­ nection Angles (A), (AS), (B), (BS).

50

|

a a

<

3. Remove the Cabinet Right

TH-103PF10UK/EK

7.45.2.4. Removeval of Cabinet Left

1. Remove each 5 screws ( ♦ ) .

2. Remove each 2 screws ('Ch) and then remove the Con­ nection Angles (A), (AS), (B), (BS).

3. Remove the Cabinet Left.

7.46. Removal of V1-Board and V3-

Board

7.47. Removal of Plasma Panel

1. Remove the Rear Covers.

(R efer to Removal of Rear Cover.)

2. Disconnect the connectors (DS15, SC34).

3. Remove 4 screws and then remove the Side Power Unit.

1. Remove the Cabinet.

(Refer to Removal of Cabinet.)

2. Disconnect the connectors (V1).

3. Remove 1 screw (R) and then remove V1-Board.

4. Disconnect the connectors (V).

5. Remove 1 screw (S) and then remove V3-Board.

4. Remove 44 screws and then remove cabinet with front glass.

(R efer to Removal of Cabinet.)

51

TH-103PF10UK/EK

5. Remove 4 screws (T) of the Plate.

10. Disconnect the each Fan relay connectors.

• Remove each 4 screws and then remove the Fan Blocks

(A), (B), (E), (F), (G), (H), (J).

• Remove each 4 screws and then remove the Fan (C).

• Remove each 3 screws and then remove the Fan

(D),(K).

6. Remove 3 Eye Bolts.

7. Remove 6 Eye Bolt Covers.

8. Remove 4 screws ( ♦ ) and then remove the Rear Cover

Angles(G),(H).

9. Remove 6 screws (“u“) and then remove the Rear Cover

Angle (C), (D).

11. Disconnect the connectors (D3, D5, D20, D25).

12. Remove the flexible cables from the connectors (D31,

D32, D33, D34, D35, D36).

13. Remove 8 screws ( ♦ ) and then remove the Core Holder

(upper), (bottom).

14. Remove 4 screws (“u1) and then remove D-Board.

52

15. Remove the flexible cables from the connectors (DN1,

DN6).

16. Disconnect the connectors (DN2, DN3, DN5).

17. Remove 6 screws and then remove DN-Board Block.

22. Disconnect the connector (H51).

TH-103PF10UK/EK

18. Disconnect the connectors (DS2, DS4, DS9, DS10,

DS30).

19. Remove 5 screws and then remove the Slot Block.

23. Disconnect the connectors (P2, P5, P9, P12, P25, P51,

P53, P55).

24. Remove 19 screws and then remove P-Board (MULT_1),

(SUS_1).

20. Remove 4 screws and then remove the Slot Fixing Metal.

25. Disconnect the connectors (P2, P9, P11, P12, P23, P25,

P51, P53, P55).

26. Remove 19 screws and then remove P-Board (MULT_2),

(SUS_2).

21. Remove 2 screws and then remove H5-Board Block.

53

TH-103PF10UK/EK

27. Disconnect the connectors ( SC13, SC14, SC34, SC83,

SC84).

28. Remove 4 screws and then remove SC2-Board.

35. Remove 6 screws and then remove the Fixed Angle.

29. Remove 3 screws and then remove the Shield Plate.

30. Remove 4 screws and then remove the Fixed Angle

(shape of L).

31. Remove 1 screw and then remove the Flexible Holder.

36. Disconnect a connector (CY0) connected with CY-Board.

37. Remove 2 screws and then remove CD-Board (F).

32. Disconnect a connector (C20) connected with C2-Board.

33. Remove 2 screws and then remove CD-Board (A).

38. Remove each 1 screw and then remove the Flexible

Holders (4 places).

39. Remove the flexible cables from the connectors (C40,

C50).

34. Remove each 1 screw of the Flexible Holder and then remove the Flexible Holders (4 places).

54

40. Remove 4 screws and then remove CD-Board (B), (C).

TH-103PF10UK/EK

44. Remove 4 screws and then remove CD-Board (D), (E).

41. Remove each 1 screw ( ♦ ) and then remove the Flexible

Holders (6 places).

42. Remove each 6 screws (“Ch) and then remove the Fixed

Angles (2 places).

43. Remove the flexible cables from the connectors (C80,

C90).

45. Disconnect the connectors (F1).

46. Remove 5 screws and then remove F-Board.

47. Remove the connectors (PC201, PC204, PC205).

48. Remove 2 screws and then remove PC-Board.

55

TH-103PF10UK/EK

49. Remove the PB-Board.

50. Remove 2 screws and then remove AC Inlet Cover.

51. Remove 3 screws and then remove the AC-Inlet.

О

©

О о o O o

\

I

I

@

®

©

©

@

©

AC Inlet

JLA

11 ™

■)

^

® @1

^ O j -

(

1—.------ .-42

U 5

у ф

3

---

- 2 ^

©

@

C O ®

© ow

1

©

©

©

<i

52. Remove the Plasma Panel.

(Note)

• W hen replacing the Plasma Panel, use a hanging device

(machine) such as cranes, because the Plasma Panel is too heavy.

56

Structure o f replacem ent Plasm a Panel (Spare Parts)

TH-103PF10UK/EK

57

TH-103PF10UK/EK

8 Measurements and Adjustments

8.1. Adjustment Procedure

8.1.1. Driver Set-up

8.1.1.1. Item / Preparation

1. Set Aging pattern 1 (W hite pattern) by IIC mode.

2. Set the picture adjustm ent items as follows.

• Picture menu : Standard

• Color tem perature : Normal

• Picture : 25

• A spect : Full

Caution

1. First perform Vsus voltage adjustment.

2. Confirmation of Vscn voltage should be performed after confirmation of Vad voltage adjustment.

W hen Vad = -85V, Voltage of Vscn is 55V ± 4V.

8.1.1.2. Adjustments

Adjust driver section voltages.

(Refer to the panel data on the panel label)

Check or adjust the following voltages with the multimeter.

Vda

Vda

Vda

Vc

Vc

Vc

Vc

Vsus

Vsus

Ve

Ve2

Vad

Vscn

Vset

Vset2

Vbk

Vda

Name

*See the Panel label

Test Point

TPVSUS (SS)

TPVSUS (SC)

T P V E (SS)

T P V E 2 (SS)

TPVAD (SC2)

TPVSCN (SC2)

TPV S E T (SC2)

T P V S E T 2 (SC)

TP V B K (SC2)

TPVD A (DR1)

TPVD A (DR2)

TPVD A (DR1)

TPVD A (DR2)

TPVC (DR1)

TPVC (DR2)

TPVC (DR1)

TPVC (DR2)

Voltage

Vsus ± 0.5V

Vsus ± 0.5V

Ve ± 1V

5 ± 1V

-85V ± 1V

Vad + 140 ± 4V

240 ± 1V

Vad + 8 + 1V, -0V

150 ± 1V

75 ± 1V

75 ± 1V

75 ± 1V

75 ± 1V

45 ± 0.5V

45 ± 0.5V

34.5 ± 0.5V

34.5 ± 0.5V

Volume

VR251 (P_SS side)

VR251 (P_SC side)

V R 6000 (SS)

(Fixed)

V R 6600 (SC2)

V R 6605 (SC2)

V R 6604 (SC2)

(Fixed) (SC)

VR6351 (SC2)

(Fixed) (P_SC side)

(Fixed) (P_SC side)

(Fixed) (P_SS side)

(Fixed) (P_SS side)

VR 600 (DR1_SC)

VR 650 (DR2_SC)

VR 600 (DR1_SS)

VR 650 (DR2_SS)

*

*

*

Remarks

58

8.1.2. Initialization Pulse Adjust

1. Set Aging pattern 1 (White pattern) by IIC mode.

2. Set the picture adjustm ent items as follows.

• Picture menu : Standard

• Color tem perature : Normal

• Picture : 25

• Aspect : Full

3. Connect Oscilloscope to TPSC1 and adjust VR6601 for 190V ± 7V

4. Connect Oscilloscope to TPSC1 (T2) and adjust VR6602 for 165 ± 10ц Sec.

T2

Test point

TPSC1 (SC)

TPSC1 (SC)

Volume

VR6601 (SC)

VR 6602 (SC)

Level

190V ± 7V

165 ± 10ц Sec

TPSC1

Start up initializing pulse slope

..... .....

..... .....

j У

T V ■■

r j

.....j

j

.....:l

;i

:i

i ,

190V' ±

-------;

7V

T

i

^

ТЧ

80

ц

s

[V] 50V/d i v

[H] 20 /i s/d i v

TH-103PF10UK/EK

59

TH-103PF10UK/EK

8.1.3. P.C.B. (Print Circuit Board) Replacement

8.1.3.1. Caution

1. To remove P.C.B., wait 1 minute after power was off for discharge from electrolysis capacitors.

8.1.3.2. Quick adjustment after P.C.B. Replacement

Adjust the following voltages with the multimeter.

P.C.B.

P Board (SUS)

SC2 Board

SS Board

DR1 Board

Vsus

Vsus

Vad

Vscn

Vset

Vbk

Ve

Vc

Name Test Point

TPVSUS (SS)

TPVSUS (SC)

TPVAD (SC2)

TPVSCN (SC2)

T P VS ET (SC2)

T P V B K (SC2)

TPVE (SS)

TPVC (DR1)

Voltage

Vsus ± 0.5V

Vsus ± 0.5V

-85 V ± 1V

Vad + 140V ± 4V

240V ± 1V

1 5 0 V ± 1V

Ve ± 1V

45 ± 0.5V

34.5 ± 0.5V

Volume

VR251 (P_SS side)

VR251 (P_SC side)

*

*

VR6600 (SC2)

VR 6605 (SC2)

VR 6604 (SC2)

VR6351 (SC2)

VR6000 (SS)

VR600 (SC side)

VR 600 (SS side)

*

DR2 Board Vc TPVC (DR2) 45 ± 0.5V

34.5 ± 0.5V

VR650 (SC side)

VR 650 (SS side)

D, DS Board

DN Board

W hite balance and Su b brightness for NTSC, PAL, HD, PC and 625i signals

Set M arket Select Num ber to correct destination by Ms mode (See chap. 6.1.4)

*See the Panel label.

Caution:

Absolutely do not reduce Vsus voltage below Ve not to damage the P.C.B.

Remarks

60

8.1.4. Adjustment Volume Location

TH-103PF10UK/EK

8.1.5. Test Point Location

61

TH-103PF10UK/EK

8.2. Adjustment

8.2.1. RGB white balance adjustment

Instrum ent Name Connection

RGB V G A W / B pattern

C olor analyzer

(Minolta CA-100 or equivalent)

Procedure

PC input

Panel surface

Ensure aging is adequate.

Make sure the front panel to be used on the final set is fitted.

Make sure a color signal is not being shown before adjustment.

Put the color analyzer where there is little color variation.

Remarks

User setting: Normal

(Picture menu: Standard)

Remarks

Picture Menu: Standard

Picture: 25

Aspect: Full

1. Set C O M PO N ET / RGB-IN SELEC T to RGB.

2. Select the IIC mode “ PANEL W / B Adj.” item.

3 . Check that the color tem perature is “CO O L (H igh)”.

4 . O utput a white balance pattern.

5. Touch the signal receiver of color analyzer to the highlight w in d o w ’s center.

6. Fix G drive at E0h and adjust B drive and R drive so x, y become the “C olor tem perature

H igh” in the below table.

7. Increase R / G / B to gether so the m axim um drive value in R / G / B becom es FCh.

8 . Set color tem perature to “ NORM AL (M edium )”.

9. Fix G drive at E0h and adjust B drive and R drive so the highlight w in d o w ’s x, y becomes the “C olor tem perature M edium ” in the below table.

10. Increase R / G / B to gether so the m axim um drive value in R / G / B becom es FCh.

11. Set color tem perature to “WARM (Low )” .

12. Set G drive to E0h and adjust B drive and R drive so the highlight w in d o w ’s x, y become the “C olor tem perature Low” shown in the below table.

13. Increase R / G / B to gether so the m axim um drive value in R / G / B becom es FCh.

14. Copy the R drive, G drive and B drive data in NTSC, PAL DVI region.

Position and size: Normal

Highlight section Signal amplitude 75%

T a b le 1 W / B a d ju s t m e n t v a lu e s

Color temperature

X

У

C utoff standard G: 80h

D rive standard G: E0h

High 0.276

0.276

Medium 0.288

0.296

Low 0.313

0.329

Adjustm ent target

Hi-light: x ± 0.003 y ± 0.003

Hi-light is target of the num ber at drive adjustm ent in the hi-light windows.

Therefore, it is not target of the hi-light num ber at after adjustm ent white balance.

62

T a b le 2 D rive data ad d re sse s (P C /R G B )

Color temperature R G

High

Medium

Low

AO-11 AD

AO-11 BO

A0-11B3

A0-11AE

A0-11B1

АО-11 B4

В

A0-11AF

АО-11 B2

АО-11 B5

T a b le 3 D rive data ad d re sse s (N T S C )

Color temperature R G

High

Medium

Low

В

AO-1180 AO-1181 AO-1182

AO-1184 AO-1185 AO-1183

AO-1186 AO-1187 AO-1188

T a b le 4 D rive data ad d re sse s (P A L)

Color temperature R G

High

Medium

Low

AO-1189

A0-118C

A0-118F

В

A0-118A АО-118B

A0-118D АО-118E

A0-1190 AO-1191

T a b le 5 D rive data ad d re sse s (D V I)

Color temperature R G

High

Medium

Low

AO-11B6

AO-11B9

AO-11BC

A0-11B7

В

АО-11 B8

A0-11 BA A0-11BB

A0-11BD A0-11 BE

TH-103PF10UK/EK

63

TH-103PF10UK/EK

8.2.2. HD white balance adjustment

Instrum ent Name

HD W / B pattern (CO M PO NEN T Output)

C olor analyzer

(Minolta CA-100 or equivalent)

Procedure

Connection

PC input

Panel surface

Ensure aging is adequate.

Make sure the front panel to be used on the final set is fitted.

Make sure a color signal is not being shown before adjustment.

Put the color analyzer where there is little color variation.

Remarks

User setting: Normal

(Picture menu: Standard)

Remarks

Picture Menu: Standard

Picture: 25

Aspect: Full

1. Set CO M PO N EN T / RGB-IN SE LEC T to C O M PO N ENT

2. Select the IIC mode "PANEL W / B A d j.” item.

3. Check that the color tem perature is “CO O L (H igh)” .

4. O utput a white balance pattern.

5. Touch the signal receiver of color analyzer to the highlight w in d o w ’s center.

6. Fix G drive at E0h and adjust B drive and R drive so x, y become the "Color tem perature

High" in the below table.

7. Increase R / G / B to gether so the m axim um drive value in R / G / B becom es FCh.

8. Set color tem perature to “ NORM AL (M edium )” .

9. Fix G drive at E0h and adjust B drive and R drive so the highlight window 's x, y becomes

10 the "Color tem perature M edium" in the below table.

Increase R / G / B to gether so the m axim um drive value in R / G / B becom es FCh.

11. Set color tem perature to "W ARM (Low)".

12. Set G drive to E0h and adjust B drive and R drive so the highlight window's x, y become the “C olor tem perature Low” shown in the below table.

13. Increase R / G / B to gether so the m axim um drive value in R / G / B becom es FCh.

14. Copy the R drive, G drive and B drive data in YUV 1_525ip, YU V 3_625ip region.

Position and size: Normal

Highlight section Signal amplitude 75%

T a b le 6 W /B a d ju s tm e n t v a lu e s

Color temperature

X

У

C utoff standard G: 80h

Drive standard G: E0h

High 0.276

0.276

Medium 0.288

0.296

Low 0.313

0.329

Adjustm ent target

Hi-light: x ± 0.003 y ± 0.003

Hi-light is target of the num ber at drive adjustm ent in the hi-light windows.

Therefore, it is not target of the hi-light num ber at after adjustm ent white balance.

64

T able 7 D rive data a ddresses (Y U V 2 _ H D )

Color temperature R G

High

Medium

Low

A0-119B

A0-119E

A0-11A1

A0-119C

A0-119F

A0-11A2

В

A0-119D

AO-11 AO

AO-11 A3

T able 8 D rive data a ddresses (Y U V 1 _ 5 2 5 ip )

Color temperature R G В

High

Medium

Low

AO-1192

AO-1195

AO-1198

AO-1193

AO-1196

AO-1199

AO-1194

AO-1197

A0-119A

T able 9 D rive data a ddresses (Y U V 3 _ 6 2 5 ip )

Color temperature R G В

High

Medium

Low

A0-11A4

A0-11A7

A0-11A5

A0-11A8

A0-11A6

A0-11A9

AO-11AA A0-11AB AO-11 AC

TH-103PF10UK/EK

65

TH-103PF10UK/EK

8.2.3. Power control adjustment

Instrum ent Name

PC (RGB) signal generator

(Leader: VG A / No.9 signal)

W attm eter

Procedure

[condition]

Connection

PC input

Connect the AC power o f the adjust­ m ent set to the w attm eter.

• Make sure the set is aged for 30 m inutes or more before adjustment.

• Voltage 240V 50 / 60Hz (variation within 1%)

• Volume at m inimum and screen size at full

• PC input and picture menu at norm alized Dynamic

Rem arks

Set “ RGB” at ‘C O M PO N EN T / RGB-IN

SELEC T’ in Setup Menu.

Remarks

No.9 Signal

Top half: F ull color bar

Bottom half: H orizontal 16 steps bar

1. Connect the set’s AC power to the wattmeter.

2. Receive the VG A No.9 signal from Leader.

3. Select the PW RCTL item in Panel APL / ABL in the IIC mode.

4. Adjust PW RCTL so the set's power consum ption is description below.

Adjust to shift large to small for DAC.

Factory adjustm ent with OSD

1350+10W / -30W

BUSCON without OSD

1350+10W / -30W

Notes:

1. W hen passing through factory adjustm ent mode, the power few w atts which goes down is the consid­ eration being completed.

2. A djust the large num ber for DAC when they have 2 adjustm ent points.

66

9 Block Diagram

9.1. DiagramNote

------------------------ Important Safety Notice ------------------------

Components identified by A mark have special characteristics important for safety.

When replacing any of these components, use only manufacture's specified parts.

Notes:

1. Resistor

Unit of resistance is OHM [Q] (K=1,000, M =1,000,000).

2. Capacitor

Unit of capacitance is (xF, unless otherwise noted.

3. Coil

Unit of inductance is H, unless otherwise noted.

4. Test Point

9 : Test Point position

5. Earth Symbol

^ : Chassis Earth (Cold)

6. Voltage Measurement

^ : Line Earth (Hot)

Voltage is measured by a DC voltmeter.

Conditions of the measurement are the following:

Power S o u rc e ........................................................AC240V, 50/60Hz (UK)

AC220-240V, 50/60Hz (EK)

Receiving S ig n a l................................................... Colour Bar signal (RF)

All customer's c o n tro ls ......................................... Maximum positions

7. When arrow mark ( is found, connection is easily found from the direction of arrow.

8. Indicates the major signal flow. : Video ^ Audio i=>

9. This schematic diagram is the latest at the time of printing and subject to change without notice.

TH-103PF10UK/EK

Diagram Notes

7

TH-103PF10UK/EK

Remarks:

1. The Power Circuit contains a circuit area which uses a separate power supply to isolate the earth connection.

The circuit is defined by HOT and COLD indications in the schematic diagram. Take the follwing precautions.

All circuits, except the Power Circuit, are cold.

Precautions a. Do not touch the hot part or the hot and cold parts at the same tim e or you may be shocked.

b. Do not short- circuit the hot and cold circuits or a fuse may blow and parts may break.

c. Do not connect an instrument, such as an oscilloscope, to the hot and cold circuits simultaneously or a fuse may blow.

Connect the earth of instruments to the earth connection of the circuit being measured.

d. Make sure to disconnect the power plug before removing the chassis.

TH-103PF10UK/EK

Diagram Notes

TH-103PF10UK/EK

9.2. Main (1 of 2) Block Diagram

TH-103PF10UK/EK

Main (1 of 2) Block Diagram

68

C31

+ 5 V

O N / O F F

P 2 5

TH-103PF10UK/EK

Main (1 of 2) Block Diagram

CX1

TH-103PF10UK/EK

9.3. Main (2 of 2) Block Diagram

TH-103PF10UK/EK

Main (2 of 2) Block Diagram

69

TH-103PF10UK/EK

Main (2 of 2) Block Diagram

TH-103PF10UK/EK

9.4. P-Board (1 of 2) and F-Board Block Diagram

AC CORD

TH-103PF10UK/EK

P-Board (1 of 2) and F-Board Block Diagram

JLIN E F ILTE R

< T N P A 4 0 5 5 >

(E x c h a n g e b o a rd o n ly )

70

TH-103PF10UK/EK

P-Board (1 of 2) and F-Board Block Diagram

TH-103PF10UK/EK

9.5. P-Board (2 of 2) Block Diagram

TH-103PF10UK/EK

P-Board (2 of 2) Block Diagram

71

TH-103PF10UK/EK

P-Board (2 of 2) Block Diagram

TH-103PF10UK/EK

9.6. НА, НХ, PC, PB, V1, V2 and V3-Board Block Diagram

TH-103PF10UK/EK

HA, HX, PC, PB, V1, V2 and V3 Block Diagram

72

JK 30 01

C O M P O N E N T

V ID E O IN

%

A

[ h a

] c o m p o n e n t v i d e o

< T X N H A1 O RBS>

(E x c h a n g e b o a rd o n ly)

©

©

€>

TO

D S 1 3

J K 3 0 0 2 l

9.

IC 30 02

S C L

S D A

E E P R O M

T E R M IN A L B O A R D

IN F O R M A T IO N

TXD

RXD

PC R

PC G

PC В

TH-103PF10UK/EK

HA, HX, PC, PB, V1, V2 and V3 Block Diagram

TH-103PF10UK/EK

9.7. HDMI-Board (1 of 2) Block Diagram

H D M I

TH-103PF10UK

HDMI-Board (1 of 2) Block Diagram

73

DIGITAL S IG N A L PRO CESS O R

M ICOM

HDMI INTERFACE

< T X N H H H 1 0 X X T >

(E x c h a n g e b o a rd o n ly)

TH-103PF10UK

HDMI-Board (1 of 2) Block Diagram

TH-103PF10UK/EK

9.8. HDMI-Board (2 of 2) Block Diagram

TH-103PF10UK

HDMI-Board (2 of 2) Block Diagram

74

TH-103PF10UK

HDMI-Board (2 of 2) Block Diagram

9.9. HDD-Board Block Diagram

A | h d d

| d v i

d in

< T N P A 4 0 5 2 >

TH-103PF10EK

HDD-Board Block Diagram

75

TH-103PF10UK/EK

H1 t o

D S 1 2

SLOT3.3V

SLOT3.3V

SLOT5V

SLOT5V

SLOT9V

SLOT9V

STB5V

I+15V

AUDIO IN R

AUDIO IN L

1X5-

T^Q

1X4

TX4+

TX3-

TX9-

TX8+

TXC+

TX8-

TXC-

TX7-

TX2-

1X6-

SLOT SCL

SLOT SDA

SRQ

STB 5V

SRQ

DVI_SCL

DVI_SDA

SCL

SDA

WP(CONFIG)

WP(EDID)

TH-103PF10EK

HDD-Board Block Diagram

TH-103PF10UK/EK

9.10. DS-Board (1 of 2) and H3-Board Block Diagram

T O P 5

(P-BOARD SC SIDE)

Ы

- * -

+ 15V

SOUND+15V

SOUND+15V

SOUND+15V

= 1

SOUND15V

T

A l d s

| s l o t i n t e r f a c e

S Y N C P R O C E S S O R

S O U N D P R O C E S S O R

< T N P A 4 3 8 6 >

(E x c h a n g e b o a rd o n ly)

| IC 8 1 0 0 |

A V R 1 2 V

VC C ” 4 "

J

IC801

A V R 9 V

9V_2 SLOT9V

T

VIN

VIN

IC 80 2

A V R 5 V

S W j ) — *

VIN

VIN

IC 8 0 3

S W | ) — *

A_5V SLOT5V

? t

J_3.3V SLO 13.3V

- i - J T

IC 8 0 4 |

FAN5V t

1.8V D_1.8V

D_1.8V

18V T A_3.3V

D_3.3V

s o u n d c o n t r o l

D2303

P5V

Q 2 3 7 2

MUTE SW

D2302

— w—

IC 3 0 0 8

IIC O N / O F F

R LINE OUT

L LINE OUT L

R

А ГН51

A U D IO O U T

< T N P A 4 0 5 8 >

(E x c h a n g e b o a rd o n ly)

9

J K 8 5 0 1

A U D IO O U T

S_CLOCK3

S DATA3

SOUND MUTE

DIO R

6

TH-103PF10UK/EK

DS-Board (1 of 2) Block Diagram

TH-103PF10UK/EK

DS-Board (1 of 2) Block Diagram

76

9.11. DS-Board (2 of 2) Block Diagram

TH-103PF10UK/EK

DS-Board (2 of 2) Block Diagram

TH-103PF10UK/EK

T O P 1 0

I 10 | (P-BOARD SC SIDE)

15V(F_STBY)

15V(F_STBY)

T O P B 3 0

1

3

FAN_SOS

5V

FAN_CONT

T O D N 6

CABLE

ЭА- <TSXL584>

77

TH-103PF10UK/EK DS-Board (2 of 2) Block Diagram

TH-103PF10UK/EK

9.12. DN-Board (1 of 2) Block Diagram

C ABLE

<TSXL585=

TO DS1

C ABLE

< TSXL584>

T O DS6

T O DS3

5V

STB5V

STB3.3V

N SOS

REMOCON

LED_R

LED_G

RTCINT

REMOCON OUT

RXD_TU

TXD_TU

SOUND MUTE

RXD_PC

TXD_PC

SDA3

SCL3

SDA1

SCL1

IIC_CONT

POWER STATUS

RESET

KEY_INPUT

STB_ON

DPMS_VD

DPMS_HD

TH-103PF10UK/EK

DN-Board (1 of 2) Block Diagram

78

TH-103PF10UK/EK

DN-Board (1 of 2) Block Diagram

9.13. DN-Board (2 of 2) Block Diagram

TH-103PF10UK/EK

DN-Board (2 of 2) Block Diagram

79

TH-103PF10UK/EK

TH-103PF10UK/EK

DN-Board (2 of 2) Block Diagram

DN5 T O D5

O-LVDS4

O+LVDS4

O-LVDS3

O+LVDS3

O-LVDS2

O+LVDS2

O-LVDS1

O+LVDS1

0-LVDS0

0+LVDS0

O+LVDSCLK

O-LVDSCLK

E-LVDSCLK

E+LVDSCLK

E-LVDS4

E+LVDS4

E-LVDS3

E+LVDS3

E-LVDS2

E+LVDS2

E-LVDS1

E+LVDS1

E-LVDS0

E+LVDS0

TH-103PF10UK/EK

9.14. D-Board (1 of 2) Block Diagram

Д 0

DIGITAL S IG N A L P R O C ESSO R

FO RM AT C O N V E R T E R

P LA S M A AI

S U B -F IE LD P R O C ES S O R

< TZTN P010XAT>

(E xchange board only)

FOR

FACTORY

USE

TH-103PF10UK/EK

D-Board (1 of 2) Block Diagram

80

TH-103PF10UK/EK

D-Board (1 of 2) Block Diagram

9.15. D-Board (2 of 2) Block Diagram

TH-103PF10UK/EK

CABLE

<TSXL568>(D31-CD1)

<TSXL569>(C20-CD2)

81

TH-103PF10UK/EK

9.16. C1, C2, CY and CZ-Board Block Diagram

(D R 2 - B O A R D

S C S ID E )

< T N P A 4 0 1 8 >

(E x c h a n g e b o a rd o n ly )

TH-103PF10UK/EK

C1, C2, CY and CZ-Board Block Diagram

< T N P A 4 0 2 9 >

(E x c h a n g e b o a rd o n ly )

82

(E x c h a n g e b o a rd o n ly)

< T N P A 4 0 2 8 >

(E x c h a n g e b o a rd o n ly)

TH-103PF10UK/EK

C1, C2, CY and CZ-Board Block Diagram

9.17. C2, C3, CX and CY-Board Block Diagram

T O D R 2

(D R 1 - B O A R D

S C S ID E )

< T N P A 4 0 2 8 >

(E x c h a n g e b o a rd o n ly )

TH-103PF10UK/EK

C2, C3, CX and CY-Board Block Diagram

T O D R 5

(D R 1 - B O A R D

S C S ID E )

(E x c h a n g e b o a rd o n ly)

83

T O D R 4

(D R 1 - B O A R D

S C S ID E )

< T N P A 4 0 1 9 >

(E x c h a n g e b o a rd o n ly)

(D R 2 - B O A R D

S C S ID E )

(D R 2 - B O A R D

S C S ID E )

(E x c h a n g e b o a rd o n ly )

(D R 2 - B O A R D

S C S ID E )

CABLE

<TSXL518>

TO C91

DRVSOS7D_R

DOUTDA16

I

DOUTDC21

CLKD4+

CLRD5-

DMLL

DSHL

DMHL

DSLL

P+5V

I

P+5V

TH-103PF10UK/EK

C2, C3, CX and CY-Board Block Diagram

TH-103PF10UK/EK

CABLE

<TSXL518>

TO C41

DRVSOS7U_R

DOUTUA16

I

DOUTUC21

CLKU4+

CLRU5-

P+5V

I

P+5V

TH-103PF10UK/EK

9.18. C4, C5, C8 and C9-Board Block Diagram

CABLE

<TSXL570>(D32-CD1)

<TSXL571>(C40-CD2)

T O D32

(V ia C D - B O A R D )

О О О О

D O U T U C 2 1 - D 0 U T U A 1 0 о о о о

O O O O

T O D R 1 5

(D R 2 - B O A R D ^

S S S ID E )

^ ^

" "

-?

IO P C 2 0 4

CABLE

<TSXL572>(D33-CD1)

<TSXL571>(C50-CD2)

T O D 33

(V ia C D - B O A R D )

D O U T U C 9 - D 0 U T U A 0

T O D 3 5

(V ia C D - B O A R D )

< T N P A 4 0 2 1 >

(E x c h a n g e b o a rd o n ly )

О О О О

D O U T D C 2 1 - D O U T D A 1 0

О О О О O O O O

T O D R 4

(D R 1 - B O A R D

T O P C 2 Q 5

Д | С 5 I DATA D R IV E R (5)

< T N P A 4 0 2 2 >

(E x c h a n g e b o a rd o n ly )

CABLE

<TSXL574>(D34-CD1)

<TSXL575>(C80-CD2)

T O D 34

(V ia C D - B O A R D )

D O U T D C 9 - D 0 U T D A 0

O O O O О О О О О О

< T N P A 4 0 2 6 >

(E x c h a n g e b o a rd o n ly )

TH-103PF10UK/EK

C4, C5, C8 and C9-Board Block Diagram

А

C 8 DATA D R IV E R (8)

< T N P A 4 0 2 5 >

(E x c h a n g e b o a rd o n ly)

TH-103PF10UK/EK

C4, C5, C8 and C9-Board Block Diagram

84

9.19. C5, C6, C7 and C8-Board Block Diagram

T O D R 1 2

: (D R 1 - B O A R D S S S ID E )

T O D R 1 4

(D R 2 - B O A R D S S S ID E )

T O D R 1 3

(D R 2 - B O A R D S S S ID E )

O O O O

< T N P A 4 0 2 2 >

(E x c h a n g e b o a rd o n ly )

T O S S 4 4

T O D R 2 j (D R 1 - B O A R D

£ S S S ID E )

T O D R 5

(D R 1 - B O A R D

S S S ID E )

< T N P A 4 0 2 3 >

(E x c h a n g e b o a rd o n ly )

T O D R 3

(D R 1 - B O A R D

S S S ID E )

T H - 1 0 3 P F 1 0 U K / E K

T H - 1 0 3 P F 1 0 U K / E K

C 5 , C 6 , C 7 a n d C 8 - B o a r d B l o c k D i a g r a m

< T N P A 4 0 2 5 >

(E x c h a n g e b o a rd o n ly )

8 5

< T N P A 4 0 2 4 >

(E x c h a n g e b o a rd o n ly )

T H - 1 0 3 P F 1 0 U K / E K

C 5 , C 6 , C 7 a n d C 8 - B o a r d B l o c k D i a g r a m

T H - 1 0 3 P F 1 0 U K / E K

9.20. SC2 and S1-Board Block Diagram

T H - 1 0 3 P F 1 0 U K / E K

S C 2 a n d S 1 - B o a r d B l o c k D i a g r a m

8 6

U S E

T H - 1 0 3 P F 1 0 U K / E K

S C 2 a n d S 1 - B o a r d B l o c k D i a g r a m

T H - 1 0 3 P F 1 0 U K / E K

9.21. SC-Board Block Diagram

T H - 1 0 3 P F 1 0 U K / E K

S C - B o a r d B l o c k D i a g r a m

8 7

T H - 1 0 3 P F 1 0 U K / E K

S C - B o a r d B l o c k D i a g r a m

TH-103PF10UK/EK

9.22. SU, SM and SD-Board Block Diagram

PANEL

SCAN

ELECTRODES

3 6 0 L IN E

(UPPER)

T O S C 4 3

Vfo

Vfo

Vscn

Vscn

Vf

Vf

T O S C 4 6 SM46

< T N P A 4 0 3 0 >

(E x c h a n g e b o a rd o n ly)

TH-103PF10UK/EK

SU, SM and SD-Board Block Diagram

A | s i \ / l | S C A N O U T (M ID D L E )

< T N P A 403 1 >

(E x c h a n g e b o a rd o n ly)

T O S M 5 6 | Р

PANEL

SCAN

Л ELECTRODES

3 6 0 LIN E

(MIDDLE)

IC 6 9 5 4

T O S C 5 2

| SD |

FSID

FCLD

FCLKD

PROD

Vf+5V

Vf+5V

0 - e - e -

0 -

E

~

K -

T O S C 47

I

SD47

Vf

Vf

Vf

Vf+5V

Vf+5V

Vf

a

C74C34I

3 "

I I

C41 Cl

1

1

1

SD48

T O S C 48

Vf

Vf

| |

-- 1

Vfo

Vfo

1 I

, L ! -

a

CL

GND

SI

IC 6 9 2 5 |

S /P

_ 3 0 b it

SO

30

CL

GND

SI

IC 6 9 2 6 |

30

S /P

IC 6 9 2 7

s/p

3 0 b it

CL

GND

SI

IC 6 9 2 8 |

S /P

_ 3 0 b it

SO

CL

PRO

GND

SI

IC 6 9 2 9 |

S /P

CL

GND

SI

IC 6 9 3 0 |

S /P

_ 3 0 b it s o

30

CL

GND

SI

IC 6931 |

30

S /P

_ 3 0 b it s o

VDDH

VDD

Г

IC 6 9 3 2

CLK L

CL

PRO

GND

s/p

3 0 b it

CL

GND

SI

IC 6 9 3 3 I

30

S/P

SO ЗОЬЛ

CL

GND

SI

IC 6 9 3 4 |

30

S /P

_ 3 0 b it

SO

VDDH

VDD f

CLK L

IC 6 9 3 5

s/p

3 0 b it

CL

GND

SI

IC 6 9 3 6 I

S /P

_ 3 0 b it s o

30

PANEL

S C A N

f

E L E C T R O D E S

3 6 0 LIN E

(LO W E R )

A | s d

| S C A N O U T (L O W E R )

< T N P A 4 0 3 2 >

(E x c h a n g e b o a rd o n ly )

TH-103PF10UK/EK

SU, SM and SD-Board Block Diagram

9.23. SS, SS2 and SS3-Board Block Diagram

t o P 12

(P-BOARD

> > > W

g m m

> > + w w

-[ g O Q O Q G »

(D R 2 - B O A R D

S S S ID E )

Vda75V

Vda75V

Vda75V

Vda75V

+ 15V

SS

35

1

2

3

4

D t

T O DR1

(D R 1 - B O A R D |SS

S S S ID E ) 42

Vda75V

Vda75V

P i

©■*■

Vda75V

Vda75V

©■

0

O '

DRV(SS)_SOS8

UEL

T H - 1 0 3 P F 1 0 U K / E K

S S , S S 2 a n d S S 3 - B o a r d B l o c k D i a g r a m

8 9

SS51

S S 52

S S 53

A

S S 2 S U S T A IN O U T

< T N P A 4 0 3 6 >

(E x c h a n g e b o a rd o n ly) j6

\D t

11 SS30 '

S S 54

2 p r '

Jv D6043

LED(G) ^

T H - 1 0 3 P F 1 0 U K / E K

P A N E L

S U S T A IN

E L E C T R O D E

A

S S 3 S U S T A IN O U T

< T N P A 4 0 3 7 >

(E x c h a n g e b o a rd o n ly)

T H - 1 0 3 P F 1 0 U K / E K

S S , S S 2 a n d S S 3 - B o a r d B l o c k D i a g r a m

T H - 1 0 3 P F 1 0 U K / E K

9.24. DR1, DR2 and CD-Board Block Diagram

TO

D31

D 32

TO

C 20

C 40

T H - 1 0 3 P F 1 0 U K / E K

D R 1 , D R 2 a n d C D - B o a r d B l o c k D i a g r a m

9 0

T H - 1 0 3 P F 1 0 U K / E K

D R 1 , D R 2 a n d C D - B o a r d B l o c k D i a g r a m

10 Wiring Connection Diagram

10.1. Interconnection (1 of 8) Diagram

TO P10(SC SIDE)

TO DN1

J K 8 5 0 1

A U D IO

O U I

• 3 FAN_SOS

A f H i l

AUDIO OUT

<TNPA4058>

(Exchange board only)

H51 DS9

R LINE OUT

GND

GND

L LINE OUT

Al~V3~l

REMOCON RECEIVER

<TNPA4087>

(Exchange board only)

V3

V1

А И LED_G,R

<TNPA4085>

(Exchange board only)

V15

DS2

REMOCON

DS15

A-1

A-2

A-3

A-4

GND

TX4-

TX4+

TX5-

A-5

A-6

A-7

A-8

TX5+

GND

TX6-

TX6+

A-9 TX7-

A-10 TX7+

A-11 GND

A-12 TX8-

A-13 TX8+

A-14 TX9-

A-15 TX9+

A-16 GND

A-17 SLOT+3.3V

A-18 GND

A-19 SLOT+5V

A-20 GND

A-21 SLOT+9V

A-22 STB+5V(S)

A-23 GND

A-24

A-25 GND

A-26 AUDIO IN L

A-27 GND

A-28

AUDIO IN R

A-29 GND

A-30 VD

A-31 GND

A-32 HD

A-33 GND

A-34 PR/R

A-35 GND

A-36 PB/B

A-37 GND

A-38

Y/G

A-39 GND

A-40

LAN+1K5EVYSCAN

DS11(SLOT1)

B-1

B-2

B-3

B-4

GND

TX0-

TX0+

GND

B-5

B-6

TX1-

TX1 +

B-8

GND

TXG-

B-9 TXG +

B-10 GND

B-11 TXC-

B-12 TXC+

B-13 GND

B-14 TX3-

B-15 TX3+

B-16 GND

B-17 SLOT+3.3V

B-18 GND

B-19 SLOT+5V

B-20 GND

B-21 SLOT+9V

B-22 GND

B-23

B-24 S_DATA1

B-25 S_CLOCK1

B-26 RXD

B-27 TXD

B-28 PLUG DET

B-29

B-30

SOS B-31

B-32

B-33

B-34

B-35

B-36

B-37 SLOT+15V

B-38

SLOT+15V

B-39

B-40 LAN+15V

B-7

SRQ

REMOTE

A-1

A-2

A-3

A-4

A-5

A-6

A-7

A-8

A-9

A-10

A-11

A-12

A-13

A-14

GND

GND

GND

A-15

A-16

GND

A-17 SLOT+3.3V

GAN-1D8

A-19 SLOT+5V

A-20 GND

A-21

SLOT+9V

A-22 STB+5V(S)

A-23

A-24

A-25 GND

A-26 AUDIO IN L

GND

A-28

AUDIO IN R

A-29 GND

A-30 VD

A-31

GND

AR-_3S2TATHUDS

A-33 GND

A-34 PR/R

SAE-3T5 GND

DA-E3T6ECTPB/B

A-37 GND

A-38

Y/G

DA-39 GND

A-40 LAN+15V

DS12(SLOT2)

TX4-

TX4+

TX5-

TX5+

TX6-

TX6+

TX7-

TX7+

B-1

B-2

B-3

B-4

B-5

B-6

B-7

B-8

GND

TXG-

B-9 TXG +

B-10 GND

B-11 TXC-

GND

TX0-

TX0+

GND

TX1-

TX1+

TX8-

TX8+

TX9-

TX9+

B-12 TXC+

B-13 GND

B-14 TX3-

B-15 TX3+

GND

A-1

A-2

A-3

A

A-5

A-6

A-8

A-9

A-10

A-11 GND

A 12

A-13

A 14

GND

GND

B-16 GND

B-17 SLOT+3.3V

B-18 GND

B-19

B-20 GND

SLOT+5V

B-21

B-22 GND

SLOT+9V

B-23

B-24 S_DATA2

B-25 S_CLOCK2

B-26 RXD

B-27 TXD

B-28

B-29

B-30

PLUG DET

B-31 SOS

B-32

B-33

SRQ

A-29

EMA-O3T0E

B-35

B-36

RESET

S2 DETECT

B-37 SLOT+15V

B-38

SLOT+15V

B-39 GND

B-40 LAN+15V

B-34

A-16 GND

SLOT+3.3V

A-18 GND

A-19 SLOT+5V

A-20 GND

A-21 SLOT+9V

A-22 STB+5V(S)

A-23

A-24

A-25

A-26

A-27

A-28

A-31

A-32

A-33

A-34

A-35

A-36

A-37

A-38

A-39

B-4

B-5

B-6

B-7

B-8

DS13(SLOT3)

B-1 GND

B-2

B-3

GND

GND

B-9

B-10 GND

B-11

B-13 GND

• 1B-15

B-16 GND

B-17 SLOT+3.3V

B-18 GND

SLOT+5V

B-20 GND

B-21

B-22 GND

SLOT+9V

B-2G3ND

B-2G5NDS_CLOCK3

B-2A6U )IOXN L

B-2G7NDTXD

B-2A8U )IO IN R

B-2G9N

B-3V0D

B-33N DSOS

B-3H2D

B-3G3N

B-3P4R/

B-3G5ND

B-3P6B/B

B-3G7NDSLOT+15V

B-3Y8/G SLOT+15V

B-3G9ND

B-4L0AN+L1A5NV+15V

A I V2 | KEY SCAN

<TNPA4086>

(Exchange board only)

TH-103PF10UK/EK

Interconnection (1 of 8) Diagram

A

(UK) H1 i-------------

H D M I | D IG ITAL S IG N A L

P R O C E S S O R

M IC O M

H D M I IN TE R FA C E

<TXNHHH10XXT>

(Exchange board only)

H 6

H D M I IN A

H 5

H D M I IN B

-----------

FOR FACTRY USE

H0_______________

4

GND

DVI_CLOCK

8

SLOT_CLOCK

SLOT_DATA

WP(EDID)

H1

J - l

(EK)

A

HDD

DVI-D IN

<TNPA4052>

(Exchange board only)

H1

A

HA CO M PONENT VIDEO

<TXNHA10RBS>

(Exchange board only)

J K 3 0 0 1

J K 3 5 0 1

D V I- D IN

-

D V I- D a u d i o i n

4 § H g H g ) y

P b r P

C O M P O N E N T V I D E O IN

J K 3 0 0 2

A U D I O IN

SRQ

A

DS SLOT INTERFACE

SYNC PROCESSOR

SOUND PROCESSOR

<TNPA4386>

(Exchange board only)

PLUG DEI

RESET

S2 DETECT

HX1

n

G

1 П в | ; | ' 5 ^ 6 | 8 | , | , ' Т

A M PC/232C

<TZTNP030XAT>

(Exchange board only)

J K 3 5 1 3

P C A U D I O IN

GND

REMOCON

REMOCON_OUT

GND

SOUND_MUTE

S CLOCK3

S DATA1

S CLOCK1

GND

31 POWER_STAT

32 CABLE_DET

RESET

39 GND

40 GND

TO DN3

1 2 3 4 5 6 7 8 9 10 1112 13 1415

H t I I11 I

J K 3 5 1 1 ^ J K 3 5 0 9

1 2 3 4 5 6 7 8 9

П I □

^

P C IN R S - 2 3 2 C

T H -103P F 10U K /E K Interconnection (1 of 8) Diagram

9 1

T H - 1 0 3 P F 1 0 U K / E K

T H - 1 0 3 P F 1 0 U K / E K

10.2. Interconnection (2 of 8) Diagram

77 75 74

I8 0 179 N M I M I 7 M s a H | Ы

DN6

|б1|бй| | | 5|з56 |55 I 5^63 6~2 I I 443 I [47[465t2l |

TO DS6

C A B L t

TSX L684

1 37 . Ф ^ Ы I N 1 I H

I |27 |26 |25 |24 |23 |32 |33^120~[-

I I I M i l 1 1 1 M I I I I I

66656376368

C A B L t

T SX L686 DN1

20 GND

GND

GND

GND

GND

TO DS1

TO DS3

GND

GND

DN3

GND

REMOCON

REMOCON_OUT

SOUND_MUTE

S DATA3

S CLOCK3

S DATA1

S CLOCK

POWER_STAT

CABLE_DET

RESET

GND

DPMS_VD

DPMS_HD

GND

A

DN D IG IT A L S IG N A L P R O C E S S O R /M IC O M

< T Z T N P 0 2 0 X A T >

(E x c h a n g e b o a rd o n ly )

DN6

GND

E+LVDSCLK

E-LVDSCLK

LVDS_DET

O + LVDSCLK

O-LVDSCLK

GND

GND

TO D5

DN2

S CLOCK2

S DATA2

ALARM

PANEL_STBY_ON

S CLOCK

S DATA1

PDB0

FSTB

TO D3

FOR FACTRY USE

20 21

DN4

5 6 7 8(

FOR FACTRY USE

T H - 1 0 3 P F 1 0 U K / E K

I n t e r c o n n e c t i o n ( 2 o f 8 ) D i a g r a m

T H - 1 0 3 P F 1 0 U K / E K

I n t e r c o n n e c t i o n ( 2 o f 8 ) D i a g r a m

9 2

.3. Interconnection (3 of 8) Diagram

A I S U I S C A N O U T (U P P E R )

S C 4 1 (S C 4 1-S U 41)

< T N P A 4 0 3 0 > (E x c h a n g e b o a rd on ly)

S C 4 2(S C 42 -S U 42 )

SU41 (S C 41 -S U 41 ) S U 4 2 (S C 42 -S U 42 )

2 3 4 5 9 HOi 1 3 08 19 2 i 1 22 23

I I I I I I I Г ГI I I I I I I I I TTTT

<K1LA23BA0003>

[ W

“ 4 s m i

г

/

\ | s m

|_B1-B54

А

| S C A N O U T ( M I D D L E )

_ □

В A

K7i

N

RM?

V ° 3 V ° 19 19/f s V ° V ° W f

L m -B 5 4 J

V ° 3 V ° 15 0/f

1

V ° 3 V ° 13 13/f

SM3 3

V ° i ^ =

3 V ° ii l1Vf

J" A1-A54 1 2

Vscn

2 V

2 V

2

V

2 V

SE

9 !9/f

7

!7Vf

5 :a/f

A SM4

|J 23

^A1-A54 7

[_ B 1 -B 5 4 j

V 2 V 3 13/f

V

С

2 V с

!1Vf

с

В

9 a/f

7

TVf

5 5/f

< T N P A 4 0 C

19 9 / f

7Vf

15 9/f

13 3/f i i

1Vf

3

1Vf с

A

S C 4 6(S C 46 -S M 46 )

S M 46 (S C 46 -S M 4 6)

I I I I I I I I I I I I I I I I I I I I I I I-------------------------------------------j 1 j 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 B R ID G E C O N N E C T O R

<K1LA23BA0003>

39

38

Vfo

Vfo

35

34 Vfo

33 Vfo

Vfo

Vfo

30 Vscn

28

25

23 Vf

Vf

40

1 40

V Э

В

V Э 38

Vfo

S C 4 7 (S C 47 -S D47)

A

39 Vf

20 Vf

2Vf

36

Vf 37

5 36

Vfo 37

18 3Vf

Vf

Vf 16

6

9

10

V cn 29

13

14

26 V 15

25

Vfo 32

Vfd>

Vscn

Vscn

Vf

\0 7

Vf

35 V

33 8V j

32

31

30

l¥f >14 7

50

12 Vf

1

29

Vf

27\

2

Vf

Vf

Wf

18 23 Vf

22

21 V 20

22 Vf

Vf

С

24

21 1

9 Vf

С

S D 47 (S C 47 -S D47)

Vfo 41

19

17

15 V 26

С

50

V

30

9 V

8 53

V

28

12

Vf 10

6

Vf 5 6

\06

V 36 5

V£4 Vf 4 57

В

4 a/f

42

43

VH-6

7

48 13

9

Vf

52

Vf

4Vf

\S5

56

Vf 3 ! 8Vf3

Vf

(Vf

A

20 ал

19 Vf

18 Vf

ад ад

65

15

66

391

\ WT

\

68

31

ve

39 V 72

33

3J

38

6

7 7

74

76

77

1

79

80

С

40

!2

!3

!4

£Э

■0

16

34 !7 14 з; Vf

78

62 39

63 38

1737

32 !9 V2\ 69

30

17Ю

Vf

2f V173 8

14/f

IS 7

35

29

27

Vf

Vf

Vf

Vf

m 36

Vf 35

Vf

Vf

Vf 32 Vf

31 Vf

26 v

Vf

Vf 4 2 Vf

v

23 V

V

21 V

D

30

13 28

26

24

23

21

в

Vf

Vf

S C 4 8(S C 48 -S D 48 )

1 40

2

4

5

6

3 38

7 34

8 33

9

10 31

11 V

Vf 19

44

45 16

47

49 aa

12 29 V 52

14

V v 54

Vf

15

16 2ЕБ

17

18

V 55

Vf

57 4

V 58

V£2 19 22

20

D

60 Vf

A

Vf 41 Vf

Vf

27

Vf

Vf

Vf

39

46

59

V

18 V

37 VH

Vf

6

1

!0 20

V

15 Vf 15

Vf V

51 10

9 V

8 Vf 53

5

D

29 Vf

7V sa\

11

9

Vf

в

Vf

Vf

Vf

Vf

2

42

43

Vf

56

Vfl

8

7

D

18/

24

V

Ш V

13 48 13 \ 38

12 V

10 \

Vf

Vf+5V a ! I-S5

5

4 V

33

Vf30 /

62

78

1V 80

S D 4 8(S C 48 -S D 48 )

32 72

33 Vf 73

7Vtf+5V

A S D S C A N O U T (L O W E R ) < T N P A 4 0 3 2 > (E x c h a n g e b o a rd o n ly)

TH-103PF10UK/EK

Interconnection (3 of 8) Diagram

TH-103PF10UK/EK

ТО Р2

(S C SIDE )

Т О Р23

(S C SIDE )

93

TH-103PF10UK/EK

Interconnection (3 of 8) Diagram

T H - 1 0 3 P F 1 0 U K / E K

10.4. Interconnection (4 of 8) Diagram

UK AC 240V, 50 / 60Hz

EK AC 220-240V 50 / 60H

AC CORD

UK <K2CG3YY000

EK <K2CN3YY00003

<K2CT3YY00002

AC INLET ASSY

TXAJS01YLTJ>

TO P9(SC SIDE)

F1

NEUTRAL

1-9

NEUTRAL

А Ш

L IN E F IL T E R

< T N P A 4 0 6 6 >

(E x c h a n g e b o a rd o n ly )

P9

NEUTRAL

TO F9

TO SC2

TO SC82 2

3

2

3 GND

P2

F8

NEUTRAL

A P (S U S ) P O W E R S U P P L Y

< Z T X M M 6 4 1 M G 2 >

( E x c h a n g e b o a rd o n ly )

(S C S ID E )

4

T

P 64 |

1

2

3

1

2

3

P66

8

t

P 62 |

3

4

5

6

7

1

2

P66

GND

| P61

ON/OFF

| P63

VSUS_VCC

TO P9(S S SIDE)

TO SC 23

2 1

G

2

5 V

P23

A

P (M U L T I) P O W E R S U P P L Y

< Z T X M M 6 4 1 M G 1 >

( E x c h a n g e b o a rd o n ly )

(S C S ID E )

F O R FAC TR Y U S E

P67

TO P11(SC SIDE )

SC82

GND

SC83

II 1 1 1 1 1 1 I

P26

GND

GND

GND

GND

TO PC203

VDA_LOW

P1U P6

1 ^ 2 1 3 1 4 1 5 1 6 1 2 1 3 1 5 1 7 1 8 1

TO DS4

TO C 24 т э т г г з т в р г а t

V t V Y t ' t Y t Y itt

1 2 4 5 6 7 8 9 10 1 12

TO C 34 r ^ 7 T ^ T T 7 F T 7 F r a T i 3 n 1

5 6 7 8 9 10 121

TO C22 п ^ п л л т

1 1 1 1 1 V f п

2 3 4 6 7 9 10

SC13

DR1

TO SC 8 0

A S C 2 D C -D C C O N V E R T E R

F O R S C A N D R IV E

< T N P A 4 0 3 4 >

(E x c h a n g e b o a rd o n ly )

TO SC81

0

SC84

VBK

VBK

A | S1 | P O W E R S W

< T N P A 4 0 8 4 >

( E x c h a n g e b o a rd o n ly )

S34

GND

SC14

3 4 5 6

TO CX4

A

DR1 E N E R G Y DATA R E C O V E R Y

< T N P A 4 0 3 3 >

(E x c h a n g e b o a rd o n ly )

(S C S ID E )

TO CY4

| , | 2 b L I ^ ^ 6 | 7 h | 9 | , 0 | „ | , 2 | , 3 | , 4 |, 5 |

Y t Y f Y h

Y i

Y 3

TO CY2

I 1 |2 |3 | | 5 | 6 | 7 | 8 | 9 I 1 a |

Y iY rn

7

Y r

SC34

VCENT

VCENT

Д |D R 2 | e n e r g y d a t a r e c o v e r y

< T N P A 4 1 0 0 >

(E x c h a n g e b o a rd o n ly )

(S C S ID E )

FO R FACTRY USE

T H - 1 0 3 P F 1 0 U K / E K

I n t e r c o n n e c t i o n ( 4 o f 8 ) D i a g r a m

DR3

TO C14

T H - 1 0 3 P F 1 0 U K / E K

I n t e r c o n n e c t i o n ( 4 o f 8 ) D i a g r a m

9 4

T H - 1 0 3 P F 1 0 U K / E K

10.5. Interconnection (5 of 8) Diagram

D5

IO DN51

21

22

24

26

28

30

E+ LVDSCLK

LVDS_DET

O+ LVDSCLK

TO SC20

IO DN2

D20

CL

CLK

GND

SCSU

GND

SOS6_SC1

GND

GND

CML

20 CMH

D3

S CLOCK2

S DATA2

GND

ALARM

MEXCH

GND

PANEL_STBY_ON

GND

RXD

TXD

GND

S CLOCK1

S DATA1

GND

PSTB

GND

FSTB

CA1 CA2

A |C 1 I DATA D R IV E R (1)

< T N P A 4 0 1 8 >

(E x c h a n g e b o a rd o n ly )

CABLE

TSXL518>

3 4 5 6 7 8 9 Ф 11 12 13 14 15

| Ц | 5 | ? | ? | ? | ? 9 ы п

TO DR3(SC SIDE)

F O R F A C T R Y U S E

C21

C21

Vda_RU(+78V)

RU(+78V)

Vda_RU(+78V)

Vda_RU(+78V)

5 Vda_RU(+78V)

13 P+75V_R(Vda)

A[

C 2 DATA D R IV E R (2)

< T N P A 4 0 1 9 >

(E x c h a n g e b o a rd o n ly)

DOUTUC[28]

32 DOUTUB[29

DOUTUC[30

2 13 4 5 9 10 11 12 13 14 15

|e |7 |e| 1

TO DR5(SC SIDE)

M 13I14H

CLKU[6](

44 GND

46 GND

47 CLRU1

48

50 ODEU

52

54

55 P+5V

12 3 4 6

ТТммЙГППГ

Y 3 W 5 i f r | 8 | Г Г

TO DR2(SC SIDE)

CABLE

<TSXL568>

CA3

C20

DOUTUB[31]

DOUTUC[30]

20 GND

DSLR

CLKU7(-

DOUTUB[3QCLKU6(+)

GND

24 GND

DOUTUC[29]

DOUTUB[29] 26

GND

DMHR

DSHR

DMLR 32

GND 33

28 GND

DOUTUC[28]

DOUTUB[28] 30

GND 49

GND

CA4

35

37

52 GND

DOUTUC[24]

54 DOUTUB[24]

39

41

43

45

47

56 GND

DOUTUC[23]

DOUTUC[27jOUTUB[23]

DOUTUB[27]

58

DOUTUC[2<p)OUTUB[22]

DOUTUB[29pOUTUA[22]

60 GND

DOUTUC[22]

62

64 GND

66

51

DOUTUC[25]

DOUTUB[25]

68 GND

CA5

C20

C23

CABLE

<TSXL518>

C -B O A R D /D -B O A R D

C O N N E C T IO N

< T N P A 4 0 4 0 >

(E x c h a n g e b o a rd o n ly)

TO DR13(SC SIDE)

CABLE

TSXL518>

A[

C Z DATA D R IV E R (Z)

< T N P A 4 0 2 9 >

(E x c h a n g e b o a rd o n ly )

CB1 CB2

CZ1

A 0

D IG IT A L S IG N A L P R O C E S S O R

F O R M A T C O N V E R T E R

P L A S M A AI

S U B -F IE L D P R O C E S S O R

< T Z T N P 0 1 0 X A T >

(E x c h a n g e b o a rd o n ly)

D36

CABLE

<TSXL578>

TO DR14(SC SIDE)

М П 3 | 4 Ы в 1 Н е 1 а |10Ь 1121.311! 1 Ш

TO DR12(SC SIDE)

З П Щ Ш Щ r<TSXt5T9>

C -B O A R D /D -B O A R D

C O N N E C T IO N

< T N P A 4 0 4 0 >

(E x c h a n g e b o a rd o n ly)

1

A[

C Y DATA D R IV E R (Y)

< T N P A 4 0 2 8 >

(E x c h a n g e b o a rd o n ly)

CY1

3

1

2

P+5V

P+5V

P+5V

GND 5

6 ODEDZ

7 LEDZ

PCDZ 8

9 CLRDZ

GND 10

CLKD[6](-) 11

12 GND

13

14 GND

CLKD[7](+)

15

20

22

26

DOUTDC[30]

16 DOUTDB[30] 30 GND

31 D1O7UTDA[30]

GND 18

DOUTD1C9[31]

29

+5V_DET

GND 32

GND 33

DOUTDA[29]

GND

23 DOUTDC[28]

DOUTD2B4[28]

GND

25

28

DOUTDB[31]

21 DOUTDA[31]

27

DOUTDA[28]

DOUTDC[29]

DOUTDB[29]

38

44

46

43 P+75V_R(O

P+75V_R(Vda) 9 a

45 P+75V_R(Vda

GND 34

GND 35

GND 36

GND 37

51

53 Vda_RD(+78V)

54 Vda_RD(+78V

Vda_RD5(5+78V)

42 P+75V_R(Vda)

Vda_RD(+78V

52 Vda_RD(+78V

Y

CY0

2

18

DOUTDB[23C LKD7(-)

19 DOUTDC[23]

20 GND

35

6GND

37 DSLL

4

5

6

7

+5V_DET DOUTDB[22]

GND

21

22

DOUTD3A8[22]

23 DOUTD4C0[22]

24 GND DOUTDA[27]

GND

39 DSLR 56

GND

41

8

10 PCDY

11

14

LEDY 26

GND

DMLL

DSHL

DOUTDB[25]

25 DOUTDA[25]

27

28

DOUTDC[25]

GND DOUTDA[26]

42 DOUTDB[27]

43

DOUTDd 2 B , E

44

45

GND <TSXL518>

62

29 DOUTDAi[24ipOUTDB[26]

DOUTDB[24] 30 DOUTDC[26] 47

31 DOUTD4C8[24] GND

15 DMHL

16 GND 33

17 DOUTDA[23]

32

34

GND 49 DOUTDA[29]

CLKD6(+) DOUTDB[29]

GND

50

51 DOUTDC[29]

52 GND

53 DOUTDA[28]

54 DOUTDB[28]

DOUTDC[28] 55

GND

57 DOUTDA[31]

58 DOUTDB[31]

59 DOUTDC[31]

60 GND

61

66

67

68

DOUTDA[30]

DOUTDB[30]

63 DOUTDC[30]

64 GND

65 DMLR

DSHR

DMHR

GND

CB3 CB4

CB5

CY3 CX2

T H - 1 0 3 P F 1 0 U K / E K

I n t e r c o n n e c t i o n ( 5 o f 8 ) D i a g r a m

T H - 1 0 3 P F 1 0 U K / E K

I n t e r c o n n e c t i o n ( 5 o f 8 ) D i a g r a m

9 5

T H - 1 0 3 P F 1 0 U K / E K

10.6. Interconnection (6 of 8) Diagram

Д 0 D IG IT A L S IG N A L P R O C E S S O R

F O R M A T C O N V E R T E R

P L A S M A AI

S U B -F IE L D P R O C E S S O R

< T Z T N P 0 1 0 X A T >

(E x c h a n g e b o a rd o n ly)

D35

CY3

TO DR15(SC SIDE)

1

CX2

CABLE

<TSXL518>

CX2

GND

DRV_SOS7D_R

GND

DMLL

DMHL

GND

LEDX

CDX

CLRDX

36

21

23

26 GND

GND 27

28 GND

GND

GND 30

32

40

CB6

46

48

50

41

43

54

CX1

52 Vda_RD

53 Vda_RD

A[

C X DATA D R IV E R (X)

< T N P A 4 0 2 7 >

(E x c h a n g e b o a rd o n ly )

CABLE

<TSXL518>

CB7

CB8

A | c d

| C -B O A R D /D -B O A R D C O N N E C T IO N

< T N P A 4 0 4 0 >

(E x c h a n g e b o a rd o n ly )

C91

C91

GND

DRV_SOS7D_R

GND

DSHL

DSLL

GND

CLKD4(

GND

CLKD5(

GND

DOUTDC[20]

DOUTDB[20]

35

37

39

31

33

27

29

22 DOUTDC[21]

DOUTDB[21]

25

42

45

47

GND

53 GND

GND

55 GND

CABLE

<TSXL577>

C90

Д | С 9 DATA D R IV E R (9)

< T N P A 4 0 2 6 >

(E x c h a n g e b o a rd o n ly)

C90

1 P+5V

2 P+5V

GND

CB9

PCD9

CLRD9

GND

DOUTDB[1

DOUTDC[1

6 GND

7 DOUTDA[10]

DOUTDB[10]

9 DOUTDC[10]

21

DOUTDB[13]

23 DOUTDC[13]

25

DOUTDB[12]

27 DOUTDC[12]

29

31

DOUTDB[15]

DOUTDC[15]

33 CLKD2(

34 GND

35 CLKD3(-

36 GND

CLKD4(

38 GND

CLKD5(

40 GND

42 DOUTDB[14]

DOUTDC[14]

44 GND

46 DOUTDB[17]

DOUTDC[17]

48 GND

50

DOUTDC[16]

52 GND

53 DOUTDA[19]

DOUTDB[19]

55 DOUTDC[19]

GND

57

DOUTDB[18]

59 DOUTDC[18]

GND

61

DOUTDB[21]

63 DOUTDC[21]

GND

65

DOUTDB[20]

67 DOUTDC[20]

68 GND

T H - 1 0 3 P F 1 0 U K / E K

I n t e r c o n n e c t i o n ( 6 o f 8 ) D i a g r a m

T H - 1 0 3 P F 1 0 U K / E K

I n t e r c o n n e c t i o n ( 6 o f 8 ) D i a g r a m

9 6

T H - 1 0 3 P F 1 0 U K / E K

10.7. Interconnection (7 of 8) Diagram

Д | С 4 DATA D R IV E R (4)

< T N P A 4 0 2 1 >

(E x c h a n g e b o a rd o n ly)

CABLE

<TSXL518>

C42

GND

GND

GND

C53

C53

20

38

40

34

36

21

23

25

GND

27 GND

GND

29 GND

GND

GND

32 52

54

41

43

PCU6

45 CU5

LEU5

47

49 DRV_SOS7U_L

C50

CA12

26

GND

GND

28 GND

32 GND

34 GND

DOUTUB[9]

36

CLKU0(

GND

GND

53 DOUTUC[2]

54 DOUTUB[2]

DOUTUC[8] 38 GND

23 DOUTUA[8]

DOUTUC[7]

40 GND

DOUTUC[5]

DOUTUB[5]

43 DOUTUA[5]

GND

45 DOUTUC[4]

DOUTUB[4]

30 DOUTUB[6] 47

GND

49

62

64

GND 56

GND

GND

DOUTUC[3] 66

DOUTUB[3]

51 DOUTUA[3] 68 GND

57

58

60

DOUTUC[1]

DOUTUB[1]

DOUTUC[0]

A[

C 5 DATA D R IV E R (5)

< T N P A 4 0 2 2 >

(E x c h a n g e b o a rd on ly)

CABLE

<TSXL518>

C51 C61

C50

1 2 3 4

n

TO PC204

2 3 4 5

TO DR15(SS SIDE)

CABLE

<TSXL571>

A

C D

C -B O A R D /D -B O A R D C O N N E C T IO N

< T N P A 4 0 4 0 >

(E x c h a n g e b o a rd on ly)

TO C43

Г Т ^ Л

1

1

1

2

1

3

1

4 15

1

6 17

1

TO DR12(SS SIDE) TO DR14(SS SIDE)

CABLE

<TSXL572>

IO PC205 TO DR4(SS SIDE)

|1 U U I I 1 U I 2 1 ^ 4 |57|^ ^ 8 1= |ю|и| п л и

T i n

m i

п ' 6 ' 6 '

A

C 9 DATA D R IV E R (9)

< T N P A 4 0 2 6 >

(E x c h a n g e b o a rd on ly)

CABLE

<TSXL518>

C93

D25

PC201

GND

GND

GND

GND

GND

GND

F_STBY_ON

PC202

TO P25

(S S SIDE)

3

4

5

6

1

2

A 0

D IG IT A L S IG N A L P R O C E S S O R

F O R M A T C O N V E R T E R

P L A S M A AI

S U B -F IE L D P R O C E S S O R

< T Z T N P 0 1 0 X A T >

(E x c h a n g e b o a rd o n ly )

A P C P O W E R C O N T R O L

< T N P A 4 0 4 1 >

(E x c h a n g e b o a rd o n ly )

F_STBY_ON

D34

20

CABLE

<TSXL574>

A

C D

C -B O A R D /D -B O A R D C O N N E C T IO N

< T N P A 4 0 4 0 >

(E x c h a n g e b o a rd o n ly)

C80

C83

C83

GND

DRV_SOS7D_L

GND

SHL

DSLL

GND

ODED8

PCD8

CLRD8

PCD7

22

24

33

35

26

GND 27

28

30

31

39

42

46

48

50

53

55

r n m r n n

IO C92

| ; | T | з | ^ i | 6

K |

S | 9

h^■|

Тт|13|1,|1'i

n ' l ' т ^ ^

TO P25(SC SIDE)

I O SS44 TO DR2(SS SIDE) TO DR5(SS SIDE)

3

I I I .. . . . . . . . . . . . . . . . . . . . . . . . . . I I I I I ~ П " 1 Г И Н З Н Н Н Н З ^ M 2 I М - М П . 9 I I 1 1 1

1

m m

m H if linn

3 5 3 4 5

9 Ф 1 11 2 13

9 20 2 3 4 5 9 10 11 12. 13

C80

P+5V

USL

GND

UML

3

GND

5 NUEL

DOUTDC[3]

44 GND

46 DOUTDB[5]

57 DOUTDA[6]

58

GND 60

DOUTDC[6]

GND

32

9

DRV_SOS8

20 GND

21

UEH

SH

UMH

GND 34

23 DOUTDC[1]

GND

25

DOUTDB[0]

27

GND

DOUTDC[0]

GND

37 CLKD0(

36

GND 38

39

GND 40

DOUTDB[2]

48

49

GND

53 DOUTDA[7]

DOUTDC[7]

GND 56

GND 62

67

55

DOUTDC[9]

GND

GND

DOUTDB[9]

DOUTDC[8]

63

65

A

C 8 DATA D R IV E R (8)

< T N P A 4 0 2 5 >

(E x c h a n g e b o a rd o n ly)

CB12

CB14

C81

CABLE

<TSXL518>

20

T H - 1 0 3 P F 1 0 U K / E K

I n t e r c o n n e c t i o n ( 7 o f 8 ) D i a g r a m

T H - 1 0 3 P F 1 0 U K / E K

I n t e r c o n n e c t i o n ( 7 o f 8 ) D i a g r a m

9 7

T H - 1 0 3 P F 1 0 U K / E K

10.8. Interconnection (8 of 8) Diagram

SS61

C61 C61

CLKU[0](

CLKU[1](

53

55

GND

C64

A

D R 2

E N E R G Y DATA R E C O V E R Y

< T N P A 4 1 0 0 >

(E x c h a n g e b o a rd o n ly )

(S S S ID E )

A[

S S 2 S U S T A IN O U T (U P P E R )

< T N P A 4 0 3 6 >

(E x c h a n g e b o a rd o n ly )

C ABLE

<TSXL518:

C61

21

GND

GND

23 GND

25

27

DOUTUB[3]

Д C 6 DATA D R IV E R (6)

< T N P A 4 0 2 3 >

(E x c h a n g e b o a rd o n ly )

29 DOUTUC[3]

31

DOUTUB[2]

33 DOUTUC[2]

35

DOUTUB[1

37 DOUTUC[1

39

DOUTUB[0]

DOUTUC[0]

SS 36

GND

SS62

SS63

SS64

S S 29 S S 30

TO C 52 TO C 54 TO C44

TO PC202

P26

C81

GND

GND

20 VDA_LOW

P6

C71

A

P (M U L T I) P O W E R S U P P L Y

< Z T X M M 6 4 1 M G 1 >

(E x c h a n g e b o a rd o n ly )

(S S S ID E )

1 2 3 4 5 6

TO PB31

DOUTDC[1]

DOUTDB[1]

C71

C ABLE

<TSXL518>

GND

PCD7

GND

CLKD[1](

GND

CLKD[0](

GND

A[

C 7 | DATA D R IV E R (7)

< T N P A 4 0 2 4 >

(E x c h a n g e b o a rd o n ly )

DOUTDC[0]

DOUTDB[0]

21

22 GND

DOUTDC[3]

24 DOUTDB[3]

26 GND

DOUTDC[2]

28 DOUTDB[2]

N O USE

1 2 3 4 5

36

38

40

42

29

31

33

50

52

54

FO R FAC TR Y U SE

P67

1 2 3

P23

1 2 3 4 5 6 7 8 9 10

TO SS 12

C74

NO USE

DR3

P66

GND

P66

P61 I

P63 I

VSUS_VCC

GND

| P62

4 t

1

1

2

3

1

2

3

Д

7

P (S U S ) P O W E R S U P P L Y

< Z T X M M 6 4 1 M G 2 >

(E x c h a n g e b o a rd o n ly )

(S S S ID E )

TO C82

1

1 | 2 h I

4

I i

U I

7 l a

I s

I

1 0

I

4 1 4 4 4 4 I f

TO C94

I , I 2 U I 4 Ь и Ы е Ы ю ! , , 1,21,31,41,51

У н У V t t t V t

TO C 84

............................. ............................. ...... 2 I13 ! , 4 1 , 5 I fT T T T T

A

D R E N E R G Y DATA R E C O V E R Y

< T N P A 4 0 3 9 >

(E x c h a n g e |b o a rd |o n ly )

(S S S ID E )

P2

NO USE

2

GND 3

P9

_IVE

_IVE

TO F8

DR1

TO P12

(S S SIDE )

SS2

S S 27 1-19 1-19 S S 25

SS66

A [ s s

1 S U S T A IN D R IV E

< T N P A 4 0 3 6 >

(E x c h a n g e b o a rd o n ly )

SS66

1-13

SS67

GND

TO C88

STB PS

SS44

UEL

USL

UML

DRV_SOS8

GND

GND

SS68

SS 23 1-19 1-19 SS21

SS 42

GND

S S 37 S S 36

SS 69

1-13

SS60

1-13

SS61

1-13

A[

S S 3| S U S T A IN O U T (L O W E R )

< T N P A 4 0 3 7 >

(E x c h a n g e b o a rd o n ly )

1-13

SS62

T H - 1 0 3 P F 1 0 U K / E K

I n t e r c o n n e c t i o n ( 8 o f 8 ) D i a g r a m

T H - 1 0 3 P F 1 0 U K / E K

I n t e r c o n n e c t i o n ( 8 o f 8 ) D i a g r a m

9 8

10.9. Lead Wiring (1)

TH-103PF10UK/EK

Clamp position

C O N N E C T O R N U M B E R

DR3 C14

DR2 -

C22

DR4 С 24

DR5 С 34

DR1 SC13

1 2 3 4 5

О О о О О о О о

6 7 8 9 15 о О О О

О

C O N N E C T O R N U M B E R

DR11 - SC14

SC80 - SC83

SC81 - SC84

DR13 - CZ4

DR12 - CY2

10 11 12 13 14

О

О о

No Clamp

I О | О О О

99

TH-103PF10UK/EK

10.10. Lead Wiring (2)

Clamp position

C O N N E C T O R N U M B E R

DR13 -

DR12 -

DR14 -

DR15 -

DR11 -

DR3 -

DR2 -

C64

C52

C44

C54

SS35

C74

C82

21 22 23 24 25 26 27 28 29 30 44

О О О О О

О

О О

No Clamp

No Clamp

О О О

О О

О

C O N N E C T O R N U M B E R

С43 - РС204

D25 - РС201

РС205 -

РС202 -

С92

Р25

31 32 33 34 35

О О о О о о

36

О о о

37 38 39

О О О

C O N N E C T O R N U M B E R

Р12 -

Р2 -

SS12

SS2

DR1 - SS42

40 41 42 43 45

О О О

О О О

О

100

10.11. Lead Wiring (3)

TH-103PF10UK/EK

101

TH-103PF10UK/EK

10.12. Lead Wiring (4)

Clamp position

C O N N E C T O R N U M B E R

F9 - P9

(s c s id e )

AC INLET -

F8 - P9

F1

(s s s id e )

P 5 1 (s c s id e

) - P52( s c s i d e

>

P51(SS SIDE) - P52(SSSIDE)

81 82 83 84 85 86 87 88 89 о О О

О О

О О О О

О

О

102

10.13. Lead Wiring (5)

TH-103PF10UK/EK

Clam p position

C O N N E C T O R N U M B E R

DN5 -

DN2 -

DS3 -

DS30 -

D5

D3

DN3

PB30

102 103 104 105 106 109 110 111

О о О О о о

О о о о о о

C O N N E C T O R N U M B E R

DS10 - Р10

DS4 - Р5

( s c s id e )

107 108 109 66

О О О о

О о о о

65 64

О О о о

63

C O N N E C T O R N U M B E R

РВ31 - Р5

(S S S ID E )

111 70 о О

33 о

34 37 38

О О О

C O N N E C T O R N U M B E R

S C 2 0 - D 20

113 114 115 116 117

О О О О О

C O N N E C T O R N U M B E R

DS6 -

DS1 -

Н51 -

DN6

DN1

DS9

No Clamp

No Clamp

No Clamp

103

TH-103PF10UK/EK

10.14. Lead Wiring (6)

104

10.15. Lead Wiring (7)

/

V1

V3

'

i

DS2

Clamp position

C O N N E C T O R N U M B E R

V1 - DS2

V3 - DS2

150 151 152 153 154 155

О О О О О О

О О О о О

105

TH-103PF10UK/EK

TH-103PF10UK/EK

10.16. Lead Wiring (8)

106

10.17. Lead Wiring (9)

TH-103PF10UK/EK

107

Model No. : TH-103PF10UK/EK Caution

Note: Im p o rta n t S afety Notice

C o m p o n e n ts id e n tifie d by

A m a rk h a ve s p e c ia l c h a ra c te ris tic s im p o rta n t fo r sa fe ty.

W h e n re p la c in g a n y o f th e s e c o m p o n e n ts , u s e o n ly m a n u fa c tu re r's s p e c ifie d p a rts.

Note:

A ll p a rts e x c e p t p a rts m e n tio n e d [P A V C C Z ] in th e R e m a rk s c o lu m n a re s u p p lie d b y P A V C -C S G

P a rts m e n tio n e d [P A V C C Z ] a re s u p p lie d b y P A V C C Z .

Model No. : TH- 103PF10UK/EK Exploded View

Model No. : TH-103PF10UK/EK Cabinet part location

Model No. : TH-103PF10UK/EK Side Power part location

Model No. : TH-103PF10UK/EK Fan part location

Fan (C)

Model No. : TH-103PF10UK/EK Rear cover location

Model No. : TH-103PF10UK/EK Cable relation

Model No. : TH-103PF10UK/EK Board and Fuse

Model No. : TH-103PF10UK/EK Packing summary (1)

49 201

<A C p o w e r cord>

T H -103P F 10UK TH-103PF1OEK

18

Model No. : TH-103PF10UK/EK Packing summary (2)

41

Model No. : TH-103PF10UK/EK Packing summary (3)

Model No. : TH-103PF10UK/EK Packing summary (4)

Model No. : TH-103PF10UK/EK Packing summary (5)

Model No. : TH-103PF10UK/EK Packing summary (6)

Model No. : TH-103PF10UK/EK Packing summary (7)

Model No. : TH-103PF10UK/EK Parts List

A

&

A

&

23

24

25

26

27

19

20

21

22

15

16

17

18

11

12

13

14

8

9

6

7

4

5

2

3

R e f .

No .

1

1

2

2

Part No.

EUR7 636090R

K2CN3YY00003

10

K2CT3YY00002

L6FAYYYH0030

L6FAYYYH0031

M D 103F10A1J

TBMA20 9

TBXA4 67 03A

TBXA50001

TESD031

THEA068N

THEA15 4J

THEC098J

THEL0239

THEL027N

THEL027N

THEL037N

THEL0429

THTA0419

THTD011J

THTD013N

THTF011N

TKEA16401A

TKEA165 04T

TKEA16601A

TKGA5410

TKKC5213

TKKL5370

TKKX0015

TKUX115 01

TMKA62 9

TMKG732

TMKG733

TMM16473-1

Part Name & Description

REMOTE CONTROLLER

REMOTE CONTROLLER

AC CORD

AC CORD (E)

AC CORD (B)

FAN UNIT (80)

FAN UNIT (120)

PLASMA DISPLAY PANEL

PANASONIC BADGE

5 RANGE BUTTON

POWER BUTTON

POWER BUTTON SPRING

SCREW

M16 BOLT

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

CABINET TOP

CABINET BOTTOM

CABINET LEFT/RIGHT

FRONT GLASS

LED PANEL

BLANK PLATE

EYE BOLT COVER

HEXAGONAL WRENCH

REMOCON RECEIVE PANEL

REAR COVER(CENTER/LEFT/TOP)

CABINET FELT LEFT/RIGHT

CABINET FELT TOP/BOTTOM

CABINET FELT CORNER

SPONGE(FAN)

SPONGE(FAN)

SPONGE(LEFT/RIGHT)

SPONGE(TOP/BOTTOM)

CLAMPER

CLAMPER

Q'ty

13

1

1

1

2

1

1

1

22

163

2

4

12 UK

8 EK

1

11

18

12

4

4

1

1

1

1

1 UK

1 EK

1 UK

1 EK

8

1

1 EK

3

4

16

3

2

2

4

1

1

4

31

16

Remarks

28

29

TMME203

TMME22 6

36

37

37

130

30

31

250

32

33

34

35

36

36

37

48

49

49

44

45

46

47

38

39

40

41

42

43

TMMX15 8

TPD A 1 4 16

TPD A 1 4 17-1

TPD A 1 4 18-1

TPD A 1 4 19

TPDF17 4 6

TPDX0007

TPDX0027

TPDX0041

TPEH323

TPEH324

TQBC2243

TQBC224 4

TMWC016

TMXX033

TMXX035

TMXX03 6

TPCC045 01

TPCC04 601

TPCC28 8 04

TPC0E835 01

TPCC28 810

TPCC28 904

TPC0E835 03

TPCC28 910

Model No. : TH-103PF10UK/EK Parts List

A

&

&

A

&

&

S a f e t y

R e f .

No .

A

Part No.

TMM174 99

TMM6428-1

TMM64 63-1

TMM64 96-1

TMM7 4 64-2

TMM7 4 68-1

TMM7 4 68-1

TMME04 7

&

A

TMME190

TMME28 7

Part Name & Description

CLAMPER

CLAMPER

CLAMPER

CLAMPER

CLAMPER

CLAMPER

CLAMPER

CLAMPER

CLAMPER

CLAMPER

CLAMPER

CLAMPER

CLAMPER

AC CORD CLAMPER

CLAMPER

COVER(EDGE GAURD)

RUBBER(FAN)

POWER BUTTON BRACKET

CORE HOLDER

AC CORD CLAMPER A

AC CORD CLAMPER B

CARTON BOX BOTTOM

CARTON BOX TOP

CARTON SIDE A

CARTON SIDE A (Indication: A ssembled in

CZ)

CARTON SIDE A (Indication: Made in Japan

)

CARTON SIDE B

CARTON SIDE B (Indication: Assembled in

CZ)

CARTON SIDE B (Indication: Ma d e in Japan

)

CUSHION (CENTER)

TOP CUSHION

BOTTOM CUSHION LEFT

BOTTOM CUSHION RIGHT

CUSHION CENTER

ACCESSORIES BOX

JOINT

BOTTOM SKID

BAND

PROTECTION BAG

FRONT PROTECTION COVER

INSTRUCTION BOOK(ENGLISH)

INSTRUCTION BOOK(SPANISH)

Q'ty

1 EK

1 UK

1 EK, PAVCCZ

1 EK

2

1

4

1

2

1 UK

1 UK

2

1

1

1

4

2

4

4

2

1

4

1

4

3

7

2

1

3

2

5 UK

6 EK

4

38

1

2

1

1 UK

1

1

1 UK

1 EK, PAVCCZ

Remarks |

Model No. : TH-103PF10UK/EK Parts List

&

&

A

&

A

&

&

&

A

Safety

49

49

49

49

49

200

R e f .

No .

49

Part No.

TQBC2245

TQB0E0481A 49

49

49

TQB0E0481U

TQEF035

A

&

&

&

50 TSXL518

55

56

57

58

51

52

53

54

63

64

65

59

60

61

62

67

67

68

68

68

73

203

74

202

69

70

71

72

TSXL568

TSXL569

TSXL570

TSXL571

TSXL572

TSXL574

TSXL575

TSXL57 6

TSXL577

TSXL578

TSXL57 9

TSXL584

TSXL585

TTU A 1 5 15-1

TTU A 1 5 18

TTUA1520

TTUA17 4 8

TTU A 1 5 19

TTUA1751-1

TTUA17 7 9-1

TTUA18 92

TUWC05 6

TUXJ35 0

TUXJ351

TUXJ37 0

TUXJ371

TUXK05 6

TXAJS01YLTJ

J0KD00000096

UR7 6EC2 8 03A

XTV3+10JFJ

Part Name & Description

INSTRUCTION BOOK(FRANCH)

INSTRUCTION B O O K ( G E R M A N )

INSTRUCTION BOOK(DUTCH)

INSTRUCTION BOOK(ITALIAN)

INSTRUCTION BOOK(FRENCH)

INSTRUCTION BOOK(SPANISH)

INSTRUCTION BOOK(SWEDISH)

INSTRUCTION BOOK(DANISH)

INSTRUCTION BOOK(ENGLISH)

POLY BAG FOR EYE BOLT COVER

CABLE (C11-C21/C23-C32/C31-C41/C42-C53/C

Y 1 - C Z 1 )

C A B L E ( D 3 1 - C D 1 )

C A B L E ( C 2 0 - C D 2 )

C A B L E ( D 3 2 - C D 1 )

CABLE(C4 0 - C D 2 )

C A B L E ( D 3 3 - C D 1 )

Q'ty

1 UK

1 PAVCCZ EK

1 PAVCCZ EK

1 PAVCCZ EK

1 PAVCCZ EK

1 PAVCCZ EK

1 PAVCCZ EK

1 PAVCCZ EK

1 PAVCCZ EK

1

10

CABLE(C8 0 - C D 2 )

C A B L E ( D 3 5 - C D 1 )

C A B L E ( C 9 0 - C D 2 )

CABLE(D3 6-C D 1 )

C A B L E ( C Y 0 - C D 2 )

C A B L E ( D N 6 - D S 6 )

C A B L E ( D N 1 - D S 1 )

REAR COVER(SIDE/LEFT)

REAR COVER(CENTER/LEFT/BOTTOM)

REAR COVER(CENTER/(RIGHT/BOTTOM)

REAR COVER(CENTER/(RIGHT/TOP)

REAR COVER(CENTER/(RIGHT/TOP)

REAR C O V E R ( S I D E / R I G H T )

REAR COVER(SIDE/RIGHT)

REAR COVER(SIDE/RIGHT)(Indication: Made in Japan)

SIDE POWER COVER

CABINET/TOP RIGHT/BOTTOM)

CABINET/TOP RIGHT/BOTTOM)

CABINET/TOP LEFT/BOTTOM)

CABINET/TOP LEFT/BOTTOM)

STAND HOOK

INLET ASSY

FERRITE CORE

BATTERY COVER

SCREW

1

6

2

4

2

2

1

2

1 UK

3

1

1

1

1

1

1

1

1

1

1

1

1

1

2

1

1

1 UK

1 EK

1 UK

1 EK PAVCCZ

1 EK

Remarks

Model No. : TH-103PF10UK/EK Parts List

| S a f e t y

R e f .

No .

Part No.

Part Name & Description

75

204

XTV3+8JFJK

XTW3+8TFJ

XVN16FJ

XWB16BVJ

XYN3+F10FJ

XYN3+F8FJ

XYN3+J12FJ

XYN3+J8FJ

XYN4+F10FJ

XYN4+F10FJK

XYN4+F32FJ

XYN4+J10FJ

SCREW

SCREW

EYE BOLT

M16 SPRING WASHER

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

XYN5+F15FJ SCREW

SCREW

SCREW XYN8+F20FJK

201 XZBT65 0 6 POLY BAG FOR INST.BOOK

A

F900 K5D103BMA0 01

A

F901 K5D103BMA0 01

A

F903 K5D103BMA0 01

TIME LAG FUSE HIGH

TIME LAG FUSE HIGH

TIME LAG FUSE HIGH

TIME LAG FUSE HIGH

A

F904 K5D103BMA0 01

A

F1601 K5D103BMA001 TIME LAG FUSE HIGH

A

F1602 K5D103BMA001 TIME LAG FUSE HIGH

A

F17 01 K5D502BNA007 AC FUSE

A

F1702 K5D502BNA007 AC FUSE

A

81 TNPA4018 CIRCUIT BOARD C1

A

82 TNPA4019 CIRCUIT BOARD C2

A

83 TNPA4020 CIRCUIT BOARD C3

A

84 TNPA4021 CIRCUIT BOARD C4

A

85 TNPA4022 CIRCUIT BOARD C5

A

86 TNPA4023 CIRCUIT BOARD C6

A

87 TNPA4024 CIRCUIT BOARD C7

A

88 TNPA4025 CIRCUIT BOARD C8

A

89 TNPA402 6 CIRCUIT BOARD C9

A

90

TNPA4027

CIRCUIT BOARD CX

A

91 TNPA4028 CIRCUIT BOARD CY

A

92 TNPA402 9 CIRCUIT BOARD CZ

A

93 TNPA4030 CIRCUIT BOARD SU

A

94 TNPA4 031 CIRCUIT BOARD SM

A

95 TNPA4032 CIRCUIT BOARD SD

A

96 TNPA4033 CIRCUIT BOARD SC

A

97

TNPA4034 CIRCUIT BOARD SC2

A

98 TNPA4035 CIRCUIT BOARD SS

A

99 TNPA4 03 6 CIRCUIT BOARD SS2

Q'ty

1

1

1

1

1

1

1

1

2

2

2

2

1

1

1

1

56

18

6

1

8

142

32

99

9

35

193

16

3

4

1

2

1

1

1

1

1

1

1

1

1

1

1

Remarks |

Model No. : TH-103PF10UK/EK Parts List

S afe t y

R e f .

No .

Part No.

Part Name & Description

A

100 TNPA4037 CIRCUIT BOARD SS3

A

101 TNPA4039 CIRCUIT BOARD DR1

A

102 TNPA404 0 CIRCUIT BOARD CD

&

103 TNPA4041 CIRCUIT BOARD PC

A

104 TNPA4055 CIRCUIT BOARD F

A

105 TNPA4058 CIRCUIT BOARD H5

A

106 TNPA408 4 CIRCUIT BOARD S1

&

107 TNPA4085 CIRCUIT BOARD V1

A

108 TNPA4 CIRCUIT BOARD V2

A

109

TNPA408 7

CIRCUIT BOARD V3

A

110 TNP A 4 10 0 CIRCUIT BOARD DR2

&

111 TNP A 4 103 CIRCUIT BOARD PB

A

112 TNPA438 6 CIRCUIT BOARD DS

A

113 TXNHA10RBS CIRCUIT BOARD HA

A

114 TXNHHH10XXT CIRCUIT BOARD HDMI

&

114 TNPA4052 CIRCUIT BOARD HDD

A

115 TZTNP010XAT CIRCUIT BOARD D

A

116 TZTNP020XAT CIRCUIT BOARD DN

A

117 TZTNP030XAT CIRCUIT BOARD HX

£

118 ZTXMM641MG1 CIRCUIT BOARD P (MULTI)

A

119 ZTXMM641MG2 CIRCUIT BOARD P (SUS)

RM0 01 PNA4 7 REMOCON RECEIVER

Q'ty

2

1

1

1

1

1

1 UK

1 EK

1

1

1

1

6

1

1

2

1

2

1

1

2

1

Remarks

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
