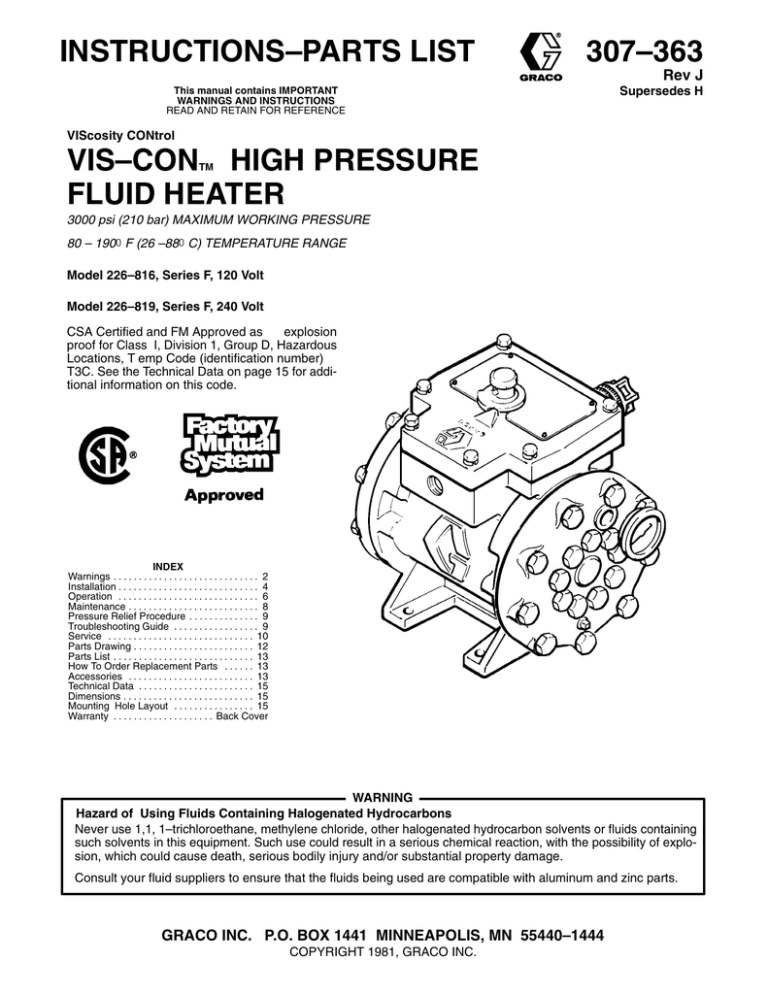

307363j vis–con high pressure fluid heater

307363j vis–con high pressure fluid heater
INSTRUCTIONS–PARTS LIST
307–363
This manual contains IMPORTANT
WARNINGS AND INSTRUCTIONS
READ AND RETAIN FOR REFERENCE
Rev J
Supersedes H
VIScosity CONtrol
VIS–CON HIGH PRESSURE
FLUID HEATER
TM
3000 psi (210 bar) MAXIMUM WORKING PRESSURE
80 – 190 F (26 –88 C) TEMPERATURE RANGE
Model 226–816, Series F, 120 Volt
Model 226–819, Series F, 240 Volt
CSA Certified and FM Approved as
explosion
proof for Class I, Division 1, Group D, Hazardous
Locations, T emp Code (identification number)
T3C. See the Technical Data on page 15 for additional information on this code.
INDEX
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Pressure Relief Procedure . . . . . . . . . . . . . . 9
Troubleshooting Guide . . . . . . . . . . . . . . . . . 9
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Parts Drawing . . . . . . . . . . . . . . . . . . . . . . . . 12
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
How To Order Replacement Parts . . . . . . 13
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . 13
Technical Data . . . . . . . . . . . . . . . . . . . . . . . 15
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Mounting Hole Layout . . . . . . . . . . . . . . . . 15
Warranty . . . . . . . . . . . . . . . . . . . . Back Cover
WARNING
Hazard of Using Fluids Containing Halogenated Hydrocarbons
Never use 1,1, 1–trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or fluids containing
such solvents in this equipment. Such use could result in a serious chemical reaction, with the possibility of explosion, which could cause death, serious bodily injury and/or substantial property damage.
Consult your fluid suppliers to ensure that the fluids being used are compatible with aluminum and zinc parts.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1444
COPYRIGHT 1981, GRACO INC.
SAFETY WARNINGS
HIGH PRESSURE FLUID CAN CAUSE SERIOUS INJURY.
FOR PROFESSIONAL USE ONLY. OBSERVE ALL WARNINGS.
Read And Understand All Instruction Manuals Before Operating Equipment.
All ELECTRICAL WIRING should be performed only by trained and qualified personnel
in compliance with all local, state and national codes.
FLUID INJECTION HAZARD
General Safety
This equipment conducts very high fluid pressure. Spray from the gun,
leaks or ruptured components can inject fluid through your skin and into
your body and cause extremely serious bodily injury, including the need
for amputation. Also, fluid injected or splashed into the eyes or on the skin
can cause serious damage.
Trigger Guard
Never operate the gun with the trigger guard removed. This guard helps
prevent the gun from triggering accidentally if it is dropped or bumped.
Spray Tip Safety
NEVER point the spray gun at anyone or at any part of the body. NEVER
put hand or fingers over the spray tip.
Use extreme caution when cleaning or changing spray tips. If the spray
tip clogs while spraying, engage the gun safety latch immediately. ALWAYS follow the Pressure Relief Procedure and then remove the spray
tip to clean it.
ALWAYS follow the Pressure Relief Procedure, right, before cleaning
or removing the spray tip or servicing any system equipment.
NEVER wipe off build–up around the spray tip until pressure is fully relieved and the gun safety latch is engaged.
NEVER try to stop or deflect leaks with your hand or body.
Be sure equipment safety devices are operating properly before each
use.
Medical Alert––Airless Spray Wounds
If any fluid appears to penetrate your skin, get EMERGENCY MEDICAL
CARE AT ONCE. DO NOT TREAT AS A SIMPLE CUT. Tell the doctor
exactly what fluid was injected.
Note to Physician: Injection in the skin is a traumatic injury. It is important to treat the injury surgically as soon as possible. Do not delay
treatment to research toxicity. Toxicity is a concern with some exotic
coatings injected directly into the blood stream. Consultation with a
plastic surgeon or reconstructive hand surgeon may be advisable.
Spray Gun Safety Devices
Be sure all gun safety devices are operating properly before each use. Do
not remove or modify any part of the gun; this can cause a malfunction
and result in serious bodily injury.
Safety Latch
Whenever you stop spraying, even for a moment, always set the gun
safety latch in the closed or “safe” position, making the gun inoperative.
Failure to set the safety latch can result in accidental triggering of the gun.
Pressure Relief Procedure
Always relieve the fluid pressure in the heater, pump and hoses before checking or adjusting any component in the system. This is to
reduce the risk of serious bodily injury , including fluid injection,
splashing fluid in the eyes or on the skin, burns from contact with
hot metal parts or fluid, and electric shock.
1.
Engage the gun safety latch.
2.
Shut off the main power to the heater.
3.
Circulate the fluid for at least 10 minutes to cool the heated
fluid and heater.
4.
Shut off all air and fluid supplies.
5.
Disengage the gun safety latch. Maintaining firm metal–to–
metal contact between the gun and a grounded metal pail,
trigger the gun into the pail to relieve pressure. Engage the
gun safety latch.
6.
Open the system fluid drain valve, having a container ready
to catch the fluid.
EQUIPMENT MISUSE HAZARD
General Safety
System Pressure
Any misuse of the spray equipment or accessories, such as
overpressurizing, modifying parts, using incompatible chemicals and fluids, or using worn or damaged parts, can cause them to rupture and result
in fluid injection, splashing in the eyes or on the skin, or other serious bodily injury, or fire, explosion or property damage.
This heater has a 3000 psi (210 bar) MAXIMUM WORKING PRESSURE. DO NOT exceed the maximum working pressure of any component or accessory used in the system.
NEVER alter or modify any part of this equipment; doing so could cause it
to malfunction.
Be sure that all accessories you add to the system are properly rated to
withstand the maximum air and fluid working pressure and temperatures
of this system.
CHECK all spray equipment regularly and repair or replace worn or damaged parts immediately.
Always wear protective eyewear, gloves, clothing and respirator as recommended by the fluid and solvent manufacturer.
Heat causes fluid to expand. If fluid in the heated portion of your system is
trapped with no where to expand, it can cause a system rupture. resulting
in serious bodily injury and property damage. To reduce the risk of overheating the fluid, be sure your system has an adequate way to handle
heat expansion: Use the heater in a circulating system, OR provide an
over–temperature safety relief valve, OR provide adequate heat dissipation. Never install any shutoff device between the heater and gun. If you
are using a fluid regulator before the gun, never use it as a shutoff device.
NEVER install any fluid shut off device at the fluid outlet of the heater or
filter. Shutting off the fluid at the outlet may cause overheating and high
back pressure which can cause component rupture and result in serious
bodily injury.
Fluid Compatibility
BE SURE that all fluids and solvents used are chemically compatible with
the wetted parts shown in the Technical Data on the back cover. Always
read the fluid and solvent manufacturer’s literature before using them in
this heater.
HOSE SAFETY
ALL FLUID HOSES USED WITH A FLEXING MOTION MUST HAVE
SPRING GUARDS ON BOTH ENDS! The spring guards help protect
the hose from kinks or bends at or close to the coupling which can result
in hose rupture.
High pressure fluid in the hoses can be very dangerous. If the hose develops a leak, split or rupture due to any kind of wear, damage or misuse, the
high pressure spray emitted from it can cause a fluid injection injury or
other serious bodily injury or property damage.
NEVER use a damaged hose. Before each use, check the entire hose for
cuts, leaks, abrasion, bulging cover, or damage or movement of the hose
couplings. If any of these conditions exist, replace the hose immediately.
DO NOT try to recouple high pressure hose or mend it with tape or any
other device. A repaired hose cannot safely contain the high pressure
fluid.
HANDLE AND ROUTE HOSES CAREFULLY. Do not pull on hoses to
move equipment. Do not use fluids or solvents which are not compatible
with the inner tube and cover of the hose.
TIGHTEN all fluid connections securely before each use. High pressure
fluid can dislodge a loose coupling or allow high pressure spray to be
emitted from the coupling.
MOVING PARTS HAZARD
Never operate the hose when it is coiled. Doing so causes excessive
heat buildup which can result in hose rupture and cause serious bodily
injury; including fluid injection, and property damage.
Moving parts can pinch or amputate your fingers or other body parts.
KEEP CLEAR of moving parts when starting or operating the equipment.
Follow the Pressure Relief Procedure on page 2 before checking or
servicing any part of the system, to prevent it from starting accidentally.
FIRE OR EXPLOSION HAZARD
Static electricity is created by the high velocity flow of fluid through the
pump and hose. If every part of the spray equipment is not properly
grounded, sparking may occur, and the system may become hazardous.
Sparking may also occur when plugging in or unplugging a power supply
cord. Sparks can ignite fumes from solvents and the fluid being sprayed,
dust particles and other flammable substances, whether you are spraying indoors or outdoors, and can cause a fire or explosion and serious
bodily injury and property damage. Do not plug in or unplug any power
supply cords in the spray area when there is any chance of igniting fumes
still in the air.
If you experience any static sparking or even a slight shock while using
this equipment, STOP SPRAYING IMMEDIATELY. Check the entire system for proper grounding. Do not use the system again until the problem
has been identified and corrected.
Grounding
To reduce the risk of static sparking, ground the pump and all other spray
equipment used or located in the spray area. CHECK your local electrical
code for detailed grounding instructions for your area and type of equipment. BE SURE to ground all of this spray equipment:
1.
Pump: use a ground wire and clamp as shown in your separate
pump manual.
2.
Air hoses: use only grounded air hoses.
3.
Fluid hoses: use only grounded fluid hoses.
4.
Heater: by wiring to a properly grounded power supply through the
electrical connections. In a mobile installation, be sure the truck or
trailer is grounded to a true earth ground, also.
5.
Air compressor or hydraulic power supply: follow manufacturer’s
recommendations.
6.
Spray gun: grounding is obtained through connection to a properly
grounded fluid hose and pump.
7.
Object being sprayed: according to your local code.
8.
All solvent pails used when flushing, according to local code. Use
only metal pails, which are conductive, placed on a grounded surface. Do not place the pail on a nonconductive surface, such as paper or cardboard, which interrupts the grounding continuity.
9.
To maintain grounding continuity when flushing or relieving pressure, always hold a metal part of the gun firmly to the side of a
grounded metal pail, then trigger the gun.
Electrical Wiring
All electrical wiring should be performed only by trained and qualified personnel in compliance with all local, state and national codes.
Never operate with covers removed. Conductors used for the supply
connection shall be suitable for at least 105) C (221) F).
This heater has a surface temperature code (identification code) of T3C,
indicating a maximum external (surface) temperature rating of 200) C
(392) F) in accordance with Article 500 – Hazardous Locations – of
NFPA 70 National Electrical Code and/or Section 18 – Hazardous Locations – of Part 1 of the Canadian Electrical Code. See and comply with the
requirements of these and similar codes as to the proper location of the
heater.
Flushing Safety
Reduce the risk of fluid injection injury, static sparking, or splashing by
following the specific flushing procedure given on page 8 of this manual.
Follow the Pressure Relief Procedure on page 2, and remove the spray
tip before flushing. Hold a metal part of the gun firmly to the side of a metal
pail and use the lowest possible fluid pressure during flushing.
IMPORTANT
United States Government safety standards have been adopted under the Occupational Safety and Health Act. These standards – particularly the General Standards, Part 1910, and the Construction Standards, Part 1926 – should be consulted.
3
INSTALLATION
HEATED CIRCULATING SYSTEM
C
A
B
J
D
A
N
G
P
F
H
E
M
L
K
KEY
A
B
C
D
E
Bleed–type Master Air Valve
Air Regulator and Gauge
Ground Wire
Pump
Fluid Filter w/Drain Valve
F
G
H
J
K
Vis–Con Heater
Fluid Shutoff Valve
Fluid Pressure Regulator
Spray Gun
Back Pressure Valve
WARNING
To reduce the risk of serious bodily injury, including
fluid injection, splashing in the eyes or on the skin,
burns from hot fluid or heated surfaces, electric
shock or property damage, always follow these precautions when installing the heater.
1. Shut off the electric circuit.
2. Relieve air and fluid pressure in the system.
3. Have a trained and qualified person install and
wire the heater.
4. Be sure the installation is in compliance with all
local, state and national codes.
5. Do not install any shut off devices downstream
from the heater.
NOTE: These precautions are explained more fully in
the SAFETY WARNINGS section on pages 2
and 3.
4
L
M
N
P
Director Valve
Siphon Tube
Drain Back Tube
Pressure Relief Valve
WARNING
Heat causes fluid to expand. If fluid in the heated
portion of your system is trapped with no where to
expand, it can cause a system rupture. A system
rupture can result in serious bodily injury and property damage. Be sure your system has an adequate
way to handle heat expansion.
1. Use flexible hoses between the heater and gun.
2. OR, install a properly sized accumulator downstream from the heater.
3. OR, install a pressure relief valve (P – see the
installation drawing above), pre–set to relieve
pressure when it exceeds the system’ s maximum working pressure.
4. Never install any shutof f device between the
heater and gun. If you are using a fluid regulator
before the gun, never use it as a shutoff device.
INSTALLATION
Mounting the Heater
The Typical Installation shown above is only a guide to
setting up a basic, heated, circulating system. Contact
your Graco representative for assistance in designing a
system to suit your needs.
Use 1/4 in. diameter mounting screws (P) to install the
heat insulators (19) on each side of the bolt holes in the
heater housing (Q). See Fig 1. Mount the heater near the
object to be sprayed, but outside the spray area. Be sure
the surface on which you mount the heater can support
the weight of the heater, filters, hoses and fluid. See the
DIMENSIONAL DRAWING on page 15 and TECHNICAL DATA on page 15.
Q
Wiring
Remove the heater cover (20). Connect the electric wires
of the circuit to the heater leads (R & S) with connectors
(T). Crimp the terminal (24) onto the ground wire (U) of
the circuit and connect to the heater ground connection
screw (5). See Fig 2.
WARNING
All wire nuts used for heater connections must be
rated at 150 C or higher . NEVER use wire nuts
rated less than 150 C; they cannot withstand the
heat generated.
NOTE: Be sure your voltage supply agrees with the
heater voltage. The 120 volt heater draws 18
amps, and the 240 volt heater draws 9 amps.
P
T
Fig 1
19
5
Install a fluid shutof f valve (G) UPSTREAM from the
heater. This is used to isolate the heater when it requires
servicing. DOWNSTREAM, install a fluid filter and drain
valve (E). The filter removes sediment that may have collected in the heater, which could clog the spray gun.
24
Connect Hoses
Connect the fluids lines to the 1/2 npt(f) inlet and outlet of
the heater. See the TYPICAL INSTALLATION, on page
4.
To minimize heat loss, fluid lines should be insulated
when they are especially long if the environment is cool.
R
S
U
Fig 2
5
OPERATION
Flushing
This heater was factory tested with a lightweight oil. Use
low pressure and a compatible solvent to flush the system. While the system is pressurized, check it carefully
for leaks at all fluid connections. Pump out the solvent,
relieve the system pressure and tighten any leaking connections. Prime the system and check to be sure that all
leaks have stopped.
Priming the System
Pump the fluid until all air has been purged from the system, to permit proper heating and spraying. In a completely closed, circulating system, use a director valve (L)
attached to the pump intake to purge the system. See the
TYPICAL INSTALLATION drawing.
Setting Heater Controls
NOTE: The knob settings for Series E and older
Vis–Con heaters will dif fer from Series F
heaters (covered in this manual). It’s important
that you take this into consideration when
setting the heaters. Refer to the charts which
illustrate the difference.
MAX TEMP RISE V.S. FLOW RATE
APPROXIMATE CASTING TEMP
V.S. KNOB SETTING
CASTING
TEMP
)C
)F
80
170
70
150
60
50
40
130
110
30
90
20
70
NEW MODELS
OLD MODELS
0
Fig 4
1
2 3
4 5 6
7 8
9
KNOB SETTING
RISE
)C )F
TEST FLUID: 0.45 S.H. oil
60
100
50
40
30
20
10
80
120/240 VOLT
60
NOTE:
40
Start the pump and circulate the fluid at a low
speed––10 to 12 oz/min (0.30 to 0.35
liter/
min)––during the warm up.
20
0
0
FLOW
0
0
.2
.4
1.0
.6
2.0
.8 1.0
3.0
4.0
GPM
LPM
Shaded area indicates continuous operation
capability of one heater. Use more heaters if your
needs exceed these guidelines.
Fig 3
6
Stop the pump, set the control knob (V) at 4 or 5 (trial setting) and let the heater warm up for about 10 minutes.
See Fig 4.
Adjusting for Spraying
Start the pump and check the fluid flow through the gun.
Readjust the control knob setting, if necessary, to obtain
the proper temperature for spraying.
In a Hydra–Sprayr system with a tip installed in the gun,
adjust the pump speed (use the pump air regulator) to the
lowest fluid pressure that will completely atomize the
fluid. In a circulating system, adjust the back pressure
valve also.
OPERATION
Determining the Proper Fluid Temperature
5. Subtract the lowest viscosity reading from the highest one. Multiply that result by 0.90. Subtract the new
result from the highest viscosity reading. Find this
number on your temperature and viscosity records.
This the temperature to use in your Under–Boil system.
CAUTION
Use the lowest temperature setting needed, for
maximum heater life. Operating the heater at its
highest setting – over 82) C (180) F) – for long
periods of time decreases the heater life.
Higher than necessary temperatures also cause the
fluid to dry out, resulting in a poor finish and clogging
the heater.
EFFECT OF TEMPERATURE ON REDUCING VISCOSITY
UNDER–BOIL METHOD
100
HEAVY LACQUER
90
The chart in Fig 5 is used in determining the Under –
Boilr temperature. It also shows the effect of temperature on reducing viscosity. Notice that most of the viscosity reduction occurs by 55) C (130) F).
MEDIUM LACQUER
80
70
VISCOSITY
TIME IN 60
SECONDS
with No. 2 50
ZAHN CUP
Under–Boil is the Graco method of hot, airless spraying
in which the fluid is heated to a temperature just under the
boiling point of its most volatile solvent.
To find the Under–Boil temperature of your fluid:
40
1. Pour a small sample into a heat–proof container.
30
2. Measure and record the temperature and viscosity of
the fluid. Use a No. 2 Zahn cup.
20
ENAMEL
10
3. Heat water in a large container to 93) C (200) F).
Place the sample in the water.
0
60
4. At every 105 temperature rise, measure and record
the viscosity and temperature. Do this until solvents
start boiling of f and the viscosity starts to level
off – usually 71) to 77) C (160) to 170) F).
80
100
120
140
160
180
TEMPERATURE () F)
Fig 5
Effect Of Temperature In Reducing Two Fluids To A Sprayable Viscosity
The chart in Fig 6 shows the effect of temperature in reducing two fluids to a sprayable viscosity – in the range of 20 to 34
seconds using a No. 2 Zahn cup.
Notice that temperature has more of an effect on high solid fluids than on thin enamels. That is, for the same 10d temperature
rise, more viscosity reduction occurs in
the high solid fluid than the enamel. This
shows that high solid fluids are “temperature sensitive”, which needs to be taken
into consideration when planning your
system.
EFFECT OF TEMPERATURE ON VISCOSITY
60
TYPICAL HIGH–SOLID PAINT
50
TYPICAL ENAMEL PAINT
APPARENT 40
VISCOSITY
with NO. 2
ZAHN CUP
30
D U1
Also note that once the fluid is reduced to
about 34 on the chart, viscosity reduction
starts to level of f. Therefore, high temperatures will not significantly improve
sprayability, but will use more energy.
TYPICAL
SPRAY
VISCOSITIES
D U2
20
60
Fig 6
80
100
120
140
TEMPERATURE () F)
307-363
7
MAINTENANCE
1. Drain and clean the fluid filter frequently to be sure it
filters the fluid thoroughly . Always relieve system
pressure first, and cool the fluid, if possible. If not
possible wear protective eyewear and gloves to protect yourself from possible burns.
V
2. Flush the heater often enough to prevent a buildup of
dried sediment in it.
WARNING
9
Before flushing, always shut of f the main power to
the heater. Circulate the fluid through the system for
at least 10 minutes to cool the fluid and heater. This
reduces the risk of serious bodily injury from burns.
CAUTION
Clogged fluid passages can be very dif
ficult to
clean. They also reduce heating efficiency, flow rate
and pressure. To prevent clogged passages, do not
overheat or dry out the fluid, and flush frequently, including whenever the system or heater is not in use.
7
Fig 7
3. If the system runs dry, refill it immediately before fluid
can dry in it. Or flush the system thoroughly if you are
not going to use it immediately.
4. To drain the fluid from the heater, first relieve all system pressure. Cool the fluid if possible. Remove the
drain plug (7) in either end plate and drain the fluid
into a container. See Fig 7.
5. Shutdown.
CAUTION
When shutting down the system, turn the control
knob (V) to set point 1 and circulate the fluid for at
least 10 minutes before shutting off the pump. This
allows unheated fluid to gradually cool the heater
and heated fluid.
If Fluid Passages Are Clogged
Remove an end plate (21) and use a wire bottle brush to
clean. If necessary, use 1/2 in. (13 mm) hand reamer to
remove hard, caked deposits. When putting the end
plates back on, turn in all screws hand tight. Following the
sequence shown in Fig 8, torque each screw to 50 in–lb
(5.6 N.m), then torque them again, using the same sequence, to 170–180 in–lb (19.2–20.5 N.m).
8
TORQUING SEQUENCE
Fig 8
TROUBLESHOOTING GUIDE
WARNING
Pressure Relief Procedure
Always relieve the fluid pressure in the heater , pump
and hoses before checking or adjusting any component in the system. This is to reduce the risk of serious
bodily injury, including fluid injection, splashing fluid in
the eyes or on the skin, burns from contact with hot
metal parts or fluid, and electric shock.
1. Engage the gun safety latch.
2. Turn the heater setpoint to 1 and circulate fluid for
at least 10 minutes to cool the heated fluid and the
heater.
3. Shut off all air and fluid supplies.
4. Disengage the gun safety latch. T rigger the gun
into a grounded metal pail to relieve pressure and
engage the safety latch again.
5. Open the fluid filter drain valve, having a container
ready to catch the fluid.
6. If you are working on any part of the heater,shut off
the main electrical power to it.
Check everything in the guide before disassembling the heater.
PROBLEM
Heater will not heat
CAUSE
SOLUTION
No current.
Check circuit, fuses.
Faulty circuit board
Replace the cover and circuit board
assembly (20)
Burned out heating element
Replace the housing
Fluid requires more warm up time.
Increase warm up time.
Wrong temperature setting
Adjust the knob
Flow rate too high.
Reduce flow rate or use two heaters.
Clogged fluid passages.
Clean. Flush regularly.
Faulty circuit board
Replace the cover and circuit board
assembly (20)
Wrong temperature setting.
Adjust the knob
Faulty circuit board
Replace the cover and circuit board
assembly (20)
Too much pressure drop/
Fluid will not flow
Flow rate too high.
Reduce flow rate or use two heaters.
Clogged fluid passages
Clean. Flush regularly.
Leakage from end plates
Loose bolts, damaged seals
Tighten or replace seals.
Temperature too low
Temperature too high
9
REPLACING THE COVER AND CIRCUIT BOARD ASSEMBLY
Discard the screw and lockwasher. Disengage the wiring
harness female connector (20E) from male connector in
lower left–hand corner of the circuit board (20B) and unscrew the thermistor (20F) from the heater housing. Discard the thermistor wiring harness.
WARNING
All service to the heater must be performed by a
qualified electrician to reduce the risk of electric
shock or serious personal injury.
Follow the Pressure Relief Procedure W arning
on page 9 before continuing.
Remove the nut (4) from the right heat element terminal
(W) and remove the small white wire (20G).
Remove the nut (4) from the left heat element terminal
(X) and remove the heavier black or white wire (20H).
Discard the cover and circuit board assembly. Save the
nuts (4).
NOTE: Parts with ref. nos. 1, 3, and 20A–20H are included in the cover and circuit board assembly
(20). To replace these parts, order 217–184 for
Heater Model 226–816 or 217–185 for Model
226–819.
Remove the six old screws (3) and lockwasher (1) and
discard. Swing the old cover (20A) into an upright position on the heater housing edge.
Reassemble the new parts in the reverse order of removal, being sure wires are routed carefully and not in a
position where they could be pinched when installing the
cover on the heater housing. T ighten the screw (20C)
and terminal (W & X) nuts (4) securely.
Remove the old screw (20C) and lockwasher (20D) from
the threaded terminal in the lower right–hand corner of
the circuit board (20B) to disconnect the black or white
input wire (R).
Apply thermal grease (part no. 110–009, see ACCESSORIES to order) to the tip of the thermistor (20f) before
threading it into the housing.
20A
20E
20B
20H
WHITE 120V
BLACK 240V
20D
4
20C
R
WHITE 120V
BLACK 240V
4
X
20G WHITE
Fig 8
10 W
20F
APPLY THERMAL GREASE (GRACO PART
NO. 110–009) TO TIP
REPLACING THE INDICATOR
LAMP
22
48
50
48
49
0.50”
(13 mm)
DETAIL A
49
4
47
46
Torque to
35 ft–lb (47 N.m)
48
50
48
Torque to
60 ft–lb (82 N.m)
22
Torque to
60 ft–lb (82 N.m)
4
Fig 9
46
WARNING
All service to the heater must be performed by a
qualified electrician.
To reduce the risk of serious bodily injury, including
fluid injection, burns or electric shock, always shut off
the power to the heater, relieve fluid and air pressure
in the pump, and allow the fluid to cool before servicing the heater.
WARNING
The terminals (46) on the ends of the indicator lamp
socket(50) are special, fused terminals. To reduce
the risk of a fire or explosion which can result in serious bodily injury and property damage, use only
ORIGINAL GRACO REPLACEMENT PARTS.
Replacing the Indicator Lamp
Unscrew the lens cap (49). Remove the lamp (47) and replace it with a new lamp. Reinstall the cap and torque it to
35 ft–lb (47 N.m).
11
PARTS DRAWING
3
1
20
27
49
4
47
46
17
48
(INCLUDED WITH
HOUSING)
24
50
5
28
30
48
46
22
15
18
8
21
19
2
16
19
2
16
9
7
12 PARTS LIST
HOW TO ORDER PARTS
Model 226–816, Series F
120 Volt Heater
Model 226–819, Series F
240 Volt Heater
REF
NO. PART NO.
1
2
3
100–016
100–052
100–014
4
5
100–166
100–268
7
8
9
100–509
101–097
102–124*
15
105–496*
16
105–498
17
157–974
18
19
20
166–412*
167–002
222–217
or
21
22
Series A
222–218
Series A
176–839
215–922
or
215–921
24
27
28
47
104–911
215–355
100–272
106–214
or
106–215
48
49
50
106–216
106–217
109–023
DESCRIPTION
QTY
LOCKWASHER, 1/4”
6
36
LOCKWASHER, 7/16”
CAPSCREW, hex hd;1/4–20 x
1–1/4”
6
NUT, hex; 10–32 screw size
4
SCREW, mach, rd hd; 10–24 x
3/8”
1
PLUG, std pipe; 1/4” npt size
3
PIN, grooved; 1/8” dia; 1/2” lg
2
THERMOMETER, dial; 0–250) F
(–18 to 121) C) range
1
PACKING, o–ring;
glass–filled PTFE r
2
SCREW, cap, hex hd; 7/16 x
2” lg
36
WASHER, flat; steel;
3/16” screw size
2
PACKING, o–ring; PTFE r
2
INSULATOR, heat
8
COVER & CIRCUIT BOARD ASSY
120 V (Model 226–816 only)
1
COVER & CIRCUIT BOARD ASSY
240 V (Model 226–819 only)
1
CAP, end, heater
2
HOUSING, heater; 120 V
(Model 226–816 only)
1
HOUSING, heater; 240 V
(Model 226–819 only)
1
TERMINAL, ring; 12–10 ga. wire 1
WIRING HARNESS
1
LOCKWASHER
1
LAMP, INCANDESCENT,120 V
(for Model 226–816 only)
1
LAMP, INCANDESCENT, 240 V
(for Model 226–819 only)
1
LOCKNUT, EXTERNAL
2
1
CAP, LENS
LAMP, SOCKET, FUSED
1
1.
To be sure you receive the correct replacement parts, kit or accessories, always give all of the information requested in the chart below.
2.
Check the parts list to identify the correct part number; do not use
the ref. no. when ordering.
3.
Order all parts from your nearest Graco distributor.
6 digit
PART
NUMBER
QTY.
PART DESCRIPTION
SERVICE INFORMATION
Listed below by the assembly changed are OLD, NEW
ADDED and DELETED parts.
Assembly
Changed Status
Ref
No. Part No. Name
226–816
OLD
Heater to NEW
Series F
ADD
226–819
OLD
Heater to NEW
Series F
ADD
All Heaters DELETE
ADD
ADD
ADD
ADD
ADD
ADD
20
20
47
20
20
47
26
27
28
29
48
49
50
217–184
222–217
106–214
217–185
222–218
106–215
108–940
215–355
100–272
101–964
106–216
106–217
109–023
Cover/Board
Cover/Board
Lamp, 120V
Cover/Board
Cover/Board
Lamp, 240V
Plug
Harness
Lockwasher
Terminal
Locknut
Cap
Lamp socket
Obsoleted Product Note: Heater Model 231–039 is
discontinued.
*Recommended ”tool box” spare parts. Keep on hand to
reduce down time.
13
ACCESSORIES
MUST BE PURCHASED SEPARATELY.
THERMAL LUBRICANT
6.5 gram tube
110–009
FLUID PRESSURE REGULATOR
206–661
3000 psi (210 bar) MAXIMUM WORKING PRESSURE
1000–3000 REGULATED FLUID PRESSURE RANGE
3/8 npt inlet, two 1/4 npt outlets
14 BACK PRESSURE VALVE 206–819
3000 psi (210 bar) MAXIMUM INLET PRESSURE
1000–3000 (70–210 bar) REGULATED PRESSURE RANGE
1/4 npt inlet & outlet
TECHNICAL DATA
Voltage
Model 226–816, Series F . . . . . . . . . . . . . . . 120 volts AC, single phase, 18 amp
Model 226–819, Series F . . . . . . . . . . . . . . . 240 volts AC, single phase, 9 amp
Explosion proof . . . . . . . . . . Class 1 – Division 1 & 2, Group D, Hazardous Location
Heating element wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2100 watts
Fluid passage area . . . . . . . . . . . . . 254 sq. in. (163, 870 [email protected]) –– 8 watts per sq. in.
0.013 watts/[email protected]) of heat transfer area.
Fluid passage diameter and length . . . . . . . . . . . . . 0.56 in. (14.2 [email protected]), 12 ft (3.7 m)
Working pressure . . . . . . . . . . . . . . . . . . . . . . . . . . Up to 3000 psi (207 bar) maximum
Thermometer range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 to 250) F (–18 to 121) C)
Temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80) to 190) F (26) to 88) C)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37.5 lb (17 kg)
*
This heater has a surface temperature code (identification code) of T3C, indicating a maximum external (surface) temperature rating of 160) C (320) F) in accordance with Article 500 – Hazardous Locations – of NFP A 70 National Electrical
Code and/or Section 18 – Hazardous Locations – of Part 1 of the Canadian Electrical Code. See and comply with the requirements of these and similar codes as to
the proper location of the heater.
DIMENSIONS
MOUNTING HOLE LAYOUT
0.41 IN.
(10.4 MM) DIA.
7.5 in.
(190 mm)
1/2 npt(f)
Electrical
Inlet
1/2 npt(f)
Fluid Outlet
1/2 npt(f)
Fluid Inlet
d
d
d
d
6.5 IN.
(165 MM)
4 IN.
(102 MM)
10.5 in.
(267 mm)
10.9 in.
(276 mm)
7.5 in.
(190 mm) dia.
15
THE GRACO WARRANTY AND DISCLAIMERS
WARRANTY
Graco warrants all equipment manufactured by it and bearing its name to be free from defects in material and
workmanship on the date of sale by an authorized Graco distributor to the original purchaser for use. As
purchaser’s sole remedy for breach of this warranty, Graco will, for a period of twelve months from the date of
sale, repair or replace any part of the equipment proven defective. This warranty applies only when the
equipment is installed, operated and maintained in accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for, any malfunction, damage or wear caused by
faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence,
accident, tampering, or substitution of non–Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility with Graco equipment of structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or
maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of the claim. If the claimed defect is verified, Graco will repair or replace
free of charge any defective parts. The equipment will be returned to the original purchaser transportation
prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will
be made at a reasonable charge, which charges may include the costs of parts, labor and transportation.
DISCLAIMERS AND LIMITATIONS
THE TERMS OF THIS WARRANTY CONSTITUTE PURCHASER’S SOLE AND EXCLUSIVE REMEDY AND ARE IN LIEU OF ANY
OTHER WARRANTIES (EXPRESS OR IMPLIED), INCLUDING WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS
FOR A PARTICULAR PURPOSE, AND OF ANY NON–CONTRACTUAL LIABILITIES, INCLUDING PRODUCT LIABILITIES, BASED
ON NEGLIGENCE OR STRICT LIABILITY. EVERY FORM OF LIABILITY FOR DIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES
OR LOSS IS EXPRESSLY EXCLUDED AND DENIED. IN NO CASE SHALL GRACO’S LIABILITY EXCEED THE AMOUNT OF THE
PURCHASE PRICE. ANY ACTION FOR BREACH OF WARRANTY MUST BE BROUGHT WITHIN TWO (2) YEARS OF THE DATE OF
SALE.
EQUIPMENT NOT COVERED BY GRACO WARRANTY
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, WITH RESPECT TO ACCESSORIES, EQUIPMENT, MATERIALS, OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motor
,
switches, hose, etc.) are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser
with reasonable assistance in making any claim for breach of these warranties.
Factory Branches: Atlanta, Dallas, Detroit, Los Angeles, West Caldwell (N.J.)
Subsidiary and Affiliate Companies: Canada; England; Switzerland; France; Germany; Hong Kong; Japan
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1444
PRINTED IN U.S.A. 307–363 9–81 Revised 8–88
16
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
