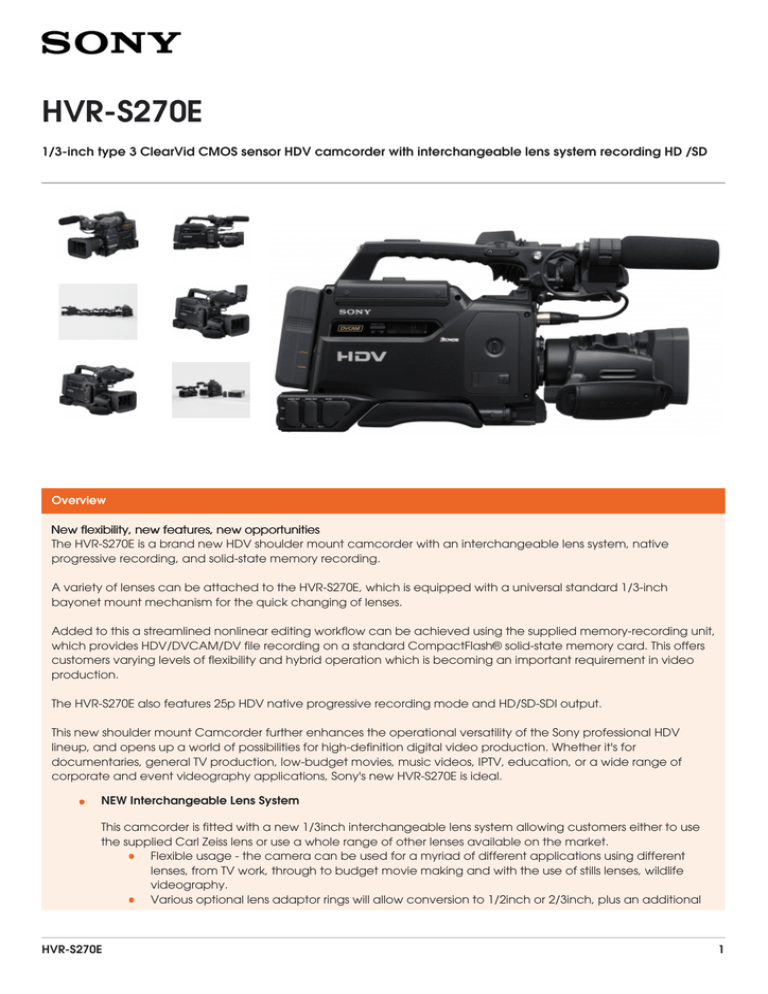

HVR-S270E

1/3-inch type 3 ClearVid CMOS sensor HDV camcorder with interchangeable lens system recording HD /SD

Overview

The HVR-S270E is a brand new HDV shoulder mount camcorder with an interchangeable lens system, native progressive recording, and solid-state memory recording.

A variety of lenses can be attached to the HVR-S270E, which is equipped with a universal standard 1/3-inch bayonet mount mechanism for the quick changing of lenses.

Added to this a streamlined nonlinear editing workflow can be achieved using the supplied memory-recording unit, which provides HDV/DVCAM/DV file recording on a standard CompactFlash® solid-state memory card. This offers customers varying levels of flexibility and hybrid operation which is becoming an important requirement in video production.

The HVR-S270E also features 25p HDV native progressive recording mode and HD/SD-SDI output.

This new shoulder mount Camcorder further enhances the operational versatility of the Sony professional HDV lineup, and opens up a world of possibilities for high-definition digital video production. Whether it's for documentaries, general TV production, low-budget movies, music videos, IPTV, education, or a wide range of corporate and event videography applications, Sony's new HVR-S270E is ideal.

NEW Interchangeable Lens System

This camcorder is fitted with a new 1/3inch interchangeable lens system allowing customers either to use the supplied Carl Zeiss lens or use a whole range of other lenses available on the market.

Flexible usage - the camera can be used for a myriad of different applications using different lenses, from TV work, through to budget movie making and with the use of stills lenses, wildlife videography.

Various optional lens adaptor rings will allow conversion to 1/2inch or 2/3inch, plus an additional

HVR-S270E 1

HVR-S270E

• lens adaptor for Sony 'alpha' brand lenses.

The supplied lens features professional operation with a new manual focus ring and zoom and iris rings.

NEW 1/3inch CMOS Processor

Newly developed 1/3inch x 3 ClearVid CMOS processor offers high resolution, high sensitivity, wide dynamic range and excellent colour reproduction.

Offers greater resolution than existing pixel-shift technologies regardless of the balance between colour elements.

Offers great low-light capabilities especially important for camera operators who cannot control their ambient lighting, e.g. wedding videographers.

Lower power consumption than traditional CCD's.

'Exmor' technology employed in the new CMOS processor reduces noise in the A/D process.

NEW Selectable 25p Progressive Modes

The HVR-S270E offers the ability to choose between a 25p scanning mode (same as HVR-V1E) but also a 25p 'native' recording mode. In this native recording mode the picture is both scanned and recorded as a progressive image.

Further improves the progressive reproduction by both scanning and recording progressively.

Provides further flexibility of use. e.g. The camera can be used for a variety of applications from budget-movie making in 25p mode to standard interlace TV productions.

Offers camera operators the use of the progressive 'filmic look', coupled with gamma curve correction makes the camera ideal for movie production.

Full Size HDV/DV/DVCAM cassette capability

Since the launch of HDV, many customers have requested all the benefits of HDV but with a large shell shoulder camcorder. After considering the requirements of this customer group, Sony have developed this new camcorder to offer large shell cassette recording.

Large Shell HDV tapes offer a massive 4.5 hours of HD recording with

PHDV276DM HDV master tape.

This is ideal for a whole wealth of different customer groups from documentary makers keen on keeping the camera running as long as possible, through to wedding videographers covering long ceremonies.

2

Features

Switchable Recording and Playback- HDV1080i/DVCAM/DV

The HVR-S270E can switch between HDV1080i, DVCAM, and DV recording, providing full flexibility to record in either standard definition or high definition depending on your production needs

Built-in Down-converter for SD Production

The HVR-S270E can convert material from 1080i down to 576i, and output the video signals through its i.LINK

interface and other SD output connectors.

This allows users to edit recorded material with a compatible nonlinear editing system using current DV editing software, as well as record SD signals to an external VTR.

1/3-inch type 3 ClearVid CMOS Sensor System

The newly developed 1/3-inch type 3 ClearVid CMOS Sensor™ system has 45-degree rotated pixels on each chip in order to increase the signal density, while each pixel maintains sufficient surface area.

In combination with Enhanced Imaging Processor™ (EIP), the 3 ClearVid CMOS Sensor system achieves high resolution, high sensitivity, wide dynamic range, and excellent colour reproduction.

The pixel shift interpolation technique has been traditionally used in low-end 3CCD camcorders. However, it normally requires the combination of all three colour element (RGB) signals to maximize resolution. If an object lacks one or more colour elements, the resolution of the object may be degraded.

The 3 ClearVid CMOS Sensor system is different. It can always produce maximum resolution, regardless of the balance between colour elements, thanks to its unique and sophisticated interpolation technology.

The 3 ClearVid CMOS Sensor system is different. It can always produce maximum resolution, regardless of the balance between colour elements, thanks to its unique and sophisticated interpolation technology.

Enhanced Functionality via the Technology of "Exmor

The HVR-S270E offers cutting-edge features, such as the technology of "Exmor™" developed by Sony, which utilizes the full potential of the 3 ClearVid CMOS Sensor system.

The technology of "Exmor", which features the column-parallel A/D conversion technique, is also used in the

PMW-EX1 XDCAM EX camcorder and Alpha Digital SLR (Single Lens-Reflex) camera from Sony.

Multiple A/D (analog to digital) converters on each pixel row convert analog signals to digital as soon as they are generated, unlike traditional technology that only has one A/D converter on each chip. The technology of "Exmor" can eliminate the influence of external noise that enters the signal chain during transfer to the A/D converter, resulting in high-quality digital signals with extremely low noise. This significantly enhances shooting in low-light environments.

By adopting this groundbreaking technology, the new 1/3-inch 3 ClearVid CMOS Sensor system enables the

HVR-S270E to achieve a low light sensitivity of just 1.5 lux.

This will be of extreme importance to customers who shoot in lighting conditions that they can't control, e.g.

wedding videographers.

Wide Range of Lenses

The flexible bayonet lens attachment system allows you to use a wide range of lenses.

Standard 1/3-inch HD video lenses, from manufacturers such as Fujinon and Canon, can be attached

HVR-S270E 3

directly to the HVR-S270E.

If you'd like to attach a 2/3-inch or 1/2-inch HD video lens on to the HVR-S270E, it is possible to do so by adding a standard lens adaptor from the lens manufacturer. The HVR-S270E camcorder has 12-pin lens connectors allowing compatibility with professional ENG lenses.

This feature is very useful not only for those who already have these professional HD video lenses, but also for those who prefer to use HD digital cinema lenses for their unique contrast, colour, and atmosphere.

Carl Zeiss Lens for HD Video as Standard

A high-quality, multi-purpose Carl Zeiss lens for HD video comes as standard with the HVR-S270E. Stunning resolution and contrast is achieved thanks to the Carl Zeiss Vario-Sonnar™ T* coating, which suppresses unwanted reflections. A specially designed wide-angle lens is also available as an option, to suit a diverse range of shooting requirements.

Alpha Lens Compatibility

With a special adaptor from Sony, it is also possible to use the alpha lens series designed for Sony Digital SLR still cameras. By using alpha lenses in various configurations, creative effects can be achieved. This approach is ideal for filmmakers on a budget or those who already own alpha lenses.

25p HDV Native Progressive Recording Modes

The HVR-S270E newly features 25p HDV native progressive recording modes.

The 3 ClearVid CMOS Sensor system and EIP create true 1080p images, which can then be recorded as progressive signals by the HVR-S270E in HDV format.

The progressive HDV stream can be output from an i.LINK connector and used for progressive editing with compatible NLE software.

Native progressive recording modes are suitable for output to film, CG composition, viewing on a progressive monitor, or as an Internet movie.

Note: interlaced video is output from connectors other than i.LINK

25p Progressive Scan Modes

In these modes, the 1080p image captured by the 3 ClearVid CMOS Sensor system is also recorded as an interlaced signal by dividing each frame into two fields. This enables compatibility with current editing and monitoring equipment that only accept interlace signals, while maintaining the quality of the 1080p image.

Progressive scan modes are suitable for feature films, documentaries, and music videos, which have to be recorded as interlaced video for viewing on interlaced monitors, but want to offer a "progressive look" to their motion.

A streamlined nonlinear editing workflow for HDV

HDV signals can be recorded as a file on non-tape media. For example, when using the supplied

CompactFlash (CF) solid-state memory recording unit - images can be stored on a standard CF card for quick nonlinear editing. The optional HVR-DR60 Hard Disk Recording Unit can be used in the same manner, with images being recorded on to its large-capacity 60GB hard drive, which provides 4.5 hours of recording time.

HVR-S270E 4

Technical Specifications

Camera section

Supplied Lens Supplied

Lens

Carl Zeiss Vario-Sonnar T* zoom lens, 12x (optical), f = 4.4 to 52.8 mm, f = 32.0 to 384 mm* at 16:9 mode, f = 39.5 to 474 mm* at 4:3 mode, filter diameter: 72 mm

Built-in filter

Imaging system

Clear, 1/4, 1/16, 1/64

1/3-inch, progressive 3 ClearVid CMOS Sensor system with Exmor technology

Picture elements Approx. 1,037,000 pixels (effective), approx. 1,120,000 pixels (total)

Focus Auto,manual (focus ring/one push auto/infinity/AF assist/ focus macro)

White balance

Auto, one-push auto (A/B positions), indoor (3200 K), outdoor (selectable level -7 to +7, approx. 500K/step), manual WB Temp (selectable 2300K to

15000K, 100K/step)

Manual shutter speed

Auto: 1/50 - 1/1750

Manual: 50i/25p: 1/3 - 1/10000

Gain -6, -3, 0 , 3, 6, 9, 12, 15, 18, 21 dB

Minimum illumination 1.5 lux (auto gain, auto iris, 1/25 shutter)

VTR section

Recording format

Play out/Down conversion format

Playback/Recording time

HDV1080/50i, DVCAM, DV SP 576/50i (PAL)

HDV1080/50i, DVCAM, DV SP 576/50i (PAL)

HDV/DV SP: Max. 276min with PHDV-276DM Max. 63 min with PHDVM-63DM cassette

DVCAM: Max. 184min with PHDV-276DM Max. 41 min with PHDVM-63DM cassette

Input/Output connectors

Audio/Video output

Component video output

HDV/DV input/output

XLR audio input

Headphone

LANC

Digital video output

Composite video (BNCx1), Unbalanced auido (pin x2ch)

BNC x3 i.LINK interface (IEEE 1394, 6-pin)

XLR 3pin female x 4ch

Stereo mini jack (ø3.5 mm)

Stereo mini-mini jack (ø2.5 mm)

HD/SD-SDI BNC x1

Built-in output devices

LCD view finder 0.45-inch type (Viewable area measured diagonally), approx. 1,226,880 dots (852x480x3[RGB]), 16:9 aspect ratio

LCD monitor 3.2-inch type (Viewable area measured diagonally), XtraFine LCD, approx. 921,600 dots, hybrid type, 16:9 aspect ratio

General

Mass

Power requirements

Power consumption HDV

Power consumption DVCAM/DV

Operating temperature

Approx. 6.3kg (13 lb 15 oz) (w/ the supplied lens, w/o tape, BP-GL95battery)

DC 12 V (battery pack), DC 14.4 V (AC adaptor)

Approx. 12.2 W (with ECM-XM1 / EVF ON)

Approx. 11.7 W (with ECM-XM1 / EVF ON)

0 to 40 °C (32 to 104 °F)

HVR-S270E 5

Storage temperature

Supplied memory recording unit

Recording media

File system

File format HDV

File format DVCAM/DV

Connectors

Supplied Accessories

Large size eye cup

ECM-XM1 shotgun mic

Shoulder belt

Operating Instructions

Lithium-ion battery (CR2025)

Additional normal shoe kit

CF Memory Recording Unit

Lens hood with lens cover

-20 to +60 °C (-4 to 140 °F)

CompactFlash card (2GB or bigger, 133x or faster) (not supplied)

FAT32

.M2T

.AVI (DV-AVI, type 1) or .DV (Raw-DV) special hot shoe i.LINK-6pin (on the supplied cradle)

DC power input (on the supplied cradle) infoLITHIUM L series battery slot (on the supplied cradle)

HVR-S270E 6

Accessories

Analogue Portable Microphone

Packages

UWP-V2

UWP wireless microphone package

UWP-V6

Belt-pack UWP wireless microphone package with

XLR plug-on transmitter

Batteries and Power Supplies

2NP-F970/B

Info-Lithium Battery Twin

Pack

ACC-L1BP

AC adaptor/charger and battery kit

AC-DN10

AC Adaptor/Charger

AC-DN2B

AC Adapter (150W output) and Lithium-Ion battery charger

MDR-7510

Studio professional headphones

MDR-7520

High quality studio professional headphones

LCD Production Monitors

LPM-770BP

7-inch portable LCD field monitor

Lenses and Lens Adaptors

LA-100W

Alpha lens adaptor for HVR-

Z7E and HVR-S270E

VCL-308BWS

Wide angle lens for HVR-

S270

Lights

HVR-S270E 7

HVR-S270E

BC-L160

Li-ion battery charger

BC-L500

Li-ion Battery Charger

BC-L70

Li-ion Battery Charger

BC-M150

Battery Charger

BP-FLX75

Olivine long-lasting battery with 76 Wh capacity

BP-GL65

Battery Pack

BP-GL95

Rechargeable Lithium-ion

Battery Pack

Mixers and AV Amps

DMX-P01

Portable digital audio mixer

Remote Controls

HVL-LBP

LED Battery Video Light

HVL-LBPA

LED Battery Video Light

HVL-LBPB

On-camera LED Video Light

RM-1000BP

Remote Commander

RM-1BP

LANC Remote Commander

Shotgun

8

BP-L80S

Rechargeable Lithium-ion

Battery Pack

Cases

LC-DS300SFT

Soft Carr.case For Dsr-

300p/500wsp

LC-H300

Carrying Case for DSR-

400/450WSL

DWX Digital Wireless Transmitters

DWT-B01

Digital wireless microphone belt-pack transmitter

HDV & DVCAM (Discontinued)

HVR-DR60

Portable Hard Disk

Recording Unit

HVR-MRC1K

ECM-673

Short Shotgun Electret

Condenser Microphone.

ECM-674

Affordable shotgun Electret condenser microphone

ECM-678

Shotgun Electret condenser microphone

ECM-680S

MS stereo shotgun Electret condenser microphone

ECM-VG1

Shotgun Electret condenser microphone

Tripods and Supports

VCT-14

TRIPOD ADAPTOR FOR PORT.

CAMERAS/CAMC.

VCT-1BP

Bracket For Camera Rear

Mount

HVR-S270E 9

Headphones

MDR-7506

Stereo professional headphones

VCT-U14

TRIPOD ATTACHMENT FOR

VIDEO CAMERA

Viewfinders

SH-L32WBP

LCD Hood
