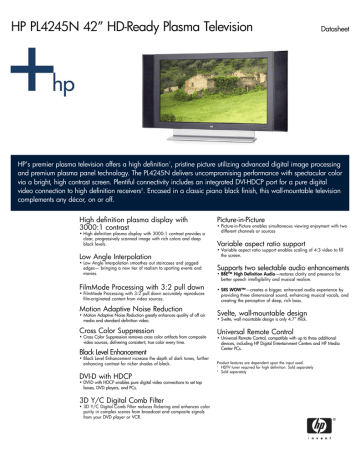

HP PL4245N 42” HD-Ready Plasma Television
Datasheet
HP’s premier plasma television offers a high definition1, pristine picture utilizing advanced digital image processing
and premium plasma panel technology. The PL4245N delivers uncompromising performance with spectacular color
via a bright, high contrast screen. Plentiful connectivity includes an integrated DVI-HDCP port for a pure digital
video connection to high definition receivers2. Encased in a classic piano black finish, this wall-mountable television
complements any décor, on or off.
High definition plasma display with
3000:1 contrast
• High definition plasma display with 3000:1 contrast provides a
clear, progressively scanned image with rich colors and deep
black levels.
Low Angle Interpolation
• Low Angle Interpolation smoothes out staircases and jagged
edges— bringing a new tier of realism to sporting events and
movies.
FilmMode Processing with 3:2 pull down
• FilmMode Processing with 3:2 pull down accurately reproduces
film-originated content from video sources.
Motion Adaptive Noise Reduction
• Motion Adaptive Noise Reduction greatly enhances quality of off air
media and standard definition video.
Cross Color Suppression
• Cross Color Suppression removes cross color artifacts from composite
video sources, delivering consistent, true color every time.
Black Level Enhancement
• Black Level Enhancement increase the depth of dark tones, further
enhancing contrast for richer shades of black.
DVI-D with HDCP
• DVI-D with HDCP enables pure digital video connections to set top
boxes, DVD players, and PCs.
3D Y/C Digital Comb Filter
• 3D Y/C Digital Comb Filter reduces flickering and enhances color
purity in complex scenes from broadcast and composite signals
from your DVD player or VCR.
Picture-in-Picture
• Picture-in-Picture enables simultaneous viewing enjoyment with two
different channels or sources
Variable aspect ratio support
• Variable aspect ratio support enables scaling of 4:3 video to fill
the screen.
Supports two selectable audio enhancements
• BBE™ High Definition Audio—restores clarity and presence for
better speech intelligibility and musical realism.
• SRS WOW™—creates a bigger, enhanced audio experience by
providing three dimensional sound, enhancing musical vocals, and
creating the perception of deep, rich bass.
Svelte, wall-mountable design
• Svelte, wall mountable design is only 4.7” thick.
Universal Remote Control
• Universal Remote Control, compatible with up to three additional
devices, including HP Digital Entertainment Centers and HP Media
Center PCs.
Product features are dependent upon the input used.
1
HDTV tuner required for high definition. Sold separately
2
Sold separately
HP PL4245N 42” HD-Ready Plasma Television
Datasheet
Key Television Specifications
Panel System
High Definition Plasma Display
(Number of Pixels)
Video Format
Accepts RGB, NTSC, 480i, 480p, 720p, 1080i video formats;
Displayable Colors
Converts all video signals to 720p high definition video.
Anti-reflective Coating
Yes
Diagonal Screen Size
42 inches (1067 mm)
Life1
Up to 50,000 Hrs
Viewable Image Area
36.8 × 21.0 in (934 × 532 mm)
Contrast (typical)
3000 : 1
Screen Opening (W x H)
36.9 × 21.3 in (946 × 547 mm)
Brightness (typical w/o filter) Up to 1000 cd/m2
Aspect Ratio
16:9 Widescreen
Brightness (with filter)
>350 cd/m2
Native Resolution
1024 x 768
Closed Caption
Yes (TV, AV, SV, YPbPr supported)
MTS Sound Processing
Stereo, mono, SAP
V-Chip
Password protect viewing according to Age and Content Rating,
TV Rating, and MPAA Rating
HDTV supported inputs
Component Input (YPbPr) and DVI: 1080i/720p/480p/480i
Front Controls
Input Selection, Menu, Channel up, Channel Down, Volume up,
Volume Down, Power
Up to 16.7 Million
Tuner Specifications
TV Tuner
Built-in NTSC TV Tuner with Picture-in-Picture viewing capability
(second source required for PIP)
Tuning options
Auto channel finder
Intelligent tuning system
Channel Coverage
VHF 2 – 13
UHF 14 – 69
CATV 1 - 125
Antenna
75 Ohm External
Television Control Specifications
Universal Remote Control
Programmable universal remote controls TV and 3 additional
devices, including HP Digital Entertainment Centers and
Media Center PCs.
Additional Features
Television Connections Specifications
Auto Channel Program
Antenna Input (75 Ohm F connector)
Channel Skip/Add
High Definition Component Input (Y, Pb, Pr)
2
Image Zoom
Composite Video Input (AV)
2
Sleep timer (30-60-90-120 Minutes)
S-Video Input
1
Closed Caption
PC Input (RGB-VGA)
1
V-Chip Parental Control
DVI-HDCP Interface
1
HDCP Support
Yes
A/V Audio Inputs
2
PC Audio Inputs
1
Component Audio Input (RCA L/R)
2
Composite Video Output
1
TV Audio Out - RCA Pair
1
Subwoofer Audio Output
1
RS-232 (for service)
1
Television Power Specifications
Input Power
Nominal Current
Frequency
Average
1
100 V~220 V
Power Saving Mode
< 5 watts
3.8 A
Off Mode
< 3 watts (switch off)
50 Hz ~ 60 Hz
Integrated Power Supply
Yes
400 watts
Power Cable Length
70 in (1.8 m); Detachable
1 The life is determined as the time at which luminance is 50% compared to that of initial value at the typical lamp current on condition of continuous operating at 25 ± °C.
HP PL4245N 42” HD-Ready Plasma Television
Datasheet
Key Audio Specifications
Speakers
10W x 2 attachable speakers
Speakers
Removable
Sound Enhancement
SRS WOW™: Creates a bigger, enhanced audio experience by
providing three dimensional sound, enhancing musical vocals, and
creating the perception of deep, rich bass.
MTS / SAP
Yes – Stereo, Mono, SAP
Audio out
1 (RCA pair)
Audio Controls
Bass/Treble/Volume/Balance/Mute
BBE™ High Definition Audio: Restores clarity and presence for
better speech intelligibility and musical realism.
Audio Power
10W x 2
Television Weights and Dimensions
Environmental Specifications
Dimensions (H x W x D)
Panel w/ stand and speakers (h x w x d)
28.9 x 49.7 in x 11.7 in (735.8 mm x 1263.2 mm x 298 mm)
Temparature - Operating
Panel and speakers without stand (h x w x d)
25.5 in x 49.7 in x 4.7 in (649 mm x 1263 mm x 121 mm)
Humidity – Operating
15%~80%
Panel alone (h x w x d)
29.0 in x 40.7 in x 4.7 in (649.2 mm x 1034.4 mm x 121 mm)
Humidity – Non-operating
85%
Altitude – Operating
0 to 6,562 ft. (0 to 2,000 m)
Altitude – Non-operating
0 to 9843 ft. (0 to 3,000 m)
Recommended Solution
Additions
HP Digital Entertainment Center
HP Media Center PC
Wall Mounting
Yes—with optional Wall Mount (Wall Mount sold separately)
Agency Approvals
FCC Approval
UL Approval
Warranty
1 year, parts and labor
Stand Area (Footprint d x w)
11.7 in x 28.3 in (298 mm x 720.5 mm)
32°F ~ 104°F (0°C ~ 40°C)
Temperature – Non-operating -4°F ~ 140°F (-20°C ~ 60°C)
Packaged
33.3 in x 45.2 in x 17.7 in (854 mm × 1158 mm × 455 mm)
Weight
Panel (without speakers and stand)
76.5 lbs (34.7 kg)
Speakers
3.5 lbs x 2 (1.6 kg/pc × 2)
Stand
11.2 lbs (5.1 kg) Packaged 113.5 lbs (51.5 kg) Base Ships
attached and is removable
Packaged
113.5 lbs (51.5 kg)
Base
Ships attached and is removable
Accessories, Warranty and Agency Approvals
Accessories Included
Cables included
Quick Setup Guide
Printed Users Guide
Warranty Card
Remote Control
Speakers
75 Ohm Coaxial Cable Speakers
Speaker Cables (2)
Power Cable
SRS WOW and the
symbol are trademarks of SRS Labs, Inc.
BBE and the BBE logo are registered trademarks or trademarks of BBE Sound, Inc.
DCDi™ is a trademark of Faroudja, a division of Genesis Microchip Inc.
Product Number: P8718AA#ABA 09/04
Actual product may vary from image shown on datasheet. HP shall not be liable for technical or editorial errors or omissions contained herein. All hardware
and software specifications are subject to change without notice. Copyright © 2004 Hewlett-Packard Development Company, L.P. SRS WOW and the
symbol are trademarks of SRS Labs, Inc. BBE and the BBE logo are registered trademarks of BBE Sound, Inc. DCDi® by Faroudja is a registered
trademark of Genesis Microchip Inc.
