Indesit PI604GB Cooktop User manual

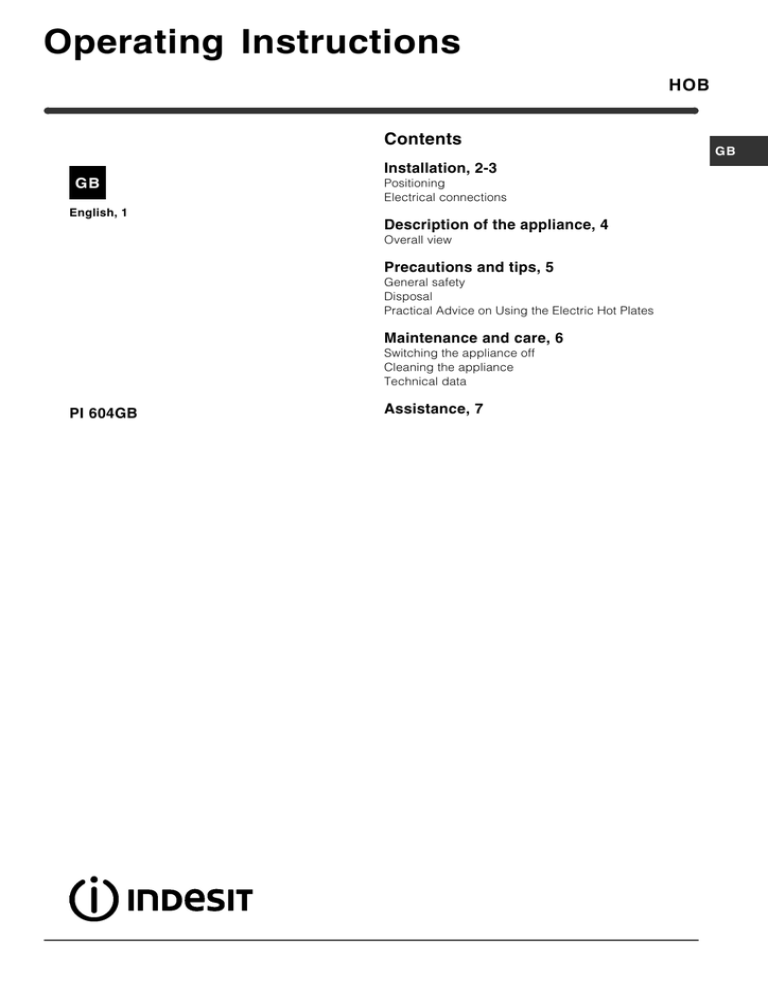

Operating Instructions
HOB
Contents
GB
English, 1
Installation, 2-3
Positioning
Electrical connections
Description of the appliance, 4
Overall view
Precautions and tips, 5
General safety
Disposal
Practical Advice on Using the Electric Hot Plates
Maintenance and care, 6
Switching the appliance off
Cleaning the appliance
Technical data
PI 604GB
Assistance, 7
GB
Installation
Fastening Clamps - Assembly Diagram
20
! Please keep these operating instructions for future
reference. Pass them on to possible new owners of the
appliance.
30
! Before operating your new appliance please read this
instruction booklet carefully. It contains important
information for safe use, installation and care of the
appliance.
Clamp Position for
H=20mm top
Positioning
Clamp Position for
H=30mm top
Front
! Keep packaging material out of the reach of children. It
can become a choking or suffocation hazard (see
Precautions and tips).
40
! The appliance must be installed by a qualified person
according to the instructions provided. Incorrect
installation may damage property or cause harm to
people or animals.
Built-in
The electric hobs are prepared with protection degree
against excessive heating of Y type, it is therefore
possible to instal them next to furniture which is higher
than the working board. For a correct installation of
the cooking top the following precautions must be
followed:
• The hob may be located in a kitchen, a kitonen/
diner or bed sitting room, but no in a bathroom or
shower room.
• The hoods must be installed according to the
requirements in the hood handbook.
• The dimensions of the cutout for the appliance must
be those indicated in the figure. Clamps are
provided to fasten the cooktop to counters
measuring from 20 to 40 mm in thickness. To fasten
the cooktop securely, it is recommended that all the
clamps be used.
Clamp Position for
H=40mm top
Back
! Use the clamps contained in the "accessory kit."
• In case a wooden panel should be fitted under the
top for insulation, it will have be fitted at a minimum
distance of 20 mm from the inferior part of the top.
Ventilation
When installing the cooktop above a built-in oven, the
oven should be placed on two wooden strips; in the
case of a joining cabinet surface, remember to leave a
space of at least 45 x 560 mm at the back (see
picture).
.
560
mm
45 m
m.
555 mm
m
mm
m
55
475
GB
2
When installing on a built-in oven without forced
ventilation, ensure that there are air inlets and outlets
for ventilating the interior of the cabinet adequately
(see picture).
Supply cable installation
GB
The electrcic hobs are supplied without cable. Use a
cable:
H05 VV-F 3x2.5mm2
• Open the terminal box by removing the "V" screw
and taking off the cover.
Electrical connection
The following installation procedure must be carried
out by a qualified electrician.
! the cooker must be connected to the mains by a
switched (double pole) cooker outlet correctly fused
with a capacity appropriate to that shown on the hob
Rating Plate. All electrical wiring from the consumer
unit to the appliance, via the switched double pole
cooker outlet, must be of an acceptable type and
current rating as above. The supply cord, type H05
VV-F 3x2.5mm2, must be positioned so that it never
reaches at any point a temperature 50°C higher than
the room temperature. The electrical installation must
comply with the IEE Regulations, Building Regulation
& local By-Lays.
! THIS APPLIANCE MUST BE EARTHED.
In the case of installation over a built-in electric oven
the electrical hook-up of the stove top and that of the
oven should be separate, for reasons of safety as well
as for ease of eventual removal of the oven.
• The wires in the mains lead are coloured in
accordance with the following code:
Green & Yellow - Earth “E”
Blue
- Neutral “N”
Brown
- Live “L”
Connect the wires in accordance with the following
diagram
1
2
3
L
4
5
N
• Fix the cable in place with the "F" cable clamp,
close the lid and fasten it with the "V" screw (see
picture).
V
1
2
3
4
5
F
3
Description of the appliance
GB
Overall view
ELECTRIC PLATE
Pilot lamp of the
ELECTRIC PLATE
Control knobs for the cook-top
ELECTRIC PLATE
• The ELECTRIC PLATE vary in diameter and power:
"normal" and "fast". The latter can be identified by a
red boss in the center of the hot plate itself.
! The position of the corresponding electric hot plate
is indicated on each control knob.
• The ELECTRIC PLATE ON indicator light switches
on whenever the knob is moved from the 'off'
position.
• The ELECTRIC PLATE control knob is a device
used to regulate power.
The knob may be turned clockwise or anticlockwise and set to six different positions:
Setting Normal or Fast Plate
0
Off
1
Low
2-5
6
Medium
High
! Please refer to the "Practical advice on using the
appliance" section for a list of the relative positions
and their recommended uses.
4
Precautions and tips
! This appliance has been designed and
manufactured in compliance with international safety
standards. The following warnings are provided for
safety reasons and must be read carefully.
General safety
• This manual is for a class 3 built-in cooktop.
• These instructions are only valid for the
countries the symbols for which appear on the
manual and the serial plate.
• Do not leave the electric plate switched on without
a pan placed on it.
GB
• Do not use cookware with uneven or deformed
bottoms.
Disposal
• When disposing of packaging material: observe
local legislation so that the packaging may be
reused.
• The appliance must be used by adults only, to cook
food according to the instructions in this manual.
Do not use the hob as a worktop or chopping
board.
• The European Directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE),
requires that old household electrical appliances
must not be disposed of in the normal unsorted
municipal waste stream. Old appliances must be
collected separately in order to optimise the
recovery and recycling of the materials they contain
and reduce the impact on human health and the
environment. The crossed out “wheeled bin”
symbol on the product reminds you of your
obligation, that when you dispose of the appliance
it must be separately collected.
Consumers should contact their local authority or
retailer for information concerning the correct
disposal of their old appliance.
• Ensure that power supply cables of other electrical
appliances do not come into contact with the hot
parts of the hob.
Practical Advice on Using the Electric
Hot Plates
• This appliance is designed for non-professional use
in the home.
• This appliance was designed for domestic use
inside the home and is not intended for commercial
or industrial use.
• Do not touch the appliance with bare feet or with
wet or damp hands and feet.
• The openings and slots used for ventilation and
heat dispersion must never be covered.
• Make sure the knobs are in the “•”/”¡” position when
the appliance is not in use.
• When unplugging the appliance always pull the plug
from the mains socket, do not pull on the cable.
• Never carry out any cleaning or maintenance work
without having unplugged the plug from the mains.
• In the case of a malfunction, under no
circumstances should you attempt to repair the
appliance yourself. Repairs carried out by
inexperienced persons may cause injury or further
malfunctioning of the appliance. Contact a Service
Centre (see Assistance).
• Always make sure pan handles are turned towards
the centre of the hob in order to avoid accidental
burns.
In order to avoid heat loss and damage to the hot
plate, use cookware with a flat bottom the diameter of
which is not less than that of the hot plate.
Setting
Normal or Fast Plate
0
Off
1
Cooking vegetables, fish
2
Cooking potatoes (using steam) soups,
chickpeas, beans.
3
Continuing the cooking of large quantities of
food, minestrone
4
For roasting (average)
5
For roasting (above average)
6
For browning and reaching a boil in a short
time.
! Before using the hot plates for the first time, you
should heat them at maximum temperature for
approximately 4 minutes, without any pans. During
this initial stage, their protective coating hardens and
reaches its maximum resistance.
5
Maintenance and care
GB
Switching the appliance off
Disconnect your appliance from the electricity supply
before carrying out any work on it.
Technical characteristic
DATA PLATE
Electrical section
Cleaning the appliance
! Do not use abrasive or corrosive detergents, stain
removers, anti-rust products, powder detergents or
sponges with abrasive surfaces: these may scratch
the surface.
! Never use steam cleaners or pressure cleaners on
the appliance.
• It is usually enough to wash the hob with a damp
sponge and dry it with absorbent kitchen roll.
• The electric hobs should be cleaned using a damp
cloth and then rubbed with oil while still warm.
• Stainless steel may become marked if it comes into
contact with very hard water or harsh detergents
(containing phosphorous) for long periods of time.
After cleaning, it is advisable to rinse thoroughly
and dry. It is also recommended that drops of water
be dried.
6
voltage: 230V ~ 50/60Hz
Max power 7000 W
This appliance conforms to the
following European Economic
Community directives:
- 73/23/EEC of 19/02/73 (Low
Voltage) and subsequent
amendments;
- 89/336/EEC of 03/05/89
(Electromagnetic Compatibility) and
subsequent amendments;
- 93/68/EEC of 22/07/93 and
subsequent amendments.
- 2002/96/EC
Assistance
Communicating:
• appliance model (Mod.)
• serial number (S/N)
This information is found on the data plate located on the appliance and/or on the packaging.
GB
7
03/2005 - 195045861.01
