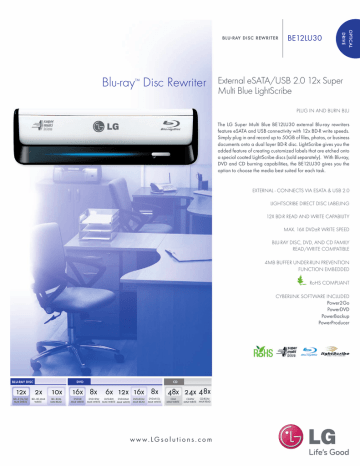

Blu-ray™ Disc Rewriter
Blu-ray™ Disc Rewriter
BE12LU30
optical
drive
blu-ray disc rewriter
External eSATA/USB 2.0 12x Super
Multi Blue LightScribe
BURN DVD, READ BLUPLUG IN AND BURN BLU
The LG Super Multi Blue BE12LU30 external Blu-ray rewriters
feature eSATA and USB connectivity with 12x BD-R write speeds.
Simply plug in and record up to 50GB of files, photos, or business
documents onto a dual layer BD-R disc. LightScribe gives you the
added feature of creating customized labels that are etched onto
a special coated LightScribe discs (sold separately). With Blu-ray,
DVD and CD burning capabilities, the BE12LU30 gives you the
option to choose the media best suited for each task.
EXTERNAL - CONNECTS VIA ESATA & USB 2.0
LIGHTSCRIBE DIRECT DISC LABELING
12X BD-R READ AND WRITE CAPABILITY
MAX. 16X DVD±R WRITE SPEED
BLU-RAY DISC, DVD, AND CD FAMILY
READ/WRITE COMPATIBLE
4MB BUFFER UNDER-RUN PREVENTION
FUNCTION EMBEDDED
RoHS COMPLIANT
CYBERLINK SOFTWARE INCLUDED
Power2Go
PowerDVD
PowerBackup
PowerProducer
BLU-RAY DISC
CD
DVD
12x
2x
BD–R (SL/DL)
MAX WRITE
BD–RE MAX
WRITE
10x
BD–ROM
MAX READ
16x 8x
DVD±R
MAX WRITE
6x 12x 16x 8x
DVD+RW
DVD-RW DVD-RAM
MAX WRITE MAX WRITE MAX WRITE
DVD-ROM
MAX READ
DVD±R DL
MAX WRITE
48x 24x 48x
CD-R
MAX WRITE
CD-ROM
CD-RW
MAX WRITE MAX READ
w w w. LG s o l u t i o n s . c o m
technology
blu-ray disc rewriter
THE SUPER MULTI BLUE ADVANTAGE
Multi Blue Compatibility
LG Super Multi Blue optical drives can read and write four types
of disc formats in one convenient package:
1. DVD+R
2. RW DVD-R
3. RW DVD-RAM
4. Blu-Ray Disc
This gives you the option to choose the media best suited
for each task.
Blu-Ray
Blu-ray Disc is the next generation in optical storage, offering
25GB and 50GB of storage capacity on a disc.
Serial ATA Techonology
Serial ATA is a 1.5Gbps evolutionary replacement for the Parallel
ATA physical storage interface used to connect storage devices,
such as hard disks, DVD and CD rewriters to the PC
motherboard. Serial ATA is scalable, enables design of smaller
PCs, and will allow future enhancements to the computing
platform.
LightScribe Technology
LightScribe gives you the ability to create customized labels that
are etched directly onto a special coated LightScribe disc (sold
separately).
specifications
optical
drive
BE12LU30
TECHNICAL SPECIFICATIONS
External Blu-ray Disc Rewriter
TYPE
TRANSFER RATES–WRITE BD-R (SL)
2x, 4x CLV, 6x, 8x, 10x PCAV, 12x
CAV
(DL)
2x, 4x CLV, 6x, 8x PCAV, 12X CAV
BD-R (SL L to H)
2x, 4x CLV, 6x PCAV
BD-RE (SL/DL)
2x CLV/ 2x CLV
DVD-R
2x, 4x CLV, 8x ZCLV, 8x, 12x PCAV,
16x CAV
2x, 4x CLV, 8x PCAV
DVD-R DL
DVD-RW
1x, 2x, 4x, 6x CLV
DVD-RAM
2x, 3x CLV, 5x, 12x PCAV
2.4x, 4x CLV, 8x ZCLV, 8x, 12x PCAV,
DVD+R
16x CAV
DVD+R DL
2.4x, 4x CLV, 8x PCAV
2.4x, 4x, 6x CLV, 8x ZCLV
DVD+RW
8x, 16x CLV, 24x, 32x, 40x PCAV,
CD-R
48x CAV
CD-RW
4x, 10x, 16x CLV, 24x ZCLV
TRANSFER RATES - READ BD-ROM (SL/DL)
10x / 8x CAV
BD-R (SL L to H)
6x CAV
BD-R (SL/DL)
10x / 8x CAV
BD-RE (SL/DL)
8x / 6x CAV
BDMV (AACS Compliant Disc) 4.8x CAV
DVD-ROM (SL/DL)
16x / 12x CAV
DVD-R (SL/DL)
16x / 12x CAV
12x CAV
DVD-RW
DVD+R (SL/DL)
16x / 12x CAV
DVD+RW
12x CAV
2x, 3x CLV, 5x, 12x PCAV
DVD-RAM
DVD-Video (CSS Compliant Disc) 12x/8x CAV (SL/DL)
CD-R/RW/ROM
48x / 40x / 48x CAV
CD-DA (DAE)
40x CAV
80mm CD
16x CAV
LIGHTSCRIBE
Supported disc formats LightScribe MV1.2-N Single Layer
DVD +/- R Media
LightScribe MV1.2-N CD-R Media
Printing Time
860 TPI: Full Label - less than 28 min.
860 TPI: Title Label - less than 3:30 min.
Pixel Resolution
600 DPI
Track Resolution
Best Mode: 860 TPI
Normal Mode: 630 TPI
Draft Mode: 400 TPI
Max Laser Write Power 40mW as Objective emission light of
780nm wavelength
Color
Mono, Color BG
ACCESS TIME
BD-ROM
180ms typ.
DVD-ROM
160ms typ.
DVD-RAM
180ms typ.
CD-ROM
150ms typ.
SUSTAINED RATE
BD-ROM
359.65 Mbits/s (10x) max.
DVD-ROM
22.16 Mbytes/s (16x) max.
CD-ROM
7,200 kB/s (48x) max.
BURST TRANSFER RATE 1.5Gbps bits/s (10b side)
1.2Gbps bits/s (8b side)
BUFFER SIZE
4MB Buffer Under-run prevention function embedded
HOST INTERFACE
External (Host)
eSATA & USB 2.0 (480Mbits/s)
Internal (Drive)
X3T13 ATA/ATAPI7 / 1532D
INF-8090i Ver.6.1
INCITS xxx T10/1675D Revision 4
COMPLIANCE
RoHS
OPERATING SYSTEMS Windows Vista™, Windows XP
SYSTEM REQUIREMENTS CPU: Intel® Pentium® 4 D 3.2GHz or Higher (with USB 2.0)
Intel Pentium 4 Core 2 Duo TE6300 or higher
IBM® PC or Compatible for basic performance
Graphic: AACS Compliance
RAM: 1GB or Higher
HDD: 60GB or more of available space
DIMENSIONS (W x H x D) 6.4" x 2.0" x 10.2" (163 x 50 x 260 mm)
WEIGHT
3.3lbs (1500g)
SOFTWARE
CyberLink Power2Go
CyberLink PowerDVD
CyberLink PowerBackup
CyberLink PowerProducer
www.LGsolutions.com
LG Electronics U.S.A., Inc.
Business Solutions Division
2000 Millbrook Drive
Lincolnshire, IL 60069
Customer Service: 888.865.3026
www.LGsolutions.com/support
Contact your LG Regional Sales Representative:
Hospitality: 800.228.1236
Vertical Markets: 800.897.8788
Channel: 800.897.8871
E-mail: [email protected]
SPEC_BE12LU_091015_c
Dimensions and weights are approximate. Design, specifications, and features subject to
change without notice.
© Copyright 2010 LG Electronics USA, Inc. All Rights Reserved. “LG Life’s Good” is a
registered trademark of LG Corp.
Blu-Ray Disc is a registered trademark of Sony Corporation. Windows and Windows
Vista are either a registered trademark or a trademark of Microsoft Corporation in the
United States and other countries. Intel and Pentium are trademarks or registered
trademarks of Intel Corporation or its subsidiaries in the United States and other countries.
IBM is a trademark of International Business Machines Corporation.
Printed in the USA. September 2010
